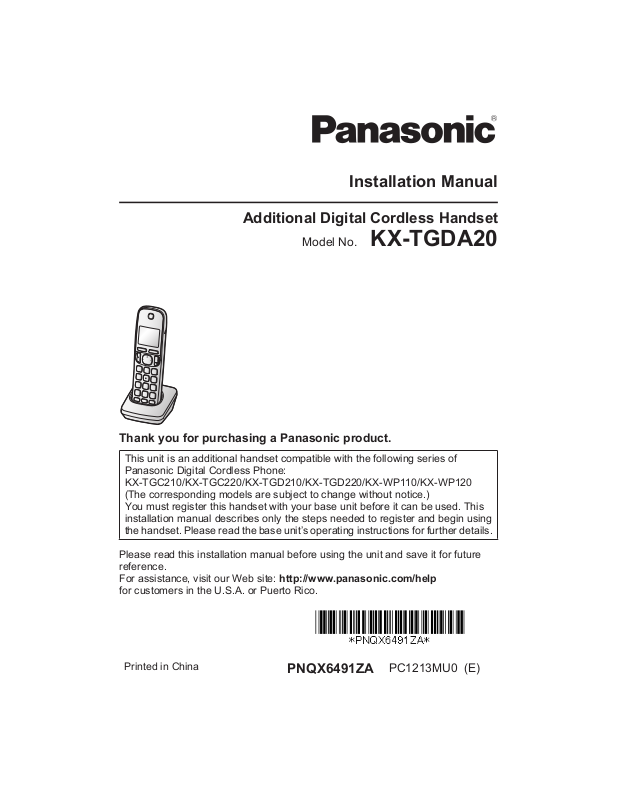

Panasonic KX-TGDA20 Installation Manual
Installation Manual
Additional Digital Cordless Handset
Model No. KX-TGDA20
Thank you for purchasing a Panasonic product.
This unit is an additional handset compatible with the following series of
Panasonic Digital Cordless Phone:
KX-TGC210/KX-TGC220/KX-TGD210/KX-TGD220/KX-WP110/KX-WP120
(The corresponding models are subject to change without notice.)
You must register this handset with your base unit before it can be used. This
installation manual describes only the steps needed to register and begin using
handset. Please read the base unit’s operating instructions for further details.
the
Please read this installation manual before using the unit and save it for future
reference.
For assistance, visit our Web site: http://www.panasonic.com/help
for customers in the U.S.A. or Puerto Rico.
Printed in China
PNQX6491ZA
PC1213MU0 (E)
2
1
2
1
2
Installation
Accessory information
Supplied accessories
Accessory item/Order number Quantity
Charger/PNLC1056ZN 1
Rechargeable batteries/HHR-4DPA 2
Handset cover*1/PNYNTGDA20NR
Belt clip/PNKE1054Z4 1
*1 The handset cover comes attached to the handset.
Note:
R Please read the base unit’s operating instructions for additional/replacement
accessories.
1
Setting up
Connections/Wall mounting
Connect the AC adaptor to the power outlet.
Drive the screws 1 (not supplied) into the wall, if necessary.
27.2 mm (1 1/16 inches)
Note:
R T
he AC adaptor must remain connected at all times. (It is normal for the adaptor
to feel warm during use.)
R Make sure that the wall and the fixing method are strong enough to support the
weight of the unit.
For assistance, please visit http://www.panasonic.com/help
2
1
2
1
2
Installation
Battery installation/Battery charging
Important:
R Use the supplied rechargeable batteries. For replacement, we recommend using
the Panasonic rechargeable batteries noted on page 2.
R USE ONLY rechargeable Ni-MH batteries AAA (R03) size (
R Do NOT use Alkaline/Manganese/Ni-Cd batteries.
R Confirm correct polarities (
Charge for about 7 hours.
R Confirm “Charging” is displayed (
R When the batteries are fully charged, “Fully charged” is displayed.
Note:
R If the batteries are fully charged, but the operating time seems to be shorter,
clean the battery ends (
charge again.
, ).
).
, ) and the charge contacts with a dry cloth and
).
Registering a handset to a base unit
1 Base unit:
Press and hold MLOCATORN for about 5 seconds.
R If all registered handsets start ringing, press MLOCATORN again to stop,
then repeat this step.
2 Handset:
Place the handset on the base unit or charger, then wait until a long beep
sounds and
Note:
R If an error tone sounds, or if
the base unit’s operating instructions.
is displayed.
is displayed, register the handset according to
For assistance, please visit http://www.panasonic.com/help
3
Installation
Display language
1 MMENUN #110
2 MbN: Select the desired setting. a MSAVEN a MOFFN
For your safety
To prevent severe injury and loss of life/property, read this section carefully before
using the product to ensure proper and safe operation of your product.
WARNING
Power connection
R Completely insert the AC adaptor/power plug into the power outlet. Failure to do
so may cause electric shock and/or excessive heat resulting in a fire.
R Regularly remove any dust, etc. from the AC adaptor/power plug by pulling it
from the power outlet, then wiping with a dry cloth. Accumulated dust may cause
an insulation defect from moisture, etc. resulting in a fire.
R Unplug the product from power outlets if it emits smoke, an abnormal smell, or
makes an unusual noise. These conditions can cause fire or electric shock.
Confirm that smoke has stopped emitting and contact us at http://
www.panasonic.com/contactinfo
Installation
R To prevent the risk of fire or electrical shock, do not expose the product to rain
or any type of moisture.
R Do not place or use this product near automatically controlled devices such as
automatic doors and fire alarms. Radio waves emitted from this product may
cause such devices to malfunction resulting in an accident.
CAUTION
Installation and location
R The AC adaptor is used as the main disconnect device. Ensure that the AC
outlet is installed near the product and is easily accessible.
Battery
R We recommend using the supplied batteries or additional/replacement batteries
noted on page 2 for replacement battery information. USE ONLY rechargeable
Ni-MH batteries AAA (R03) size.
R Do not mix old and new batteries.
For assistance, please visit http://www.panasonic.com/help
4
Installation
R Do not open or mutilate the batteries. Released electrolyte from the batteries is
corrosive and may cause burns or injury to the eyes or skin. The electrolyte is
toxic and may be harmful if swallowed.
R Exercise care when handling the batteries. Do not allow conductive materials
such as rings, bracelets, or keys to touch the batteries, otherwise a short circuit
may cause the batteries and/or the conductive material to overheat and cause
burns.
R Charge the batteries provided with or identified for use with this product only, in
accordance with the instructions and limitations specified in this manual.
R Only use a compatible base unit (or charger) to charge the batteries. Do not
tamper with the base unit (or charger). Failure to follow these instructions may
cause the batteries to swell or explode.
Attention:
A nickel metal hydride battery that is
recyclable powers the product you have
purchased.
Please call 1-800-8-BATTERY
(1-800-822-8837) for information on how
to recycle this battery.
Important safety instructions
When using your product, basic safety precautions should always be followed to
reduce the risk of fire, electric shock, and injury to persons, including the following:
1. Do not use this product near water for example, near a bathtub, washbowl,
kitchen sink, or laundry tub, in a wet basement or near a swimming pool.
2. Do not use the telephone to report a gas leak in the vicinity of the leak.
3. Use only the power cord and batteries indicated in this manual. Do not dispose
of batteries in a fire. They may explode. Check with local codes for possible
special disposal instructions.
SAVE THESE INSTRUCTIONS
Other information
R Operating the product near electrical appliances may cause interference. Move
away from the electrical appliances.
CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of
used batteries according to the instructions.
For assistance, please visit http://www.panasonic.com/help
