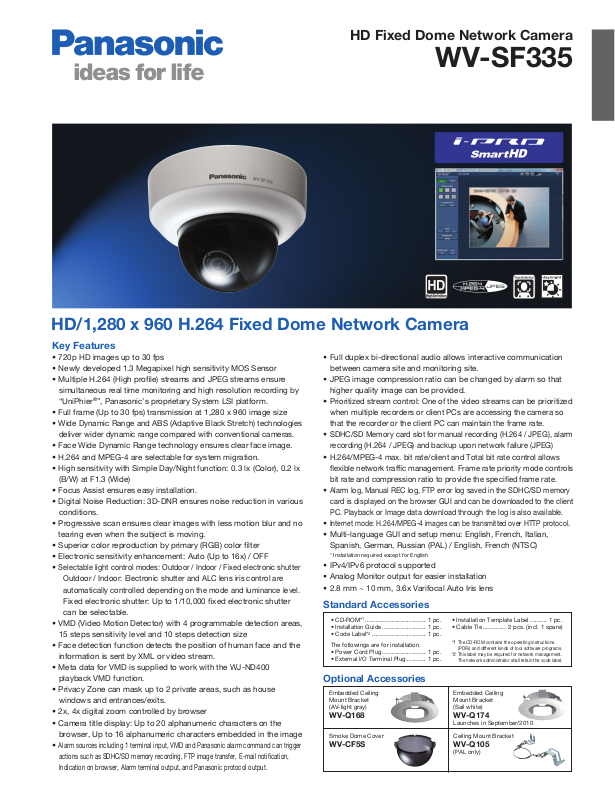

Panasonic i-Pro WV-SF335 Specifications

HD Fixed Dome Network Camera

WV-SF335

HD/1,280 x 960 H.264 Fixed Dome Network Camera

Key Features

• 720p HD images up to 30 fps

• Newly developed 1.3 Megapixel high sensitivity MOS Sensor

• Multiple H.264 (High profile) streams and JPEG streams ensure
simultaneous real time monitoring and high resolution recording by
“UniPhier®”, Panasonic’s proprietary System LSI platform.

• Full frame (Up to 30 fps) transmission at 1,280 x 960 image size

•

Wide Dynamic Range and ABS (Adaptive Black Stretch) technologies
deliver wider dynamic range compared with conventional cameras.

• Face Wide Dynamic Range technology ensures clear face image.

• H.264 and MPEG-4 are selectable for system migration.

• High sensitivity with Simple Day/Night function: 0.3 lx (Color), 0.2 lx
(B/W) at F1.3 (Wide)

• Focus Assist ensures easy installation.

• Digital Noise Reduction: 3D-DNR ensures noise reduction in various
conditions.

• Progressive scan ensures clear images with less motion blur and no

tearing even when the subject is moving.

• Superior color reproduction by primary (RGB) color filter

• Electronic sensitivity enhancement: Auto (Up to 16x) / OFF

•

Selectable light control modes: Outdoor / Indoor / Fixed electronic shutter

Outdoor / Indoor: Electronic shutter and ALC lens iris control are
automatically controlled depending on the mode and luminance level.
Fixed electronic shutter: Up to 1/10,000 fixed electronic shutter

can be selectable.

• VMD (Video Motion Detector) with 4 programmable detection areas,

15 steps sensitivity level and 10 steps detection size

• Face detection function detects the position of human face and the

information is sent by XML or video stream.

• Meta data for VMD is supplied to work with the WJ-ND400

playback VMD function.

• Privacy Zone can mask up to 2 private areas, such as house

windows and entrances/exits.

• 2x, 4x digital zoom controlled by browser

• Camera title display: Up to 20 alphanumeric characters on the

browser, Up to 16 alphanumeric characters embedded in the image

•

Alarm sources including 1 terminal input, VMD and Panasonic alarm command can trigger
actions such as SDHC/SD memory recording, FTP image transfer, E-mail notification,
Indication on browser, Alarm terminal output, and Panasonic protocol output.

• Full duplex bi-directional audio allows interactive communication
between camera site and monitoring site.

• JPEG image compression ratio can be changed by alarm so that
higher quality image can be provided.

•

Prioritized stream control: One of the video streams can be prioritized
when multiple recorders or client PCs are accessing the camera so
that the recorder or the client PC can maintain the frame rate.

•

SDHC/SD Memory card slot for manual recording (H.264 / JPEG), alarm
recording (H.264 / JPEG) and backup upon network failure (JPEG)

•

H.264/MPEG-4 max. bit rate/client and Total bit rate control allows
flexible network traffic management. Frame rate priority mode controls
bit rate and compression ratio to provide the specified frame rate.

•

Alarm log, Manual REC log, FTP error log saved in the SDHC/SD memory
card is displayed on the browser GUI and can be downloaded to the client
PC. Playback or Image data download through the log is also available.

•

Internet mode: H.264/MPEG-4 images can be transmitted over HTTP protocol.

• Multi-language GUI and setup menu: English, French, Italian,
Spanish, German, Russian (PAL) / English, French (NTSC)

* Installation required except for English

• IPv4/IPv6 protocol supported

• Analog Monitor output for easier installation

• 2.8 mm ~ 10 mm, 3.6x Varifocal Auto Iris lens

Standard Accessories

• CD-ROM*1 .................................... 1 pc.

Installation Guide

•

• Code Label*

The followings are for installation.

• Power Cord Plug .......................... 1 pc.

• External I/O Terminal Plug ............ 1 pc.

Optional Accessories

Embedded Ceiling
Mount Bracket
(AV-light gray)

WV-Q168

Smoke Dome Cover

WV-CF5S

.......................... 1 pc.

2

................................ 1 pc.

• Installation Template Label .......... 1 pc.

• Cable Tie .............. 2 pcs. (incl. 1 spare)

*1

The CD-ROM contains the operating instructions
(PDFs) and different kinds of tool software programs.
*2

This label may be required for network management.
The network administrator shall retain the code label.

Embedded Ceiling
Mount Bracket
(Sail white)

WV-Q174

Launches in September/2010

Ceiling Mount Bracket

WV-Q105

(PAL only)

Specifications

TV System NTSC PAL
Camera Image Sensor 1/3 type MOS Sensor

Effective Pixels Approx. 1.3 megapixel

Scanning Mode Progressive scan

Scanning Area 4.8 mm (H) x 3.6 mm (V)
Minimum Illumination Color: 0.3 lx, B/W: 0.2 lx at F1.3 (Shutter: 1/30 s, AGC: High),

White Balance
Light Control Mode Outdoor: Automatic integration of ALC and ELC

Shutter Speed Fix shutter: OFF (1/30), 3/100, 3/120, 2/100, 2/120, 1/100,

1/120, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000

Wide Dynamic Range ON / OFF

Face Wide Dynamic Range
Adaptive Black Stretch ON / OFF (Only at Wide Dynamic Range: OFF)
AGC ON (LOW, MID, HIGH) / OFF

Electronic Sensitivity UP OFF / AUTO (Max. 2x (2/30 s), 4x (4/30 s), 6x (6/30 s), 10x (10/30 s), 16x (16/30 s))

Simple Day/Night Mode AUTO / OFF
Digital Noise Reduction High / Low
Video Motion Detection 4 areas, Sensitivity: 15 steps, Detection size: 10 steps
Privacy Zone Up to 2 zones, Gray

Camera Title (OSD) Up to 16 alphanumeric characters

Focus Adjustment Focus Assist
Lens Vari Focal Length 2.8 mm ~ 10 mm, 3.6x varifocal
Angular Field of View H: 27.7° (Tele) ~ 100.3° (Wide), V: 20.8° (Tele) ~ 73.5° (Wide)

Maximum Aperture Ratio
Focusing Range 0.3 m ~ ∞
Adjusting Angle Horizontal: 180° (clockwise), 170° (counter clockwise)
Vertical: ±75°, Imaging tilt adjustment range: ±100°

Browser Camera Control Brightness, AUX ON / OFF
GUI Display Mode

Digital Zoom 1x, 2x, 4x controlled by browser GUI

Camera Title Up to 20 alphanumeric characters
Clock Display
Alarm Control Reset
One Shot Capture A still picture will be displayed on a newly opened window.
Audio

SD Memory Data Download
card can be downloaded.

GUI/Setup Menu Language

System Log Up to 100 (Internal), Up to 4,000 (SDHC/SD memory when the

recording format is set to JPEG.) error logs

Supported OS Microsoft
Microsoft
Microsoft

Supported Browser
Windows® Internet Explorer® 7.0 (Microsoft® Windows Vista® Business SP1 32 bit),
Microsoft

Network Network IF 10Base-T / 100Base-TX, RJ-45 connector

Image Aspect ratio:

Aspect ratio: H.264: 1,280 × 720 / 640 × 360 / 320 × 180, up to 30 fps

[16 : 9] JPEG: 1,280 × 720 / 640 × 360 / 320 × 180, up to 30 fps

H.264/

MPEG-4 Mode

30 fps 20 / 30 fps
Bit Rate/ 64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 1,536 / 2,048 / 3,072 /
Client 4,096 / 8,192* kbps / Unlimited * H.264 mode only

JPEG

Audio Compression G.726 (ADPCM) 32 kbps / 16 kbps

Audio Mode

Total Bit Rate
Supported Protocol

IPv4: TCP/IP, UDP/IP, HTTP, RTSP, RTP, RTP/RTCP, FTP,
SMTP, DHCP, DNS, DDNS, NTP, SNMP
FTP Client Alarm image transfer, Periodic image transfer, Active/Passive
selectable (When the FTP periodic transmission is failed,

backup on an optional SDHC/SD memory card is available.)

Resolution

[4 : 3] MPEG-4: VGA (640 × 480) / QVGA (320 × 240), up to 30 fps

*1 *2

Transmission Constant bitrate / Framerate priority

*1

Frame Rate 1 / 3 / 5 / 7.5 / 10 / 15 / 20 / 1 / 3 / 5 / 7.5 / 10 / 12 / 15 /

Image Quality
Refresh Interval
Transmission Type
Image Quality
Transmission Type

Authentication for Audio

No. of Simultaneous Users

Color: 0.019 lx, B/W: 0.013 lx at F1.3 (Shutter: 16/30 s, AGC: High)

AWC (2,000 ~ 10,000 K), ATW1 (2,700 ~ 6,000 K), ATW2 (2,000 ~ 6,000 K)

Indoor [50 Hz]: Automatic integration of ALC and ELC (up to 1/100 s)
Indoor [60 Hz]: Automatic integration of ALC and ELC (up to 1/120 s)

ON / OFF (Only at Wide Dynamic Range: ON)

1 : 1.3 (Wide) ~ 1 : 3.1 (Tele)

Spot, Quad: Image from 16 cameras can be displayed in 4 different Quad

screens or 16 split screen (JPEG only). 20 characters camera title available.

Time: 12H/24H, Date: 5 formats on the browser, Summer time (Manual)

Mic (Line) Input: ON / OFF Volume adjustment: Low / Middle / High,
Audio Output: ON / OFF Volume adjustment: Low / Middle / High

Still or motion Images recorded in the SDHC/SD memory

English, French English, French, Italian,

(Installation required for French)

®

Windows® 7 Professional 64 bit/32 bit,

®

Windows Vista® Business SP1 32 bit,

®

Windows® XP Professional SP3

The language of the OS must be same as selected GUI language.

Windows® Internet Explorer® 8.0 32 bit (Microsoft® Windows® 7 64 bit/32 bit),

®

Internet Explorer® 6.0 SP3 (Microsoft® Windows® XP Professional SP3)

H.264: 1,280 × 960 / VGA (640 × 480) / QVGA (320 × 240), up to 30 fps

JPEG: 1,280 × 960 / VGA (640 × 480) / QVGA (320 × 240), up to 30 fps

LOW / NORMAL / FINE

0.1 fps ~ 30 fps

UNICAST / MULTICAST

10 steps
PULL / PUSH

OFF / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex)

Level 1 only / Level 2 higher / All users

64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 2,048 / 4,096 / 8,192 kbps / Unlimited

IPv6: TCP/IP, UDP/IP, HTTP, RTP, FTP, SMTP, DNS, NTP, SNMP

Up to 14 users (Depends on network conditions)

Spanish, German, Russian

(Installation required except for English)

TV System NTSC PAL

SDHC/SD Memory Card

Network
(Option)

Face Detection ON / OFF (with XML notification)
Alarm Alarm Source 1 terminal input, VMD, Command alarm

Alarm Actions

Indication on browser, FTP image transfer, Panasonic protocol output

Alarm Log

Schedule Alarm / VMD / Access permission

Input/ Monitor Output 1.0 V [p-p] / 75 Ω, 1.0 V [p-p] / 75 Ω,
Output (for adjustment) NTSC composite, RCA Jack PAL composite, RCA Jack

Microphone/Line Input MIC IN and Line IN are selectable. ø3.5 mm stereo mini jack

(monaural input) (Applicable microphone; Plug-in power type)

Supply voltage: 2.5 V ±0.5 V input impedance: approx. 2 kΩ
Audio Output ø3.5 mm stereo mini jack (monaural output) Line level
External I/O Terminals ALARM IN, ALARM OUT, AUX OUT

General Safety/EMC Standard

C-UL (CAN/CSA C22.2 No.60065),

DOC (ICES003 ClassA)

Power Source and 12 V DC: 280 mA, PoE (IEEE 802.3af): 3.5 W (Class 2 device)

Power Consumption
Ambient Operating
Temperature/Humidity 90 % or less (without condensation)

Dimensions ø129.5 mm x 93 mm (H) (ø5-1/8" x 3-5/8" (H))
Mass (approx.) 370 g (0.82 lbs.)
*1 H.264 and MPEG-4 are alternative. *2 [4 : 3] and [16 : 9] are alternative.

H.264 recording: Manual REC / Alarm REC (Pre/Post)

JPEG recording: Manual REC / Alarm REC (Post) / Backup upon

network failure Compatible SD (SDHC) card: Panasonic 256 MB,

512 MB, 1 GB, 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB* model * SDHC card

SDHC/SD memory recording, E-mail notification, Alarm terminal output,

With SDHC/SD memory card: 5,000 logs, without SDHC/SD memory card: 1,000 logs

UL (UL60065), FCC (Part15 ClassA), CE (EN55022 ClassB, EN55024)

-

10 °C ~ +50 °C (14 °F ~ 122 °F),

Part Names and Functions

3.6x Variable Focal Lens
Monitor Out Connector for Adjustment

Panning Table Lock Screw

12 V DC Power Cable Terminals
Focus Assist Button

SDHC/SD Memory Card Error Indicator

/ Focus Assist Indicator

Link Indicator

* Due to space limitation, the connector of the audio cable and network cable

should be within 30 mm (1-3/16") from the connector of the camera.

Access Indicator
SDHC/SD Memory Card Slot

INITIAL SET Button

Audio Output Connector
Microphone/Line Input Connector

Network Connector (RJ-45)
External I/O Terminals

Appearance

46

(1-13/16")

Trademarks and registered trademarks

Microsoft, and Windows are registered trademarks of Microsoft Corporation in the U.S. and other countries.

–
– UniPhier is a registered trademark of Panasonic Corporation.
– "Super Dynamic", "SDII", "SDIII", "SD5", "SD5Link", "i-PRO" and "i-PRO SmartHD" logos are
trademarks or registered trademarks of Panasonic Corporation.

Important

Safety Precaution: carefully read the operating instructions and installation manual before using this product.

–
–

Panasonic can not be responsible for network performance and/or other manufacturer products that

reside on the network.

• All TV pictures are simulated.

• Masses and dimensions are approximate.

• Specifications are subject to change without notice.

• These products may be subject to export control regulations.

• All product pictures are NTSC models.

0.5(1/32") 93(3-5/8")

4-ø4.7

83.5(3-5/16")

48(1-7/8")

ø129.5(ø5-1/8")

Unit: mm (inches)

DISTRIBUTED BY:

http://panasonic.net/security/

Printed in Japan (2A-061EL)
