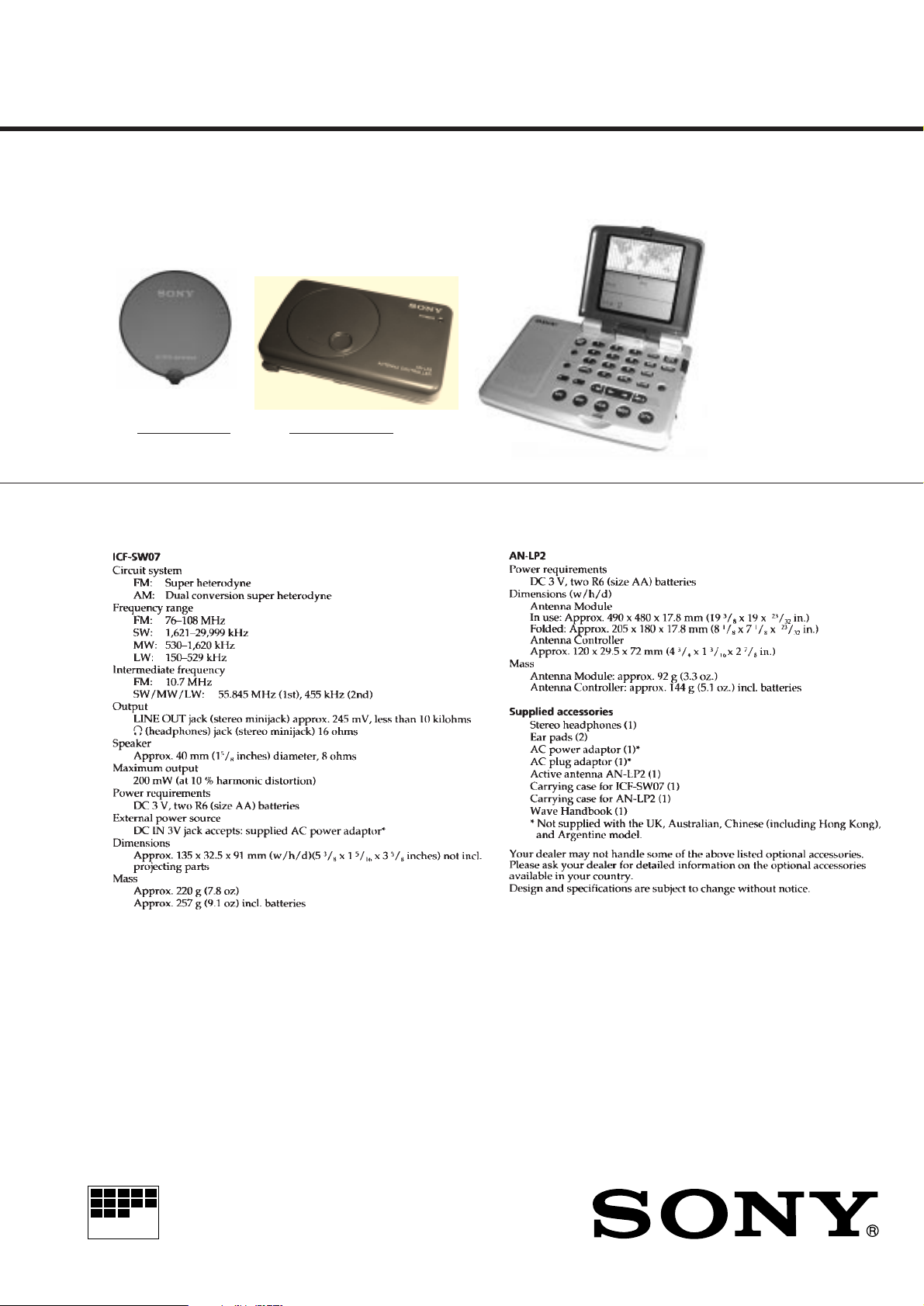

SERVICE MANUAL

Ver 1.0 1999.02

Antenna mdule

AN-LP2

Antenna Controller

SPECIFICATIONS

US Model

Canadian Model

AEP Model

E Model

Tourist Model

ICF-SW07

MICROFILM

FM STEREO/SW/MW/LW

PLL SYNTHESIZED RECEIVER

TABLE OF CONTENTS

Specifications ............................................................................ 1

1. SERVICE NOTE........................................................... 3

2. GENERAL ...................................................................... 4

3. DISASSEMBLY

3-1. Cabinet (Lower), Cabinet ASSY .............................. 25

3-2. Chassis ASSY........................................................... 26

3-3. Main Board ............................................................... 26

3-4. Key Board................................................................. 27

3-5. Microcomputer Board............................................... 27

3-6. Cabinet (Front), Reel ASSY ..................................... 28

3-7. Cabinet (Rear), Reel Board, Control Board ............. 28

4. ELECTRICAL ADJUSTMENTS........................ 29

5. DIAGRAMS

5-1. Explanation of IC Terminals ................................... 34

5-2. Block Diagrams....................................................... 37

5-3. Printed Wiring Boards (Main Section).................... 41

5-4. Schematic Diagram (Main Section) ........................ 46

5-5. Printed Wiring Boards (Key Section) ..................... 50

5-6. Schematic Diagram (Key Section).......................... 53

5-7. Printed Wiring Boards (Microcomputer Section) ... 55

5-8. Schematic Diagram (Microcomputer Section) ....... 56

5-9. Printed Wiring Boards (Antenna Section) .............. 59

5-10.Schematic Diagram (Antenna Section)................... 61

6. EXPLODED VIEWS

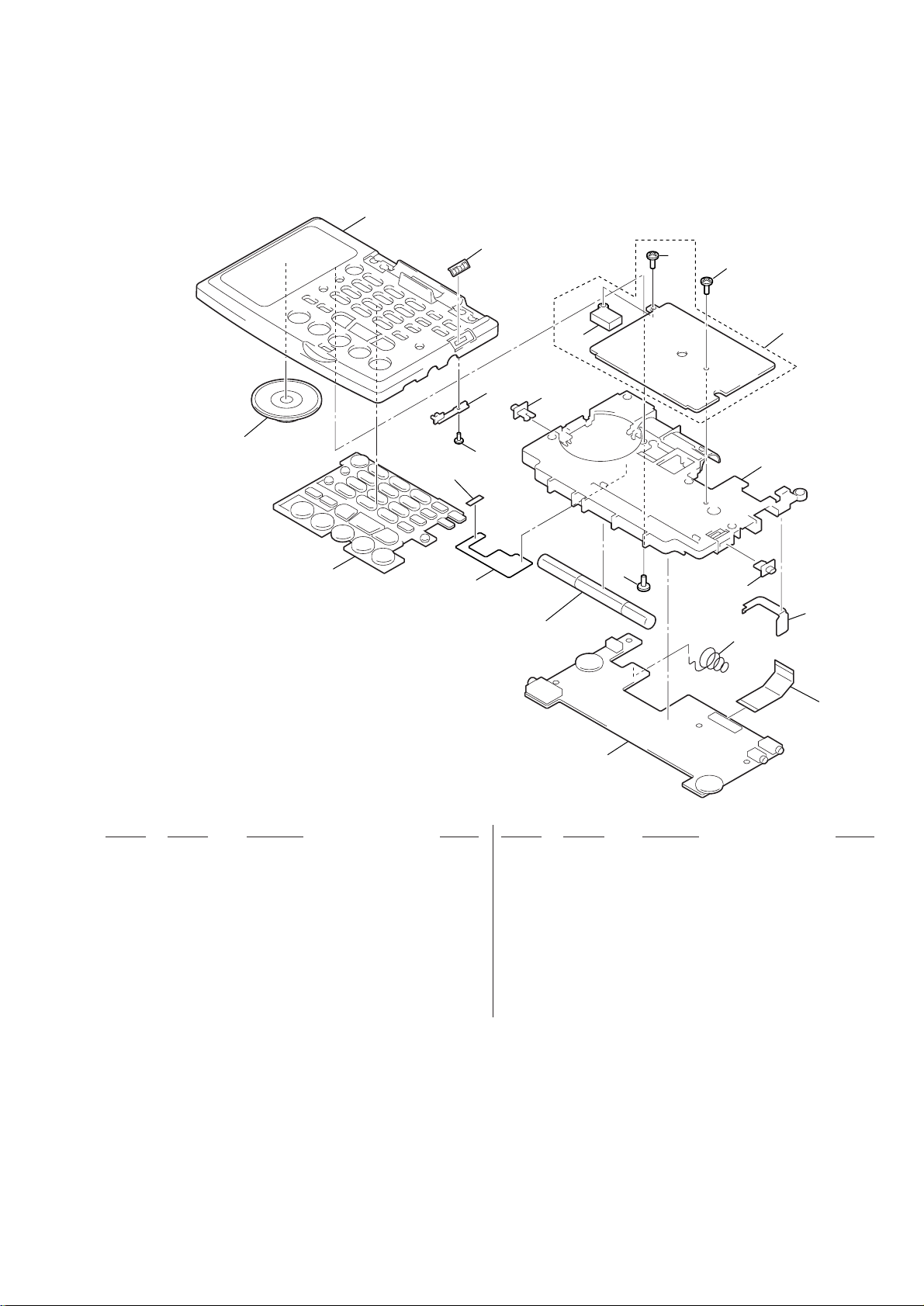

6-1. Cabinet Section......................................................... 64

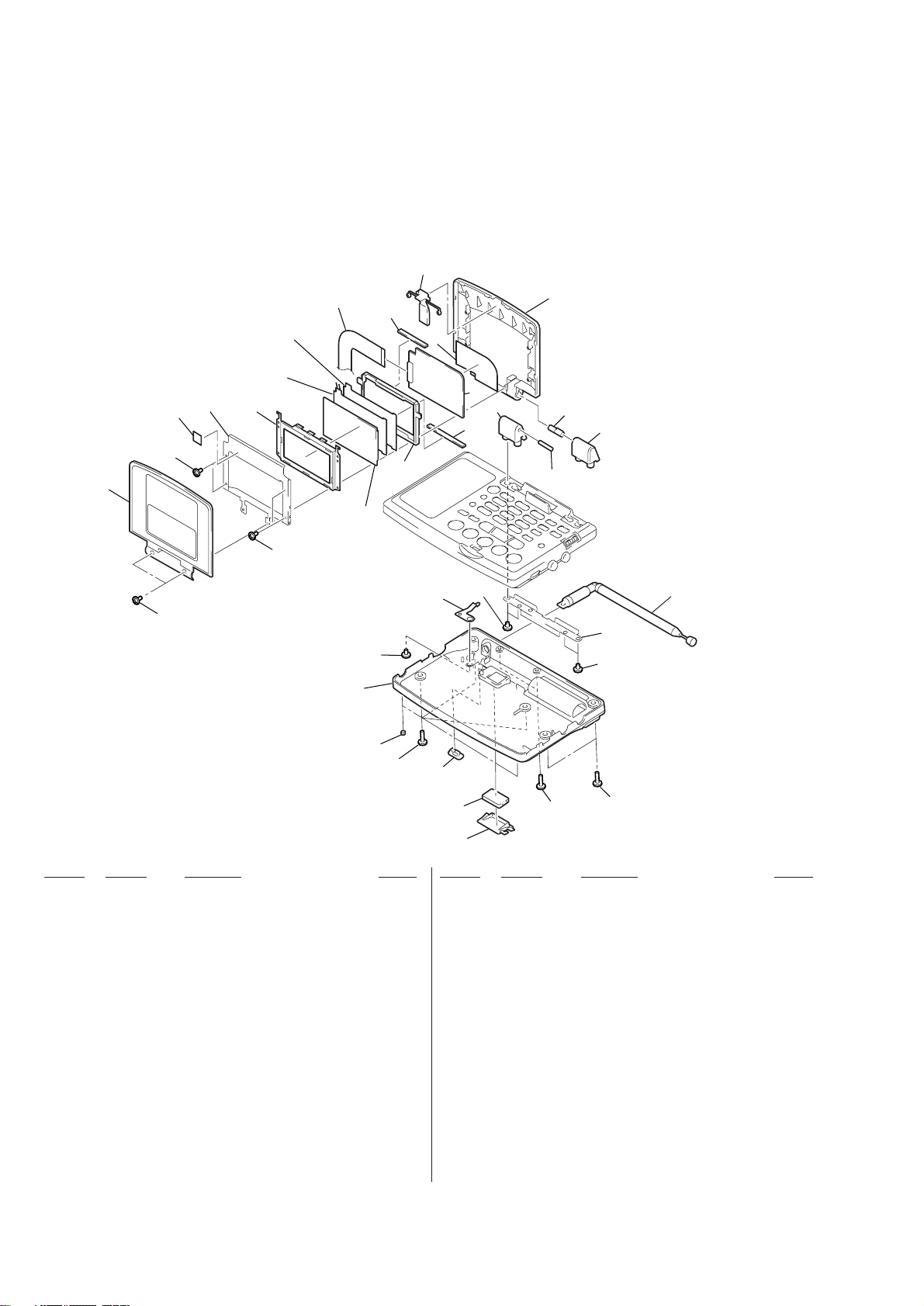

6-2. Chassis Section ......................................................... 65

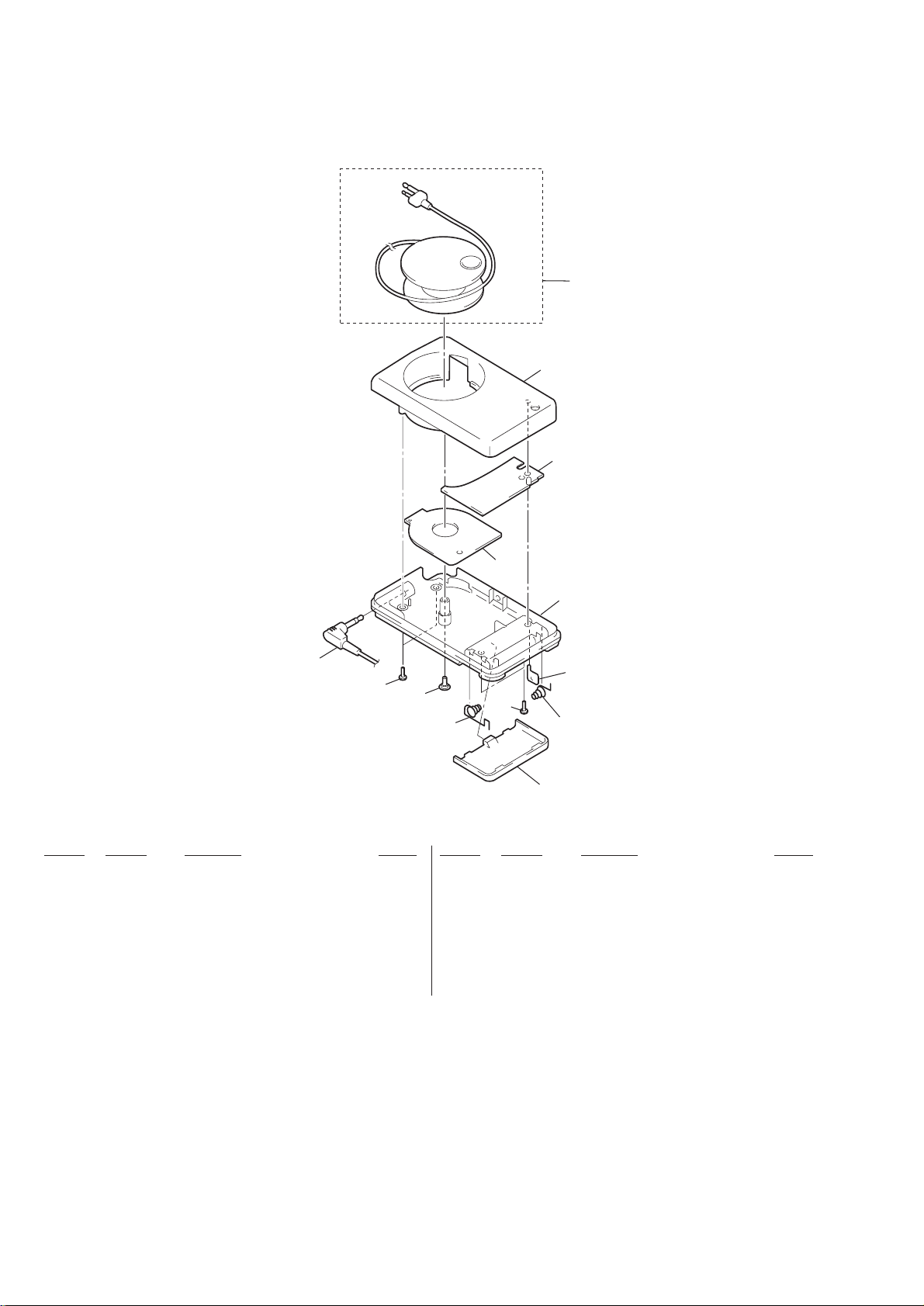

6-3. Antenna Controller Section ...................................... 66

6-4. SW Loop Antenna Section ....................................... 67

7. ELECTRICAL PARTS LIST................................... 68

Flexible Circuit Board Repairing

• Keep the temperature of the soldering iron around 270°C during
repairing.

• Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).

• Be careful not to apply force on the conductor when soldering or
unsoldering.

Notes on chip component replacement

• Never reuse a disconnected chip component.

• Notice that the minus side of a tantalum capacitor may be dam­aged by heat.

SAFETY-RELATED COMPONENT WARNING!!

COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH
MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS
LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN
SUPPLEMENTS PUBLISHED BY SONY.

ATTENTION AU COMPOSANT AYANT RAPPORT

À LA SÉCURITÉ!

LES COMPOSANTS IDENTIFIÉS P AR UNE MARQUE ! SUR LES
DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES
SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT .
NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES
SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL
OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.

– 2 –

SECTION 1

SERVICE NOTE

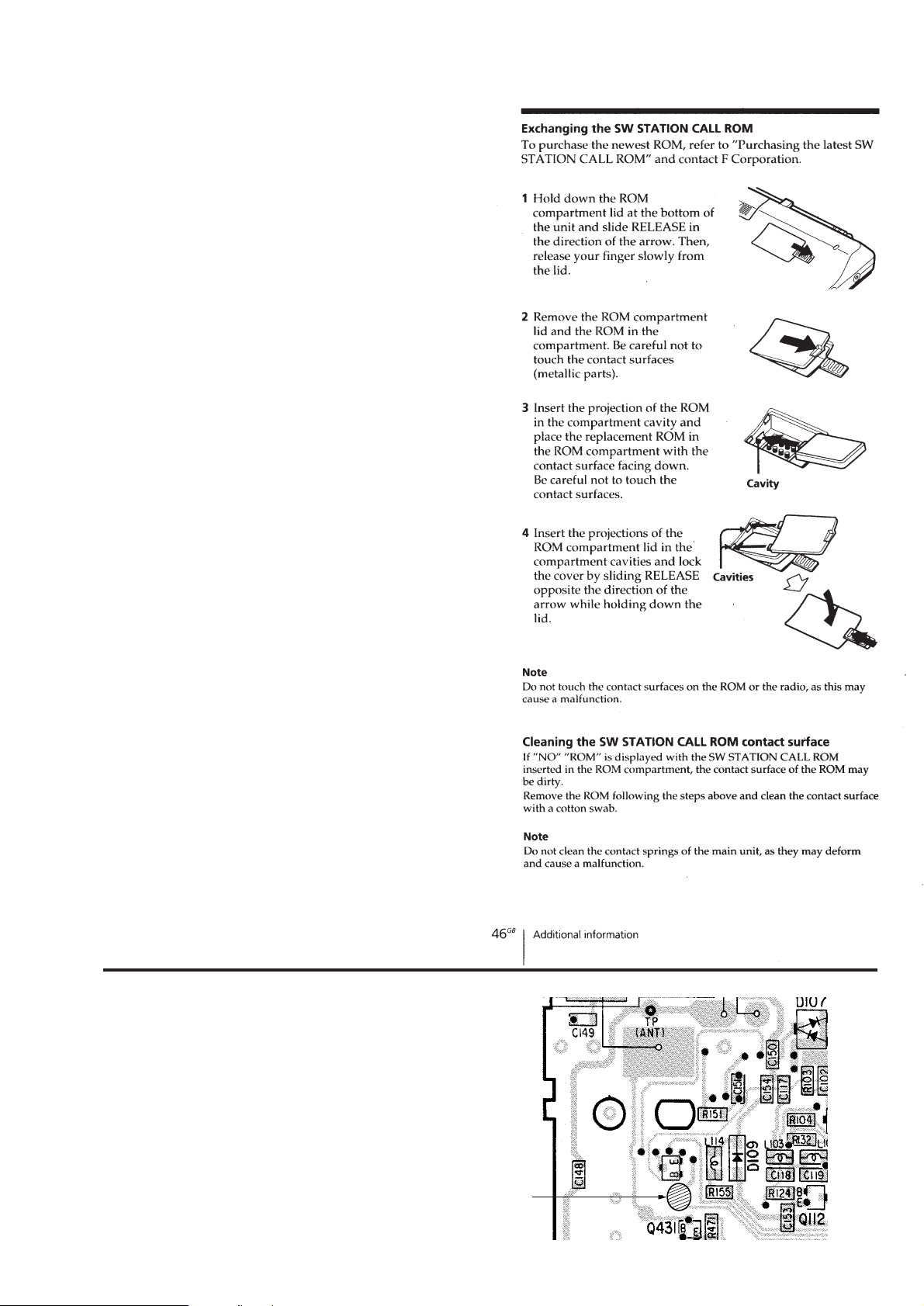

REPLACING THE SW STATION CALL ROM

The propagation of short-wave radio waves is greatly affected by
many causes such as atmospheric phenomenon due to dark spots on
the sun, etc.
This makes it necessary for short wave radio broadcast stations to
periodically change their broadcast frequencies. This set can be re­placed with a new SW STATION CALL ROM to allow changing
the broadcast frequencies.
This set came with the latest ROM (Sony) when purchased. The
user can later on when needed, purchase the latest updated ROM (F
Corp.) version from the F Corporation on referring to the instruc­tions for “Purchasing the Latest SW ST ATION CALL ROM” which
are included with the unit. These ROMs can also
be custom made to match the user’s particular combination of broad­cast station frequencies.

• Identify the 2 different types of ROMs (Sony or F Corp.) as
follows.

The Sony ROM has no printing on it.
The F Corp. ROM is marked with the F Corporation name.

• Servicing is provided for the accessory Sony ROM.

• Only the most recent version is supplied for replacing the Sony
ROM.

• A new Sony ROM is issued every year in October and the part
No. suffix is also changed.

• A new updated Sony ROM is issued every year so is not usually
kept in stock.

• Servicing is not provided for the F Corp. ROM.

• Instruct the user to directly contact the F Corporation when the
F Corp. ROM is obviously malfunctioning or defective.

Address
Mail : F Corporation P.O. Box 816

Tokyo 100-8692 Japan
Fax : [phone]
E-mail : [email protected]

AEP, 7AEP model only

Connecting short land as in the figure when changed main board.

[MAIN BOARD] (SIDE A)

Short land

– 3 –

Q130

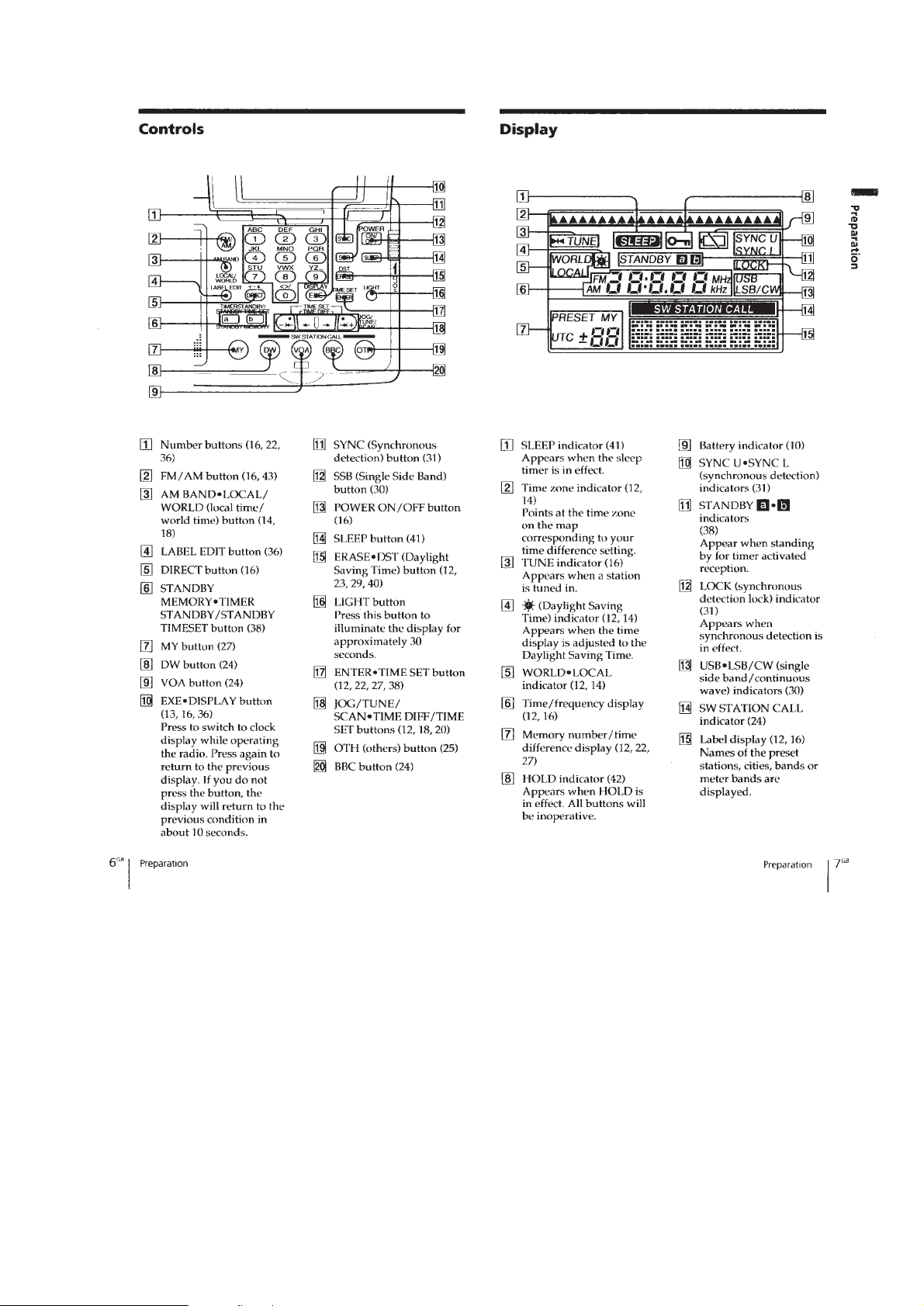

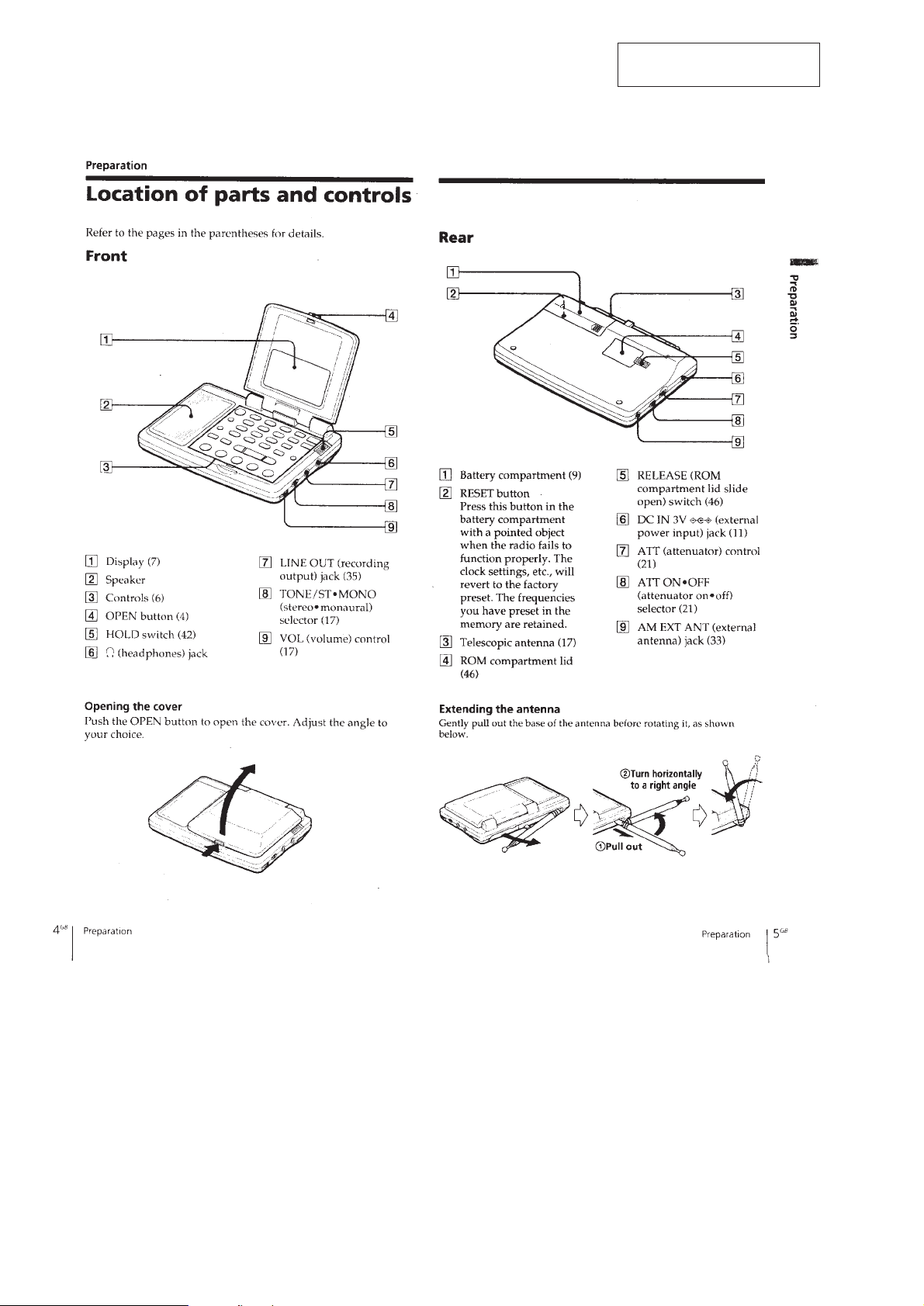

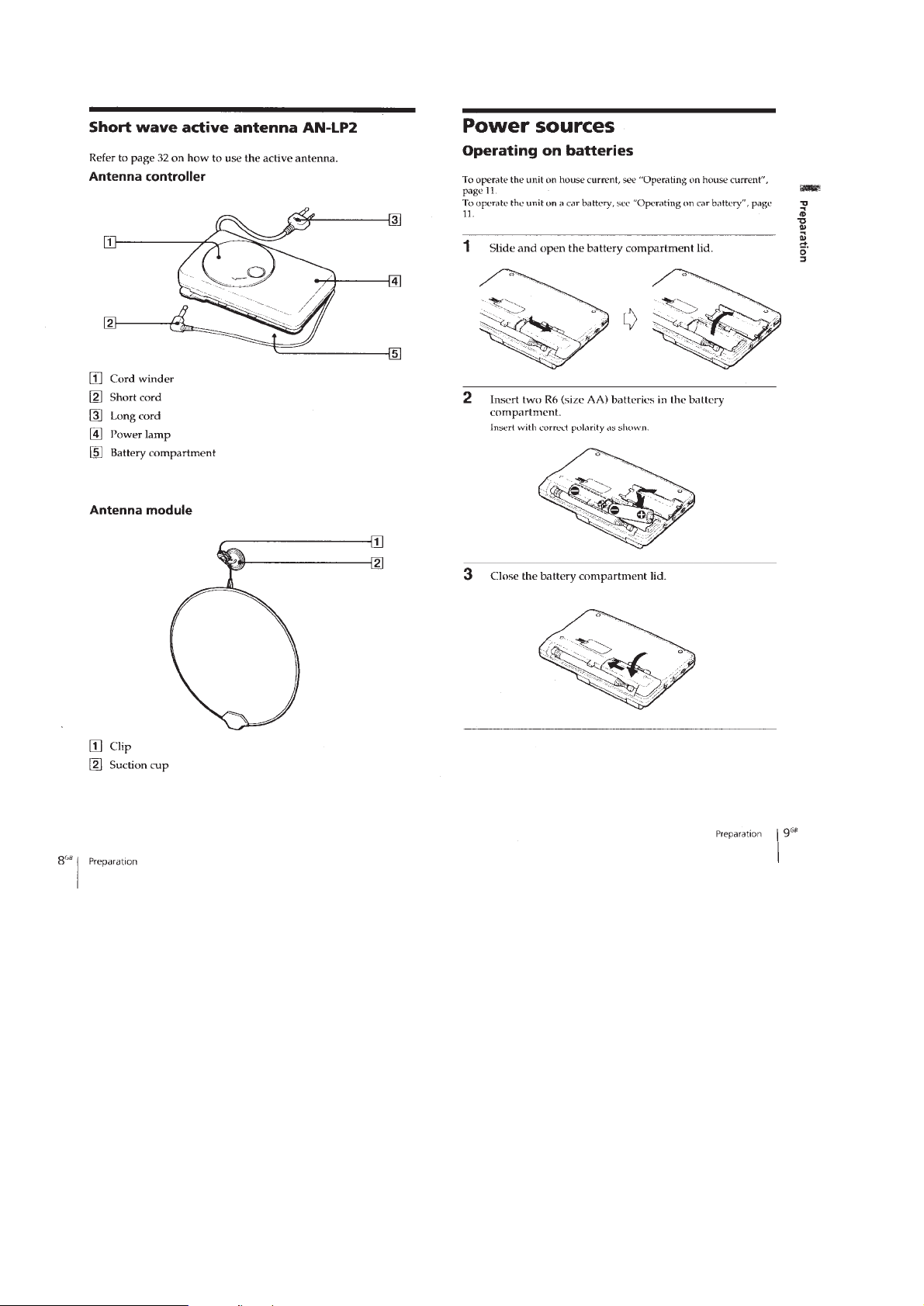

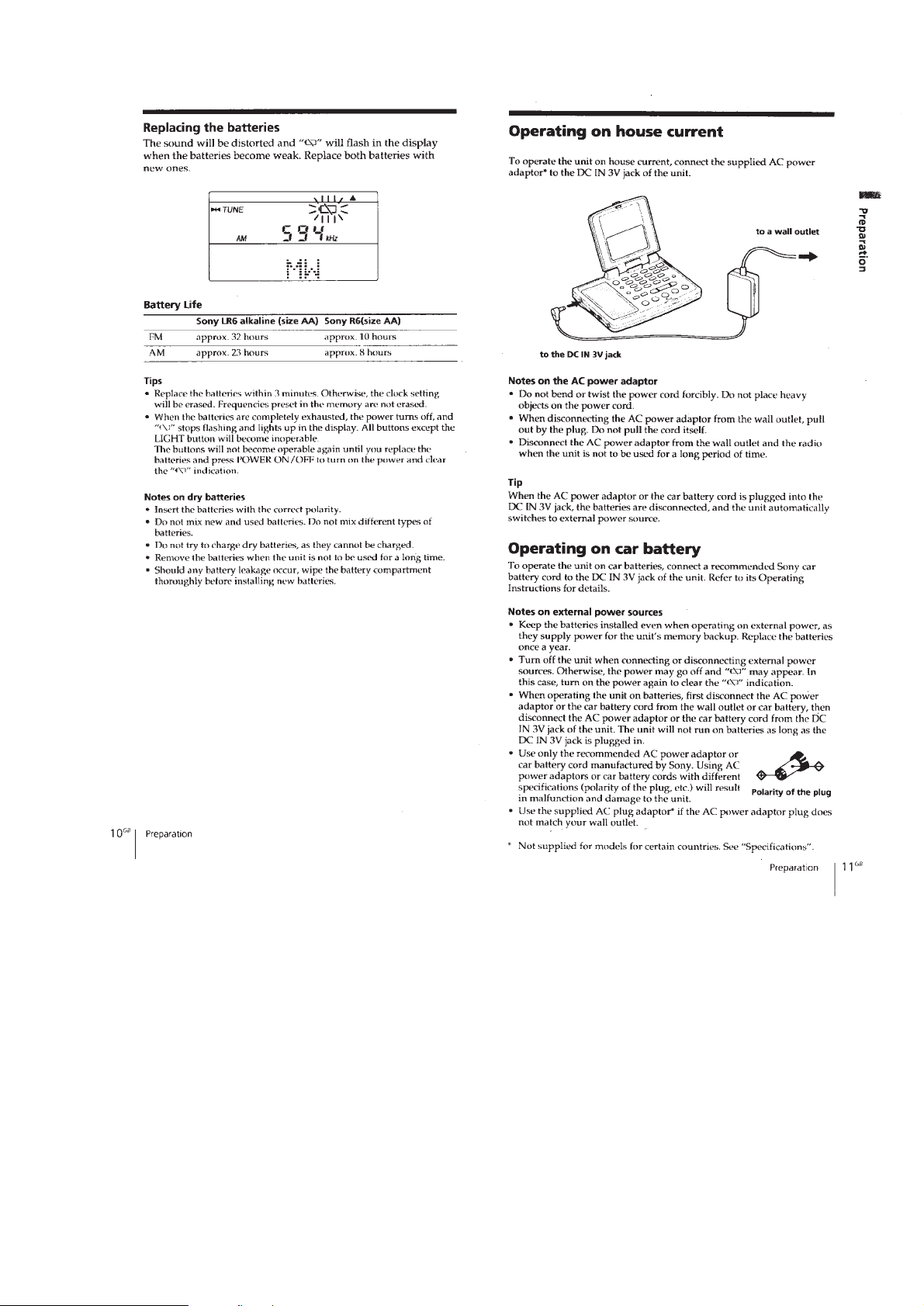

LOCATION AND FUNCTION OF CONTROLS

SECTION 2

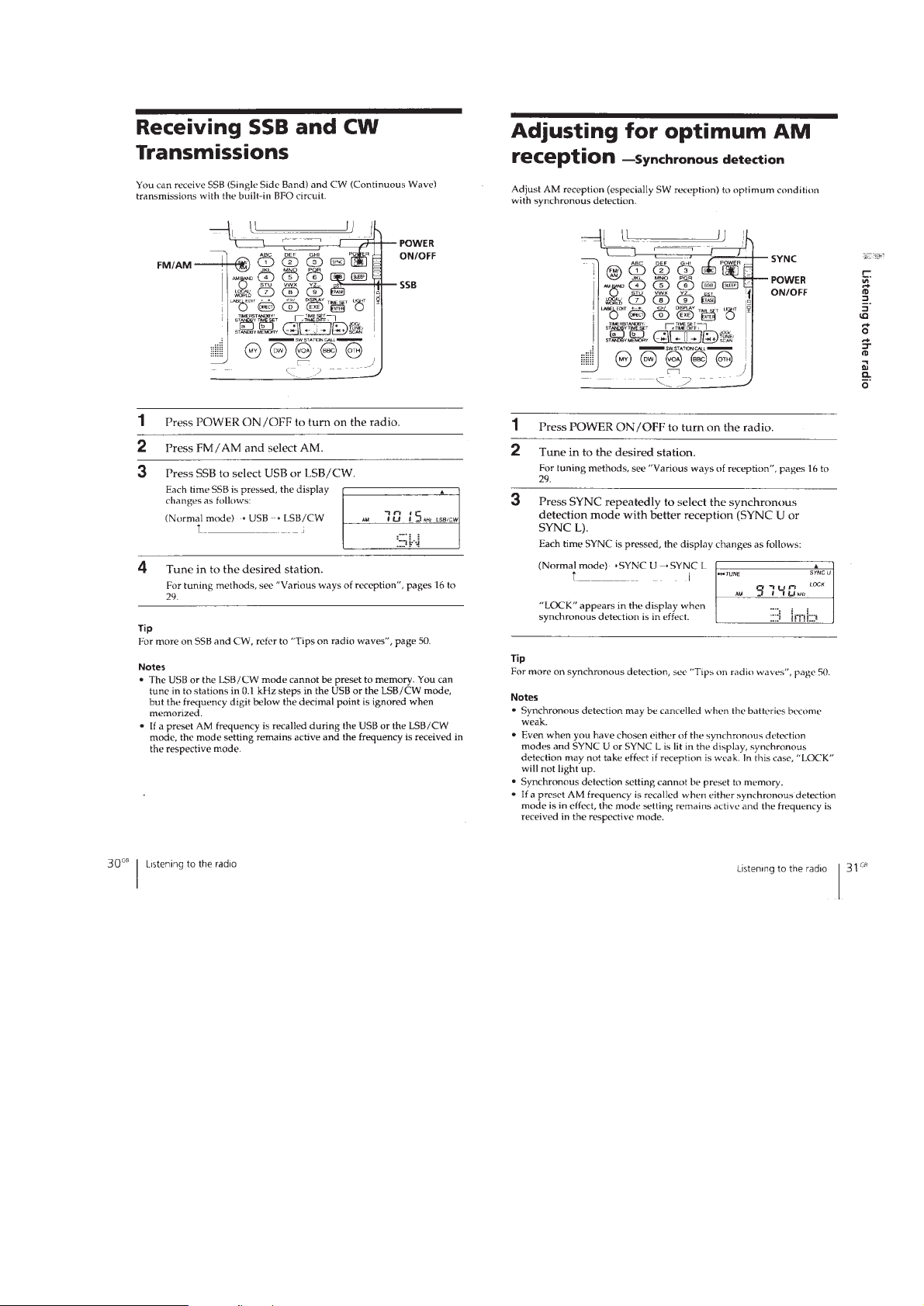

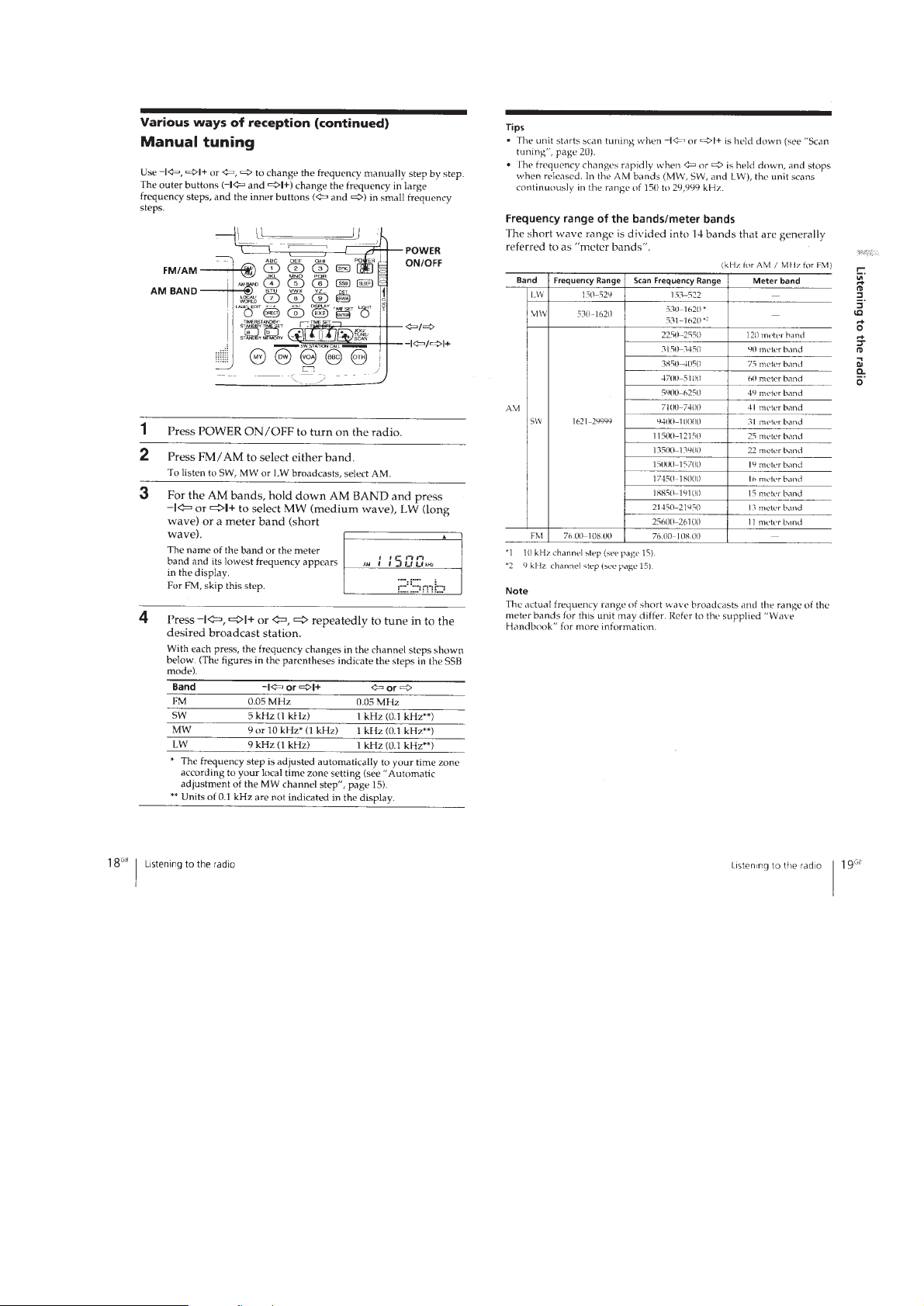

GENERAL

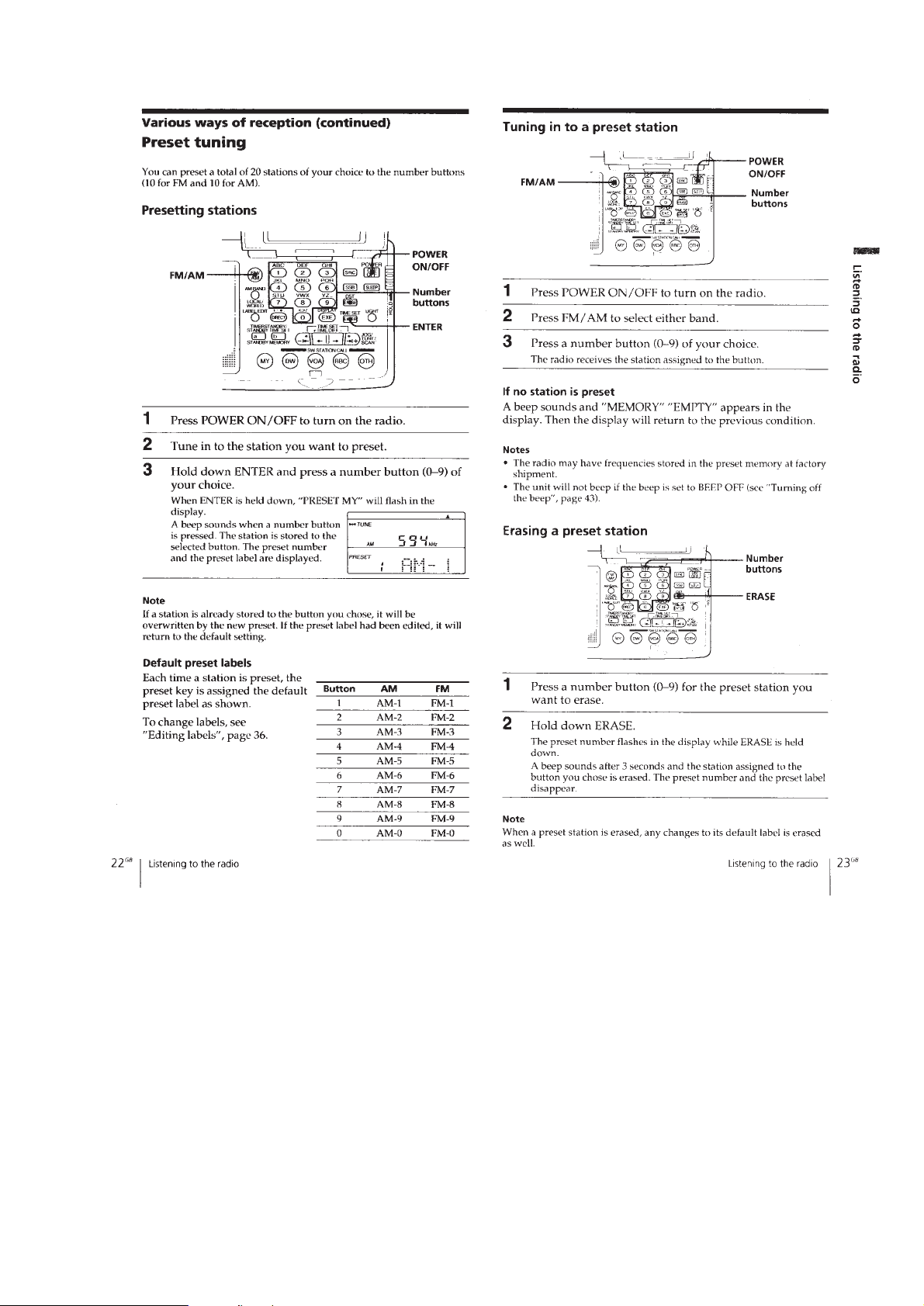

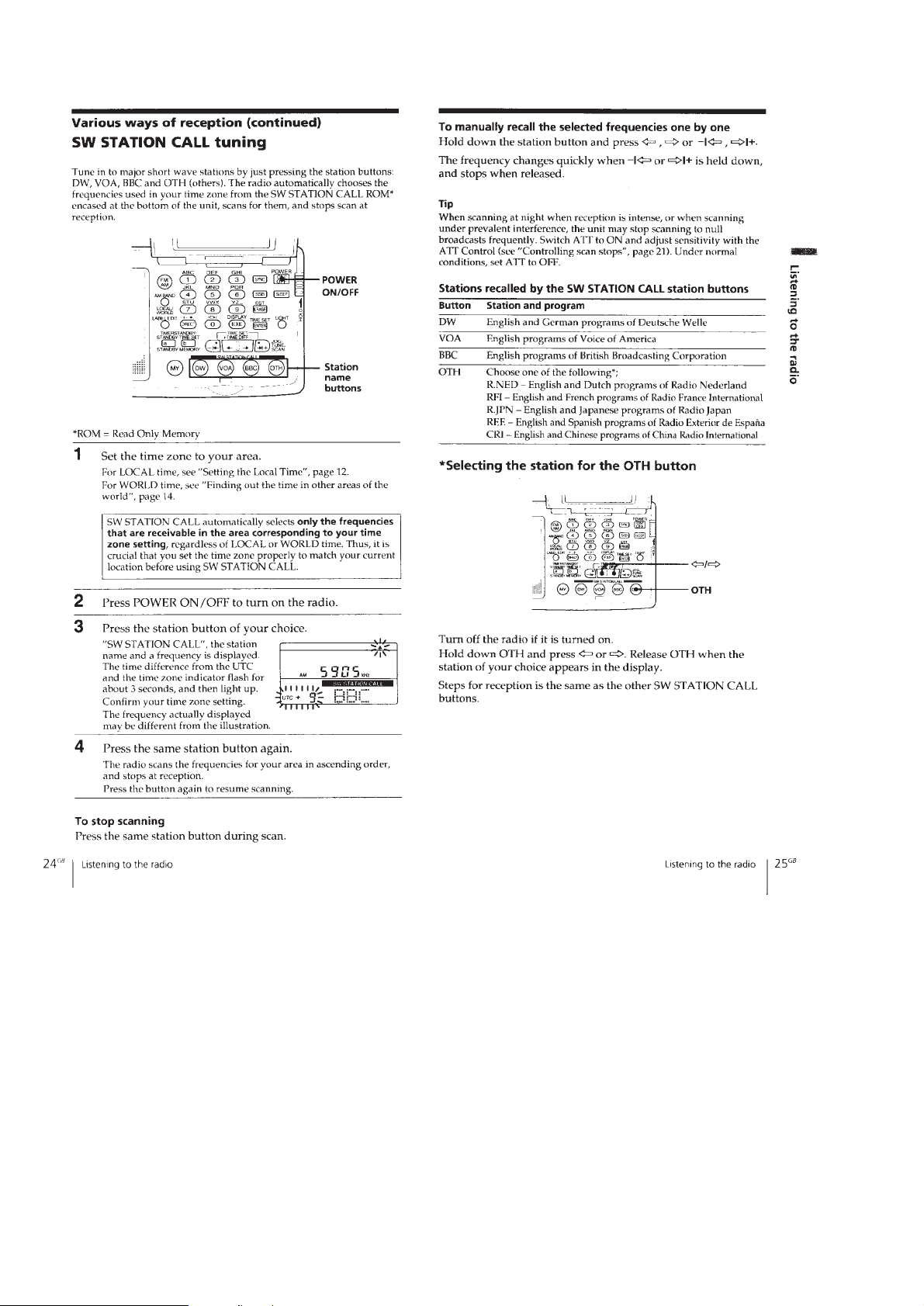

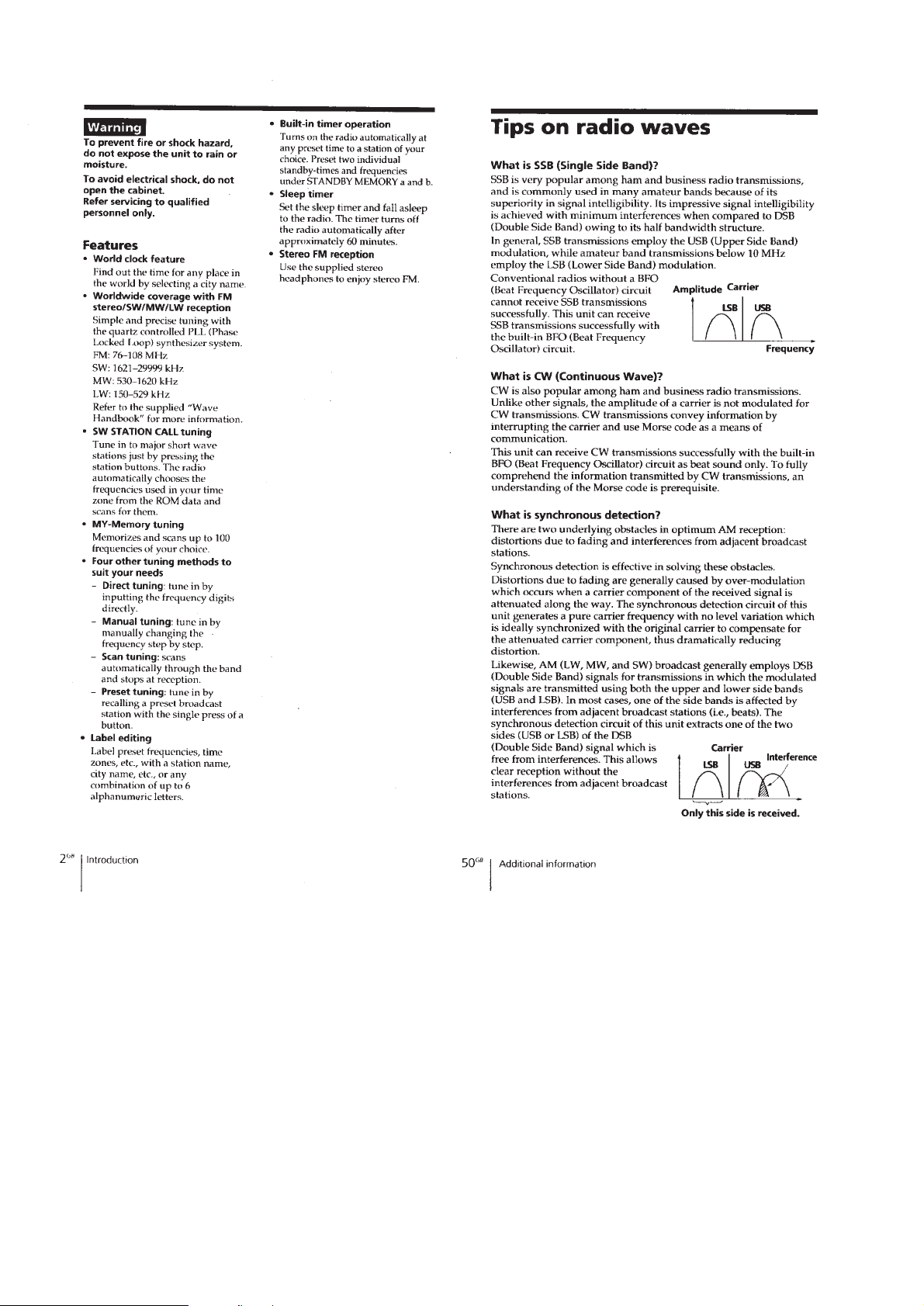

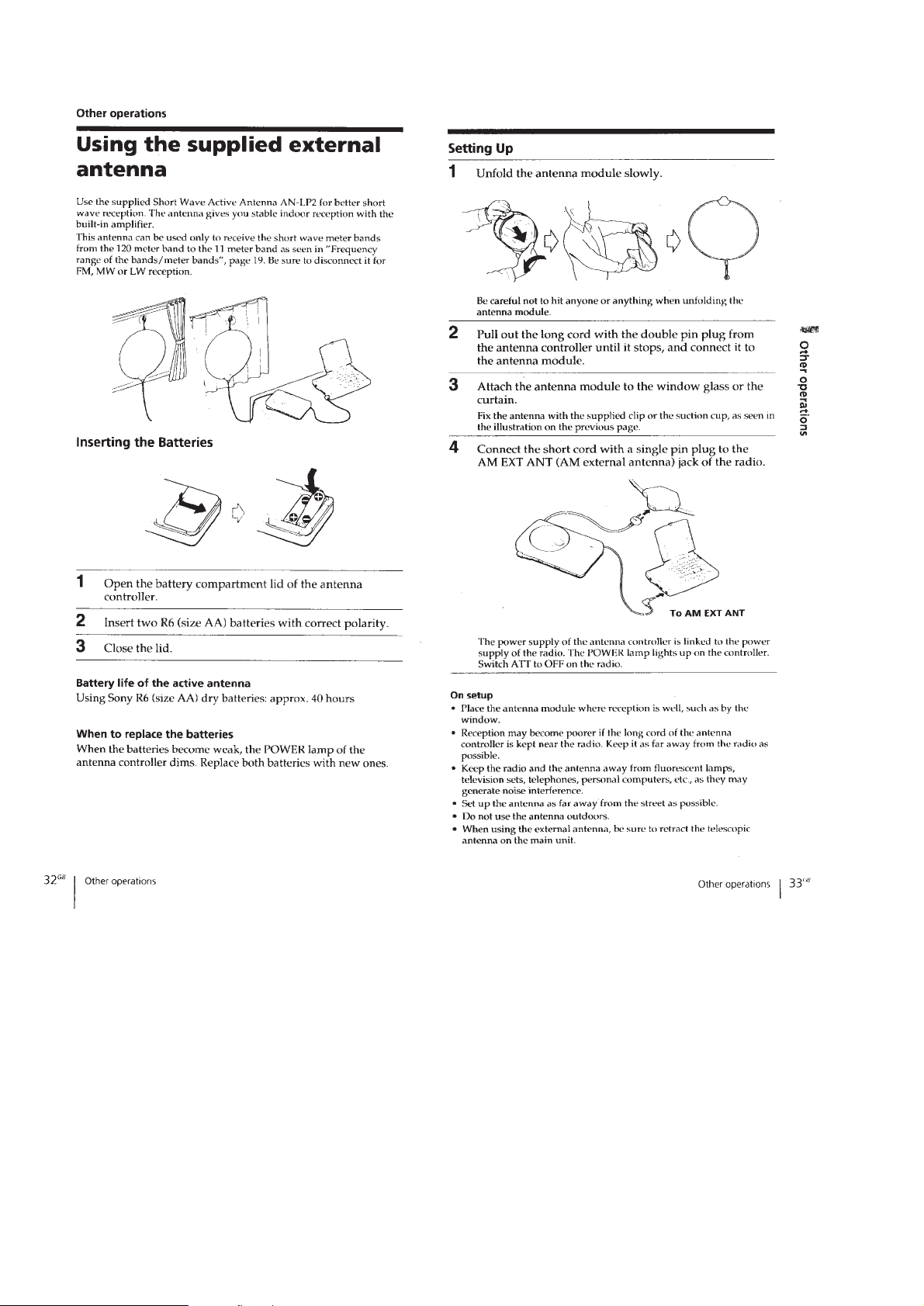

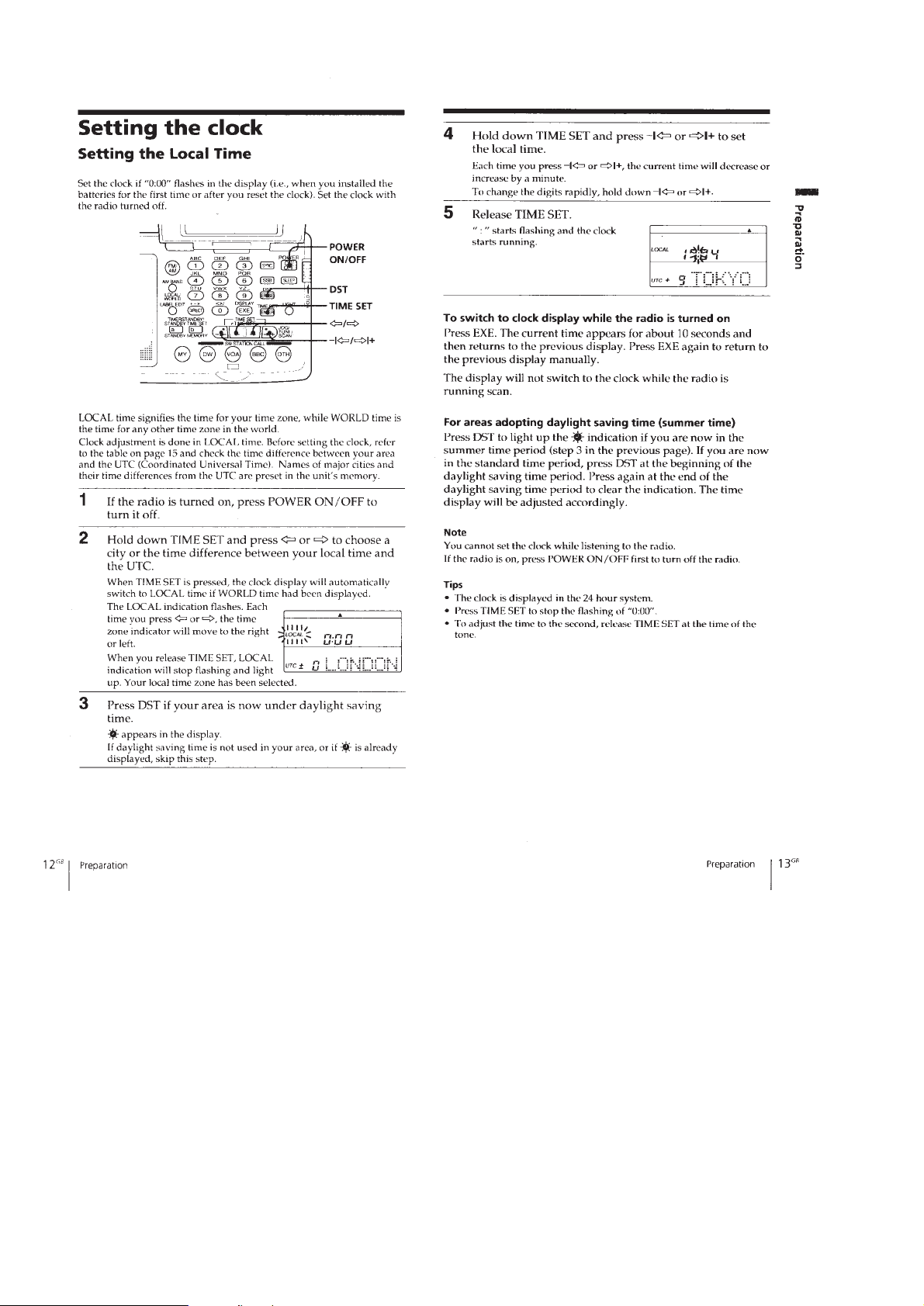

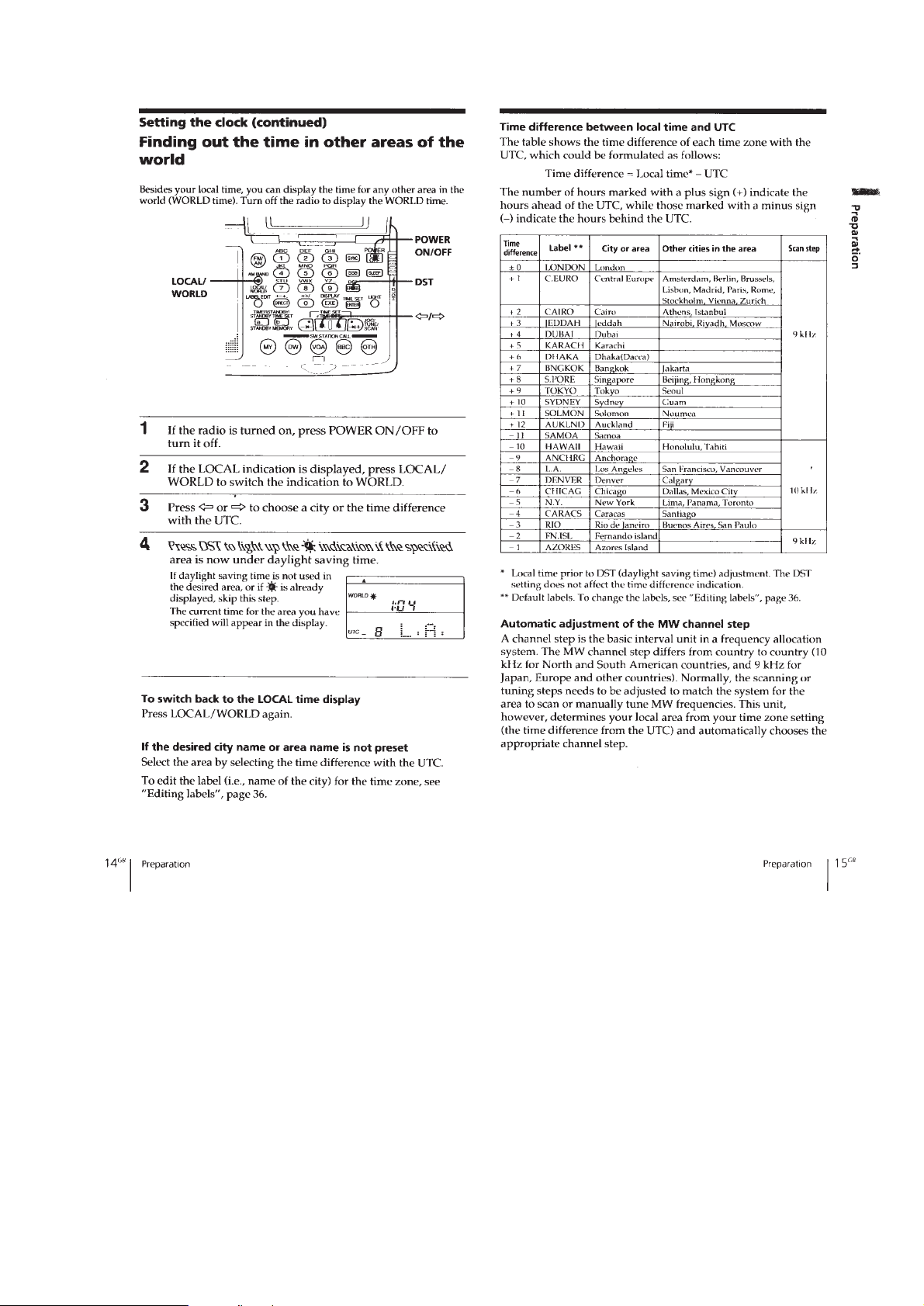

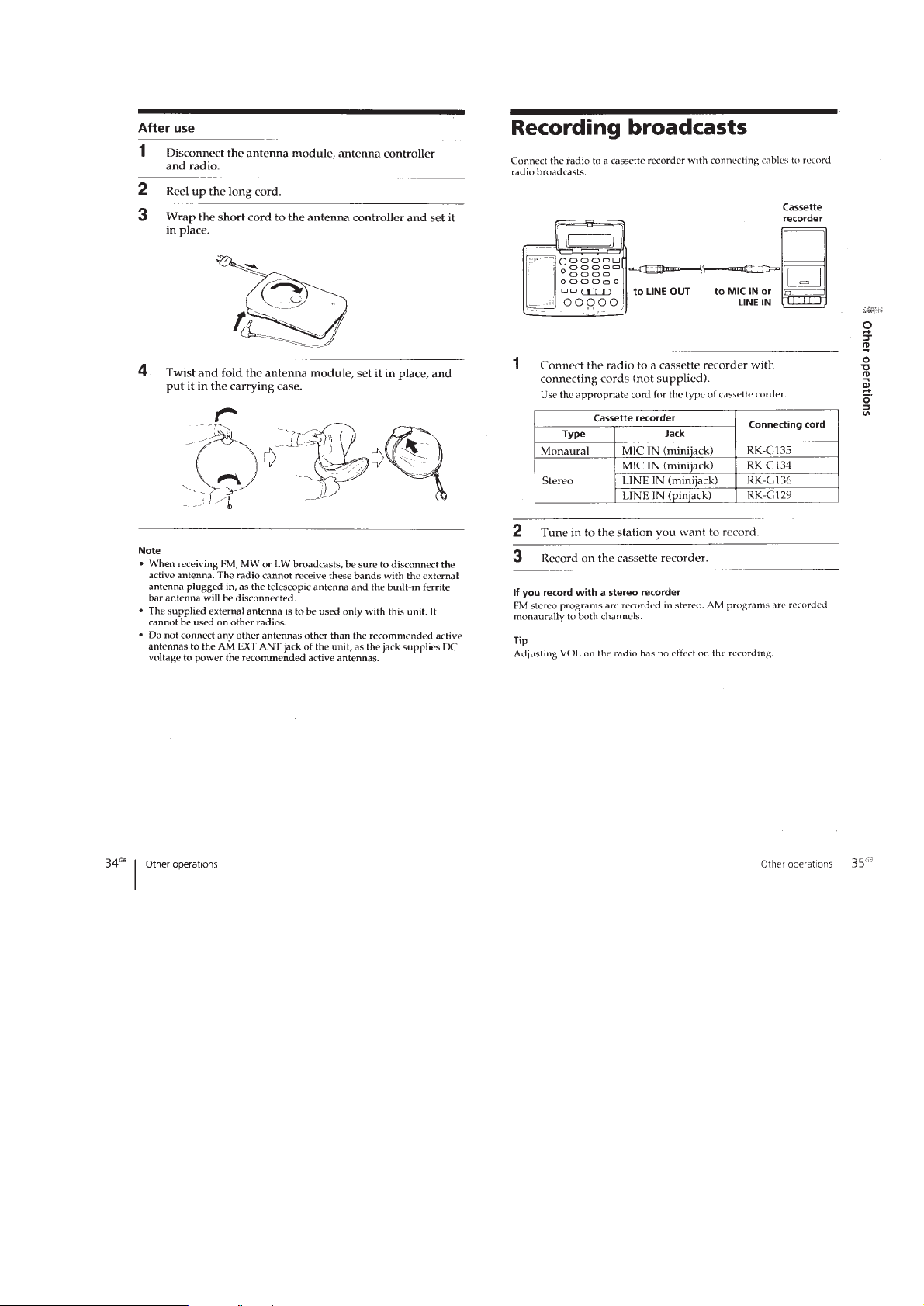

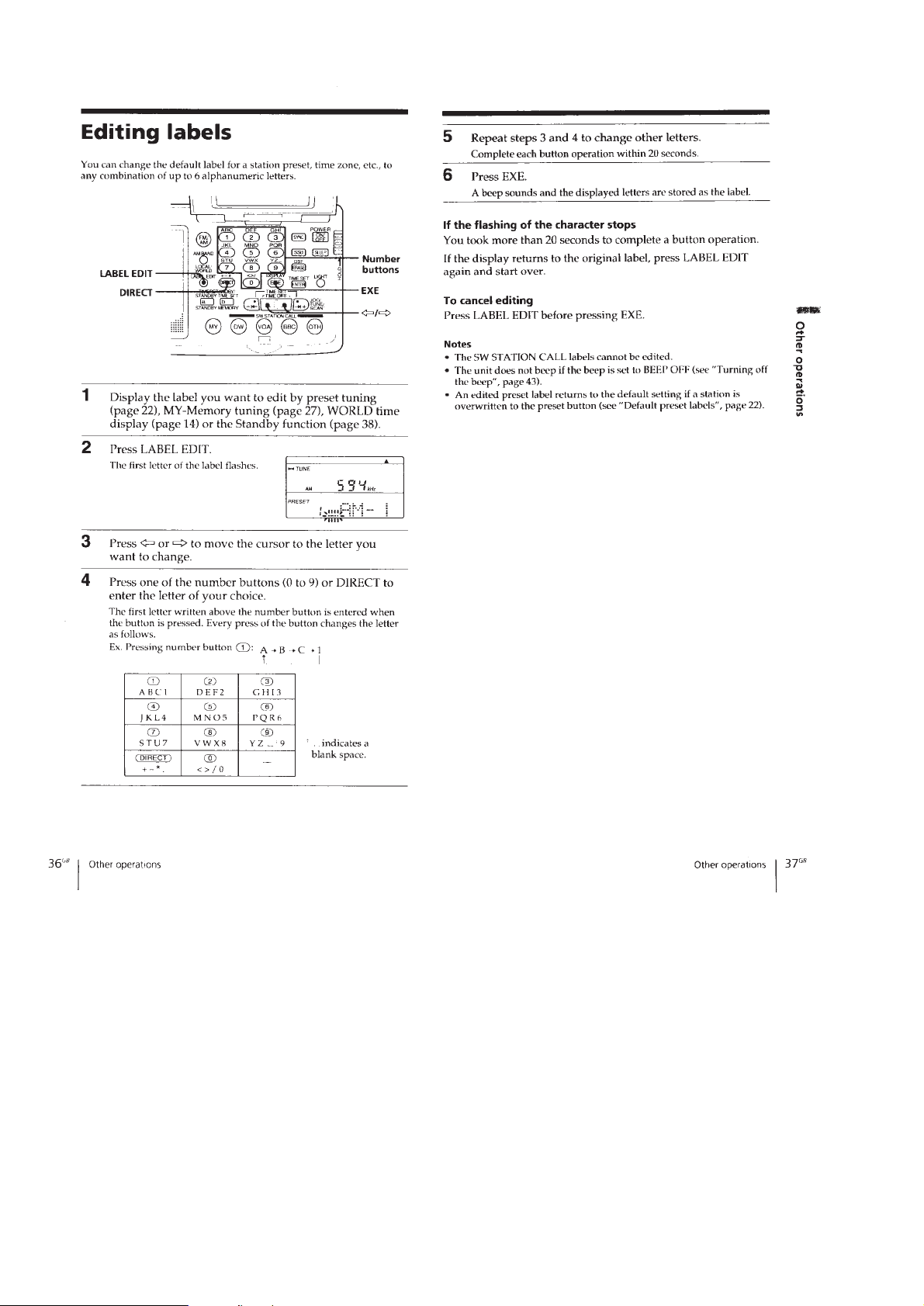

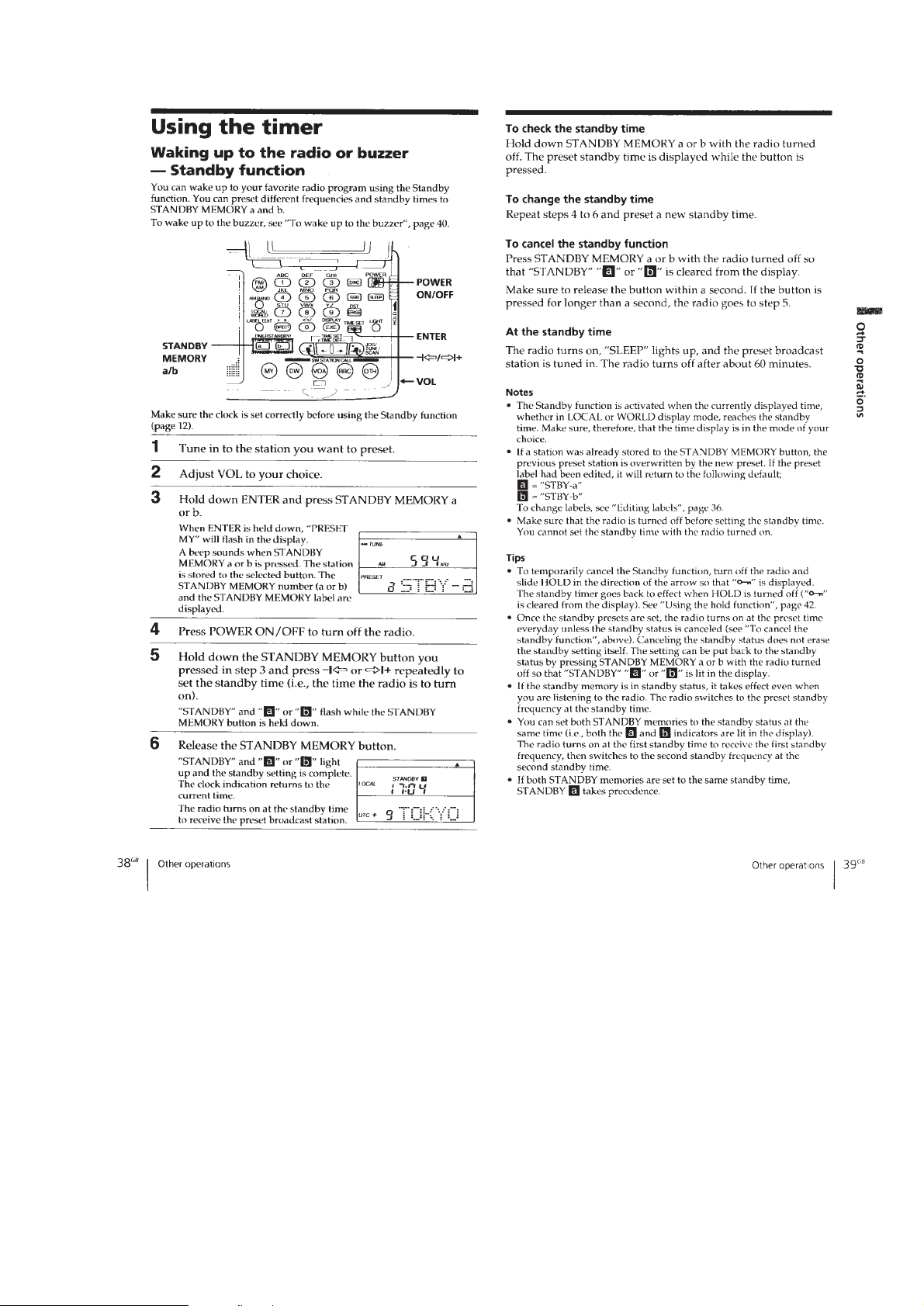

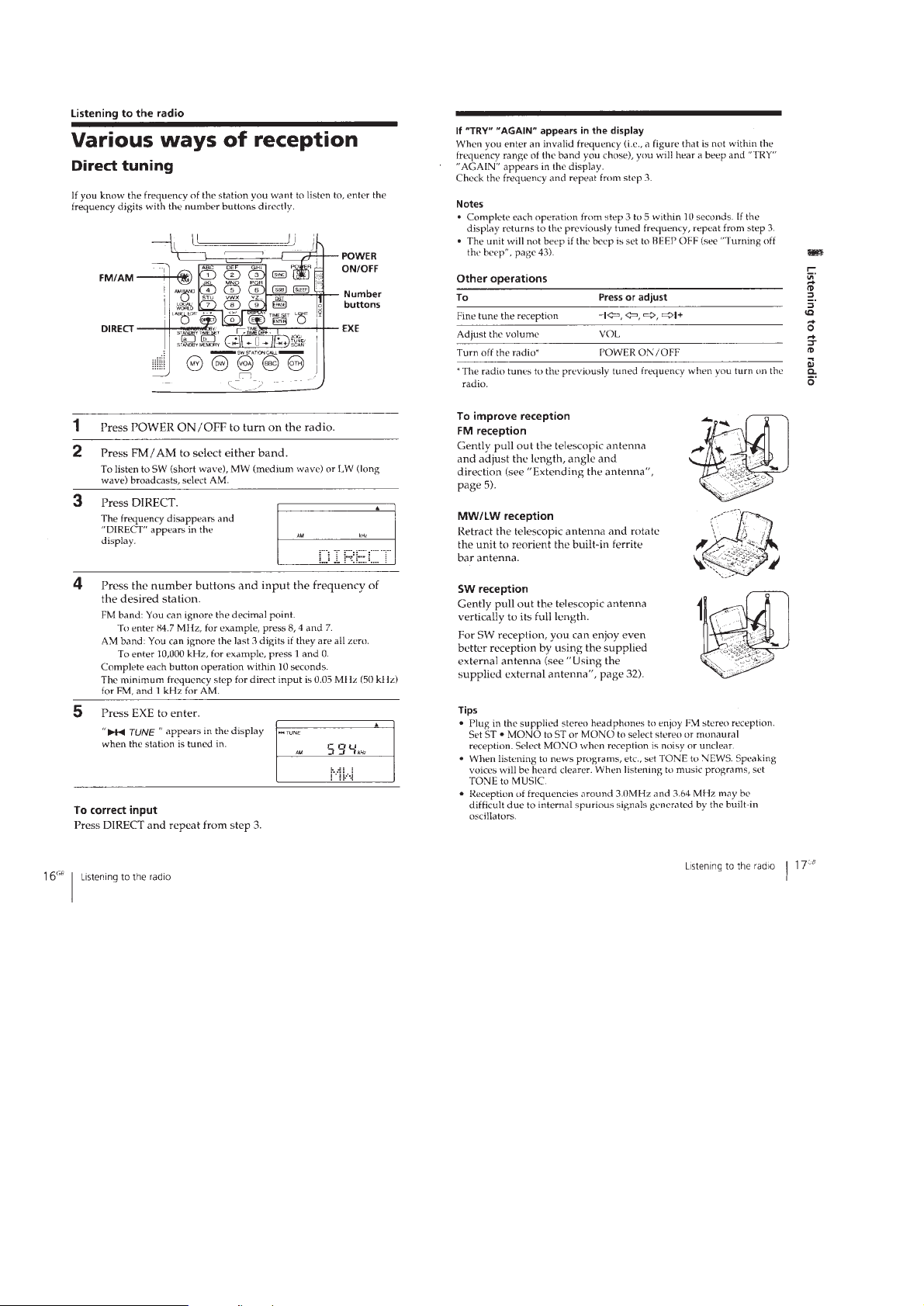

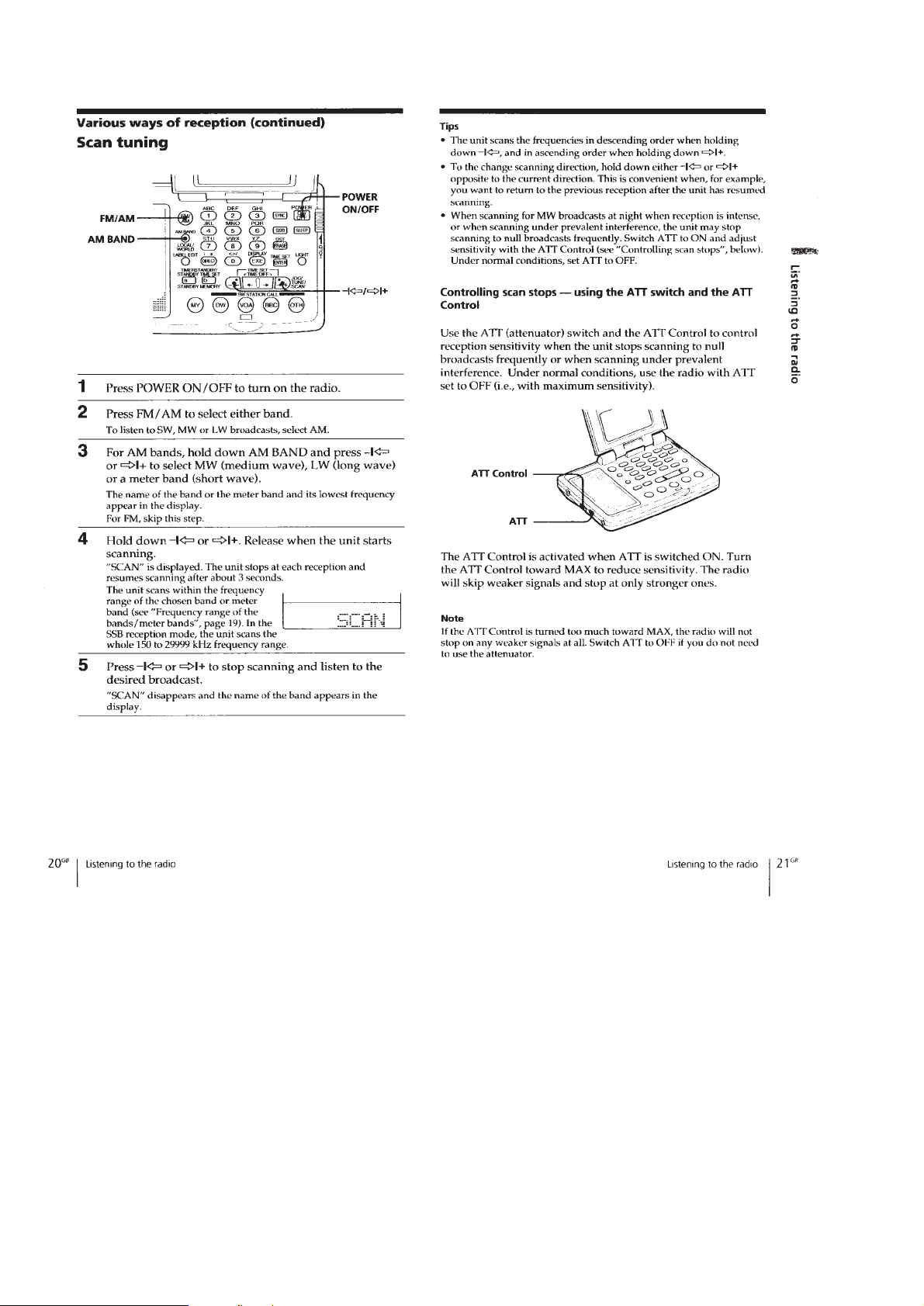

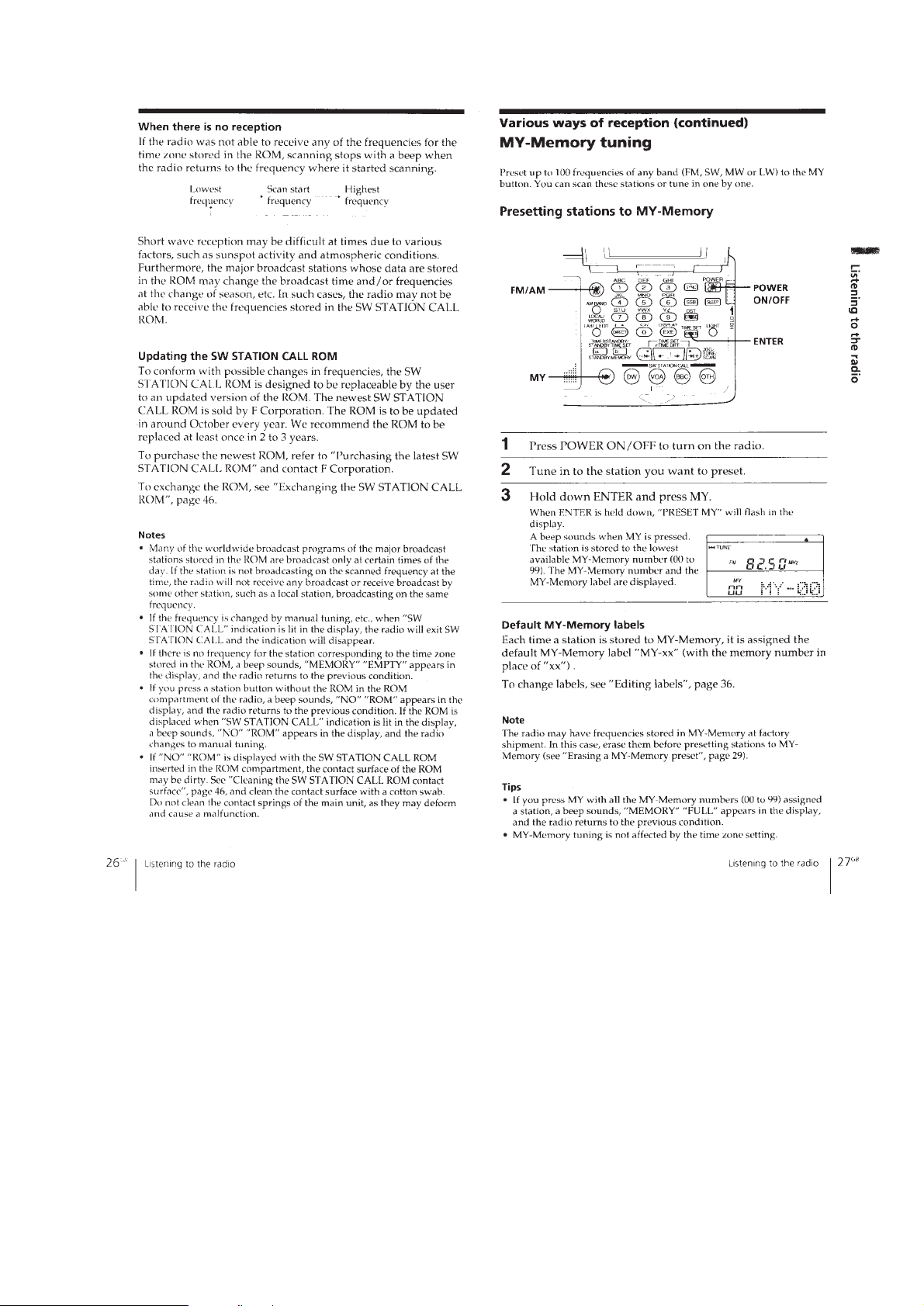

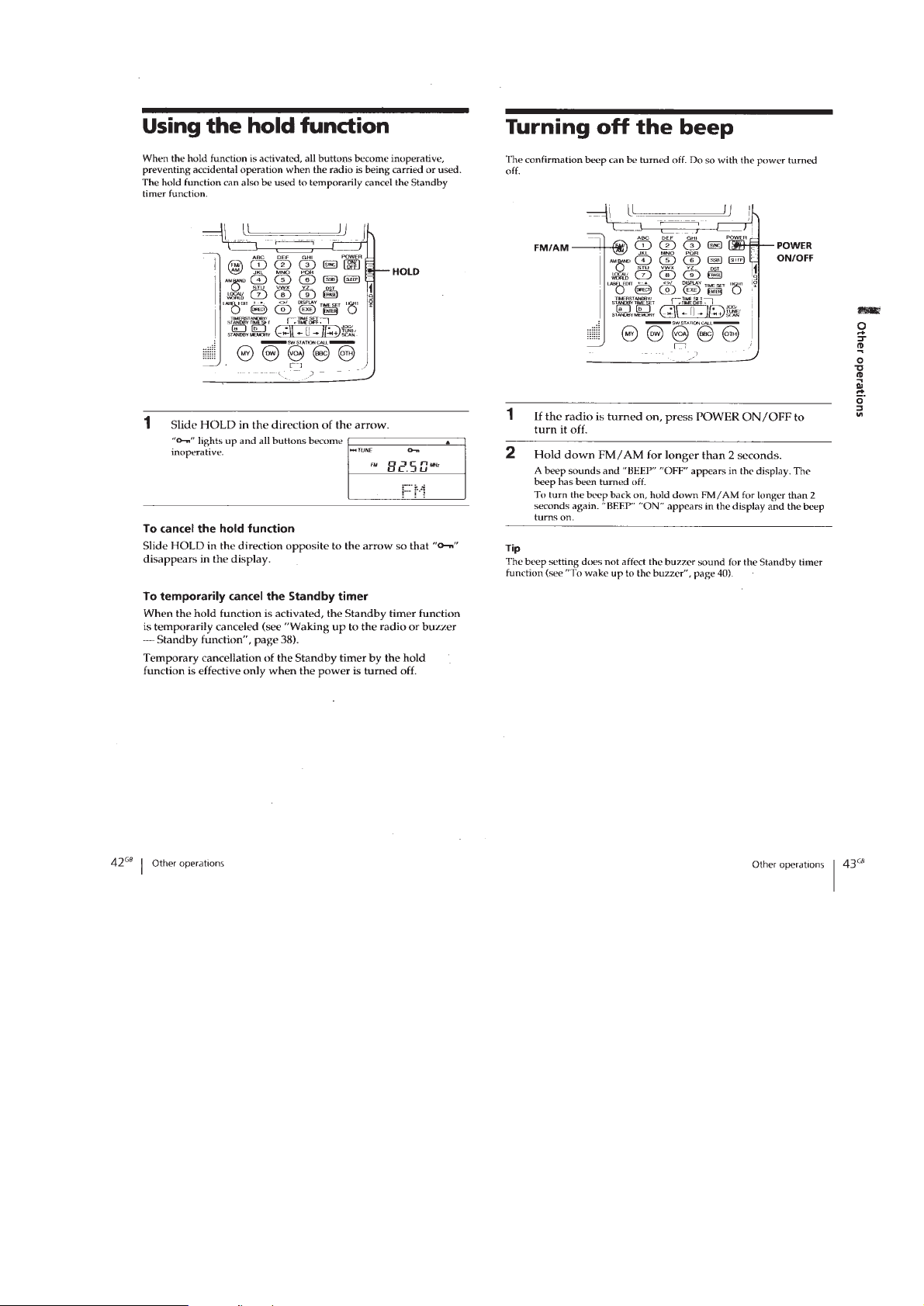

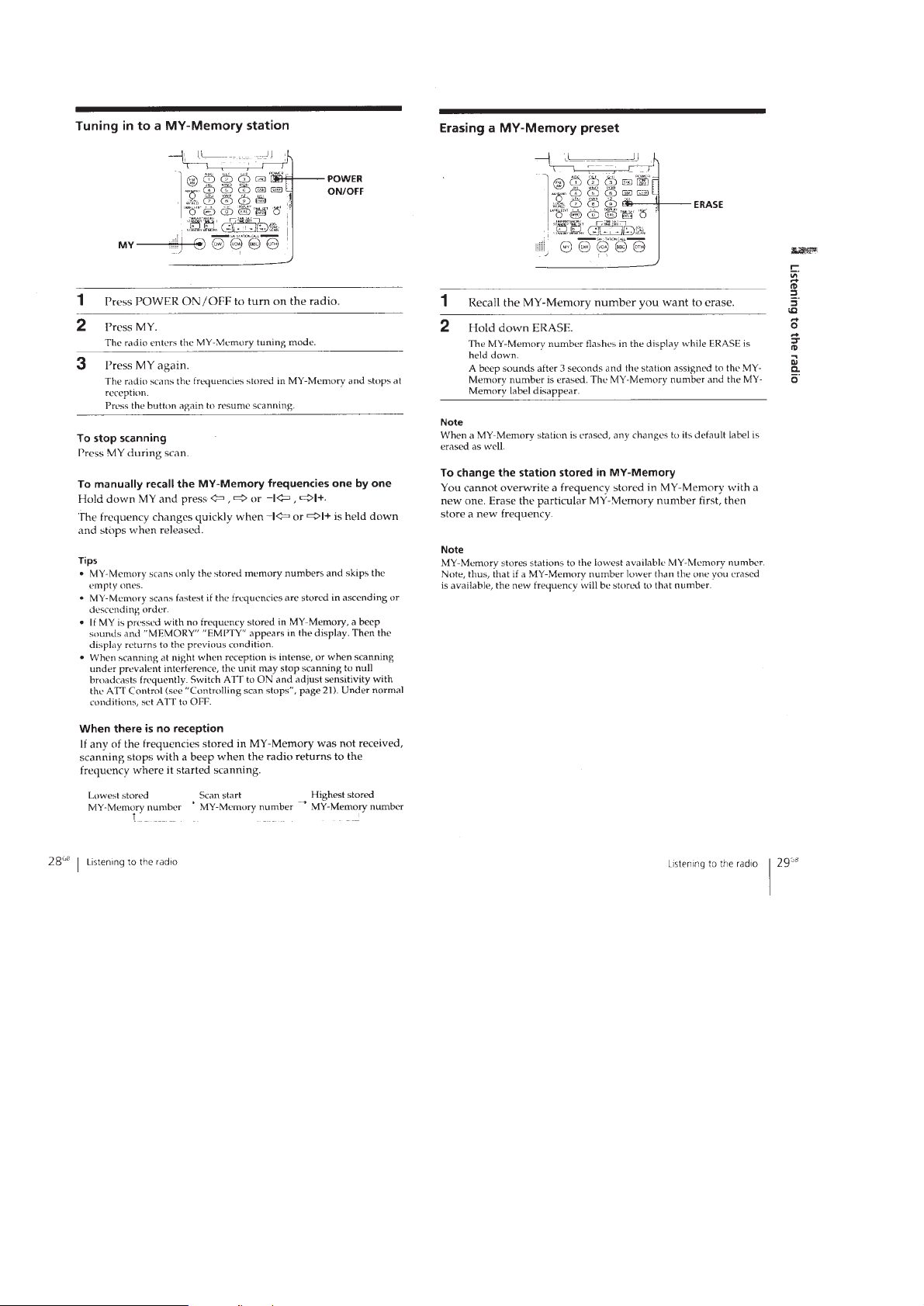

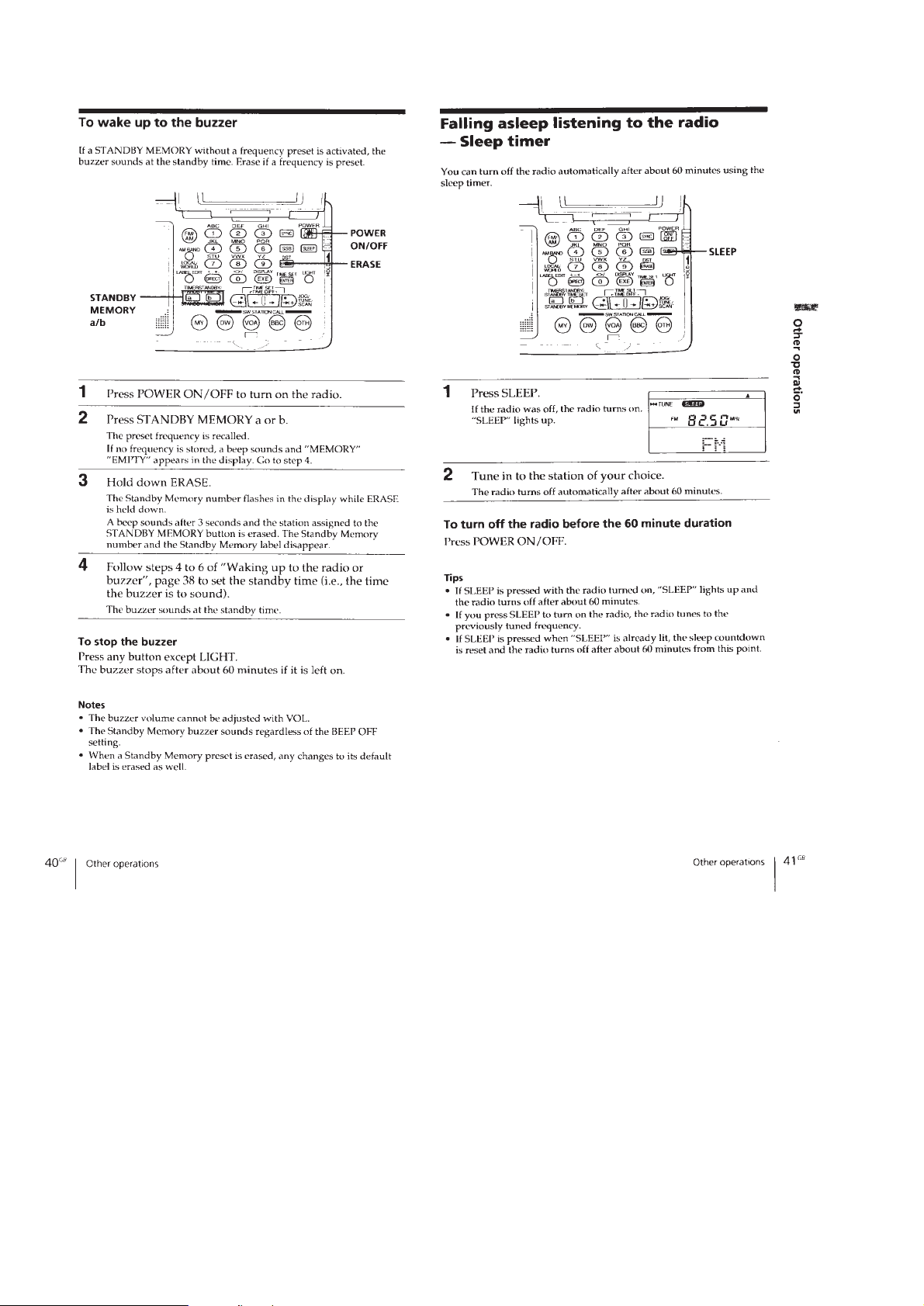

This section is extracted from
instruction manual.

– 4 –

– 5 –

– 6 –

– 7 –

– 8 –

– 9 –

– 10 –

– 11 –

– 12 –

– 13 –

– 14 –

– 15 –

– 16 –

– 17 –

– 18 –

– 19 –

– 20 –

– 21 –

– 22 –

– 23 –

– 24 –

SECTION 3

Y

DISASSEMBLY

r

The equipment can be removed using the following procedure.

<RADIO SECTION>

Cabinet (Lower) ASSY

Set

Chassis ASSY

Cabinet ASSY

Microcomputer board

<ANTENNA CONTROLLER SECTION>

Cabinet (Front), Reel ASSY

Set

Cabinet (Rear), Reel board, Control board

Note : Follow the disassembly procedure in the numerical order given.

<RADIO SECTION>

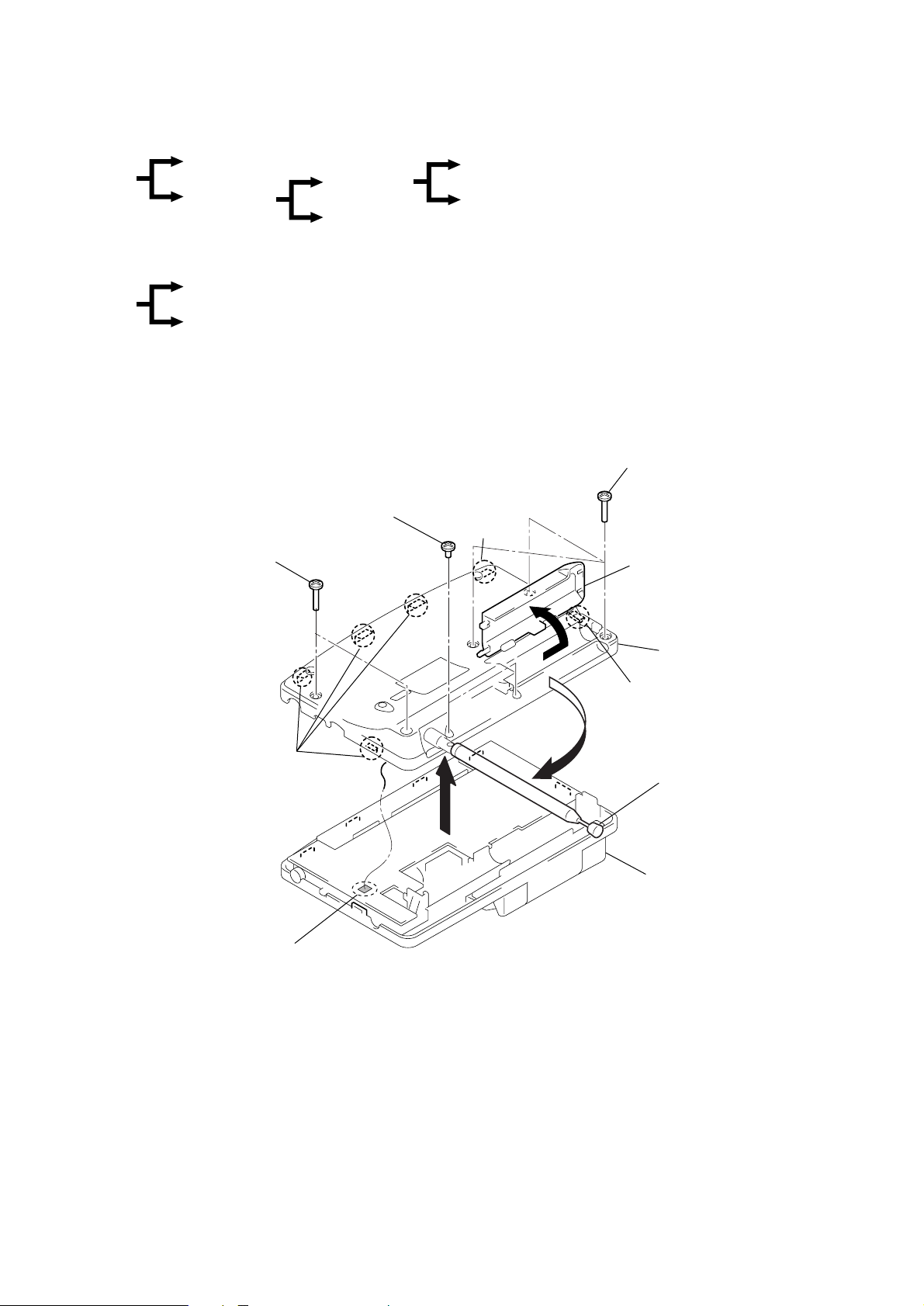

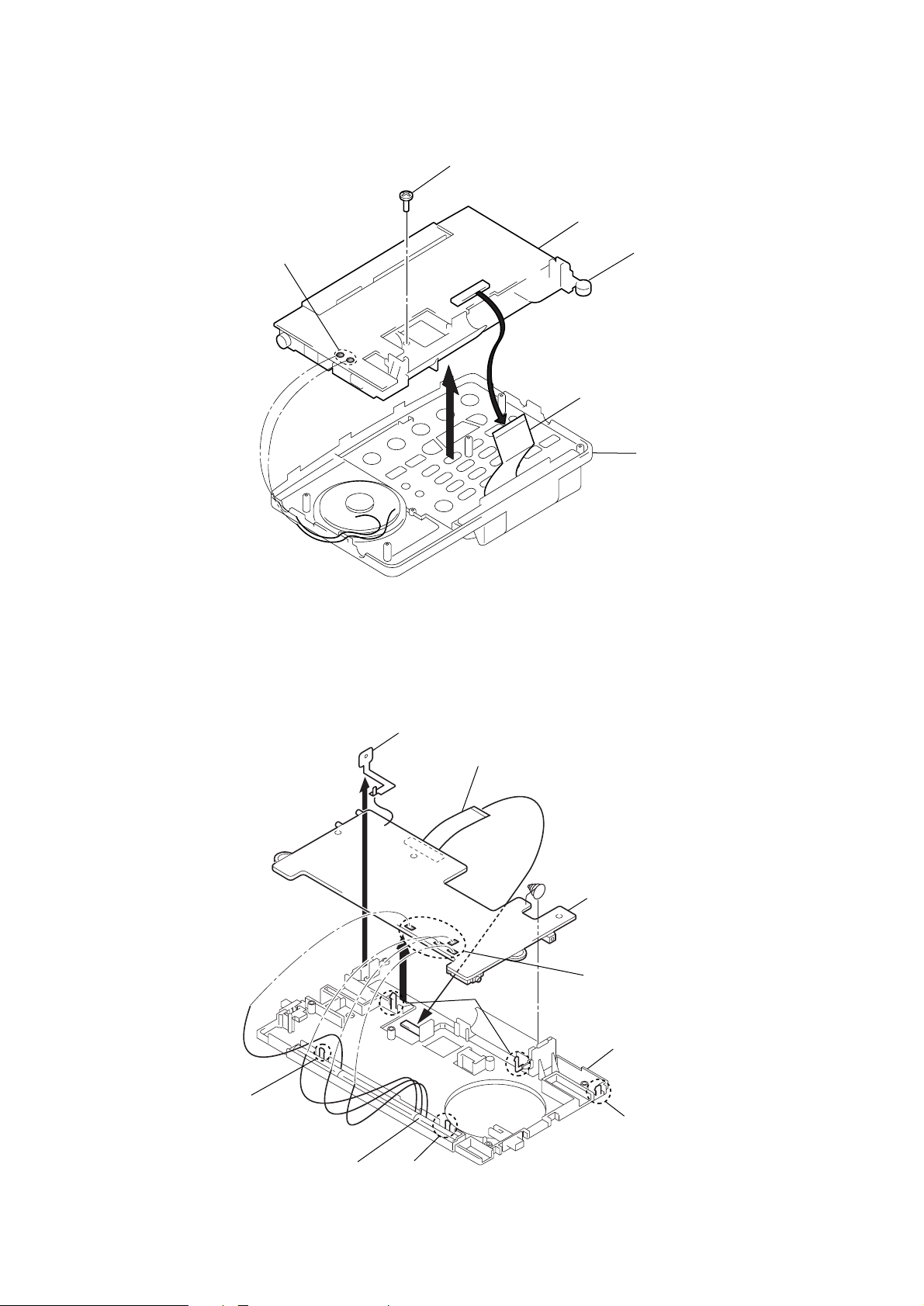

3-1. CABINET (LOWER), CABINET ASSY

Main board

Key board

3

Screws (+BTP 2x8)

3

Screws (+BTP 2x8)

5

Claws

7

4

Screw (M 1.7)

Remove solder

6

5

Claw

2

1

Lid, Battery case

Cabinet (lower) ASS

5

Claw

Antenna, Telescopic

Cabinet ASSY

– 25 –

3-2. CHASSIS ASSY

Y

2

Screw (1.4x4)

Main board

4

Remove solder

Black

Brown

3

Chassis ASSY

1

Flexible board

Cabinet ASS

Caution :

A portion of the chassis and cabinet ASSY
are joined by adhesive sheet so use caution
during removal.

3-3. MAIN BOARD

2

Pink

3

Claw

Ferrite-rad anttena (MW/LW)

Black

Green

Yellow

Terminal (+), Battery

5

Flexible board

(Key board:CN701)

3

4

Claw

3

Claws

Main board

1

Remove solder

Chassis

3

Claw

Caution :

A portion of the chassis and main
board are joined by adhesive sheet
so use caution during removal.

– 26 –

3-4. KEY BOARD

4

Claws

5

Claw

Chassis

2

Screw (1.4x3)

6

Flexible board

1

Cut the sheet

Sheet

3

Push this
place, and

release

a claw

Key board

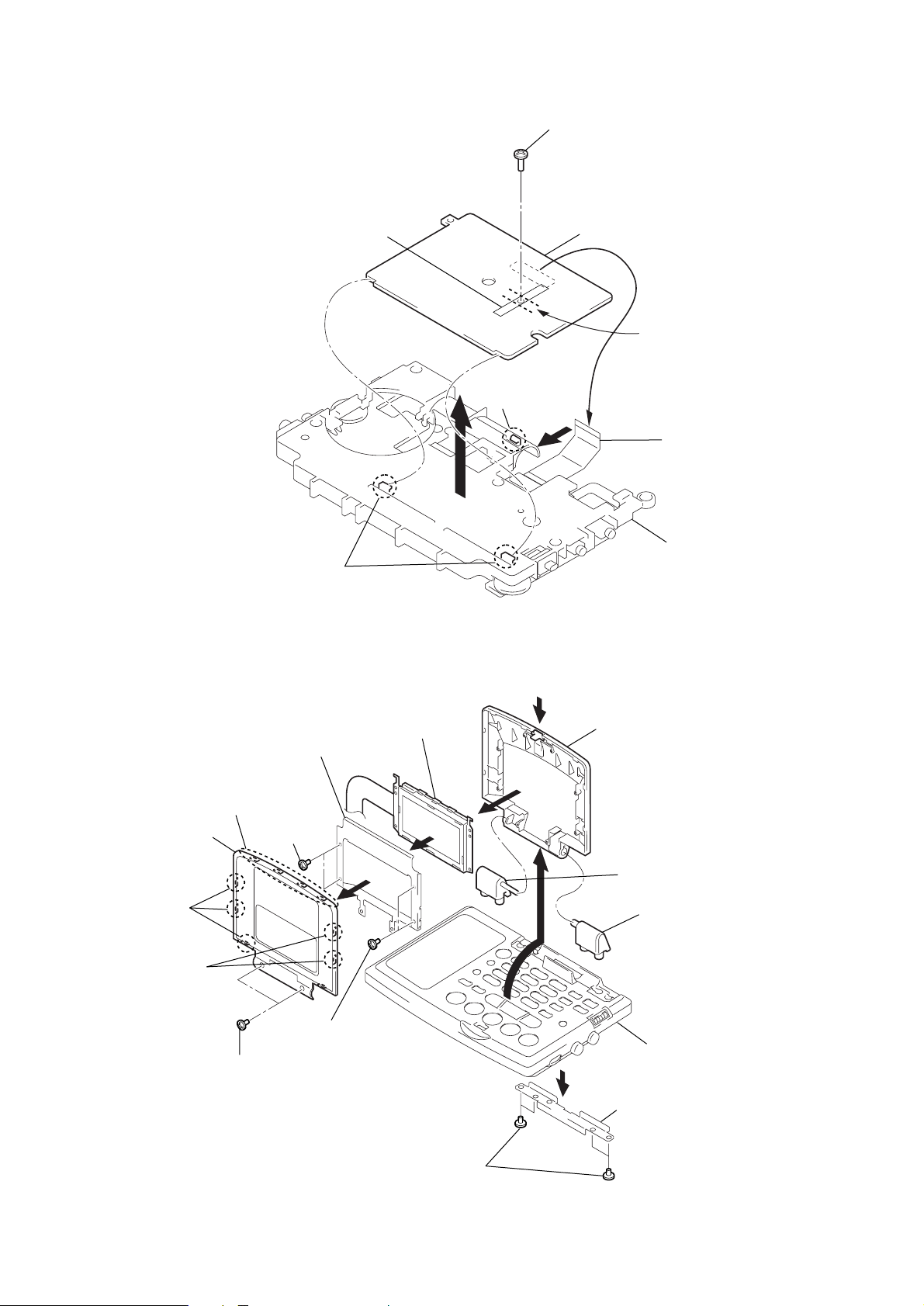

3-5. MICROCOMPUTER BOARD

Frame (lid)

7

Claws

Lid (rear) ASSY

7

Claws

7

Claws

9

(1.4x4)

6

Screws (B 1.4x6)

Microcomputer board

Screws

9

Screws (1.4x4)

0

8

1

Screws (+P 2x6)

4

!¡

3

2

Lid (front)

5

Adaptor (pin)

5

Adaptor (shaft)

Cabinet ASSY

Reinforcement (A)

– 27 –

)

<ANTENNA CONTROLLER SECTION>

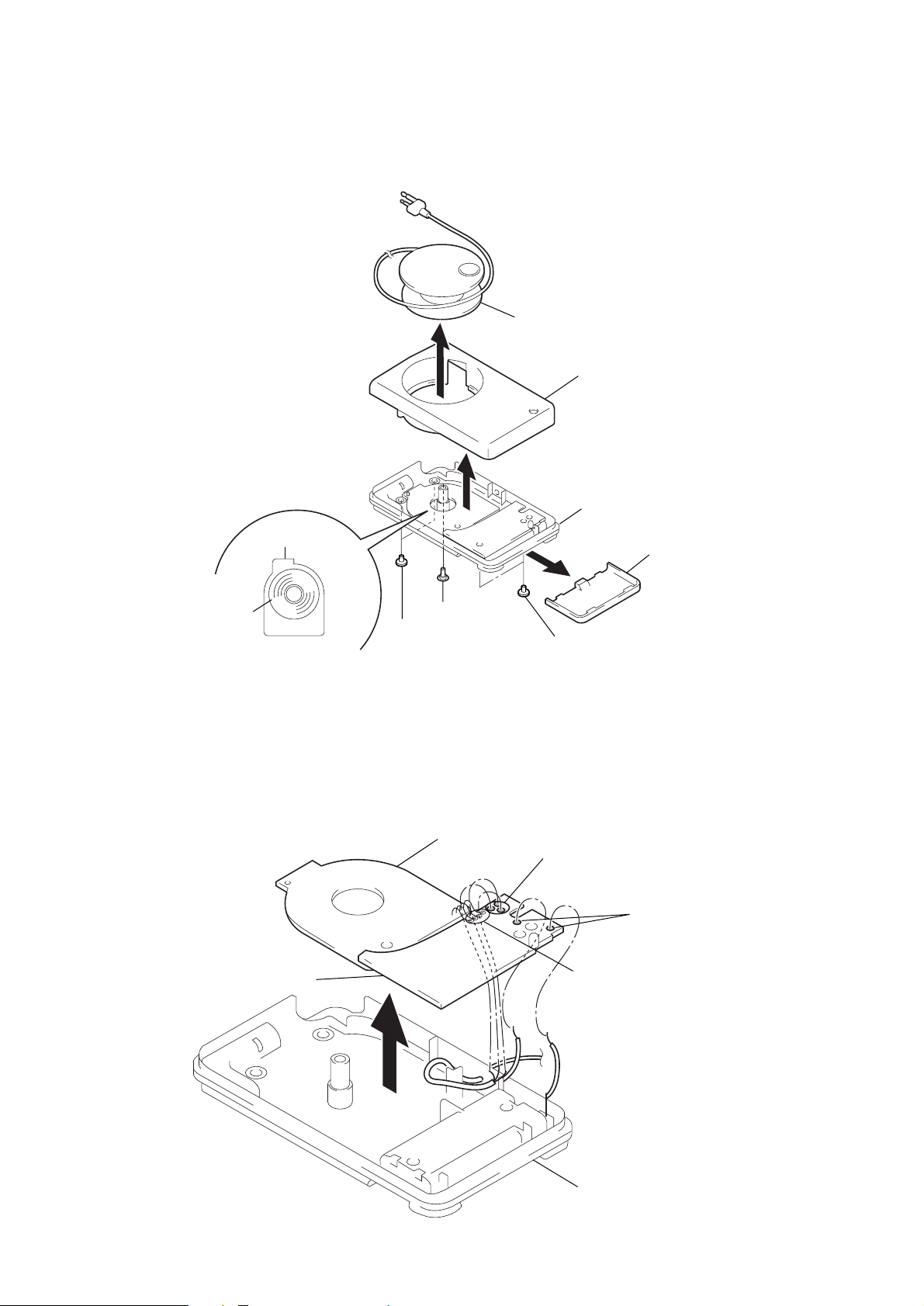

3-6. CABINET (FRONT), REEL ASSY

5

Reel board

Surface of contacts

Note on instalation :

3

2

Screws (M 1.7)

Apply grease (J-2502-028-1)
to the surface of contacts on
the reel board.

3-7. CABINET (REAR), REEL BOARD, CONTROL BOARD

4

Screw, Step

Reel ASSY

1

2

Screws (M 1.7)

Cabinet (front)

Cabinet (rear) ASSY

Lid, Battery case

Control board

2

Reel board

– 28 –

1

Remove three solders

(Cord with plug)

1

(From battery terminals

1

Remove four solders

(From reel board)

Cabinet (rear)

Remove two solders

SECTION 4

r

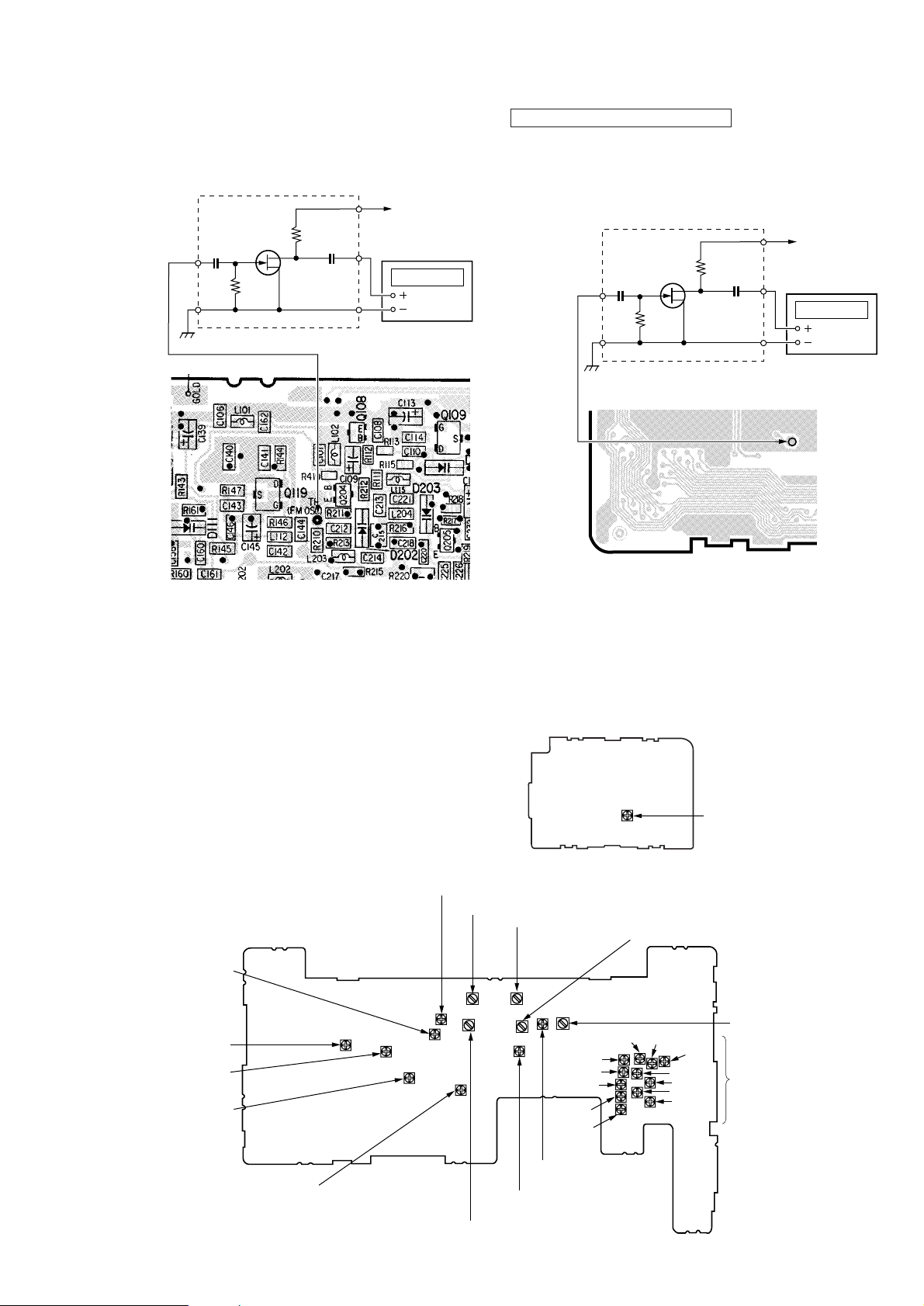

ELECTRICAL ADJUSTMENTS

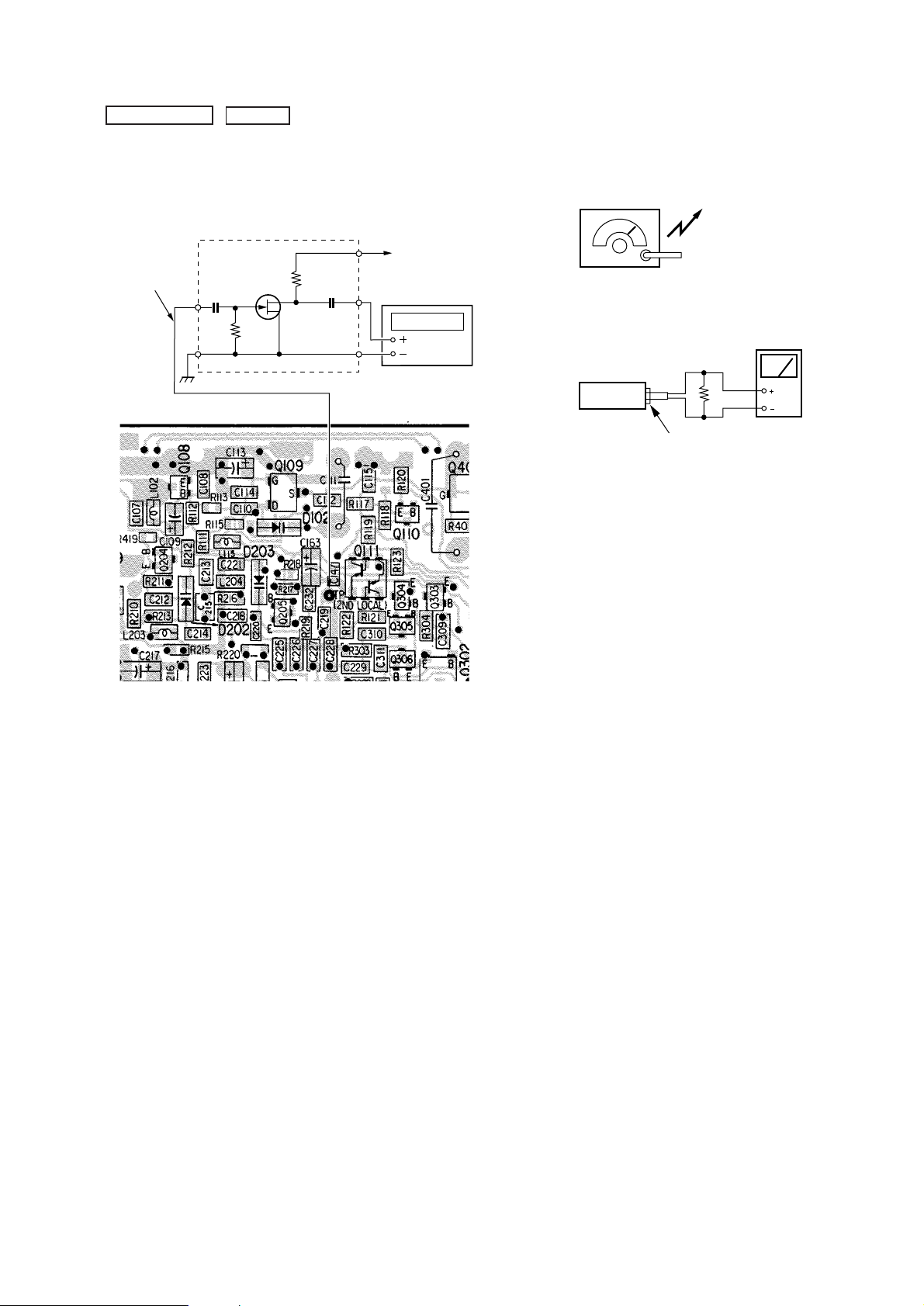

AM SECTION 0dB=1µV

2nd LOCAL Adjustment

BAND : AM
VOLUME control : as required

Connection Points :

servicing tool

Use a shield
wire as short
as Possible

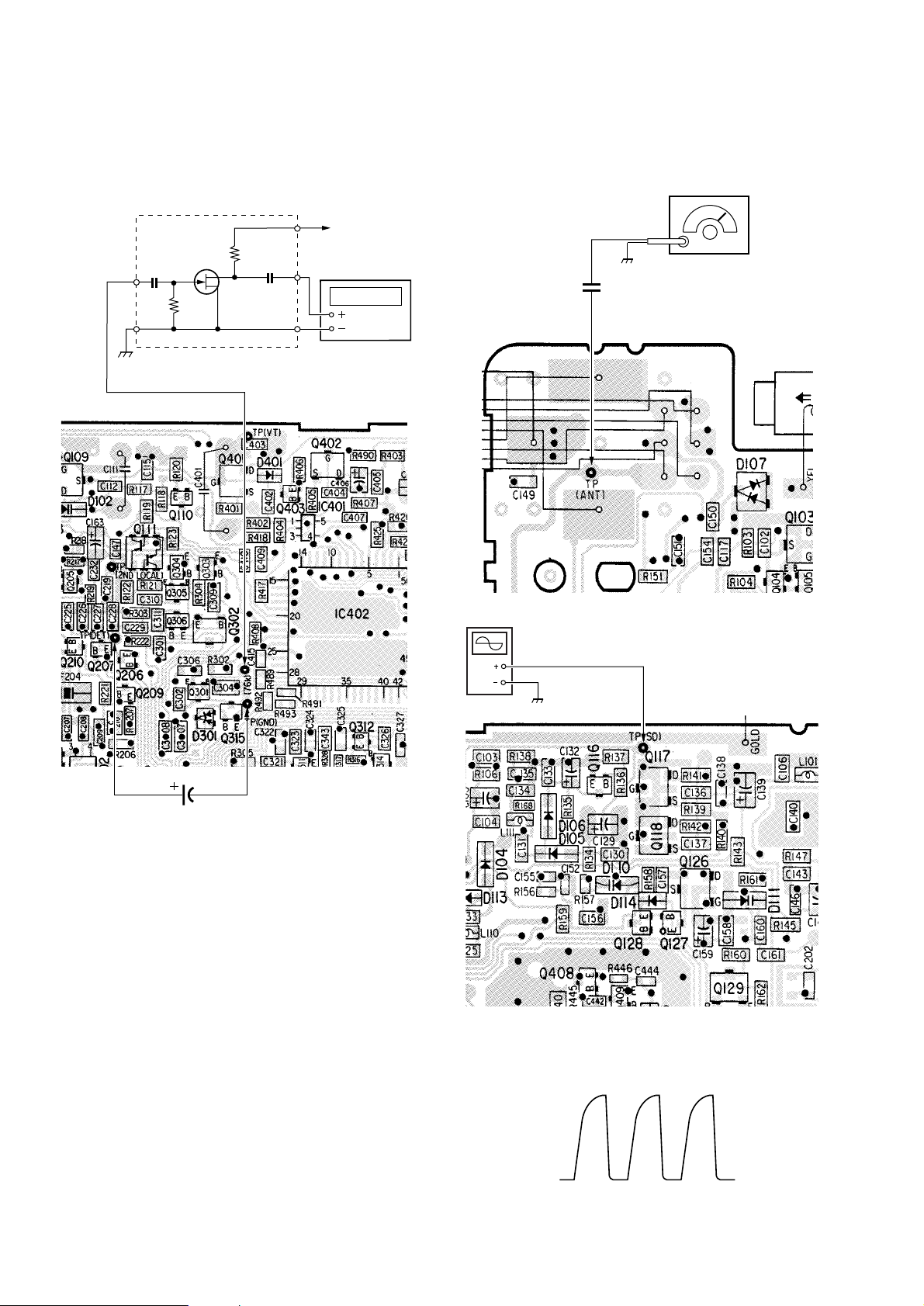

[ MAIN BOARD] (Side A)

1pF

1M

S

Ω

2.4k

Ω

0.01uF

2SK193-E

DC5V

frequency
counter

TP (2ND LOCAL)

1 st IF Adjustment

BAND : AM
VOLUME control : as required

Setup :

AM RF SSG

30% amplitude modulation by 400Hz
signal.
Output level : as low as possible

set

Put the lead-wire
antenna close to
the set.

level mete

16

Ω

J302(headphone)

Procedure :

1. Set the frequencies of the AM RF SSG and the frequency dis­play of the set to 150kHz.

2. Adjust T104 and T105 to obtain a maximum reading on the level
meter.

Procedure :

1. Tune the set to AM 150kHz.

2. Press the SSB button, and confirm that USB is displayed.

3. Press the /1 button.

4. Adjust CT201 to obtain a 55.39MHz on the frequency counter.
Standard value : 55.38997 – 55.39003 MHz

5. Press the ? button only once. (Return to 2 if wrong)

6. Adjust RV203 to obtain a 55.3891MHz on the frequency counter .
Standard value : 55.38907 – 55.38913 MHz

Adjustments Location : MAIN board (see page 33)

Adjustments Location : MAIN board (see page 33)

SSB ZERO BEAT Adjustment

Setup :

BAND : AM
MODE : SSB (USB or LSB/CW)

Procedure :

1. Tune to the strong and stable AM station nearby.

2. Adjust the RV201 to attain zero beat (no beat sound heard).

3. Change the mode to the alternative band ( LSB/CW if USB),
and if not, readjust.

Adjustments Location : MAIN board (see page 33)

– 29 –

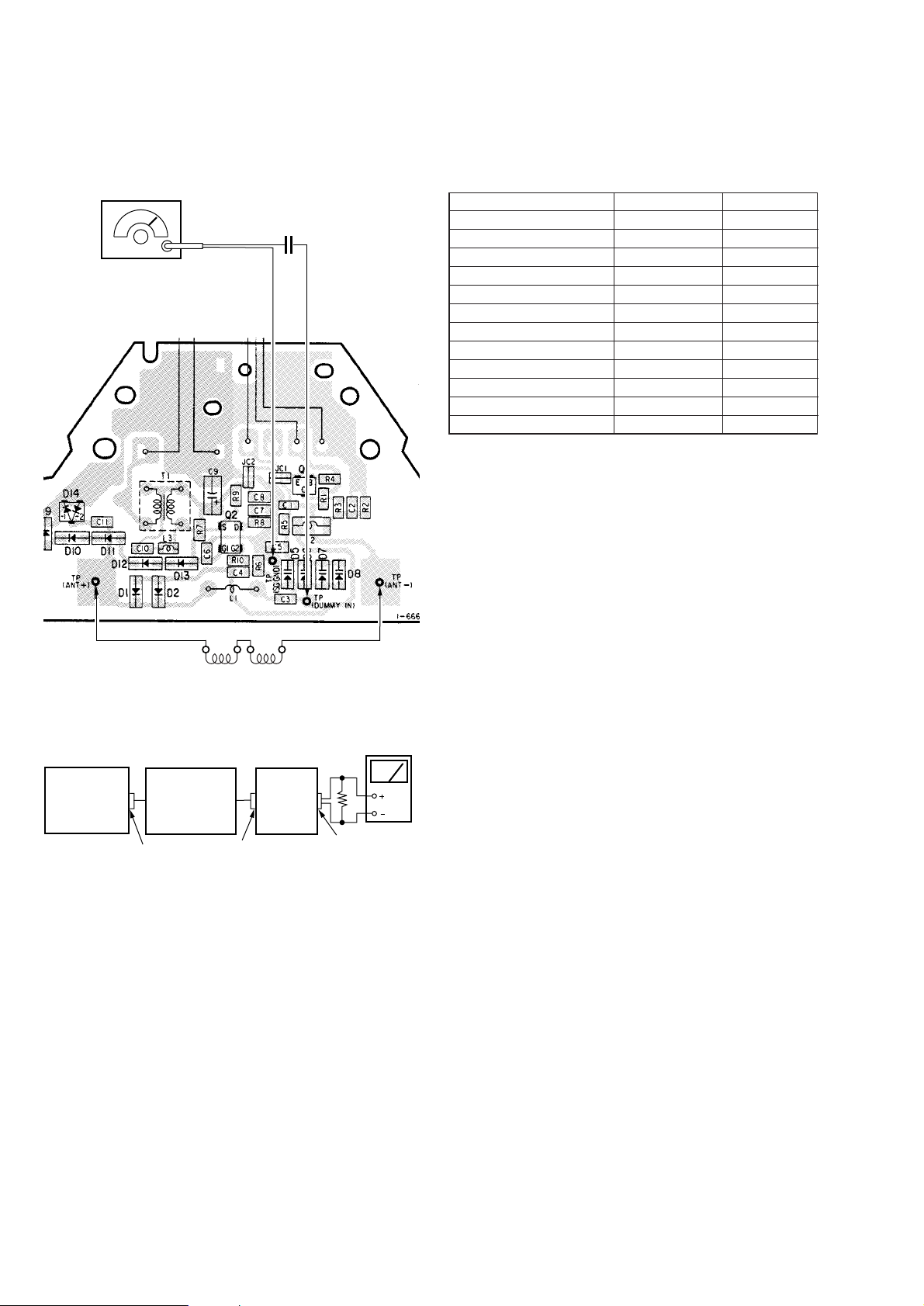

SW FREQUENCY Adjustment

r

BAND : AM
VOLUME control : as required

Connection Points :

AM RF SSG

30% amplitude modulation
by 400Hz signal.
Output level :
as low as possible

[ANTENNA BOARD]
(Side B)

(SG GND)

TP

0.5pF

TP
(DUMMY IN)

Procedure :

1. Align the set with the frequency of the AM RF signal generator
shown on the table below.

2. Align RV401 - RV412 for each band meter band until the high­est reading is obtained on the level meter.

AM RF SSG frequency Meter band Adjust part

2.4MHz 120mb RV401

3.3MHz 90mb RV403

3.95MHz 75mb RV405

4.9MHz 60mb RV407

6.075MHz 49mb RV409

7.25MHz 41mb RV411

9.7MHz 31mb RV402

11.825MHz 25mb RV404

13.7MHz 22mb RV406

15.35MHz 19mb RV408

18.275MHz 16mb RV410

23.5MHz 13mb RV412

Caution :Always perform the SW Frequency Adjustment after hav-

ing replace the main circuit board or antenna circuit board.

Adjustments Location : MAIN board (see page 33)

Two dummy antenna coils 1

Note : Disconnect a loop antenna ASSY from the antenna board,

µ

H (1-410-497-11)

and connect two dummy antenna coils in series connection.

level mete

16

ANTENNA

MDULE

(ANTENNA

BOARD)

ANTENNA

CONTROLLER

J1,J2

(AM EXT ANT)

SET

(MAIN

BOARD)

J101

Ω

J302

(headphone)

– 30 –

FM SECTION

FM RF SSG

0.01uF

TP(ANT)

22.5kHz frequency
deviation by 400Hz signal.
Output level :
as low as possible

[ MAIN BOARD]

(Side A)

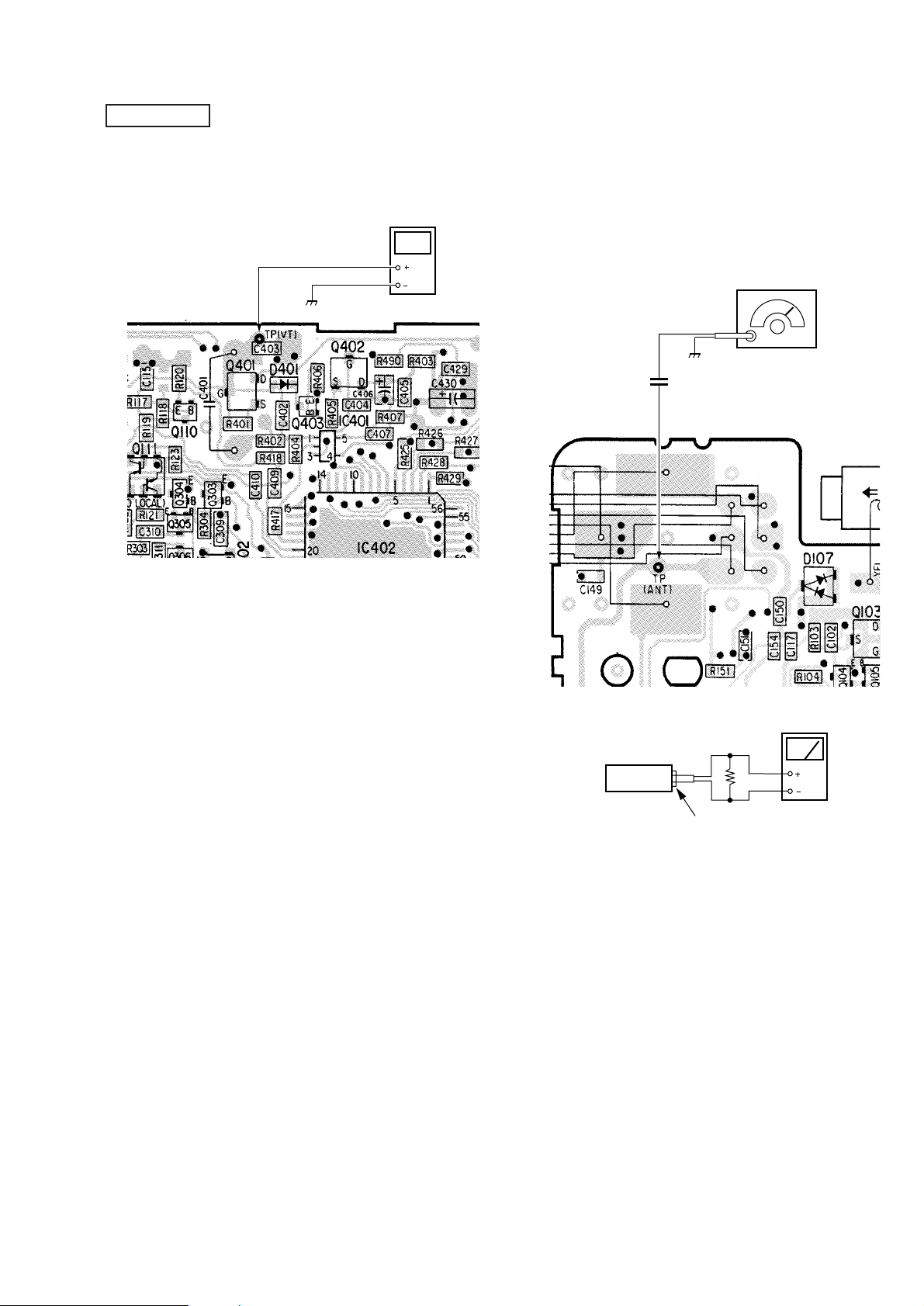

FM FREQUENCY COVERAGE Adjustment

BAND : FM
VOLUME control : as required

Connection Points :

TP (VT)

[ MAIN BOARD] (Side A)

Digital
Voltmeter

FM TRACKING Adjustment

Note : This adjustment should be performed after the remove Rod

Antenna (ANT102).
This adjustment should be performed after the FM FRE­QUENCY COVERAGE ADJUSTMENT.

BAND : FM
VOLUME control : as required

Connection Points :

Procedure :

1. Tune the set to 76MHz.

2. Adjust T201 to obtain a 1.6V on the digital voltmeter.
Standard value : 1.55 – 1.65V

3. Tune the set to 108MHz.

4. Make sure that the digital voltmeter reading is below 11V.

Adjustments Location : MAIN board (see page 33)

level meter

16

Ω

set

J302(headphone)

Procedure :

1. Set the frequencies of the FM RF SSG and the frequency dis­play of the set to 76MHz.

2. Adjust T106 and T107 to obtain a maximum reading on the level
meter.

3. Set the frequencies of the FM RF SSG and the frequency dis­play of the set to 108MHz.

4. Adjust CT101 and CT102 to obtain a maximum reading on the
level meter.

5. Repeat the above steps several times, and finish the adjustment
with the trimmers CT101 and CT102.

Adjustments Location : MAIN board (see page 33)

– 31 –

FM STEREO Adjustment

BAND : FM
ST • MONO switch : ST
VOLUME control : as required

Connection Points :

servicing tool

1pF

1M

TP (76k)

S

Ω

2.4k

Ω

0.01µF

2SK193-E

[ MAIN BOARD] (Side A)

DC5V
frequency

counter

SD Adjustment

BAND : FM
VOLUME control : as required

Connection Points :

[ MAIN BOARD]

(Side A)

TP(ANT)

0.01uF

FM RF SSG

22.5kHz frequency
deviation by 400Hz signal.
Output level : 54dB

µ

TP (DET) TP (GND)

µ

F

100

Note :Connect a capacitor (100µF) to TP (DET) during TP (GND).

Procedure :

1. Adjust RV301 to obtain a 76kHz on the frequency counter.
Standard value : 75.7 – 76.3MHz

Adjustments Location : MAIN board (see page 33)

oscilloscope

TP(SD)

[ MAIN BOARD] (Side A)

Procedure :

1. Set the frequencies of the FM RF SSG and the frequency dis­play of the set to 93MHz.

2. Adjust RV202 so that a waveform on oscilloscope is as shown
below.

Adjustments Location : MAIN board (see page 33)

– 32 –

FM 100MHz Adjustment

CT501: 4MHz system clock
Adjustment

[MICROCOMPUTER BOARD] (SIDE B)

BAND : FM
VOLUME control : as required

Connection Points :

servicing tool

1pF

1M

TP (FM OSC)

S

Ω

2.4k

Ω

0.01µF

2SK193-E

[ MAIN BOARD] (Side A)

DC5V
frequency

counter

MICROCOMPUTER SECTION

4MHz SYSTEM CLOCK Adjustment

BAND : AM
VOLUME control : as required

Connection Points :

servicing tool

2.4k

0.01µF

2SK193-E

TP

(4MHz)

1pF

S

Ω

1M

[ MICROCOMPUTER BOARD] (Side A)

Ω

DC5V
frequency

counter

TP

(4MHz)

Procedure :

1. Tune the set to FM 89.3MHz.

2. Adjust CT401 to obtain a 100MHz on the frequency counter.
Standard value : 99.99997 – 100.00003MHz

Adjustments Location : MAIN board

Adjustments Location :

[MAIN BOARD] (Side B)

CT201 : AM 2nd local
adjustment

RV203 : AM 2nd local adjustment

Procedure :

1. Tune the set to AM 150kHz.

2. Adjust CT501 to obtain a 4.04MHz on the frequency counter.
Standard value : 4.038 – 4.042MHz

3. Tune the set to AM 1010kHz.

4. Make sure that the frequency counter reading is 3.9670 – 3.9730
MHz

Adjustments Location :

T105 : AM 1st IF adjustment

T104 : AM 1st IF adjustment

T107 : FM tracking adjustment

CT401: FM 100MHz
Adjustment

RV301 : FM stereo
adjustment

RV202 : SD adjustment

RV201 : SSB zero beat adjustment

RV404

RV401

RV402

RV403

RV405
RV407

CT101 : FM tracking
adjustment

CT102 : FM tracking

T201 : FM frequency
coverage adjustment

adjustment

– 33 –

RV410

RV409

RV406
RV411
RV408
RV412

T106 : FM tracking
adjustment

RV401-412 : SW frequency
adjustment

SECTION 5

DIAGRAMS

5-1. EXPLANATION OF IC TERMINALS

IC402 µPD17072GB-556-1A7 (PLL SYNTHESIZER CONTROL)

Pin No. Pin name I/O Description

1 ROD/BAR O ROD/BAR antenna select output. “H” : BAR, “L” : ROD
2 AM/FM O AM/FM select output. “H” : AM, “L” : FM
3 ENV/PSN O ENV/PSN select output. “H” : ENV, “L” : PSN
4 SSB/SYNC O SSB/SYNC select output. “H” : SSBR, “L” : SYNC
5 L/U O USB/LSB select output.
6 BAND0 O Meter band select output.
7 BAND1 O Meter band select output.
8 BAND2 O Meter band select output.
9 BAND3 O Meter band select output.

10 – 13 ––––– – Not used (OPEN).

14 DA0 I/O DA signal in/out terminal.
15 DA1 I/O DA signal in/out terminal.
16 DA2 I/O DA signal in/out terminal.
17 DA3 I/O DA signal in/out terminal.
18 GND – Ground terminal.
19 EO O PLL charge pump output.
20 VCOL I MF, HF input terminal.
21 VCOH I VHF input terminal.
22 REGO O Regurator output for PLL.
23 VDD – Power supply terminal.
24 XOUT O Osillator output terminal (75kHz).
25 XIN I Osillator input terminal (75kHz).
26 REG1 O Regurator output for oscillator.

27 – 49 ––––– – Not used (OPEN).

50 CE I Chip enable input.
51 REQ I PLL request signal input.
52 PLL-CTL O PLL control output.
53 UNLOCK O PLL unlock signal output.
54 ACK O Clock signal ouput for system control (IC501).
55 SCK O Clock signal ouput for sub system control (IC502).
56 SI I Data signal input for sub system control (IC502).

– 34 –

IC501 µPD753017AGK-717-BE9 (MAIN SYSTEM CONTROL, LCD DRIVE)

Pin No. Pin name I/O Description

1 – 12 S12 – 23 O LCD segment signal output.

13 – 16 ––––– – Not used (OPEN).

17 XTAL-CTL O Level shift control output for system clock.
18 BEEP-CTL O Beep signal control ouptut.
19 IF-POWER O IF B+ ON/OFF control output.
20 AF-POWER O Power amp ON/OFF control output.
21 COM0 O LCD common signal output.
22 COM1 O LCD common signal output.
23 COM2 O LCD common signal output.
24 COM3 O LCD common signal output.
25 BIAS O Bias output for LCD.
26 VLC0 – LCD drive power supply.
27 VLC1 – LCD drive power supply.
28 VLC2 – LCD drive power supply.
29 SD I SD signal input terminal.
30 TUNE I TUNE signal input terminal.
31 ––––– – Connect to VDD.
32 HOLD I Hold switch input.
33 GND – Ground terminal.
34 MUTE O Mute signal output.
35 SET – Not used (OPEN).
36 REQ-SUB O Request signal output for sub system control.
37 REQ-DTS O DTS request signal output for PLL.
38 VDET-1 I Power voltage detect input.
39 SCK I Sub clock signal input.
40 SO O Data signal output.
41 SI I Data signal input.
42 ACK I Clock signal input from PLL.
43 VDET2 I Power voltage detect input.
44 UNLOCK I PLL unlock detect input.
45 CARD – Connect to ground.
46 ––––– – Not used (OPEN).
47 CS1 O Chip select output for ROM.
48 BEEP O Beep signal output.
49 CS0 O Chip select signal output.
50 KS0 I Key input.
51 KS1 I Key input.
52 KS2 I Key input.
53 KS3 I Key input.
54 VDD – Power supply terminal.
55 XT1 I Sub clock input (32.768kHz).
56 XT2 O Sub clock output (32.768kHz).
57 IC – Connect to VDD.
58 X1 I Main system clock input (4MHz).
59 X2 O Main system clock output (4MHz).

60 – 67 KR0 – KR7 I Key input terminal.

68 RESET I System reset input. “L” : Reset

69 – 80 S0 – S11 O LCD segment signal output.

– 35 –

IC502 µPD753012AGK-781-BE9 (SUB SYSTEM CONTROL, LCD DRIVE)

Pin No. Pin name I/O Description

1 – 18 S12 – S29 O LCD segment signal output.
19, 20 ––––– – Not used (OPEN).

21 COM0 O LCD common signal output.
22 COM1 O LCD common signal output.
23 COM2 O LCD common signal output.
24 COM3 O LCD common signal output.
25 BIAS O Bias output for LCD.
26 VLC0 – LCD drive power supply.
27 VLC1 – LCD drive power supply.
28 VLC2 – LCD drive power supply.

29 – 37 ––––– – Not used (Connect to GND).

38 REQ I Request signal input.
39 SCK I Sub clock input.
40 ––––– – Not used (fix to “L”).
41 SI I Data signal input.

42 – 45 ––––– – Not used (Connect to GND).

46 ACK O PLL clock signal control output.

47 – 53 ––––– – Not used (OPEN).

54 VDD – Power supply terminal.
55 XT1 I Sub clock input (32.768kHz).
56 XT2 O Sub clock output (32.768kHz).
57 IC – Connect to VDD.
58 X1 I System main clock input (4MHz).

59 X2 O System main clock output (4MHz).
60 – 67 ––––– – Not used (OPEN).
68 – 80 S0 – S11 O LCD segment signal output.

r

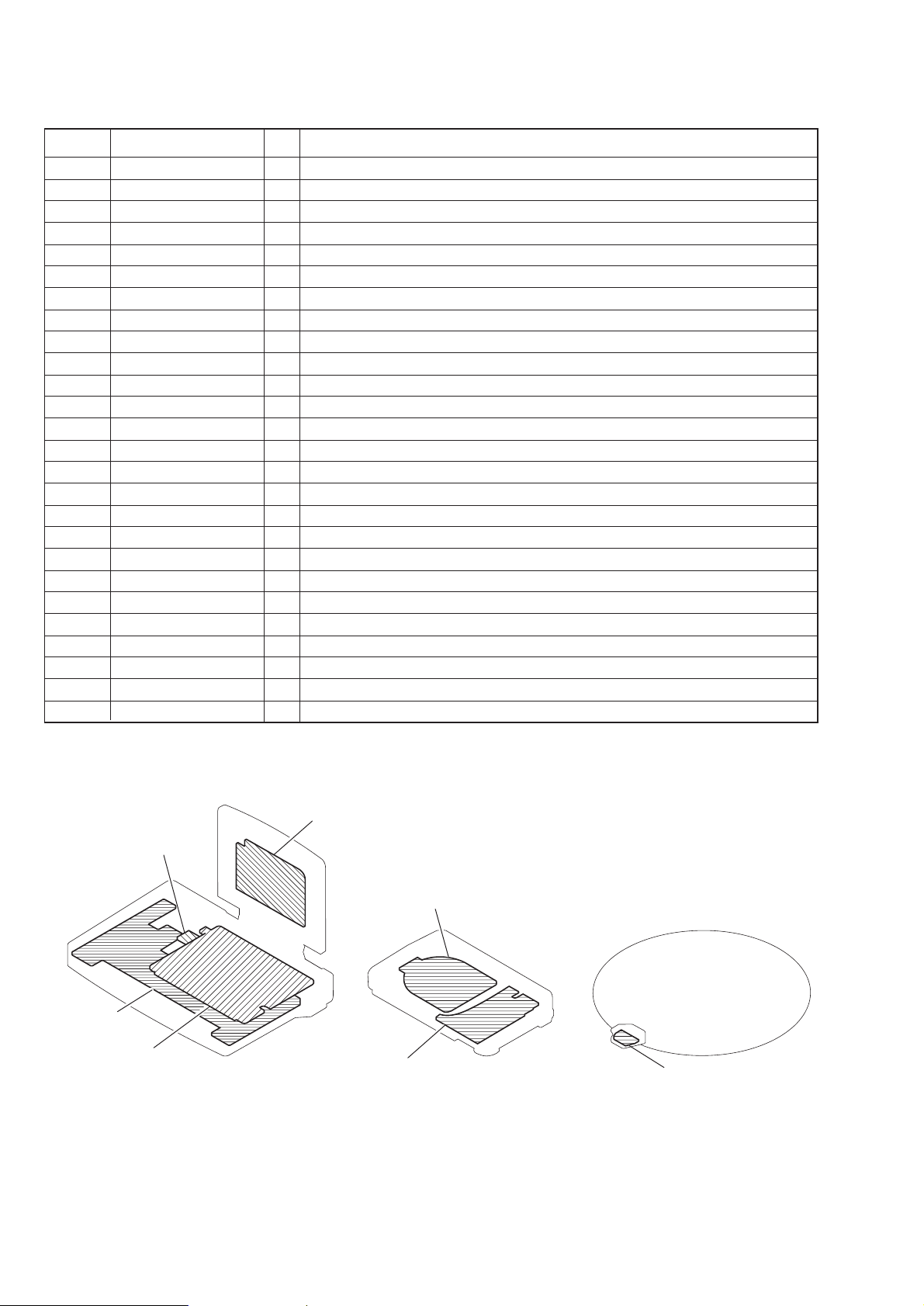

Circuit Boards Location

ROM board

MAIN board

KEY board

ICF-SW07 ANTENNA CONTROLLER SW LOOP ANTENNA

MICROCOMPUTER board

REEL board

CONTROL board

ANTENNA board

– 36 –

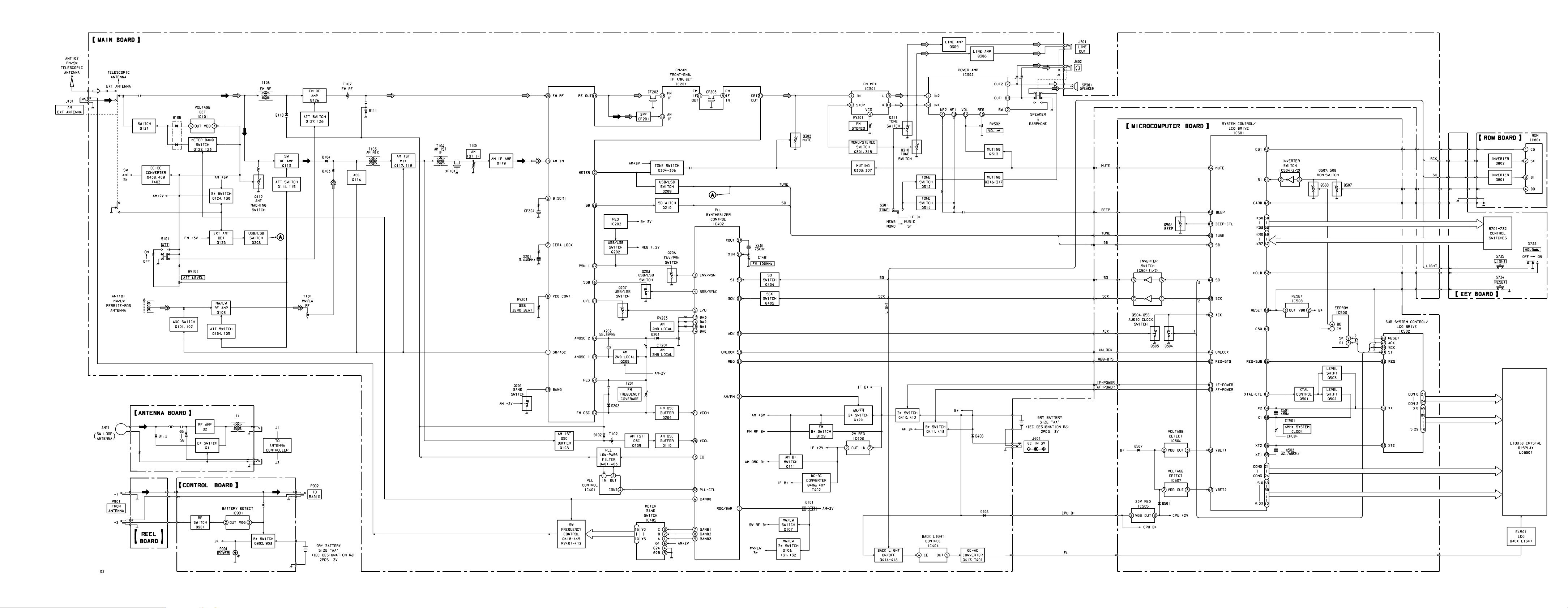

5-2. BLOCK DIAGRAMS

ICF-SW07

• Signal path.

F : FM
f : SW
L : MW/LW

– 37 – – 38 – – 40 –– 39 –

p

p

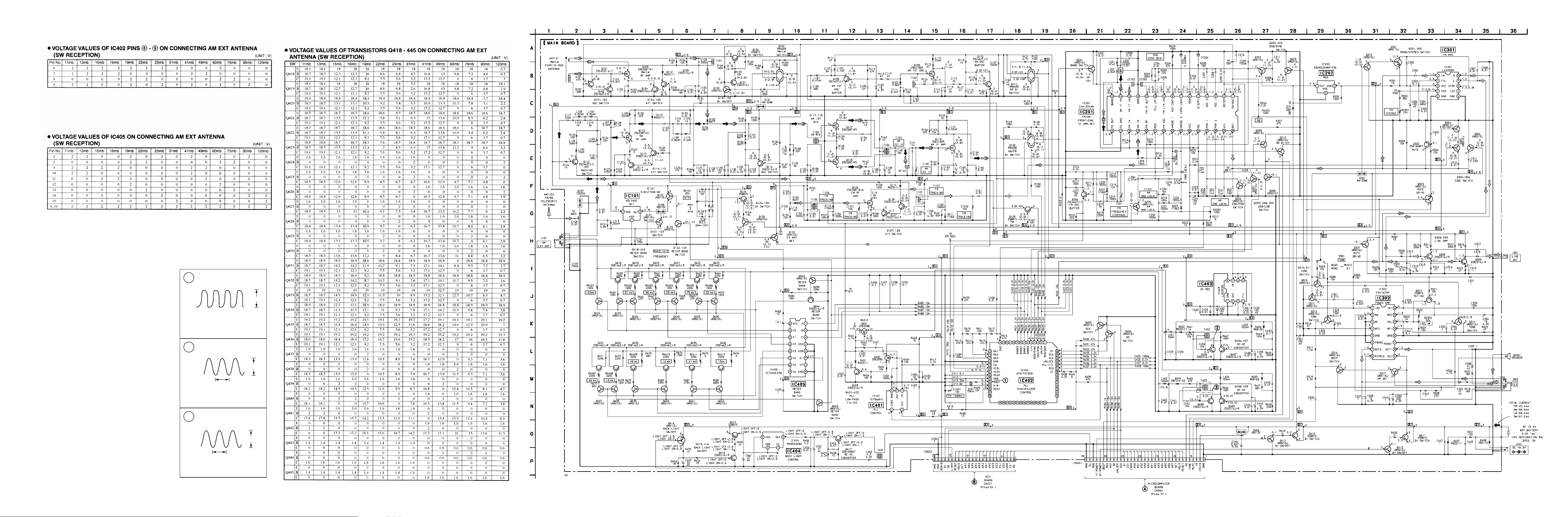

5-4. SCHEMATIC DIAGRAM (MAIN SECTION)

r

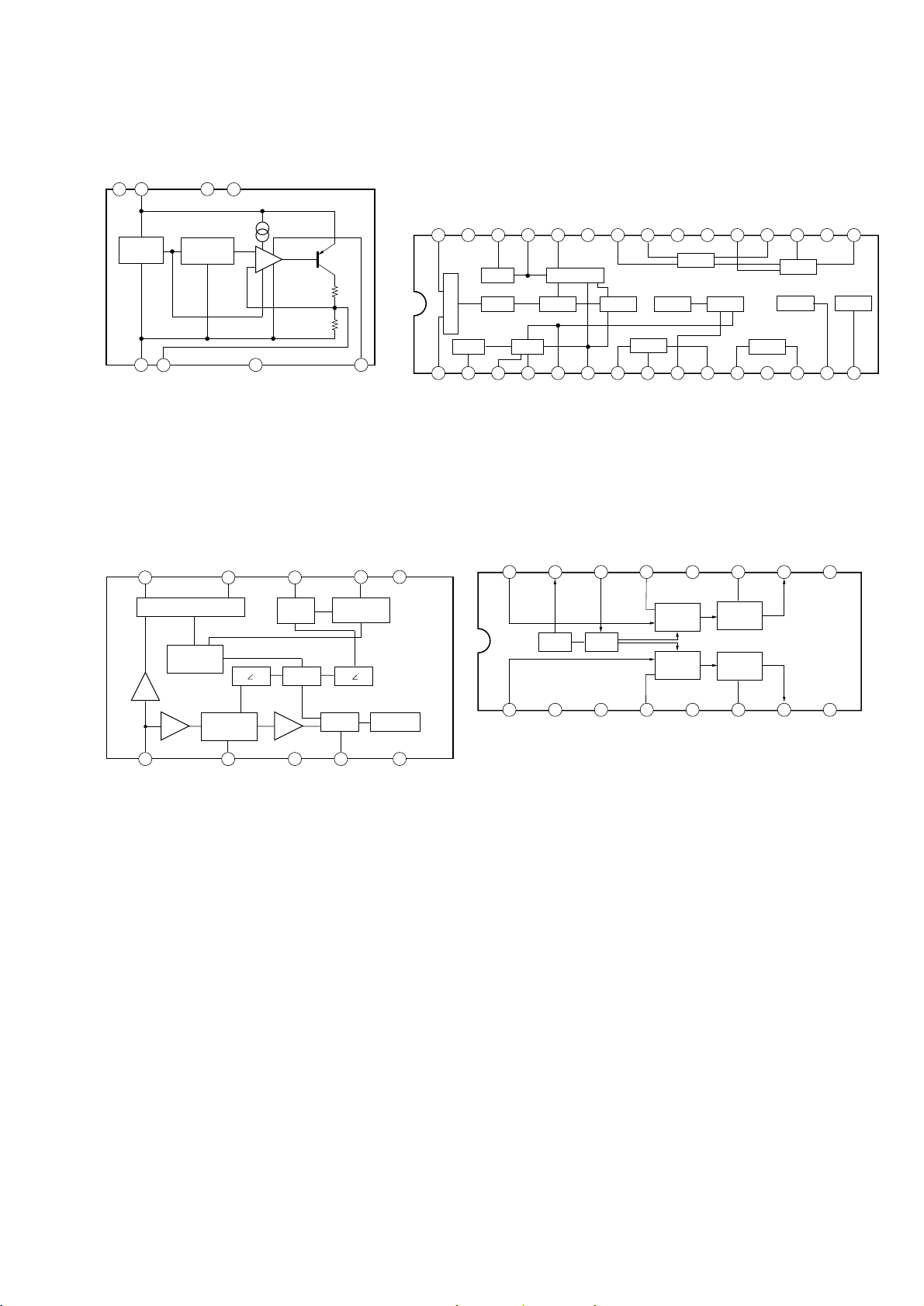

Refer to page 63 for IC Block Diagrams.

ICF-SW07

Note:

• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.

• All resistors are in Ω and 1/
specified.

¢

•

• U : B+ Line.

• H : adjustment for repair.

• Power voltage is dc 3V and fed with regulated dc power

• Voltages and wavefor ms are dc with respect to ground

• Voltages are taken with a V OM (Input impedance 10 MΩ).

• Waveforms are taken with a oscilloscope.

• Circled numbers refer to waveforms.

• Signal path.

: internal component.

supply from external power voltage jack.
under no-signal (detuned) conditions.

no mark : FM
( ) : MW/LW
< > : SW
[ ] :AM EXT ANT CONNECTED

Voltage variations may be noted due to normal produc­tion tolerances.

Voltage variations may be noted due to normal produc­tion tolerances.

F : FM
f : SW
L : MW/LW

4

W or less unless otherwise

r

Waveforms (MAIN Section)

1

75 kHz

IC402 @¢

VOLT/DIV : 0.5 V AC
TIME/DIV : 5 µsec

2

377 nsec

Q406 C

VOLT/DIV : 1 V AC
TIME/DIV : 0.1 µsec

3

1.8 Vp-p

3.8 Vp-

5 Vp-

594 nsec

Q408 C

VOLT/DIV : 1 V AC
TIME/DIV : 0.2 µsec

– 45 – – 46 – – 48 –– 47 – – 49 –

ICF-SW07

r

Semiconductor

Location

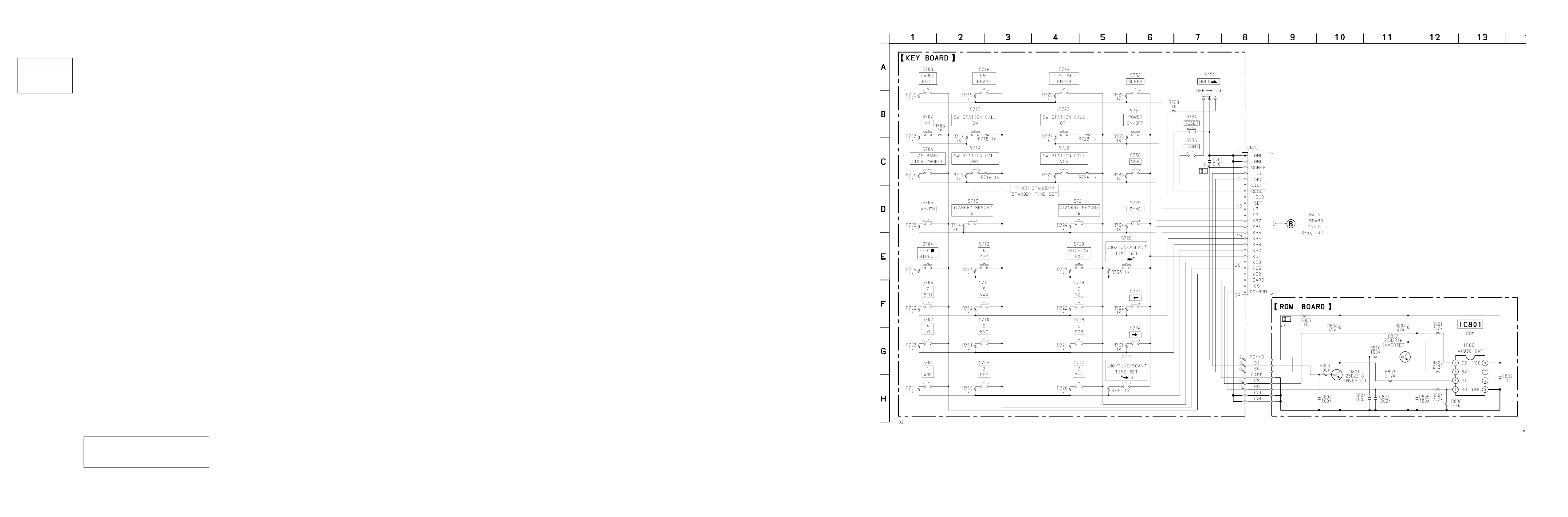

5-6. SCHEMATIC DIAGRAM (KEY SECTION)

5-5. PRINTED WIRING BOARDS (KEY SECTION)

Ref. No. Location
IC801 G-12

Q801 G-12
Q802 G-12

Note:

• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.

• All resistors are in Ω and 1/
specified.

• U : B+ Line.

• Power voltage is dc 3V and fed with regulated dc power
supply from external power voltage jack.

• Voltages are dc with respect to ground under no-signal
(detuned) conditions.
no mark : SW

• Voltages are taken with a V OM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal produc­tion tolerances.

• The voltage isn't filled in the measurement impossibility
place.

4

W or less unless otherwise

Note:

• X : parts extracted from the component side.

r

•

• b : Pattern from the side which enables seeing.

(The other layers' patterns are not indicated.)
Caution:

Pattern face side: Parts on the pattern face side seen from the
(Side A) pattern face are indicated.
Parts face side: Parts on the parts face side seen from the
(Side B) parts face are indicated.

: Through hole.

– 52 – – 53 –– 50 – – 51 – – 54 –

5-7. PRINTED WIRING BOARDS (MICROCOMPUTER SECTION)

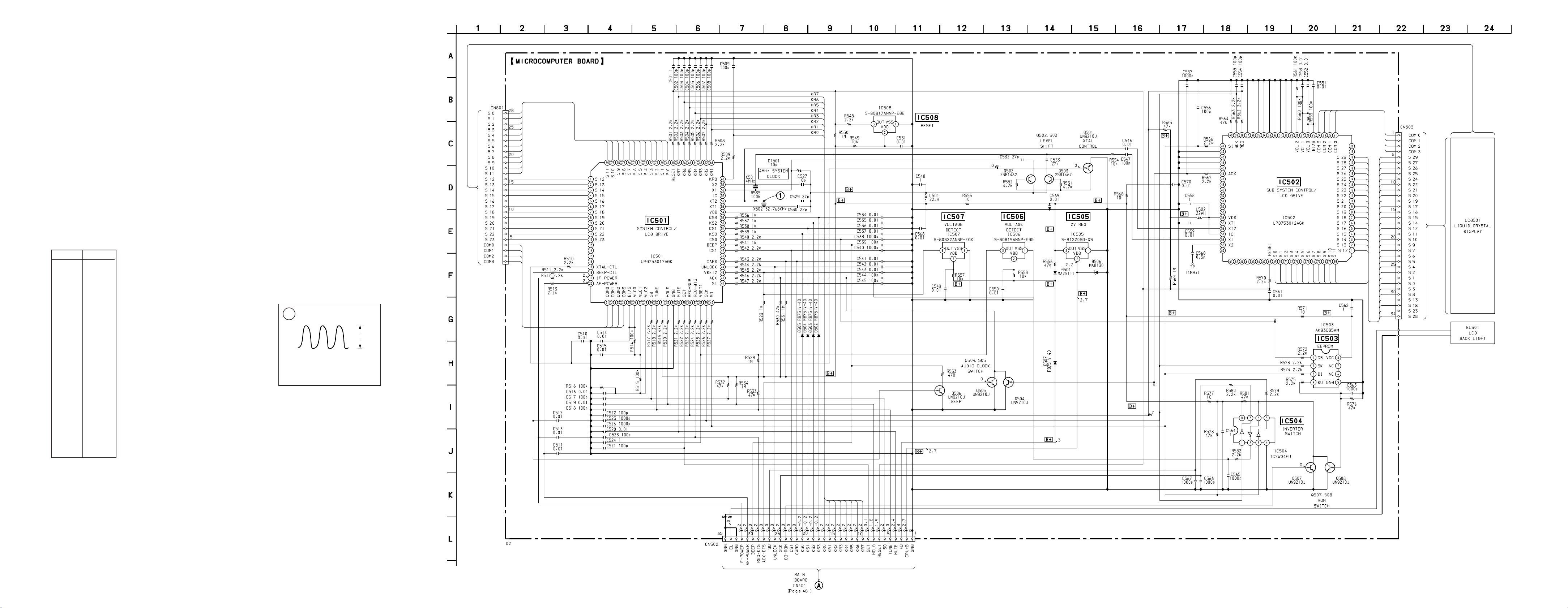

5-8. SCHEMATIC DIAGRAM (MICROCOMPUTER SECTION)

ICF-SW07

r

Semiconductor

Location

Ref. No. Location
D501 C-2

D502 D-3
D503 D-3
D504 D-2
D505 D-2

D506 B-2
D507 C-2

IC501 B-3
IC502 C-5
IC503 B-5
IC504 C-2
IC505 B-2

IC506 D-2
IC507 C-3
IC508 D-3

Q501 C-4
Q502 C-4
Q503 C-4
Q504 C-3
Q505 C-3

Q506 C-3
Q507 D-2
Q508 D-2

Note:

• X : parts extracted from the component side.

r

•

• b : Pattern of the rear side.

• b : Pattern on the side which is seen.

: Through hole.

r

Wavef orm

1

732 mVp-p

32.768 kHz

X502

Note:

• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.

• All resistors are in Ω and 1/
specified.

• U : B+ Line.

• H : adjustment for repair.

• Power voltage is dc 3V and fed with regulated dc power
supply from external power voltage jack.

• Voltages and wavefor ms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : FM

• Voltages are taken with a V OM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal produc­tion tolerances.

• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal produc­tion tolerances.

• Circled numbers refer to waveforms.

• The voltage isn't filled in the measurement impossibility
place.

VOLT/DIV : 0.2 V AC
TIME/DIV : 10 µsec

4

W or less unless otherwise

– 55 – – 56 – – 58 –– 57 –

ICF-SW07

r

Semiconductor

Location

Ref. No. Location
D1 I-2

D2 I-2
D5 I-3
D6 I-3
D7 I-3

D8 I-3
D9 I-1
D10 I-1
D11 I-2
D12 I-2

D13 I-2
D14 I-1
D901 B-11
D902 B-9

IC901 C-10

Q1 H-3
Q2 I-3
Q901 C-9
Q902 B-10
Q903 B-10

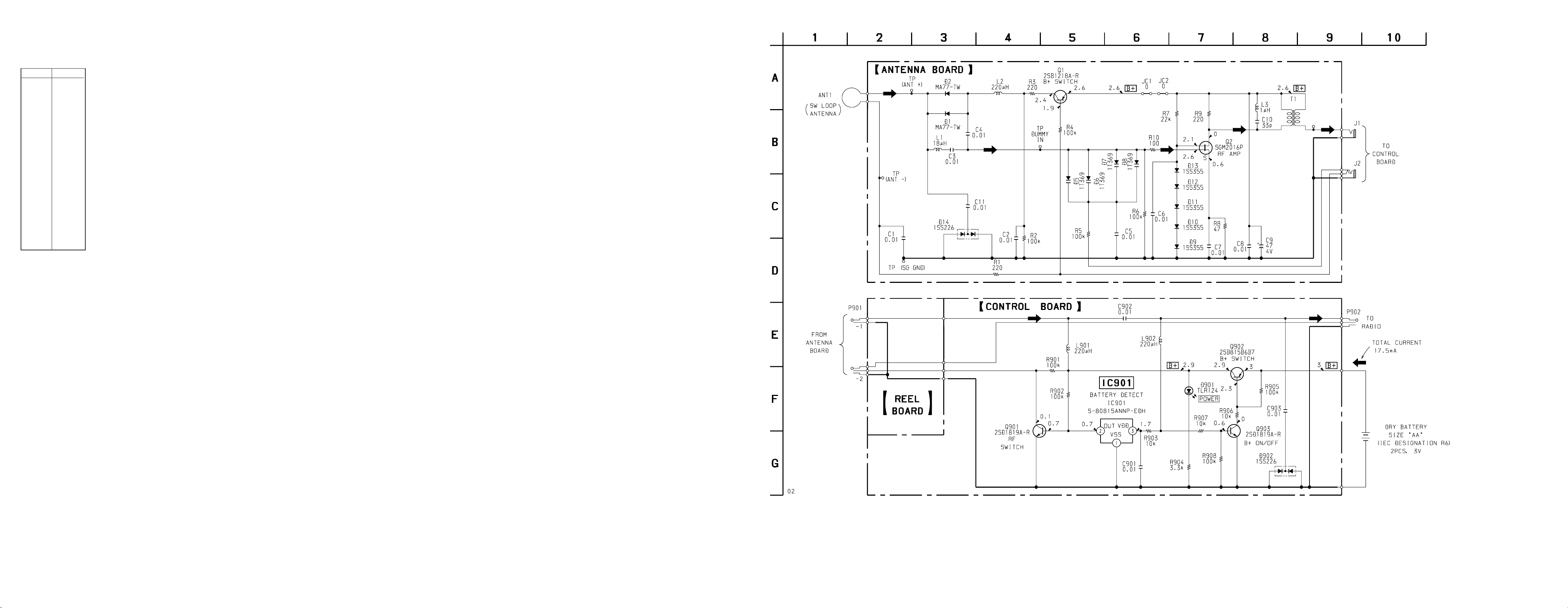

5-9. PRINTED WIRING BOARDS (ANTENNA SECTION) 5-10. SCHEMATIC DIAGRAM (ANTENNA SECTION)

Note:

• X : parts extracted from the component side.

• b : Pattern from the side which enables seeing.

Note:

• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.

• All resistors are in Ω and 1/
specified.

• U : B+ Line.

• Power voltage is dc 3V and fed with regulated dc power
supply from external power voltage jack.

4

W or less unless otherwise

• Voltages are dc with respect to ground under no-signal
(detuned) conditions.
no mark : SW

• Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal produc­tion tolerances.

• Signal path.
f : SW

– 61 – – 62 –– 59 – – 60 –

r

IC Block Diagrams (MAIN Section)

IC403 LA5002M

NC

IN

7

8

WAKE

UP

1

GND

2

OUT

REF.

VOLTAGE

IC301 LA3335M

R

DECODER

STEREO

SWITCH

IC201 CXA1376AM

NC

NC

6

5

DET OUT

30

ERROR

AMP

BUFF

3

NC

4

FIL

1

SD CONT/AGC OU

PSN1

USB/LSB

29 28 27 26 25

PSN CONTROL

LPF SYNC DE ENV DET FM DEM FM LIM

METER AGC

2 3 4 5 6

AGC1

METER

PSN2&E

AGC2

SD OUT

DISCRI

AM OSC2

VCC

24

AM VCO

7

CERALOC

SSB/R3/LOCK D

AM OSC1

23

8

VCO CON

FM OSC

22

AM FE

9

FM LIM I

REG

PLL LPF

FM RF

FM IF OU

AM IN

18192021

FM FE

AM IF REG

FM IF

13121110

GND

FM IN

FM IF IN

FE GND

1617

1514

AM IF IN

FE OUT

BAND SE

IC302 CXA1622M

GND

L

910

STOP

8

SYNC

DET

FF 1/2FF 90º

LED

7

LAMP

TRIGGER

FF 0º

6

IN1 REG VOL NF1 GND1 OUT1 VCCP-GND1

16

15 14

REG VOL

13 12 11 10

PRE

AMP1

PRE

AMP2

POWER

AMP1

POWER

AMP2

9

1

PHASE

COMPALATE

1

IN

234

FILTER

V.C.O VCO STOP

VCC

VCO

IN2 BW NC NF2 GND2 OUT2 REPPLEP-GND2

5

GND

2 3 4 5 6

8

7

– 63 –

NOTE :

• -XX, -X mean standardized parts, so they
may have some difference from the original
one.

• Items marked “ * ”are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.

6-1. CABINET SECTION

not supplied

EL501

16

28

17

15

14

SECTION 6

EXPLODED VIEWS

• The mechanical parts with no reference
number in the exploded views are not
supplied

• Accessories and packing materials are given
in the last of this parts list.

23

18

19

29

22

25

20

21

24

27

8

26

LCD501

15

11

9

ANT102

13

12

10

9

1

2

3

7

6

4

3

5

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

1 X-3377-539-1 CABINET (LOWER) ASSY
2 3-910-062-01 FOOT,RUBBER
3 3-371-765-11 SCREW(2X8), +BTP
4 3-363-895-01 SCREW(M1.7)
5 3-031-499-01 LID(ROM)

* 6 X-3377-112-1 ROM ASSY

7 3-031-500-01 STOPPER (ROM)
8 3-031-509-01 ADAPTOR (SHAFT)
9 7-685-104-19 SCREW +P 2X6 TYPE2 NON-SLIT
10 3-719-381-01 SCREW (M2X4)

* 11 3-938-082-01 PLATE (ANT), CONTACT
* 12 3-031-513-01 REINFORCEMENT (A)

13 3-316-938-51 SCREW (B1.4X6), TAPPING
14 X-3376-587-1 LID(REAR) ASSY
15 3-384-797-01 SCREW

* 16 3-031-514-01 FRAME (LID)

17 3-031-516-01 HOLDER (LCD)
18 1-672-548-11 FLEXIBLE BOARD
19 1-694-492-11 CONDUCTIVE BOARD,CONNECTION(B)
20 1-694-491-11 CONDUCTIVE BOARD,CONNECTION(A)

21 3-031-517-01 CASE(LCD)

* 22 A-3663-171-A MICROCOMPUTER BOARD, COMPLETE

23 3-031-493-01 BUTTON (OPEN)
24 3-031-492-01 LID(FRONT)
25 3-031-510-01 ADAPTOR (PIN)

26 3-703-357-08 PIN(DIA. 1.6 SERISE)
27 X-3376-860-1 SHAFT ASSY

* 28 3-033-858-01 SPACER (FRAME)

29 3-035-189-01 LEAF, COPPER (FPC)
ANT102 1-501-658-11 ANTENNA, TELESCOPIC (FM/SW)

EL501 1-803-372-11 ELEMENT, EL INDICATION (LCD BACK LIGHT)
LCD501 1-803-371-11 PANEL, LIQUID CRYSTAL DISPLAY

– 64 –

6-2. CHASSIS SECTION

55

SP301

54

67

66

58

56

57

ANT101

59

61

62

62

58

60

63

64

65

53

52

51

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
* 51 A-3683-027-A MAIN BOARD, COMPLETE

52 1-672-549-11 FLEXIBLE BOARD
53 3-031-529-01 TERMINAL (-), BATTERY
54 3-031-491-01 BUTTON (10 KEY)
55 X-3376-861-1 CABINET ASSY

56 3-031-511-01 KNOB(HOLD)
57 3-031-512-01 LEVER (HOLD)
58 3-895-823-11 SCREW (B1.4X3), TAPPING
59 3-031-519-01 KNOB(ATT)

* 60 A-3683-026-A KEYBOARD, COMPLETE

* 61 A-3638-687-A CONNECTOR ASSY

62 3-384-797-01 SCREW
63 3-031-494-01 CHASSIS
64 3-031-520-01 KNOB(TONE)
65 3-031-518-01 TERMINAL (+), BATTERY

66 3-033-844-01 LEAF(3.64M), COPPER
67 3-355-482-01 SHEET (KT), ADHESIVE
ANT101 1-501-657-22 FERRITE-ROD ANTENNA (MW/LW)
SP301 1-505-165-11 SPEAKER (4cm)

– 65 –

6-3. ANTENNA CONTROLLER SECTION

111

110

109

108

107

P902

104

103

104

102

106

105

101

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

101 3-015-956-01 LID, BATTERY CASE
102 3-907-747-01 SPRING (+/-.B), BATTERY
103 3-895-517-11 SCREW (2), TAPPING, STEP
104 3-363-895-01 SCREW (M1.7)
105 3-907-745-01 SPRING (-), BATTERY

106 3-377-127-01 TERMINAL (+), BATTERY

107 3-015-949-01 CABINET (REAR)

* 108 1-666-723-11 REEL BOARD
* 109 A-3683-030-A CONTROL BOARD, COMPLETE

110 3-030-407-01 CABINET (FRONT)

111 A-3638-504-A REEL ASSY
P902 1-790-234-11 CODE (WITH PLUG)

– 66 –

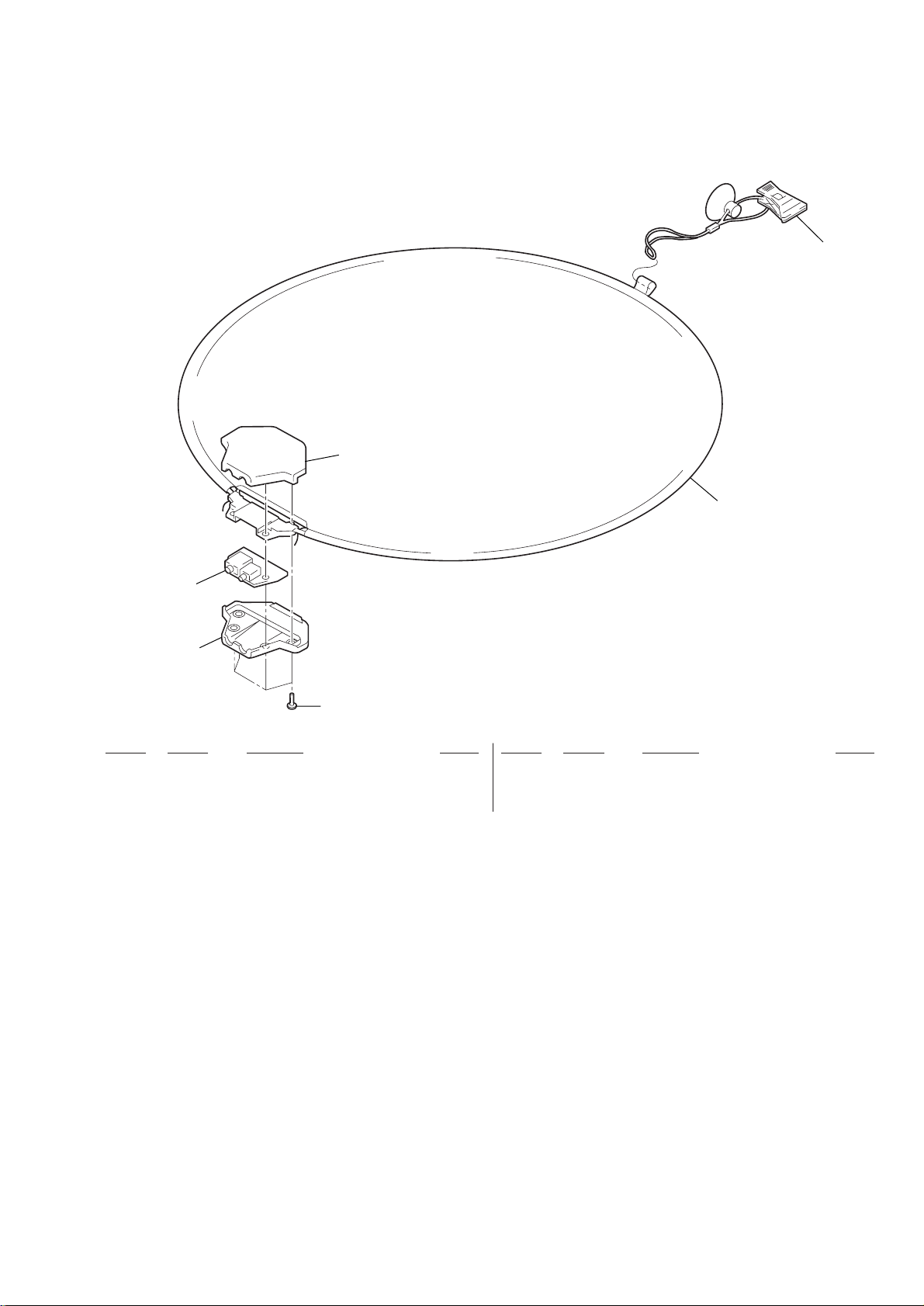

6-4. SW LOOP ANTENNA SECTION

154

153

155

156

152

151

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

151 3-910-063-01 SCREW (1.7X10)
152 3-015-954-01 CASE (LOWER)

* 153 A-3683-029-A ANTENNA BOARD, COMPLETE

154 3-015-953-11 CASE (UPPER)
155 3-018-979-01 CLIP (SUCKER)
156 X-3374-227-2 ANTENNA ASSY

– 67 –

SECTION 7

ANTENNA CONTROL

NOTE :

• Due to standardization, replacements in the
parts list may be different from the parts
specified in the diagrams or the components
used on the set.

• -XX, -X mean standardized parts, so they
may have some difference from the original
one.

• RESISTORS
All resistors are in ohms
METAL : Metal-film resistor
METAL OXIDE :Metal oxide-film resistor
F : nonflammable

• Items marked “ * ”are not stocked since
they are seldom required for routine service.
Some delay should be anticipated when
ordering these items.

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

* A-3683-029-A ANTENNA BOARD, COMPLETE

***********************

< CAPACITOR >

C1 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C2 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C3 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C4 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C5 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C6 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C7 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C8 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C9 1-104-908-11 TANTAL. CHIP 47uF 20% 4V
C10 1-162-921-11 CERAMIC CHIP 33PF 5% 50V

C11 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

< DIODE >

ELECTRICAL PARTS LIST

• SEMICONDUCTORS

In each case, u : µ , for example :

uA.... : µ A.... , uPA.... : µ PA....

uPB.... : µ PB.... , uPC.... : µ PC....

uPD.... : µ PD....

• CAPACITORS

uF : µ F

• COILS

uH : µ H

• Abbreviation
AEP : AC adaptor is attached
7AEP : AC adaptor is not attached

L3 1-412-979-21 INDUCTOR 1uH

Q1 8-729-402-55 TRANSISTOR 2SB1218A-R
Q2 8-766-002-46 TRANSISTOR SGM2016AP-T7

R1 1-216-813-11 METAL CHIP 220 5% 1/16W
R2 1-216-845-11 METAL CHIP 100K 5% 1/16W
R3 1-216-813-11 METAL CHIP 220 5% 1/16W
R4 1-216-845-11 METAL CHIP 100K 5% 1/16W
R5 1-216-845-11 METAL CHIP 100K 5% 1/16W

R6 1-216-845-11 METAL CHIP 100K 5% 1/16W
R7 1-216-837-11 METAL CHIP 22K 5% 1/16W
R8 1-216-805-11 METAL CHIP 47 5% 1/16W
R9 1-216-813-11 METAL CHIP 220 5% 1/16W
R10 1-216-809-11 METAL CHIP 100 5% 1/16W

The components identified by mark !
or dotted line with mark ! are critical
for safety.
Replace only with part number specified.

Les composants identifiés par une
marque ! sont critiques pour la sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.

When indicating parts by reference num­ber, please include the board.

< TRANSISTOR >

< RESISTOR >

D1 8-719-421-40 DIODE MA77
D2 8-719-421-40 DIODE MA77
D5 8-713-101-57 DIODE 1T369-M20-T8A
D6 8-713-101-57 DIODE 1T369-M20-T8A
D7 8-713-101-57 DIODE 1T369-M20-T8A

D8 8-713-101-57 DIODE 1T369-M20-T8A
D9 8-719-988-61 DIODE 1SS355TE-17
D10 8-719-988-61 DIODE 1SS355TE-17
D11 8-719-988-61 DIODE 1SS355TE-17
D12 8-719-988-61 DIODE 1SS355TE-17

D13 8-719-988-61 DIODE 1SS355TE-17
D14 8-719-800-76 DIODE 1SS226

< JACK >

J1 1-569-215-11 JACK (FROM ANTENNA CONTROLLER)
J2 1-573-996-11 JACK, SMALL (WATERPROOF)

(FROM ANTENNA CONTROLLER)

< JUMPER RESISTOR >

JC1 1-216-864-11 METAL CHIP 0 5% 1/16W
JC2 1-216-864-11 METAL CHIP 0 5% 1/16W

< COIL >

L1 1-408-412-00 INDUCTOR 18uH
L2 1-410-658-31 INDUCTOR CHIP 220uH

< TRANSFORMER >

T1 1-426-357-11 TRANSFORMER, RF

**************************************************************

* A-3683-030-A CONTROL BOARD, COMPLETE

*************************

< CAPACITOR >

C901 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C902 1-163-031-11 CERAMIC CHIP 0.01uF 50V
C903 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

< DIODE >

D901 8-719-812-41 LED TLR124 (POWER)
D902 8-719-800-76 DIODE 1SS226

< IC >

IC901 8-759-568-84 IC S-80815ANNP-EDC-T2

< COIL >

L901 1-410-658-31 INDUCTOR CHIP 220uH
L902 1-410-658-31 INDUCTOR CHIP 220uH

– 68 –

MAINKEYCONTROL

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

< TRANSISTOR >

Q901 8-729-402-32 TRANSISTOR 2SD1819A-R
Q902 8-729-800-71 TRANSISTOR 2SB815B7-TB
Q903 8-729-402-32 TRANSISTOR 2SD1819A-R

< RESISTOR >

R901 1-216-845-11 METAL CHIP 100K 5% 1/16W
R902 1-216-845-11 METAL CHIP 100K 5% 1/16W
R903 1-216-833-11 METAL CHIP 10K 5% 1/16W
R904 1-216-827-11 METAL CHIP 3.3K 5% 1/16W
R905 1-216-845-11 METAL CHIP 100K 5% 1/16W

R906 1-216-833-11 METAL CHIP 10K 5% 1/16W
R907 1-216-833-11 METAL CHIP 10K 5% 1/16W
R908 1-216-845-11 METAL CHIP 100K 5% 1/16W

**************************************************************

R731 1-218-953-11 RES,CHIP 1K 5% 1/16W
R732 1-218-953-11 RES,CHIP 1K 5% 1/16W
R733 1-218-953-11 RES,CHIP 1K 5% 1/16W
R734 1-218-953-11 RES,CHIP 1K 5% 1/16W
R735 1-218-953-11 RES,CHIP 1K 5% 1/16W

R736 1-218-953-11 RES,CHIP 1K 5% 1/16W
R737 1-218-953-11 RES,CHIP 1K 5% 1/16W
R738 1-218-953-11 RES,CHIP 1K 5% 1/16W

< SWITCH >

S701 1-692-453-11 SWITCH, KEY BOARD (1)
S702 1-692-453-11 SWITCH, KEY BOARD (4)
S703 1-692-453-11 SWITCH, KEY BOARD (7)
S704 1-692-453-11 SWITCH, KEY BOARD (DIRECT)
S705 1-692-453-11 SWITCH, KEY BOARD (FM/AM)

* A-3683-026-A KEY BOARD, COMPLETE

*******************

3-384-797-01 SCREW

< CAPACITOR >

C701 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

< CONNECTOR >

* CN701 1-766-598-11 HOUSING, FPC CONNECTOR(ZIF)24P

< RESISTOR >

R701 1-218-953-11 RES,CHIP 1K 5% 1/16W
R702 1-218-953-11 RES,CHIP 1K 5% 1/16W
R703 1-218-953-11 RES,CHIP 1K 5% 1/16W
R704 1-218-953-11 RES,CHIP 1K 5% 1/16W
R705 1-218-953-11 RES,CHIP 1K 5% 1/16W

R706 1-218-953-11 RES,CHIP 1K 5% 1/16W
R707 1-218-953-11 RES,CHIP 1K 5% 1/16W
R708 1-218-953-11 RES,CHIP 1K 5% 1/16W
R709 1-218-953-11 RES,CHIP 1K 5% 1/16W
R710 1-218-953-11 RES,CHIP 1K 5% 1/16W

R711 1-218-953-11 RES,CHIP 1K 5% 1/16W
R712 1-218-953-11 RES,CHIP 1K 5% 1/16W
R713 1-218-953-11 RES,CHIP 1K 5% 1/16W
R714 1-218-953-11 RES,CHIP 1K 5% 1/16W
R715 1-218-953-11 RES,CHIP 1K 5% 1/16W

S706 1-692-453-11 SWITCH, KEY BOARD (AM BAND LOCAL/

WORLD)
S707 1-692-453-11 SWITCH, KEY BOARD (MY)
S708 1-692-453-11 SWITCH, KEY BOARD (LABEL EDIT)
S709 1-692-453-11 SWITCH, KEY BOARD (2)
S710 1-692-453-11 SWITCH, KEY BOARD (5)

S711 1-692-453-11 SWITCH, KEY BOARD (8)
S712 1-692-453-11 SWITCH, KEY BOARD (0)
S713 1-692-453-11 SWITCH, KEY BOARD (STANDBY MEMORY a)
S714 1-692-453-11 SWITCH, KEY BOARD (BBC)
S715 1-692-453-11 SWITCH, KEY BOARD (DW)

S716 1-692-453-11 SWITCH, KEY BOARD (DST ERASE)
S717 1-692-453-11 SWITCH, KEY BOARD (3)
S718 1-692-453-11 SWITCH, KEY BOARD (6)
S719 1-692-453-11 SWITCH, KEY BOARD (9)
S720 1-692-453-11 SWITCH, KEY BOARD (DISPLAY EXE)

S721 1-692-453-11 SWITCH, KEY BOARD (STANDBY MEMORY b)
S722 1-692-453-11 SWITCH, KEY BOARD (VOA)
S723 1-692-453-11 SWITCH, KEY BOARD (OTH)
S724 1-692-453-11 SWITCH, KEY BOARD (TIME SET ENTER)
S725 1-692-453-11 SWITCH, KEY BOARD

(JOG/TUNE/SCAN •/1 +)

S726 1-692-453-11 SWITCH, KEY BOARD (TIME DIF /)
S727 1-692-453-11 SWITCH, KEY BOARD (TIME DIF ?)
S728 1-692-453-11 SWITCH, KEY BOARD

(JOG/TUNE/SCAN – 1? •)

S729 1-692-453-11 SWITCH, KEY BOARD (SYNC)
S730 1-692-453-11 SWITCH, KEY BOARD (SSB)

R716 1-218-953-11 RES,CHIP 1K 5% 1/16W
R717 1-218-953-11 RES,CHIP 1K 5% 1/16W
R718 1-218-953-11 RES,CHIP 1K 5% 1/16W
R719 1-218-953-11 RES,CHIP 1K 5% 1/16W
R720 1-218-953-11 RES,CHIP 1K 5% 1/16W

R721 1-218-953-11 RES,CHIP 1K 5% 1/16W
R722 1-218-953-11 RES,CHIP 1K 5% 1/16W
R723 1-218-953-11 RES,CHIP 1K 5% 1/16W
R724 1-218-953-11 RES,CHIP 1K 5% 1/16W
R725 1-218-953-11 RES,CHIP 1K 5% 1/16W

R726 1-218-953-11 RES,CHIP 1K 5% 1/16W
R727 1-218-953-11 RES,CHIP 1K 5% 1/16W
R728 1-218-953-11 RES,CHIP 1K 5% 1/16W
R729 1-218-953-11 RES,CHIP 1K 5% 1/16W
R730 1-218-953-11 RES,CHIP 1K 5% 1/16W

S731 1-692-453-11 SWITCH, KEY BOARD (POWER ON/OFF)
S732 1-692-453-11 SWITCH, KEY BOARD (SLEEP)
S733 1-572-922-11 SWITCH, SLIDE (HOLD c)
S734 1-572-921-11 SWITCH, KEY BOARD (RESET)
S735 1-692-453-11 SWITCH, KEY BOARD (LIGHT)

**************************************************************

* A-3683-027-A MAIN BOARD, COMPLETE

*********************

< CAPACITOR >

C101 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C102 1-115-156-11 CERAMIC CHIP 1uF 10V
C103 1-162-959-11 CERAMIC CHIP 330PF 5% 50V
C104 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

– 69 –

MAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

C105 1-107-813-11 TANTAL. CHIP 10uF 20% 6.3V

C106 1-162-925-11 CERAMIC CHIP 68PF 5% 50V
C107 1-162-913-11 CERAMIC CHIP 8PF 0.5PF 50V
C108 1-162-917-11 CERAMIC CHIP 15PF 5% 50V
C109 1-107-813-11 TANTAL. CHIP 10uF 20% 6.3V
C110 1-162-907-11 CERAMIC CHIP 2PF 0.25PF 50V

C111 1-162-847-11 CERAMIC 0.047uF 10% 16V
C112 1-162-907-11 CERAMIC CHIP 2PF 0.25PF 50V
C113 1-107-811-11 TANTAL. CHIP 47uF 20% 4V
C114 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C115 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C117 1-162-957-11 CERAMIC CHIP 220PF 5% 50V
C118 1-162-907-11 CERAMIC CHIP 2PF 0.25PF 50V
C119 1-162-908-11 CERAMIC CHIP 3PF 0.25PF 50V
C120 1-164-363-11 CERAMIC CHIP 560PF 5% 50V
C121 1-162-925-11 CERAMIC CHIP 68PF 5% 50V

C122 1-115-156-11 CERAMIC CHIP 1uF 10V
C123 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C124 1-162-907-11 CERAMIC CHIP 2PF 0.25PF 50V
C125 1-162-905-11 CERAMIC CHIP 1PF 0.25PF 50V
C126 1-162-920-11 CERAMIC CHIP 27PF 5% 50V

C127 1-107-813-11 TANTAL. CHIP 10uF 20% 6.3V
C128 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C129 1-110-967-11 TANTAL. CHIP 100uF 20% 4V
C130 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C131 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C132 1-107-813-11 TANTAL. CHIP 10uF 20% 6.3V
C133 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C134 1-162-914-11 CERAMIC CHIP 9PF 0.5PF 50V
C135 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C136 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C137 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C138 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C139 1-107-811-11 TANTAL. CHIP 47uF 20% 4V
C140 1-162-918-11 CERAMIC CHIP 18PF 5% 50V
C141 1-164-376-11 CERAMIC CHIP 11PF 5% 50V

C142 1-162-917-11 CERAMIC CHIP 15PF 5% 50V
C143 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C144 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C145 1-107-813-11 TANTAL. CHIP 10uF 20% 6.3V
C146 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C147 1-164-937-11 CERAMIC CHIP 0.001uF 10% 16V
C148 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C149 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C150 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C151 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C152 1-164-937-11 CERAMIC CHIP 0.001uF 10% 16V
C153 1-115-156-11 CERAMIC CHIP 1uF 10V
C154 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C155 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C156 1-164-357-11 CERAMIC CHIP 1000PF 5% 50V

C157 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C158 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C159 1-107-813-11 TANTAL. CHIP 10uF 20% 6.3V
C160 1-164-357-11 CERAMIC CHIP 1000PF 5% 50V
C161 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C162 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C163 1-107-811-11 TANTAL. CHIP 47uF 20% 4V
C201 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C202 1-162-979-11 CERAMIC CHIP 2700PF 5% 50V
C203 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C204 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C205 1-115-156-11 CERAMIC CHIP 1uF 10V
C206 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C207 1-115-156-11 CERAMIC CHIP 1uF 10V
C208 1-115-156-11 CERAMIC CHIP 1uF 10V

C209 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C210 1-115-156-11 CERAMIC CHIP 1uF 10V
C211 1-107-813-11 TANTAL. CHIP 10uF 20% 6.3V
C212 1-162-908-11 CERAMIC CHIP 3PF 0.25PF 50V
C213 1-164-357-11 CERAMIC CHIP 1000PF 5% 50V

C214 1-164-357-11 CERAMIC CHIP 1000PF 5% 50V
C215 1-162-916-11 CERAMIC CHIP 12PF 5% 50V
C216 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C217 1-110-967-11 TANTAL. CHIP 100uF 20% 4V
C218 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V

C219 1-162-904-11 CERAMIC CHIP 0.5PF 0.25PF 50V
C220 1-164-357-11 CERAMIC CHIP 1000PF 5% 50V
C221 1-164-357-11 CERAMIC CHIP 1000PF 5% 50V
C222 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C223 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C224 1-110-967-11 TANTAL. CHIP 100uF 20% 4V
C225 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C226 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C227 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C228 1-164-473-11 CERAMIC CHIP 820PF 5% 50V

C229 1-115-156-11 CERAMIC CHIP 1uF 10V
C230 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C232 1-164-937-11 CERAMIC CHIP 0.001uF 10% 16V
C233 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C301 1-115-156-11 CERAMIC CHIP 1uF 10V

C302 1-115-156-11 CERAMIC CHIP 1uF 10V
C303 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C304 1-163-137-00 CERAMIC CHIP 680PF 5% 50V
C305 1-110-967-11 TANTAL. CHIP 100uF 20% 4V
C306 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C307 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C308 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C309 1-115-156-11 CERAMIC CHIP 1uF 10V
C310 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C311 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V

C312 1-115-156-11 CERAMIC CHIP 1uF 10V
C313 1-115-156-11 CERAMIC CHIP 1uF 10V
C314 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C315 1-107-813-11 TANTAL. CHIP 10uF 20% 6.3V
C316 1-115-156-11 CERAMIC CHIP 1uF 10V

C317 1-115-156-11 CERAMIC CHIP 1uF 10V
C318 1-115-156-11 CERAMIC CHIP 1uF 10V
C319 1-115-156-11 CERAMIC CHIP 1uF 10V
C320 1-164-245-11 CERAMIC CHIP 0.015uF 10% 25V
C321 1-164-245-11 CERAMIC CHIP 0.015uF 10% 25V

C322 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C323 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C324 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C325 1-165-128-91 CERAMIC CHIP 0.22uF 10% 16V

– 70 –

MAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

C326 1-115-156-11 CERAMIC CHIP 1uF 10V

C327 1-115-156-11 CERAMIC CHIP 1uF 10V
C328 1-107-813-11 TANTAL. CHIP 10uF 20% 6.3V
C329 1-107-811-11 TANTAL. CHIP 47uF 20% 4V
C330 1-115-156-11 CERAMIC CHIP 1uF 10V
C331 1-115-156-11 CERAMIC CHIP 1uF 10V

C332 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C333 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C334 1-107-813-11 TANTAL. CHIP 10uF 20% 6.3V
C335 1-115-156-11 CERAMIC CHIP 1uF 10V
C336 1-165-128-91 CERAMIC CHIP 0.22uF 10% 16V

C337 1-115-156-11 CERAMIC CHIP 1uF 10V
C338 1-107-811-11 TANTAL. CHIP 47uF 20% 4V
C339 1-128-391-11 ELECT CHIP 330uF 20% 6.3V
C340 1-115-156-11 CERAMIC CHIP 1uF 10V
C341 1-110-967-11 TANTAL. CHIP 100uF 20% 4V

C342 1-115-156-11 CERAMIC CHIP 1uF 10V
C343 1-115-156-11 CERAMIC CHIP 1uF 10V
C344 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C401 1-130-834-00 FILM 1uF 5% 63V
C402 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C403 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C404 1-164-357-11 CERAMIC CHIP 1000PF 5% 50V
C405 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C406 1-107-813-11 TANTAL. CHIP 10uF 20% 6.3V
C407 1-115-156-11 CERAMIC CHIP 1uF 10V

C408 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C409 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C410 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C411 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C412 1-115-156-11 CERAMIC CHIP 1uF 10V

C413 1-164-862-11 CERAMIC CHIP 33PF 5% 16V
C414 1-164-848-11 CERAMIC CHIP 8PF 0.5PF 16V
C415 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C416 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C417 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C418 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C419 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C420 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C421 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C422 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C423 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C424 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C425 1-164-937-11 CERAMIC CHIP 0.001uF 10% 16V
C426 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C427 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C428 1-164-874-11 CERAMIC CHIP 100PF 5% 16V
C429 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C430 1-110-967-11 TANTAL. CHIP 100uF 20% 4V
C431 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C432 1-110-967-11 TANTAL. CHIP 100uF 20% 4V

C433 1-164-346-11 CERAMIC CHIP 1uF 16V
C434 1-164-346-11 CERAMIC CHIP 1uF 16V
C435 1-164-850-11 CERAMIC CHIP 10PF 0.5PF 16V
C436 1-164-850-11 CERAMIC CHIP 10PF 0.5PF 16V
C437 1-107-820-11 CERAMIC CHIP 0.1uF 16V

C438 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C439 1-107-813-11 TANTAL. CHIP 10uF 20% 6.3V
C440 1-164-005-11 CERAMIC CHIP 0.47uF 25V
C441 1-164-005-11 CERAMIC CHIP 0.47uF 25V
C442 1-164-850-11 CERAMIC CHIP 10PF 0.5PF 16V

C443 1-164-005-11 CERAMIC CHIP 0.47uF 25V
C444 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C445 1-107-813-11 TANTAL. CHIP 10uF 20% 6.3V
C446 1-125-618-11 DOUBLE LAYER 0.047F 0 5.5V
C447 1-115-156-11 CERAMIC CHIP 1uF 10V

C448 1-115-156-11 CERAMIC CHIP 1uF 10V
C449 1-107-810-11 TANTAL. CHIP 33uF 20% 4V
C450 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C451 1-107-811-11 TANTAL. CHIP 47uF 20% 4V
C452 1-113-619-11 CERAMIC CHIP 0.47uF 10V

C453 1-107-812-11 TANTAL. CHIP 4.7uF 20% 6.3V
C454 1-115-156-11 CERAMIC CHIP 1uF 10V
C455 1-115-156-11 CERAMIC CHIP 1uF 10V
C456 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C457 1-164-156-11 CERAMIC CHIP 0.1uF 25V

C458 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C459 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C460 1-115-156-11 CERAMIC CHIP 1uF 10V
C461 1-107-811-11 TANTAL. CHIP 47uF 20% 4V

< FILTER >

CF201 1-760-199-11 FILTER, CERAMIC
CF202 1-767-313-11 FILTER, CERAMIC
CF203 1-767-313-11 FILTER, CERAMIC
CF204 1-781-211-21 FILTER,CERAMIC (DISCRIMINATOR)

< CONNECTOR >

CN401 1-785-566-21 HOUSING, FPC CONNECTOR(ZIF)35P

* CN402 1-766-598-11 HOUSING, FPC CONNECTOR(ZIF)24P

< TRIMMER >

CT101 1-141-327-11 CAP, CHIP TYPE TRIMMER 10PF

(FM TRACKING)

CT102 1-141-327-11 CAP, CHIP TYPE TRIMMER 10PF

(FM TRACKING)
CT201 1-141-482-21 CAP, ADJ 10PF (AM 2ND LOCAL)
CT401 1-141-482-21 CAP, ADJ 10PF (FM100MHz)

< DIODE >

D101 8-719-421-67 DIODE MA132WK
D102 8-719-002-81 DIODE 1T363
D103 8-719-421-40 DIODE MA77
D104 8-719-421-40 DIODE MA77
D105 8-719-421-40 DIODE MA77

D106 8-719-421-40 DIODE MA77
D107 8-719-800-76 DIODE 1SS226
D108 8-719-988-82 DIODE RB715F
D109 8-719-421-40 DIODE MA77
D110 8-719-002-81 DIODE 1T363

D111 8-719-002-81 DIODE 1T363
D112 8-719-046-91 DIODE MA2S111
D113 8-719-046-91 DIODE MA2S111
D114 8-719-046-91 DIODE MA2S111
D201 8-719-060-48 DIODE RB751V-40TE-17

– 71 –

MAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

D202 8-719-002-81 DIODE 1T363
D203 8-719-002-81 DIODE 1T363
D301 8-719-421-67 DIODE MA132WK
D401 8-719-046-91 DIODE MA2S111
D402 8-719-046-91 DIODE MA2S111

D403 8-719-420-87 DIODE MA8130
D404 8-719-060-48 DIODE RB751V-40TE-17
D405 8-719-057-80 DIODE MA8160-M-TX
D406 8-719-988-82 DIODE RB715F
D407 8-719-046-91 DIODE MA2S111

D408 8-719-975-40 DIODE RB411D

< IC >

IC101 8-759-461-80 IC S-81215SG-QK-T1
IC201 8-752-064-32 IC CXA1376AM
IC202 8-759-575-75 IC S-80822ANNP-EDK-T2
IC301 8-759-804-98 IC LA3335M
IC302 8-752-058-42 IC CXA1622M

IC401 8-759-082-60 IC TC7S66FU
IC402 8-759-585-44 IC uPD17072GB-556-1A7
IC403 8-759-804-76 IC LA5002M
IC404 8-759-577-33 IC RN5RZ20BA-TR
IC405 8-759-524-23 IC TC74VHC238FT(EL)

< JACK >

J101 1-573-178-11 JACK (AM EXT ANT)
J301 1-563-280-21 JACK (LINE OUT)
J302 1-573-177-11 JACK (2)
J401 1-580-372-21 JACK,DC(POLARITY UNIFIED TYPE)(DC IN 3V)

Q102 8-729-037-89 TRANSISTOR 2SC4627J-C(TX).SO
Q103 8-729-123-86 TRANSISTOR 2SK238-K16
Q104 8-729-037-92 TRANSISTOR 2SD2216J-R(TX).SO
Q105 8-729-037-92 TRANSISTOR 2SD2216J-R(TX).SO

Q106 8-729-800-71 TRANSISTOR 2SB815B7-TB
Q107 8-729-402-16 TRANSISTOR XN4608
Q108 8-729-037-89 TRANSISTOR 2SC4627J-C(TX).SO
Q109 8-729-208-47 TRANSISTOR 2SK210-GR
Q110 8-729-037-89 TRANSISTOR 2SC4627J-C(TX).SO

Q111 8-729-402-16 TRANSISTOR XN4608
Q112 8-729-037-89 TRANSISTOR 2SC4627J-C(TX).SO
Q113 8-729-123-86 TRANSISTOR 2SK238-K16
Q114 8-729-037-92 TRANSISTOR 2SD2216J-R(TX).SO
Q115 8-729-037-92 TRANSISTOR 2SD2216J-R(TX).SO

Q116 8-729-037-92 TRANSISTOR 2SD2216J-R(TX).SO
Q117 8-729-116-64 TRANSISTOR 2SK508-K51
Q118 8-729-116-64 TRANSISTOR 2SK508-K51
Q119 8-729-208-47 TRANSISTOR 2SK210-GR
Q120 8-729-402-16 TRANSISTOR XN4608

Q121 8-729-037-58 TRANSISTOR UN9110J-(TX).SO
Q122 8-729-037-58 TRANSISTOR UN9110J-(TX).SO
Q123 8-729-037-71 TRANSISTOR UN9210J-(TX).SO
Q124 8-729-800-71 TRANSISTOR 2SB815B7-TB
Q125 8-729-037-58 TRANSISTOR UN9110J-(TX).SO

Q126 8-729-123-86 TRANSISTOR 2SK238-K16
Q127 8-729-037-92 TRANSISTOR 2SD2216J-R(TX).SO
Q128 8-729-037-92 TRANSISTOR 2SD2216J-R(TX).SO
Q129 8-729-800-71 TRANSISTOR 2SB815B7-TB
Q130 8-729-037-71 TRANSISTOR UN9210J-(TX).SO

< COIL >

L101 1-412-975-31 INDUCTOR 0.47uH
L102 1-412-987-31 INDUCTOR 4.7uH
L103 1-412-978-21 INDUCTOR 0.82uH
L104 1-412-978-21 INDUCTOR 0.82uH
L105 1-412-993-11 INDUCTOR 15uH

L106 1-410-658-31 INDUCTOR CHIP 220uH
L107 1-412-985-11 INDUCTOR 3.3uH
L108 1-410-658-31 INDUCTOR CHIP 220uH
L109 1-412-978-21 INDUCTOR 0.82uH
L110 1-412-983-11 INDUCTOR 2.2uH

L111 1-412-978-21 INDUCTOR 0.82uH
L112 1-412-973-11 INDUCTOR 0.33uH
L113 1-410-658-31 INDUCTOR CHIP 220uH
L114 1-412-979-21 INDUCTOR 1uH
L115 1-412-995-21 INDUCTOR 22uH

L201 1-412-959-21 INDUCTOR CHIP 47uH
L202 1-412-989-11 INDUCTOR 6.8uH
L203 1-412-991-11 INDUCTOR 10uH
L204 1-412-975-31 INDUCTOR 0.47uH
L205 1-469-419-21 INDUCTOR

L401 1-412-997-11 INDUCTOR 33uH
L402 1-412-963-11 INDUCTOR 100uH
L403 1-412-963-11 INDUCTOR 100uH
L404 1-412-963-11 INDUCTOR 100uH

< TRANSISTOR >

Q101 8-729-034-58 TRANSISTOR 2SC4555-6.7-TL

Q131 8-729-037-92 TRANSISTOR 2SD2216J-R(TX).SO
Q132 8-729-037-71 TRANSISTOR UN9210J-(TX).SO
Q201 8-729-037-71 TRANSISTOR UN9210J-(TX).SO
Q202 8-729-037-58 TRANSISTOR UN9110J-(TX).SO
Q203 8-729-037-71 TRANSISTOR UN9210J-(TX).SO

Q204 8-729-037-89 TRANSISTOR 2SC4627J-C(TX).SO
Q205 8-729-037-58 TRANSISTOR UN9110J-(TX).SO
Q206 8-729-037-71 TRANSISTOR UN9210J-(TX).SO
Q207 8-729-037-71 TRANSISTOR UN9210J-(TX).SO
Q208 8-729-037-71 TRANSISTOR UN9210J-(TX).SO

Q209 8-729-037-71 TRANSISTOR UN9210J-(TX).SO
Q210 8-729-037-71 TRANSISTOR UN9210J-(TX).SO
Q301 8-729-037-61 TRANSISTOR UN9113J-(TX).SO
Q302 8-729-800-37 TRANSISTOR 2SD1048-X7
Q303 8-729-037-61 TRANSISTOR UN9113J-(TX).SO

Q304 8-729-037-71 TRANSISTOR UN9210J-(TX).SO
Q305 8-729-037-71 TRANSISTOR UN9210J-(TX).SO
Q306 8-729-037-71 TRANSISTOR UN9210J-(TX).SO
Q307 8-729-037-71 TRANSISTOR UN9210J-(TX).SO
Q308 8-729-037-92 TRANSISTOR 2SD2216J-R(TX).SO

Q309 8-729-037-92 TRANSISTOR 2SD2216J-R(TX).SO
Q310 8-729-037-71 TRANSISTOR UN9210J-(TX).SO
Q311 8-729-037-71 TRANSISTOR UN9210J-(TX).SO
Q312 8-729-037-71 TRANSISTOR UN9210J-(TX).SO
Q313 8-729-800-71 TRANSISTOR 2SB815B7-TB

Q314 8-729-037-71 TRANSISTOR UN9210J-(TX).SO
Q315 8-729-037-71 TRANSISTOR UN9210J-(TX).SO
Q316 8-729-037-71 TRANSISTOR UN9210J-(TX).SO
Q317 8-729-037-58 TRANSISTOR UN9110J-(TX).SO

– 72 –

MAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

Q401 8-729-220-93 TRANSISTOR 2SK209-G

Q402 8-729-220-93 TRANSISTOR 2SK209-G
Q403 8-729-037-92 TRANSISTOR 2SD2216J-R(TX).SO
Q404 8-729-037-71 TRANSISTOR UN9210J-(TX).SO
Q405 8-729-037-71 TRANSISTOR UN9210J-(TX).SO
Q406 8-729-037-92 TRANSISTOR 2SD2216J-R(TX).SO

Q407 8-729-037-92 TRANSISTOR 2SD2216J-R(TX).SO
Q408 8-729-037-92 TRANSISTOR 2SD2216J-R(TX).SO
Q409 8-729-037-92 TRANSISTOR 2SD2216J-R(TX).SO
Q410 8-729-800-71 TRANSISTOR 2SB815B7-TB
Q411 8-729-800-71 TRANSISTOR 2SB815B7-TB

Q412 8-729-037-71 TRANSISTOR UN9210J-(TX).SO
Q413 8-729-037-71 TRANSISTOR UN9210J-(TX).SO
Q414 8-729-037-61 TRANSISTOR UN9113J-(TX).SO
Q415 8-729-800-71 TRANSISTOR 2SB815B7-TB
Q416 8-729-037-92 TRANSISTOR 2SD2216J-R(TX).SO

Q417 8-729-800-37 TRANSISTOR 2SD1048-X7
Q418 8-729-037-86 TRANSISTOR 2SB1462J-R(TX).SO
Q419 8-729-037-86 TRANSISTOR 2SB1462J-R(TX).SO
Q420 8-729-037-86 TRANSISTOR 2SB1462J-R(TX).SO
Q421 8-729-037-86 TRANSISTOR 2SB1462J-R(TX).SO

Q422 8-729-037-86 TRANSISTOR 2SB1462J-R(TX).SO
Q423 8-729-037-86 TRANSISTOR 2SB1462J-R(TX).SO
Q424 8-729-037-71 TRANSISTOR UN9210J-(TX).SO
Q425 8-729-037-71 TRANSISTOR UN9210J-(TX).SO
Q426 8-729-037-71 TRANSISTOR UN9210J-(TX).SO

Q427 8-729-037-71 TRANSISTOR UN9210J-(TX).SO
Q428 8-729-037-71 TRANSISTOR UN9210J-(TX).SO
Q429 8-729-037-71 TRANSISTOR UN9210J-(TX).SO
Q430 8-729-037-71 TRANSISTOR UN9210J-(TX).SO
Q431 8-729-037-86 TRANSISTOR 2SB1462J-R(TX).SO

Q432 8-729-037-86 TRANSISTOR 2SB1462J-R(TX).SO
Q433 8-729-037-86 TRANSISTOR 2SB1462J-R(TX).SO
Q434 8-729-037-86 TRANSISTOR 2SB1462J-R(TX).SO
Q435 8-729-037-86 TRANSISTOR 2SB1462J-R(TX).SO
Q436 8-729-037-86 TRANSISTOR 2SB1462J-R(TX).SO

Q437 8-729-037-71 TRANSISTOR UN9210J-(TX).SO
Q438 8-729-037-71 TRANSISTOR UN9210J-(TX).SO
Q439 8-729-037-71 TRANSISTOR UN9210J-(TX).SO
Q440 8-729-037-71 TRANSISTOR UN9210J-(TX).SO
Q441 8-729-037-71 TRANSISTOR UN9210J-(TX).SO

Q442 8-729-037-71 TRANSISTOR UN9210J-(TX).SO
Q443 8-729-037-71 TRANSISTOR UN9210J-(TX).SO
Q444 8-729-037-92 TRANSISTOR 2SD2216J-R(TX).SO
Q445 8-729-037-71 TRANSISTOR UN9210J-(TX).SO

< RESISTOR >

R101 1-216-841-11 METAL CHIP 47K 5% 1/16W
R102 1-216-847-11 METAL CHIP 150K 5% 1/16W
R103 1-216-853-11 METAL CHIP 470K 5% 1/16W
R104 1-216-845-11 METAL CHIP 100K 5% 1/16W
R105 1-216-797-11 METAL CHIP 10 5% 1/16W

R106 1-216-833-11 METAL CHIP 10K 5% 1/16W
R107 1-216-833-11 METAL CHIP 10K 5% 1/16W
R108 1-216-833-11 METAL CHIP 10K 5% 1/16W
R109 1-216-845-11 METAL CHIP 100K 5% 1/16W
R110 1-216-845-11 METAL CHIP 100K 5% 1/16W

R111 1-218-937-11 RES,CHIP 47 5% 1/16W
R112 1-218-973-11 RES,CHIP 47K 5% 1/16W
R113 1-218-937-11 RES,CHIP 47 5% 1/16W
R114 1-216-839-11 METAL CHIP 33K 5% 1/16W
R115 1-218-937-11 RES,CHIP 47 5% 1/16W

R116 1-218-929-11 RES,CHIP 10 5% 1/16W
R117 1-216-805-11 METAL CHIP 47 5% 1/16W
R118 1-216-841-11 METAL CHIP 47K 5% 1/16W
R119 1-216-797-11 METAL CHIP 10 5% 1/16W
R120 1-216-817-11 METAL CHIP 470 5% 1/16W

R121 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R122 1-216-845-11 METAL CHIP 100K 5% 1/16W
R123 1-216-845-11 METAL CHIP 100K 5% 1/16W
R124 1-216-821-11 METAL CHIP 1K 5% 1/16W
R125 1-216-809-11 METAL CHIP 100 5% 1/16W

R126 1-216-839-11 METAL CHIP 33K 5% 1/16W
R127 1-216-853-11 METAL CHIP 470K 5% 1/16W
R128 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R129 1-216-853-11 METAL CHIP 470K 5% 1/16W
R130 1-216-813-11 METAL CHIP 220 5% 1/16W

R131 1-216-797-11 METAL CHIP 10 5% 1/16W
R132 1-216-845-11 METAL CHIP 100K 5% 1/16W
R133 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R134 1-218-949-11 RES,CHIP 470 5% 1/16W
R135 1-218-977-11 RES,CHIP 100K 5% 1/16W

R136 1-216-841-11 METAL CHIP 47K 5% 1/16W
R137 1-216-839-11 METAL CHIP 33K 5% 1/16W
R138 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R139 1-216-823-11 METAL CHIP 1.5K 5% 1/16W
R140 1-216-823-11 METAL CHIP 1.5K 5% 1/16W

R141 1-216-797-11 METAL CHIP 10 5% 1/16W
R142 1-216-797-11 METAL CHIP 10 5% 1/16W
R143 1-216-805-11 METAL CHIP 47 5% 1/16W
R144 1-216-831-11 METAL CHIP 6.8K 5% 1/16W
R145 1-216-797-11 METAL CHIP 10 5% 1/16W

R146 1-216-813-11 METAL CHIP 220 5% 1/16W
R147 1-216-805-11 METAL CHIP 47 5% 1/16W
R148 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R149 1-216-845-11 METAL CHIP 100K 5% 1/16W
R150 1-216-845-11 METAL CHIP 100K 5% 1/16W

R151 1-216-831-11 METAL CHIP 6.8K 5% 1/16W
R152 1-216-833-11 METAL CHIP 10K 5% 1/16W
R153 1-216-835-11 METAL CHIP 15K 5% 1/16W
R154 1-216-833-11 METAL CHIP 10K 5% 1/16W
R155 1-216-837-11 METAL CHIP 22K 5% 1/16W

R156 1-218-953-11 RES,CHIP 1K 5% 1/16W
R157 1-218-977-11 RES,CHIP 100K 5% 1/16W
R158 1-218-977-11 RES,CHIP 100K 5% 1/16W
R159 1-216-845-11 METAL CHIP 100K 5% 1/16W
R160 1-216-797-11 METAL CHIP 10 5% 1/16W

R161 1-216-845-11 METAL CHIP 100K 5% 1/16W
R162 1-216-833-11 METAL CHIP 10K 5% 1/16W
R163 1-218-965-11 RES,CHIP 10K 5% 1/16W
R164 1-216-845-11 METAL CHIP 100K 5% 1/16W
R165 1-216-845-11 METAL CHIP 100K 5% 1/16W

R166 1-216-833-11 METAL CHIP 10K 5% 1/16W
R167 1-216-864-11 METAL CHIP 0 5% 1/16W
R168 1-218-969-11 RES,CHIP 22K 5% 1/16W

– 73 –

MAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

R201 1-216-826-11 METAL CHIP 2.7K 5% 1/16W
R202 1-216-851-11 METAL CHIP 330K 5% 1/16W

R203 1-216-837-11 METAL CHIP 22K 5% 1/16W
R204 1-216-838-11 METAL CHIP 27K 5% 1/16W
R205 1-218-941-11 RES,CHIP 100 5% 1/16W
R206 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R207 1-216-841-11 METAL CHIP 47K 5% 1/16W

R208 1-218-949-11 RES,CHIP 470 5% 1/16W
R209 1-216-845-11 METAL CHIP 100K 5% 1/16W
R210 1-216-813-11 METAL CHIP 220 5% 1/16W
R211 1-216-837-11 METAL CHIP 22K 5% 1/16W
R212 1-216-845-11 METAL CHIP 100K 5% 1/16W

R213 1-216-849-11 METAL CHIP 220K 5% 1/16W
R214 1-216-823-11 METAL CHIP 1.5K 5% 1/16W
R215 1-216-845-11 METAL CHIP 100K 5% 1/16W
R216 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R217 1-218-990-11 SHORT 0

R218 1-218-983-11 RES,CHIP 330K 5% 1/16W
R219 1-218-977-11 RES,CHIP 100K 5% 1/16W
R220 1-216-833-11 METAL CHIP 10K 5% 1/16W
R221 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R222 1-216-797-11 METAL CHIP 10 5% 1/16W

R223 1-216-864-11 METAL CHIP 0 5% 1/16W
R224 1-216-864-11 METAL CHIP 0 5% 1/16W
R301 1-216-797-11 METAL CHIP 10 5% 1/16W
R302 1-216-840-11 METAL CHIP 39K 5% 1/16W
R303 1-216-833-11 METAL CHIP 10K 5% 1/16W

R304 1-216-833-11 METAL CHIP 10K 5% 1/16W
R305 1-216-833-11 METAL CHIP 10K 5% 1/16W
R306 1-216-833-11 METAL CHIP 10K 5% 1/16W
R307 1-216-797-11 METAL CHIP 10 5% 1/16W
R308 1-216-833-11 METAL CHIP 10K 5% 1/16W

R309 1-216-833-11 METAL CHIP 10K 5% 1/16W
R310 1-216-851-11 METAL CHIP 330K 5% 1/16W
R311 1-216-821-11 METAL CHIP 1K 5% 1/16W
R312 1-216-851-11 METAL CHIP 330K 5% 1/16W
R313 1-216-821-11 METAL CHIP 1K 5% 1/16W

R314 1-216-805-11 METAL CHIP 47 5% 1/16W
R315 1-216-805-11 METAL CHIP 47 5% 1/16W
R316 1-218-937-11 RES,CHIP 47 5% 1/16W
R317 1-218-955-11 RES,CHIP 1.5K 5% 1/16W
R318 1-216-809-11 METAL CHIP 100 5% 1/16W

R319 1-216-827-11 METAL CHIP 3.3K 5% 1/16W
R320 1-216-833-11 METAL CHIP 10K 5% 1/16W
R321 1-216-833-11 METAL CHIP 10K 5% 1/16W
R322 1-216-864-11 METAL CHIP 0 5% 1/16W
R323 1-216-821-11 METAL CHIP 1K 5% 1/16W

R324 1-216-833-11 METAL CHIP 10K 5% 1/16W
R325 1-218-937-11 RES,CHIP 47 5% 1/16W
R326 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R327 1-216-809-11 METAL CHIP 100 5% 1/16W
R328 1-218-945-11 RES,CHIP 220 5% 1/16W

R329 1-216-833-11 METAL CHIP 10K 5% 1/16W
R330 1-218-965-11 RES,CHIP 10K 5% 1/16W
R401 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R402 1-216-835-11 METAL CHIP 15K 5% 1/16W
R403 1-216-797-11 METAL CHIP 10 5% 1/16W

R404 1-216-833-11 METAL CHIP 10K 5% 1/16W
R405 1-216-833-11 METAL CHIP 10K 5% 1/16W
R406 1-216-833-11 METAL CHIP 10K 5% 1/16W
R407 1-216-797-11 METAL CHIP 10 5% 1/16W
R408 1-218-929-11 RES,CHIP 10 5% 1/16W

R409 1-218-973-11 RES,CHIP 47K 5% 1/16W
R410 1-218-969-11 RES,CHIP 22K 5% 1/16W
R411 1-218-969-11 RES,CHIP 22K 5% 1/16W
R412 1-218-969-11 RES,CHIP 22K 5% 1/16W
R413 1-218-973-11 RES,CHIP 47K 5% 1/16W

R414 1-218-973-11 RES,CHIP 47K 5% 1/16W
R415 1-218-973-11 RES,CHIP 47K 5% 1/16W
R416 1-218-973-11 RES,CHIP 47K 5% 1/16W
R417 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R418 1-216-809-11 METAL CHIP 100 5% 1/16W

R419 1-218-948-11 RES,CHIP 100 5% 1/16W
R420 1-218-965-11 RES,CHIP 10K 5% 1/16W
R421 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R422 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R423 1-216-825-11 METAL CHIP 2.2K 5% 1/16W

R424 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R425 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R426 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R427 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R428 1-216-825-11 METAL CHIP 2.2K 5% 1/16W

R429 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R430 1-218-973-11 RES,CHIP 47K 5% 1/16W
R431 1-218-973-11 RES,CHIP 47K 5% 1/16W
R432 1-216-841-11 METAL CHIP 47K 5% 1/16W
R433 1-216-825-11 METAL CHIP 2.2K 5% 1/16W

R434 1-218-957-11 RES,CHIP 2.2K 5% 1/16W
R435 1-218-957-11 RES,CHIP 2.2K 5% 1/16W
R436 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R437 1-218-957-11 RES,CHIP 2.2K 5% 1/16W
R438 1-218-957-11 RES,CHIP 2.2K 5% 1/16W

R439 1-218-973-11 RES,CHIP 47K 5% 1/16W
R440 1-218-990-11 SHORT 0
R441 1-218-953-11 RES,CHIP 1K 5% 1/16W
R442 1-218-977-11 RES,CHIP 100K 5% 1/16W
R443 1-218-977-11 RES,CHIP 100K 5% 1/16W

R444 1-218-977-11 RES,CHIP 100K 5% 1/16W
R445 1-218-949-11 RES,CHIP 470 5% 1/16W
R446 1-218-977-11 RES,CHIP 100K 5% 1/16W
R447 1-218-975-11 RES,CHIP 68K 5% 1/16W
R448 1-218-977-11 RES,CHIP 100K 5% 1/16W

R449 1-216-821-11 METAL CHIP 1K 5% 1/16W
R450 1-216-821-11 METAL CHIP 1K 5% 1/16W
R451 1-216-809-11 METAL CHIP 100 5% 1/16W
R452 1-216-821-11 METAL CHIP 1K 5% 1/16W
R453 1-216-857-11 METAL CHIP 1M 5% 1/16W

R454 1-216-857-11 METAL CHIP 1M 5% 1/16W
R455 1-216-821-11 METAL CHIP 1K 5% 1/16W
R456 1-216-789-11 METAL CHIP 2.2 5% 1/16W
R457 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R458 1-216-799-11 METAL CHIP 15 5% 1/16W

R459 1-216-855-11 METAL CHIP 680K 5% 1/16W
R460 1-216-855-11 METAL CHIP 680K 5% 1/16W
R461 1-216-853-11 METAL CHIP 470K 5% 1/16W

– 74 –

MAIN MICROCOMPUTER

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

R462 1-216-851-11 METAL CHIP 330K 5% 1/16W
R463 1-216-851-11 METAL CHIP 330K 5% 1/16W

R464 1-216-850-11 METAL CHIP 270K 5% 1/16W
R465 1-216-845-11 METAL CHIP 100K 5% 1/16W
R466 1-216-841-11 METAL CHIP 47K 5% 1/16W
R467 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R468 1-216-843-11 METAL CHIP 68K 5% 1/16W

RV410 1-241-482-11 RES, ADJ, CERMET 220K(16mb)
RV411 1-241-482-11 RES, ADJ, CERMET 220K(41mb)
RV412 1-241-482-11 RES, ADJ, CERMET 220K(13mb)

< SWITCH >

S101 1-771-246-21 SWITCH, SLIDE (ATT)
S301 1-572-922-11 SWITCH, SLIDE (TONE)

R469 1-216-839-11 METAL CHIP 33K 5% 1/16W
R470 1-216-845-11 METAL CHIP 100K 5% 1/16W
R471 1-216-849-11 METAL CHIP 220K 5% 1/16W
R472 1-216-849-11 METAL CHIP 220K 5% 1/16W
R473 1-216-843-11 METAL CHIP 68K 5% 1/16W

R474 1-216-847-11 METAL CHIP 150K 5% 1/16W
R475 1-216-864-11 METAL CHIP 0 5% 1/16W
R476 1-216-864-11 METAL CHIP 0 5% 1/16W
R477 1-216-844-11 METAL CHIP 82K 5% 1/16W
R478 1-216-845-11 METAL CHIP 100K 5% 1/16W

R479 1-216-850-11 METAL CHIP 270K 5% 1/16W
R480 1-216-851-11 METAL CHIP 330K 5% 1/16W
R481 1-216-853-11 METAL CHIP 470K 5% 1/16W
R482 1-216-855-11 METAL CHIP 680K 5% 1/16W
R483 1-216-797-11 METAL CHIP 10 5% 1/16W

R484 1-216-845-11 METAL CHIP 100K 5% 1/16W
R485 1-216-833-11 METAL CHIP 10K 5% 1/16W
R486 1-216-833-11 METAL CHIP 10K 5% 1/16W
R487 1-216-833-11 METAL CHIP 10K 5% 1/16W
R488 1-216-833-11 METAL CHIP 10K 5% 1/16W

R489 1-218-965-11 RES,CHIP 10K 5% 1/16W
R490 1-216-833-11 METAL CHIP 10K 5% 1/16W
R491 1-218-965-11 RES,CHIP 10K 5% 1/16W
R492 1-218-965-11 RES,CHIP 10K 5% 1/16W
R493 1-218-965-11 RES,CHIP 10K 5% 1/16W

R494 1-218-953-11 RES,CHIP 1K 5% 1/16W
R495 1-218-965-11 RES,CHIP 10K 5% 1/16W
R496 1-218-965-11 RES,CHIP 10K 5% 1/16W
R497 1-218-965-11 RES,CHIP 10K 5% 1/16W
R498 1-218-965-11 RES,CHIP 10K 5% 1/16W

< TRANSFORMER >

T101 1-423-983-41 TRANSFORMER, HIGH FREQUENCY
T102 1-403-629-41 COIL (WITH CORE) (OSC)
T103 1-423-981-11 TRANSFORMER, HIGH FREQUENCY
T104 1-403-633-41 TRANSFORMER, IF (AM 1ST IF)
T105 1-403-604-41 TRANSFORMER, IF (AM 1ST IF)

T106 1-411-446-21 COIL (FM ANT) (FM TRACKING)
T107 1-411-445-21 COIL (FM RF) (FM TRACKING)
T201 1-403-638-41 COIL (WITH CORE) (OSC)

(FM FREQUENCY COVERAGE)
T401 1-433-539-21 TRANSFORMER, EL
T402 1-449-021-21 COIL, DC/DC CONVERTER

T403 1-450-531-21 TRANSFORMER, DC-DC CONVERTER

< VIBRATOR >

X201 1-760-200-11 VIBRATOR, CERAMIC (3.640MHz)
X202 1-760-197-11 VIBRATOR, CRYSTAL (55.390MHz)
X401 1-579-744-21 VIBRATOR, CRYSTAL (75kHz)

< FILTER >

XF101 1-760-198-11 FILTER, CRYSTAL

**************************************************************

* A-3663-171-A MICROCOMPUTER BOARD, COMPLETE

********************************

Caution :

When replacing the microcomputer board, remove IC503 from the older
circuit board and add it to the new circuit board. This allows continued use
of the user’s preset memory.

R499 1-216-849-11 METAL CHIP 220K 5% 1/16W

< VARIABLE RESISTOR >

RV101 1-237-870-11 RES, VAR, CARBON 20K (ATT)
RV201 1-241-481-11 RES, ADJ, CERMET 100K

(SSB ZERO BEAT)
RV202 1-241-481-11 RES, ADJ, CERMET 100K(SD)
RV203 1-241-481-11 RES, ADJ, CERMET 100K

(AM 2ND LOCAL)

RV301 1-241-479-11 RES, ADJ, CERMET 22K

(FM STEREO)

RV302 1-241-849-11 RES, VAR, CARBON 50K (VOL ∑)
RV401 1-241-481-11 RES, ADJ, CERMET 100K(120mb)
RV402 1-241-481-11 RES, ADJ, CERMET 100K(31mb)
RV403 1-241-482-11 RES, ADJ, CERMET 220K(90mb)
RV404 1-241-481-11 RES, ADJ, CERMET 100K(25mb)

RV405 1-241-482-11 RES, ADJ, CERMET 220K(75mb)
RV406 1-241-481-11 RES, ADJ, CERMET 100K(22mb)
RV407 1-241-482-11 RES, ADJ, CERMET 220K(60mb)
RV408 1-241-482-11 RES, ADJ, CERMET 220K(19mb)
RV409 1-241-482-11 RES, ADJ, CERMET 220K(49mb)

1-672-548-11 FLEXIBLE BOARD
1-694-491-11 CONDUCTIVE BOARD,CONNECTION(A)
1-694-492-11 CONDUCTIVE BOARD,CONNECTION(B)
3-031-516-01 HOLDER (LCD)
3-031-517-01 CASE (LCD)

< CAPACITOR >

C501 1-115-156-11 CERAMIC CHIP 1uF 10V
C502 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C503 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C504 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C505 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C506 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C507 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C508 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C509 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C510 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C511 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C512 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C513 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C514 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

– 75 –

MICROCOMPUTER

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

C515 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

< CONNECTOR >

C516 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C517 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C518 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C519 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C520 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C521 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C522 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C523 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C524 1-115-156-11 CERAMIC CHIP 1uF 10V
C525 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C526 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C527 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V
C529 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C530 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C531 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C532 1-162-920-11 CERAMIC CHIP 27PF 5% 50V
C533 1-162-920-11 CERAMIC CHIP 27PF 5% 50V
C534 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C535 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C536 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C537 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C538 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C539 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C540 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C541 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

CN502 1-785-566-21 HOUSING, FPC CONNECTOR(ZIF)35P

< TRIMMER >

CT501 1-141-327-11 CAP, CHIP TYPE TRIMMER 10PF

(4MHz SYSTEM CLOCK)

< DIODE >

D501 8-719-046-91 DIODE MA2S111
D502 8-719-060-48 DIODE RB751V-40TE-17
D503 8-719-060-48 DIODE RB751V-40TE-17
D504 8-719-060-48 DIODE RB751V-40TE-17
D505 8-719-060-48 DIODE RB751V-40TE-17

D506 8-719-420-87 DIODE MA8130
D507 8-719-060-48 DIODE RB751V-40TE-17

< EL LUMINOUS ELEMENT >

EL501 1-803-372-11 ELEMENT, EL INDICATION (LCD BACK LIGHT)

< IC >

IC501 8-759-585-45 IC uPD753017AGK-717-BE9
IC502 8-759-585-46 IC uPD753012AGK-781-BE9
IC503 8-759-465-76 IC AK93C85AM-E2
IC504 8-759-082-57 IC TC7W04FU
IC505 8-759-278-04 IC S-81220SG-QS-T2

C542 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C543 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C544 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C545 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C546 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C547 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C548 1-115-156-11 CERAMIC CHIP 1uF 10V
C549 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C550 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C551 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C552 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C553 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C554 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C555 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C556 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C557 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C558 1-115-156-11 CERAMIC CHIP 1uF 10V
C559 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C560 1-162-904-11 CERAMIC CHIP 0.5PF 0.25PF 50V
C561 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

C562 1-115-156-11 CERAMIC CHIP 1uF 10V
C563 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C564 1-115-156-11 CERAMIC CHIP 1uF 10V
C565 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C566 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V

C567 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C568 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C569 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C570 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V

IC506 8-759-578-28 IC S-80819ANNP-EDG-T2
IC507 8-759-575-75 IC S-80822ANNP-EDK-T2
IC508 8-759-577-41 IC S-80817ANNP-EDE-T2

< COIL >

L501 1-412-995-21 INDUCTOR 22uH
L502 1-412-995-21 INDUCTOR 22uH

< LIQUID CRYSTAL DISPLAY >

LCD501 1-803-371-11 PANEL, LIQUID CRYSTAL DISPLAY

< TRANSISTOR >

Q501 8-729-037-71 TRANSISTOR UN9210J-(TX).SO
Q502 8-729-037-86 TRANSISTOR 2SB1462J-R(TX).SO
Q503 8-729-037-86 TRANSISTOR 2SB1462J-R(TX).SO
Q504 8-729-037-71 TRANSISTOR UN9210J-(TX).SO
Q505 8-729-037-71 TRANSISTOR UN9210J-(TX).SO

Q506 8-729-037-71 TRANSISTOR UN9210J-(TX).SO
Q507 8-729-037-71 TRANSISTOR UN9210J-(TX).SO
Q508 8-729-037-71 TRANSISTOR UN9210J-(TX).SO

< RESISTOR >

R501 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R502 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R503 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R504 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R505 1-216-825-11 METAL CHIP 2.2K 5% 1/16W

R506 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R507 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R508 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R509 1-216-825-11 METAL CHIP 2.2K 5% 1/16W

– 76 –

MICROCOMPUTER REEL ROM

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

R510 1-216-825-11 METAL CHIP 2.2K 5% 1/16W

R511 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R512 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R513 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R514 1-216-845-11 METAL CHIP 100K 5% 1/16W
R515 1-216-845-11 METAL CHIP 100K 5% 1/16W

R516 1-216-845-11 METAL CHIP 100K 5% 1/16W
R517 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R518 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R519 1-216-841-11 METAL CHIP 47K 5% 1/16W
R520 1-216-825-11 METAL CHIP 2.2K 5% 1/16W

R521 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R522 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R523 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R524 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R525 1-216-825-11 METAL CHIP 2.2K 5% 1/16W

R526 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R527 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R528 1-216-857-11 METAL CHIP 1M 5% 1/16W
R529 1-216-857-11 METAL CHIP 1M 5% 1/16W
R530 1-216-841-11 METAL CHIP 47K 5% 1/16W

R531 1-216-857-11 METAL CHIP 1M 5% 1/16W
R532 1-216-841-11 METAL CHIP 47K 5% 1/16W
R533 1-216-841-11 METAL CHIP 47K 5% 1/16W
R534 1-216-857-11 METAL CHIP 1M 5% 1/16W
R535 1-216-845-11 METAL CHIP 100K 5% 1/16W

R566 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R567 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R568 1-216-797-11 METAL CHIP 10 5% 1/16W
R569 1-216-857-11 METAL CHIP 1M 5% 1/16W
R570 1-216-825-11 METAL CHIP 2.2K 5% 1/16W

R571 1-216-797-11 METAL CHIP 10 5% 1/16W
R572 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R573 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R574 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R575 1-216-825-11 METAL CHIP 2.2K 5% 1/16W

R576 1-216-841-11 METAL CHIP 47K 5% 1/16W
R577 1-216-797-11 METAL CHIP 10 5% 1/16W
R578 1-216-841-11 METAL CHIP 47K 5% 1/16W
R579 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R580 1-216-825-11 METAL CHIP 2.2K 5% 1/16W

R581 1-216-841-11 METAL CHIP 47K 5% 1/16W
R582 1-216-825-11 METAL CHIP 2.2K 5% 1/16W

< VIBRATOR >

X501 1-781-210-21 VIBRATOR, CERAMIC (4MHz)
X502 1-760-201-11 VIBRATOR, CRYSTAL (32.768kHz)

**************************************************************

* 1-666-723-11 REEL BOARD

**********

**************************************************************

R536 1-216-821-11 METAL CHIP 1K 5% 1/16W
R537 1-216-821-11 METAL CHIP 1K 5% 1/16W
R538 1-216-821-11 METAL CHIP 1K 5% 1/16W
R539 1-216-821-11 METAL CHIP 1K 5% 1/16W
R540 1-216-825-11 METAL CHIP 2.2K 5% 1/16W

R541 1-216-821-11 METAL CHIP 1K 5% 1/16W
R542 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R543 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R544 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R545 1-216-825-11 METAL CHIP 2.2K 5% 1/16W

R546 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R547 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R548 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R549 1-216-833-11 METAL CHIP 10K 5% 1/16W
R550 1-216-857-11 METAL CHIP 1M 5% 1/16W

R551 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R552 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R553 1-216-817-11 METAL CHIP 470 5% 1/16W
R554 1-216-833-11 METAL CHIP 10K 5% 1/16W
R555 1-216-797-11 METAL CHIP 10 5% 1/16W

R556 1-216-841-11 METAL CHIP 47K 5% 1/16W
R557 1-216-833-11 METAL CHIP 10K 5% 1/16W
R558 1-216-833-11 METAL CHIP 10K 5% 1/16W
R559 1-216-845-11 METAL CHIP 100K 5% 1/16W
R560 1-216-845-11 METAL CHIP 100K 5% 1/16W

R561 1-216-845-11 METAL CHIP 100K 5% 1/16W
R562 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R563 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R564 1-216-841-11 METAL CHIP 47K 5% 1/16W
R565 1-216-841-11 METAL CHIP 47K 5% 1/16W

* X-3377-112-1 ROM ASSY

< CAPACITOR >

C801 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C802 1-115-156-11 CERAMIC CHIP 1uF 10V
C803 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C804 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C805 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

< TRANSISTOR >

Q801 8-729-037-92 TRANSISTOR 2SD2216J-R(TX).SO
Q802 8-729-037-92 TRANSISTOR 2SD2216J-R(TX).SO

< RESISTOR >

R801 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R802 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R803 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R804 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R805 1-216-797-11 METAL CHIP 10 5% 1/16W

R806 1-216-841-11 METAL CHIP 47K 5% 1/16W
R807 1-216-841-11 METAL CHIP 47K 5% 1/16W
R808 1-216-841-11 METAL CHIP 47K 5% 1/16W
R809 1-216-845-11 METAL CHIP 100K 5% 1/16W
R810 1-216-845-11 METAL CHIP 100K 5% 1/16W

**************************************************************

MISCELLANEOUS

**************

18 1-672-548-11 FLEXIBLE BOARD
19 1-694-492-11 CONDUCTIVE BOARD,CONNECTION(B)

– 77 –

ICF-SW07

Ref. No. Part No. Description Remark

20 1-694-491-11 CONDUCTIVE BOARD,CONNECTION(A)
52 1-672-549-11 FLEXIBLE BOARD
ANT101 1-501-657-22 FERRITE-ROD ANTENNA (MW/LW)

ANT102 1-501-658-11 ANTENNA, TELESCOPIC (FM/SW)
EL501 1-803-372-11 ELEMENT, EL INDICATION(LCD BACK LIGHT)
LCD501 1-803-371-11 PANEL, LIQUID CRYSTAL DISPLAY
P902 1-790-234-11 CODE (WITH PLUG)
SP301 1-505-165-11 SPEAKER (4cm)

**************************************************************

ACCESSORIES & PACKING MATERIALS

********************************

! 1-467-543-11 ADAPTOR, AC (AC-E311) (AEP,Singapore)
! 1-467-543-21 ADAPTOR, AC (AC-E312) (US)
! 1-467-543-31 ADAPTOR, AC (AC-E313) (Tourist)
! 1-467-543-41 ADAPTOR, AC (AC-E314) (Canadian)
! 1-569-007-11 ADAPTOR, CONVERSION 2P (Tourist)

! 1-569-008-21 ADAPTOR, CONVERSION 2P (AEP,Singapore)
! 1-573-856-11 ADAPTOR, CHANGE (Canadian)

3-015-932-01 CASE, CARRYING (FOR LOOP ANTENNA)
3-031-532-01 CASE, CARRYING (FOR RADIO)
3-865-472-01 MANUAL, INSTRUCTION (JAPANESE,

ENGLISH, SPANISH,KOREAN, CHINESE)

(7AEP, Singapore, Tourist)

3-865-472-11 MANUAL, INSTRUCTION (GERMAN, DUTCH,

3-865-472-21 MANUAL, INSTRUCTION (ENGLISH, FRENCH,

3-893-802-14 BOOK, GUIDE, WAVE

8-953-130-90 HEADPHONE MDR-E805LP/K SET
X-332-965-71 ATTACHMENT

The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.

PORTUGUESE,SWEDISH, ITALIAN) (AEP)

SPANISH,DANISH, FINNISH)

(US,Canadian,AEP)

Les composants identifiés par une
marque ! sont critiques pour
la sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.

9-926-933-11

Sony Corporation

Personal A&V Products Company

– 78 –

Printed in Japan © 1999.2

99B0279-1

Published by Quality Engineering Dept.

(Shinagawa)
