Page 1

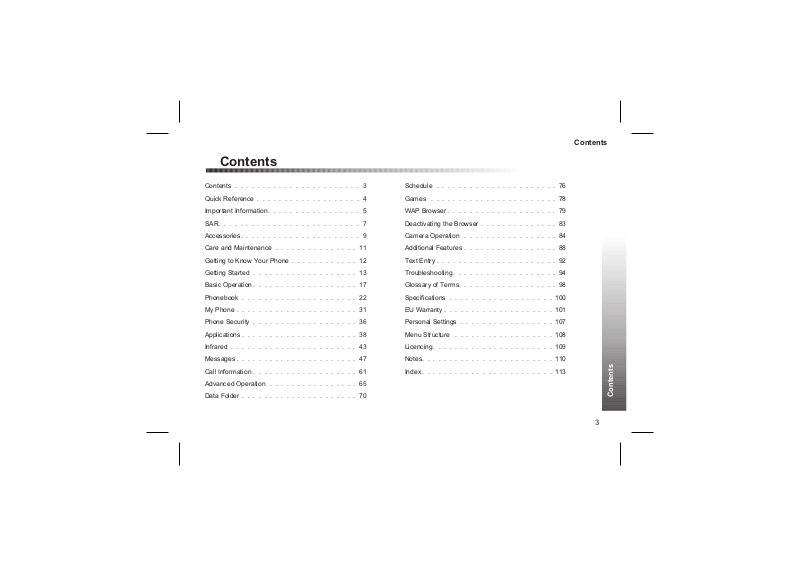

Contents

Contents .......................3

Quick Reference ...................4

Important Information.................5

SAR..........................7

Accessories......................9

Care and Maintenance ...............11

Getting to Know Your Phone ............12

Getting Started ...................13

Basic Operation ...................17

Phonebook .....................22

My Phone ......................31

Phone Security ...................36

Applications .....................38

Infrared .......................43

Messages ......................47

Call Information ...................61

Advanced Operation ................65

Data Folder .....................70

Schedule ......................76

Games .......................78

WAP Browser ....................79

Deactivating the Browser ..............83

Camera Operation .................84

Additional Features .................88

Text Entry ......................92

Troubleshooting ...................94

Glossary of Terms..................98

Specifications ...................100

EU Warranty ....................101

Personal Settings .................107

Menu Structure ..................108

Licencing......................109

Notes........................110

Index ........................113

Contents

Page 2

Quick Reference

“Press (F) to select”.

Answer a call or call a dialled number.

Direction which the user can move around the display screen using the Navigation key.

To end a call or return to Idle screen or F +Hold to switch the phone on or off.

Secondary Softkey.

Negative Softkey/Back Key.

Numeric key pads.

Menu Representation of screen menu option.

Switches Quiet Mode on and off.

Indicates that a function is Network and/or third party service dependent.

Page 3

Important Information

Thank you for purchasing this Panasonic digital cellular phone. This phone is designed to operate on GSM networks - GSM900, GSM1800 and GSM1900. It also supports GPRS for packet data connections. Please ensure the battery is fully charged before use. We, Matsushita Mobile Communications Development of Europe Ltd, declare, that the EB-GD87 conforms with the essential and other relevant requirements of the directive 1999/5/EC. A declaration of conformity to this effect can be found at http://www.panasonicmobile.com

Safety Considerations

The following information should be read and understood as it provides details which will enable you to operate your phone in a manner which is both safe to you and your environment, and conforms to any legal requirements regarding the use of cellular phones.

This equipment should only be charged with Panasonic approved charging equipment to ensure optimum performance and avoid damage to your phone. Other usage will invalidate any approval given to this apparatus and may be dangerous. Ensure the voltage rating of the Fast Travel Charger is compatible with the area of use when travelling abroad. A Fast Travel Charger (EB-CAD95xx*) is supplied with the Main Kit. Other recommended equipment for charging -Car Charger (EB-CDD95). Note* xx identifies the Charger region, e.g. CN, EU, HK, UK.

Use of Battery pack other than that recommended by the manufacturer may result in a safety hazard.

Switch off your cellular phone when in an aircraft. The use of cellular phones in an aircraft may be dangerous to the operation of the aircraft, disrupt the cellular network and may be illegal. Failure to observe this instruction may lead to the suspension or denial of cellular phone services to the offender, or legal action or both.

Do not incinerate or dispose of the battery as ordinary rubbish. The battery must be disposed of in accordance with local legislation and may be recycled.

Important Information

Page 4

Important Information

It is advised not to use the equipment at a refuelling point. Users are reminded to observe restrictions on the use of radio equipment in fuel depots, chemical plants or where blasting operations are in progress. Never expose the battery to extreme temperatures (in excess of 60°C).

It is imperative that the driver exercises proper control of the vehicle at all times. Do not hold a phone while you are driving; find a safe place to stop first. Do not speak into a Handsfree microphone if it will take your mind off the road. Always acquaint yourself thoroughly with restrictions concerning the use of cellular phones within the area you are driving and observe them at all times.

Care must be taken when using the phone in close proximity to personal medical devices, such as pacemakers and hearing aids.

Do not leave the camera facing direct sunlight to avoid impair of the camera performance.

If you use a feature which keeps key backlight on continuously for a long time, such as Camera, Game, or browser, battery life will become extremely short. To maintain longer battery life, set the key backlight off. See “Setting the Key Backlight on/off.”

For most efficient use hold the phone as you would any normal phone. To avoid deterioration of signal quality or antenna performance, do not touch or “cup” the antenna area while the phone is switched on. (See ‘SAR Statement’). Unauthorised modifications or attachments may damage the phone and violate applicable regulations. The use of an unapproved modification or attachment may result in the invalidation of your guarantee – this does not affect your statutory rights.

This equipment should only be used with Panasonic approved accessories to ensure optimum performance and avoid damage to your phone. Panasonic is not responsible for damages caused by using non-Panasonic approved accessories.

This Panasonic mobile phone is designed, manufactured and tested to ensure that it complies with the specifications covering RF exposure guidelines applicable at the time of manufacture, in accordance with EU, USA FCC, and Australian ACA regulations; or as specifically stated in the separate declaration leaflet enclosed with this product.

Please refer to our website for latest information/standards compliance in your country/region of use.

http://www.panasonicmobile.com

Page 5

SAR

European union - RTTE

THIS PANASONIC PHONE (MODEL EB-GD87) MEETS THE EU REQUIREMENTS FOR EXPOSURE TO RADIO WAVES.

Your mobile phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the limits for exposure to radio frequency (RF) energy recommended by The Council of the European Union. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines were developed by independent scientific organisations through periodic and thorough evaluation of scientific studies. The limits include a substantial safety margin designed to assure the safety of all persons, regardless of age and health.

The exposure standard for mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit recommended by The Council of the European Union is 2.0 W/kg.* Tests for SAR have been conducted using standard operating positions with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a base station antenna, the lower the power output.

Before a phone model is available for sale to the public, compliance with the European R&TTE directive must be shown. This directive includes as one essential requirement the protection of the health and the safety for the user and any other person. The SAR value for this model phone, when tested for use at the ear, for compliance against the standard was 0.633 W/kg. While there may be differences between the SAR levels of various phones and at various positions, they all meet the EU requirements for RF exposure.

* The SAR limit for mobile phones used by the public is 2.0 watts/kilogram (W/kg) averaged over ten grams of tissue. The limit incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements. SAR values may vary depending on national reporting requirements and the network band.

For SAR information in other regions please look under product information at http://www.panasonicmobile.com/health.html

SAR

SARSAR

Page 6

SAR

European union - RTTE

THIS PANASONIC PHONE (MODEL EB-GD87) MEETS THE EU REQUIREMENTS FOR EXPOSURE TO RADIO WAVES.

SARSAR

For SAR information in other regions please look under product information at http://www.panasonicmobile.com/health.html

Page 7

Accessories

Personal

Carry Case (EB-YKD87)

This attractive hip case protects your phone and by using the belt clip keeps it close at hand.

Li-Ion Battery (EB-BSD87)

Double your talk time by having a spare battery.

Personal Handsfree (EB-EMD87)

Talk and move while keeping your hands free by using this accessory. Just place the earpiece in your ear and the adaptor in the side of the handset - and talk.

Car

Car Charger (EB-CDD95)

Top up your battery in your vehicle by attaching this accessory to your phone and to the cigarette lighter socket.

Car Holder (EB-KAD87)

This compact Car Holder can be mounted in your vehicle, providing a convenient and attractive means of storing your phone.

Handsfree Car Kit (EB-HFD87Z)

Drive safely - install a Handsfree car kit and remove the need to hold your phone while driving.

AccessoriesAccessories

Page 8

Accessories

Office

AccessoriesAccessories

Fast Travel Charger (EB-CAD95UK)

Carry a lightweight portable charger wherever you go to ensure you always have power to talk.

Fast Travel Charger (EB-CAD95EU)

Charge Data Cable (EB-RSD67)

This Charge Data Cable is used to connect your phone to a PC, allowing data communication between them. This should be used in conjunction with the Free Panasonic Data Connection Assistant Software.

The software can be downloaded from:

http://www.panasonicmobile.com/support/software

How to Identify a Genuine Panasonic Accessory

Panasonic produces some of the most advanced mobile phones available. So, as you’d expect from this class leader, the range of accessories are second to none. Most genuine Panasonic accessories will have a label showing an “EB-XXX00” model number.

Page 9

Care and Maintenance

Pressing any of the keys may produce a loud tone. Avoid holding the phone close to the ear while pressing the keys.

Extreme temperatures may have a temporary effect on the operation of your phone. This is normal and does not indicate a fault.

If you use the phone for a long time in temperatures over 40°C, the display quality may deteriorate.

Do not modify or disassemble the equipment. There are no user serviceable parts.

Do not subject the equipment to excessive vibration or shock.

Do not drop the battery.

Avoid contact with liquids. If the equipment becomes wet immediately remove the power and contact your dealer.

Do not leave the equipment in direct sunlight or a humid, dusty or hot area.

Never throw a battery into a fire. It may explode.

Keep metallic items that may accidentally touch the terminals away from the equipment/battery.

Batteries can cause property damage, injury, or burns if terminals are touched with a conductive material (for example, metal jewellery, keys etc).

Always charge the battery in a well ventilated area, not in direct sunlight, between +5°C and +35°C. It is not possible to recharge the battery if it is outside this temperature range.

When connecting the phone to an external source, read the operating instructions of the equipment for the correct connection and safety precautions. Ensure the phone is compatible with the product it is being connected to.

When disposing of any packing materials or old equipment check with your local authorities for information on recycling.

Care and MaintenanceCare and Maintenance

Page 10

Getting to Know Your PhoneGetting to Know Your Phone

Getting to Know Your Phone

Earpiece

Main Display

Left Softkey

Call Key

Accessory Connector

Navigation Key

Headset Connector

Right Softkey

Power / End / Back Key

Keypad

Microphone

Camera Lens

Self Portrait Mirror

Sub Display

Voice Memo Key / Camera Shutter Key

IrDA (Infrared)

Charging Indicator

Page 11

Getting Started

Some services detailed, are network dependent or may only be available on a subscription basis. Some functions are SIM dependent. For more information contact your service provider.

Fitting, and Removing the SIM

The SIM is inserted into the back of the phone underneath the battery.

Fitting the SIM

Removing the SIM

Fitting, and Removing the Battery

Before removing the battery, ensure that the phone is switched off and the charger disconnected from the phone.

Fitting the Battery

Removing the Battery

Getting StartedGetting Started

Page 12

Getting Started

Charging the Battery

Getting StartedGetting Started

Connecting, and disconnecting the Fast Travel Charger

The battery must be fitted in the phone before the charger is connected. Insert the connector into the base of the phone, ensuring the arrows on the connector face to the front of the phone.

Note: DO NOT force the connector as this may damage the phone and/or the charger.

Connect the charger to the AC outlet. When the phone is charging, the charging indicator will light and a flashing plug icon will appear in the main display and in the sub display.

When charging is complete turn off the mains power supply and disconnect the charger.

Operation of Battery Level Indicator

While charging Charging complete

Phone on

Phone off

Battery Charge

Indicator off

Low Battery Warning

When the battery power is low, a warning tone will sound, and a flashing LOW BATTERY message will be displayed. If this occurs during conversation, finish your call immediately. The power will automatically shut off after the warning tone. Fully recharge the battery. See “Charging the Battery”. (Calls can be made and received while the phone is charging).

Page 13

Getting Started

Menu System

Display Icons

After some operations, the display will automatically clear after three seconds or after pressing any key.

Status Icons

The status icons are displayed according to the currently activated functions. The Antenna, Signal and Battery icons are displayed when the handset is switched on and connected to a network.

Information Area

Left Hand Selection area

Primary Selection Area

Status Icons

Main Display

Right Hand Selection area

Y is displayed when you are registered to a non-home

network - Roaming

t Indicates Call divert is enabled ] Indicates Vibration Alert is enabled [ Indicates All tones or ring volume is off N Indicates a new message has been received $ Indicates the message store is full O Indicates Phone lock is on S Indicates it is possible to make emergency calls only T GSM signal strength: \ - weak signal, T - strong signal q GPRS service available

Indicates Battery level: - full, G (flashing) - low battery

? Indicates Alarm is set > Indicates current Phonebook entry is from the Mobile

Phonebook

< Indicates current Phonebook entry is from the SIM

Phonebook

Getting StartedGetting Started

Page 14

Getting Started

Getting StartedGetting Started

Using the Menu System

The menu system provides the means for accessing all the functions which do not have their own dedicated buttons on the keypad.

Key Examples of function

Access the Menu system Display a sub-menu Confirm a selection

Shortcuts

When familiar with the menu system, use the keypad to enter the Menu Number instead of navigating through the display menus. For example, to browse the Data Folder function: (This may change depending on your phone or SIM.)

From Idle mode:

Navigate around a menu Select an option

Access the Phonebook Switch between text entry types

Cancel the current operation and return to the previous menu

Information

Icons indicate the current top level menu, the sub-menu number, text entry mode, Phonebook source, Phonebook location number, or the alarm set icon depending on the current mode of operation.

? indicates alarm is set

> indicates current Phonebook entry is from the Mobile

Phonebook

< indicates current Phonebook entry is from the SIM Phonebook

Page 15

Basic Operation

Switching the Phone On/Off

Press and hold

When the phone is switched on a greeting will be displayed and then the phone will go into Idle mode.

Making Calls

Ensure that the phone is switched on, the network operator logo is displayed and the signal strength icon shows network coverage is available in the current area.

Enter area code and phone number

International Dialling

Using the automatic international access code (+) you will be able to dial international numbers without having to know the code for the international exchange.

If the international number is known then it can be entered in the normal fashion followed by the area code and phone number.

From Idle mode:

Press and hold until + is displayed

Enter area code and phone number

Note: Many countries / regions include an initial “0” in the area code. This should, in most cases, be omitted when dialling international numbers. If you have difficulties making international calls, contact your service provider.

Select abbreviated international number

Basic OperationBasic Operation

Page 16

Basic Operation

Emergency Calls

To make an emergency call the antenna symbol (S) must be

Basic OperationBasic Operation

present.

If a SIM is installed

Enter 112

If a SIM is not installed

Automatic Redial

If a connection is unsuccessful

When OK is displayed:

To stop redialling:

When Cancel or C is displayed:

To mute :

During call:

Select Mute to mute your voice

Ending Calls

Page 17

Basic Operation

Answering a Call

To receive a call the phone must be switched on and the signal strength icon must be displayed.

To answer a call:

Press any key except

To reject a call:

Note: If a call is not answered, or is rejected, the number of incoming calls missed will be displayed. Press any key to clear the display

Caller ID

The caller’s phone number, and name if stored in Phonebook, will be displayed during an incoming call.

Note: Caller ID may not always be available.

Earpiece Volume

Select the required volume level

Note: Volume control for the Personal Handsfree accessory is adjusted in the same manner.

Phone Lock

Phone Lock restricts use to answering incoming calls and making emergency calls. The Phone Lock Code is preset to “0000”.

From Idle mode:

Enter the 4-digit code

Phone Option > Security > Phone Lock > On / Off

The lock icon will

be displayed

On or Off

Basic OperationBasic Operation

Page 18

Basic Operation

Unlocking the Phone

Basic OperationBasic Operation

When the lock icon is displayed:

Enter the 4-digit code

When the correct code has been entered Ok will appear in the primary selection area.

Note: When you turn the phone off and on again the Lock Code will need to be re-entered.

Disabling Phone Lock

The phone must be unlocked before the phone lock can be disabled.

From Idle mode:

Phone Option > Security > Phone Lock

Select

Off

Enter the 4-digit code

On/Off

Using the PIN

The PIN protects your SIM against unauthorised use. If you enable the PIN, every time the phone is turned on you will be prompted to enter the PIN. The PIN2 controls security for the Fixed Dial Store, Call Charge metering and Barred Dial.

If either PIN/PIN2 is entered incorrectly 3 times the phone will be locked and the user will need to enter the PUK/PUK2 code. Contact your service provider for the PUK/PUK2 code.

Note: If the PUK/PUK2 code is entered incorrectly 10 times, the phone will cease to operate permanently. All information stored in the SIM will be lost and the SIM will need to be replaced. Contact your service provider for more details.

Enabling/Disabling the PIN

Phone Option > Security > PIN

Select

Enable or Disable

Enter PIN (4 ~ 8 digits)

Select Enable/

Disable

Page 19

Basic Operation

Setting Quiet Mode

This mode silences the tones, such as low battery and key tones, etc. Vibration and/or ring tone can be changed to make your own Quiet Mode setting.

From Idle mode:

My Phone > Quiet Mode

Select Ring Volume or Vibration

On/Off

Select required setting

Setting Ring and Key Volume

My Phone > Sounds

Adjust the volume level

Select

Ring Volume or Key Volume

Setting the Key Tone Type

My Phone > Sounds > Key Tone

Note: If you increase the ring volume above maximum it will set

an escalating ringtone. If you turn the ring volume off, the silent indicator icon ([) will be displayed.

Select required tone

Basic OperationBasic Operation

Page 20

Phonebook

Phone numbers can be stored in two locations:

SIM Phonebook, where the number of locations, length of name and numbers are SIM dependent.

Mobile Phonebook, where phonebook entries can be grouped together and additional data can be stored with numbers.

This Phonebook is retained if you change the SIM.

Note: see ‘Text Entry’ section for descriptions of the different text entry methods available for making Phonebook entries.

Storing a number in the SIM Phonebook

From Idle mode:

Phonebook > Create > SIM Phonebook

Select the Name Icon

Enter the name

Select the Phone Number Icon

Note: If you amend an entry in the phonebook that has a Voice Dial Command assigned to it, you will need to delete and reassign that Voice Dial Command (See “Using Voice Commands”).

Enter phone number

Specify location?

Enter location

Yes

number

Entry will go in next available location

Page 21

Phonebook

Storing a number in the Mobile Phonebook

From Idle mode:

Select the

Phone Number Icon

Select an icon for the number

Select the

Name Icon

Select icon

Phonebook > Create > Mobile Phonebook

Enter the name

Enter phone number

You can add additional information to each phonebook entry such as additional telephone numbers, e-mail address, ringtone, picture, group, notes and LCD colour.

Adding E-Mail Addresses and Telephone Numbers

Select E-Mail Icon or Phone Number Icon

You can store up to 2 telephone numbers and 2 E-Mail addresses for each phonebook entry.

Enter text

Adding Ringtones

Select

Ringtone icon

Adding Pictures

Select

Camera icon

Select Fixed Data, Data Folder or Default (see

‘Changing the Ring Tone’)

Select Picture

Folder

Select required data when necessary

Select Image to display

Adding LCD Colours

Select

Rainbow icon

Select

Colour

Saving a Phonebook Entry

Select Any Location

Note: If you amend an entry in the phonebook that has a Voice Dial Command assigned to it, you will need to delete and reassign that Voice Dial Command (See ‘Using Voice Commands’). You may not be able to select some data in Data Folder.

PhonebookPhonebook

Page 22

Phonebook

Overwrite Protection

If you select a location in a phonebook that is already occupied

PhonebookPhonebook

you will be prompted to confirm the overwriting of the current information.

To overwrite

To choose an alternative location

Browsing the Phonebook

You can search the Phonebook by either Name or Location. The default setting for browsing is by name. When browsing by name pressing a lettered key will take you to the first entry starting with that letter. From Idle mode:

Retrieving a Number

From Idle mode:

Select required phone number or name

Speed Dialling a number stored in the SIM Phonebook

From Idle mode:

Enter location number

To dial the selected number

Phonebook > Browse

Select required Phonebook

By Name

By Location

Select required name or Enter location number

Note:

The Phonebook you last viewed will be the default when you next select Phonebook access key. To change the default, use the Phonebook menu to select the required Phonebook.

Page 23

Phonebook

Editing Phonebook Entries

It is possible to View, Detail, Recall, Edit, Delete or Create information in the Phonebook. To access any of these functions follow the same procedure for each one.

Select a name or number

Select required function

View

Displays an individual name and phone number in the names list.

Detail

Displays each element of the selected Phonebook entry.

Select the next or previous element of the entry

Each element may be edited:

Select

Edit

Edit as required

Recall

Displays the phone number, allowing you to call it or change it.

Edit

Displays the entry allowing you to make changes as required.

Delete

Deletes the entry from the Phonebook.

Create

Creates a new entry in the Phonebook.

PhonebookPhonebook

Page 24

Phonebook

Grouping Phonebook Entries

PhonebookPhonebook

The ability to group phonebook entries together is an extra function of the Mobile Phonebook.

Retrieving a Number from a Group

Groups are used to collect together types of Phonebook entries, e.g. business and personal. Each group can be suitably titled for quick access to the entries contained within.

An alert profile can be attributed to groups, or a phone number, thus allowing incoming calls to indicate the type of caller. See “Alert Profiles”. From Idle mode:

Phonebook > Group Setting

Select

View

Select entry required

Select the group number required

Retitling Group Names

From Idle mode:

Phonebook > Group Setting

Select Edit Clear the current title

Select OK

Select group

and re-enter - see “Text Entry”

Page 25

Phonebook

Alert Profiles

Alert Profile allows you to identify callers with a particular ringtone or display picture/animation, making it easier to distinguish between callers or groups of callers.

Creating an Alert Profile

Phonebook > Alert Profile

Select an entry from the phone book

Select Fixed Data or

Select required fixed data or file from data folder

Data Folder

Select

Personal or

Recall

To Save

Hot Key Phone Numbers

Your favourite phone numbers from the Phonebook or Service Dial part of the Phonebook can be dialled quickly.

(1 - 9 only)

Press and hold a Digit key (1~9)

Group

Note: In some instances, a long press on the 9key will

initiate the games menu (depending on your SIM)

Setting the Hot Key Dial Source

From Idle mode:

Phonebook > Hot Key Dial

Select SIM Phonebook or Mobile Phonebook

PhonebookPhonebook

Page 26

Phonebook

PhonebookPhonebook

Info Numbers or Service Dial

Some special numbers may be programmed into your SIM (R). It is not possible to modify these.

and hold Browse through the

Note: The selected phone number can be recalled or dialled.

Service Dial List

Using Voice Commands

Before any of the phone’s voice activated functions can be used, it is necessary to configure the phone so that it will recognise a particular voice and intonation.

Voice Dial Entry Setup

Phonebook > Voice Command > Voice Dial

Review the Phonebook

The Review function in the Phonebook menu shows how many locations are available in the Phonebook.

Phonebook > Review

Select SIM Phonebook or Mobile Phonebook

A summary of the selected Phonebook will be displayed

Select entry to have voice command

Speak clearly to record the required name

Select

Recall

Hold phone 20cm away from your mouth

When prompted, speak clearly to repeat the recording of the required name

When recording has finished, the display will indicate if it has been successful or not. If unsuccessful, repeat as necessary.

Note: Each recording is short in length, so be ready to speak soon after initiating the recording.

Page 27

Phonebook

Recalling Voice Dial Entries

From Idle mode:

Say clearly which name to recall

Dialling Voice Dial Entries

Using Permission

Allows voice recalled entries to be dialled automatically. From Idle mode:

Phonebook > Voice Command > On/Off

Repeat to disable the Permission function returning to Voice Dial recall only.

Select Enable or Disable

Editing the Voice Dial Entries

From Idle mode:

Phonebook > Voice Command > Voice Dial

Select required option and edit as required

Add

To add a new Voice Dial entry.

Play

To listen to the recording of a Voice Dial entry.

Delete

To delete an entry.

Select required

entry

PhonebookPhonebookPhonebook

Page 28

Phonebook

My Profiles

PhonebookPhonebook

My Profiles is a convenient part of Phonebook where voice, fax and data phone numbers can be stored and viewed.

Adding Numbers

From Idle mode:

Enter the name

(See Text Entry)

Enter the Phone Number

Phonebook > My Profile > SIM Profile or Mobile Profile

*Using T9 text input?

Yes

Enter location number OR Select Any

Select

Create

Select

Phone Number

Viewing Stored Numbers

From Idle mode:

Phonebook > My Profile

If necessary cycle through listed numbers

* Using T9

presses required. See ‘Text Entry’.

predictive text input dramatically reduces the number of key

Page 29

My Phone

Adding a Start-up Greeting

A personalised greeting can be programmed for when the phone is switched on.

From Idle mode:

My Phone > Display Settings > Power On Setting > Greeting

Enter greeting (See ‘Text Entry’)

Displaying Animations

Animations can be displayed during the phone power on and off sequences. From Idle mode:

My Phone > Display Settings > Power On Setting > Animation

Select On or Off

Changing the Wallpaper

A personal picture (wallpaper) can be displayed when the phone is in Idle mode.

From Idle mode:

My Phone > Display Settings > Wallpaper

If Data Folder is selected, select the required folder.

Select required picture

Note: Pictures are normally stored in the following folders: Picture, Mail (E-mail or MMS), Received (IrDA or data

connection), Download or User (optional stored locations).For creating and saving pictures for use as wallpaper, see ‘Camera Operation’.

Select

Fixed Data, Data Folder

Preview an image

Select an image

My PhoneMy Phone

Page 30

My Phone

My PhoneMy Phone

Changing the Ringtone

The ringtone of the phone can be changed to one of many pre-defined sounds, or a downloaded ringtone. All voice, fax, data and messages can have a different ringtone.

To change the Ringtone

From Idle mode:

My Phone > Sounds > Ring Type

Select call type

Composing a Melody

From Idle mode:

My Phone > Sounds > Melody Composer

Using the table as a reference, enter the notes (from the choice of Low, - High), rests, and the durations of each, to generate your composition.

When the composition is complete:

Create

Select

Fixed Data

Data Folder

Select required Fixed Data or required file from Data Folder or contents

Note: See ‘Composing a Melody’ to generate a custom ringtone.

Enter filename

Note: At any time during composing:

To play back the current melody

Page 31

Key 1st press 2nd press 3rd press 4th press 5th press

C Middle C

D Middle D

E Middle E

F Middle F

G Middle G

A Middle A

B Middle B

High C4Low C

High D4Low D

High E4Low E

High F4Low F

High G4Low G

High A4Low A

High B4Low B

8 9

Rest

1/8 1/4 1/2 1/1 1/16

Sharp

My Phone

Editing your Melody

Once the ringtone has been saved:

Use the relevant keys in the table to insert new notes/rests

Sound

My Phone > Sounds > Melody Composer

Select required Melody

To save

Edit

Edit Melody

Download Melody

Melodies may be downloaded from the Internet, details of this service are available on our website:

http://www.panasonicbox.com

When a message has been received containing a melody:

The melody is now stored and can be selected as a pre-defined melody.

Note: Downloaded melodies will be stored in the Data Folder

Select Message location

My PhoneMy Phone

Page 32

My Phone

Download Logo

Logos may be downloaded from the Internet, details of this service are available on our website:

My PhoneMy Phone

http://www.panasonicbox.com

When a message has been received containing a Logo:

Select logo location

Setting the Backlight Time

From Idle mode:

My Phone > Display Settings > Backlight Time

Cycle through available times

The Logo is now stored and can be selected as Wallpaper from the My Phone menu or as a picture for the Alert Profile set up.

Disabling/Enabling all Tones

From Idle mode:

My Phone > Sounds > All Tones

Select Off or On

When Idle is resumed the silent indicator icon ([) will be displayed if All Tones has been disabled

To select desired time

Changing the Language

It is possible to change the language that the phone uses for either display messages and/or text entry.(

From Idle mode:

My Phone > Language

Select Display Language OR Tegic Language

(text entry)

Select language

Page 33

Setting the Key Backlight On/Off

Longer battery life can be maintained by setting the key backlight off.

From Idle mode:

My Phone > Display Settings > Key Backlight

Select On or Off

Restoring the Default Phone Settings

Any personal settings can be returned to their factory default, with the exception of some features, such as the Phone Lock code and the Language.

From Idle mode:

My Phone > Defaults

My Phone

My PhoneMy Phone

Page 34

Phone Security

This phone has security options to stop unauthorised use and to limit access to some features. We recommend you memorise your security codes. If you write them down, don’t write them in a way that someone else could recognise. If you forget your codes, contact your dealer for the Phone Lock Code and your service provider for the PIN and PIN2.

Key Guard

Key Guard stops the keys from performing their normal function if accidentally pressed. When a call is received, Key Guard is temporarily disabled, press any key except to answer the call.

Enabling Key Guard

Disabling Key Guard

My Phone > Key Guard

Note: Emergency calls can still be made with Key Guard enabled but there will be no indication that you are dialling a number.

Changing the security codes

Use the following to change Phone Lock, PIN or PIN2: From Idle mode:

Select

Change code

Phone Option > Security

Enter the current code, press: Enter the new code, press: Verify the new code, press:

Phone Lock / PIN / PIN2

Restricting Calls

Barred Dial

Stops all phone numbers pre-programmed in the SIM from being dialled. To use this function the PIN2 code is required. From Idle mode:

Phone Option > Security > Barred Dial

Enable

Disable

Enter

PIN2

Page 35

Phone Security

Call Barring

Call Barring restricts certain outgoing and/or incoming calls using a password supplied by your service provider. When updating/checking the status of Call Bar the phone must be registered with a network. Varying call restrictions can be used for voice, fax and data calls.

From Idle mode:

Phone Option > Security > Call Bar

Select level

Enter Password

Bar Voice / Bar Fax / Bar Data

Fixed Dial

Fixed Dial is part of the Phonebook, but with added security. When Fixed Dial is enabled:

Only numbers that are in the Fixed Dial Store may be

dialled. Any manually dialled phone numbers must match a number

already in the Fixed Dial Store. A phone number may be stored, edited or deleted. You will

be prompted for your PIN2 code.

“Wild” Numbers

Wild numbers are spaces that can be stored in a phone number. The wild numbers must be filled before the phone number is dialled. Used in conjunction with Fixed Dial, calls can be restricted, for example, to a specific area by storing the area code of a phone and when recalled the remainder can be added. The wild numbers can be anywhere within a stored phone number.

Press and hold until __ is displayed

When the phone number is recalled, enter the wild number

Phone Security

Page 36

Applications

Clock

This phone incorporates a clock with date/time, an alarm and a power on/off feature. A second clock for dual time is also included - see ‘Second Clock’.

Initially Setting the Home Time

From Idle mode:

Applications > Clock Function > Clock Set > Home > Time Set

Enter date (day/month/year)

Enter time (use 24 hour clock)

Select

Summertime On/Off

Setting the Clock Format

From Idle mode:

Applications > Clock Function > Clock Format > Display Format

Select clock/date format

Page 37

Applications

Altering the Time/Date

From Idle mode:(Initial time)

Applications > Clock Function > Clock Set > Home > Time Set

Enter time Enter date (day/month/year)

Press and hold

(use 24 hour

clock)

Setting the Clock for Summer Time

From Idle mode:

Applications > Clock Function > Clock Set > Home > Summer Time

Select On or Off

Press and hold

Setting the Alarm

If the clock hasn’t been set, the user will be prompted to do so prior to setting the alarm. There are four separate alarms, each of which may be set independently. From Idle mode:

Select required sound

Enter time

Select Repeat

Daily, Once or Disabled

Select Fixed Data or Data Folder

Applications > Clock Function > Alarm Set

Select alarm frequency

Select ring type

If using Data Folder, select the required folder

Select alarm to be set

Applications

Page 38

Applications

When the alarm has been set, an alarm clock will be displayed when the phone is in Idle. The alarm is activated based on the current clock (Home or Second).

Applications

Muting the Alarm

When the set time is reached the alarm will sound and the display will flash with an alarm message. The alarm will sound for 30 seconds. If the alarm is due during a call, it will activate vibration alert.

To end the alarm

Press any key

When disabled, following the same procedure will re-enable the alarm.

Adjusting the Alarm Time

From Idle mode:

Applications > Clock Function > Alarm Set

Select alarm to adjust

Disabling the Alarm

From Idle mode:

Applications > Clock Function > Alarm Set

Select alarm frequency icon

Select

Disabled

Select alarm to disable

Select alarm frequency

Select Fixed

Data or Data Folder

Press and hold

Select Repeat

Daily, Once or Disabled

Enter time

Select required sound

Select ring type

Page 39

Applications

Setting a Power On/Off Time

The phone can be set to turn itself on or off automatically at a specified time using the Power On/Off feature. Setting/adjusting the Power On/Off automatically is similar to setting the time on the clock. Select Power On Time or Power Off Time in the Clock Function menu.

From Idle mode:

Applications > Clock Function > Power On Time or Power Off Time

Enter time (use 24 hour clock)

Caution: Ensure that the setting of the Alarm or Power On function will not automatically power on when in an aircraft or medical facility etc. - see ‘Important Information’.

Select Frequency

Calculator

The four function calculator will enable the user to perform simple arithmetic calculations (addition / subtraction / multiplication and division). From Idle mode:

Applications > Calculator

Select arithmetic operation

Select next arithmetic operation

Press and hold to add a decimal

point

For arithmetic operations:

To multiply

Enter number (max. 10 digits)

Intermediate sum result shown

To add

Enter number (max. 10 digits)

Complete a further sum?

Yes

To divide

Press to complete the sum

To subtract

Applications

Page 40

Applications

Currency Convertor

Applications

The currency convertor enables the user to convert from/to a home currency using a conversion rate that you enter.

Entering a Conversion Rate

From Idle mode:

Enter abbreviation for the foreign currency (max. 3 characters)

Applications > Unit Converter

Enter abbreviation for the home currency (max. 3 characters)

Enter currency conversion rate

The conversion rate will be retained in the phone once entered. The next time the convertor is used, the conversion rate / currency abbreviation can be edited while in the Currency/rate display.

Select Edit

Converting a Value

Confirm conversion rate is correct

Enter value to convert

Swapping the Currency Conversion

When you have accepted the conversion rate and are ready to enter the value to be converted, you can swap the currencies to convert from the foreign currency into the home currency.

Select Swap

Enter value to convert

Page 41

Infrared

By using infrared connection with another GD87 or with other devices with an infrared port, you can transfer data between the devices. Also it enables you to use GSM fax and data services, and it provides access to Internet and e-mail, through existing applications.

Infrared

Preparing for Infrared Connection

Place GD87 and another device with an infrared port within

the effective range of infrared connection with each other. There must be no obstruction between the two

communicating devices. The infrared ports of both devices must point at each other.

If you use a PC, you need to set up infrared connection on

the PC.

(Example: Start > Settings > Control Panel > Infrared > Options tab > Enable Infrared Communication)

Sending Data

The types of data you can send are: Phonebook, My Profile, Schedule, files in Data Folder. Ensure that the infrared ports of your GD87 and the second phone or device are pointing at each other with no obstructions in between.

Press to stop the transmission at any time

Sending Images and Music Data

Images and Music data can be transferred among GD87s. The receiver has to get ready to receive data in advance (see “Receiving Data via Infrared Port”).

From Idle mode:

My Phone > Data Folder > Browse > Picture OR Sound

Select Send IrDA

Select the data to send

Infrared

Page 42

Infrared

Sending My Profile Data

Infrared

From Idle mode:

Phonebook > My Profile

Select required name if necessary

Note: If you try to send data that cannot be forwarded or saved, an error message will be displayed.

Receiving Data via Infrared Port

From Idle mode:

Applications > Infrared > Data Receive

Select SIM

Profile or Mobile Profile

Select Send IrDA

Once data is displayed:

for Phone Book data:

Select SIM Phonebook OR Mobile Phonebook

Enter location

number

for Schedule data:

for all other data: the received data will automatically be saved

in the Received Folder.

SIM Phone Book selected?

Yes

Page 43

Infrared

Using the Internet and Faxing

You can join your GD87 and a PC together via an infrared connection to access the Internet, and to send and receive faxes. The following explains how to set up communication between the GD87 and a PC. These instructions should be used in conjunction with your Internet platform software and/or your fax software.

Prerequisites

Faxing: contact your mobile phone network operator to determine whether this feature is available to you.

Ensure that you have set up a dial up account with an Internet Service Provider.

You will need the installation CD from your ISP, or your account details (i.e. phone number, user name and password) to configure Dial Up Networking within Windows.

When you set up your Internet account for the first time, make sure that you select GD87 as the connecting modem device. (For more details contact your Internet Service Provider, or for help using Windows Dial Up Networking, search Windows Help [Start>Help])

Testing the Infrared Connection

The following process will set up a PC to connect to your GD87 using the Windows standard communication software, HyperTerminal, as an example (the process described may vary slightly for other software packages).

Note: Depending on how your computer has been set up ‘HyperTerminal’ may not be located in ‘Communications’ (as detailed in the first instruction).

Select Start > Programs > Accessories >

Communications > HyperTerminal Double click on HyperTerminal.

In the Connection Description dialogue box, enter a name of your choice in the Name field and click OK.

In the Phone Number dialog box, select the country/region

code, enter your Internet Service Provider’s phone number and confirm that GD87 is selected in the “Connect using” box. Click OK. When the connect dialogue box is displayed, click Cancel.

Select File > properties and confirm that GD87 is selected.

Click OK. In the HyperTerminal window, type AT+CGMI and click.

If GD87 has connected successfully you will receive the reply OK.

Infrared

Page 44

Infrared

Connecting to the Internet

Infrared

To connect to the Internet, you need to type in AT command in the terminal screen on your PC.

On the PC:

Display the terminal screen in the communication software

on your PC. (in our example: select Start > Programs > Accessories > Communications > HyperTerminal)

On the GD87:

From Idle mode:

Applications > Infrared > Dial-Up

When Ready for Communication is displayed, type in the

AT command in the terminal screen on your PC. Enter the phone number to connect to for Circuit Switch.

Use the dedicated phone number to packet for Packet connection.

Enter AT commands as necessary.

Faxing

Ensure that you have fax application software installed on your PC. We recommend you use one of the following packages:

Microsoft Fax (www.Microsoft.com)

WinFax Pro or ProComm Plus (www.symantec.com)

HotFax 3.0 (www.smithmicro.com)

Note: Ensure the fax application is set up to use the area code and, for international calls, the country/region code.

Page 45

Messages

This phone has various messaging features including SMS, MMS and E-mail:

SMS: You can enter the recipient’s phone number to send text.

MMS: You can attach images and music to text messages. The recipient can play it as a Slide show.

E-Mail: You can enter an e-mail address to send a message to another mobile phone or a PC via the Internet.

Messages

SMS

It is possible to receive, display, edit and/or send text messages of up to 459 characters (dependent upon the language being used) to mobile phones on your service provider’s network or any network that has a roaming agreement (dependent on the recipient’s phone parameters.)

Phone Setup for SMS

Before a message can be sent, it is necessary to enter the Message Centre number into Parameters.

The Message Centre number may have been preprogrammed on the SIM.

Setting the Message Centre Number

From Idle mode:

Messages > SMS > Parameters > Message Centre

Enter message centre number in international dial format (see ‘International Dialling’)

Messages

Page 46

Messages

Creating a Text Message

Messages

To access Character menu:

In Numeric mode: Character menu not available

In T9 mode:

Using T9®predictive text input dramatically reduces

the number of key presses required. See ‘Text Entry’.

In other text modes:

Press and hold a Digit key (1-9)

Select Character List or Press and Hold 1

From Idle mode:

Messages >

Enter destination phone number / recall

and select a number from Phonebook (see ‘Retrieving a Number’)

SMS > Create

If phone number is entered:

If phonebook is recalled:

Create text message max. 459 characters (see ‘Text Entry’)

Recall

If several numbers are in the list, select required number and

The user may be asked if delivery confirmation is required:

Select Yes / No

Note: The default setting for delivery confirmation can be

enabled/disabled using the Report parameter in the Parameters menu.

Page 47

Messages

User Messages

When creating a text message, it is possible to use short messages stored in the phone.

To Edit a User Message

From Idle mode:

My Phone > User Messages

Edit message as required

Select a User Message

Receiving Text Messages

NIndicates a new message has been received. $Indicates the message store is full.

When Read is displayed:

Press to read message

Move through the message, identify the sender and the time the message was sent

Message Options

When a message is received and read the following options are available:

Reply to a Message

See ‘Creating a Text

Delete a Message

Select Delete

To enable the auto-deletion of messages, see ‘Parameters’

Forward a Message

Select Forward

See ‘Creating a Text Message’ to send the message

Message’ to send the message

Press to edit message

Messages

Page 48

Messages

Cut, Copy & Paste Message Text

This function allows the user to cut or copy message text from a user defined message or a user created message, into a new or existing message. It can also be used to paste text to a previously sent message. With a message displayed:

Select Cut /

Copy

Highlight text to edit

Select text screen where text is to be placed

Note: The cut or copied text will remain in the phone memory until other text is cut or copied. To cut or copy text from a received message, select Forward and repeat above as necessary.

Put cursor at start of text to edit

Select

Paste

Managing Message Lists

The messages will be stored in the phone until they are deleted. A stored message can be replied to, edited or deleted.

Inbox

Received messages are stored in the Inbox. A N in the receive list indicates an unread message.

Outbox

When a message has been sent or edited, it is stored in the Outbox.

Create

This allows you to create a new message or reply to a message.

Page 49

Messages

Chat SMS

Chat SMS allows you to read sent and received messages with another party on one screen.

When reading a previously sent or received message:

Select

Chat SMS

See ‘Creating a

When receiving a message in chat mode, the text appears

above your previous message. If the phone is not in chat mode when receiving a reply to a

chat message, it will be received as a normal SMS. If a voice call is received when in chat mode, you can

accept the incoming call and return to chat mode at the end of the call.

Only the last sent and received messages are stored, all

other messages from the latest chat are automatically deleted.

Text Message’

to send the message

Enter your Nickname

To end the Chat

Cell Broadcasts

You need to specify the topic(s) of information that you wish to receive as broadcasts before you can receive them. From Idle mode:

Messages > SMS > Broadcasts > Topics

x2to insert a

new topic

Enabling/Disabling Broadcasts

From Idle mode:

Messages > SMS > Broadcasts > Receive

Select the required topic

Select On or

Off

Messages

Page 50

Messages

Message List

Messages

This is a store for the last received broadcast messages. Messages can be deleted from here.

Languages

The language in which broadcast messages are displayed can be changed.

Parameters

From Idle mode:

Messages > SMS > Parameters

The following parameters can be set:

Recipient Group

Recipient Group enables you to send one message to up to ten destinations at once. It is possible to create up to five separate groups. After Recipient Group is selected, the following options may be chosen. “Rename” will define the group name. “Select” will add destinations in the phonebook to the group.

Setting Recipient Group

Messages > SMS > Parameters > Recipient Group

Select required group

To rename a recipient group (after selecting a required group)

Rename

Enter new name, see ‘Text Entry’

Adding names to a recipient group (after selecting a required group)

Select

Select required name

Recall

Page 51

Messages

Auto Delete

When set, this feature automatically erases messages:

Received Read - will overwrite the oldest read message. Received Any - will overwrite the oldest read message. If there

is no read message, it will overwrite the oldest unread message.

Lifetime

This is the duration that your message is stored at the Message Centre. Delivery attempts will be repeated until the message has been delivered or the Lifetime expires.

Message Centre

Allows the Message Centre phone number to be edited - see ‘Setting the Message Centre Number’.

Report

When your message has been delivered a confirmation will be received if Report is set to Yes. If set to Ask the recipient will be prompted if they want to send a reply.

Protocol

The Message Centre may be able to convert the message to the format specified by the selected protocol.

Multimedia Message Service (MMS)

MMS Configuration

MMS configuration must be done before you can send or receive an MMS message. You can create up to three server profiles on the phone.

Your phone is designed to be compatible with certain MMS services. Please note, however, that the availability of MMS and other related services is dependent on your individual service/network provider and/or other network conditions.

Note: Your MMS settings may have been pre-configured by your service provider.

From Idle mode:

Messages > MMS > Server List

Enter the profile name, see ‘Text Entry’

Edit

Select required server

Leave it on this screen to set the server profile options

Profile Name

Messages

Page 52

Messages

Server Profile Settings

Messages

The Server URL and Gateway IP are all set using the same method.

Select required option

Enter the options details, see ‘Text Entry’ or select the required setting

Repeat this process until all required options are set

When Bearer Type is the selected option:

Circuit Switch / GPRS

Select an item

Enter the options details, see ‘Text Entry’ or select the required setting

Edit

Creating a New MMS Message

Attaching Image or Audio files

From Idle mode:

Messages > MMS > Create

Select a folder in Data folder

If you prefer to add text or other options,

If not,

Select

Add Picture or Add sound

Select a required file

Page 53

Messages

Adding a recipient

In Create mode :

Select

Enter recipient’s address from Phonebook

Select required destination

Attaching the subject

In Create mode :

Select

Subj:

Enter subject See ‘text entry’

Your MMS can now be sent or saved by returning to the Create menu and:

Select Send or Save

Note: If Save is selected, the message is stored in the Outbox to be sent or edited later.

Message Delivery Time

It is possible for the user to delay the delivery time of a message.

After adding the recipent(s) details:

Select

Other Options

Select

Delivery time

Enter delivery time

Sending or Saving the Message

After adding the recipient (s):

Select Send or Save. If Save is selected, the message is stored in the outbox to be sent or edited later

Sent and Received Messages

Received messages are stored in the Inbox, if there are any unread messages, the number is displayed next to Inbox.

Sent messages are stored in the Outbox.

Reading a Received Message

From Idle mode:

Messages > MMS > Inbox

Select required message

MessagesMessages

Page 54

Messages

Received Message Options

Messages

With the message displayed:

Reply: Compose a reply to the sender.

Reply to All: Compose a reply to all the people who have

been sent the message.

Forward: Pass a copy of the message on to another

person.

Font Size: Font size in the message can be changed.

Phonebook: Save the sender’s address in your

Phonebook.

Protect: Lock the message against deletion.

Delete: Delete the message.

Select required option

Message Send Options

From Idle mode:

Messages > MMS > Options > Mail Option

Lifetime: Select Maximum or choose a time limit to set the

lifetime for sent messages.

Sender Visibility: Allows the recipient to view your details,

useful when replying to your message.

Report: Request a delivery report on the status of a sent

message.

Select required item and set as necessary

Page 55

Messages

Internet E-Mail

E-Mails can be sent and received via the mail server of an Internet Service Provider that supports POP3 / SMTP protocols.

Prior to using the Internet E-Mail feature, your SIM must be data enabled and a contract with an Internet Service Provider must be in place.

E-Mail Setup

From Idle mode:

Select

Profile Name

Messages > e-mail > Server List

Enter profile name

Leave it on this screen to set the server profile options

Select required server

Server Profile Settings

The Mail Address, SMTP Server, POP3 Server, POP3 Account, Password, Mail Delivery, Primary DNS and Secondary DNS are all set using the same method.

Select required option

Repeat this process until all required options are set

Enter the options details, see ‘Text Entry’ or select the required setting

Note: For the Mail Delivery option, select between Leave Msg. and Delete Msg.

When Bearer Type is the selected option:

Circuit Switch or GPRS

Select an item

Enter the options details, see ‘Text Entry’ or select the required setting

Edit

MessagesMessages

Page 56

Messages

Creating a New E-Mail Message

Messages

Adding a recipient(s)

From Idle mode:

Messages > e-Mail > Create

Press the Phonebook key to select an entry from the MobilePhonebook list

Enter e-mail address, see ‘Text Entry’

Adding the Subject or Message

After adding the recipient(s):

Select To, Cc

or Bcc

Select Add

Select Subj or Message

Attaching files

After adding the recipient(s):

Select File

Select required folder

Enter text, see ‘Text Entry’

Select required file

Select Add

Page 57

Messages

Sending and Receiving E-Mail Messages

Use this function to send and receive e-mails at the same time. Any messages awaiting to be sent, are sent. If there are any messages in your server mailbox they will be downloaded to the phone.

From Idle mode:

Messages > e-mail > Send/Receive

If there are any unsent messages in the Outbox, you will be prompted to send them.

If there are any new messages on the server, you will be prompted to receive them. The messages will be downloaded to the Inbox, with the number of messages displayed next to the Inbox.

Note: If no messages are sent or received and the connection is left idle, it will terminate after 60 seconds.

Reading a Received Message

From Idle mode:

Messages > e-mail > Inbox

View

Select required message

Message Status

Messages have three possible states, each one is indicated by a different icon:

^ Indicates a message which has been read or sent.

N Indicates an unread or pending message.

% Indicates the message is locked.

MessagesMessages

Page 58

Messages

Received Message Options

Messages

With the message displayed:

Reply: Compose a reply to the sender.

Reply to All: Compose a reply to all the people who have

been sent the message.

Forward: Pass a copy of the message on to another

person.

Font Size: Font size in the message can be changed.

Phonebook: Save the sender’s address in your

Phonebook.

Protect: Lock the message against deletion.

Delete: Delete the message.

Select required option

Messages Setup Options

From Idle mode:

Messages > e-mail > Options > Send Options

Recipient Group: Enables you to preset the destination of

E-Mail messages. There are 5 different recipient groups, allowing you to store up to ten destinations in each.

Signature: You can insert essential information into

outgoing messages, e.g. a disclaimer.

Auto Quote: Enables you to attach text from the message

that you are replying to. Set to On or Off.

Select required item

Managing the Inbox and Outbox

Once the Inbox or Outbox store are full, any new messages received or created will overwrite existing messages from the oldest first. To prevent messages being overwritten each list should periodically be cleaned up, deleting any messages which are no longer required. Important messages can have a lock applied to them so that they cannot be overwritten when the Send/Receive process is activated.

Page 59

Call Information

Recent Numbers

Recently dialled phone numbers will be stored in Last Call.

If Caller Identification is available, the caller’s phone number for an answered call will be stored in the Answered menu and an unanswered call will be stored in the Unanswered menu. If Caller Identification is not available then calls will still be stored but will have the date and time attributed to them.

When the store is full the next phone number will overwrite the oldest.

From Idle mode:

Select option

If required, edit number (see ‘Editing Phonebook Entries’)

Store number in Phonebook?

Yes

Press while number is displayed

Select number/name

to redial

Calling the Last Dialled Number

Returning an Unanswered Call

When the display shows that you have received calls but not answered them.

Last caller’s number will be displayed, if available

Select number/name to redial

Call InformationCall Information

Page 60

Call Information

International Dialling

Call InformationCall Information

Using the automatic international access code (+) you will be able to dial international numbers without having to know the code for the international exchange.

From Idle mode:

Press and hold until

+ is displayed

Enter area code and phone number

Notes: If the international code is known then it can be entered in the normal fashion followed by the area code and phone number. Many countries / regions include an initial “0” in the area code. This should, in most cases, be omitted when dialling international numbers. If you have difficulties making international calls, contact your service provider.

Select international code name

Call Duration

Use the Calls submenu to display information as follows:

Last Call - displays the duration and call charge if available,

of the last call. Times are indicated as: hours (0-99), minutes (0-59), seconds (0-59) - HH:MM:SS.

All Calls - displays the duration and call charge, if available,

of Incoming and Outgoing calls. The lock code or PIN2 is required to reset the timer and call charge.

Call Waiting - Check the Call Waiting status.

Caller’s ID - Check the Caller’s ID status.

Withhold ID - Access the Withhold ID status.

From Idle mode:

Phone Option > Call Service > Calls

Note: The Calls function is SIM dependent. If the SIM does not

support this function, then items under the Calls submenu will be found directly under the Call Service menu.

Select function

Page 61

Call Information

GPRS Call Duration

Use the Connections submenu to display information as follows:

Last Connection - displays the duration and amount of

data transfer of the last call. Times are indicated as: hours (0-99), minutes (0-59), seconds (0-59) - HH:MM:SS.

All Connections - displays the accumulated duration and

amount of data transfer. The lock code or PIN2 is required to reset the timer.

Call Priority - determines whether an incoming voice call

should interrupt a data call. Select between On and Off.

From Idle mode:

Phone Option > Call Service > Connections

Note: The Connections function is SIM dependent.

Select function

Call Charges

To maintain control over the cost of calls that are made, the phone can be set to restrict use to a finite number of units overall.

Setting the Unit Price R

Firstly, a price per unit must be entered. This is the cost that the service provider charges for one unit of call time.

From Idle mode:

Enter unit price

Enter security code

Phone Option > Call Service > Service Charges > Price Unit

Enter currency unit (max. 3 characters)

Note: The “Service Charges” function is SIM/service provider dependent.

Call Information

Page 62

Call Information

Setting the Maximum Unit Level

This function allows the user to pre-determine the maximum cost of calls made.

Call InformationCall Information

From Idle mode:

Setting a Warning Level

A warning can be set as an indication that the maximum cost is about to be reached. This function is SIM dependent.

From Idle mode:

Enter security code

Phone Option > Call Service > Service Charge > Max Cost

Enter maximum units permitted (corresponding cost will be displayed)

Note: The duration of one unit may vary during the day, peak and off-peak times. Therefore, the call charge can be calculated accordingly. However, call charge information may not give an accurate reflection of the tariffs charged by your service provider.

Phone Option > Call Service > Service Charge > Warning At

Enter value in units at which point warning will sound

Call Identification

In the Call Service menu, the Caller’s ID and Withhold ID functions allow you to check the status of whether a Caller’s Identification is sent or can be received.

Note: When checking the status the phone must be registered with a network.

Page 63

Advanced Operation

Diverting Calls

Voice, fax and data calls can be diverted using different circumstances and to different numbers. For example, you may wish voice calls to be diverted to Voicemail in the event that the phone is switched off.

From Idle mode:

Phone Option > Call Divert

Select circumstances to initiate divert

Select type of calls to divert

Enter number to divert to

Notes: When Divert is enabled the divert icon is displayed. When updating or checking the status of Call Divert the phone must be registered with a network.

Holding Calls and Call Waiting

Holding a Call

During a call:

Select

Hold

Resuming a Call

Select

Resume

Making a Second Call

Enter number / recall from Phonebook (see ‘Retrieving a Number’)

The first call will be placed on hold.

Advanced Operation

Page 64

Advanced Operation

Receiving a Second Call

Advanced Operation

If Call Waiting is enabled on a second call can be received. This is enabled from Phone Option > Call Service > Calls > Call Waiting.

It is not possible to have more than one fax or data call at a time. All voice calls must be ended before you can make or receive a fax or data call.

Accept / Reject a Second Call

Select

Accept or Reject

Note: If you accept the second call, the current call is placed on

hold.

End Current Call and Receive Second Call

With a call waiting:

Press any key except for the following two: and

Operation During Two Calls

Swapping Between Calls

An icon indicates the current call.

Select

Swap

End Current Call

Select

End

The held call remains held.

End Both Calls

Page 65

Advanced Operation

Call Transfer

With two calls connected, Call Transfer lets you connect them together, ending your connection and leaving the two callers to talk together.

When two calls are in use:

Select

Trans.

The two calls will be connected to each other and your call will be ended.

Note: Two call transfer cannot be utilised while in Multi-party mode.

Multi-party Calls

A Multi-party call enables three to five people to be in conversation at the same time. It is possible to swap between a Multi-party call and another call in the same way as with two separate calls.

Enabling Multi-party

With two calls connected (one active, one on hold):

Select

Merge

A Multi-party call has been enabled, all three people will be able to talk to each other.

Adding to Multi-party

It is possible to add to the Multi-party call (up to a maximum of five) either by making a call or accepting an incoming call. The call can then be merged into the Multi-party.

Note: When making a call or accepting an incoming call the Multi-party call will be placed on hold. The callers in the Multi-party call can continue to communicate with each other while on hold.

Advanced Operation

Page 66

Advanced Operation

Splitting a Multi-party

Advanced Operation

The user can select an individual from the Multi-party and remove their connection. This enables you to talk privately without the participation of the rest of the Multi-party.

During a Multi-party call:

Select

Option

Select

Split

The selected caller will be split from the Multi-party call and the Multi-party call will be placed on hold (the remaining Multi-party call callers can still communicate).

Ending Multi-party Calls

The user can either select an individual in the Multi-party and end the call or end the entire Multi-party call. If a call is held, or another call is incoming then an individual call cannot be ended.

Select a caller

Ending a Single Connection

During a Multi-party call:

Select

Option

Select

End

Ending all Connections

During a Multi-party call:

Press to end all calls

Select a caller

Page 67

Changing to a New Network

When not in your home Country / Region, the user may use a network that is not directly subscribed to, this is called ROAMING.

National Law may not permit roaming in your home region.

The New Network function is used to manually select a network that is available in your current location.

From Idle mode:

Phone Option > Network > New Network

Select network

An X will be displayed in the information area if you cannot register with the selected network.

Advanced Operation

When the Search Mode is set to Manual the phone will only use a selected network. If coverage is lost another network should be selected.

When the Search Mode is set to Automatic the phone will automatically reselect a new network in order to maintain optimum network availability. The Network List is used when the Search Mode is set to Automatic. The location numbers in the Preferred Network List show the search priority. Amend the List as follows:

Insert - stores a new network in the currently displayed

location and then moves other networks down.

Edit - overwrites the old network with a new one.

Add - stores a new network at the end of the list.

Advanced Operation

Page 68

Data Folder

The data saved in GD87 is located in the Data Folder. There are six pre-defined folders (Picture, Sound, Mail, Download, Received, Phonebook) plus five folders you can customise. The maximum capacity of Data Folder is 1MB, holding up to 900 files. The maximum size of a file is 50 kilobytes.

Note: Changing SIM does not affect the contents of stored data.

Display Images and Text

From Idle mode:

Select View

Select folder where file is located

My Phone > Data Folder > Browse

Select file

Use to scroll through the displayed image or text.

Note: The phone cannot display a file that is not in one of the supported formats.

Display Images Continuously

You can display all the images and animations stored in one folder in the order listed, as a slide show.

Press to stop slide show (not while an animation is being shown):

My Phone > Data Folder > Browse

Select

Slide Show

To move to next image press any key except:

Select folder where file is

A new image appears every 5 seconds

Page 69

Data Folder

Melodies, Ringtones, Music and Images

Playing Melodies and Music

From Idle mode:

My Phone > Data Folder > Browse

Select folder where the file is located

Select file

Edit Melodies, Ringtones and Images

From Idle mode:

Edit Melody

Edit Image

Select folder where file is located

My Phone > Data Folder > Browse

Select file

If Edit Image is selected,

and select an option

Note: You cannot edit polyphonic ringtones, music files and files that cannot be forwarded or saved.

Data Folder

Page 70

Data Folder

Copy & Paste and Move Files

Data Folder

From Idle mode:

My Phone > Data Folder > Browse

Select folder where the file is

Select Copy or Move

You cannot:

- copy a file that cannot be forwarded or saved;

- move or paste a file into a folder defined for a different file type.

- move files in Phonebook. You can :

- move or paste a file into the folder it is copied from;

- to select Copy or Move while the file is displayed.

Select file

Select folder where the file will be pasted or moved to

Customise Folders

You can customise and rename the folders User1 to User5.

From Idle mode:

My Phone > Data Folder > Browse

Select

Rename

Type in new name (max. 20 characters)

Note: Do not use special characters in the new name.

Select folder to rename

Delete displayed name

Page 71

Data Folder

Rename Files

From Idle mode:

My Phone > Data Folder > Browse

Select file

Delete displayed name

Type in new name (max. 20 characters)

Note: Do not use special characters in the new name.

Select folder where the file is

Select

Rename

Jump to Create MMS Screen from Files for MMS Attachment

From Idle mode:

My Phone > Data Folder > Browse

Select file

Select

MMS

The phone will display the ‘Create’ screen.

You cannot:

Copy a file that cannot be forwarded or saved. You can:

To select MMS or e-mail while the file displayed. To enable to send e-mail, set e-mail setting first.

Select folder where the file is located

Data Folder

Page 72

Data Folder

Delete Files

Data Folder

From Idle mode:

My Phone > Data Folder > Browse

Select file

Press again if Set Confirmation for Delete? is displayed

Select folder where the file to be deleted is

Select

Delete

Transfer Files via Infrared

You can transfer images and sound files to another GD87 or other devices with an infrared port. See ‘Infrared’ for details.

Display File Information

Display Number of Saved Files

From Idle mode:

My Phone > Data Folder > Status

Display Folder and File Property

Folder Property

You can see the name of the folder and the number of files stored in the folder. From Idle mode:

My Phone > Data Folder > Browse

Select

Property

Select folder

Page 73

File Property

You can see the file name, date, file size, whether the file can be forwarded and whether it can be saved.

From Idle mode:

Data Folder

My Phone > Data Folder > Browse

Select file

Select

Property

Select folder where file is

If there is not enough memory capacity in the folder when you try to save a file, the phone will display: Folder is Full. Delete Data? Either:

Press not to delete file

Press to delete file

Data Folder

Page 74

Schedule

The Schedule can be used to register reminders for personal events as well as planning holiday periods.

Caution: Ensure that any settings made in the Schedule will not contravene any regulations whereby the phone may automatically power on when in an aircraft or medical facility etc. - see ‘Important Information’.

Creating a Reminder

From Idle mode:

Schedule

Enter start date, Press:

Repeat for end date

Enter start time, Press:

Repeat for end time

Select between Repeat type, Memo and Ring Type

Modify and select each option as required

Create

Select Time

Viewing Reminders

When in the Schedule menu:

View

Deleting a Reminder

From Idle mode:

Schedule Delete

Select Day, Past, or All

Select the required reminder

Page 75

Schedule

Setting a Holiday Reminder

Schedule

Holiday Set

Day

Yes

Note: Repeat for each day of holiday as required. To indicate that holiday reminder has been set, the date(s) will be emboldened Red.

Select

Day of the Week

Press and hold to remove current date then enter a new date

Select the day of the week required

Options

Select Day or Day of the Week

Deleting Holiday Reminders

From Idle mode:

Schedule Options

Holiday Set Holiday List

Select required Holiday date

Jump to Date

From Idle mode:

Schedule

Press and hold to remove current date and then enter a new date

Jump

Schedule

Page 76

Games

Games (R)

From Idle mode:

Follow the on-screen instructions to play the game.

Applications > Games

Games

Page 77

WAP Browser

The WAP (Wireless Application Protocol) Browser allows access to the Internet services supported by the network, such as news, weather reports and sport.

Server Profile Settings

Before accessing the Internet, the SIM must be data enabled and the configuration information must be entered.

Note: This configuration information may have been pre-programmed by your service provider. Modifying these settings may cause failure of the Browser.

From Idle mode:

Browser > Server List

Five servers may be manually set up on the phone.

Select required server

Edit

The Profile Name, Home URL, Linger Time, Gateway IP, Security and Bearer Type are all set using the same method.

Select required option

Repeat this process until all required options are set

Enter the options details, see ‘Text Entry’ or select the required setting

When Bearer Type is the selected option:

Circuit Switch or GPRS Edit

Select an item

Enter the options details, see ‘Text Entry’ or select the required setting

WAP Browser

Page 78

WAP Browser

Browser Setting

WAP Browser

Browser setting allows customisation of the browser interface for items such as colour and font size.

From Idle mode:

Browser > Browser Setting

Enter the options details, see “Text Entry” or select the required setting

Repeat this process until all required options are set

Select required option

Activating the Browser

From Idle mode:

Broswer > Home Page

The first time that the browser is activated, the Home URL content displays (as defined by your service provider). The Home URL is recalled from the cache each time the browser is activated. (Cache is the phone’s memory that stores previously downloaded content). When recalling content from cache the phone remains off-line (not connected to a WAP server).

Navigating Content

Scroll up/down

Return to next page (only if a return to previous page has been performed)

Return to previous page

Page 79

WAP Browser

Navigating Content(Continued)

When linked text (underlined text) is highlighted:

~ Indicates on-line browsing (Non Secure)

' Indicates on-line browsing (Secure)

The Browser Menu

The Browser contains its own menu which is applicable when content is currently being displayed (either on-line or off-line).

When Menu is displayed at the bottom left of the display

Home Page: Displays the Home URL content as defined by

the network operator.

Bookmarks: Use, add, delete and rename bookmarks.

Current URL: Displays URL details of current WAP page.

Enter URL: Type in a URL directly to go to a known site.

Page Memo: Saves the contents displayed on the current

screen.

Save Image: Saves the image displayed on the current

screen.

Reload: Will reload and update the current page.

Browser Image: Enables/disables an image on the page.

Clear Cache: Deletes the content in cache and displays

the Home URL content.

Exit: Deactivates the Browser.

WAP Browser

Page 80

WAP Browser

Using Bookmarks

To prevent the need to re-enter the URL each time, frequently

WAP Browser

accessed pages may be bookmarked.

Adding a Bookmark

While viewing content:

Bookmarks

Renaming a Bookmark

While viewing content:

Bookmarks

Select required Bookmark

Recalling pages using Bookmarks

While viewing content:

Bookmarks

Select required Bookmark

Edit Title

Deleting Bookmarks

While viewing content:

Bookmarks

Select Delete This, Delete Any or Delete All

Press and hold to remove the name

Enter the

new name

Select required Bookmark

Page 81

Deactivating the Browser

When browsing on-line:

To review cache off line

When browsing off-line:

To return to Idle mode

Last Status

If an error should occur when using the Browser, use this function to inform the network operator of the last status which occurred with the phone to assist with a diagnosis of the problem.

Browser > Last Status

WAP Browser

Page 82

Camera Operation

You can take pictures with the built-in camera, send them in a multimedia (MMS) message or use them as Wallpaper.

Camera Controls Taking a Picture

Preview Screen

Camera Lens

Self Portrait Mirror

From Idle mode:

View the required subject on the Preview Screen

The captured image is shown on the Preview Screen.

To store the image in the Data Folder:

Switch to camera mode

Shutter key

To return to camera operation without storing the image:

Note: If the phone does not detect any operation for three minutes while in Camera Operation, it will return to Idle mode. If a captured image is showing on the preview screen, it is temporarily saved. If you turn off power while the image is saved temporarily, the image will be deleted.

Page 83

Camera Operation

Sending a picture by MMS

From Idle mode:

Messages

Press the Phonebook key

to select an entry from the

Select To:

Phonebook list

Select Recall

Select Recipient’s Name

Select Picture

Add the subject and message, if required. (See MMS: Creating a New Message.)

Select Send or Save

Note: If Save is selected, the message is stored in the Outbox > Draft Folder, to be sent or edited later.

To Send a saved message from the draft folder:

Saving a Picture

Once a picture has been taken the picture will be saved to the Picture Folder. To use a saved picture as your personal wallpaper, see ‘Changing the Wallpaper’.

Camera Operation

Page 84

Camera Operation

Self Portrait

Camera Operation

The shutter button located on the top part of the clam shell can be used to capture an image, for example, self portrait.

From Idle mode:

Close the phone,

view the scene in the

Self Portrait Mirror

Zoom operation

The x2 zoom can be used whilst viewing in the Preview Screen:

To engage x2 Zoom

To return to Normal

Incoming Calls during Camera Operation

If an incoming call is received during Camera Operation, the phone will exit Camera Operation and switch to the incoming call. If a captured image is showing on the preview screen, it is temporarily saved.

On re-entering Camera Operation:

To Store the image in the Data Folder:

To return to camera operation without storing the image:

Brightness adjustment

The Brightness of an image can be set both before and after taking the picture. Brightness can be increased or decreased by 2 steps either way.

To change Brightness while taking a picture

Whilst viewing in the Preview Screen:

To decrease the

Brightness

To increase the

Brightness

Page 85

To change Brightness after taking a picture

Whilst viewing the captured image:

Camera Operation

When the required subject is shown on the Preview Screen:

Edit Image

Brightness Adjust Brightness

Preview Screen Menu

It is possible to select from various extra settings or functions. Twilight Mode, Close Up Mode, Effect, Frame, Self Timer and Image Format are all set using the same method.

Select required

option

Twilight Mode: Improves picture taking in low light

conditions. Close Up Mode: For close up work (Macro mode).

Effect: Choose from Sepia, Monochrome or

Negative/Positive effects. Frame: Place a border around the image.

Self Timer: Delaying the taking of an image.

Image Format: Select from JPG Fine, JPG Normal, JPG

Economy or PNG. Data Folder: A shortcut to the Data Folder, see ‘Data

Folders’. MMS (e-mail): A shortcut to MMS and/or e-mail.

Note: In a dark place, Close up Mode and display brightness may not work.

Select

required option

Camera Operation

Page 86

Additional Features

Desktop Handsfree

Desktop Handsfree allows you to hold a conversation without holding the phone to your ear.

Note: Do NOT hold the phone to your ear in Handsfree mode.

Swapping Between Handsfree and Handheld Calls

During a Handheld call:

Select H’free

Voice Memo (Dictaphone)

The Voice Memo feature allows you to record a two-way conversation during a call, and to use the phone as a Dictaphone. You can record up to 4 voice memos. The maximum length of each is 14 seconds.

Note: If a different SIM is installed any voice memos will be lost. When all four memo storage areas are occupied, a new recording overwrites the oldest memo.

Caution: Security of a recorded message is your responsibility. You should ask for the other party’s consent before recording.

During a Handsfree call:

x2to revert to Handheld operation

To answer a call Handsfree:

Press and hold

Record a Voice Memo

From Idle mode:

Note: During a call, press Memo key. A tone will sound when recording starts and again when it stops.

Press to stop recording a

memo

Applications > Voice Memo >

Record

Press again to start

recording next memo

Page 87

Additional Features

Play Back a Voice Memo

From Idle mode:

Applications > Voice Memo > Playback

Select desired voice memo

To stop playing:

Note: The Note Pad is available during playback - see ‘Note Pad’

Volume Control during Playback

While playing back:

Adjust volume

Delete Memo

Applications > Voice Memo > Delete

Select desired voice memo

Note Pad

During a call, numbers can be entered which you may wish to dial when the call has ended.

During a call:

Enter required phone number

Press while number displayed to store in Phonebook

DTMF Tones

DTMF tones can be sent during conversation. These are often used to access voice mail, paging and computerised home banking. For example, you may need to input a number to remotely access voice mail messages. A phone number may be stored in the Phonebook with DTMF tones, allowing the number to be dialled upon recall and the DTMF number to be sent automatically.

Send DTMF Tones During a Call

Enter digits:

Use digits0-9plus

and

Additional Features

Page 88

Additional Features

Pause Dial

Additional Features

Using pauses allows you to send DTMF tones automatically.

Enter phone number

Press and hold until P is displayed

Enter DTMF numbers

When the call is successful DTMF tones will be sent after 3 seconds.

If the DTMF tones are unsuccessful then the destination of your call may require that the length of the tones be increased, as follows:

From Idle mode:

My Phone > DTMF Length

Select

Long

Second Clock

The Second Clock can either be set to be auto-adjusting, whereby the second time is set from the code of the current network, or a specified time difference can be set manually.

Setting Clock Display

From Idle mode:

Applications > Clock Function > Clock Format > Choose Clock

Select option

Setting Auto Adjustment

When travelling to a country / region which has a roaming agreement with your home network, the Second Clock is adjusted automatically. However, for countries / regions which have several time zones in the same area manual adjustment is required.

From Idle mode:

Applications > Clock Function > Clock Set > Away >Auto Adjustment > Home Area

Select your home area

Page 89

Additional Features

Enabling Auto Adjustment

From Idle mode:

Applications > Clock Function > Clock Set > Away > Auto Adjustment > Auto Adjustment

Select Enable or Disable

Repeat to disable Auto Adjustment.

Setting Manual Adjustment

From Idle mode:

Applications > Clock Function > Clock Set > Away > Time Difference

Select time difference

Setting Summer Time

From Idle mode:

Applications > Clock Function > Clock Set > Away > Summer Time

Select On or Off

Once enabled, following the same procedure will disable Summer Time.

Accessory Related Features

When Auto Answer is switched on, and Personal Handsfree is connected, a call will be answered without pressing any keys. Any call waiting should be answered in the normal way.

This is also applicable to the Handsfree Car Kit accessory.

See the documentation provided with the relevant Accessory for operation details.

Additional Features

Page 90

Text Entry

You can use alphanumeric characters to enter details into the Phonebook, to create text, e-mail messages, etc.

Text Mode

Key T9

0 1 2 3 4 5 6 7 8 9 * #

Alternatives +_ +_ +_ 0+P

Punctuation .@/:;*#+-”,!¡?¿_()[]{}’&%\^~|<>=_£$¥¤§ 1

abc ABCabc ABÃ AÄÅÆBCÇaäåæàbc 2

def DEFdef ÄÅÆ DEÉFdeéèf 3

ghi GHIghi ÇÈÉ GHIghiì 4

jkl JKLjkl ÊËÌ JKLjkl 5

mno MNOmno ÍÎÏ MNÑOÖØmnñoöøò 6

pqrs PQRSpqrs ÐÑÓ PQRSpqrsß 7

tuv TUVtuv ÔÕÖ TUÜVtuüùv 8

wxyz WXYZwxyz ×ØÙ WXYZwxyz 9

Shift/Lock Shift/Lock Shift/Lock

Space Space Space Space

Normal (ABC) Greek (ÁÂÃ) Extended (AÄÅ) Numeric (0 - 9)

Press the asterisk key to scroll between initial capital letter, all capital letters and lower case letters.

Page 91

Text Entry

Text Input

T9®

Using this mode of text entry dramatically reduces the number of key presses required: Press a key once for any letter you require on that key. The desired letter may not be displayed. Continue pressing other keys until the end of a word is reached; then check that the word has been typed correctly before continuing on to the next word. If the combination of letters typed has produced a word

which is not the one you require, press repeatedly until the correct word is displayed. Continue to the next word.

If the word you require is not in the internal dictionary then it should be entered using the Normal ( ABC ) mode.

Other Text Modes

Select text mode (displayed in Information Area on screen)

Normal ( U ), Greek ( V ) or Extended ( W ) modes: each time a key is pressed in quick succession it displays the next character available on that key. Releasing the key or pressing another key enters the character displayed. The cursor moves to the next position.

0 or up or down

Editing Text

Move up / down one text line

Move left / right one character

When the cursor is moved over a character and another key pressed this will insert the new character immediately before the selected character.

You could enter text using the character menu:

Select Char.List

To highlight a character

To return to message screen

Delete character to left of the cursor

Press and hold to delete the current line

Press to select character

Text Entry

Page 92

Troubleshooting

Should any problem persist contact your dealer.

Problem Cause Remedy

Phone will not switch on

Extremely short battery life for a new battery

Short battery life for an old battery The battery has worn out Replace with a new fully charged battery

The charging indicator does not light, the plug icon does not appear and the phone cannot be switched on when charging

Battery fails to charge

The network you are using and the condition of the battery can affect battery life

The battery is not attached to the phone or when the battery has been deeply discharged the phone will take a short time until the indicator lights

The battery is not attached to the phone

Check that the battery is fully charged and correctly connected to the phone

Leave the phone charging the battery for a few minutes before the indicator is lit and attempting to switch it on

Ensure the battery is fitted to the phone prior to commencing charging.

Page 93

The phone is locked Unlock the phone

Troubleshooting

Calls cannot be made

Calls cannot be made from Fixed Dial Store

Calls cannot be received

Emergency calls cannot be made

Phone numbers cannot be recalled from Phonebook

Outgoing calls are barred Disable the outgoing call barring, or barred dial

The phone is not registered to a network

The phone is not switched on Switch the phone on

Incoming calls are barred Disable the incoming call barring

The phone is not registered to a network

You are not in a GSM coverage area

The phone is locked Unlock the phone

Phone number has been restricted Switch off restriction

Move to a coverage area and operate your phone after it has registered with a network.

Check your SIM supports Fixed Dial

Check if the Fixed Dial is switched on

Check the phone number is stored in the Fixed Dial

Move to a coverage area and operate your phone after it has registered with a network.

Check that the antenna symbol S is displayed - move to a coverage area and operate your phone when the antenna symbol is displayed

Troubleshooting

Page 94

Troubleshooting

Important Error Messages

These are some of the most important error messages which may be displayed:

Troubleshooting

Area Not Allowed Roaming in the selected area is not allowed

Network Not Allowed Roaming with the selected network is not allowed

Security Failure

SIM Blocked / Contact Service provider

SIM Error

SIM Invalid

Function Unavailable

PIN2 Invalidated

Message Rejected Store Full

Phone Number Too Long (Max:20)

The network has detected an authentication failure because your SIM is not registered with that network - contact your service provider

The SIM is blocked because one of the PIN/PIN2 unblocking keys (PUK/PUK2) has been entered incorrectly ten times - contact your service provider

The phone has detected a problem with the SIM - switch the phone off and then back on; if the message is still displayed contact your service provider

The SIM has failed one or more of the SIM personalisation checks - contact your service provider

The selected feature is either not supported by the SIM or is not available with the current subscription - contact your service provider

The PIN2 is blocked permanently because the wrong PUK2 has been entered ten times, services controlled by PIN2 cannot be used - contact your service provider

A message has been received but the message store is full - to receive messages, delete some of the currently stored messages or set messages to Auto Delete

The edited or newly created Phonebook number is too long for the SIM

Page 95

Warning Store Full Continue?

Troubleshooting

The message area is full. Your messages cannot be stored until some of the currently stored messages are deleted

Verification Failure

Incorrect Lock Code

Incorrect PIN / PIN2 / PUK / PUK2

Auto Redial List Full Redial list of unsuccessfully dialled numbers is full - switch the phone off and then on again

On changing the phone lock code, verification of the new code is incorrect - retry changing the lock code with correct verification

Disabling or enabling the lock code has failed due to incorrect entry of the lock code - re-enter lock code

The entered code is incorrect - re-enter code correctly

Troubleshooting

Page 96

Glossary of Terms

APN Access Point Name. Directs the user to the gateway or the required service.

Cut Permanently removes selected text from short text message

Copy Copies selected text from short text message without removing it from the original message

CHAP Challenge Handshake Authentication Protocol. A security feature for the GPRS network.

DTMF Tones

GPRS General Packet Radio Service. The Technology the phone uses.

GSM

Network Operator

PAP Password Authentication Protocol. A security feature for the GPRS network.

Password Used for the control of the Call Bar. Supplied by your service provider.

Dual Tone Multi-Frequency tones allow you to communicate with computerised phone systems, voice mailboxes etc.

Global System for Mobile Communications. The name given to the advanced digital technology that your phone uses.

The organization responsible for operating a GSM network.

Page 97

Glossary of Terms

PIN2

PUK/PUK2

Registration The act of locking on to a GSM network. This is usually performed automatically by your phone.

Roaming The ability to use your phone on networks other than your Home network.

Service Provider

SIM

WAP

Personal Identification Number used for SIM security. Supplied by your service provider. If the PIN is entered incorrectly 3 times, the PIN will be blocked.

Personal Identification Number used for the control of Fixed Dial Store and Call Charge metering. Supplied by your service provider. If the PIN2 is entered incorrectly 3 times, the PIN2 will be blocked.

PIN/PIN2 Unblocking Key. Used to unblock the PIN/PIN2. Supplied by your service provider. If the PUK/PUK2 is entered incorrectly 10 times, the PUK/PUK2 will be blocked.

The organization responsible for providing access to the GSM network.

Subscriber Identity Module. A small smart-card which stores unique subscriber and user-entered information such as Phonebook and Short Messages. Supplied by your service provider.

Wireless Application Protocol. The communication standard which enables you to download resources from the Internet to your phone

Glossary of Terms

Page 98

Specifications

Bands supported: .......GSM900 Class 4

GSM1800 Class 1

GSM1900

Standby Time (hrs): ......75-220

Talk Time (hrs): ........1.6-7

Temperature Range

Charging: ...........+5ºC - +35ºC

Storage: ............-20ºC - +60ºC

Weight: ............103g (including battery)

Dimensions:

Height: .............97.5mm

Width: .............49mm

Depth: .............23mm

Supply Voltage: ........3.7V DC, 720 mAh Li-ion

Antenna: ............Fixed

Charge Time (phone off): . . . Up to 90 Min

SIM Type: ...........3Vonly

100

Note: Charging time will be longer when the phone is turned on. Battery life is affected by the network being used and the condition of the battery. Talk and standby time will be dependent upon network conditions, SIM, data usage and battery condition.

Phonebook Memory: .....200+SIM

Animation Themes: ......1

Voice Memo & Dictaphone: . . 4 x 14 seconds

User Composed Melody: . . . 1

Games: ............2

Backlight colours: .......1(White)

Ringtones: ...........15Fixed

Scheduler: ...........Upto100Entries

Alarms: ............4

Graphics Formats Supported: . GIF87a, GIF89, JPEG,

................WBMP, BMP, PNG

Maximum Graphics Size: . . . 50kB

Graphics Storage Capacity: . . 1Mb

Page 99

EU Warranty

EU/EEA - Wide guarantee is applicable in the EU/EEA and Switzerland.

Panasonic GSM European Service Guarantee Conditions

Dear Customer,

Thank you for buying this Panasonic digital cellular telephone. The Panasonic GSM European Service Guarantee only applies while traveling in countries other than where the product was purchased. Your local guarantee is applicable in all other cases. If your Panasonic GSM telephone requires service while abroad, please contact the local service company shown on this document.

The Guarantee

The applicable period of the European wide guarantee for GSM is generally 12 months for the main body and 3 months for the rechargeable battery. With respect to a product used in a country other than a country of purchase, notwithstanding what is stated in the conditions below, the customer will benefit, in that country of use, from these guarantee periods of, respectively, 12 and 3 months, if these conditions are more favorable to him than the local guarantee conditions applicable in such country of use.

Conditions of Guarantee

When requesting guarantee service the purchaser should present the warranty card together with proof of purchase, to an authorised service centre. The guarantee covers breakdowns due to manufacturing or design faults; it does not apply to other events such as accidental damage, however caused, wear and tear, negligence, adjustment, modification or repair not authorised by us. Your sole and exclusive remedy under this guarantee against us is the repair, or at our option the replacement, of the product, or any defective part or parts. No other remedy, including, but not limited to, incidental or consequential damage or loss of whatsoever nature shall be available to the purchaser.

This is in addition to and does not in any way affect any statutory or other rights of consumer purchasers. This guarantee applies in countries shown on this document at the authorised service centres detailed for that country.

Service Centres in England Tel. +44 8705 159159

IRL

Service Centres in Ireland Tel: +353 1 2898333

Panasonic Service Center Dresden SERKO GmbH Großenhainer Straße 163 01129 Dresden Tel. +49 (0)351/ 85 88 477

Panasonic Service Center Cottbus Petsch Kundendienst GmbH Am Seegraben 21 03058 Gross-Gaglow Tel. +49 (0)355/ 58 36 36

Panasonic Service Center Leipzig KES Keilitz-Electronic-Service GmbH Föpplstraße 19 04347 Leipzig Tel. +49 (0)341/ 244 33 33

Panasonic Service Center ChemnitF WPS Rundfunk- u. Fernsehservice GmbH Fietenstraße 16 09130 ChemnitF Tel. +49 (0)371/ 40 10 359

Panasonic Service Center Berlin SERKO GmbH Schwedter Straße 34a 10435 Berlin Tel. +49 (0)30/ 44 30 322

EU Warranty

101

Page 100

EU Warranty

Panasonic Service Center Berlin RUESS SYSTEMS Thrasoltstraße 11 10585 Berlin Tel. +49 (0)30/ 342 2013

EU Warranty

Panasonic Service Center Rostock warnow electronic service gmbh An der Jägerbäk 2 18069 Rostock Tel. +49 (0)381/ 82 016

Panasonic Service Center Hamburg ELVICE Service GmbH Spaldingstraße 74 20097 Hamburg Tel. +49 (0)40/ 23 08 07

Panasonic Service Center Rendsburg FERNSEH-DIENST B&W Service GmbH Kieler Straße 41 24678 Rendsburg Tel. +49 (0)4331/ 14 11-0

Panasonic Service Center Bremen COM Elektronik Service GmbH Rübekamp 50 28219 Bremen Tel. +49 (0)421/ 691 80 69

Panasonic Service Center Hannover COM Elektronik Service GmbH Vahrenwalder Straße 311 30179 Hannover Tel. +49 (0)511/ 37 27 91

Panasonic Service Center Magdeburg SERKO GmbH Ebendorfer Chaussee 47 39128 Magdeburg Tel. +49 (0)391/ 289 90 69

Panasonic Service Center Düsseldorf VTH GmbH Kölner Straße 147 40227 Düsseldorf Tel. +49 (0)211/ 77 90 25

Panasonic Service Center Essen Bernd van Bevern GmbH Heinrich-Held-Straße 16 45133 Essen Tel. +49 (0)201/ 84 20 220

Panasonic Service Center Osnabrück Petsch Kundendienst GmbH Pagenstecherstraße 75 49090 Osnabrück Tel. +49 (0) 541/ 68 038

Panasonic Service Center Wiesbaden J. Hemmerling - VAD GmbH Ostring 7 65205 Wiesbaden Tel. +49 (0)6122/ 90 91 10

Panasonic Service Center Mannheim N. Schaaf Reichenbachstraße 21-23 68309 Mannheim Tel. +49 (0)621/ 72 787-0

Panasonic Service Center Stuttgart Hans Beck Friedrich-List-Straße 38 70771 Leinfelden-Echterdingen Tel. +49 (0) 711/ 94 701-0

Panasonic Service Center Reutlingen Herbert Geissler Lichtensteinstraße 75 72770 Reutlingen Tel. +49 (0)7072 / 92 96-0

Panasonic Service Center München G.Berghofer & W.Kaller GmbH Helene-Wessel-Bogen 7 80939 München Tel. +49 (0)89/ 318 907-0

Panasonic Service Center Augsburg Klaus Bienek Affinger Straße 4 86167 Augsburg Tel. +49 (0)821/ 70 70 75

Panasonic Service Center Nürnberg Herbert Geissler GmbH Friedrich-Ebert-Straße 21 90537 Feucht Tel. +49 (0)9128/ 70 67-0

Panasonic Service Center Eisenach Blitz Electro-Electronic-GmbH Bahnhofstraße 17 99817 Eisenach Tel. +49 (0)3691/ 29 29 42 8

Panasonic Service Center in Österreich Frisch Lokahlbahnweg 12 4060 Leonding Tel. +43 732 676961

CETELEC FI de la Delorme 5 Avenue Paul héroult 13015 MARSEILLE Tél.:0496157777 Tél.:0491580755

102

Panasonic GD87 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
