Panasonic FP0-C10RSA, FP0-C14CRSA, FP0-C10CRSA, FP0-C14RSA, FP0-C16PA Specifications

FP0 Series
Programmable Controller

Panasonic ... the new name for

CTi Automation - Phone: [phone] - Fax: [phone] - Web: www.ctiautomation.net - Email: [email protected]

FP0 – Super Compact PLC

Incredibly small, alone or even as multiple combined units

A control unit a mere 25mm in width. Even expanded to I/O 128 points, the width is still only 105mm.
The attachment area is the smallest in its class.

The control unit's dimensions are: W25* x H90 x D60mm.
Also, the I/O unit can be expanded to a maximum of
128-points. Even so, the size is still only W105 x H90 x
D60mm, a super compact design that breaks all previous
common sense rules on small-scale PLCs. With the
smallest-ever attachment area, the FP0 is perfect for
installation in machines, facilities, and control boards
where miniaturization is progressing even further.

*30mm width limited to I/O 32-points control unit.

Choose among 3 types of attachment

DIN rail

Slim attachment
plate model

Flat attachment plate
model (cannot be used
with expansions)

Input/output terminal

TOOL-Port

Hooks up by using the programming
software
or FPWIN GR and a single cable.

25mm

90mm

The photo shows an I/O
14-point control unit.
This size is uniform for
all except the I/O 32-point
control unit.
Supply voltage: 24VDC

NAiS Control FPWIN Pro

Actual

size

From I/O 10-points…

Super Compact Size

COM-Port: 2nd RS232C Interface

(optional for all CPU units for serial communication)

90mm

AC Power Supply:

• Supply voltage
85 to 265VAC

• Output 24VDC/

0.7A for FP0 PLC
(DC type)

NOTE:
A seperation between
the power supply and
the FP0 is needed to
allow for heat
dissipation.

➝

➝

30.4mm

CTi Automation - Phone: [phone] - Fax: [phone] - Web: www.ctiautomation.net - Email: [email protected]

Either 10 Points or the Maximum of 128 Points

You save this much space!

3

The expansion unit can be attached easily
without any cables.

The expansion unit can easily be attached directly to the
control unit. Special expansion cables, backplanes, and
so forth, are unnecessary as the expansion unit employs
a stacking system that uses expansion connectors and
locking levers on the surface of the unit itself.

Because of its super compact size and high capabilities,
the units are useful in a wide variety of applications.

Relay sequence
replacement

In-house detectors

Conveyer control

Parts feeders

Food processing and
packaging machines

Parking meters

Auto-stockers

Driving range

Easy Expansion

…up to 128 I/Os

Control

unit

Expansion

unit

Expansion

unit

Expansion

unit

(Maximum possible expansion is three units)

■ Networking:

- ETHERNET

- PROFIBUS

- S-LINK

- MEWNET-F

■ Analogue modules featuring

different numbers of input and
output channels

■ Programming software:

- Control FPWIN Pro according
to IEC 61131-3

- Control FPWIN GR easy,
conventional programming

CTi Automation - Phone: [phone] - Fax: [phone] - Web: www.ctiautomation.net - Email: [email protected]

105mm

Control unit Expansion unit Expansion unit Expansion unit

The photo illustrates adding
three I/O 32-point expansion
units to an I/O 32-point control
unit, yielding 128 points.

Supply voltage 24VDC.

FP0 CPU Units

A rich line-up of both single and combined units

=

+
=+
=+
=+
=+

+
+

=++
=++

= +++
= +++

22

Input 12 Output 10

14

Input 8 Output 6

8

Input 4 Output 4

26

Input 14 Output 12

10

Input 6 Output 4

16

Input 8 Output 8

30

Input 16 Output 14

14

Input 8 Output 6

16

Input 8 Output 8

34

Input 18 Output 16

10

Input 6 Output 4

16

Input 8 Output 8

8

Input 4 Output 4

38

Input 20 Output 18

14

Input 8 Output 6

16

Input 8 Output 8

8

Input 4 Output 4

42

Input 22 Output 20

10

Input 6 Output 4

16

Input 8 Output 8

16

Input 8 Output 8

46

Input 24 Output 22

14

Input 8 Output 6

16

Input 8 Output 8

16

Input 8 Output 8

54

Input 28 Output 26

14

Input 8 Output 6

16

Input 8 Output 8

16

Input 8 Output 8

8

Input 4 Output 4

()

Total number

of I/O points

()

Control unit

()

Expansion unit 1

X20~/Y20~

()

Expansion unit 2

X40~/Y40~

()

Expansion unit 3

X60~/Y60~

=+++

62

Input 32 Output 30

14

Input 8 Output 6

16

Input 8 Output 8

16

Input 8 Output 8

16

Input 8 Output 8

Control Units

A maximum of 3 expansion units can be added to the control unit. (

Combining relay output types

and transistor output types

is also possible. In this event, the maximum number of I/O points when using a relay output type control panel is 110.)

10 points

Input

6 points

FP0-C10RSA FP0-C10CRSA

with 2nd RS232C

FP0-C14CRSA

with 2nd RS232C

FP0-C16PA (PNP)
FP0-C16TA (NPN)

FP0-C32PA (PNP)
FP0-C32TA (NPN)

FP0-C16CPA (PNP)

FP0-C16CTA (NPN)

with 2nd RS232C

FP0-C32CPA (PNP)
FP0-C32CTA (NPN)

with 2nd RS232C

FP0-C14RSA

Output

4 points

10 points

Input

6 points

Output

4 points

14 points

Input

8 points

Output

6 points

14 points

Input

8 points

Output

6 points

16 points

Input

8 points

Output

8 points

16 points

Input

8 points

Output

8 points

32 points

Input

16 points

Output

16 points

32 points

Input

16 points

Output

16 points

AC Power Supply

FP0-PSA2

Input

85 to 265VAC

Terminal type

Output

24VDC/0.7A

S-LINK CPU

FP0-SL1

S-LINK master

for up to 128 I/Os

Control Unit 10k

FP0-T32C

32 points

Input

16 points

FP0-T32CPA (PNP)
FP0-T32CTA (NPN)

with 2nd RS232C

Output

16 points

This advanced FP0 CPU
offers additional features:

■ 10,000 steps

program memory

■ Battery backed RAM

■ Real-time clock

■ 16383 words

data register

Expansion combinations

Combinations with relay output type – Examples

Relay output type Transistor output type

CTi Automation - Phone: [phone] - Fax: [phone] - Web: www.ctiautomation.net - Email: [email protected]

FP0 Expansion Units

Choose the number of I/O points to suit the application

5

Combinations with transistor output type – Examples

=

+
=+
=+
=+
=+

+
+

=++
=++

= +++

+

= +++

48

Input 24 Output 24

32

Input 16 Output 16

16

Input 8 Output 8

16

Input 8 Output 8

32

Input 16 Output 16

64

Input 32 Output 32

32

Input 16 Output 16

32

Input 16 Output 16

80

Input 40 Output 40

32

Input 16 Output 16

32

Input 16 Output 16

16

Input 8 Output 8

16

Input 8 Output 8

32

Input 16 Output 16

32

Input 16 Output 16

96

Input 48 Output 48

32

Input 16 Output 16

32

Input 16 Output 16

32

Input 16 Output 16

16

Input 8 Output 8

32

Input 16 Output 16

32

Input 16 Output 16

112

Input 56 Output 56

32

Input 16 Output 16

32

Input 16 Output 16

32

Input 16 Output 16

16

Input 8 Output 8

()

Total number

of I/O points

()

Control unit

()

Expansion unit 1

X20~/Y20~

()

Expansion unit 2

X40~/Y40~

()

Expansion unit 3

X60~/Y60~

=+++

16

Input 8 Output 8

128

Input 64 Output 64

32

Input 16 Output 16

32

Input 16 Output 16

32

Input 16 Output 16

32

Input 16 Output 16

Digital I/O Units

Relay output type Input only type

Transistor output type

Analogue I/O Units Thermocouple and RTD Units Networking Units

PROFIBUS

FP0-DPS2

(DP Slave)

MEWNET-F

FP0-IOL

(MEWNET-F Slave)

S-Link CPU

FP0-SL1

(S-LINK Master)

FP0-E16RSA FP0-E8XA FP0-E16XAFP0-E8RSA

FP0-E8YRSA

8 points

Input

8 points

16 points

Input

16 points

8 points

Input

4 points

Option:

Output 8 points

Output

4 points

16 points

Input

8 points

Output

8 points

FP0-E8YPA (PNP)
FP0-E8YTA (NPN)

FP0-E16YPA (PNP)

FP0-E16YTA (NPN)

FP0-E16PA (PNP)
FP0-E16TA (NPN)

FP0-E32PA (PNP)
FP0-E32TA (NPN)

8 points

Output

8 points

16 points

Input

8 points

Output

8 points

16 points

Output

16 points

32 points

Input

16 points

Output

16 points

8 points3 points 4 points 4 points

Input

8 points

FP0-A80A

• Input (12 bit):
 10V, 0 – 5V,
0 – 20mA

• Output (12 bit):

 10V, 0 – 20mA

–
–

4 – 20mA

–
–

 10V

 10V,  100mV

0 – 5V, 0 – 20mA

–

Input

2 points

Output

1 points

Output

4 points

Output

4 points

FP0-A21A FP0-A04I FP0-A04V

4 points

Input

4 points

FP0-TC4 FP0-TC8

8 points

6 points

Input

6 points

• K, J, T, R type thermocouples can
be used

• Resolution: 0,1°C

• Accuracy: 0,8°C (R type: 3°C)

• Temperature range:

-100 to 1500°C

Input

8 points

FP0-RTD6

• Pt100, Pt1000,
NI1000

• Temperature
range -200
to 500ºC

CTi Automation - Phone: [phone] - Fax: [phone] - Web: www.ctiautomation.net - Email: [email protected]

FP0 – Impressive Capabilities

High specifications for both speed and capacity

0.9µs per basic instruction. Pulse catch and interrupt input functions meet the need for high-speed response.

High-speed execution

Execution speed of 0.9µs per basic instruction. 500 steps program yields a scanning time of 1ms, which means the FP0
boosts the fastest processing time among the products of this class.

• Internal processing in the FP0

Large capacity

Pulse catch function

Can read pulses as short as 50µs, which greatly facilitates
sensor input.

• Pulse catch function

Interrupt input function

Accurate processing, unaffected by scan time

• Interrupt input function

I/O

refresh

Program

execution

I/O

refresh

Program

execution

1 scan

I/O

refresh

Program

execution

Internal processing in the FP0

I/O

refresh

Program

execution

I/O

refresh

Program

execution

Sensor input

signal

Cannot
read.

Lengthening

of sensor

input signal

Can
read!

With pulse catch function

Internal processing in the FP0

I/O

refresh

Program

execution

I/O

refresh

Program

execution

Interrupt
program

Interrupt input

Interrupt program executed when
interrupt input enters.

A top-class large 5k and 10k steps program capacity housed within a compact body. Furthermore, data capacity for internal
devices like the data register is also ample. The unit's high performance is even suited to complicated controls
and controls with multiple amounts of data.

I/O 10-point, 14-point, 16-point type

Control unit type

I/O 32-point type

2 720 steps

1 660 words

5 000 steps

6 144 words

1 008 points

144 points

FP0-T32 CP/T

10 000 steps

16 383 words

Program size
Internal relays
Timers/Counters
Data registers

CTi Automation - Phone: [phone] - Fax: [phone] - Web: www.ctiautomation.net - Email: [email protected]

FP0 – Impressive Capabilities

FP0 functions

7

Equipped with 2-axis independent positioning and high-speed counter for support of PWM output.

Pulse output function

(For transistor output type only) The unit comes equipped with
2 channels for the output of up to 10kHz pulses (5kHz during
2-channel output). Since these two channels can be separately
controlled, the PLC is also suitable for independent 2-axis
positioning. Setting automatic trapezoid control, automatic return
to home position and JOG operation are made very easy by using
instructions specially designed for such operations.

Positioning control is a breeze with
the auto trapezoid control command!

Y0
Y2

Motor

driver 1

Pulse output
Clockwise output/

counter-clockwise output

Y1
Y3

Motor

driver 2

Pulse output
Clockwise output/

counter-clockwise output

High-speed counter function

The high-speed counter is prepared for 4 channels in single phase, and 2 channels in
2-phase. In single phase, the 4-channel total is 10kHz, and in 2-phase the 2-channel total is
2kHz total speed, making the unit suitable for conveyer control, inverter control, and so
forth using an encoder.

PWM output function

Its PWM (Pulse Width Modulation) output function makes
it possible to provide temperature control with a single
compact FP0 unit. (For transistor output type only)

Feeder roller

Lead wiring,

tape

Cutter

Encoder

Motor

START/STOP

signal

Inverter

Cutter blade

control signal
Encoder output
inputted into
high-speed counter

Serial communication function

• The FP0’s second RS232C port (types C10CRS, C14CRS, C16C, C32C,
and T32C) allows direct connection to computers and operation display
panels. Also, bi-directional data communication with barcode readers
and other RS232C devices is made easy.

• Both the relay type and transistor output type control units are optionally
equipped with a 2nd RS232C port.

Host computer

(Personal computer)

Operation

display panel

FP0

●

For connecting to computers and operation display panels

●

For data communication with RS232C devices

Imagechecker Bar code reader Serial printer

RS-232C

POWER READY

MODE

A
B
C

KEY PAD

CAMERA

MONITOR

COM COM D2 D4 D6 D8 D9

FLASH

D1 D3 D5 D7

READY

MICRO-IMAGECHECKER

M100

Matsuhita Electronic Works, Ltd.

24VDC

START

ACK IN1 IN3 IN5
COM COM IN2 IN4 COM

Heater

power up

● When pulse width values are increased...

● When reduced...

Analogue control function

Analogue control is made simple with four types of analoque modules
featuring different numbers of input and output channels.
Also, despite the small size, the I/O resolution is a high 1/4000 (12 bits).
Support various I/O ranges by setting the DIP switches on the analogue
I/O unit for simple operation.

PROG.

RUN

ALARM

ERROR

PROG

RUN

Pressure sensor

Laser analogue

sensor

Inverter

Potentiometer

MODE

OFF ON

V 0

IN

I 0

COM

FP0 - A21

OUT

I 1

V
I

1
2
3
4
5

Stepping
motor
Servo motor

Stepping
motor
Servo motor

CTi Automation - Phone: [phone] - Fax: [phone] - Web: www.ctiautomation.net - Email: [email protected]

● When reduced...

power up

power down

Heater

FP0 Communication

Serial interfaces and modem compatible

Programming interface TOOL-Port (also for communication)

In Computer Link mode, this port offers access to the entire FP0 memory area. For example during data exchange between
a host PC running SCADA software and an FP0 PLC, the Windows

®

based MEWNET-DDE Server assumes total control of
the communications protocol (MEWTOCOL.COM). Therefore the user can disregard the allocation of data ranges and
transfer parameters, because there is no additional programming required. The programmer is thus free to concentrate
exclusively on the project application requirements.

Communication Interface COM-Port

(flexible with two modes of operation, Computer Link and General Purpose)
In addition to the Computer Link communication possibilities described above, the optional integrated RS232C COM-Port
in the FP0 CPU module (types FP0-C10CRS, FP0-C14CRS, FP0-C16C, FP0-C32C and FP0-T32C) offers flexible programming
i.e. General Purpose. In this configuration it is possible to realise communication connections with different RS232C
peripheral devices, e.g. Bar Code Readers, slave devices, printers, measurement sensors or telecommunication
transmitters, etc.

Communication Interface COM-Port

Freely programmable RS232C interface for CPU modules type FP0-C10CRS,
FP0-C14CRS, FP0-C16C, FP0-C32C and FP0-T32C

Communication – Simple and efficient via two serial interfaces: TOOL-Port and COM-Port (RS232C interface).

Programming Interface TOOL-Port

For programming, and additionally Master/Slave communication, using
MEWTOCOL COM (Matsushita protocol)

Modem compatible

Even modem communication function is built into this compact body. Using a single telephone line,
programming maintenance can be carried out in remote facilities. With C-NET, multiple FPO units can be
connected.

■ 1:1 communication ■ 1:N communication ■ Multidrop communication

CTi Automation - Phone: [phone] - Fax: [phone] - Web: www.ctiautomation.net - Email: [email protected]

FP0 Communication

Easier maintenance than ever before

9

Maintenance saving

■ Overwrite function in RUN mode

It is possible to overwrite a program while the FP0 is running, such as during program debugging and startup
adjustments.

■ Backup battery unnecessary

The program memory uses EEPROM. The program and device contents can be stored without a backup battery, and
even programming for a machine builder is safe.

■ Password function

A password function can be set in order to change a program. Limited to people authorized to make program changes,
protection can be guaranteed better than ever.

■ Input/output verification LED

Every unit is equipped with LED I/O indicators, housed within a compact body. Input/output status can be verified
at a glance.

Terminal type can be
plugged straight in without
resorting to crimping (made
by Phoenix Contact Co.).
Can handle wires from

0.3 to 1.25mm

2

.

Compatible models

FP0-C10RS, C10CRS, C14CRS, E8RS, E16RS

Unit connectors can be used
with 16-points and 32-points
units. Due to the loose-wiring,
pressure contact type design,
wiring is easy without the
need for insulation.
(MIL-C-83503)

Compatible models

FP0-C16T/C16P/C16CT/C16CP, C32T/C32P/C32CT/C32CP,
E16T/E16P, E32T/E32P,
FP0-T32CP/T32CT

Program memory uses EEPROM. In addition, programs can be changed even in RUN mode!

Simple installation

Comes with either terminal block or connector. Either type is easy to connect to wiring by simply
removing the terminal section.

Terminal block

MIL connector

CTi Automation - Phone: [phone] - Fax: [phone] - Web: www.ctiautomation.net - Email: [email protected]

FP0 PROFIBUS DP Slave or Remote I/O Unit

For cost effective control of distributed field device

The FP0 DPS2 can operate either as a DP slave module or as a remote I/O
system to which different decentralised inputs and outputs can be
connected. A DIP switch can be used to switch between the two modes:

Mode 1:

DP-Slave module. Connect the FP0 or FP∑ (Sigma) CPU + expansion
modules to the PROFIBUS network.

Mode 2:

Remote I/O. Connect up to three expansion modules without CPU to the
PROFIBUS network.

In Remote I/O mode the unit can be connected to any PLC which offers a
PROFIBUS communication interface, making it totally independent of
NAiS PLCs.

Item Description
Type designation
PROFIBUS standards complied with

FP0 DP Slave unit, Ord. No. FP0DPS2
EN 50170, DIN 19245 Part 1 and Part 3

Baud rates

9.6 / 19.2 / 93.75 / 187.5 / 500 / 1,500 / 3,000 / 6,000 / 12,000 Kbaud

automatic baud rate detection
Range of adresses that can be set 0..125
PROFIBUS connection

Configuration

9-pin D-sub connector

2 words input / 2 words output, up to 6 words input / 6 words output if no other expansion is connected

Remote I/O, max. 3 FP0 expansion units
FP0 communication

Via FP0 system bus
Power supply 24VDC (21.6VDC … 26.4VDC)
Max. power consumption 100mA

FP0-DPS Specifications

DP-Slave

Remote I/O

PLC

(Master)

PLC

(Slave)

Remote I/O

(Slave)

FP0 DP Slave FP∑ (Sigma) DP Slave

DP Slave Remote I/O

Configuration with digital I/O

up to 96 transistor I/O or up to

48 relay I/O are possible

DP Slave Remote I/O Configuration

with analogue I/O up to 12 outputs or

24 analogue inputs or up to 24

thermocouple inputs are possible

AFP86910

FP2 DP or FMS Master

Special developed software tools ensure
easy configuration and start-up of
PROFIBUS products.

CTi Automation - Phone: [phone] - Fax: [phone] - Web: www.ctiautomation.net - Email: [email protected]

11

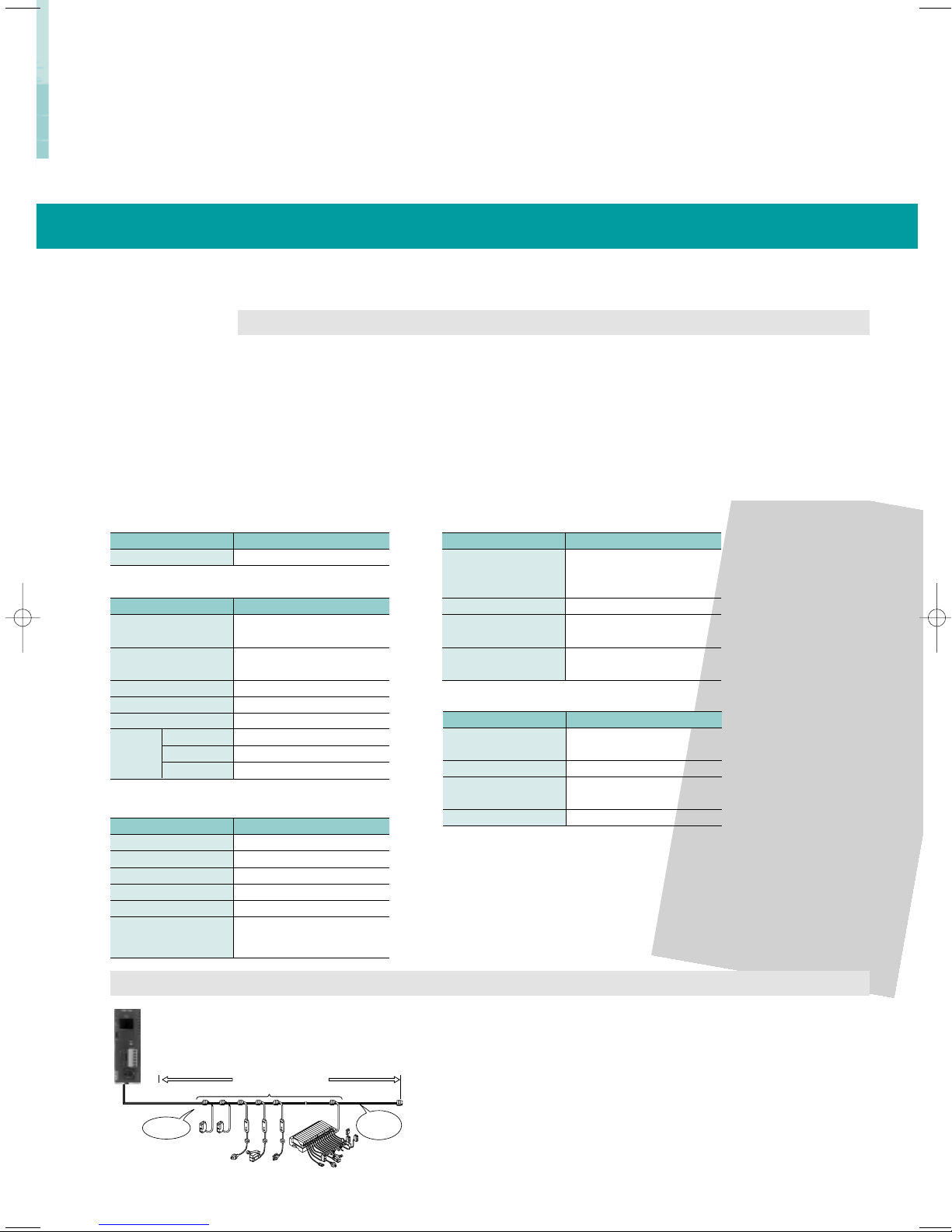

FP0 S-LINK Unit

Connects directly to the S-LINK for reduced wiring

Wire-saving

The use of wires is greatly reduced and the number of connecting
terminal blocks is minimized, resulting in large reduction in cost, as
well as, the waste generated during wiring.

Space effective

S-Link devices are compact. The control box can be mounted in a
tight space.

Quick construction

Sensors cab be easily connected with plug-in connection.

Direct connection for reduced wiring

Features

1. Small size of only W30 x H90 x D60 mm.

Makes use of the T-shaped connectability of the S-LINK for reduced wiring and reduced size
of the control panel.

2. Controls 64 input points and 64 output points.

Able to control up to 128 points for S-LINK-related devices.

3. Allows simultaneous use of expansion units.

Similar to other FP0 units, up to three expansion units can be used for efficient I/O wiring.

4. A wide range of I/O modules allow manifold customer-oriented network layouts.

Item Description
Power supply 24VDC

Power Supply Specification

Item Description
Program block-edit

during RUN
Constant scan
Adjustable input time

filtering
Clock/Calendar function

Available
Available
Not available
None

Other Built-in Functions

Item Description
Number of I/O points

Expansion

S-LINK block: 64 input points,
64 output points (fixed)

Max. 3 units
Expansion section:
Max. 96 points

Operation speed 0.9µs/step
Internal memory

EEPROM

Memory capacity 5k steps
Memory Internal relay

of

Timer/Counter

execution

Data register

1,008 points
144 points in total
6,144 words

Performance Specifications

Item Description
Pulse catch/Interrupt input

Volume input
High-speed Counter

None

Analogue I/O

Available by adding analogue I/O unit
None
None

Pulse output None

RS232C port

1 ch is equipped.
3P terminal blocks (made by
Phoenix Contact Co.)

Applicable Functions

Item Description

Remote I/O

Inter-PLC link
Computer link

Modem connection

Control unit functions as S-LINK
master station.
Available as a slave station of
MEWNET-F by adding I/O link unit

Not available
Linkable with tool port or

RS232C port
Available, Type with RS232C

port can also send data

Applicable Network

FP0-SL1

S-Link is a system which simplifies connection of rapidly increasing control devices accompanying
progressing automation and is useful in reducing your costs and construction time.

The layout of devices becomes flexible
and the design is easier due to the
‘T’-branch multi-drop wiring.

CTi Automation - Phone: [phone] - Fax: [phone] - Web: www.ctiautomation.net - Email: [email protected]

FP0
S-LINK Control unit

W30 × H90 × D60

Maximum length: 200m

Max. 128 points

T-branch multi

drop wiring

2 signal wires

2 power

supply wires

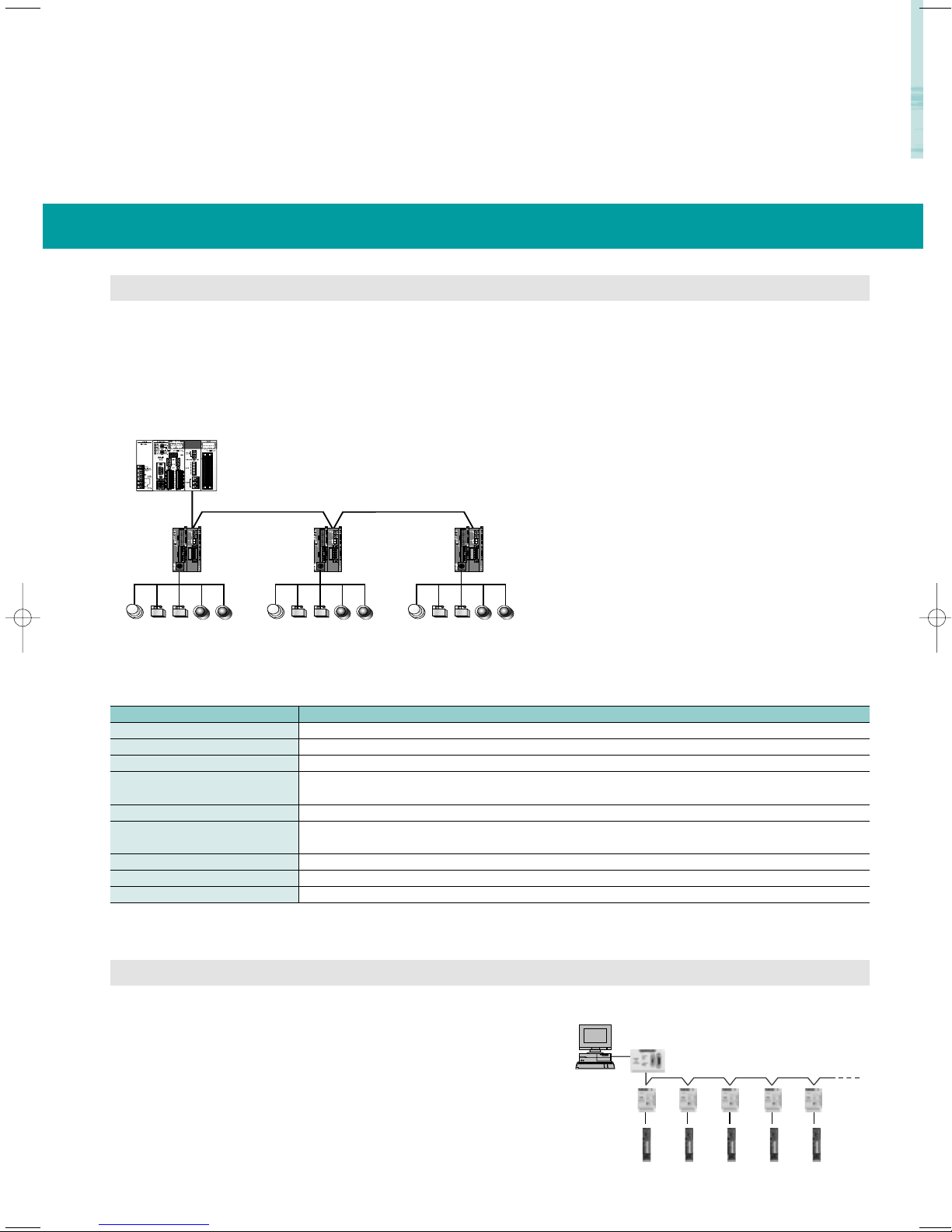

FP0 MEWNET-F Unit

Networking units

The FP0 can be used as a slave station for MEWNET-F (remote I/O system) by adding I/O link unit.

MEWNET-F is a reduced-wiring remote I/O system that connects PLCs
located separately and I/O slave stations with 2-core cabling. By adding an
I/O link unit to the FP0, you can link master station PLC and FP0 inputs and
outputs via the network.

Item Description
Communication method
Synchronous system

Two-wire, half duplex transmission

Start stop synchronous system
Transmission line 2-wire cable (Twisted-pair cable or equivalent to VCTF 0.75 mm2x 2C)

Transmission distance
(Total distance)

Max. 700m per port (using twisted pair cable)

Max. 400m per port (using VCTF cable)
Transmission speed (Baud rate) 0,5Mbit/s
Number of control I/O points

per an I/O link unit

64 points

(Input: 32 points and Output: 32 points)
Remote I/O map allocation

Interface
Transmission error check

32X/32Y

Conforms to RS485

CRC (Cyclic Redundancy Check) method

FP0-IOL Link Unit Specifications

By using C-NET, you can use multiple FP0s as data collection terminals.

By using the C-NET network and exclusive
adapters, you can connect multiple FP0s by
multi-drop connection with 2-wire cables.
You can use computers for separate control
or have network terminals for a centralized
management system.

MEWNET-F

C-NET

FP2 (Master station)

FP0 (Slave station) FP0 (Slave station) FP0 (Slave station)

Twisted pair cable or VCTF

FP0-IOL FP0-IOL FP0-IOL

C-NET
adapter

AC 100 to 200V
24V DC

: AFP8536
: AFP8532

C-NET
adapter
S2 type

(AFP15402)

Max. 32 units
Max. 1,200 m

FP0

( )

MEWNET-F Slave

FP0-IOL

CTi Automation - Phone: [phone] - Fax: [phone] - Web: www.ctiautomation.net - Email: [email protected]

The FP0-TC4 and FP0-TC8 thermocouple units are suitable for user
friendly temperature acquisition using standard thermocouples with
high precision.

■ Up to three units can be added to each control unit, enabling

temperature control of up to 24 channels.

■ The temperature data obtained using the thermocouple is converted to

the digital value to be read into the FP0 control unit.

■ Standard types of thermocouples can be used: K, J, T and R

■ 3 temperature measurement ranges are available:

-100°C to +500°C (Thermocouple types: K and J)

-100°C to +400°C (Thermocouple type : T)

- 0°C to +1500°C (Thermocouple type : R)

■ The temperature data measured using the sensor is converted to

degrees Celsius or degrees Fahrenheit inside the Thermocouple Unit.

■ The converted data (°C or °F) is averaged, so that even unstable input

signals can be properly read.

■ Broken thermocouples can be detected.

FP0 Thermocouple Input Expansion Units

Enable high precision temperature control at low cost

13

Temperature control

FP0 TC8
8 channels

FP0 TC4
4 channels

Item Specification
Input points

Input range

Up to 8 channels per unit (The number of input points can be changed 2, 4, 6 and 8 channels are available)

Thermocouple types K, J -100°C to 500°C
Thermocouple types T -100°C to 400°C
Thermocouple types R 0°C to 1500°C

Resolution 0.1°C

Sampling cycle

300ms: when using 2 channels for an input points
500ms: when using 4 channels for an input points
700ms: when using 6 channels for an input points
900ms: when using 8 channels for an input points

Accuracy

Range for K and J (-100°C to 500°C): 0.8°C
Range for T (-100°C to 400°C): 0.8°C
Range for R (0°C to 99.9°C): 3°C

(100°C to 299.9°C): 2.5°C
(300°C to 1500°C): 2°C

Input Impedance
Insulation method

more than 1MΩ

- between thermocouple input terminals and control unit internal circuits Photo-coupler insulation/DC-DC insulation

- between thermocouple input terminal channels PhotoMOS relay insulation

FP0-TC4 and FP0-TC8 specifications

CTi Automation - Phone: [phone] - Fax: [phone] - Web: www.ctiautomation.net - Email: [email protected]

Analogue Signal Processing

FP0 Analogue Units

FP0-A21
2 Inputs/1 Output

FP0-A80
8 Inputs

■ Multimode A/D, D/A conversion ■ High resolution: 12-bit

Voltage, current and temperature selectable

■ 2 analogue inputs (FP0-A21): ■ High conversion speed

-10 to + 10V, 0 to 5V, 0 to 20mA, FP0-A04V, FP0-A04I: 500µs
8 analogue inputs (FP0-A80):

-10 to + 10V, 0 to 5V, -100 to + 100mV, 0 to 20mA ■ PID instruction with auto tuning

■ 1 analogue output (FP0-A21): -10 to + 10V, 0 to 20mA

4 analogue outputs (FP0-A04V): -10 to + 10V ■ Screw terminal connection
4 analogue outputs (FP0-A04I): 4 to 20mA

Features

The analogue units can be used with the FP0 and FP∑ (Sigma) so wide range applications are possible from small­scale machines to factory production systems.

Each CPU supports up to 3 FP0 analogue units. Combination with digital and analogue expansion units is freely allowed.
Highest performance is offered with 12-bit resolution. With a current and voltage output conversion time of up to

500µs, the units are capable of high-speed processing.
The multimode FP0 analogue unit can be configured via the DIP switches on the front side into the required analogue

ranges. Communication with the FP0 CPU unit is achieved via the expansion bus. The expansion bus is automatically
connected after the FP0 analogue unit is connected to the FP0 CPU unit.

Note: Function Blocks for FPWIN Pro Programming System can be downloaded free of charge from our WEB-page.

FP0-A04V
4 Outputs

FP0-A04I
4 Outputs

CTi Automation - Phone: [phone] - Fax: [phone] - Web: www.ctiautomation.net - Email: [email protected]

Analogue Signal Processing

FP0 Analogue Units

15

Item Description
Rated operating voltage
Operating voltage range

24VDC

21.6 to 26.4VDC
Rated current consumption FP0-A80: 60mA or less, FP0-A21/A04V: 100mA or less, FP0-A04I: 130mA or less
Ambient temperature 0°C to +55°C
Storage temperature -20°C to +70°C
Size 90 x 25 x 60mm
Weight appoximately 100g

General specifications

FP0-A21 FP0-A04V FP0-A04I

1 4 4

0 to 20mA: 0 to 20mA: K 0 to K 4000

-10V to +10V: -10V to +10V: K -2000 to K+2000

12 bits (1/4000)

500ms 500µs 500µs

1% for full-scale (0 to 55°C), 0.6% for full-scale (at 25°C)

Voltage mode: less than 0.50Ω -

Voltage mode: +/- 10mA -

less than 300Ω 1000Ω or more less than 500Ω

Optical coupler insulation between analogue output terminal and FP0 internal circuit

DC/DC converter insulation between analogue output terminal and analogue I/O unit external power supply

DC/DC converter insulation between analogue output terminal and analogue input terminal

16 output points 32 output points 32 output points

Analogue output specification (FP0-A21)

Item
Product

Description

FP0-A21 FP0-A80

Number of channels

Input range selectable
( 2 CH)

2 channels/unit 8 channels/unit

-100 to +100mV/0 to 5V / -10V to +10V
0 to 20mA

–

–

2ms/channel

–

–

Voltage mode 0 to 5V / -10V to +10V

Digital output

Resolution
Conversion speed

Overall accuracy

Input impedance
Maximum input

Insulation

FP0 input address

(*1) K means decimal constants.
(*2) Reference temperature → Reference points is start points.
(*3) Reference temperature → Reference points is end points.
(*4) The address varies depending on the position of the analogue unit. (WX2/3, WX4/5 or WX6/7)

Current mode 0 to 20mA
Thermocouple mode K, J, T type thermocouple

K up to 1000°C or -100°C to terminal temperature (selectable)
J up to 750°C or -100°C to terminal temperature (selectable)
T up to 350°C or -100°C to terminal temperature (selectable)

0 to 5V/0 to 20mA: K 0 to K 4000 (H 0000 to H 0FA0) (*1)

-10 to +10V (-100 to +100mV): K -2000 to K +2000 (HF830 to H07D0)
Thermocouple: The value of broken wire detection is K 20000.

For plus: K temperature of terminal (*2) to K 1000 (Unit is Celsius)
For minus: K-100 to K temperature of terminal (*3) (Unit is Celsius)

12 bits (1/4000)

Voltage/current mode: 1ms/channel
Thermocouple mode: 560ms/channel

Voltage/current mode: 1% for full-scale (0 to 55°C), 0.6% for full-scale (at 25°C)

Thermocouple mode: Offset error (0 to 55°C), 2% for full-scale (K-type)

2.7% for full-scale (J-type)

5.8% for full-scale (T-type)

linearity error (0 to 55%): 1% for full scale

Voltage mode: 1M ohm or more

Current mode: 250ohm

Voltage mode: +/- 15V
Current mode: +30mA

Optical coupler insulation between analogue input terminal and FP0 internal circuit

(No insulation between analogue inputs)

DC/DC converter insulation between analogue input terminal and analogue I/O unit external power supply

DC/DC converter insulation between analogue input terminal and analogue output terminal

32 input contact points: First 16 points analogue input CH0 data (WX2) (*4)

Last 16 points analogue input CH1 data (WX3) (*4)

32 input contact points:

First 16 points analogue input

CH0, 2,4,6 data (WX2) (*4)

Last 16 points analogue input

CH1,3,5,7 data (WX3) (*4)

Analogue input specification

Item Description

4 to 20mA

-10V to +10V

K -2000 to K+2000 K 0 to K 4000

Product
Number of channels
Output signal selectable

Digital input (*1)
Resolution

Conversion speed
Overall accuracy
Output impedance
Maximum output current
Allowable output load
resistance

Insulation
Reserved CPU addresses (*4)

Voltage mode -10V to +10V
Current mode 0 to 20mA

CTi Automation - Phone: [phone] - Fax: [phone] - Web: www.ctiautomation.net - Email: [email protected]

FP0 RTD Input Expansion Unit

User friendly acquisition of temperatures with high precision

Features

FP0-RTD6
6 channels

■ The module can be easily installed in an existing system: Special

connection cables, backplanes, and so forth are unnecessary as the
expansion unit employs a stacking system that uses expansion
connectors and lock levers on the surface of the unit itself.

■ Multiple RTD types are allowed in one module, creating a cost-effective

solution.

■ About the Application areas:

- Measurement and control equipments

- Process and Machine controls

- Greenhouse and Agro industries

Take advantage of the various FPWIN Pro libraries with many functions and function blocks. These ready-made pro­grams can be saved and reused time and again and will help you to shorten the time needed to develop applications
drastically, and consequently to save valuable human resource costs.

Controller Library: NCL-MR-LIB

The programmable logic arrays of the controller library simplify
the programming of closed loop controlled electrical installations.
The library includes linear and non linear controller types such as
the P/I/PI/PID controller and two points-/three-points controller with
and without hysteresis. Programmable logic arrays for dead band,
interpolation, lamp limiting, dead time and averaging are also in­cluded.

Item Specification
Input points

Input type

Up to 6 channels per unit

- 3 inputs per one Phoenix screw terminal

- for every sensor 3 screws
Pt 100 -200°C to 500°C (3 wire)

Pt 1000 -100°C to 200°C (2 wire)
Ni 1000 -30°C to 150°C (2 wire)

Resistor measurement

Sampling cycle

0.1sec / 1sec for 6 channels

- depending on the switch setting
(slower cycle timer = higher accuracy)

Temperature resolution

0.1 K

FP0-RTD6 specifications

cycle time 0.1 sec: Pt 100: 0.5%/3.5K, Pt 1000: 05%/2.5K, Ni 1000: 2K, Resistor:2Ω
cycle time 1 sec: Pt 100: 0.35%/2.5K, Pt 1000: 035%/1.7K, Ni 1000: 1K, Resistor:1Ω

Accuracy
at ambient temperature: 0-55°C

cycle time 1 sec:

Accuracy
at ambient temperature: 25°C

Size

W 25 x H 90 x B 60 mm

Pt 100: 0.3K from -10 to +30°C, 0.2%/1.4K from -200 to +500°C
Pt 1000: 0.3K from -10 to +30°C, 0.2%/1.0K from -200 to +300°C

CTi Automation - Phone: [phone] - Fax: [phone] - Web: www.ctiautomation.net - Email: [email protected]

Item Description
Rated operating voltage 24 VDC
Operating voltage range 21.6 to 26.4 VDC

Allowable no voltage time

10 points, 14 points type

5ms (at 21.6 V), 10ms (at 24 V)

16 points, 32 points, S-LINK type

10ms (at 21.6 V / 24 V)
Ambient temperature 0°C to +55°C
Storage temperature -20°C to +70°C
Ambient humidity 30 to 85% RH (Non-condensing)
Storage humidity 30 to 85% RH (Non-condensing)

Breakdown voltage

Between input/output terminals and power/ground terminals: 500VAC for 1 minute (for the relay output type, 1500VAC for 1 minute)

Between input terminals and output terminals: 500VAC for 1 minute (for the relay output type, 1500VAC for 1 minute)

Insulation resistance

Between input/output terminals and power/ground terminals: Over 100 MΩ (using a 500VDC megger)

Between input terminals and output terminals: Over 100MΩ (using a 500VDC megger)

Vibration resistance 10 to 55Hz, 1 sweep/min., double amplitude of 0.75mm, 10min. on 3 axes
Shock resistance

98m/s

2

or more, 4 times on 3 axes
Noise immunity 1,000 V(p-p) with pulse widths 50ns and 1ms (using a noise simulator)
Operating condition Free from corrosive gasses and excessive dust

Type of control unit

C10 series C14 series C16 series C32 series

S-LINK type

T32 series

Programming method / Control method Relay symbol/Cyclic operation

Number of
I/O points

No expansion
(control unit only)

Total: 10

Total: 14

Total: 16

Total: 32

Total: 32

W/expansion 1

*Same type of control and expansion units

Max. 58 Max. 62 Max. 112 Max. 128

Expansion section:
max.96 points

Max. 128

W/expansion 2

*Mix type of relay and transistor units

Max. 106 Max. 110 Max. 112 Max. 128 Max. 128

Program memory EEPROM (No back-up battery required)
Program capacity 2.7K steps 5K steps 10K steps
Kinds of
instruction

Basic 83
High-level 115

Operation speed (central value/step) 0.9µs (Basic instruction)

Memory for
execution

Relay

Intermal relay (R)

1,008 points

Timer/Counter (T/C)

144 points

Memory
area

Data register (DT)

1,660 words 6,144 words 16,384 words

Index register(IX,IY)

2 words
Master control relay (MCR) 32 points
Number of labels (JMP and LOOP) 64 labels 255 labels
Differential points Unlimited number of points
Number of step ladder 128 stages 704 stages
Number of subroutines 16 subroutines 100 subroutines

Special
functions

High speed counter

1 phase/4 points (10kHz in total) or 2 phases / 2 points (2kHz in total)*

Not available

Pulse output Not available

2 points (10 kHz* in total),enable to control 2
channels individually*

Not available

PWM output Not available 0.15Hz to 1kHz Not available

Pulse catch input/interrupt input

6 points(with high speed counter) Not available
Interrupt program 7 programs (external 6 points, internal 1 point)
Periodical interrupt 0.5ms to 30s
Constant scan Available

RS232C port

One RS232C port is mounted on each of the models FP0- C10CR, C14CR,C16CT, C16CP, C32CT, C32CP, T32CT, T32CP and SL1 type (3P terminal block)

Transmission speed (Baud rate): 300 to 19200bits/s , 3m Communication method: half duplex
Transmission distance: 3m

Maintenance

Memory
back up

Stored program and system register in EEPROM

Operation
memory

Stored fixed area in EEPROM
Counter: 4 points
Internal relay: 32 points
Data register: 8 words

Counter: 16 points
Internal relay: 128 points
Date register: 32 words

Backup is provided by
secondary battery. The
holding range for the
timers, counters, internal
relays, and data regis­ters are specified with
the programming tool.

Self-diagnosis functions Watchdog timer, program syntax checking, etc.
Clock/calender function Not available Available
Other functions Runtime editing, password setting

* For the limitations while operating units, see the manual.

Stored fixed area in EEPROM

Total:128

(Input: 6, Output: 4) (Input: 8, Output: 6) (Input: 8, Output: 8) (Input: 16, Output: 16) (Input: 64, Output: 64) (Input: 16, Output: 16)

Program and system register

(Relay output type only) (Relay output type only)

(Transistor output type only) (Transistor output type only) (Transistor output type only)

Available (same as
32 points series)

1 program (internal 1 point)

Available (same as
32 points series)

FP0 Series

Specification tables

17

FP0 Specifications

General Specifications

CTi Automation - Phone: [phone] - Fax: [phone] - Web: www.ctiautomation.net - Email: [email protected]

FP0 Series

Specification tables

Item Description
Programming TOOL-Port

Communication COM-Port

RS232, mini DIN socket (5 pin), 9600 or 19200 BAUD, (8 data bits, odd parity, 1 stop bit), Computer link for
programming and communication with MEWTOCOL.COM, user configurable modem connection

RS232 (SD, RD, GND) 3 way screw terminal, 300 to 19200 BAUD, (7 or 8 data bits, none/even/odd parity,
1 or 2 stop bits, start code: none/STX, end code: CR/CR+LF/ETX/none, CCU mode for programming and
communication with MEWTOCOL.COM, user configurable modem connection, GENERAL PURPOSE MODE
controlled by program for general purpose RS232 communication.

Note: (*): Since the response time of X0 to X5 is very fast (for high-speed counter input), the FP0 happens to catch chattering noise as an input signal.

To prevent this, it is recommended that timer instruction should be included in the program.

Notes:

(*1): 8points/common(C16T/C16P,E16T/E16P), 16points/common(C32T/C32P,

T32CP, E32T/E32P)

(*2): 50µs or less at Y0, Y1 only

The FP0 series conforms to the following standards under the EMC Directive
and the Low Voltage Directive.

EMC Directive (89/336/EEC) Low Voltage Directive (73/23/EEC)

EN 50081-2: 1993 VDE 0160: 1988 (EN 50178: 1995)
EN 50082-2: 1995 (Overvoltage Category II,

non-mains-circuit, pollution degree 2)
EN 61131-2: 1995

Interfaces

Item
Insulation method Optical coupler
Rated input voltage 24VDC
Operating voltage range 21.6 to 26.4VDC
Rated input current 4.3mA or less (at 24VDC)
Input points per common

6 points/common (C10RS) 8 points/common (C14RS,C16T/C16P,E16T/E16P) 16 points/common (C32T/C32P,E32T/E32P)

ON voltage/ON current 19.2V or less/ 3mA or less
OFF voltage/OFF current 2.4V or more/ 1mA or more
Input impedance Approx. 5.6kΩ

Response time

OFF➔ ON

50µs or less (at X0,X1)(*)
100µs or less (at X2 to X5)
2ms or less (at X6 to XF)

ON➔ OFF

same as above

Operating indicator LED display

Description

Input specifications

Item

1) Relay output type

Output type Normally open(1 Form A)
Rated control capacity

OFF➔ ON
ON➔ OFF
Mechanical
Electrical

2A 250VAC, 2A 30VDC(4.5A/common)

Response time

10ms or less
8ms or less

Life

20million operations or more

100k operations or more
Surge absorber None
Operation indicator LED display

Description

Output specifications

Item

2) Transistor output type

Insulation method Optical coupler
Output type Open collector
Rated load voltage 24VDC 5 to 24VDC
Load voltage allowable range 4.75 to 26.4VDC
Max. load current

0.1A/points(at DC26.4V) (1A/common)(*1)

Max. inrush current 0.3A
Leakage current at OFF time 100µA or less
Max. voltage down at ON time

Response time

1.5V or less

OFF➔ ON

1ms or less

ON➔ OFF

1ms or less(*2)
Surge absorber Zener diode
Operating indicator

LED display

Description

External power
supply
(For internal circuit)

Voltage 21.6 to 26.4VDC
Current 240mA or less

CTi Automation - Phone: [phone] - Fax: [phone] - Web: www.ctiautomation.net - Email: [email protected]

19

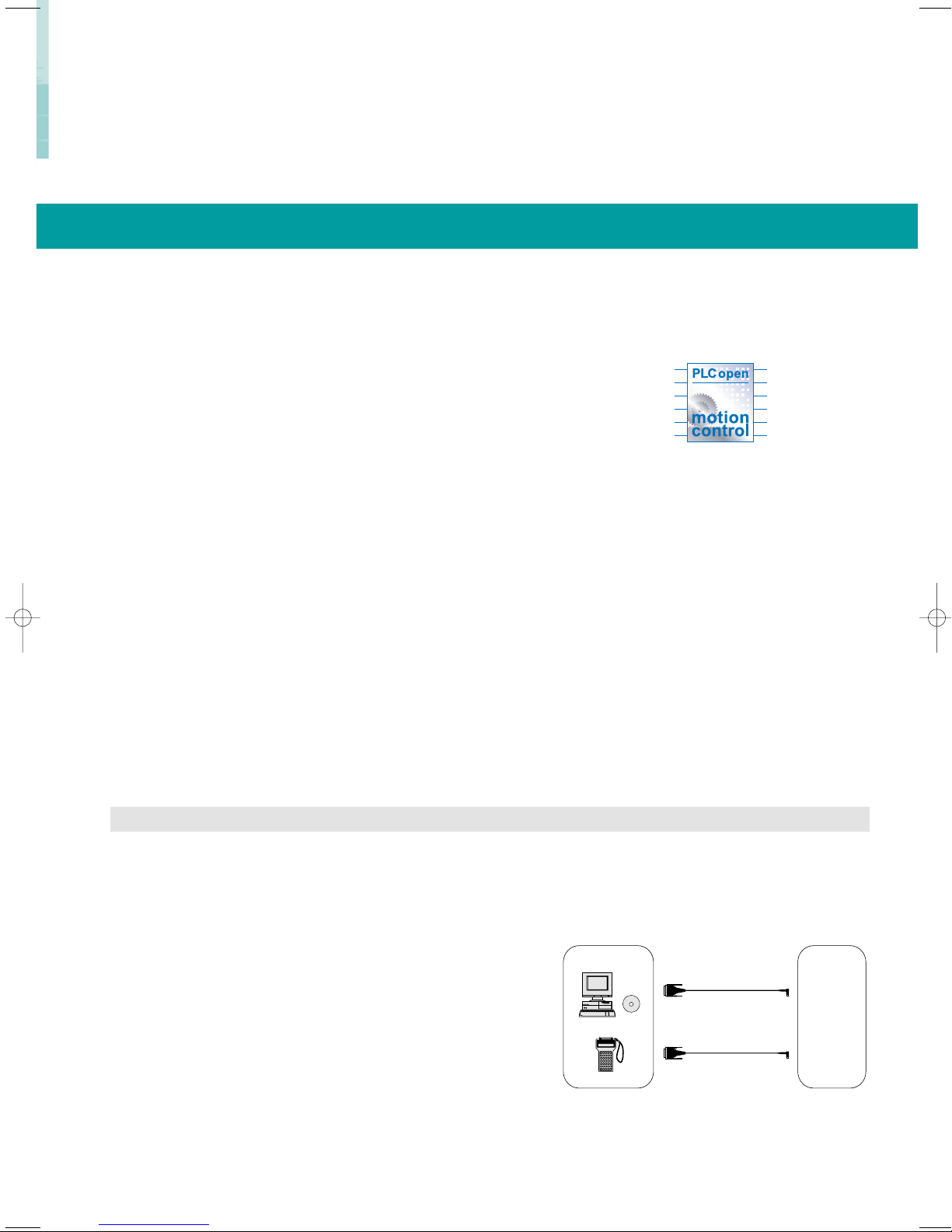

Control FPWIN Pro

PLC programming software conforming to IEC 61131-3

FP Programmer II Ver. 2

Programming cable

AFC8513D

Programming cable

AFC8523

Programming

software

Connect with RS232C cable

FP0

The most important highlights at a glance:

■

Reuse of ready made functions and function blocks saves time for programming and debugging

■

5 programming languages (Instruction List, Ladder Diagram, Function Block Diagram,

Sequential Function Chart, Structured Text)

■

Convenient comment application in 6 languages (English, German, French, Italian, Spanish, Japanese)

■

4 standard libraries (IEC Standard library, Matsushita library (M Lib), Pulsed library (P Lib), NC Tool library (NC Tool Lib))

■

Fewer errors through defined data types and encapsulation

■

Well-structured through programme organisation units, task-

and project management

■

Online monitoring and diagnostic

■

Ethernet and Modem communication for remote-programming,

-service, and -diagnostic

■

Password protection with different levels

■

Many additional application libraries available

■

IEC 61131-3 protects your investments for the future

Control FPWIN Pro – Programming

Control FPWIN Pro is the Matsushita programming software according to the international standard IEC 61131-3.
Control FPWIN Pro works with the FP0 as well as any FP series programmable controller. Also, since the tool port is an

RS232C, connection to a PC is easy – it only requires a single cable. No converter or adapter is required.

CTi Automation - Phone: [phone] - Fax: [phone] - Web: www.ctiautomation.net - Email: [email protected]

Control FPWIN GR

PLC programming software for easy operation

Program status display

Function instruction list

Classified by type, function
commands can be selected
from the displayed list.
(Simple help included.)

Menu

Program display

Tool bar

Access often-used
functions using icons.

Function bar

Provides information
regarding command
input and confirmation,
on-line/off-line
selection and PLC
mode selection.

I/O comment edit function

Successive I/O comments can
be input for each device type.
Data from Excel and other
applications can be copied and
pasted via the clipboard.

Status display

Displays information
concerning PLC usage
environment and settings,
and detailed information
when an error occurs.

FP Series programming software for Windows.

1. To facilitate operation on site, a mouse is not required for input, search, write, monitor and timer edit operations.
Everything can be accomplished with a keyboard alone.

2. Standard Windows operations, such as copy and paste, are included.

3. Supports all FP series machines. Software created with NPST-GR Ver. 3 or 4 can also be used.

4. Inherits convenient functions developed for NPST-GR.

Features

OS
Required hard disc capacity
Recommended CPU
Recommended installed memory
Recommended screen resolution
Recommended display colors

Windows 95/98/NT (Ver. 4.0 or later)/XP
At least 30MB
Pentium 100MHz or higher
32MB or more
800 x 600 or higher
High Color (16-bit or higher)

Usage environment

Applicable PLC types

*All products on the market are supported.

All FP series types are supported:

FP∑ Sigma, FP0, FP-e, FP1, FP2, FP2SH, FP3, FP10SH, FP-M

Note: FPWIN GR Vers. 2.2 or later is needed to program the FP-e

CTi Automation - Phone: [phone] - Fax: [phone] - Web: www.ctiautomation.net - Email: [email protected]

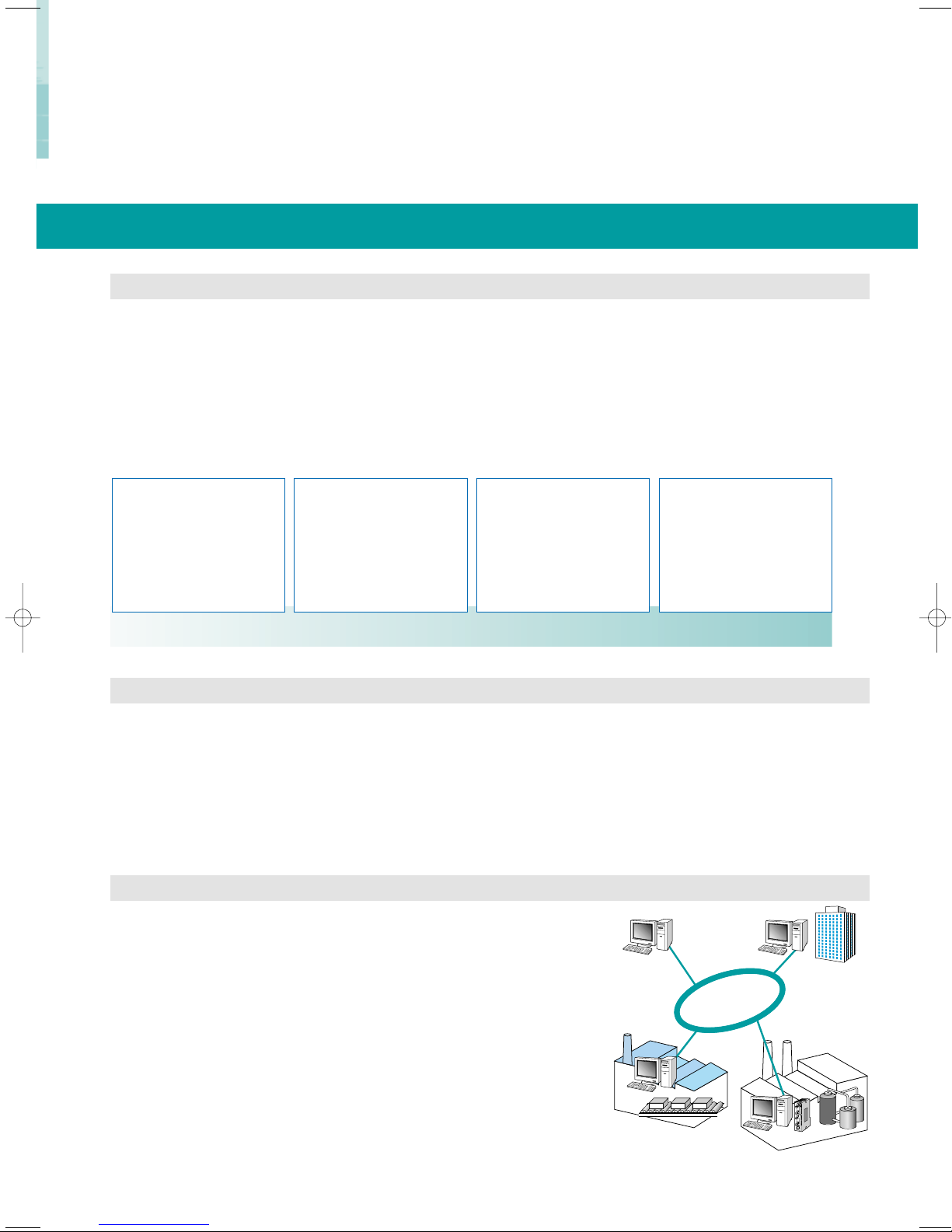

Control CommX, PCWAY, OPC Server

Visualisation software for ready made or customised solutions

21

The connection in ActiveX technology.

■

Connects your Visual Basic application to Matsushita PLCs.

■

Gives you the possibility to easily develop highly customised control solutions.

■

Create your own application very quickly by simply adding the functionality of ActiveX control to your code written with

Visual Basic.

■

No knowledge of MEWTOCOL (Matsushita's PLC communication protocol) needed.

Control CommX

Add-on software for Excel to monitor and change PLC data.

■

The Excel add-in software PCWAY is available for data collection of the networked
PLCs. The contents of the PLC bits and data registers can be simply shown and
managed on Excel worksheets.

■

Settings in PCWAY can be used to switch display contents and character colour
corresponding to contact on/off status and register values, and perform calculations
based on register values. Excel macros are not necessary.

PCWAY

The connection between PLC and SCADA software.

■

Provides a standard interface between our FP Series PLCs and various
SCADA/HMI software* used to build a monitoring system compliant
with commercially available OPC clients. It is also possible to use OPC
automation interface to link our FP series PLCs with Visual Basic.

■

OPC (OLE for Process Control) is an interface standard for linking
software with various companies’ control devices. This standard
allows connections between OPC-compliant products.

MEWTOCOL OPC Server

Initial Setup in Visual Basic Configuration of Communication Register of Various Programming

Setup Process

Communication Types

▲

▲

▲

▲

Completion

Plant

* We have confirmed linking with iFIX Ver.2.6 (Intellution),

InTouch Ver.7.0 (Wonderware), and RSView32 Ver.6.3 (Rockwell Software).

CTi Automation - Phone: [phone] - Fax: [phone] - Web: www.ctiautomation.net - Email: [email protected]

Remote
supervisory
control

Plant

Plant

Notes:

■ A power cable (order number AFP0581) is enclosed with the control unit and the relay output type upgrade units (Transistor output type upgrade units do
not require a power cable).

■ Two Phoenix terminals (9-pin) are needed with the relay output type terminal type. A 2.5mm width screwdriver is needed for the wiring.
Have ready a dedicated terminal screwdriver (order number AFP0806: Phoenix order number SZS0, 4 X 2.5 compatible), or equivalent.

■ A loose-wiring pressure socket and contact (2 pins with order numbers FP0-C16T/P, E16T/P, and 4 pins with order numbers FP0-C32T/P, E32T/P) are needed
with the transistor output type. A loose-wiring connector pressure contact tool (order number AXY52000) is needed for the wiring.

FP0 Control and Expansion Units

Products and order numbers

Expansion units

Relay output type

Transistor output type

Relay output type Input only type

Transistor output type

10 points

Input 6 points

Terminal type

Order number: FP0-C10RSA

Terminal type

Order number: FP0-C10CRSA
with 2nd RS232C interface

Terminal type

Order number: FP0-C14CRSA
with 2nd RS232C interface

PNP/NPN output type

Order number: FP0-C16PA (PNP)

FP0-C16TA (NPN)

PNP/NPN output type

Order number: FP0-C32PA (PNP)

FP0-C32TA (NPN)

PNP/NPN output type

Order number: FP0-C32CPA (PNP)

FP0-T32CPA (PNP, 10K)
FP0-C32CTA (NPN)
FP0-T32CTA (NPN, 10K)

with 2nd RS232C
interface

Terminal type

Order number: FP0-C14RSA

Output 4 points

10 points

Input 6 points Output 4 points

14 points

Input 8 points Output 6 points

14 points

Input 8 points Output 6 points

16 points

Input 8 points Output 8 points

16 points

Input 8 points Output 8 points

32 points

Input 16 points

Output 16 points

32 points

Input 16 points

Output 16 points

8 points

Input 4 points

Terminal relay type

Order number: FP0-E8RSA

Terminal relay type

Order number: FP0-E16RSA

Order number: FP0-E16XA

PNP/NPN output type

Order number: FP0-E8YPA (PNP)

FP0-E8YTA (NPN)

PNP/NPN output type

Order number: FP0-E16PA (PNP)

FP0-E16TA (NPN)

PNP/NPN output type

Order number: FP0-E16YPA (PNP)

FP0-E16YTA (NPN)

PNP/NPN output type

Order number: FP0-E32PA (PNP)

FP0-E32TA (NPN)

Order number: FP0-E8XA

Output 4 points

16 points

Input 8 points Output 8 points

8 points

Input 8 points

16 points

Input 16 points

8 points

Output 8 points

16 points

Output 16 points

16 points

Input 8 points Output 8 points

32 points

Input 16 points

Output 16 points

PNP/NPN output type

Order number: FP0-C16CPA (PNP)

FP0-C16CTA (NPN)

with 2nd RS232C
interface

Control units

CTi Automation - Phone: [phone] - Fax: [phone] - Web: www.ctiautomation.net - Email: [email protected]

FP0 Analogue and Networking Units

Products and order numbers

23

3 points

Input 2 points

Terminal type

Order number: FP0-A21A

Terminal type

Order number: FP0-A80A

Output 1 points

8 points

Input 8 points

4 points

Output 4 points

Terminal type

Order number: FP0-A04V

Terminal type

Order number: FP0-A04I

4 points

Output 4 points

Input

85 to 265VAC

Terminal type

Order number: FP0-PSA2

Output

24V DC/ 0.7A

Input

85 to 265VAC

Terminal type

Order number: FP-PS24-050E

Output

24VDC/ 2.1A

PROFIBUS

PROFIBUS

DP-Slave or Remote I/O

Order number: FP0-DPS2

MEWNET-F

MEWNET-F

Slave

Order number: FP0-IOL

S-LINK CPU

S-LINK
Master

Order number: FP0-SL1

Order number: AFP1114V2

Networking units

Analogue units

AC power supply

FP Memory Loader

Handy Programmer

Read or write programs from
or to a PLC

Order number: AFP8670

4 points

Input 4 points

Terminal type

Order number: FP0-TC4

Terminal type

Order number: FP0-TC8

8 points

Input 8 points

Temperature control units

Terminal type

Order number: FP0-RTD6

6 points

Input 6 points

FP Programmer Ver. 2

CTi Automation - Phone: [phone] - Fax: [phone] - Web: www.ctiautomation.net - Email: [email protected]

Terminal screwdriver

Necessary when wiring relay output type & terminals (Phoenix).

Attachment example

Wiring tools Parts for attachment I/O cables & networks

Order number

: AFP0806

Slim attachment plate model

Screw-stop attachment plate. Slim model.
Order number

: AFP0803 (set of 10)

Attachment example

DIN rail attachment
example

Flat attachment plate model

Screw-stop attachment plate. Flat model.

<Length 1m > 2 cable set

<Length 3m > 2 cable set

Transistor output type I/O cable

Loose-wiring cable (10 leads) AWG24 with connectors
attached at one end, 1 set: 2 cables

Order number

: AFP0804 (set of 10)

Input simulator

for FP0 relay output type, 6 switches
Order number

: SWITCH-FP0

Loose-wiring connector pressure contact tool

Necessary when wiring transistor output type connectors.

Order number

: AXY52000

Order number

:

AT8DLA1

C-NET adapter S2 type

Adapter for linking to a higher-placed computer.
With 30cm dedicated cable. Power source unnecessary.

Order number

: AFP15402

DIN rail

Standard DIN rail of width 35mm 1.378inch
and length 1m.

Order

number:

Stopper fitting

DIN rail stopper fitting.

ATA4806

Order

number:

AFP0521

Order

number:

AFP0523

Accessories

Products and order numbers

Notes:

(1) One I/O cable set (2 cables) is necessary with the following models: FP0-C10RS, C14RS, E8RS, E16RS.
(2) One I/O cable set (2 cables) is necessary with the following models: FP0-C16T/C16P, E16T/E16P.
(3) Two I/O cable sets (total 4 cables) are necessary with the following models: FP0-C32T/C32P, E32T/E32P.

Terminal socket

Attaches to relay output terminal type.
Additional part.

Order number

: AFP0802

2 sockets

per pack

()

Loose-wiring pressure socket

Transistor output type connectors.
Additional part.

Order number

: AFP0807

2 sockets

per pack

()

Power cable

Attaches to control units and relay output
type expansion units. Length: 1m.

Order number

: AFP0581

1 cable

per pack

()

Options

Additional parts

CTi Automation - Phone: [phone] - Fax: [phone] - Web: www.ctiautomation.net - Email: [email protected]

Programming Tools and Current Consumption List

Products and order numbers

25

Control

Control

Made in Germany

Made in Germany

Matsushita Electric Works, Ltd.

1995-2000

1995-2000

Matsushita Electric Works, Ltd.

FPWIN GR

FPWIN GR

Ver.2

Ver.2

Control

Control

Made in Germany

Made in Germany

Matsushita Electric Works(Europe)AG

1995-2000

1995-2000

Matsushita Electric Works(Europe)AG

FPWIN Pro

FPWIN Pro

Ver.5

Ver.5

Control FPWIN Pro

English, German, French, Italian,
Spanish, Japanese menu selectable.
According to IEC 61131-3 Standard

Order number:

■ small version for MINI-PLC only
(FP0, FP-e, FPM, FP1, FP∑ (Sigma)

• FPWINPROSEN (English manual)

• FPWINPROSDE (German manual)

• FPWINPROSFR (French manual)

■ full version for all FP-Series PLCs

• FPWINPROFEN (English manual)

• FPWINPROFDE (German manual)

• FPWINPROFFR (French manual)

Programming software and cables

Other Software Tools

Current consumption list

Control FPWIN GR

English, Italian, Spanish,
menu selectable

Order number:

■ full version for all FP-Series PLCs:

• FPWINGR F2 (English manual)

Programming cable

PC (D-SUB 9-pin) to the PLC
(mini-DIN 5-pin)

Order number: AFC8513

Programming cable

for use with FP Programmers
D-SUB15-pin, mini-DIN 5-pin

Order number: AFC8523

PCWAY

Order number:

AFW10011 (Software
+ Printer port dongle)

AFW10031 (Software
+ USB port dongle)

Control CommX

Order number:

AFW20011 (Software
+ Printer port dongle)

AFW20031 (Software
+ USB port dongle)

MEWTOCOL
OPC Server

Order number:

AFPS01510 (1 license)
AFPS01515 (5 licenses)
AFPS01516 (10 licenses)

CTi Automation - Phone: [phone] - Fax: [phone] - Web: www.ctiautomation.net - Email: [email protected]

Type of unit Part number

Supply to the power supply connector of the control unit *1

C10 series, C14 series 100mA or less —

Control unit

C16 series 40mA or less —
C32 series, T32 series 60mA or less —
SL1 150mA or less —
E8X 10mA or less —
E8YRS 10mA or less 100mA or less
E8YT, E8YP 15mA or less —

Expansion unit

E8R 20mA or less 50mA or less
E16R 20mA or less 100mA or less
E16X 20mA or less —
E16T, E16P, E16YT, E16YP 25mA or less —
E32T, E32P 40mA or less —
A21 20mA or less 100mA or less
A80 20mA or less 60mA or less

Intelligent unit

A04V 20mA or less 100mA or less

A04I 20mA or less 130mA or less

IOL 30mA or less 40mA or less
TC4,

TC8, RTD6

25mA —
PROFIBUS unit FP0-DPS2 10mA or less 100mA or less
FP programmer AFP1114V2 50mA or less —
C-NET adapter AFP15402 50mA or less —

Notes)
*1 The current consumption from the power supply connector block of the control unit. Calculate the total current consumption based on the combination of the units.
*2 The current consumption from the power supply connector block of the expansion unit and intelligent unit.

Current Consumption

Supply to the power supply connector of the expansion and intelligent units *2

FP0 Series

Power Supplies

■ Incredibly small size:

- FP0 power supply: 90 x 60 x 30.4mm

- FP power supply: 115 x 75 x 42mm

■ Maximum output current:

- FP0 power supply: 0.7A (24VDC)

- FP power supply: 2.1A (24VDC)

■ Multiple voltage input:

85 to 265VAC

■ Optimal protection:

overvoltage, overcurrent,
overheating, etc.

■ Global approvals

(UL/cUL, EN, CE-marking)

■ DIN-rail mounting

(FP0 power supply also side
mounting)

Primary side:

Rated operating voltage
Operating voltage range
Rated operating frequency
Operating frequency range
Inrush current
Current consumption
Over voltage protection

Secondary side:

Rated output voltage
Output voltage range
Nominal output current
Output current range
Output ripple
Short circuit protected
Over voltage protected
Over load protected
Holding time

115/ 230VAC

85 to 265VAC

50/ 60Hz

40 to 70Hz

< 50A at 55°C < 50A at 25°C /< 70A at 55°C

145mA (at 230VAC and 0.7Aoutput current)

PROTECTED

24VDC

23.5V to 24.5VDC

0.7A

0 to 0.7A

< 60mV

pp

electronic, automatic restart mode

Yes

Yes (switch off at approx. 0.8A and more)

min. 20ms at 230VAC

Order number:

FP0-PSA2

FP-PS24-050E

400mA (at 230VAC and 2.1A output current)

2.1A

0 to 2.1A

< 240mV

pp

continuous

Yes (switch off at approx. 3.5A and more)

min. 110ms at 230VAC

Power OK signal – Yes

Performance specifications

Ambient temperature
Storage temperature
Ambient humidity
Storage humidity

Vibration resistance
Shock resistance
Life time min.
Mounting

Size
Input connection AC side
Output connection DC side
Status display

0°C to +55°C

-20°C to +70 °C
5 to 95% non-condensing
5 to 95% non-condensing

10 to 55Hz, 1 cycle/min.: double amplitude of 0.75mm, 10 min. on 3 axes

10g min., 4 times on 3 axes

7 years at nom. load, 25°C ambient temperature,

20000 h at 55°C with full load/continuous operation

DIN rail or FP0 flat attachement plate

90 x 60 x 30.4mm

MC connector, 2 pin

MC connector, 6 pin, 3 pin for „+“ and 3 pin for „-“

DIN rail

115 x 75 x 42mm

2 pin

5 pin, 2 pin for „+” and 2 pin for „-”; 1 pin Power OK

LED (green) at the front side for the secondary voltage indication

General specifications

EMC
LVD
Others

Protection

EN 50082-2, EN50082-1,
EN 50081-2, EN 50081-1

EN 55011/B, EN 55022/B,

EN 61000-4-2, -4-3, -4-4, -4-5, -4-6, -4-11

EN 60950, EN 50178

(overvoltage category 3)

EN 60950, EN 50178

(overvoltage category 2)

UL Recognized according to UL 508, UL 1950,

cUL Recognized according to CAN/CSA-C22.2 No. 950.95

IP30 IP20 outside/IP67 inside

Standards

NOTE:

1) Mounting distance between the FP0 pow­er supply and the FP0 CPU is needed to
permit heat radiation for the FP0-CPU

2) For side mounting, 2 additional
blue clips are needed: order part-no.
677-021-17101 (1pce.) for FP0-PSA2

3) Mounting distance between the power
supply FP-PS24-050E and other devices is
needed for cooling/ heat radiation.

FP0 Power supply

FP0-PSA2

FP Power supply

FP-PS24-050 E

➝

➝

30.4mm

➝

90mm

➝

➝

➝

42mm

➝

115mm

➝

Features

CTi Automation - Phone: [phone] - Fax: [phone] - Web: www.ctiautomation.net - Email: [email protected]

FP0 Product Overview

Order numbers

27

 1. Control Units

Product Name Part Number

FP0-C10RS, 6 Inputs / 4 Outputs (p+n / Relay) FP0-C10RSA
FP0-C10CRS, 6 Inputs / 4 Outputs (p+n / Relay), RS232 COM-Port Interface FP0-C10CRSA
FP0-C14RS, 8 Inputs / 6 Outputs (p+n / Relay) FP0-C14RSA
FP0-C14CRS, 8 Inputs / 6 Outputs (p+n / Relay), RS232 COM-Port Interface FP0-C14CRSA
FP0-C16P, 8 Inputs / 8 Outputs (p+n / Transistor PNP) FP0-C16PA
FP0-C16CP, 8 Inputs / 8 Outputs (p+n / Transistor PNP), RS232 COM-Port Interface FP0-C16CPA
FP0-C32P, 16 Inputs / 16 Outputs (p+n / Transistor PNP) FP0-C32PA
FP0-C32CP, 16 Inputs / 16 Outputs (p+n / Transistor PNP), RS232 COM-Port Interface FP0-C32CPA
FP0-C16T, 8 Inputs / 8 Outputs (p+n / Transistor NPN) FP0-C16TA
FP0-C16CT, 8 Inputs / 8 Outputs (p+n / Transistor NPN), RS232 COM-Port Interface FP0-C16CTA
FP0-C32T, 16 Inputs / 16 Outputs (p+n / Transistor NPN) FP0-C32TA
FP0-C32CT, 16 Inputs / 16 Outputs (p+n / Transistor NPN), RS232 COM-Port Interface FP0-C32CTA
FP0-T32CP, 16 Inputs / 16 Outputs (p+n / Transistor PNP), RS232 COM-Port Interface, 10 000 steps Program memory FP0-T32CPA
FP0-T32CT, 16 Inputs / 16 Outputs (p+n / Transistor NPN), RS232 COM-Port Interface, 10 000 steps Program memory FP0-T32CTA
FP0-SL1, S-LINK CPU, Master FP0-SL1

 2. Expansion Units

Product Name Part Number

FP0-E8RS, 4 Inputs / 4 Outputs (p+n / Relay) FP0-E8RSA
FP0-E8X, 8 Inputs (p+n) FP0-E8XA
FP0-E8YP, 8 Outputs (Transistor PNP) FP0-E8YPA
FP0-E8YT, 8 Outputs (Transistor NPN) FP0-E8YTA
FP0-E16RS, 8 Inputs / 8 Outputs (p+n / Relay) FP0-E16RSA
FP0-E16P, 8 Inputs / 8 Outputs (p+n / Transistor PNP) FP0-E16PA
FP0-E16T, 8 Inputs / 8 Outputs (p+n / Transistor NPN) FP0-E16TA
FP0-E16X, 16 Inputs (p+n) FP0-E16XA
FP0-E16YP, 16 Outputs (Transistor PNP) FP0-E16YPA
FP0-E16YT, 16 Outputs (Transistor NPN) FP0-E16YTA
FP0-E32P, 16 Inputs / 16 Outputs (p+n / Transistor PNP) FP0-E32PA
FP0-E32T, 16 Inputs / 16 Outputs (p+n / Transistor NPN) FP0-E32TA
FP0-A21, 2 analogue inputs / 1 analogue output FP0-A21A
FP0-A80, 8 analogue inputs FP0-A80A
FP0-TC4, 4 thermocouple inputs FP0-TC4
FP0-TC8, 8 thermocouple inputs FP0-TC8
FP0-RTD6, 6 RTD Inputs, Pt 100, Pt 1000, Ni 1000 FP0-RTD6

 3. AC Power Supply

Product Name Part Number

FP0-AC Power Supply 24VDC / 0.7A FP0-PSA2

 4. Network

Product Name Part Number

FP0-DPS2, PROFIBUS DP Slave or Remote I/O unit FP0-DPS2
FP0-IOL, MEWNET-F Slave unit, I/O link FP0-IOL
FP0-SL1, S-LINK CPU, Master FP0-SL1
C-NET S2 Adapter (Multi drop network slave adapter) AFP15402
C-NET Adapter (RS232/422 PORS485 Interface adapter), 230VAC AFP8536

 5. Programming Tools

Product Name Part Number

NAiS Control FPWIN Pro Programming software FP0/FP-e/FP1/FP M including English manual FPWINPROS EN
NAiS Control

FPWIN Pro Programming software for all FP-series PLC (FP0, FP1, FP-M, FP2/2SH, FP3, FP10SH) including English manual

FPWINPROF EN

NAiS Control

FPWIN GR Programming software for all FP-series PLC (FP0, FP1, FP-M, FP2/2SH, FP3, FP10SH) including English manual

FPWINGR F EN
Handheld programmer for FP0 and all other FP programmable controllers AFP1114V2
FP0-Programming cable PC <-> TOOL-Port (SUB-D/MiniDIN5), 3m AFC8513
FP0-Programming cable Handheld programmer <-> TOOL-Port (SUB-D15/MiniDIN5), 1m AFC8521
FP0-Programming cable Handheld programmer <-> TOOL-Port (SUB-D15/MiniDIN5), 3m AFC8523

 6. Additional Parts

Product Name Part Number

Transistor output type I/O cable, Loose-wiring cable (10 leads), 1 set: 2 cables, 1m AFP0521
Transistor output type I/O cable, Loose-wiring cable (10 leads), 1 set: 2 cables, 3m AFP0523
Power cable, 1m, 1 cable per pack AFP0581
Slim attachment plate model (set of 10) AFP0803
Flat attachment plate model (set of 10) AFP0804
Terminal socket (2 sockets per pack) AFP0802
Loose-wiring pressure socket (2 sockets per pack) AFP0807
Loose-wiring connector pressure contact tool AXY52000
Input simulator for FP0 relay output type, 6 switches SWITCH-FP0
DIN rail 35 mm (DIN EN 50 022), 1m AT8DLA1
DIN rail stopper fitting ATA4806

CTi Automation - Phone: [phone] - Fax: [phone] - Web: www.ctiautomation.net - Email: [email protected]
