191
Ø49
Ø43
(1-15/16˝)
70
PT-AE2000
Attachement
plate
369– 449
(14-13/32˝–17-9/16˝)
Adjustable in
20 mm (25/32˝) steps
65 (2-9/16˝)
(2-3/4˝)
(1-11/16˝)
(7-1/16˝)

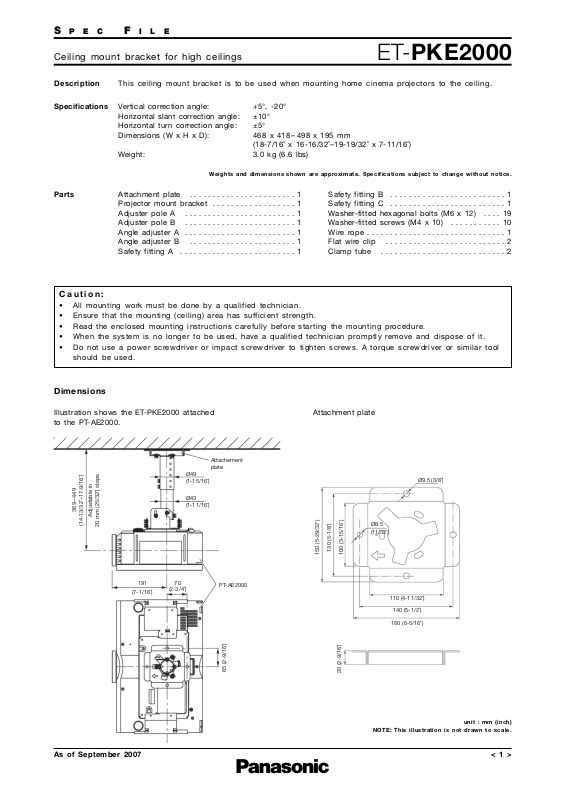

S PEC F ILE
ET-PKE2000
Ceiling mount bracket for high ceilings
As of September 2007 < 1 >
Specifications Vertical correction angle: +5°, -20°
Horizontal slant correction angle: ±10°
Horizontal turn correction angle: ±5°
Dimensions (W x H x D): 468 x 418 – 498 x 195 mm
(18-7/16˝ x 16-16/32˝–19-19/32˝ x 7-11/16˝)
Weight: 3.0 kg (6.6 lbs)
Illustration shows the ET-PKE2000 attached
to the PT-AE2000.
Attachment plate
Parts Attachment plate . . . . . . . . . . . . . . . . . . . . . . . 1
Projector mount bracket . . . . . . . . . . . . . . . . . . 1
Adjuster pole A . . . . . . . . . . . . . . . . . . . . . . . . 1
Adjuster pole B . . . . . . . . . . . . . . . . . . . . . . . . 1
Angle adjuster A . . . . . . . . . . . . . . . . . . . . . . . . 1
Angle adjuster B . . . . . . . . . . . . . . . . . . . . . . . 1
Safety fitting A . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety fitting B . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety fitting C . . . . . . . . . . . . . . . . . . . . . . . . . 1
Washer-fitted hexagonal bolts (M6 x 12) . . . . 19
Washer-fitted screws (M4 x 10) . . . . . . . . . . . 10
Wire rope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Flat wire clip . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Clamp tube . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Weights and dimensions shown are approximate. Specifications subject to change without notice.
unit : mm (inch)
NOTE: This illustration is not drawn to scale.
Dimensions
This ceiling mount bracket is to be used when mounting home cinema projectors to the ceiling.Description
Caution:
• All mounting work must be done by a qualified technician.
•Ensure that the mounting (ceiling) area has sufficient strength.
• Read the enclosed mounting ins tructions carefully before starting the mounting procedure.
• When the system is no longer to be used, have a qualified technician promptly remove and dis pose of it.
• Do not use a power s crewdriver or impact screwdriver to tighten s crews . A torque screwdriver or s imilar tool
should be us ed.
130 (5-1/8˝)
150 (5-29/32˝)
100 (3-15/16˝)
Ø9.5 (3/8˝)
Ø8.5
(11/32˝)
110 (4-11/32˝)
140 (5-1/2˝)
160 (6-5/16˝)
20 (2-9/16˝)
