1

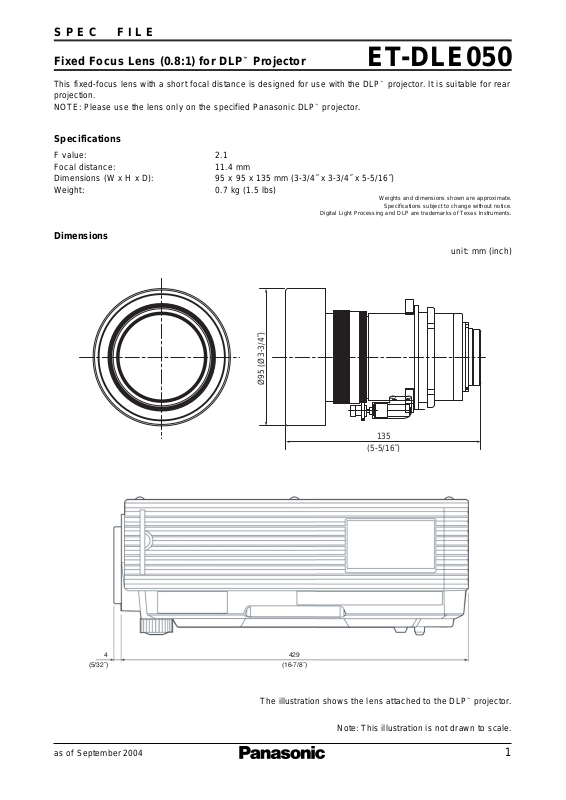

ET-DLE050
Fixed Focus Lens (0.8:1) for DLP™Projector
S P E C F I L E
Specifications
F value: 2.1
Focal distance: 11.4 mm
Dimensions (W x H x D): 95 x 95 x 135 mm (3-3/4˝ x 3-3/4˝ x 5-5/16˝)
Weight: 0.7 kg (1.5 lbs)
Weights and dimensions shown are approximate.
Specifications subject to change without notice.
Digital Light Processing and DLP are trademarks of Texas Instruments.
as of September 2004
This fixed-focus lens with a short focal distance is designed for use with the DLP
™
projector. It is suitable for rear
projection.
NOTE: Please use the lens only on the specified Panasonic DLP
™
projector.
Dimensions
unit: mm (inch)
429
(16-7/8˝)
4
(5/32˝)
Note: This illustration is not drawn to scale.
The illustration shows the lens attached to the DLP
™
projector.
Ø95 (Ø3-3/4˝)
135
(5-5/16˝)
Page 2
2
ET-DLE100
Zoom Lens (1.3–1.8:1) for DLP™Projector
S P E C F I L E
as of September 2004
Specifications
F value: 1.8 – 2.3
Focal distance: 19.3 mm – 25.8 mm
Dimensions (W x H x D): 95 x 95 x 163 mm (3-3/4˝ x 3-3/4˝ x 6-13/32˝)
Weight: 0.7 kg (1.5 lbs)
Weights and dimensions shown are approximate.
Specifications subject to change without notice.
Digital Light Processing and DLP are trademarks of Texas Instruments.
This zoom lens is designed for use with the DLP™projector.
The lens makes it possible to vary the projection distance by changing the focal distance.
NOTE: Please use the lens only on the specified Panasonic DLP
™
projector.
Dimensions
unit: mm (inch)
429
(16-7/8˝)
36
(1-13/32˝)
Note: This illustration is not drawn to scale.
The illustration shows the lens attached to the DLP
™
projector.
Ø95 (Ø3-3/4˝)
163
(6-13/32˝)
Page 3
3
ET-DLE200
Zoom Lens (2.5–4.0:1) for DLP™ Projector
S P E C F I L E
as of September 2004
Specifications
F value: 2.0 – 2.5
Focal distance: 34.8 mm – 56.5 mm
Dimensions (W x H x D): 95 x 95 x 163 mm (3-3/4˝ x 3-3/4˝ x 6-13/32˝)
Weight: 0.9 kg (2.0 lbs)
Weights and dimensions shown are approximate.
Specifications subject to change without notice.
Digital Light Processing and DLP are trademarks of Texas Instruments.
This zoom lens is designed for use with the DLP™projector.
The lens makes it possible to vary the projection distance by changing the focal distance.
NOTE: Please use the lens only on the specified Panasonic DLP
™
projector.
Dimensions
unit: mm (inch)
429
(16-7/8˝)
35
(1-3/8˝)
Note: This illustration is not drawn to scale.
The illustration shows the lens attached to the DLP
™
projector.
Ø95 (Ø3-3/4˝)
163
(6-13/32˝)
Page 4
4
ET-DLE300
Zoom Lens (3.7–5.7:1) for DLP™Projector
S P E C F I L E
as of July 2000
Specifications
F value: 2.1 – 2.8
Focal distance: 53.6 mm – 82.6 mm
Dimensions (W x H x D): 95 x 95 x 153 mm (3-3/4˝ x 3-3/4˝ x 6-1/32˝)
Weight: 0.9 kg (2.0 lbs)
Weights and dimensions shown are approximate.
Specifications subject to change without notice.
Digital Light Processing and DLP are trademarks of Texas Instruments.
This zoom lens is designed for use with the DLP™projector.
The lens makes it possible to vary the projection distance by changing the focal distance.
NOTE: Please use the lens only on the specified Panasonic DLP
™
projector.
Dimensions
unit: mm (inch)
429
(16-7/8˝)
23
(29/32˝)
Note: This illustration is not drawn to scale.
The illustration shows the lens attached to the DLP
™
projector.
Ø95 (Ø3-3/4˝)
153
(6-1/32˝)
Page 5
5
ET-DLE400
Zoom Lens (5.7–8.0:1) for DLP™Projector
S P E C F I L E
as of September 2004
Specifications
F value: 2.1 – 2.8
Focal distance: 82.6 mm – 116.0 mm
Dimensions (W x H x D): 95 x 95 x 153 mm (3-3/4˝ x 3-3/4˝ x 6-1/32˝)
Weight: 0.9 kg (2.0 lbs)
Weights and dimensions shown are approximate.
Specifications subject to change without notice.
Digital Light Processing and DLP are trademarks of Texas Instruments.
This zoom lens is designed for use with the DLP™projector.
The lens makes it possible to vary the projection distance by changing the focal distance.
NOTE: Please use the lens only on the specified Panasonic DLP
™
projector.
Dimensions
unit: mm (inch)
429
(16-7/8˝)
23
(29/32˝)
Note: This illustration is not drawn to scale.
The illustration shows the lens attached to the DLP
™
projector.
Ø95 (Ø3-3/4˝)
152
(5-31/32˝)
Page 6
S PEC F ILE
Ø95 (Ø3-3/4˝)
171
(6-23/32˝)
429
(16-7/8˝)
47
(1-27/32˝)
Zoom Lens (3.4–4.5:1) for DLP™-Based Projectors
ET-DLE310
This zoom lens is designed for use with the DLP™ projector.
The lens makes it possible to vary the projection distance by changing the focal distance.
NOTE: Please use the lens only on the specified Panasonic DLP™ projector.
Specifications
Main Unit
F value:
Focal distance:
Dimensions (W x H x D):
Weight:
2.4–2.8
48.4–63.3 mm (1-29/32˝ —2-1/2˝)
95 x 95 x 171 mm (3-3/4˝ x 3-3/4˝ x 6-23/32˝)
1.1 kg (2.4 lbs)
Weights and dimensions shown are approximate.
Specifications subject to change without notice.
Digital Light Processing and DLP are trademarks of Texas Instruments.

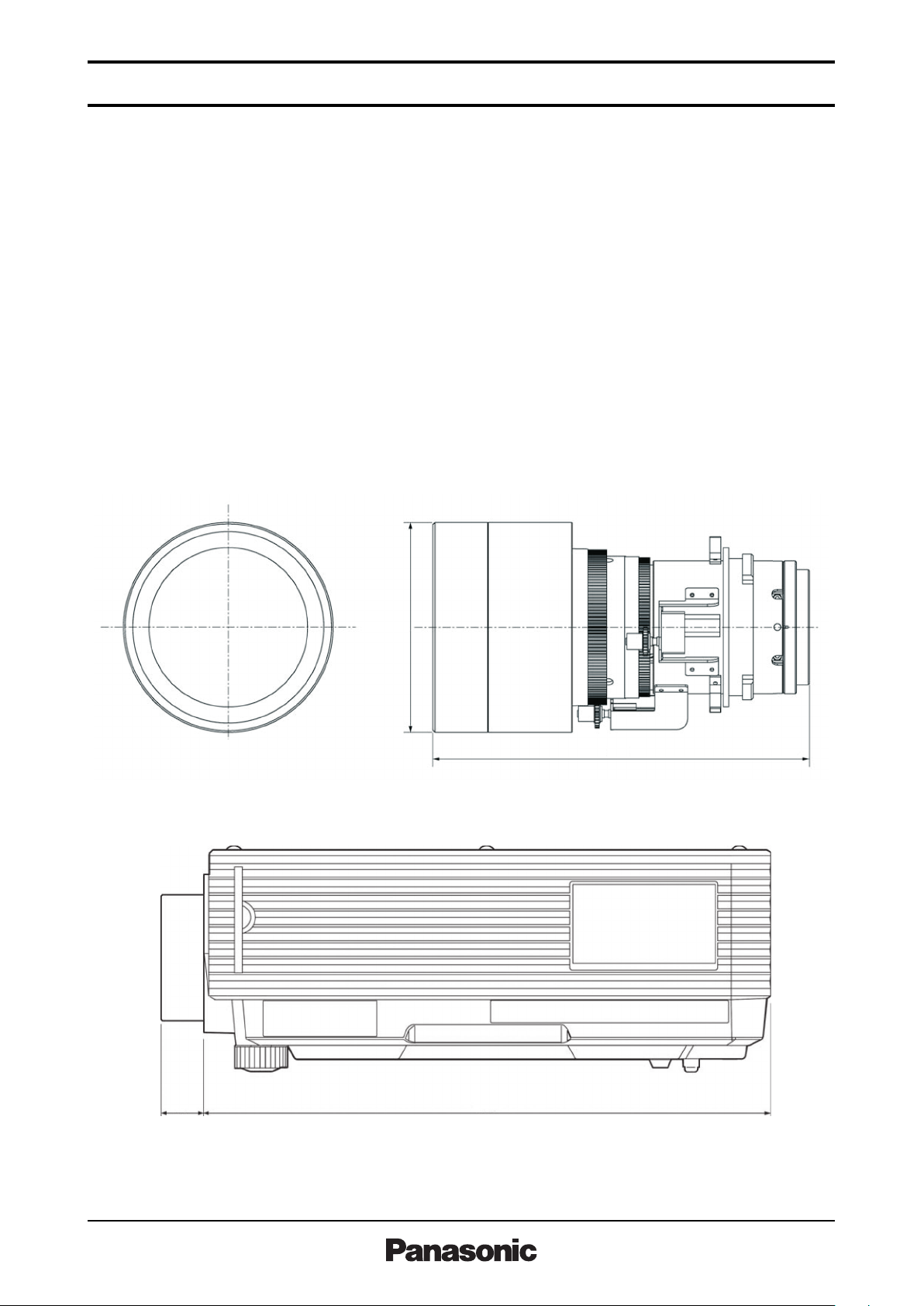

Dimensions
The illustration shows the lens attached to the DLP™ projector.

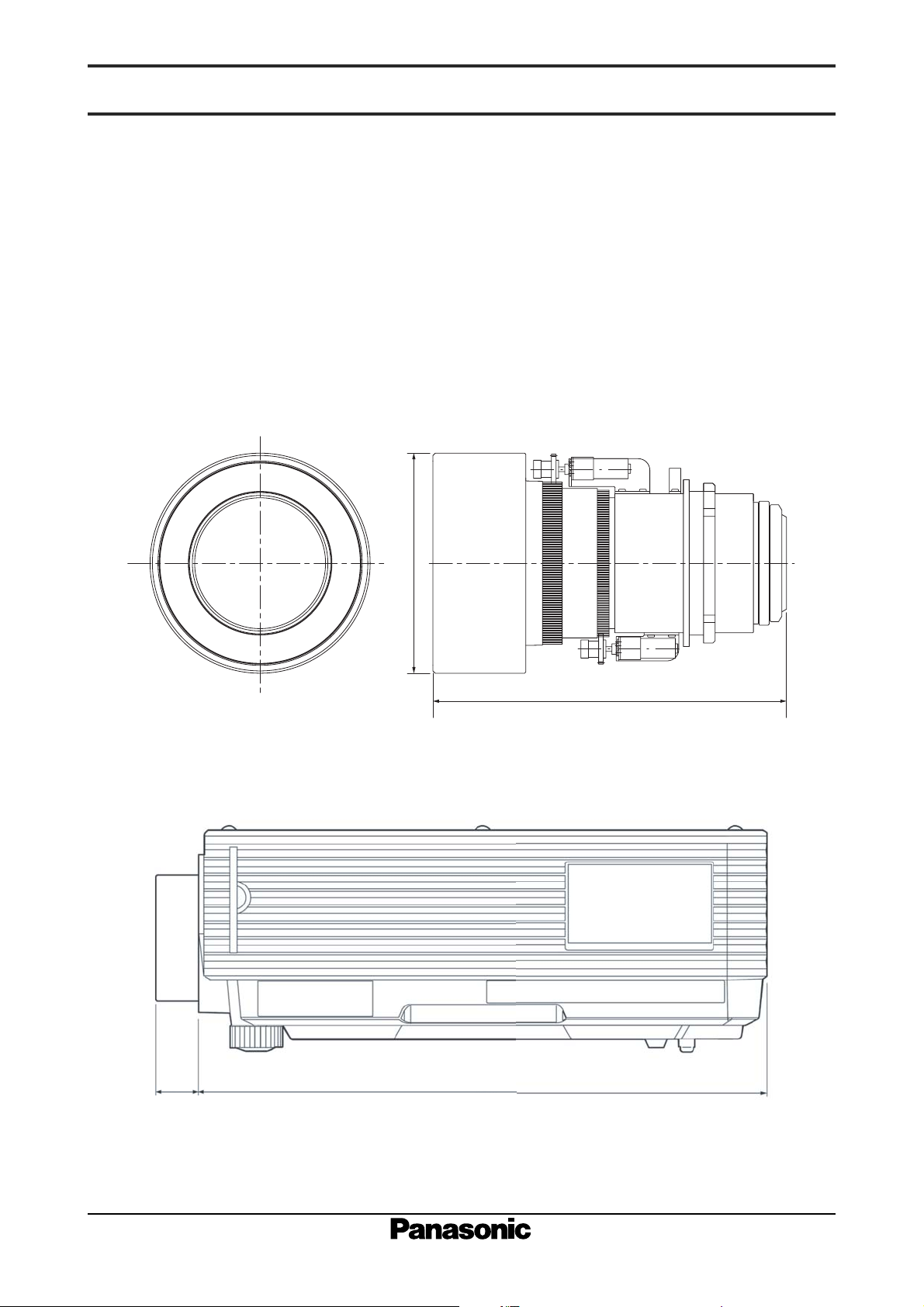

As of July 2006 < 6>
NOTE: This illustration is not drawn to scale.
unit : mm (inch)
Page 7
S PEC F ILE
Ø95 (Ø3-3/4˝)
154
(6-1/16˝)
429
(16-7/8˝)
36
(1-13/32˝)
Zoom Lens (4.5–8.4:1) for DLP™-Based Projectors
ET-DLE410
This zoom lens is designed for use with the DLP™ projector.
The lens makes it possible to vary the projection distance by changing the focal distance.
NOTE: Please use the lens only on the specified Panasonic DLP™ projector.
Specifications
Main Unit
F value:
Focal distance:
Dimensions (W x H x D):
Weight:
2.2– 3.1
63.5– 117.4 mm (2-1/2˝—4-5/8˝)
95 x 95 x 154 mm (3-3/4˝ x 3-3/4˝ x 6-1/16˝)
0.9 kg (2.0 lbs)
Weights and dimensions shown are approximate.
Specifications subject to change without notice.
Digital Light Processing and DLP are trademarks of Texas Instruments.
Dimensions
The illustration shows the lens attached to the DLP™ projector.

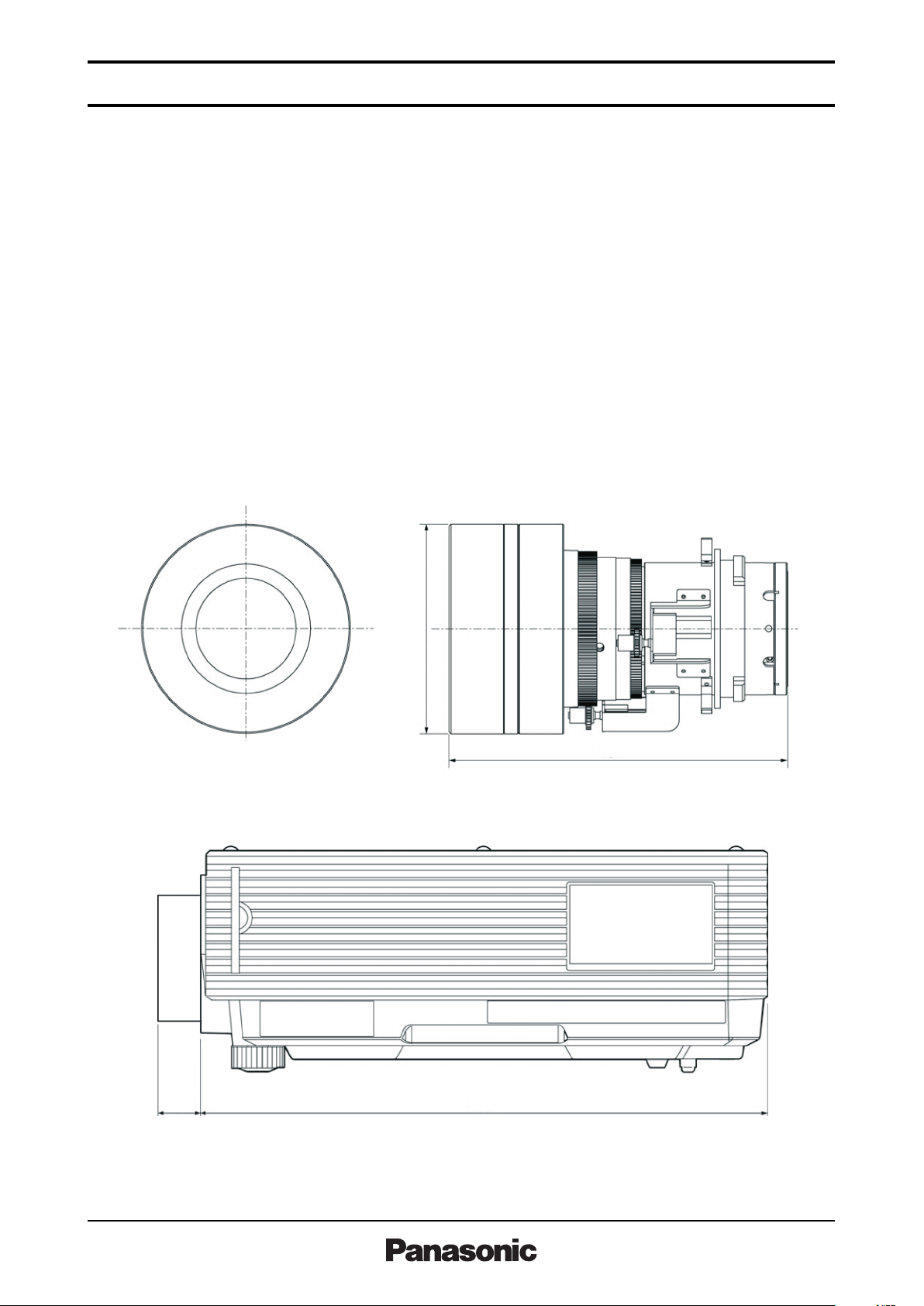

As of July 2006 < 7>
NOTE: This illustration is not drawn to scale.
unit : mm (inch)
