Panasonic DVDRV-30-BR Service manual

Download

DVD-RV30

15 BLOCK DIAGRAM

15.1. OVERALL BLOCK DIAGRAM

DVD-RV30

15.2. SERVO BLOCK DIAGRAM

15.3. VIDEO BLOCK DIAGRAM

DVD-RV30

15.4. AUDIO BLOCK DIAGRAM

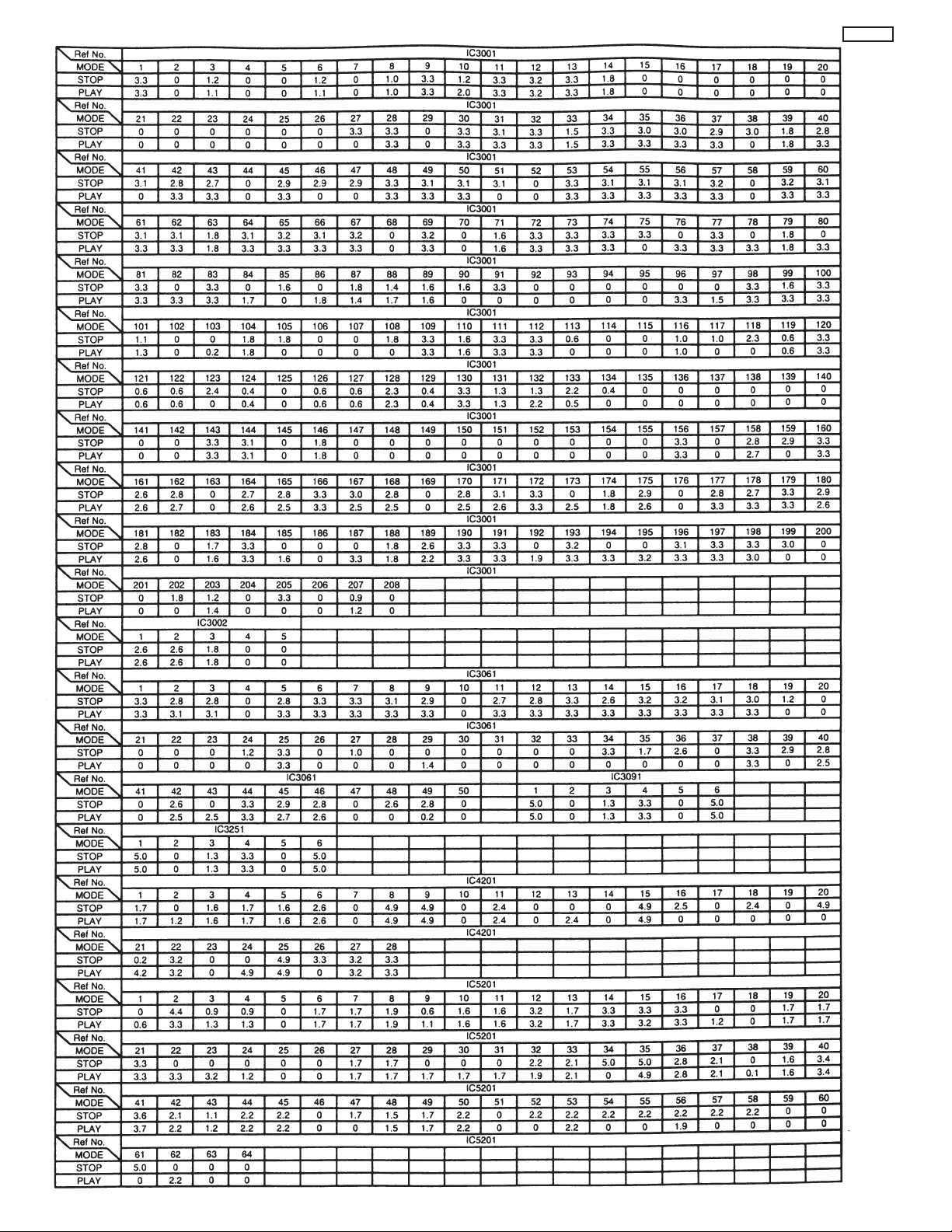

16 SCHEMATIC DIAGRAM

16.1. INTERCONNECTION SCHEMATIC DIAGRAM

DVD-RV30

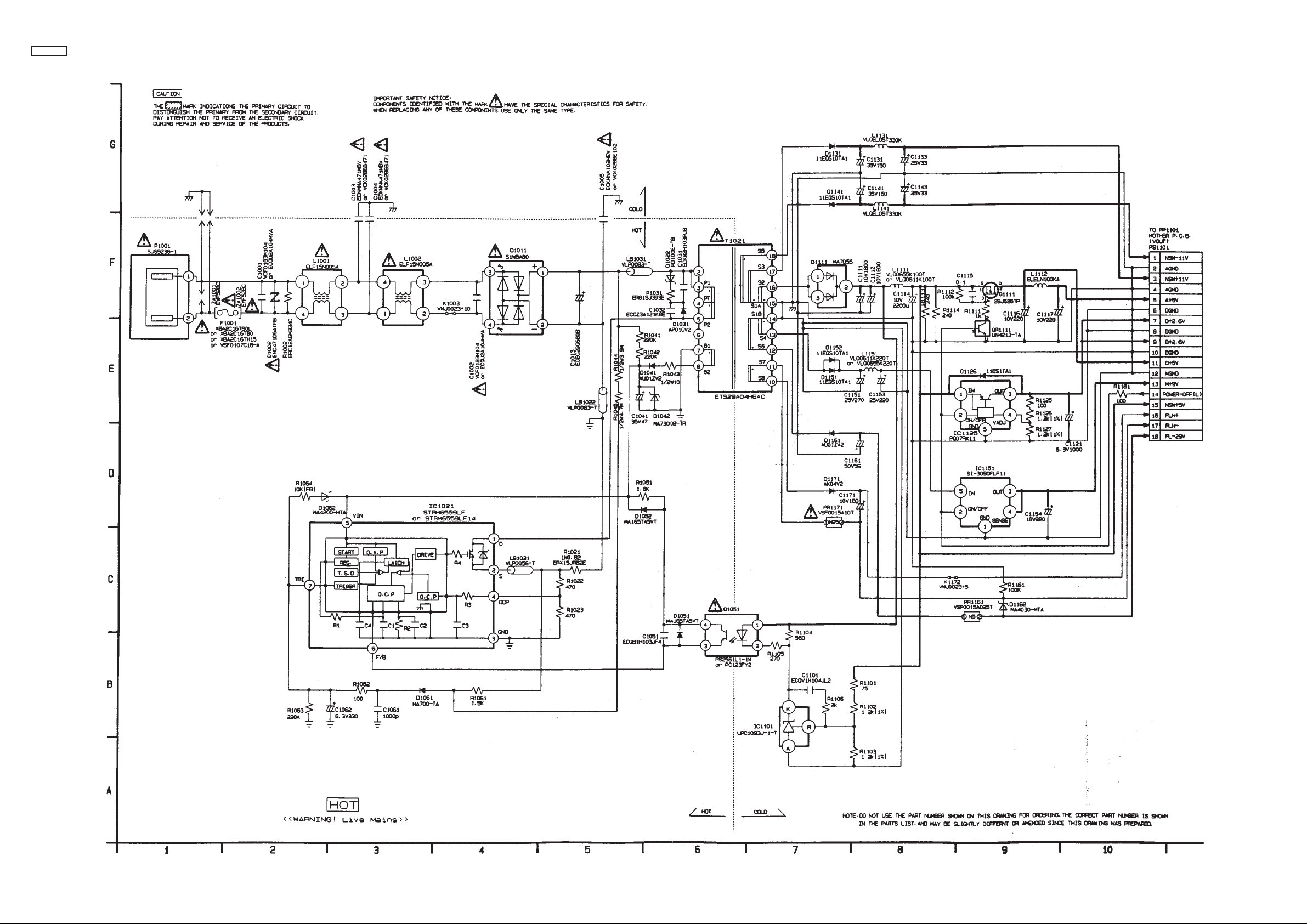

16.2. POWER SUPPLY SCHEMATIC DIAGRAM

16.3. ADSC SECTION (MODULE C.B.A. (1/7) SCHEMATIC DIAGRAM

DVD-RV30

16.4. AV DECORDER SECTION (MODULE C.B.A. (2/7) SCHEMATIC DIAGRAM

16.5. VIDEO D/A CONVERTER SECTION (MODULE C.B.A. (3/7) SCHEMATIC DIAGRAM

DVD-RV30

16.6. AUDIO SECTION (MODULE C.B.A. (4/7) SCHEMATIC DIAGRAM

16.7. FEP SECTION (MODULE C.B.A. (5/7) SCHEMATIC DIAGRAM

DVD-RV30

16.8. CPU SECTION (MODULE C.B.A. (6/7) SCHEMATIC DIAGRAM

16.9. ODC SECTION (MODULE C.B.A. (7/7) SCHEMATIC DIAGRAM

DVD-RV30

16.10. VIDEO OUT SECTION (MOTHER C.B.A. (1/4) SCHEMATIC DIAGRAM

16.11. AUDIO OUT1 SECTION (MOTHER C.B.A. (2/4) SCHEMATIC DIAGRAM

DVD-RV30

16.12. AUDIO OUT2 SECTION (MOTHER C.B.A. (3/4) SCHEMATIC DIAGRAM

16.13. OPERATION SECTION (MOTHER C.B.A. (4/4) SCHEMATIC DIAGRAM

DVD-RV30

16.14. FRONT SWITCH AND POWER SWITCH SCHEMATIC DIAGRAM

17 PRINTED CIRCUIT BOARD DIAGRAM

17.1. POWER SUPPLY P.C.B.

DVD-RV30

17.2. MODULE C.B.A. (1/2) (COMPONENT SIDE)

17.3. MODULE C.B.A. (2/2) (FOIL SIDE)

DVD-RV30

17.4. MODULE P.C.B. AND MOTHER P.C.B ADDRESS INFORMATION

17.5. MOTHER C.B.A.

DVD-RV30

17.6. FRONT SWITCH P.C.B. AND POWER SWITCH P.C.B.

18 EXPLODED VIEWS

18.1 Casing Parts & Mechanism Section Exploded View

DVD-RV30

19 LISTA DE PEÇAS

19.1 Casing Parts & Mechanism

Section Parts List

REF.

NO.

1 VGM2B1696-1 TAMPA SUPERIOR - DOBRADA 2 VYK8895 PE DO APARELHO 3 VEP2B91251A PLACA FONTE 3-1 EYF52BC SUPORTE METÁLICO DO FUSÍVEL 4 VEP2B99144AD PLACA PRINCIPAL MONTADA 5 VMA0E62 PAINEL TRASEIRO - KITFOR 6 VMD3854 ESPACADOR DO MECANISMO - ESQUERDO 7 VMD3855 ESPACADOR DO MECANISMO - DIREITO 8 VGK2581 ORNAMENTO DA BANDEJA DO CD 9 VKA0339 PE DE BORRACHA 10 VEP2B96578A PLACA OPERAÇÕES/CHAVE POWER 11 VWJ06A0115BB FFC - OPERAÇÕES/PRINCIPAL 6 VIAS 12 VGL0812-1 GUIA DE LUZ 13 VKW2781 VISOR DO DISPLAY - RV30 14 VGP5267 PAINEL FRONTAL - RV30 15 VEP96572F-Q PLACA MODULO - RV30 16 VWJ05D4205BB FFC - CHAVE POWER/PRINCIPAL 5 VIAS 17 VMA0E29 ATERRAMENTO FRONTAL 18 VGB0483 LOGOTIPO PANASONIC 19 VGB0536-1 LOGOTIPO DVD 20 VKU0561-1 TAMPA INFERIOR 21 VGQ5639 MASCARA DO VISOR 22 VGU8458 BOTAO POWER - RV30 23 VGU8459 BOTAO OPERACOES - RV30 24 VYQ1654 SUPORTE DO DISPLAY 25 VEQ2B2378 CONTROLE REMOTO DVD-RV30BR 26 VJA2B004 CABO AC DESTACAVEL 27 VJA2B1062 CABO AV ESTÉREO

PART NO. DESCRIPTION

19.3 Traverse Section Parts List

19.2 Loading Mechanism Section Parts List

19.5 Lista de Peças Elétricas

REF. CÓDIGO DESCRIÇÃO

PLACAS MONTADAS

3 VEP2B91251A PLACA FONTE 10 VEP2B96578A PL. OPERACOES/CHAVE POWER 4 VEP2B99144AD PLACA PRINCIPAL - RV30 MONTADA

CAPACITORES

C1001 VCF0183M104 CAP. DE POLIESTER 0,1UF 250V C1002 VCF0183M104 CAP. DE POLIESTER 0,1UF 250V C1003 ECKMNA471MBV CAP. POLIESTER C1004 ECKMNA471MBV CAP. POLIESTER C1005 ECKMNA102MEV CAP. POLIESTER 1NF C1013 ECEC2GG680B CAP. ELETROLITICO 400V 68U C1031 ECKW2H103PU8 CAP. CERAMICO 10NF; 500V C1032 ECCZ3A121KGE CAP. CERAMICO 120PF 1KV C1041 VCEA1VJC470B CAP. ELETROLITICO 47UF 35V C1051 ECQB1H103JF4 CAP. POLIESTER 0,01UF 50V C1061 ECKR1H102KB5 CAP. CERAMICO 1NF 50V C1062 VCEA0JJC331B CAP. ELETROLITICO 330UF 6,3V C1101 ECQV1H104JL2 CAP. CERAMICO 100NF 50V C1111 VCEA1AJH182B CAP. ELETROLITICO 1800UF 10V C1112 VCEA1AJH182B CAP. ELETROLITICO 1800UF 10V C1114 VCEA1AJC222B CAP. ELETROLITICO 2200UF 10V C1115 ECFR1E104ZF5 CAP. CERAMICO 100NF Z 25V ENF. C1116 VCEA1AJC221B CAP. ELETROLITICO 220UF 10V C1117 ECA1APX221B CAP. ELETROLITICO 220UF 10V C1121 ECA0JM102B CAP. ELETROLITICO 1000UF 6,3V C1131 VCEA1VJH151B CAP. ELETROLITICO 150UF 35V C1133 VCEA1EJC330B CAP. ELETROLITICO 33UF 25V C1141 VCEA1VJH151B CAP. ELETROLITICO 150UF 35V C1143 VCEA1EJC330B CAP. ELETROLITICO 33UF 25V C1151 VCEA1EJH271B CAP. ELETROLITICO 270UF 25V C1153 VCEA1EJC221B CAP. ELETROLITICO 220UF 25V C1154 VCEA1CJC221B CAP. ELETROLITICO 220UF 16V C1161 VCEA1HJH560B CAP. ELETROLITICO 56UF 50V C1171 VCEA1AJH181B CAP. ELETROLITICO 180UF 10V C2591 ECEA1CKA101B CAP. ELETROLITICO 100UF 16V C2592 ECJ2VF1H104Z CAP. CERAMICO SMD 100NF 50V C3500 ECA0JM471B CAP. ELETROLITICO 470UF 6,3V C3501 ECA0JM221B CAP. ELETROLITICO 220UF 6,3V C3502 ECJ2VF1H103Z CAP. CERAMICO SMD 10NF 50V C3503 ECUV1H471KBN CAP. CERAMICO 470PF 50V C3504 ECJ2VB1H103K CAP. CERAMICO 10NF 50V C3505 ECEA1CKA470B CAP. ELETROLITICO 47UF 16V C3506 ECEA1CKA470B CAP. ELETROLITICO 47UF 16V C3507 ECJ2VF1H103Z CAP. CERAMICO SMD 10NF 50V C3508 ECA0JM471B CAP. ELETROLITICO 470UF 6,3V C3509 ECA0JM471B CAP. ELETROLITICO 470UF 6,3V C3511 ECA0JM102B CAP. ELETROLITICO 1000UF 6,3V C3512 ECA0JM102B CAP. ELETROLITICO 1000UF 6,3V C3513 ECEA1CKA101B CAP. ELETROLITICO 100UF 16V C3514 ECEA1CKA101B CAP. ELETROLITICO 100UF 16V C3515 ECJ2VF1H103Z CAP. CERAMICO SMD 10NF 50V C3536 ECJ2VB1H103K CAP. CERAMICO 10NF 50V C3551 ECJ2VF1H103Z CAP. CERAMICO SMD 10NF 50V C3552 ECJ2VF1H103Z CAP. CERAMICO SMD 10NF 50V C4320 ECUV1H102JCX CAP. CERAMICO SMD 1000PF 50V C4321 ECA1CAK220XB CAP. ELETROLITICO 22UF 16V C4324 ECUV1H101JCG CAP. CERAMICO 100PF 50V C4325 ECA1CAK470XB CAP. ELETR.ALUMINIO 47UF 16V C4328 ECJ2VF1H104Z CAP. CERAMICO SMD 100NF 50V C4329 ECJ2VF1H104Z CAP. CERAMICO SMD 100NF 50V C4330 ECUV1H102JCX CAP. CERAMICO SMD 1000PF 50V C4331 ECA1CAK220XB CAP. ELETROLITICO 22UF 16V C4334 ECUV1H101JCG CAP. CERAMICO 100PF 50V C4335 ECA1CAK470XB CAP. ELETR. ALUMINIO 47UF 16V C4385 ECA1CAK470XB CAP. ELETR. ALUMINIO 47UF 16V C4471 ECJ2VB1H333K CAP. CERAMICO 33NF 50V

DVD-RV30

REF. NO. PART NO. DESCRIPTION

C4472 ECJ2VF1H104Z CAP. CERAMICO SMD 100NF 50V C4473 ECJ2VF1H104Z CAP. CERAMICO SMD 100NF 50V C4475 ECJ2YB1H104K CAP. CERAMICO SMD 100NF 50V C4476 ECJ2VB1H103K CAP. CERAMICO 10NF 50V C4501 ECUV1H102JCX CAP. CERAMICO SMD 1000PF 50V C4511 ECUV1H102JCX CAP. CERAMICO SMD 1000PF 50V C4531 ECUV1H102JCX CAP. CERAMICO SMD 1000PF 50V C4581 ECJ2VF1H104Z CAP. CERAMICO SMD 100NF 50V C4582 ECJ2VF1H104Z CAP. CERAMICO SMD 100NF 50V C4592 ECJ2VF1H104Z CAP. CERAMICO SMD 100NF 50V C4781 ECEA1HKA4R7B CAP. ELETROLITICO 4,7UF 50V C4782 ECJ2VF1H104Z CAP. CERAMICO SMD 100NF 50V C4902 ECA1CAK101XB CAP. ELETR. ALUMINIO 100UF 16V C4913 ECA1CAK101XB CAP. ELETR. ALUMINIO 100UF 16V C6001 ECEA0JKA221B CAP. ELETROLITICO 220UF 6,3V C6002 ECJ2VF1H104Z CAP. CERAMICO SMD 100NF 50V C6003 ECEA1HKA100B CAP. ELETR. ALUMINIO 10UF 50V C6004 ECJ2VF1H104Z CAP. CERAMICO SMD 100NF 50V C6005 ECEA0JKA470B CAP. ELETROLITICO 47UF 6,3V C6007 ECJ2VF1H104Z CAP. CERAMICO SMD 100NF 50V C6008 ECJ2VF1H103Z CAP. CERAMICO SMD 10NF 50V C6009 ECJ2VF1H103Z CAP. CERAMICO SMD 10NF 50V C6011 ECJ2VF1H103Z CAP. CERAMICO SMD 10NF 50V C6012 ECJ2VF1H104Z CAP. CERAMICO SMD 100NF 50V C6013 ECJ2VF1H104Z CAP. CERAMICO SMD 100NF 50V

DIODOS

D1002 ENC471D5ATRB DIODO DE SILICIO D1011 S1WBA80 DIODO RETIFICADOR D1022 RD100E-TB DIODO D1031 AP01CV2 DIODO RETIFICADOR D1041 AU01ZV2 DIODO RETIFICADOR D1042 MA7300B-TR DIODO RETIFICADOR D1051 MA165TA5VT DIODO SILICIO EPIT.PLANAR D1052 MA165TA5VT DIODO SILICIO EPIT.PLANAR D1061 MA700-TA DIODO SWITCHING D1062 MA4200-HTA DIODO ZENER TUNEL D1111 MA7D55 DIODO SILICIO, RETIFICADOR D1126 11ES1TA1 DIODO RETIFICADOR D1131 11EQS10TA1 DIODO RETIFICADOR D1141 11EQS10TA1 DIODO RETIFICADOR D1151 11EQS10TA1 DIODO RETIFICADOR D1152 11EQS10TA1 DIODO RETIFICADOR D1161 AU01ZV2 DIODO RETIFICADOR D1162 MA4030-MTA DIODO ZENER VZ=3V D1171 AK04V2 DIODO RETIFICADOR D4596 MA3047-MTX DIODO SMD D6013 LN28RCPL LED STAND-BY RED PITCH 2,5mm D6014 LN38GCPL LED VSS VERDE PITCH 2,5mm

CIRCUITOS INTEGRADOS

IC1021 STRM6559LF IC BI-POLAR IC1101 UPC1093J-1-T IC RETIF. CONTROLADO DE SILICIO IC1125 PQ07RX11 IC REGULADOR IC1151 SI-3090FLF11 REGULADOR DE TENSAO IC2591 BA6956AN IC DRIVER DE CARREGAMENTO IC3511 ML6427 IC BUFFER DE VIDEO IC4321 NJM4580M-TE1 IC OP-AMP MONOLITICO ANALOGICO IC4471 NJM4558M-TE1 IC DUPLO AMP. OPERACIONAL IC4781 GP1FA550TZ IC SAIDA OTICA IC4902 UPC78L08J-T IC REG. TENSAO POSITIVA 8V IC4911 UPC79L08J-T IC REG. TENSÃO NEGATIVA 8V IC6001 MN101C35DCC IC MICROPROCESSADOR IC6002 PST9327UR IC RESET ANALOGICO DIGITAL IC6003 PNA4611M02VT FOTO TRANSISTOR IC6004 TC7ST08FTL IC LOGICO MONOLITICO DIGITAL IC6005 TC7ST08FTL IC LOGICO MONOLITICO DIGITAL PR1161 VSF0015A025T IC DE PROTECAO PR1171 VSF0015A10T IC DE PROTECAO

DVD-RV30

REF. NO. PART NO. DESCRIPTION REF. NO. PART NO. DESCRIPTION

JUMPERS SMD

K3511 ERJ6GEY0R00V JUMPER SMD 0O. 1/10W K3552 ERJ6GEY0R00V JUMPER SMD 0O. 1/10W K4752 ERJ6GEY0R00V JUMPER SMD 0O. 1/10W K6002 ERJ6GEY0R00V JUMPER SMD 0O. 1/10W K6006 ERJ6GEY0R00V JUMPER SMD 0O. 1/10W K6011 ERJ6GEY0R00V JUMPER SMD 0O. 1/10W W701 ERJ6GEY0R00V JUMPER SMD 0O. 1/10W W702 ERJ6GEY0R00V JUMPER SMD 0O. 1/10W W703 ERJ6GEY0R00V JUMPER SMD 0O. 1/10W W704 ERJ6GEY0R00V JUMPER SMD 0O. 1/10W W705 ERJ6GEY0R00V JUMPER SMD 0O. 1/10W W706 ERJ6GEY0R00V JUMPER SMD 0O. 1/10W W707 ERJ6GEY0R00V JUMPER SMD 0O. 1/10W W708 ERJ6GEY0R00V JUMPER SMD 0O. 1/10W W709 ERJ6GEY0R00V JUMPER SMD 0O. 1/10W W711 ERJ6GEY0R00V JUMPER SMD 0O. 1/10W W713 ERJ6GEY0R00V JUMPER SMD 0O. 1/10W W714 ERJ6GEY0R00V JUMPER SMD 0O. 1/10W W715 ERJ6GEY0R00V JUMPER SMD 0O. 1/10W W716 ERJ6GEY0R00V JUMPER SMD 0O. 1/10W

BOBINAS

L1001 ELF15N005A BOBINA L1002 ELF15N005A BOBINA L1111 VLQ0611K100T BOBINA 10UH L1112 ELELN100KA INDUTOR 10UH L1131 VLQEL05T330K BOBINA 33UH L1141 VLQEL05T330K BOBINA 33UH L1151 VLQ0611K220T INDUTOR 22UH L3501 ELESN220JA INDUTOR 22UH L4781 ELESN220JA INDUTOR 22UH L6001 VLQEL05T101J INDUTOR 100UH L6002 VLQEL05T221J INDUTOR 220UH LB1021 VLP0056-T BOBINA LB1022 VLP0083-T BOBINA LB1031 VLP0083-T BOBINA LB3533 VLP0145-T BOBINA LB3534 VLP0145-T BOBINA LB3536 VLP0145-T BOBINA LB3537 VLP0145-T BOBINA LB3538 VLP0145-T BOBINA LB3539 VLP0145-T BOBINA LB450 VLP0145-T BOBINA LB4511 VLP0145-T BOBINA LB4531 VLP0145-T BOBINA LB6003 VLP0153-T BOBINA SMD EMI FILTER LB6004 VLP0153-T BOBINA SMD EMI FILTER LB6005 VLP0153-T BOBINA SMD EMI FILTER LB6010 VLP0153-T BOBINA SMD EMI FILTER

TRANSISTORES

Q1051 PS2561L1-1W FOTO ACOPLADOR Q1111 2SJ525TP TRANSISTOR FET, BAIXA POTENCIA Q3501 2SD601A-RSTX TRANSISTOR SMD SILICIO Q4501 2SD1328-TX TRANSISTOR SMD SILICIO Q4511 2SD1328-TX TRANSISTOR SMD SILICIO Q4521 2SD1328-TX TRANSISTOR SMD SILICIO Q4531 2SD1328-TX TRANSISTOR SMD SILICIO Q6009 2SD1996-RSTA TRANSISTOR NPN 600MW QR1111 UN4213-TA TRANSISTOR/RESISTOR QR3521 UN2212-TX TRANSISTOR SMD QR4521 UN2111-TX TRANSISTOR SMD QR4593 UN2211-TX TRANSISTOR SMD QR4594 UN2111-TX TRANSISTOR SMD QR4596 UN2111-TX TRANSISTOR SMD QR6009 DTA123JK-T96 TRANSISTOR SMD SILICIO QR6011 DTA123JK-T96 TRANSISTOR SMD SILICIO R1002 ERC12AGM334C RESISTOR 330K 1,2W

RESISTORES

R1021 ERX1SJR82E RES. FILME METALICO 0,82O. 1W R1022 ERDS2FJ471T RES. NÃO INFLAMAVEL 470O. 1/4W R1023 ERDS2FJ471T RES. NÃO INFLAMAVEL 470O. 1/4W R1031 ERG1SJ393E RESISTOR 39KO. 1W R1041 ERDS2FJ224T RES. NÃO INFLAMAVEL 220KO. 1/4W R1042 ERDS2FJ224T RES. NÃO INFLAMAVEL 220KO. 1/4W R1043 ERG12SJ100E RESISTOR 10O. 1,2W R1044 ERDS1VJ395T RESISTOR 39MO. 1/2W R1045 ERDS1VJ475T RESISTOR 47MO. 1/2W R1051 ERDS2FJ182T RESISTOR NÃO INFLAMAVEL 1,8KO. R1061 ERDS2FJ152T RES.NÃO INFLAMAVEL 1,5KO. 1/4W R1062 ERDS2FJ101T RESISTOR 100 OHMS 0,25W R1063 ERDS2FJ224T RES.NÃO INFLAMAVEL 220KO. 1/4W R1064 ERDS2FJ103T RES. 10KO. 1/4W R1101 ERDS2TJ750T RESISTOR DE CARBONO 75O. 1/2W R1102 EROS2TKF1201 RESISTOR 1,2KO. 250MW R1103 EROS2TKF1201 RESISTOR 1,2KO. 250MW R1104 ERDS2TJ561T RESISTOR DE CARBONO 560O. 1/5W R1105 ERDS2TJ271T RESISTOR DE CARBONO 270O. 1/4W R1106 ERDS2TJ202T RESISTOR DE CARBONO 2KO. 1/4W R1111 ERDS2TJ102T RESISTOR DE CARBONO 1KO. 1/4W R1112 ERDS2TJ104T RES. DE CARBONO 100KO. 1/4W R1113 ERDS2TJ241T RESISTOR DE CARBONO 240O. 1/4W R1114 ERDS2TJ241T RESISTOR DE CARBONO 240O. 1/4W R1125 ERDS2TJ101T RESISTOR DE CARBONO 100O. 1/4W R1126 EROS2TKF1201 RESISTOR 1,2KO. 250MW R1127 EROS2TKF1201 RESISTOR 1,2KO. 250MW R1161 ERDS2TJ104T RES. DE CARBONO 100KO. 1/4W R1181 ERDS2TJ101T RES. DE CARBONO 100O. 1/4W R2591 ERJ6GEYJ473V RESISTOR METAL 47KO. 1/10W R2592 ERJ6GEYJ473V RESISTOR METAL 47KO. 1/10W R2593 ERJ6GEYJ103V RESISTOR METAL 10KO. 1/10W R2594 ERJ6GEYJ333V RESISTOR METAL 33KO. 1/10W R3501 ERJ6GEYJ472V RESISTOR METAL 4,7KO. 1/10W R3502 ERJ6GEYJ182V RESISTOR METAL 1,8KO. 1/10W R3507 ERJ6GEYJ102V RESISTOR METAL 1KO. 1/10W R3511 ERJ6ENF1001V RES. SMD PRECISO 1KO. 1/10W R3512 ERJ6ENF1001V RES. SMD PRECISO 1KO. 1/10W R3521 ERJ6GEYJ222V RESISTOR METAL 220O. 1/10W R3526 ERJ6GEYJ103V RESISTOR METAL 10KO. 1/10W R3533 ERJ6ENF75R0V RESISTOR SMD 75O. 1/10W R3534 ERJ6ENF75R0V RESISTOR SMD 75O. 1/10W R3536 ERJ6ENF71R5V RESISTOR SMD 71,5O. 1/10W R3537 ERJ6ENF75R0V RESISTOR SMD 75O. 1/10W R3538 ERJ6ENF75R0V RESISTOR SMD 75O. 1/10W R3539 ERJ6ENF75R0V RESISTOR SMD 75O. 1/10W R4309 ERJ6GEY0R00V JUMPER SMD 0O. 1/10W R4319 ERJ6GEY0R00V JUMPER SMD 0O. 1/10W R4321 ERJ6GEYJ104V RESISTOR METAL 10KO. 1/10W R4322 ERA6YED392V RESISTOR SMD 3,9KO. 1/10W R4323 ERA6YED103V RESISTOR SMD 10KO. 1/10W R4324 ERA6YED822V RESISTOR SMD 8,2KO. 1/10W R4327 ERJ6GEYJ473V RESISTOR METAL 47KO. 1/10W R4329 ERJ6GEYJ223V RESISTOR CHIP 2,2KO. 1/10W R4331 ERJ6GEYJ104V RESISTOR METAL 100KO. 1/10W R4332 ERA6YED392V RESISTOR SMD 3,9KO. 1/10W R4333 ERA6YED103V RESISTOR SMD 10KO. 1/10W R4334 ERA6YED822V RESISTOR SMD 8,2KO. 1/10W R4337 ERJ6GEYJ473V RESISTOR METAL 47KO. 1/10W R4338 ERJ6GEYJ473V RESISTOR METAL 47KO. 1/10W R4366 ERJ6GEY0R00V JUMPER SMD 0O. 1/10W R4369 ERJ6GEY0R00V JUMPER SMD 0O. 1/10W R4458 ERJ6GEY0R00V JUMPER SMD 0O. 1/10W R4459 ERJ6GEY0R00V JUMPER SMD 0O. 1/10W R4471 ERJ6GEYJ683V RESISTOR METAL 68KO. 1/10W R4472 ERJ6GEYJ683V RESISTOR METAL 68KO. 1/10W R4473 ERJ6GEYJ473V RESISTOR METAL 47KO. 1/10W R4475 ERJ6GEYJ473V RESISTOR METAL 47KO. 1/10W

RESISTORES

R4477 ERJ6GEYJ563V RESISTOR METAL 56KO. 1/10W R4478 ERJ6GEY0R00V JUMPER SMD 0O. 1/10W R4501 ERJ6GEYJ821V RESISTOR METAL 820O. 1/10W R4502 ERJ6GEYJ221V RESISTOR METAL 220O. 1/10W R4503 ERJ6GEYJ821V RESISTOR METAL 820O. 1/10W R4511 ERJ6GEYJ821V RESISTOR METAL 820O. 1/10W R4512 ERJ6GEYJ221V RESISTOR METAL 220O. 1/10W R4513 ERJ6GEYJ821V RESISTOR METAL 820O. 1/10W R4524 ERJ6GEYJ332V RESISTOR METAL 3,3KO. 1/10W R4525 ERJ6GEY0R00V JUMPER SMD 0O. 1/10W R4531 ERJ6GEYJ821V RESISTOR METAL 820O. 1/10W R4532 ERJ6GEYJ221V RESISTOR METAL 220O. 1/10W R4533 ERJ6GEYJ821V RESISTOR METAL 820O. 1/10W R4590 ERJ6GEYJ102V RESISTOR METAL 1KO. 1/10W R4594 ERJ8GEYJ102V RESISTOR SMD 1KO. 1/8W R4596 ERJ6GEYJ223V RESISTOR CHIP 22KO. 1/10W R4598 ERJ6GEYJ331V RESISTOR METAL 330O. 1/10W R4599 ERJ6GEYJ681V RESISTOR METAL 680O. 1/10W R4600 ERJ6GEYJ221V RESISTOR METAL 220O. 1/10W R6001 ERJ6GEYJ221V RESISTOR METAL 220O. 1/10W R6002 ERJ6GEYJ221V RESISTOR METAL 220O. 1/10W R6004 ERJ6GEY0R00V JUMPER SMD 0O. 1/10W R6010 ERJ6GEYJ473V RESISTOR METAL 47KO. 1/10W R6011 ERJ6GEYJ473V RESISTOR METAL 47KO. 1/10W R6012 ERJ6GEYJ473V RESISTOR METAL 47KO. 1/10W R6013 ERJ6GEYJ473V RESISTOR METAL 47KO. 1/10W R6014 ERJ6GEYJ473V RESISTOR METAL 47KO. 1/10W R6015 ERJ6GEYJ473V RESISTOR METAL 47KO. 1/10W R6016 ERJ6GEYJ473V RESISTOR METAL 47KO. 1/10W R6017 ERJ6GEYJ473V RESISTOR METAL 47KO. 1/10W R6018 ERJ6GEYJ473V RESISTOR METAL 47KO. 1/10W R6019 ERJ6GEYJ473V RESISTOR METAL 47KO. 1/10W R6020 ERJ6GEYJ103V RESISTOR METAL 10KO. 1/10W R6021 ERJ6GEYJ103V RESISTOR METAL 10KO. 1/10W R6022 ERJ6GEYJ103V RESISTOR METAL 10KO. 1/10W R6031 ERJ6GEYJ104V RESISTOR METAL 100KO. 1/10W R6032 ERJ6GEYJ104V RESISTOR METAL 100KO. 1/10W R6033 ERJ6GEYJ104V RESISTOR METAL 100KO. 1/10W R6034 ERJ6GEYJ104V RESISTOR METAL 100KO. 1/10W R6035 ERJ6GEYJ104V RESISTOR METAL 100KO. 1/10W R6036 ERJ6GEYJ103V RESISTOR METAL 10KO. 1/10W R6038 ERJ6GEYJ221V RESISTOR METAL 220O. 1/10W R6041 ERJ6GEYJ821V RESISTOR METAL 820O. 1/10W R6047 ERJ6GEYJ821V RESISTOR METAL 820O. 1/10W R6401 ERDS2TJ102T RESISTOR DE CARBONO 1KO. 1/4W R6402 ERDS2TJ122T RESISTOR DE CARBONO 1,2KO. 1/4W R6403 ERDS2TJ102T RESISTOR DE CARBONO 1KO. 1/4W R6404 ERDS2TJ102T RESISTOR DE CARBONO 1KO. 1/4W R6405 ERDS2TJ122T RESISTOR DE CARBONO 1,2KO. 1/4W R6406 ERDS2TJ152T RESISTOR DE CARBONO 1,5KO. 1/4W

DVD-RV30

REF. NO. PART NO. DESCRIPTIONREF. NO. PART NO. DESCRIPTION

CONECTORES

FP6001 VJS3537A006G CONECTOR 6 VIAS FP6002 VJS3537A005G CONECTOR 5 VIAS FP6401 VJS3537B006G CONECTOR PARA FLAT 6 VIAS FP6411 VJS3537B005G CONECTOR PARA FLAT 5 VIAS JK3531 VJJ0544 CONECTOR S-VHS JK3532 VJJ0598 CONECTOR VIDEO COMP. BLINDADO JK4501 VJJ0690 CONECTOR AV OUT/SUB-WOOFER P1001 SJS9236-1 CONECTOR PP1101 VJP4368A018B CONECTOR PL. FONTE MACHO 18P PP2591 VJP4366A005B CONECTOR PL. LOADING 5P PS2591 VJS4366A005B CONECTOR PL. LOADING 5P PP3201 VJP4370E022B CONECTOR PL. MODULO 22P PP4201 VJP4369E014B CONECTOR PL. MODULO 14P PS1101 VJS4223E018T CONECTOR 18 PINOS, FEMEA

DIVERSOS

ZA1001 EYF52BC SUPORTE METALICO DE FUSÍVEL ZA1002 EYF52BC SUPORTE METÁLICO DE FUSÍVEL DL6001 VSL0537 DISPLAY DVD F1001 XBA2C16TB0L FUSÍVEL 1,6A 250V

CHAVES

S6401 EVQ11G07K CHAVE 1 POLO. 15VDC. 20mA. S6402 EVQ11G07K CHAVE 1 POLO. 15VDC. 20mA. S6403 EVQ11G07K CHAVE 1 POLO. 15VDC. 20mA. S6404 EVQ11G07K CHAVE 1 POLO. 15VDC. 20mA. S6405 EVQ11G07K CHAVE 1 POLO. 15VDC. 20mA. S6406 EVQ11G07K CHAVE 1 POLO. 15VDC. 20mA. S6407 EVQ11G07K CHAVE 1 POLO. 15VDC. 20mA. S6411 EVQ11G07K CHAVE 1 POLO. 15VDC. 20mA.

TRANSFORMADOR

T1021 ETS29AD4H6AC TRANSFORMADOR CHAVEADO

CRISTAL

X6001 EFOEC8004T4 OSCILADOR CERAMICO
