Panasonic DMC-FX5PP User Manual

Digital Camera

Operating Instructions

Model No.DMC-FX5PP

Before use, please read these

instructions completely.

For USA assistance, please call: 1-800-272-7033 or send e-mail to : digitalstillcam@panasonic.com

For Canadian assistance, please call: 1-800-561-5505 or visit us at www.panasonic.ca

VQT0G12

Safety

Dear Customer,

We would like to take this opportunity to thank you for purchasing this Panasonic Digital Camera. Please read these Operating Instructions carefully and keep them handy for future reference.

Information for Your Safety

WARNING TO REDUCE THE RISK OF FIRE OR SHOCK HAZARD AND ANNOYING INTERFERENCE, USE ONLY THE RECOMMENDED ACCESSORIES AND DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE. DO NOT REMOVE THE COVER (OR BACK); THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Notice:

This product has parts that contain a small amount of mercury. It also contains lead in some components. Disposal of these materials may be regulated in your community due to environmental considerations. For disposal or recycling information please contact your local authorities, or the Electronics Industries Alliance: <http://www.eiae.org.>

Safety

Carefully observe copyright laws. Recording of pre-recorded tapes or discs or other published or broadcast material for purposes other than your own private use may infringe copyright laws. Even for the purpose of private use, recording of certain material may be restricted.

• Please note that the actual controls and components, menu items, etc. of your Digital Camera may look somewhat different from those shown in the illustrations in these Operating Instructions.

• SD Logo is a trademark.

• Other names, company names, and product names printed in these instructions are trademarks or registered trademarks of the companies concerned.

THE SOCKET OUTLET SHALL BE INSTALLED NEAR THE EQUIPMENT AND SHALL BE EASILY ACCESSIBLE.

CAUTION

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.

RBRC

Li-ion

A lithium ion/polymer battery that is recyclable powers the product you have purchased. Please call 1-800-8-BATTERY

TM

for information on how to recycle this battery.

2

Safety

FCC Note: (U.S. only)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: To assure continued

compliance, follow the attached installation instructions and use only shielded interface cables with ferrite core when connecting to computer or peripheral

devices. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.

Trade Name: Panasonic Model No.: DMC-FX5 Responsible party: Matsushita Electric

Corporation of America One Panasonic Way, Secaucus, NJ 07094

Support Contact: Panasonic

Consumer Electronics Company 1-800-272-7033

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This Class B digital apparatus complies with Canadian ICES-003

Extremely high precision technology is employed to produce the LCD monitor screen. The result is more than 99.99% effective pixels with a mere 0.01% of the pixels inactive or always lit. However, this is not a malfunction and does not affect the recorded pictures.

3

Contents

Safety

Information for Your Safety ................. 2

Preparation

Standard Accessories ......................... 6

Names of the Components ................. 8

Quick Guide ...................................... 10

Charging the Battery......................... 12

About the Battery .............................. 13

Inserting the Battery.......................... 14

Removing the Battery........................ 15

Using the AC Adaptor ....................... 16

About the Card.................................. 17

Inserting the Card.............................. 18

Removing the Card........................... 19

Attaching the Strap............................ 20

Setting the Date/Time (Clock Set)..... 21

Setup Menu....................................... 23

Using the LCD Monitor...................... 27

About the Histogram ......................... 28

The Mode Dial................................... 29

Recording pictures (basic)

Taking Pictures ................................. 30

Taking Pictures in Simple Mode........ 34

Checking the Recorded Picture

(Review) ........................................ 36

Using the Optical Zoom..................... 37

Taking Pictures using the

Built-in Flash.................................. 38

Compensating the Exposure............. 41

Taking Pictures using

Auto Bracket.................................. 42

Taking Pictures with the Self-timer.... 43

Taking Pictures using Burst Mode .... 44

Playback (basic)

Playing Back Pictures........................ 45

9 Pictures Multi Playback .................. 46

Using the Playback Zoom ................. 47

Deleting Pictures............................... 48

Recording pictures (advanced)

Taking Pictures using Macro Mode... 51 Taking Pictures using

Portrait Mode................................. 52

Taking Pictures using

Landscape Mode ........................... 53

Taking Pictures using

Night Portrait Mode........................ 54

Taking Pictures using

Self-portrait Mode.......................... 55

Recording Motion Images ................. 56

Setting the White Balance................. 58

Setting the White Balance manually

(White set) ..................................... 59

Finely Adjusting the White Balance... 60

Changing the Picture Size................. 61

Changing the Quality......................... 62

Taking Pictures using Spot Mode...... 63

Setting ISO Sensitivity....................... 64

Taking Pictures with Audio................ 65

Using the AF Trigger ......................... 66

Using the Digital Zoom ......................68

Using the Color Effect ....................... 69

Adjusting the Quality of the Picture

(Picture Adjustment) ...................... 70

Using the Optical Image Stabilizer .... 71

Creating Flip Animation..................... 72

4

Playback (advanced)

Playing Back Pictures with Audio ...... 75

Playing Back Motion Images ............. 76

Rotating the Picture........................... 77

Setting the Picture to be Printed and

the Number of Prints

(DPOF Print Setting)...................... 78

Preventing Accidental Erasure of the

Picture ........................................... 83

Playing Back with Slide Show........... 85

Adding Audio to Recorded Pictures

(Audio Dubbing)............................. 87

Resizing the Pictures ........................ 88

Trimming the Pictures....................... 90

Formatting the Card.......................... 92

Playing Back Pictures with

a TV Screen................................... 93

Before Connecting with USB

Connection Cable .......................... 94

Connecting to a PC

(Mass Storage) .............................. 96

Connecting to a PC (PTP)................. 97

Connecting to a Printer ..................... 99

Using a Printer (PictBridge)............. 100

Using a Printer (USB Direct-Print)... 102

Others

After Use ......................................... 104

Screen Display ................................ 105

The Menu Items .............................. 108

Cautions for Use.............................. 110

Approximate number of recordable

pictures and the size.................... 113

Message Display............................. 114

Troubleshooting............................... 115

Specifications.................................. 117

Digital Camera Accessory

System......................................... 119

Digital Camera Accessory Order

Form (For USA Customers)......... 120

Request for Service Notice

(For USA Only)............................ 121

Limited Warranty (For USA Only).... 122

Customer Services Directory

(For USA Only)............................ 124

Index................................................ 125

Guía española de uso rápido .......... 127

5

Preparation

Standard Accessories

Before using your camera, check the contents.

∫ SD Memory Card (16 MB)

RP-SD016B (In the text, it is indicated as “Card”)

∫ Battery Pack

CGA-S001A (In the text, it is indicated as “Battery”)

∫ Battery Charger/AC Adaptor

DE-929A (In the text, it is indicated as “AC Adaptor”)

∫ AC Ca ble

K2CA2EA00002

∫ DC Cable

K2GH2DZ00001

∫ AV C a ble

K1HB08CD0003

6

∫ USB Connection Cable

K1HB08CD0004

∫ CD-ROM

∫ Strap

VFC4033

Preparation

7

Preparation

Names of the Components

134

15 14 13 12

2

8 9 10

1 Strap Eyelet (P20) 2Flash 3 Lens 4 Self-timer Indicator (P43, 55) 5 Lens Cover

5

1167

6 Optical Finder 7 Flash/Access Indicator

(P17, 31, 40) 8 Status Indicator (P31) 9 [DISPLAY] Button (P24, 27, 35, 82)

10 Mode Dial (P29) 11 Single/Burst Mode Button (P44) 12 Cursor buttons

2/Self-timer Button (P43)

4/REVIEW/SET Button (P36)

1/Flash Mode Button (P38)

3/Exposure Compensation (P41)/

Auto Bracket (P42)/White Balance

Fine Adjustment (P60) Button

13 Delete (P48)/[FOCUS] (P66) Button 14 [MENU] Button (P23) 15 LCD Monitor (P27, 35, 105)

16

17 18

19 20

16 Lens Barrel (P32) 17 Speaker (P75) 18 Microphone (P56, 65) 19 Zoom Lever (P37, 68) 20 Power Switch (P11, 30) 21 Shutter Button (P11, 30)

21

8

Preparation

3 4

5

6

22

DIGITAL

AV OU T

DC IN

EXT.

22 Terminal Door 23 [DIGITAL] (P96, 97, 99)/

[AV OUT] (P93) Socket

24 [DC IN/EXT.] Socket (P16)

2 2

25 Card/Battery Door (P14, 18)

2

26 Tripod Receptacle

ª Battery Charger/AC Adaptor

2 3

1

4

(P12, 16)

1[AC INT] Terminal 2 [POWER] Indicator 3 [CHARGE] Indicator 4 Battery Attachment Part 5 [DC OUT] Terminal

5

9

Preparation

Quick Guide

• Charge the battery before using.

• Prepare the Camera/AC cable/Battery/AC adaptor/Card.

• Check that the camera is turned off and that the lens is retracted.

ª Preparation

1 Charge the battery. (P12)

• The battery cannot be charged when the DC cable is connected to the AC adaptor.

2 1 Open the card/battery door.

2 Insert the battery. (P14)

3 1 Insert the card. (P18)

2 Close the card/battery door.

1

2

10

ª Recording

Preparation

ª Playback

4 1 Turn the camera on.

2 Set the clock. (P21) 3 Select Normal picture mode

[].

5 Take a picture. (P30)

OFF ON

6 1 Select Playback mode [ ].

2 Select the picture you want to

view. (P45)

WB

R

E

W

V

E

I

SET

11

Charging the Battery

Charge the battery before using.

Preparation

1 Connect the AC cable.

• The [POWER] Indicator A lights.

• The battery cannot be charged when the DC cable is connected to the AC adaptor.

2 Attach the battery to the AC

adaptor.

• When the [CHARGE] Indicator B lights, charging starts.

• When the [CHARGE] Indicator B turns off (in about 90 minutes), charging is finished.

3 Detach the battery.

¬

Suggestions/Tips

• After use, be sure to disconnect the AC cable.

• The battery becomes warm after use/ charge or during charge. The camera also becomes warm during use. However, it is not a malfunction.

• The battery and AC adaptor are designed only for this camera. Do not use them with any other equipment.

• Do not disassemble or alter the AC adaptor.

¬

12

Preparation

About the Battery

ª Battery indication

The remaining battery power appears on the screen. (This does not appear when using AC adaptor.)

> > >

(Blinks in red): Recharge or replace the battery.

ª Charging time and available recording time

Measured under the following conditions:

• Temperature: 77°F (25°C)/Humidity: 60

• Recording once every 30 seconds, flash every other record.

• Using the battery (supplied) and 16 MB SD Memory Card (supplied) [Picture

size: 2304k1728/Quality: Fine (When deleting all pictures after full use)].

%

Charging time

Supplied battery Approx. 90 min.

The recording time (recordable number) and playback time depend on the condition.

ª Charging environment and charging error

• Charge the battery in temperature of 50°F –95°F (10°C – 35°C). (The battery should also be the same temperature.)

• When charging starts, the [CHARGE] Indicator lights. If a charging error occurs, the [CHARGE] Indicator blinks at about 1 second cycles. In this case, disconnect the AC adaptor from the electrical outlet, remove the battery and ensure both room and battery temperature are not too low or high and then charge it again. If the problem persists, consult the dealer or your nearest servicenter.

Continuous recording/playback time (recordable number)

Recording with LCD monitor on Approx. 60 min. (equal to 120 still pictures)

Recording with LCD monitor off Approx. 120 min. (equal to 240 still pictures)

Playback time Approx. 100 min.

13

Preparation

Inserting the Battery

Preparation

• Check that the camera is turned off and that the lens is retracted.

1 Open the card/battery door.

2 Insert the charged battery until it

clicks.

3 Close the card/battery door.

14

Preparation

Removing the Battery

Preparation

• Check that the camera is turned off and that the lens is retracted.

¬

1 Open the card/battery door.

2 Slide the lock 1 to remove the

battery.

Suggestions/Tips

• If you will not be using the camera for a long time, remove the battery.

• After the fully charged battery has been inserted for more than 48 hours, the clock setting is stored (in the camera) for 3 months after the battery was removed. (The time may be shorter if the battery is not charged sufficiently.) If more than 3 months has passed, the clock setting will be lost. In this case, set the clock again. (P21)

• Do not remove the battery when the card is being accessed. (P17)

• The supplied battery is designed only for this camera. Do not use it with any other equipment.

• Be sure to remove the battery after the status indicator is turned off. Otherwise, the setting may be cleared.

¬

3 Close the card/battery door.

15

Preparation

Using the AC Adaptor

You can use the camera without worrying about battery discharge by connecting to an AC adaptor.

Preparation

• Check that the camera is turned off and that the lens is retracted.

1 Connect the AC cable.

2 Open the terminal door.

3 Connect the DC cable.

DIGITAL

AV OUT

DC IN

EXT.

• Align the [2] mark 1 on the DC cable and the [1] mark 2 on the [DC IN] socket.

¬

Suggestions/Tips

• Use the supplied DC cable. If you use other DC cables, it may cause a malfunction.

• The camera becomes warm during use. This is not a malfunction.

• Disconnect the AC adaptor and DC cable when the camera is not in use.

• The battery cannot be charged in the camera even if the AC adaptor is connected.

¬

16

About the Card

600

9

Preparation

ª Access to the card

While the card is accessed, the flash/ access indicator 1 and card access indication 2 light.

1

When the flash/access indicator 1 and card access indication 2 light, do not:

• turn the camera off.

• remove the battery or the card.

• disconnect the DC cable if you use the AC adaptor.

The card and the card contents may be damaged and the camera may not operate normally.

It is possible that data stored on the card can be damaged due to accidental erasure, static electricity, electrical noise or a defective card. We recommend storing precious data to your PC’s hard drive. (P96, 97)

ª SD Memory Card (supplied) and

MultiMediaCard (optional)

The SD Memory Card and MultiMediaCard are small, lightweight, removable external memory cards. The reading/writing speed of an SD Memory Card is fast. The SD Memory Card is equipped with a Write-Protect switch that can inhibit writing and formatting a card. (When the switch is slid to the [LOCK] side, it is not possible to write or delete data on the card and format it. When the switch is unlocked, these functions become available.)

SD Memory Card

16

MultiMediaCard

Suggestions/Tips

¬

• The reading/writing speed of a MultiMediaCard is slower than an SD Memory Card. When a MultiMediaCard is used, the performance of certain features may be slightly slower than advertised.

• After recording motion images using the MultiMediaCard, the flash/access indicator and card access indication may appear for a while, but this is not a malfunction.

• Keep the Memory Card out of reach of children to prevent swallowing.

¬

17

Preparation

Inserting the Card

Preparation

• Check that the camera is turned off and that the lens is retracted.

1 Open the card/battery door.

2 Insert the card all the way in until

it clicks.

• Insert the card, pressing gently until it locks in place. If the card will not insert freely, it may be reversed. Do not force the card.

• Do not touch the connection terminals on the back side of the card.

3 Close the card/battery door.

18

Preparation

Removing the Card

Preparation

• Check that the camera is turned off and that the lens is retracted.

¬

1 Open the card/battery door.

2 Push the card until it clicks, then

pull the card out upright.

Suggestions/Tips

• The card may be damaged if it is removed while the camera is on.

• If the card/battery door cannot be completely closed, remove the card and insert it again.

• If the card cannot be fully inserted, check the direction of the card.

• We recommend using Panasonic’s SD Memory Card. (Use only the genuine card.)

• The card may be damaged if it is not fully inserted.

¬

3 Close the card/battery door.

19

Attaching the Strap

Preparation

1 Pass the top of the strap through

the strap eyelet 1.

2 Pass the opposite side of the

strap through its ring shaped part.

3 Pull the strap.

20

Preparation

OCK

U

CLOCK SET

C

SETU

2/

3

T

CLOCK SET

SET

S

CT

U

CLOCK SET

JAN200410

T

CT

U

Setting the Date/Time (Clock Set)

ª Initial setting

The clock is not set when the camera is shipped. When you turn the camera on, the clock setting screen appears.

PLEASE SET THE CL

MEN

When pressing the [MENU] button, the screen shown in step 2 appears. Set the clock on it.

1 Select [CLOCK SET] from the

[SETUP] menu. (P23)

RE

NO.RESE RESE

ELE

MENU

WB

R

E

W

V

E

I

SET

MEN

WB

R

E

W

V

E

I

SET

WB

R

E

V

E

I

SET

2 Set date and time.

M/D/Y

W

E

W

R

E

ELE

WB

V

E

I

SET

• 2/1: Select the desired item.

• 3/4: Set date and time.

21

MEN

WB

R

E

W

V

E

I

SET

Preparation

T

004

/Y

T

CT

U

3 Select [M/D/Y], [D/M/Y] or [Y/M/D].

LOCK SE

10:00AN1.2

M/D

ELE

E

WB

R

E

V

E

I

SET

• Close the menu by pressing the [MENU] button 2 times after finishing the setting.

• Check if the clock setting is correct, after turning the camera off and on.

ª Date Printing

• You can set the date printing in DPOF print setting on this camera. (P82)

• Using the supplied software, [SD Viewer for DSC], it is possible to have the date imprinted on the picture. For details, please read the supplied operating instructions for PC connection.

• When you go to a photo studio for printing, be sure to order the printing of the date. For further information, ask the photo studio. Depending on the studio, it may not be possible to print the date.

MEN

W

Suggestions/Tips

¬

• You can set the year from 2003 to

2099. The 24-hour system is used.

• After the fully charged battery has been inserted for more than 48 hours, the clock setting is stored (in the camera) for 3 months after the battery was removed. (The time may be shorter if the battery is not charged sufficiently.) If more than 3 months has passed, the clock setting will be lost. In this case, set the clock again.

22

Setup Menu

/

UP

E

Y

E

O

600

F

T

CT

U

CETU

/

W

OR

E

F

T

CT

U

Y

F

CO

OOM

CETU

/

W

OR

E

T

CT

U

Y

F

CO

OOM

CETU

/

W

OR

E

T

CT

U

Y

F

CO

Preparation

1 Turn the camera on.

OFF ON

• The status indicator 1 lights.

2 Press the [MENU] button.

MENU

W.BALANCE PICT.SIZ

UALIT POT MOD

ELE

E

3 Select the [SETUP] Menu.

RE

WB

SET

MONIT AUTO REVIE POWER SAV

E

ECONOM

ET

AUT 1

F

MEN

F

4 Select the desired item.

RE

MONIT

WB

R

E

W

V

E

I

SET

AUTO REVIE

POWER SAV

E

ECONOM

ELE

FF1SEC.EC.Z

E

5 Set the desired value.

RE

WB

R

E

W

V

E

I

SET

• Close the menu by pressing the [MENU] button after finishing the setting.

MONIT

AUTO REVIE

POWER SAV

E

ECONOM

ELE

FF1SEC.EC.Z

E

F

MEN

F

MEN

ELE

E

MEN

23

Preparation

You can control the following items on [SETUP] Menu.

Menu Functions

MONITOR Adjust the brightness of the LCD monitor in 7 steps.

AUTO REVIEW°

1

• [OFF]: The recorded picture does not automatically appear.

• [1SEC.]: The recorded picture automatically appears on the screen for about 1 second.

• [3SEC.]: The recorded picture automatically appears on the screen for about 3 seconds.

• [ZOOM]: The recorded picture automatically appears on the screen for about 1 second. Then it is enlarged 4 times and appears for about 1 second. This mode is useful to confirm the focus.

• In Motion image mode [ ] and Self-portrait mode

[ ], auto review function is not activated.

• When using burst mode or auto bracket, the auto review

function works while recording the data into the card regardless of the setting on the auto review function. (The picture is not enlarged.)

• When using pictures with audio, the auto review

function works while recording the audio or the data into the card regardless of the setting on the auto review function. (The picture is not enlarged.)

POWER SAVE • [2MIN.]/[5MIN.]/[10MIN.]:

The camera is automatically turned off if it has not been used for a predetermined amount of time. (Press the shutter button or turn the camera off and on to cancel the power save mode.)

• [OFF]: The camera is not automatically turned off.

• When using the AC adaptor/connecting to a PC or

printer/recording motion images/playing back motion images/during Slide Show, the power save mode is not activated.

• When you press the [DISPLAY] button for 2 seconds,

the power save mode is activated. (You can turn the camera on again when pressing the shutter button halfway.)

1

°

Recording mode only

24

Preparation

Menu Functions

ECONOMY°

1

If you do not use the camera for about 15 seconds in recording mode, the message [MONITOR OFF] blinks and then the LCD monitor is turned off to save the power. Press any key to turn it on again.

• When setting economy mode to [ON], the LCD monitor is turned off even when charging the flash.

• When setting economy mode to [ON], the setting for power save mode is fixed to [2MIN.].

• You cannot use economy mode in Playback mode [ ] and Simple mode [ ].

• Economy mode is not activated while the menu screen is displayed or the self-timer is set.

• Economy mode is not activated when using the AC adapter or recording motion images even if it is set to [ON].

BEEP Set to the volume of operational sound and shutter sound.

You can select the shutter sound from [ ], [ ] or [ ].

1 2 3

• [ ]: The operational sound turns high.

• [ ]: The operational sound turns low.

• [ ]: The operational sound turns off.

1

NO.RESET°

Set this when you want to start the file number of the picture from 0001 on the next recording. (The folder number is updated, and the file number starts from 0001.)

• The folder number can be assigned from 100 to 999. When the folder number reaches to 999, it cannot be reset. We recommend formatting the card after saving the data on a PC or other.

• The file number reset is also reflected on Simple mode [].

1

RESET°

The camera is reset to the initial settings. However, the folder number, the clock setting and the setting on Simple

mode [ ] are not changed. CLOCK SET Change the date and time. (P21) USB MODE Set to the USB communication system. Set before

connecting to a PC or a printer. (P94)

°1 Recording mode only

25

Preparation

Menu Functions

LANGUAGE Set to the language on the menu screen from the following

7 languages.

Set to the desired language with 2/1 and determine it with

4.

• [ENGLISH]: The menu screen in English.

• [DEUTSCH]: The menu screen in German.

• [FRANÇAIS]: The menu screen in French.

• [ESPAÑOL]: The menu screen in Spanish.

• [ITALIANO]: The menu screen in Italian.

• [ ]: The menu screen in Chinese (Simplified).

• [ ]: The menu screen in Japanese.

• When you set to another language by mistake, select [ ] from the menu icons to set the desired language.

• The language setting is also reflected on Simple mode [].

2

VOLUME°

The volume of speakers can be adjusted in 7 steps.

• When you connect the camera to a TV, the volume of the speakers of the TV is not changed.

VIDEO OUT°

2

• [NTSC]: Video output is set to NTSC system.

• [PAL]: Video output is set to PAL system. (P93)

°2 Playback mode only

26

Preparation

600

9

600

9

Using the LCD Monitor

ª Selecting the screen to be used

Press the [DISPLAY] button to switch to the screen to be used.

• When the menu screen appears, during multi playback or during playback zoom, the [DISPLAY] button is not activated.

In recording mode

1

In playback mode

1600

100_0001

10:00 JAN. 1.2004

1/19

1600

100_0001

F2.8 1/200

10:00 JAN. 1.2004

ISO100

1/19

AUTO

F Display G Display with recording information

and histogram

H Non-display

ª Recording guide line

You can achieve balanced pictures by aligning the subject on the cross point of the horizontal and vertical guide lines. You can also take pictures easily by adjusting the horizon to the guide line.

A Display B Display with histogram C Non-display (Recording guide line) D Non-display E LCD monitor is turned off

¢Histogram

You can take pictures with well-designed composition by viewing the size and the balance of subjects.

27

Preparation

About the Histogram

• A histogram is a graph that displays brightness along the horizontal axis (black to white) and the number of pixels at each brightness level on the vertical axis.

• It allows the camera user to easily check the way a picture is being exposed.

• When the values are concentrated to the left as A, the picture is under exposed.

• When the values in the histogram are distributed as B, the exposure is adequate and the brightness is well-balanced.

• When the values are concentrated to the right as C, the picture is over exposed.

ª Example of histogram

1600

100_0001

1/19

F2.8 1/200

F2.8 1/100

F2.8 1/50

ISO100

10:00 JAN. 1.2004

1600

100_0001

ISO100

10:00 JAN. 1.2004

1600

100_0001

ISO100

10:00 JAN. 1.2004

1/19

AUTO

1/19

AUTO

Suggestions/Tips

¬

• When the photo flash is activated or when you record pictures in dark places, the histogram turns yellow because the recorded picture and the histogram do not match each other.

• The histogram does not appear when in Motion image mode [ ], during multi playback and playback zoom.

• The histogram in recording and playback may not match each other.

• The histogram in this camera does not match the one displayed in image editing software on PC, etc.

• The histogram in the recording mode

AUTO

is an approximation.

A Under Exposed B Properly Exposed C Over Exposed

¢Histogram

28

Preparation

The Mode Dial

Select the desired mode turning the mode dial.

: Normal Picture mode (P30)

The aperture value and the shutter speed are automatically adjusted.

: Macro mode (P51)

This allows you to get closer to the subject up to 0.33 feet (10 cm) (Wide).

: Portrait mode (P52)

This allows you to easily achieve the depth of focus effect. The subject stands out in front of an unfocused background.

: Landscape mode (P53)

You can capture sharp and crisp landscape photos easily. Please note that this mode is suitable for landscape farther than 9.84 feet (3 m) away and in daylight.

: Night portrait mode (P54)

This allows you to record the subject clearly in front of beautiful night illumination scenery.

: Self-portrait mode (P55)

Use this mode when you want to take a picture of yourself.

: Motion image mode (P56)

This allows you to record motion images.

: Simple mode (P34)

You can take the pictures easily because the necessary setting menus are minimized. This mode is for beginners.

: Playback mode (P45)

This allows you to play back recorded pictures.

29

Recording pictures (basic)

600

9

5

8

600

9

Recording pictures (basic)

Taking Pictures

Preparation

• Insert the charged battery (P14) or connect the AC adaptor (P16).

• Insert the card. (P18)

1 1 Turn the camera on.

2 Select Normal Picture mode

[].

OFF ON

2 Aim the AF area 1 to the point

you want to focus.

1

3 Focus on the subject to take the

picture.

1

F2.

• A: Press the shutter button halfway to focus.

• B: Press the shutter button fully to take the picture.

• The focus indication 2 lights and

then the aperture value 3 and the shutter speed 4 appear.

• When the focus indication is

blinking, the subject is not focused. Press the shutter button halfway and focus on the subject again.

1/2

30

Recording pictures (basic)

ª Posture to take good pictures

To take pictures without blurring:

• Hold the camera gently with both hands, keep arms stationary at your side and stand with your feet slightly apart.

• Check that the camera is not shaken when pressing the shutter button halfway.

• After pressing the shutter button, keep the camera stationary until the picture appears on the screen. In the following cases, keep the camera stationary for a long time. – Slow sync./Red-eye reduction

[ ] (P38)

– In Night portrait mode [ ] (P54)

• Hold the camera firmly with your right hand.

• Do not cover the flash with your finger or other objects.

• Hold the lower left of the camera with your left hand.

• Do not cover the microphone with your finger or other objects.

• Do not touch the lens barrel.

ª Status indicator A

Lit:

• When turning the camera on.

Blinking:

• While the focus is being adjusted or the focus is not properly adjusted.

• When the card is not inserted.

• When there is no remaining capacity on the card.

• When the card is locked in the recording mode.

• When the remaining battery power is low. (blinking slowly)

ª Flash/Access Indicator B

Lit:

• When accessing the card.

• When the flash fires. (It lights when the shutter is pressed halfway.)

• When sending data to PC.

Blinking:

• When charging the flash.

• When setting the flash mode to Forced OFF [ ] and pressing the shutter halfway in dark places. (blinking slowly) (The jitter alert appears)

31

Recording pictures (basic)

600

9

/8

8

ª Focusing

• You can focus on the subject up to a distance of 1.64 feet (50 cm).

• If you press the shutter button fully without prefocusing, pictures may be blurry or unfocused.

• When the subject is focused, the camera beeps 2 times. If not, it beeps 4 times. Refer to P25 if you want to turn the operational sound off.

• In the following cases, the camera cannot focus on subjects properly in Normal Picture mode. – When including both near and

distant subjects in a scene.

– When there is dirt on the glass

between the lens and the subject.

– When there are illuminated or

glittering objects around the subject.

– When taking a picture in a dark

place. – When the subject moves fast. – When the scene is poor in contrast. – When jitter occurs. – When recording a very bright

subject. We recommend taking pictures using prefocus (P66) or AF/AE lock (P33).

• Even if the focus indication appears and the subject is focused, it is canceled when you release the shutter button. Press the shutter button halfway again.

ª Exposure

• If the exposure is not adequate, the indication of the aperture value and the shutter speed on the screen turns red. (However, the aperture value and the shutter speed do not turn red when the flash is activated.)

• The brightness of the screen may differ from that of recorded pictures. In particular, when taking pictures in dark places with slow shutter, the subject looks dark on the screen, but the actual picture is bright.

• When most of the subjects in the screen are bright (e.g. blue sky on a clear day, snowy field, etc.), the recorded pictures may become dark. In this case, compensate the exposure. (P41)

ª Jitter (camera shake)

• When jitter could occur, the jitter alert 1 appears.

1

F2.

• When the jitter alert appears, we recommend using a tripod. If you cannot use a tripod, be careful of how you hold the camera. (P31)

• Be careful of jittering when pressing the shutter button.

ª Care for the camera

• Check to make sure there is no stain or dirt on the lens.

• Do not touch the lens directly.

• Do not cause impact to the lens or lens barrel (P8).

• When turning the camera on in the recording mode, the lens barrel comes out. Check to make sure there are no obstacles in front of the lens.

• Take care not to touch or stain the surface of the lens. When the lens becomes dirty or dust attaches to the lens, use a commercial blower brush to remove dust or dirt and wipe the lens with a dry, soft cloth. If you use solvents such as benzine, alcohol or thinner, the camera may be discolored or broken.

32

Recording pictures (basic)

600

9

00

600

9

00

600

9

• When using the camera in a sandy or dusty place, be careful not to let dirt, grit or seawater come into the camera.

ª AF/AE Lock (AF: Auto focus/

AE: Auto exposure)

1

When recording a picture of people with a composition such as in the above picture, you cannot focus on the subject because it is out of AF area in usual operation.

In this case,

1. Aim the AF area at the subject.

2. Press the shutter button halfway to fix

the focus and the exposure.

• When the subject is focused, the focus indication lights.

3. Keep pressing the shutter button halfway, move the camera as you compose the picture.

4. Press the shutter button fully.

• You can repeatedly retry AF/AE lock

before pressing the shutter button.

1

Suggestions/Tips

¬

• When brightness has changed due to the zoom or the movement of the camera, the lens may click and the picture on the screen may be drastically changed. However, the pictures are not affected. The sound is caused by automatic adjustment of the aperture. It is not a malfunction.

• When pressing the shutter button, the screen may become bright or whitish for a moment. However, the recorded picture will not be influenced. This function make it easy to adjust the focus.

• We recommend setting the clock again before taking pictures. (P21)

• When the time for power save is set (P24), the camera is automatically turned off if you do not operate within the set time. When operating the camera again, press the shutter button or turn the camera off and on.

• When economy mode (P25) is set and if you do not use the camera, the LCD monitor turns off in 15 seconds. (The LCD monitor turns on when pressing any button.)

F2.81/1

1

F2.81/1

33

Recording pictures (basic)

W

GE

L

W

GE

Taking Pictures in Simple Mode

We recommend you use this mode when you ask someone to take a picture.

• Offering simplified menu for ease of use.

• The picture size is easy to select.

• The icons on the display are larger.

Preparation

• Set the mode dial to [ ]. (P29)

1 Select [PICT.MODE].

PICT.MODE

ENLAR

4""/1015cmE-MAI

AUTO REVIE

CLOCK SET

SELECT

• [AUTO REVIEW] [ON]: The recorded picture

[OFF]: The recorded picture does

• [BEEP] [ON]: The operational sound

[OFF]: The operational sound

• [CLOCK SET] (P21)

SET EXIT

MENU

WB

R

E

W

V

E

I

SET

automatically appears on the screen for about 1 second.

not automatically appear.

turns on.

turns off.

MENU

2 Select [ENLARGE],

[4qt6q/10t15cm] or [E-MAIL].

PICT.MODE

ENLAR

SELECT

• [ENLARGE]: This selection is intended for situations when large printing is desired. The camera is preset to [2304a1728] in [Fine] picture mode.

•[4qa6q/10a15cm]: This selection will offer an easy way to produce small “general purpose” prints.

• [E-MAIL]: This selection favors a smaller file size, optimized for home page and e-mail use.

• Close the menu by pressing the [MENU] button after finishing the setting.

"/1015cm-

AUTO REVIE

CLOCK SET

SET EXIT

WB

R

E

W

V

E

I

SET

MENU

34

Recording pictures (basic)

9

3 Take the picture.

1

ª Picture size and quality in

[PICT.MODE]

ENLARGE 2304a1728 pixels Fine

4qa6q/ 10a15cm

E-MAIL 640a480 pixels Standard

ª Other settings in Simple mode

MONITOR (P24):

• Fixed to [0] (standard).

POWER SAVE (P24):

• Fixed to [2MIN.].

• When you want to turn the camera on again, press shutter button or turn the camera off and then on.

• When you use the AC adapter, the power save mode is not activated.

ECONOMY (P25):

• Fixed to [OFF].

1280a960 pixels Fine

ª Selecting the screen to be used

Press the [DISPLAY] button to switch to the screen to be used.

A Display B Non-display C LCD monitor is turned off

Suggestions/Tips

¬

• The burst mode is available only with the low speed. (P44)

Number of recordable

pictures

ENLARGE max. 5 frames

4qa6q/10a15cm max. 5 frames

E-MAIL max. 7 frames

• The recordable range is 0.98 feet (30 cm) – ¶ (Tele), 0.33 feet (10 cm) – ¶ (Wide).

• If the distance between the camera and the object is beyond the recordable range, the focus may not be adjusted properly even the focus indication is lit.

• The settings (except for the clock setting) of the Simple mode [ ] will not be applied to the other recording modes.

• Only the quality (data compression ratio) cannot be changed on the [PICT.MODE] menu.

35

Recording pictures (basic)

E

?

SNO

T

CT

L

Checking the Recorded Picture (Review)

Preparation

• In Motion image mode [ ], review function is not activated.

1 Press 4.

WB

R

E

W

V

E

I

SET

• The last recorded picture appears for about 10 seconds.

• Press the shutter button halfway or 4 to cancel the review.

• You can check the previous or following picture with 2/1.

• When the recorded pictures are too bright or dim, compensate the exposure. (P41)

2 Enlarge and shift the picture.

R

E

MULT I/AL

WB

SET

W

V

E

I

WT

•:1k

•:8k

>4k>8k >4k>1k

ª Deleting the recorded picture

during the review

DELETE SINGL

DELETE THIS PICTURE

YE

ELE E

/FOCUS

WB

R

E

W

V

E

I

SET

WB

R

E

W

V

E

I

SET

• Once deleted, pictures cannot be recovered.

• Multi pictures or all pictures can be deleted. Read P49 or P50 for details.

36

Recording pictures (basic)

600

9

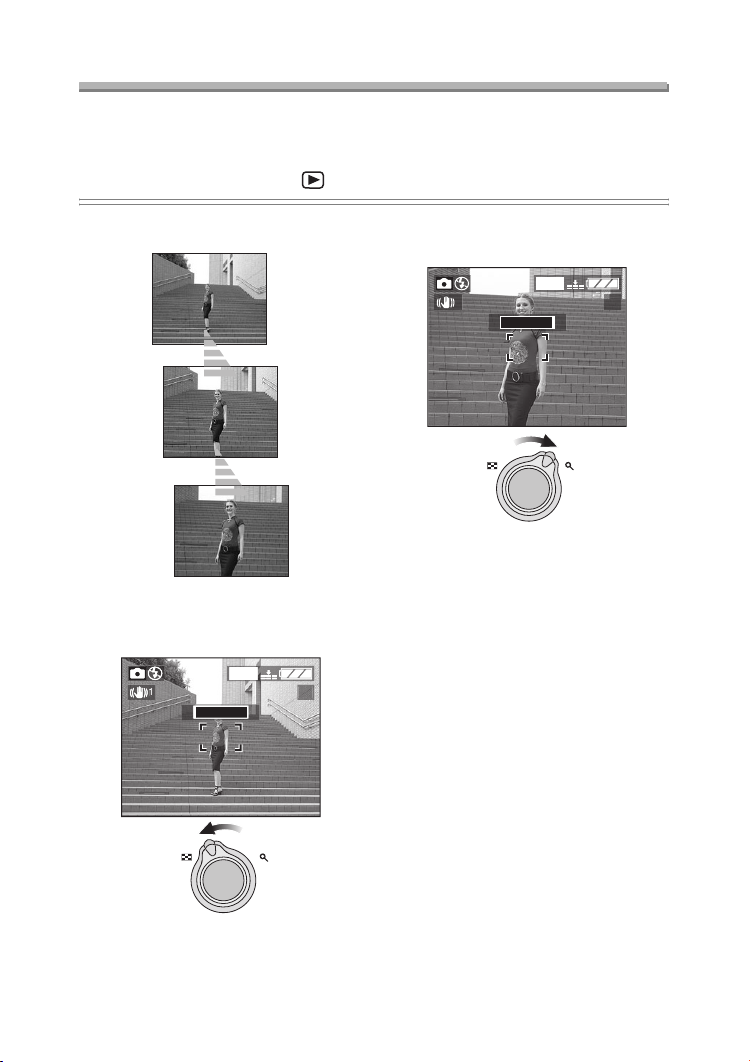

Using the Optical Zoom

With this feature, you can make people and subjects appear closer with the 3 times optical zoom, and landscapes can be recorded in wide angle.

Preparation

• Set the mode dial except for [ ]. (P29)

ª To make subjects appear closer

1X

(Tele)

2X

3X

ª To make subjects appear further

away (Wide)

1

WT

1

¬

Suggestions/Tips

1600

W

WT

T

¬

19

• The picture may be slightly distorted according to the lens. The distortion will increase as you make subjects wider and closer.

• When using the zoom lens at high magnification, the quality of the picture can be enhanced if a tripod is used. At high magnification, even small movements can cause a slight decrease in picture sharpness.

37

Recording pictures (basic)

Taking Pictures using the Built-in Flash

Preparation

• Set the mode dial except for [ ]/[ ]/[ ]. (P29)

ª Switching the flash setting

WB

R

E

W

V

E

I

SET

:AUTO The flash is automatically activated according to the recording condition.

: AUTO/Red-eye reduction The flash is automatically activated according to the recording condition. It reduces the red-eye phenomenon (eyes of the subject appear red in photo flash) by lighting the flash before the actual recording of the picture. Use this when you take pictures of people in low lighting conditions.

: Forced ON The flash is activated every time regardless of the recording condition. Use this when your subject is back-lit or under fluorescent light.

: Slow sync./Red-eye reduction When you take a picture with a dark background landscape, it makes the shutter speed slow when the flash is activated, so that the dark background landscape will become bright. Simultaneously it reduces the red-eye phenomenon. Use this when taking pictures of people in front of a dark background.

: Forced OFF Even in dark places, the flash is not activated. Use this when taking pictures in places where use of the flash is not allowed.

ª Available flash settings

38

Recording pictures (basic)

ª The available flash range to take pictures

ISO sensitivity

ISO50

ISO100

ISO200/AUTO

Wide 1.31 feet (40 cm)– 5.25 feet (1.6 m)

Tele 1.31 feet (40 cm)– 3.28 feet (1 m)

Wide 1.31 feet (40 cm)– 7.87 feet (2.4 m)

Tele 1.31 feet (40 cm)– 4.59 feet (1.4 m)

Wide 1.31 feet (40 cm)– 10.8 feet (3.3 m)

Tele 1.31 feet (40 cm)– 6.56 feet (2 m)

Available flash range

• The available flash range is an approximation.

ª Shutter speed for each flash mode

Flash mode Shutter speed

1/60th – 1/2000th

Flash ON

(Except for Slow sync./Red-eye reduction [])

Flash OFF

Suggestions/Tips

¬

Stabilizer function [MODE1] [MODE2]

Stabilizer function [OFF]

¬

1/8th – 1/2000th (Night portrait mode: 8 – 1/2000th)

1 – 1/2000th (Night portrait mode: 8 – 1/2000th)

• In Landscape mode [ ]/Motion image mode [ ], flash setting is fixed to the Forced OFF [ ].

• When using the flash in ISO AUTO setting, the ISO sensitivity is automatically adjusted from ISO100 to 200. To avoid noises, decrease the ISO sensitivity.

• Do not stare at the photo flash from close proximity (a few centimeters from the camera) when using the flash.

• If you bring the flash too close to the subjects, they may be distorted or discolored by its heat and lighting.

• Do not cover the photo flash with your fingers or any other items.

• If the subject is too close when using the flash, the picture may be over exposed.

• When the jitter alert appears, we recommend using the flash.

• When you set to burst mode or auto bracket, only 1 picture is recorded for every flash activated.

39

Recording pictures (basic)

• The flash icon turns red when activating the flash and pressing the shutter button halfway.

• When the flash is being charged, the flash/access indicator and the flash icon blink red, and you cannot take a picture even when you press the shutter button fully.

• When taking a picture with the flash, the white balance will be automatically adjusted [except for [ ] (Daylight)], but the white balance may not be properly adjusted when the photo flash is insufficient.

• To avoid noises, we recommend setting [PICT.ADJ.] to [NATURAL]. (P70)

• Refer to P64 for the ISO sensitivity.

40

Recording pictures (basic)

OSURE

CT

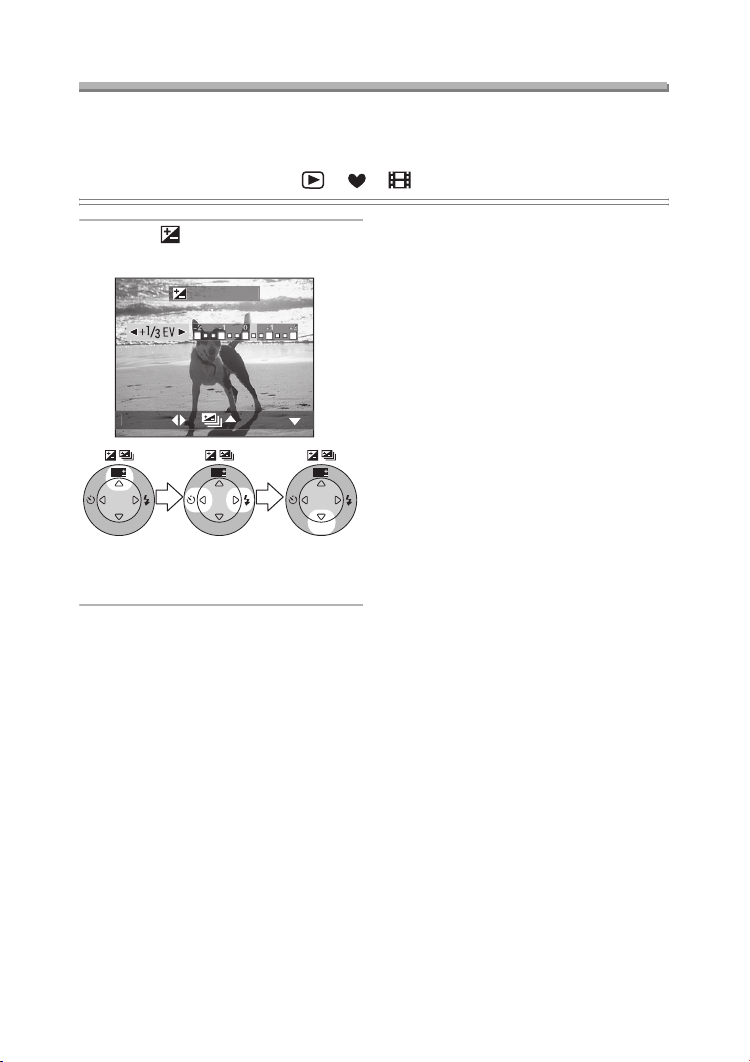

Compensating the Exposure

Use this function when you cannot achieve appropriate exposure due to the difference of brightness between the subject and the background.

Preparation

• Set the mode dial except for [ ]/[ ]/[ ]. (P29)

¬

1 Select [ EXPOSURE] and

compensate the exposure.

EXP

ELE

WB

Suggestions/Tips

• EV is an abbreviation of Exposure Value, and it is the amount of light given to the CCD by the aperture value and the shutter speed.

• The compensation range of the exposure will be limited depending on the brightness of the subject.

• The exposure compensation value appears on the lower left of the screen.

• The exposure value is memorized even if the camera is turned off.

¬

R

E

W

V

E

I

SET

R

E

W

V

E

I

SET

R

E

W

V

E

I

SET

• You can compensate from j2EV to i2 EV in steps of 1/3 EV.

41

Recording pictures (basic)

T

CT

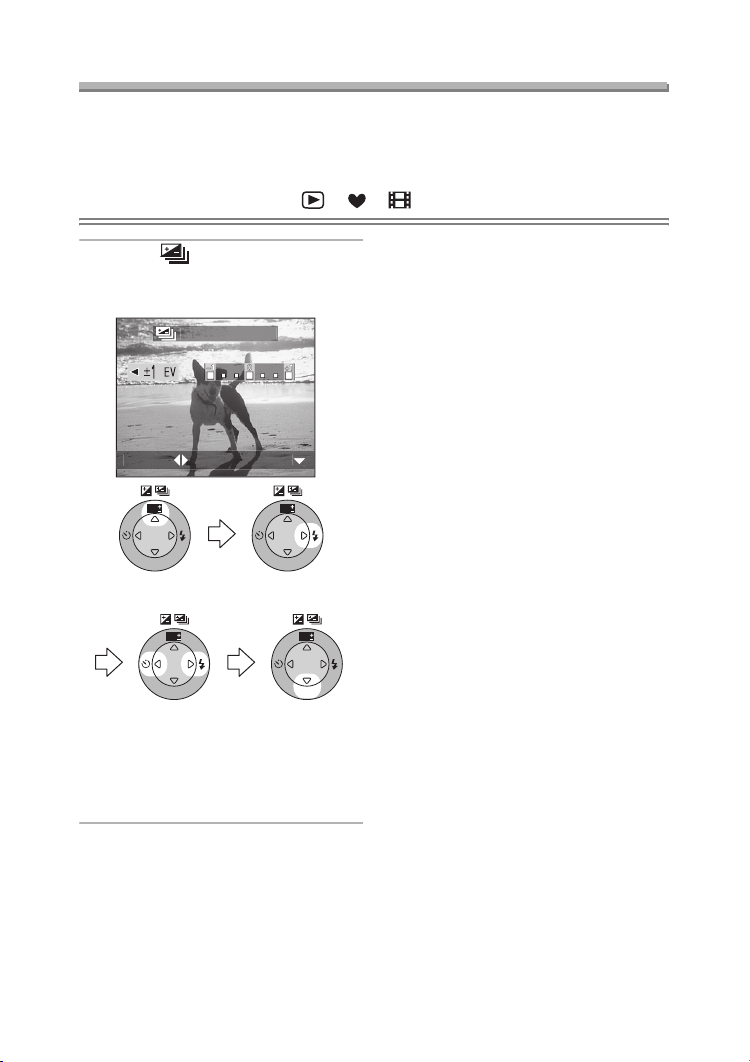

Taking Pictures using Auto Bracket

In this mode, 3 pictures are automatically recorded by each press of the shutter button according to the compensation range of the exposure. You can select the desired exposure among the 3 types of pictures.

Preparation

• Set the mode dial except for [ ]/[ ]/[ ]. (P29)

¬

1 Select [ AUTO BRACKET] and

set the compensation range of the exposure.

AUTO BRACKE

ELE

WB

R

E

W

V

E

I

SET

2 times

WB

R

E

W

V

E

I

SET

• You can select the exposure from 0 (OFF), n1/3 EV, n2/3 EV and n1EV.

• When you do not use auto bracket, select [OFF].

WB

R

E

W

V

E

I

SET

WB

R

E

W

V

E

I

SET

Suggestions/Tips

• When setting the auto bracket, the auto bracket icon appears on the lower left of the screen.

• Once you take a picture, auto bracket will be canceled automatically.

• When taking pictures using auto bracket after the exposure compensation, the pictures are based on the compensated exposure. When the exposure is compensated, the compensated exposure value appears on the lower left of the screen.

• When the flash is activated, you can take only 1 picture. Auto bracket setting cannot be canceled.

• When setting auto bracket, you cannot take a picture with audio.

• When setting auto bracket and the burst mode simultaneously, auto bracket will be performed.

• The exposure may not be compensated with auto bracket depending on the brightness of the subject.

¬

42

Recording pictures (basic)

600

9

L

U

Taking Pictures with the Self-timer

Preparation

• Set the mode dial except for [ ]/[ ]. (P29)

¬

1 Switch the self-timer setting.

1

: Self-timer set to 10 seconds

: Self-timer set to 2 seconds

No display (canceled)

1600

19

WB

R

E

W

V

E

I

SET

;

2 Focus on the subject to take the

picture.

Suggestions/Tips

• When using a tripod or in other cases, setting the self-timer to 2 seconds is convenient to stabilize the jitter caused by pressing the shutter button.

• The self-timer indicator 1 blinks and the shutter is activated after 10 seconds (or 2 seconds).

• When pressing the button fully at a stroke, the subject is automatically focused just before recording pictures.

• In Simple mode [ ], the self-timer can only be set to 10 seconds.

• In Self-portrait mode [ ], the self-timer can only be set to 2 seconds.

• When setting the self-timer in the burst mode, you can take only 1 picture.

• We recommend using a tripod when setting the self-timer.

¬

1

MEN

ANCE

• If you press the [MENU] button when the self-timer is set, the self-timer setting is canceled.

43

Recording pictures (basic)

600

9

Taking Pictures using Burst Mode

Preparation

• Set the mode dial except for [ ]/[ ]. (P29)

¬

1 Switch the burst mode setting.

1

Suggestions/Tips

ª Number of pictures recorded in

burst mode

Burst

speed

¬

Number of recordable

pictures

: High speed

H

;

: Low speed

L

;

No display (canceled)

2 Take pictures.

4 frames/

H

2 frames/

L

second

max.

5 frames

max.

5 frames

max.

7 frames

max.

7 frames

• It is possible to record 4 frames in 1 second in burst mode at a shutter speed higher than 1/60th.

• If the flash is activated, you can record only 1 frame.

• In Simple mode [ ], the burst speed is fixed to Low. (P34)

• You cannot take pictures with audio in the burst mode.

• When setting auto bracket and the burst mode simultaneously, auto bracket will be performed.

• Burst mode will not perform as described if a MultiMediaCard is used in place of an SD Memory Card. The reading/writing speed of a MultiMediaCard is slower than that of an SD Memory Card.

• Keep pressing the shutter button fully to activate the burst mode.

44

Playback (basic)

600

004

00

_

9

Playback (basic)

Playing Back Pictures

Preparation

• Set the mode dial to [ ]. (P29)

1 Select the picture.

1

1/1

10:00 JAN1.2

WB

R

E

W

V

E

I

SET

• Press 2 to play back the previous picture.

• Press 1 to play back the next picture.

• The picture following the last one is the first picture.

ª Fast forwarding/Fast rewinding

When you keep pressing 2/1 during playback, the file number and the page number are updated. If you release 2/ 1 when the number of the desired picture appears, you can play back the picture.

1: Fast forward 2: Fast rewind

• The number of files forwarded/ rewound at a time depends on how long you hold down 2/1.

• The longer you hold down 2/1, the more pictures you can forward/rewind at a time.

• The setting of the number of files forwarded/rewound at a time varies depending on the total number of the recorded pictures.

• When releasing 2/1, the number of file forwarded begins from 1.

• While forwarding or rewinding a large number of pictures by holding down 2/1, once release 2/1 before reaching the picture to be played back, then press 2/1 to forward/rewind pictures until the desired picture appears.

• In review playback in the recording mode or multi playback, the pictures can only be forwarded or rewound one by one.

Suggestions/Tips

¬

• This camera is based on the DCF standards (Design rule for Camera File system) which were established by the Japan Electronics and Information Technology Industries Association (JEITA).

• When changing the folder name or file name on PC, the pictures may not be played back.

• The file format that can be played back with this camera is JPEG. (There are also pictures that cannot be played back in JPEG format.)

• When playing back pictures that have been recorded with other equipment, the picture quality may be deteriorated and pictures may not be played back.

• When playing back a file out of standard, the folder/file number is indicated by [—] and the screen may turn black.

• The interference fringe may appear on the screen depending on the subject. This is called moire. This is not a malfunction.

45

Playback (basic)

600

004

00

_

9

L

T

V

0

9 Pictures Multi Playback

Preparation

• Set the mode dial to [ ]. (P29)

1 Switch to multi screen. 2 Select the pictures.

1

1/1

10:00 JAN1.2

1

SELECT CANCEL

ANCE

WB

E

1

SELECT CANCEL

ª To return to the normal playback

Rotate the zoom lever towards [ ].

W T

• The picture with the number colored in yellow appears.

46

Playback (basic)

L

Using the Playback Zoom

Preparation

• Set the mode dial to [ ]. (P29)

1 Enlarge the picture.

ANCE

WT

•:1k>2k>4k>8k>16k

•:16k>8k>4k>2k>1k

2 Shift the picture.

ANCE

WB

ª To delete a picture during the

playback zoom

Press the [ ] button. When the confirmation screen appears, press 2 to select [YES], and press 4. (P48)

Suggestions/Tips

¬

• The more the picture is enlarged, the more its quality deteriorates.

• The playback zoom may not operate if pictures have been recorded with other equipment.

R

E

W

V

E

I

SET

47

Deleting Pictures

E

?

SNO

T

CT

L

Preparation

• Set the mode dial to [ ]. (P29)

ª To delete single picture

Playback (basic)

1 Select the picture to be deleted.

1600

100_0001

1/19

10:00 JAN. 1.2004

WB

R

E

W

V

E

I

SET

• Press 2 to play back the previous picture.

• Press 1 to play back the next picture.

2 Delete the picture.

DELETE SINGL

DELETE THIS PICTURE

YE

ELE E

/FOCUS

R

E

WB

SET

W

V

E

I

MULT I/AL

WB

R

E

W

V

E

I

SET

48

ª To delete multi pictures

E

T

CT

L

0

YOU MARKED?

YOU M

TRES

C

Playback (basic)

1 Select [MULTI DELETE].

MULT I/ALL DELET

MULTI DELET

ELE

/FOCUS

2 times

E

ANCE

WB

R

E

W

V

E

I

SET

2 Select the pictures to be deleted.

MULTI DELETE

1

SELECT MARK/UNMARK

WB

R

E

W

V

E

I

SET

• The selected pictures appear with [ ]. When 4 is pressed again, the setting is canceled.

• The icon [ ] blinks red if the selected picture cannot be deleted. Cancel the protect setting. (P83)

DELETE

MENU

EXIT

WB

R

E

V

E

I

SET

W

3 Delete the pictures.

MULTI DELETE

DELE

THE PI

YES NO

/FOCUS

• It is possible to delete up to 50 pictures all at once.

WB

R

E

W

V

E

I

SET

SETSELECT

WB

R

E

W

V

E

I

SET

49

ª To delete all pictures

E

T

CTANCEL

E

S?

SNO

CTET

1 Select [ALL DELETE].

MULT I/ALL DELET

MULTI DELET

ELE

E

Playback (basic)

¬

Suggestions/Tips

• Once deleted, pictures cannot be recovered. Please double-check before deleting pictures.

• Pictures that are protected (P83) or not of DCF standards (P45) are not deleted.

• Do not turn off the camera or remove the card while deleting.

• When the remaining battery power (P13) is low, use the AC adaptor.

¬

/FOCUS

2 times

WB

R

E

W

V

E

I

SET

2 Delete all of the pictures.

DELETE ALL PICTURE

YE

ELE

WB

R

E

W

V

E

I

SET

R

E

WB

R

E

W

V

E

I

SET

WB

W

V

E

I

SET

50

Recording pictures (advanced)

600

9

Recording pictures (advanced)

Taking Pictures using Macro Mode

This mode allows you to take pictures closely focusing on the subject. (e.g. When taking pictures of flowers.) You can take pictures with the lens at a distance of 0.33 feet (10 cm) (Wide) from the subject.

Preparation

• Set the mode dial to [ ]. (P29)

• Normal

1.64 feet

0.98 feet

(30 cm)

(50 cm)

1.64 feet

0.33 feet

(50 cm)

(10 cm)

• Macro mode [ ]

0.98 feet

(30 cm)

0.33 feet

(10 cm)

¬

Suggestions/Tips

¬

• In Macro mode, we recommend using a tripod.

• When the camera lens is at a distance beyond the available range from the subject, the subject may not be focused even if the focus indication lights.

• In Macro mode, the captured range may differ from the visible range by the optical finder. Use the LCD monitor to take pictures.

• The available flash range is about

1.31 feet (40 cm)– 10.8 feet (3.3 m) (Wide), 1.31 feet (40 cm) – 6.56 feet (2 m) (Tele). (When setting to ISO200/ AUTO)

1

51

Recording pictures (advanced)

600

9

Taking Pictures using Portrait Mode

This mode allows you to make a subject stand out from an unfocused background and adjust the exposure and the hue.

Preparation

• Set the mode dial to [ ]. (P29)

ª Technique for Portrait mode

To make this mode more effective, rotate the zoom lever to Tele as far as possible to be close to the subject, and then select a background which is far from the camera.

1

¬

Suggestions/Tips

• This mode is suitable for outdoors in the daytime.

• [AUTO] setting in white balance works best when recording outdoors in the daytime. When using indoors, the hue may change.

• You can change the white balance setting. (P58)

• When you want to change the exposure or the hue, compensate the exposure or adjust the picture quality.

¬

52

Recording pictures (advanced)

600

9

Taking Pictures using Landscape Mode

In Landscape mode the camera is adjusted to produce the greatest depth of field. This mode works best outdoors under direct sunlight at distances exceeding

9.84 feet (3 m).

Preparation

• Set the mode dial to [ ]. (P29)

¬

Suggestions/Tips

1

• Flash is set to Forced OFF [ ].

• The focus is adjusted at a distance of

9.84 feet (3 m)– ¶.

• [AUTO] setting in white balance works best when recording outdoors in the daytime. When using indoors, the hue may change.

• You can change the white balance setting. (P58)

¬

53

Recording pictures (advanced)

600

9

Taking Pictures using Night Portrait Mode

Night Portrait Mode allows you to take pictures against a nighttime landscape. By using the flash and a slow shutter speed, the picture will show the subject and the background brighter than they appear in real life.

Preparation

• Set the mode dial to [ ]. (P29)

1

ª Shutter speed in Night portrait

mode

Flash mode

ª Technique for Night portrait mode

• When you record pictures holding the camera with your hands, keep the camera firmly with activating the stabilizer function. (Shutter speed: max. 1/8th) When you turn the stabilizer function to [OFF], we recommend using a tripod since the shutter speed becomes slow (max. about 1 second).

• Keep the subject still for about 1 second after taking a picture.

Shutter speed

Stabilizer function [MODE1] [MODE2]

Stabilizer function [OFF]

8 – 1/2000th

1/8th – 1/2000th

1 – 1/2000th

• The subject should be positioned within the available flash range [1.31 feet (40 cm) – 10.8 feet (3.3 m) (Wide), 1.31 feet (40 cm) – 6.56 feet (2 m) (Tele)]. (When setting to ISO200/AUTO)

• We recommend rotating the zoom lever to Wide.

• The focus range is 3.28 feet (1 m)– 9.84 feet (3 m).

ª When taking picture of a

landscape at night

• When flash is set to Forced OFF [ ], you can capture the night illumination scenery itself with slower shutter speed. (Max: about 8 seconds)

• The focus range is 9.84 feet (3 m) – ¶.

Suggestions/Tips

¬

• Flash setting is fixed to Slow sync./ Red-eye reduction [ ].

• The shutter may be kept closed (max. about 8 seconds) after taking a picture with slow shutter speed, but it is not a malfunction.

• You can change the white balance setting. (P58)

• When you take pictures in dark places, noises may become visible. To avoid noises, we recommend setting [PICT.ADJ.] to [NATURAL]. (P70)

• When you record pictures in dark places, it may be difficult to focus on the subject. We recommend recording pictures in bright places with contrast using the AF/AE lock (P33).

¬

54

Recording pictures (advanced)

600

9

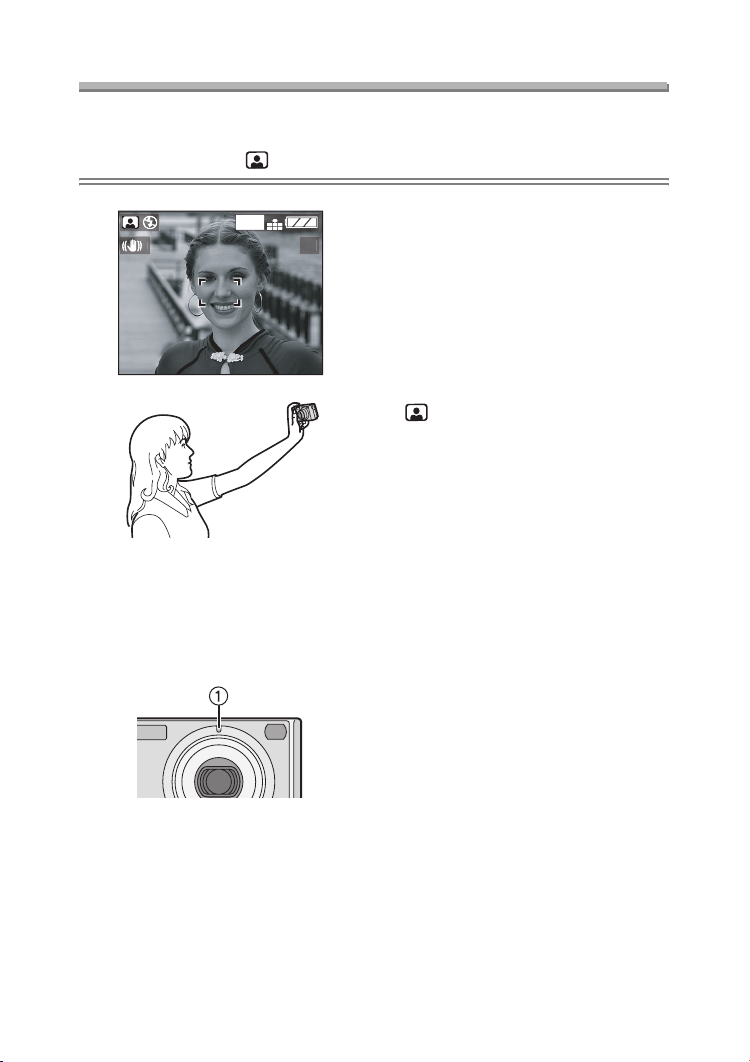

Taking Pictures using Self-portrait Mode

This mode allows you to take a picture of yourself.

Preparation

• Set the mode dial to [ ]. (P29)

1

ª Technique for Self-portrait mode

• When you are focused by pressing the shutter button halfway, the self-timer indicator 1 lights up. Fix the camera firmly and then press the shutter button fully.

Suggestions/Tips

¬

• The available focus range is 0.98 feet (30 cm) – 2.30 feet (70 cm). When the camera lens is at a distance over the range, the subject may not be focused even if the focus indication appears.

• When you take a picture of yourself with audio, the self-timer indicator lights up while recording the audio.

• When adjusting the Mode dial to [ ], the zoom lever is automatically moved to Wide.

• The self-timer can be set to [OFF] or [2SEC.]. (P43) When you set to [2SEC.], it is kept until the camera is turned [OFF] or you switch the mode.

• The stabilizer function is fixed to [MODE2]. (P71)

• You cannot set the Spot mode.

¬

• The captured picture automatically appears on the LCD monitor for reviewing. Refer to P36 for operations on the review function.

• When the picture may be blurred by slow shutter speed, we recommend using the 2 seconds self-timer. (P43)

55

Recording pictures (advanced)

CTET

U

UP

OOM

R

E

ps

1

F

ps

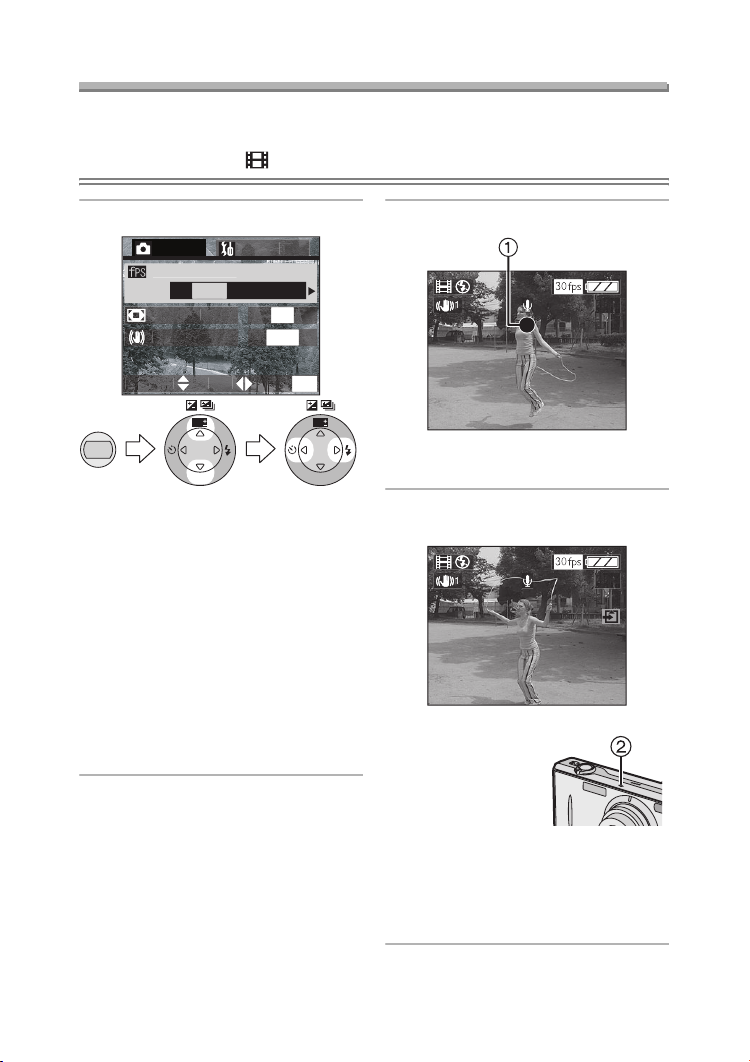

Recording Motion Images

You can record motion images with audio.

Preparation

• Set the mode dial to [ ]. (P29)

1 Select [MOTION RATE].

REC

MOTION RAT

D.Z

TABILIZE

ELE

MENU

R

• [30fps]: The motion of recorded image is smooth, but the file size is large.

• [10fps]: The file size is smaller so you can record motion images for a longer time.

• fps (frame per second); This means the number of frames used in 1 second.

• Close the menu by pressing the [MENU] button after finishing the setting.

ET

10f

30f

F

MODE

WB

E

W

V

E

I

SET

MEN

2 Press the shutter button halfway.

WB

R

E

W

V

E

I

SET

• When the subject is focused, the focus indication 1 lights.

3 Press the shutter button fully to

start the recording.

• The audio recording starts simultaneously from the built-in microphone 2 of the camera.

• By pressing the shutter button fully again, the recording stops.

• If the memory of the card becomes full during recording, the recording stops automatically.

56

ª Available recording time

Recording pictures (advanced)

SD Memory

Card Capacity

Motion rate

10fps 30fps 16 MB 75 seconds 25 seconds 32 MB 160 seconds 55 seconds 64 MB 350 seconds 120 seconds

128 MB 720 seconds 240 seconds 256 MB 1450 seconds 480 seconds 512 MB 2950 seconds 1020 seconds

• The remaining recording time appears on the screen. (It is an approximation.)

• The recordable time is an approximation.

Suggestions/Tips

¬

• The picture size is fixed to 320k240 pixels.

• The motion images cannot be recorded without audio.

• If using the MultiMediaCard, after recording motion images, the flash/access indicator and the card access indication may appear for a while, but this is not a malfunction.

• After recording starts, the auto focus/zoom/aperture values are fixed (with the first frame).

• Recording could suddenly stop depending on the type of the card when recording motion images.

• When the motion images recorded with this camera is played back on other equipment, the quality of pictures and sounds may be deteriorated or they may not be played back.

• The motion images recorded with setting [MOTION RATE] to [30fps] cannot be played on the camera which does not support [30fps] of motion rate.

• The review function cannot be used.

• The stabilizer function can be set to only [MODE1].

57

Recording pictures (advanced)

/

UP

E

Y

E

600

F

O

T

CT

U

Setting the White Balance

In certain situations, the color white may appear slightly reddish or bluish. This can occur when shooting under early or late day sunlight, on a cloudy day, or under halogen lighting. By using the manual White Balance feature you can achieve a more accurate reproduction of the color white.

Preparation

• Set the mode dial except for [ ]/[ ]/[ ]. (P29)

¬

1 Select [W.BALANCE] and set the

desirable mode.

REC

W.BALANCE

AUT

PICT.SIZ

UALIT POT MOD

ELE

MENU

WB

R

E

V

SET

•[AUTO]: for setting the white balance automatically (auto white balance)

•[ ] (Daylight): for recording outdoors on a bright day

• [ ] (Cloudy): for recording under a cloudy and shady sky

• [ ] (Halogen): for recording under halogen lighting

• [ ] (White set): for manual setting (Read the following page where the manual setting is explained in detail.)

• Close the menu by pressing the [MENU] button after finishing the setting.

ET

1

F

E

W

E

I

MEN

WB

R

E

W

V

E

I

SET

Suggestions/Tips

• When setting the white balance to the mode except for [AUTO], you can finely adjust the white balance. (P60)

• The setting of the white balance is applied to the other recording modes.

• In Simple mode [ ]/Motion image mode [ ], the white balance is fixed to [AUTO].

• When taking a picture with the flash, the white balance will be automatically adjusted [except for [ ] (Daylight)], but the white balance may not be properly adjusted when the photo flash is insufficient.

¬

58

Recording pictures (advanced)

/

UP

E

Y

E

600

F

T

CT

U

O

Setting the White Balance manually (White set)

Preparation

• Set the mode dial except for [ ]/[ ]/[ ]. (P29)

1 Select [W.BALANCE] and set to

[].

REC

W.BALANCE

AUT

PICT.SIZ

ET

1

UALIT

F

MEN

WB

R

E

W

V

E

I

SET

MENU

ELE

POT MOD

WB

R

E

V

E

I

SET

E

W

2 (Only when setting the white

balance again) Press 1.

3 Aim the camera at a sheet of white

paper 1 or similar object so that it completely fills the frame to white on the screen and press the shutter button fully.

Use of auto white balance adjustment in inappropriate lighting conditions may result in reddish or bluish pictures. Where the subject is surrounded by many light sources, auto white balance adjustment may not operate properly. In this case, set the white balance to the mode except [AUTO] manually.

1 The range that is controlled by the

auto white balance adjustment

mode of this camera 2 Blue sky 3 Cloudy sky (Rain) 4 TV screen 5 Sunlight 6 White fluorescent light 7 Incandescent light bulb 8 Sunrise and sunset 9 Candlelight

2)

3)

4)

1)

5)

6)

7)

8)

9)

KlKelvin Color Temperature

• Close the menu by pressing the [MENU] button after finishing the setting.

59

Recording pictures (advanced)

UE

JUST.

CT

UE

JUST.

CT

Finely Adjusting the White Balance

If you cannot acquire the desirable hue with white balance because of too many different light sources, etc., adjust the fine white balance as follows.

Preparation

• Set the mode dial except for [ ]/[ ]/[ ]. (P29)

• Set the white balance to [ ]/[ ]/[ ]/[ ]. (P58)

1 Press 3 until [ WB ADJUST.]

appears.

WB AD

BL

ELE

WB

R

E

W

V

E

I

SET

3 times

2 Adjust the white balance.

WB AD

BL

ELE

WB

R

E

W

V

E

I

SET

• 1 [BLUE]: Press when the hue is

• 2 [RED]: Press when the hue is

• Close the function by pressing 4 after finishing the adjustment.

¬

Suggestions/Tips

• The white balance icon turns red or blue.

• You can set the value independently for each of the modes in white balance.

• When you set the white balance using the White set [ ], the adjustment level is set to “0”.

• The adjusted picture will be close, though may not be identical to the actual picture.

reddish.

bluish.

¬

60

Recording pictures (advanced)

/

UP

Y

E

F

3041280

E

O

60040

T

CT

U

Changing the Picture Size

Preparation

• Set the mode dial except for [ ]/[ ]/[ ]. (P29)

¬

1 Select [PICT.SIZE] and set the

picture size.

ET

W.BALANCE

PICT.SIZ

2

1

UALI T POT MOD

ELE

MENU

E

WB

R

E

W

V

E

I

SET

• [2304]: 2304k1728 pixels

• [1600]: 1600k1200 pixels

• [1280]: 1280k960 pixels

• [640]: 640k480 pixels

• [HDTV]: 1920k1080 pixels

• Close the menu by pressing the [MENU] button after finishing the setting.

AUT

F

MEN

WB

R

E

V

SET

W

E

I

Suggestions/Tips

• In Motion image mode [ ], the

picture size is fixed to 320k240 pixels.

• The smaller the picture size

(640k480 pixels) you select, the more pictures you can store on the card. In addition, a small file size allows you to attach the picture to an e-mail or post it on a website more easily.

• If you select a larger picture size

(2304k1728 pixels), the printed picture will be clearer, especially with larger sized prints.

• If you playback pictures recorded using [HDTV] mode on a High-Definition TV, (HDTV has 16:9 aspect) the picture quality will be higher. An SD Memory Card can be played on TVs with an SD Memory Card slot.

¬

61

Recording pictures (advanced)

E

600

/

UP

E

F

Y

O

T

CT

U

Changing the Quality

“Quality” refers to the amount each image is compressed. Lower compression results in superior picture quality. Higher compression allows you to store more images on your SD Memory card.

Preparation

• Set the mode dial except for [ ]/[ ]/[ ]. (P29)

¬

1 Select [QUALITY] and set the

quality.

ET

W.BALANCE PICT.SIZ

UALIT

POT MOD

ELE

E

AUT

1

F

MEN

Suggestions/Tips

• It may happen that pictures appear like a mosaic depending on the subject or the recording condition.

• The number of recordable pictures depends on the subject.

• The number of remaining frames may not correspond with recorded frames.

• Refer to P113 for the number of recordable pictures.

¬

MENU

WB

R

E

W

V

E

I

SET

WB

R

E

W

V

E

I

SET

• : Fine (Low compression) It gives priority to picture quality to record high quality pictures.

• : Standard

(High compression) It gives priority to the number of recordable pictures and records standard quality pictures.

• Close the menu by pressing the [MENU] button after finishing the setting.

62

Recording pictures (advanced)

Y

E

600

/

UP

O

E

F

T

CT

U

600

9

5

8

600

9

Taking Pictures using Spot Mode

When using Spot mode the size of the area used to calculate the focus and exposure is decreased. It is useful when you may be shooting through a group of people and want to designate where in the group the camera will calculate the exposure.

Preparation

• Set the mode dial except for [ ]/[ ]/[ ]/[ ]. (P29)

1 Select [SPOT MODE] and set it to

[ON].

ET

W.BALANCE PICT.SIZ

AUT

1

UALIT

POT MOD

F

MEN

WB

R

E

W

V

E

I

SET

MENU

ELE

E

WB

R

E

W

V

E

I

SET

• Close the menu by pressing the [MENU] button after finishing the setting.

2 Aim the spot AF area to the

subject and press the shutter button halfway for the AF/AE lock.

1

3 Move the camera to compose the

picture fixing the focus on the subject and take the picture.

1

• You can set suitable AF/AE in more limited areas.

¬

Suggestions/Tips

• When the subject is dark, it may not be focused properly.

• Background may become dark or whitish depending on the subject because the exposure is set appropriately in the spot AF area.

¬

1/2

F2.

• The spot AF area 1 and spot metering target 2 appear.

63

Recording pictures (advanced)

/

UP

C.

Y

R

OOM

F

O100200

T

CT

U

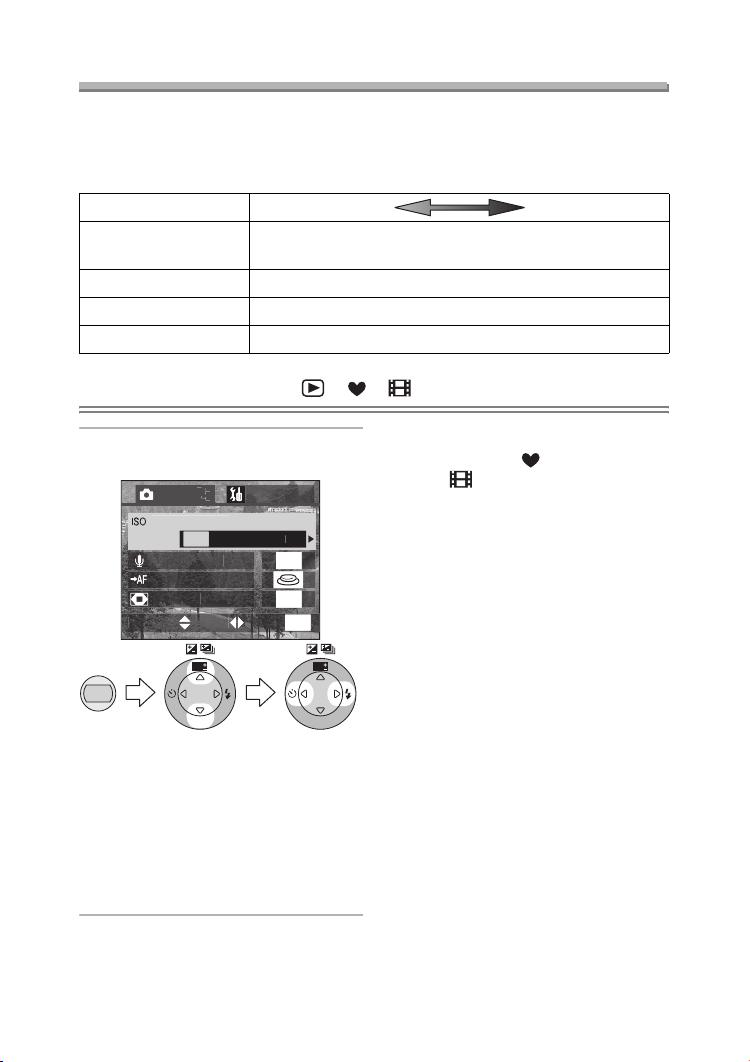

Setting ISO Sensitivity

The ISO setting sets the cameras sensitivity to light. The ISO setting can be increased when you need to take pictures in places where a flash may not be allowed. The overall picture quality will decrease slightly as the ISO setting is increased.

ISO sensitivity 50 200

Use in bright places (e.g. outdoors)

Use in dark places Not suitable Suitable

Shutter speed Slow Fast

Noises Less Increase

Preparation

• Set the mode dial except for [ ]/[ ]/[ ]. (P29)

1 Select [SENSITIVITY] and set the

ISO sensitivity.

REC

ENSITIVIT

AUDIO RE AF TRIGGE D.Z

ELE

AUT

ET

E

Suitable Not suitable

¬

Suggestions/Tips

• In Simple mode [ ]/Motion image mode [ ], ISO sensitivity is fixed to [AUTO].

• To avoid noises, we recommend decreasing the ISO sensitivity or

F

setting [PICT.ADJ.] to [NATURAL]. (P70)

F

MEN

¬

MENU

WB

R

E

W

V

E

I

SET

• When setting to [AUTO], the ISO sensitivity is automatically adjusted from ISO50 to ISO200 according to the brightness. (From ISO100 to ISO200 when using the flash)

• Close the menu by pressing the [MENU] button after finishing the setting.

WB

R

E

W

V

E

I

SET

64

Recording pictures (advanced)

/

UP

C.

OOM

F

Y

O

F

T

CT

U

R

600

9

00

8

Taking Pictures with Audio

Preparation

• Set the mode dial except for [ ]/[ ]/[ ]. (P29)

¬

1 Select

[ON].

ELE

[

AUDIO REC.] and set it to

ET

ENSITIVIT

AUT

AUDIO RE

F

AF TRIGGE D.Z

E

F

MEN

Suggestions/Tips

• It is not necessary to keep pressing the shutter button.

• Audio is recorded from the built-in microphone 1 of the camera.

¬

MENU

WB

R

E

W

V

E

I

SET

• Close the menu by pressing the [MENU] button after finishing the setting.

2 Take the picture.

1

F2.

• 5 seconds after, the audio recording is stopped automatically.

• If you press the [MENU] button during the audio recording, it will be canceled. The audio cannot be recorded.

1/1

WB

• When setting to auto bracket/burst

R

E

W

V

E

I

SET

mode, it is not possible to take pictures with audio.

• When audio is recorded with each picture the total number of pictures that can be stored on each card will be slightly decreased.

1

65

Recording pictures (advanced)

CTET

U

/

UP

Y

R

C.

R

OOM

F

OCUS

F

O

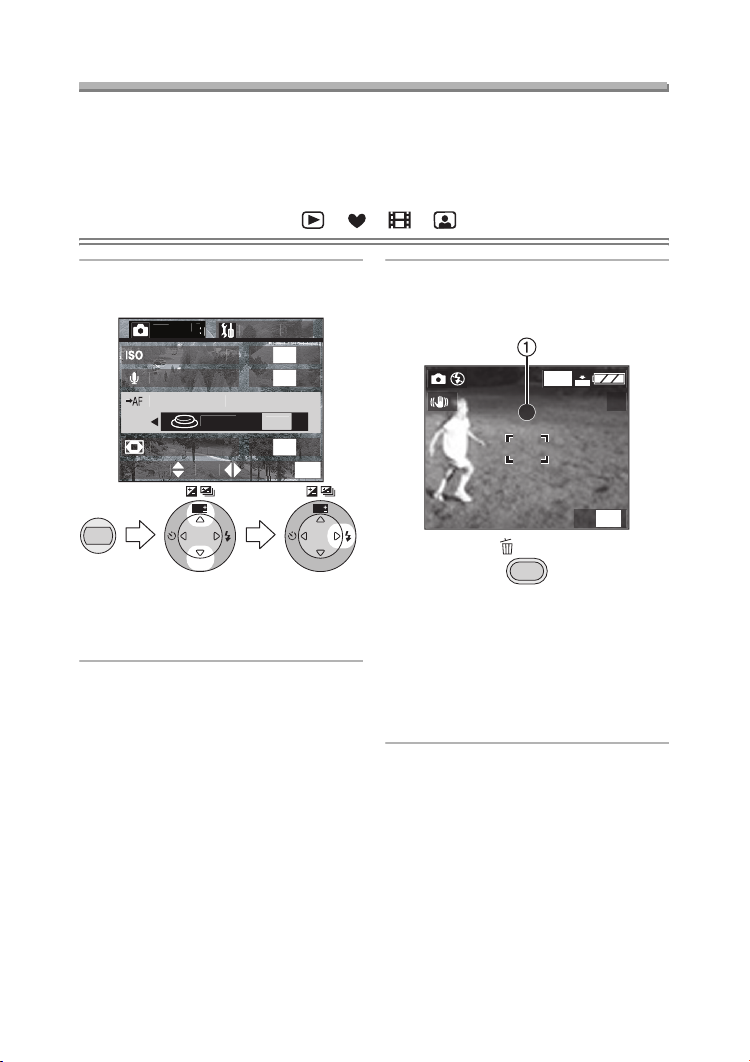

Using the AF Trigger

Prefocus is a technique to focus on the point where the subject comes in advance, and it is used when taking a picture of the subject with quick motion. This function is suitable when the distance between the camera and the subject is certain.

Preparation

• Set the mode dial except for [ ]/[ ]/[ ]/[ ]. (P29)

1 Select [AF TRIGGER] and set it to

[FOCUS].

ET

ENSITIVIT AUDIO RE

AF TRIGGE

HUTTE

D.Z

ELE

MENU

WB

R

E

W

V

E

I

SET

• Close the menu by pressing [MENU] button after finishing the setting.

AUT

F

MEN

WB

R

E

W

V

E

I

SET

2 Aim the AF area to the point

where you want to focus (P30) and press the [FOCUS] button.

1600

1

/FOCUS

• When the subject is focused, the focus indication 1 lights up for 1 second.

• Even when pressing the shutter button halfway, the focus will not be changed unless you press the [FOCUS] button again.

AF

19

FOCUS

66

Recording pictures (advanced)

3 Take the picture.

1600

1

¬

Suggestions/Tips

¬

• When the AF Trigger is set to [FOCUS], you cannot focus on the subject by only pressing the shutter button halfway. Be sure to press the [FOCUS] button before taking pictures.

• When taking pictures normally, set the AF Trigger to [ ].

SHUTTER

• When taking pictures in Simple mode [ ] or Self-portrait mode [ ], the AF Trigger is automatically set to [].

SHUTTER

AF

19

FOCUS

67

Recording pictures (advanced)

C.

F

/

UP

OOM

Y

O

F

T

CT

U

R

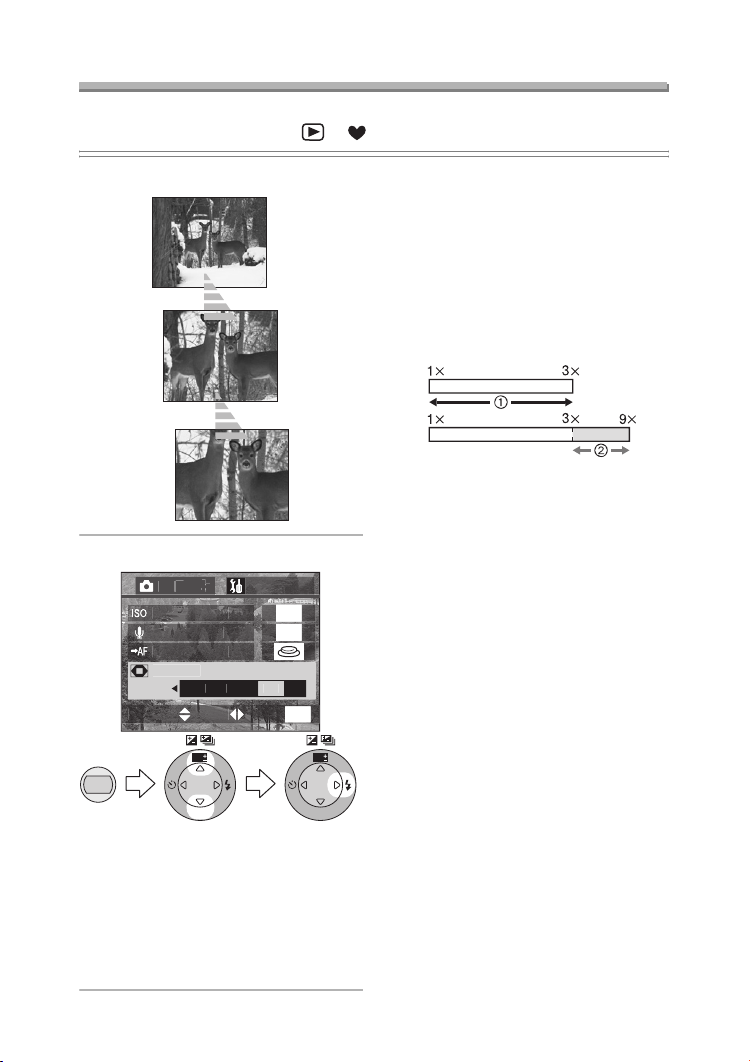

Using the Digital Zoom

Preparation

• Set the mode dial except for [ ]/[ ]. (P29)

3X

6X

9X

1 Select

MENU

[

D.ZOOM] and set it to [ON].

ET

ENSITIVIT

AUDIO RE

AUT

F

AF TRIGGE

D.Z

F

ELE

E

WB

R

E

W

V

E

I

SET

MEN

• Close the menu by pressing the [MENU] button after finishing the setting.

• When rotating the zoom lever and setting the [D.ZOOM] to [ON], the digital zoom indication appears. (P105)

ª Entering the digital zoom range

When you rotate the zoom lever to the extreme Tele position the on screen zoom indication may momentarily pause. This is not a malfunction. You can enter the digital zoom range to continuously rotate the zoom lever to Tele or to release the zoom lever once and then rotate it to Tele again.

W

T

1 Optical zoom 2 Digital zoom

Suggestions/Tips

¬

• It is possible to further magnify a subject already magnified 3 times with the optical zoom by 3 more times with the digital zoom, thereby reaching a maximum of 9 times.

• When using the digital zoom the picture quality becomes deteriorated.

• In the digital zoom range, the stabilizer function may not be effective.

WB

• We recommend using a tripod in the digital zoom range.

• The digital zoom is canceled when the

R

E

W

V

E

I

SET

LCD monitor is turned off.

68

Recording pictures (advanced)

/

UP

J.

CT

R

1

F

/

T

CT

U

600

9

00

8

Using the Color Effect

You can use 3 types of color effects depending on the image of the picture.

Preparation

• Set the mode dial except for [ ]/[ ]/[ ]. (P29)

1 Select [COL.EFFECT] and set the

color.

REC

L.EFFE

F

PICT.AD

TABILIZE

ELE

MENU

R

E

• [COOL]: The picture becomes bluish.

• [WARM]: The picture becomes reddish.

• [B/W]: The picture becomes black and white.

• Close the menu by pressing the

[MENU] button after finishing the setting.

WB

SET

ET

TANDARD

MODE

E

W

V

E

I

MEN

WB

R

E

W

V

E

I

SET

2 Take the picture.

1

1/1

F2.

¬

Suggestions/Tips

• [COOL] is effective when you want to add cold atmosphere to the picture, and [WARM] is effective when you want to express comfortable warmth in the scene.

¬

69

Recording pictures (advanced)

/

UP

J.

CT

F

R

1

T

CT

U

D

Adjusting the Quality of the Picture (Picture Adjustment)

Preparation

• Set the mode dial except for [ ]/[ ]/[ ]. (P29)

¬

1 Select [PICT.ADJ.] and set it

ET

L.EFFE

PICT.AD

NATURALTANDAR

TABILIZE

ELE

E

F

MODE

MEN

.

Suggestions/Tips

• In Simple mode [ ]/Motion image mode [ ], you cannot adjust the picture quality.

• When you take pictures in dark places, noises may become visible. To avoid noises, we recommend setting [PICT.ADJ.] to [NATURAL].

¬

MENU

WB

R

E

W

V

E

I

SET

• [NATURAL]: The picture quality becomes softer.

• [VIVID]: The picture quality becomes sharper.

• Close the menu by pressing the

[MENU] button after finishing the setting.

WB

R

E

W

V

E

I

SET

70

Recording pictures (advanced)

/

UP

J.

R

CT

FMODE2MODE1

T

CT

U

F

D

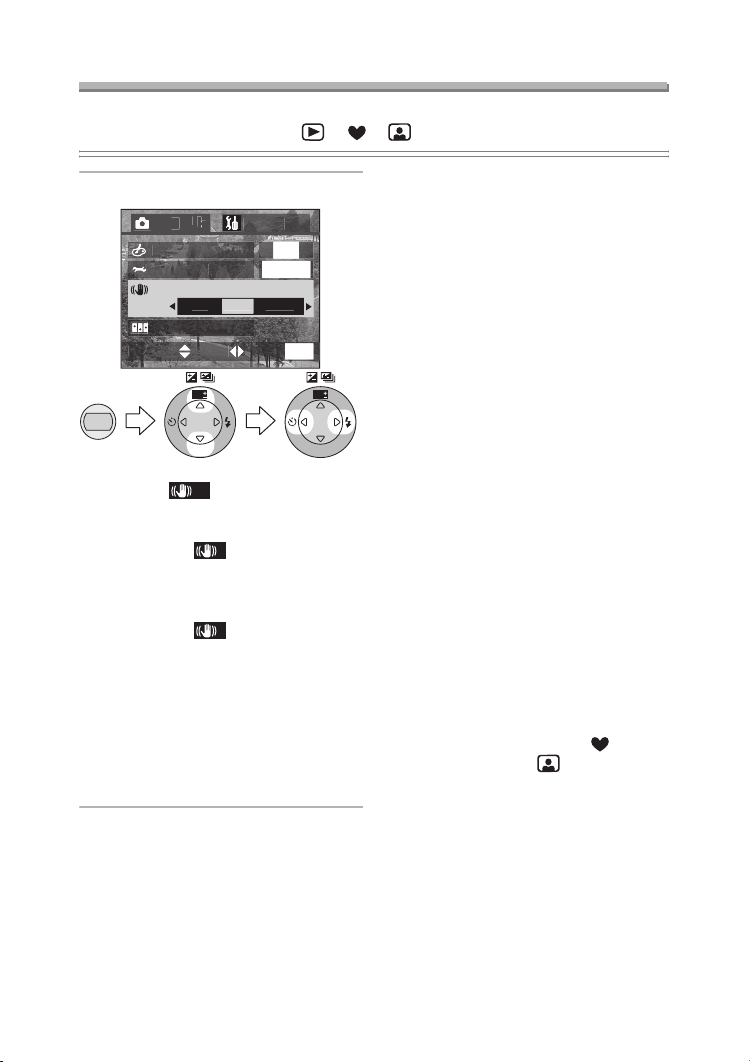

Using the Optical Image Stabilizer

Preparation

• Set the mode dial except for [ ]/[ ]/[ ]. (P29)

¬

1 Select [STABILIZER] and set it.

ET

L.EFFE

PICT.AD

TABILIZE

F

ELE

MENU

• [OFF]:

E

WB

R

E

W

V

E

I

SET

OFF

When image stabilization is not desired or when using a tripod.

•[MODE1]:

1

The stabilizer operates continuously and can assist during photocomposition.

•[MODE2]:

2

The stabilizer function is in standby and activates at the moment the shutter captures the image. This mode offers a greater degree of stabilization.

• Close the menu by pressing the

[MENU] button after finishing the setting.

F

TANDAR

MEN

WB

R

E

V

SET

W

E

I

Suggestions/Tips

• In [MODE2], the optical image stabilizer icon turns yellow soon after you turn the camera on to keep the stabilizer function activated.

• While the optical image stabilizer icon is displayed in yellow and if the camera receives a strong shock, the icon may be displayed in yellow for longer time than usual.

• While the optical image stabilizer icon is displayed in yellow, the stabilizer function may not work sufficiently.

• While the optical image stabilizer icon is displayed in yellow, the pictures on screen also be stabilized. (same as in [MODE1])

• The stabilizer function may not work sufficiently in the following cases. – When too much jitter occurs. – In digital zoom range. – When taking pictures while following

subjects in motion.

– When the shutter speed is extremely

slow due to darkness or other reasons.

• Refer to P32 for information on jitter.

• The stabilizer function is fixed to [MODE2] in Simple mode [ ] and Self-portrait mode [ ].

¬

71

Recording pictures (advanced)

/

UP

J.

R

1

CT

F

T

CT

U

D

U

E

GE

S

T

CT

Creating Flip Animation

You can create motion image files by arranging pictures taken frame-by-frame.

Preparation

• Set the mode dial except for [ ]/[ ]/[ ]. (P29)

Example: When capturing images of the subject in sequence moving it little by little and aligning the images, the subject looks as if it were moving.

ª Capturing images

1 Select [FLIP ANIM.].

ET

F

TA ND A R

MODE

MENU

PICT.AD

ELE

L.EFFE

TABILIZE

WB

R

E

V

E

I

SET

E

W

2 Select [IMAGE CAPTURE].

IMAGE CAPTUR

REATE MOTION IMA

DELETE STILL IMAGE

ELE

E

WB

MEN

WB

R

E

W

V

E

I

SET

R

E

W

V

E

I

SET

72

Recording pictures (advanced)

U

0

/2

CT

E

GE

S

T

CT

U

GE

ps

GE

T

CT

U

ª Creating motion images

3 Capture images for flip animation.

2

MEN

• You can take up to 100 pictures.

4 Check the image.

2

1

ELE

WB

R

E

W

V

E

I

SET

• You can check the previous or following image with 2/1.

• Delete unnecessary images with [ ] button.

5 Select [CREATE MOTION IMAGE].

IMAGE CAPTUR

REATE MOTION IMA

DELETE STILL IMAGE

MEN

WB

R

E

W

V

E

I

SET

MENU

ELE

E

WB

R

E

W

V

E

I

SET

6 Select [FRAME RATE] and set the

number of frames.

REATE MOTION IMA

5f

10f

REATE MOTION IMA

ELE

E

WB

R

E

W

V

E

I

SET

• [5fps]: 5 frames/sec.

• [10fps]: 10 frames/sec. (The motion images become smoother.)

MEN

73

Recording pictures (advanced)

GE

ps

T

CT

U

7 Select [CREATE MOTION IMAGE]

and create a flip animation.

REATE MOTION IMA

5 f

REATE MOTION IMA

ELE

R

E

WB

SET

V

E

I

E

W

• The file number appears for about 1 second after creating a flip animation.

• Including the created images, the flip animation is counted as 1 animation image.

• Close the menu by pressing the [MENU] button 3 times after finishing the setting.

MEN

WB

R

E

W

V

E

I

SET

ª Playing back a created flip

animation

Follow the same procedure as you play back motion images. (P76)

ª Deleting all the still images used

for flip animation

When selecting [DELETE STILL IMAGES] in flip animation screen, a confirmation screen appears. Select [YES] and then press 4.

Suggestions/Tips

¬

• Flip animations are created as motion image files. (Extension: .MOV)

• The number of pixel is 320k240.

• You cannot use pictures with audio, burst mode and auto bracket.

• The images in each frame do not appear in normal review. (P36)

• Flip animations may not be played by other equipment.

• The flip animations recorded with setting [FRAME RATE] to [5fps] cannot be played back on the camera which does not support [5fps] of motion rate.

• Audio cannot be recorded on flip animations. However, you may hear noises when playing back with other equipment without a mute function.

• The number of recordable images is an approximation.

74

Playback (advanced)

00

9

600

004

O

00

9

600

004

Playback (advanced)

Playing Back Pictures with Audio

Preparation

• Set the mode dial to [ ]. (P29)

¬

1 Select the picture with audio icon

.

[]

1

PLAY AUDI

1/1

10:00 JAN1.2

WB

R

E

W

V

E

I

SET

2 Play back the audio.

1

1/1

Suggestions/Tips

• The picture with audio cannot be resized (P88) or trimmed (P90).

¬

10:00 JAN1.2

WB

R

E

W

V

E

I

SET

• You can hear audio from the speaker.

• To adjust the sound volume, refer to P26.

75

Playback (advanced)

ON

004

00

_

9

GE

N

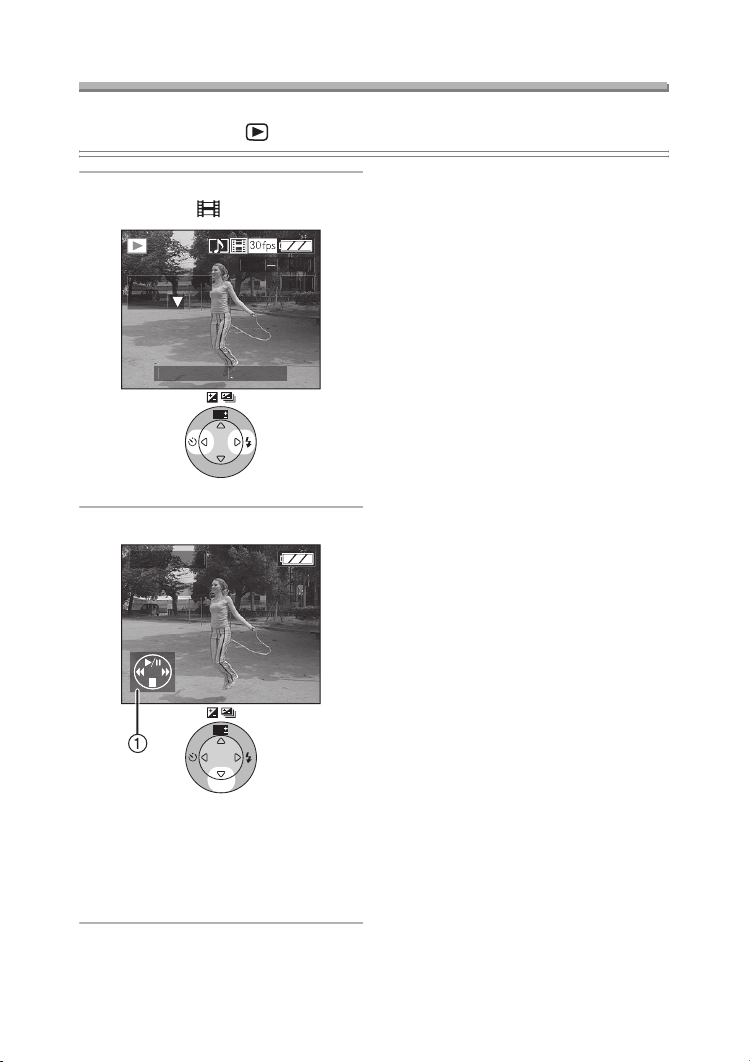

Playing Back Motion Images

Preparation

• Set the mode dial to [ ]. (P29)

1 Select the picture with the motion

image icon [ ].

1

PLAY MOTI

1/1

IMA

10:00 JAN1.2

WB

R

E

W

V

E

I

SET

2 Play back the motion images.

10S REMAI

WB

R

E

W

V

E

I

SET

• Motion image playback stops and the normal playback is restored by pressing 4.

• The icon 1 is corresponding to the

3/4/2/1.

ª Fast forwarding/Fast rewinding

During motion image playback, continue pressing 2/1.

1: Fast forward 2: Fast rewind

• When releasing the button, it turns to normal motion image playback.

ª To p aus e

Press 3 during motion image playback.

• Press 3 again to cancel pause.

• To adjust the sound volume, refer to P26.

Suggestions/Tips

¬

• You cannot use the zoom function while playing back or pausing motion images.

• The file format that can be played back with this camera is QuickTime Motion JPEG.

• Some QuickTime Motion JPEG files recorded by a PC or other equipment may not be played back with this camera.

• When playing back motion images that have been recorded with other equipment, the quality of images may be deteriorated or the images may not be able to be played back.

• When using a high capacity card, it is possible that fast rewinding may be slower than usual.

76

Playback (advanced)

/

UP

CT

E

T

OW

.

T

CT

U

E

T

CTANCEL

U

Rotating the Picture

You can rotate the recorded pictures in increments of 90°. This is a convenient function to play back pictures on TV.

Preparation

• Set the mode dial to [ ]. (P29)

1 Select [ROTATE].

ET

ROTAT

PROTE DPOF PRIN

LIDE SH

AUDIO DUB

MEN

WB

R

E

W

V

E

I

SET

MENU

ELE

E

WB

R

E

W

V

E

I

SET

2 Select the direction to rotate the

picture.

ROTAT

ELE

R

E

WB

SET

V

E

W

E

I

• [ ]: The picture rotates counter-clockwise in increments of 90°.

• [ ]: The picture rotates clockwise in increments of 90°.

MEN

WB

R

E

W

V

E

I

SET

• Close the menu by pressing the [MENU] button after finishing the setting.

ª Example

When rotating clockwise ( )

Original Picture

¬

Suggestions/Tips

¬

• Still pictures can only be rotated in normal playback. When playing back rotated pictures in zoom playback or multi playback, pictures appear in original angle.

• The recording date of the picture is changed to the date when you rotated the picture.

• Protected pictures cannot be rotated.

• Rotated pictures appear on a PC only when an OS or a software compatible with Exif is installed in the PC.

• Exif is the file format for still pictures, to which can be added recording information and other, established by JEITA [Japan Electronics and Information Technology Industries Association].

77

Playback (advanced)

/

UP

CT

E

T

OW

.

T

CT

U

/

UP

CT

E

T

OW

.

E

I

L

T

CT

U

Setting the Picture to be Printed and the Number of Prints (DPOF Print Setting)

DPOF (Digital Print Order Format) is a system that allows the user to select which pictures are to be printed on compatible photo printers. DPOF also allows the user to set how many copies of each picture will be printed. Many commercial photo printing services now use DPOF. For more information please visit:

http://www.panasonic.co.jp/avc/video/dpof/dpof_110/white_e.htm

Preparation

• Set the mode dial to [ ]. (P29)

ª Single setting/cancel

1 Select [DPOF PRINT].

ROTAT PROTE

DPOF PRIN

LIDE SH

AUDIO DUB

ELE

MENU

E

WB

R

E

W

V

E

I

SET

2 Select [SINGLE].

ROTAT PROTE

DPOF PRIN

LIDE SH

AUDIO DUB

ELE

E

WB

R

E

W

V

E

I

SET

ET

INGL

MULT

ANCE

MEN

3 Select the picture and set the

number of prints.

DPOF REGLE CECI 1

COMPTER

WB

R

E

W

V

E

I

SET

SELECT. SORT.

WB

R

E

W

V

E

I

SET

• The number of prints can be set from 0 to 999.

• The number of prints icon [ ] appears.

• When the number of prints is set to “0”, DPOF print setting is canceled.

• Close the menu by pressing the [MENU] button 2 times after finishing the setting.

100-0001

1

DATE

WB

R

E

V

SET

1/19

E

I

DISPLAY

MENU

W

1

78

ª Multi setting/cancel

/

UP

CT

E

T

OW

.

T

CT

U

/

UP

CT

E

T

OW

.

E

I

L

T

CT

U

0

Playback (advanced)

1 Select [DPOF PRINT].

ROTAT PROTE

DPOF PRIN

LIDE SH

AUDIO DUB

ELE

MENU

E

WB

R

E

W

V

E

I

SET

2 Select [MULTI].

ROTAT PROTE

DPOF PRIN

LIDE SH

AUDIO DUB

ELE

R

E

WB

SET

E

W

V

E

I

ET

INGL

MULT

ANCE

R

E

3 Select the pictures and set the

number of prints.

DPOF SET MULTI

MEN

WB

R

E

W

V

E

I

SET

• The number of prints can be set

• The number of prints icon [ ]

• Repeat step 3.

• When the number of prints is set to

MEN

WB

W

V

E

I

SET

• Close the menu by pressing the

1

COUNT DATE

R

001

WB

E

W

V

E

I

SET

from 0 to 999.

appears.

“0”, DPOF print setting is canceled.

[MENU] button 2 times after finishing the setting.

DISPLAY

MENU

EXITSELECT

WB

R

E

W

V

E

I

SET

1

79

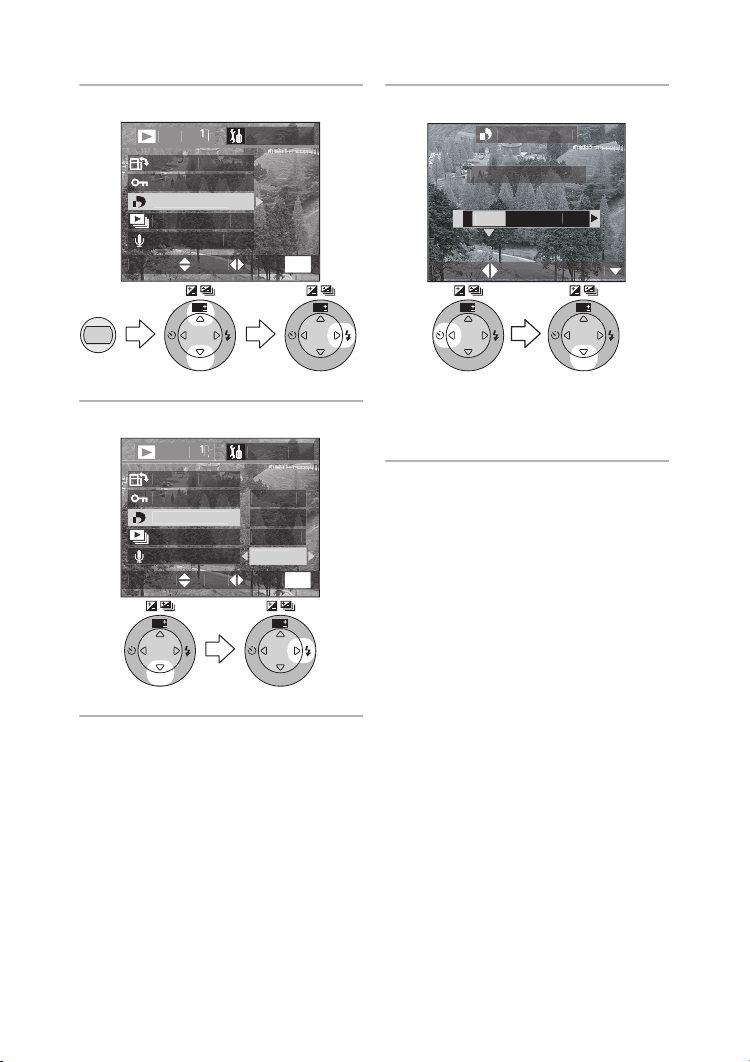

ª To cancel all settings

/

UP

CT

E

T

OW

.

T

CT

U

/

UP

CT

E

T

OW

.

E

I

L

T

CT

U

OF

SNO

OF

GS?

CTET

Playback (advanced)

1 Select [DPOF PRINT].

ROTAT PROTE

DPOF PRIN

LIDE SH

AUDIO DUB

R

LIDE SH

W

V

E

I

E

WB

E

W

V

E

I

SET

.

E

ELE

MENU

2 Select [CANCEL]

ROTAT PROTE

DPOF PRIN

AUDIO DUB

ELE

WB

R

E

SET

ET

INGL

MULT

ANCE

R

E

WB

SET

3 Select [YES] to cancel all settings.

ANCEL ALL DP

PRINT SETTIN

YE

MEN

WB

R

E

W

V

E

I

SET

MEN

W

V

E

I

ELE

WB

R

E

W

V

E

I

SET

WB

R

E

W

V

E

I

SET

• Close the menu by pressing the [MENU] button after canceling the setting.

80

ª Index setting/cancel

/

UP

CT

E

T

OW

.

T

CT

U

/

UP

CT

E

T

OW

.

E

I

L

T

CT

U

X

?

CTET

SNO

Playback (advanced)

1 Select [DPOF PRINT].

ROTAT PROTE

DPOF PRIN

LIDE SH

AUDIO DUB

R

LIDE SH

W

V

E

I

E

WB

E

W

V

E

I

SET

.

E

ELE

MENU

2 Select [INDEX]

ROTAT PROTE

DPOF PRIN

AUDIO DUB

ELE

WB

R

E

SET

ET

INGL

MULT

ANCE

R

E

WB

SET

3 Select [YES] to index setting.

DPOF INDE

ET INDEX PRINT

YE

MEN

WB

R

E

W

V

E

I

SET

MEN

W

V

E

I

ELE

WB

R

E

W

V

E

I

SET

WB

R

E

W

V

E

I

SET

• Close the menu by pressing the [MENU] button after finishing the setting.

81

Playback (advanced)

X

TNO

X

CTET

L

T

CT

U

Y

S

00

9

ª When the index is already set

DPOF INDE

ET/CANCEL INDE

E

ANCE

ELE

WB

R

E

W

V

E

I

SET

WB

R

E

W

V

E

I

SET

• Close the menu by pressing the [MENU] button after finishing the setting.

ª To print the date

You can set/cancel the printing with the recorded date each press of the [DISPLAY] button when setting the number of prints.

DPOF SET THI

1

1/1

Suggestions/Tips

¬

• DPOF print setting is a convenient function when you print pictures with printers supporting DPOF printing.

• DPOF is the abbreviation for Digital Print Order Format. This feature allows you to designate which pictures will be printed.

• The setting of DPOF print will not be applied to the DPOF setting of Slide Show.

• If the file is not based on the DCF standard, the DPOF print setting cannot be set. DCF is an abbreviation of [Design rule for Camera File system], stipulated by JEITA [Japan Electronics and Information Technology Industries Association].

• When setting the DPOF print, this camera will overwrite any previous DPOF print settings made by other equipment.

N

ELE

• The date print icon [ ] appears.

DISPLA

MEN

DATE

• When you go to a photo studio for printing, be sure to order the printing of the date. For further information, ask the photo studio. Depending on the studio, it may not be possible to print the date.

82

Playback (advanced)

/

UP

CT

E

T

OW

.

T

CT

U

/

UP

CT

E

T

OW

.

E

I

L

T

CT

U

L

CT

U

S

00

0

Preventing Accidental Erasure of the Picture

Preparation

• Set the mode dial to [ ]. (P29)

ª Single setting/cancel

1 Select [PROTECT].

ROTAT

PROTE

DPOF PRIN

LIDE SH

AUDIO DUB

ELE

MENU

E

WB

R

E

W

V

E

I

SET

2 Select [SINGLE].

ROTAT

PROTE

DPOF PRIN

LIDE SH

AUDIO DUB

ELE

E

WB

R

E

V

E

I

SET

3 Select the picture and set/cancel

ET

MEN

WB

R

E

W

V

E

I

SET

ET

INGL

MULT

ANCE

MEN

W

the protection.

PROTECT THI

1

1/1

ELE ET/CANCE

WB

R

E

W

V

E

I

SET

MEN

WB

R

E

W

V

E

I

SET

•[SET]: The protect icon [ ] appears.

• [CANCEL]: The protect icon [ ] disappears.

• Close the menu by pressing the [MENU] button 2 times after finishing the setting.

83

Playback (advanced)

ª Multi setting/To cancel all settings

Perform the same operation as in [Setting the Picture to be Printed and the Number of Prints (DPOF Print Setting)]. (P78– 80)

Suggestions/Tips

¬

• While this feature protects the pictures from accidental erasure, formatting the card will permanently delete all data. (P92)

• If you want to delete protected pictures, cancel the protect setting first.

• The protect setting may not be effective in other equipment.

• Sliding the SD Memory Card Write-Protect switch to [LOCK] prevents the picture from deletion even if the protection is not set.

• The audio dubbing cannot be used with protected pictures. (P87)

84

Playback (advanced)

/

UP

CT

E

T

OW

.

T

CT

U

/

UP

CT

E

T

OW

OF

T

CT

U

CTET

U

T

ON

O

F

Playing Back with Slide Show

Preparation

• Set the mode dial to [ ]. (P29)

1 Select [SLIDE SHOW].

ET

ROTAT PROTE DPOF PRIN

LIDE SH

AUDIO DUB

MEN

WB

R

E

W

V

E

I

SET

MENU

ELE

E

WB

R

E

W

V

E

I

SET

2 Select the type of pictures to play

back.

ET

ROTAT PROTE DPOF PRIN

LIDE SH

AUDIO DUB.DP

ELE

R

E

WB

SET

E

W

V

E

I

• [ALL]: for playing back all pictures

•[DPOF]: for playing back the pictures DPOF Slide Show is set

MEN

WB

R

E

W

V

E

I

SET

3 Select the following items.

TA R

DURATI

1SEC.2SEC.EC.5SEC.

AUDI

ELE

WB

R

E

V

SET

• [DURATION]: It can be set among 1, 2, 3 and 5 seconds.

• [AUDIO]: By setting it to [ON], the audio of the pictures with audio can be played back during Slide Show.

• [DPOF SET] (Only when setting to [DPOF]): You can select the pictures you want to set to the Slide Show.

• [CANCEL ALL] (Only when setting to [DPOF]): You can cancel the DPOF Slide Show setting.

F

MEN

W

E

I

85

Playback (advanced)

CTET

U

ON

O

C.

F

4 Select [START].

START

ELE

R

DURATI AUDI

WB

E

W

V

E

I

SET

1SE

F

MEN

WB

R

E

W

V

E

I

SET

5 By pressing the [MENU] button,

the Slide Show stops.

ª SD Slide Show

If setting the SD Slide Show with the [SD Viewer for DSC] which is in the supplied CD-ROM, when playing back, the confirmation screen appears. Select [YES] and press 4 to start the SD Slide Show. Select [NO] and press 4 to start normal playback.

Suggestions/Tips

¬

• When setting the DPOF Slide Show, DPOF icon 1 appears on the picture in green.

• When setting the DPOF Slide Show to the picture with DPOF printing, both of DPOF icon 1 and the number of prints appear on the picture in green.

• When only the DPOF printing is set on the picture, the DPOF icon 1 and the number of prints appear in white.

DPOF SET THIS

100_0001

1/19

SELECT

MENU

EXITSET/CANCEL

• In motion image playback, Slide Show is not available.

• The DPOF setting of Slide Show will not be applied to the DPOF printing.

• DPOF Slide Show cannot be performed without the DPOF setting of Slide Show.

• DPOF setting with the [SD Viewer for DSC] in the supplied CD-ROM is only for printing. Please set DPOF Slide Show with this camera to play back pictures in DPOF Slide Show.

• When setting the DPOF Slide Show, this camera will overwrite any previous DPOF settings made by other equipment.

86

Playback (advanced)

/

UP

CT

E

T

OW

.

T

CT

U

T

CT

U

O

.

600

00

OP

O

.

600

00

9

Adding Audio to Recorded Pictures (Audio Dubbing)

Preparation

• Set the mode dial to [ ]. (P29)

1 Select [AUDIO DUB.].

ET

ROTAT PROTE DPOF PRIN

LIDE SH

AUDIO DUB

MEN

WB

R

E

W

V

E

I

SET

MENU

ELE

E

WB

R

E

W

V

E

I

SET

2 Select the picture and start audio

recording.

AUDI

DUB

ELE TA R

WB

1

1/19

MEN

WB

• The audio dubbing cannot be used with motion images or protected pictures.

3 Stop audio recording.

AUDI

DUB

• Even if you do not press 4, after about 10 seconds the audio recording stops automatically.

• Close the menu by pressing the [MENU] button 2 times after finishing the setting.

1

1/1

T

WB

R

E

W

V

E

I

SET

1

R

E

W

V

E

I

SET

R

E

W

V

E

I

SET

• When audio has already been recorded, the confirmation screen appears. Press 2 to select [YES], and press 4 to start audio recording. (The original audio is overwritten.)

87

Playback (advanced)

/

UP

G

E

T

CT

U

T

CT

U

E

600

00

9

600

E

CT

U

E

600

00

9

Resizing the Pictures

This function is useful if you want to reduce the file size of the picture, in those cases when it needs to be attached to an e-mail or uploaded to a website.

Preparation

• Set the mode dial to [ ]. (P29)

1 Select [RESIZE].

ET

RESIZ

TRIMMIN FORMA

MEN

MENU

ELE

E

WB

R

E

W

V

E

I

SET

2 Select the picture and set it.

1

1/1

MEN

WB

R

E

W

V

E

I

SET

ELE E

R

RESIZ

WB

E

W

V

E

I

SET

3 Select the size and set it.

RESIZ

1

1280

ELE

RESIZ

WB

R

E

W

V

E

I

SET

WB

R

E

W

V

E

I

SET

• [1600]: 1600k1200 pixels

• [1280]: 1280k960 pixels

• [640]: 640k480 pixels

1

1/1

MEN

WB

R

E

W

V

E

I

SET

88

Playback (advanced)

L

?

SNO

E

LET

CT

U

4 Select [YES] or [NO] and set it.

RESIZ

DELETE ORIGINA PICTURE

YE

MEN

ELE

ANCE

WB

R

E

W

V

E

I

SET

WB

R

E

W

V

E

I

SET

• When you select [YES], the picture is overwritten.

• When the original picture is protected, you cannot overwrite the resized picture.

• Close the menu by pressing the [MENU] button 2 times after finishing the resizing.

¬

Suggestions/Tips

¬

• The following pictures cannot be resized. – Pictures not over 640k480 pixels – Pictures recorded with setting the

picture size to [HDTV] – Motion images – Flip animation – Pictures with audio – Rotated pictures (You can resize

them if you turn them back.)

• It may not be possible to resize the pictures recorded with other equipment.

89

Playback (advanced)

/

UP

G

E

T

CT

U

T

CT

U

G

600

00

9

G

OOM

600

9

T

U

00

_

Trimming the Pictures

Preparation

• Set the mode dial to [ ]. (P29)

2 Select the picture to trim.

TRIMMIN

1

1/1

1 Select [TRIMMING].

RESIZ

TRIMMIN

FORMA

ELE

MENU

E

WB

R

E

W

V

E

I

SET

ET

MEN

ELE E

WB

R

E

W

V

E

I

SET

MEN

WB

R

E

W

V

E

I

SET

3 Enlarge or decrease the picture.

TRIMMIN

Z

WB

R

E

W

V

E

I

SET

1

1/1

MEN

EXI

WT

90

Playback (advanced)

L

?

SNO

G

T

CT

L

U

4 Shift the picture and press the

shutter button fully to set.

TRIMMING

1600

100_0001

1/19

ZOOM TRIM:SHUTTER

WB

R

E

W

V

E

I

SET

EXIT

MENU

5 Select [YES] or [NO] and set it.

TRIMMIN

DELETE ORIGINA PICTURE

YE

MEN

ANCE

ELE

E

¬

Suggestions/Tips

¬

• The following pictures cannot be trimmed. – Pictures equal to or smaller than

640k480 pixels

– Pictures recorded with setting the

picture size to [HDTV] – Motion images – Flip animation – Pictures with audio – Rotated pictures (You can trim them

if you rotate them back.)

• It may not be possible to trim pictures recorded with other equipment.

• The picture size of the trimmed pictures may become smaller than that of the original one depending on the cut size.

• The picture quality of the trimmed picture may be deteriorated.

WB

R

E

W

V

E

I

SET

WB

R

E

W

V

E

I

SET

• When you select [YES], the picture is overwritten.

• When the original picture is protected, you cannot overwrite the trimmed picture.

• Close the menu by pressing the [MENU] button 2 times after finishing the trimming.

91

Playback (advanced)

/

UP

G

E

T

CT

U

?

SNO

T

CT

Formatting the Card

Preparation

• Set the mode dial to [ ]. (P29)

1 Select [FORMAT].

ET

RESIZ TRIMMIN

FORMA

ELE

MENU

E

WB

R

E

W

V

E

I

SET

2 Select [YES] to format.

FORMA

N THE MEMORY CARD

YE

ELE

WB

R

E

W

V

E

I

SET

MEN

WB

R

E

V

SET

E

WB

R

E

W

V

E

I

SET

¬

Suggestions/Tips

¬

• Usually, it is not necessary to format the card (initializing). Format the card when the message [MEMORY CARD ERROR] appears.

• If the card has been formatted by a PC or other equipment, format the card on the camera again.

• After formatting, recorded pictures and any other data cannot be recovered.

• If the card is formatted all images and data will be permanently erased. They cannot be reclaimed.

W

E

I

If any important pictures are on the card, please copy them to your PC before proceeding.

• During formatting, do not turn the camera off.

• When the remaining battery power (P13) is low, use the AC adaptor.

• If the card is protected, you cannot format the card.

• If the card cannot be formatted, consult your nearest servicenter.

For USA assistance, please call: 1-800-272-7033 or send e-mail to : digitalstillcam@panasonic.com

For Canadian assistance, please call: 1-800-561-5505 or visit us at www.panasonic.ca

92

Playback (advanced)

Playing Back Pictures with a TV Screen

ª Playing back pictures with AV cable (supplied)

• Turn the camera and the TV off.

DIGITAL

AV OUT

1

DC IN

2

1 Connect the AV cable to the

[AV OUT] socket of the camera.

• Align the [2] mark on the AV cable and the [1] mark on the [AV OUT] socket.

2 Connect the AV cable to the video

input and the audio input sockets of the TV.

• Yellow: to the video input socket

• White: to the audio input socket

3 Turn the TV on and select external

input.

4 Turn the camera on and then set

the mode dial to playback mode [].

EXT.

ª Viewing pictures in other

countries

When setting [VIDEO OUT] on the menu, you can view pictures on a TV in other countries (regions) which use the NTSC or PAL system.

• Even if you set menu selection for [VIDEO OUT] to [PAL], the output signal is still NTSC in the recording mode.

ª Playback pictures on TV with an

SD Memory Card slot

An SD Memory Card can be played back on TVs with an SD Memory Card slot. If you play back pictures recorded using [HDTV] mode on a High-Definition TV, (HDTV has 16:9 aspect) the picture quality will be higher.

Suggestions/Tips

¬

• When connecting to a TV, we recommend using the AC adaptor as the power source.

• Use the supplied AV cable only.

• Read the TV operating instructions too.

¬

93

Playback (advanced)

T

CT

E

t

ge

Before Connecting with USB Connection Cable

Select the USB communication system according to the OS of your PC or your printer before connecting them to the camera with the USB connection cable (supplied). Set the items on [USB MODE] in the [SETUP] menu. (P25)

1 Select [USB MODE].

(In the recording mode)

3

REC SETUP

USB

USB MODE

LANGUAGE

MENU

WB

R

E

W

V

E

I

SET

USB mode PC to be connected

Mass Storage (USB Direct-Print)

Windows Windows XP Professional, Windows 2000 Professional, Windows Me, Windows 98/98 SE or Mac OS X (10.1 or above), Mac OS 9.x

PTP (PictBridge)

Windows XP Home Edition, Windows XP Professional or Mac OS X

/

3

ENG

MENU

EXITSETSELECT

WB

R

E

W

V

E

I

SET

WB

R

E

W

V

E

I

SET

®

XP Home Edition,

2 Select [Mass Storage] or [PTP].

B MOD

Direct-Prin

Mass Storage

ELE

WB

R

E

V

I

SET

PictBrid

W

E

Printers supporting USB Direct-Print.

Printers supporting PictBridge.

E

WB

R

E

W

V

E

I

SET

Printer to be

connected

94

Playback (advanced)

ª When using Windows 2000 Professional, Windows Me,

Windows 98/98 SE or Mac OS 9.x

• When connecting the camera to a PC, do not set [USB MODE] to [PTP]. (When the camera is shipped, [Mass Storage] is selected.)

• When using Windows 98/98 SE, install the USB driver before connecting. (When using Windows Me/2000/XP, Mac OS 9.x and Mac OS X, you do not have to install the USB driver.)

• When connecting to a PC which includes the above-mentioned OS with setting the [USB MODE] to [PTP],

B MODE

the messages shown on the right appear on the LCD monitor of the camera.

The following messages appear for each OS on the display of the PC. Select [Cancel] to close the window and disconnect the PC.

OS Message

Windows 2000 Professional [Welcome to the Found New Hardware

Wizard]

Windows Me Windows 98/98 SE

[New Hardware Found]> [Add New Hardware Wizard] (When you connect to the PC more than 2 times, only [Add New Hardware Wizard] appears.)

Mac OS 9.x [Software needed for the USB device

“DMC-FX5” is not available. Would you like to look for the software on the Internet?]

95

Playback (advanced)

Connecting to a PC (Mass Storage)

¬

1 Turn the camera on and then set

[USB MODE] to [Mass Storage]. (P94)

2 Connect the camera to a PC via

the USB connection cable (supplied).

ACCESS

[Windows] The drive appears on the [My Computer] folder.

• If it is the first time for you to connect the camera to a PC, the required driver is installed automatically so that the camera can be recognized by the Windows Plug and Play, then it appears on the [My Computer] folder.

[Macintosh] The drive is shown on the screen.

Suggestions/Tips

• The flash/access indicator lights during communication.

• When connecting to a PC, we recommend using the AC adaptor as the power source.

• If the remaining battery power becomes low during communication, the status indicator blinks and the alarm beeps. In this case, stop the communication. Then turn the camera off and charge the battery.

• Use the supplied USB connection cable only.

DIGITAL

AV OUT

DC IN

EXT.

¬

96

Playback (advanced)

Connecting to a PC (PTP)

Do not follow the setting below on the OS except for Windows XP and Mac OS X.

DIGITAL

AV OUT

DC IN

EXT.

1 Turn the camera on and then set

[USB MODE] to [PTP]. (P94)

2 Connect the camera to a PC via

the USB connection cable (supplied).

ACCESS

[Windows] The camera icon appears on the [My Computer] folder.

• If it is the first time for you to connect the camera to a PC, the required driver is installed automatically so that the camera can be recognized by the Windows Plug and Play, then the camera icon appears on the [My Computer] folder.

[Macintosh] You can read pictures with image capture or iPhoto.

97

Playback (advanced)

¬

Suggestions/Tips

¬

• Refer to P95 carefully when connecting to the OS except for Windows XP and Mac OS X with setting [USB MODE] to [PTP].

• The flash/access indicator lights during communication.

• When connecting to a PC, we recommend using the AC adaptor as the power source.

• If the remaining battery power becomes low during communication, the status indicator blinks and the alarm beeps. In this case, stop the communication. Then turn the camera off and charge the battery.

• It may take time to display the communication screen depending on the PC.

• You can only load pictures from the camera and cannot write them on the card or delete them.

• Use the supplied USB connection cable only.

• When there are 1000 or more pictures on the card, the pictures may not be imported.

• When the PC recovers from the standby mode while connecting it to a camera with USB connection cables, they may not properly communicate with each other.

98

Playback (advanced)

Connecting to a Printer

By connecting the camera directly to a printer supporting PictBridge or USB Direct-Print via the USB connection cable (supplied), you can select the pictures to be printed or start printing.

DIGITAL

AV OUT

DC IN

EXT.

¬

1 Turn the camera on and then set

the [USB MODE] to [PTP] (PictBridge) or [Mass Storage] (USB Direct-Print). (P94)

2 Turn on a printer.

3 Connect the camera to the printer

via the USB connection cable (supplied).

Suggestions/Tips

• Ask the manufacturer of the printer about the corresponding models. (Read the printer operating instructions too.)

• If the remaining battery power becomes low during communication, the status indicator blinks and the alarm beeps. In this case, stop the communication. Then turn the camera off and charge the battery.

• When connecting to a printer, we recommend using the AC adaptor as the power source.

• Disconnect the USB connection cable and DC cable after printing.

• Use the supplied USB connection cable only.

¬

99

Playback (advanced)

E

OF

E

T

CT

ge

CT

600

00

_

CT

T

ge

9

R

G?

Y

CT

COUNT

T

SNO

ge

Using a Printer (PictBridge)

Preparation

• Connect the camera to a printer. (P99)

• Set the paper size and print quality. (Read the printer operating instructions.)

ª Single picture

1 Select [SINGLE PICTURE].

PictBrid

INGL

DP PICTUR

E

WB

R

W

E

V

I

SET

ELE

WB

R

E

SET

PICTUR

V

E

I

• The screen shown in step 2 appears when DPOF print is not set or the printer does not support DPOF print.

2 Select the picture to print.

PictBrid

PLEASE SELE THE PICTURE TO PRIN

ELE

1

1/1

3 Select [YES] and print.

PictBrid

PLS CHECK THE PRINTE

TART PRINTIN

N

YE

R

WB

E

SET

DISPLA

E

V

E

I

W

ET ELE

WB

W

E

R

E

W

V

E

I

SET

• Press the [DISPLAY] button to print the date. (Only when connecting to the printer supporting to printing the date.)

•Press 3 and then press 2/1 to set the number of prints. Press 4 to print pictures.

• Press the [MENU] button to cancel

1

printing.

WB

R

E

W

V

E

I

SET

WB

R

E

W

V

E

I

SET

100

Panasonic DMC-FX5PP User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
