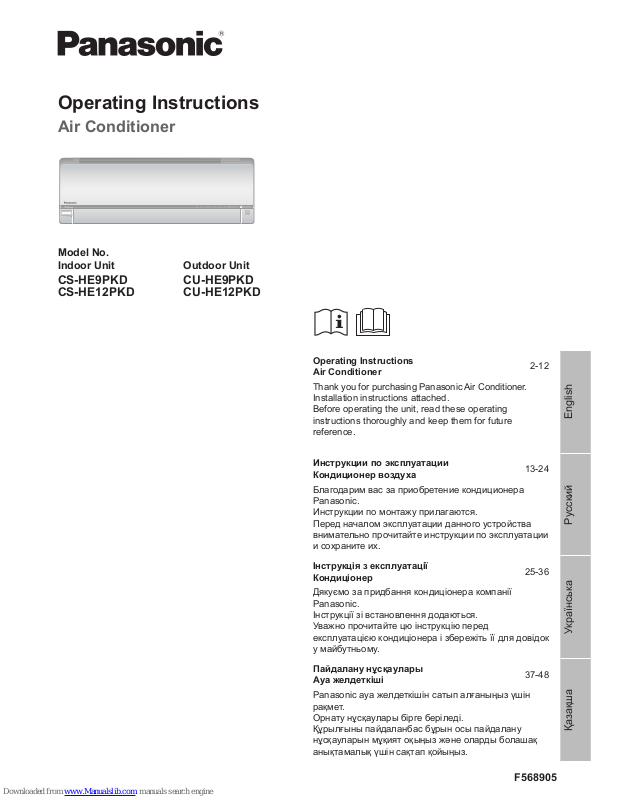

Panasonic CS-HE9PKD, CS-HE12PKD, CU-HE9PKD, CU-HE12PKD Operating Instructions Manual

Қазақша Українська Руccкий English

F568905

Model No.
Indoor Unit Outdoor Unit

CS-HE9PKD
CS-HE12PKD

CU-HE9PKD
CU-HE12PKD

Operating Instructions

Air Conditioner

Operating Instructions
Air Conditioner

2-12

Thank you for purchasing Panasonic Air Conditioner.
Installation instructions attached.
Before operating the unit, read these operating
instructions thoroughly and keep them for future
reference.

Инструкции по эксплуатации
Кондиционер воздуха

13-24

Благодарим вас за приобретение кондиционера
Panasonic.

Инструкции по монтажу прилагаются.
Перед началом эксплуатации данного устройства
внимательно прочитайте инструкции по эксплуатации
и сохраните их.

Інструкція з експлуатації
Кондиціонер

25-36

Дякуємо за придбання кондиціонера компанії
Panasonic.

Інструкції зі встановлення додаються.
Уважно прочитайте цю інструкцію перед
експлуатацією кондиціонера і збережіть

її для довідок

у майбутньому.

Пайдалану нұсқаулары
Ауа желдеткіші

37-48

Panasonic ауа желдеткішін сатып алғаныңыз үшін

рақмет.
Орнату нұсқаулары бірге беріледі.
Құрылғыны пайдаланбас бұрын осы пайдалану
нұсқауларын мұқият оқыңыз жəне оларды болашақ
анықтамалық үшін сақтап қойыңыз.

2

Provide maximum comfort,
clean air and optimise energy saving

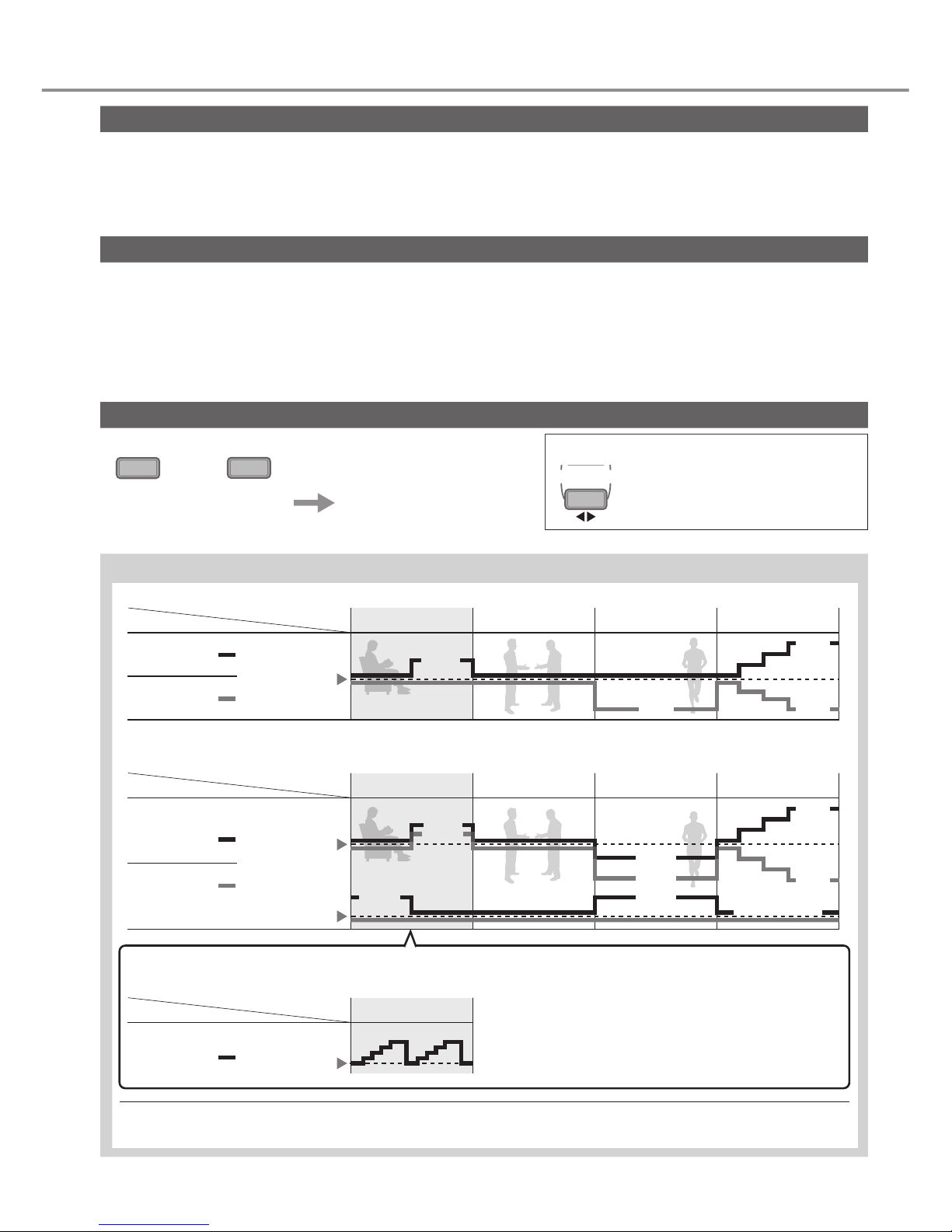

ECONAVI and AUTO COMFORT

Equipped with the human activity sensor, the air conditioner ensures to deliver cool or warm air to you,
and keeps the room consistently comfortable with minimum energy consumption.
Furthermore, the sunlight sensor detects the sunlight intensity and helps control heating/cooling
temperatures to provide optimum comfort.
See “To learn more...” for details.

nanoe-G

Deactivates harmful micro-organisms such as viruses, bacteria, etc. to keep air clean.
It also deactivates viruses and bacteria on the fi lter to keep inside of the unit clean.

3

English

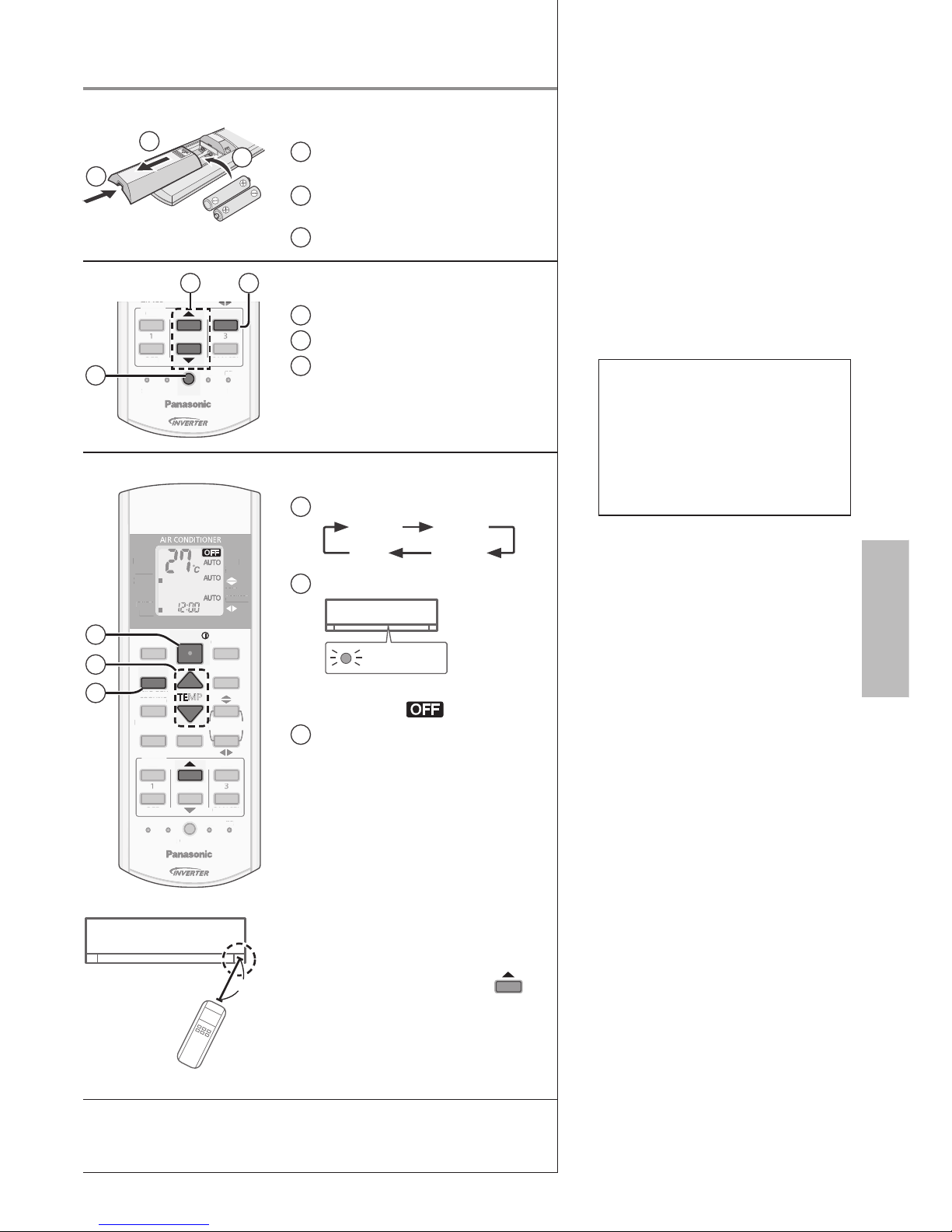

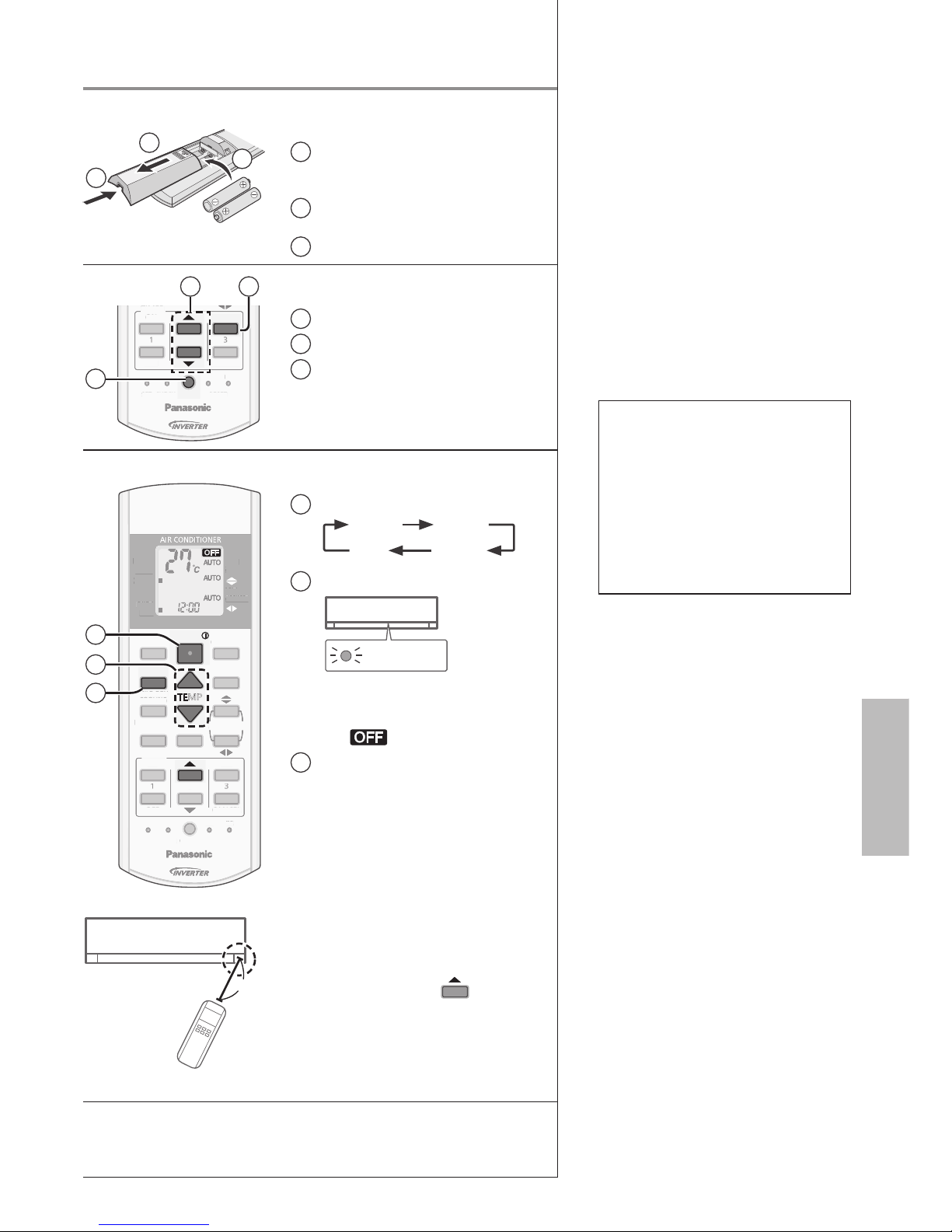

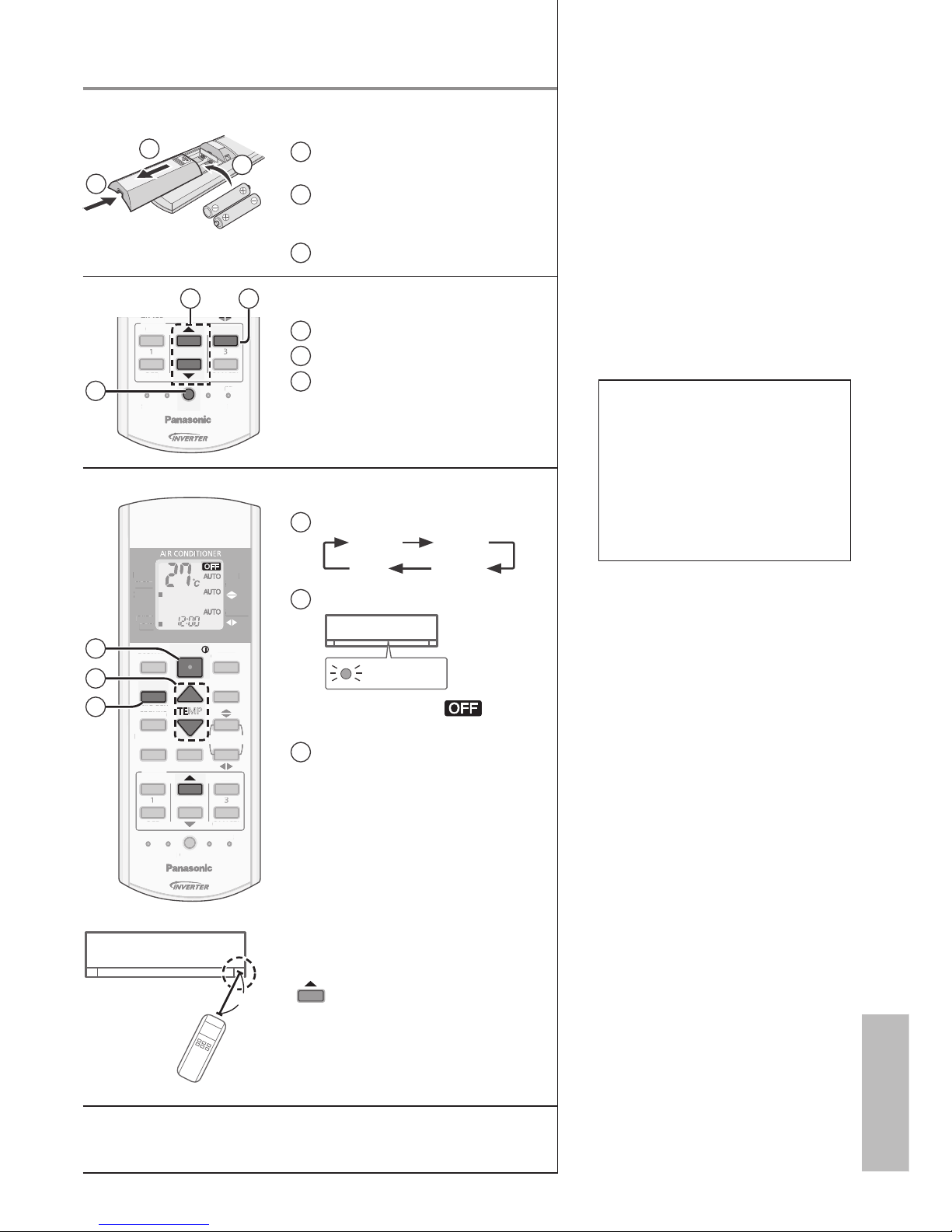

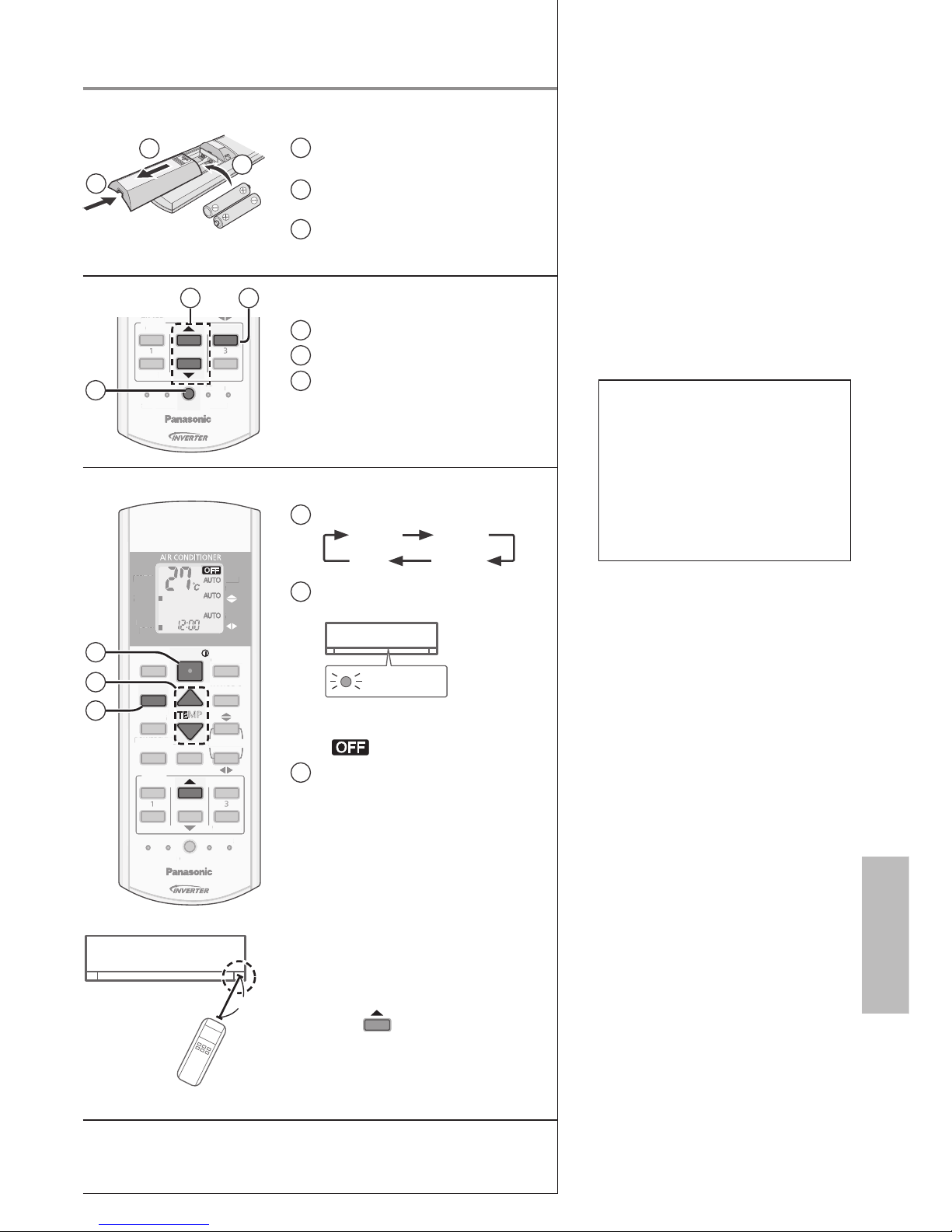

Quick guide

1

2

3

Inserting the batteries

1

Pull out the back cover of

remote control

2

Insert AAA or R03 batteries
(can be used ~ 1 year)

3

Close the cover

TIMER

SET

CANCEL

ON

OFF

1

2

3

SET CHECK CLOCK RESET

AC

RC

TIMER

CANCEL

ON

O

FF

1

3

S

ETCHE

CK

RES

ET

A

C

RC

2 3

1

Clock setting

1

Press CLOCK

2

Set the time

3

Confi rm

AUTO

COMFORT

MODE

POWERFUL/

QUIET

TEMP

OFF/ON

TIMER

SET

CANCEL

ON

OFF

1

2

3

AIR SWING

FAN SPEED

MILD DRY

COOLING

SET CHECK CLOCK RESET

AC

RC

MILD

DRY

FAN
SPEED

AIR
SWING

AUTO
HEAT
COOL

DRY

ECONAVI

NANOE-G

AUT

O

COMFORT

POWERFUL/

Q

UIET

TIMER

S

ET

CANCEL

ON

O

FF

1

2

3

A

IR SWIN

G

F

AN SPEE

D

MILD DRY

COOLIN

G

S

ETCHECKCLOC

K

RES

ET

A

C

RC

MILD

DRY

FAN

S

PEE

D

AIR

S

WIN

G

AUTO

HEAT

C

OOL

DRY

ECONAV

I

NANOE-G

1

2

3

8m

Basic operation

1

Select the desired mode

DRY

AUTO HEAT

COOL

2

Start/stop the operation

POWER

• Please note that the OFF
indication is on to start.

3

Select the desired

temperature

• Selection range:
16 °C ~ 30 °C.

•

Operating the unit within the
recommended temperature
may save energy.
HEAT : 20 °C ~ 24 °C.
COOL: 26 °C ~ 28 °C.
DRY : 1 °C ~ 2 °C lower than

room temperature.

• To dim or restore the unit’s
indicator brightness, press
and hold for 5 seconds.

• Use remote control within 8 m
from the remote control receiver
of the indoor unit.

The illustrations in this manual are for explanation purposes
only and may differ from the actual unit. They are subject to
change without notice for future improvement.

Table of contents

Safety precautions ...................4-5

How to use...............................6-7

To learn more... ......................8-9

Cleaning instructions ................10

Troubleshooting ....................... 11

Information................................12

Accessories

• Remote control

• AAA or R03 batteries × 2

• Remote control holder

• Screws for remote control

holder × 2

4

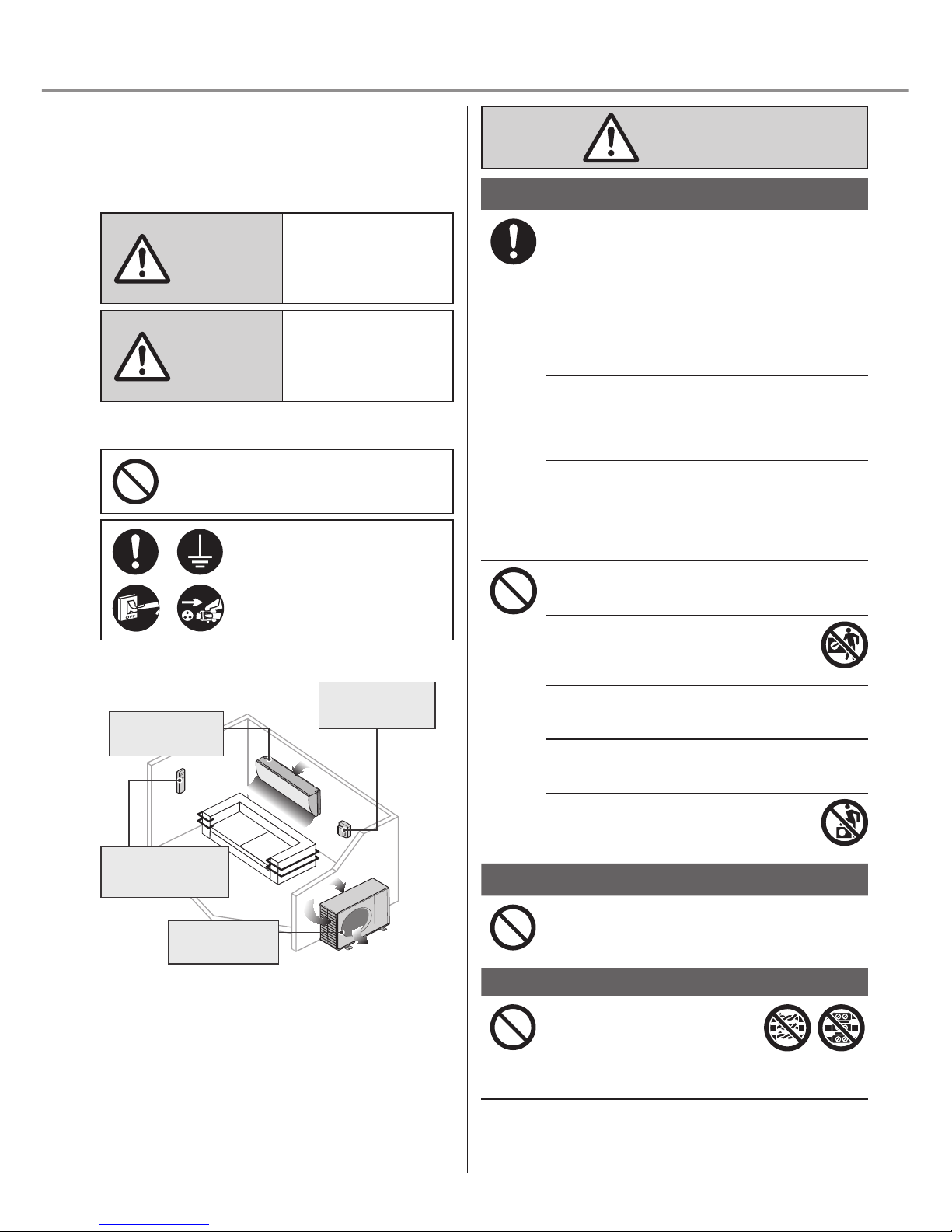

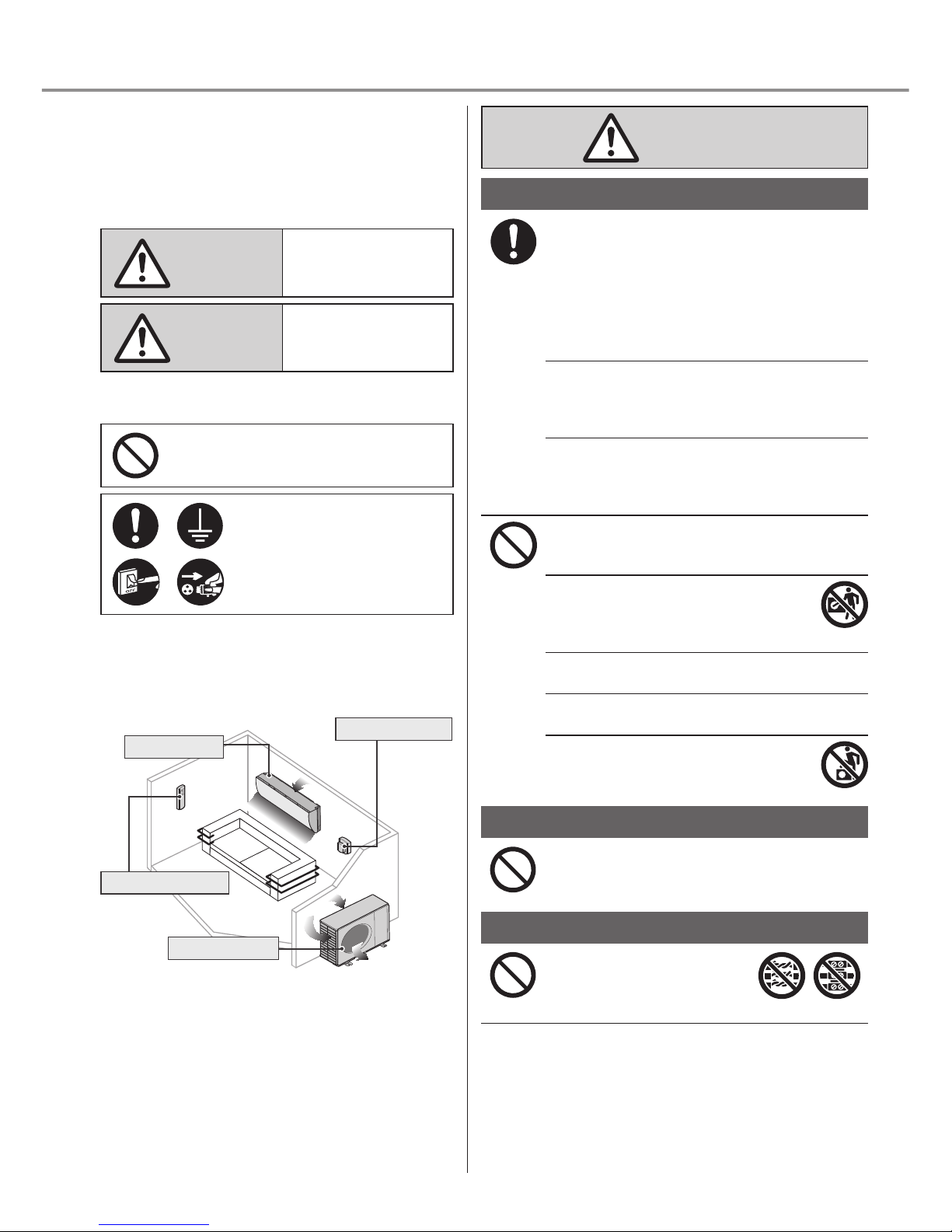

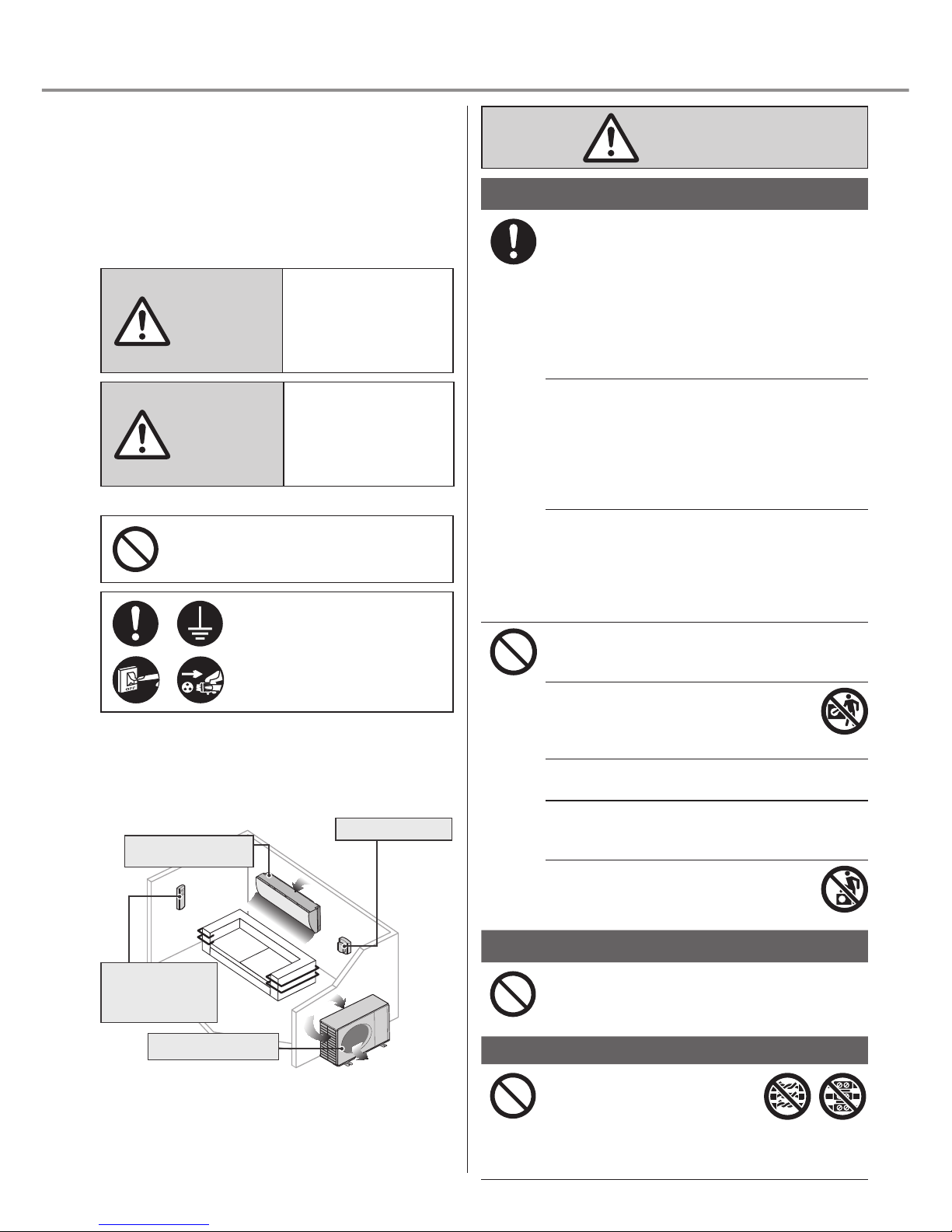

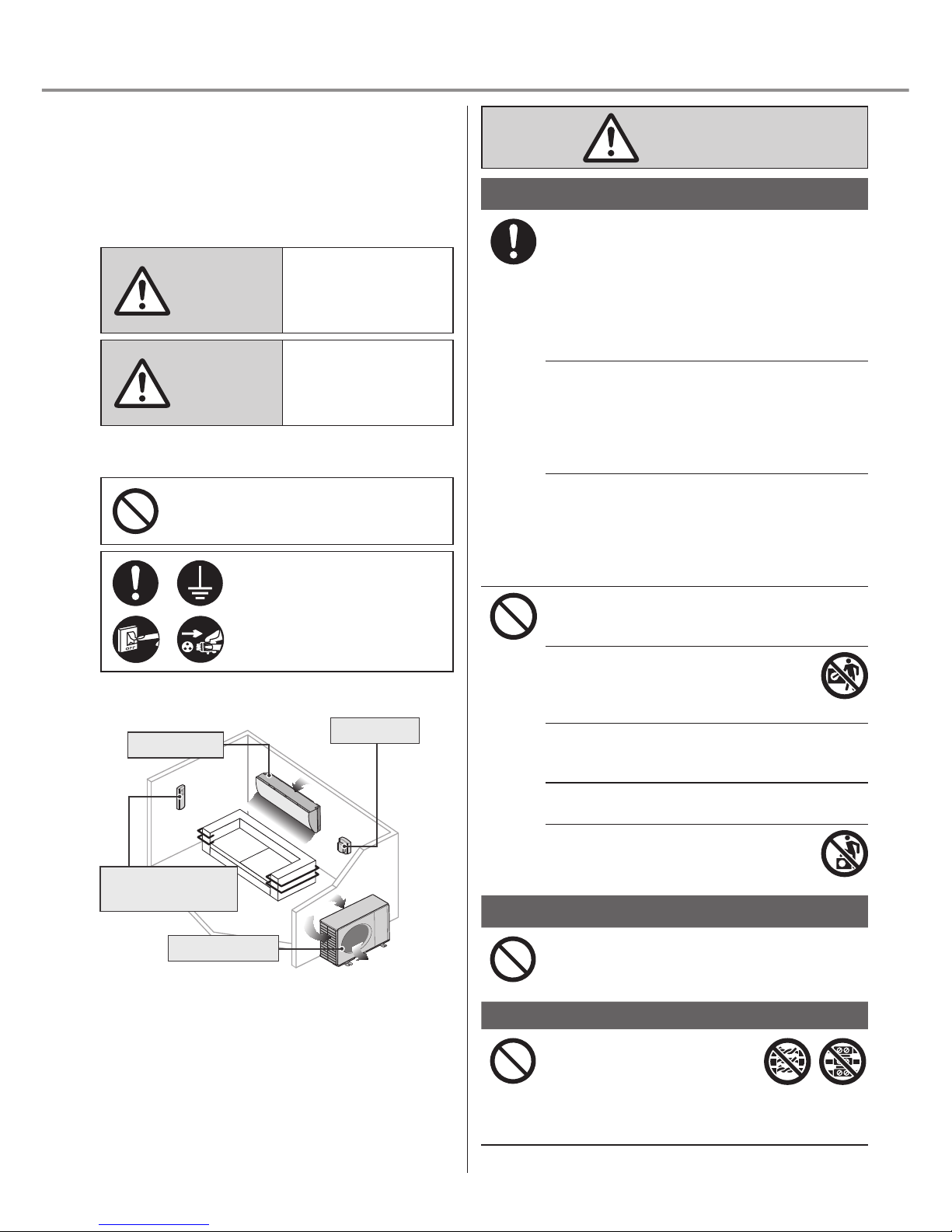

Safety precautions

To prevent personal injury, injury to others
or property damage, please comply with the
following:
Incorrect operation due to failure to follow
instructions below may cause harm or damage,
the seriousness of which is classifi ed as below:

WARNING

This sign warns of
death or serious
injury.

CAUTION

This sign warns of
injury or damage to
property.

The instructions to be followed are classifi ed by
the following symbols:

This symbol denotes an
action that is PROHIBITED.

These symbols denote
actions COMPULSORY.

WARNING

Indoor unit and outdoor unit

This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have
been given supervision or instruction concerning
use of the appliance by a person responsible for
their safety. Children should be supervised to
ensure that they do not play with the appliance.

Please consult authorised dealer or specialist to
clean the internal parts, repair, install, remove
and reinstall the unit. Improper installation and
handling will cause leakage, electric shock or fi re.

Confi rm with authorised dealer or specialist on
usage of any specifi ed refrigerant type.
Using refrigerant type other than the specifi ed
may cause product damage, burst and injury etc.

Do not install the unit in a potentially explosive
or fl ammable atmosphere. Failure to do so could
result in fi re.

Do not insert your fi ngers or other
objects into the air conditioner indoor or
outdoor unit, rotating parts may cause
injury.

Do not touch the outdoor unit during lightning, it
may cause electric shock.

Do not expose yourself directly to cold air for a
long period to avoid excess cooling.

Do not sit or step on the unit, you may
fall down accidentally.

Remote control

Do not allow infants and small children to play
with the remote control to prevent them from
accidentally swallowing the batteries.

Power supply

Do not use a modifi ed cord,
joint cord, extension cord or
unspecifi ed cord to prevent
overheating and fi re.

Indoor unit

Outdoor unit

Power supply

Remote control

Air inlet

Air inlet

Air inlet

Air inlet

Air outlet

Air outlet

Air outlet

Air outlet

5

English

To prevent overheating, fi re or electric shock:

•

Do not share the same power outlet with
other equipment.

•

Do not operate with wet hands.

•

Do not over bend the power supply cord.

•

Do not operate or stop the unit by inserting
or pulling out the power plug.

If the supply cord is damaged, it must be
replaced by the manufacturer, service agent
or similarly qualifi ed persons in order to avoid
a hazard.

It is strongly recommended to be installed
with Earth Leakage Circuit Breaker (ELCB)
or Residual Current Device (RCD) to prevent
electric shock or fi re.

To prevent overheating, fi re or electric shock:

•

Insert the power plug properly.

•

Dust on the power plug should be
periodically wiped with a dry cloth.

Stop using the product if any abnormality/
failure occurs and disconnect the power plug
or turn off the power switch and breaker.
(Risk of smoke/fi re/electric shock) Examples
of abnormality/failure

•

The ELCB trips frequently.

•

Burning smell is observed.

•

Abnormal noise or vibration of the unit is
observed.

•

Water leaks from the indoor unit.

•

Power cord or plug becomes abnormally hot.

•

Fan speed cannot be controlled.

•

The unit stops running immediately even if it
is switched on for operation.

•

The fan does not stop even if the operation

is stopped.
Contact your local dealer immediately for
maintenance/repair.

This equipment must be earthed to prevent
electrical shock or fi re.

Prevent electric shock by switching off the
power supply and unplug:

- Before cleaning or servicing,

- When extended non-use, or

- During abnormally strong lightning activity.

CAUTION

Indoor unit and outdoor unit

Do not wash the indoor unit with water,
benzine, thinner or scouring powder to avoid
damage or corrosion at the unit.

Do not use for preservation of precise
equipment, food, animals, plants, artwork
or other objects. This may cause quality
deterioration, etc.

Do not use any combustible equipment
in front of the airfl ow outlet to avoid fi re
propagation.

Do not expose plants or pet directly to airfl ow
to avoid injury, etc.

Do not touch the sharp aluminium
fi n, sharp parts may cause injury.

Do not switch ON the indoor unit when waxing
the fl oor. After waxing, aerate the room
properly before operating the unit.

Do not install the unit in oily and smoky areas
to prevent damage to the unit.

Do not dismantle the unit for cleaning purpose
to avoid injury.

Do not step onto an unstable bench when
cleaning the unit to avoid injury.

Do not place a vase or water container on the
unit. Water may enter the unit and degrade
the insulation. This may cause an electric
shock.

Do not open window or door for long time
during COOL/DRY mode operation.

Prevent water leakage by ensuring drainage
pipe is:

- Connected properly,

- Kept clear of gutters and containers, or

- Not immersed in water
After a long period of use or use with any

combustible equipment, aerate the room
regularly.

After a long period of use, make sure the
installation rack does not deteriorate to
prevent the unit from falling down.

Remote control

Do not use rechargeable (Ni-Cd) batteries. It
may damage the remote control.

To prevent malfunction or damage of the
remote control:

•

Remove the batteries if the unit is not going
to be used for a long period of time.

•

New batteries of the same type must be
inserted following the polarity stated.

Power supply

Do not disconnect the plug by pulling the cord
to prevent electric shock.

Safety precautions

6

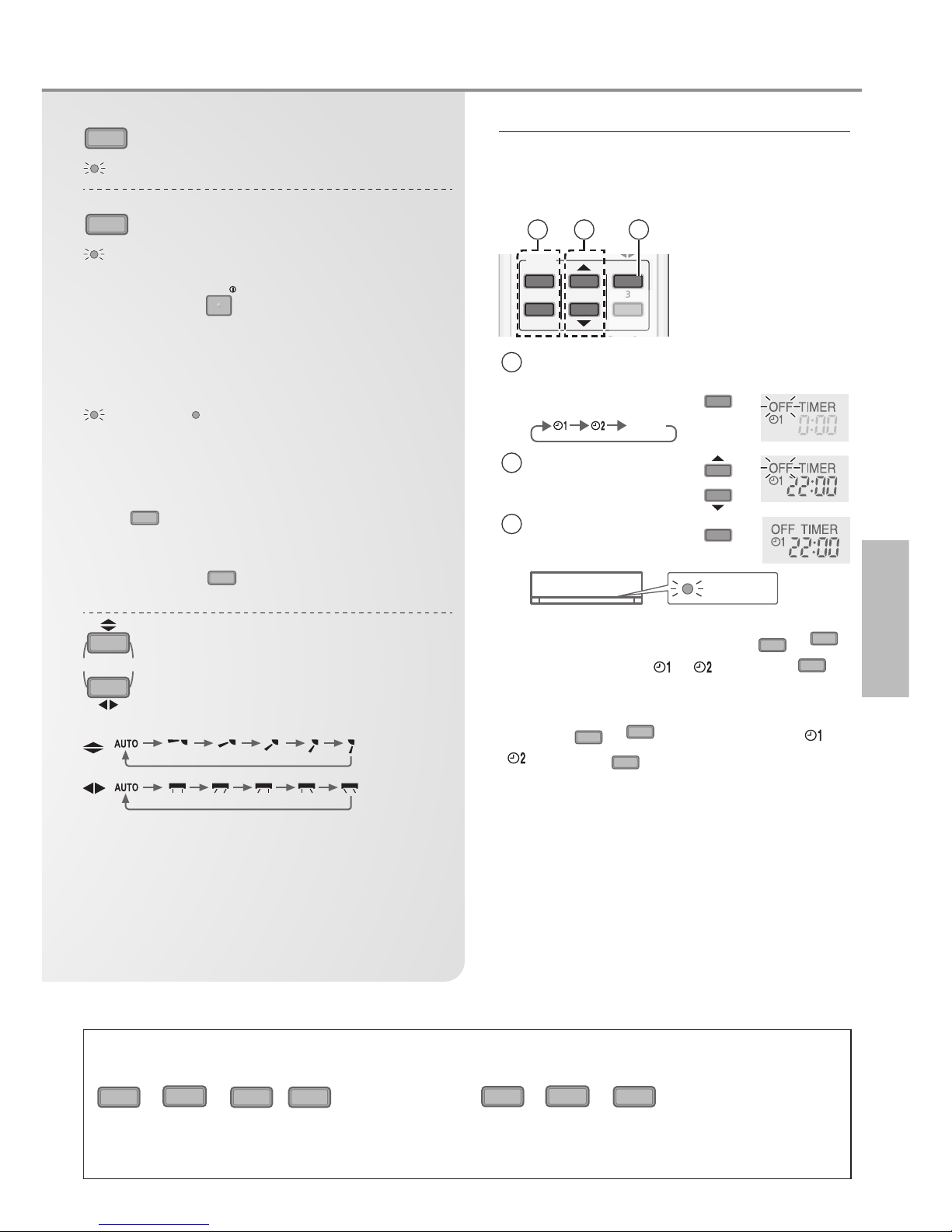

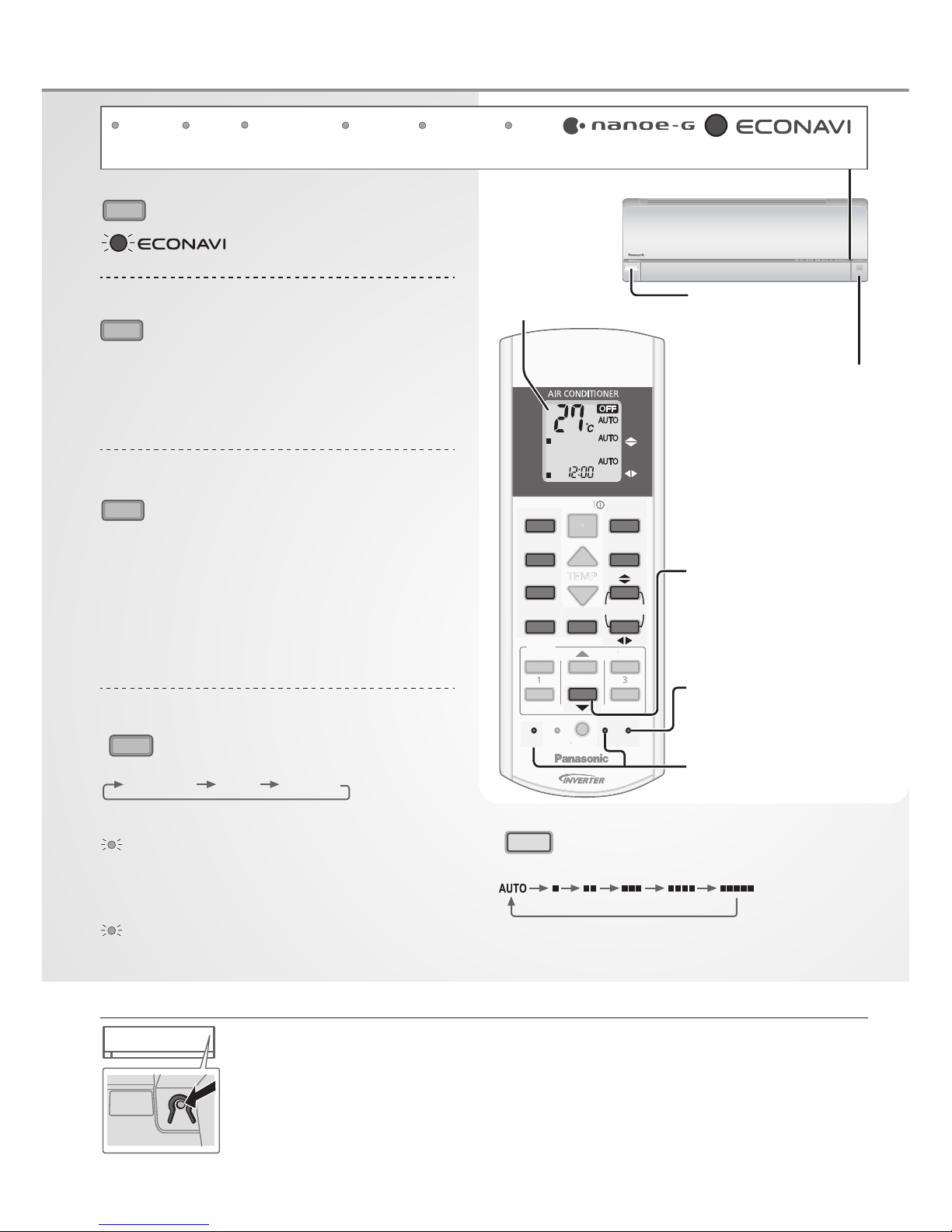

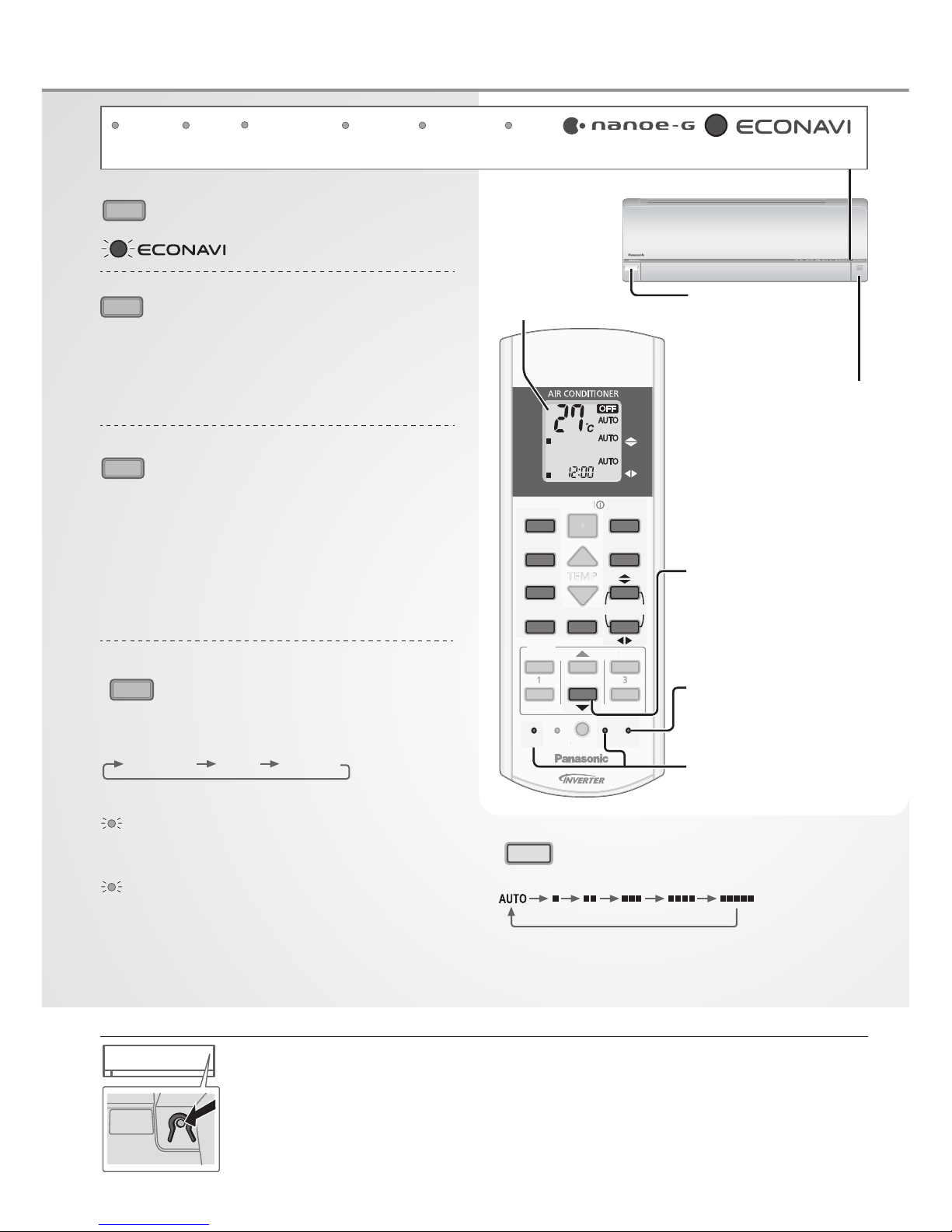

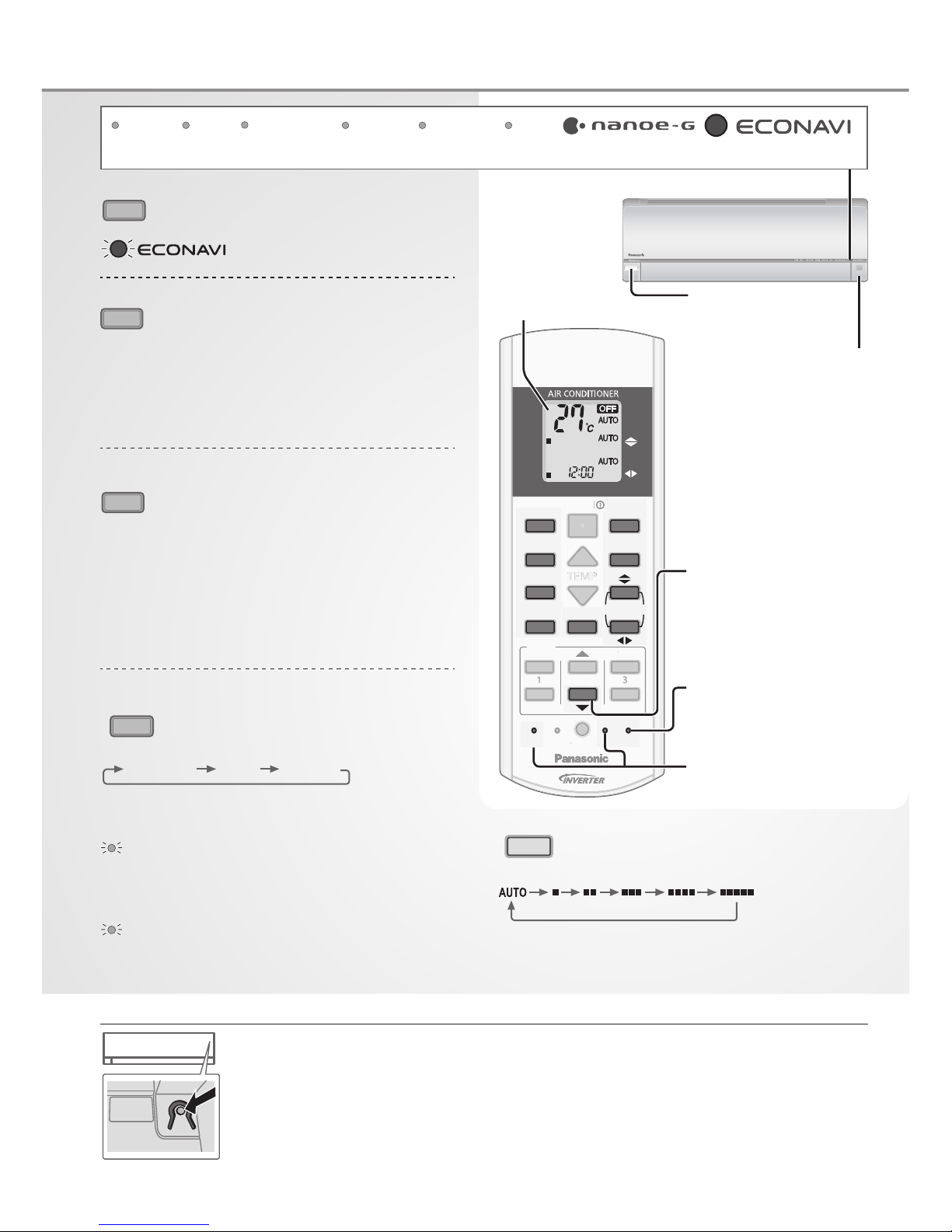

Indicator

ECONAVI

To optimise energy saving

MODE

To select operation mode

AUTO - For your convenience
HEAT - To enjoy warm air
COOL - To enjoy cool air
DRY - To dehumidify the environment

MILD DRY

COOLING

To improve humidity and

moisture level

•

This operation reduces air dryness and provides
you with a comfortable living environment
during COOL mode only.

•

When vertical airfl ow direction is set to AUTO, it
stops at lower position to avoid cold air contact.
However, you can adjust the louver direction
manually.

POWERFUL/

QUIET

To switch between
powerful & quiet

QUIETPOWERFUL NORMAL

POWERFUL: To reach temperature quickly

POWERFUL

•

This operation stops automatically after 20
minutes.

QUIET: To enjoy quiet operation

QUIET

• This operation reduces airfl ow noise.

How to use

Auto OFF/ON button

AUTO

OFF/ON

Use when remote control is a malfunction occurs. Raise the front panel:

1. Press the button once to use in AUTO mode.

2. Press and hold the button until you hear 1 beep, then release to use in forced
COOL mode.

3. Repeat step 2. Press and hold the button until you hear 2 beeps, then release to
use in normal COOL mode.

4. Repeat step 3. Press and hold the button until you hear 3 beeps, then release to
use in forced HEAT mode.

• Press the button again to turn off.

Human activity
sensor

Sunlight sensor and
remote control receiver

TIMER

AUTO COMFORT

NANOE-G

POWERFUL

QUIET

POWER

(Green) (Green) (Blue) (Orange)(Orange)(Orange) (Green)

FAN SPEED

To select fan speed

(Remote control display)

• For AUTO, the indoor fan speed is automatically
adjusted according to the operation mode.

AUTO

COMFORT

MODE

POWERFUL/

QUIET

TEMP

OFF/ON

TIMER

SET

CANCEL

ON

OFF

1

2

3

AIR SWING

FAN SPEED

MILD DRY

COOLING

SET CHECK CLOCK RESET

AC

RC

MILD

DRY

FAN
SPEED

AIR
SWING

AUTO

HEAT

COOL

DRY

ECONAVI

NANOE-G

TEMP

OFF/ON

TIMER

S

ET

CANCEL

ON

O

FF

1

2

3

CHECK

CLOC

K

Remote control display

Press and hold for
approximately
10 seconds to show
temperature setting in
°C or °F.

Press to restore the
remote control to
default setting.

Not used in normal
operations.

7

English

Note

ECONAVI

,

POWERFUL/

QUIET

,

AUTO

COMFORT

,

NANOE-G

ECONAVI

,

POWERFUL/

QUIET

,

AUTO

COMFORT

• Can be activated in all modes and can be
cancelled by pressing the respective button
again.

• Cannot be selected at the same time.

•

Cannot be activated during MILD DRY COOLING.

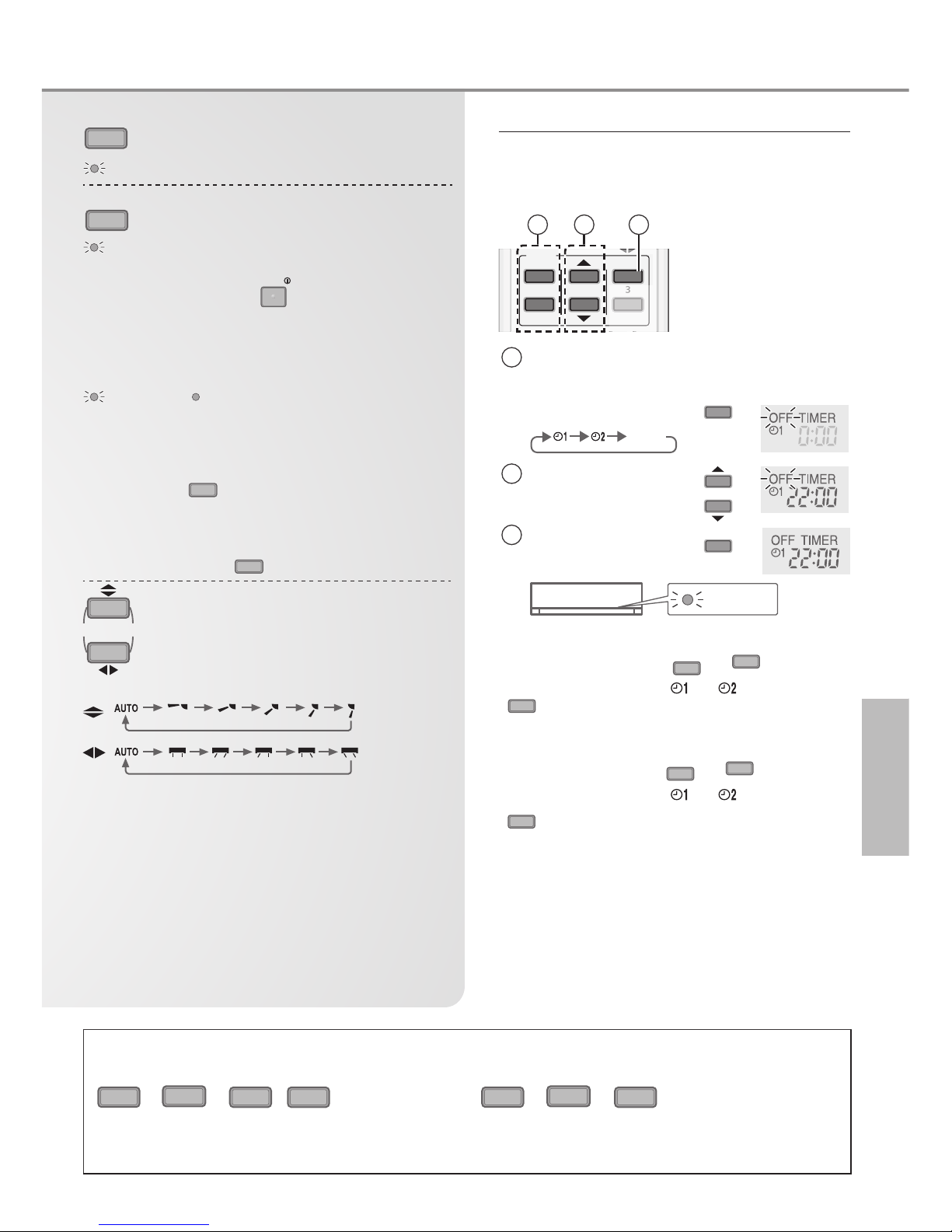

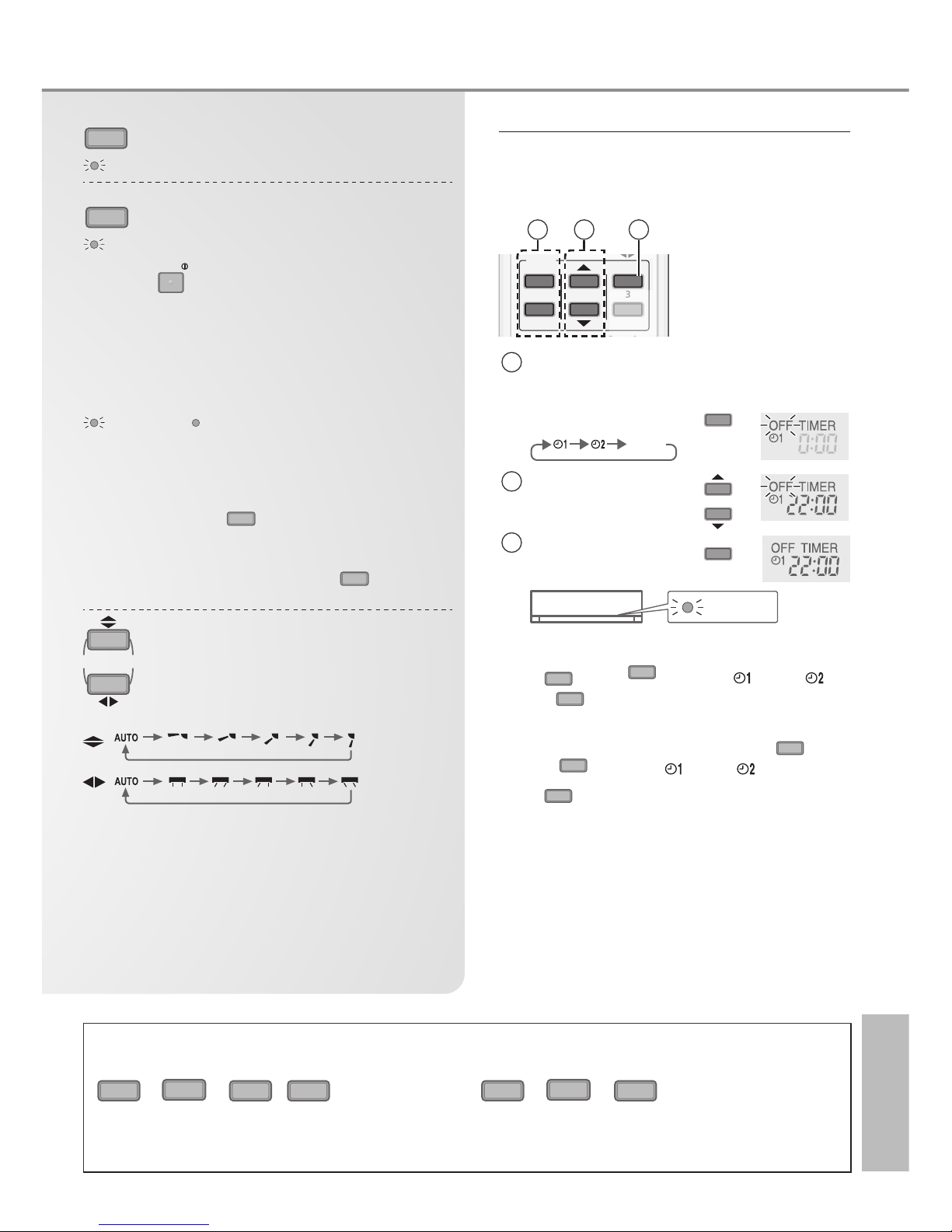

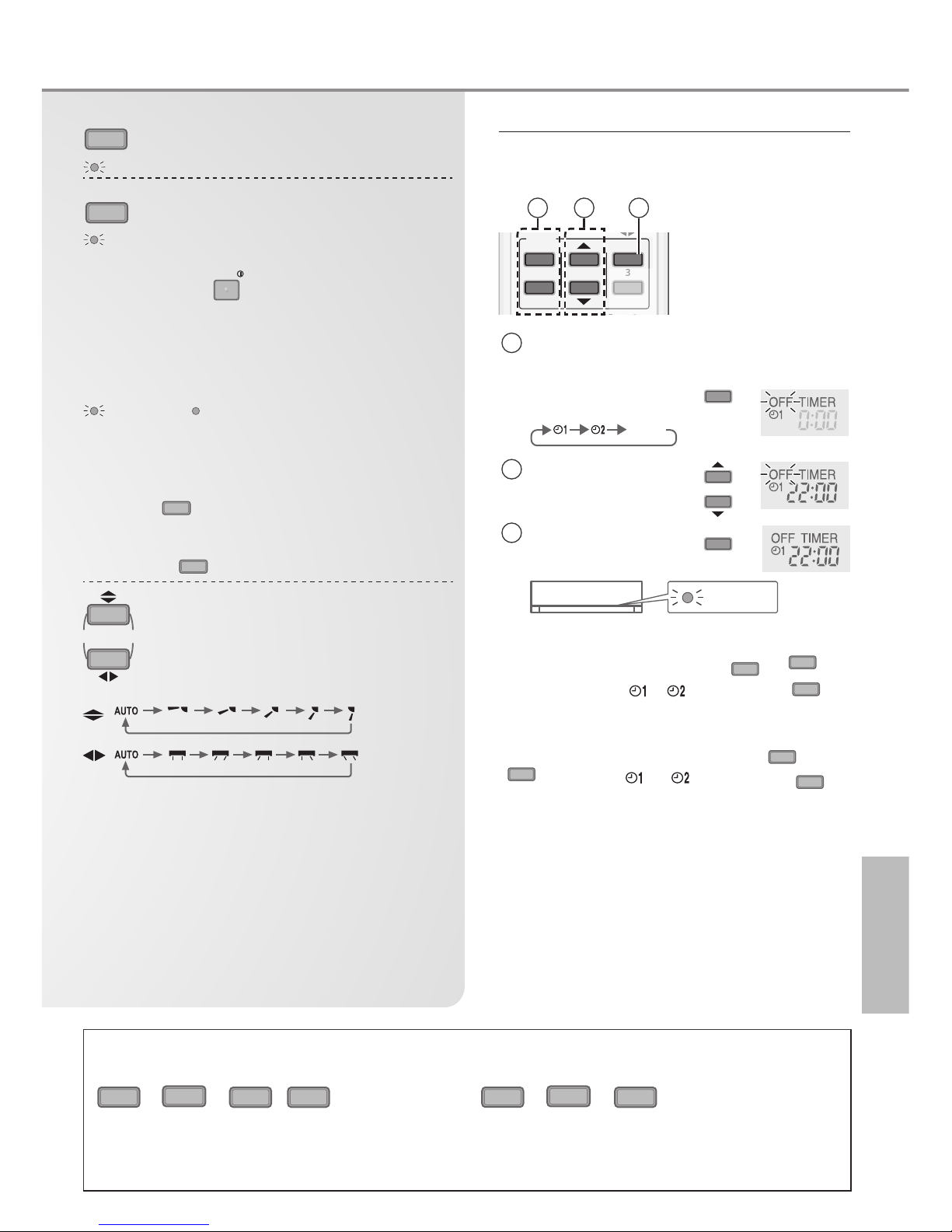

To set the timer

2 sets of ON and OFF timers are available
to turn ON or OFF the unit at different preset
times.

TIMER

SET

CANCEL

ON

OFF

1

2

3

CANCEL

3

21 3

1

Select ON or OFF
timer

Example:
OFF at 22:00

• Each time pressed:

OFF

Cancel

2

Set the time

2

3

Confi rm

SET

TIMER

• To cancel ON or OFF timer, press ON or

OFF

to select respective or then press

CANCEL

.

• If timer is cancelled manually or due to power
failure, you can restore the timer again by
pressing ON or

OFF

to select respective or

then press

SET

.

• The nearest timer setting will be displayed and
will activate in sequence.

• When ON Timer is set, the unit may start
earlier (up to 35 minutes) before the actual
set time in order to achieve the desired
temperature on time.

• Timer operation is based on the clock set in
the remote control and repeats daily once set.
For clock setting, please refer to Quick guide.

See "To learn more..." for details.

How to use

AUTO

COMFORT

To maximise comfort

AUTO COMFORT

NANOE-G

To purify the air

NANOE-G

• nanoe-G starts automatically when the unit is
turned on with

OFF/ON

.

• Can be activated even when the unit is turned
off. In this condition, the unit will operate as a fan
with AUTO fan speed and louver swing.

To deactivate viruses/bacteria on the fi lter

NANOE-G

POWER

• After the unit is turned off, the nanoe-G in-fi lter
deactivation may activate up to 150 minutes.
Turning on the unit cancels this operation.

• To disable this operation in the future, press and

hold

NANOE-G

until a short beep sound is heard. This

will not disable the nanoe-G to purify the air.

• To restore the nanoe-G in-fi lter deactivation,

press and hold

NANOE-G

until a long beep sound is

heard.

A

IR SWING

To adjust airfl ow direction

(Remote control display)

• Keeps the room ventilated.

• In COOL/DRY mode, if AUTO is set, the louver
swings left/right and up/down automatically.

• In HEAT mode, if AUTO is set, the horizontal
louver is fi xed at the predetermined position.
The vertical louver swings left/right after the
temperature rises.

• Do not adjust the louver by hand.

8

To learn more...

Operation mode

AUTO : During operation mode selection the POWER indicator blinks.

• Unit selects operation mode every 10 minutes according to setting temperature and room temperature.

HEAT : Unit takes a while to warm up. The POWER indicator blinks during this operation.
COOL: Use curtains to screen off sunlight and outdoor heat to reduce power consumption during COOL mode.
DRY : Unit operates at low fan speed to give a gentle cooling operation.

nanoe-G in-fi lter deactivation

Depending on the unit’s accumulated operation time, nanoe-G in-fi lter deactivation may activate only once a day after
the unit turned off.

To remove the moisture left in the internal parts, the fan will operate for 30 minutes with louver opened slightly. This
process only applicable when the unit is operated in COOL/DRY mode before turned off.Then, nanoe-G deactivates
viruses/bacteria on the fi lter for 2 hours with fan stopped and louver closed.

Do not turn off the power supply during this operation. After power failure, this operation will not resume.

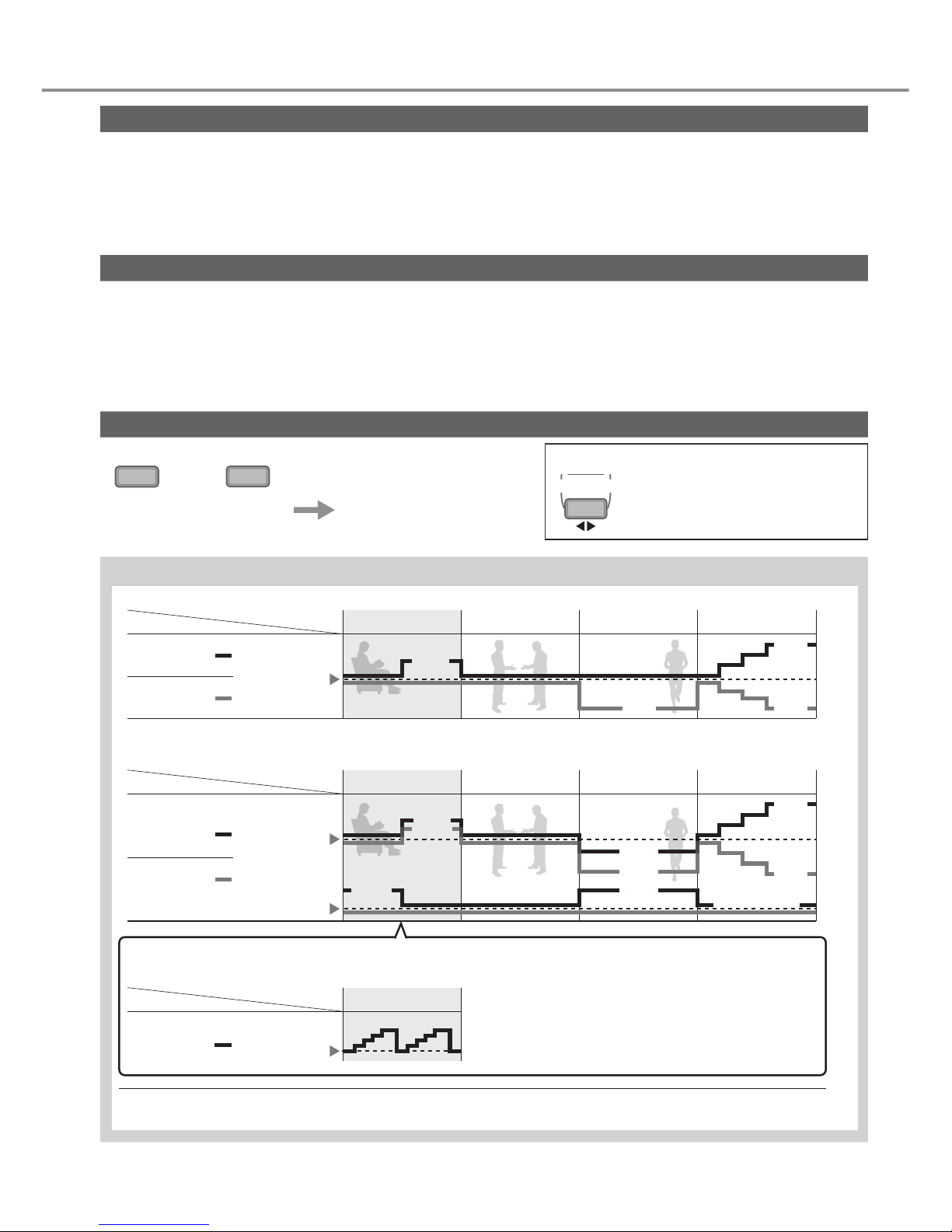

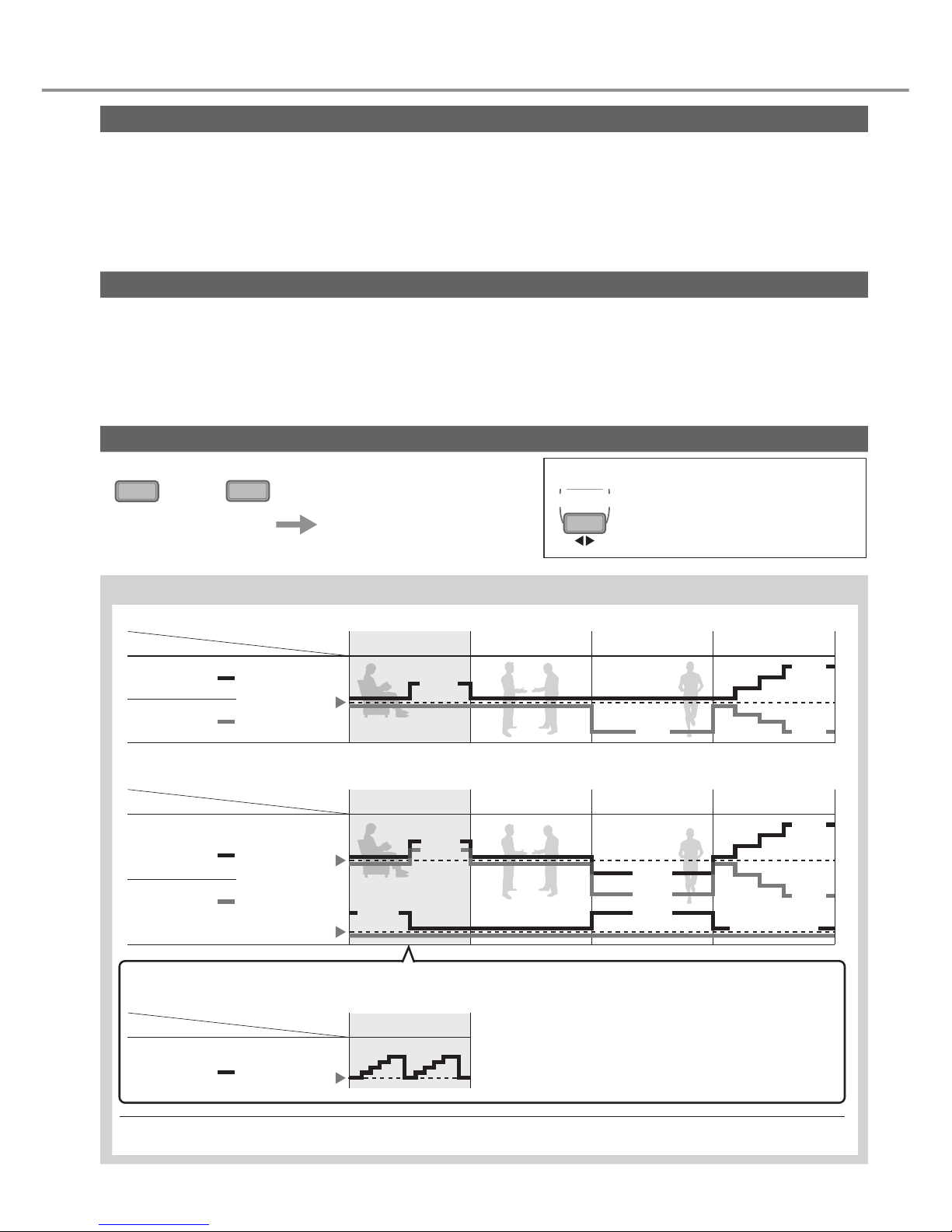

ECONAVI and AUTO COMFORT

ECONAVI

AUTO

COMFORT

or

Note

AIR SWING

When manual AIR SWING is selected,
the ECONAVI and AUTO COMFORT
operations will be cancelled.

The unit will start to initialise
(for approximately 1 minute)

The human activity sensor
and the sunlight sensor will
start to detect.

Human activity sensor operation

Low activity Normal activity

Human

Mode

Set
temperature

High activity Absent

ECONAVI

; Detecting human presence and activity, the unit controls room temperature to save energy.

Low activity Normal activity

Human

Mode

Set
temperature

High activity Absent

Set
Fan Speed

AUTO COMFORT ; Detecting human presence and activity, the unit controls room temperature to keep human

ECONAVI and AUTO COMFORT take advantage of
the human nature that human being takes time to feel
the temperature rise during low activity level; the unit
adjusts temperature to maximise energy saving
without sacrificing the comfort.

comfortable consistently.

HEAT

COOL/DRY

HEAT

COOL/DRY

* During low activity, fan speed 1 tap up for first 15 minutes or until set temperature is reached.
** During human absence, maximum fan speed for COOL/DRY mode is medium fan.

-2 °C-2 °C

+1 °C

+2 °C

-1 °C

Low activity

Human

Mode

Precise control of temperature during low activity to maximise energy saving.

Set
temperature

COOL/DRY

ECONAVI and AUTO COMFORT

+1 tap

0HGLXP)DQ

+1 tap*

-2 °C

+0.3 °C

-2 °C

+2 °C

+1 °C

9

English

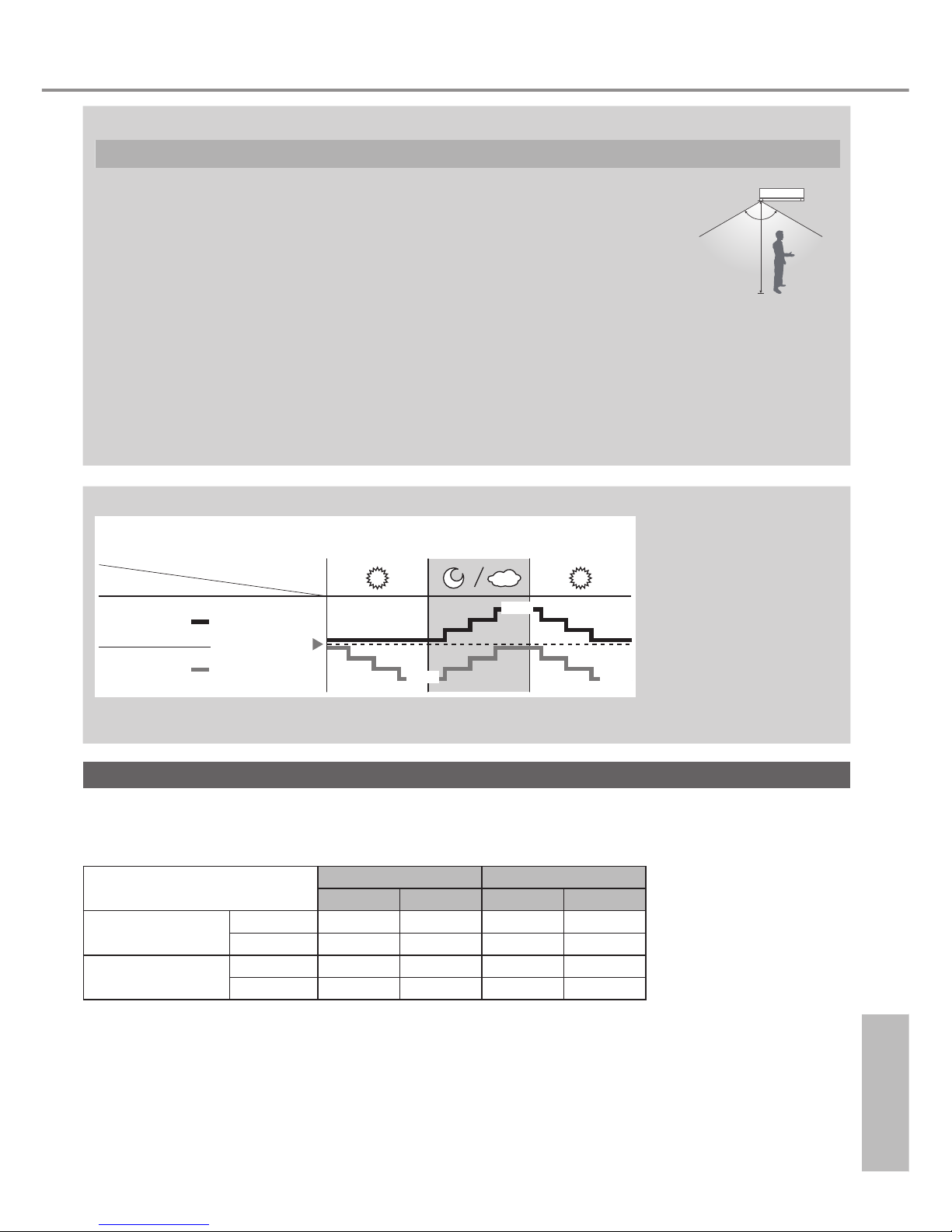

Operation conditions

Use this air conditioner under the following temperature range.

DBT : Dry bulb temperature
WBT : Wet bulb temperature

Temperature (°C)

Indoor Outdoor

DBT WBT DBT WBT

COOL

Max. 32 23 43 26

Min. 16 11 -15 -

HEAT

Max. 30 - 24 18

Min. 16 - -15 -

To learn more...

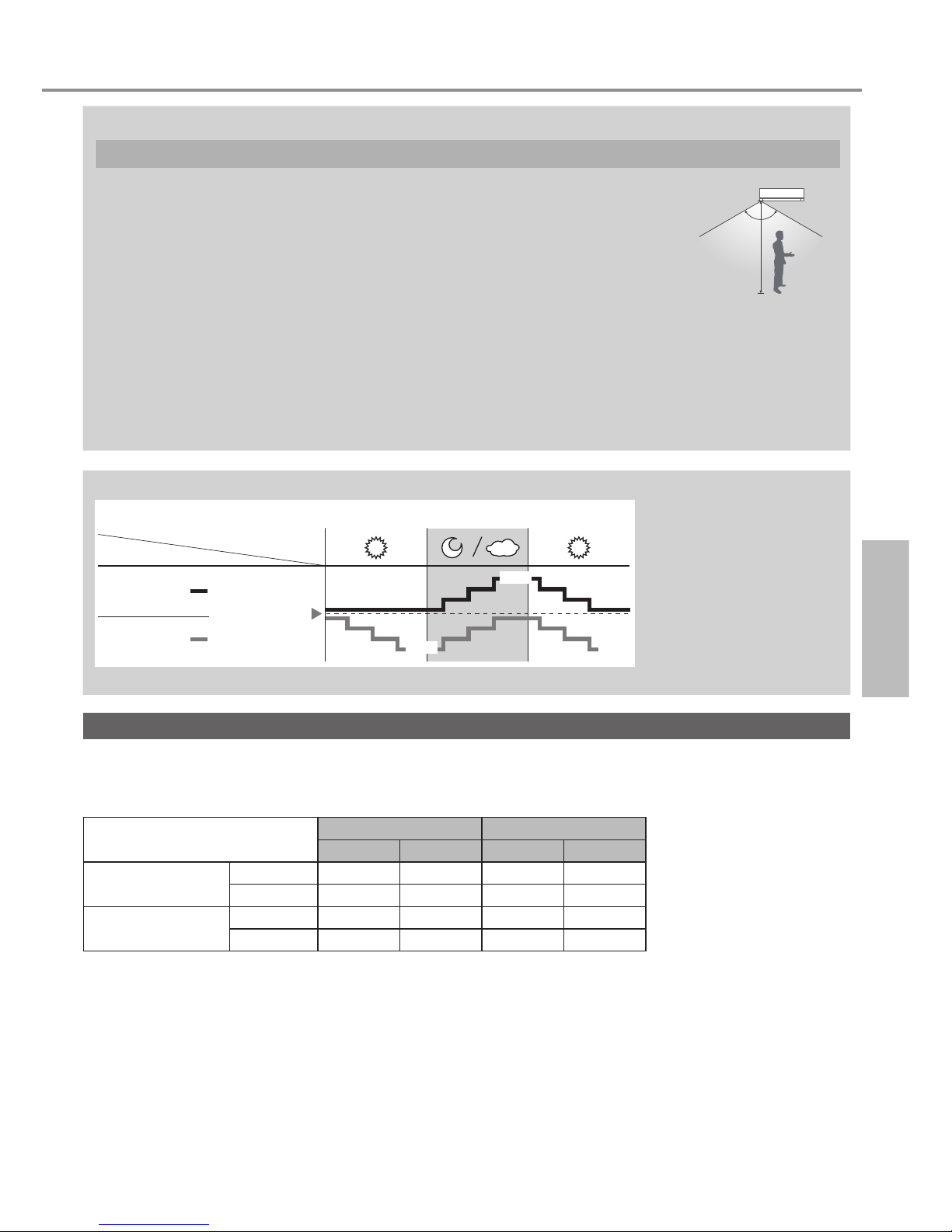

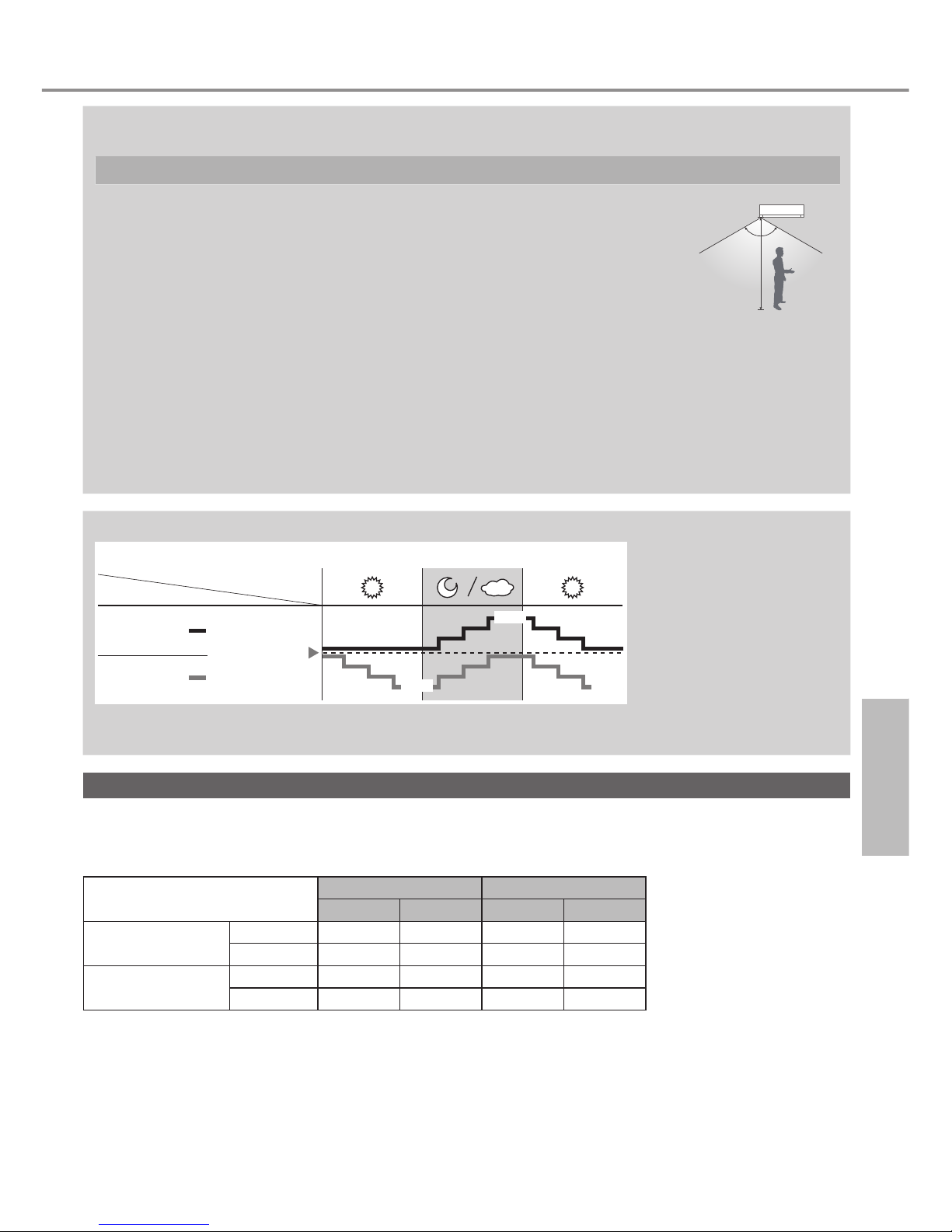

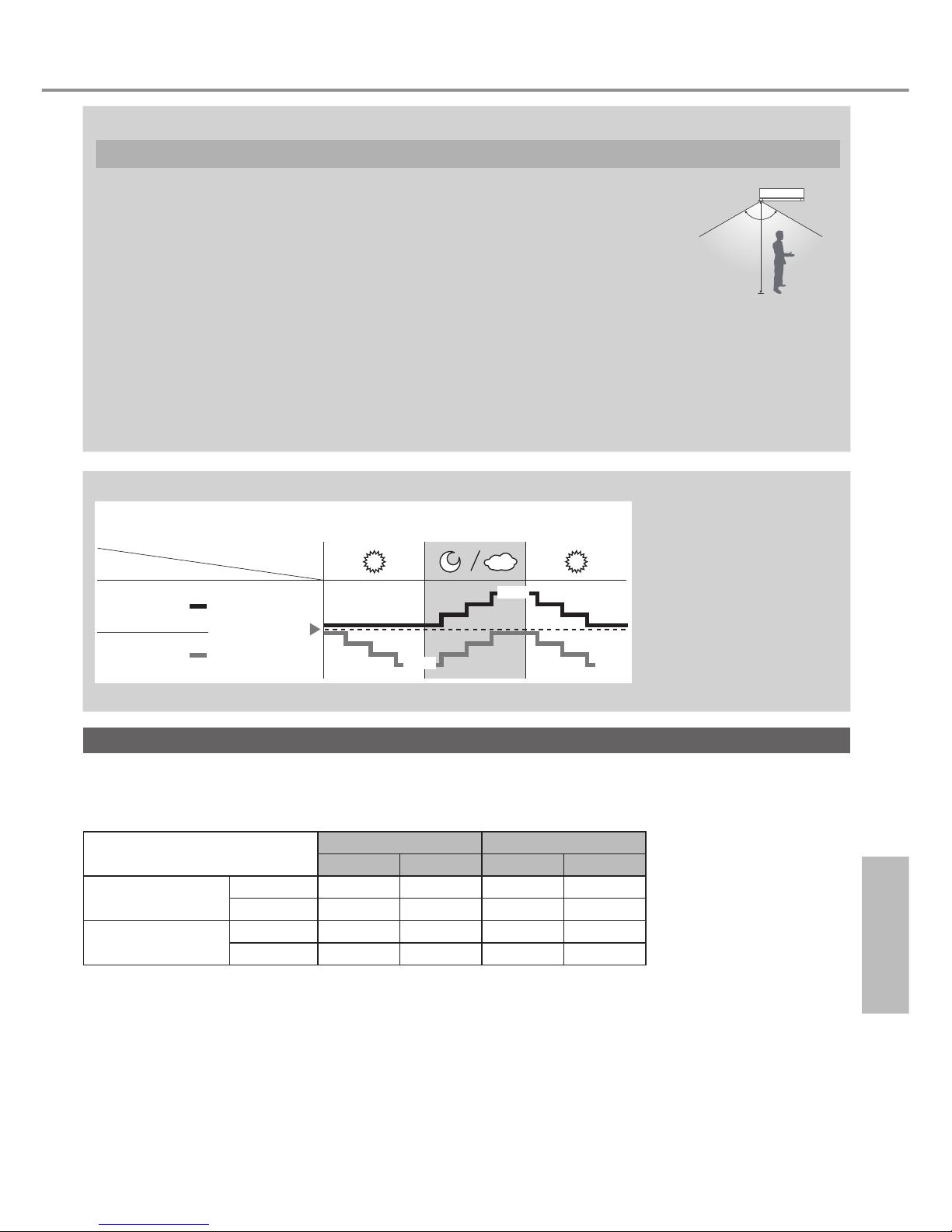

Sunlight Sensor operation

Set
temperature

HEAT

COOL/DRY

+1 °C

-1 °C -1 °C

ECONAVI ; Detecting sunlight intensity, the unit adjust temperature to save energy.

Ambient condition

Mode

ECONAVI is activated,
the unit maintains set
temperature until a high
sunlight intensity is detected.
The sunlight sensor detects
sunlight intensity during
weather or day/night
changes, and the unit adjusts
temperature.

• In a room without window or with thick curtain, the sunlight sensor will judge as cloudy/night.

The human activity sensor will also scan for area of heat source and movement in a room.

Detection area

• Based on area activeness horizontal airfl ow direction louver will adjust either fi x at
predetermined position or swing left/right periodically.

7m

120º

• The human activity sensor performance is infl uenced by indoor unit location, movement speed, temperature range,
etc.

• The human activity sensor may:

- mistakenly detect an object with heat source & movement similar to human, such as pets, etc.

- mistakenly detect as non-heat source & movement if a human stays motionless for certain period of time.

• Do not place large objects near the sensor and keep away heating units or humidifi er from the sensor’s detection
area. They may cause sensor malfunction.

10

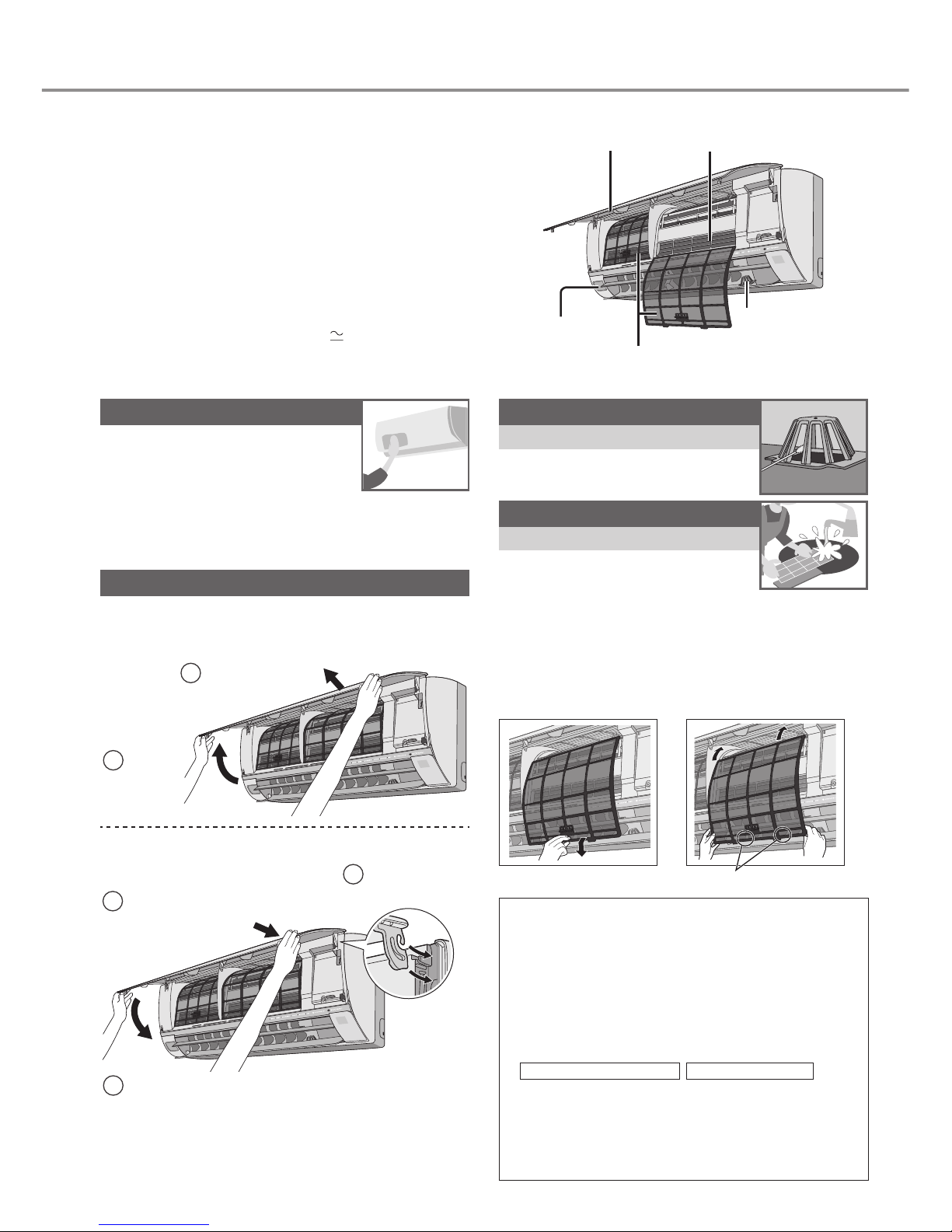

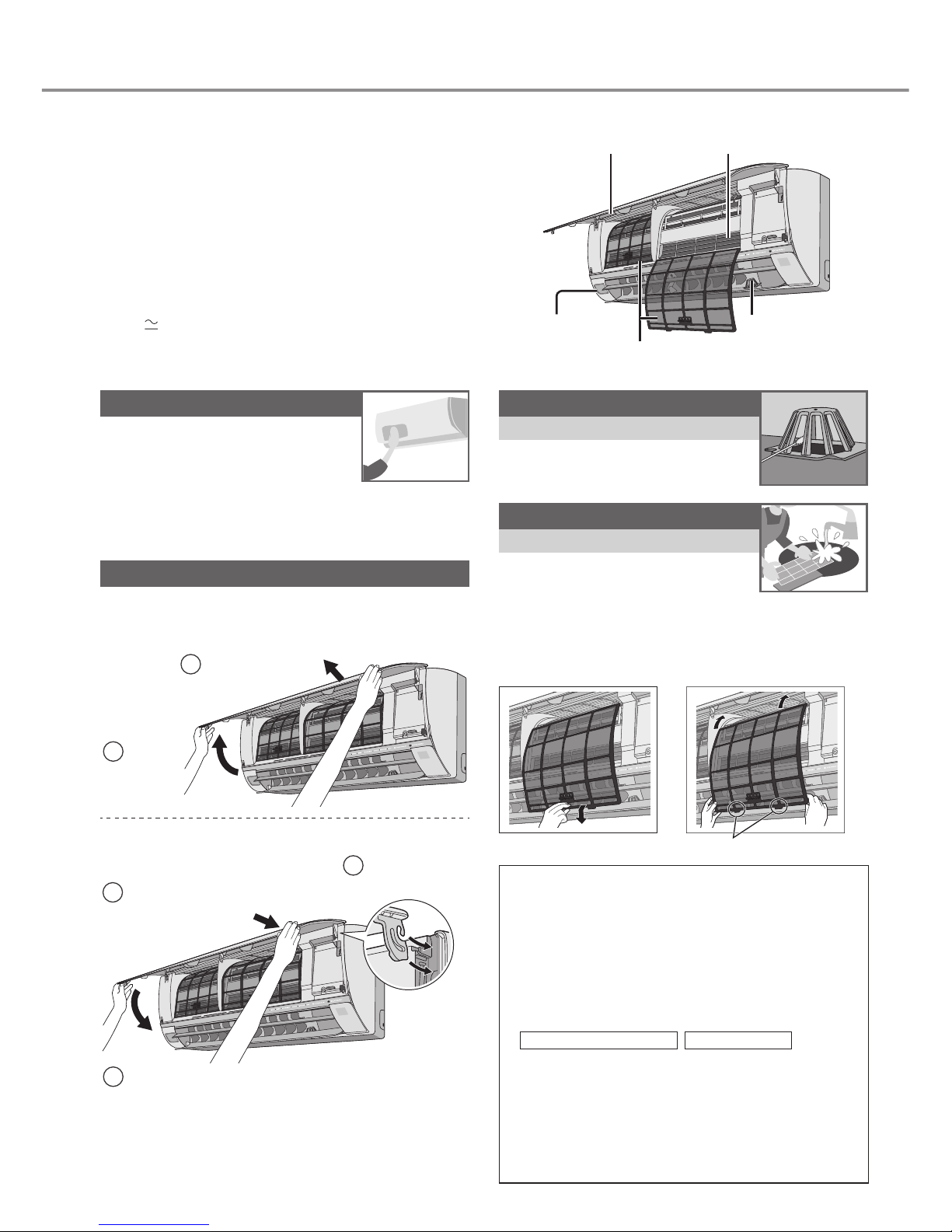

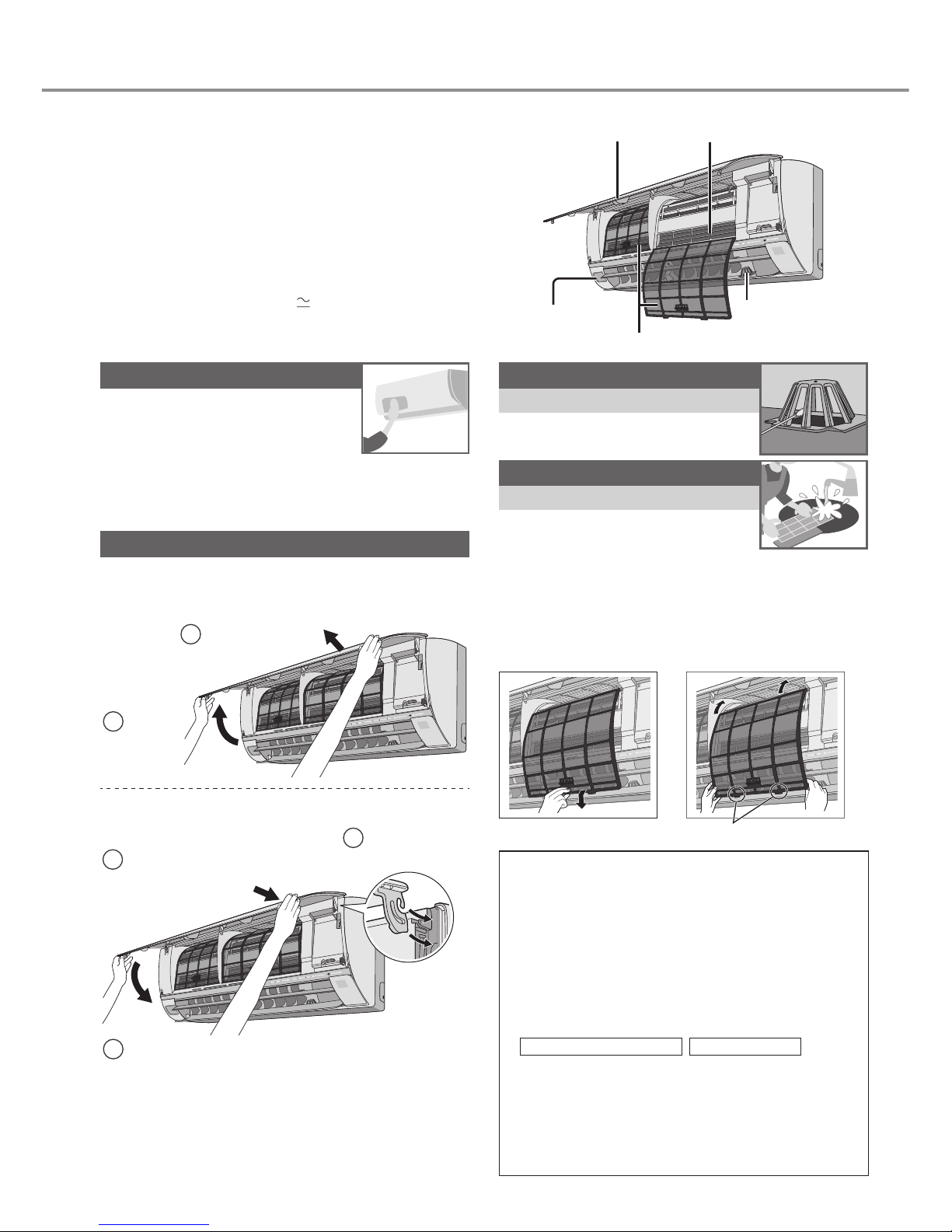

Cleaning instructions

To ensure optimal performance of the unit,
cleaning has to be carried out at regular
intervals. Dirty unit may cause malfunction
and you may see error code “H99”. Please
consult authorised dealer.

• Switch off the power supply and unplug before
cleaning.

• Do not touch the aluminium fi n, sharp parts may
cause injury.

• Do not use benzine, thinner or scouring powder.

• Use only soap (

pH 7) or neutral household

detergent.

• Do not use water hotter than 40 °C.

Indoor unit

Wipe the unit gently with a soft,
dry cloth.

Human activity sensor

Do not hit or violently press or poke it with a sharp
object. This can lead to damage and malfunction.

Front panel

Wash gently and dry.

Remove the front panel

Raise

Pull out

1

2

Close it securely

Insert at
both sides

1

Press both ends of
the front panel

3

Close down

2

nanoe-G Generator

Every 6 months

• Clean with dry cotton bud.

• Do not touch during operation.

Air fi lters

Every 2 weeks

• Wash/rinse the fi lters gently
with water to avoid damage to
the fi lter surface.

• Dry the fi lters thoroughly under shade, away
from fi re or direct sunlight.

• Replace any damaged fi lters.

Remove air fi lter Attach air fi lter

Insert into the unit

For seasonal inspection after extended
non-use

• Checking of remote control batteries.

• No obstruction at air inlet and air outlet vents.

• Use Auto OFF/ON button to select COOL/
HEAT operation. After 15 minutes of
operation, it is normal to have the following
temperature difference between air inlet and
air outlet vents:

COOL: ≥ 8 °C HEAT: ≥ 14 °C

For extended non-use

•

Activate HEAT mode for 2~3 hours to remove
moisture left in the internal parts thoroughly to
prevent mould growth.

• Turn off the power supply and unplug.

• Remove the remote control batteries.

Indoor unit

Aluminium fi nFront panel

Air fi lters

Human activity
sensor

nanoe-G
Generator

11

English

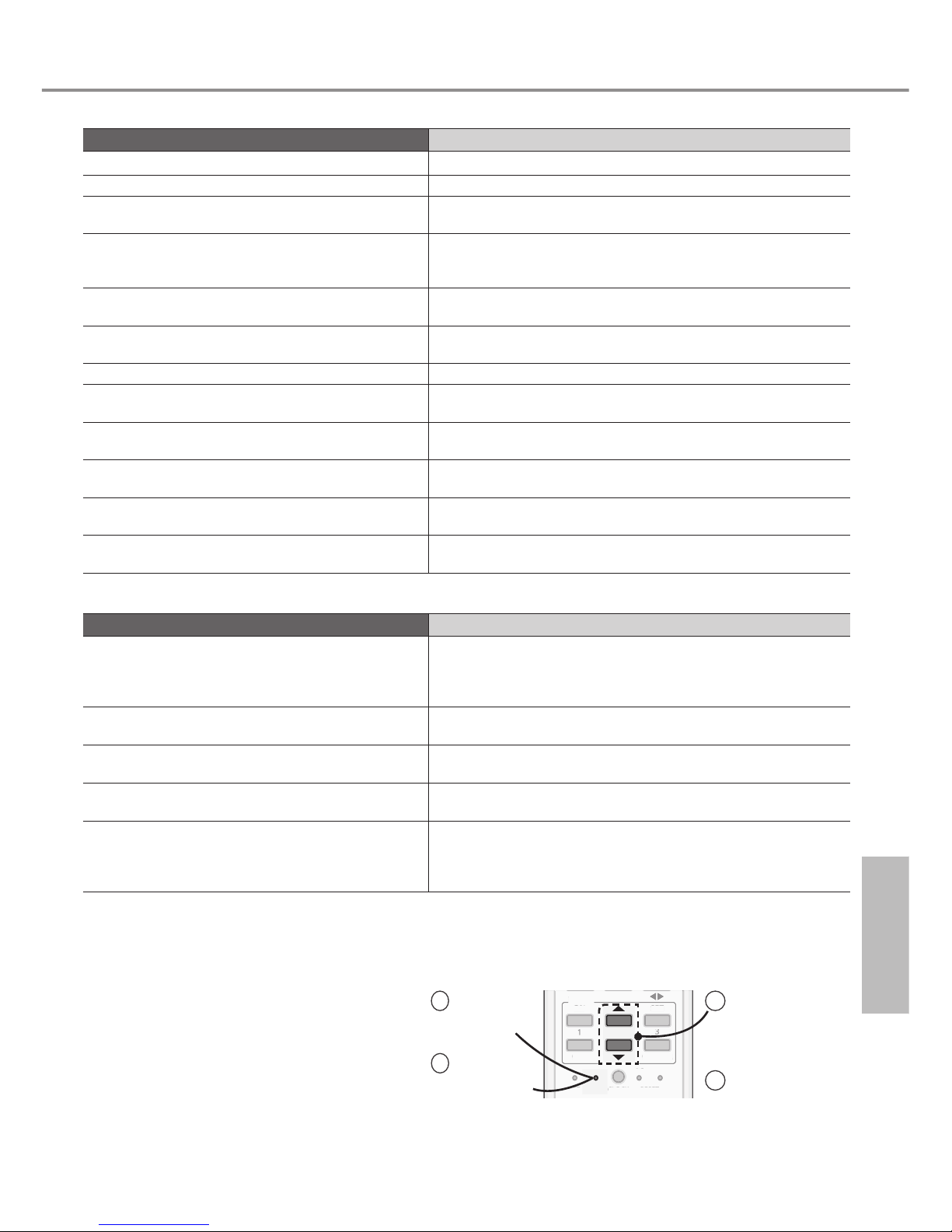

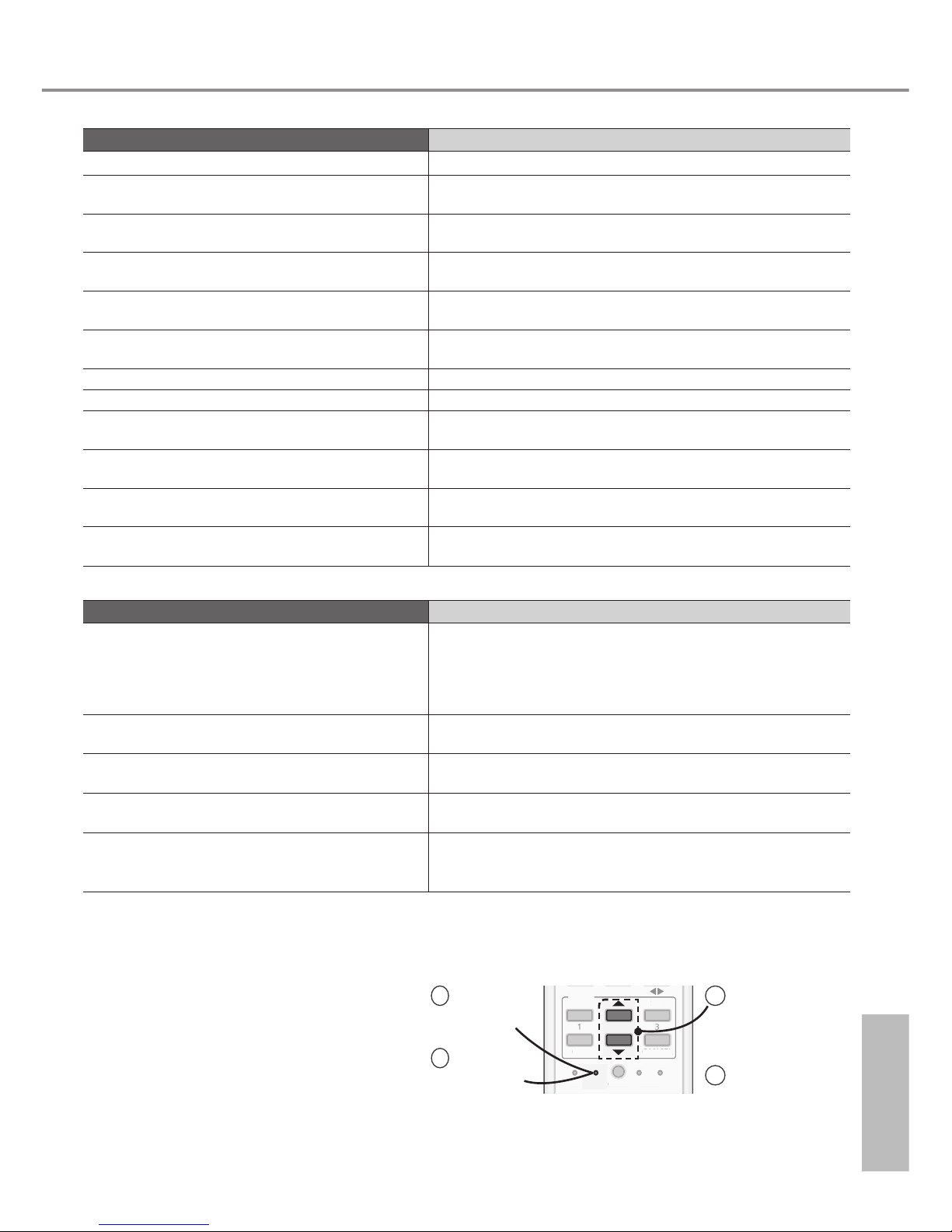

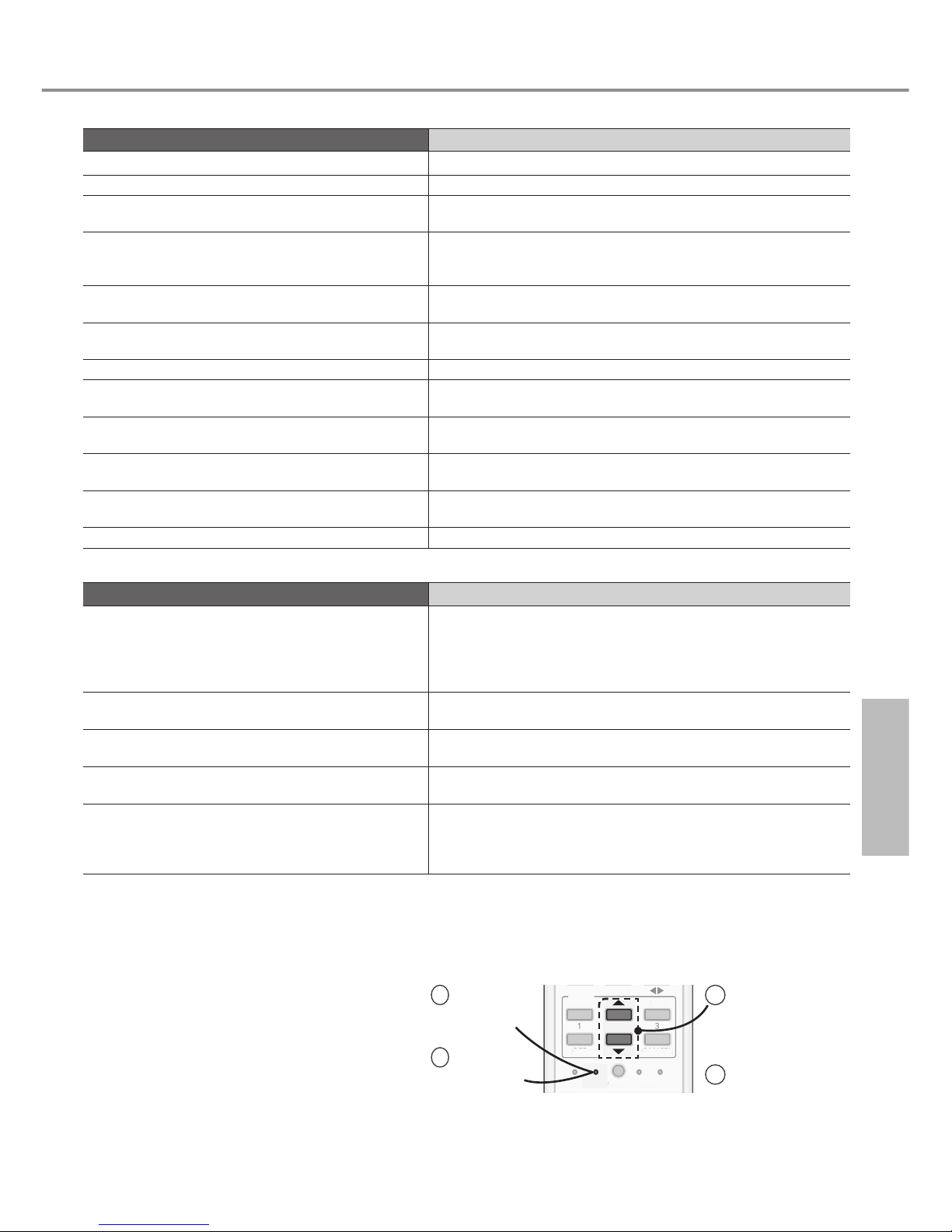

The following symptoms do not indicate malfunction.

Symptom Cause

Mist emerges from indoor unit. • Condensation effect due to cooling process.
Water fl owing sound during operation. • Refrigerant fl ow inside the unit.

The room has a peculiar odour. • This may be due to damp smell emitted by the wall,

carpet, furniture or clothing.

Indoor fan stops occasionally during automatic
fan speed setting.

• This helps to remove the surrounding odour.

Airfl ow continues even after operation has
stopped.

• Extraction of remaining heat from the indoor unit
(maximum 30 seconds).

Operation is delayed a few minutes after
restarting.

• The delay is a protection to the unit’s compressor.

Outdoor unit emits water/steam. • Condensation or evaporation occurs on pipes.
TIMER indicator is always on. • The timer setting repeats daily once set.
POWER indicator blinks during HEAT mode

with no warm air supply (and louver is closed).

• The unit is in defrost mode (and AIR SWING is set to
AUTO).

Indoor fan stops occasionally during heating
operation.

• To avoid unintended cooling effect.

POWER indicator blinks before the unit is
switched on.

• This is a preliminary step in preparation for the
operation when the ON timer has been set.

Cracking sound during operation. • Changes of temperature caused the expansion/

contraction of the unit.

Check the following before calling for servicing.

Symptom Check

Operation in HEAT/COOL mode is not working
effi ciently.

• Set the temperature correctly.

• Close all doors and windows.

• Clean or replace the fi lters.

•

Clear any obstruction at the air inlet and air outlet vents.

Noisy during operation. • Check if the unit has been installed at an incline.

• Close the front panel properly.

Remote control does not work.
(Display is dim or transmission signal is weak.)

• Insert the batteries correctly.

• Replace weak batteries.

The unit does not work. • Check if the circuit breaker is tripped.

• Check if timers have been set.

The unit does not receive the signal from the
remote control.

• Make sure the receiver is not obstructed.

• Certain fl uorescent lights may interfere with signal
transmitter. Please consult authorised dealer.

Troubleshooting

NON SERVICEABLE CRITERIAS

TURN OFF POWER SUPPLY AND
UNPLUG then please consult authorised
dealer under the following conditions:

• Abnormal noise during operation.

• Water/foreign particles have entered the
remote control.

• Water leaks from Indoor unit.

• Circuit breaker switches off frequently.

• Power cord becomes unnaturally warm.

• Switches or buttons are not functioning
properly.

The unit stops and the TIMER indicator blinks.

Use remote control to retrieve error code.

TIMER

SET

CANCEL

ON

OFF

1

2

3

SET CHECK CLOCK RESET

AC

RC

TIMER

S

ET

CANCEL

ON

O

FF

1

3

S

ET CLOC

K

RES

ET

AC

RC

Press for
5 seconds

Press for
5 seconds
to quit
checking

Press until you
hear beep sound,
then write down
the error code

Turn the unit off
and reveal the
error code to
authorised dealer

2

3

4

1

•

For certain errors, you may restart the unit for limited
operation with 4 beeps when operation starts.

Cleaning instructions / Troubleshooting

12

Information for Users on Collection and Disposal of Old Equipment and Used Batteries

These symbols on the products, packaging, and/or
accompanying documents mean that used electrical
and electronic products and batteries should not be
mixed with general household waste.
For proper treatment, recovery and recycling of old
products and used batteries, please take them to
applicable collection points, in accordance with your
national legislation and the Directives 2002/96/EC
and 2006/66/EC.
By disposing of these products and batteries
correctly, you will help to save valuable resources
and prevent any potential negative effects on
human health and the environment which could
otherwise arise from inappropriate waste handling.
For more information about collection and recycling
of old products and batteries, please contact your
local municipality, your waste disposal service or the
point of sale where you purchased the items.
Penalties may be applicable for incorrect disposal of
this waste, in accordance with national legislation.

Pb

For business users in the European
Union

If you wish to discard electrical and
electronic equipment, please contact
your dealer or supplier for further
information.

[Information on Disposal in other
Countries outside the European
Union]

These symbols are only valid in the
European Union. If you wish to discard
these items, please contact your local
authorities or dealer and ask for the
correct method of disposal.
Note for the battery symbol (bottom two
symbol examples):
This symbol might be used in
combination with a chemical symbol.
In this case it complies with the
requirement set by the Directive for the
chemical involved.

Declaration of Conformity

with the requirements of Technical Regulation on the Restriction Of the use of certain Hazardous

Substances in Electrical and Electronic Equipment

(adopted by Order №1057 of Cabinet of Ministers of Ukraine)

The Product is in conformity with the requirements of Technical Regulation on the Restriction Of the
use of certain Hazardous Substances in electrical and electronic equipment (TR on RoHS).

The content of hazardous substance with the exemption of the applications listed in the Annex №2
of TR on RoHS:

1. Lead (Pb) – not over 0,1wt % or 1000wt ppm;

2. Cadmium (Cd) – not over 0,01wt % or 100wt ppm;

3. Mercury (Hg) – not over 0,1wt % or 1000wt ppm;

4. Hexavalent chromium (Cr

6+

) – not over 0,1wt % or 1000wt ppm;

5. Polybrominated biphenyls (PBBs) – not over 0,1wt % or 1000wt ppm;

6. Polybrominated diphenyl ethers (PBDEs) – not over 0,1wt % or 1000wt ppm.

Information

Инструкции по эксплуатации

Кондиционер

ME67

Название и адрес завода-изготовителя указаны на
упаковке и на изделии.

Модель №.
Внутренний блок Наружный блок

CS-HE9PKD
CS-HE12PKD

CU-HE9PKD
CU-HE12PKD

14

Обеспечение максимального
комфорта, чистого воздуха и
оптимальной экономии энергии

ECONAVI и AUTO COMFORT

Благодаря датчику человеческой активности кондиционер обеспечивает подачу холодного
или теплого воздуха и поддерживает комфортные климатические условия в помещении при
минимальном потреблении энергии.
Кроме того, для максимального комфорта при регулировании температуры в режимах нагрева/
охлаждения используется датчик интенсивности солнечного света.
Дополнительные сведения см. в разделе “Дополнительная информация...”.

nanoe-G

Поддерживает чистоту воздуха, устраняя из него вредные микроорганизмы, такие как вирусы,
бактерии и т.д.
Также уничтожает вирусы и бактерии на фильтре для поддержания чистоты внутри аппарата.

15

Руccкий

Краткая инструкция

1

2

3

Вставьте элементы питания

1

Потяните и снимите заднюю

крышку пульта дистанционного
управления

2

Вставьте батарейки (AAA или R03)
(может использоваться ~ 1 год)

3

Закройте крышку

TIMER

SET

CANCEL

ON

OFF

1

2

3

SET CHECK CLOCK RESET

AC

RC

TIMER

CANCEL

ON

O

FF

1

3

S

ETCHE

CK

RES

ET

A

C

RC

2 3

1

Установка часов

1

Нажмите кнопку CLOCK

2

Установите время

3

Подтверждение

AUTO

COMFORT

MODE

POWERFUL/

QUIET

TEMP

OFF/ON

TIMER

SET

CANCEL

ON

OFF

1

2

3

AIR SWING

FAN SPEED

MILD DRY

COOLING

SET CHECK CLOCK RESET

AC

RC

MILD

DRY

FAN
SPEED

AIR
SWING

AUTO
HEAT
COOL

DRY

ECONAVI

NANOE-G

AUT

O

COMFORT

POWERFUL/

Q

UIET

TIMER

S

ET

CANCEL

ON

O

FF

1

2

3

A

IR SWIN

G

F

AN SPEE

D

MILD DRY

COOLIN

G

S

ETCHECKCLOC

K

RES

ET

A

C

RC

MILD

DRY

FAN

S

PEE

D

AIR

S

WIN

G

AUTO

HEAT

C

OOL

DRY

ECONAV

I

NANOE-G

1

2

3

8m

Основные функции

1

Выберите необходимый режим

DRY

AUTO HEAT

COOL

2

Включить/остановить работу

POWER

•

Обратите внимание на то, что для
включения устройства индикация
ВЫКЛЮЧЕНИЯ должна указывать

на

.

3

Выберите необходимую

температуру

•

Диапазон выбора:
16 °C ~ 30 °C.

•

Использование кондиционера
в диапазоне рекомендованных
температур способствует
экономии электроэнергии.
НАГРЕВ: 20 °C ~ 24 °C.
ОХЛАЖДЕНИЕ: 26 °C ~ 28 °C.
ОСУШЕНИЕ: 1 °C ~ 2 °C

ниже комнатной
температуры.

•

Нажмите и удерживайте в течение
5 секунд, чтобы уменьшить или

восстановить яркость индикатора блока.

•

Используйте пульт дистанционного
управления в радиусе 8 метров от
приемника сигнала дистанционного
управления внутреннего блока.

Иллюстрации в данном руководстве предназначены для пояснительных
целей и могут отличаться для конкретного кондиционера. В связи с
последующим совершенствованием конструкции могут вноситься изменения
без предварительного уведомления.

Содержание

Меры предосторожности ...16-17

Как пользоваться ...............18-19

Дополнительная

информация... ..................20-21

Инструкции по чистке .............22

Устранение

неисправностей ......................23

Информация............................24

Принадлежности

• Дистанционное управление

• Батарейки AAA или R03 × 2

• Держатель пульта
дистанционного управления

• Винты для держателя

пульта дистанционного
управления × 2

16

Меры предосторожности

Во избежание получения травм, нанесения телесных
повреждений другим лицам и ущерба имуществу следует
соблюдать следующие инструкции:
Неправильная эксплуатация вследствие несоблюдения
инструкций нанесет вред или ущерб, степень серьезности
которых классифицируется следующим образом:

ПРЕДУПРЕЖДЕНИЕ

Этот символ
предупреждает о
смертельной опасности
или о риске получения
серьезной травмы.

ПРЕДОСТЕРЕЖЕНИЕ

Этот символ
предупреждает об
опасности травмы
или нанесения вреда
имуществу.

Инструкции, которые следует выполнять, обозначаются
следующими символами:

Этот символ обозначает действие
как ЗАПРЕЩЕННОЕ.

Эти символы обозначают
действия как ОБЯЗАТЕЛЬНЫЕ.

Внутренний

блок

Наружный

блок

Электросна-

бжение

Дистанционное

управление

Воздухозаборник

Воздухозаборник

Воздухозаборник

Воздухозаборник

Воздуховыпускное

Воздуховыпускное

отверстие

отверстие

Воздуховыпускное

Воздуховыпускное

отверстие

отверстие

ПРЕДУПРЕЖДЕНИЕ

Внутренний и наружный блоки

Данное устройство может использоваться лицами
с ограниченными физическими, чувствительными
или умственными способностями (включая детей)
или лицами с отсутствием опыта или знания только
при условии, что они находятся под надзором или
получили от лица, ответственного за их безопасность,
соответствующие инструкции по использованию
изделия. Дети должны находиться под наблюдением.
Необходимо следить за тем, чтобы они не играли с
устройством.

Для чистки внутренних деталей, ремонта, установки,
переноса и переустановки блока следует обращаться
к официальному дилеру. Неправильная установка
и обращение могут привести к утечке, поражению
электрическим током или пожару.

Проконсультируйтесь с авторизованным дилером или
специалистом относительно использования любого
указанного типа хладагента.
Использование хладагента другого типа

может
привести к повреждению изделия, взрыву или
телесным повреждениям и т. д.

Не устанавливайте блок в потенциально взрыво- или
огнеопасной среде. Несоблюдение данного условия
может привести к пожару.

Не вставляйте пальцы или другие
предметы в наружный или внутренний блок
кондиционера, поскольку вращающиеся части
могут нанести травму.

Не прикасайтесь к наружному блоку кондиционера
во время грозы, это может привести к поражению
электрическим током.

Во избежание переохлаждения не подвергайте себя
прямому воздействию холодного воздуха в течение
длительного времени.

Не садитесь и не становитесь на устройство,
вы можете упасть.

Дистанционное управление

Держите пульт ДУ вдали от грудных и маленьких
детей, во избежание случайного проглатывания
батарей.

Электроснабжение

Во избежание перегрева и
возникновения пожара не
используйте модифицированный
шнур, сращенный шнур, удлинитель
или шнур, не соответствующий
техническим условиям.
