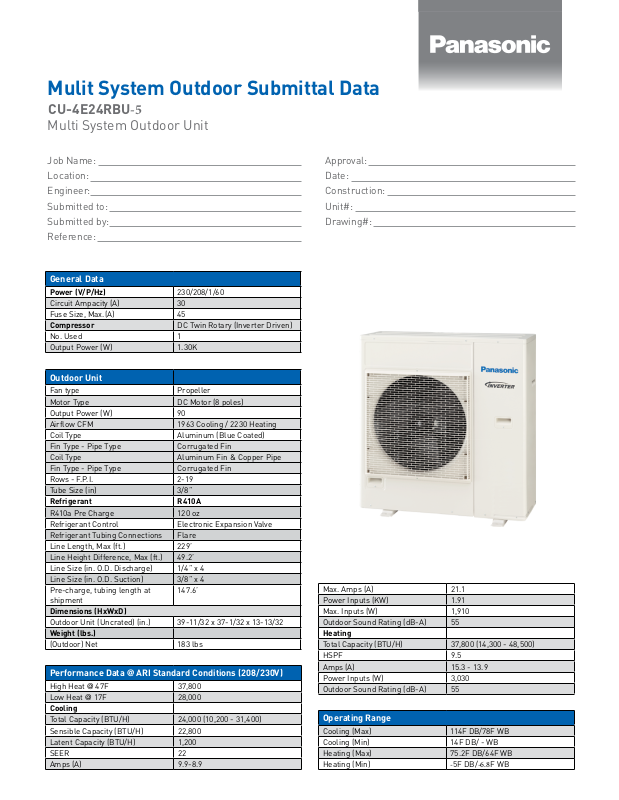

Panasonic CU4E24RBU5 User Manual

ulit System Outdoor Submittal Data

CU-4E24RBU-5

Multi System Outdoor Unit

Job Name: Location: Engineer: Submitted to: Submitted by: Reference:

General Data

Power (V/P/Hz) 230/208/1/60

Circuit Ampacity (A) 30 Fuse Size, Max.(A) 45 Compressor DC Twin Rotary (Inverter Driven) No. Used 1 Output Power (W) 1.30K

Outdoor Unit

Fan type Propeller Motor Type DC Motor (8 poles) Output Power (W) 90 Airflow CFM 1963 Cooling / 2230 Heating Coil Type Aluminum (Blue Coated) Fin Type - Pipe Type Corrugated Fin Coil Type Aluminum Fin & Copper Pipe Fin Type - Pipe Type Corrugated Fin Rows - F.P.I. 2-19 Tube Size (in) 3/8”

Refrigerant R410A

R410a Pre Charge 120 oz Refrigerant Control Electronic Expansion Valve Refrigerant Tubing Connections Flare Line Length, Max (ft.) 229’ Line Height Difference, Max (ft.) 49.2’ Line Size (in. O.D. Discharge) 1/4” x 4 Line Size (in. O.D. Suction) 3/8” x 4 Pre-charge, tubing length at

shipment

Dimensions (HxWxD)

Outdoor Unit (Uncrated) (in.) 39-11/32 x 37-1/32 x 13-13/32

Weight (lbs.)

(Outdoor) Net 183 lbs

Performance Data @ ARI Standard Conditions (208/230V)

High Heat @ 47F 37,800 Low Heat @ 17F 28,000

Cooling

Total Capacity (BTU/H) 24,000 (10,200 - 31,400) Sensible Capacity (BTU/H) 22,800 Latent Capacity (BTU/H) 1,200 SEER 22 Amps (A) 9.9-8.9

147.6’

Approval: Date: Construction: Unit#: Drawing#:

Max. Amps (A) 21.1 Power Inputs (KW) 1.91 Max. Inputs (W) 1,910 Outdoor Sound Rating (dB-A) 55

Heating

Total Capacity (BTU/H) 37,800 (14,300 - 48,500) HSPF 9.5 Amps (A) 15.3 - 13.9 Power Inputs (W) 3,030 Outdoor Sound Rating (dB-A) 55

Operating Range

Cooling (Max) Cooling (Min) 14F DB/ - WB Heating (Max) 75.2F DB/64F WB Heating (Min)

114F DB/78F WB

-5F DB/-6.8F WB

3. Dimensions

3.1 CU-3E19RBU

3.2 CU-4E24RBU

Unit: inch (mm)

Space necessary for

installation

Anchor Bolt Pitch

14-3/16 (360.5) x 24-9/64 (613)

39-3/8 (100 cm)

3-15/16 (10 cm)

24-9/64 (613)

1-5/64 (27.5)

(5-5/32

(131))

5-5/32

(131)

3-3/4

(95)

1-1/2

(38)

5-7/32

(132.5)

1-39/64

(41)

3-17/64

(83)

14-3/16 (360.5)

34-15/32 (875)

12-5/8 (320)

2-21/64

(59)

1-21/32

(42)

31-5/16 (795)

15/16 (23.8)

2-3/64

(52)

63/64

(25)

3-19/32

(91.2)

43/64

(17)

(3-3/16

(81))

(6-37/64

(167))

3-3/8 X 1/8 = 10-1/8

(85.7 x 3 = 257.1)

3-3/8 X 1/8 = 10-1/8

(85.7 x 3 = 257.1)

(8-17/64

(210))

Dimensions

3-15/16 (10 cm)

Space necessary for

installation

3-15/16 (10 cm)

39-3/8 (100 cm)

24-13/32 (620)

6-11/16 (170)

1-7/16 (36.2)

Anchor Bolt Pitch

24-13/32 (620) x 14-31/32 (380.5)

Unit: inch (mm)

14-31/32 (380.5)

37-1/32 (940)

39-11/32 (999)

1-13/32 (36)

(27)

1-1/16

13-13/32 (340)

13/64 (5.5)

16-17/32

4-1/8 x 5/32 =

(105 x 4 = 420)

2-21/32

(67.7)

(74.5)

2-15/16

16-17/32

4-1/8 x 5/32 =

(105 x 4 = 420)

5-3/32

(129.5)
