Color Television
Operating Instructions
CT-27G6 |
CT-G2939 |
CT-27G6U |
CT-G2949L |
CT-29G6X |
CT-G3339 |
CT-32G6 |
CT-G3339X |
CT-32G6U |
CT-G3349L |
For assistance, please call: 1-800-211-PANA (7262)
or send e-mail to: consumerproducts@panasonic.com (For USA only)
P R I N T E D I N U S A TQB2AA0375-1 10131
TABLE OF CONTENTS |
|
Table of Contents |
|
Feature Comparison Chart ................................. |
3 |
Congratulations ................................................... |
4 |
Customer Record............................................... |
4 |
Care and Cleaning............................................. |
4 |
Specifications..................................................... |
4 |
Remote Control.................................................. |
4 |
Installation............................................................ |
5 |
Television Location ............................................ |
5 |
Optional Cable Connections .............................. |
5 |
AC Power Supply Cord...................................... |
5 |
Cable / Antenna ................................................. |
6 |
Cable Connection .............................................. |
6 |
Antenna Connection .......................................... |
6 |
Optional Equipment Connections ...................... |
6 |
Amplifier Connection (To Audio Amp) ............... |
7 |
Main Menu ............................................................ |
8 |
ACTION Button.................................................. |
8 |
CH / VOL Buttons .............................................. |
8 |
Main Menu Feature Chart.................................... |
9 |
Special Features ................................................ |
11 |
Languages ....................................................... |
11 |
Timer................................................................ |
11 |
Sleep Timer ..................................................... |
11 |
Program Timer................................................. |
11 |
CH CAP (Channel Caption) ............................. |
12 |
LOCK ............................................................... |
13 |
Lock Mode (Lock and Unlock) ......................... |
13 |
Troubleshooting Chart ...................................... |
14 |
Safety Instructions
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: To reduce the risk of electric shock do not remove cover or back. No user-serviceable parts inside. Refer servicing to qualified service personnel.
The lightning flash with arrow head within a triangle is intended to tell the user that parts inside the product are a risk of electric shock to persons.
The exclamation point within a triangle is intended to tell the user that important operating and servicing instructions are in the papers with the appliance.
WARNING: To prevent fire or shock hazard, do not expose this appliance to rain or moisture.
Read these instructions completely before operating TV. Contents are subject to change without notice or obligation.
Copyright 2001 by Matsushita Electric Corporation of America. All rights reserved. Unauthorized copying and distribution is a violation of law.
2
FEATURE COMPARISON CHART
Feature Comparison Chart
SPECIAL |
FEATURES |
|
|
|
|
AUDIO |
|
|
|
|
|
A/V |
JACKS |
|
|
|
|
|
|
|
|
MODELS |
CT-27G6 CT-27G6U |
CT-32G6 CT-32G6U |
|
|
|
|
||
|
|
|
|
|
|
FEATURES |
|
|
|
|
|
|
|
|
|
MENU LANGUAGE |
r |
r |
|
|
ENG/SPAN/FR |
|
||
|
|
|
|
|
|
|
|
|
|
|
CLOSED CAPTIONING |
r |
r |
|
|
|
|
|
|
|
V-CHIP CAPABILITY |
r |
r |
|
|
|
|
|
|
|
75 OHM INPUT |
r |
r |
|
|
|
|
|
|
|
VIDEO NORM |
r |
r |
|
|
|
|
|
|
|
STEREO |
r |
r |
|
|
|
|
|
|
|
AI SOUND |
r |
r |
|
|
|
|
|
|
|
NUMBER OF SPEAKERS |
2 |
2 |
|
|
|
|
|
|
|
A/V IN |
1 |
1 |
|
|
(REAR/FRONT) |
(1/1) |
(1/0) |
|
|
|
|
|
|
|
S-VHS INPUT |
r |
r |
|
|
|
|
|
|
|
HEADPHONE JACK |
r |
|
|
|
|
|
|
|
|
|
|
|
|
IMPORTANT INFORMATION REGARDING USE OF VIDEO GAMES, COMPUTERS, DSS OR OTHER FIXED IMAGE DISPLAYS.
The extended use of fixed image program material can cause a permanent “shadow image” on the picture tube. This background image is viewable on normal programs in the form of a stationary fixed image. This type of irreversible picture tube deterioration can be limited by observing the following steps:
A.Reduce the brightness/contrast setting to a minimum viewing level.
B.Do not display the fixed image for extended periods of time.
C.Turn the power off when not in actual use.
Note: The marking or retained image on the picture tube resulting from fixed image use is not an operating defect and as such is not covered by Warranty. This product is not designed to display fixed image patterns for extended periods of time.
3
CONGRATULATIONS
Congratulations
Your new TV features a solid state chassis that is designed to give you many years of enjoyment. It was thoroughly tested and tuned at the factory for best performance.
Customer Record
The model and serial number of this product are located on the back of the TV. You should note the model and serial number in the space provided and retain as a permanent record of your purchase. This will aid in identification in the event of theft or loss. Product registration is available for U.S. customers at:
www.prodreg.com/panasonic
Model
Number
Serial
Number
Care and Cleaning
Screen (Turn TV Off)
•Use a mild soap solution or window cleaner with a soft clean cloth. DO NOT USE ABRASIVE CLEANERS.
•Avoid excessive moisture and wipe dry.
Note: Do not spray any type of cleaning fluid directly on the screen.
Cabinet and Remote Control
•Use a soft cloth dampened with water or a mild detergent solution. Do not use benzene, thinner, or other petroleum based cleaners.
•Avoid excessive moisture and wipe dry.
Specifications
Power Source |
|
|
CT-27G6/U (1.8A) |
120V AC, 60Hz |
|
CT-32G6/U (1.9A) |
||
|
||
|
|
|
Channel Capability - 181 |
VHF-12; UHF-56; Cable-113 |
|
|
|
|
Video Input Jacks |
1Vp-p, 75 Ohm, Phono Jack Type |
|
Audio Input Jacks |
500mV RMS 47K Ohm |
|
|
|
|
S-Video Input Jacks |
S-Video (Y-C) Connector |
|
|
|
Specifications are subject to change without notice or obligation.
Remote Control
The Remote Control Quick Reference Guide is located within the package provided with this TV.
4
INSTALLATION
Installation
Television Location

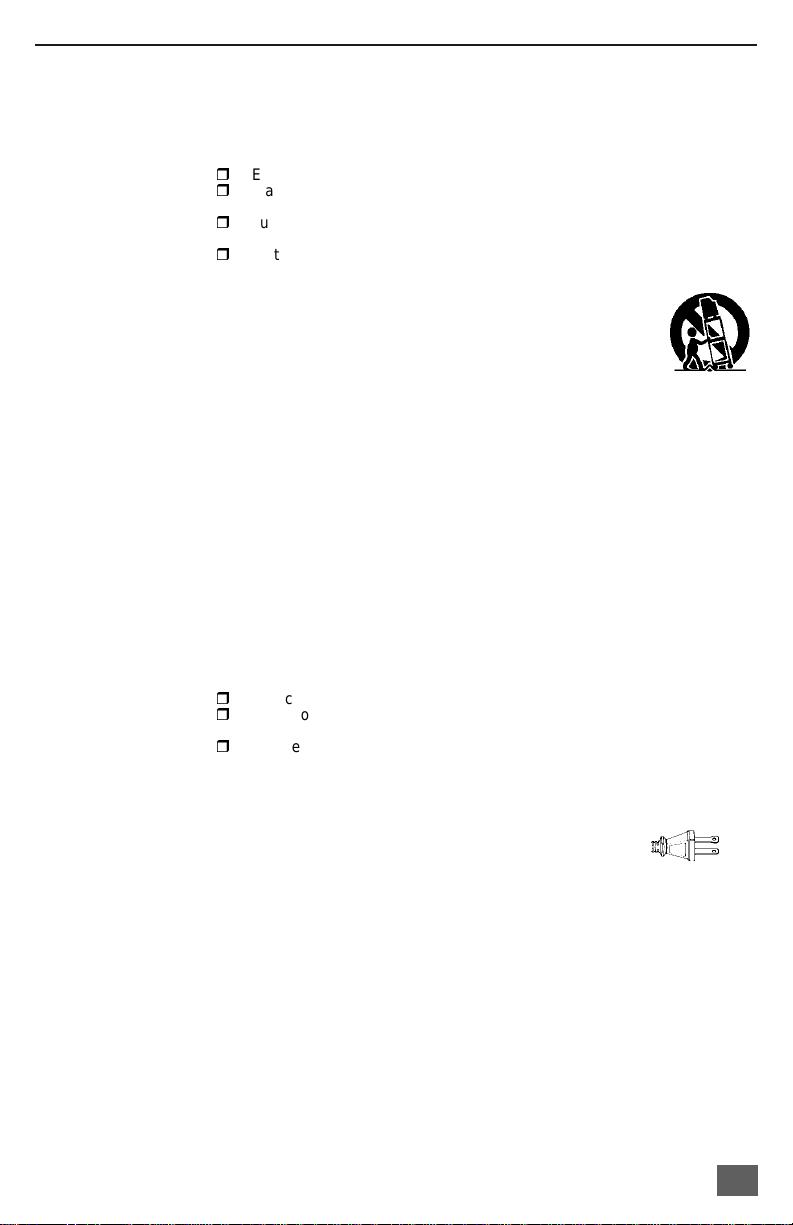

This unit is intended to be used with an optional stand or entertainment center. Consult your dealer for available options.
rAvoid excessive sunlight or bright lights, including reflections.
rKeep away from excessive heat or moisture. Inadequate ventilation may cause internal component failure.
rFluorescent lighting may reduce Remote Control transmitting range.
rAvoid magnetic equipment, including motors, fans, or external speakers.
CAUTION: Use this television receiver only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over. In order to avoid injury to children, never place your
television receiver on a piece of furniture that is capable of being tilted by a child leaning on it, pulling on it, standing on it, or climbing on it.
CT-32G6:
CAUTION: This television receiver for use only with PANASONIC TY32G22M stand. Use with other carts (or stands) is capable of resulting in instability causing possible injury.
Optional Cable Connections
Shielded audio and video cables should be used between components. For best results:
rUse 75-ohm coaxial shielded cables.
rUse appropriate input and output connectors that match your component connectors.
rAvoid long cables to minimize interference.
AC Power Supply Cord
CAUTION: TO PREVENT ELECTRIC SHOCK,
MATCH WIDE BLADE OF PLUG TO WIDE SLOT OF
AC OUTLET AND FULLY INSERT. DO NOT USE A
PLUG WITH A RECEPTACLE OR OTHER OUTLET
UNLESS THE BLADE CAN BE FULLY INSERTED TO PREVENT BLADE
EXPOSURE.
PROTECT POWER CORDS FROM BEING WALKED ON, ROLLED OVER,
CRIMPED, BENT OR PINCHED, PARTICULARLY AT PLUGS,
CONVENIENCE RECEPTACLES, AND THE POINT WHERE THEY EXIT
FROM THE APPARATUS.
5

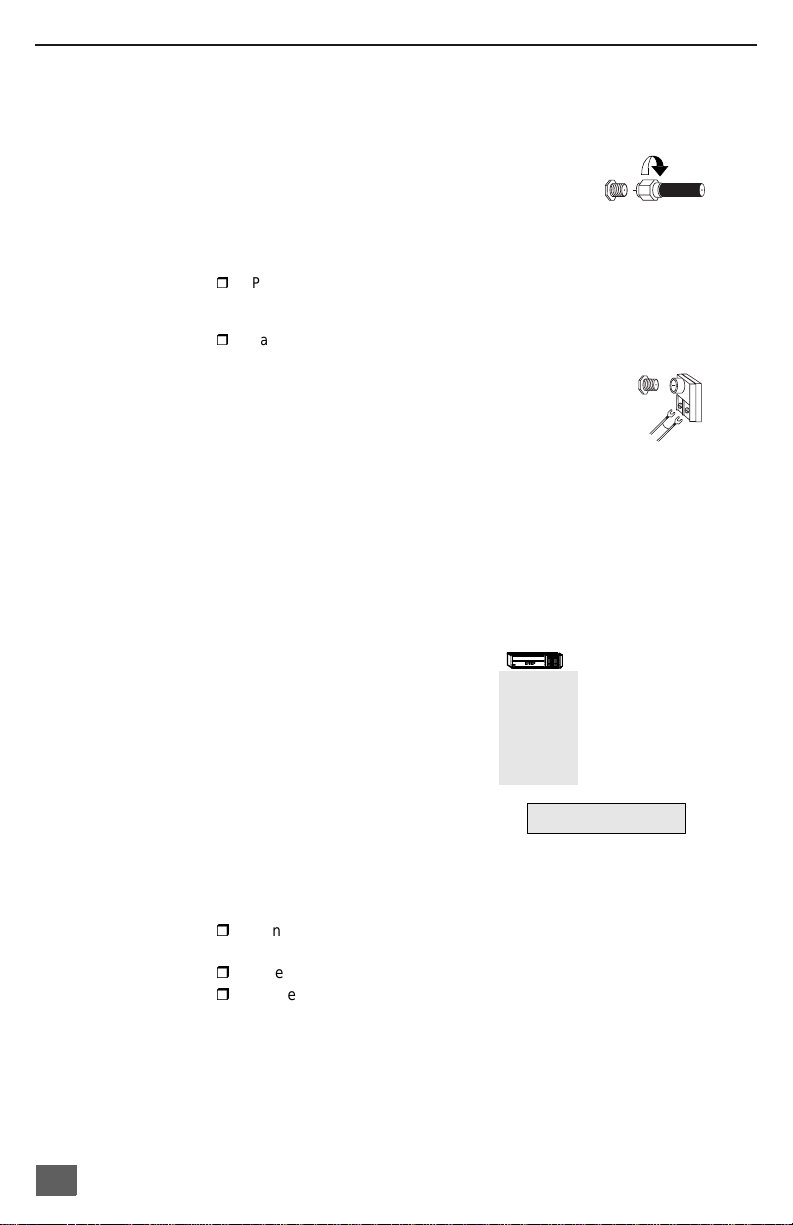

INSTALLATION
Cable / Antenna
For proper reception, either a cable or antenna connection is
required.
Cable Connection
Connect the cable supplied by your local cable company.
Note: A cable converter box may be required for proper reception. Check with your local cable company for compatibility requirements.
Incoming Cable from Cable Company
75 Ohm VHF/UHF
on back of TV
Antenna Connection
•For proper reception of VHF/UHF channels, an external antenna is required. For best reception an outdoor antenna is recommended.
• Antenna Mode must be set to TV.
Note: Cable Mode is preset at the factory. Antenna users must change to TV Mode in the SETUP Menu.
Optional Equipment Connections
Procedure
1.Connect equipment as shown to front or rear Audio/Video input jacks.
Note: Front and rear Audio/Video connectors cannot be operated at the same time (some models).
2.Select the Video mode by pressing TV/VIDEO button.
3.Operate optional equipment as instructed in equipment manual.
TERMINALS ON BACK OF TV
VCR
|
AUDIO |
VIDEO |
TO AUDIO |
R |
L |
|
|
|
AMP |
|
|
|
2 |
|
INPUT |
|
|
S-VIDEO |
1 |
|
VIDEO OUT
|
L |
|
|
AUDIO OUT |
|
|
|
|
R |
|
|
ANT IN |
ANT OUT |
|
|
Jack used for 1/8" |
|
|
|
headohone plug |
H P J |
VIDEO 1 |
L AUDIO IN R |
|
|||
TERMINALS ON FRONT OF TELEVISION
CABLES NOT INCLUDED
(some models)
6
INSTALLATION

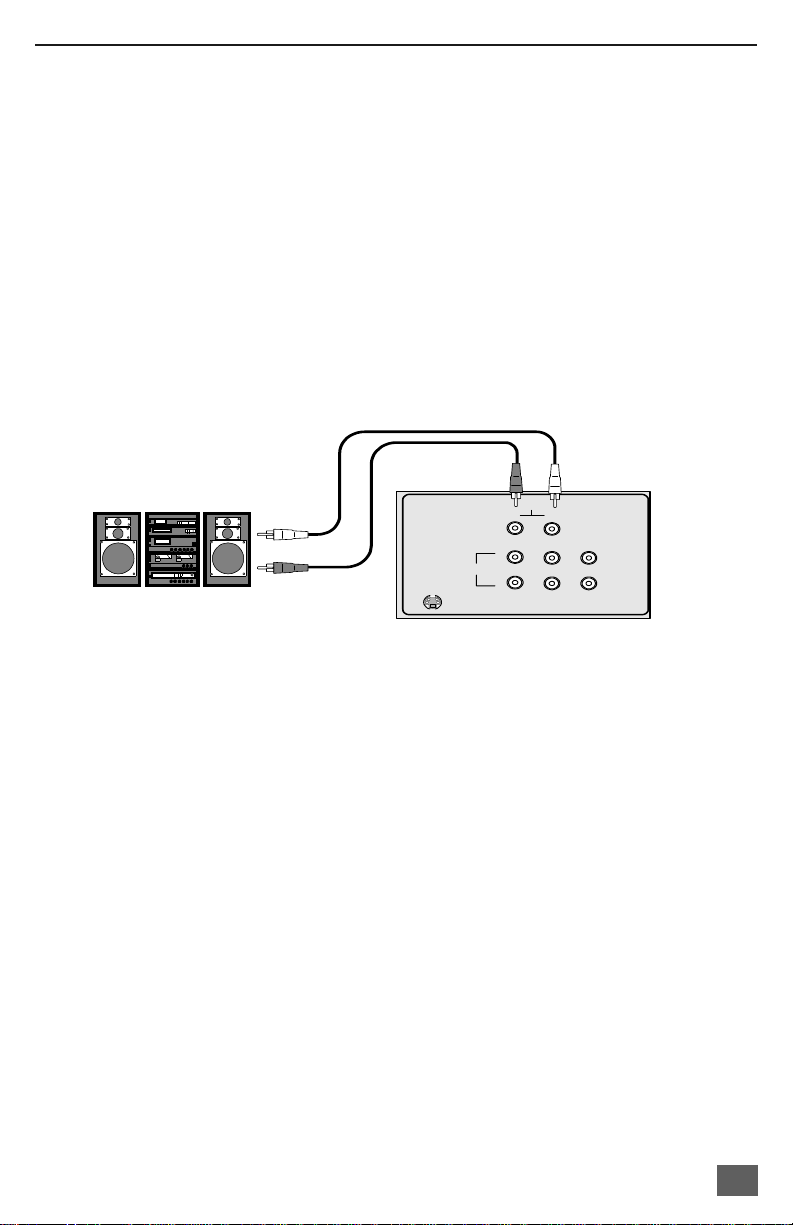

Amplifier Connection (To Audio Amp)
Connect to an external audio amplifier input for listening to a stereo system.
Note: TO AUDIO AMP terminals cannot be connected directly to external speakers.
Audio Adjustments
1.Select TV SPEAKERS ON from AUDIO menu.
2.Set amplifier volume to minimum.
3.Adjust TV volume to desired level.
4.Adjust amplifier volume to match the TV.
5.Select TV SPEAKERS OFF&VAO from AUDIO menu.
6.Volume, mute, bass, treble and balance are now controlled from the TV.
Note: In OFF&FAO the volume is controlled by the external amplifier.
AMPLIFIER |
AUDIO |
VIDEO |
|
||
TO AUDIO |
R |
L |
|
|
|
AMP |
|
|
|
2 |
|
INPUT |
|
|
S-VIDEO |
1 |
|
CABLES NOT SUPPLIED |
|
|
TERMINALS ON BACK OF TV (Some models)
7
MAIN MENU
Main Menu
Main Menu

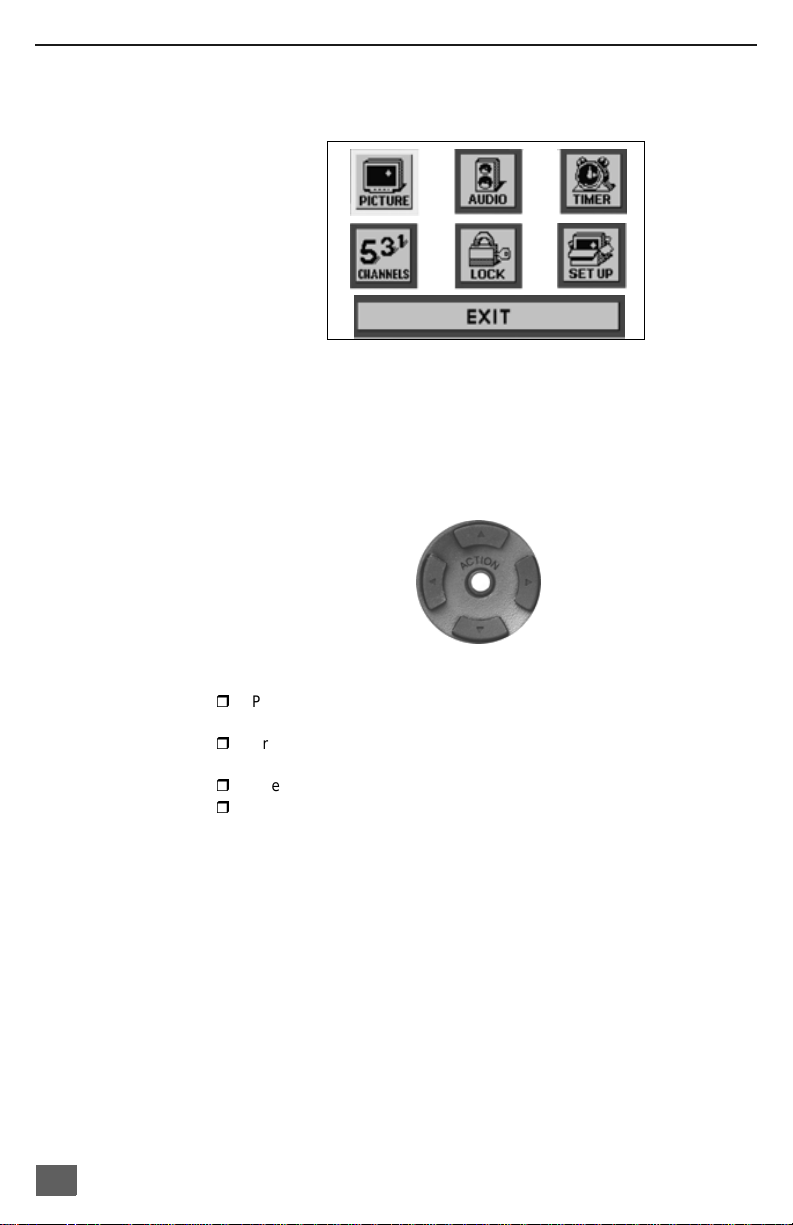

ACTION Button
Press the ACTION button to display the Main Menu and submenus. Press the ACTION button repeatedly to exit.
CH / VOL Buttons
Remote Navigation Buttons
CH
VOL |
VOL |
CH
Procedure
rPress the CH (channel) or VOL (volume) buttons to select an icon.
rPress ACTION button to display features and sub-menus.
rUse the CH buttons to highlight the desired features.
rUse VOL buttons to select and adjust features.
8
|
|
|
|
|
|
MAIN MENU FEATURE CHART |
||
|
|
|
|
Main Menu Feature Chart |
||||
|
|
|
|
|
|
|
|
|
|
|
|
MENU |
|
DESCRIPTION |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
SETUP |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
IDIOMA/ |
r |
Select English, Spanish, or French menu. |
|
|
|
|
|
|
LANGUE |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
r MODE - Select Cable or TV. See Installation section |
|
|
|
|
|
PROG. CHAN |
|
in manual. |
|
|
||
|
|
r AUTO PROGRAM - Automatically program |
|
|
||||
|
|
(Program Channels) |
|
|
||||
|
|
|
channels having a signal into memory. |
|
|
|||
|
|
AUTO PROG |
|
|
|
|||
|
|
r MANUAL PROGRAM - Manually add or delete |
|
|
||||
|
|
|
|
|
|
|
||
|
|
|
|
|
|
channels from memory. |
|
|
|
|
|
|
|
|
|
|
|
|
|
CC MODE |
r CC MODE - Select C1 or C2 for Closed Captioning, |
|
|
|||
|
|
|
program guides and other information. |
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
r AUTO POWER ON - Select SET to power up the TV |
|
|
|
|
|
OTHER ADJ. |
|
at the same time as the Cable Box or other |
|
|
||
|
|
|
|
|
|
components or select OFF. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
AUDIO |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
r MODE - Select STEREO, SAP (Second Audio |
|
|
|
|
|
|
|
|
|
Program) or MONO. (Use MONO when stereo |
|
|
|
|
|
|
|
|
signal is weak.) |
|
|
|
|
|
|
|
r BASS - Increase or decrease the bass response. |
|
|
|
|
|
AUDIO ADJ. |
r |
TREBLE - Increase or decrease the treble |
|
|
||
|
|
|
response. |
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
r |
BALANCE - Emphasize the left/right speaker |
|
|
|
|
|
|
|
|
volume. |
|
|
|
|
|
|
|
r NORMAL - Reset BASS, TREBLE and BALANCE |
|
|
|
|
|
|
|
|
|
to factory default. |
|
|
|
|
|
|
|
|
|
|
|
|
|
OTHER ADJ. |
r |
AI SOUND - Automatically maintain constant |
|
|
||
|
|
|
volume between programs and commercials. |
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
SURROUND |
r |
MODE - Enhances audio response when listening |
|
|
||
|
|
|
to stereo. |
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
r ON - TV speakers operate normally. |
|
|
|
|
|
|
|
|
r OFF & VAO (Variable Audio Output) - |
|
|
|
|
|
SPEAKERS |
|
TV speakers off - audio adjustable by TV. |
|
|
||
|
|
r OFF & FAO (Fixed Audio Output)- |
|
|
||||
|
|
|
|
|
|
|
||
|
|
|
|
|
|
TV speakers off - audio adjustable only by the |
|
|
|
|
|
|
|
|
external amplifier. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
9
MAIN MENU FEATURE CHART
|
|
|
|
Main Menu Feature Chart (Cont.) |
|
|
|
|
|
|
|
|
|
|
|
|
MENU |
DESCRIPTION |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
TIMER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
r When entered, TIME will display on screen after |
|
|
CLOCK SET |
pressing POWER button, RECALL button, or |
|
|||
|
|
|
|
|
changing channels. |
|
|
|
|
|
|
|
|
|
|
|
SLEEP |
r Program TV to automatically turn off in 30, 60, or |
|
|
|
|
|
90 minutes. Select NO to turn timer off. |
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
r Program TV to automatically turn on and off at |
|
|
PROGRAM TIMER |
selected time on a selected channel, daily or only |
|
|||
|
|
|
|
|
one day. |
|
|
|
|
|
|
|
|
|
|
|
|
|
PICTURE |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
r COLOR - Adjust desired color intensity. |
|
|
|
|
|
|
r TINT - Adjust natural flesh tones. |
|
|
VIDEO ADJ. |
r BRIGHTNESS - Adjust dark areas for crisp detail. |
|
|||
|
r PICTURE - Adjust white areas of picture. |
|
||||
|
(Adjustments) |
|
||||
|
r SHARPNESS - Adjust clarity of outline detail. |
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
r NORMALReset all picture adjustments to factory |
|
|
|
|
|
|
default settings. |
|
|
|
|
|
|
|
|
|
|
|
|
|

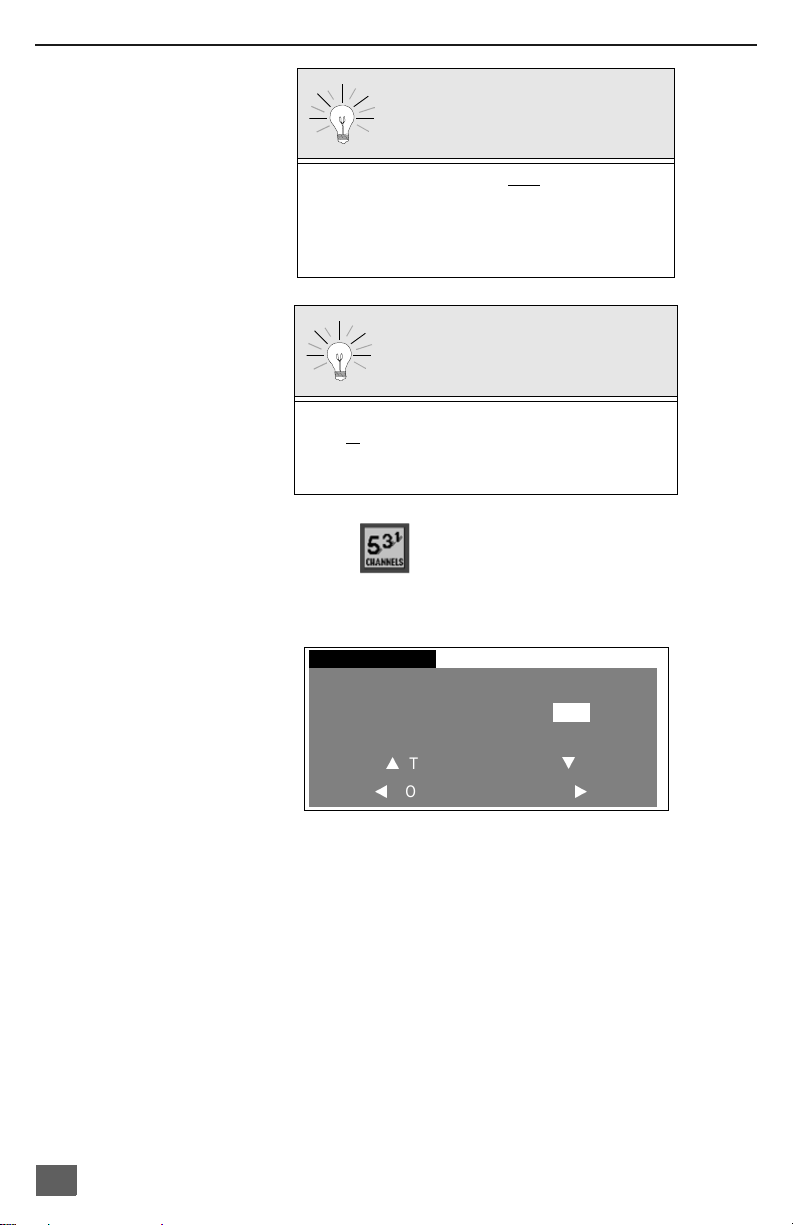

CH CAP |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
CHANNEL CAPTION |
r MANUAL CAPTION - Provide labels for up to 30 |
|
|||
|
stations using up to four characters for each station. |
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
LOCK |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
r LOCK SET - Program to prevent video games, |
|
|
|
|
|
|
cable box, and VCR from being viewed. |
|
|
LOCK MODE |
Note: For more information about Block Programs, |
|
|||
|
|
|
|
|
see the V-CHIP Parental Lock manual |
|
|
|
|
|
|
provided with the TV package. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
10
Loading...
