Panasonic

Color Television

Operating Instructions

CT-27G2 CT-27G2U

CT-32G2 CT-32G2U

Read these Instructions completely before operating.

Contents 8ub|ect to chan9e without notice or obligation.

CT--27G12 CT-27G12U

CT-32G12 CT-32G12U

Cupyti^ »r Eieoic Corporaion

if Amhc« Ai n^Ni Unautionzad

cnpyiwf iDiKonon—

^mied«V.S.A.

T0a2AA0145

Page 2

Safety Instructions

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING: To reduce the risk of electric shock do not remove cover or back. No user-serviceable parts inside. Refer servicing to qualified service personnel.

The lightning flash with ar

row-head within a triangle is intended to tell the user that parts inside the product are a risk of electric shock to persons.

The exclamation point within a triangle is intended to tell the user that important oper ating and servicing instruc tions are in the papers with the appliance.

Note To CATV System Installer: This reminder is provided to call the CATV system installer’s attention to Article

820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

Safety Instructions For Television Receivers

1. Read and apply the operating instructions provided with your television receiver.

2. Read all of the instructions given here and retain them for later use.

3. Unplug this television receiver from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp doth for cleaning.

4. Do not use attachments not recommended by the television receiver manufacturer as they may cause hazards.

5. Do not use this television receiver near water. For example: Avoid placing it near a bathtub, washbowl, kitchen sink, or

laundry tub, in a wet basement, or near a swimming pool, etc.

6. Do not place this television receiver on an unstable cart, stand, or table. The television receiver may fall, causing serious injury to a child or adult, and serious damage to the appliance. Use only with a cart or stand recommended by the manufacturer, or sold with the television receiver. Wall or shelf mounting should follow the manufacturer’s instructions,

and should use a mounting kit approved by the manufacturer.

6A. An appliance and cart combination should be moved with care. Quick stops, excessive force, and

uneven surfaces may cause the appliance and cart combination to overturn.

7. Slots and openings in the cabinet and the back or bottom are provided for ventilation, and to insure reliable operation of the television receiver and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the television receiver on a bed, sofa, rug or other similar surface. This television receiver should never be placed near or over a radiator or heat register. This television receiver should not be placed in a built-in installation such as a bookcase unless proper ventilation is provided.

8. Operate only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home consult your television dealer or local power company. For television receivers designed to operate from battery power, refer to the operating instructions.

9. This television receiver is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your

electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

10. Do not allow anything to rest on the power cord. Do not locate this television receiver where the cord will be abused by persons walking on it.

11. Follow all warnings and instructions marked

on the television receiver.

12. Do not overload wall outlets and extension

cords as this can result in fire or electric shock.

13. Never push objects of any kind into this

television receiver through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the television receiver.

-2-

Page 3

14. If an outside antenna is connected to the television equipment, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges. In the U.S. Section 810 of the National Electrical Code and in Canada Part 1 of the Canadian Electrical Code provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Figure.

15. For added protection for this television receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage to the receiver due to lightning and power-line surges.

16. An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

17. Unplug this television receiver from the wall outlet, and refer servicing to qualified service personnel under the following conditions: a. When the power cord or plug is damaged or frayed. b. If liquid has been spilled into the television receiver. c. If the television receiver has been exposed to rain or water. d. If the television receiver does not operate normally by following the operating instructions. Adjust only those controls

that are covered by the operating instructions as improper adjustment of other controls may result in damage and will

often require extensive work by a qualified technician to restore the television receiver to normal operation. e. If the television receiver has been dropped or the cabinet has been damaged. f. When the television receiver exhibits a distinct change in performance - this indicates a need for service.

18. Do not attempt to service this television receiver yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

19. When replacement parts are required, be sure the service technician has used replacement parts specified by the

manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire,

electric shock, or other hazards.

20. Upon completion of any service or repairs to this television receiver, ask the service technician to perform routine safety checks to determine that the television is in safe operating condition.

21. WARNING: To prevent fire or shock hazard, do not expose this appliance to rain or moisture.

22. CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT USE THIS (POLARIZED) PLUG WITH A RECEPTACLE OR

OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.

NOTE: This equipment is designed to operate in the U.S.A., Canada and other countries where the broadcasting system and

AC house current is exactly the same as in the U.S.A. and Canada.

Important Information Regarding Use of Video Games, Computers, DSS or Other Fixed Image Displays.

The extended use of fixed image program material can cause a permanent “shadow image” on the picture tube. This background image is viewable on normal programs in the form of a stationary fixed image. This type of irreversible picture tube deterioration can be limited by observing the following steps: A. Reduce the brightness/contrast setting to a minimum viewing level.

B. Do not display the fixed image for extended periods of time.

C. Turn the power off when not in actual use.

NOTE: The marking or retained image on the picture tube resulting from fixed image use is not an operating defect and as

such is not covered by Warranty. This product is not designed to display fixed image patterns for extended periods of time.

Specifications

Power Source: Channel Capability:

Video Input Jacks: Audio Input Jacks:

To Audio AMP Jacks:

Stereo Sound Closed Caption Display

Specifications are subject to change without notice or obligation.

120V, 60Hz, AC 181 channels (See chart)

VHF 2-13, UHF 14-69, Cable 125 channels

1V p-p, 75 ohm, phono jack type 500mV rms 47K ohm 0-2.0V rms 4.7K ohm

For These Models Only (CT-27G12/U & CT-32G12/U)

-3-

Channel Capability Chart

BAND

VHF UHF CABLE (Mid-Band) CABLE (Super Band) CABLE (Hyper Band) CABLE (Ultra Band)

TOTAL CHANNELS

CHANNELS

12 56 15 14 28 56

181

Page 4

Introduction

Congratulations on Your New Purchase

Your new video component features an alt solid state chassis which is designed to give you many years of enjoyment. It was thoroughly tested and adjusted at the factory for best performance.

In order for you to take full advantage of your new video component, please read and follow the installation and operating

instructions supplied with this product.

Customer’s Record

The model and serial number of this product may be found on its back cover. You should note the model and serial number

in the space provided and retain this book as a permanent record of your purchase to aid in identification in the event of

theft or loss. Model Number;

________________________________

Serial Number:__________________________________________

Table of Contents

Safety Instructions Specifications

Introduction ......................................................................4

Care and Cleaning ...........................................................5

Modeis Difference Feature Table ...................................5

Installation ........................................................................6

Receiver Location............................................................6

Optional External Equipment Connections

AC Power Supply Cord ...................................................6

Remote Control Battery Installation

Antenna/Cable Connections............................................7

Picture Tube (Turn set off)

Use a mild soap solution or window cleaner and a clean cloth. DO NOT USE ABRASIVE CLEANERS. Avoid excessive moisture and wipe dry.

Plastic Cabinets

Wipe the cabinet with a soft cloth dampened with water ora mild detergent solution and wipe dry with a soft clean cloth. Avoid excessive moisture. Do not use benzene, thinners or other petroleum based cleaners.

Wood Cabinets

When dusting or polishing the cabinet, use a clean soft cloth and stroke straight with the grain. An occasional coat of furniture polish will help preserve the finish. Do not use benzene, thinners or other petroleum based cleaners. Do not place objects made of plastic or rubber directly on top of the cabinet. A chemical reaction could result causing permanent marring of the finish.

Remote Controi Transmitter

Do not use benzene, thinners or other petroleum based cleaners to clean the Remote Control Transmitter. To clean, wipe with a soft cloth slightly moistened with a mild detergent and then wipe dry with a soft clean cloth.

FEATURE \ MODELS Remote Part #

Al Sound

TV Speakers ON/OFF Location

Variable Audio Out Jacks

Models Difference Feature Table

CT-27G2/U CT-32G2/U CT-27G12/U CT-32G12/U

EUR501371 EUR501371 EUR511000A

NO NO YES YES

NO NO

NO NO YES YES

Rear Of Receiver

EUR511000A

In Audio Menu

-5-

Page 6

Installation

Receiver Location

This unit is intended to be used with an optional stand or entertainment center. Consult your dealer for available options. Locate for comfortable viewing. Avoid placing where sunlight or other bright light {including reflections) will fall on the

screen. Use of some types of fluorescent lighting may reduce remote control transmitter range. Adequate ventilation is essential to prevent internal component failure. Keep away from areas of excessive heat or

moisture. To insure optimum color purity do not position magnetic equipment (motors, fans, other speakers, etc.) nearby.

Optional External Equipment Connections

The Video/Audio connections between components can be made with shielded video and audio cables. For best perfor

mance, video cables should utilize 75 ohm coaxial shielded wire. Cables are available from your dealer or electronic

supply house.

Before you purchase any cables, be sure you know what type of output and input connectors your various components require. Also determine the length of cable you’ll need.

AC Power Supply Cord

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT OF AC OUTLET AND FULLY INSERT. DO NOT USE THIS (POLARIZED) PLUG

WITH A RECEPTACLE OR OTHER OUTLET UNLESS THE BLADE CAN BE FULLY

INSERTED TO PREVENT BLADE EXPOSURE.

To Remove Cover Push In And Up

On Catch With A Narrow Object

Remote Control Battery Installation

Batteries: Use two “AA” batteries.

1. Remove the battery compartment cover on back of the remote.

Install the batteries in the battery compartment.

2. (Polarity {+) or {-) must be correct.)

Reattach the battery cover.

Helpful Hints:

For frequent Remote Control users, replace old batteries with Alkaline batteries for longer life.

Precaution on Battery Use

Incorrect installation can cause battery leakage and corrosion that will damage the Remote Control Transmitter.

Observe the Following Precautions:

1. Batteries must be replaced as a pair.

2. Do not combine a used battery with a new one.

3. Do not mix battery types (Example: “Zinc Carbon” with “Alkaline”).

4. Do not attempt to charge, short-circuit, disassemble, heat or burn used

batteries.

5. Battery replacement is necessary when Remote Control reacts sporadically or stops operating the Receiver.

EUR511000A

Press Down Here And Slide Cover Back

ctf

-6-

Page 7

Installation (cont.) Antenna/CableConnections

Antenna Connection - For proper reception of VHF/UHF channels, an externa! antenna is required. For best reception an outdoor antenna is recommended. Antenna Mode must be set to TV. (Refer to Antenna Mode section.)

Incoming Cable from Home Antenna

VHF/UHF

on Back of Set 300 Ohm

VHF/UHF

on Back of Set

75 Ohm

Indoor

Typical VHF/UHF Antenna

300 to 75 ohm Matching Transformer {Not Included)

Cable Connection - For reception of cable channels, connect the cable supplied by your local cable company. Antenna Mode must be set to CABLE. (Refer to Antenna Mode section.)

Incoming Cable from Cable Company

75 Ohm

VHF/UHF

on Back of Set

NOTE: Certain cable systems offset some channels to reduce interference or have Premium (scrambled) channels. A

cable converter box is required for proper reception. Check with your local Cable company for compatibility

requirements.

(For CT-27G12/U And CT-32G12/U)

To Audio AMP Connection

TERMINALS ON BACCK OF

CT-27G12/U

TERMINALS ON BACK OF

CT-32G12Ai

VIDEO

r L ^ ^ '-1

TO AUDIO AUDIO

AMP Lr^ #

INPUT

• To Audio AMP

Connect to an external audio amp auxiliary input for monitoring sound through a stereo system. NOTE: “TO AUDIO AMP" terminals cannot be used for external speakers. Adjustnfient - When an audio amp is connected to “TO AUDIO AMP” terminals as shown:

1. Press the TV SPEAKERS button located on back of Receiver to turn INT SPEAKERS “ON”. NOTE; In some models the TV Speakers ON/OFF is located in the Audio menu.

2. Set volume of audio amp to near minimum.

3. Adjust volume of TV to desired listening level.

4. Adjust volume of audio amp to match the level of TV.

5. Press the TV SPEAKERS button located on back of Receiver to turn INT. SPEAKERS “OFF”. NOTE: In some

models the TV Speakers ON/OFF is located in the Audio menu.

6. Volume and mute can now be controlled by the TV Remote Control.

•

-8-

Page 9

Optional Equipment Connection and Operation (Cont.)

AudioA/ideo Input Connection

TERMINALS ON BACK OF

CT-27G2/U

Operation

1. Connect optional equipment as shown to Rear AudioA/ideo Input Jacks.

2. Select the Video mode by pressing the TVA/IDEO button.

3. Operate optional equipment as instructed in Optional Equipment manual.

-9-

Page 10

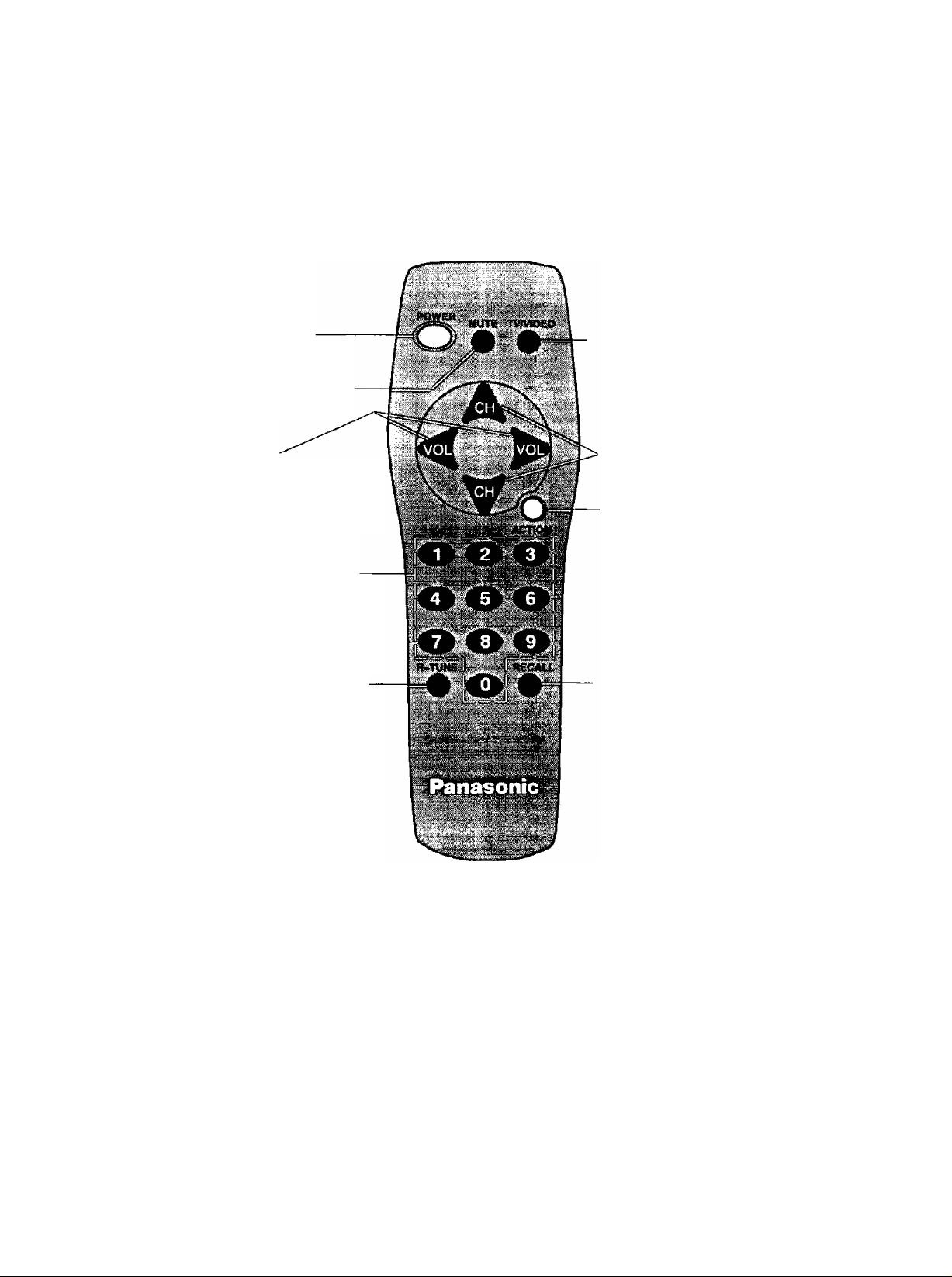

Location of Controls Remote

(For CT-27G2/U and CT-32G2/U)

Power Button

Press to turn ON or OFF.

Mute Button

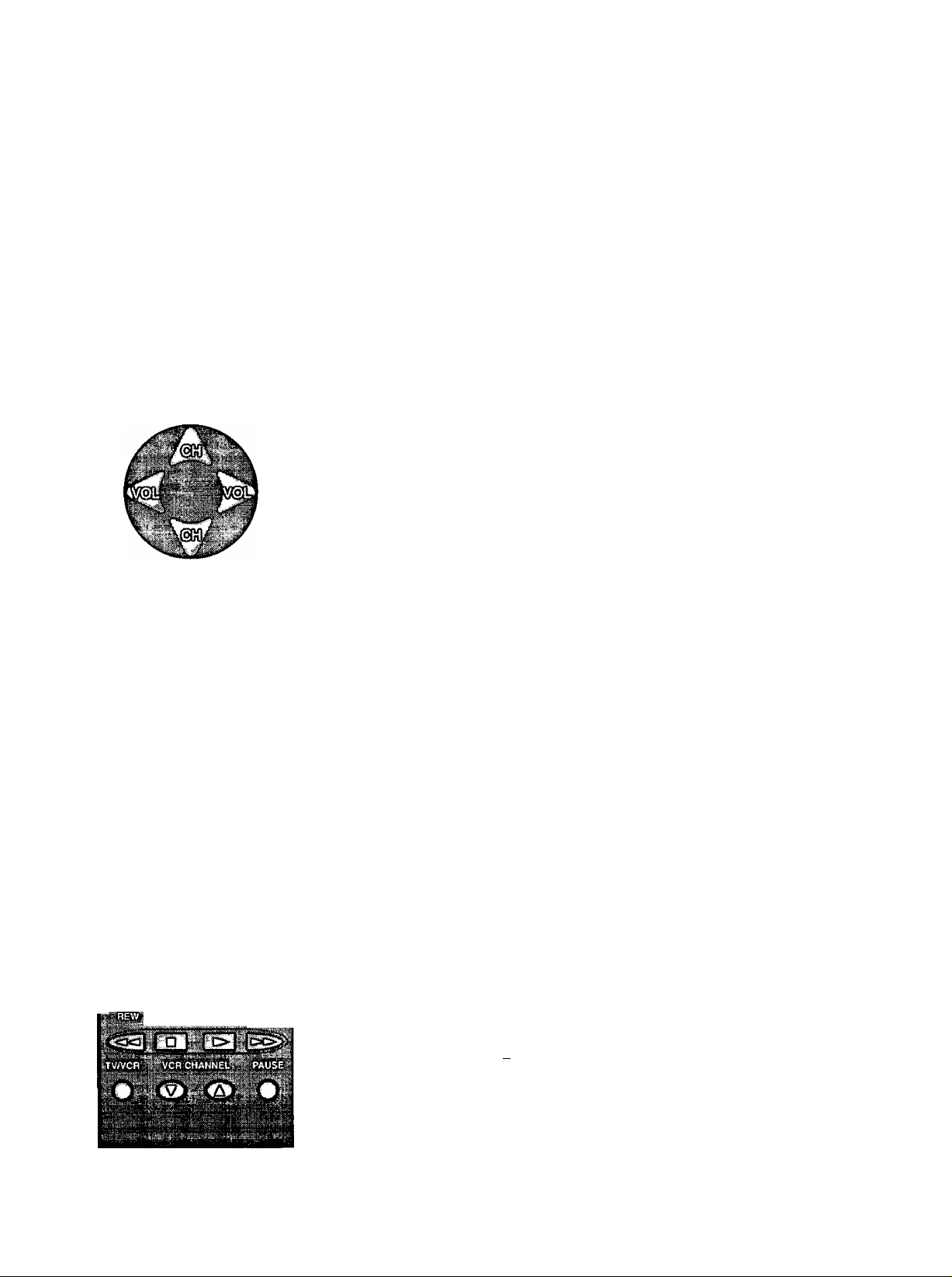

Press to mute sound. A second press resumes sound. Press also to access and delete Closed Caption.

Volume Buttons

Press to adjust TV sound level. Use with Channel buttons to navigate in menus.

Keypad Buttons

Press desired channel number to randomly access any channel.

TVA/ideo Button

Press to select TV or Video Input.

Channel Buttons

Press to select channels. Use with

Volume buttons to navigate in menus.

Action Button

Press to display Main Menu and access or exit On Screen feature and Adjustment Menus.

R-Tune (Rapid Tune) Button

Press to switch to the previous

channel.

Recall Button

Press to display Time, status of Sleep

Timer, Channel, Video Mode, Channel

Caption (Station Identifier) and Audio Mode.

EUR501371

-10-

Page 11

Remote Quick Reference Functional Key Chart

(For CT-27G2/U and CT-32G2/U)

KEY OPERATES

POWER

MUTE

TV Turns TV On and Off

TV Mutes TV Audio

•

TV/VIDEO

TV Selects the TV Input Mode

•

ACTION

TV Activates TV Menus

TV ^

FUNCTION

Access Closed Caption

Channel Up/Down, Menu Navigation

ooo ooo

ooo

R-TUNE

•

RECALL

•

TV ^ ^

TV Displays Channel, Time, and Audio Mode

Volume Up/Down, Menu Navigation

Selects Channel Selects code in Game Guard Menu Selects Channel in Channel Caption Menu Selects Channel in Timer Menu

Selects Previously Tuned Channel

-11 -

Page 12

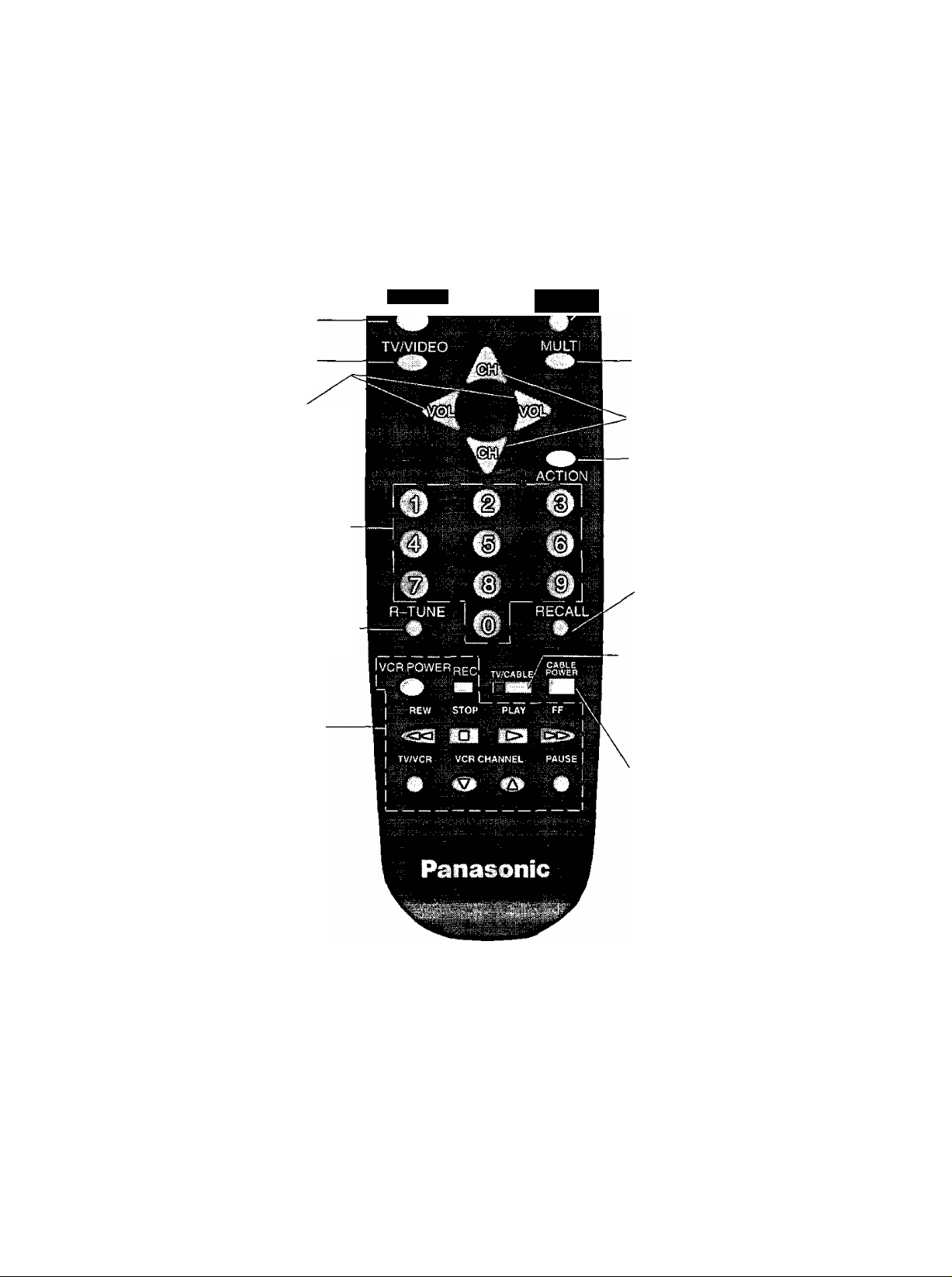

Location of Controls Remote

(For CT-27G12/U And CT-32G12/U)

Power Button

Press to turn ON or OFF.

TV/Video Button

Press to select TV or Video Input.

Volume Buttons

Press to adjust TV sound level. Use with Channel buttons to

navigate in menus.

Keypad Buttons

Press desired channel number to randomly access any channel.

R-Tune (Rapid Tune) Button

Press to switch to the previous channel.

VCR Function Buttons

programmable to operate many brands of VCR’s.

POWER

MUTEy

Mute Button

Press to mute sound. A second press resumes sound. Press also to access

and delete Closed Caption.

Multi Button

Programmable to operate up to six Remote Control Function buttons simultaneously.

Channel Buttons

Press to select channels. Use with

Volume buttons to navigate in menus.

Action Button

Press to display Main Menu and access or exit On Screen feature and Adjustment Menus.

Recall Button

Press to display Time, status of Sleep Timer, Channel, Video Mode, Channel Caption (Station Identifier) and Audio Mode.

TV/Cable Switch - This switch is

used to select the proper mode when programming Remote

Control Infrared codes or operating the TV or external equipment (VCR

or Cable Converter box).

Cable Power Button - Programmable to operate selected CATV converter

boxes.

EUR511000A

-12-

Page 13

Remote Quick Reference Functional Key Chart

(For CT-27G12/U And CT-32G12/U)

KEY OPERATES

POWER

MUTE

TV/VIDEO

MULTI

O O

ACTION

TV Mutes TV Audio

ALL COMPONENTS

TV CABLE

FUNCTION

Turns TV On and Off

Access Closed Caption Selects the TV Input Mode

Programmable Button that can operate up to six Remote Functions at once

Activates TV Menus

Channel Up/Down, Menu Navigation Channel Up/Down

Volume Up/Down, Menu Navigation Search For Infrared Code When Programming Remote

Selects Channel Selects code in Game Guard Menu Selects Channel in Channel Caption Menu Selects Channel in Timer Menu

R-TUNE

RECALL

CABLE POWER

VCR POWER

t' y -4',

........

VCR CABLE

CABLE

VCR

Selects Infrared code when programming remote Selects Infrared code when programming remote

Selects Previously Tuned Channel

Displays Channel, Time, and Audio Mode

TV Mode Selection for Remote Control

Also VCR Mode Selection for Remote Control CATV Mode Selection for Remote Control

Turns Cable On and Off

Turns VCR On and Off

Standard VCR Control Keys

B Record

5T0P

Œi

CE]

[^>

TV/VO»

OweCL

CD <S>

»MJS£

Rewind Stop

Play

Fast Forward Selects TV/VCR Mode

VCR Channel Up/Down Pause

-13-

Page 14

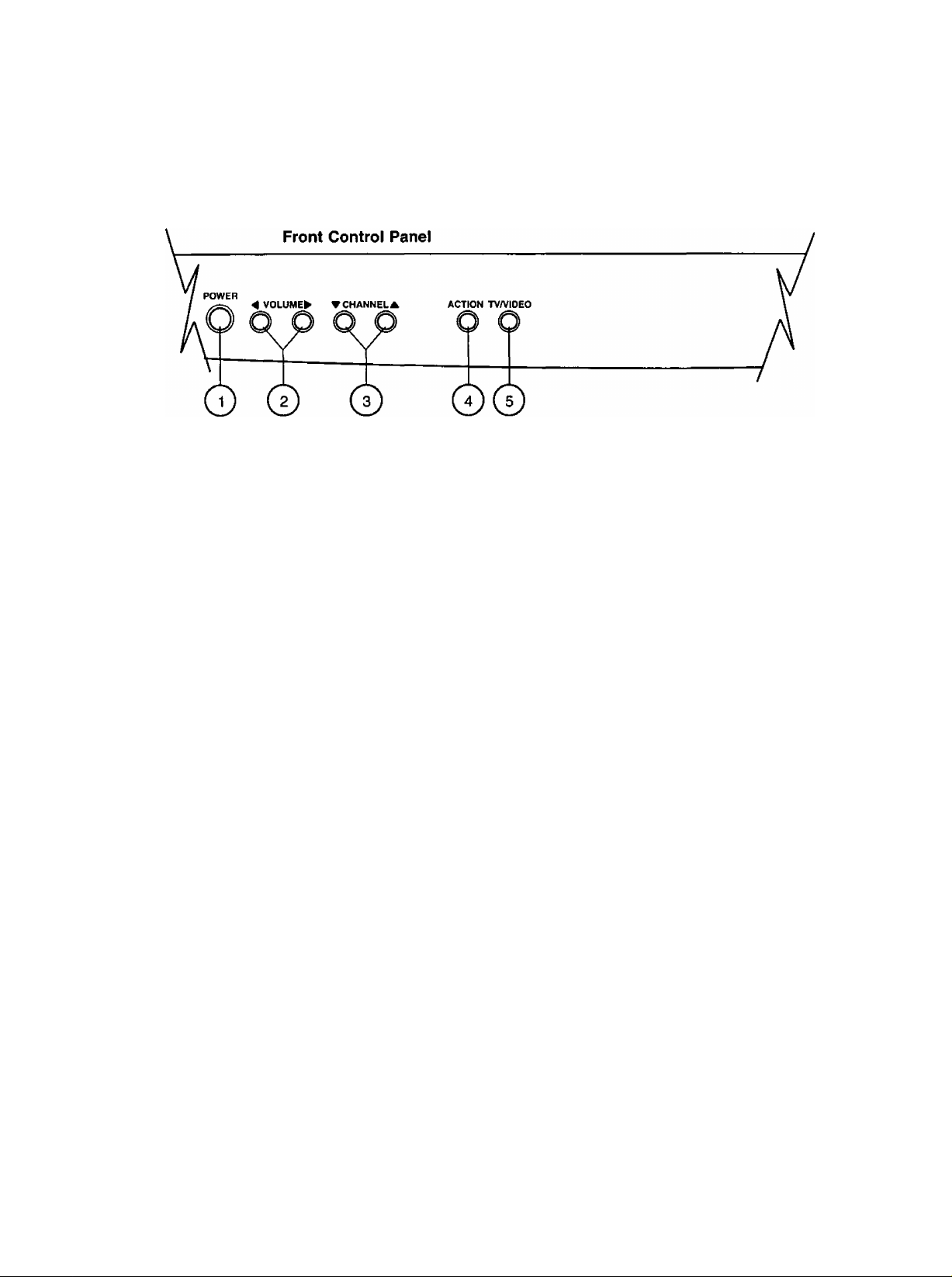

Location of Controls Receiver

Power Button - Press to turn ON or OFF.

Volume Buttons - Press to adjust Sound Level. Press to adjust Audio Menus, Video Menus and select operating

features when menus are displayed.

Channel Buttons - Press to select programmed channels. Press to highlight desired features when menus are displayed.

Action Button - Press to display Main Menu and access On Screen feature and Adjustment Menus.

TV/Video Button - Press to select TV or Video Input.

-14-

Page 15

Special Functions

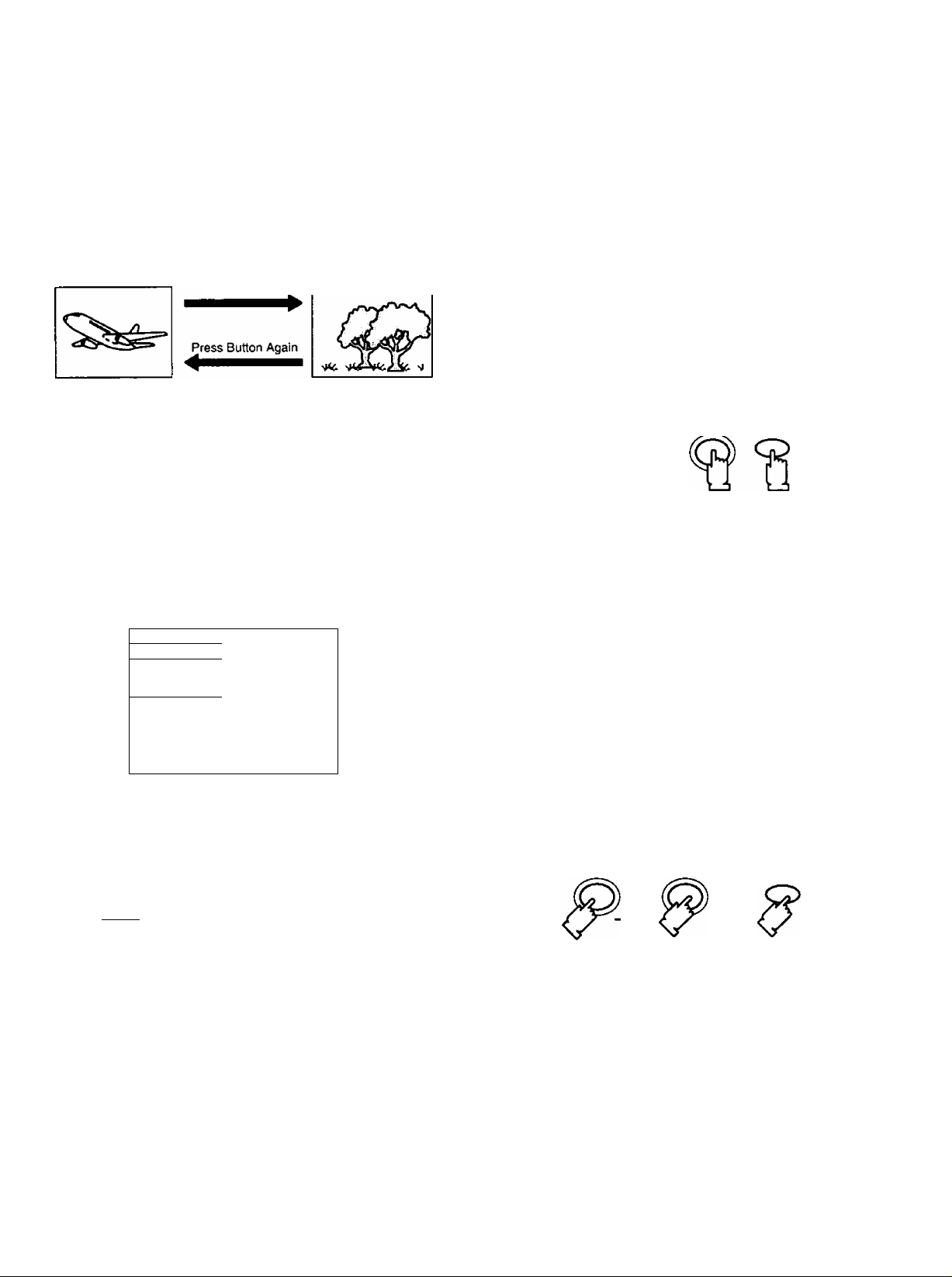

R-TUNE

R-Tun© Button — Pressing O will switch

between the last two channels selected on the numeric keypad.

CHANNEL NOW

BEING VIEWED

Press Button

RECALL

CHANNEL TUNED

IMMEDIATELY BEFORE

Recall Button - pressO to review:

0 Audio Mode Status (2) Channel Caption {Station Identifier) @ CH Number Or Video Input Selected @ Sleep Timer Status

Clock Time

o ©

----------

I STERJgd

jSAP I liicmdl

IVlDEpj

Cable Power Button

(Not used in CT-27G2/U and CT-32G2/U)

CABLE

POWER

The CD on the Remote Control has been designed to operate selected brands of Cable Television

Converter boxes. The proper cable television converter box infrared code must be obtained prior to use. (Please refer to Programming the Universal Remote for programming instructions.) The Remote Control

TV/CABLE switch should be in the CABLE position.

NOTE: The^ or ^ on the Remote may be used for

selecting Cable Converter box channels.

CH3

KXYZ

1:00

Multi Button

(Not used in CT-27G2/U and CT-32G2/U)

The MULTI button can be programmed to operate up to 6 Remote function buttons at the same time.

For Exampie: TV Power/On, VCR Power/On (selected

brands) can be operated at the same time with one press

of the MULTI button.

Procedure

1. First program the Remote for the selected VCR Infrared access code. Confirm that the Remote

Control is compatible with the equipment.

2. Face the Remote Control transmitter away from all equipment remote sensors.

3. Press and hold down the Remote TV Power button, then press and hold down the MULTI button at the same time. Release buttons (All previous com

mands will be erased.)

POWER MULTI

PRESS SIMULTANEOUSLY

Press a maximum of 6 Function buttons on the Remote.

Each button you press is equal to one function. If six Remote button functions are entered, all will register in the MULTI button memory in the sequence entered. When less than six Remote button

functions are entered, press the MULTI button to

end the program mode. (Waiting more than 30 seconds without pressing another button will also end the program mode.)

The following is an example of Remote functions that can be programmed into the MULTI button.

- TV Power - For turning TV ON and OFF.

- VCR Power - For turning VCR ON and OFF (selected brands after programming it’s Infrared access code, if necessary). Both can be turned ON or OFF with one press of the MULTI button.

POWER VCR POWER

To delete entered functions - Repeat step 3. Now you can enter from one to six different Remote functions.'

NOTE: You can also program the MULTI button to

perform most individual Remote Control button functions. Buttons which continuously perform a function as long as pressed (Volume Up/Down, Channel Up/Down, etc.) cannot be programmed. Only those buttons which perform a function when initially pressed (Power On/Off, Mute, Direct Channel Entry, etc.) can be programmed.

MULTI

-15-

Page 16

Main Menu Icons

NOTE: When Auto Power On feature is

activated, Timer Icon will change to Exit Icon.

Oto

ACTION

Display and Exit Menus

Menu Language Selection

The MENU LANGUAGE is factory set to ENGLISH. Follow the instructions to change the Menu Language to SPANISH, FRENCH, and back to ENGLISH.

1. Press action .

2. PressAorW and or ^ to highlight the Set-Up Icon.

3. Press action to display the Set-Up Menu.

AUTO POWEBION

Í ENGLISH ESPAÑOL FRANÇAIS

îsœupj

CH BUTTONS

Highlight Desired

Feature when

Located On Remote Control

1. Press ACTION .

2. Press or^^ and or to select the desired icon.

3. Press action after selecting the desired Icon to access sub menus.

4. Press action twice to exit sub menus or press

Main Menu.

action once while the EXIT Icon is highlighted to exit

Menu is Displayed

VOL BUTTONS

Selects or Adjusts

Features when

Menu is Displayed

4. Press A orW to highlight ENGLISH, ESPAÑOL, FRANÇAIS.

5. Press or ^ to select ENGLISH. ESPAÑOL, FRANÇAIS.

6. Press action twice to exit menus.

-16-

Page 17

Picture Adjustments

Picture Norm

Use to reset Color, Tint, Brightness, Picture, and Sharpness adjustments back to a factory preset level.

1. Press action .

2. Press ^^or^^ and^^or^^ to highlight the Picture Icon.

3. Press action to display the Picture Adjustment Menu.

IPICTUREI

Color, Tint, Brightness, Picture, and Sharpness Adjustments

1. Press action,

2. Press ^^or^^ and*^or^^ to highlight the Picture Icon.

3. Press action todisplaythePictureAdjustmentMenu.

ISrSilM'

[PICTUREl

PICTURE NORM NO

COUORVHMHMIm M) f M t Ilf I

uEOff

BRIGHTNESS

4. Press A orW to highlight PICTURE NORM.

5. Press or ^ to select “SET’ to normalize Color, Tint, Brightness, Picture, and Sharpness.

6. Press action twice to exit menus.

mmiHim mmimtiMmiiimiM]

mmmm

p OOP OOP

'Qp O 'O. O O

o o o o o o

PICTUREINORMMNO COLOR 31 IMimniin- - - - iriNtj BRICHTNESS

PfCTURE^^^Hl IM t f t M M111 tiiri til 1111

SHARPNESS

4. Press A orW to select the desired Picture

Adjustment (Color, Tint, Brightness, Picture, or Sharpness).

5. Press or ^ to adjust your selection. (The Selected Picture Adjustment will be displayed.)

6. Repeat steps 4 and 5 for the remaining Picture Adjustments.

7. Press action twice to exit menus.

OOOOOOlpOOOOOO

QOOQQQQQQDQOOsoooooo

jgggggogggffl^ooooo

-17-

Page 18

Audio Adjustments

Mode

When Audio is broadcast in Stereo or SAP, an On-Screen display will appear on initial ‘Turn On” and “Channel Change”. The available choices will be highlighted.

cr>

1. Press «TioN .

2. Press or^^ and or to highlight the Audio Icon.

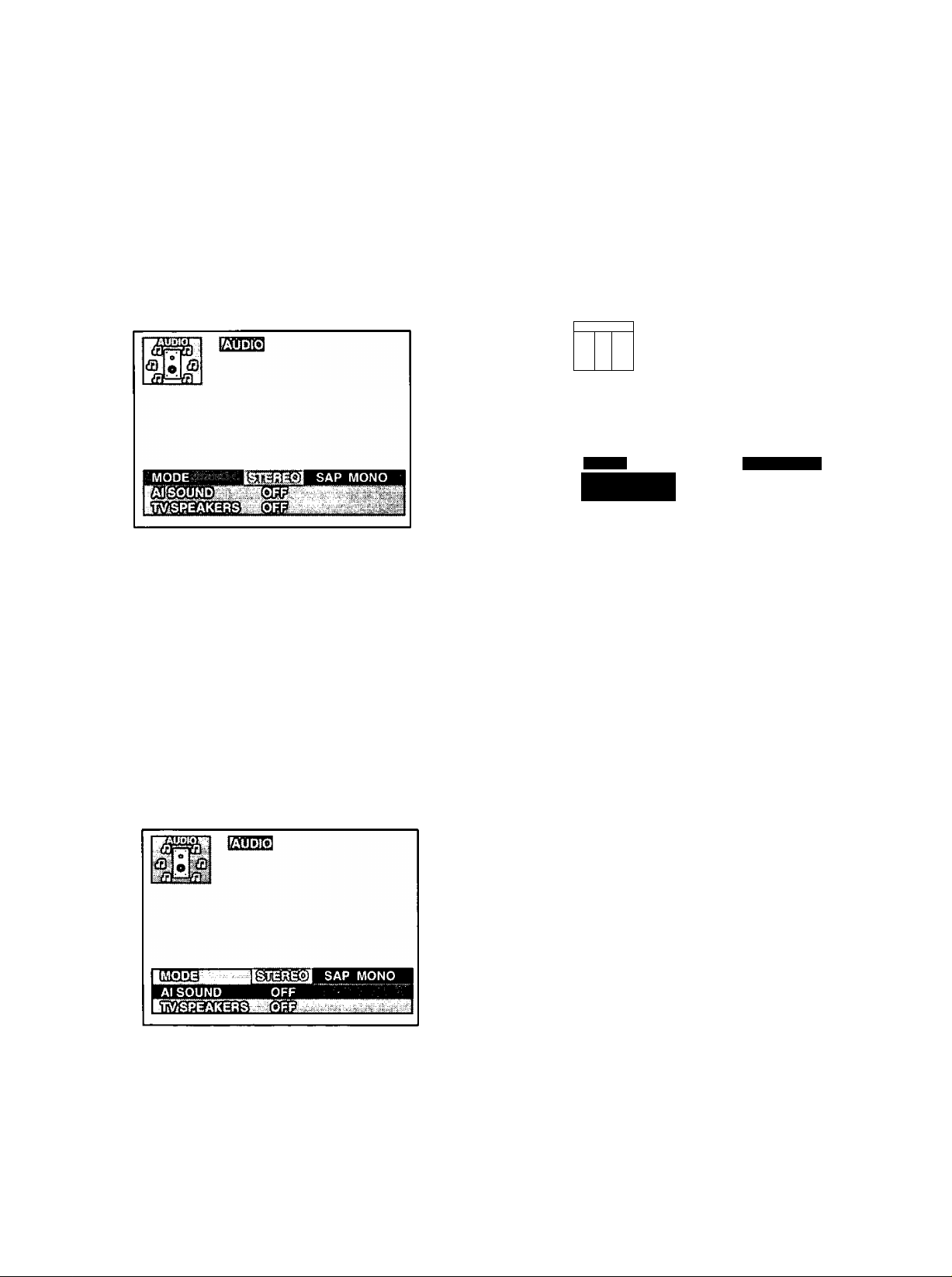

3. Press action to display the Audio Adjustment Menu.

TV Speakers (used in CT-32G12/U only)

This feature is used to turn the internal speakers “ON” or “OFF”. It is used when the TV is connected to an External Audio Amplifier. (Refer to ‘To Audio Amp Connection"

section for further information.)

1. Press action ,

2. Press or^^ and or ^ to highlight the Audio Icon.

3. Press action to display the Audio Adjustment Menu.

ШШШГ

1ш

№

4. Press or ^ to select STEREO, SAP (Second Audio Programming), or MONO. The selected mode will be highlighted.

5. Press action twice to exit menus.

Al Sound (Not used in CT-27G2/U and CT-32G2AJ)

This feature regulates the volume between programs and

commercial audio to maintain a constant sound output level.

1. Press action ,

2. Press or^^ and^or^ to highlight the Audio Icon.

3. Press action to display the Audio Adjustment Menu.

MOPE

4llSp^JNb

TV SPEAKERS

4. Press A orW to highlight TV SPEAKERS.

5. Press or ^ to select ON or OFF.

SAP MONO

6. Press action twice to exit menus.

4. Press A orW to highlight Al SOUND.

5. Press ^ or ^ to select ON or OFF.

6. Press action twice to exit menus.

-18-

Page 19

Lock

Lock Game Guard

Prevents video games and other video sources from being

viewed. Channel 3, 4 and video inputs are locked out for

12, 24 or 48 hours. NOTE: Be sure to understand this

feature before attempting its use. Use a code that you

will easily remember or write the code on a piece of

paper.

1. Press action .

2. Press ^ or^ and or ^ to highlight the Lock Icon.

Unlock Game Guard

To unlock the Game Guard feature, repeat steps 1 through

3. Enter the same 3 digit code previously used in step 5 with Remote Control Keypad.

3. Press action to display the Lock Menu.

iGAMElCUARDl

lWCch^

4. “HOW LONG” should already be highlighted. Press

^ to select the desired amount of time (12,24 or 48

hours) for Game Guard Lockout to be activated.

5. Press ^ to highlight ENTER CODE. Then enter a 3 digit code with the Remote Control Keypad. “SET’ should be highlighted after entering the last digit.

IMPORTANT NOTE: Use a code you can easily remember or write the code on a piece of paper.

6. Press ^ after entering three digit code. “Game Guard Locked” will display On Screen.

^ ^

Enter Same 3 Digit Code Previously Used

!y ■ . V., ■ ■ .-.j;: . ■ . .■ ■ ■ V ... ■ "■ ■ ■ ■

...................

.....

.■' Ti ' "./"■■=■ '"■•*• "'■ ^'-vj.'■'■'„■■!!."Cp , 'Ti'l^i'

If 3 Digit Code Is The Same

INVALID CODE

ENTERED

Game Guard Activated

If 3 Digit Code Is Not The Same

-19-

Page 20

Channel Caption

This feature allows you to enter the call names of up to 30 stations into memory (using up to 4 characters for each station). The call name will then display along with the channel number when changing channels or pressing

RECALL.

Helpful Hints:

When the Maximum amount of station identifiers are entered, “FULL” will be displayed in the caption position.

Channel Caption (Station Identifier)

1 . Press ACTION .

2. Press or^^ and or ^ to highlight the Channel Caption Icon.

3. Press action to display the Channel Caption Menu.

O»

rCHANNElfCARJtONl

ENTER CHANNEL NUMBER ENTER

aapsecs

Timer Features

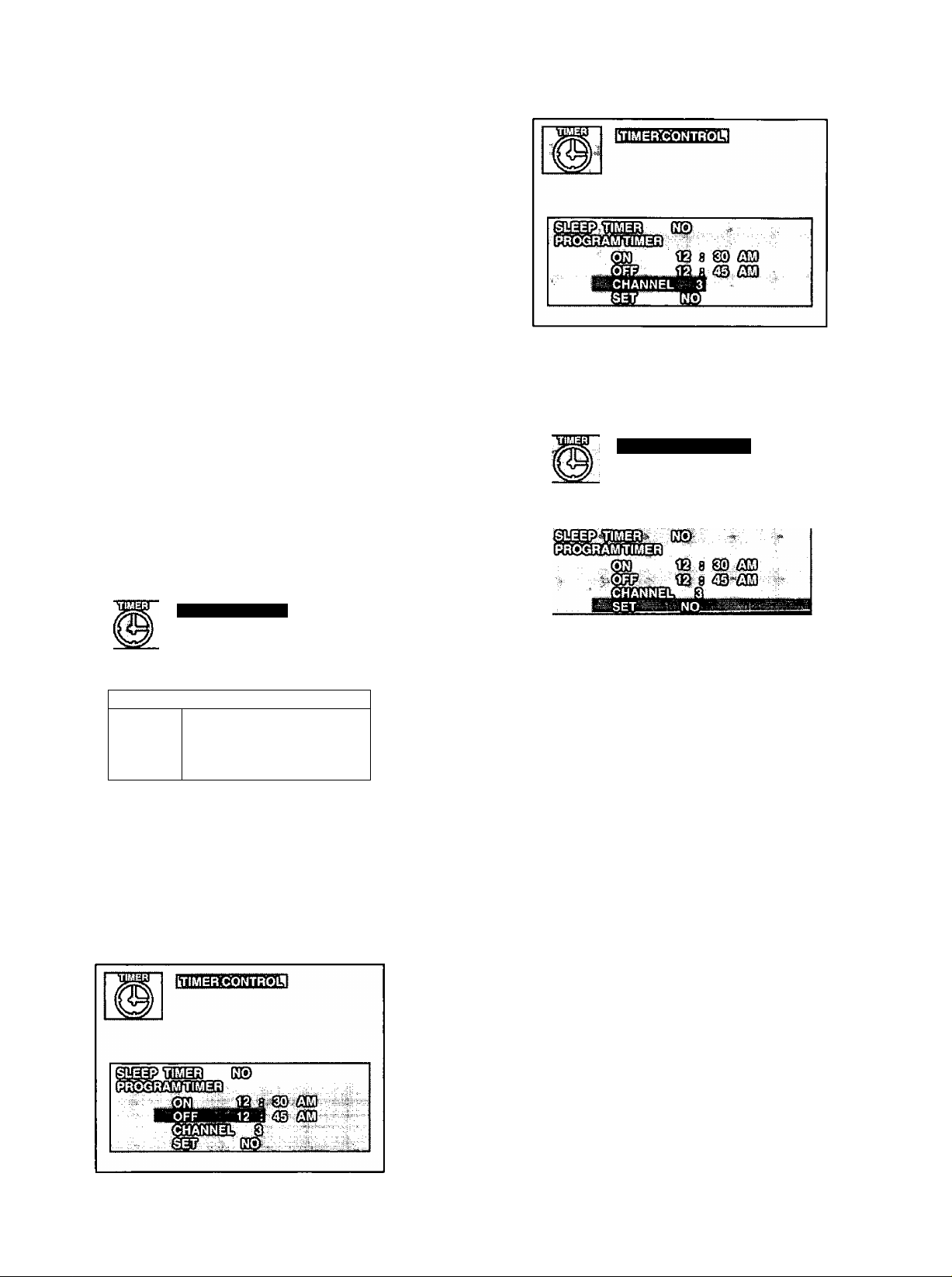

Sleep Timer

This feature is used for automatic turn off in 30, 60 or 90

minutes. Display will flash 3,2 and 1 to indicate the last three remaining minutes prior to turn off. The Recall display will also appear.

NOTE: This feature will be disabled when Auto Power

On is activated.

1. Press action _

2. Press ^^or^^ and*^or^* to highlight the Timer Icon.

3. Press action to display the Timer Control Menu.

mMERCONTROffl

SLEEP TIMER" ■

NO V ■

eHANNEt!

Press or or use the Remote Control Keypad to

4. enter the channel number you wish to assign a Station

Identifier. Press ^ to highlight ENTER CAPTION.

5. Press ^ or ^ to select first character in Station

6. Identifier. Then press W to move cursor to the second

position and repeat until the complete Station Identifier is entered (up to 4 characters).

Press A or to highlight ENTER CHANNEL

7. NUMBER. Then repeat steps 4 through 6 to continue adding Channel Station Identifier(s).

Press action twice to exit menus.

NOTE: To delete a Channel Caption (Station Identifier) from

memory all four character positions in the “ENTER CAPTION” area must display a dash mark {-).

oo g oo ■■ ■ ■

: @

4. Press ^ to select NO, 30, 60 or 90 minutes (Sleep Timer will be activated).

5. Press action twice to exit menus.

NOTE: To deactivate Sleep Timer repeat steps 1 through 4.

In step 4 select “NO” instead of minutes.

HelpfulHinfs:

Press the RECALL button to display the remaining minutes for Sleep Timer, the status will display in the bottom left corner.

-20-

Page 21

Timer Features (cont.)

Special Feature:

Automatic turn “OFF’ after 90 minutes.

The TV has a special feature that will shut itself OFF after 90 minutes when turned ON by the program timer unless a function key is pressed during the 90 minutes. This feature is useful so that the TV will not

remain ON unattended for an extended period of

time.

Programming the OFF timer will cancel the

automatic OFF Special Feature.

Program Timer

This feature is capable of turning the TV on, tuned to a desired channel and off at a predetermined time (one day or daily). The clock must be set for this feature to operate. (Refer to the Set-Up Menu to set time.)

NOTE: This feature will be disabled when Auto Power

On is activated.

1. Press action .

9. Repeat steps 5 through 7 for setting OFF (time).

10. Press ^ to highlight CHANNEL.

11. Press or or use the Remote Control Keypad to enter the channel number desired when the set turns “ON”.

12. Press ^ to highlight SET.

triMERTCONTROa

2. Press^^or^^and*^or^ to highlight the Timer Icon.

3. Press action to display the Timer Control Menu.

kTIMEn:CONTROa

gïMiiPurgiB E®

4. Press ^ to highlight ON (time).

5. Press or ^ repeatedly to set hours (set AM/PM accordingly).

6. Press ^ to highlight the minutes position.

7. Press or repeatedly to set minutes.

8. Press ^ to highlight OFF (time).

C7ITT3Tl ■ ■ •

^ <=» g CX3

W m

13. Press ^ to select:

• NO - not activated

• ONE DAY - activated

• DAILY - activated

14. Press action twice to exit menus.

NOTE: To deactivate Program Timer select NO in step 13.

Helpful Hints:

If the Program Timer “ON” functions while the set is operating, the set will automatically tune to the channel designated in the Timer Program.

-21 -

Page 22

Set-Up Features

Set Time

Clock (when set) will display on screen at initial ‘Turn On", after a channel change and when pressing the RECALL button. The time must be set first in order to operate the

Program ON/OFF Timer.

NOTE: This feature will be disabled when Auto Power

On is activated.

1_ Press ACTION .

2. Press A orW and ^ or ^ to highlight the Set-Up Icon.

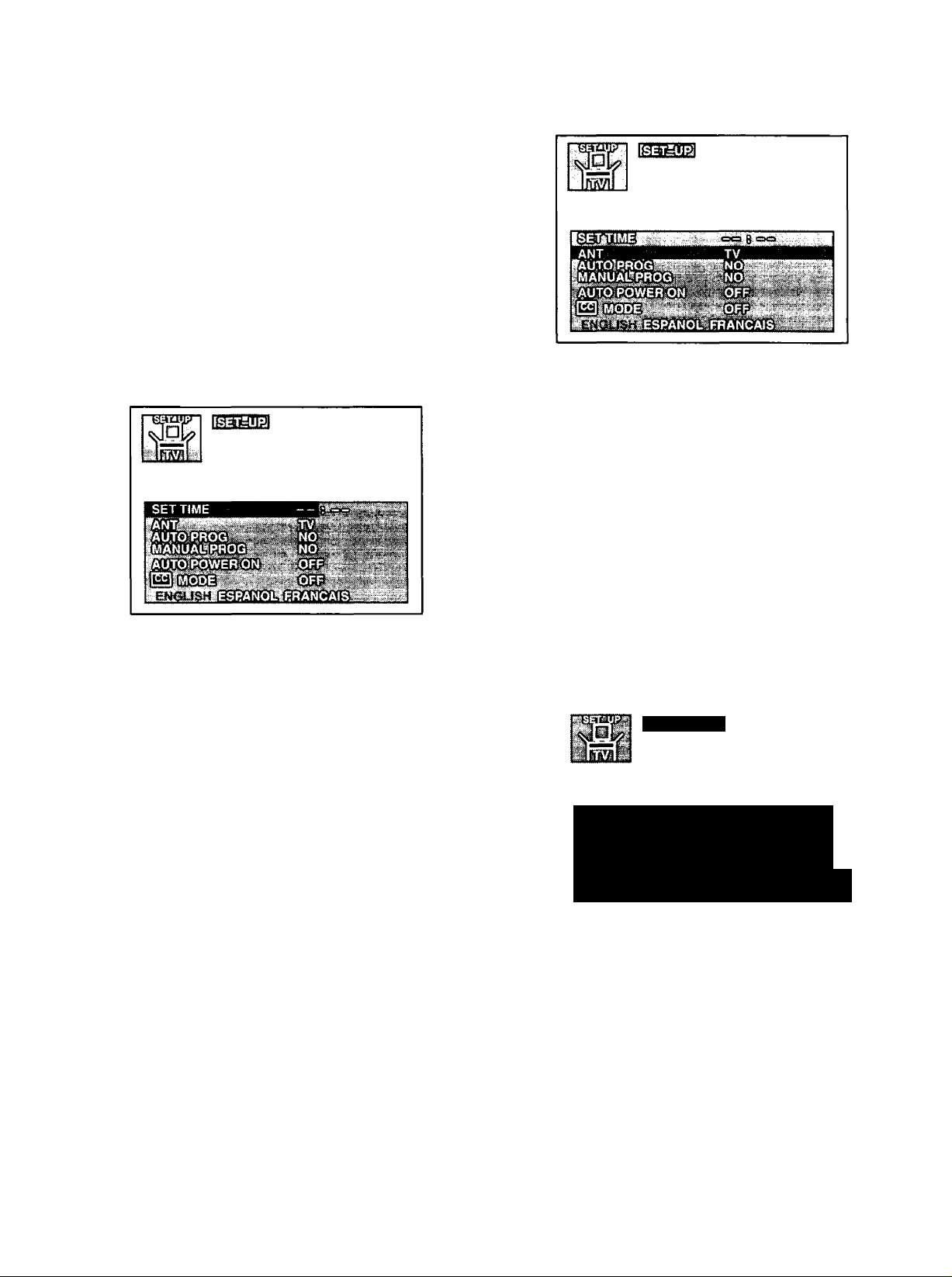

3. Press action to display the Set-Up Menu.

4. Press ^ to highlight ANT.

5. Press or ^ to select TV or CABLE. O

6. Press action twice to exit menus.

Auto Prog

This feature allows you to place all channels with a video

signal into Channel Scan Memory.

NOTE: This feature is disabled when Game Guard

Lock is activated.

4. Press^^or^

5. Press to select minutes position.

6. Press or^ O»

7. Press action twice to exit menus.

to set hours (set AM/PM accordingly).

repeatedly to set minutes.

Antenna (Ant)

The proper Input mode must be selected for the type of signal at the antenna input.

• TV mode is used when the Receiver is not connected to

a cable TV system, for example when using a VHF/UHF antenna (channels 02 - 69).

• Cable mode is used when the Receiver is connected to

a Cable TV system and you are not using a cable

company converter box (channels 01 - 125).

NOTE: This feature is disabled when Game Guard

Lock is activated.

1. Press action .

2. Press ^or^ and or ^ to highlight the Set-Up

Icon.

3. Press action to display the Set-Up Menu.

1. Press action _

2. Press ^orW and or ^ to highlight the Set-Up Icon.

O»

3. Press action to display the Set-Up Menu.

rSET4.UF¿

iMÁÑUA'gPROG'^" N0’^': SuTb.RdwER.oN

SÍ3^^^1?!s^ESPANOL"o^.FRAÑGAIS ■ ".-.■■r:;

4. Press ^ to highlight AUTO PROG.

5. Press*^or^to startAutoProgramming.Channels will automatically advance until all channels have been scanned.

CZ>

6. Press action twice after completion of Auto

Programming to exit menus.

NOTE: Channel numbers with signal present will turn blue

which indicates stored in Channel Scan Memory.

-22-

Page 23

Set-Up Features (cont.) Manual Prog

This feature allows you to select which channels are placed into Channel Scan Memory.

1. Press action .

2. Press ^or^ and^ or^ to highlight the Set-Up Icon.

3. Press action to display the Set-Up Menu.

4. Press

5. Press or NOTE: This feature is disabled when Game Guard

msmim

to highlight MANUAL PROG.

<€orb

Menu.

Lock is activated.

tSETiUPJ

to display the Manual Programming

2. Press ^ orW and or ^ to highlight the Set-Up Icon.

3. Press action to display the Set-Up Menu.

(SET5UPJ

SETtTIME

ANTi

AMTOIRBOIQVH

MANUAUfPRO»

AUTO POWER ON

4. Press ^ to highlight AUTO POWER ON.

5. Press or ^ to select SET or OFF.

____

@1?

6. Press action twice to exit menus.

CC (Closed Caption) Mode

This Receiver has a built in decoder that provides a visual depiction of the audio portion of a television program, in the form of written words across the screen (White or

Colored letters on a black background). It allows the

viewer to read the dialogue of a television program or

other information.

When the Closed Caption is in the OFF Mode: The viewer may display closed caption by pressing

MUTE

O on the remote control. Press again to delete.

Cf7

Use the Aor^ or the Remote Keypad “0 through

9” buttons to select channels. Press ^ to add channel(s) to memory (Blue). Press

7. to delete channels from memory (Yellow).

Repeat steps 6 and 7 to continue adding or deleting

channels.

Press action twice to exit menus.

Auto Power On

This feature allows the user to power up the TV at the

same time as the cable box (or other components). Of course, the TV must be plugged into the cable box.

NOTE: When this feature is activated (on), Timer

features will be disabled.

Press action ,

1. Press action .

2. Press ^orW and or ^ to highlight the Set-Up Icon.

3. Press action to display the Set-Up Menu.

rsETlUR]

AUXOMOWER

feci MODE

mm,mn

4. Press ^ to highlight CC MODE.

5. Press ^ to select OFF, C1, orC2.

6. Press action twice to exit menus.

-23-

Page 24

Programming The Universal Remote

(For CT-27G12/U and CT-32G12/U)

VCR Cable Converter Box

Preferred Procedure - Code Known

Programming Universal Remote Using Infra-Red Access Codes for VCRs

• Deternnine brand of VCR.

• Identify code(s) associated with the brand in the infra-red code index for VCRs (located in this manual).

Procedure tv/cable

1. Place the Remote lU I into the TV position (Left).

VCR POWER

2. Press and hold down on Universal Remote.

3. Enter two digit code using keypad “0 through 9” buttons. ycH POWER

Release • The Universal Remote is now

programmed.

NOTE: Some brands have multiple codes. Repeat

procedure using each code listed until VCR responds correctly.

Alternate Procedure - Code Unknown

Programming Universal Remote Using the

’’Sequence Method” for VCRs

• Confirm VCR is plugged in and operating properly,

then turn OFF.

Procedure TvreABLE

1. Placethe Remote [fflUl intotheTV position (Left).

VCR POWER

2. Press and hold the down on Universal

Remote.

3. Press ^ repeatedly. Check for the VCR to turn ON after each press. When the VCR turns ON, release VCR Power button. The proper infra-red code has now been accessed.

• It may take several attempts before the correct code

is found.

• The can be used to return to a code that was

accidently passed by.

• Some Remote Controls may have unique operating functions for some buttons. For Example: The

POWER button may only turn the VCR OFF as opposed to both ON and OFF. It will then be necessary to modify the procedure. Turn the VCR ON and repeatedly press the until the VCR turns OFF. ^

Preferred Procedure - Code Known

Programming Universal Remote Using Infrared Access Codes for Cable Television

Converter Boxes

• Determine brand of Cable Television Converter box.

• Identify code(s) associated with the brand in the infra-red code index for Cable Television Converter boxes (located in this manual).

Procedure tv/cable

1. Place the Remote I W\ into the CABLE position (Right).

2. Press and hold the

3. Enter two digit code using keypad “0 through 9" buttons. CABLE

Release f I The Universal Remote is now programmed. Use the Remote ^ and ^ for

selecting Cable Converter Box channels.

NOTE: Some brands have multiple codes. Repeat

POWER

procedure using each code listed until Cable Television Converter box responds correctly.

CABLE

POWER

down on Universal Remote.

Alternate Procedure - Code Unknown

Programming Universal Remote Using the “Sequence Method” for Cable Television Converter Boxes

• Confirm Cable Television Converter box is plugged in

and operating properly, then turn OFF.

Procedure tv/cable

1. Place the Remote cBi into the CABLE position (Right).

' ® ^ CABLE

2. Press and hold | | down on Universal Remote.

3. Press repeatedly. Check for the Cable Television Converter box to turn ON after each press. When the Cable Television Converter box turns ON, release Cable Power button. The proper infrared code has

now been accessed.

• It may take several attempts before the correct code is

found^

• The ^ can be used to return to a code that was

accidently passed by.

• Some Remote Controls may have unique operating

functions for some buttons. For Example: The POWER button may only turn the Cable Television Converter box OFF as opposed to both ON and OFF. It will then be

necessary to modify the procedure. Turn the Cable

Television Converter box ON and repeatedly press the

POWER

•

^ until the Cable Television Converter box turns OFF.

NOTE: When operating equipment (VCR or Cable Converter box) with the Universal Remote Control, the TV/CABLE

Switch should be set to the same position where the Access Code was first programmed for the equipment. OthenA/ise, leave the switch in the TV position.

-24-

Page 25

VCR and Cable Converter Box Infrared Codes Index

(For CT-27G12/UandCT-32G12/U)

The Universal infrared Remote Control is capable of operating many brands of VCRs and Cable Television Converter Boxes after entering the proper infrared code.

NOTE: The Universal Remote Control memory is limited. Some models of VCRs or Cable Television Converter Boxes

may not operate. The Universal Remote Control is not designed to control all features that are available in all models.

Infrared Code Index For VCRs

VCR Brand Code(s) VCR Brand Code(s) Audio Dynamics

Broksonic 10 Panasonic 00,01 Canon 00,01 Capehart 01 Philco 00, 29 Citizen Craig 12 Pioneer 05 Curtis Mathes 00,08, 15 Quasar 00,01

DBX 14, 16 RCA 05, 07, 08, 28, 35 Emerson 10, 20,34,35,36, 37 Realistic 00, 02,06,12,15 Fisher 12, 18, 19 Funai 15 Sanyo

GE 00, 07, 08, 32 Scott 04, 13, 33, 36

Goldstar 09 Sears 02,05, 18, 19 Hitachi 05, 35, 36 Sharp 06,24

Instant Replay 00 JC Penney 00,02,05,14,16, 30 Sylvania 00,29 JVC 02,14,16, 30 Symphonic 15

Kenwood 02,14,16, 30 Tashiko 09

Magnavox 00,29

Marantz

Marta

Memorex 00,12 Toshiba 05,13

MGA 04, 27 Vector Research 14,16

Minolta 05 Video Concepts 14,16

Mitsubishi 04, 27 Wards 06

Montgomery Ward 06 Yamaha 02,14,16, 30

Multitech

14,16

09 Philips 00, 29

02, 14, 16, 29,30 Teac 15,30 09 Teknika 21

07, 15, 32

NEC 02. 14, 16. 30 Pentax

Samsung

Sony

Tatung 30

Zenith 11, 17

07, 32 02, 12

17,26, 33,34

Infrared Code Index For Cable Television Converter Box

Brand of Cable-TV Box

G.l. Hamlin 12, 13,34 Regency 02

Jerrold 04, 05,15, 23, 24, Scientific Atlantic 03,22 Macom 27 Texscan 10,11

Magnavox 19,26, 28, 29, 32, Tocom 17,21 Oak

Oak Sigma 16 33, 40, 41 Panasonic Philips

Code(s) 04, 05,15,23, 24,

25, 30, 36

25,30,36 Sylvania 11

33,40,41 Unika 31 14,16,18

27,39 19,26, 28, 29, 32, 33, 40, 41

Brand of Cable-TV Box

Pioneer RCA 27

Viewstar Zenith 01,42

-25-

Code(s)

18,20

19, 26, 28,29, 32,

Page 26

Troubleshooting Chart

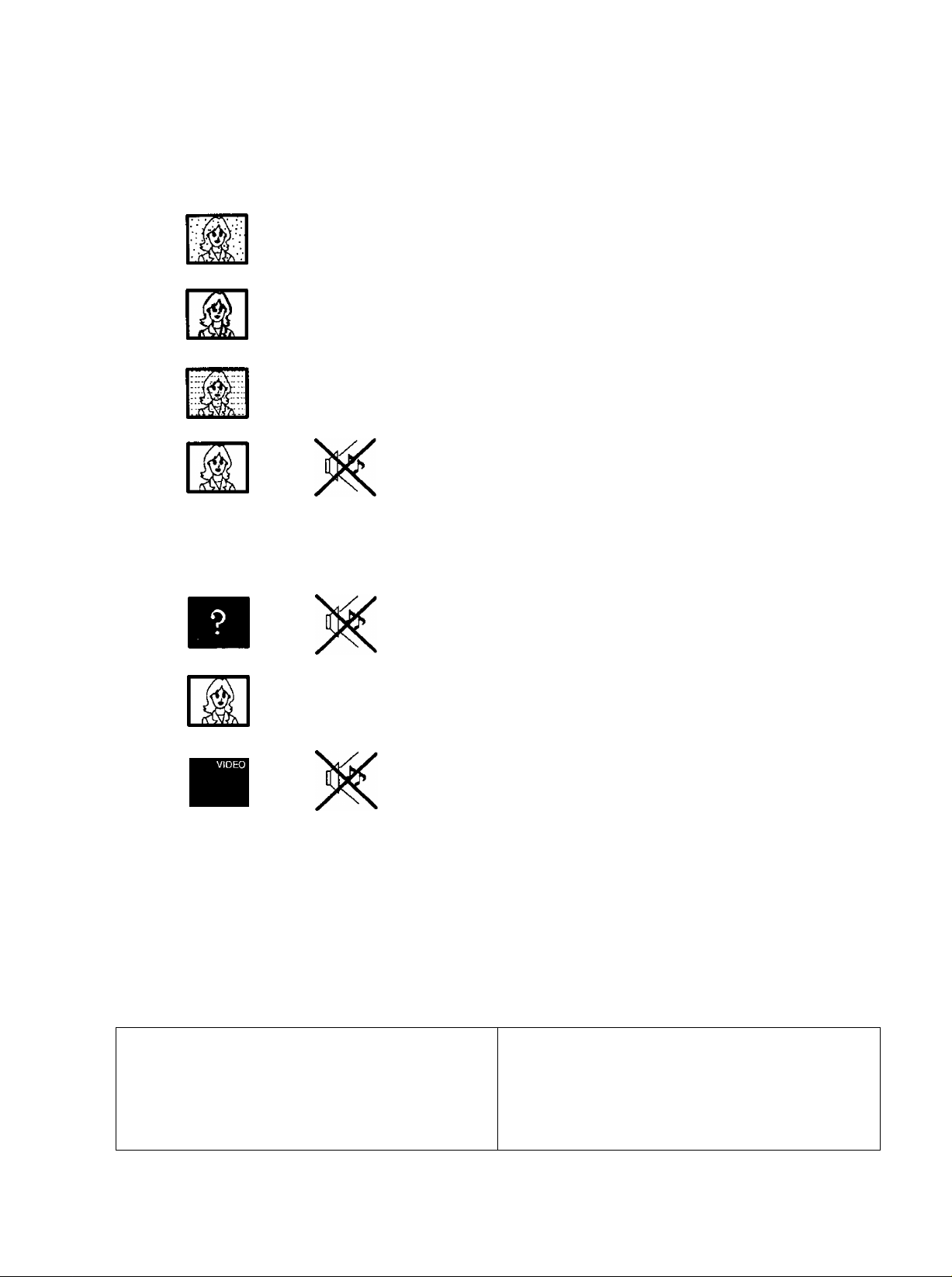

Before you call for service, determine the symptoms and make a few simple checks shown below.

Symptoms

Picture Sound

Check

SNOWY PICTURE

MULTIPLE IMAGE NOISY SOUND

INTERFERENCE

NORMAL PICTURE NO SOUND

NO VIDEO

NO PICTURE

NOISY SOUND

NO SOUND

- ANTENNA LOCATION AND/OR CONNECTION

ANTENNA DIRECTION AND/OR LOCATION ANTENNA LEAD-IN WIRE

ELECTRICAL APPLIANCES, LIGHTS, CARS AND TRUCKS DIATHERMY AND OTHER MEDICAL EQUIPMENT

VOLUME CONTROL SETTING MUTE CONTROL (IF APPLICABLE) TRY ANOTHER CHANNEL TV SPEAKERS SWITCH (IF APPLICABLE) IN THE OFF POSITION

TV OR CABLE TUNING MODE SET TO PROPER SETTING ANTENNA INPUT CORRECT (IF APPLICABLE)

CHECK THAT AC POWER LINE IS PLUGGED INTO AC OUTLET BRIGHTNESS & AUDIO CONTROLS SET PROPERLY TRY ANOTHER CHANNEL

(P^

NO COLOR NORMALSOUND

BLACK PICTURE NO SOUND

COLOR CONTROL SETTINGS TRY ANOTHER CHANNEL

- RECEIVER IN VIDEO MODE WITH NO SIGNAL

Power Loss

Prolonged power interruption causes the foilowing features to reset to their factory preset state.

FEATURE POWER AUTO POWER ON NO CHANGE VOLUME APPROX.-1/3 CHANNEL CH 03 PROGRAM MEMORY UNPROGRAMMED VIDEO MENUS STEREO/SAP/MONO STEREO

FACTORY PRESET STATE

OFF

NORMALIZED

FEATURE CLOCK NOT SET SLEEPTIMER OFF PROGRAM TIMER ANTENNA MODE TVA/IDEO TV TRILINGUAL MENU

FACTORY PRESET STATE

OFF CABLE

ENGLISH

-26-

Page 27

NOTES

-27-

Page 28

Panasonic Consumer Electronics Company, Division of Matsushita Electric Corporation of America

One Panasonic Way Secaucus, New Jersey 07094

Panasonic Sates Company, Division of Matsushita Electric of Puerto Rico Inc. (“PSC”)

Ave. 65 de tnfanteria. Km 9.5 San Gabriel Industrial Park Carolina, Puerto Rico 00985 Tel. (787) 750-4300 FAX. (787) 768-2910

-28-

Panasonic Canada Inc.

5770 Ambler Drive Mississauga, Ontario L4W 2T3 Canada

LH020497V

Panasonic CT-32G2 User Manual

Color Television

Safety Instructions For Television Receivers

Channel Capability Chart

Congratulations on Your New Purchase

Picture Tube (Turn set off)

Plastic Cabinets

Wood Cabinets

Remote Controi Transmitter

Receiver Location

Optional External Equipment Connections

AC Power Supply Cord

Remote Control Battery Installation

Precaution on Battery Use

Observe the Following Precautions:

Installation (cont.) Antenna/CableConnections

Incoming Cable from Home Antenna

75 Ohm

Incoming Cable from Cable Company

75 Ohm

Other Video Equipment

(For CT-27G12/U And CT-32G12/U)

To Audio AMP Connection

Optional Equipment Connection and Operation (Cont.)

AudioA/ideo Input Connection

Operation

(For CT-27G2/U and CT-32G2/U)

Power Button

Mute Button

Volume Buttons

Channel Buttons

Action Button

R-Tune (Rapid Tune) Button

Recall Button

(For CT-27G2/U and CT-32G2/U)

(For CT-27G12/U And CT-32G12/U)

Power Button

TV/Video Button

Volume Buttons

Mute Button

Action Button

Recall Button

(For CT-27G12/U And CT-32G12/U)

KEY OPERATES

FUNCTION

Cable Power Button

Menu Language Selection

Picture Norm

Color, Tint, Brightness, Picture, and Sharpness Adjustments

Mode

Lock Game Guard

Unlock Game Guard

Sleep Timer

Timer Features (cont.)

Special Feature:

Program Timer

Set Time

Auto Prog

Antenna (Ant)

AUTO POWER ON

CC (Closed Caption) Mode

(For CT-27G12/U and CT-32G12/U)

VCR Cable Converter Box

(For CT-27G12/UandCT-32G12/U)

Infrared Code Index For VCRs

Infrared Code Index For Cable Television Converter Box

Symptoms

Picture Sound

Check

Power Loss

Panasonic Canada Inc.
