Color Television
Operating Instructions
Televisor a color Instrucciones de Operación
Télé-couleur
Manuel d’utilisation
CT-32E14 |
CT-G2134 |
CT-G2974 |
CT-G3354 |
|
CT-G2174 |
CT-G2974L |
|
|
CT-G2174L |
|
|
TQB2AA0503-2 40329 PRINTED IN USA
IMPRESO EN EE.UU IMPRIMÉ AUX ÉTATS-UNIS
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT
REMOVE COVER OR BACK. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrow head within a triangle is intended to tell the user that parts inside the product are a risk of electric shock to persons.
The exclamation point within a triangle is intended to tell the user that important operating and servicing instructions are in the papers with the appliance.
ENGLISH |
The Class II insulation symbol (square within a square) indicates that this product has been evaluated and tested to comply with Class II insulation requirements.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPARATUS TO RAIN OR MOISTURE. DO NOT PLACE ANY OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES ON THIS APPARATUS.
IMPORTANT SAFETY INSTRUCTIONS
1.Read these instructions.
2.Keep these instructions.
3.Heed all warnings.
4.Follow all instructions.
5.Do not use this apparatus near water.
6.Clean only with dry cloth.
7.Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8.Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9.Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10.Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11.Only use attachments/accessories specified by the manufacturer.
12.Use only with the cart, stand, tripod, bracket or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13.Unplug this apparatus during lightning storms or when unused for long periods of time.
14.Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
IMPORTANT INFORMATION
Important Information
FCC CAUTION: ANY CHANGES OR MODIFICATIONS TO THIS TV RECEIVER NOT EXPRESSLY APPROVED BY MATSUSHITA ELECTRIC CORPORATION OF AMERICA COULD CAUSE HARMFUL INTERFERENCE, WHICH WOULD VOID THE USER’S AUTHORITY TO OPERATE THIS EQUIPMENT.
ENVIRONMENTAL NOTICE: THIS PRODUCT UTILIZES CATHODE RAY TUBES (CRT) AND OTHER COMPONENTS THAT CONTAIN LEAD. DISPOSAL OF THESE MATERIALS
MAY BE REGULATED IN YOUR COMMUNITY DUE TO ENVIRONMENTAL
CONSIDERATIONS. FOR DISPOSAL OR RECYCLING INFORMATION
PLEASE CONTACT YOUR LOCAL AUTHORITIES, OR THE ELECTRONICS INDUSTRIES ALLIANCE: <HTTP://WWW.EIAE.ORG.>
ENGLISH |
The Energy Star label, a symbol for energy efficiency, was created by the U.S. Environmental Protection Agency (EPA) and the U.S. Department of Energy (DOE) to help customers identify products that can save them money and protect the environment by saving energy. Energy Star compliant products generally consume less energy than similar standard products.
Important Information Regarding The Use Of Video Games, Computers, Or Other Fixed Image Displays
WARNING: The marking or retained image on the picture tube resulting from viewing a fixed image is not an operating defect and as such is not covered by Warranty.
This television is designed to display constantly moving images on the screen. Continuous viewing of stationary images such as letterbox pictures on standard screen TVs (with top/bottom bars), nonexpanded standard (4:3) pictures on wide screen TVs (with side bars shown on each side of an image), stock market report bars (ticker running at the bottom of the screen), video game patterns, fixed scoreboards, bright station logos, on-line (Internet) or repetitive computer style patterns should be limited.
The extended use of fixed image program material can cause permanent picture tube damage, shown as a “shadow image” viewable on normal programs. This type of irreversible picture tube deterioration can be limited by performing the following steps:
•Do not display the fixed image for extended periods of time.
•Turn the power off when not in use.
Read these instructions completely before operating television.
Contents are subject to change without notice or obligation.
Copyright 2004 by Matsushita Electric Corporation of America. All rights reserved.
Unauthorized copying and distribution is a violation of law.
1 z
TABLE OF CONTENTS
Customer Record ........................................................ |
3 |
Care and Cleaning ...................................................... |
3 |
Specifications .............................................................. |
3 |
Feature Chart.............................................................. |
3 |
Installation ........................................................ |
4 |
|
Television Location ..................................................... |
4 |
|
Optional Cable Connections ....................................... |
4 |
|
AC Power Supply Cord ............................................... |
4 |
|
Cable / Antenna Connection ....................................... |
4 |
ENGLISH |
|
|
|
Remote Control Battery Installation ............................ |
4 |
|
Initial Set Up Menu........................................... |
5 |
|
Optional Equipment Connections .................. |
6 |
VCR ............................................................................ |
6 |
Cable Box ................................................................... |
6 |
Digital TV - Set-Top Box (DTV-STB) or DVD Players. 6 |
|
Amplifier (TO AUDIO AMP)......................................... |
6 |
Front Control Panel ..................................................... |
6 |
Remote Control Operation ........................... |
7 |
Operating Components with Remote Control .............. |
8 |
Programming the Remote............................................ |
9 |
Programming Without a Code ..................................... |
9 |
Component Codes....................................................... |
9 |
Icon Menu Navigation ................................... |
11 |
Icon Menu Operation..................................... |
12 |
Set Up.......................................................................... |
12 |
Picture.......................................................................... |
12 |
Timer............................................................................ |
13 |
Channels...................................................................... |
13 |
Audio............................................................................ |
14 |
Lock ............................................................................. |
14 |
V-Chip Menu Operation ................................ |
15 |
Troubleshooting Chart.................................. |
18 |
Index............................................................... |
19 |
Note: The warranty and service center information is located in the back of this manual.
2 z
CONGRATULATIONS
Congratulations
Your new TV Monitor/Receiver features a solid state chassis that is designed to give you many years of enjoyment. It was thoroughly tested and tuned at the factory for best performance.
The model and serial number of this product are located on the back of the TV. You should note the model and serial number in the space provided and retain as a permanent record of your purchase. This will aid in identification in the event of theft or loss. Product registration for U.S. customers is available at: www.prodreg.com/panasonic.
Model
Number
Serial
Number
Screen (Turn TV Off)
•Use a mild soap solution or window cleaner and a clean cloth.
•DO NOT USE ABRASIVE CLEANERS.
•Avoid excessive moisture and wipe dry.
Warning: Do not spray any type of cleaning fluid directly on the screen.
Cabinet and Remote Control
•For cabinets and remote control, use a soft cloth dampened with water or a mild detergent solution.
•Avoid excessive moisture and wipe dry.
•Do not use benzene, thinner or other petroleum based products.
Specifications are subject to change without notice or obligation.
|
|
|
|
|
|
Power Source |
|
120V AC, 60Hz |
|
|
CT-32E14 CT-32E14U |
(2.4A) |
|
|
|
|
|
|
|
|
Channel Capability - 181 |
|
VHF-12; UHF-56; |
|
|
|
Cable-113 |
|
|
|
|
|
|
|
|
Video Input Jacks |
|
1Vp-p, 75 Ohm, Phono |
|
|
|
Jack Type |
|
|
|
|
|
|
|
|
Audio Input Jacks |
|
500mV RMS 47K Ohm |
|
|
Audio Output Jacks |
|
0-2.0V RMS 4.7K Ohm |
|
|
Component Input (Y / PB / PR) |
75 Ohm, Phono Jack |
|
|
|
Type |
|
||
|
S-Video Input Jacks |
|
S-Video (Y-C) Connector |
|
|
|
|
|
|
Feature Chart |
32E14-CT |
|
MODEL |
|
|
|
|
|
FEATURES |
• |
|
MENU LANGUAGE ENG/SPAN/FR |
|
|
CHANNEL INFO BANNER |
• |
ENGLISH |
VIDEO INPUT SKIP |
• |
|
VIDEO PICTURE MEMORY |
• |
|
CLOSED CAPTIONING |
• |
|
V-CHIP CAPABILITY |
• |
|
VIDEO NORM |
• |
|
AUDIO NORM |
• |
|
STEREO |
• |
|
AI SOUND |
• |
|
BASS/BALANCE/TREBLE |
• |
|
SURROUND |
• |
|
A/V IN (REAR/FRONT) |
3 |
|
(2/1) |
|
|
|
|
|
AUDIO OUT |
• |
|
S-VIDEO INPUT |
• |
|
COMPONENT INPUT |
• |
|
HEADPHONE JACK |
• |
|
3 z
INSTALLATION
Installation
Television Location

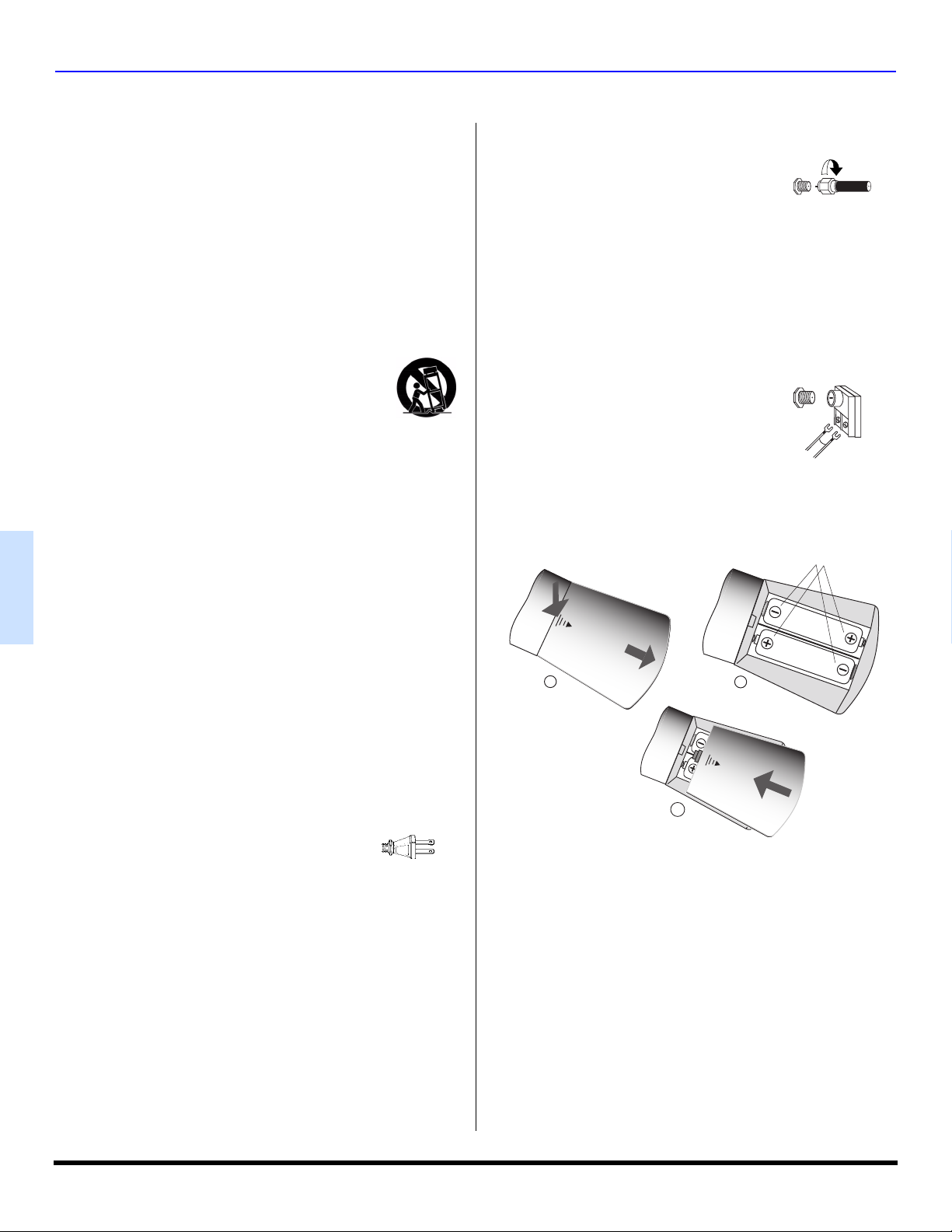

Follow these recommendations before deciding the location of your television.
|
• |
Avoid excessive sunlight or bright lights, including |
|
|
reflections. |
|
• |
Keep away from excessive heat or moisture. Inadequate |
|
|
ventilation may cause internal component failure. |
|
• |
Fluorescent lighting may reduce remote control |
|
|
transmitting range. |
ENGLISH |
• |
Keep away from magnetic equipment, including motors, |
|
fans and external speakers. |
|
|
|
|
|
WARNING: Use this television receiver only with the |
|
|
cart, stand, tripod, bracket, or table specified by the |
|
|
manufacturer, or sold with the apparatus. When a cart |
|
|
is used, use caution when moving the cart/apparatus |
|
|
combination to avoid injury from tip-over. In order to |
|
|
avoid injury to children, never place your television receiver on a |
|
|
piece of furniture that is capable of being tilted by a child leaning |
|
|
on it, pulling on it, standing on it, or climbing on it. A falling |
|
|
television can cause serious injury or even death. |
CT-32E14, CT-32E14U:
CAUTION: These television receivers for use only with PANASONIC TY-32E14T stand. Use with other carts (or stands) is capable of resulting in instability causing possible injury.
Shielded audio and video cables should be used between components. For best results:
•Use 75-ohm coaxial shielded cables.
•Use appropriate input and output connectors, that match your component connectors.
•Avoid long cables to minimize interference.
CAUTION: TO PREVENT ELECTRIC SHOCK,
MATCH WIDE BLADE OF PLUG TO WIDE SLOT
OF AC OUTLET AND FULLY INSERT. DO NOT Polarized plug USE A PLUG WITH A RECEPTACLE OR OTHER
OUTLET UNLESS THE BLADE CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
PROTECT POWER CORDS FROM BEING WALKED ON, ROLLED OVER, CRIMPED, BENT, OR PINCHED, PARTICULARLY AT PLUGS, CONVENIENCE RECEPTACLES, AND THE POINT WHERE THEY EXIT FROM THE APPARATUS.
For proper reception, either a cable or antenna connection is required.

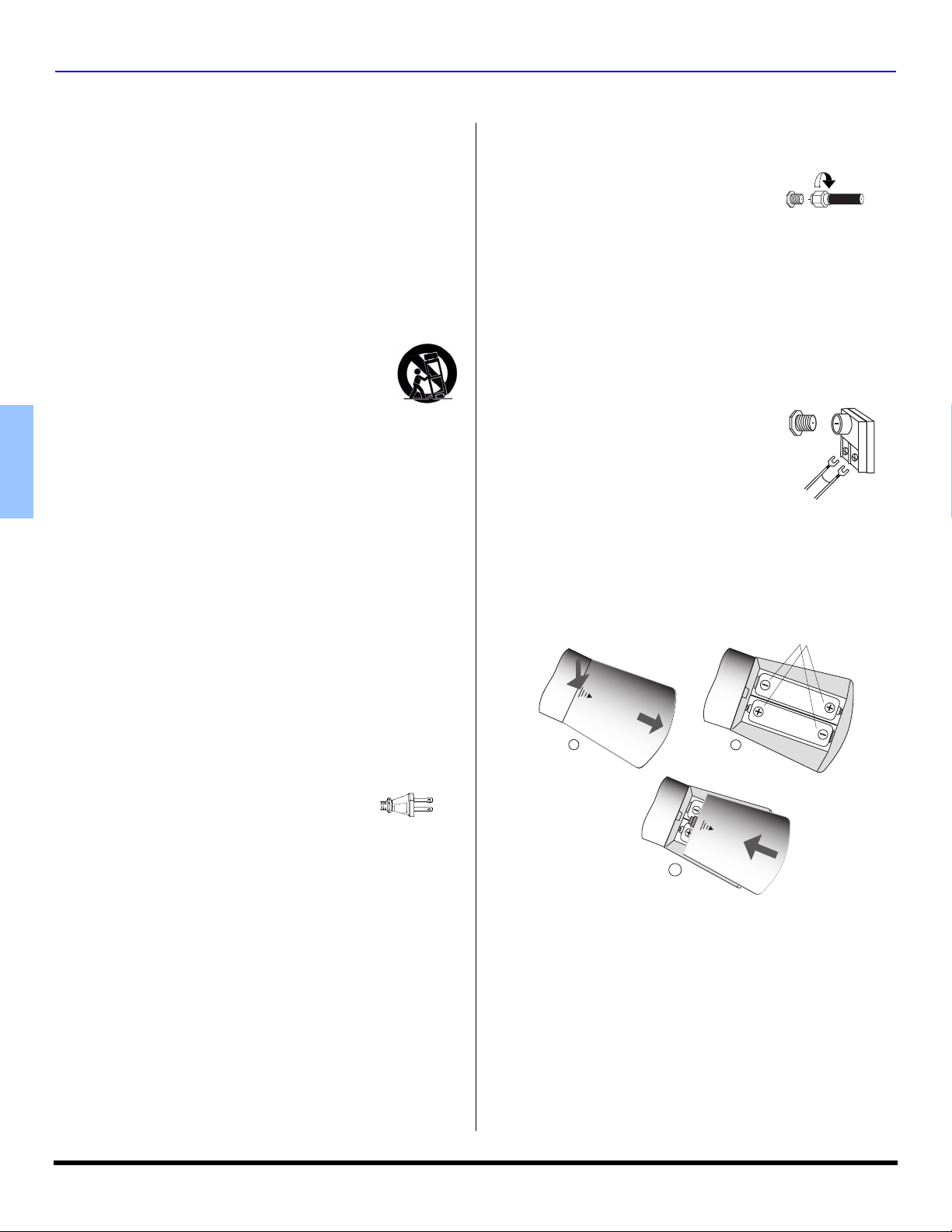

Cable Connection
Connect the cable supplied by your local cable company. Tighten with fingers only. Use of any tool (e.g. pliers) for tightening may result in tuner damage.
Incoming Cable from Cable Company
75 Ohm VHF/UHF
on back of TV
Note: A cable converter box may be required for proper reception. Check with your local cable company for compatibility requirements.
Antenna Connections
• |
For proper reception of VHF/ |
Incoming Cable from |
||
|
UHF |
channels, |
an external |
Home Antenna |
|
antenna is required. For best |
|
||
|
reception an outdoor antenna |
|
||
|
is recommended. |
|
||
Note: Cable Mode is preset at the |
|
|||
factory. |
Antenna |
users must |
|
change to TV Mode in the Set Up menu under Prog Chan.
Requires two AA batteries (supplied).
Battery Polarity
5A. |
|
1 / |
AA |
|
|
AA / 1. |
|
5A |
|
1 |
2 |
3
Procedure
1.Turn the remote control face down. Remove battery cover by pressing down on the marking on the cover and sliding it off in the direction indicated.
2.Install batteries matching (+) and (-) polarity signs.
3.Replace the battery cover by sliding in reverse until the lock snaps.
Note: Incorrect installation can cause battery leakage and corrosion that will damage the Remote Control.
Precautions
•Replace batteries in pair.
•Do not mix battery types (zinc carbon with alkaline).
•Do not recharge, heat, short-circuit, disassemble, or burn batteries.
4 z
INITIAL SET UP MENU
For your convenience, the Initial Set up menu will be displayed on screen when the set is turned on for the first time. If needed, follow the menus and procedures for setting up the features.
IDIOMA/LANGUE
To change menu language to ENGLISH, SPANISH or FRENCH.
Procedure
•Press VOL to select English, Spanish or French.
FIRST PLEASE
CONNECT THE ANTENNA
INITIAL SET UP
IDIOMA/LANGUE ENGLISH
MODE CABLE
AUTO PROGRAM
PRESS ACTION TO EXIT
MODE
To select TV (antenna) or CABLE mode depending on the signal source.
Procedure
•Press VOL to select TV or CABLE.
FIRST PLEASE |
|
|
|
CONNECT THE ANTENNA |
|
||
INITIAL SET UP |
|
|
|
IDIOMA/LANGUE |
ENGLISH |
ENGLISH |
|
MODE |
CABLE |
||
|
|||
AUTO PROGRAM |
|
|
|
PRESS ACTION TO EXIT |
|
||
AUTO PROGRAM |
|
|
To automatically program all available channels received through the RF input.
Procedure
•Press VOL to start Auto Programming.
FIRST PLEASE
CONNECT THE ANTENNA
INITIAL SET UP |
|
IDIOMA/LANGUE |
ENGLISH |
MODE |
CABLE |
AUTO PROGRAM |
|
PRESS ACTION TO EXIT
5 z
OPTIONAL EQUIPMENT CONNECTIONS
Note: The remote control must be programmed with supplied codes to operate the optional equipment (refer to page 9 for programming information).

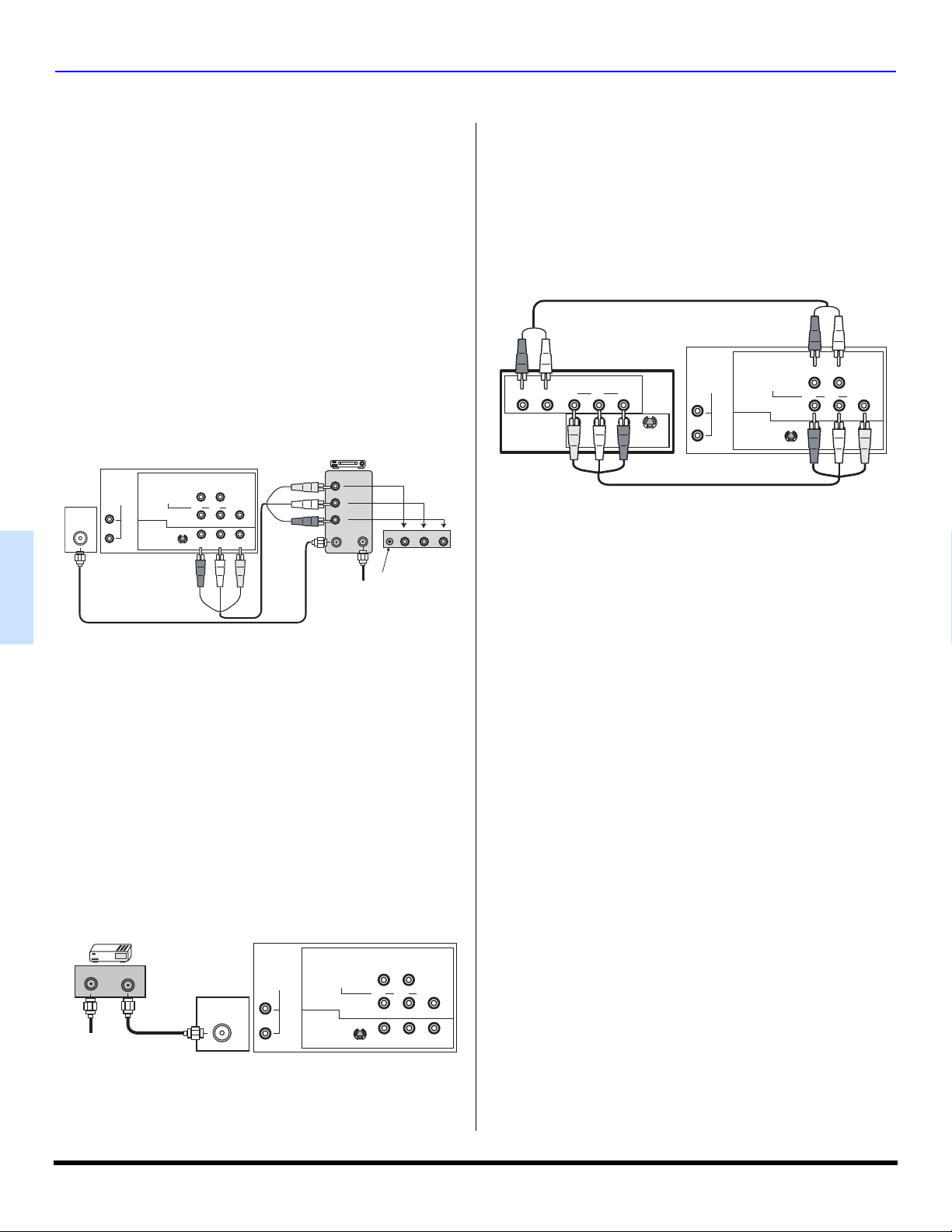

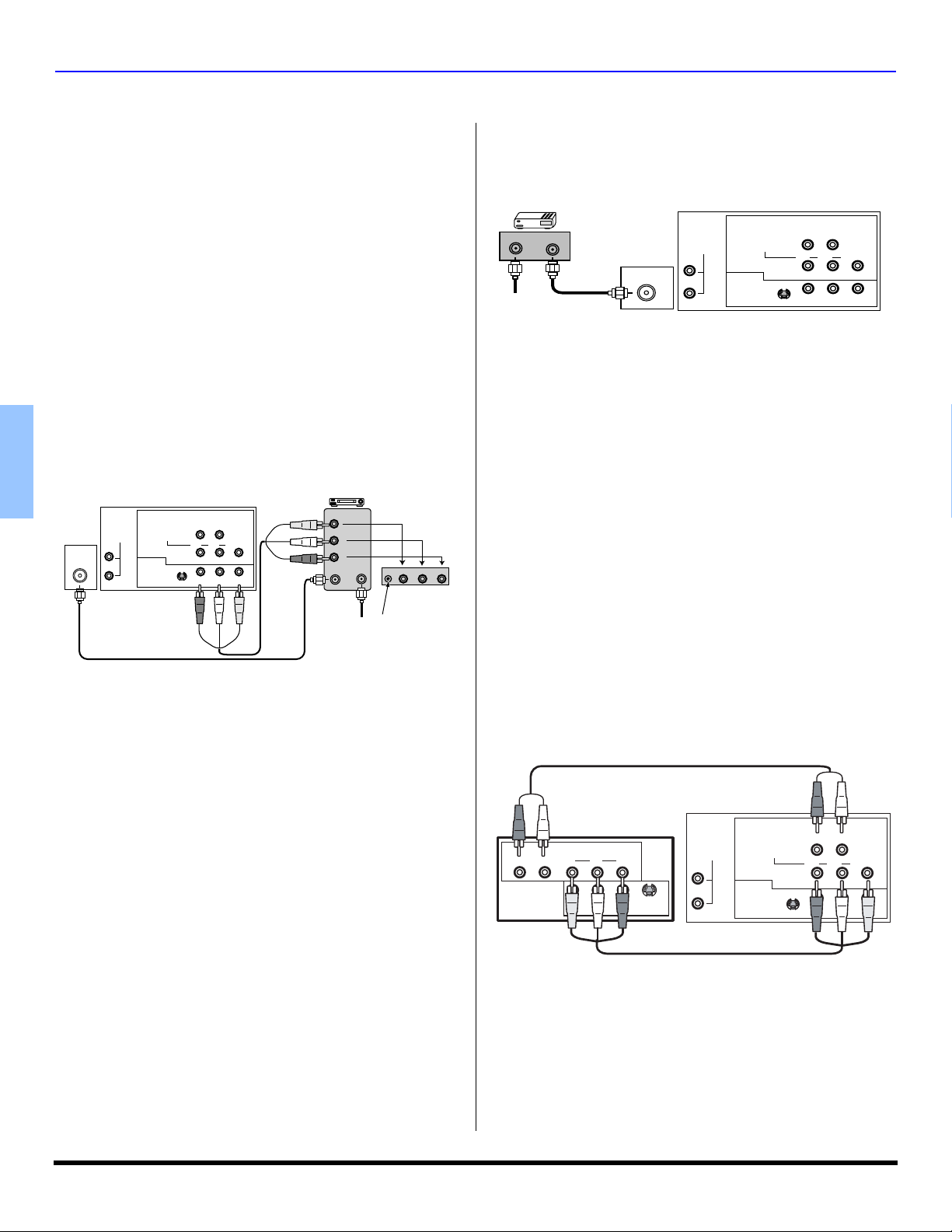

VCR Connection
VCRs, video disc players, video game equipment, and DSS equipment can also be connected to the video inputs. See the optional equipment manual for more information.
|
Note: VIDEO 1 input is a dual-purpose input. It is primarily |
|
|
intended for connection with 480i devices such as a DVD |
|
ENGLISH |
player using the Y PB PR component video jacks and |
|
Audio L & R jacks. However, it can also be connected to |
||
|
||
|
conventional composite video sources such as a VCR, |
|
|
using only the Y/Video jack and Audio L & R jacks. The |
|
|
on-screen label will display Component or Video 1 |
|
|
depending on which source is connected. |
|
TERMINALS ON BACK OF TELEVISION |
|||
|
|
INPUT 1 |
|
|
|
TO AUDIO |
R-AUDIO-L |
||
|
COMPONENT |
|
|
|
|
AMP |
VIDEO INPUT |
|
|
|
|
PR |
PB |
Y/VIDEO |
ANT |
L |
INPUT 2 |
|
|
|
|
S-VIDEO |
|
|
|
R |
R-AUDIO-L VIDEO |
||
|
CABLES NOT INCLUDED |
|
|
VCR
VIDEO OUT
L |
AUDIO OUT |
R |
|
|
|
|
ANT OUT |
ANT IN |
HPJ VIDEO 3 L AUDIO IN R |
|
|
|
|
|
|
|
FRONT A/V JACKS
Incoming
Cable Jack used for 1/8" headphone plug
Procedure
•Connect equipment as shown to front or rear Audio/ Video input jacks.
Note: Do not connect S-VIDEO and VIDEO signal to INPUT 2 at the same time. If both are connected, signal interference will result. Use either the S-VIDEO or the Video signal only.
•Select the Video mode by pressing TV/VIDEO button.
•Operate optional equipment as instructed in equipment manual.
Cable Box Connection
Follow this diagram when connecting your television to a Cable Box.
CABLE BOX |
|
CONNECTION ON BACK OF TV |
|||
|
|
|
|
|
|
15 |
|
|
INPUT 1 |
|
|
ANT IN ANT OUT |
|
TO AUDIO |
COMPONENT R-AUDIO-L |
|
|
|
|
AMP |
VIDEO INPUT |
|
|
|
|
|
PR |
PB Y/VIDEO |
|
|
ANT |
L |
INPUT 2 |
|
|
|
|
|
S-VIDEO |
|
|
Incoming |
|
R |
R-AUDIO-L |
VIDEO |
|
Cable |
|
|
|
|
|
CABLES NOT SUPPLIED
Procedure
•Tune the television to channel 3 or 4 depending on the RF out setting of the cable box.
•Using the cable box, tune to the premium cable channel you want to view.
Digital TV - Set-Top Box (DTV-STB) or DVD Player Connection
Use this diagram to connect the Panasonic DTV-STB (Digital TV-Set-Top Box) to the back of your TV.
CABLES NOT SUPPLIED
TERMINALS ON BACK OF
DTV-STB OR DVD PLAYER
DIGITAL TV OUTPUT |
|||
R-AUDIO-L |
Y |
PB |
PR |
|
R-AUDIO-L |
VIDEO S-VIDEO |
|
|
|
NTSC OUTPUT |
COMPONENT VIDEO INPUT |
|
|
|
|
TERMINALS ON BACK OF TV |
|
|
|
|
|
INPUT 1 |
|
|
|
TO AUDIO |
R-AUDIO-L |
|
||
COMPONENT |
|
|
|
|
AMP |
VIDEO INPUT |
|
|
|
|
PR |
PB |
Y/VIDEO |
|
L |
INPUT 2 |
|
|
|
|
S-VIDEO |
|
|
|
R |
R-AUDIO-L |
VIDEO |
Notes:
•There are three video jacks, Y, PB, and PR. Separate component color inputs provide luminance and color separation. Use the L (left) and R (right) audio inputs.
•Select DTV-STB to 480i output mode. TV set can receive 480i signal only. Picture distortion will result if any other type of format is selected (i.e. 480p, 720p or 1080i).

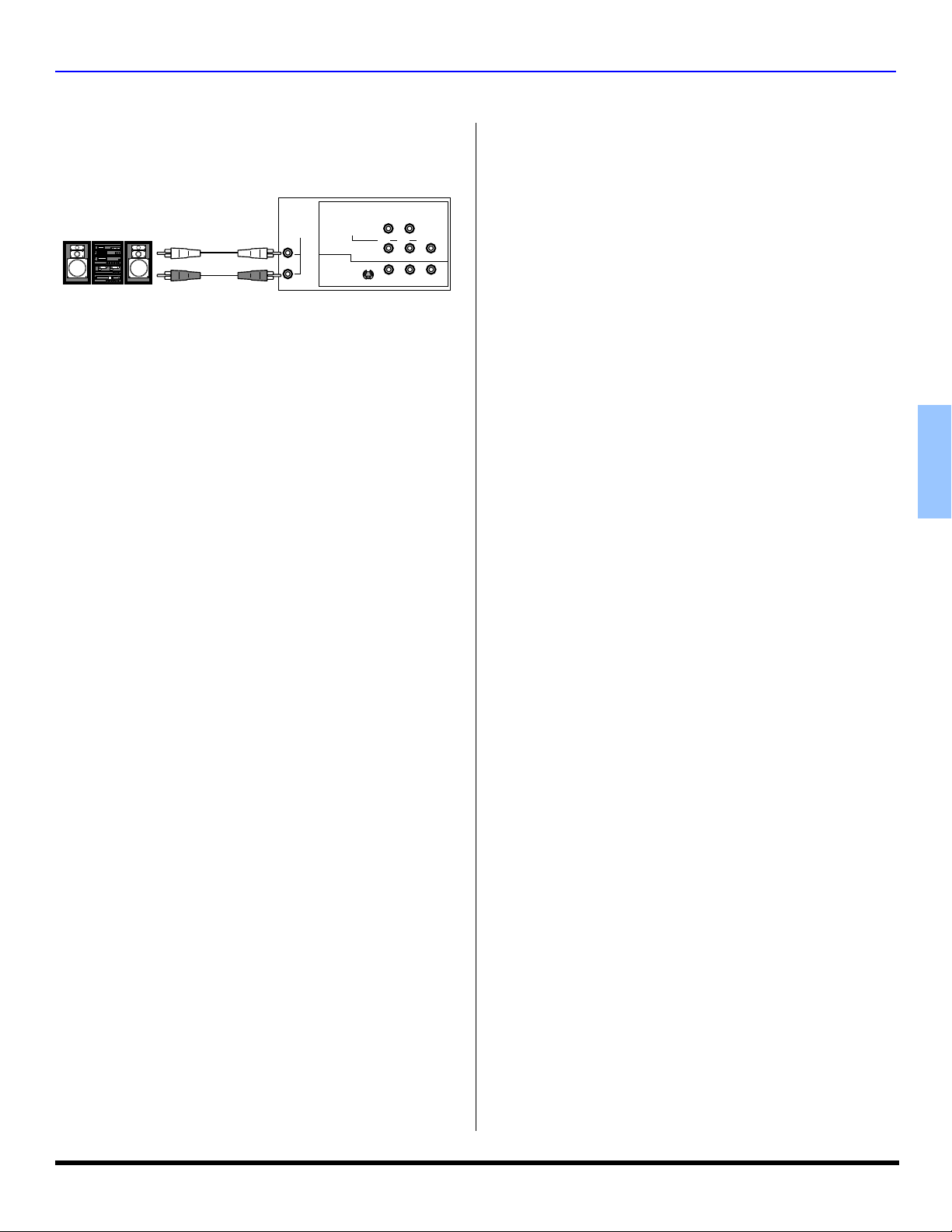

Amplifier Connection (TO AUDIO AMP)
To listen the audio through a separate stereo system, connect an external audio amplifier to TO AUDIO AMP outputs on back of television.
Note: TO AUDIO AMP terminals cannot be connected directly to external speakers.
|
TERMINALS ON BACK OF TELEVISION |
||||
|
|
INPUT 1 |
|
|
|
|
TO AUDIO |
R-AUDIO-L |
|
||
External Amplifier |
COMPONENT |
|
|
|
|
AMP |
VIDEO INPUT |
|
|
|
|
|
|
PR |
PB |
Y/VIDEO |
|
|
L |
INPUT 2 |
|
|
|
|
|
S-VIDEO |
|
|
|
|
R |
R-AUDIO-L |
VIDEO |
CABLES NOT INCLUDED
Audio Adjustments
•Select TV SPEAKERS ON from AUDIO menu.
•Set amplifier volume to minimum.
•Adjust television volume to desired level.
•Adjust amplifier volume to match the television.
•Select SPEAKERS OFF & VARIABLE AUDIO OUT from AUDIO menu.
•Volume, mute, bass, treble and balance are now controlled through the television.
Note: Select SPEAKERS OFF & FIXED AUDIO OUT to control audio functions through the external amplifier.
Front Control Panel
Use the front panel of the television to use the TV without remote or to use the Audio/Video input jacks for optional equipment.
Procedure
•Press TV/VIDEO to select VIDEO 3 input mode.
Note: The front control panel can be used to access menus and switch video mode when the remote control is not available.
6 z

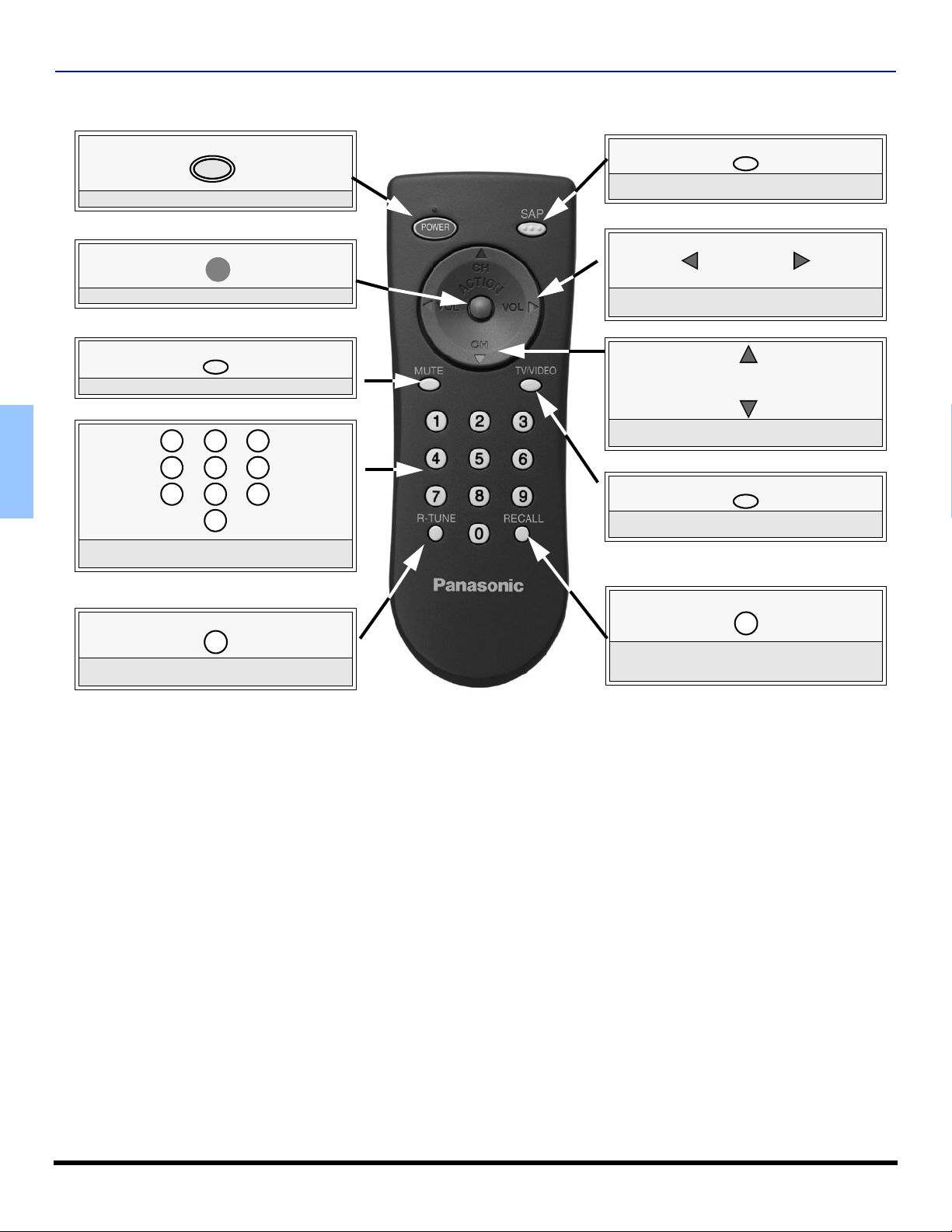

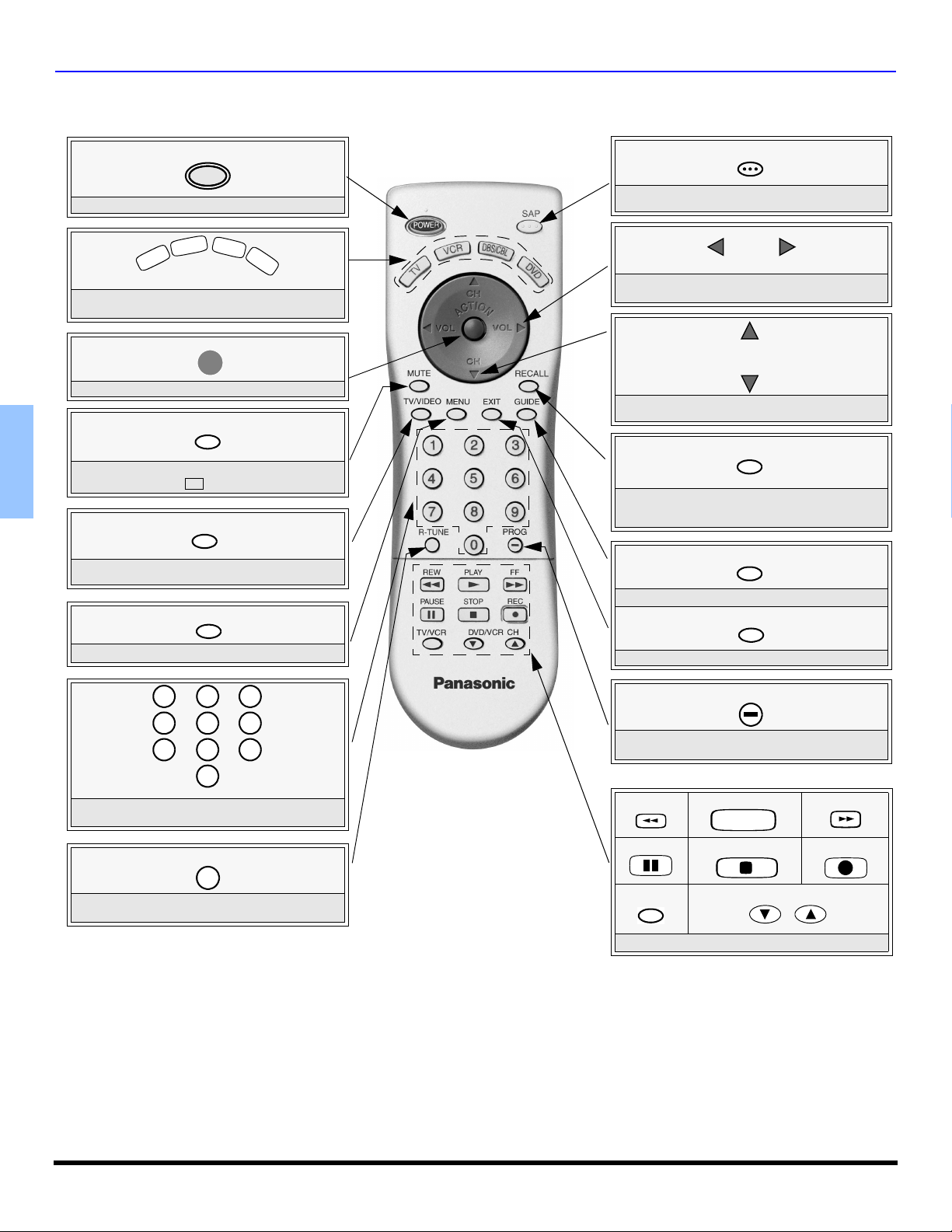

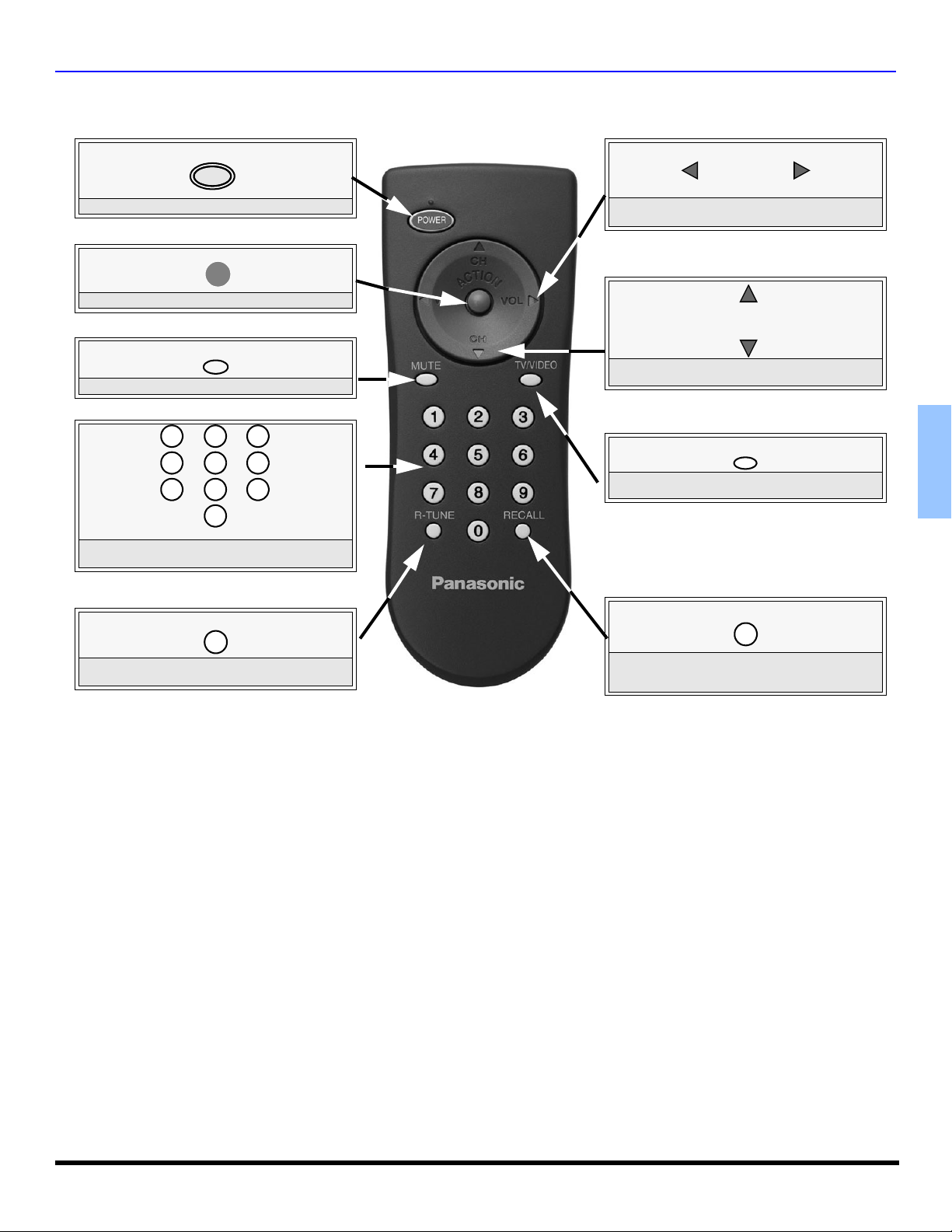

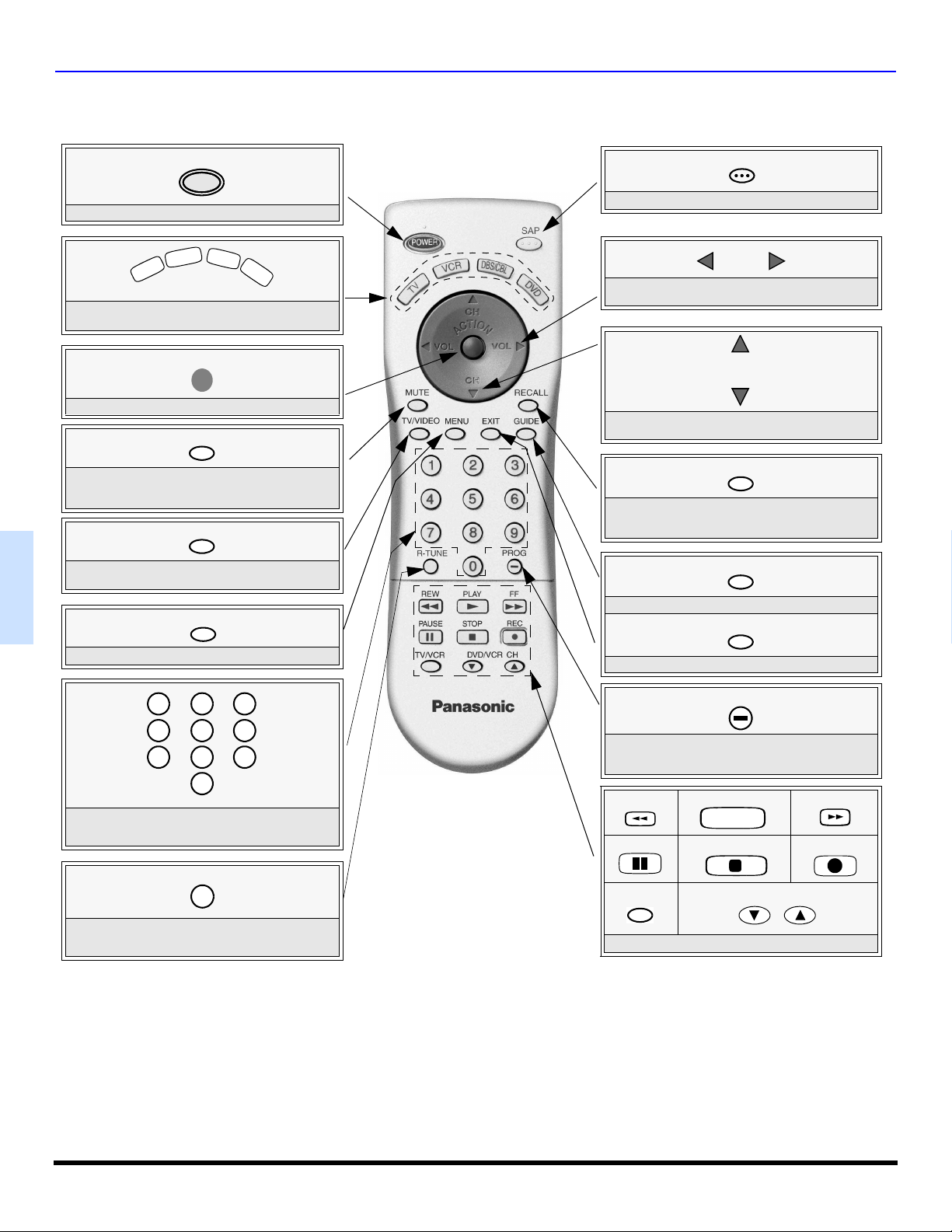

REMOTE CONTROL OPERATION
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
POWER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
SAP |
|
|
|||||
|
|
|
POWER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Press to select audio modes (Stereo, SAP or |
|
|||||||||
|
Press to turn ON and OFF. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Mono). |
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
R |
DB |
S/C |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
VC |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
BL |
D |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
VOL VOL |
|
|
|||
|
|
|
T |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
V |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
V |
|
|
|
|
D |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Press to adjust TV sound and navigate in |
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
menus. |
|
|
|
|
|
|
||||
|
Press to select remote operation. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
ACTION |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
CH |
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
CH |
|
|
||
|
Press to access TV Menu. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Press to select next or previous channel and |
|
|||||||||
|
|
|
MUTE |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
navigate in menus. |
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Press to mute sound. Press to display and |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
RECALL |
|
|
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||
|
cancel |
CC |
(Closed Caption). |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Press to display time, channel, sleep timer, |
|
|||||||||
|
|
|
TV/VIDEO |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
and other options. |
|
|
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Press to select TV or Video mode. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
GUIDE |
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
MENU |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
DBS functions button. |
|
|
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
EXIT |
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
Press to access DVD and DBS menus. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
DBS functions button. |
|
|
||||||||
|
1 |
2 |
|
|
3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
PROG |
|
|
||||||||
|
4 |
5 |
|
|
6 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
7 |
8 |
|
|
9 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Press to enter the minor number in a |
|
|
|||||||||||||
|
|
|
|
0 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
compound channel number (DBS mode only). |
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
EUR7613ZB0 |
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
REW |
PLAY |
|
FF |
|
||||||||||||||||||||||||||||||||
|
Press numeric keypad to select any channel. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
PAUSE |
STOP |
|
REC |
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
R-TUNE |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
TV/VCR |
|
DVD/VCR CH |
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Press to switch to previously viewed
channel or video mode.
Component function buttons
ENGLISH |
7 z

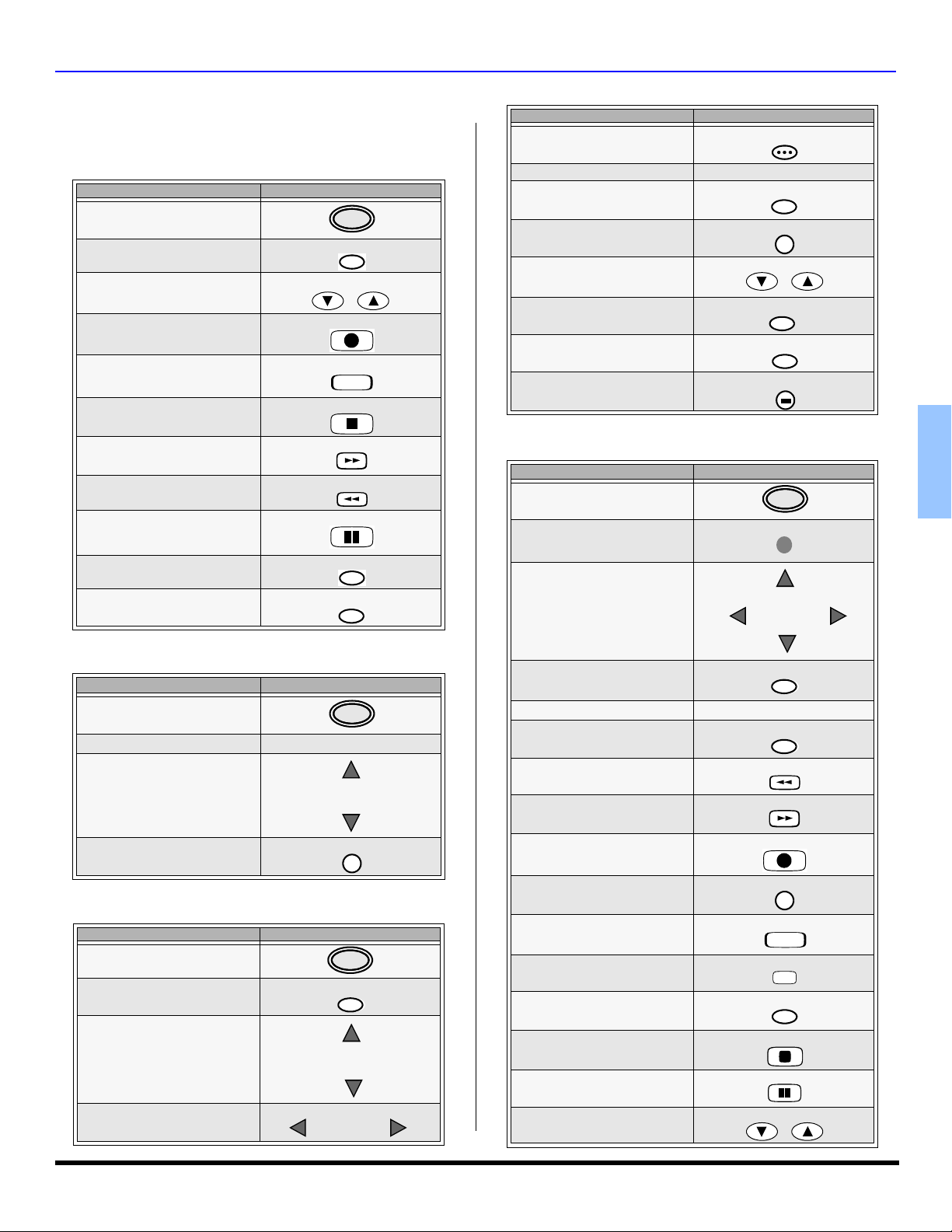

REMOTE CONTROL OPERATION
Note: Refer to page 9 for programming Remote Control procedure.

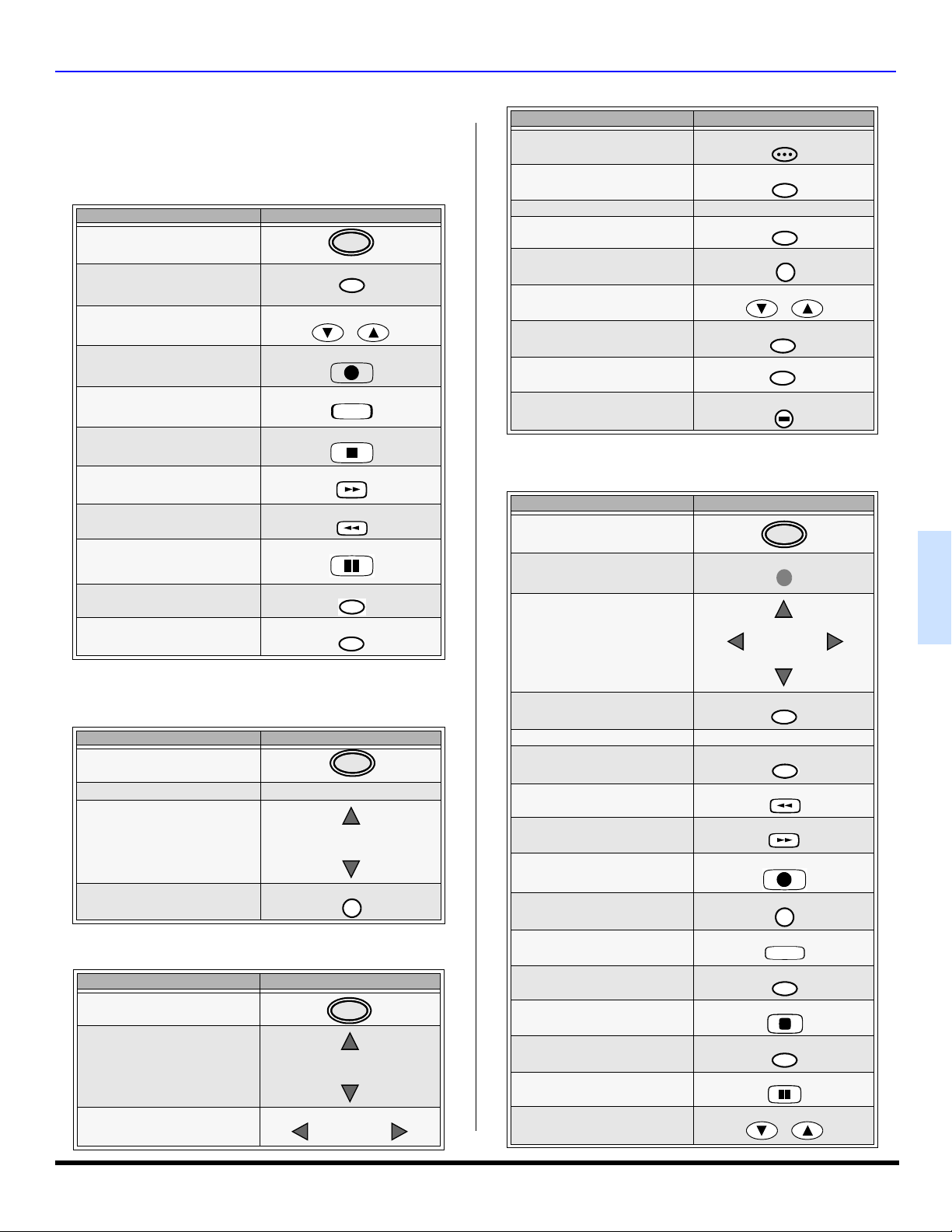

Operating a VCR
Program the remote control to use with VCR.
TO DO THIS... |
PRESS |
|
|
Turn on/off |
POWER |
|
|
|
Select TV Input mode for VCR |
TV/VIDEO |
|
|
|
|
Change Channels up/down |
DVD/VCR CH |
ENGLISH |
|
|
Play |
REC |
|
|
Record |
|
|
|
PLAY |
|
Stop |
STOP |
|
|
|
|
Fast Forward |
FF |
|
|
|
|
Rewind the Tape |
REW |
|
|
|
|
Pause |
PAUSE |
|
|
|
|
Change to TV or VCR Mode |
TV/VCR |
|
|
On screen VCR Display |
RECALL |
|
|
|
|
Operating a CABLE BOX
Program the remote control to use with Cable Box.
|
TO DO THIS... |
PRESS |
|
|
|
|
|
|
Turn on/off |
POWER |
|
|
|
|
|
|
Select a Channel |
0~9 |
|
|
Change Channels Up/Down |
CH |
|
|
CH |
|
|
|
|
|
|
|
|
|
|
|
Back to previous channel |
R-TUNE |
|
|
|
|
|
|
|
|
|
|
|
|
|
Operating a DBS
Program the remote control to use with DBS.
|
TO DO THIS... |
PRESS |
|
|
|
|
|
|
|
|
Turn on/off |
POWER |
|
|
|
|
|
|
|
|
Display DBS menu |
MENU |
|
|
|
|
|
|
|
|
|
|
|
|
|
Menu Navigation/ |
|
CH |
|
|
Change Channels Up/Down |
|
CH |
|
|
|
|
|
|
|
|
|
|
|
|
Menu Navigation |
VOL |
VOL |
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
TO DO THIS... |
PRESS |
|
||
|
|
|
|
|
|
|
Audio Track |
SAP |
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
Select a Channel |
0~9 |
|
||
|
Program Information |
RECALL |
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
Back to previous channel |
R-TUNE |
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
Select next page up/down |
DVD/VCR CH |
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
Exit menus |
EXIT |
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
Display program Guide |
GUIDE |
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
Minor channel numbers |
PROG |
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Operating a DVD
Program the remote control to use with DVD
|
|
|
|
|
|
|
|
|
TO DO THIS... |
|
PRESS |
|
|||
|
|
|
|
|
|
|
|
|
Turn on/off |
|
POWER |
|
|
|
|
|
|
|
|
|
|
|
|
|
Select |
ACTION |
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Menu Navigation |
|
CH |
|
|
|
|
|
VOL |
VOL |
|
||||
|
|
|
|||||
|
|
|
CH |
|
|
|
|
|
|
|
|
|
|
|
|
|
DVD Display |
|
RECALL |
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Select Chapter |
0~9 |
|
|
|
||
|
Display DVD menu |
|
MENU |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Skip Search Reverse |
|
REW |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Skip Search Fast Forward |
|
FF |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
DVD Record |
|
REC |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Title |
|
R-TUNE |
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Play |
|
PLAY |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
DVD Open/Close |
|
TV/VCR |
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Return |
|
EXIT |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Stop |
|
STOP |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Still |
|
PAUSE |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Chapter + / - |
DVD/VCR CH |
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
8 z
REMOTE CONTROL OPERATION
Programming The Remote Control
The Universal Remote Control can be programmed to operate many manufacturers’ components, using the component function buttons for VCR, DVD, CABLE or DBS. Follow the procedures for programming your Remote Control with or without a code for the component.
Device |
|
Operates |
|
Default |
TV |
|
TV (Panasonic Only) |
|
Panasonic Code |
VCR |
|
VCR (Preset) |
|
Panasonic Code |
DBS/CBL |
|
DBS STB & CBL STB (Preset) |
|
Panasonic DBS Code |
DVD |
|
DVD (Preset) |
|
Panasonic Code |
Note: Determine the manufacturer of the component and look in the table for the code (found on page 10).
Procedure
1.Confirm that the external component is plugged in and operating.
2.Turn the component off.
ACTION
3. Press |
and POWER together, for at least 5 |
seconds. After 5 seconds, the illuminated mode (component) buttons will begin to flash. Release the ACTION and POWER buttons.
4.Press appropriate component button on the Remote Control VCR, DVD, CABLE or DBS. The component button will illuminate steadily and all others will go out.
5.Enter the 3-digit component code using the Remote Control numeric keypad (0 ~ 9 buttons). The component button will blink twice.
6.Press the Remote Control POWER to test the
component. If the procedure was successful, the component will turn on and the component key will blink twice and then go out.
Note: If the component does not operate with the Remote Control, repeat steps 3 through 6 using another code (some brands have multiple codes). If an incorrect code is entered, or if the procedure takes longer than 30 seconds, the programming will fail.
This procedure searches all codes and is called the “sequence method.”
1.Confirm that the external component is plugged in and on.
2.Turn the component off.
ACTION
3. Press |
and POWER together, for at least 5 |
seconds. After 5 seconds, the illuminated mode (component) buttons will begin to flash. Release the ACTION and POWER buttons.
4.Press the appropriate component button on the Remote Control. The component button will illuminate steadily and all others will go out.
5. Press the POWER button to set the remote control into the step and set mode.
6.Point the remote control towards the component.
7.Press VOL (the mode key will blink three times), then press the Remote Control POWER button to test the
component. Continue this process until the proper code is found. If the procedure was successful, the component will turn on.
Note: Each time you press the VOL button, make sure that the component key blinks twice before pressing the POWER button.
8. |
ACTION |
to store the |
|
|
Once the device responds, press |
|
ENGLISH |
||
|
code. The mode (component) button will blink twice. |
|||
|
|
|||
Note: |
It may take many attempts before |
the |
correct code |
|
|
is found. If you miss a code, press |
VOL, then press |
|
|
|
the POWER button to test the component. |
|
|
The Universal Remote Control is capable of operating many component brands after entering a code. Some components may not operate because the codes are not available due to limited memory. The Universal Remote Control does not control all features found in each model.
Write the code numbers from tables in this space. This will serve as a reference if you need to program your Remote Control.
VCR |
|
CABLE |
|
DVD |
||||||
|
|
|
|
|
|
|
|
|
|
|
DBS
9 z
REMOTE CONTROL OPERATION
Component Codes (cont.)
ENGLISH |
Codes For VCR
Brand |
Code |
|
|
|
|
Admiral |
335 |
|
Aiwa |
332 |
|
Akai |
314, 315, 316, 329 |
|
Audio |
311, 339 |
|
Dynamic |
||
|
||
Bell & Howell |
305, 313 |
|
Broksonic |
320, 326 |
|
Canon |
323, 325 |
|
CCE |
343 |
|
Citizen |
306 |
|
Craig |
305, 306, 329 |
|
Curtis Mathes |
324, 345 |
|
Daewoo |
301, 324, 343 |
|
DBX |
310, 311, 339 |
|
Dimensia |
345 |
|
Emerson |
303, 319, 320, 325, |
|
326, 343 |
||
|
||
Fisher |
305, 307, 308, 309, |
|
313 |
||
|
||
Funai |
320, 326, 334 |
|
GE |
324, 333, 345 |
|
Goldstar |
306 |
|
Gradiente |
334 |
|
Hitachi |
300, 323, 345 |
|
Instant Replay |
323, 324 |
|
Jensen |
339 |
|
JVC |
310, 311, 334, 339 |
|
Kenwood |
306, 310, 311, 339 |
|
LXI |
300, 305, 306, 307, |
|
308, 309 |
||
|
||
Magnavox |
323, 324, 331 |
|
Marantz |
310, 311, 339 |
|
Marta |
306 |
|
Memorex |
309, 324 |
|
MGA |
338, 340, 341, 347, |
|
348 |
||
|
||
Minolta |
300, 345 |
|
Mitsubishi |
338, 340, 341, 347, |
|
348 |
||
|
||
Multitech |
304, 347 |
|
NEC |
310,311, 334, 339 |
|
Olympic |
323, 324 |
|
Optimus |
306, 321, 328, 335 |
|
Orion |
320, 326 |
|
Panasonic |
321,322, 323, 324 |
Codes For VCR (cont.)
Brand |
Code |
|
|
|
|
J.C. Penney |
300,305, 310, 311, |
|
324, 339, 345 |
||
|
||
Pentax |
300,311, 345 |
|
Philco |
320, 323, 324, 326, |
|
331, 343 |
||
|
||
Philips |
323, 324, 331 |
|
Pioneer |
323 |
|
Proscan |
300, 301, 302, 323, |
|
324, 331, 333, 345, |
||
|
346 |
|
Quasar |
321, 322, 323, 324 |
|
Radio Shack |
305, 309, 324, 333, |
|
336, 340 |
||
|
||
RCA |
300, 301,302, 323, |
|
324, 331, 333, 345, |
||
|
346 |
|
Realistic |
305, 309, 324, 336, |
|
340 |
||
|
||
Samsung |
302, 304, 333 |
|
Sansui |
320, 326, 339, 352 |
|
Sanyo |
305, 309, 313 |
|
Scott |
301, 302, 304, 309, |
|
320, 326, 338, 340, |
||
|
347, 348 |
|
Sears |
300, 305, 306, 307, |
|
308 |
||
|
||
Sharp |
335, 336 |
|
Shintom |
317 |
|
Signature |
335 |
|
2000 |
||
|
||
Singer |
337 |
|
Sony |
328, 329, 330 |
|
Sylvania |
331, 324, 331 |
|
Tashiro |
306 |
|
Tatung |
310, 311, 339 |
|
Teac |
310, 311, 339 |
|
Technics |
321, 322, 323, 324 |
|
Teknika |
324 |
|
Toshiba |
301, 346 |
|
Vector |
311 |
|
Research |
||
|
||
Wards |
306, 309, 335, 336, |
|
344 |
||
|
||
Yamaha |
305, 310, 311, 339 |
|
Zenith |
306,344 |
Codes For Cable Box
Brand |
Code |
|
|
|
|
ABC |
224 |
|
Archer |
225, 232 |
|
Cableview |
205, 232 |
|
Citizen |
205, 222 |
|
Curtis |
212, 213 |
|
Diamond |
224, 225, 232 |
|
Eagle |
229 |
|
Eastern |
234 |
|
GC Brand |
205,232 |
|
Gemini |
222 |
|
General |
211, 219, 220, |
|
221, 222, |
||
Instrument/ |
||
223, 224, |
||
Jerrold |
||
225, 226, 227 |
||
|
||
Hamlin |
212, 218, |
|
240, 241, |
||
|
242, 245 |
|
Hitachi |
203, 224 |
|
Macom |
203, 204, 205 |
|
Magnavox |
233 |
|
Memorex |
230 |
|
Movietime |
205, 232 |
|
Oak |
202, 237,239 |
|
Panasonic |
209, 210, 214 |
|
Philips |
206, 207, |
|
228, 229, 230 |
||
|
||
Pioneer |
201, 216 |
|
Pulsar |
205, 232 |
|
Puser |
232 |
|
RCA |
215 |
|
Realistic |
232 |
|
Regal |
212, 218, |
|
240, 241, |
||
|
242, 245 |
|
Regency |
234 |
|
Rembrandt |
205, 232, 237 |
|
Samsung |
205 |
|
Scientific Atlanta |
211, 212, 213 |
|
Slmark |
201, 205 |
|
Sprucer |
205, 210 |
|
Stargate |
205, 232 |
|
Teleview |
201, 205 |
|
Texscan |
244 |
|
Tocom |
235 |
|
Toshiba |
204 |
|
Unika |
225, 232 |
|
Universal |
222, 232 |
|
Videoway |
206 |
|
Viewstar |
229, 230 |
|
Zenith |
200, 217 |
|
Zenith / Drake |
200 |
|
Satellite |
||
|
Codes For DBS
Brand |
Code |
|
|
|
|
Dish Network |
105, 115, 116 |
|
(Echostar) |
|
|
Echo Star |
105 |
|
Express VU |
105, 115 |
|
G.E. |
106 |
|
G.I. (General |
108 |
|
Instrument) |
||
|
||
Gradiente |
114 |
|
Hitachi |
103, 111, 112 |
|
HNS (Hughes) |
103 |
|
Magnavox |
101, 102 |
|
Panasonic |
104 |
|
Philips |
101, 102 |
|
Primestar |
108 |
|
Proscan |
106, 109, 110, |
|
113 |
||
|
||
RCA |
106, 109, 110, |
|
113 |
||
|
||
Sony |
107 |
|
Star Choice |
103, 108 |
|
Toshiba |
100 |
|
Uniden |
101, 102 |
|
Zenith |
127 |
|
|
|
|
Codes For DVD |
||
|
|
|
|
|
|
Brand |
Code |
|
|
|
|
Denon |
100 |
|
Ferguson |
101 |
|
JVC |
109 |
|
Mitsubishi |
105 |
|
Nordmende |
101 |
|
Panasonic |
100 |
|
Philips |
103 |
|
Pioneer |
102 |
|
RCA |
101 |
|
Saba |
101 |
|
Samsung |
110 |
|
Sharp |
108 |
|
Sony |
104 |
|
Technics |
100 |
|
Thomson |
101 |
|
Toshiba |
103 |
|
Yamaha |
100 |
|
Zenith |
107 |
10 z

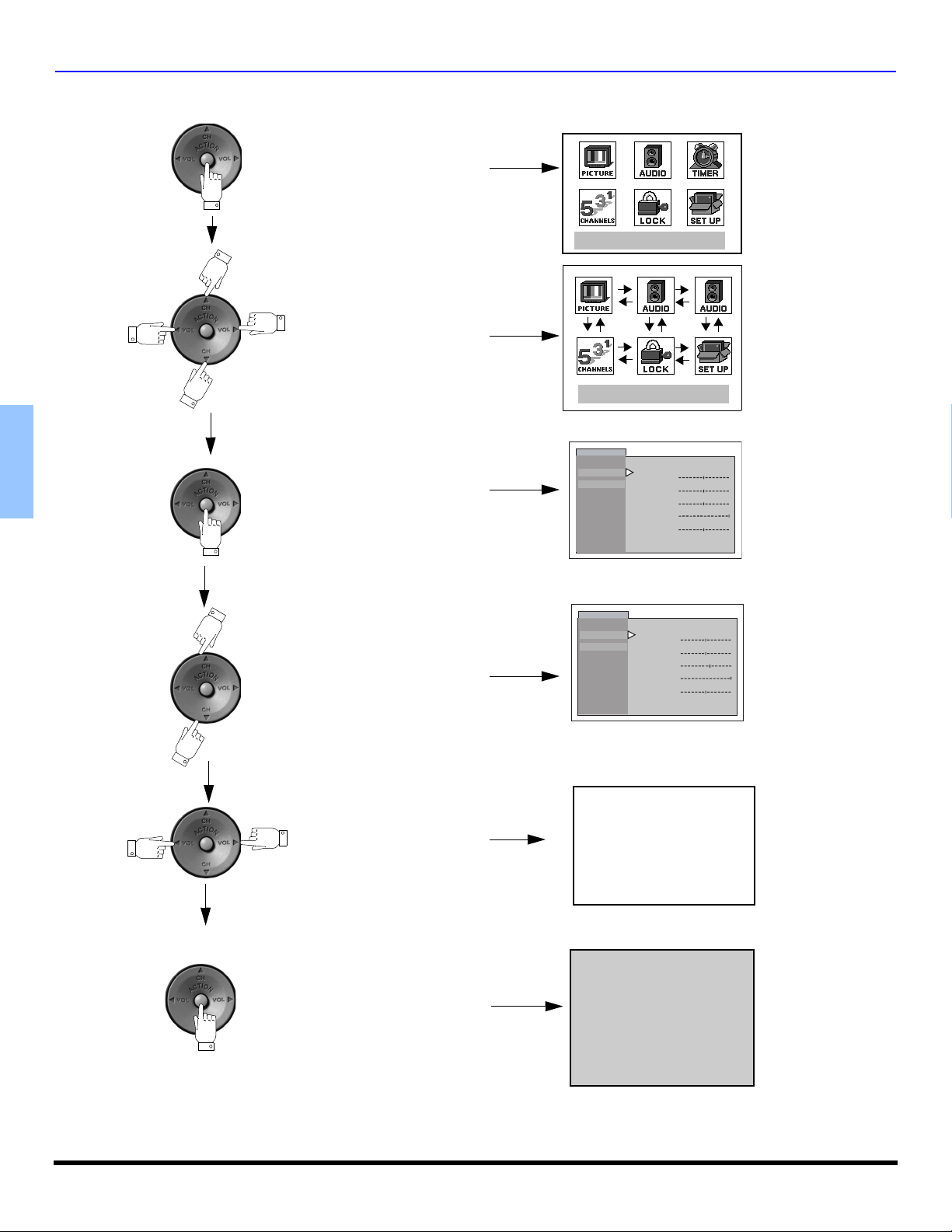

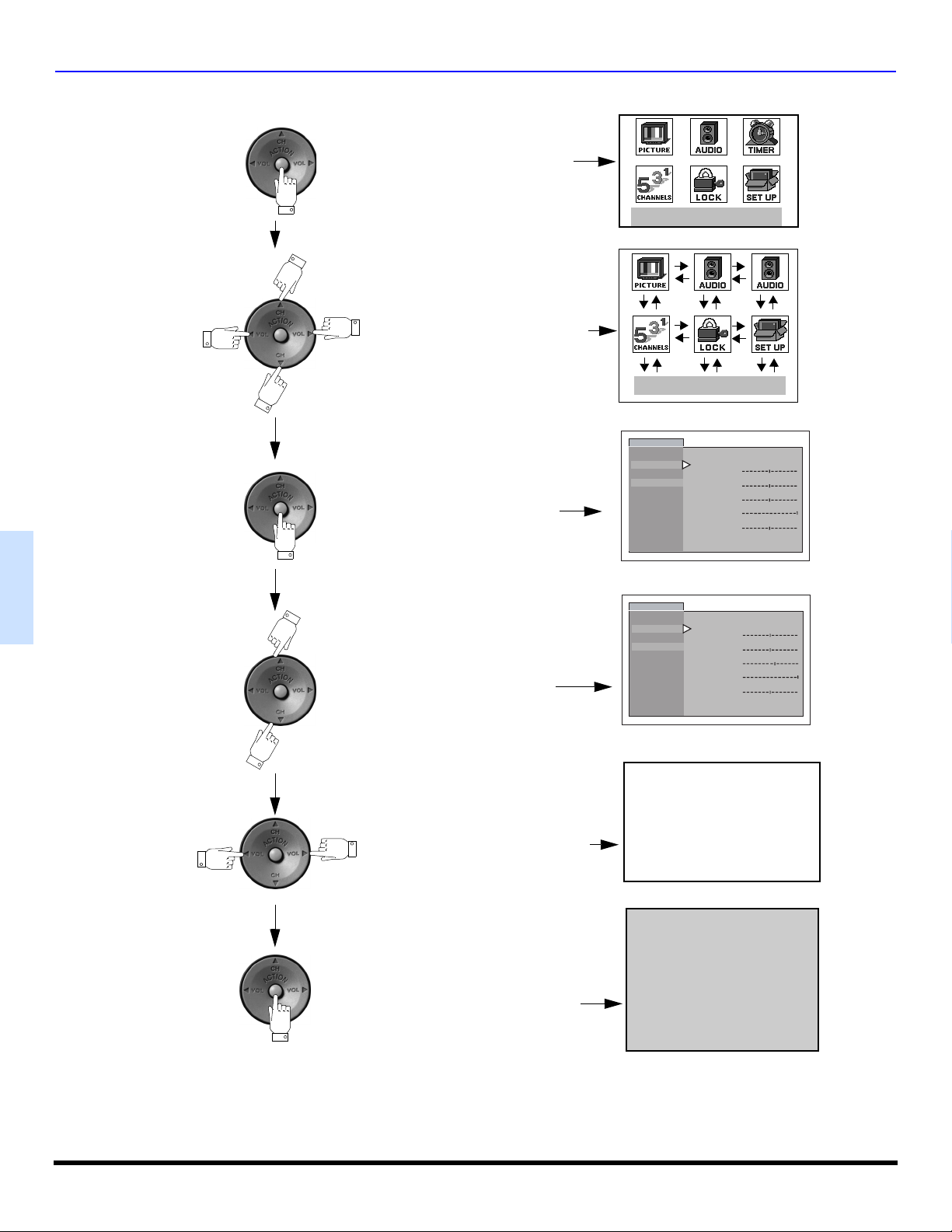

ICON MENU NAVIGATION
Press |
|
to display the Icons. |
|
|
|
|
|
|
Press |
|
to select desired icon. |
||
|
||||
|
|
|
|
|
|
|
|
|
|
Press |
|
to display selected |
|
|
Icon features. |
|
|
|
|
|
|
EXIT |
|
EXIT |
ENGLISH |
|
|
PICTURE |
|
PIC MODE |
VIVID |
VIDEO ADJ.
COLOR
OTHER ADJ. TINT
BRIGHTNESS
SHARPNESS
NORMAL |
NO |
Press |
to select feature, then |
|
press VOL . |
VIDEO ADJ. |
PIC MODE |
VIVID |
COLOR |
|
|
|
|
|
OTHER ADJ. |
TINT |
|
|
|
|
|
BRIGHTNESS |
|
|
PICTURE |
|
|
SHARPNESS |
|
|
NORMAL |
NO |
Press |
|
to adjust or activate feature. |
||
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
BRIGHTNESS 32 - - - - - - l - - - - -
Press |
|
repeatedly to exit menus. |
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
NORMAL PICTURE
11 z
ICON MENU OPERATION
Note: Refer to page 11 for Icon Menu Navigation procedures.
SET UP
IDIOMA/LANGUE
MODE - Select IDIOMA/LANGUE to change menu language to ENGLISH, ESPAÑOL (Spanish) or FRANÇAIS (French).
Note: While highlighted, press VOL |
to select English, |
Spanish or French. |
|
ENGLISH |
SETUP |
|
|
|
IDIOMA/ |
MODE |
ENGLISH |
|
|
|
LANGUE |
|
|
|
|
PROG CHAN |
|
|
|
|
CC |
|
|
|
|
OTHER ADJ. |
|
|
|
|
PROG CHAN (Program Channels) |
|
Note: While highlighted, press VOL |
to select or activate |
features. |
|
MODE - To select TV (antenna) or CABLE mode depending on the signal source.
AUTO PROGRAM - To automatically program all available channels received through the RF input.
MANUAL PROGRAM - To manually add or delete channels.
Note: Use Remote numeric keypad to enter channel numbers in Manual Program sub menu.
SETUP |
|
|
IDIOMA/ |
|
|
LANGUE |
MODE |
CABLE |
PROG CHAN |
AUTO PROGRAM |
|
MANUAL PROGRAM |
|
|
|
|
|
CC |
|
|
OTHER ADJ. |
|
|
CC (CLOSED CAPTIONING)
This television contains a built-in decoder that displays
CC (Closed Captioned) text across the screen (white or colored letters on black background). It allows the viewer to read the dialogue of a television program or other information. The program viewed must include Closed Captioning for the feature to work.
Note: While highlighted, press VOL to select modes.
CC ON MUTE - Activates the onscreen Closed Caption feature when the MUTE button on the remote control is pressed. To deactivate press MUTE button again. The recommended set up for Closed Caption On Mute is:
•CC ON MUTE: C1
•CC MODE: OFF
SETUP |
|
|
|
IDIOMA/ |
|
|
|
LANGUE |
|
|
|
PROG CHAN |
|
|
|
CC |
CC ON MUTE |
NO |
|
CC MODE |
OFF |
||
|
|||
OTHER ADJ. |
|
|
CC MODE - Activates the onscreen Closed Caption feature by selecting one of the following modes.
•OFF - When Closed Caption is not desired.
•C1 - For video related information to be displayed, up to 4 lines onscreen at a time. (It does not block relevant parts of the picture). Text may be in any language.
•C2 - For other modes of video related information.
Note: |
C1 mode is recommended for viewing Closed Caption. |
OTHER ADJUSTMENTS |
|
Note: |
While highlighted, press VOL to select or activate |
|
features. |
AUTO POWER ON - Select SET to power up the TV at the same time as the Cable box or other components. When this feature is On, Timer functions will be disabled.
CHAN BANNER - Select ON to display onscreen banner with channel information and program rating when changing channels or pressing RECALL button.
SETUP
IDIOMA/
LANGUE
PROG CHAN
|
CC |
|
AUTO POWER ON |
OFF |
|
|
|
||
|
|
|
CHAN BANNER |
OFF |
OTHER ADJ. |
Note: While highlighted, press VOL to select or adjust features.
VIDEO ADJ.
PIC MODE - Lets you choose one of three pre-set Picture Modes that best suit the program you are viewing. Selecting this feature will also affect Color Temperature setting.
•VIVID - This is the default mode. It provides enhanced picture contrast and sharpness for viewing in a well-lit room.
•STANDARD - Recommended for normal viewing conditions with subdued room lighting.
•CINEMA - Select this mode for watching movies in a darkened room. It provides a soft, film-like picture.
Note: Each mode has its own picture settings (Color, Tint, Brightness, Picture and Sharpness).
COLOR - Adjusts desired color intensity.
TINT - Adjusts natural flesh tones.
BRIGHTNESS - Adjusts dark areas of picture.
PICTURE - Adjusts white areas of picture.
SHARPNESS - Adjusts clarity of outline detail.
NORMAL - Reset adjustments to factory default settings.
VIDEO ADJ. |
PIC MODE |
VIVID |
COLOR |
|
|
|
|
|
OTHER ADJ. |
TINT |
|
|
|
|
|
BRIGHTNESS |
|
|
PICTURE |
|
|
SHARPNESS |
|
|
NORMAL |
NO |
12 z
ICON MENU OPERATION
OTHER ADJ.
Highlight OTHER ADJ. and press VOL to display the sub-menu features.
Note: While highlighted, |
press |
VOL |
|
to select or activate |
|||
feature. |
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
PICTURE |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
VIDEO ADJ. |
|
|
|
|
|
|
|
|
|
COLOR TEMP |
NORMAL |
|
|
|
|
OTHER ADJ. |
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
COLOR TEMP (temperature) - To increase or decrease WARM (red) and COOL (blue) colors to suit personal preferences.
SLEEP
How Long? - Select 30, 60 or 90 minutes for TV to turn off. Select NO to turn off Sleep timer.
TIMER
HOW LONG? |
NO |
SLEEP
TIMER
CLOCK SET
TIMER
Select the timer to turn the television on and off at selected times, on selected channels, and on selected days. Time must be entered in CLOCK SET to operate the TIMER features.
Procedure
• Use the VOL |
and CH |
|
to set Day, On Time, Off |
||||||||||||||
Time and Channel number, |
|
then use the VOL |
to |
||||||||||||||
activate. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
TIMER |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
SLEEP |
DAY |
MON - FRI |
|
|
|
||||||||||
|
|
|
|
|
|
||||||||||||
|
|
|
ON TIME |
|
|
|
: |
|
|
|
|
|
|
|
|
||
|
|
TIMER |
OFF TIME |
|
|
|
|
: |
|
|
|
|
|
|
|
|
|
|
|
CLOCK SET |
ENTER CHANNEL |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
NO |
|
|
|
||||||||
|
|
|
SET |
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Notes:
•The television automatically turns OFF after 90 minutes when turned ON by the TIMER. If the OFF time is selected or if a key is pressed, the automatic OFF after 90 minutes will be cancelled.
•The TIMER is active when the television is OFF or ON. The television will switch to the selected channel at the selected time set in the TIMER.
CLOCK SET
TIME - Set the time of the day.
DAY - Set the day of the week.
Procedure
Note: Use VOL, VOL and CH |
to set time and day. |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
TIMER |
|
|
|
|
|
|
SLEEP |
|
|
|
|
|
|
TIMER |
|
|
|
|
|
|
CLOCK SET |
TIME |
- - : - - |
|
|
|
|
|
|
|
||
|
|
|
DAY |
- - - |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
CHANNELS |
|
|
|
|
|
ENGLISH |
|
CAPTION |
|
|
|
|
|
||
|
channel (refer to your local TV guide). |
|
|
|
|||
MANUAL CAPTION - To enter numbers and captions |
|
||||||
manually. |
|
|
|
|
|
|
|
Note: |
Use the |
remote |
numeric keypad |
to |
select |
desired |
|
|
|
|
|
|
|
|
|
|
|
|
|
CHANNELS |
|
|
|
|
CHANNELS |
|
|
|
|
|
|
|
|
|
|
MANUAL CAPTION |
|
|
|
|
|
|
MANUAL CAPTION |
|
|
|
ENTER CHANNEL |
|
|
|
|
|
CAPTION |
|
|
|
3 |
|
||||
|
INPUT LABEL |
|
|
|
ENTER CAPTION |
- - - - |
|
|||
|
|
|
|
|
|
TO MOVE CURSOR |
|
|||
|
|
|
|
|
|
TO SELECT CHANNEL |
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
INPUT LABEL - To label video input connections for onscreen display.
|
|
|
CHANNELS |
|
CHANNELS |
|
|
INPUT LABEL |
|
|
MANUAL CAPTION |
|
||
CAPTION |
|
VIDEO 1 |
VCR |
|
|
INPUT LABEL |
|
||
|
VIDEO 2 |
|
||
|
|
|
||
|
|
|
VIDEO 3 |
SKIP |
|
|
|
TO MOVE CURSOR |
|
|
|
|
TO SELECT LABEL |
Procedure
•Press VOL to display the next menu.
• |
Press CH |
or CH to move cursor. |
• |
Press |
VOL or VOL to select desired preset input |
|
label (see chart below). |
|
|
|
INPUT LABEL CHART |
|
|
|
|
|
|
|
PRESET |
|
REASON FOR SELECTING |
|
|
LABELS |
|
|
|
|
|
|
|
|
|
VCR |
|
Select when VCR is connected to video input. |
|
|
DVD |
|
Select when DVD is connected to video input. |
|
|
SKIP |
|
Select to skip unused video input when |
|
|
|
pressing TV/VIDEO button. |
|
|
|
|
|
|
|
|
CABLE |
|
Select when CABLE box is connected |
|
|
|
to video input. |
|
|
|
|
|
|
|
|
DBS |
|
Select when DBS is connected to video input. |
|
|
DTV STB |
|
Select when digital TV set-top-box is connected |
|
|
|
to video input. |
|
|
|
|
|
|
|
|
PVR (Personal |
|
Select when a personal video recorder is |
|
|
Video Recorder) |
|
connected to video input. |
|
|
GAME |
|
Select when Video GAME is connected |
|
|
|
to video input. |
|
|
|
|
|
|
|
|
AUX |
|
Select when other components are connected. |
|
|
_____ |
|
Select to delete input label. |
|
|
|
|
|
|
13 z
ICON MENU OPERATION
AUDIO ADJ.
MODE - Select STEREO, SAP (Second Audio Program) or MONO. (Use MONO when stereo signal is weak).
BASS - Increase or decrease the bass response.
TREBLE - Increase or decrease the treble response.
BALANCE - Emphasize the left/right speaker volume.
NORMAL - Reset BASS, TREBLE and BALANCE adjustments to factory default settings.
|
AUDIO |
|
ENGLISH |
MODE |
|
STEREO SAP MONO |
|
|
|
AUDIO ADJ. |
|
|
BASS |
|
|
OTHER ADJ. |
|
|
TREBLE |
|
|
SURROUND |
|
|
BALANCE |
|
|
SPEAKERS |
NO |
|
NORMAL |
|
|
OTHER ADJ. |
|
AI SOUND - Equalize overall volume levels across all channels.
Procedure
•Press VOL to select ON or OFF.
AUDIO |
|
AUDIO ADJ. |
|
OTHER ADJ. |
|
AI SOUND |
ON |
SURROUND |
|
SPEAKERS |
|
SURROUND
MODE - Enhances audio response when listening to stereo.
Procedure
•Press VOL to select ON or OFF.
AUDIO |
|
AUDIO ADJ. |
|
OTHER ADJ. |
|
MODE |
OFF |
SURROUND |
|
SPEAKERS |
|
SPEAKERS
SPEAKERS - This feature is used when connecting to an external amplifier.
Procedure
• Press VOL to select.
•ON - TV speakers operate normally.
•OFF & Variable Audio Out - TV speakers off - audio adjustable by television.
•OFF & Fixed Audio Out - TV speakers off - audio adjustable by the external amplifier only.
Note: Before selecting FAO, normalize AUDIO ADJ. for a better audio performance.
AUDIO
AUDIO ADJ.
OTHER ADJ.
SURROUND
ON |
|
SPEAKERS
MODE
LOCK SET - To prevent video games, VCR tapes and all channels and video modes from being viewed.
Notes:
•Use the remote numeric keypad to enter a four-digit secret code (Use a code that is easy to remember and record it in a safe place).
•If you do not remember your code, LOCK will unlock in 12, 24, or 48 hours, depending on the current setup. Be cautious when selecting ALWAYS. If ALWAYS is selected, and you forget your secret code, the TV must be serviced by a qualified technician to clear the LOCK setup.
•If you select CHANGE CODE, and you change your code from the one used in the LOCK menu, your new code becomes the controlling code.
Procedure
• Press VOL to select.
•OFF - Turns Lock function off.
•GAME - Lock CH 3, 4 and Video inputs.
•CHANNEL - Lock up to four channels.
•ALL - Locks all channels and video inputs.
LOCK
|
|
|
LOCK SET |
OFF |
|
MODE |
|
BLOCK PROGRAMS: |
|
|
HOW LONG? |
|
||
|
|
U.S. TV PROGRAMS |
||
|
|
|
STATUS |
OFF |
|
|
|
ENTER CODE |
* * * * |
|
|
|
FIRST |
|
|
|
|
|
|
ACTION
• |
Press |
twice. |
•Press CH to highlight HOW LONG?
•Press VOL to select 12 Hours, 24 Hours, 48 Hours or ALWAYS.
Note: If GAME, CHANNEL or ALL is selected, and if a blocked channel or video input is selected, the message LOCKED displays in the upper left corner of the TV screen.
14 z
V-CHIP MENU OPERATION
Procedure
•Use the numeric keypad to enter your four digit code.
(Use a code that is easy to remember and record it in a safe place.)
•Press CH to enter the BLOCK PROGRAMS field.
• Press VOL or VOL to select desired option: U.S. TV Programs, U.S. Movies, Canadian English or Canadian French.
•Press CH to highlight STATUS.
• Press VOL or VOL to display desired rating chart: U.S. TV Programs, U.S. Movies, Canadian English or Canadian French.
•Press VOL to select ON or OFF.
•Press CH to select VIEW NR PROGRAMS? for U.S. TV Programs and U.S. Movies or VIEW E PROGRAMS for Canadian English and Canadian French.
•Press VOL to select YES or NO.

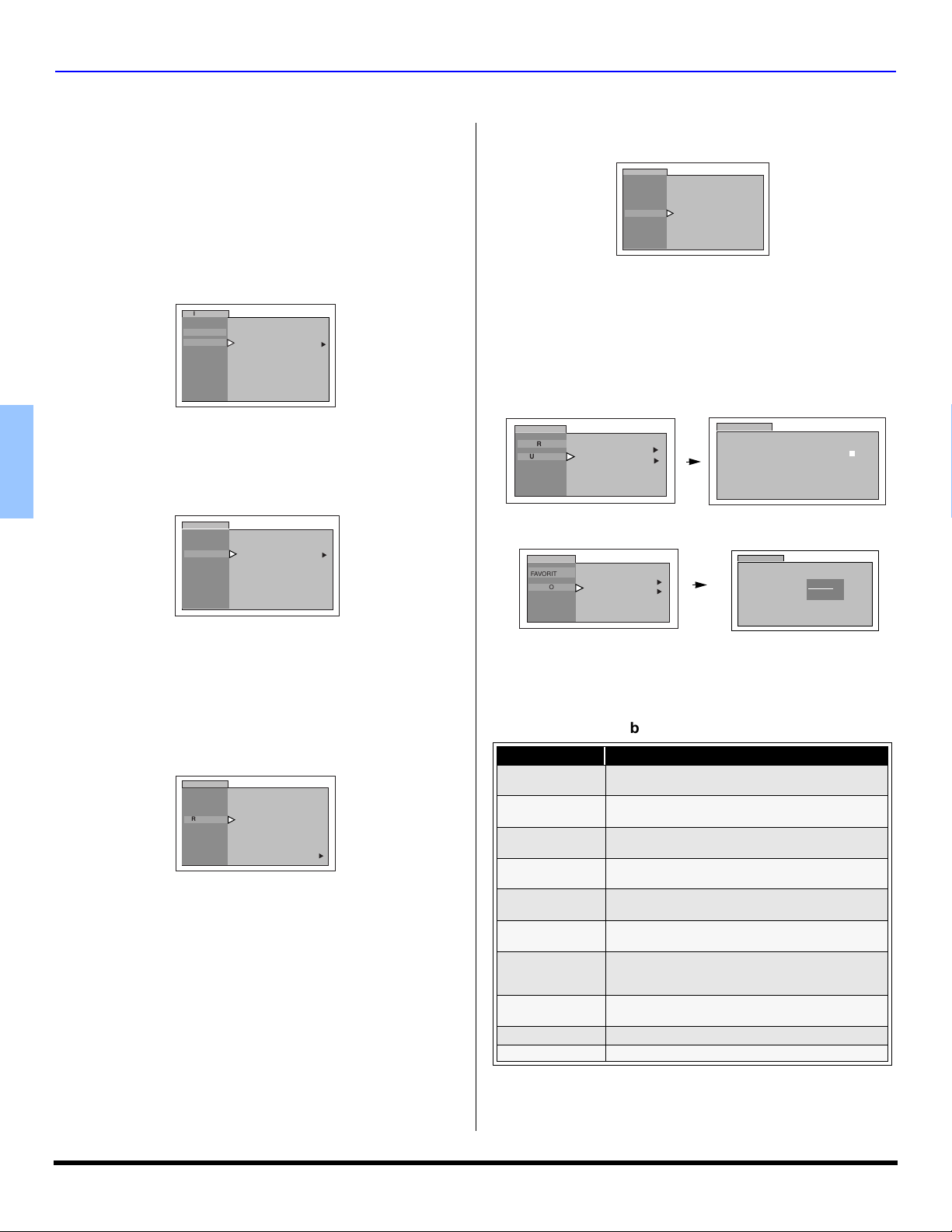

U.S. TV PROGRAMS
This TV model features the “V-Chip technology” which allows you to use U.S. TV PROGRAMS Guide ratings to block various types of TV programs.
LOCK
|
|
|
LOCK SET |
OFF |
|
MODE |
|
BLOCK PROGRAMS: |
|
|
HOW LONG? |
|
||
|
|
U.S. TV PROGRAMS |
||
|
|
|
STATUS |
OFF |
|
|
|
ENTER CODE |
* * * * |
|
|
|
FIRST |
|
|
|
|
|
|
Note: Selecting “Yes”, NR programs will be received. Selecting “NO”, NR programs will be blocked (See Customer Caution right).
LOCK
U.S. TV PROGRAMS |
OFF |
VIEW NR PROGRAMS? |
YES |
SETTING: |
BASIC |
TV-Y
TV-Y7 FV
-- - - - - - - - - - - - - - - - -
TV-G
TV-PG V S L D
TV-14 V S L D
TV-MA V S L
Procedure
•Press CH to select SETTING.
•Press VOL to select BASIC or DETAILED.
BASIC - Allows you to select only general ratings such as TV-Y, TV-PG, etc.
DETAILED - Allows you to select both general ratings
|
and content such as V, L, etc. |
||
• |
Press CH or CH |
to move between different ratings. |
|
• |
Use |
VOL or VOL |
to select ratings you want to |
block (RED) and unblock (GREEN).
•Press ACTION twice to return to MODE in Lock menu.
•Press CH to select HOW LONG?.
• Press VOL or VOL to select 12, 24, 48 hours or ALWAYS.
Customer Caution
The V-Chip system that is used in this set is capable of blocking “NR” programs (non rated, not applicable and none) per FCC Rules Section 15.120(e)(2). If the option of blocking “NR” programs is chosen “unexpected and possibly confusing results may occur, and you may not receive emergency bulletins or any of the following types of programming:”
•Emergency Bulletins (Such as EAS messages, weather warnings and others)
•Locally originated programming
•News
•Political
•Public Service Announcements
•Religious
•Sports
•Weather
U.S. TV Programs Rating Chart Description
|
NR |
Not Rated. SEE CUSTOMER CAUTION. |
|
||
|
|
All children. The themes and elements in this |
|
||
|
TV-Y |
program are specifically designed for a very young |
|
||
|
|
audience, including children from ages 2-6. |
|
||
|
|
Directed to older children. Themes and elements |
|
||
|
TV-Y7 |
in this |
program may include |
mild physical or |
|
|
comedic violence, or may frighten children under |
|
|||
|
|
|
|||
|
|
the age of 7. |
|
|
|
|
|
General audience. It contains little or no violence, |
|
||
|
TV-G |
no strong language, and little or no sexual dialogue |
|
||
|
|
or situations. |
|
|
|
|
|
Parental guidance suggested. The program may |
|
||
|
TV-PG |
contain |
infrequent coarse |
language, limited |
|
|
violence, some suggestive sexual dialogue and |
|
|||
|
|
|
|||
|
|
situations. |
|
|
|
|
|
Parents strongly cautioned. This program may |
|
||
|
TV-14 |
contain sophisticated themes, sexual content, |
|
||
|
|
strong language and more intense violence. |
|
||
|
|
Mature audiences only. This program may contain |
|
||
|
TV-MA |
mature themes, profane language, graphic violence, |
|
||
|
|
and explicit sexual content. |
|
|
|
|
FV |
FANTASY/CARTOON VIOLENCE |
|
||
|
V |
VIOLENCE |
|
|
|
|
S |
SEX |
|
|
|
|
L |
OFFENSIVE LANGUAGE |
|
|
|
|
D |
DIALOGUE WITH SEXUAL CONTENT |
|
||
|
|
|
|
|
|
ENGLISH |
15 z
V-CHIP MENU OPERATION
V-Chip Menu Operation (cont.)
U.S. MOVIES CANADIAN ENGLISH
This TV model features the “V-Chip technology” which allows you to use Motion Picture Ratings when viewing movies or video tapes. This innovation allows parents to block various types of movies and video tapes at their discretion.
|
LOCK |
|
|
|
ENGLISH |
MODE |
LOCK SET |
OFF |
|
BLOCK PROGRAMS: |
||||
|
||||
Note: Some movies are not rated for a variety of reasons. Old |
||||
|
HOW LONG? |
U. S. MOVIES |
|
|
|
|
STATUS |
OFF |
|
|
|
ENTER CODE |
* * * * |
|
|
|
FIRST |
|
|
|
movies and foreign films are usually not rated. |
LOCK
U.S. MOVIES |
OFF |
VIEW NR PROGRAMS? |
YES |
G |
|
PG |
|
PG-13 |
|
R |
|
NC-17 |
|
X |
|
|
|
Procedure
|
• |
Press CH or CH |
to move between different ratings. |
||||
|
• |
Use |
VOL or VOL to select ratings you want to |
||||
|
|
block (RED) and unblock (GREEN). |
|||||
|
• |
Press |
ACTION |
|
|
|
|
|
|
twice to return to MODE in Lock menu. |
|||||
|
• |
Press |
|
VOL or VOL to select 12, 24, 48 hours or |
|||
|
|
ALWAYS. |
|
|
|
||
|
|
U.S. Movies Rating Chart Description |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
CONTAINS NO RATING (NOT RATED) AND NA |
|
|
|
|
|
NR |
|
(NOT APPLICABLE) PROGRAMS. Movie has |
|
|
|
|
|
|
|
not been rated or rating does not apply. |
|
|
|
|
|
G |
|
GENERAL AUDIENCES. All ages admitted. |
|
|
|
|
|
PG |
|
PARENTAL GUIDANCE SUGGESTED. Some |
|
|
|
|
|
|
material may not be suitable for children. |
|
|
||
|
|
|
|
|
|
||
|
|
|
|
PARENTS |
STRONGLY CAUTIONED. Some |
|
|
|
|
PG-13 |
|
material may be inappropriate for children under |
|
|
|
|
|
|
|
13. |
|
|
|
|
|
R |
|
RESTRICTED. Under 17 requires accompanying |
|
|
|
|
|
|
parent or adult guardian. |
|
|
||
|
|
|
|
|
|
||
|
|
NC-17 |
|
NO ONE 17 AND UNDER ADMITTED. |
|
|
|
|
|
X |
|
ADULTS ONLY. |
|
|
|
|
|
|
|
|
|
|
|
The V-CHIP used in this TV model allows you to block various types of movies and television programs based on the two rating systems used in Canada.
LOCK
|
|
|
LOCK SET |
OFF |
|
MODE |
|
BLOCK PROGRAMS: |
|
|
HOW LONG? |
|
||
|
|
CANADIAN ENGLISH |
||
|
|
|
STATUS |
OFF |
|
|
|
ENTER CODE |
- - - - |
|
|
|
FIRST |
|
|
|
|
|
|
Note: E (Exempt) programming includes: news, sports, documentaries and other information programming, talk shows, music videos, and variety programming.
|
|
|
|
|
|
LOCK |
|
|
|
|
CANADIAN ENGLISH |
OFF |
|
|
|
VIEW E PROGRAMS? |
YES |
|
|
|
|
C |
|
|
|
|
C8 + |
|
|
|
|
G |
|
|
|
|
PG |
|
|
|
14 + |
|
|
|
|
18 + |
|
|
|
|
|
|
|
|
|
|
|
|
|
Procedure
|
|
• |
Press CH |
or CH |
to move between different |
||||||
|
|
|
ratings. |
|
|
|
|
|
|
||
|
|
• |
Use |
VOL or VOL |
to select ratings you want to |
||||||
|
|
|
block (RED) and unblock (GREEN). |
|
|
|
|||||
|
|
• |
Press |
ACTION |
|
|
|
|
|
||
|
|
|
|
twice to return to MODE in Lock menu. |
|||||||
|
|
• |
Press |
|
VOL or VOL |
to select 12, 24, 48 hours or |
|||||
|
|
|
ALWAYS. |
|
|
|
|
|
|
||
|
|
|
Canadian English Rating Description |
||||||||
. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Exempt - Exempt programming includes: |
|
|
|||
|
|
|
E |
|
|
news, |
sports, |
documentaries |
and other |
|
|
|
|
|
|
|
information programming, talk shows, music |
|
|
||||
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
videos, and variety programming. |
|
|
|
||
|
|
|
|
|
|
Programming intended for children under age |
|
|
|||
|
|
|
C |
|
|
8. No offensive language, nudity or sexual |
|
|
|||
|
|
|
|
|
|
content. |
|
|
|
|
|
|
|
|
|
|
|
Programming |
generally |
considered |
|
|
|
|
|
|
C8+ |
|
|
acceptable for children 8 years and over. No |
|
|
|||
|
|
|
|
|
|
profanity, nudity or sexual content. |
|
|
|||
|
|
|
G |
|
|
General |
programming, suitable for all |
|
|
||
|
|
|
|
|
audiences. |
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
||
|
|
|
PG |
|
|
Parental Guidance suggested. Some material |
|
|
|||
|
|
|
|
|
may not be suitable for children. |
|
|
|
|||
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
Programming contains themes or content |
|
|
|||
|
|
|
|
|
|
which may not be suitable for viewers under |
|
|
|||
|
|
|
14+ |
|
|
the age of 14. Parents are strongly cautioned |
|
|
|||
|
|
|
|
|
|
to exercise discretion in permitting viewing |
|
|
|||
|
|
|
|
|
|
by pre-teens and early teens. |
|
|
|
||
|
|
|
18 |
|
|
ADULTS ONLY |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
16 z
V-CHIP MENU OPERATION
CANADIAN FRENCH
The V-CHIP used in this TV model also lets you block or unblock Canadian French programs according to various ratings categories.
LOCK
|
|
|
LOCK SET |
OFF |
|
MODE |
|
BLOCK PROGRAMS: |
|
|
HOW LONG? |
|
||
|
|
CANADIAN FRENCH |
||
|
|
|
STATUS |
OFF |
|
|
|
ENTER CODE |
- - - - |
|
|
|
FIRST |
|
|
|
|
|
|
Note: E (Exempt) programming includes: news, sports, documentaries and other information programming, talk shows, music videos, and variety programming.
LOCK
CANADIAN FRENCH |
OFF |
|
VIEW NR PROGRAMS? |
YES |
|
G |
|
|
8 |
ANS+ |
|
13 |
ANS+ |
|
16 |
ANS+ |
|
18 |
ANS+ |
|
|
|
|
Procedure
|
• |
Press CH |
or CH |
to move between different ratings. |
|||||||||
|
• |
Use |
VOL or VOL |
|
to select ratings you want to |
||||||||
|
|
block (RED) and unblock (GREEN). |
|
|
|
|
|
||||||
|
• |
|
ACTION |
|
|
|
|
|
|
|
|
||
|
Press |
twice to return to MODE in Lock menu. |
|||||||||||
|
• |
Press |
VOL or VOL |
to select 12, 24, 48 hours or |
|||||||||
|
|
ALWAYS. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Canadian French Rating Description |
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|||||
|
|
|
E |
|
|
Exempt - Exempt programming. |
|
|
|||||
|
|
|
|
|
|
General - Programming intended |
|
||||||
|
|
|
|
|
|
for audience of all ages. Contains |
|
||||||
|
|
|
G |
|
|
no |
violence, or |
|
the |
violence |
|
||
|
|
|
|
|
|
content is minimal or is depicted |
|
||||||
|
|
|
|
|
|
appropriately. |
|
|
|
|
|
||
|
|
|
|
|
|
8+ General - Not recommended for |
|
||||||
|
|
|
|
|
|
young |
children. |
|
Programming |
|
|||
|
|
8 ans + |
|
intended for a broad audience but |
|
||||||||
|
|
|
contains |
light |
or occasional |
|
|||||||
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
violence. |
Adult |
|
supervision |
|
|||
|
|
|
|
|
|
recommended. |
|
|
|
|
|
||
|
|
|
|
|
|
Programming may not be suitable |
|
||||||
|
|
|
|
|
|
for children under the age of 13 - |
|
||||||
|
|
|
|
|
|
Contains |
either |
a |
few |
violent |
|
||
|
|
13 ans + |
|
scenes or one or more sufficiently |
|
||||||||
|
|
|
|
|
|
violent scenes to affect them. |
|
||||||
|
|
|
|
|
|
Adult |
supervision |
strongly |
|
||||
|
|
|
|
|
|
suggested. |
|
|
|
|
|
||
|
|
|
|
|
|
Programming may not be suitable |
|
||||||
|
|
16 ans + |
|
for children under the age of 16 - |
|
||||||||
|
|
|
Contains |
frequent |
scenes |
of |
|
||||||
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
violence or intense violence. |
|
|
|||||
|
|
|
|
|
|
Programming restricted to adults. |
|
||||||
|
|
18 ans + |
|
Contains |
constant |
violence |
or |
|
|||||
|
|
|
|
|
|
scenes of extreme violence. |
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
BLOCKING MESSAGE
If V-Chip is enabled and the program exceeds the rating limit set by you, the blocking message will appear and the audio will be muted. Enter your four-digit secret code if you wish to continue viewing the program. After entering your code, all locks and rating blocks are disabled until the TV is turned off or until all settings are off.
Note: If you enter your four-digit secret code to override rating blocks, you must reset all rating blocks by either reprogramming or turning the TV off.
PROGRAM RATING EXCEED |
ENGLISH |
ACCESS CODE |
|
17 z

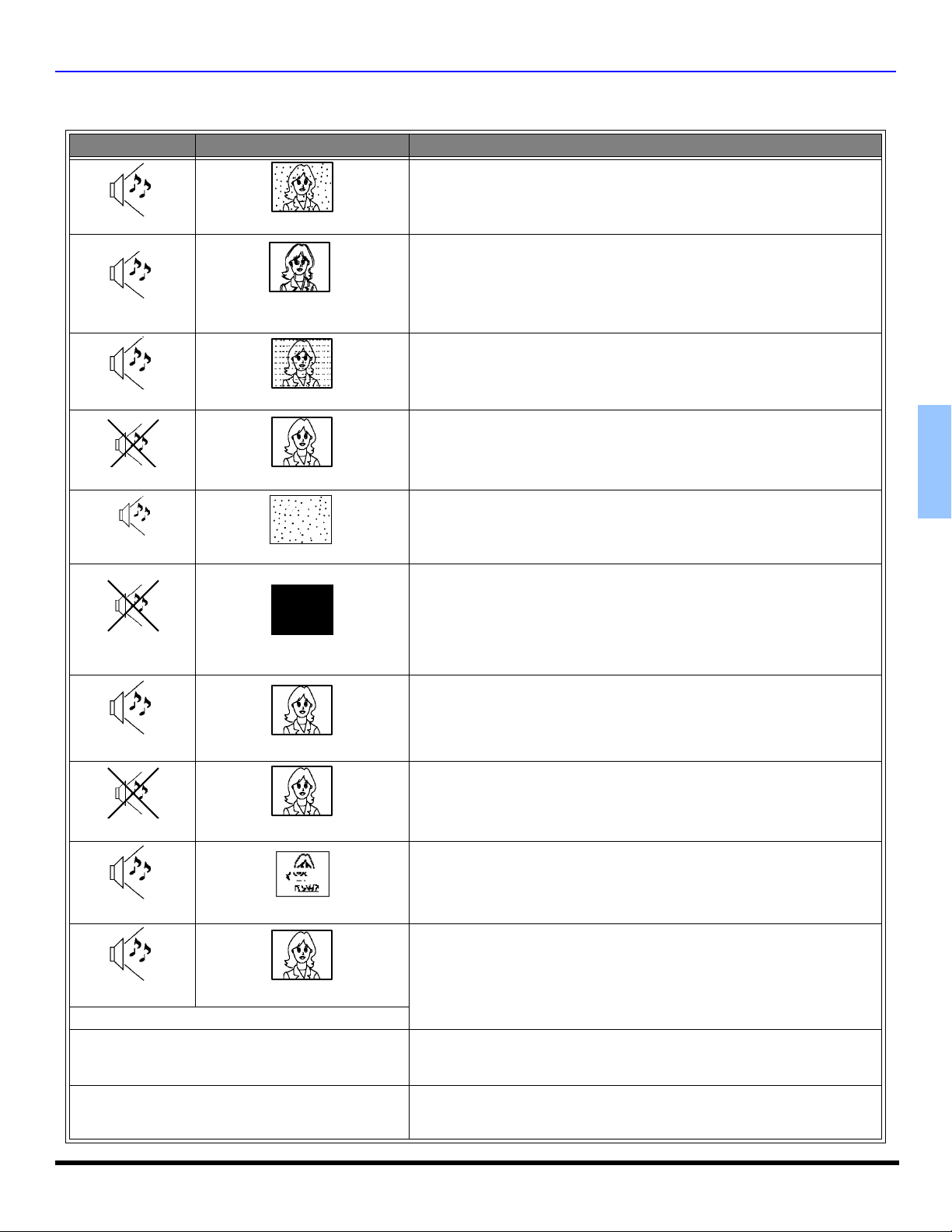

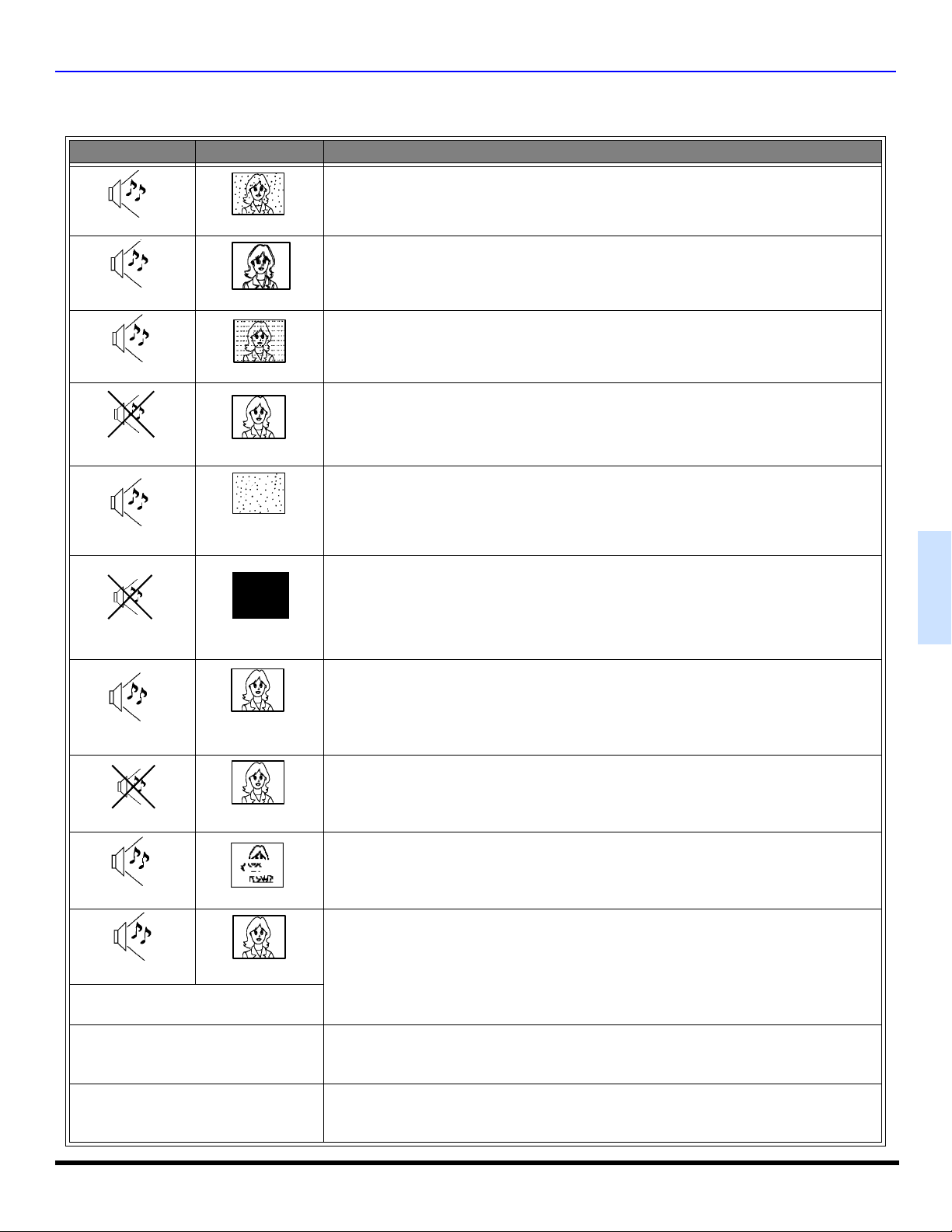

TROUBLESHOOTING CHART
Before calling for service, determine the symptoms and follow suggested solutions.
AUDIO |
VIDEO |
Solutions |
|
|
|
Adjust Antenna Location and Connection |
|
|
Snowy Video |
Check Cable Connection |
|
Noisy Audio |
|
|
|
|
|
Adjust Antenna Location and Connection |
|
|
|
Check Antenna Lead-in Wire |
ENGLISH |
Noisy Audio |
Multiple Image |
Check Cable Connection |
|
|||
|
|
Move television from Electrical Appliances, Lights, |
|
Noisy Audio |
Interference |
Vehicles and Medical Equipment |
|
|
Increase Volume |
||
|
|
|
|
|
|
|
Check Mute |
|
No Audio |
|
Check television SPEAKERS on/off |
|
Normal Video |
Change Channel |
|
|
|
|
Set TV or Cable Mode Properly |
|
|
No Video with |
Check Antenna Cables |
|
Noisy Audio |
|
|
|
Snow |
|
|
|
|
|
|
|
|
|
Check Power Cord is Plugged into Active Outlet |
|
|
? |
Adjust Brightness and Audio Controls |
|
|
Change Channel |
|
|
|
Check Cable Connections |
|
|
No Audio |
No Video |
Program the Remote Control Again |
|
Check Second Video Source Operation |
||
|
|
|
|
|
|
|
Adjust Color Settings |
|
|
|
|
|
Change Channel |
|
Normal Audio |
|
No Color |
|
||
|
|
|
|
Check Audio Is Set To Stereo or Mono, Not SAP |
|
|
|
|
|
||
Wrong Audio |
|
|
|
|
|
Normal Video |
|
||||
|
|
|
|
Check the format of Component Video input. Change to 480i. |
|
Normal Audio |
Distorted Video |
|
|||
|
|
|
|
Replace Remote Control Batteries |
|
|
|
|
|
||
Normal Audio |
Normal Video |
|
|||
Intermittent Remote Control Operation |
|
||||
|
|
|
|
|
|
TV front control panel keys do not |
Control panel may be locked. Press ACTION and TV/VIDEO buttons on the TV |
||||
front simultaneously, then quickly press ACTION and VOL buttons |
|||||
operate. |
|||||
simultaneously. |
|||||
|
|
|
|
||
|
|
|
|
|
|
Picture Menu is locked. |
Press ACTION and TV/VIDEO buttons on the TV front panel simultaneously, then |
||||
quickly press ACTION and VOL buttons simultaneously to unlock. |
|||||
|
|
|
|
18 z
INDEX
A
AC Power Supply Cord 4
AI Sound 14
Amplifier Connection
(TO AUDIO AMP) 6
Antenna Connections 4
Audio 14
Auto Power On 12
Auto Program 5, 12
B
Balance 14
Bass 14
Battery Installation 7
Blocking Message 17
Brightness 12
C
Cabinet and Remote Control 3
Cable / Antenna Connection 4
Cable Box Connection 6
Cable Connection 4
Canadian English 16
Canadian English
Rating Description 16
Canadian French 17
Canadian French
Rating Description 17
Caption 13
Care and Cleaning 3
Chan Banner 12
Channels 13
Cinema 12
Clock Set 13
Closed Captioning 12
CC On Mute 12
CC Mode 12
Codes For Cable Box 10
Codes For DBS 10
Codes For DVD 10
Codes For VCR 10
Color 12
Color Temp 13
Component Codes 9
Customer Record 3
D
Day 13
Digital TV - Set-Top Box (DTV-STB) or DVD Player Connection 6
F
Feature Chart 3
G
Game 14
I
Icon Menu Navigation 11
Icon Menu Operation 12 Idioma/Langue 5, 12 Initial Set Up Menu 5 Input Label 13
Input Label Chart 13 Installation 4
L
Lock 14 Lock Set 14
M
Manual Caption 13
Manual Program 12
Menu Languages 12 Mono 14
N
Normal 12, 14
O
Operating a Cable Box 8 Operating a DBS 8 Operating a DVD 8 Operating a VCR 8 Operating Components with
Remote Control 8
Optional Cable Connections 4 Optional Equipment Connections 6
P
PIC Mode 12 Picture 12
Program Channels 12 Programming The Remote 9 Programming Without a Code 9
R
Regarding The Use Of Video Games,
Computers, Or Other Fixed Image
Displays 4
Remote Control Battery Installation 4
Remote Control Operation 7
S
SAP 14
Screen 3
Set Up 12
Sharpness 12
Sleep 13
Speakers 14
Specifications 3
Standard 12
Stereo 14
Surround 14
T
Television Location 4
Time 13
Timer 13
Tint 12
Treble 14
Troubleshooting Chart 18
U
U.S Movies 16
U.S. Movies Rating Chart
Description 16
U.S. TV Programs 15
U.S. TV Programs Rating Chart
Description 15
V
V-Chip Menu Operation 15
VCR Connection 6
Vivid 12
19 z
NOTES
20 z
NOTES
ENGLISH
21 z
PRECAUCIÓN
RIESGO DE DESCARGAS ELÉCTRICAS.
NO ABRIR.
ADVERTENCIA: A FIN DE REDUCIR EL RIESGO DE DESCARGAS ELÉCTRICAS, NO DEBERÁN QUITARSE NI LA CUBIERTA NI LA TAPA POSTERIOR. NO HAY EN EL INTERIOR PIEZA ALGUNA QUE EL USUARIO TENGA QUE REPARAR. TODO SERVICIO HABRÁ DE BRINDARLO PERSONAL DE REPARACIÓN CAPACITADO.
El propósito del relámpago con punta de flecha dentro de un triángulo es el de advertir al usuario de que existen piezas internas del producto que representan riesgo de que las personas reciban descargas eléctricas.
El propósito del signo de exclamación dentro de un triángulo es el de advertir al usuario de que los documentos que acompañan al aparato incluyen instrucciones importantes de funcionamiento y reparación.
|
El símbolo de insulación Clase II (un cuadro dentro de otro cuadro) indica que este producto ha sido |
|
ESPAÑOL |
evaluado y probado para cumplir con los requisitos de insulación Clase II. |
|
ADVERTENCIA: CON EL OBJETO DE PREVENIR EL RIESGO DE INCENDIO O DE DESCARGA |
||
|
||
|
ELÉCTRICA, ESTE APARATO NO DEBERÁ VERSE EXPUESTO A LA LLUVIA NI A LA |
|
|
HUMEDAD. NO COLOCAR NINGUN OBJETO LLENO LIQUIDO, COMO ENVASES, EN |
|
|
ESTE APARATO. |
INSTRUCCIONES IMPORTANTES DE SEGURIDAD
1.Lea completamente estas instrucciones.
2.Guarde estas instrucciones.
3.Preste atención a todas las advertencias.
4.Siga todas las instrucciones.
5.No utilice este aparto cerca de agua.
6.Limpie solamente con un trapo seco.
7.No obstruya ninguna abertura de ventilación. Instale conforme a las instrucciones del fabricante.
8.No instale cerca de fuentes generadoras de calor tales como radiadores, estufas o cualquier otro aparato (incluyendo amplificadores) que produzcan calor.
9.No ignore el propósito de seguridad de las clavijas polarizadas o de las clavijas aterrizadas. Una clavija polarizada tiene dos hojas, una más ancha que la otra. Una clavija aterrizada tiene dos hojas y un tercer conector. La hoja más ancha o el tercer conector son proporcionados para su seguridad. Si la clavija no entra en su contacto de CA, consulte a un electricista para que reemplace su contacto obsoleto.
10.Proteja el cable de CA de ser pisado o prensado. Ponga especial cuidado en los conectores y el extremo que llega al aparato.
11.Utilice solamente accesorios especificados por el fabricante.
12.Use únicamente con el mueble, mesa, cómoda o librero especificado por el fabricante o comprado con el aparato. Si mueve el mueble con el aparato sobre de el, tenga mucho cuidado de que el aparato no caiga sobre usted al empujar.
13.Desconecte el aparato durante tormentas eléctricas o si no se utilizará por un periodo largo de tiempo.
14.Para servicio, acuda con personal calificado. El servicio es necesario si el aparato ha sido dañado de cualquier manera, como el cable de CA o clavija dañada, si se ha derramado algún liquido o algún objeto ha caído dentro del aparato, el aparato ha sido expuesto a la lluvia o a la humedad, no opera normalmente o ha sido golpeado o tirado.
