Panasonic CT-20G7DF-1 Schematic

Page 1
ORDER NO. MT NC021096A1 B1
Service Manual
Color Television
d
e
i
S
m
i
p
l
i
f
Simplified Manual
(NA7DM)
Panasonic
Models
CT-20G7DF-1 DP391 CT-20D12DF-1 EP391 CT-2017F-1 DP391
Important notice:
Since “-1” and non dash models have different PCB layouts and parts; When servicing any of these models please confirm the model number before starting service so the correct manual is used.
This supplement service manual is issued to ADD the models of the NA7DM family listed above to the simplified service manual order No. MTNC020515A1 (CT-20D12F). Included in this supplement service manual are unique characteristics and a complete parts list. Please file and use this simplified service manual together with the simplified service manual order No. MTNC020515A1 (CT-20D12F) and the main service manual order No. MTNC010305C1 (CT-32D11E).
Chassis
WARNING! This ServiceManualis designed forexperiencedrepairtechnicians only and is not designedfor use bythe general public. It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product. Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or repair the product or products dealt with in this Service Manual by anyone else could result in serious injury or death.”
The service technician is requiredtoreadand follow the “safety precautions”and“important safety notice” in this main manual.
Copyright2002by Matsushita Electric Corporation of America. All rights reserved. Unauthorized copying and distribution is a violation of law.
Page 2

Important safety notice

Special components are used in this television set which are important for safety. These parts are identified on the schematic diagram by the symbol and printed in BOLD TYPE on the replacement part list. It is essential that these critical parts are replaced with the manufacturer’s specified replacement part to prevent x-ray radiation,
shock, fire or other hazards. Do not modify the original design without the manufacturer’s permission.
Safety precautions
General guidelines
An Isolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks. It will also protect the receiver from being damaged by accidental shorting that may occur during servicing. When servicing, observe the original lead dress, especially in the high voltage circuit. Replace all damaged parts (also parts that show signs of overheating.) Always replace protective devices,suchas fishpaper, isolation resistors and capacitors, and shields after servicing the receiver. Use only manufacturer’s recommended rating for fuses, circuits breakers, etc. High potentials are present when this receiver is operating. Operation of the receiver without the rear cover introduces danger for electrical shock. Servicing should not be performed by anyone who is not thoroughly familiar with the necessary precautions when servicing high-voltage equipment.
Extreme care should be practiced when handling the picture tube. Rough handling may cause it to implode
due to atmospheric pressure. (14.7 lbs per sq. in.). Do not nick or scratch the glass or subject it to any undue pressure. When handling, use safety goggles and heavy gloves for protection. Discharge the picture tube by shorting the anode to chassis ground (not to the cabinet or to other mounting hardware). When discharging connect cold ground (i.e. dag ground lead) to the anode with a well insulated wire or use a grounding probe. Avoid prolonged exposure at close range to unshielded areas of the picture tube to prevent exposure to x-ray radiation. The test picture tube used for servicing the chassis at the bench should incorporate safety glass and magnetic shielding. The safety glass provide shielding for the tube viewing area against x-ray radiation as well as implosion. The magnetic shield limits the x-ray radiation around the bell of the picture tube in addition to the restricting magnetic effects. When using a picture tube test jig for service, ensure that the jig is capable of handling 35kV without causing x-ray radiation. Before returning a serviced receiver to the owner, the service technician must thoroughly test the unit to ensure that is completely safe to operate. Do not use a
line isolation transformer when testing.
Leakage current cold check
Unplug the AC cord and connecta jumper between the two plug prongs. Measure the resistance between the jumpered AC plug and expose metallic parts such as screwheads, antenna terminals, control shafts, etc.
If the exposed metallic part has a return path to the chassis, the reading should be between 240kand
5.2MΩ. If the exposed metallic part does not have a return path to the chassis, the reading should be infinite.
Leakage current hot check (Fig. 1)
Plug the AC cord directly into the AC outlet. Do not use an isolation transformer during the check. Connect a 1.5k10 watt resistor in parallel with a
0.15µF capacitor between an exposed metallic part and ground. Use earth ground, for example a water pipe. Using a DVM with a 1000 ohms/volt sensitivity or higher, measure the AC potential across the resistor. Repeat the procedure and measure the voltage present with all other exposed metallic parts. Verify that any potential does not exceed 0.75 volt RMS. A leakage current tester (such a Simpson model 229, Sencore model PR57 or equivalent) may be used in the above procedure, in which case any current measure must not exceed 0.5 milliamp. If any measurement is out of the specified limits, there is a possibility of a shock hazard and the receiver must be repaired and rechecked before it is returned to the customer.
AC VOLTMETER
COLD WATER PIPE (GROUND)
0.15µF
TO INSTRUMENT’S EXPOSED METAL PARTS
1500,10 W
Figure 1. Hot check circuit
X-ray radiation
WARNING: The potential source of x-ray radiation in the
TV set are the high voltage section and the picture tube. Refer to x-ray protecton circuit check in service notes in this manual to confirm HHS voltage.
High voltage (CRT anode)
Confirm anode voltage is within limits: Set the BRIGHTNESS, PICTURE, SHARPNESS and COLOR to minimum (to obtain a dark image). Measure high voltage. It should be:
26.60
± 1.25kV.
If the upper limit is out of tolerance, immediate service and correction is required.
Note: It is important to use an accurate, calibrated
high voltage meter.
-2-
Page 3
Importantsafetynotice...................2
Safetyprecautions.................2
Generalguidelines.................2
Leakagecurrentcoldcheck..........2
Leakagecurrenthotcheck...........2
X-rayradiation.....................2
Highvoltage(CRTanode) ...........2
Servicenotes...........................4
Leadless chip component
(surfacemount) ................4
Componentremoval................4
Chip component Installation . .........4
HowtoreplaceFlat-IC ..............4
X-rayprotectioncircuitcheck.........5
Receiverfeaturetable....................6
Boardsdesignation......................7
Partslist...............................8
Foldoutsnotes.........................14
A-BoardTNP2AH048DR .................16
C-BoardTNP2AA124AF..................21
A-BoardTNP2AH048DS..................22
A&C-PCBBoard.......................28
-3-
Page 4

Service notes

Note: These components are affixed with glue. Be careful not to break or damage any foil under the
component or at the pins of the ICs when removing. Usually applying heat to the component for a short time while twisting with tweezers will break the component loose.
Leadless chip component (surface mount)
Chip components must be replaced with identical chips due to critical foil track spacing. There are no holes in the board to mount standard transistors or diodes. Some chips capacitor or resistor board solder pads may have holes through the board, however the hole diameter limits standard resistor replacement to 1/8 watt. Standard capacitor may also be limited for the same reason. It is recommended that identical components be used. Chip resistor have a three digit numerical resistance code - 1st and 2nd significant digits and a multiplier. Example: 162 = 1600 or 1.6kresistor, 0 = 0(jumper). Chip capacitors generally do not have the value indicated on the capacitor. The color of the component indicates the general range of the capacitance. Chip transistors are identified by a two letter code. The first letter indicates the type and the second letter, the grade of transistor. Chip diodes have a two letter identification code as per the code chart and are a dual diode pack with either common anode or common cathode. Check the parts list for correct diode number.
Component removal
1. Use solder wick to remove solder from component end caps or terminal.
2. Without pulling up, carefully twist the component with tweezers to break the adhesive.
3. Do not reuse removed leadless or chip components since they are subject to stress fracture during removal.
Chip component Installation
1. Put a small amount of solder on the board soldering pads.
2. Hold the chip component against the soldering pads with tweezers or with a miniature alligator clip and apply heat to the pad area with a 30 watt iron until solder flows. Do not apply heat for more than 3 seconds.
TYPE
b
e
ANODES
MH DIODE
Chip components
GRADE
c
TRANSISTOR
COMMON CATHODE
SOLDER CAPS
CAPACITOR
1ST DIGIT
RESISTOR
SOLDER CAPS
2ND DIGIT
MULTIPLIER =1600 = 1.6k
How to replace Flat-IC
- Required tools -
Soldering iron De-solder braids
Sharpen pliers (wire cutters and long nose)
1. Cut the pins of the defective IC with the wire cutters pliers, and remove it completely away from the board. If the IC is glued to the board, apply hot air to complete the removal. CAUTION- Do not pull or twist the pliers, may damage the soldering pads in the board.
Componente
plano
2. Using the soldering Iron and the long nose pliers, remove the IC pins that still attached to the board.
3. Using the de-solder braid and the soldering iron, remove the solder from the board soldering pads.
4. Position the new Flat-IC in place (apply the pins of the Flat-IC to the soldering pads where the pins need to be soldered). Properly determine the positions of the soldering pads and pins by correctly aligning the polarity symbol. Start aligning and soldering pin no.1, then align and solder the pin in the apposite corner of the IC, this will help to align the rest of the pins.
Muesca
5. Solder all pins to the soldering pads using a fine tipped soldering iron.
Soldadura
6. Check with a magnifier for solder bridge between the pins or for dry joint between pins and soldering pads. To remove a solder bridge, use a de-solder braid as shown in the figure below.
Puente (en corto)
Magnifier
Cautin
malla para desoldar
cautin Iron
2do punto
Cautin con punta fina
Malla
1er punto
Cautin
-4-
Page 5
Service notes (continued)
IMPORTANT: To protect against possible damage to
the solid state devices due to arcing or static discharge, make certain that all ground wires and CTR DAG wire are securely connected.
CAUTION: The power supply circuit is above earth ground and the chassis cannot be polarized. Use an isolation transformer when servicing the receiver to avoid damage to the test equipment or to the chassis. Connect the test equipment to the proper ground ( ) or
( ) when servicing, or incorrect voltages will be measured.
Procedure:
1. Connect receiver to isolator transformer.
2. Apply a monoscope pattern.
3. In service mode. (Refer to service mode section) select register C0B.
4. Measure TP5 (TPs port close to tuner). Compare the measure of TP5 and set the data for C0B according the following table
TP5
MEASURE (V)
DATA TO
C0B (Hex)
WARNING: This receiver has been designed to meet or exceed applicable safety and x-ray radiation protection as specified by government agencies and independent testing laboratories.
To maintain original product safety design standards relative to x-ray radiation and shock and fire hazard,
parts indicated with the symbol on the schematic must be replaced with identical parts. Order parts from the manufacturer’s parts center using the parts numbers shown in this service manual, or provide the chassis number and the part reference number.
For optimum performance and reliability, all other parts should be replaced with components of identical specification.
X-ray protection circuit check
This test must be performed as final check before the receiver is returned to the customer. If voltage is out of tolerance, immediate service and correction is required to insure safe operation and to prevent the possibility of premature component failure.
Equipment needed to check the protection circuit:
1. Isolator transformer.
2. High voltage meter.
3. Short jumper.
4. Diode connection jumper.
Use similar diode than D823, refer to parts list for part No., (diode should support at least 150V.)
0 ~ 0.93 00
0.93 ~ 0.97 01
0.97 ~ 1.01 02
1.01 ~ 1.05 03
1.05 ~ 1.09 04
1.09 ~ 1.13 05
1.13 ~ 1.17 06
1.17 ~ 1.21 07
5. Exit service mode and turn receiver OFF.
6. Connect a jumper from TPD16 to TPD17.
7. Connect the
diode jumper
, cathode to TPD14
(cold GND), anode to TPD15 (hot GND).
Note: Refer to Fig. 2 for test point location.
8. Apply 75V AC to the AC input of the Insulator transformer.Turn receiver ON.
9. Set PICTURE and BRIGTHNESS to minimum.
10. Increase the AC voltage at the input of Insulator transformer and confirm the HHS voltage is
32.0kV, at the point set starts to loose sync,
11. Reset picture controls to original levels.
12. Turn the set OFF, and remove all jumpers and connections from chassis.
-5-
Page 6

Receiver feature table

FEATURE\MODEL CT-20G7DF-1 CT-20D12DF-1 CT-2017F-1
Chassis No DP391 EP391 DP391 Family NA7DM Number of channels 181 Menu language ENG/SPAN/FR Closed Caption X V-Chip (USA/CANADA) X 75 input X Remote Model number EUR501450 EUR51 150 2 EUR501450 Picture tube Supplier SAMSUNG Comb Filter 2DIG V/A norm V MTS/SAP/DBX X Built-in audio power 1.5Wx2 (10%) Number of speakers 2 AI Sound X A/V in (rear/front) 1(1/1) Audio Out (F:FAO/V:VAO) --- F,V ---­S-VHS In (rear/front) --- 1/0 ---­FM Radio --- X --­EPJ/HPJ/MISC HPJ Dimensions mm
(WxDxH) in Weight (kg/lbs) 18/39.6 Anode voltage Video input jack 1Vp-p 75, phono Audio input jack 500mV rms, 47K
515.7x490.5x461.7
20.30x19.31x18.17
26.60 ± 1.25 kV
Table 1. Receiver features
Specifications are subject to change without notice or obligation. Dimensions and weights are approximate.
-6-
Page 7

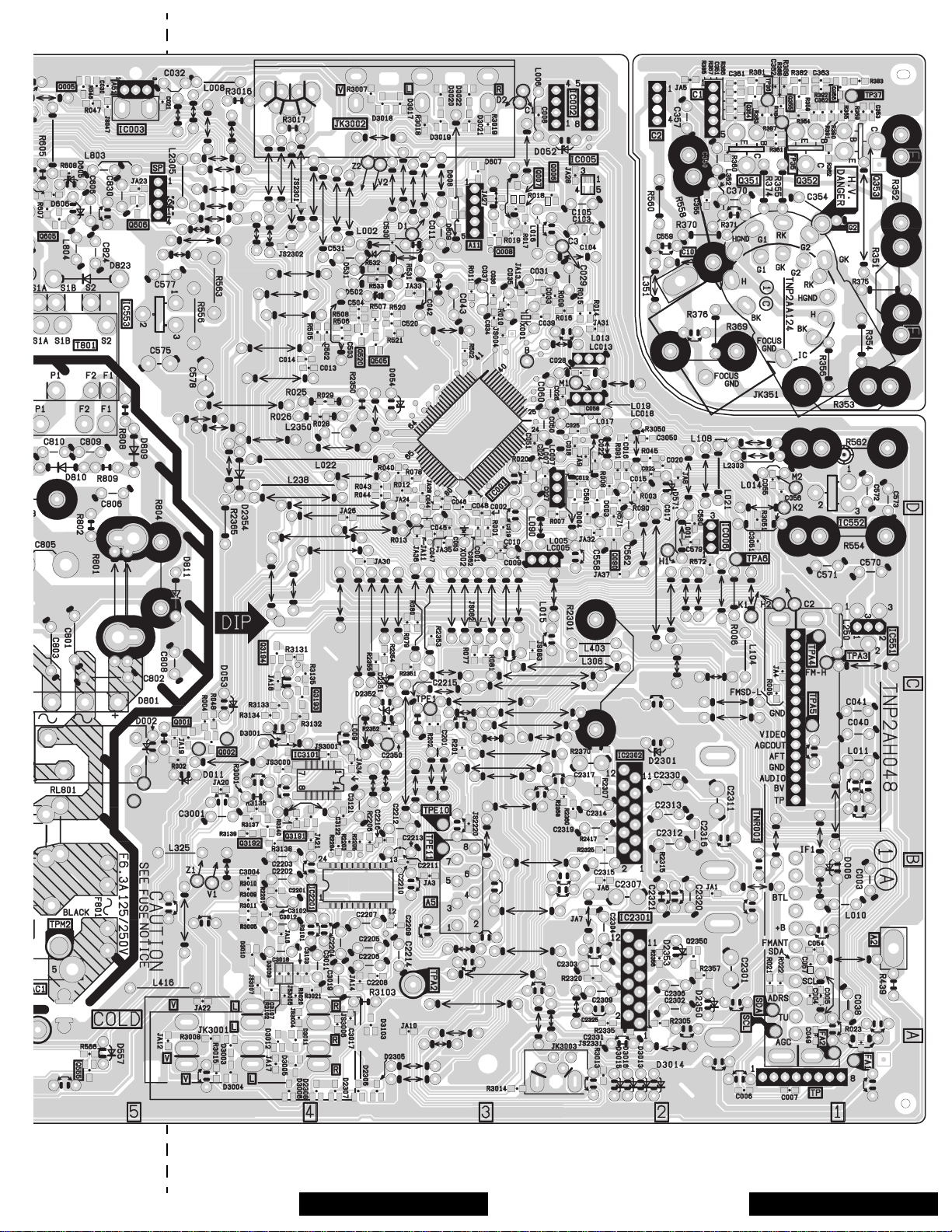

Boards designation
MODELS BOARD PART NUMBER BOA RD DESCRIPTION
CT-2017F-1 CT-20G7DF-1
A-Board TNP2AH048DR MAIN BOARD C-Board TNP2AA124AF CRT BOARD
Table 1: Boards designation
Boards designation
MODELS BOARD PART NUMBER BOA RD DESCRIPTION
A-Board TNP2AH048DS MAIN BOARD
CT-20D12DF-1
C-Board TNP2AA124AF CRT BOARD
Table 2: Boards designation
*Note: When ordering a board, add and ”S” after the board suffix application.
Example, If order A-Board for
CT-2017F-1
, should be ordered as: TNP2AH048DRS.
Important notice:
Since “-1” and non dash models have different PCB layouts and parts; When servicing any of these models please confirm the model number before starting service so the correct manual is used.
-7-
Page 8

REPLACEMENT PARTS LIST

Models: CT-20G7DF-1, CT-20D12DF-1, CT-2017F-1
Important Safety Notice: Components printed in BOLD TYPE have special characteristics important for safety. When replacing
any of these components use only manufacturer’s specified parts.
REF
NO.
PARTNO. DESCRIPTION

CAPACITORS

C001 TCJ2VB1H103K CAP,C .01UF-K-50V
C002 TCJ2VB1H471K CAP,C 470PF- K-50V C003 ECA1HM4R7B CAP,E 4.7UF-50V C004 TCJ2VC1H150J CAP,C 15PF-J-50V C005 TCJ2VC1H150J CAP,C 15PF-J-50V C008 TCJ2VF1H104Z CAP,C .1UF-Z-50V C009 ECA1AM470B CAP,E 47UF-10V C010 TCJ2VF1H104Z CAP,C .1UF-Z-50V C011 ECA1AM101B CAP,E 100UF-10V C015 ECJ2VB1C224K CAP,C .22UF-K-16V C016 TCJ2VC1H101J CAP,C 100PF- J-50V C017 TCJ2VB1C104K CAP,C .1UF-K-16V C018 TCJ2VC1H151J CAP,C 150PF- J-50V C020 TCJ2VB1C104K CAP,C .1UF-K-16V C022 TCJ2VC1H101J CAP,C 100PF- J-50V C023 TCJ2VC1H151J CAP,C 150PF- J-50V C024 ECA1AM470B CAP,E 47UF-10V C025 TCJ2VB1C104K CAP,C .1UF-K-16V C026 TCJ2VB1C104K CAP,C .1UF-K-16V C027 TCJ2VC1H391J CAP,C 390PF- J-50V C028 TCJ2VB1C104K CAP,C .1UF-K-16V C029 ECQB1H333JF3 CAP,P . 033UF-J-50V C031 ECA1HMR22B CAP,E .22UF-50V C032 ECA1AM470B CAP,E 47UF-10V C033 TCJ2VC1H390J CAP,C 39PF-J-50V C034 TCJ2VB1H103K CAP,C .01UF-K-50V C035 ECA1HM010B CAP,E1UF-50V C036 TCJ2VB1H103K CAP,C .01UF-K-50V C037 ECA1HM0R1B CAP,E 0.1UF/50V C038 ECA1AM470B CAP,E 47UF-10V C040 ECA1AM470B CAP,E 47UF-10V C041 ECA1HM2R2B CAP,E 2.2UF-50V C042 TCJ2VF1H104Z CAP,C .1UF-Z- 50V C043 ECA1AM470B CAP,E 47UF-10V C044 TCJ2VC1H471J CAP,C 470PF- J-50V C045 ECA1HM0R1B CAP,E 0.1UF/50V C046 TCJ2VB1C104K CAP,C .1UF-K-16V C047 TCJ2VC1H220J CAP,C 22PF-J-50V C048 TCJ2VC1H220J CAP,C 22PF-J-50V C050 ECA1AM101B CAP,E 100UF-10V C051 TCJ2VF1H104Z CAP,C .1UF-Z- 50V
PARTS LIST
C054 TCJ2VB1H103K C055 TCJ2VC1H560J CAP,C 56PF-J-50V C057 TCJ2VC1H471J C103 ECA0JM331B CAP,E 330UF-6.3V
C104 TCJ2VB1H103K CAP,C .01UF-K-50V C105 ECA0JM101B CAP,E 100UF-6.3V C350 ECA1CM101B CAP,E100UF/16V
CAP,C .01UF-K-50V
CAP,C 470PF- J-50V
CT-20D12DF-1
CT-20D12DF-1
REF
NO.
C351 TCJ2VB1H391K CAP,C 390PF-K-50V C352 TCJ2VB1H391K CAP,C 390PF-K-50V C353 TCJ2VB1H471K CAP,C 470PF-K-50V C354 ECKW3D102KBN CAP,C .001UF-K-2KVDC C357 EEANA1E1R0B CAP,E 1.0UF-25V C361 TCJ2VC1H151J CAP,C 150PF-J-50V C362 TCJ2VC1H151J CAP,C 150PF-J-50V C363 TCJ2VC1H151J CAP,C 150PF-J-50V C451 ECA1CHG470B CAP,E47UF-16V C452 ECSF1EE105VB CAP,E1.0UF-25V C453 ECEA1HFS2R2B CAP,E 2.2UF-50V C454 ECA1EM102E CAP,E 1000UF-25V C455 ECA1EHG101B CAP,E 100UF-25V C456 ECQB1H103JF3 CAP,P .01UF-J-50V C459 ECA1VHG471B CAP,E 470UF-35V C462 ECA1HM4R7B CAP,E 4.7UF-50V C502 TCJ2VC1H471J CAP,C 470PF-J-50V C503 TCJ2VB1C104K CAP,C .1UF-K-16V C504 TCJ2VB1C104K CAP,C .1UF-K-16V C510 ECCR2H100D5 CAP,C 10PF-D-500V C511 ECKR2H821KB5 CAP,C 820P F- K-500V C512 ECKR2H101KB5 CAP,C 100UF-K -500V C530 TCJ2VF1H473Z CAP,C .047UF-Z-50V
C531 ECA1EM220B CAP,E 22UF-25V C551 ECA1VM331B CAP,E 330UF-35V
C554 ECKR2H561KB5 CAP,C 560PF-K-500V
C555 ECA2EM220E CAP,E 22UF-250V C556 ECA1CM471B CAP,E 470UF-16V
C557 ECKR2H222KB5 CAP,C 2200PF- K-500V C558 ECA1HM4R7B CAP,E 4.7UF-50V
C560 EEANA1E2R2B CAP,E 2.2UF-25V
C561 ECKR2H561KB5 CAP,C 560PF-K-500V C562 ECA1EM220B CAP,E 22UF-25V
C563 ECWH12H362JS CAP,P 3600PF-J-1250VDC C564 ECWH12H562JS CAP,P .0056UF-J-1.2KV C565 ECKW3D331JBR CAP,C 330PF-J-2KV C566 ECKW3D181JBP CAP,C 180PF-J-2KV C568 ECQM4473JZW CAP,P .047UF-J-400V C569 ECWF2394JBB CAP,P .39UF-J-200V
C570 ECA1CM222E CAP,E 2200UF-16V C571 ECA1EM220B CAP,E 22UF-25V C572 ECA1CM100B CAP,E 10UF-16V C573 ECA1CM101B CAP,E100UF/16V C575 ECA0JM222B CAP,E 2200UF-6.3V C577 ECA1CM101B CAP,E100UF/16V C578 ECA0JM332B CAP,E 3300PF-6.3V C579 TCJ2VC1H100D CAP,C 10PF-J-50V C580 TCJ2VB1H152K CAP,C 1500PF-K-50V C605 TCJ2VB1H103K CAP,C .01UF-K-50V C606 ECA0JM221B CAP,E 220UF-6.3V
PART NO. DESCRIPTION
Parts List
-8-
302-02
Page 9
REPLACEMENT PARTS LIST
Models: CT-20G7DF-1, CT-20D12DF-1, CT-2017F-1
Important Safety Notice: Components printed in BOLD TYPE have special characteristics important for safety. When replacing
any of these components use only manufacturer’s specified parts.
REF
NO.
C800 ECKR3A391KBP CAP,C 390PF-K-1KVDC
C801 ECKWAE472ZED CAP,C 4700PF-Z-500V C802 ECKWAE472ZED CAP,C 4700PF-Z-500V C803 ECKWAE472ZED CAP,C 4700PF-Z-500V C805 EC0S2DA221BB CAP,E 220UF/200V
C806 ECQM4103KZW CAP,P .01UF-K-400V C807 ECKR3A821KBP CAP,C 820PF-K-1KV C808 ECA1VM101B CAP,E 100UF-35V C809 ECKR1H101KB5 CAP,C 100PF-K-50V C810 ECKR1H471KB5 CAP,C 470PF-K-50V
C812 ECQU2A224MVA CAP,P .22UF-M-250VAC C813 ECQU2A153MVA CAP,P .015UF-M-250VAC C814 ECQU2A153MVA CAP,P .015UF-M-250VAC
C820 ECA1CM101B CAP,E 100UF/16V C821 TCJ2VB1H103K CAP,C .01UF-K-50V C822 ECKR3A221KBP CAP,C 220PF-K-1KV
C823 ECA1VM471E CAP,E 470UF-35V
C824 ECKR3A102KBP CAP,C 1000PF-K-1KV
C825 EEUMG2C221S CAP,E 220UF-160V
C826 ECKR3A471KBP CAP,C 470PF-K-1KV C827 ECA1CM471B CAP,E 470UF-16V
C828 ECA160V33UE CAP,E 33UF/160V
C840 ECQB1H224JF3 CAP,P .22UF-J-50V C2201 ECA1HM4R7B CAP,E 4.7UF-50V C2202 ECA1HM2R2B CAP,E 2.2UF-50V C2203 ECA1HM4R7B CAP,E 4.7UF-50V C2204 AP106K016CAE CAP,T 10UF /16V C2205 ECA1HMR33B CAP,E .33UF-50V C2206 ECQB1H223JF3 CAP,P .022UF-J-50V C2207 AP335K016CAE CAP,T 3.3UF/16V C2208 TCJ2VB1C104K CAP,C .1UF-K-16V C2209 TCJ2VB1C104K CAP,C .1UF-K-16V C2210 TCJ2VB1C104K CAP,C .1UF-K-16V C2212 ECQB1H473 JF3 CAP,P .047UF-J-50V C2213 ECA1HMR47B CAP,E .47UF-50V C2214 ECA1AM101B CAP,E 100UF-10V C2215 EEANA1E100B CAP,E 10UF-25V C2216 TCJ2VC1H100D CAP,C 10PF-J-50V C2301 ECA1EM102E CAP,E 1000UF-25V C2302 ECEA1HN010UB CAP,E 1UF/50V C2303 ECA1EM101B CAP,E 100UF-25V C2304 ECA1CM100B CAP,E10UF-16V C2307 ECA1CM102B CAP,E 1000UF/16V C2309 ECA1HM010B CAP,E 1UF-50V C2311 ECA1EM102E CAP,E 1000UF-25V C2312 ECEA1HN010UB CAP,E 1UF/50V C2313 ECA1EM101B CAP,E 100UF-25V C2314 ECA1CM100B CAP,E10UF-16V C2317 ECA1CM102B CAP,E 1000UF/16V C2319 ECA1HM010B CAP,E 1UF-50V
PARTNO. DESCRIPTION
CT-20D12DF-1
CT-20D12DF-1
REF
NO.
C2320 ECA1CM100B CAP,E 10UF-16V C2330 ECA1CM100B CAP,E 10UF-16V C2350 ECA1HM100B CAP,E 10UF/50V C3001 ECA1HM0R1B CAP,E 0.1UF/50V C3012 ECA1HM010B CAP,E 1UF-50V C3018 ECA1HM010B CAP,E 1UF-50V
C3050 TCJ2VB1H103K
C3051 TCJ2VB 1H103K
PART NO. DESCRIPTION
CAP,C .01UF-K-50V
CT-20D12DF-1
CAP,C .01UF-K-50V
CT-20D12DF-1

DIODES

D002 MA2C165001VT DIODE D006 MAZ43300HF DIODE, ZENER D052 MAZ40680MF DIODE,ZENER D053 MAZ40560MF DIODE, ZENER D055 MAZ40560MF DIODE,ZENER D451 B0EAKL000008 DIODE, RECTIFIER D452 MAZ40470MF DIODE,ZENER D453 MA2C165001VT DIODE D454 MA2C165001VT DIODE D456 MAZ40470MF DIODE, ZENER D502 MAZ40470MF DIODE,ZENER
D531 B0HAHP000008 DIODE D551 B0HAMM000072 DIODE, FAST RECOVERY D554 AU02V0 DIODE
D556 MA2C165001VT DIODE D558 B0HANV000008 DIODE D559 BYD33G-113 DIODE
D561 AU02V0 DIODE
D606 MA2C165001VT DIODE D607 MA3X152K0L DIODE D608 MA3X152K0L DIODE D609 MA3X152K0L DIODE
D801 D3SBA60-4103 DIODE D806 TAP2AA0001 PTC 5-OHM
D808 SARS01V1 DIODE D809 B0HAJP000015 DIODE D810 B0HAJP000015 DIODE D811 B0HAJP000015 DIODE
D812 MAZ40680MF DIODE, ZENER
D820 MA2C165001VT DIODE D821 MAZ40470HF DIODE, ZENER D822 B0HAMM000103 DIODE
D823 S3L60P154004 DIODE
D824 B0HAMM000072 DIODE, FAST RECOVERY D2305 MAZ31100ML DIODE, ZENER D2306 MAZ31100ML DIODE, ZENER D2307 MAZ31100ML DIODE, ZENER D2308 MAZ31100ML DIODE, ZENER D2350 MAZ40680MF DIODE, ZENER D2351 MA2C165001VT DIODE
CT-20D12DF-1 CT-20D12DF-1 CT-20D12DF-1 CT-20D12DF-1
PARTS LIST
302-02
-9-
Parts List
Page 10
REPLACEMENT PARTS LIST
Models: CT-20G7DF-1, CT-20D12DF-1, CT-2017F-1
Important Safety Notice: Components printed in BOLD TYPE have special characteristics important for safety. When replacing
any of these components use only manufacturer’s specified parts.
REF
NO.
D2352 MA2C165001VT DIODE D2353 MA2C165001VT DIODE D2354 MAZ40910MF DIODE, ZENER D3001 MAZ31100ML DIODE, ZENER D3003 MAZ31100ML DIODE, ZENER D3004 MAZ31100ML DIODE, ZENER D3005 MAZ31100ML DIODE, ZENER D3006 MAZ31100ML DIODE, ZENER D3017 MAZ31100ML DIODE, ZENER D3018 MAZ31100ML DIODE, ZENER D3019 MAZ31100ML DIODE, ZENER D3020 MAZ31100ML DIODE, ZENER D3021 MAZ31100ML DIODE, ZENER D3022 MAZ31100ML DIODE, ZENER
PARTNO. DESCRIPTION

FUSES

F801 XBA2A00101 FUSE 6.3A 125V

INTEGRATED CIRCUITS

IC001 M65584MA-104 MPU /VCJ
IC002 TVR2AJ149S EEPROM IC003 PIC-37042SR IR RECEIVER IC005 PQ1X331M2ZP VOLTAGE REGULATOR, 3.3V IC006 MN1280R RESET
IC451 LA7837-TV VOUT
IC551 AN78L09
IC551 AN78M09LB
IC552 AN78M05LB
IC553 AN78M05LB IC801 STRG5623A POWER SUPPLY, 360V
IC2201 AN5829S-E1V MTS, S-AGC IC2301 AN17800A IC2301 AN17801A AUDIO AMP IC2302 AN17800A IC2302 AN17801A AUDIO AMP
VOLTAGE R EGULATOR 9V
CT-20D12DF-1
VOLTAGE R EGULATOR 9V
CT-20G7DF-1,CT-2017F-1
VOLTAGE REGULATOR PLUS 5V AVR
VOLTAGE REGULATOR PLUS 5V AVR
AUDIO AMP
CT-20D12DF-1
AUDIO AMP
CT-20D12DF-1

COILS

L001 EXCELSA35T FERRITE BEAD L003 TLUABTA6R8K COIL, 6.8UH L004 TLUABTA6R8K COIL, 6.8UH L005 EXCELDR35V FERRITE BEAD
PARTS LIST
L006 EXCELSA24T FERRITE BEAD L007 EXCELDR35V FERRITE BEAD L008 G0C470KA0029 C OIL, PEAKING 47UH L009 EXCELSA35V FERRITE BEAD L010 ELESN330JA COIL, PEAKING 33UH L011 ELESN330JA COIL, PEAKING 33UH L013 EXCELDR35V FERRITE BEAD L014 ELESN180KA COIL, PEAKING 18UH
CT-2017F-,1,
CT-20G7DF-1
CT-2017F-,1,
CT-20G7DF-1
REF
NO.
L015 EXCELSA35V FERRITE BEAD L016 EXCELSA35V FERRITE BEAD L017 G0C100KA0029 COIL, PEAKING 10UH L019 EXCELDR35V FERRITE BEAD L021 G0C470KA0029 COIL, PEAKING 47UH L022 EXCELSA39V FERRITE BEAD L090 EXCELSA24T FERRITE BEAD L104 G0C2R2KA0029 COIL, PEAKING 2.2UH L108 EXCELSA35V FERRITE BEAD L245 EXCELSA35V FERRITE BEAD L250 EXCELSA35V FERRITE BEAD L306 G0C2R2KA0029 COIL, PEAKING 2.2UH L325 EXCELSA35V FERRITE BEAD L403 G0C2R2KA0029 COIL, PEAKING 2.2UH L416 EXCELSA39V FERRITE BEAD
L551 ELH5L4 101 COIL L801 EL F15N 011A LINE FILTER
L802 ELEKE680KA COL, PEAKING 68UH L803 TALL08T680KA COIL L807 EXCELSA35V FERRITE BEAD L808 EXCELSA35V FERRITE BEAD L2305 EXCELSA35V FERRITE BEAD L2308 EXCELSA24V FERRITE BEAD L2350 ELESN4R7JA COIL, PEAKING 4.7UH
PART NO. DESCRIPTION

TRANSISTORS

Q001 2SD601ARTX TRANSISTOR Q006 2SB709ARTX TRANSISTOR Q007 2SB709ARTX TRANSISTOR Q008 2SB709ARTX TRANSISTOR Q009 2SC1473A TRANSISTOR Q090 2SB709ARTX TRANSISTOR Q092 2SB709ARTX TRANSISTOR Q351 2SC3063RL TRANSISTOR Q352 2SC3063RL TRANSISTOR Q353 2SC3063RL TRANSISTOR Q354 2SD601ARTX TRANSISTOR Q355 2SD601ARTX TRANSISTOR Q356 2SD601ARTX TRANSISTOR Q451 2SD601ARTX TRANSISTOR Q452 2SD601ARTX TRANSISTOR Q453 2SD601ARTX TRANSISTOR Q501 2SC1573AH TRANSISTOR Q505 2SD601ARTX TRANSISTOR Q520 2SD601ARTX TRANSISTOR
Q551 2SC562200VLA TRANSISTOR
Q605 2SB709ARTX TRANSISTOR Q606 2SD601ARTX TRANSISTOR Q820 2SA1767QTA TRANSISTOR Q830 2SB1011QRL TRANSISTOR Q2350 2SB709ARTX TRANSISTOR
Parts List
-10-
302-02
Page 11
REPLACEMENT PARTS LIST
Models: CT-20G7DF-1, CT-20D12DF-1, CT-2017F-1
Important Safety Notice: Components printed in BOLD TYPE have special characteristics important for safety. When replacing
any of these components use only manufacturer’s specified parts.
REF
NO.
PARTNO. DESCRIPTION

RELAYS

RL801 K6B1AGA00042 RELAY

RESISTORS

R001 ERJ6GEYJ102V RES,M 1K-J-1/ 10W R003 ERJ6GEYJ105V RES,M 1M-J-1/ 10W R004 ERJ6GEYJ562V RES,M 5.6K-J-1/10W R006 ERDS2TJ101T RES,C 100-J-1/4W R007 ERJ6GEYJ471V RES,M 470-J-1/10W R008 ERJ6GEYJ471V RES,M 470-J-1/10W R009 ERJ6GEYJ472V RES,M 4.7K-J-1/10W R010 ERJ6GEYJ682V RES,M 6.8K-J-1/10W R011 ERJ6GEYJ682V RES,M 6.8 K-J-1/10W R012 ERJ6GEYJ473V RES,M 47K-J-1/10W R013 ERJ6GEYJ202V RES,M 2K-J-1/ 10W R014 ERJ6GEYJ221V RES,M 220-J-1/10W R015 ERJ6GEYJ221V RES,M 220-J-1/10W R016 ERJ6GEYJ221V RES,M 220-J-1/10W R017 ERJ6GEYJ681V RES,M 680-J-1/10W R018 ERJ6GEYJ681V RES,M 680-J-1/10W R019 ERJ6GEYJ681V RES,M 680-J-1/10W R021 ERJ6GEYJ101V RES,M 100-J-1/10W R022 ERJ6GEYJ101V RES,M 100-J-1/10W R023 ERJ6GEYJ102V RES,M 1K-J-1/ 10W R024 ERJ6GEYJ153V RES,M 15K-J-1/10W R028 ERJ6GEYJ472V RES,M 4.7K-J-1/10W R029 ERJ6GEYJ472V RES,M 4.7K-J-1/10W R032 ERJ6ENF 1002V RES,M 10K-F-1/10W R033 ERJ6GEYJ222V RES,M 2.2K-J-1/10W R034 ERJ6GEYJ222V RES,M 2.2K-J-1/10W R035 ERJ6GEYJ332V RES,M 3.3K-J-1/10W R036 ERJ6GEYJ562V RES,M 5.6K-J-1/10W R037 ERJ6GEYJ103V RES,M 10K-J-1/10W R038 ERJ6GEYJ223V RES,M 22K-J-1/10W R039 ERJ6GEYJ102V RES,M 1K-J-1/ 10W R040 ERJ6GEYJ223V RES,M 22K-J-1/10W R041 ERJ6GEYJ153V RES,M 15K-J-1/10W R042 ERJ6GEYJ392V RES,M 3.9K-J-1/10W
R043 ERJ6GEYJ103V
R044 ERJ6GEYJ103V
R044 ERJ6GEYJ332V R045 ERJ6GEYJ101V RES,M 100-J-1/10W
R046 ERJ6GEYJ102V RES,M 1K-J-1/ 10W R077 ERJ6GEYJ103V R078 ERJ6GEYJ103V RES,M 10K-J-1/10W
R081 ERJ6GEYJ103V RES,M 10K-J-1/10W R090 ERJ6GEYJ471V RES,M 470-J-1/10W R091 ERJ6GEYJ185V RES,M 1.8MEG-J-1/10W
RES,M 10K-J-1/10W
CT-20D12DF-1
RES,M 10K-J-1/10W
CT-20G7DF-1,CT-2017F-1
RES,M 3.3K-J-1/10W
CT-20D12DF-1
RES,M 10K-J-1/10W
CT-20D12DF-1
REF
NO.
R092 ERJ6GEYJ473V RES,M 47K-J-1/10W R093 ERJ6GEYJ331V RES,M 330-J-1/10W
R201 ERJ6GE YJ182V
R202 ERJ6GEYJ102V
R202 ERJ6GE YJ751V R351 ERG2FJ123H RES,M 12K-J-2W
R352 ERG2FJ123H RES,M 12K-J-2W R353 ERG2FJ123H RES,M 12K-J-2W R354 ERDS1TJ272T RES,C 2.7K-J-1/2W R355 ERDS1TJ272T RES,C 2.7K-J-1/2W R356 ERDS1TJ272T RES,C 2.7K-J-1/2W R357 ERJ6ENF 4300V RES ,M 430-F-1/10W R358 ERJ6ENF 4300V RES ,M 430-F-1/10W R359 ERJ6ENF 4300V RES ,M 430-F-1/10W R360 ERJ6ENF 7500V RES ,M 750-F-1/10W R361 ERJ6ENF 7500V RES ,M 750-F-1/10W R362 ERJ6ENF 7500V RES ,M 750-F-1/10W R363 ERJ6GEYJ101V RES,M 100-J-1/10W R364 ERJ6GE YJ101V RES,M 100-J-1/10W R365 ERJ6GEYJ101V RES,M 100-J-1/10W R370 ERDS2TJ224T RES,C 220K-J-1/4W R381 ERJ6GEYJ101V RES,M 100-J-1/10W R382 ERJ6GE YJ101V RES,M 100-J-1/10W R383 ERJ6GEYJ101V RES,M 100-J-1/10W R384 ERJ6ENF2701V RES,M 2.7K-F-1/10W R385 ERJ6ENF 7501V RES,M 7. 5 K-F-1/10W R386 ERJ6ENF1201V RES,M 1.2K-F-1/10W R387 ERJ6ENF 2701V RES,M 2. 7 K-F-1/10W R388 ERJ6ENF7501V RES,M 7.5K-F-1/10W R389 ERJ6ENF 1201V RES,M 1. 2 K-F-1/10W R390 ERJ6ENF2701V RES,M 2.7K-F-1/10W R391 ERJ6ENF 7501V RES,M 7. 5 K-F-1/10W R392 ERJ6ENF1201V RES,M 1.2K-F-1/10W R450 ERJ6GEYJ563V RES,M 56K-J-1/10W R451 ERDS1FJ1R2P RES,C 1.2-J-1/2W R454 ERJ6GEYJ473V RES,M 47K-J-1/10W R455 ERJ6GEYJ153V RES,M 15K-J-1/10W R456 ERJ6GEYJ472V RES,M 4.7K-J-1/10W R457 ERJ6GEYJ152V RES,M 1.5K-J-1/10W R458 ERJ6GEYJ333V RES,M 33K-J-1/10W R459 ERJ6GEYJ683V RES,M 68K-J-1/10W R460 ERDS2TJ102T RES,C 1K-J-1/4W R462 ERJ6GEYJ473V RES,M 47K-J-1/10W R463 ERJ6GEYJ473V RES,M 47K-J-1/10W R465 ERJ6GEYJ303V RES,M 30K-J-1/10W R467 ERJ6GEYJ183V RES,M 18K-J-1/10W R468 ERJ6GEYJ103V RES,M 10K-J-1/10W R469 ERJ6GEYJ220V RES,M 22-J-1/10W
PART NO. DESCRIPTION
RES,M 1.8K-J-1/10W
CT-20D12DF-1
RES,M 1K-J-1/10W
CT-20D12DF-1
RES,M 750-J-1/10W
CT-20G7DF-1,CT-2017F-1
PARTS LIST
302-02
-11-
Parts List
Page 12
REPLACEMENT PARTS LIST
Models: CT-20G7DF-1, CT-20D12DF-1, CT-2017F-1
Important Safety Notice: Components printed in BOLD TYPE have special characteristics important for safety. When replacing
any of these components use only manufacturer’s specified parts.
REF
NO.
R470 ERDS2 TJ152T RES,C 1.5K-J-1/4W R471 ERJ6GEYJ223V RES,M 22K-J-1/10W R472 ERJ6GEYJ473V RES,M 47K-J-1/10W R475 ERJ6GEYJ471V RES,M 470-J-1/10W R502 ERJ6GEYJ562V RES,M 5.6K-J-1/10W R504 ERDS2TJ 272T RES,C 2.7K-J-1/4W R505 ERJ6GEYJ222V RES,M 2.2K-J-1/10W R506 ERJ6GEYJ333V RES,M 33K-J-1/10W R507 ERJ6GEYJ103V RES,M 10K-J-1/10W R508 ERJ6GEYJ103V RES,M 10K-J-1/10W
R510 ERG3FJ272 RES,M 2.7K-J-3W
R512 ERG2FJ562H RES,M 5.6K-J-2W R520 ERJ6GEYJ471V RES,M 470-J-1/10W R521 ERJ6GEYJ272V RES,M 2.7K-J-1/10W
R531 ERD25FJ470P RES,C 47-J-1/4W R532 ERJ6EN F8871V RES,M 8.87K-F-1/10W R533 ERJ6ENF1301V RES,M 1.3K-F-1/10W R551 ERDS1FJ1R0T RES,C 1.0-J-1/2W R552 ERDS1 FJ1R0T RES,C 1.0-J-1/2W R555 ERDS1FJ101T RES,C 100-J-1/2W
R556 ERG1SJ221P RES,M 220-J-1W R557 ERJ6GEYJ103V RES,M 10K-J-1/10W
R558 ERQ2 CJP2R2S RES,F 2.2-J-2W
R559 ERG2FJ683H RES,M 12K-J-2W R562 ERG3F J680H RES,M 68-J-3W R563 ERG1SJ150P RES,M 15-J-1W R564 ERDS2TJ104T RES,C 100K-J -1/4W R565 ERDS2TJ 124T RES,C 120K-J-1/4W R566 ERJ6GEYJ103V RES,M 10K-J-1/10W R567 ERG2FJ122H RES,M 12K-J-2W R568 ERJ6GEYJ332V RES,M 3.3K-J-1/10W R571 ERJ6GEYJ102V RES,M 1K-J-1/ 10W R605 ERDS2TJ103T RES,C 10K-J -1/4W R606 ERJ6GEYJ562V RES,M 5.6K-J-1/10W R607 ERJ6GEYJ102V RES,M 1K-J-1/ 10W R608 ERJ6GEYJ104V RES,M 100K-J-1/10W
R801 ERF7 ZK1R5 RES,W 1.5-K-7W
R802 ERDS2TJ 684T RES,C 680K-J-1/4W R803 ERG2FJ100H R ES,M 10K-J-1/2W R804 ERG2FJ104H RES,M 100K-J-2W
R805 ERX2FZ J R18H RES,M .18-J-2W R806 ERX2FJR56H RES,M .56-J-2W
PARTS LIST
R807 ERDS2TJ681T RES,C 680-J-1/4W R808 ERDS2TJ4R7T RES,C 4.7-J-1/4W R809 ERDS2TJ472T RES,C 4.7K-J-1/4
R815 ERC12ZGM825D RES,S 8.2MEG-M-1/2 R817 ERX3FJ6R8 RES,F 6.8-J-3W
R821 ERDS1FJ1R5T RES,C 1.5-J-1/2W R822 ERDS1FJ1R5T RES,C 1.5-J-1/2W R823 ERDS1FJ 272T RES,C 2.7K-J-1/2W
PARTNO. DESCRIPTION
REF
NO.
R824 ERDS2TJ223T RES,C 22K-J-1/4W R825 ERDS2TJ272T RES,C 2.7K-J-1/4W R828 ERJ6GEYJ104V RES,M 100K-J-1/10W R830 ERDS2TJ104T RES,C 100K-J-1/4W R831 ERDS2TJ682T RES,C 6.8K-J-1/4W
R850 ERQ12HJR56P RES,F .56-J-1/ 2W
R2201 ERJ6GE YJ224V RES,M 220K-J-1/10W R2203 ERJ6GEYJ102V RES,M 1K-J-1/10W R2204 ERJ6GE YJ102V RES,M 1K-J-1/10W R2205 ERJ6GEYJ101V RES,M 100-J-1/10W R2206 ERJ6GE YJ273V RES,M 27K-J-1/10W R2301 ERQ2CJP3R9S RES,F 3.9-J-2W R2307 ERJ6GE YJ103V RES,M 10K-J-1/10W
R2320 ERJ6GEYJ104V R2350 ERDS2TJ391T RES,C 390-J-1/4W
R2351 ERJ6GEYJ562V RES,M 5.6K-J-1/10W R2352 ERJ6GE YJ683V RES,M 68K-J-1/10W R2353 ERJ6GEYJ124V RES,M 120K-J-1/10W R2354 ERJ6GE YJ123V RES,M 12K-J-1/10W R2355 ERJ6GEYJ222V RES,M 2.2K-J-1/10W R2356 ERJ6GEYJ101V RES,M 100-J-1/10W R2357 ERJ6GEYJ472V RES,M 4.7K-J-1/10W R2365 ERDS2TJ102T RES,C 1K-J-1/4W R2370 ERJ6GEYJ103V RES,M 10K-J-1/10W
R2417 ERJ6GE YJ104V R3001 ERDS2TJ101T RES,C 100-J-1/4W
R3005 ERJ6GE YJ334V RES,M 330K-J-1/10W R3007 ERJ6GEYJ151V RES,M 150-J-1/10W R3008 ERJ6GEYJ151V RES,M 150-J-1/10W R3009 ERJ6GEYJ682V RES,M 6.8K-J-1/10W R3010 ERJ6GE YJ334V RES,M 330K-J-1/10W R3011 ERJ6GE YJ682V RES,M 6.8K-J-1/10W
R3013 ERJ6ENF75R0V
R3014 ERJ6ENF75R0V R3016 ERDS2TJ181T RES,C 180-J-1/4W
R3017 ERDS2TJ181T RES,C 180-J-1/4W R3018 ERJ6GE YJ682V RES,M 6.8K-J-1/10W R3019 ERJ6GEYJ682V RES,M 6.8K-J-1/10W
R3050 ERJ6GE YJ101V
R3051 ERJ6GEYJ101V
PART NO. DESCRIPTION
RES,M 100K-J-1/10W
CT-20D12DF-1
RES,M 100K-J-1/10W
CT-20D12DF-1
RES,M 75.0-F-1/10W
CT-20D12DF-1
RES,M 75.0-F-1/10W
CT-20D12DF-1
RES,M 100-J-1/10W
CT-20D12DF-1
RES,M 100-J-1/10W
CT-20D12DF-1

SWITCHES

S001 EVQPF106K SWITCH S002 EVQPF106K SWITCH S003 EVQPF106K SWITCH S004 EVQPF106K SWITCH S005 EVQPF106K SWITCH
Parts List
-12-
302-02
Page 13
REPLACEMENT PARTS LIST
Models: CT-20G7DF-1, CT-20D12DF-1, CT-2017F-1
Important Safety Notice: Components printed in BOLD TYPE have special characteristics important for safety. When replacing
any of these components use only manufacturer’s specified parts.
REF
NO.
S008 EVQPF106K SWITCH S009 EVQPF106K SWITCH
T501 ETH19Y211AZ TRANSFORMER T551 KFT3AA341F TRANSFORMER, FLYBACK T801 ETS29AS183NC TRANS FORMER
X001 TSSA092 CRYSTAL OSCI LLATOR X002 AF080005BE CRYSTAL
TNR001 ENG36604GR TNR001 ENG36610G TUNER
M001 TSX2AA0111-1 LINE CO RD (SPT2) M002 A51KRE89XDT CRT 20” M003 TJSC00300 CRT SOCKET
M004 0FMK014ZZ M005 JH291U-009 YOKE, CONVERGENCE
DY TLY2AA001 DEFLECTION YOKE
M006 TMM2A30702 WEDGE, YOKE M007 TXF3A011DB2 ASSY. DAG GROUND
DEG TSP2AA008 COIL, DEGAUS SING 20 INCH
M008 TSN63115-4 MAGNET, PURITY M009 TAS2AA0012 SPEAKER 16-OHM 1.5W
M010 TXFKU05ESER
M011 TXFKU06BSER
M012 TXFKU06ESER
PART NO. DESCRIPTION

TRANSFORMERS

CRYSTALS/FILTERS

OTHERS

TUNER
CONVERGENCE CORRECTOR STRIP
ASSY,CABINET BACK
ASSY,CABINET BACK
ASSY,CABINET BACK
CT-2017F-,1,
CT-20G7DF-1
CT-20D12DF-1
CT-20G7DF-1
CT-2017F-1
CT-20D12DF-1
REF
NO.
M013 TBM2A10141 BADGE, PANASONIC M014 TBX2AA0121 M015 TBX2AA1701GS BUTTOM, 7-KEY
M016 TKX2AA00401 IR GUIDE M017 TKX2AA00404
M018 TXFKY06ESER
M019 TXFKY09FSER
JK3001 TJB2A9063B
JK3001 TJB2A9064B JK3002 TJB2AA0046 TERMINAL, FRONT A/V JK3003 TJB2AA0171
M020 EUR501450
M021 EUR511502
M022 UR50EC1190A
M023 UR51EC975A
M024 TQB2AA0370-2
M025 TQB2AA0431-2
PART NO. DESCRIPTION
BUTTON, 7-KEY
IR GUIDE
ASSY, CABINET FRONT
ASSY, CABINET FORNT
CT-20G7DF-1,CT-20D12DF-1
ASSY. JACK 1A/V
ASSY. JACK A/V
TERMINAL, S-VHS
ACCESORIES
REMOTE CONTROL
CT-20G7DF-1, CT-2017F-1
REMOTE CONTROL
BATTERY COVER, REMOTE CONTROL
BATTERY COVER, REMOTE CONTROL
OWNERS MANUAL
OWNERS MANUAL
CT-20G7DF-1,CT-20D12DF-1
CT-20G7DF-1
CT-20D12DF-1
CT-2017F-1 CT-2017F-1
CT-20G7DF-1
CT-20D12DF-1
CT-2017F-1
CT-20D12DF-1
CT-2017F-,1,
CT-20G7DF-1
CT-20D12DF-1
CT-20D12DF-1
CT-2017F-,1,
CT-20G7DF-1
CT-20D12DF-1
CT-2017F-1
302-02

DESCRIPTION OF ABBREVIATIONS GUIDE

RESISTOR
TYPE TOLERANCE
C Carbon 1% FFuseJ±5% M Metal Oxide K ± 10% S Solid M ± 20%
W Wire Wound 2%
RES, C 270-J-1/4
-13-
CAPACITOR
TYPE TOLERANCE
C Ceramic C ± 0.25pF E Electrolytic D ±0.5pF P Polyester F ± 1pF SStyrolJ±5% T Tantalum K ± 10%
L ± 15% M ± 20% P +10% -0% Z +80% -20%
CAP, P .068UF-K-50V
PARTS LIST
Parts List
Page 14
Notes
IMPORTANT SAFETY NOTICE
THIS S CHEMATIC DIAGRAM INCORPORATES SPECIAL FEATURES THAT ARE IMPORTANT FOR PROTECTION FROM X-RADIATION, FIRE AND ELECTRICAL SHOCK HAZARDS. WHEN SERVICING IT IS ESSENTIAL THAT ONLY MANUFACTURERS SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS DESIGNATED WITH A IN THE SCHEMATIC.
SCHEMATIC NOTES
1. Resistors are carbon 1/4W unless noted otherwise.
2. Capacitors are ceramic 50V unless noted otherwise.
3. Coil value notes is inductance in µH.
4. Test point indicated by ; Test point but no pin .
5. Components indicated with are cr itical parts and replacement should be made with manufacture specified replacement parts only.
6. (BOLD LINE) indicates the route of B+ supply.
7. The schematic diagram s are current at the time of printing and are subject to change without notice.
8. Ground symbol indicates HOT GROUND CONNECTION; indicates COLD GROUND.
NOTE: All other component symbols are
VOLTAGE MEASUREMENTS
1. Voltage measurement:
- AC input to the Receiver is 120V. NTSC (HD, 1125i & 525P when applicable) signal generator is connected to the antenna of the Receiver. (Color bar pattern of 100 IRE white and 7.5 IRE black.)
- All Picture and Audio adjustments are set to Normalize. TV ANT/CABLE - (Set-Up Menu) in TV/ANT Mode Volume - Min. TV/Video SW - TV position Audio Mode - Stereo
- Voltage readings are nominal and may vary ±10% on active devices. Some voltage reading will vary with signal strengt h and picture content.
- Supply voltages are nominal.
2. Ground symbol indicates ground lead connection of meter. Incorrect ground connection will result in erroneous readings.
CAUTION: Incorrect ground connection
of the test equipment will result in erroneous readings.
CHIP TRANSISTOR LEAD DE SIGNATION
B E
used for engineering design purposes.
C
3
1. indicates waveform measurement. (Measurement can be taken at the best accessible location in common to the indicated point.)
2. Taken with an NTSC signal generator connected to the antenna terminal. (NTSC color bar pattern of 8 bars of EIA colors, 100 IRE white and 7.5 IRE black.)
3. Customer Controls (Picture/Audio Menu) are set t o Normalize. Volume is set to “MIN”.
WAVEFORM MEASUREMENTS
4. All video and color waveforms are taken with a wideband scope and a probe with low capacitance (10 to 1). Shape and peak altitudes may vary depending on the type of Oscilloscope used and its settings.
5. Ground symbol shown on waveform number indicates (Hot) ground lead connection of the Oscilloscope.
CAUTION: Incorrect ground connection of the test equipment will result in erroneous readings.
-14-
Page 15
Notas:
NOTA DE SEGURIDAD
LOS DIAGRAMAS ELÉCTRICOS INCLUYEN CARACTERÍSTICAS ESPECIALES MUY IMPORTANTES PARA LA PROTECCIÓN CONTRA RAYOS-X, QUEMADURAS Y DESCARGAS ELÉCTRICAS. CUANDO SE DE SERVICIO ES IMPORTANTE USAR PARA REEMPLAZO DE COMPONENTES CRITICOS, SOLO PARTES ESPECIFICADAS POR EL FABRICANTES. LOS COMPONENTES CRITICOS ESTAN SEÑALADOS EN LOS DIAGRAMAS POR EL SIMBOLO .
NOTAS DE LOS DIAGRAMAS
1. Las Resistencias son de Carbón de 1/4W, a menos que se indique otra característica.
2. Los Capacitores son de Cerámica para 50V, a menos que se indique otra característica.
3. El valor indicado de las Bobinas es la inductancia expresada en µH.
4. Los puntos de prueba en la terminal de algún componente son indicados por Los puntos de prueba fuera de los componentes se indican con .
5. Los componentes señalados con el símbolo son considerados componentes críticos y deben ser
6. (LINEA GRUESA) indica las
7. Los diagramas eléctricos están sujetos a
8. El símbolo indica que es una
NOTA: Los demas símbolos de
IDENTIFICACI ÓNDE TERMINALES PARA TRANSISTORES EN
B E
reemplazados sólo con las partes especificadas por el fabricante.
líneas de alimentación de los Voltajes B+.
cambio sin previo aviso.
conexión a Tierra Caliente y el símbolo
indica conexión a Tierra Fría.
componentes incluidos son usados con fines de diseño.
CHIP
C
MEDICIÓN DE VOLTAJES
1. Medición de voltaje:
- El voltaje de entrada al Receptor es de 120V de Corriente Alterna. Un generador de patrones con formato NTSC se conecta a la entrada de la antena. (Patrón de Barras de Colores con 100 IREs para el Blanco y 7.5 IREs para el Negro.)
- Los ajustes de los Menus Picture y Audiosenormalizan. EnelMenúSet-Up,enlaopción ANTENA, se selecciona el modo de CABLE. El nivel de Volumen se minimiza. De los modos TV y Video, seleccionar el modo TV. Seleccionarmodo Estereo del Audio.
MEDICIÓN DE FORMAS DE ONDA
1. Un símbolo como indica el punto para medir una señal. (La medición puede hacerse en el punto con mayor accesibilidad, siempre que sea com ún al indicado.)
2. Se midieron utilizando un generador con formato NTSC conectado a la terminal de la antena. (Patrón de 8 Barras de Colores EAI, formato NTSC de 100 IREs para el Blanco y 7.5 IREs para el Negro.)
3. Los ajustes de usuario de los Menus PICTURE y AUDIO se normalizaron. Posteriormente el nivel de volumen se ajusta al mínimo.
4. Las formas de onda de Video y Color fueron tomadas con un osciloscopio de
3
- Las mediciones de los voltajes son nominales y pueden variar hasta 10% en componentes en funcionamiento. Las lecturas de los voltajes pueden variar por la potencia de la señal y el c ontenido de la imagen.
- Las fuentes de voltajes son nominales.
2. El símbolo indica el tipo de tierra que se utiliza en la conexión del medidor.
PRECAUCION: SI no se utiliza la conexión a la tierra adecuada, se obtendrán mediciones equivocadas y podría dañar el equipo de medición.
banda alta y con un punta de prueba de baja capacitancia (10 a 1). La forma y amplitud de las ondas puede variar según el tipo de osciloscopio que se utilice y sus características.
5. El símbolo de tierra que aparece junto al número de la forma de onda, indica que se utiliza conexión a Tierra Caliente en el extremo negativo de la punta de prueba.
PRECAUCION: Si no se utiliza la conexión
a la tierra adecuada, se obtendrán mediciones equivocadas y podría dañar el equipo de medición.
PARTS LIST
-15-
Page 16

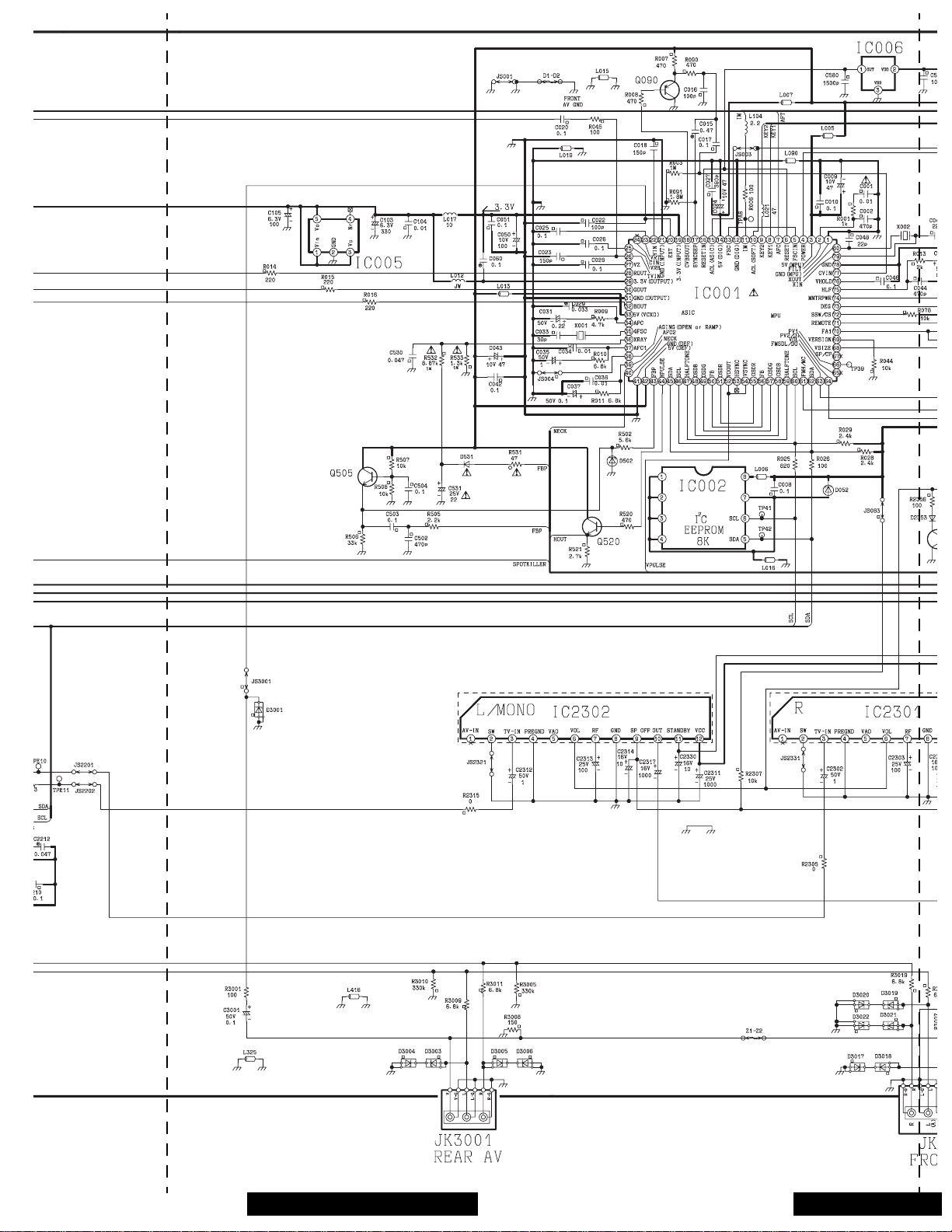

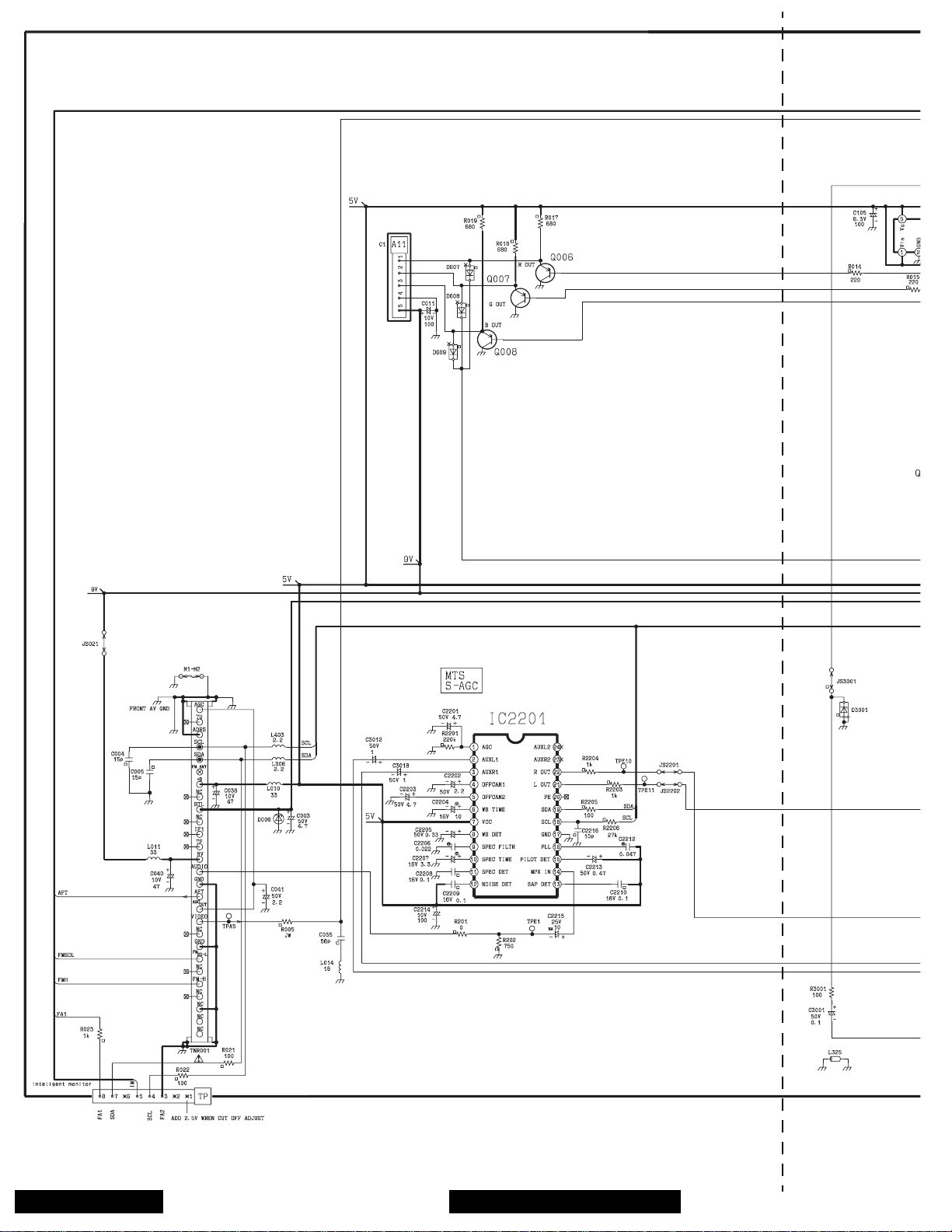

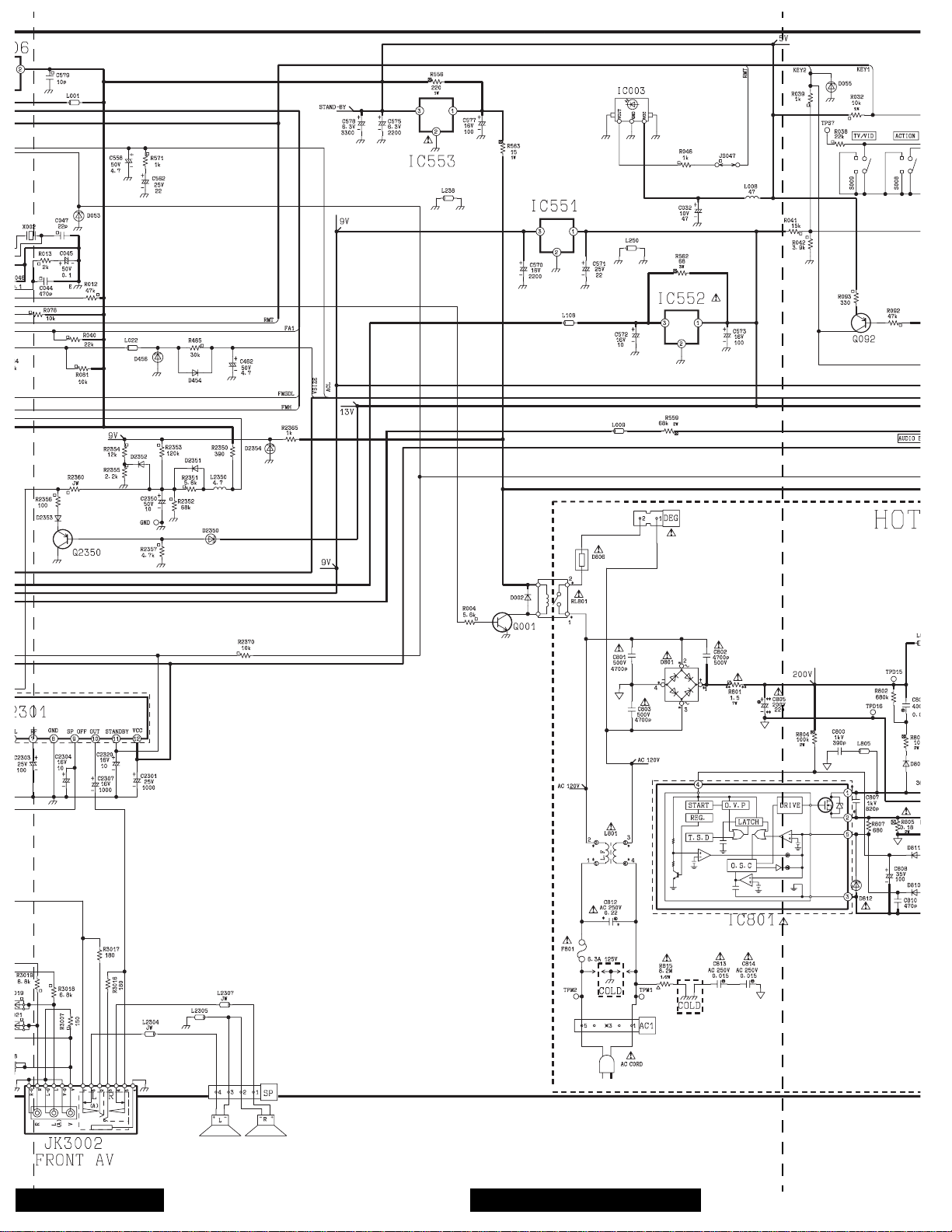

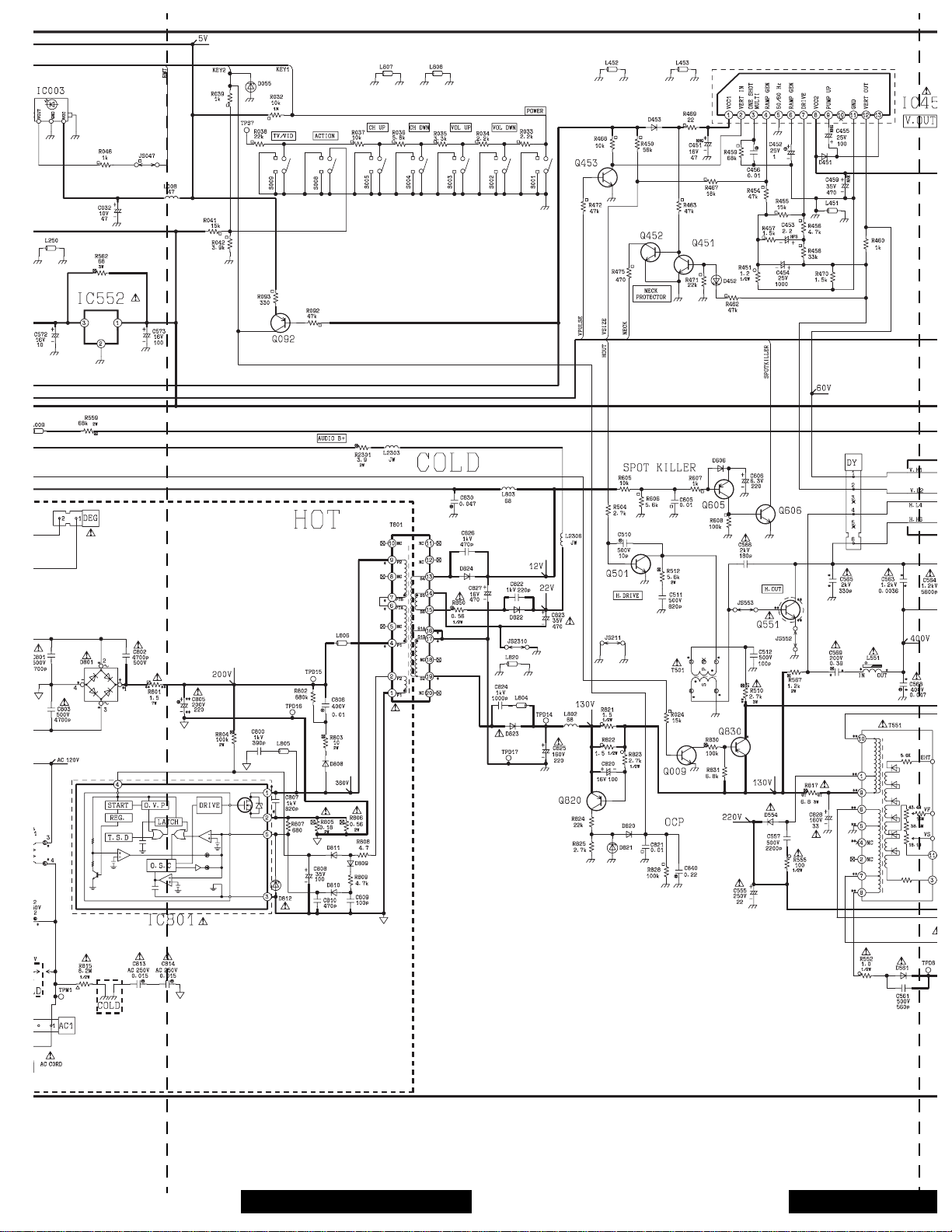

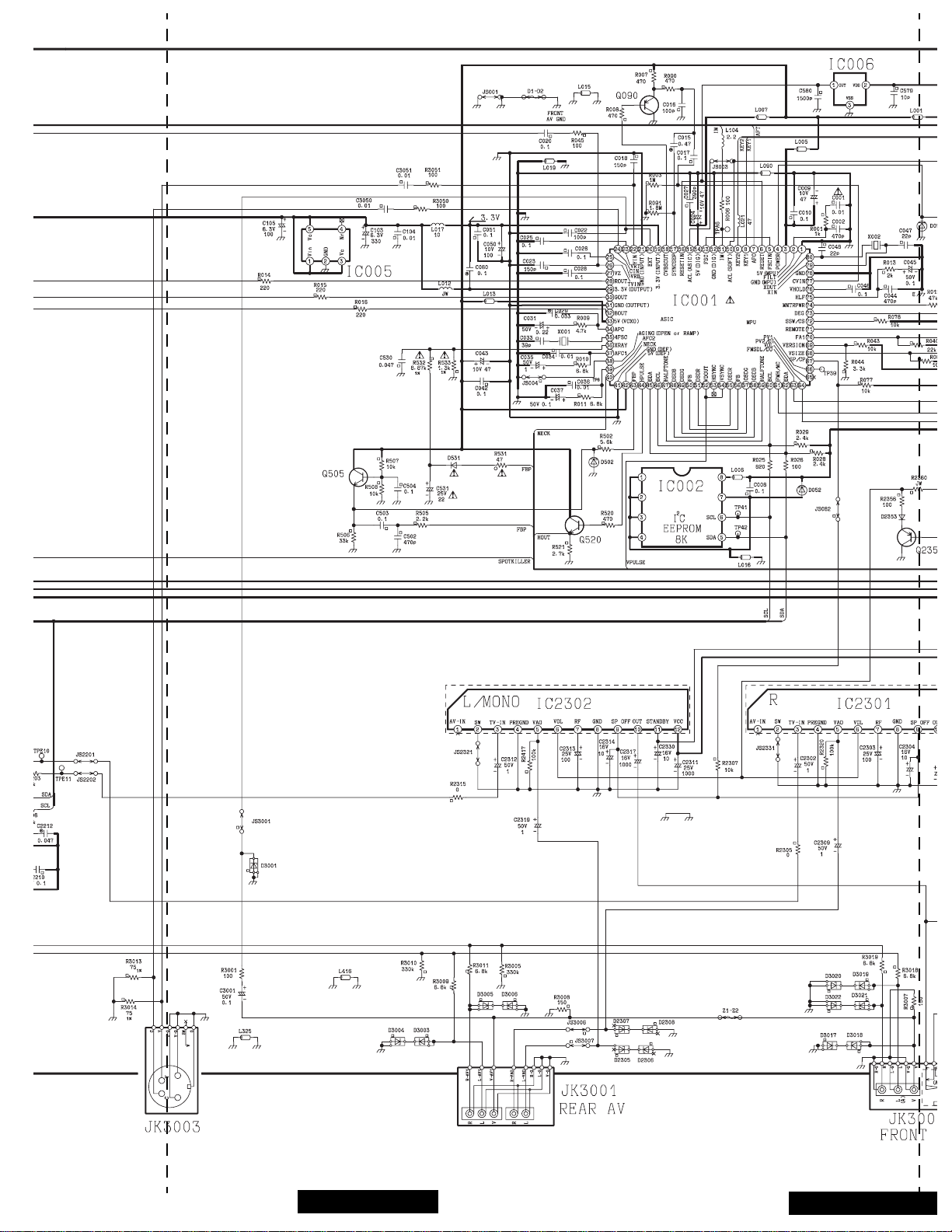

TNP2AH048DR CT-2017F-1, CT-20G7DF-1
- 16 -
Page 17
- 17 -
TNP2AH048DRCT-2017F-1, CT-20G7DF-1
Page 18
TNP2AH048DR CT-2017F-1, CT-20G7DF-1
- 18 -
Page 19
- 19 -
TNP2AH048DRCT-2017F-1, CT-20G7DF-1
Page 20
TNP2AH048DR
- 20 -
CT-2017F-1, CT-20G7DF-1
Page 21
- 21 -

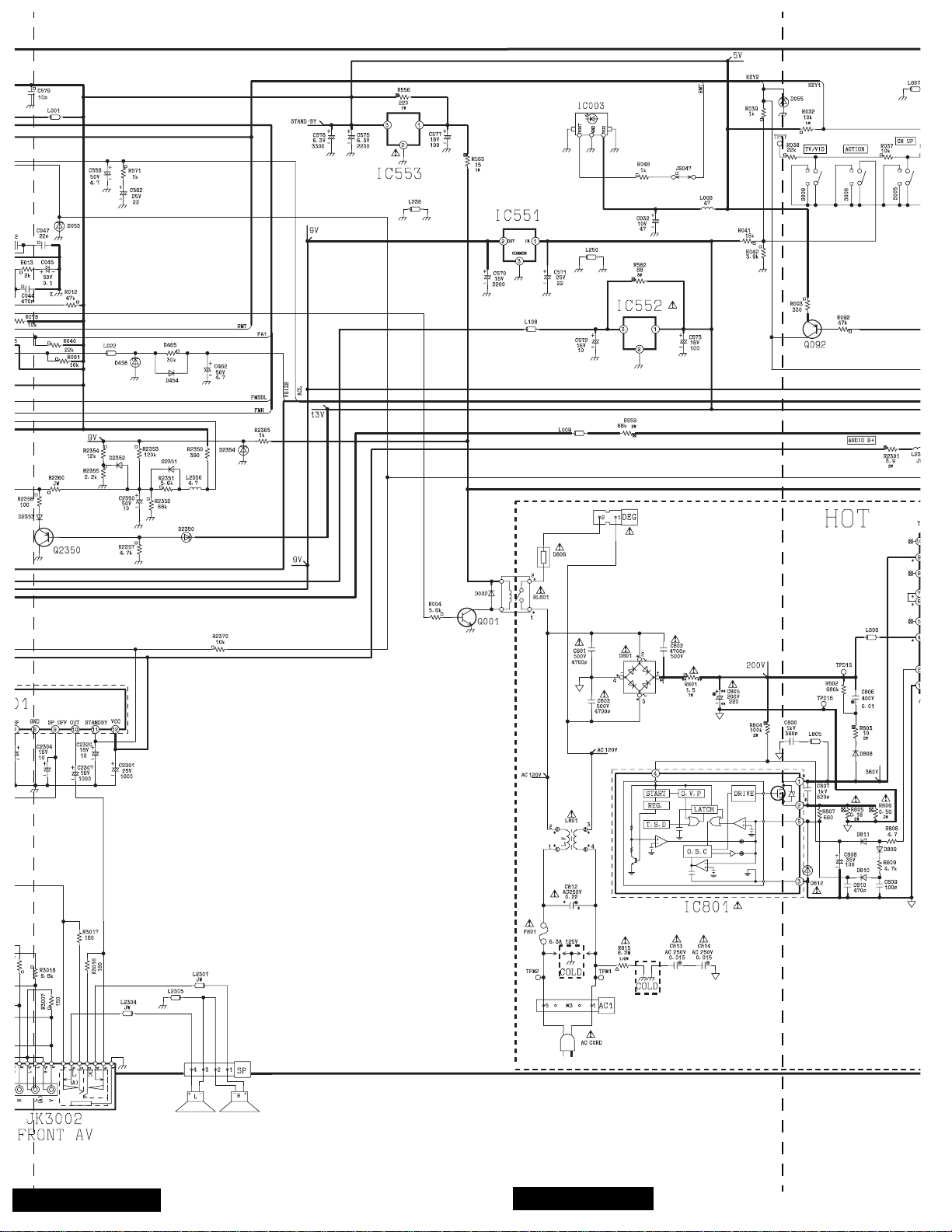

TNP2AA124AFCT-2017F-1, CT-20G7DF-1, CT-20D12DF-1
Page 22

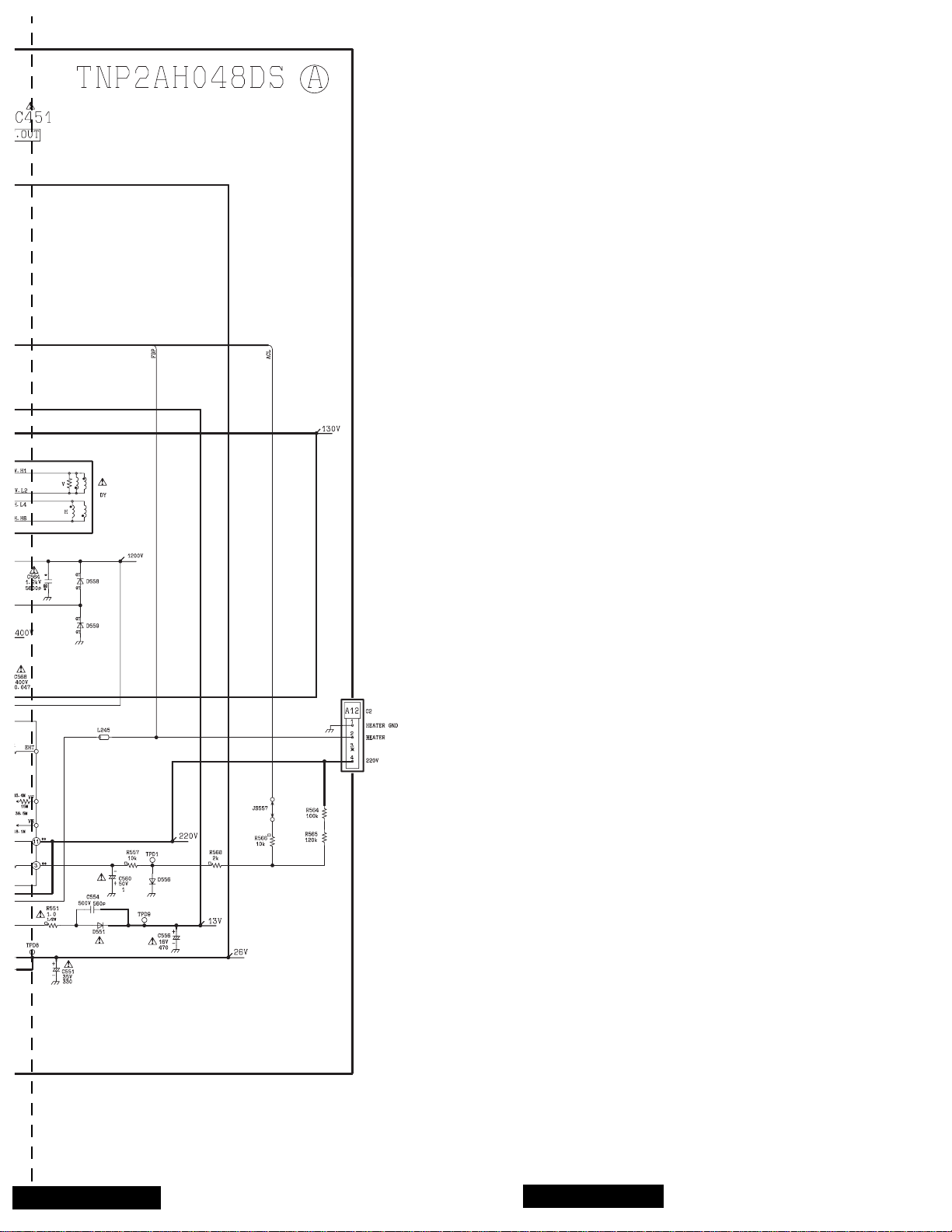

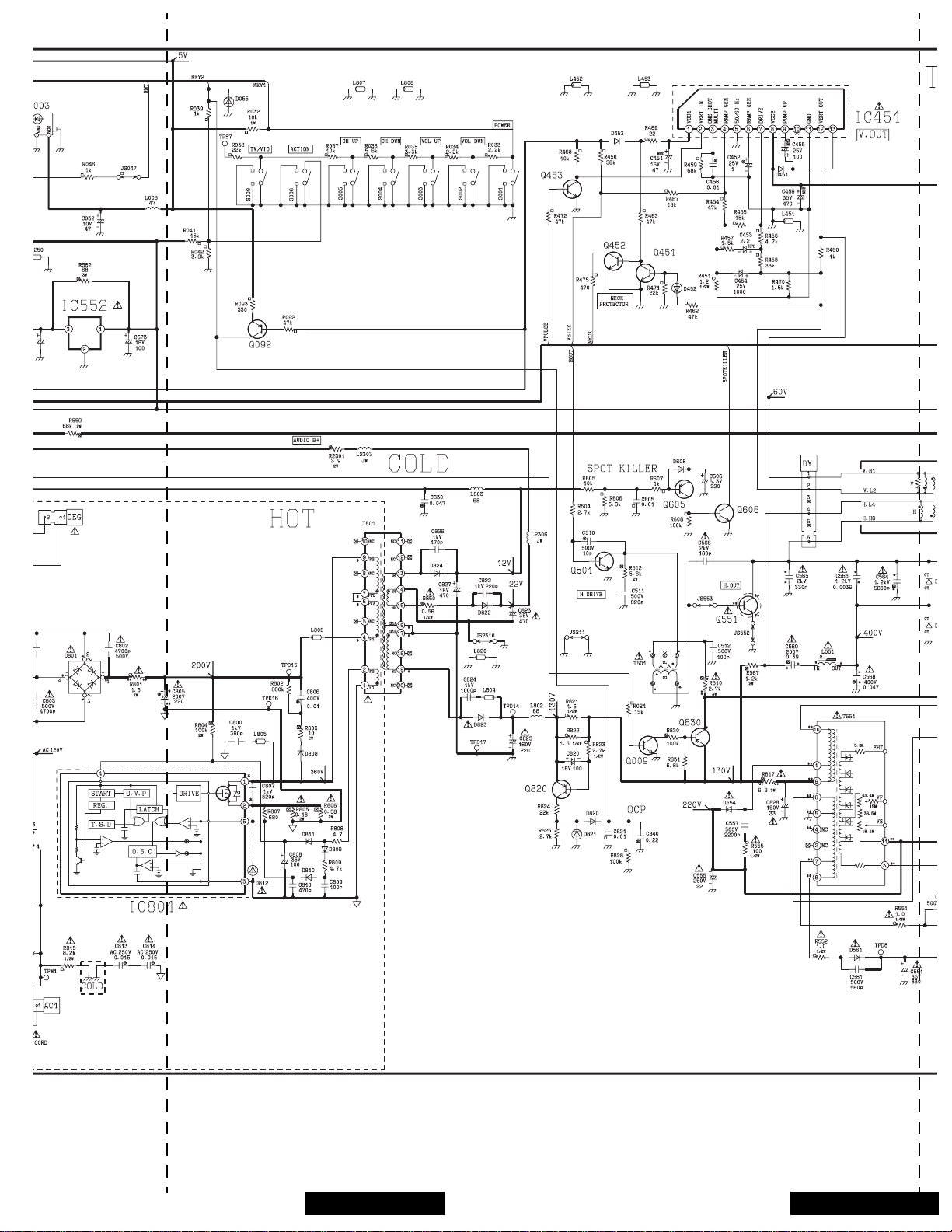

TNP2AH048DS CT-20D12DF-1
- 22 -
Page 23
CT-20D12DF-1
- 23 -
TNP2AH048DS
Page 24
TNP2AH048DS
- 24 -
CT-20D12DF-1
Page 25
- 25 -
TNP2AH048DSCT-20D12DF-1
Page 26
TNP2AH048DS
- 26 -
CT-20D12DF-1
Page 27
NOTES:
- 27 -
NOTES
Page 28

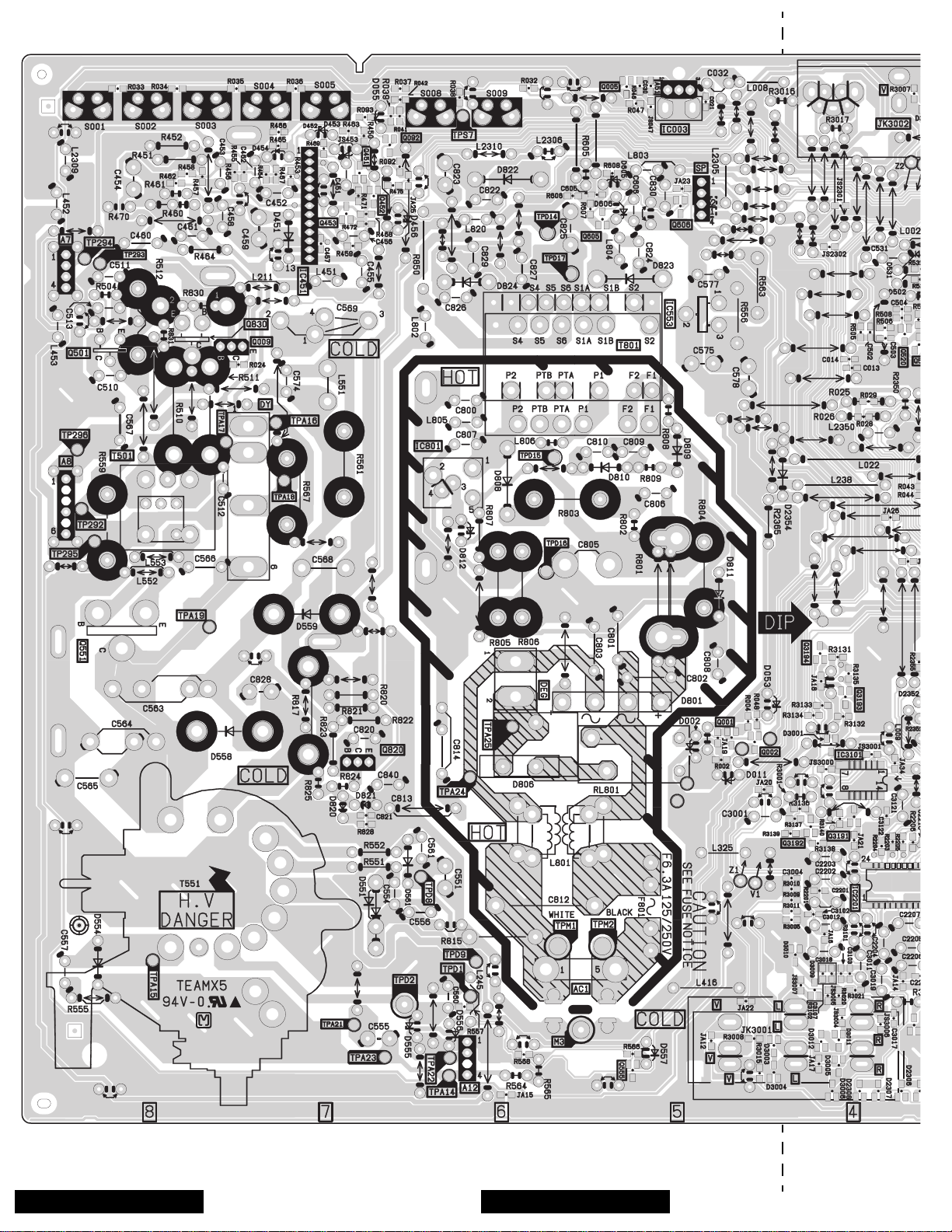

A&CPCBBOARD ALL MODELS
- 28 -
Page 29
ALL MODELS
- 29 -
A&CPCBBOARD
Page 30
Printed in USA
K02102597PL1113
Loading...
