Page 1

F566902

QUICK GUIDE

Before operating the unit, read these operating instructions thoroughly and keep them for future reference.

Operating Instructions

Air Conditioner

Indoor Unit Outdoor Unit

CS-S9JKR CU-S9JKR CS-S12JKR CU-S12JKR

Before operating the unit, read these operating instructions thoroughly and keep them for future reference.

QUICK GUIDE

Page 2

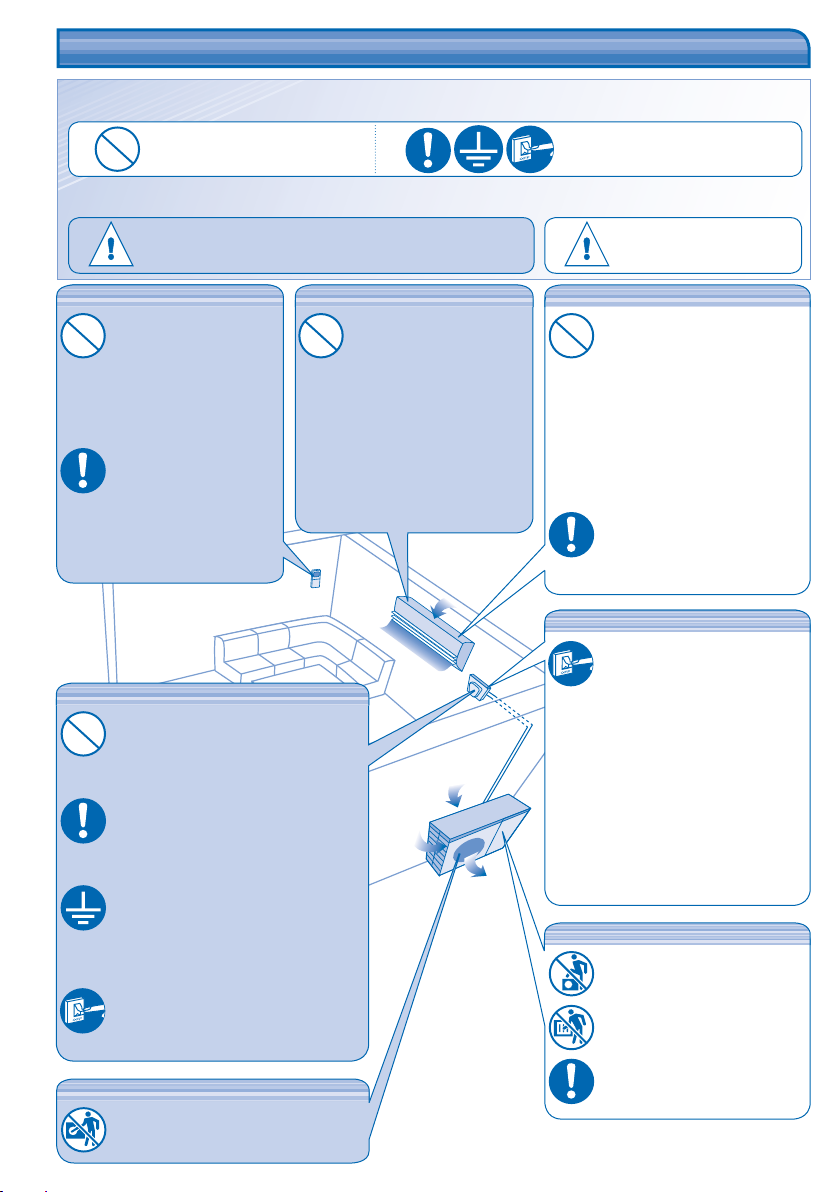

SAFETY PRECAUTIONS SAFETY PRECAUTIONS

Air inlet

Air

outlet

DEFINITION

The instructions to be followed are classiﬁ ed by the following symbols:

This symbol denotes an action that is PROHIBITED.

To prevent personal injury, injury to others, or property damage, please observe the following. Incorrect operation due to failure to follow instructions may cause harm or damage, the seriousness of which is classiﬁ ed as below:

Warning

This sign warns of death or serious injury.

These symbols denote actions that are COMPULSORY.

This sign warns of

Caution

injury or damage to property.

Remote Control

• Do not use rechargeable (Ni-Cd) batteries.

• Do not allow infants and small children to play with the remote control to prevent them from accidentally swallowing the batteries.

• Remove the batteries if the unit is not going to be used for a long period of time.

• New batteries of the same type must be inserted following the polarity stated to prevent malfunction of the remote control.

Indoor Unit

• Do not install, remove and reinstall the unit by yourself; improper installation will cause leakage, electric shock or ﬁ re. Please consult authorized dealer or specialist for the installation work.

• Do not insert your ﬁ ngers or other objects into the unit, rotating parts may cause injury.

• Do not attempt to repair the unit by yourself.

Air inlet

Indoor Unit

• Do not install the unit in a potentially explosive atmosphere.

• Do not wash the unit with water, benzene, thinner or scouring powder.

• Do not use for other purposes such as preservation of food.

• Do not use any combustible equipment in front of the airﬂ ow outlet.

• Do not expose directly to cold air for a long period.

• Ensure that the drainage pipe is connected properly. Otherwise, leakage may occur.

• Aerate the room regularly.

Power Supply

• Switch off the power supply before cleaning or servicing.

• Turn off the power supply if the unit is not used for a long period of time.

• This air conditioner is equipped with a built-in surge protective device. However, in order to further protect your air conditioner from being damaged by abnormally strong lightning activity, you may want to disconnect it from the power supply. Do not touch the air conditioner during lightning, it may cause electric shock.

Power Supply

• Do not share the same power outlet with other equipment.

• Do not modify power cords.

• Do not use extension cords.

• Do not operate with wet hands.

• Use the speciﬁ ed supply cord.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualiﬁ ed persons in order to avoid a hazard.

• This equipment must be earthed and

Air

outlet

Air inlet

Air outlet

strongly recommended to be installed with Earth Leakage Circuit Breaker (ELCB) or Residual Current Device (RCD). Otherwise, it may cause electrical shock or ﬁ re in case of malfunction.

Outdoor Unit

• Do not sit or step on the unit, you may fall down accidentally.

• In case of emergency or abnormal conditions (burnt smell, etc), turn off the power supply, and please consult authorized dealer.

• Do not touch the sharp aluminium

ﬁ n, sharp parts may cause injury.

• After long periods of use, make

Outdoor Unit

sure the installation rack is not damaged.

• Do not insert your ﬁ ngers or other objects into the unit, rotating parts may cause

injury.

Page 3

REGULATORY INFORMATION REGULATORY INFORMATION

TABLE OF CONTENTS

NOTE :

OPERATION CONDITION

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

OPERATION CONDITION

Use this air conditioner under the following temperature range

Temperature (°C)

COOLING

* DBT: Dry bulb temperature * WBT: Wet bulb temperature

Maximum 32 23 46 26

Minimum 16 11 16 11

Indoor Outdoor

*DBT *WBT *DBT *WBT

Thank you for purchasing

Panasonic Air Conditioner

TABLE OF CONTENTS

SAFETY PRECAUTIONS

REGULATORY INFORMATION

PRODUCT OVERVIEW & OPERATIONS

CARE & CLEANING

TROUBLESHOOTING

QUICK GUIDE

NOTE :

The illustrations in this manual are for explanation purposes only and may differ from the actual unit. It is subjected to change without notice for future improvement.

BACK COVER

4~5

Information for Users on Collection and Disposal of Old Equipment and used Batteries

[Information on Disposal in other Countries outside the European Union]

These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol (bottom two symbol examples):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

• Do not switch ON the unit when waxing the ﬂ oor. After waxing, aerate the room properly before operating the unit.

• Do not install the unit in oily and smoky areas.

Page 4

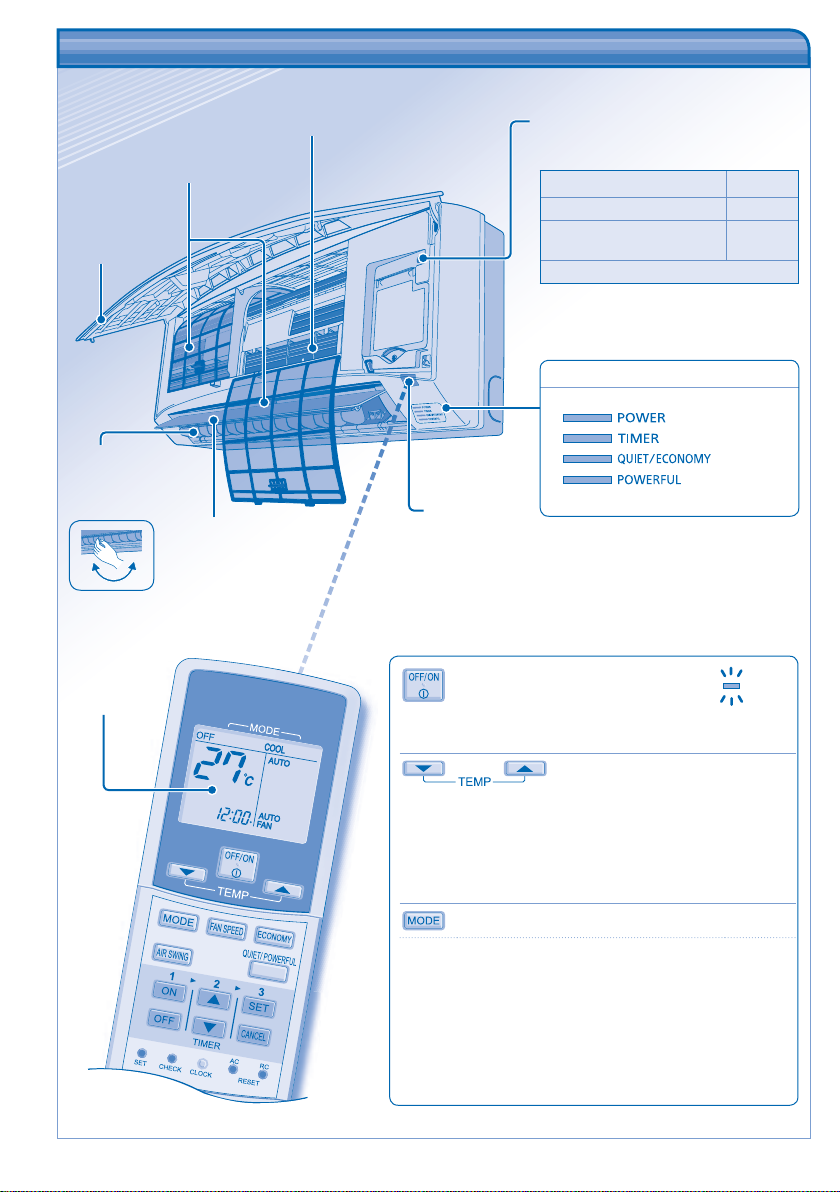

PRODUCT OVERVIEW & OPERATIONS PRODUCT OVERVIEW & OPERATIONS

Front panel

Horizontal airﬂ ow direction louver

• Manually adjustable.

Remote control display

Air Filters

Vertical airﬂ ow direction louver

• Do not adjust by hand.

Super alleru-buster ﬁ lter

Maximum distances: 8m

Auto OFF/ON button

• Used when remote control is misplaced or malfunction.

Action Mode

Press once. Auto Press and hold until 1 beep is

heard, then release.

Cooling

Press the button to turn off.

INDICATOR

(Green)

(Orange)

Receiver

TO TURN ON OR OFF THE UNIT

POWE

• Please be aware of the OFF indication on the remote control display to prevent the unit from starting / stopping improperly.

TO SET TEMPERATURE

• For cool and dry modes, the range of temperature for selection is 16˚C ~ 30˚C.

• Operating the unit within the recommended temperature could induce energy saving. COOL mode : 26˚C ~ 28˚C. DRY mode : 1˚C ~ 2˚C lower than room temperature.

TO SELECT OPERATION MODE

AUTO mode - For your convenience

• Unit selects operation mode every 30 minutes according to temperature setting, outdoor and room temperature. During operation mode selection the power indicator blinks.

COOL mode - To enjoy cool air

DRY mode - To dehumidify the environment

• Unit operates at low fan speed to give a gentle cooling operation.

Page 5

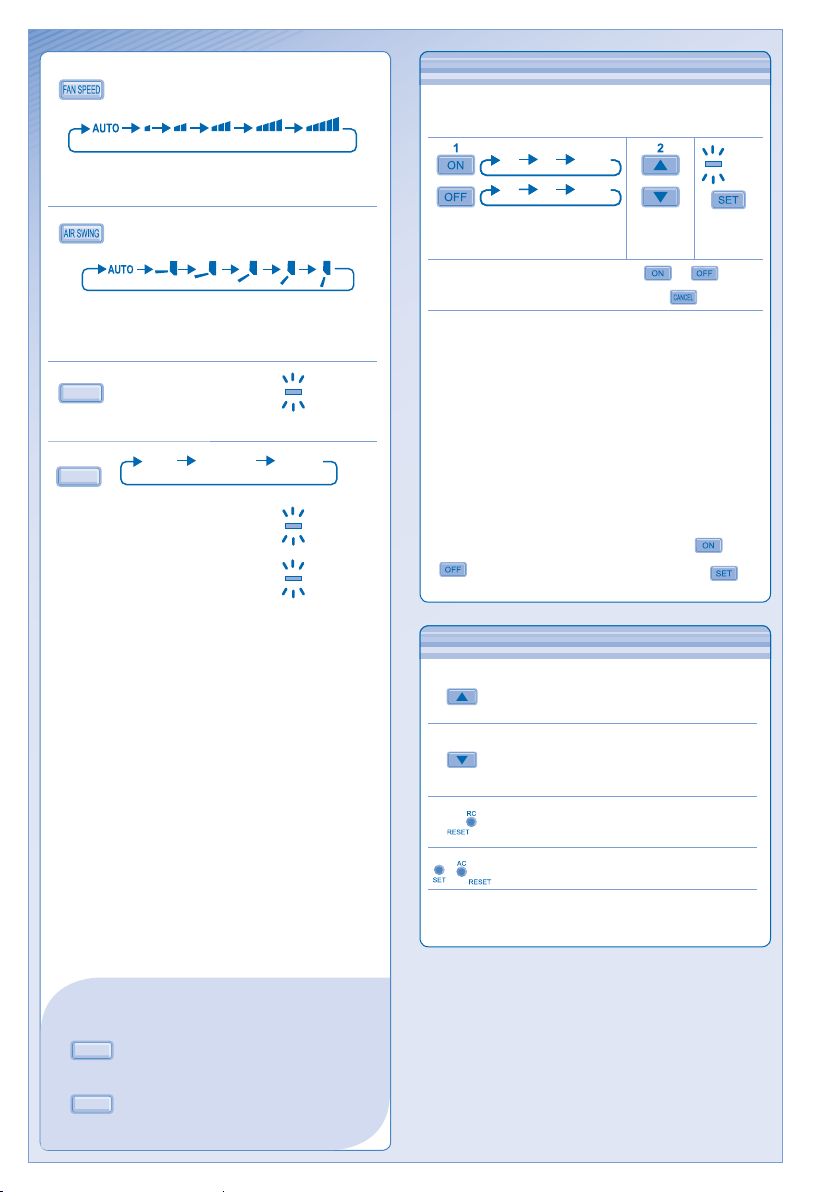

TO SELECT FAN SPEED

OPTIONAL SETTINGS

TO SET THE TIMER

(5 OPTIONS)

• For AUTO, the indoor fan speed is automatically adjusted according to the operation mode.

TO ADJUST VERTICAL AIRFLOW DIRECTION (5 OPTIONS)

• Keeps the room ventilated.

• If AUTO is set, the louvers swing up/down automatically.

TO SAVE ELECTRICAL

ECONOMY

POWER CONSUMTION

QUIET/ECONOMY

• Brightness of all indicators will be dimmed.

QUIET/ POWERFUL

TO ENJOY QUIET ENVIRONMENT

TO ACHIEVE TEMPERATURE QUICKLY

POWERFUL NORMALQUITE

QUIET/ECONOMY

POWERFUL

TO SET THE TIMER

• 2 sets of ON and OFF timers are available to turn ON or OFF the unit at different preset time.

¥2¥1

Cancel

¥2¥1

Cancel

Select ON (¥1/¥2) or

OFF (¥1/¥2) Timer

• To cancel ON or OFF timer, press

Set the

time.

TIMER

Conﬁ rm.

or to

select respective ¥1 or ¥2 then press .

• Upcoming timer will be displayed and will be activated in sequence.

• When ON Timer is set, the unit may start earlier (up to 30 minutes) before the actual set time in order to achieve the desired temperature on time.

• Timer operation is based on the clock set in the remote control and repeats daily once set. For clock setting, please refer to Remote Control Preparation at back cover.

• If timer is cancelled manually or due to power failure,

you can restore the timer again by pressing

to select respective ¥1 or ¥2 then press .

OPTIONAL SETTINGS

QUIET/ POWERFUL

•

can be activated in all modes and can be

cancelled by pressing the respective button again.

QUIET/ POWERFUL

cannot be activated at the same time.

Press and hold for 5 seconds to dim or restore the unit’s indicator brightness.

Press and hold for approximately 10 seconds to show temperature setting in °C or °F.

Press to restore the remote control’s default setting.

Not used in normal operations.

Use curtains to screen off sunlight and outdoor heat to reduce power consumption during cool mode.

Page 6

FOR SEASONAL INSPECTION AFTER EXTENDED NON-USE

NON SERVICEABLE CRITERIAS

FOR EXTENDED NON-USE

Remove

ALUMINIUM FIN

FRONT PANEL

SUPER ALLERU-BUSTER FILTER

AIR FILTERS

INDOOR UNIT

Remove

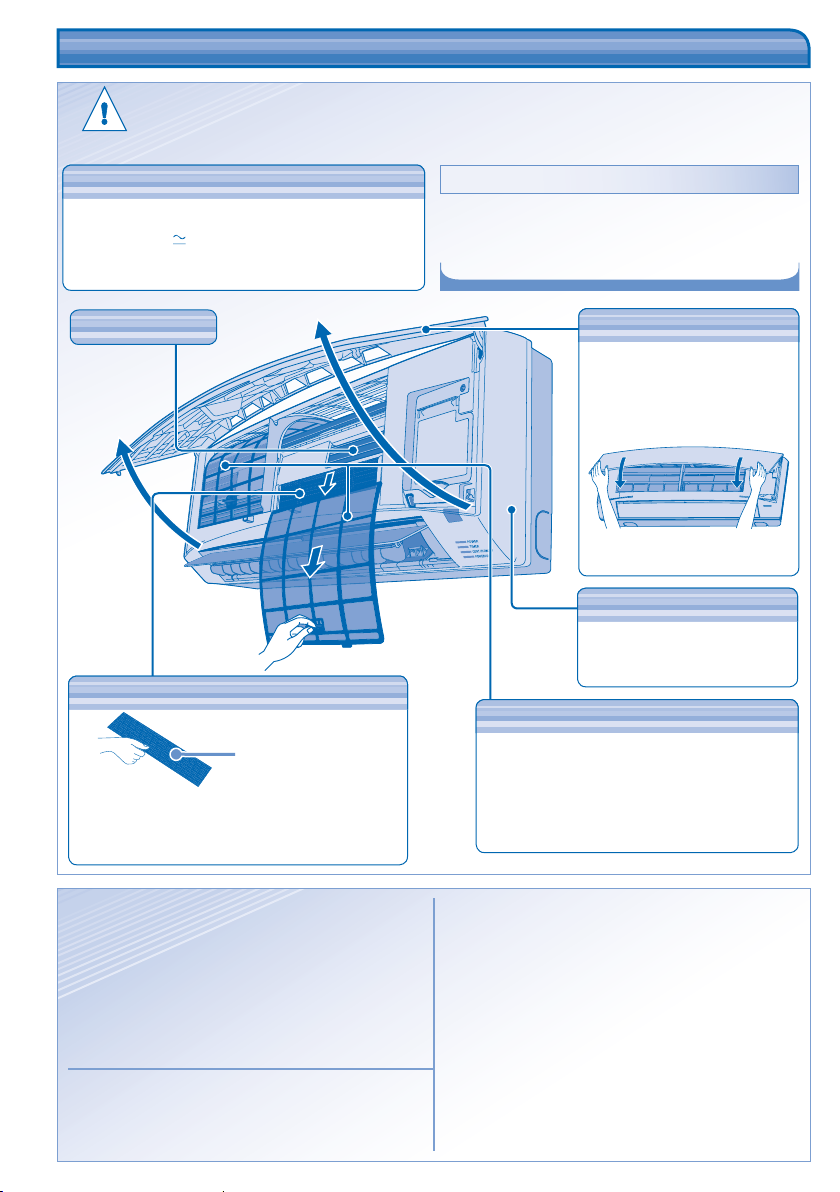

CARE & CLEANING CARE & CLEANING

WASHING INSTRUCTIONS

HINT

• Switch off the power supply before cleaning.

CAUTION

WASHING INSTRUCTIONS

• Do not use benzene, thinner or scouring powder.

• Use only soap (

• Do not use water hotter than 40°C.

ALUMINIUM FIN

• Do not touch the aluminium ﬁ n, sharp parts may cause injury.

pH7) or neutral household detergent.

Remove

HINT

• To ensure optimal performance of the unit, cleaning maintenance have to be carried out at regular intervals. Dirty unit may caused malfunction and you may retrieve error code “H99”. Please consult authorized dealer.

FRONT PANEL

Remove Front Panel

• Raise and pull to remove the front panel.

• Wash gently and dry.

Close Front Panel

• Press down both ends of the front panel to close it securely.

INDOOR UNIT

Wipe the unit gently with a soft, dry cloth.

SUPER ALLERU-BUSTER FILTER

Vacuum the super alleru-buster ﬁ lter.

• It is recommended to clean the ﬁ lter every 6 months.

• Replace the ﬁ lter every 3 years or replace any damaged ﬁ lter.

Part no.: CZ-SA14P

FOR SEASONAL INSPECTION AFTER EXTENDED NON-USE

• Checking of remote control batteries.

• No obstruction at air inlet and air outlet vents.

• After 15 minutes of operation, it is normal to have the following temperature difference between air inlet and air outlet vents: Cooling: ≥ 8°C

FOR EXTENDED NON-USE

• Turn off the power supply.

• Remove the remote control batteries.

AIR FILTERS

• Air ﬁ lters cleaning is needed every two weeks.

• Wash/rinse the ﬁ lters gently with water to avoid damage to the ﬁ lter surface.

• Dry the ﬁ lters thoroughly under the shade, away from ﬁ re or direct sunlight.

• Replace any damage ﬁ lter.

NON SERVICEABLE CRITERIAS

TURN OFF POWER SUPPLY then please consult authorized dealer under the following conditions:

• Abnormal noise during operation.

• Water/foreign particles have entered the remote control.

• Water leaks from Indoor unit.

• Circuit breaker switches off frequently.

• Power cord becomes unnaturally warm.

• Switches or buttons are not functioning properly.

Timer indicator blinks.

•

Page 7

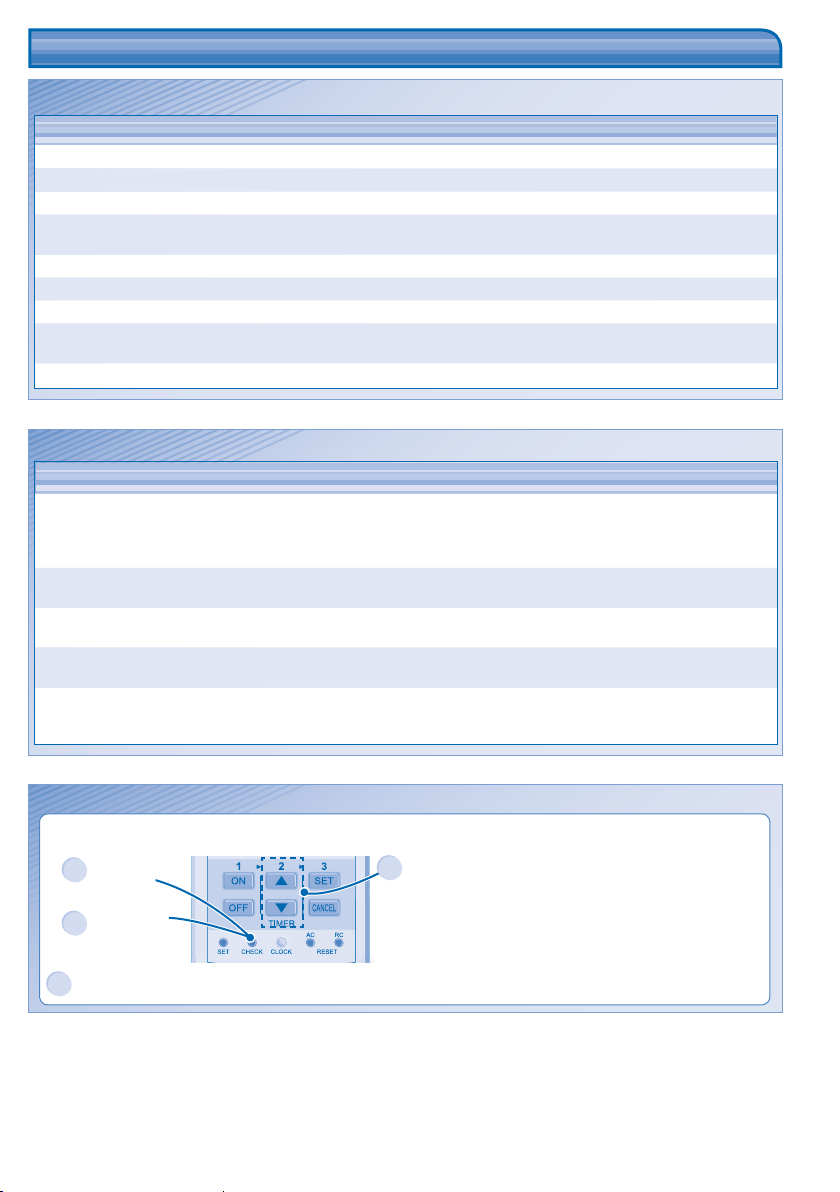

TROUBLESHOOTING TROUBLESHOOTING

Symptom

Cause

The following symptoms do not indicate malfunction.

Symptom

Check

Check the following before calling for servicing.

The unit stops and the timer indicator blinks.

The following symptoms do not indicate malfunction.

Symptom

Mist emerges from indoor unit. • Condensation effect due to cooling process. Water ﬂ owing sound during operation. • Refrigerant ﬂ ow inside the unit. The room has a peculiar odour. • Indoor fan stops occasionally during automatic

fan speed setting. Operation is delayed a few minutes after restart. Outdoor unit emits water/steam. • Condensation or evaporation occurs on pipes. Timer indicator is always on. • The timer setting repeats daily once set. Power indicator blinks before the unit is

switched on. Cracking sound during operation. • Changes of temperature cause the expansion/contraction of the unit.

Check the following before calling for servicing.

Symptom

Cooling operation is not working efﬁ ciently. • Set the temperature correctly.

Noisy during operation. • Check if the unit has been installed at an incline.

Remote control does not work. (Display is dim or transmission signal is weak.)

The unit does not work. • Check if the circuit breaker is tripped.

The unit does not receive the signal from the remote control.

Cause

This may due to damp smell emitted by the wall, carpet, furniture or clothing.

• This helps to remove the surrounding odours.

• The delay is a protection to the unit’s compressor.

• This is a preliminary step in preparation for the operation when the ON timer has been set.

Check

• Close all doors and windows.

• Clean or replace the ﬁ lters.

• Clear any obstruction at the air inlet and air outlet vents.

• Close the front panel properly.

• Insert the batteries correctly.

• Replace weak batteries.

• Check if timers have been set.

• Make sure the receiver not obstructed.

• Certain ﬂ uorescent lights may interfere with signal transmitter. Please consult your nearest dealer.

The unit stops and the timer indicator blinks.

Use remote control to retrieve error code.

Press for 5

seconds.

Press for 5

seconds to quit checking.

Turn the unit off and reveal the error code to authorized dealer.

Press until you hear

beep sound, then jot down the error code.

Note:

• For certain error, you may restart the unit with limited operation with 4 beeps during operation starts.

Page 8

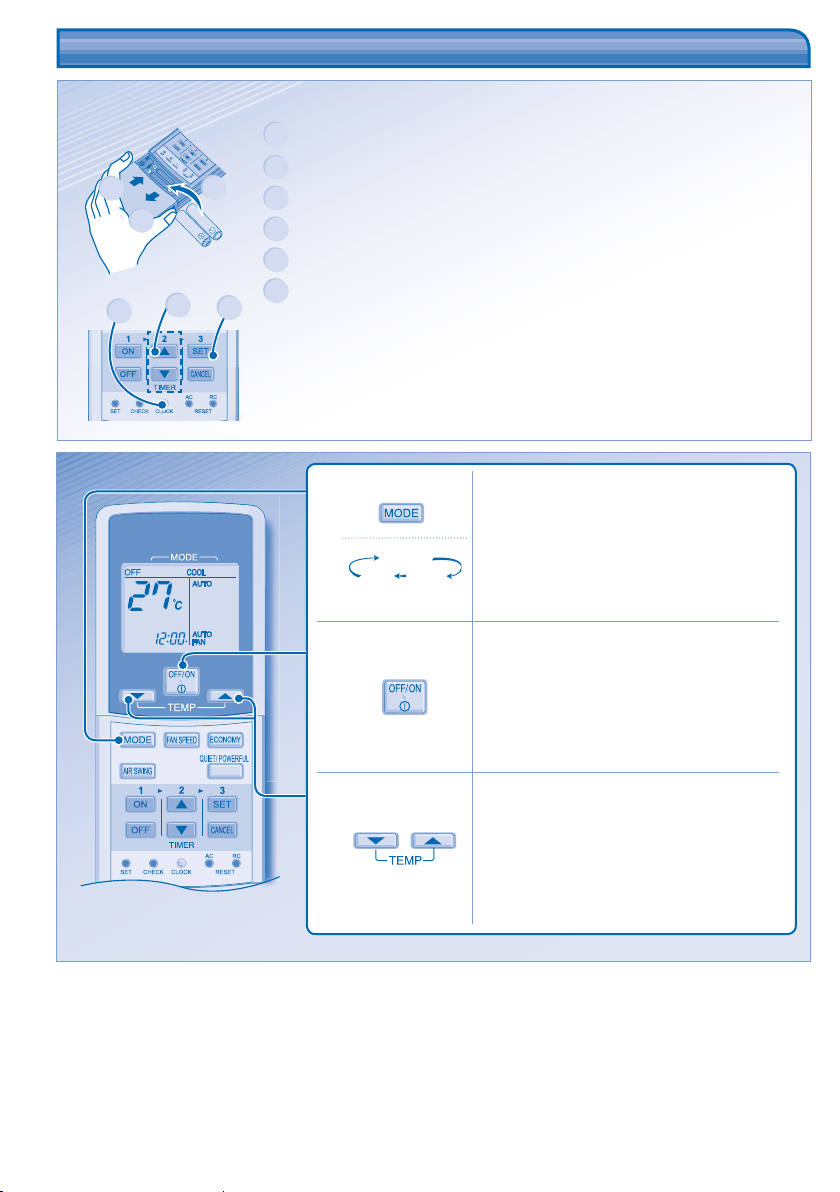

Remote Control Preparation

QUICK GUIDE QUICK GUIDE

Remote Control Preparation

Press and pull out

Insert AAA or R03 batteries (can be used ~ 1 year)

Press CLOCK

Set time

Conﬁ rm

Close the cover

F566902

AUTO

DRY COOL

Select the desired mode.

Start/stop the operation.

Set the desired temperature.

Panasonic Corporation

Website: http://panasonic.net/

Printed in Malaysia

OYTK0903-00
