Specifications*
General
Power Supply DC 12V (11V - 16V),
Test Voltage 13.2V
Negative Ground
Current Consumption Less than 3.0A
Power Output 35W×4ch
CQ-JS0482K
AM/FM/MPX ELECTRONIC TUNING
RADIO with CD Player
PART No. PZTU0-26820-S
VEHICLE : AVANZA
DESTINATION : Thailand
PRODUCED AFTER : May, 2004
CD Player (YGFD15273)
Signal to Noise Ratio More than 70dB
Distortion Less than 0.2%
Dimensions** (W×H×D) 178×50×155.5mm
AM Radio
Frequency Range 531 - 1,602kHz
Usable Sensitivity 27±6dB/µV
Signal to Noise Ratio More than 45dB
FM Stereo Radio
Frequency Range 87.5 - 108.0MHz
Usable Sensitivity (Monaural) 6±6dB/µV
Signal to Noise Ratio More than 50dB
Weight** 1180g
* Specifications and the design are subject to possible modification
without notice due to improvements.
** Dimensions and Weight shown are approximate.
CQ-JS0482K
CONTENTS
Page Page
1 FEATURES 2
2 SYSTEM BLOCK DIAGRAM
3 VIEW AND CONNECTORS
4 WIRING CONNECTION
5 BLOCK DIAGRAM
6 TERMINALS DESCRIPTION
7 IC BLOCK DIAGRAM
8 REPLACEMENT PARTS LIST 8
2
9 EXPLODED VIEW (Unit)
3
10 WIRING DIAGRAM
11 SCHEMATIC DIAGRAM-1
4
5
12 SCHEMATIC DIAGRAM-2
6
13 MEMO
7
1 FEATURES
PLL (Phase Locked Loop) synthesized tuning.
·
18-station preset (12-FM, 6-AM).
·
Adjustable VOL, BAS, TRE, FAD and BAL.
·
NCD-9 CD Deck.
·
12cm CD only.
·
Compatible with Audio CD, CD-R and CD-RW.
·
12
13
16
17
19
2 SYSTEM BLOCK DIAGRAM
2
3 VIEW AND CONNECTORS
CQ-JS0482K
3
CQ-JS0482K
4 WIRING CONNECTION
4
5 BLOCK DIAGRAM
CQ-JS0482K
5
CQ-JS0482K
6 TERMINALS DESCRIPTION
6.1. Main Block
Pin
Signal Description I/O (V)
No.
1 BEEP BEEP output (3kHz/100ms) O 0 0 0
2 PW-
STBY2
3 TEL MUTE External TEL MUTE input
4 FIX.SACTIVEFIX-EQ soft select detection
5 AMP-STBY Power ICSTBY output(H:
6 FIX-
DATA(NC)
7 FIX-
CLK(NC)
8 ADS
CLK(NC)
9 RDS
DATA(NC)
10 NC No Connection - - - 11 RESET CPU reset input (L: Reset) I 5.0 5.1 5.1
12 XT1(SUB) Sub-clock oscillation
13 XT2(SUB) Sub-clock oscillation
14 GND (Connecting to GND) - 0 0 0
15 X2(MAIN) Main clock oscillation
16 X1(MAIN) Main clock oscillation
17 REGOFF (Connecting to GND) - 0 0 0
18 REGC Regulator output stability
19 VDD Positive power supply - 5.0 5.0 5.1
20 NC No Connection - - - 21 DATA IN Input for CD-R reading I 0 0 0
22 DATA
CONT
23 NC No Connection - - - 24 NC No Connection - - - 25 NC No Connection - - - 26 NC No Connection - - - 27 NC No Connection - - - 28 AMP
MUTE
29 NC No Connection - - - 30 SEC-CLK External E2PROM clock
31 SEC-CS External E2PROM chip
32 SEC-DATA E2PROM data output (H/L) O 0 0 0
33 SEC-DI E2PROM data input (H/L) I 0 0 0
34 NC No Connection - - - 35 NC No Connection - - - 36 LCD DATA LCD driver data output
37 LCD CE LCD driver chip selection
38 LCD SCK LCD driver clock pulse
39 LCD DI LCD driver data entry (H/L) I 5.1 5.1 5.2
40 VSS (Connecting to GND) - 0 0 0
41 VDD Positive power supply - 5.0 5.1 5.2
42 VOL-B Volume encoder B input
IC601 : C2CBHG000130
FM AM CD
Power supply IC STBY2
output (H: Power supply IC
ON)
(L:TEL MUTE. )
signal
Power IC ON)
No Connection - - - -
No Connection - - - -
No Connection - - - -
No Connection - - - -
terminal 32.768kHz
terminal 32.768KHz
terminal 12.396875MHz
terminal 12.396875MHz
capacity connection
Output for CD-R reading O 0 0 0
Power IC Mute: All audio
Mute
output H/L
select signal
(H/L)
signal
output
(H/L)
O 5.0 5.0 5.1
I 5.0 5.0 5.1
I 0 0 0
O 5.0 5.0 5.1
- 2.6 2.6 2.6
- 2.1 2.1 2.2
- 2.4 2.4 2.5
- 2.2 2.2 2.3
- 5.0 5.0 5.1
O 0 0 0
O 0 0 0
O 0 0 0
O 0 0 0
O 0 0 0
O 0 0 0
I 5.1 0.5 0.6
Pin
Signal Description I/O (V)
No.
43 VOL-A Volume encoder A input
44 NC No Connection - - - 45 NC No Connection - - - 46 SET-S0 Destination matrix output 0 O 0 0 0
47 SET-S1 Destination matrix output 1 O 0 0 0
48 SET-S2 No Connection - - - 49 SET-S3 No Connection - - - 50 SET-R0 Destination matrix input 0 I 0 0 0
51 SET-R1 Destination matrix input 1 I 0 0 0
52 SET-R2 Destination matrix input 2 I 0 0 0
53 SET-R3 Destination matrix input 3 I 0 0 0
54 RDS
MUTE(NC)
55 ST IND Radio stereo indicator input I 5.2 5.2 5.3
56 NC No Connection - - - 57 TU SCL Tuner packing clock pulse
58 VOL SDA Data output with built-in
59 VOL CLK Clock with built-in tuner
60 VOL STB Strobing with built-in tuner
61 TU DO Tuner packing SD input
62 NC No Connection - - - 63 TU SDA Tuner packing data I/O
64 CD/RESET CD reset signal output
65 CD CLK CD deck serial
66 CD SOM CD deck serial
67 CD SIM CD deck serial
68 SW3 NCD-9 SW3 input (L: Disk) I 5.2 5.2 0
69 SW1 NCD-9 SW1 input (L: Disk) I 5.2 5.2 0
70 CD-ON H: CD deck CPU
71 LCD-PWM LCD backlight dimmer
72 ILL-PWM Illumi. dimmer output O 5.0 5.0 5.2
73 GND(Vpp) GND connection - 0 0 0
74 RE0-IN Input of voltage of Leo stud
75 NC No Connection - - - 76 VCONT Radio packing VCONT
77 GA NET
CONT(NC)
78 RAMJD Ram judge input I 0 0 0
79 MP RDS multipass input (A/D
80 NOISE RDS noise voltage
81 SET EQ (L: Output) O 0 0 0
82 AVDD Analog VDD power supply - 5.1 5.1 5.2
83 AVREF Reference voltage input for
84 AVSS (Connecting to GND) - 0 0 0
85 IE-BUS
OUT
86 IE-BUS IN
(NC)
(H/L)
No Connection - - - -
output (H/L) PLL clock
tuner packing E-VOL
packing E-VOL
packing E-VOL signal
signal (L)
(H/L)
(L:CD reset)
communications clock pulse
output
communications data input
communications data output
communicate
output
(A/D input)
input (A/D input)
No Connection - - - -
input)
detection (A/D input)
analog to digital conversion
GA-NET data entry I 0 0 0
No Connection - - - -
FM AM CD
I 5.1 0.5 0.6
O 5.0 5.0 5.2
O 0 0 0
O 0 0 0
O 0 0 0
I 5.2 5.2 5.3
O 5.2 5.2 5.3
O 5.0 5.0 5.1
O 5.0 5.0 5.1
I 5.2 5.2 2.3
O 5.0 5.0 0
O 0 0 5.1
O 0 0 0
I 0 0 0
I 0.8 1.2 1.3
I 0 0 0
I 0 0 0
- 5.3 5.3 5.4
6
Pin
Signal Description I/O (V)
No.
87 ACC DET H:ACC ON L:ACC OFF I 5.3 5.3 5.4
88 ILL DET Ilmi input (L: Input) I 5.0 5.0 5.2
89 NC (Connecting to GND) I 0 0 0
90 NC (Connecting to GND) I 0 0 0
91 NC (Connecting to GND) I 0 0 0
92 +B DET H:+B ON L:+B OFF I 5.3 5.3 5.4
93 CD EJECT H:CD-EJ OFF L:CD-EJ ON I 5.0 5.0 5.1
94 (SIO) L: input O - - 95 NC No Connection - - - 96 NC No Connection - - - 97 PW-SCK Power supply IC clock
98 PW-DATA Power supply IC data
99 PW-
LATCH
100 PW-STBY Power supply IC STBY
output (H/L)
output
Power supply IC data latch
signal output
output
FM AM CD
O 0 0 0
O 0 0 0
O 5.0 5.0 5.1
O 5.0 5.0 5.1
6.2. Display Block
CQ-JS0482K
IC701 C1EB00000084
Pin No. Name Description I/O Volt (V)
IC901 YEAMLC75853
1~32 S1~S32 LCD Segment O 2.5
33~40 (NC) No Connection - -
41 COM1 LCD Common O 2.5
42 COM2 LCD Common O 2.5
43 COM3 LCD Common O 2.5
44~47 KS1~KS4 Key Data Output O 2.5
48,49 (NC) No Connection - -
50~53 K11~K14 Key Data Input I 0
54,55 TEST (Connect to Ground) - 0
56 VDD +5V Power Supply - 5.2
57 VDD1 +5V Power Supply - 3.5
58 VDD2 +5V Power Supply - 1.9
59 VSS (Connect to Ground) - 0
60 OSC CR Oscillator - 4.1
61 DO LCD Data Output O 5.3
62 CE Chip Enable I 0
63 CLK LCD Clock Input I 0
64 DI LCD Data Input I 0

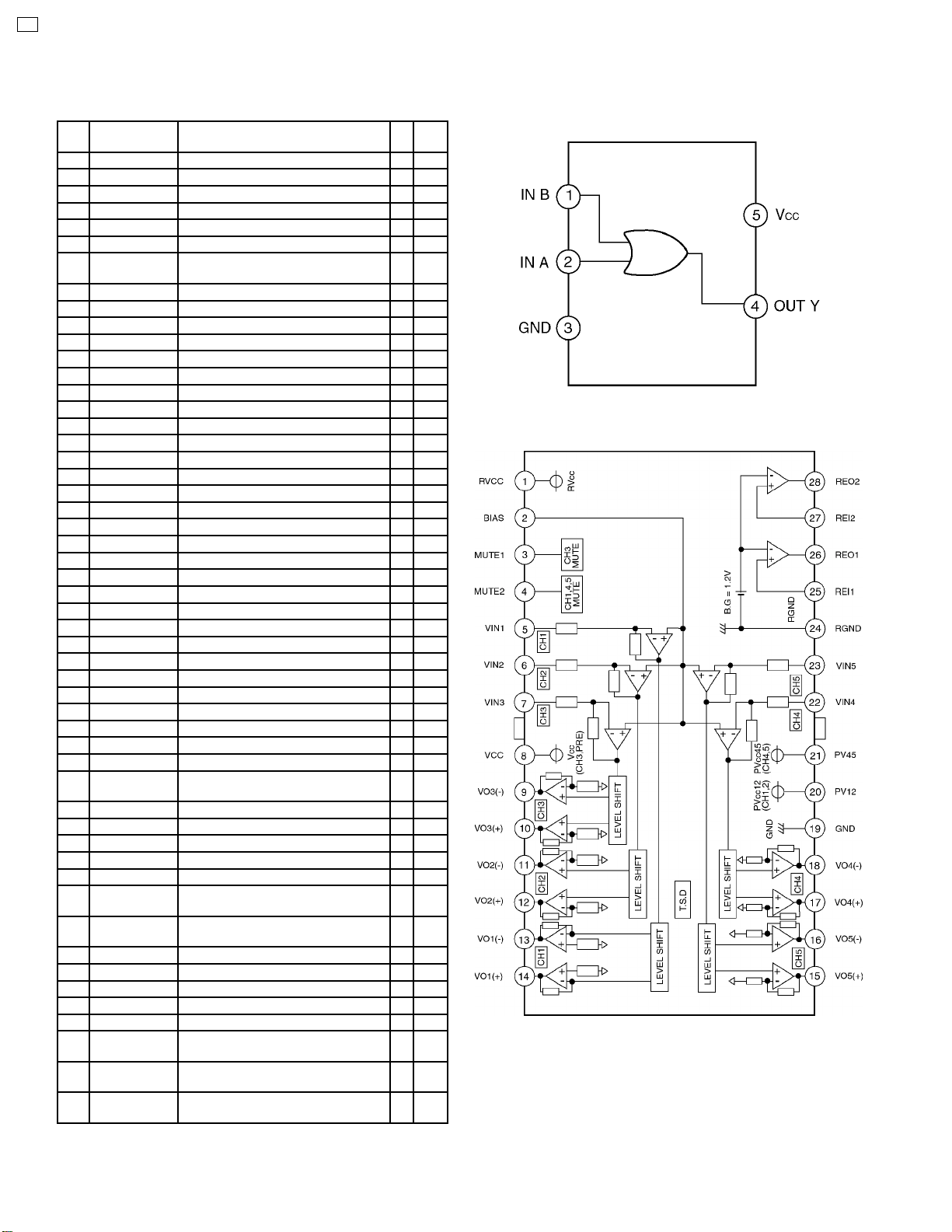

7 IC BLOCK DIAGRAM
7.1. Main Block
IC603 MN1382RTX
IC300 C1BA00000201
7
CQ-JS0482K
8 REPLACEMENT PARTS
LIST
Notes :
1. Be sure to make your orders of replacement parts
according to this list.
2. Important safety notice: Components, identified by
mark have special characteristics important for safety.
When replacing any of these components, use only
manufacturer´s specified parts.
3. Location keys in the remarks column indicates the general
location of the parts shown in the exploded drawing, as in a
road map.
4. The marking (RTL) indicates that Retention Time is limited
for this item. After the discontinuation of assembly in
production, the item will continue to be available for a
specific period of time. The retention period of availability is
dependent on the type of assembly, and in accordance with
the laws governing part and product retention. After the end
of this period, the assembly will no longer be available.
5. "PasTH" marks in remarks column are indicated supply
parts of Matsushita Communication Industrial Corp. of
Thailand.
Ref.
No.
[E6962] Main Block
IC´s AND TRANSISTORs
IC300 C1BA00000201 IC
IC601 C2CBHG000130 IC
IC602 C3EBGG000010 IC
IC603 MN1382RTX IC
IC701 C1EB00000084 IC
PK50 J3CZZA000002 Electronic Tuner
Q291 YEANC114YKX Transistor
Q710 YEAN2SA1757 Transistor
Q711 YEANB1142 Transistor
Q712 YEAN2SA1757 Transistor
Q713 B1ADMB000003 Transistor
Q714 2SB1321TA Transistor
Q715 B1GBCFNN0004 Transistor
Q745 B1ABCF000044 Transistor
Q746 2SB1440TX Transistor
Q747 2SD1030TX Transistor
Q751 B1GBCFNN0004 Transistor
Q771 B1CEGG000001 Transistor
Q772 B1CEGG000001 Transistor
Q773 B1CEGG000001 Transistor
Q801 B1CCBF000002 Transistor
Q802 B1ABCF000044 Transistor
Q803 B1GBCFJJ0002 Transistor
DIODEs
D611 MA165TA Diode
D613 MA165TA Diode
D701 YEADZSA5A27F Diode
D702 YEADRB051L40 Diode
D703 YEADSR1544TL Diode
D711 YEADSR1544TL Diode
D712 YEADSR1544TL Diode
D713 B0JCGD000002 Diode
CAPACITORs
C101 YECUS1C104KX Ceramic, 0.1µF 16WV
C102 ECEA1AKA470I Electrolytic, 47µF 10WV
C103 ECEA1AKA101I Electrolytic, 100µF 10WV
C105 YECUS1C104KX Ceramic, 0.1µF 16WV
Part No. Part Name & Description Remarks
Ref.
No.
C107 YECUS1C104KX Ceramic, 0.1µF 16WV
C108 ECA1AM471 Electrolytic, 470µF 10WV
C112 ECEA1HKA2R2I Electrolytic, 2.2µF 50WV
C113 ECEA1HKA2R2I Electrolytic, 2.2µF 50WV
C122 ECEA1HKA2R2I Electrolytic, 2.2µF 50WV
C123 ECEA1HKA2R2I Electrolytic, 2.2µF 50WV
C201 ECEA1HKA2R2I Electrolytic, 2.2µF 50WV
C202 F1J1H681A672 Ceramic, 680PF 50WV
;
C203 F1J1H681A672 Ceramic, 680PF 50WV
C205 YECUS1C105ZF Ceramic, 1µF 16WV
C252 ECEA1HKA2R2I Electrolytic, 2.2µF 50WV
C255 YECUS1C124KX Ceramic, 0.12µF 16WV
C256 YECUS1C124KX Ceramic, 0.12µF 16WV
C282 ECEA1HKA2R2I Electrolytic, 2.2µF 50WV
C285 YECUS1C124KX Ceramic, 0.12µF 16WV
C286 YECUS1C124KX Ceramic, 0.12µF 16WV
C291 YECUV2A103KX Ceramic, 0.01µF 100WV
C292 ECEA1EKA4R7I Electrolytic, 4.7µF 25WV
C301 ECEA1HKA2R2I Electrolytic, 2.2µF 50WV
C302 F1J1H681A672 Ceramic, 680PF 50WV
C303 F1J1H681A672 Ceramic, 680PF 50WV
C305 YECUS1C105ZF Ceramic, 1µF 16WV
C352 ECEA1HKA2R2I Electrolytic, 2.2µF 50WV
C355 YECUS1C124KX Ceramic, 0.12µF 16WV
C356 YECUS1C124KX Ceramic, 0.12µF 16WV
C382 ECEA1HKA2R2I Electrolytic, 2.2µF 50WV
C385 YECUS1C124KX Ceramic, 0.12µF 16WV
C386 YECUS1C124KX Ceramic, 0.12µF 16WV
C601 F1J1H200A025 Ceramic, 20PF 50WV
C602 F1J1H200A025 Ceramic, 20PF 50WV
C603 YECUS1H220JM Ceramic, 22PF 50WV
C604 YECUS1H220JM Ceramic, 22PF 50WV
C605 YECUS1C104KX Ceramic, 0.1µF 16WV
C606 ECA0JM331I Electrolytic, 330µF 6.3WV
C607 YECUS1C104KX Ceramic, 0.1µF 16WV
C609 YECUS1C105ZF Ceramic, 1µF 16WV
C610 YECUS1C104KX Ceramic, 0.1µF 16WV
C611 ECA0JM331I Electrolytic, 330µF 6.3WV
C612 YECUS1C104KX Ceramic, 0.1µF 16WV
C613 YECUS1C104KX Ceramic, 0.1µF 16WV
C614 ECEA0JKA101I Electrolytic, 100µF 6.3WV
C615 YECUS1C104KX Ceramic, 0.1µF 16WV
C616 YECUS1C104KX Ceramic, 0.1µF 16WV
C701 F2A1C1020067 Electrolytic, 1000µF 16WV
C704 YECUS2A103KX Ceramic, 0.01µF 100WV
C705 YECUS1E224ZF Ceramic, 0.22µF 25WV
C706 YECUS1E224ZF Ceramic, 0.22µF 25WV
C708 YECUV1E224ZF Ceramic, 0.22µF 25WV
C709 YECUS1E224ZF Ceramic, 0.22µF 25WV
C710 YECUS1C104KX Ceramic, 0.1µF 16WV
C711 YECUS1C104KX Ceramic, 0.1µF 16WV
C712 F1K0J1060015 Ceramic, 10µF 6.3WV
C713 ECEA0JKA101I Electrolytic, 100µF 6.3WV
C714 YECUS1H473KX Ceramic, 0.047µF 50WV
C715 F4D551040008 Electrolytic, 0.1µF 5.5WV
C716 YECUS1H473KX Ceramic, 0.047µF 50WV
C717 ECEA0JKA101I Electrolytic, 100µF 6.3WV
C718 F2A1C1020067 Electrolytic, 1000µF 16WV
C719 YECUS1C104KX Ceramic, 0.1µF 16WV
C720 F1L1C1060018 Ceramic, 10µF 16WV
C722 F1L1C1060018 Ceramic, 10µF 16WV
C723 YECUS1C104KX Ceramic, 0.1µF 16WV
C724 YECUS1C104KX Ceramic, 0.1µF 16WV
C725 YECUS1C105ZF Ceramic, 1µF 16WV
C726 YECUS1C105ZF Ceramic, 1µF 16WV
C727 YECUS1C105ZF Ceramic, 1µF 16WV
C728 YECUS1C104KX Ceramic, 0.1µF 16WV
C729 YECUV1A225KX Ceramic, 2.2µF 10WV
C730 YECUS1C104KX Ceramic, 0.1µF 16WV
C732 YECUS1C105ZF Ceramic, 1µF 16WV
C745 YECUS2A103KX Ceramic, 0.01µF 100WV
C746 YECUS1C105ZF Ceramic, 1µF 16WV
C748 YECUS1C105ZF Ceramic, 1µF 16WV
Part No. Part Name & Description Remarks
8
Ref.
No.
C772 YECUS1C104KX Ceramic, 0.1µF 16WV
C773 YECUS1C104KX Ceramic, 0.1µF 16WV
C774 YECUS1C104KX Ceramic, 0.1µF 16WV
C775 EEUFC1A221H Electrolytic, 220µF 10WV
C776 EEUFC1A221H Electrolytic, 220µF 10WV
C791 ECA1CDT222L Electrolytic, 2200µF 16WV
C793 ECEA1CKA100I Electrolytic, 10µF 16WV
C794 YECUS1C334KX Ceramic, 0.33µF 16WV
C795 YECUS1E224ZF Ceramic, 0.22µF 25WV
C796 YECUS1E224ZF Ceramic, 0.22µF 25WV
C797 YECUS1E224ZF Ceramic, 0.22µF 25WV
C798 YECUS1E224ZF Ceramic, 0.22µF 25WV
C802 ECEA1CKA100I Electrolytic, 10µF 16WV
C803 YECUS1C104KX Ceramic, 0.1µF 16WV
C804 YECUS1C105ZF Ceramic, 1µF 16WV
C806 YECUS1C104KX Ceramic, 0.1µF 16WV
C807 F1K1H104A033 Ceramic, 0.1µF 50WV
RESISTORs
J101 ERJ8GEY0R00V Chip, 0W 1/8W
J102 ERJ8GEY0R00V Chip, 0W 1/8W
J103 ERJ8GEY0R00V Chip, 0W 1/8W
J104 ERJ8GEY0R00V Chip, 0W 1/8W
J105 ERJ8GEY0R00V Chip, 0W 1/8W
J106 ERJ8GEY0R00V Chip, 0W 1/8W
J107 ERJ8GEY0R00V Chip, 0W 1/8W
J108 ERJ8GEY0R00V Chip, 0W 1/8W
J109 ERJ8GEY0R00V Chip, 0W 1/8W
J110 ERJ8GEY0R00V Chip, 0W 1/8W
J111 ERJ8GEY0R00V Chip, 0W 1/8W
J112 ERJ8GEY0R00V Chip, 0W 1/8W
J113 ERJ8GEY0R00V Chip, 0W 1/8W
J114 ERJ8GEY0R00V Chip, 0W 1/8W
J115 ERJ8GEY0R00V Chip, 0W 1/8W
J116 ERJ8GEY0R00V Chip, 0W 1/8W
J117 ERJ8GEY0R00V Chip, 0W 1/8W
J118 ERJ8GEY0R00V Chip, 0W 1/8W
J119 ERJ8GEY0R00V Chip, 0W 1/8W
J120 ERJ8GEY0R00V Chip, 0W 1/8W
J121 ERJ8GEY0R00V Chip, 0W 1/8W
J123 ERJ8GEY0R00V Chip, 0W 1/8W
J124 ERJ8GEY0R00V Chip, 0W 1/8W
J125 ERJ8GEY0R00V Chip, 0W 1/8W
J126 ERJ8GEY0R00V Chip, 0W 1/8W
J127 ERJ8GEY0R00V Chip, 0W 1/8W
J128 ERJ8GEY0R00V Chip, 0W 1/8W
J129 ERJ8GEY0R00V Chip, 0W 1/8W
J130 ERJ8GEY0R00V Chip, 0W 1/8W
J131 ERJ8GEY0R00V Chip, 0W 1/8W
J132 ERJ8GEY0R00V Chip, 0W 1/8W
J133 ERJ8GEY0R00V Chip, 0W 1/8W
J134 ERJ8GEY0R00V Chip, 0W 1/8W
J135 ERJ8GEY0R00V Chip, 0W 1/8W
J136 ERJ8GEY0R00V Chip, 0W 1/8W
J137 ERJ8GEY0R00V Chip, 0W 1/8W
J138 ERJ8GEY0R00V Chip, 0W 1/8W
J139 ERJ8GEY0R00V Chip, 0W 1/8W
J140 ERJ8GEY0R00V Chip, 0W 1/8W
J601 ERJ6GEY0R00V Chip, 0W 1/10W
L101 ERJ6GEYJ1R0V Chip, 1W 1/10W
L103 ERJ6GEYJ1R0V Chip, 1W 1/10W
R102 ERJ8GEYJ472V Chip, 4.7kW 1/8W
R103 ERJ6GEYJ473 Chip, 47kW 1/10W
R104 ERJ8GEYJ104V Chip, 100kW 1/8W
R106 ERJ8GEYJ472V Chip, 4.7kW 1/8W
R107 ERJ6GEYJ393 Chip, 39kW 1/10W
R108 ERJ6GEYJ393 Chip, 39kW 1/10W
R110 ERJ6GEYJ1R0V Chip, 1W 1/10W
R111 ERJ6GEYJ1R0V Chip, 1W 1/10W
R120 ERJ6GEYJ1R0V Chip, 1W 1/10W
R121 ERJ6GEYJ1R0V Chip, 1W 1/10W
R201 ERJ6GEYJ102 Chip, 1kW 1/10W
Part No. Part Name & Description Remarks
Ref.
No.
R202 ERJ6GEYJ102 Chip, 1kW 1/10W
R203 ERJ6GEYJ103 Chip, 10kW 1/10W
R211 ERJ6GEYJ222 Chip, 2.2kW 1/10W
R212 ERJ6GEYJ222 Chip, 2.2kW 1/10W
R213 ERJ6GEYJ182 Chip, 1.8kW 1/10W
R214 ERJ6GEYJ182 Chip, 1.8kW 1/10W
R252 ERJ6GEYJ1R0V Chip, 1W 1/10W
R255 ERJ6GEYJ2R2 Chip, 2.2W 1/10W
R256 ERJ6GEYJ2R2 Chip, 2.2W 1/10W
R282 ERJ6GEYJ1R0V Chip, 1W 1/10W
R285 ERJ6GEYJ2R2 Chip, 2.2W 1/10W
R286 ERJ6GEYJ2R2 Chip, 2.2W 1/10W
R291 ERJ6GEYJ184 Chip, 180kW 1/10W
R292 ERJ6GEYJ102 Chip, 1kW 1/10W
R293 ERJ6GEYJ103 Chip, 10kW 1/10W
R301 ERJ6GEYJ102 Chip, 1kW 1/10W
R302 ERJ6GEYJ102 Chip, 1kW 1/10W
R303 ERJ6GEYJ103 Chip, 10kW 1/10W
R311 ERJ6GEYJ222 Chip, 2.2kW 1/10W
R312 ERJ6GEYJ222 Chip, 2.2kW 1/10W
R313 ERJ6GEYJ182 Chip, 1.8kW 1/10W
R314 ERJ6GEYJ182 Chip, 1.8kW 1/10W
R352 ERJ6GEYJ1R0V Chip, 1W 1/10W
R355 ERJ8GEYJ2R2V Chip, 2.2W 1/8W
R356 ERJ6GEYJ2R2 Chip, 2.2W 1/10W
R382 ERJ6GEYJ1R0V Chip, 1W 1/10W
R385 ERJ6GEYJ2R2 Chip, 2.2W 1/10W
R386 ERJ6GEYJ2R2 Chip, 2.2W 1/10W
R585 ERJ6GEYJ332 Chip, 3.3kW 1/10W
R586 ERJ6GEYJ332 Chip, 3.3kW 1/10W
R587 ERJ8GEYJ332V Chip, 3.3kW 1/8W
R590 ERJ6GEYJ332 Chip, 3.3kW 1/10W
R601 ERJ6GEYJ102 Chip, 1kW 1/10W
R602 ERJ6GEYJ102 Chip, 1kW 1/10W
R603 ERJ6GEYJ473 Chip, 47kW 1/10W
R604 ERJ6GEYJ1R0V Chip, 1W 1/10W
R605 ERJ6GEYJ102 Chip, 1kW 1/10W
R606 ERJ6GEYJ104 Chip, 100kW 1/10W
R607 ERJ6GEYJ104 Chip, 100kW 1/10W
R608 ERJ8GEYJ104V Chip, 100kW 1/8W
R609 ERJ6GEYJ104 Chip, 100kW 1/10W
R611 ERJ6GEYJ102 Chip, 1kW 1/10W
R612 ERJ6GEYJ684 Chip, 680kW 1/10W
R613 ERJ6GEY0R00V Chip, 0W 1/10W
R615 ERJ6GEYJ102 Chip, 1kW 1/10W
R616 ERJ6GEYJ102 Chip, 1kW 1/10W
R622 ERJ8GEYJ102V Chip, 1kW 1/8W
R624 ERJ8GEYJ102V Chip, 1kW 1/8W
R625 ERJ8GEYJ102V Chip, 1kW 1/8W
R626 ERJ8GEYJ102V Chip, 1kW 1/8W
R627 ERJ8GEYJ102V Chip, 1kW 1/8W
R630 ERJ8GEYJ102V Chip, 1kW 1/8W
R631 ERJ8GEYJ102V Chip, 1kW 1/8W
R632 ERJ8GEYJ103V Chip, 10kW 1/8W
R633 ERJ8GEYJ102V Chip, 1kW 1/8W
R634 ERJ8GEYJ102V Chip, 1kW 1/8W
R635 ERJ8GEYJ102V Chip, 1kW 1/8W
R638 ERJ6GEYJ102 Chip, 1kW 1/10W
R639 ERJ6GEYJ102 Chip, 1kW 1/10W
R642 ERJ6GEYJ102 Chip, 1kW 1/10W
R643 ERJ6GEYJ102 Chip, 1kW 1/10W
R644 ERJ6GEYJ102 Chip, 1kW 1/10W
R645 ERJ6GEYJ102 Chip, 1kW 1/10W
R647 ERJ6GEYJ102 Chip, 1kW 1/10W
R648 ERJ6GEYJ102 Chip, 1kW 1/10W
R649 ERJ6GEYJ102 Chip, 1kW 1/10W
R650 ERJ6GEYJ103 Chip, 10kW 1/10W
R651 ERJ6GEYJ102 Chip, 1kW 1/10W
R652 ERJ8GEYJ102V Chip, 1kW 1/8W
R653 ERJ6GEYJ222 Chip, 2.2kW 1/10W
R654 ERJ6GEYJ222 Chip, 2.2kW 1/10W
R655 ERJ6GEYJ102 Chip, 1kW 1/10W
R656 ERJ6GEYJ222 Chip, 2.2kW 1/10W
Part No. Part Name & Description Remarks
CQ-JS0482K
9
CQ-JS0482K
Ref.
No.
R657 ERJ6GEYJ222 Chip, 2.2kW 1/10W
R658 ERJ6GEYJ222 Chip, 2.2kW 1/10W
R659 ERJ6GEYJ222 Chip, 2.2kW 1/10W
R660 ERJ6GEYJ473 Chip, 47kW 1/10W
R662 ERJ6GEYJ102 Chip, 1kW 1/10W
R663 ERJ6GEYJ102 Chip, 1kW 1/10W
R665 ERDS2TJ102T Carbon, 1kW 1/4W
R668 ERJ6GEYJ472 Chip, 4.7kW 1/10W
R669 ERJ8GEYJ223V Chip, 22kW 1/8W
R672 ERJ8GEYJ102V Chip, 1kW 1/8W
R673 ERJ8GEYJ102V Chip, 1kW 1/8W
R674 ERDS2TJ102T Carbon, 1kW 1/4W
R675 ERJ6GEYJ102 Chip, 1kW 1/10W
R676 ERJ8GEYJ473V Chip, 47kW 1/8W
R679 ERJ6GEYJ102 Chip, 1kW 1/10W
R680 ERJ8GEYJ102V Chip, 1kW 1/8W
R681 ERJ8GEYJ102V Chip, 1kW 1/8W
R682 ERJ6GEYJ102 Chip, 1kW 1/10W
R684 ERJ6GEYJ473 Chip, 47kW 1/10W
R685 ERJ6GEYJ472 Chip, 4.7kW 1/10W
R686 ERJ6GEYJ102 Chip, 1kW 1/10W
R687 ERJ6GEYJ473 Chip, 47kW 1/10W
R688 ERJ6GEYJ473 Chip, 47kW 1/10W
R689 ERJ6GEYJ473 Chip, 47kW 1/10W
R690 ERJ6GEYJ473 Chip, 47kW 1/10W
R705 ERJ6GEYJ332 Chip, 3.3kW 1/10W
R706 ERJ6GEYJ103 Chip, 10kW 1/10W
R707 ERJ6ENF2703V Chip, 270kW 1/10W
R708 ERJ6GEYJ1R0V Chip, 1W 1/10W
R709 YER122P5602D Metal Film, 56kW 1/10W
R710 ERJ6GEYJ1R0V Chip, 1W 1/10W
R711 ERJ6ENF2702V Chip, 27kW 1/10W
R712 ERJ6GEYJ1R0V Chip, 1W 1/10W
R713 ERJ6ENF4701V Chip, 4.7kW 1/10W
R715 ERJ8GEYJ1R0V Chip, 1W 1/8W
R716 ERJ6GEYJ1R0V Chip, 1W 1/10W
R717 ERJ6GEYJ1R0V Chip, 1W 1/10W
R718 ERJ6GEYJR47V Chip, 0.47W 1/10W
R719 ERX2SJ2R2P Metal Film, 2.2W 2W
R722 ERJ6GEYJR47V Chip, 0.47W 1/10W
R723 ERJ6GEYJR47V Chip, 0.47W 1/10W
R726 ERJ6GEYJ1R0V Chip, 1W 1/10W
R737 ERJ6GEYJ1R0V Chip, 1W 1/10W
R744 ERJ6GEYJ473 Chip, 47kW 1/10W
R746 ERJ6GEYJ473 Chip, 47kW 1/10W
R747 ERJ6GEYJ103 Chip, 10kW 1/10W
R748 ERJ6GEYJ473 Chip, 47kW 1/10W
R749 ERJ6GEYJ1R0V Chip, 1W 1/10W
R750 ERJ6GEYJ473 Chip, 47kW 1/10W
R751 ERJ6GEYJ103 Chip, 10kW 1/10W
R752 ERJ6GEYJ103 Chip, 10kW 1/10W
R757 ERJ6GEY0R00V Chip, 0W 1/10W
R759 ERJ6GEYJ1R0V Chip, 1W 1/10W
R770 ERJ6GEYJ102 Chip, 1kW 1/10W
R771 ERJ6GEYJ102 Chip, 1kW 1/10W
R772 ERJ6GEYJ102 Chip, 1kW 1/10W
R773 ERJ6GEYJ102 Chip, 1kW 1/10W
R774 ERJ6GEYJ102 Chip, 1kW 1/10W
R775 ERJ6GEYJ102 Chip, 1kW 1/10W
R776 ERJ6GEYJ102 Chip, 1kW 1/10W
R777 ERJ6GEYJ474 Chip, 470kW 1/10W
R778 ERJ6GEYJ562 Chip, 5.6kW 1/10W
R779 ERJ6GEYJ474 Chip, 470kW 1/10W
R780 ERJ6GEYJ562 Chip, 5.6kW 1/10W
R781 ERJ6GEYJ474 Chip, 470kW 1/10W
R782 ERJ6GEYJ562 Chip, 5.6kW 1/10W
R802 ERJ6GEYJ103 Chip, 10kW 1/10W
R803 ERJ6GEYJ332 Chip, 3.3kW 1/10W
R804 ERJ6GEYJ104 Chip, 100kW 1/10W
R805 ERJ6GEYJ104 Chip, 100kW 1/10W
R806 ERJ6GEYJ472 Chip, 4.7kW 1/10W
Part No. Part Name & Description Remarks
Ref.
No.
CONNECTORs
CN611 YEAEK623214S Connector, 14P
CN701 YEAE012462 Connector, 10P+6P
CN901 K1KA06B00133 Connector, 6P
CN902 K1KA06B00133 Connector, 6P
COILs
L51 G1C3R3J00003 Coil
L52 G2A402C00003 COIL
L102 YELTBLM21A10 Coil
L601 YELTBLM21A10 Coil
L603 YELTBLM21A10 Coil
L604 YELTBLM21A10 Coil
L605 YELTBLM21A10 Coil
L606 YELTBLM21A10 Coil
L701 G0A151J00004 Coil
L771 YELTBMHS800T Coil
L772 YELTBMHS800T Coil
L773 J0JCC0000012 Coil
CRYSTALs
XL601 YEXL49U1258T Crystal Oscillator
XL602 H0A327200080 Crystal Oscillator
FILTERs
Z51 J0LM00000001 Noise Filter
[E9546] Display Block
IC´s AND TRANSISTORs
IC901 YEAMLC75853 IC
DIODEs
D901 B3ABB0000140 Diode
D902 B3ABB0000140 Diode
D903 B3ABB0000140 Diode
D904 B3ABB0000140 Diode
D905 B3ABB0000140 Diode
D906 B3ABB0000140 Diode
D907 B3ABB0000140 Diode
D908 B3ABB0000140 Diode
D909 B3ABB0000140 Diode
D910 B3ABB0000140 Diode
D911 B3ABB0000140 Diode
D912 B3ABB0000140 Diode
D913 B3ABB0000140 Diode
D914 B3ABB0000140 Diode
D915 B3ABB0000140 Diode
D916 B3ABB0000140 Diode
D917 B3ABB0000140 Diode
D919 B3ABB0000140 Diode
D921 B3ABB0000168 Diode
D922 B3ABB0000168 Diode
D923 B3ABB0000168 Diode
D924 B3ABB0000168 Diode
D925 B3ABB0000168 Diode
D926 B3ABB0000168 Diode
D927 B3ABB0000168 Diode
D928 B3ABB0000168 Diode
D941 MA8056LMHTX Diode
D942 MA8056LMHTX Diode
D943 MA8056LMHTX Diode
D945 MA8056LMHTX Diode
D946 MA8056LMHTX Diode
D947 MA8056LMHTX Diode
D948 MA8056LMHTX Diode
D949 MA8056LMHTX Diode
Part No. Part Name & Description Remarks
10
Ref.
No.
CAPACITORs
C901 F1J1H103A513 Ceramic, 0.01µF 50WV
C902 YECUS1H473KX Ceramic, 0.047µF 50WV
C903 YECUS1H473KX Ceramic, 0.047µF 50WV
C904 F1J1H821A672 Ceramic, 820PF 50WV
C905 F1J1H103A513 Ceramic, 0.01µF 50WV
C910 F1J1H101A672 Ceramic, 100PF 50WV
C911 F1J1H101A672 Ceramic, 100PF 50WV
RESISTORs
R901 ERJ6GEYJ683 Chip, 68kW 1/10W
R902 ERJ6GEYJ472 Chip, 4.7kW 1/10W
R903 ERJ6GEYJ391 Chip, 390W 1/10W
R905 ERJ6GEYJ102 Chip, 1kW 1/10W
R907 ERJ6GEYJ271 Chip, 270W 1/10W
R908 ERJ6GEYJ271 Chip, 270W 1/10W
R910 ERJ6GEYJ271 Chip, 270W 1/10W
R911 ERJ6GEYJ431V Chip, 430W 1/10W
R913 ERJ6GEYJ561 Chip, 560W 1/10W
R915 ERJ6GEYJ151 Chip, 150W 1/10W
R916 ERJ6GEYJ151 Chip, 150W 1/10W
R917 ERJ6GEY0R00V Chip, 0W 1/10W
R921 ERJ6GEYJ102 Chip, 1kW 1/10W
R922 ERJ6GEYJ102 Chip, 1kW 1/10W
R923 ERJ6GEYJ102 Chip, 1kW 1/10W
R924 ERJ6GEYJ103 Chip, 10kW 1/10W
R925 ERJ6GEYJ103 Chip, 10kW 1/10W
R931 ERJ6GEY0R00V Chip, 0W 1/10W
R932 ERJ6GEY0R00V Chip, 0W 1/10W
R933 ERJ6GEY0R00V Chip, 0W 1/10W
R934 ERJ6GEY0R00V Chip, 0W 1/10W
R935 ERJ6GEY0R00V Chip, 0W 1/10W
R936 ERJ6GEY0R00V Chip, 0W 1/10W
R937 ERJ6GEY0R00V Chip, 0W 1/10W
R938 ERJ6GEY0R00V Chip, 0W 1/10W
Part No. Part Name & Description Remarks
Ref.
No.
Mechanical Parts
MISCELLANEOUS
CNP1 YGAP2856 FPC, 14P
ANT51 YEAA10060 Antenna Receptacle
AT1 YEAT03346A Terminal
AT3 YEAT03346A Terminal
AT4 YEAT03346A Terminal
3 YGFX0012292A Transparent Plate
4 YEFV021953 Optical Shade
5 YGFX0216029 Bracket, LCD901
6 YGFX0216211 Bracket, GND
7 YGFC028549 Escutcheon Ass´y PasTH
8 YGFE02595 Knob PasTH
10 YEP0PT9546Z9 Display PCB w/Component RTL,
11 YGFA012104 Chassis PasTH
12 YGFF011137 Heat Sink PasTH
14 YEP0PT6962Y9 Main PCB w/Component RTL,
16 YGFX0216031 Bracket, IC300
17 YGFX0216030 Bracket, Q710,Q712
18 YGFA05868 Bottom Cover PasTH
31 YEJT01103 Tapping Screw
32 YEJT03133 Tapping Screw
33 YEJT03324 Tapping Screw
34 YEJT03289 Tapping Screw
35 YEJT03180 Tapping Screw
36 XTB2+6GFX Tapping Screw, 2~6mm
Part No. Part Name & Description Remarks
PasTH
PasTH
CQ-JS0482K
CONNECTORs
CP901 YEAETKCF06QS Connector, 6P
CP902 YEAETKCF06QS Connector, 6P
COILs
L901 YELT03N101JT Coil
SWITCHes
SW901 VSP1090 Switch
SW902 VSP1090 Switch
SW904 VSP1090 Switch
SW905 VSP1090 Switch
SW906 VSP1090 Switch
SW907 VSP1090 Switch
SW908 VSP1090 Switch
SW909 VSP1090 Switch
SW910 VSP1090 Switch
SW911 VSP1090 Switch
SW912 VSP1090 Switch
SW913 VSP1090 Switch
SW914 VSP1090 Switch
SW915 VSP1090 Switch
SW916 VSP1090 Switch
SW918 VSP1090 Switch
VR901 K9AA015B0048 Switch
LCD
LCD901 L5AAAGC00047 LCD PasTH
11
CQ-JS0482K
9 EXPLODED VIEW (Unit)
12
10 WIRING DIAGRAM
10.1. Display Block
CQ-JS0482K
13
CQ-JS0482K
10.2. Main Block (Top View)
14
10.3. Main Block (Bottom View)
CQ-JS0482K
15
CQ-JS0482K
11 SCHEMATIC DIAGRAM-1
11.1. Display Block
16
12 SCHEMATIC DIAGRAM-2
12.1. Main Block
The following symbols are
shown on the schematic diagram.
10V
8V
5V
3.3V
R
To
E-9221Aa
CN402
(R) (R)
8V
L
R
R
L
8V
R
R
L
L
PK50
FM AM
0
0
1
0
0
2
0
0
3
8.0
8.0
4
10.0
10.0
5
1.2
0.8
6
7
0
0
8
9
10
5.2
5.2
11
0
0
12
0
0
13
0
0
14
5.2
5.2
15
1.1
1.1
16
5.2
5.2
17
5.0
5.0
18
0
0
19
0
0
20
0
0
21
0
0
22
23
24
3.6
3.6
25
3.6
3.6
26
27
28
8.0
8.0
29
3.7
3.7
30
3.7
3.7
31
3.7
3.7
32
3.7
3.7
33
+B
Acc
10V
8V
5V
3.3V
CD(L,R)
AUDIO(L,R)
L
CQ-JS0482K
E-6962
6.7
6.7
13.0
R712
3.3V
8V
5V
5.2
5.2
0
0
0
10V
8V
L
5.2
R
00
0
2V/DIV,0.2S/DIV
R
R
L
L
2V/DIV,0.2S/DIV
L
R
L
R
R
L
YEADZSA5A27F
1/4W
R
R
L
L
10V
8V
8V
R604
L
R
5V
3.3V
R
L
R
L
R
L
R282
R252
R382
R352
5V
1/4W
2V/DIV,0.1mS/DIV
1V/DIV,0.1mS/DIV
2V/DIV,0.2S/DIV
2V/DIV,5µS/DIV
2V/DIV,0.2S/DIV
5V
5V
5V
2V/DIV,0.5µS/DIV
0
0
5.2
5.2
0
R111
R110
R121
R120
R
L
0
0.7
0
0
R
L
5V
5.0
5.0
2V/DIV,0.5µS/DIV
0
2V/DIV,0.2S/DIV 2V/DIV,0.2S/DIV
5V
000
0
000
5.0
5.0
0
0
0
0
0
0
0
6.9
6.9
6.8
6.8
1.3
1.3
YEANC114YKX
5.0
0
0
3.6
13.0
R708
YEADRB
051L40
8V
8V
YEANB1142
10.4
10V
12.8
10V
5V
YEADSR1544TL
10V
9.6
10.2
10.1
9.6
0
0
9.6
B1GBCFNN0004
12.8
8.1
YEAN2SA
1757
2SB1440TX
9.6
2SD1030TX
10.1
10.4
12.2
8.1
8.1
8.1
12.2
5.0
5.0
0
0
0
0
10.0
5.1
12.2
12.8
5V
10V
Q710
YEAN2SA1757
10.0
12.2
12.2
7.3
5.3
2.1
5.3
5.3
2.0
1.9
1.9
3.6
3.5
3.3V
4.5
5.3
5.3
4.5
5.3
10V
10V
12.8
YEADSR1544TL
YEADSR1544TL
5.5V0.1
5V
3.3V
5V
R710
MA165TA
6.8
6.8
8.0
1.3
1.3
5V
10V
10V
To E-9546 CP901
CQ-JS0482K
To E-9546 CP902
17
CQ-JS0482K
18
13 MEMO
CQ-JS0482K
19
CQ-JS0482K
20
CONTENTS
Page Page
1 FEATURES 2
2 LASER PRODUCTS
3 WIRING CONNECTION (CD Deck)
4 BLOCK DIAGRAM (CD Deck)
5 TERMINALS DESCRIPTION (CD Deck)
6 IC BLOCK DIAGRAM (CD Deck) 4
2
7 REPLACEMENT PARTS LIST (CD Deck)
2
8 EXPLODED VIEW (CD Deck)
9 WIRING DIAGRAM (CD Deck)
3
4
10 SCHEMATIC DIAGRAM (CD Deck)
11
6
8
9
1 FEATURES
· NCD-9 CD Deck.
· 12cm CD only.
· The specifications are based on the main unit.
2 LASER PRODUCTS
3 WIRING CONNECTION (CD Deck)
2
4 BLOCK DIAGRAM (CD Deck)
3
5 TERMINALS
6 IC BLOCK DIAGRAM (CD
DESCRIPTION (CD Deck)
Pin
No.
1 P50 RFOK D63712 RFOK Signal I 3.4
2 P51/RST D63712 /RST Signal O 3.4
3 P52 A0 D63712 A0 Signal O 2.9
4 P53/STB D63712 /STB Signal O 3.3
5 P54 XEN D63712 /XTALEN Signal O 0
6 P55 8/12cm 0:12cm 1:8cm I 3.4
7 P56 HOLD 0:Wound vibration(Defect Hold) 1:
8 P57(NC) - - -
9 VSS0 - - 10 VDD0 - - 11 SI31 Pana Bus SI I 3.4
12 SO31 Pana Bus SO O 1.8
13 SCK31 Pana Bus SCK I 3.4
14 SI SI30 D63712 SI I 0
15 SO SO30 D63712 SO O 1.8
16 SCK/SCK30 D63712 SCK O 3.2
17 P23 SW2 SW2 I 3.4
18 P24 SW5 SW5 I 3.4
19 P25 SW4 SW4 I 0
20 VDD1 - - 21 AVSS - - 22 Q1 ANI3 SW1 I 2.6
23 Q3 ANI12 SW3 I 1.7
24 Q6ANI1 SW6 I 2.1
25 SDI ANI0 Input of thread I 3.4
26 AVREF - - 27 AVDD - - 28 /RESET - - 29 XT2(NC) - - 30 XT1 - - 31 IC/VPP - - 32 X2 - - 33 X1 - - 34 VSS1 - - 35 INTP0 D63712 SUBQ/CD TextInt I 0
36 INTQ INTP1 - I 0
37 CDON INTP2 Operation mode (H: Power supply
38 P03 RMUTE TEST I 0
39 P70 LMUTE TEST I 0
40 P71 IFR TEST PORT(P TP40) O 0
41 TO50 SD0A Stepping motor drive PW M output O 0
42 TO51 SD0B Stepping motor drive PW M output O 0
43 P74 SW1 SW1 level control (at CD TEXT data
44 P75 H (lighting): SLEEP/DISC no L
45 P40 TEST PORT(P TP45) O 0
46 P41 MASHON D63712 sending control O 3.4
47 P42 LOCK D63712 LOCK signal I 3.4
48 P43 LOD2(NC) - - 49 P44 LOD1 Loading motor control terminal 1 O 1.9
50 P45
51 P46
52 P47 STB345 Driver power supply MUTE (FO/TE
Port Description I/O (V)
STB12(SLED)
STB6(LOAD)
IC201 : C2BBFD000461
Normal (No Defect Hold)
ON)
sent)
(turning off): DISC clamping
Driver power supply MUTE (thread
output) control
Driver power supply MUTE (LOAD
output) control
output) control
I 3.4
I 3.1
I/O 3.4
I/O 3.4
O 0
O 0
O 3.4
Deck)
IC401 C0JBAE000087
IC301 C0GBY0000012
4
IC101 C1BB00000806
5
7 REPLACEMENT PARTS
LIST (CD Deck)
Notes :
1. Be sure to make your orders of replacement parts
according to this list.
2. Important safety notice: Components, identified by
have special characteristics important for safety. When
replacing any of these components, use only
manufacturer´s specified parts.
3. Location keys in the remarks column indicates the general
location of the parts shown in the exploded drawing, as in a
road map.
4. The marking (RTL) indicates that Retention Time is limited
for this item. After the discontinuation of assembly in
production, the item will continue to be available for a
specific period of time. The retention period of availability is
dependent on the type of assembly, and in accordance with
the laws governing part and product retention. After the end
of this period, the assembly will no longer be available.
Ref.
No.
[E9221A] CD Servo Block
IC´s and TRANSISTORs
IC101 C1BB00000806 IC
IC102 B1GKGBNN0001 IC
IC201 C2BBFD000461 IC
IC301 C0GBY0000012 IC
IC302 YEAMD16808G IC
IC401 C0JBAE000087 IC
IC402 YEAMMC3326D3 IC
Q101 2SB766ATX Transistor
DIODEs
D1 MA152WKTX Diode
D123 B0ACCK000005 Diode
CAPACITORs
C101 F1G1A104A001 Ceramic, 0.1µF 10WV
C102 F1G1A104A001 Ceramic, 0.1µF 10WV
C103 F3H0J1070005 Tantalum, 100µF 6.3WV
C104 F1G1H222A401 Ceramic, 2200PF 50WV
C105 F1G1H152A401 Ceramic, 1500PF 50WV
C107 F1G1E1030003 Ceramic, 0.01 µF 25 WV
C111 F1J0J1060007 Ceramic, 10 µF 6.3 WV
C112 F1G1A104A001 Ceramic, 0.1µF 10WV
C114 F1G1A104A001 Ceramic, 0.1µF 10WV
C115 F1J0J1060007 Ceramic, 10 µF 6.3 WV
C116 F1G1A104A001 Ceramic, 0.1µF 10WV
C117 F1G1A104A001 Ceramic, 0.1µF 10WV
C118 F1G1A104A001 Ceramic, 0.1µF 10WV
C120 F1G1A104A001 Ceramic, 0.1µF 10WV
C133 F1G1A104A001 Ceramic, 0.1µF 10WV
C151 F1G1A104A001 Ceramic, 0.1µF 10WV
C167 F1G1A104A001 Ceramic, 0.1µF 10WV
C168 F1G1E1030003 Ceramic, 0.01 µF 25 WV
C169 F1G1A104A001 Ceramic, 0.1µF 10WV
C173 F1G1H470A058 Ceramic, 47PF 50WV
C174 F1G1H2R0A101 Ceramic, 2.0PF 50WV
C176 F1H1H272A021 Ceramic, 2700PF 50WV
C177 YECUZ1E104ZF Ceramic, 0.1µF 25WV
C180 F1G1A104A001 Ceramic, 0.1µF 10WV
C190 F1G1A104A001 Ceramic, 0.1µF 10WV
C191 F1G1A104A001 Ceramic, 0.1µF 10WV
C192 F1G1H330A058 Ceramic, 33PF 50WV
C195 F1G1H330A058 Ceramic, 33PF 50WV
Part No. Part Name & Description Remarks
mark
Ref.
No.
C197 F1G1A104A001 Ceramic, 0.1µF 10WV
C198 F1G1H1020006 Ceramic, 1000PF 50WV
C201 F1H1A4740008 Ceramic, 0.47µF 10WV
C202 F1G1A104A001 Ceramic, 0.1µF 10WV
C218 F1G1E1030003 Ceramic, 0.01µF 25WV
C310 F1J0J1060007 Ceramic, 10 µF 6.3 WV
C311 F1G1A104A001 Ceramic, 0.1µF 10WV
C312 F1G1A104A001 Ceramic, 0.1µF 10WV
C313 F1J0J1060007 Ceramic, 10 µF 6.3 WV
C320 F1G1E1030003 Ceramic, 0.01µF 25WV
C321 F1G1E1030003 Ceramic, 0.01µF 25WV
C322 F1G1E1030003 Ceramic, 0.01µF 25WV
C323 ECEV1CA470SP Electrolytic, 47µF 16WV
C324 F1H1A4740008 Ceramic, 0.47µF 10WV
C441 F2G0J1010001 Electrolytic, 100µF 6.3WV
C442 F1G1A104A001 Ceramic, 0.1µF 10WV
C443 F1H1A4740008 Ceramic, 0.47µF 10WV
C444 F1G1A104A001 Ceramic, 0.1µF 10WV
C446 F2G0J1010001 Electrolytic, 100µF 6.3WV
C604 F1H1H4710007 Ceramic, 470PF 50WV
C605 F1H1H4710007 Ceramic, 470PF 50WV
C606 F1H1H4710007 Ceramic, 470PF 50WV
C607 F1H1H4710007 Ceramic, 470PF 50WV
RESISTORs
R101 D0GBR00Z0001 Metal Film, 0
R102 D0GD1R0JA028 Metal Film, 1
R114 D0GBR00Z0001 Metal Film, 0
R123 D0GA473JA013 Metal Film, 47k
R141 D0GA103JA013 Metal Film, 10k
R142 D0GA103JA013 Metal Film, 10k
R143 D0GA103JA013 Metal Film, 10k
R144 D0GA103JA013 Metal Film, 10k
R145 D0GA103JA013 Metal Film, 10k
R146 D0GA103JA013 Metal Film, 10k
R152 D0GA682JA013 Metal Film, 6.8k
R154 D0GA103JA013 Metal Film, 10k
R156 D0YAR00J0002 Metal Film, 0
R158 D0GA122JA013 Metal Film, 1.2k
R168 D0GA103JA013 Metal Film, 10k
R169 D0GA393JA013 Metal Film, 39k
R173 D0GA122JA013 Metal Film, 1.2k
R186 D0GA333JA013 Metal Film, 33k
R187 D0GA333JA013 Metal Film, 33k
R199 D0YAR00J0002 Metal Film, 0
R201 D0GBR00Z0001 Metal Film, 0
R204 D0YAR00J0002 Metal Film, 0
R205 D0GA473JA013 Metal Film, 47k
R206 D0GA473JA013 Metal Film, 47k
R207 D0GA332JA013 Metal Film, 3.3k
R213 D0YAR00J0002 Metal Film, 0
R218 D0GA563JA013 Metal Film, 56k
R223 D0GA563JA013 Metal Film, 56k
R321 D0YAR00J0002 Metal Film, 0
R322 D0YAR00J0002 Metal Film, 0
R354 D0GA103JA013 Metal Film, 10k
R411 ERJ2GEJ334X Chip, 330k
R423 D0YAR00J0002 Metal Film, 0
R431 D0YAR00J0002 Metal Film, 0
R433 D0GA273JA013 Metal Film, 27k
R440 D0GA102JA013 Metal Film, 1k
R442 D0GA102JA013 Metal Film, 1k
R604 D0GBR00Z0001 Metal Film, 0
R607 D0GBR00Z0001 Metal Film, 0
CONNECTORs
CN101 K1MN15A00035 Connector, 15P
CN402 K1MN14B00080 Connector, 14P
CN901 K1MN14B00080 Connector, 14P
Part No. Part Name & Description Remarks
ΩΩΩΩ
1/16W
ΩΩΩΩ
1/16W
ΩΩΩΩ
1/16W
ΩΩΩΩ
1/16W
ΩΩΩΩ
1/16W
ΩΩΩΩ
1/16W
ΩΩΩΩ
1/16W
ΩΩΩΩ
1/16W
ΩΩΩΩ
1/16W
ΩΩΩΩ
1/16W
ΩΩΩΩ
1/16W
ΩΩΩΩ
1/16W
ΩΩΩΩ
1/16W
ΩΩΩΩ
1/16W
ΩΩΩΩ
1/16W
ΩΩΩΩ
1/16W
ΩΩΩΩ
1/16W
ΩΩΩΩ
1/16W
ΩΩΩΩ
1/16W
ΩΩΩΩ
1/16W
ΩΩΩΩ
1/16W
ΩΩΩΩ
1/16W
ΩΩΩΩ
1/16W
ΩΩΩΩ
1/16W
ΩΩΩΩ
1/16W
ΩΩΩΩ
1/16W
ΩΩΩΩ
1/16W
ΩΩΩΩ
1/16W
ΩΩΩΩ
1/16W
ΩΩΩΩ
1/16W
ΩΩΩΩ
1/16W
ΩΩΩΩ
1/16W
ΩΩΩΩ
1/16W
ΩΩΩΩ
ΩΩΩΩ
ΩΩΩΩ
ΩΩΩΩ
1/16W
ΩΩΩΩ
1/16W
1/16W
1/16W
1/16W
1/16W
ΩΩΩΩ
6
Ref.
No.
SWITCHE
SW5 K0L1BA000022 Switch
CRYSTALs
XL101 H2D169500017 Crystal
XL201 H2D838400004 Crystal
[E9222A] CD Photo Block
IC´s and TRANSISTORs
Q1 B3HB00000019 Transistor
Q3 B3HB00000019 Transistor
Q6 B3HB00000019 Transistor
DIODEs
D1 B3EB00000013 Diode
D3 B3EB00000013 Diode
D6 B3EB00000013 Diode
Part No. Part Name & Description Remarks
RESISTORs
J1 ERJ8GEY0R00V Chip, 0
J2 ERJ8GEY0R00V Chip, 0
J3 ERJ8GEY0R00V Chip, 0
J4 ERJ8GEY0R00V Chip, 0
R454 ERJ6GEYJ332 Chip, 3.3k
R461 ERJ6GEYJ224 Chip, 220k
R463 ERJ6GEYJ224 Chip, 220k
R466 ERJ6GEYJ224 Chip, 220k
R471 ERJ6GEYJ121 Chip, 120
R473 ERJ6GEYJ121 Chip, 120
R476 ERJ6GEYJ121 Chip, 120
R482 D0GDR00Z0001 Metal Film, 0
R483 ERJ6GEYJ332 Chip, 3.3k
CONNECTORs
CN902 K1MN10B00102 Connector, 10P
SWITCHEs
SW2 K0L1BA000022 Switch
SW4 K0L1BA000023 Switch
Mechanical Parts
MISCELLANEOUS
AT1 YEATSD00405 Terminal
1 YGP0FX5370 Clamper Arm Unit
2 YGFX0052745 Clamper Arm Spring
3 YGP0FX4985 Main Chassis (U) Unit
4 YGP0FX4998 Traverse Unit
7 YGP0FX5305 Feeder Arm Unit
9 YGFX0052672 Suspension Spring (B)
10 YGFX0052672 Suspension Spring (A)
11 YGP0FX4993 Suspension Unit
12 YGP0FX5303 Main Chassis (L) Unit
ΩΩΩΩ
1/8W
ΩΩΩΩ
1/8W
ΩΩΩΩ
1/8W
ΩΩΩΩ
1/8W
ΩΩΩΩ
1/10W
ΩΩΩΩ
1/10W
ΩΩΩΩ
1/10W
ΩΩΩΩ
1/10W
ΩΩΩΩ
1/10W
ΩΩΩΩ
1/10W
ΩΩΩΩ
1/10W
ΩΩΩΩ
1/16W
ΩΩΩΩ
1/10W
21 YGJS02044 Screw
22 YGJS02043 Screw, M1.4 * 2
7
8 EXPLODED VIEW (CD Deck)
8
9 WIRING DIAGRAM (CD Deck)
9.1. CD Servo Block
100
4
6
[E-9221A][T op Vie w]
[E-9221A][Bottom View]
3
4
76
75
51
3
1
1
5
14
13
52
YGFD15273 CD SERVO P.C.B.
9
9.2. CD Photo Block
[E-9222Aa][T op Vie w]
[E-9222Ab][T op Vie w]
YGFD15273 CD PHOTO P.C.B.
10
10 SCHEMATIC DIAGRAM (CD Deck)
To
Main P.C.B.
14P Connector
11
GFD15273 MAIN
Loading...
