Safety Information

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND ANNOYING INTERFERENCE, USE ONLY THE INCLUDED COMPONENTS.

The following applies only in the U.S.A.

Part 15 of the FCC Rules

FCC Warning:

Any unauthorized changes or modifications to this equipment would void the user’s authority to operate this device.

CAUTION:

THIS PRODUCT IS A CLASS I LASER PRODUCT. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

NOTICE:

This product has a fluorescent lamp that con­ tains a small amount of mercury. It also con­ tains lead in some components. Disposal of these materials may be regulated in your com­ munity due to environmental considerations. For disposal or recycling information please contact your local authorities, or the Electronics Industries Alliance: <http://www.eiae.org.>

Find the model number and serial number on either the back or bottom of the unit. Please record them in the space below and retain this booklet as a per­ manent record of your purchase to help with identi­ fication in case of theft.

		CQ-0F783U
MODEL	NUMBER	CQ-DFX403U
SERIAL	NUMBER

DATE PURCHASED

FROM

CQ-DF783/DFX403U

Consignes de sécurité

Información para su seguridad

MISE EN GARDE;

POUR RÉDUIRE LES RISQUES D’INCENDIE OU D’ÉLECTROCUTION, N’EXPOSEZ PAS CET APPAREIL À U PLUIE OU À L’HUMIDITÉ.

AFIN DE PRÉVENIR TOUT RISQUE D’INCENDIE OU D’INTERFÉRENCES, UTILISER UNIQUEMENT LES COMPOSANTS FOURNIS.

ADVERTENCIA:

PARA REDUCIREL RIESGO DE INCENDIOS O SACUDIDAS ELÉCTRICAS, NO EXPONGA ESTE PRODUCTO A LA LLUVIA NI A LA HUMEDAD.

PARA REDUCIREL RIESGO DE INCENDIOS O SACUDIDAS ELÉCTRICAS, Y PARA EVITAR US INTERFERENCIAS MOLESTAS, UTILICE SOLAMENTE LOS COMPONENTES INCLUIDOS.

AHENTION:

PRECAUCION:

CET APPAREIL EST UN PRODUIT LASER DE U CLASSE I.

L’UTILISATION DE COMMANDES OU RÉGLAGES OU L’EXÉCUTION D’OPÉRATIONS AUTRES QUE CELLES QUI SONT INDIQUÉES DANS CE DOCUMENT PEUVENT RÉSULTER EN UNE EXPOSITION À UN RAYONNEMENT DANGEREUX.

N’OUVREZ PAS LES COUVERCLES ET N’ESSAYEZ PAS D’EFFECTUER VOUS-MÊME DES RÉPARATIONS. ADRESSEZ-VOUS À UN PERSONNEL QUALIFIÉ POUR TOUTE RÉPARATION.

ÉSTE ES UN PRODUCTO LÁSER DE U CUSE I.

U UTILIZACIÓN DE CONTROLES, EL HACER AJUSTES O EL SEGUIR PROCEDIMIENTOS DISTINTOS DE LOS ESPECIFICADOS EN ESTE MANUAL PODRÍA CAUSAR UNA EXPOSICIÓN PELIGROSA A U RADIACIÓN.

NO ABRA US CUBIERTAS NI HAGA REPARACIONES USTED MISMO. SOLICITE LOS TRABAJOS DE SERVICIO AL PERSONAL CALIFICADO.

II est recommandé de noter, dans l’espace prévu ci-dessous, les numéros de modèle et de série inscrits soit à l’arrière soit sous le fond de l’appareil, et de conserver ce manuel comme mémorandum de l’achat afin de permettre l’identification de l’appareil en cas de vol.

Busque el número del modelo y el número de serie ya sea en la parte trasera o en el fondo de la unidad. Sírvase anotar dichos números en el espacio siguiente, y mantenga este líbrete como una anotación permanente de su compra para ayudar en la identificación en el caso de robo.

	CQ-DF783U		CQ-DF783U
NUMERO DE MODELE	CQ-DFX403U	NUMERO DEL MODELO	CQ-DFX403U
NUMÉRO DE SÉRIE		NÚMERO DE SERIE
DATE DE L’ACHAT		FECHA DE COMPRA
VENDEUR		NOMBRE DE LA TIENDA

CQ-DF783/DFX403U

Panasonic welcomes you to our ever growing family of electronic product owners. We know that this product will bring you many hours of enjoy­ ment. Our reputation is built on precise electronic and mechanical engineering, manufactured with

carefully selected components and assembled by people who take pride in their work. Once you dis­ cover the quality, reliability, and value we have built into this product, you too will be proud to be a member of our family.

Use this Product Safely

When Driving

Keep the volume level low enough to be aware of road and traffic conditions.

When Washing Your Car

Do not expose the product, including the speakers and CDs, to water or excessive moisture. This could cause electrical shorts, fire, or other damage.

When Parked

Parking in direct sunlight can produce very high temperatures inside your car. Give the interior a chance to cool down before switching the unit on.

Use the Proper Power Supply

This product is designed to operate with a 12 V DC, -negative ground battery system (the normal system in a North American car).

Disc Mechanism

Do not insert coins or any small objects. Keep screwdrivers and other metallic objects away from the disc mechanism and disc.

Use Authorized Servicenters

Do not attempt to disassemble or adjust this preci­ sion product. Please refer to the Servicenter list in­ cluding with this product for service assistance.

For Installation

This product should be installed in a horizontal po­ sition with the front end up at a convenient angle, but not more than 30®.

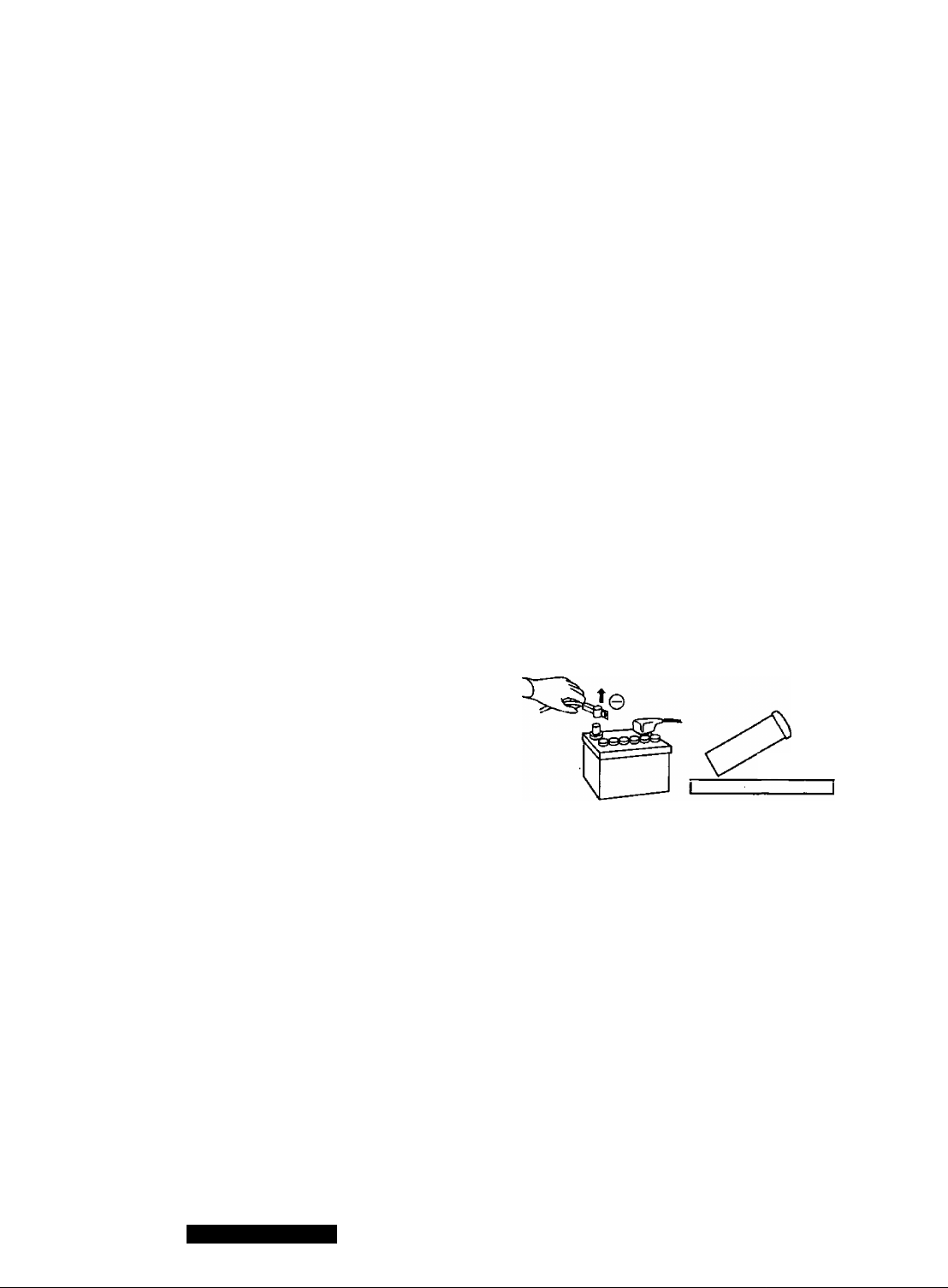

Note:

• The preset memory is cleared to return to the original factory setting when the power connector or battery is disconnected.

Features

Large-sized Volume Control

An large-sized rotary volume control that looks like one belonging to a Hi-Fi audio system is featured.

Spectrum Analyzer

This shows you the changing energy levels in differ­ ent frequencies of the music as it is played.

CD Changer Control

You need connect the optional CD changer unit. For details, refer to the operating instructions on the CD changer unit.

MP3/WMA Playback from CD-R/RW

CQ-DF783U

You can play your MP3/WMA (Windows Media Audio) files as well as regular CDs.

With up to 10 to 12 times* the capacity of a con­ ventional CD, a single MP3/WMA-encoded disc can keep you entertained throughout your entire jour­ ney.

*Depending on bit rate.

Example:

Front speaker

Rear speaker

CQ-DF783/DFX403U

Before Reading these Instructions

•This operating instruction manual is for 2 models; CQ-DF783U and CQ-DFX403U. All illustrations throughout this manual represent model CQ-DF783U unless otherwise specified. The following table describes the dif­ ferences between 2 models.

------------ ----------------Fealiii	CQ-DF783U	CQ-DFX403U
CD Text display	Yes	None
MP3A/VMA data playback	Yes	None
AUX-II\I setting	Yes	None
AUX input cord	Yes	None

ni------ lo This can only be controlled through the main unit.

This can only be controlled through the remote control unit.

Operations with neither mark can be performed ei­ ther by the main unit or the remote control unit.

CQ-DF783U Indicates features applicable to CQ-DF783U only.

CQ-DFX403UI CQ-OFX403U only.

CQ-DF783/DFX403U

Contents_________________
Safety Information.............................................................................		Page 2
Use this Product Safely..............................................................................		4
Features....................................................................................................		4
Before Reading these Instructions..............................................................		5
О Accessories...........................................................................................		16
□	Remote Control UnitPreparation............................................................	16
	Battery installation, battery notes
□	General...............................................................................................	17
	Power (PWR), source, volume, muting or attenuation, S-HDB (Super High
	Definition Bass), Spectrum Analyzer (S-A) display pattern

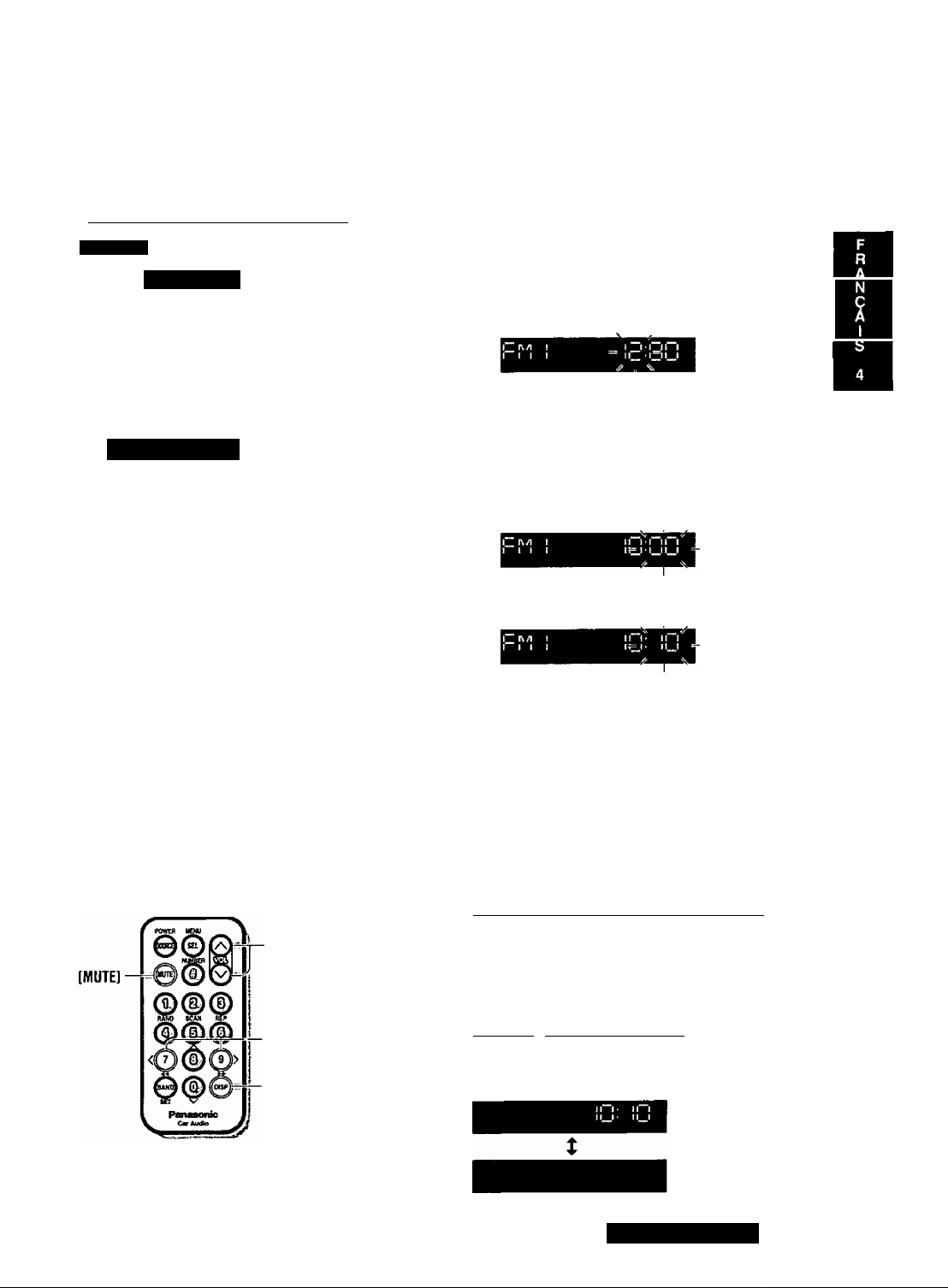

□	Clock Set.............................................................................................	19
	Time reset, display change
□	Radio..................................................................................................	20
	Radio mode, band, tuning, display change, Direct Memory (D-M), preset
	station setting, manual preset memory. Auto Preset Memory (АРМ),
	preset station calling
□	CD Player............................................................................................	22

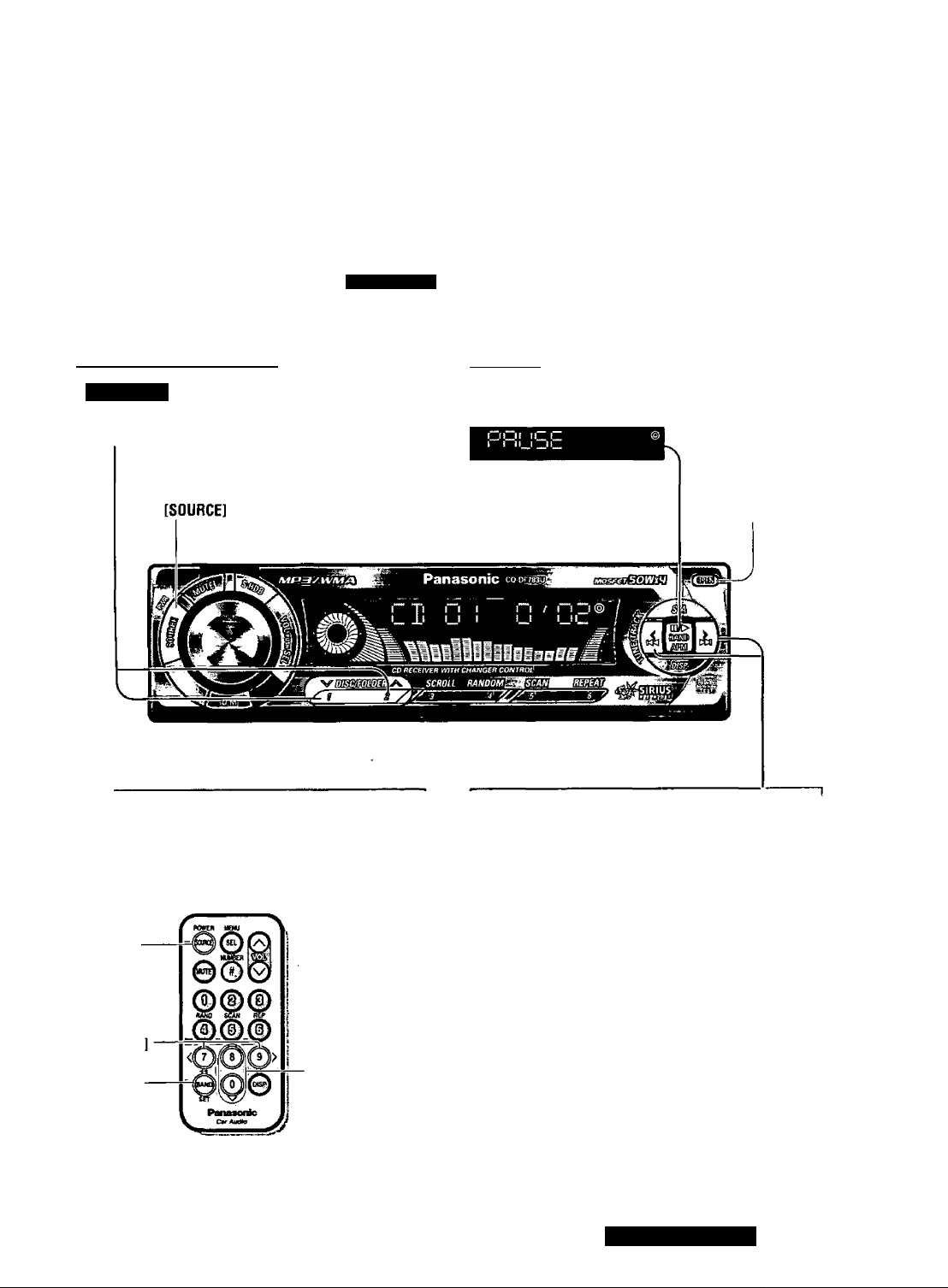

	Listening to a CD, open thefront panel, insert the disc, stop and eject the
	disc, folder selection, track (file) selection, pause, fast forward/fast
	reverse, repeat play, random play, folder random play, folder repeat play,
	scan play, folder scan play, display change, direct track (file) selection,
	direct folder selection, text scroll, ID3/WMA tag setting, notes on
	MP3/WMA
□	CD Changer Control.............................................................................	29
	CD changer mode, disc selection, track selection, fast forward/fast
	reverse, using two changers (dual changers), repeat play, disc repeat
	play, random play, disc random play, scan play, disc scan play, display
	change, direct disc selection
□	Audio Settings.....................................................................................	32
	Volume, bass and treble, balance and fader, subwoofer level, muting or
	attenuation
□	Function Settings.................................................................................	34
	Security function, excluding Sirius from source selection, dimmer (display
	brightness setting range), display setting, excluding AUX-IN setting from
	source selection

о

оо

оо

оо

ОWELCOME О

о 8 = 00 О

о	FM	о

CQ-DF783/DFX403U

	□ Troubleshooting................................ ...........................................	36
	Preliminary steps, if you suspect somethingwrong, troubleshooting tips,
	error display messages, maintenance, product servicing, replacing the	o o o o o
	fuse

□	Maintenance.... ............................................................................	43
	Notes on CD-Rs/RWs, notes on CD/CD media (CD-ROM, CD-R, CD-RW)
□	Installation Guide..................................... ....................................	44

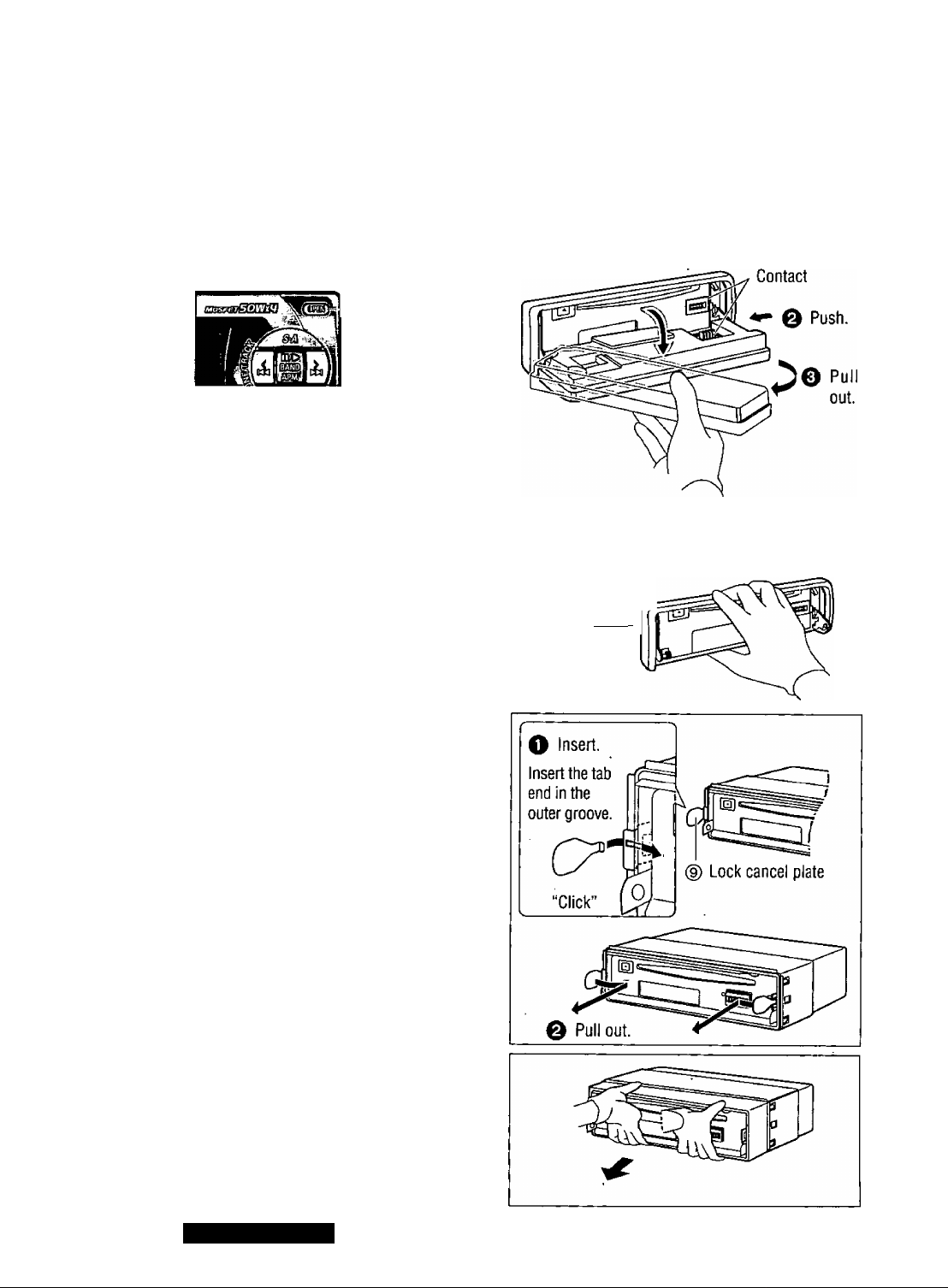

	Remove the unit
□	Anti-Theft System.........................................................................	49

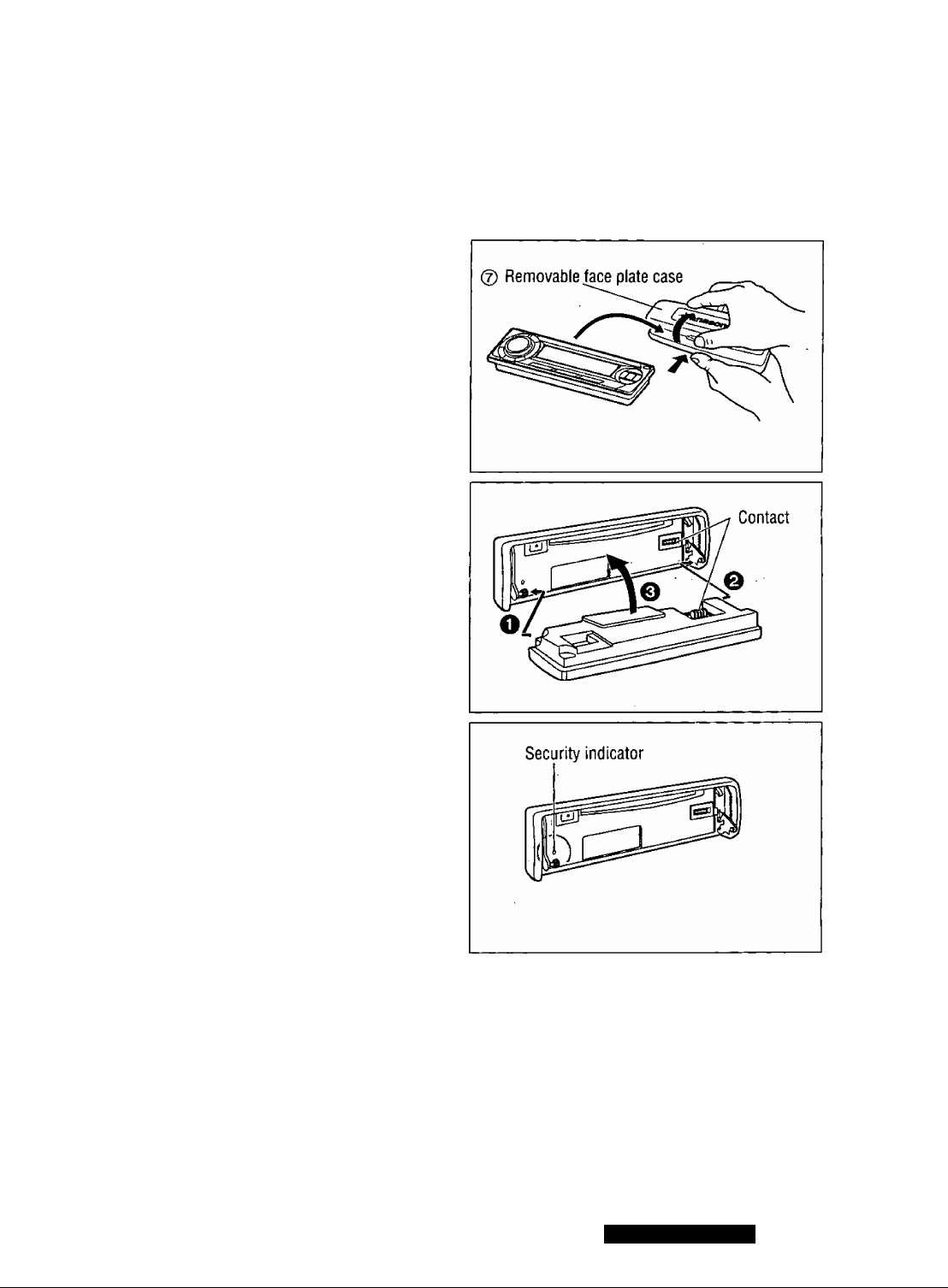

	Place the removable face plate into case, install removable face plate,
	security indicator, panel removal alarm
□	Electrical Connections................................................................	50

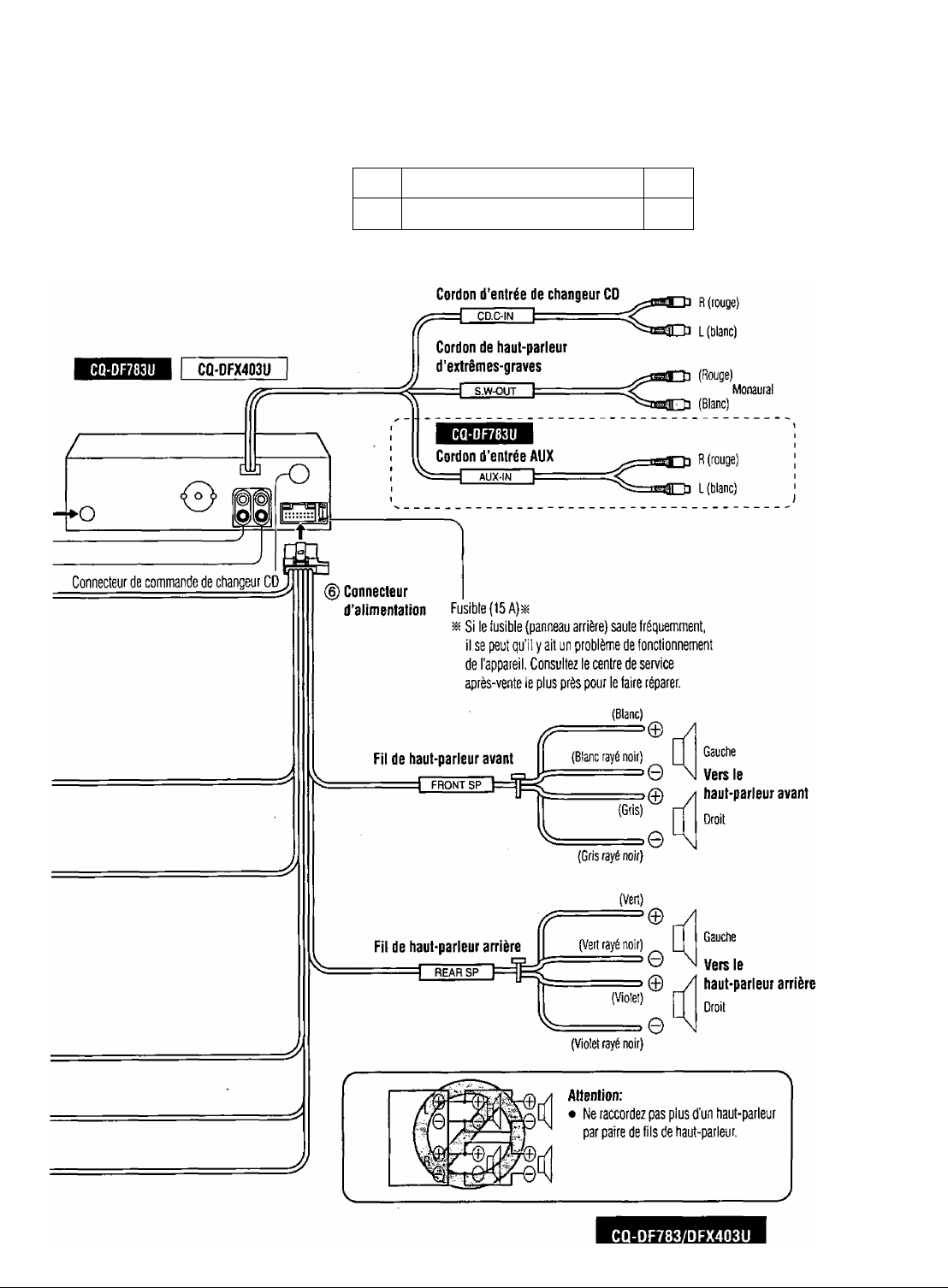

	Caution, wiring diagram, upgrading the system	1, upgrading the system 2
O Specifications................................................................................		54

CQ-DF783/DFX403U

Panasonic est heureuse de vous compter parmi les	d'appareils ne comportant que des composants de
utilisateurs de ses appareils électroniques. Nous	choix assemblés par un personnel soucieux de la bonne

pouvons vous assurer que cet appareil vous procureraréputation acquise par la qualité de son travail. Après

de longues heures d'agrément. Notre réputation est	avoir découvert la qualité, la valeur et la fiabilité de cet
fondée sur une ingénierie électronique et mécanique deappareil, vous aussi serez fier d'être un client
haute précision, laquelle préside à la fabrication	Panasonic.

Précautions à prendre

Au volant

Réglez le volume à un niveau qui ne risque pas de masquer les bruits ambiants.

Lavage de la voiture

Afin de prévenir tout risque de court-circuit ou d’incendie, n’exposez pas l’équipement, y compris les haut-parleurs et les disques, à l’eau ou à une humidité excessive.

Voiture stationnée

L’habitacle d’une voiture immobile exposée au soleil toutes vitres fermées devient rapidement très chaud. Laissez rafraîchir l’intérieur du véhicule avant d’utiliser l’appareil.

Mécanisme de disque

N’insérez pas de pièces de monnaie ou de petits'objets. Gardez les tournevis et autres objets métalliques à l’écart du mécanisme de disque et du disque.

Réparation

Ne tentez pas de démonter ou d’ajuster l’appareil vous-même. Veuillez vous référer à la liste des centres de service fournie avec cet appareil pour contacter le service d’assistance.

Installation

L’appareil doit être installé en position horizontale avec son extrémité avant inclinée vers le haut à un angle commode, mais ne dépassant pas 30“. '.

Source d’alimentation

Cet appareil est conçu pour fonctionner sur un système d’alimentation avec batterie de 12 V à masse négative (système standard sur les voitures de construction nord-américaine).

Remarque: ^

• La mémoire de présyntonisation est effacée et tes réglages d’usine sont rétablis lorsque l’on débranche le connecteur d’alimentation ou la batterie.

Caractéristiques

Grande commande de volume

L’appareil est équipé d’une grande commande rotative du volume pour le réglage de la configuration audio Hi-Fi.

Analyseur de spectre

Vous indique la fluctuation des niveaux d’énergie pour les diverses fréquences de la musique pendant sa lecture.

Commande de changeur CD

Le raccordement du changeur CD en option est nécessaire. Pour plus de détails, référez-vous au manuel d’instructions qui accompagne le changeur CD.

Exemple:

Haut-parleur avant

Lecture MP3/WMA depuis un CD-R/RW

CQ-DF783U

En plus des CD ordinaires, vous pouvez également faire la lecture des fichiers MP3/WMA (Windows Media Audio). Avec une capacité 10 à 12 fois supérieure* à celle d’un CD classique, un seul CD codé en format MP3/WMA peut vous procurer un divertissement musical qui dure une journée entière.

* Varie suivant le débit binaire.

Haut-parleur arrière

-------Amplificateur de puissance pour haut-parleurs avant et arrière

Changeur CD

n=^//

I__I Amplificateur de puissance pour —haut-parleur d'extrêmes-graves

Haut-parleur avant

Haut-parleur arrière

CQ-DF783/DFX403U

Avant de lire ce manuel d’instructions

Le présent manuel d’instructions s’applique aux 2 modèles CQ-DF783U et CQ-DFX403U. Sauf spécification contraire, toutes les illustrations présentées dans ce manuel sont celles du modèle CQ-DF783U. Les différences entre les 2 modèles sont indiquées dans le tableau suivant.

càractéHsiiqi^—------------------ Modèles	CQ-DF783U	CQ-DFX403U
Affichage du texte CD	Oui	Aucun
Lecture des données MP3/WMA	Oui	. Aucun
Régiage d’entrée AUX-IN	Oui	Aucun
Cordon d’entrée AUX	Oui	Aucun

0(Z^o	Signifie que la commande doit être effectuée
	directement sur l’appareil.
	Signifie que la commande doit être effectuée
	au moyen de la télécommande.

Les opérations qui ne comportent aucun de ces symboles peuvent s’effectuer directement sur l’appareil ou au moyen de la télécommande.

CQ-DF783U

CQ-OFX403U

Indique les caractéristiques qui s’appliquent au modèle CQ-DF783U.

Indique les caractéristiques qui s’appliquent au modèie CQ-DFX403U.

CQ-DF783/DFX403U

Tables des matières
Consignes de sécurité.................................................................................	РадеЗ
Précautions à prendre........................................................................................	8
Caractéristiques.................................................................................................	8
Avant de lire ce manuel d’instructions.................................................................	9
П Accessoires...........................................................................................	56
□ Préparation de la télécommande...........................................................	56
Installation de la pile, remarques sur la pile
□ Généralités..........................................................................................	57

Alimentation (PWR), source, volume, coupure du son ou atténuation, S-HDB (graves à définition très élevée), type d’affichage d’analyseur de spectre (S-A)

□	Réglage de l’horloge.............................................................................	59
	Pour ajuster l’heure à nouveau, changement d’affichage
□	Radio .................................................................................................	60
	Mode radio, bande, syntonisation, changement d’affichage, mémoire directe
	(D-M), réglage des stations présyntonisées, présyntonisation manuelle,

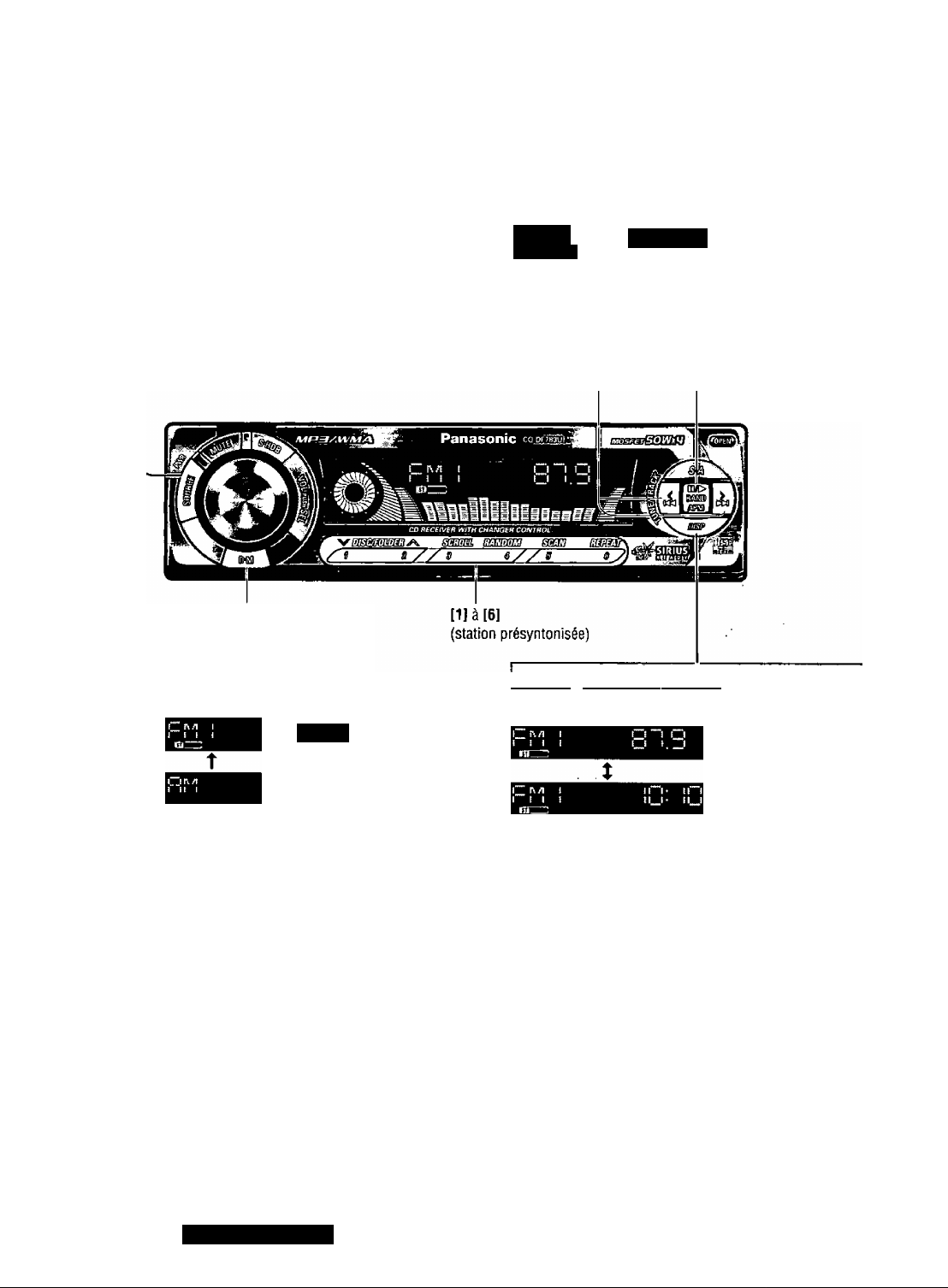

	présyntonisation automatique (АРМ), appel de station présyntonisée
	Lecteur CD...........................................................................................	62

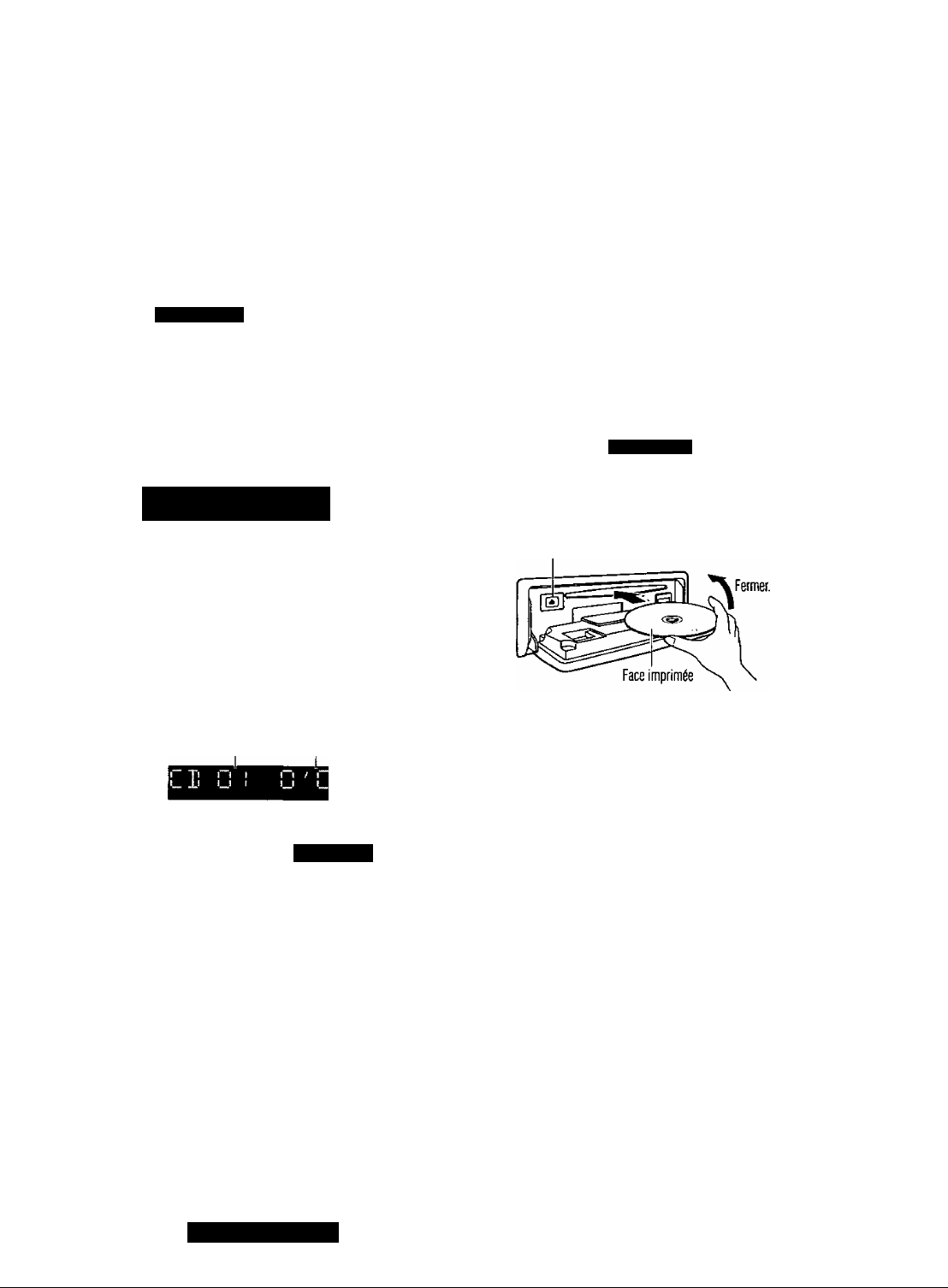

	Écoute d’un CD, ouvrez le panneau avant, insérez le disque, arrêtez et éjectez le
	disque, sélection de dossier, sélection de plage (fichier), pause, avance
	accélérée/recul accéléré, lecture répétée, lecture aléatoire, lecture aléatoire de
	dossier, lecture répétée de dossier, lecture des débuts de plage, lecture des
	débuts de premier fichier des dossiers, changement d’affichage, sélection directe
	de plage (fichier), sélection directe de dossier, défilement du texte, réglage de
	balise ID3/WMA, remarques sur le format MP3/WMA
□ Commande de changeur CD....................................................................		69
	Mode de changeur CD, sélection de disque, sélection de plage, avance
	accélérée/recul accéléré, utilisation de deux changeurs (changeurs doubles),
	lecture répétée, lecture répétée des disques, lecture aléatoire, lecture aléatoire d’un
	disque, lecture des débuts de plage, lecture des débuts de première plage des
	disques, changement d’affichage, sélection directe de disque
O Réglages audio.......................................................................................		72
	Volume, graves et aigus, balance et équilibre, niveau du haut-parleur des extrêmes-
	graves, coupure du son ou atténuation
□ Réglages de fonctions.............................................................................		74
	Fonction de sécurité, exclure Sirius de la sélection de source, gradateur (plage de
	réglage de la luminosité d’affichage), réglage de l’affichage, exclure le reglage de
	l’entrée AUX-IN de la sélection de source

10

O

O O

O O

O O

OWELCOME O

Ofs ^00O

OFM O

■

0 O

CQ-DF783/DFX403U

□ En cas de difliculté...............................................................................

76

Étapes préliminaires, lorsqu'on soupçonne que quelque chose est défectueux, guide de dépannage, messages d’erreur, entretien, service après-vente de l’appareil, remplacement d’un fusible

O Entretien...............................................................................................

83

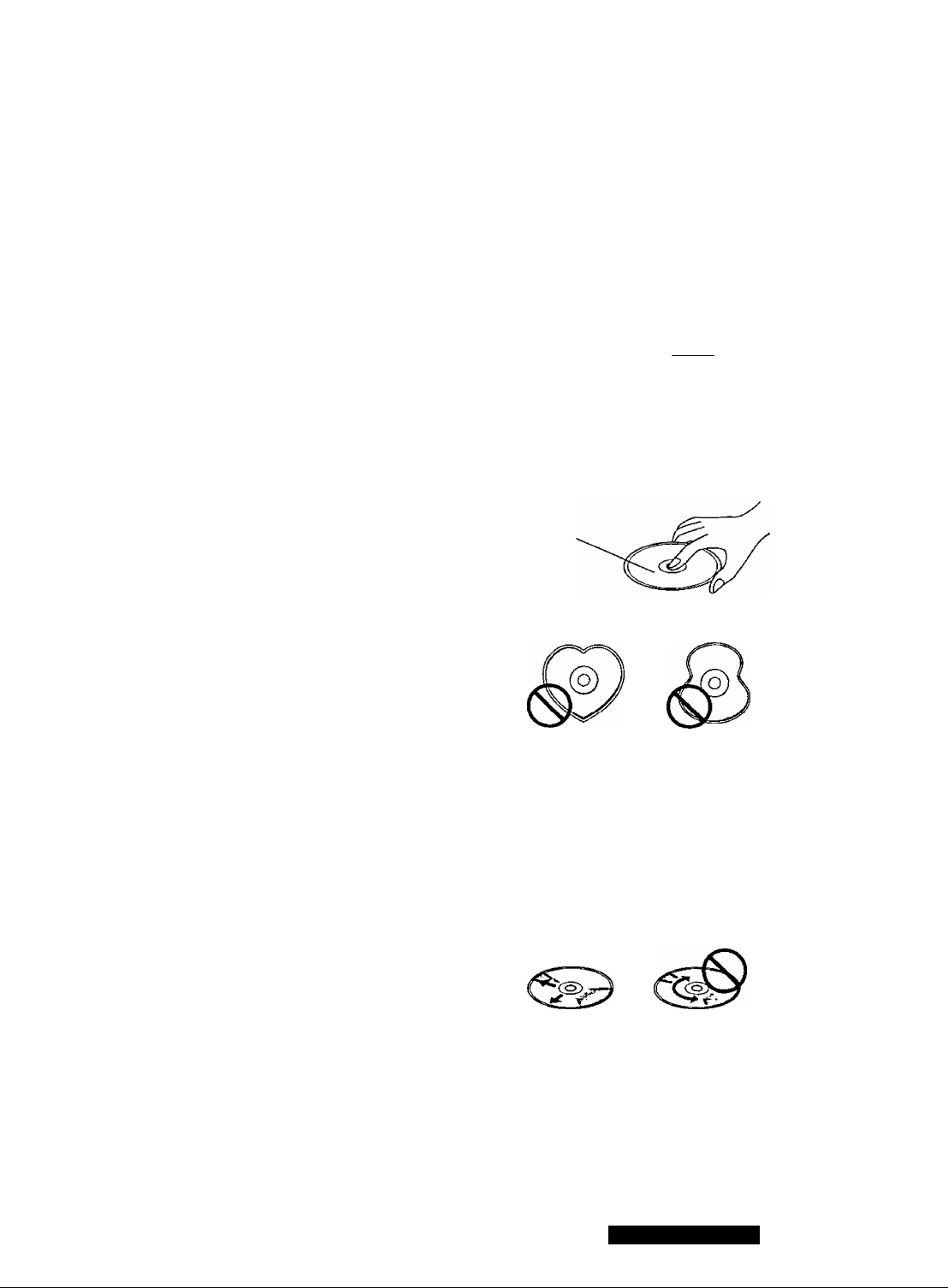

Remarques relatives aux CD-R/RW, remarques relatives aux CD et supports de type CD (CD-ROM, CD-R, CD-RW)

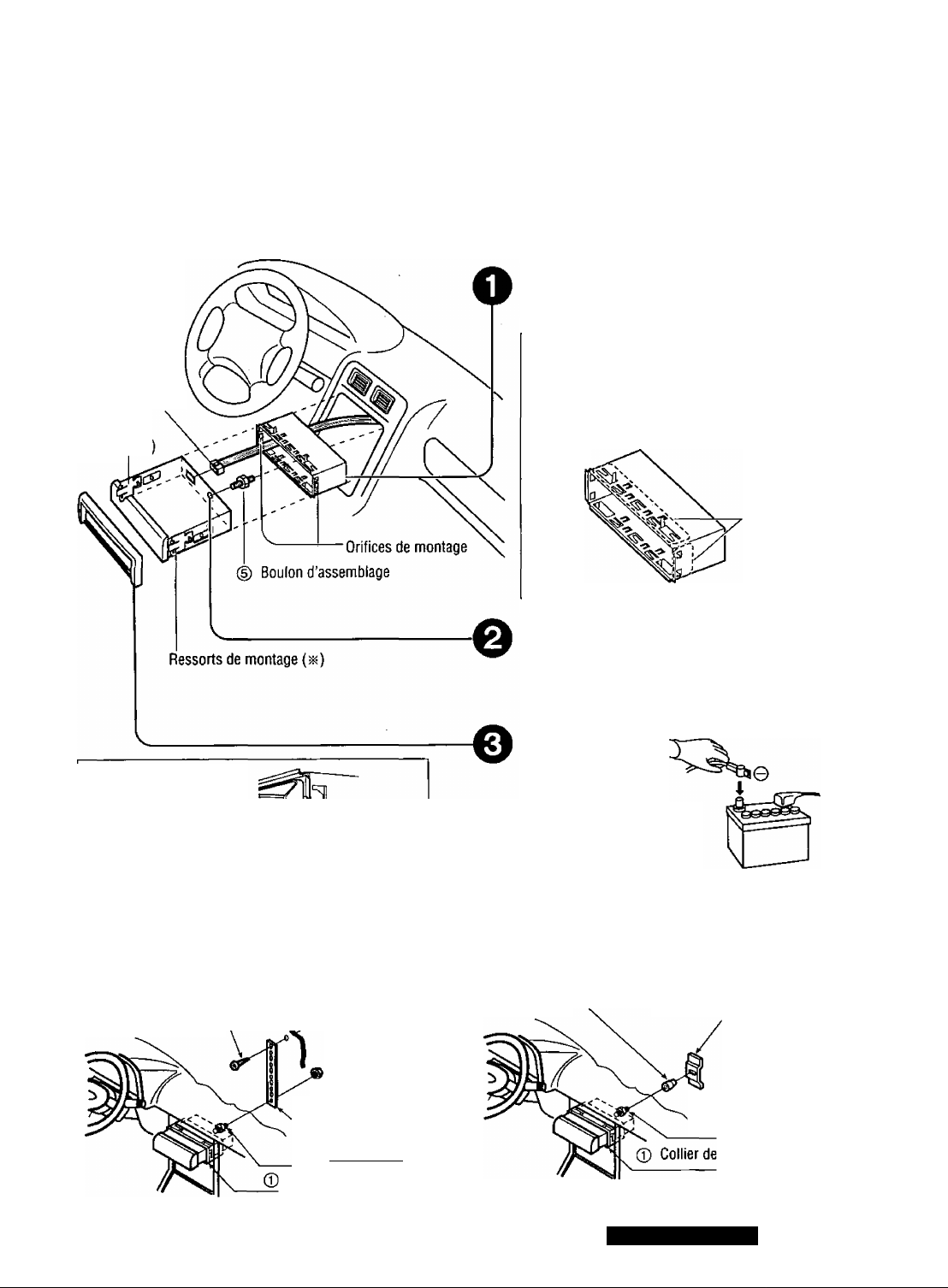

□	Guide d’installation...............................................................................	84

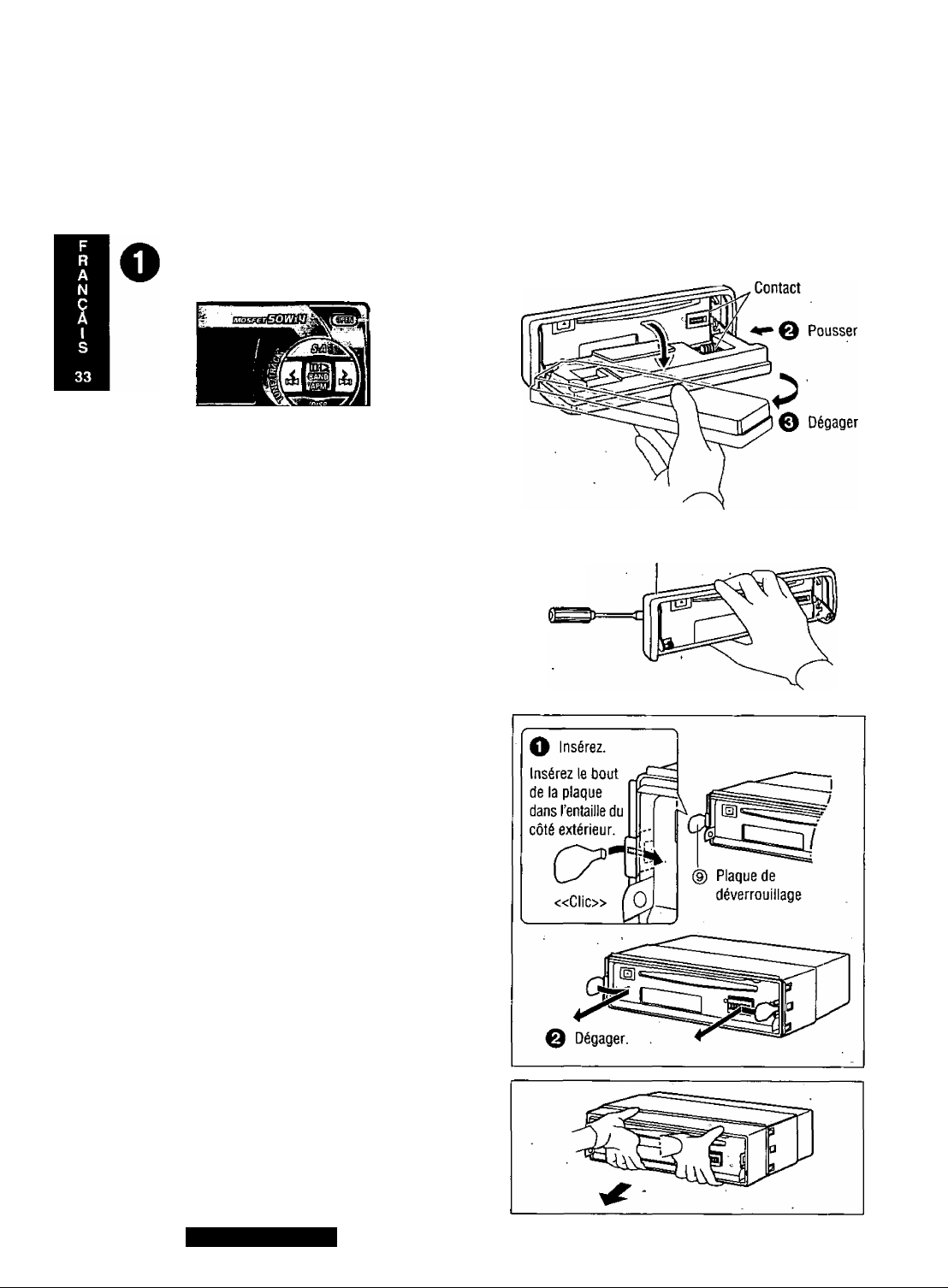

	Pour retirer l'appareil

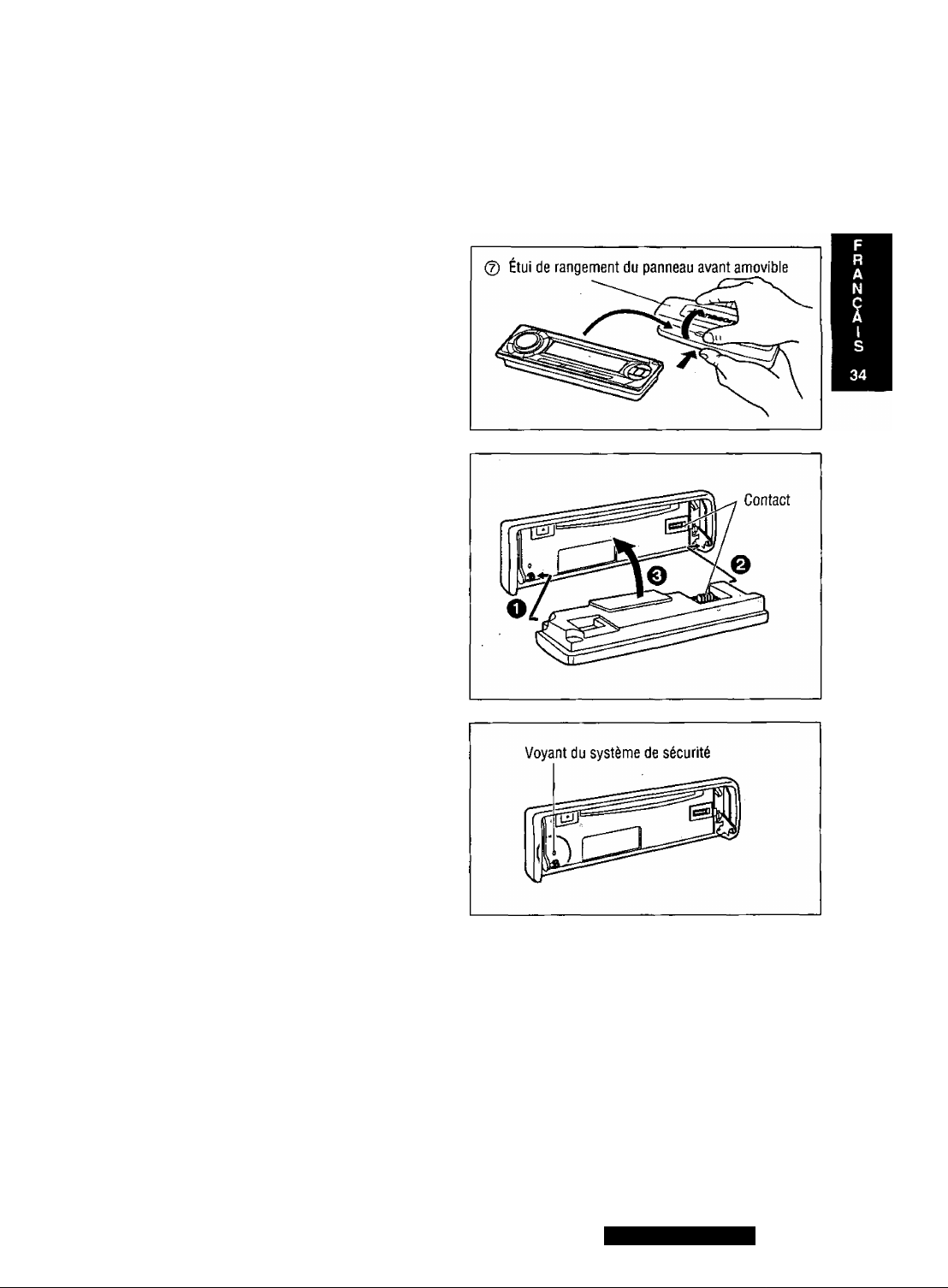

□	Système antivol...................................................................................	89
	Mettre le panneau avant amovible dans l’étui, installer le panneau avant amovible,’
	voyant du système de sécurité, alarme de retrait du panneau
n Branchements électriques.......................................................................		90
	Précaution, schéma de câblage, mise à niveau du système 1, mise à niveau du
	système 2
□	Données techniques.............................................................................	94

11

CQ-DF783/DFX403U

Panasonic le da la bienvenida a la familia constantemente en aumento de poseedores de productos electrónicos. Nos esforzamos en proporcionarle las ventajas de la ingeniería mecánica y electrónica de precisión, de una fabricación con componentes cuidadosamente seleccionados, y de un montaje realizado por personas orgullosas de la

reputación que su trabajo ha cimentado para nuestra empresa. Estamos seguros de que este producto le proporcionará muchas horas de clistracción y, una vez comprobada la calidad, el valor y la fiabilidad incorporados, usted también se sentirá orgulloso de pertenecer a nuestra familia.

Uso de este equipo con seguridad

Cuando conduzca

Mantenga el nivel del volumen suficientemente bajo para estar atento a la carretera y a las condiciones del tráfico.

Cuando lave el automóvil

No exponga el equipo, incluyendo los altavoces y los CDs, al agua o a una humedad excesiva. Esto puede causar cortocircuitos eléctricos, incendios u otros daños.

Cuando esté estacionado

El estacionamiento a la luz solar directa puede producir temperaturas muy altas en el interior de su vehículo. Procure enfriar el interior antes de encender la unidad.

Uso de la alimentación apropiada

Este equipo ha sido diseñado para funcionar con un sistema de batería de 12 V CC con negativo a masa (el sistema normal en un vehículo norteamericano).

Mecanismo de disco

No inserte monedas ni ningún objeto pequeño. Mantenga los destornilladores u otros objetos metálicos apartados del mecanismo de disco y del disco.

Uso de los centros de servicio autorizados

No intente desmontar ni ajustar este equipo de precisión. Consulte la lista de centros de servicio incluidos con este producto para acudir a ellos cuando sea necesario.

Instalación

La unidad deberá instalarse en posición horizontal, con el extremo delantero hacia arriba formando un ángulo conveniente, pero con no más de 30“.

Nota:

•La memoria de presintonización se borra para volver al ajuste original de fábrica cuándo el conector de alimentación o la batería están desconectados.

Características

Control de volumen graride

La unidad está equipada con un control de volumen giratorio grande, el cual funciona para controlar audio Hi-Fi.

Analizador de espectro

Muestra los niveles cambiantes de energía a las diferentes frecuencias de la música que se reproduce.

Control del cambiador de CD

Debe conectar el cambiador de CD opcional. Para más detalles, consulte el manual de instrucciones del cambiador de CD.

Ejemplo:

Altavoz delantero

Altavoz delantero

12

Reproducción de MP3/WMA desde CD-R/RW

C0-DF783U

Puede reproducir sus archivos MP3/WMA (Windows Media Audio), así como discos CD normales. Con hasta 10 a 12 veces* la capacidad de un CD convencional, un solo disco MP3AA/MA codificado puede proporcionarle entretenimiento para un viaje entero.

‘Depende de la velocidad de transferencia.

Altavoz trasero

Amplificador de potencia para altavoces delanteros y traseros

Cambiador de CD

rn Amplificador de potencia para

— altavoz de subgraves

Altavoz trasero

CÛ-DF783/DFX403U

Antes de leer estas instrucciones

•Este manual de instrucciones es para 2 modelos: CQ-DF783U y CQ-DFX403U. Todas las ilustraciones de este manual representan el modelo CQ-DF783U, a menos que se especifique otra cosa. El siguiente cuadro describe tas diferencias entre los 2 modelos.

n Trr—---------------------- Modelos	CQ-DF783U	CQ-DFX403U
Características ——
Visuaiizador de texto de CD	Sí	Ninguna
Reproducción de datos MP3/WMA	Sí	Ninguna
Configuración AUX-IN	Sí	Ninguna
Cable de entrada AUX	Sí	Ninguna

OI--------10 Sólo se puede controlar mediante la unidad principal.

Sólo se puede controlar mediante el control remoto.

Las operaciones que no tengan ninguna de estas dos marcas pueden activarse con la unidad principal o con el control remoto.

	CQ-DF783U	Indica características aplicables
		CQ-DF783U.

CQ-DFX403U Indica características aplicables CQ-DFX403U.

13

CQ-DF783/DFX403U

Indice
Información para su seguridad.................................................................	Página 3
Uso de este equipo con seguridad.....................................................................	12
Características..................................................................................................	12
Antes de leer estas instrucciones.......................................................................	13
n Accesorios.............................................................................................	96
□ Preparación del controlador remoto.........................................................	96
Sustitución de la pila, notas sobre la pila
O Generalidades.......................................................................................	97
Alimentación (PWR), fuente, volumen, silenciamiento o atenuación, S-HDB
(definición extraordinariamente alta de graves), patrón de visualización del
analizador de espectro (S-A)
G Ajuste del reloj......................................	99
Reajuste de hora, cambio de visualización

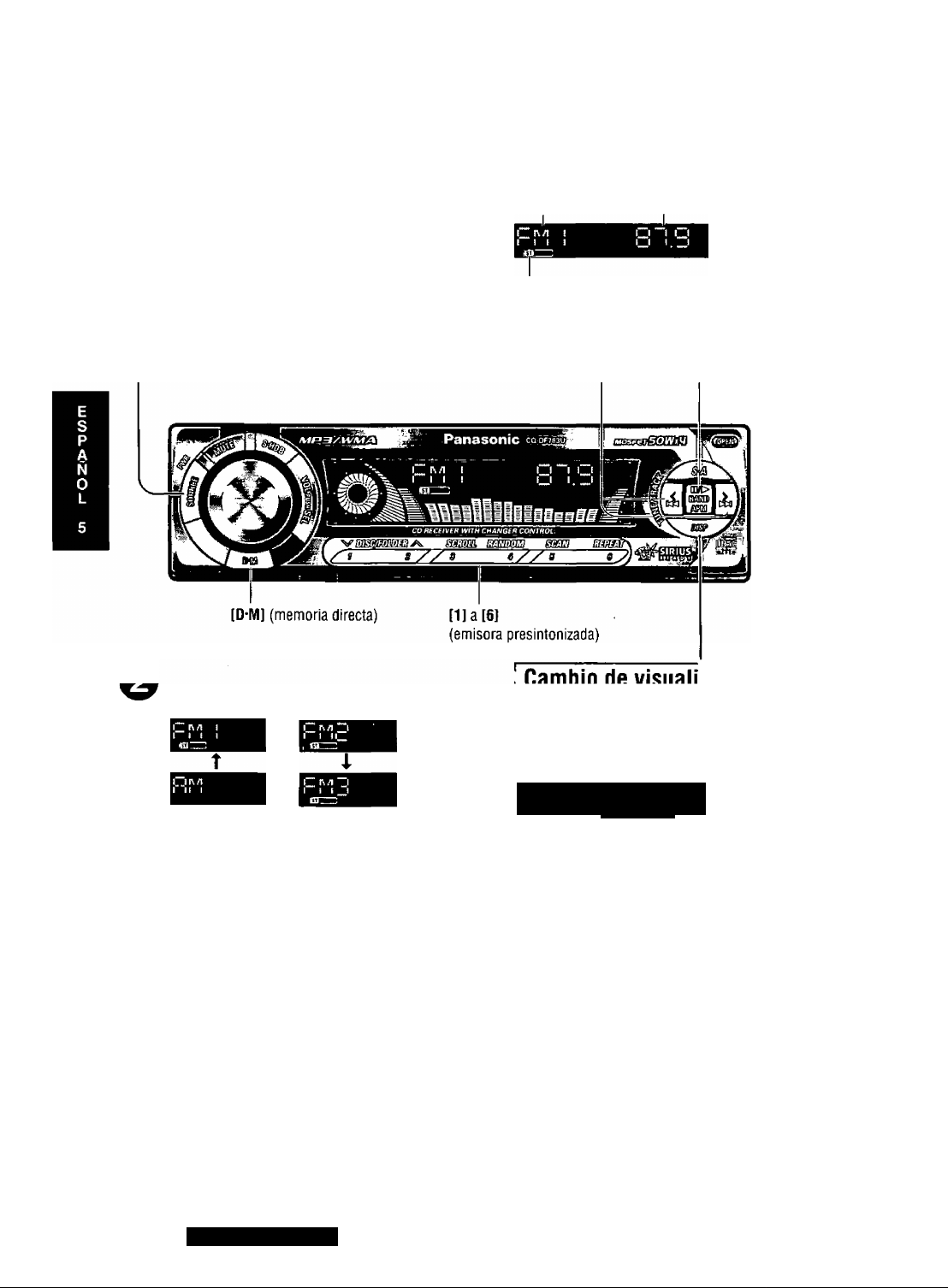

G Radio ..................................................................................................	100

Modo de radio, banda, sintonización, cambio de visualización, memoria directa (D-M), ajuste de emisora presintonizada, memoria de presintonización manual, memoria de presiníonización automática (АРМ), llamada de emisoras presintonizadas

G Reproductor de CD................................................................................

102

Para escuchar un CD, abra la carátula frontal, inserte el disco, pare y expulse el disco, selección de carpeta, selección de pistas (archivos), pausa, avance rápido/retroceso rápido, repetición de reproducción, reproducción aleatoria, reproducción aleatoria de carpeta, repetición de reproducción de carpeta, reproducción con exploración, reproducción con exploración de carpeta, cambio de visualización, selección directa de pista (archivo), selección directa de carpeta, desplazamiento de texto, configuración de la ficha ID3/WMA, notas sobre MP3/WMA

O Control del cambiador de CD.................................................................

109

Modo de cambiador de CD, selección de disco, selección de pista, avance rápido/retroceso rápido, uso de dos cambiadores (cambiadores dobles), repetición de reproducción, repetición de reproducción de disco, reproducción aleatoria, reproducción aleatoria de disco, reproducción con exploración, reproducción de disco con exploración, cambio de visualización, selección directa de disco

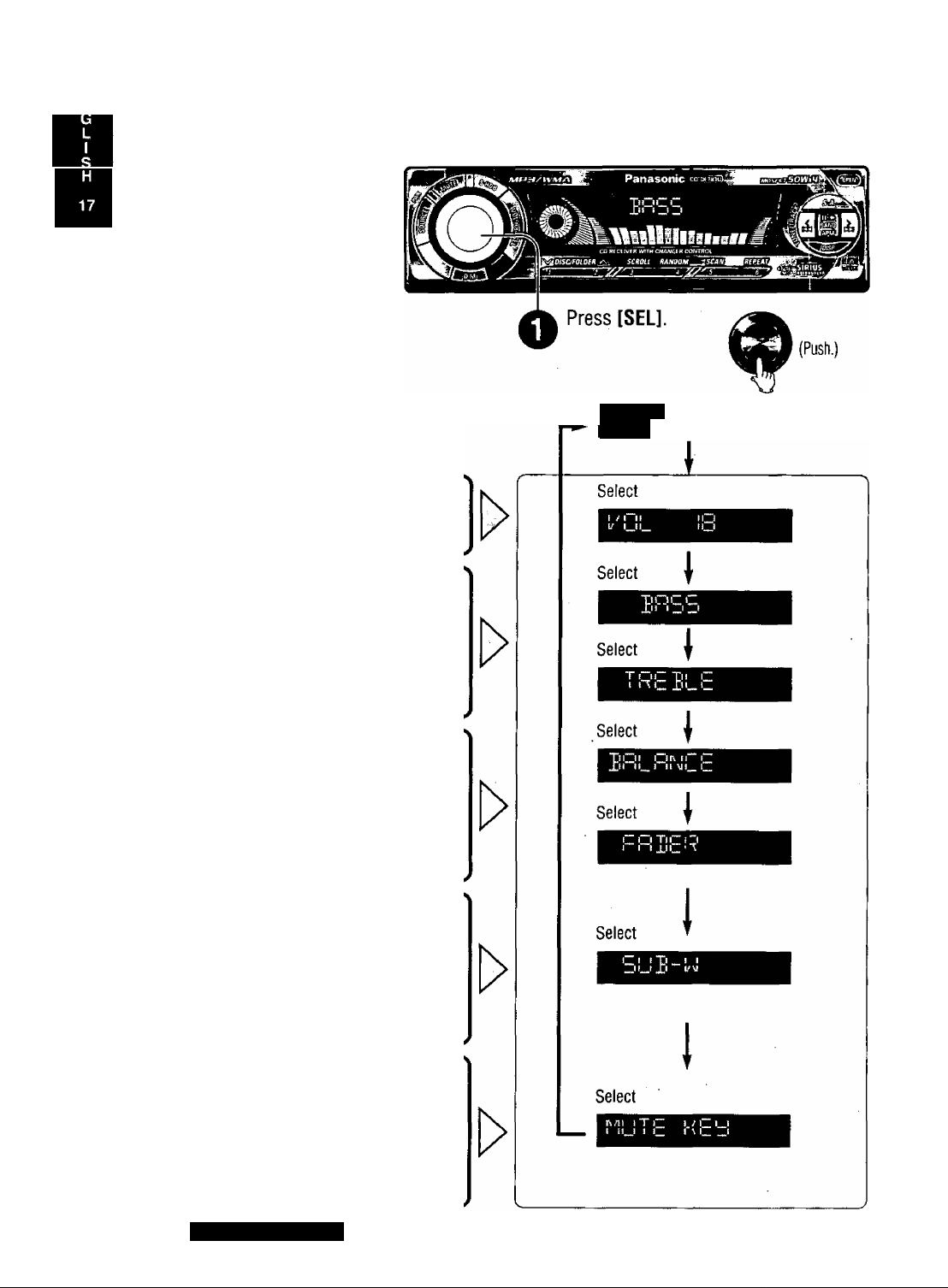

G Ajustes de audio...................................................................................	112
Volumen, graves y agudos, balance y desvanecimiento, nivel de subgraves,
silenciamiento o atenuación
G Ajustes de función................................................................................	114

Función de seguridad, para excluir a Sirius de la selección de fuente, atenuador (gama de configuración del brillo de la pantalla), configuración de pantalla, para excluir la configuracón AUX-IN de la selección de fuente

14

CQ-DF783/DFX403U

o o o o

o o

OWELCOME 0

o 3-00 o

o	FM	o

□ Solución de problemas .....................................................................

116

Pasos preliminares, si cree que hay algo que no funciona bien, consejos para localizar y solucionar averías, mensajes de visualización de error, mantenimiento, mantenimiento del producto, cómo sustituir el fusible

□	Mantenimiento.................................................................................	123
	Notas sobre discos CD-R/RW, notas sobre soportes CD/CD (CD-ROM, CD-R,
	CD-RW)
n Guía de instalación..............................................................................		124
	Para extraer el aparato
□. Sistema antirrobo...............................................................................		129
	Coloque la placa frontal removible en la caja, instale la placa frontal removible,
	indicador de seguridad, alarma de extracción del panel
□	Conexiones eléctricas.........................................................................	130
	Precaución, diagrama del cableado, mejora del sistema 1, mejora del sistema 2
□	Especificaciones.................................................................................	134

o o o o o

15

CQ-DF783/DFX4D3U

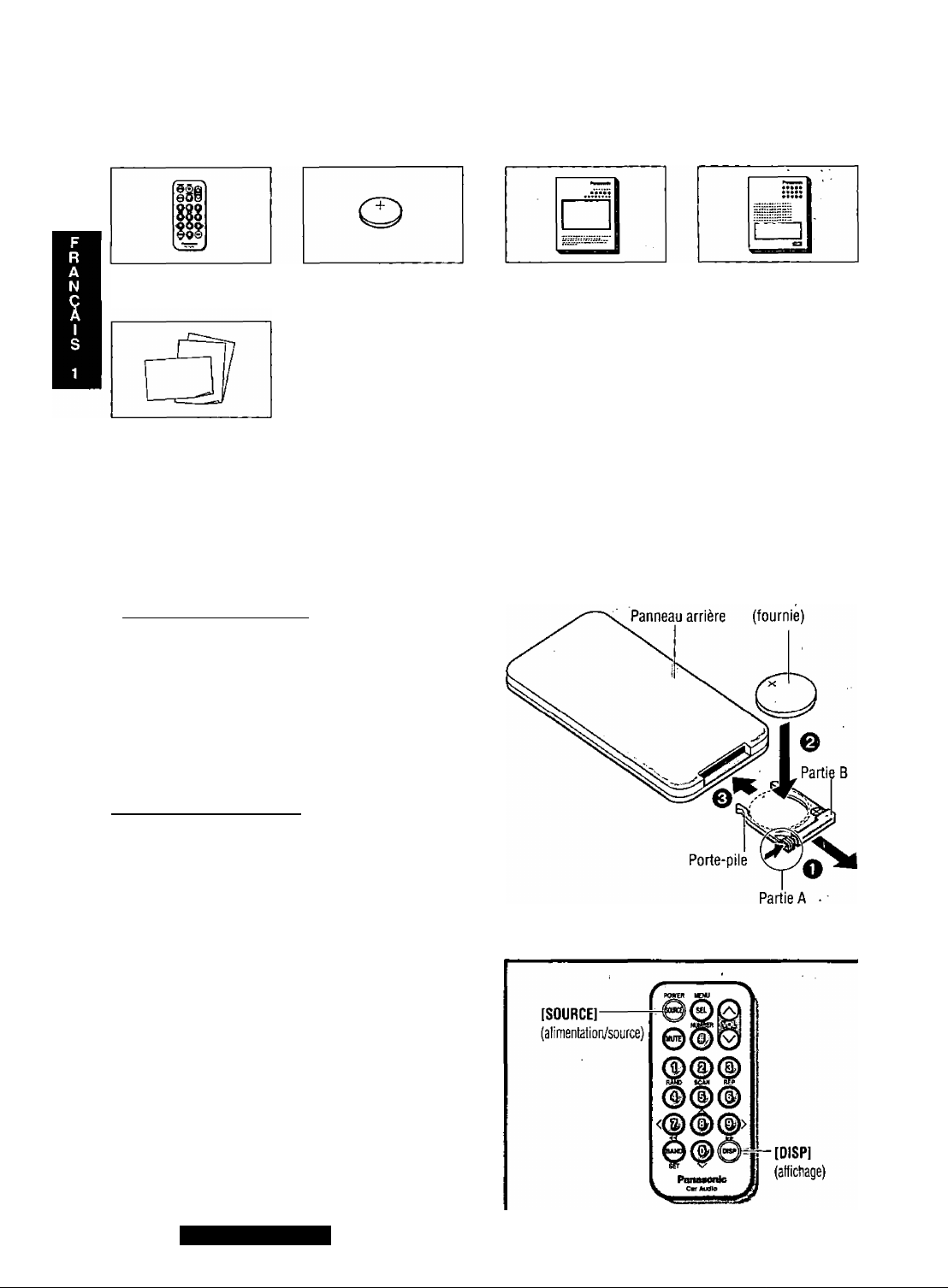

Accessories

• Remote control unit	• Lithium battery	Operating instruc­	• Operating guide for
(1)	(CR2025) (1)	tions (1)	Sirius (1).
	• installation hardware
	(screws, power	con­
	nector, etc.)
	(page 44)

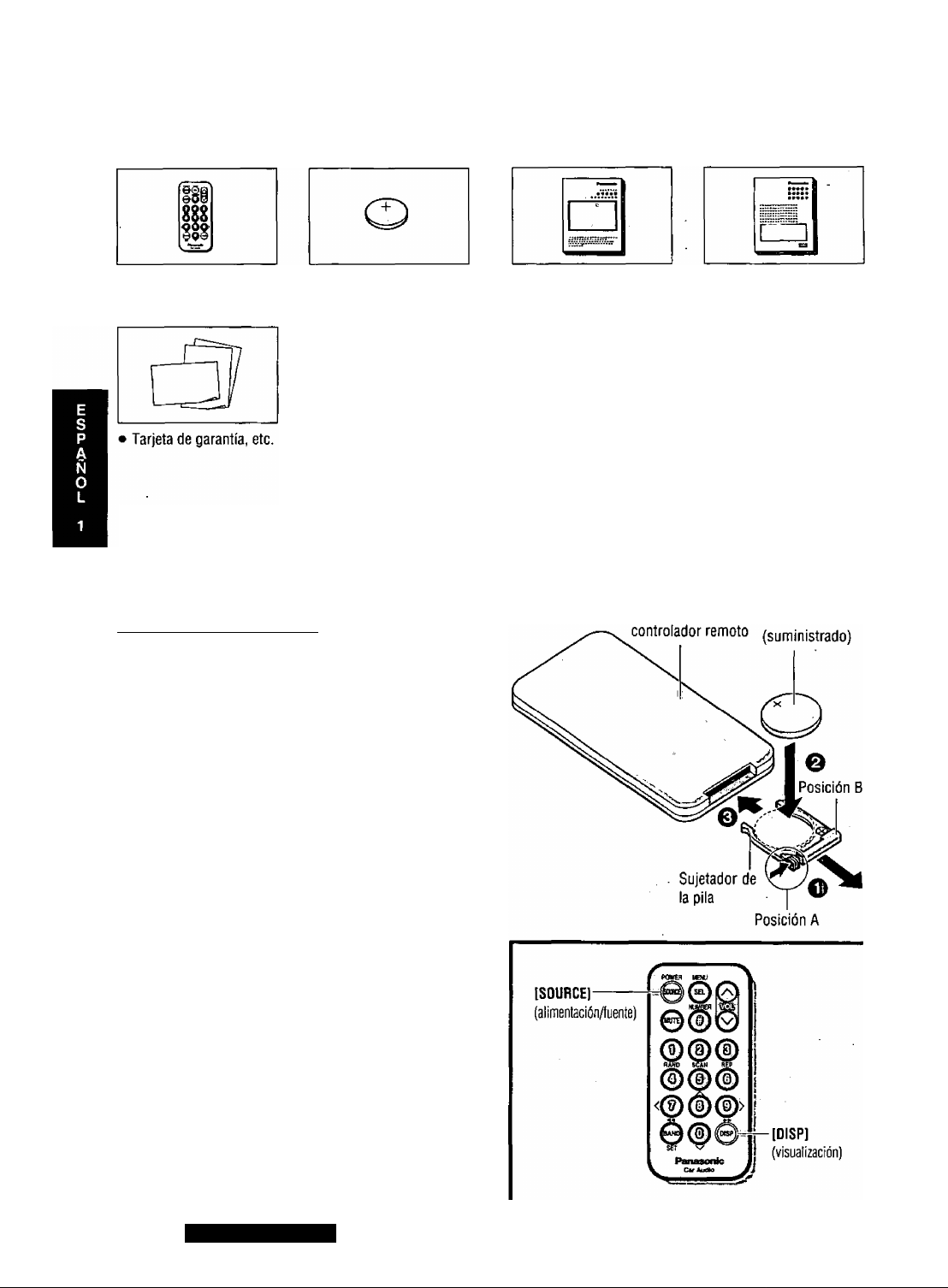

Remote Control Unit Preparation

.Battery Installation

Lithium battery

O Remove the battery holder.

Pull the battery holder by the position B while pushing position A in the direction indicated by the arrow.

O Install the battery on the battery holder.

0 Insert the battery holder back into its original position.

Battery Notes * •

Battery type: Panasonic lithium battery (CR2025) (included)

Battery life: Approximately 6 months with nor­ mal use (at room temperature)

Caution:

•Improper use of batteries may cause overheat­ ing, an explosion or ignition, resulting in injury or a fire. Battery leakage may damage the unit.

•Remove and dispose of an old battery immediately.

•Do not disassemble or short the battery. Do not throw a battery into a fire.

•Keep batteries away from children to avoid the risk of accidents.

•Be careful to observe proper local disposal rules when you dispose of batteries.

16

CQ-DF783/DFX403U

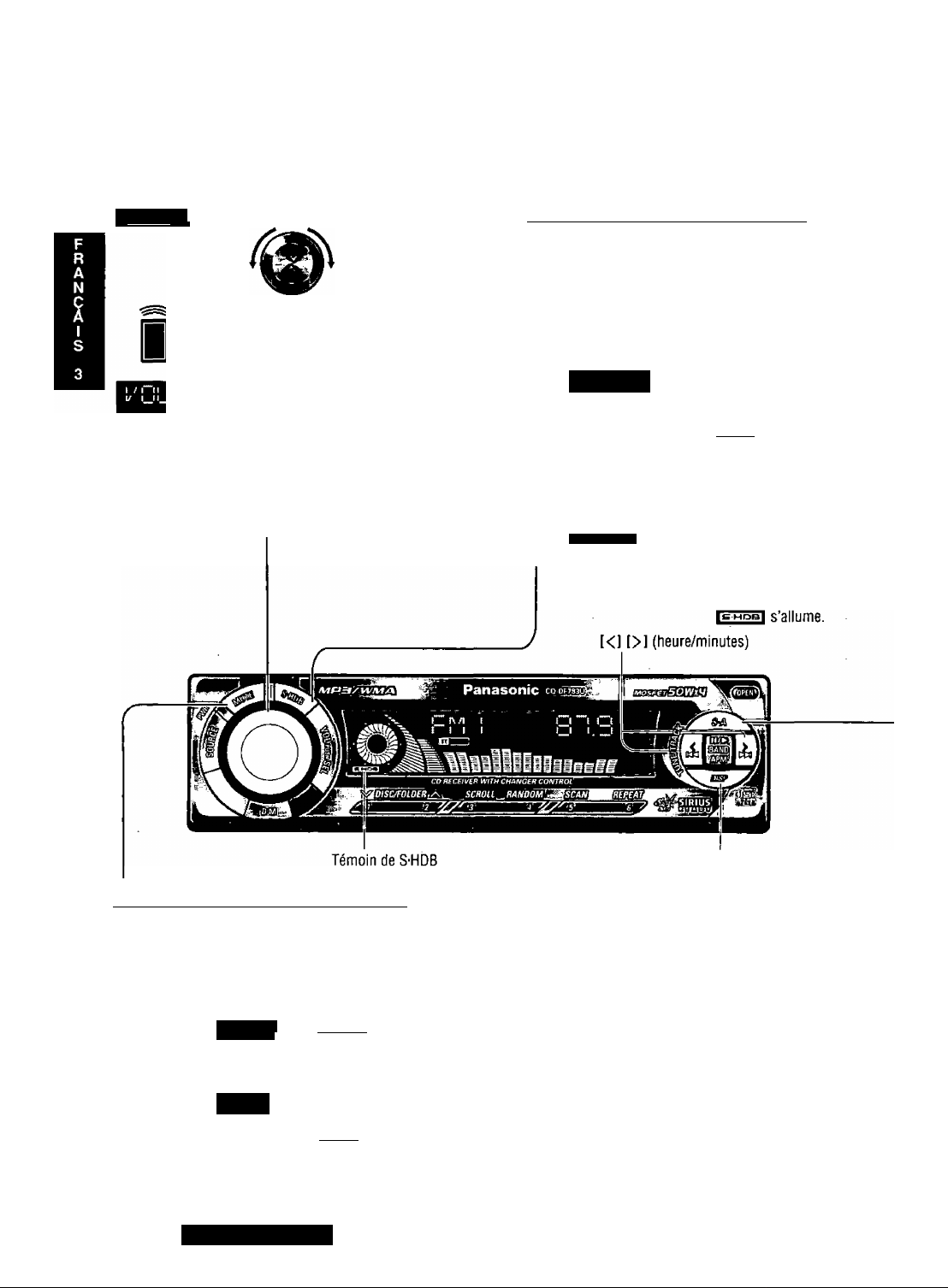

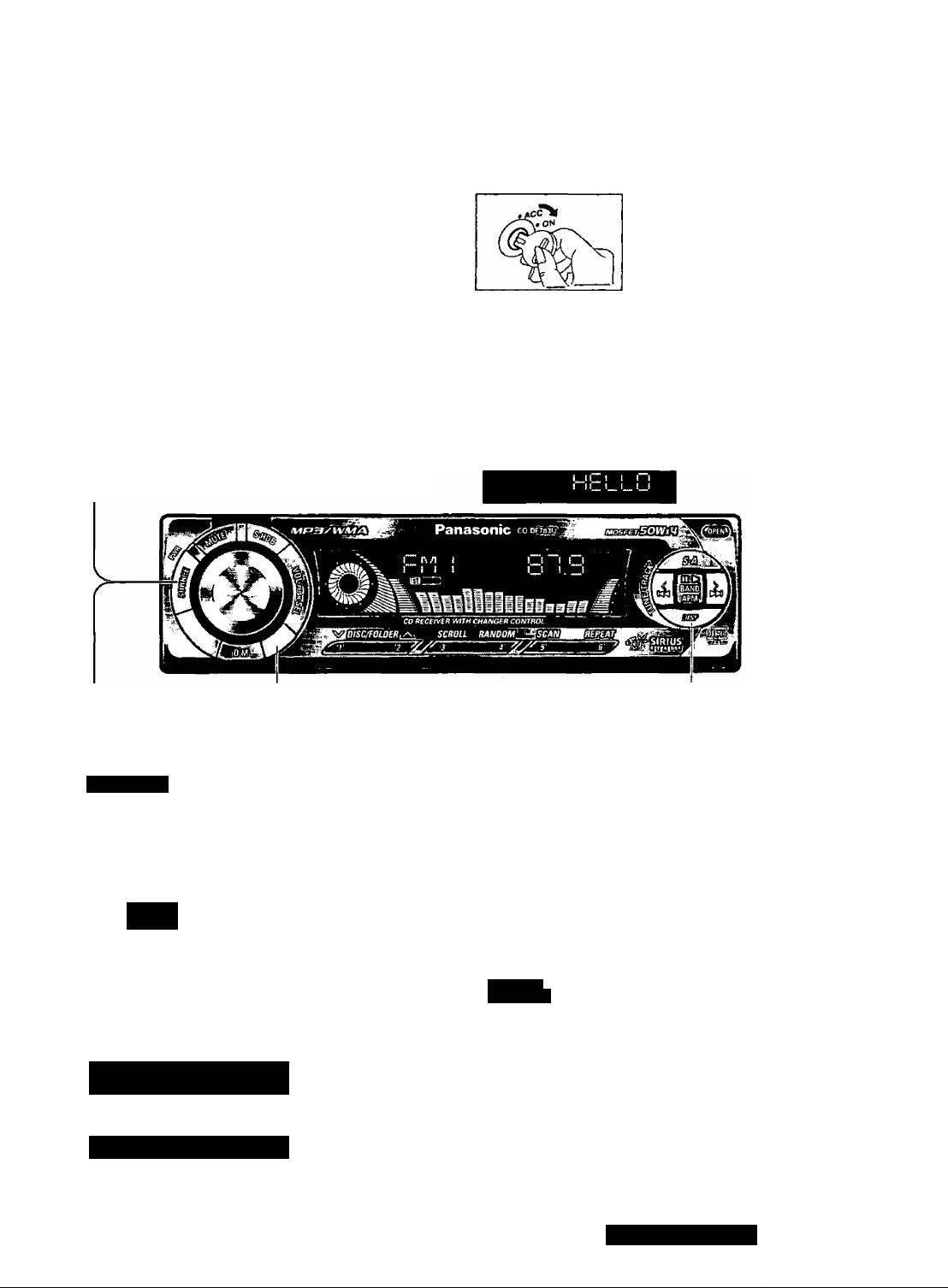

General

Power (PWR)

Turn your car’s ignition key. to ACC or ON position.

ON: Press [PWR],

OFF: Press and hold [PWR] again on the main unit for more than 1 second.

Press and hold [POWER] again on the re­ mote control unit for more than 2 second.

•After turning off the ignition key, a security message is displayed, and the panel re­ movable alarm that reminds you to take the panel is activated.

{When security function is set to on, page 34)

•When the power is switched on for the first time, a demonstration message appears on the display.

To cancel this display, press [OISP] (display).

•To display the message again, press and hold [SOURCE] on the main unit for more than 4 sec­

onds when the power is off.

Remote control signal sensor

[OISP] (display)

Point the remote control unit at the main unit’s sensor.

Source

Press [SOURCE] to change the source.

CQ-DF783U

Radio

						(page 20)
CD player
						(When a CO is
	t I	I I	E	l _ _	®
	t “ * “ l	/		t I
						in the player.)
or
						(page 22)
MP3/WMA player

CD changer control

i"i I _ i~i D

• *_J

AUX IN setting ^

i l I I i \ i	T [ V [ \
W M _ t / \	J . 1 V /

(WhenaMP3/WMA

'data disc is in the player.) (page 22)

(When a CD changer is connected.) (page 29)

(WhenAUX-iN setting is activated.) (page 34)

CQ-DFX403U

Radio

				(page 20)
CD player
				(When a CD is
			I I I I I /1 El®
				in the player.)
				(page 22)
CD changer control
<33) II I	I I			(When a CD changer
I t I	L

is connected.) (page 29)

The model CQ-DFX403U does not support IVIP3/WMA playback.

For details on the Sirius mode, refer to the separate operating guide for Sirius.

17

CQ-DF783/DFX403U

General (continued)

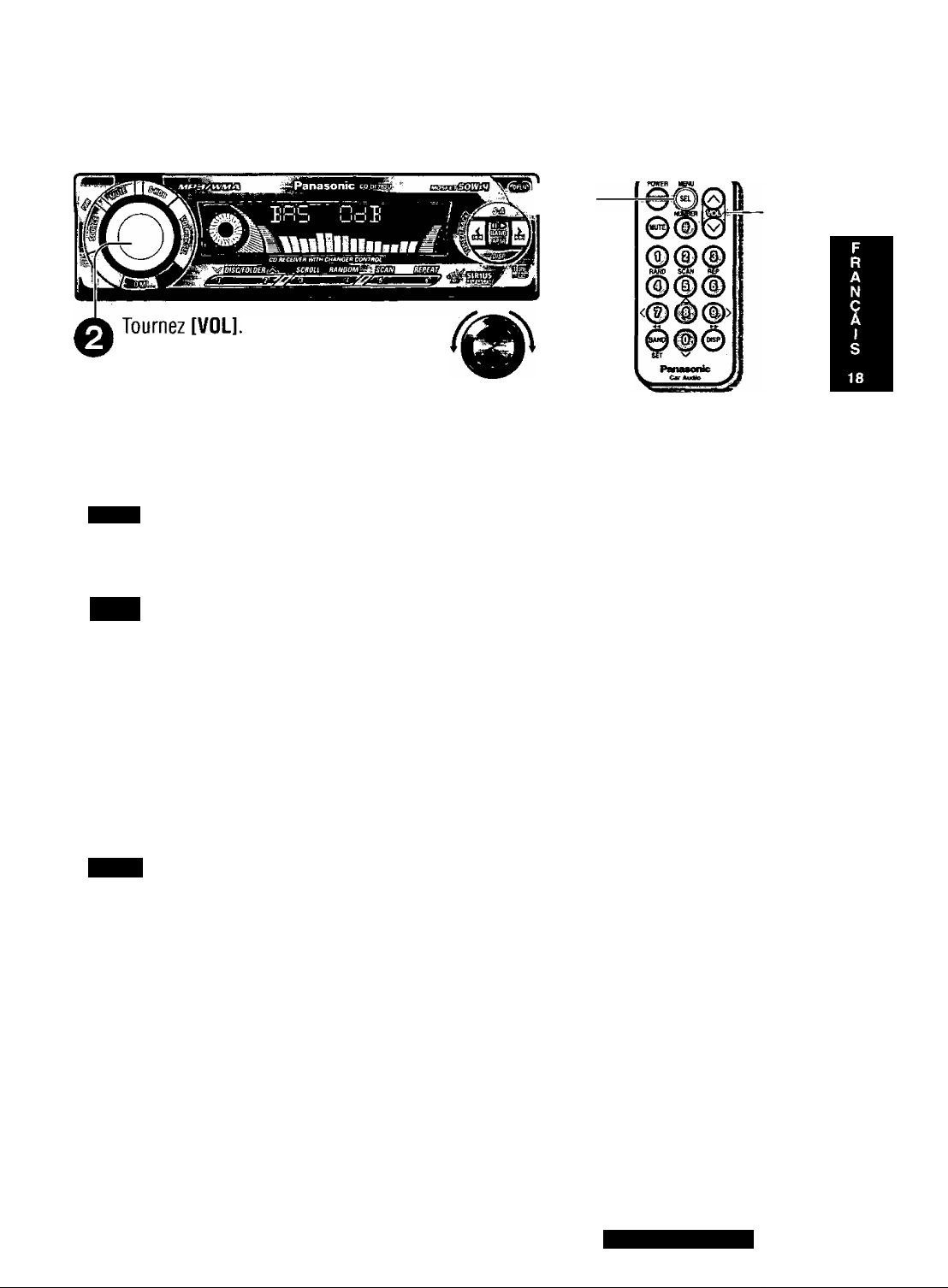

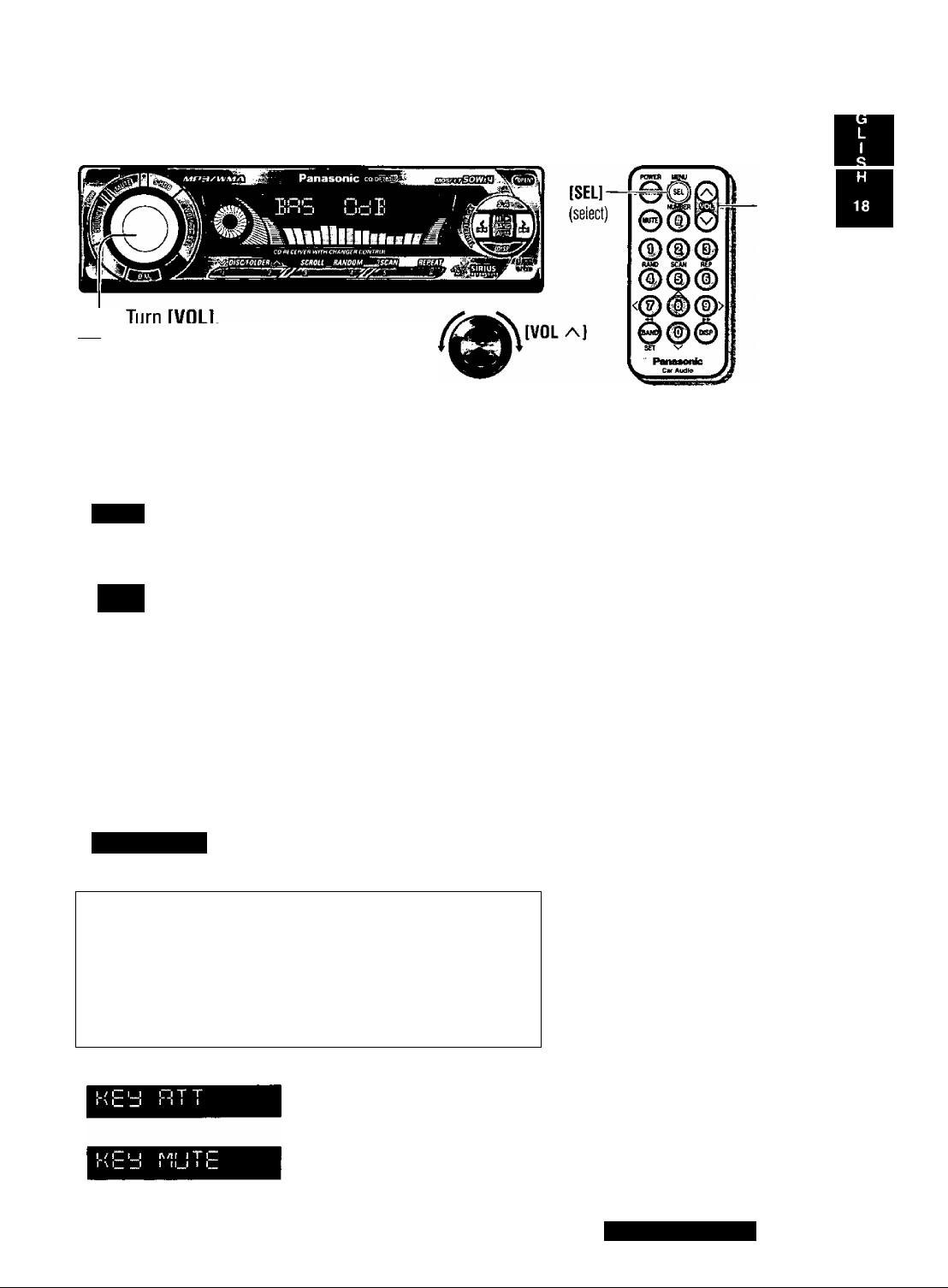

Volume

0(=]o

Turn [VOL].

[VOL V ]

Down

[VOL ^]: Up

[VOL V ] : Down

Setting range: 0 to 40 (default: 18)

Note:

•The sound level for each source is stored in mem­ ory. •

(For radio, one volume setting for AM, one vol­ ume setting for all FMs)

Muting or Attenuation

ON: Press [MUTE].

OFF: Press [MUTE] again.

Decreasing volume range is adjustable by setting, (page 32)

Е \ Л * I T No sound,

r I I I I

lights.

Decrease the volume by 10 steps.

Enm lights during attenuation as well.

18

CQ-DF783/DFX403U

S-HDB

I

(Super Hiah Definition Bass)_______|

With music genres like rock music, the bass-sound will be rriore powerful.

Press [S-HDBl.

S*HDB is non-active, (default)

	The bass sounds of
	the speakers are
	moderately empha­
	sized. UnD^l lights.
	(The sounds of the
	subwoofer can be
	heard clearly.)
	The bass sounds of
T M “ | I 1 Л Л
	the speakers are
	strongly emphasized,
	lights.

[DISP] (display)

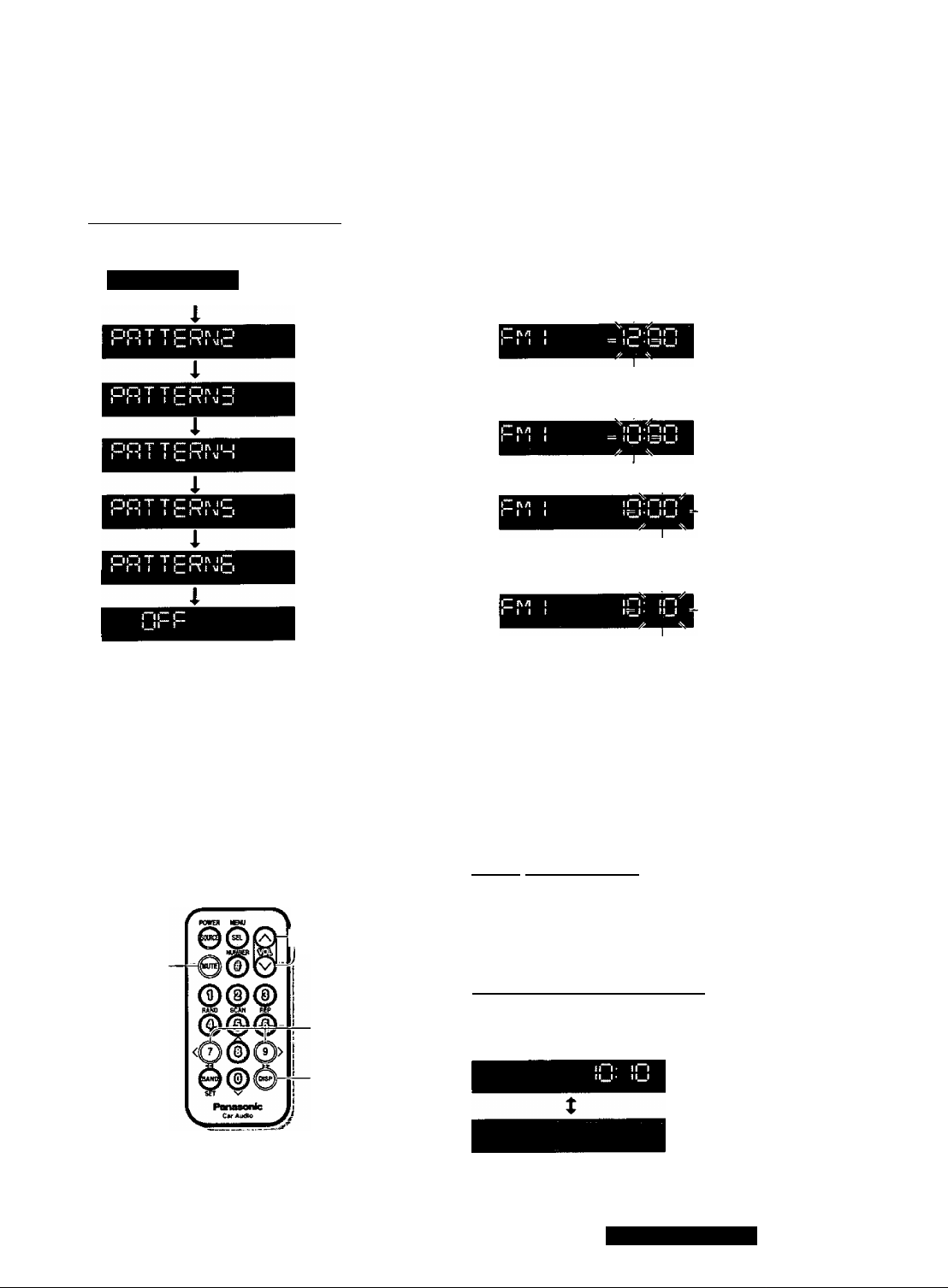

Spectrum Analyzer (S*A) Display

Pattern

ni—lo			Press [S*A],
					(Default)
		QQT TCOi' 1
			I til i l_ i y

C l	i ” t	T T
1 I	I I	I

0	i ” ! T T i _ I I P L 1 1 _	I y l _ l
1	1 1 1 I i „ n

[VOL A ]

[MUTE]-

[VOL V ]

(volume)

[<][>1

(hour/minute)

[DISP]

(display)

Clock Set

The 12-hour system is used for the clock.

O Press [DISP] (display).

C l T i 1 1	I c T	Clock display
I ' J L I ‘ ™ H _ I _ I	i

0 Press and hold [DISP] (display) again for more than 2 seconds.

Hours blink.

Hours:

0 Press I<] or [>].

Hours set.

O Press [DISP] (display).

Minutes blink.

Minutes:

© Press [<] or [>].

Minutes set.

© Press [DISP] (display).

End.

Note:

Displays before adjusting the clock.

•Press and hold [<] or [>] to change numbers rapidly.

Time Reset

O Press and hold [DISP] (display) for more than 2 seconds.

0 Repeat steps © to 0.

Display Change

Press [DISP] (display).

When the power is off:

Clock display

Display off

19

CQ-DF783/DFX403U

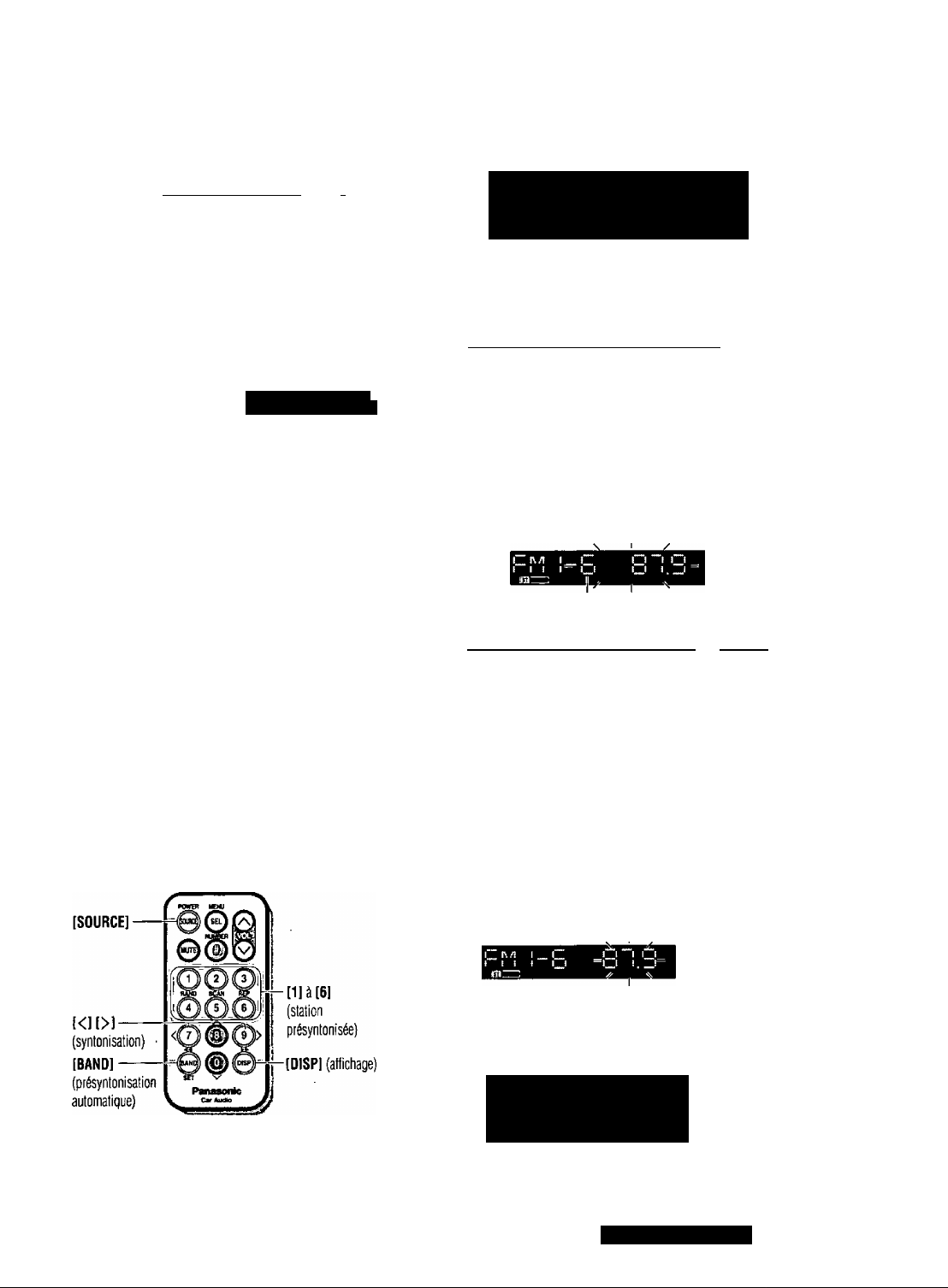

Radio

Radio Mode

Radio mode display

Press [SOURCE] to change to the radio	Band	Frequency
mode.
	FM stereo indicator

[BAND]

[APM] (auto preset memory)

	[D-M] (direct memory)
e	Band	Display Change
	Press [BAND],	Press [DISP] (display).

Radio mode display (default)

I I P

Clock display

Tuning

© [>l:Up [<]: Down

Press and hold [<] or [>] for more than 0.5 seconds, then release.

Seeking will start.

20

CQ-DF783/DFX403U

Caution:

• To ensure safety, never attempt to preset stations while you are driving.

Direct Memory (D-IVIV

Your favorite radio station can be memorized in [D*M1 {direct memory).

Default: FM 87.9 MHz

■Memorize

O Select a band and frequency.

@ Press and hold [D-M] for more than 2 seconds.

Note:

•Existing saved station is overwritten with new sta­ tion after this procedure above.

Preset Station Setting

*Up to 6 stations each can be saved in the FM1, FM2, FM3 and AM preset station memories.

I Manual Preset:Membrv -

Manually save a station in the preset memory.

O Select a band and frequency, (previous page)

© Press and hold [1] to [6] for more than 2 seconds to memorize.

•The display blinks once, and a receiving sta­ tion is saved in the memory.

■ Recalling the Direct Memory	Preset number
Press [D*M].	Auto Preset Memory (АРМ)

Press [D'M] again to cancel.

Note:

You can recall the direct memory even when the power is off.

[Uto [6] (preset station)

Automatically save stations with good reception in the preset memory.

© Select a band, (previous page)

@ Press and hold [АРМ] for more than 2 sec­ onds.

•The 6 stations with good reception will be auto­ matically saved in the memory under preset num­ ber 1 to 6.

•Once set, the preset stations are sequentially

scanned for 5 seconds each, (scanning)

• To stop scanning, press [1] to [6].

Note:

•Existing saved stations are overwritten with new stations after this procedure above.

Preset Station Calling

■[OISP] (display)	О Select a band, (previous page)
	0 Press [1] to [6].

21

CQ-DF7a3/DFX403U

CQ-DF783/DFX403U

Press [OPENl.

CD Player

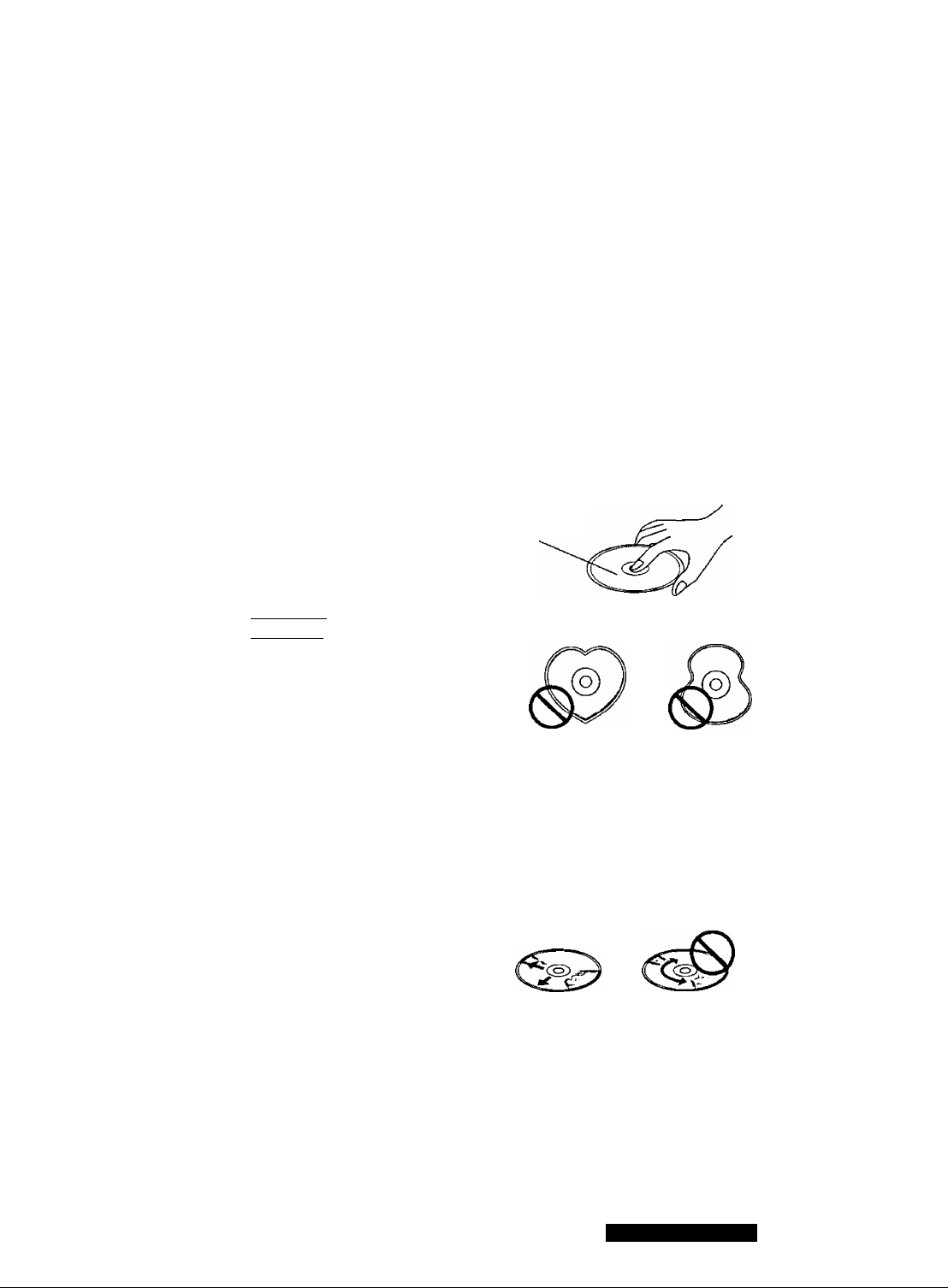

Caution:
• Available discs:	use irregularly shaped discs.
• Disc size: 5" (12 cm) CD	push the front pane! down or place
• CD-DA data recorded CD-R and CD-RW discs	objects on it while it is open,
• MP3/WMA data recorded CD media	use discs that have a seal or label
(CD-ROM, CD-R, CD-RW) mmm	attached.
• 3" (8 cm) CD is not available for this unit, so do • Do not	pinch your finger or hand in the front
not insert it absolutely.	panel.
• Before loading a disc, check to make sure that a	insert foreign matter into the disc
disc is not already loaded.	slot.
• Refer to page 43 about notes on CD-Rs/RWs.	watch the scroll display while driving
• Refer to page 27 about notes on IVIP3/WMA.	\a car. {pages 25, 26)
		CQ-0F783U!

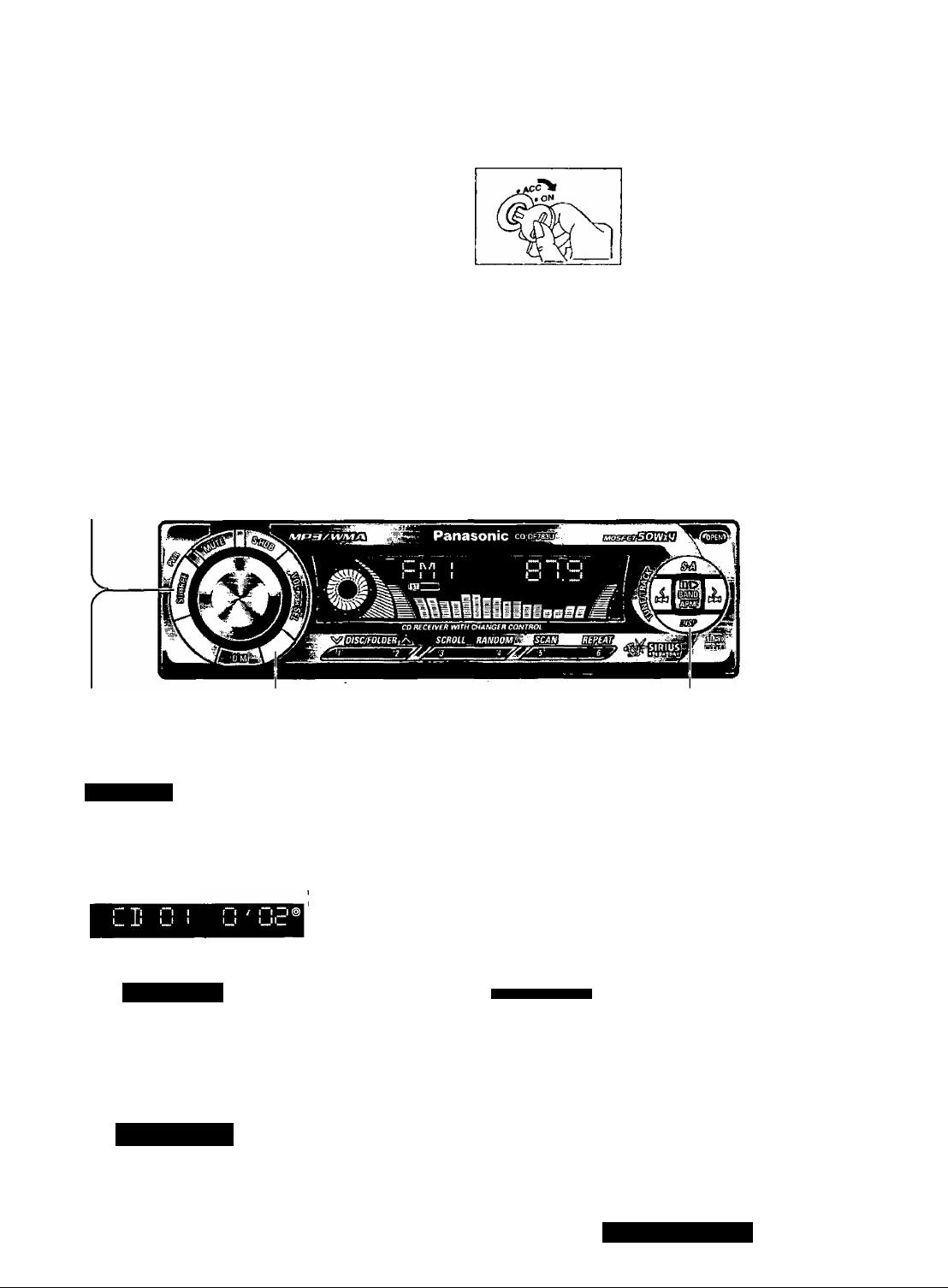

Listening to a CD

OOpen the front panel.	A (eject)

A Insert the disc.

The display changes as shown below.

Playback starts automatically.

■CD

Track number Playing time

•Do not insert a disc when this indicator lights.

•Lights when the disc is loaded.

■MP3/WMA CQ-DF783U

Data reading.		I
	’ „ ' C O T i T r \ 1 1 “
	nci IX'X<

		When CD is in the player
	Folder number I	Press [SOURCE] to change to CD player
		mode.
	File number
©	stop and eject the disc.
	Press [OPEN] and [^] (eject).

22

The model CQ-DFX403U does not support MP3/WMA playback.

Note:

•The power will be turned on automatically when a disc is loaded.

•Be sure to close the front panel while CD play­ back.

•The title can be displayed. (pages 2 5 , 26) CQ-DR83U

•It may take some time to distinguish CD-DA and MP3/WMA before playback starts.

•If you record too many folders and files onto a disc, it may take some time before playback starts.

		Folder Selection		Pause
				Press ni».
		CQ-DF783U
				Press again to cancel.
	[A]: Next folder.
	[ V ] : Previous folder.

[OPEN]

Track (File) Selection

]: Next track (file).

]: Beginning of the current track (file).

For the previous track (file), press twice.

Fast Forward/Fast Reverse

Press and hold.

[►	►	1] (►	►	): Fast forward.
I !◄	◄	] (◄	◄	): Fast reverse.

Release to resume the regular play.

■ [ A ] [ v j (folder)

23

CQ-DF783/DFX403U

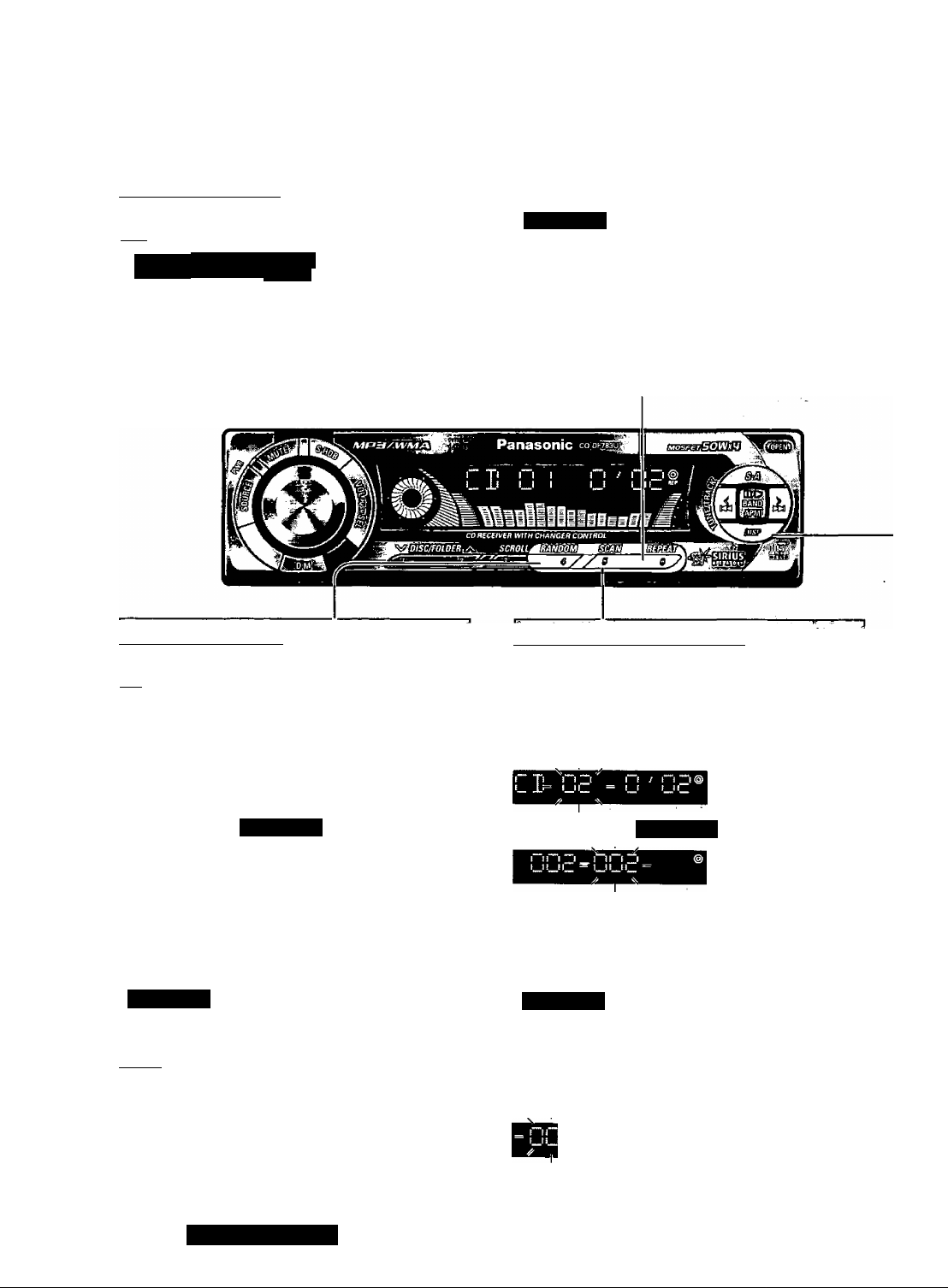

CD Player (continued)

I Repeat Play

Press [REPEAT],

iiT?a lights.

Press [REPEAT] again to cancel.

I Random Play

Press [RANDOM],

Cnnil lights.

All the available tracks (files on alt folders) play in a random sequence.

■CD

MP3/WMA CQOF783U

Press [RANDOM] again to cancel.

:~'n

Folder Random Play

CQ-DF783U

Press and hold [RANDOM] for more than 2 sec­ onds.

lifITTTil blinks.

All the files on the current folder play in a random sequence.

Press and hold [RANDOM] again for more than 2 seconds to cancel.

24

Folder Repeat Play

CQ-DF783U

Press and hold [REPEAT] for more than 2 seconds, mo blinks.

Repeat the current folder.

1 I I t I I	t l \	1
n J ” I " " 1 ^ 1	[	y

Press and hold [REPEAT] 2 seconds to cancel.

I Scan Play

Press [SCAN],

The first 10 seconds of each track (file on all folder) plays in sequence.

■CD ,

Tb= D ±1 i_iu

MP3/WMA CQ-DF783U

Press [SCAN] again to cancel.

Folder Scan Play

CQ-DF783U

Press and hoid [SCAN] for more than 2 seconds. From the next folder, the first 10 seconds of the first file on each folder plays in sequence.

I t =. t II I 1

L . I i _ _ i „ i i _ i 1

Press and hold [SCAN] again for more than 2 sec­ onds to cancel.

CQ-OF783/DFX403U

The model CQ-DFX403U does not support MP3/WMA playback.

■ Display Change

r:
	CQ-DF783U		CQ-DFX403U
Press [DISP] (display).			Press [DISP] (display).

■CD

Track number/ playing time (default)

Disc title (scroll) (page 26)

Track title (scroll) (page 26)

Clock display

Note:

Displays when there is no title.

The display shows title when a disc with CD text data is loaded. (Up to 128 letters can be displayed when scrolling. Some letters are not serviceable.)

^ Track number/

playing time (default)

Clock display

MP3/WIVIA

1 M 1 I	1 E l ] t	©	Folder/tile number
			(default)
	M l 1	©	Playing time
			Folder name (scroll)
			(page 26)
			File name (scroll)
			(page 26)
			Clock display	I

(Example; MP3)

Note:

Displays when there is no

file/folder name.

•The bit rate value changes when variable bit rate (VBR) data is played.

•When playing a Tree 1 file, the folder name is dis­ played with the word “ROOT” (root folder).

•Folder and file names can be displayed. Displayable character number varies with file sys­

tems.

• Characters that the player cannot display are shown as an asterisk.

[4] (random play)

—[51 (scan play) [61 (repeat play)

[DISPUdisplay)

25

CQ-DF783/DFX403U

CD PISySr (continued)

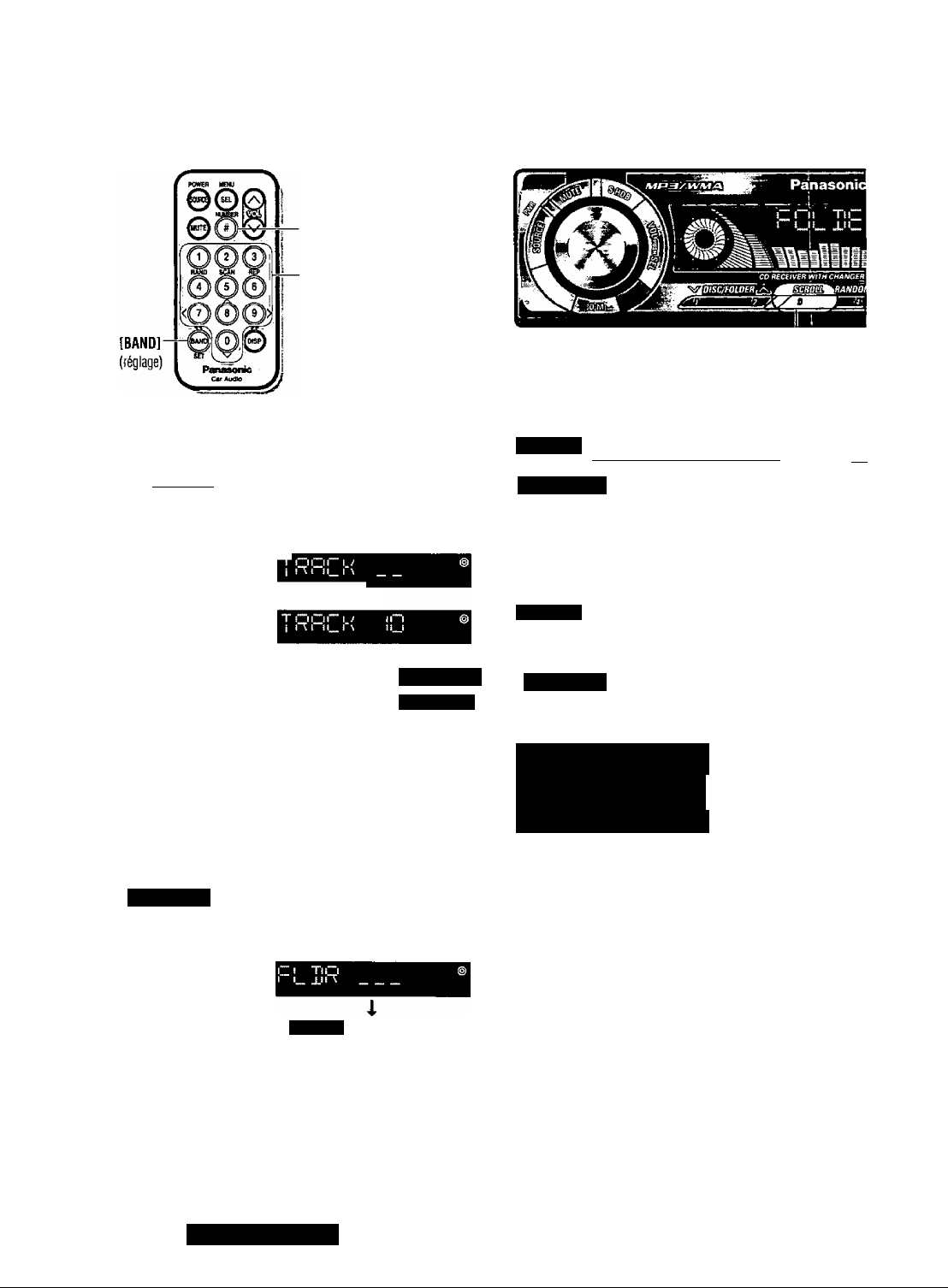

m ^ Direct Track (Fite) Setection

Example: track (file) number 10

O Press [#J.	■ CD
Q Press [1]	[0].

o Press [BAND].

CQ-DF783U

Direct Folder Selection

L

CQ-DF783U

Example: folder number 10

O Press [#] twice

T i Q

Q Press [1] [0].

e Press [BAND].

Note:

•Press [DISP] (display) to return to the regular mode.

•Operation returns to the start of the disc when a folder with no MP3 or WMA format files is se­

lected.

26

CQ-DF783/DFX403U

ni )o

CQ-DF783U

Press [SCROLL],

When the display is set to show disc/track title (folder/file name/ID3A/VMA tag) (page 25), this rescrolls the text.

OCZUo	ID3/WIVIA Tap Setting

CQ-DF783U

Press and hold [SCROLL] for more than 2 seconds.

T nr	1 n\ t	M	@
1 * *
	nr			(Default)
I I M_! I_ll

When a folder name is displayed:

TAG ON; The album title is displayed.

TAG OFF: The folder name is displayed.

When a file name is displayed:

TAG ON: The title/artist name is displayed TAG OFF: The file name is displayed.

The model CQ-DFX403U does not support MP3/WMA playback.

Notes on MP3/WMA

□ What is MP3/WMA?

MP3 (MPEG audio layer 3) and WMA (Windows Media™ Audio) are the compression formats of digital audio. The former is developed b y MPEG (Motion Picture Experts Group), and the latter is developed by Microsoft Corporation. Using these compression formats, you can record the contents of about 10 music CDs on a sin­ gle CD media. (This figures refer to data recorded on a 650 MB CD-R or CD-RW at a fixed bit rate of 128 kbps and a sampling frequency of 44.1 kHz.)

Note:

•MP3A/VMA encoding and writing software are not supplied with this unit.

•CD writing software is not supplied with this unit.

□ Points to remember when making MP3/WMA fiies

Common

•High bit rate and high sampling frequency are recommended for high quality sounds.

•Selecting VBR (Variable Bit Rate) is not recom­ mended because playing time is not displayed properly and sound may be skipped.

•The playback sound quality differs depending on the encoding circumstances. For details, refer to the user manual of your own encoding software and writing software.

Caution:

MP3

•It is recommended to set the bit rate to “128 kbps or more" and “fixed”.

WMA

•It Is recommended to set the bit rate to “64 kbps or more” and “fixed”.

•Do not set the copy protect attribute on the WMA file to enable this unit to playback.

•Never assign the “.mp3”, or “.wma” file name extension to a tile that is not in the MP3/WMA format. This may not only produce noise from the speaker damage, but also damage your hearing.

□Display Information

■Displayed items

CD-TEXT	MP3/WMA	MP3 (IDS tag)	WMA (WMA tag)
• Disc title	• Folder name	• Album title	• Album title
• Track title	• Fiie name	• Artist name	• Artist name
		• Title name	• Title name

■Displayable characters

•Displayable length of file name/folder name; within 128 characters

•Name files and folders in accordance with the standard of each file system. Refer to the instructions of writ­ ing software for details.

•ASCII character set and special characters in each language can be displayed.

ASCII character set

A to Z, a to z, digits 0 to 9, and the following symbols: (space) ! ” # $ % & ’ ( ) * + , - . / : ; < = > ? i © [ \

Note:

Special characters

A A A A A a a a a a A a

O O O O O d d o o b

U U U U u u u i j

With some software in which MP3/WMA format files have been encoded, the character information may not be displayed properly.

Undisplayable characters and symbols will be converted into an asterisk.

27

CQ-DF783/DFX403U

CD Pl3y6r (continued)

Notes on MP3/WMA (continued)

□ Recording MP3/WMA fiies on a CDmedia

•You are recommended to minimize the chances of making a disc that contains both CD-DA files and MP3/WMA files.

•If CD-DA files are on the same disc as MP3 or WMA files, the songs may not play in the in­ tended order, or some songs may not play at all.

•When storing MP3 data and WMA data on the same disc, use different folders for each data.

•Do not record files other than MP3/WMA files and unnecessary folder on a disc.

•The name of MP3/WMA file should be added by rules as shown in the following descriptions and also comply with the rules of each file system.

•You may encounter trouble in playing MP3A/VMA files or displaying the information of MP3/WMA files recorded with certain writing software or CD recorders.

•The file extension “.mp3” or “.wma” should be assigned to each file depending on the file format.

•This unit does not have the play list function.

• Although Multi-session recording is supported, the use of Disc-at-Once is recommended.

Supported file systems

ISO 9660 Level 1/Level 2, Apple Extension to ISO 9660, Joliet, Romeo

Note:

• Apple HFS, UDF 1.50, Mix CD (CD Extra) is not supported.

Compression formats (Recommendation: “Points to remember when making MP3/WMA files” on the previous page)

Compression method	Bit rate	VBR	Sampling frequency
MPEG1 audio layers (MP3)	32 k-320 kbps	Yes	32,44.1,48 kHz
MPEG 2 audio layers (MP3)	8 k-160 kbps	Yes	16, 22.05, 24 kHz
Windows Medio Audio Ver. 2, Ver. 8	64 k-192 kbps	No	32, 44.1,48 kHz

□ Folder selection order/file playback order (example)

Note:

•This unit counts the number of folders irrespective of the presence or absence of MP3/WMA file.

•If the selected folder does not contain any MP3/WMA files, the nearest MP3AA/MA files in the order of play­ back will be played.

•Playback order may be different from other MP3AA/MA players even if the same disc is used.

•“ROOT" appears when displaying the root folder name.

Maximum number of filesAolders:

Maximum number of files/folders: 999 (files-i-folders) Maximum number of files in one folder: 255 Maximum depth of trees: 8

Maximum number of folders: 255 (Root folder is includ­ ed.)

Windows Media, and the Windows
logo are trademarks, or registered	ss.
trademarks of Microsoft
Corporation in the United States	Designed for
and/or other countries.	Media""

Root folder (root directory)

-a	Folder selection
	In the order to |2]
	File selection
	In the order
S]
Treel Tree 2 Tree3	.........................................Tree 8 (Max.)

Copyright

It is prohibited by copyright laws to copy, distribute, and deliver copyrighted materials such as music without the approval of copyright holder except en­ joying yourself personally.

No warranty

Above description complies with our investigations as of December 2002. It has no warranty for repro­ ducibility and displayability of MP3/WMA.

28

CQ-DF783/DFX403U

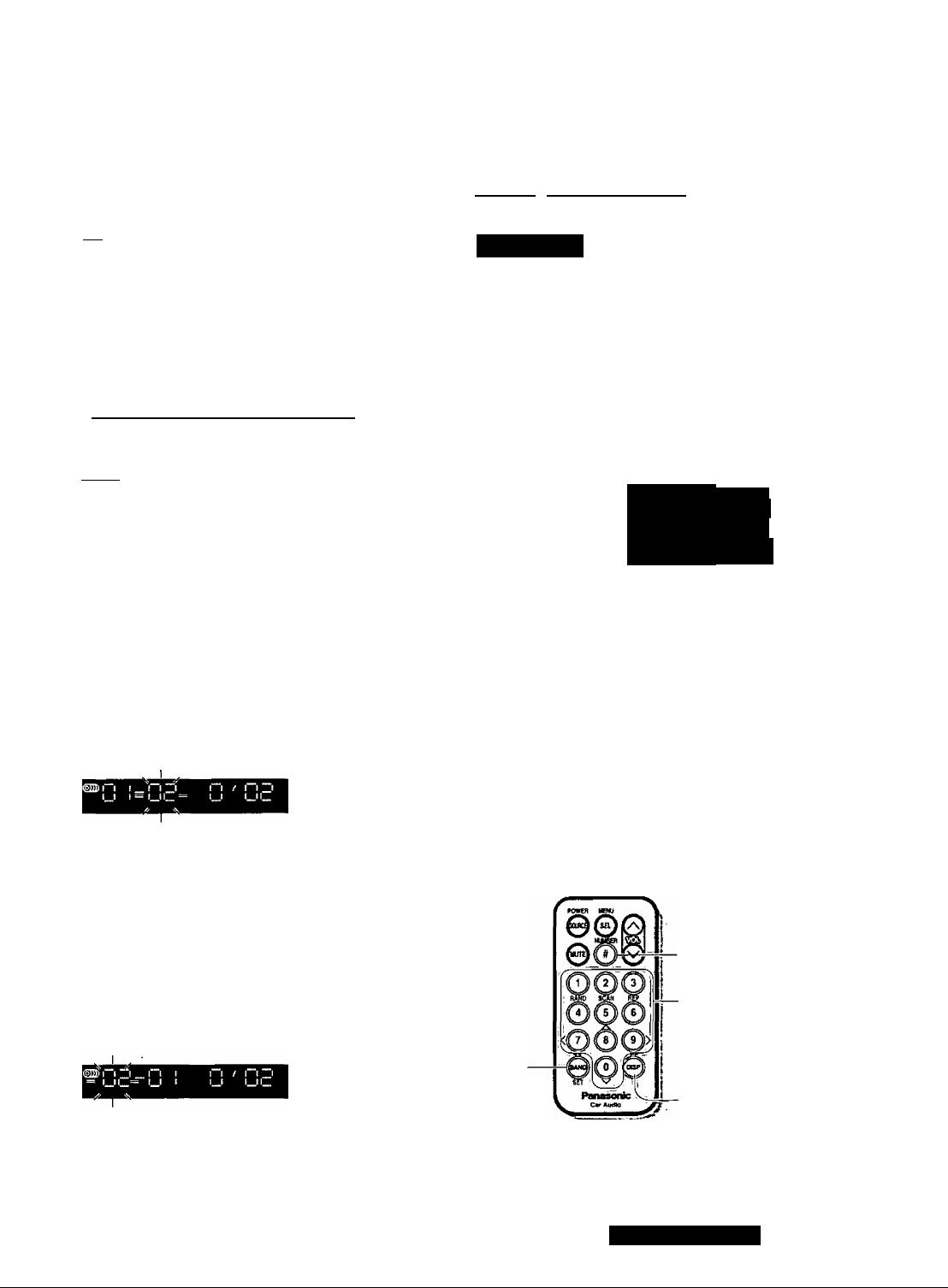

CD Changer Control

	—		\
		----------------------------------------------------------------------
	CD changer functions are designed for optional	• The following functions are not supported dur-
	Panasonic CD changer unit.	ing playback through the CD changer.
	Preparation:	• CD-ROM, CD-RW playback
		• CD text display
	• Connect the CD changer, and load a magazine
		• MP3/WMA playback
	(CDs).
		• Pause
	Note:	• In principle, CD-R disc play is supported but it
	• The power will be turned on automatically when	does not follow that it will be possible to play all
	a magazine is loaded.	such discs properly.	J
	_______________________________________

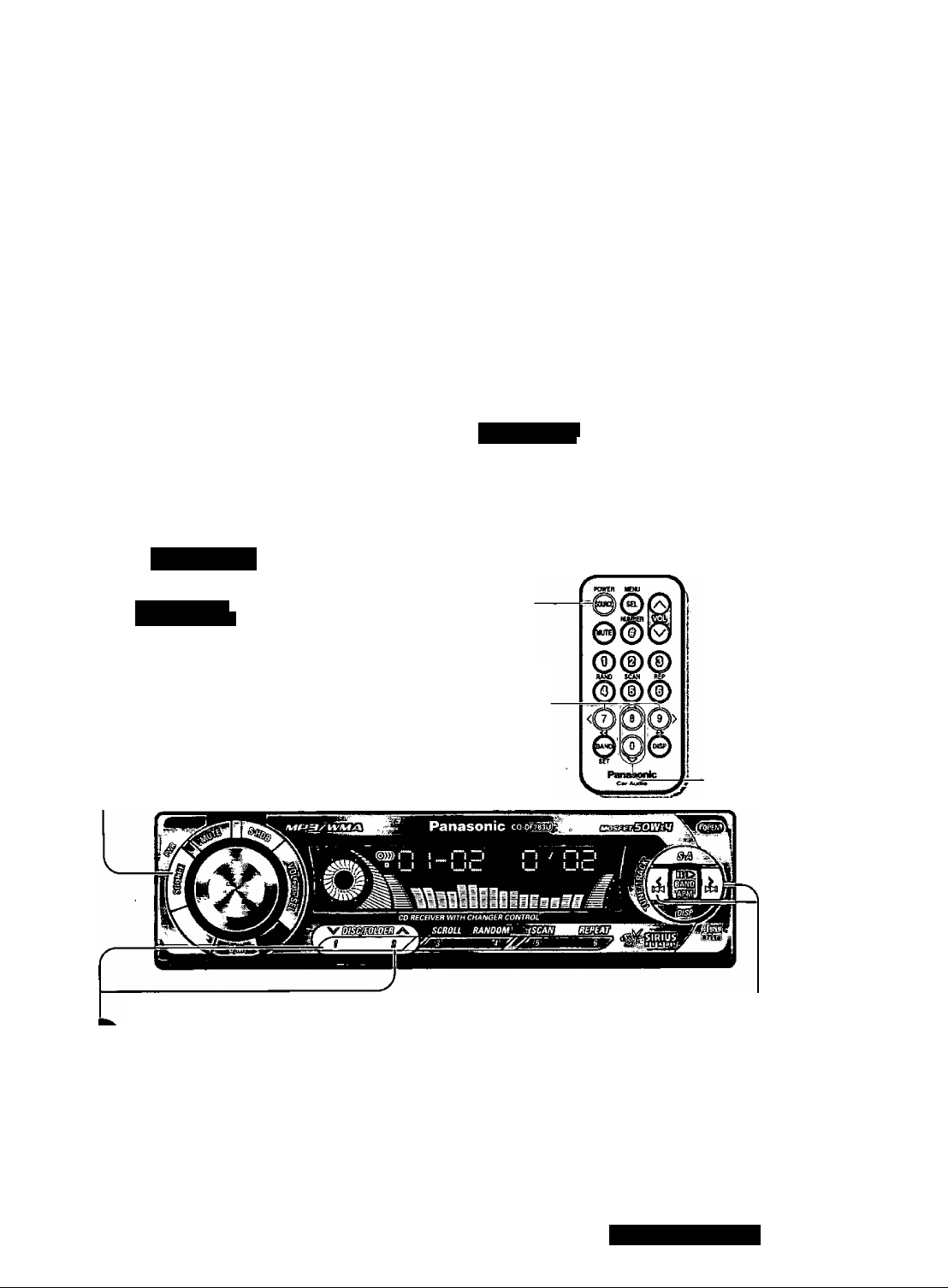

	CD Changer Mode	CD changer mode display

(When a CD changer is connected and a magazine is in the changer.)

Press [SOURCE] to change to CD changer mode.

Playback starts automatically.

Note:

Lights when the changer is connected.

Track number

Disc number Playing time

CD changer 1 {This lights only when the dual changer control unit is connected.)

[A][V](diSC)

Disc Selection

[A]: Next disc.

[ V ] : Previous disc.

Track Selection

[► ► I J: Next track.

t ]: Beginning of the current track.

For the previous track, press twice

Fast Forward/Fast Reverse

Press and hold.

[ ►	>! ] (►	► ): Fast forward.
[!◄	◄ ] (◄ ◄	): Fast reverse.

Release to resume the regular play.

29

CQ-DF783/DFX403U

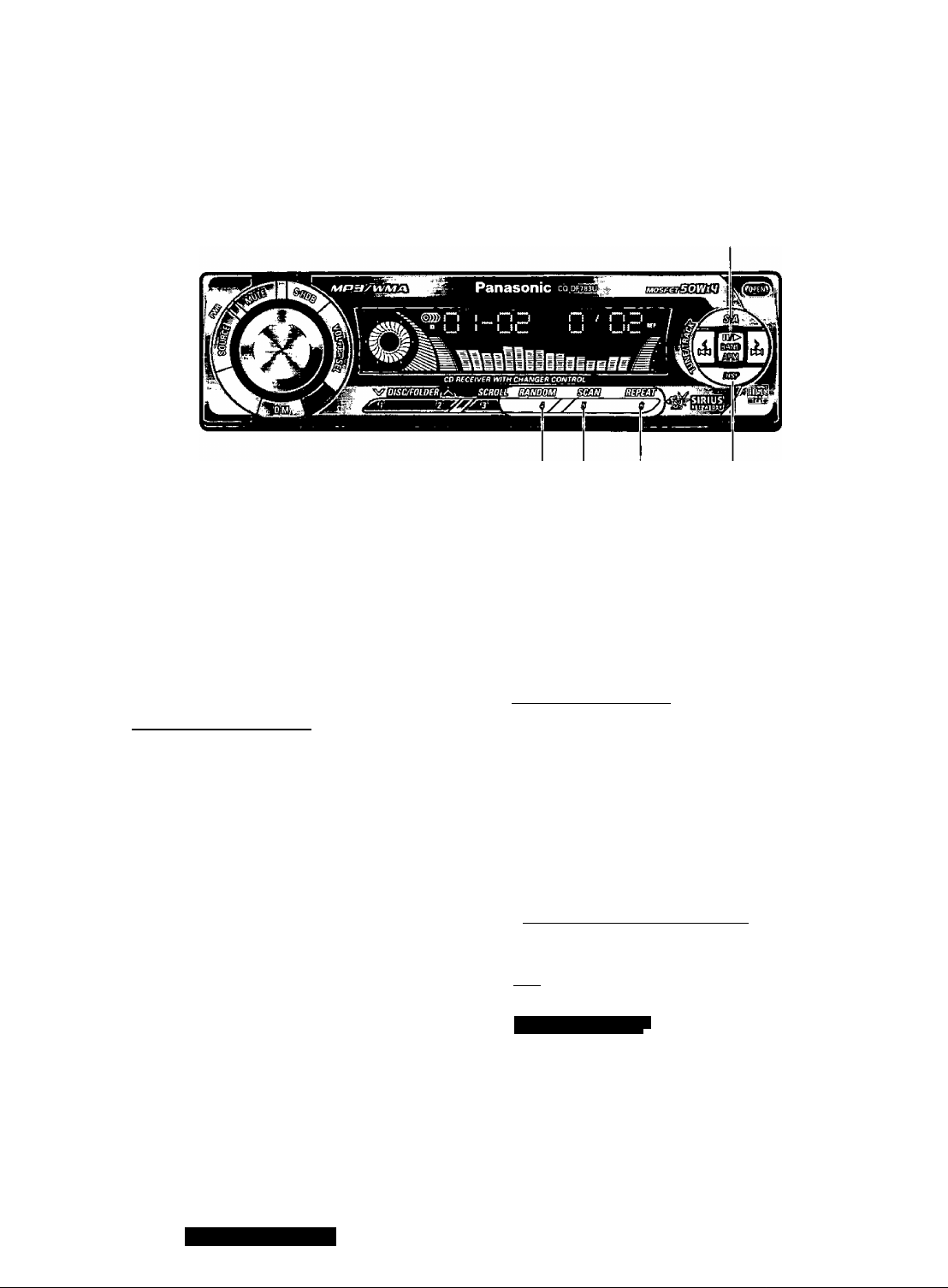

CD Changer Control (comnuodi

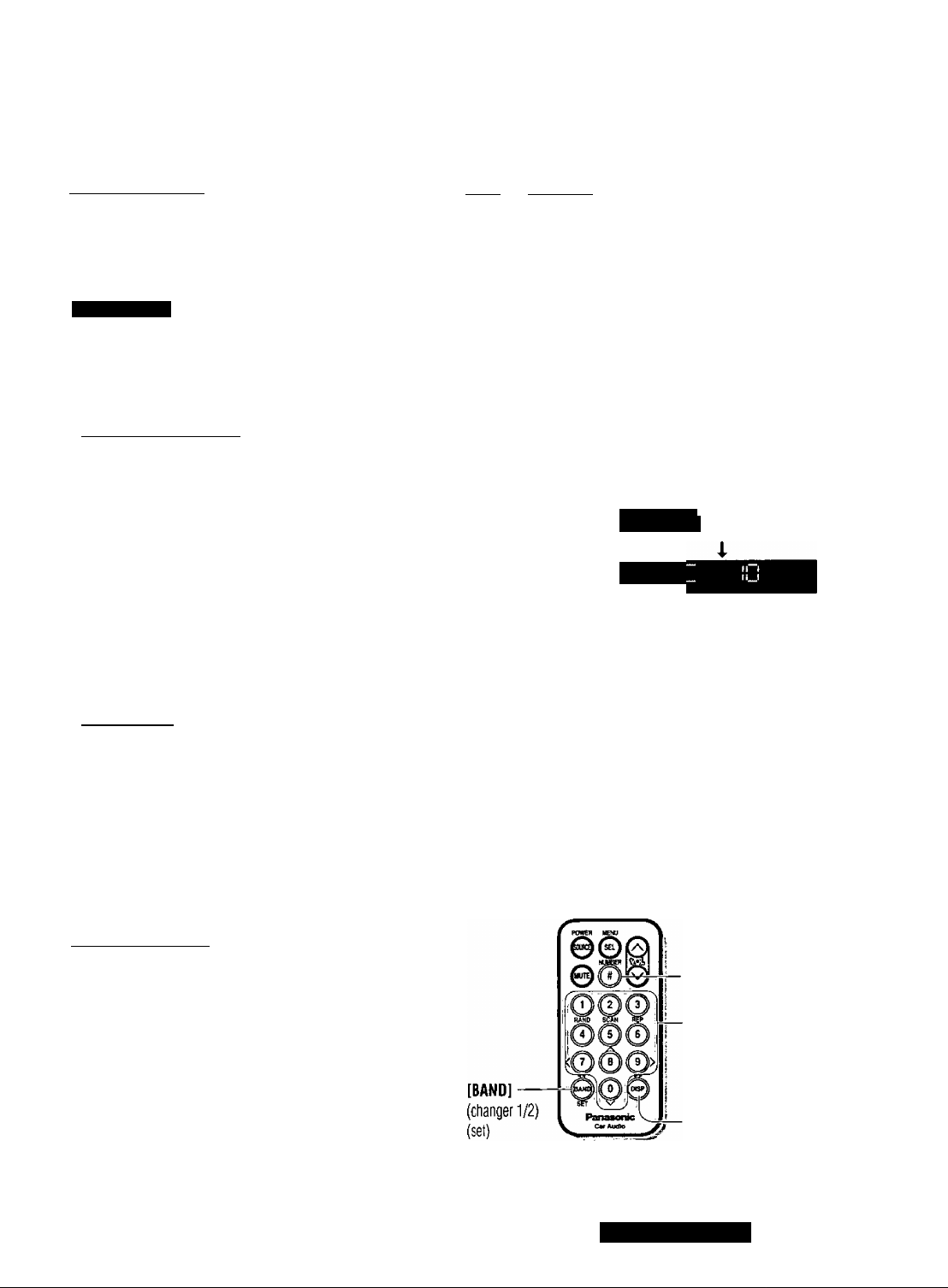

[BANDI (Changer 1/2)

[RANDOM] [SCAN] [REPEAT] [DISP]

(display)

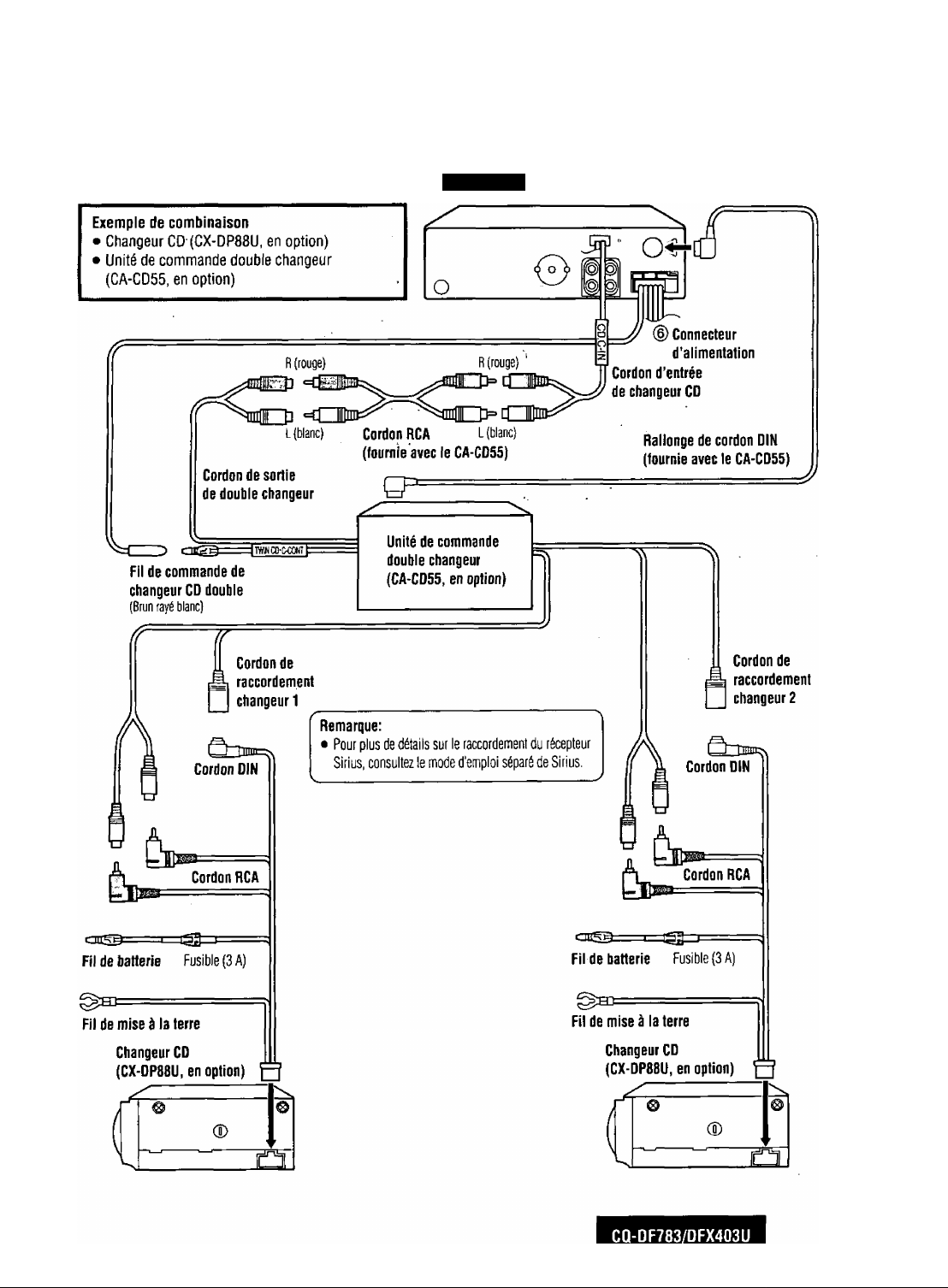

' Using Two Changers

I (Dual Changers)____

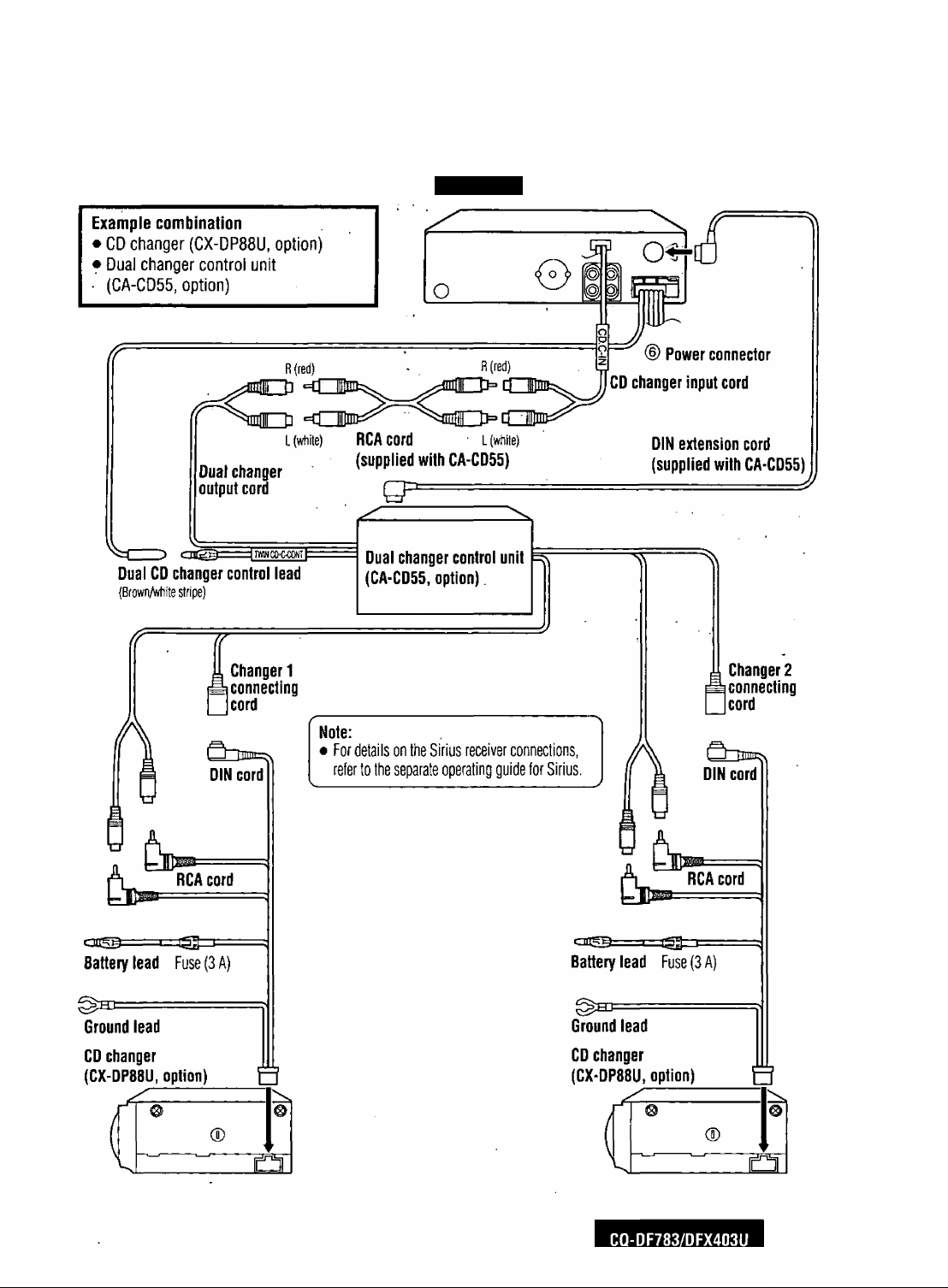

Use the dual changer control unit (CA-CD55; op­ tion) to connect the 2 CD changers to this unit, (page 53)

Press [BAND].

The selected changer number (either Q] or m ) lights.

Note:

• For details on the Sirius receiver connections, refer to the separate operating guide for Sirius.

. Repeat Plav- -

Press [REPEAT).

CSillights.

Repeat the current track.

Press [REPEAT] again to cancel.

Disc Repeat Play

Press and hold [REPEAT] for more than 2 seconds. ESI blinks.

Repeat the current disc.

Press and hold [REPEAT] again for more than 2 seconds to cancei.

30

CQ-DF783/DFX403U
