Panasonic CMS3.0, CMS3.1 Installation Guide

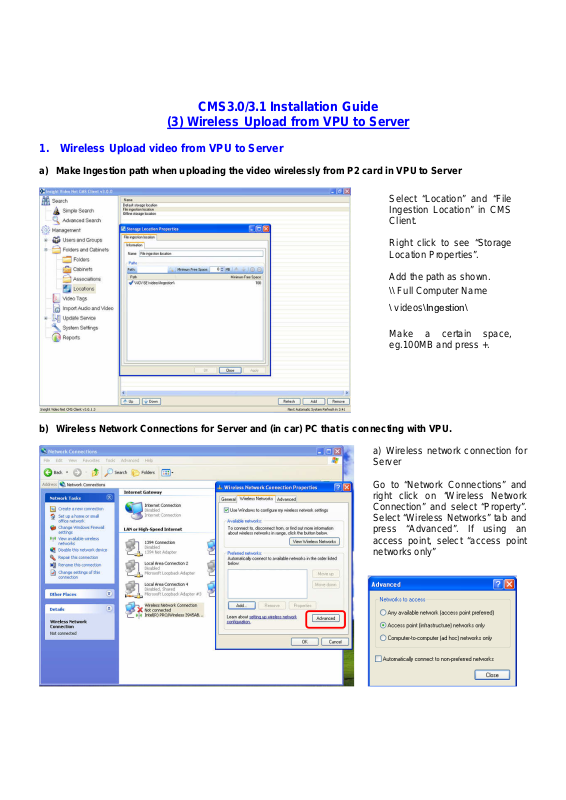

CMS3.0/3.1 Installation Guide

(3) Wireless Upload from VPU to Server

1. Wireless Upload video from VPU to Server

a) Make Ingestion path when uploading the video wirelessly from P2 card in VPU to Server

Select “Location” and “File
Ingestion Location” in CMS
Client.

Right click to see “Storage
Location Properties”.

Add the path as shown.

\\ Full Computer Name
\ videos\Ingestion\

Make a certain space,
eg.100MB and press +.

b) Wireless Network Connections for Server and (in car) PC that is connecting with VPU.

a) Wireless network connection for
Server

Go to “Network Connections” and
right click on “Wireless Network
Connection” and select “Property”.
Select “Wireless Networks” tab and
press “Advanced”. If using an
access point, select “access point
networks only”

When you go back to “Wireless
Networks” tab, you can find network
access point in Preferred Networks.

*Connect the Server and the Access
Point with the LAN cable and follow
the instruction for the Access Point
to set up with Server.

*Select and connect the access point
at the in car PC that is connecting
with VPU.

c) Wireless upload by SI from VPU to Server

Make sure that File integrity Check
and Parser Service is running at
Insight Watchdog.

<Manual Upload>

Make sure to input the FTP Server

IP address and set up “False” on

“Use Auto Upload” at SI Config
menu.

By pressing “Upload” at SI Upload
menu, you will find the “Upload Start
and End” if the file is uploaded
successfully.

“Config” – “File Transfer” – “Upload”

<SI Config menu>

<SI Upload menu>
