Panasonic CF-Y2 User Manual
XP

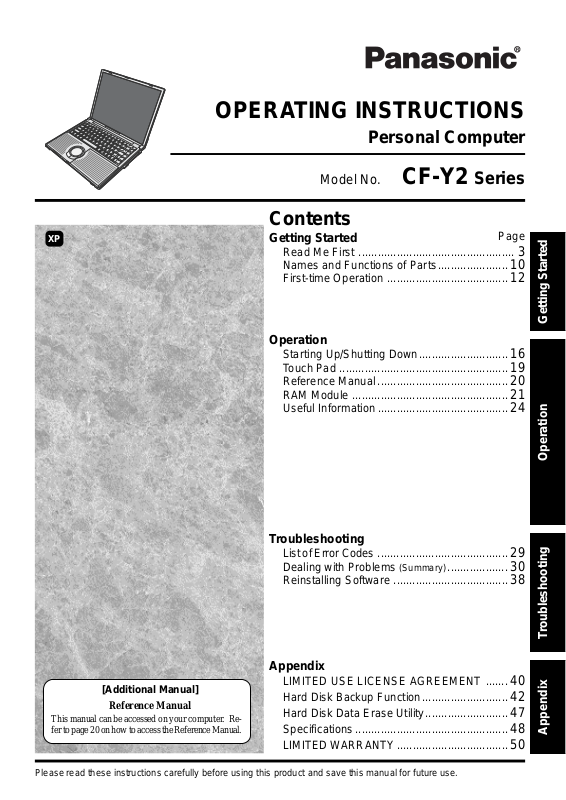

OPERATING INSTRUCTIONS
Personal Computer
Model No. CF-Y2 Series
Contents
Getting Started
Read Me First ................................................. 3
Names and Functions of Parts...................... 10
First-time Operation ......................................12
Operation
Starting Up/Shutting Down............................ 16
Touch Pad ..................................................... 19
Reference Manual......................................... 20
RAM Module .................................................21
Useful Information.........................................24
Page
Getting StartedOperationTroubleshooting
Troubleshooting
List of Error Codes .........................................29
Dealing with Problems (Summary)................... 30
Reinstalling Software ....................................38
Appendix
[Additional Manual]
Reference Manual
This manual can be accessed on your computer. Refer to page 20 on how to access the Reference Manual.
Please read these instructions carefully before using this product and save this manual for future use.
LIMITED USE LICENSE AGREEMENT .......40
Hard Disk Backup Function...........................42
Hard Disk Data Erase Utility.......................... 47
Specifications................................................48
LIMITED WARRANTY...................................50
Appendix
Customer’s Record
Model No. *
Serial No.
or
Code No.
Date of Purchase
*1For the Model No., insert the 12 digit number (for example, CF-Y2EWAZZBM) located on
the bottom of the computer.
Introduction
Thank you for purchasing the Panasonic computer. Read the operating instructions thoroughly for proper operation of your new
computer.
Illustrations and Terminology in this Manual
NOTE: NOTE provides a useful fact or helpful information.
CAUTION: CAUTION indicates a condition that may result in minor or moderate injury.
Enter : This illustration means to press the [Enter] key.
Fn + F5 : This illustration means to press and hold the [Fn] key , then press the [F5] key.
Getting Started
[start] - [Run]: This illustration means to click [start], then to click [Run]. For some applications, you may need to
: Where to go for referred information.
: This illustration means to refer to the Reference Manual, which is available on your computer.
Some of the illustrations in this manual may differ slightly in shape from the actual items in order to make the explanation
easier to understand.
In this manual, “Microsoft® Windows® XP Professional Service Pack 2 with Advanced Security Technologies” is indicated as “Windows” or “Windows XP”.
In this manual, the following software packages are described as follows:
“WinDVD™ 5 (OEM Version)” as “WinDVD”
“B’s Recorder GOLD7 BASIC” as “B’s Recorder”
“B’s CLiP 6” as “B’s CLiP”
If the user has logged on without the administrator authority, some functions may not be executable, and some screens may
not be displayed as shown in this manual. If this happens, log on with the administrator authority to enable these functions.
Confirm the latest information on optional products in catalogs, etc.
1
When using with the [Fn] and [Ctrl] functions interchanged, read with [Fn] and [Ctrl] reversed (
“Using the Fn Key”).
double-click.
Refer to page 20 on how to access this manual.
Dealer’s Name
Dealer’s Address
Copyright
This manual is copyrighted by Matsushita Electric Industrial Co., Ltd. with all rights reserved. No part of this manual may be
reproduced in any form without the prior written permission of Matsushita Electric Industrial Co., Ltd.
No patent liability is assumed with respect to the use of the information contained herein.
© 2005 Matsushita Electric Industrial Co., Ltd. All Rights Reserved.
Disclaimer
Computer specifications and manuals are subject to change without notice. Matsushita Electric Industrial Co., Ltd. assumes no
liability for damage incurred directly or indirectly from errors, omissions or discrepancies between the computer and the manuals.
Trademarks
Microsoft, Windows and the Windows logo are registered trademarks of Microsoft Corporation of the United States and/or other
countries.
Intel, Pentium and PROSet are either registered trademarks or trademarks of Intel Corporation.
SD Logo is a trademark.
Adobe, the Adobe logo and Adobe Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the
United States and/or other countries.
WinDVD™ is a trademark of InterVideo, Inc.
Panasonic is a registered trademark of Matsushita Electric Industrial Co., Ltd.
Names of products, brands, etc., appearing in this manual are trademarks or registered trademarks of their respective owner
companies.
2
Read Me First
For U.S.A.
Federal Communications Commission Radio
Frequency Interference Statement
Note: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
Consult the Panasonic Service Center or an experienced radio/TV technician for help.
Warning
To assure continued compliance, use only shielded interface
cables when connecting to a computer or peripheral. Also, any
changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate this equipment.
FCC RF Exposure Warning:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment must be installed and operated in accordance
with provided instructions and minimum 1.5 cm spacing must
be provided between antenna and all person’s body (excluding extremities of hands, wrist and feet) during wireless
modes of operation.
This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. This computer is provided with a PC Card slot that could be used with
wireless transmitter(s), which will be specifically recommended, when they become available. Other third-party wireless transmitter(s) have not been RF exposure evaluated for
use with this computer and may not comply with FCC RF
exposure requirements.
This product is restricted to indoor use due to its operation in
the 5.15 to 5.25 GHz frequency range.
FCC requires this product to be used indoors for the frequency
range 5.15 to 5.25 GHz to reduce the potential for harmful interference to co-channel Mobile Satellite systems.
High power radars are allocated as primary users of the 5.25 to
5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can
cause interference with and /or damage this product.
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
Responsible Party: Panasonic Corporation of North America
One Panasonic Way
Secaucus, NJ 07094
Tel No:1-800-LAPTOP5 (1-800-527-8675)
FCC Regulation Notice for modem
This equipment contains a FCC approved modem.
Manufacturer of modem: PC TEL Inc.
Model No. PCT2304WT
Tested To Comply
With FCC Standards
FOR HOME OR OFFICE USE
1. This equipment complies with CFR47 Part 68 rules. On the
computer is a label that contains, among other information,
the FCC registration number and ringer equivalence number
(REN) for this equipment. If required, this information must
be provided to the telephone company.
2. An FCC compliant telephone cord and modular plug is provided with this equipment. This equipment is designed to be
connected to the telephone network or premises wiring using
a compatible modular jack which is Part 68 compliant. See
Installation Instructions for details.
3. The REN is used to determine the quantity of devices which
may be connected to the telephone line. Excessive RENs on the
telephone line may result in the devices not ringing in response
to an incoming call. In most, but not all area, the sum of RENs
should not exceed five (5.0). To be certain of the number of
devices that may be connected to a line, as determined by the
total RENs, contact the local telephone company.
4. If your telephone equipment cause harm to the telephone network, the telephone company will notify you in advice that
temporary discontinuance of service may be required. But if
advice notice isn’t practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you
believe it is necessary.
5. The telephone company may take changes in it’s facilities,
equipment, operations or procedures that could affect the operation of the equipment. If this happens the telephone company will provide advance notice in order for you to make
necessary modifications to maintain uninterrupted service.
6. If trouble is experienced with this equipment, for repair or
warranty information, please contact Panasonic
Corporation of North America at DIAL TOLL FREE 1-800LAPTOP5 (1-800-527-8675). If the equipment is causing
harm to the telephone network, the telephone company may
request that you disconnect the equipment until the problem
is resolved.
7. There are no user serviceable parts contained in this equipment.
8. This equipment may not be used on coin service provided by
the telephone company. Connection to party lines is subject
to state tariffs.
Getting Started
3
Read Me First
9. The T elephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other electronic
device to send any message via a telephone fax machine unless
such message clearly contains in a margin at the top or bottom
of each transmitted page or on the first page of the transmission, the date and time it is sent and an identification of the
business or other entry, or other individual sending the message and the telephone number of the sending machine or such
business, other entity, or individual. In order to program this
information into your fax software, you should refer to the
manual of the Fax software being used.
10.According to the FCC’s electrical safety advisory, we recommend that you may install an AC sur ge arrestor in the AC outlet
to which this equipment is connected. Telephone companies
report that electrical surges, typically lightning transients, are
very destructive to customer terminal equipment connected to
AC power sources and that this is a major nationwide problem.
“Caution: T o reduce the risk of fire, use only No.26 AWG or larger telecommunication line cord.”
“ATTENTION: Pour réduire le risque d’incendie, utiliser uniquement des
conducteurs de télécommunications 26 AWG ou de section supérieure.”
Getting Started
Notice for the products using LCD
This product uses one or more fluorescent lamps containing a
small amount of mercury. It also contains lead in some components. Disposal of these materials may be regulated in your community due to environmental considerations. For disposal or
recycling information please contact your local authorities, or
the Electronics Industries Alliance: <http://www.eiae.org/>
4
For Canada
Industry Canada (IC) Notice for modem
This equipment contains an Industry Canada approved modem unit.
The Industry Canada label is affixed on the modem unit.
EQUIPMENT ATTACHMENT LIMITATIONS
“NOTICE: The Industry Canada label identifies certified
equipment. This certification means that the equipment meets
telecommunications network protective, operational and
safety requirements as prescribed in the appropriate T erminal
Equipment Technical Requirements document(s). The
Department does not guarantee the equipment will operate
to the user’s satisfaction.
Before installing this equipment, users should ensure that it is
permissible to be connected to the facilities of the local
telecommunications company. The equipment must also be
installed using an acceptable method of connection. The customer
should be aware that compliance with the above conditions may
not prevent degradation of service in some situations.
Repairs to certified equipment should be coordinated by a
representative designated by the supplier. Any repairs or
alterations made by the user to this equipment, or equipment
malfunctions, may give the telecommunications company
cause to request the user to disconnect the equipment.
Users should ensure for their own protection that the electrical
ground connections of the power utility, telephone lines and
internal metallic water pipe system, if present, are connected
together. This precaution may be particularly important in rural
areas. Caution: Users should not attempt to make such
connections themselves, but should contact the appropriate
electric inspection authority, or electrician, as appropriate.”
“NOTICE: The Ringer Equivalence Number (REN) assigned
to each terminal device provides an indication of the
maximum number of terminals allowed to be connected to a
telephone interface. The termination on an interface may
consist of any combination of devices subject only to the
requirement that the sum of the Ringer Equivalence Numbers
of all the devices does not exceed 5.”
REN: See bottom of the computer
Les réparations de matériel homologué doivent être
coordonnées par un représentant désigné par le fournisseur.
L’entreprise de télécommunications peut demander à
l’utilisateur de débrancher un appareil à la suite de
réparations ou de modifications effectuées par l’utilisateur
ou à cause de mauvais fonctionnement.
Pour sa propre protection, l’utilisateur doit s’assurer que tous
les fils de mise à la terre de la source d’énergie électrique,
des lignes téléphoniques et des canalisations d’eau
métalliques, s’il y en a, sont raccordés ensemble. Cette
précaution est particulièrement importante dans les régions
rurales. A vertissement: L’utilisateur ne doit pas tenter de faire
ces raccordements lui-même; il doit avoir recours à un service
d’inspection des installations électriques, ou à un électricien,
selon le cas.”
“AVIS: L ’indice d’équivalence de la sonnerie (IES) assigné
à chaque dispositif terminal indique le nombre maximal de
terminaux qui peuvent être raccordés à une interface. La
terminaison d’une interface téléphonique peut consister en
une combinaison de quelques dispositifs, à la seule condition
que la somme d’indices d’équivalence de la sonnerie de touts
les dispositifs n’excède pas 5.”
IES: Voir sous le fond de l’ordinateur
Industry Canada
This product complies with RSS210 Industry Canada.
Operation is subject to the following two conditions;
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.
This product (local network devices) for the band 5150-5250
MHz is only indoor usage to reduce potential for harmful
interference to co-channel Mobile Satellite systems.
High power radars are allocated as primary users (meaning
they have priority) of 5250-5350 MHz and 5650-5850 MHz
and these radars could cause interference and/or damage to
LELAN devices.
Getting Started
RESTRICTIONS CONCERNANT LE RACCORDEMENT
DE MATÉRIEL
“AVIS: L’étiquette d’Industrie Canada identifie le matériel
homologué. Cette étiquette certifie que le matériel est
conforme aux normes de protection, d’exploitation et de
sécurité des réseaux de télécommunications, comme le
prescrivent les documents concernant les exigences
techniques relatives au matériel terminal. Le Ministère
n’assure toutefois pas que le matériel fonctionnera à la
satisfaction de l’utilisateur.
A vant d’installer ce matériel, l’utilisateur doit s’assurer qu’il
est permis de le raccorder aux installations de l’entreprise
locale de télécommunication. Le matériel doit également être
installé en suivant une méthode acceptée de raccordement.
L’abonné ne doit pas oublier qu’il est possible que la
conformité aux conditions énoncées ci-dessus n’empêche pas
la dégradation du service dans certaines situations.
5
Read Me First
Important Safety Instructions / Importantes Mesures De Sécurité
When using your telephone equipment, basic safety precautions
should always be followed to reduce the risk of fire, electric
shock and injury to persons, including the following:
1. Do not use this product near water, for example, near a bath
tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.
2. Avoid using a telephone (other than a cordless type) during
an electrical storm. There may be a remote risk of electric
shock from lightning.
3. Do not use the telephone to report a gas leak in the vicinity of
the leak.
4. Use only the power cord and batteries indicated in this manual.
Do not dispose of batteries in a fire. They may explode. Check
with local codes for possible special disposal instructions.
SAVE THESE INSTRUCTIONS
Getting Started
Certaines mesures de sécurité doivent être prises pendant l’utilisation
de matérial téléphonique afin de réduire les risques d’incendie, de
choc électrique et de blessures. En voici quelquesunes:
1. Ne pas utiliser l’appareil près de l’eau, p.ex., près d’une baignoire,
d’un lavabo, d’un évier de cuisine, d’un bac à laver, dans un
sous-sol humide ou près d’une piscine.
2. Éviter d’utiliser le téléphone (sauf s’il s’agit d’un appareil sans
fil) pendant un orage électrique. Ceci peut présenter un risque de
choc électrique causé par la foudre.
3. Ne pas utiliser l’appareil téléphonique pour signaler une fuite de
gaz s’il est situé près de la fuite.
4. Utiliser seulement le cordon d’alimentation et le type de piles
indiqués dans ce manual. Ne pas jeter les piles dans le feu: elles
peuvent exploser. Se conformer aux règlements pertinents quant
à l’élimination des piles.
CONSER VER CES INSTRUCTIONS
Information to the User
This product and your Health
This product, like other radio devices, emits radio frequency electromagnetic energy. The level of energy emitted by this product
however is far much less than the electromagnetic energy emitted by wireless devices like for example mobile phones.
Because this product operates within the guidelines found in radio frequency safety standards and recommendations, we believe this
product is safe for use by consumers. These standards and recommendations reflect the consensus of the scientific community and
result from deliberations of panels and committees of scientists who continually review and interpret the extensive research literature.
In some situations or environments, the use of this product may be restricted by the proprietor of the building or responsible
representatives of the organization. These situations may for example include:
Using this product on board of airplanes, or
In any other environment where the risk of interference to other devices or services is perceived or identified as harmful.
If you are uncertain of the policy that applies on the use of wireless devices in a specific organization or environment (e.g. airports),
you are encouraged to ask for authorization to use this product prior to turning on the product.
Regulatory Information
We are not responsible for any radio or television interference caused by unauthorized modification of this product. The correction
of interference caused by such unauthorized modification will be the responsibility of the user. We and its authorized resellers or
distributors are not liable for damage or violation of government regulations that may arise from failing to comply with these
guidelines.
6
Lithium Battery
Lithium Battery!
This computer contains a lithium battery to enable the date, time, and other data to be stored. The battery should only be exchanged
by authorized service personnel.
Warning! A risk of explosion from incorrect installation or misapplication may possibly occur.
Pile au lithium!
Le micro-ordinateur renferme une pile au lithium qui permet de sauvegarder certaines données, notamment la date et l’heure. La
pile ne doit être remplacée que par un technicien qualifié.
Danger! Risque d’explosion en cas de non respect de cette mise en garde!
DVD-ROM & CD-R/RW Drive Caution
CLASS 1 LASER PRODUCT
LASER KLASSE1
Bottom
CAUTION!
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS, ADJUSTMENTS OR PERFORMANCE
OF PROCEDURES OTHER THAN THOSE SPECIFIED
HEREIN MA Y RESULT IN HAZARDOUS RADIA TION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF.
REFER SER VICING TO QUALIFIED PERSONNEL.
AVERTISSEMENT!
CET APPAREIL UTILISE UN LASER.
L ’UTILISATION DE COMMANDES OU DE RÉGLAGES OU
L’EXÉCUTION DE PROCÉDURES AUTRES QUE CELLES
SPÉCIFIÉES ICI PEUVENT PROVOQUER UNE EXPOSITION À DES RADIATIONS DANGEREUSES.
NE PAS OUVRIR LES COUVERCLES NI ESSAYER DE
RÉPARER SOI-MÊME.
CONFIER TOUT T RAVAIL D'ENTRETIEN À UN PERSONNEL QUALIFIÉ.
Getting Started
7
Read Me First
Precautions
Usage Handling
Avoid Extreme Heat and Cold
Do not store or use the computer in locations
exposed to heat, direct sunlight, or extreme cold.
A void moving the computer between locations with
large temperature difference.
Operation: 5 oC to 35 oC {41 oF to 95 oF}
Storage: -20 oC to 60 oC {-4 oF to 140 oF}
Avoid Direct Sunlight on the LCD Panel
The LCD panel should not be exposed to direct
sunlight or ultraviolet light.
Avoid Humidity, Liquids and Dust
Do not store or use the computer in locations exposed to high humidity , liquids (including rain) or
Getting Started
dust.
Prevent Shock
A void subjecting the computer to severe vibrations
or impact. Do not place the computer inside a car
trunk.
Avoid Radio Frequency Interference
Do not place the computer near a television or radio receiver.
Avoid Magnetic Fields
Keep the computer away from magnets.
Data stored on the hard disk may be lost.
A void Stacking
Do not place heavy objects on top of the computer.
Keep Small Objects Away
Do not insert paper clips or other small objects into
the computer.
Do Not Disassemble the Computer
Do not attempt to disassemble your computer.
Avoid Excessive Force on the Display
Do not apply excessive downward force on the
display.
Avoiding Low-temperature Burns
A void more than casual contact with any heat producing area of the notebook computer, AC adaptor, and any option or accessory you use with it.
Even low heat, if warmer than body temperature,
can cause a burn, if the skin is exposed to the heat
source for a long period of time.
Do not touch the computer and cable when it
starts thundering.
Keep SD memory cards and MultiMedia Cards
(both sold separately) away from infants and
small children.
Accidental swallowing will result in bodily injury .
In the event of accidental swallowing, see a doctor
immediately.
Do not connect a telephone line, or a network
cable other than the one specified, into the LAN port
If the LAN port is connected to a network such as the
ones listed below, a fire or electric shock may result.
• If the LAN port is connected to a network such as the
ones listed below, a fire or electric shock may result.
• Networks other than 100BASE-TX or 10BASE-T
• Phone lines (T elephone lines, internal phone
lines (on-premise switches), digital public
phones, etc.).
8
Precautions (Battery Pack)
Care should be exercised with regard to the following in
order to avoid the possibility of overheating, fire or damage.
Avoid Heat
Do not throw the battery pack into a fire or
expose it to excessive heat.
Keep Articles A way
Do not place the battery pack together with articles such as necklaces or hairpins when carrying or storing.
Do Not Disassemble
Do not insert sharp objects into the battery pack,
expose it to bumps or shocks, deform, disassemble, or modify it.
Do Not Short
Do not short the positive (+) and negative (-)
contacts.
Avoid Extreme Heat, Cold and Direct Sunlight
Do not charge, use or leave the battery pack for
extended periods where it will be exposed to direct sunlight, in a hot place (in a car on a sunny
day, for example), or in a cold place.
Do Not Use With Any Other Computer
The battery pack is rechargeable and was intended for the specified computer. Do not use it
with a computer other than the one for which it
was designed.
Do not use this computer with a battery pack
other than the one specified (the one included
with the computer or the specified battery
pack sold separately)
Do Not Put into a Microwave
Do not put the battery pack into a microwave
oven or a pressurized chamber.
Stop Using
Should the battery emit an abnormal odor, become hot to the touch, become discolored,
change shape, or become in any way different
from normal, remove it from the computer and
stop using it.
Do not touch the terminals on the battery pack. The battery
pack may no longer function properly if the contacts are
dirty or damaged.
Do not expose the battery pack to water, or allow it to become wet.
If the battery pack will not be used for a long period of time
(a month or more), charge or discharge (use) the battery
pack until the remaining battery level becomes 30% to 40%
and store it in a cool, dry place.
This computer prevents overcharging of the battery by recharging only when the remaining power is less than approx.
95% of capacity.
The battery pack is not charged when the computer is first
purchased. Be sure to charge it before using it for the first
time. When the AC adaptor is connected to the computer,
charging begins automatically.
Should the battery leak and the fluid get into your eyes, do
not rub your eyes. Immediately flush your eyes with clear
water and see a doctor for medical treatment as soon as possible.
NOTE
The battery pack may become warm during recharging
or normal use. This is completely normal.
Recharging will not commence outside of the allowable temperature range (0 °C to 55 °C {32 °F to 131
°F}). ( “Battery Power”) Once the allowable
range requirement is satisfied, charging begins auto-
matically. Note that the recharging time varies based
on the usage conditions. (Recharging takes longer than
usual when the temperature is 10 °C {50 °F} or less.)
If the temperature is low, the operating time is shortened. Only use the computer within the allowable temperature range.
The battery pack is a consumable item. If the amount
of time the computer can be run by using a particular
battery pack becomes dramatically shorter and repeated
recharging does not restore its performance, the battery
pack should be replaced with a new one.
When transporting a spare battery inside a package,
briefcase, etc., it is recommended that it be placed in a
plastic bag so that its contacts are protected.
Always power off the computer when it is not in use.
Leaving the computer on when the AC adaptor is not
connected will exhaust the remaining battery capacity .
Getting Started
9
Names and Functions of Parts
Speakers
Function Keys
For information on the key combinations available.
( “Using the Fn Key”).
Keyboard
Touch Pad
( page 19)
Getting Started
T o adjust the volume:
Fn + F5 / Fn + F6
Speaker on/off: Fn + F4
CAUTION
Do not allow metallic objects or magnetic media to come near the speakers.
LCD
Power Switch
LED Indicators
( “Confirm the Status Using the LEDs”)
Power status
Battery pack status
Caps Lock
Numeric Key (NumLk)
Scroll Lock (ScrLk)
Hard disk drive status
DVD-ROM & CD-R/RW drive status
Security Lock
A Kensington cable can be connected.
For more information, read the
manual that comes with cable.
PC Card Slot
( “PC Cards”)
DVD-ROM & CD-R/RW Drive
( “DVD-ROM & CD-R/RW Drive”)
Drive Power/Open Switch
Slide to the right to open the disk cover of the
DVD-ROM & CD-R/RW drive. This function only
operates when the computer’s power is on.
Slide to the left to switch the drive power on and
off. This function only operates while W indows is
running.
10
CAUTION
Do not allow metallic objects or
magnetic media to come near this
area.
External Display Port
( “External Display”)
DC-IN Jack
USB Ports
( “USB Devices (External Mouse etc.)”)
LAN
( “LAN”)
DC IN 16V
CAUTION
Do not connect the modem telephone cable into the LAN port.
Modem
( “Modem”)
SD Memory Card Slot
SD memory card status
( “SD Memory Card/MultiMedia Card”)
Microphone Jack
Use only a monaural condenser microphone (miniature jack). Using an
input source other than a monaural condenser microphone may not allow
audio to be input or may damage the equipment.
Wireless LAN
( page 27, “Wireless
LAN”)
Getting Started
CAUTION
Do not allow metallic objects or
magnetic media to come near this
area.
Headphone Jack
Use this jack to connect headphones or amplifier-equipped speakers. Audio output from the
internal speaker is disabled when headphones
or external speakers are connected.
CAUTION
Do not cover the computer with
a thick cloth, such as a blanket.
Emergency Hole
( page 28, “DVD-ROM & CD-R/RW
Drive”)
Latch
(This latch is locked manually)
Battery Pack
( “Battery Power”)
Latch
(This latch is locked automatically)
RAM Module Slot
( page 21)
CAUTION
Do not allow metallic objects or magnetic media to come near this area.
A lithium ion battery that is
recyclable powers the product you have purchased.
Please call 1-800-8-BATTERY for information on
how to recycle this battery.
L’appareil que vous vous
êtes procuré est alimenté par
une batterie au lithium-ion.
Pour des renseignements sur
le recyclage de la batterie,
veuillez composer le 1-8008-BATTERY.
11
First-time Operation
Read the steps below to help you learn what parts are included, and to gain an understanding of
some basic computer-related operations.
Confirm the inclusion of all parts.
1
Make sure the parts shown in the figure have been supplied. If any of these items are
missing or is not working properly , contact your technical support office ( page 50).
Getting Started
AC adaptor ..........1
Model No : CF-AA1623A
Product Recovery
DVD-ROM ............1
2
Read the LIMITED USE LICENSE AGREEMENT. ( page 40)
Be sure to read the LIMITED USE LICENSE AGREEMENT before breaking the seal
on the computer's packaging.
3
Turn the computer over and insert the battery pack.
1 Slide the left-side latch (A) to the unlock position ( ).
2 Make sure the battery pack is facing the correct direction, slide it in the direction of
the arrow .
3 Slide the left-side latch to the lock position ( ), and then check to ensure that the
battery pack is held firmly.
(Right-side latch is locked automatically .)
AC Cord...............1
Modem Telephone
Cable ...................1
Battery Pack........1
Model No : CF-VZSU27A
Operating Instructions
(This book)
Windows® Book .... 1
.................... 1
CAUTION
Use only the specified battery pack with your computer. When another battery
pack (CF-VZSU27U) is attached, the battery pack is not charged or discharged,
and the battery indicator blinks red.
Confirm that the latch is properly locked. If it is not, the battery pack may come
off while you are carrying around the computer .
Do not touch the terminals on the battery pack and the computer. The battery
pack may no longer function properly if the contacts are dirty or damaged. Also,
the computer may not operate properly.
Before using the battery pack, carefully read “Precautions (Battery Pack)”
( page 9).
Open the display.
4
1 Press and hold the latch (B) located at the front.
2 Lift open the display.
CAUTION
Do not open the display wider than necessary (170° or more).
Do not apply excessive pressure to the LCD (C). Also, do not hold the LCD
when opening or closing the display .
12
Connect your computer to a power outlet.
5
The battery pack will be charged automatically .
Charging Time: Approx. 5.5 hours
(Varies depending on the usage conditions.)
CAUTION
Be sure the AC adaptor is connected until completing the first-time use operation.
When using the computer for the first time, do not connect any peripheral device except the battery pack and AC adaptor to the computer.
Handling the AC adaptor
Do not twist or pull the AC power cord forcefully. Doing so may damage the
connections.
Use only the specified AC adaptor with your computer. Using an AC adaptor
other than the one supplied might damage the battery and/or the computer.
When the DC plug is not connected to the computer, disconnect the AC cord
from your AC wall outlet.
Problems such as sudden voltage drops may arise during periods of thunder and
lightning. Since this could adversely affect your computer, an uninterruptible
power source (UPS) is highly recommended unless running from the battery
pack alone.
6
Turn your computer on.
Slide the power switch and hold it for approximately one second until the power
indicator turns on before releasing it.
Getting Started
CAUTION
Do not slide the power switch and hold it for more than four seconds; this will
cause the power to be turned off forcibly.
Do not slide the power switch repeatedly.
Once the computer is powered off, you must wait at least ten seconds before
powering it on again.
7
Setup Windows.
Moving the cursor or clicking buttons can be performed with the touch pad
( page 19).
CAUTION
Do not press any keys or touch the touch pad until [Windows XP Professional
Setup] is displayed.
1 At [Welcome to the Windows XP Setup Wizard], select [Next].
2 After reading the agreement, select [I accept this agreement] or [I don’t accept this
agreement], then select [Next].
NOTE
If [I don’t accept this agreement] is selected, the Windows setup will be
aborted.
3 Select settings for your region, then select [Next].
4 Enter your name and organization and then select [Next].
13
First-time Operation
5 Enter your computer name and administrator password and then select [Next].
CAUTION
Remember this password! If the password is forgotten, W indows cannot be
operated.
6 Enter the correct date, time and the time zone, then select [Next].
NOTE
It may take some time before the computer restarts and the screen of step 7
is displayed. Wait, and do not press any keys, or touch the touch pad, etc.
If the keyboard or the touch pad etc. are operated, a message will appear
indicating that there is no response on the screen, or some screens may
appear white. In such cases, also wait until the next screen is displayed.
The computer will restart.
7 Enter your administrator password and select .
Getting Started
NOTE
When W indows setup is completed, the following message will be displayed
at the bottom right of the screen: “Your computer might be at risk.” Continue to the next step.
The message is generated by the [Security Center] function in [Control
Panel], and does not indicate an error or malfunction. For more information
about [Security Center]: page 26
8
Create a new account.
1 Select [start] - [Control Panel] - [User Accounts] - [Create a new account].
2 Enter a new name for the new account, then select [Next].
3 Select [Computer administrator], then select [Create Account].
4 <When you want to create a password for the new account>
Select the new account you have created and select [Create a password].
Follow the instructions on the screen to create a password.
5 Select [start] - [Turn Off Computer] - [Restart] to restart the computer.
CAUTION
Remember this password! If the password is forgotten, W indows cannot be
operated. You can create a password reset disk beforehand ( page 15).
14
NOTE
When creating a new user account:
If you make mail settings, create password reset disks ( below), or
·
conduct other related operations before creating the user account, you will
be unable to use any previous mail history or settings.
When you create the first new account, you can only select [Computer
·
administrator].
Once a “Computer Administrator” account has been created, you can create additional limited user accounts.
Note also that only the added user account will be displayed in the Welcome screen. The account for the administrator created during Windows
setup will not be displayed.
The message “Your computer might be at risk,” which is displayed at the
bottom right of the screen, is generated by the “Security Center” function in
Windows XP, and does not indicate an error or malfunction.
T o prevent this message from being displayed, refer to “Security of the
Computer” ( page 26).
About the Icon Enlarger:
If the characters or icons on the screen are too small and difficult to see,
·
after completing step 8, select [start] - [All Programs] - [Panasonic] - [Icon
Enlarger]. This will allow you to magnify the display of characters and
icons on the screen. ( “Icon Enlarger”)
The [Icon Enlarger] can be set separately for each account.
·
You can also use [Loupe Utility], which enlarges a part of the screen. (
“Loupe Utility”)
T o improve the security of the computer, be sure to refer to “Security of the
Computer” and “Windows Update”. ( page 27)
If you use the wireless LAN, be sure to refer to “Wireless LAN” ( page
27).
Getting Started
This concludes the first-time use operation guidelines.
Information for Windows XP
Depending on the Windows settings, installed applications, and drivers, menus and
other displays may differ, or some functions (such as use of the password reset disk)
may be inoperable. Check with your system administrator for details.
You can select Classic view for the Control Panel or select the Classic Start menu.
You can also change the way a user logs on or off.
The procedure in this manual uses the method or view of the Windows XP default
setting (not Classic view nor Classic Start menu etc.).
Resetting the password
Windows XP has a function to reset a forgotten password.
T o use this function, you need to create a password reset disk beforehand following
the steps below .
1
Connect the USB floppy disk drive (optional: CF-VFDU03) to your computer.
2
Select [start] - [Control Panel] - [User Accounts].
3
Select [Prevent a forgotten password] from [Related Tasks] menu of the account
you used to logon and create a password reset disk following the on-screen instructions.
Store the password reset disk in a safe place.
·
Only the logon password for each account can be reset.
The password set in the Setup Utility cannot be reset.
15
Starting Up/Shutting Do wn
Starting Up
Open the display.
1
1 Press and hold the latch (A) located at the front.
2 Lift open the display.
CAUTION
Do not open the display wider than necessary (170° or more).
Do not apply excessive pressure to the LCD. Also, do not hold the LCD when
opening or closing the display .
Turn your computer on.
2
Slide the power switch and hold it for approximately one second until the power
indicator turns on before releasing it.
Operation
CAUTION
Do not slide the power switch and hold it for more than four seconds; this will
cause the power to be turned off forcibly.
While booting, avoid the following until the hard disk drive indicator has
turned off.
• Connecting or disconnecting the AC adaptor .
• Touching the power switch.
• Performing any keyboard, touch pad, or external mouse operations.
• Closing the display.
• Touching the drive power/open switch.
Do not slide the power switch repeatedly.
Once the computer is powered off, you must wait at least ten seconds before
powering it on again.
When the CPU temperature rises, the computer may not power on to prevent the
CPU from overheating. Should this happen, allow the computer to cool down
then switch the power on again.
If the computer still does not power on, contact your technical support office.
( page 50)
3
Log on to Windows.
After confirming that the hard disk drive indicator has turned off, select the user
and input the password, then select . Until the correct password is entered, the
computer will not operate.
16
4
Select your application.
You are able to start working on your computer.
Loading...
