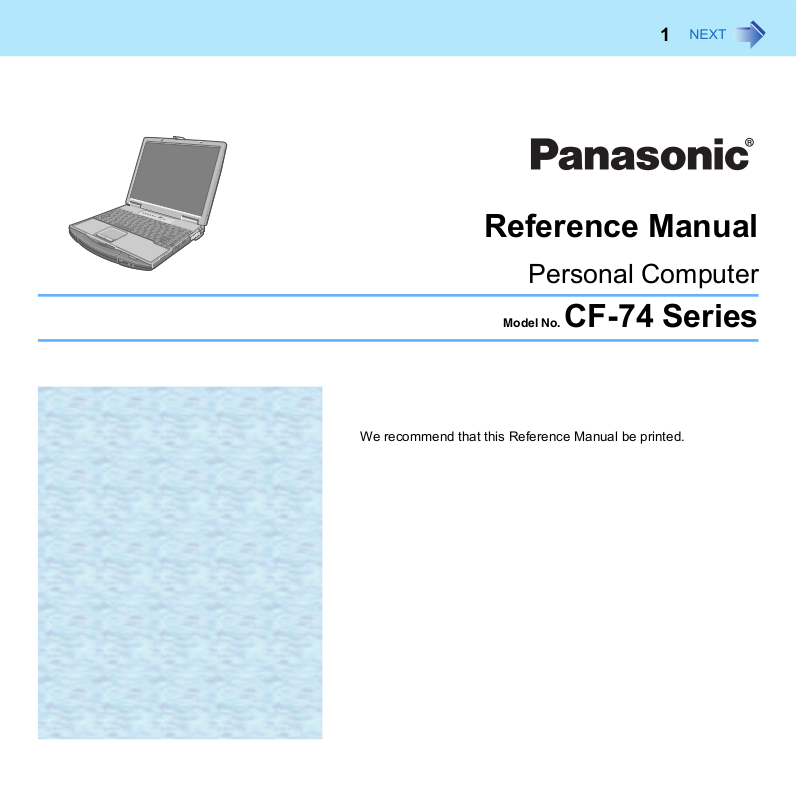

Page 1

Reference Manual

Personal Computer

Model No. CF-74 Series

We recommend that this Reference Manual be printed.

Page 2

Regarding Windows Vista

 You can select the Classic view of Control Panel or the Classic Start menu. You can also change the way a user logs on or

off. This manual explains using the Windows Vista default setting (not Classic view or Classic Start menu etc.).

 Windows Update

You can update to the latest patches and service packs for Windows with the following menus. Click (Start) - [All Programs] - [Windows Update].

Do not apply “Driver Updates” even if a message to update a driver appears. If a driver update is required, contact your technical support office.

 If the message “Check your computer security” is displayed

Select (red icon) on the notification area and make the appropriate settings. The Windows Security Center regularly gives you notice so that you can make the optimum settings. This is not an error message and you can use the computer. However, making appropriate measures is recommended to reduce the risk of virus and other attacks.

User Account Control

User Account Control is a new security component of Windows Vista to stop unauthorized changes to your computer. The User Account Control message will pop up every time you try making an important change to your computer.

Sound and Video

 Sound (e.g. MP3, WMA) and video (e.g. MPG, WMV) recorded in PC Cards and SD Memory Cards may be interrupted

during playback. If this happens, copy them to the hard disk drive and play back.

 Sound and video in AVI files may be interrupted or produce a time-lag during playback. If this happens, click or on

the notification area, and click [High performance]. This may remedy the problem.

 Depending on the processing status on Windows, sound may be interrupted at Windows startup. You can mute the sound

at startup.

A Right-click the desktop and click [Personalize] - [Sounds]. B Remove the check mark from [Play Windows Startup sound], and click [OK].

When high-frequency sound occurs

If high-frequency sound occurs around keyboard while using the computer, change the settings for the USB power saving function. A standard user needs to enter an administrator password and click [OK].  Set [USB selective suspend setting] to [Enabled].

A Click (Start) - [Control Panel] - [System and Maintenance] - [Power Options]. B Click [Change plan settings] of the current power plan. C In [Change settings for the plan], click [Change advanced power settings]. D In [Advanced settings], double-click [USB settings]. E Double-click the displayed [USB selective suspend setting]. F Change settings of [On battery] and [Plugged in] to [Enabled]. G Click [OK] and exit the [Advanced settings] screen.

Page 3

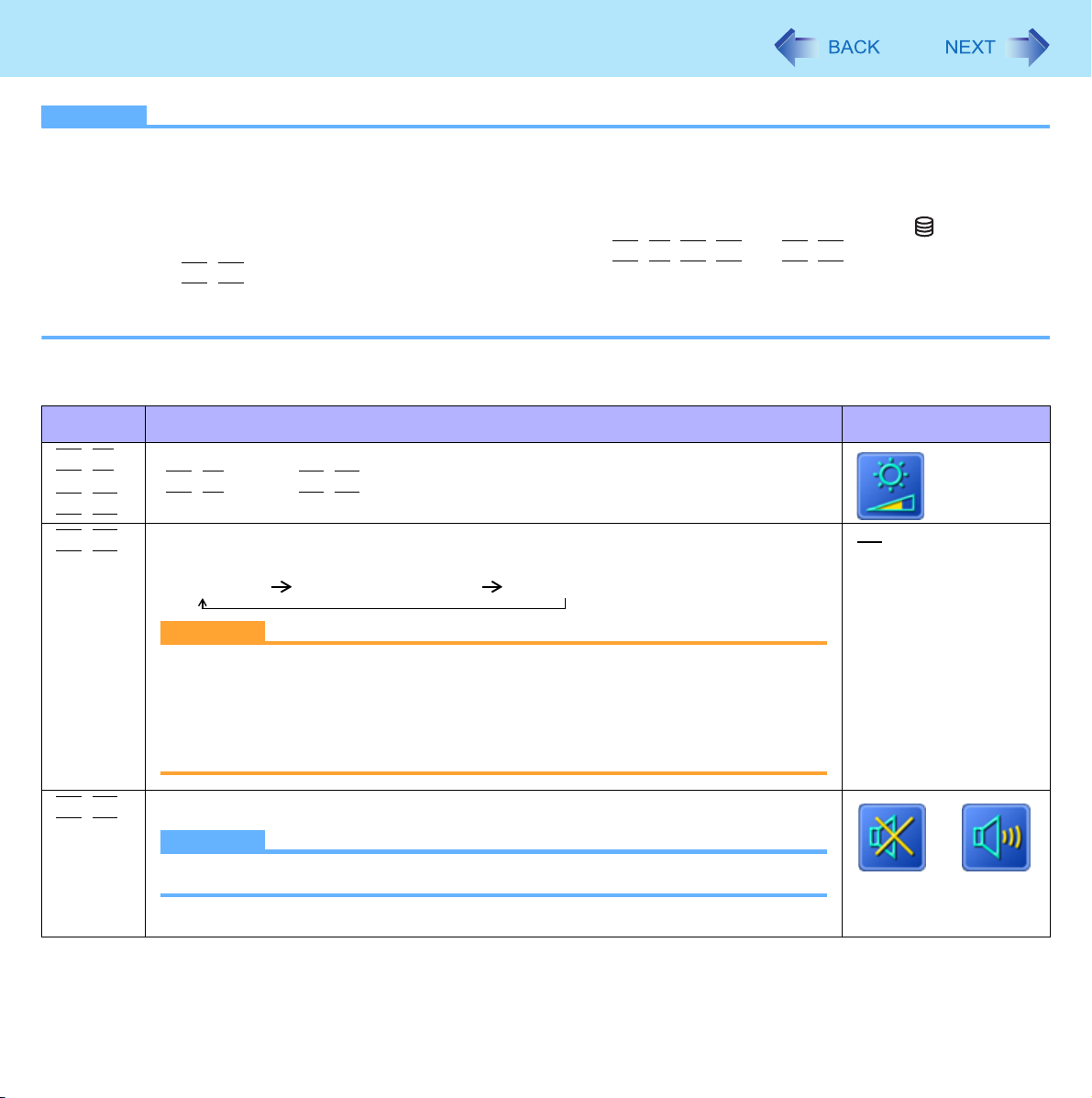

Key Combinations

NOTE

 Do not repeatedly press the keys in quick succession.  Do not use the key combinations together with touch pad (external mouse), touchscreen (only for model with touch-

screen) or other key operations.

 Do not use the key combinations before you log on to Windows. Wait until the hard disk drive indicator turns off.

On the Setup Utility screen, you can use the key combinations of binations of

 The key combinations may not work with some applications.  The pop-up icon appears after logging on to Windows. It may not appear in some application conditions.

Key Function Pop-up icon

Fn+F3

, the display is switched between the internal LCD and the external display.

Fn+F1, Fn+F2

and Fn+F3. By using the key com-

Fn+F1

Fn+F2

Fn+F3

Fn+F4

LCD brightness

(

Fn+F1

Display switching ( page 47) (When an external display is connected) Internal LCD Simultaneous display External display

Speaker on/off

= down / Fn+F2= up)

CAUTION

 Do not press any keys until the display has finished switching.  Do not use this function:

• When an external display is not connected.

• When playing motion video such as DVD or MPEG.

• When using the Extended Desktop.

NOTE

 Beeps do not sound if you turn off the speaker sound.

OFF

(MUTE)

Page 4

Key Combinations

Key Function Pop-up icon

Fn+F5

Fn+F6

Fn+F7

Fn+F9

Fn+F10

Volume

(

Fn+F5

Activate sleep ( page 10)

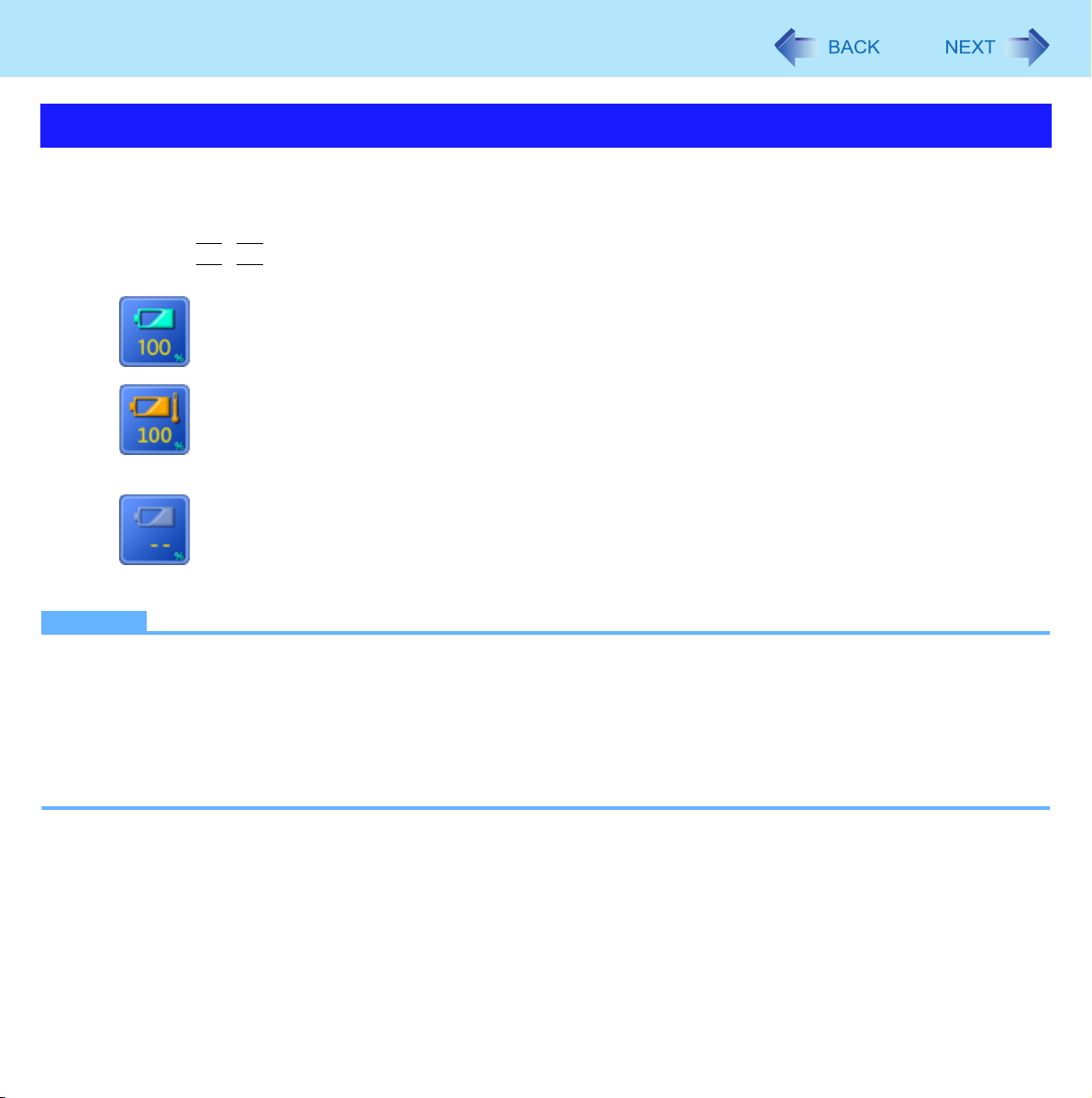

Remaining battery charge

(When the battery pack is inserted in the computer)

Activate hibernation ( page 10)

= down / Fn+F6= up)

NOTE

 When fine-tuning the sound volume, press and hold

intermittently.

 This does not work on beeps or speakers connected to the USB port.

, and press F5 or

 page 17

Page 5

Key Combinations

Hotkey Settings

You can make 2 settings:

• Fn key lock

When you press combinations.

• Pop-up icon on/off

1 Start up the Hotkey Settings.

Click (Start) - [All Programs] - [Panasonic] - [Hotkey Settings].

2 Make the settings.

[Use Fn key lock]

 When using an

A Press B Press another key. (Lock released)

 When using successive

A Press B Press another key.

Fn key remains locked until you press

, the key is locked (pressed-down) until you press another key. Use this when pressing difficult key

key combination

once. (Locked)

twice. (Locked)

key combinations

again.

[Notification]

[Make sounds when Fn key is pressed] [Show status on screen]: Displays the Fn key status on the notification area.

•:

[Disable popup]

The pop-up icon will not be displayed.

is locked.

is not locked.

3 Click [OK].

NOTE

 You can have different settings for each user.

If the speakers are muted, beeps do not sound.

Page 6

Touchscreen

You can use the touchscreen function to perform the same operation as the touch pad and mouse. Touch the screen surface with the stylus (included).

For further information, click (Start) - [All programs] - [Tablet PC] - [Tablet PC Touch Training].

 To right-click

A Touch and hold with the stylus, or touch and select the right button of “touch pointer”.

NOTE

 The touchscreen function does not work in the Setup Utility.

Operation of the touchscreen

 Operate the touchscreen with your finger or with an approved stylus

When using the touchscreen function, use only your finger or an approved stylus on the surface. Operating the touchscreen with an object other than your fingertip or the stylus (a fingernail or metal object, or other hard or sharp objects that may leave a mark) may scar or stain the surface, causing the touchscreen to malfunction.

 Do not apply too much pressure when operating the touchscreen

Only a light touch is required to operate the touchscreen. Applying too much pressure may damage the surface.

Maintaining the performance of the touchscreen

 When the touchscreen becomes dirty, wipe it with an approved soft cloth

The touchscreen is specially treated to prevent dirt from adhering to the surface, so dirt can be removed easily using a dry cloth (use only the approved soft cloth). If the dirt does not come off easily, breathe on the surface and try again. Do not apply water or solvents to the soft cloth.

 Clean the touchscreen while the computer is powered off

Cleaning the screen while the power is on may cause the computer to malfunction. Also, dirt on the touchscreen is easier to see when the computer is powered off, and so is easier to clean.

Page 7

Touchscreen

 Wash the soft cloth when it becomes dirty

When the soft cloth becomes dirty, wash it with mild detergent. Do not use bleach or fabric conditioner (softener), or try to sterilize the cloth by boiling. If the soft cloth is dirty, it may be ineffective in cleaning the touchscreen, and in fact may cause dirt to adhere to the touchscreen.

 Check the following to prevent the surface of the touchscreen from being scratched

 Are you using your finger or a stylus to operate the touchscreen?  Is the surface clean?  Is the soft cloth clean?  Are you using the stylus with the tip extended?  Is the tip of the stylus clean?  Is your finger clean?

Things to keep in mind when using the touchscreen

 Do not touch the screen outside of the LCD display area

The touchscreen input area is defined by the LCD display screen. Touching the screen outside of the display area may result malfunctions or damage to the touchscreen.

 Do not apply excessive force to the touchscreen

Do not lift the computer while holding the LCD screen, or allow the screen to be twisted. Do not place any objects on the LCD screen. Any of the above may cause the touchscreen glass to break, or may damage the LCD screen.

 Operation response may be slower in low temperature environments

The touchscreen may respond to operations more slowly when using the computer in temperatures less than 5°C, but this is not a malfunction. Response time will return to normal when the computer is returned to room temperature.

 If the cursor jumps to a location other than where the screen was touched, or if

the LCD resolution changes, recalibrate the touchscreen

Perform the procedure of “Touchscreen Calibration” ( page 8)

Page 8

Touchscreen

Touchscreen Calibration

A standard user needs to perform the calibration as an administrator before performing the calibration for each user.

NOTE

 At first, log on to Windows as an administrator, and perform this calibration.

1 Run [Tablet Calibration].

Click (Start) - [Control Panel] - [Additional Options] - [Tablet Calibration].

2 Using the stylus, touch each of the 9 “+” target marks one by one.

NOTE

 Perform the following calibration for each user.

1 Run [Tablet PC Settings].

Click (Start) - [Control Panel] - [Mobile PC] - [Tablet PC Settings].

2 Click [Calibrate]. 3 Using the stylus, touch each of the 4 “+” target marks one by one, and then click [OK].

 Perform the calibration for the orientation to be used.

Page 9

Sleep or Hibernation Functions

Starting Up Your Computer Quickly

The sleep or hibernation functions allow you to shut off the computer without closing programs and documents. You can quickly return to the programs and documents that you were working on before sleep or hibernation.

Function Data is saved to Recovery time Power supply

Sleep Memory Short Required. (If power is not supplied, all data will be lost.)

Hibernation Hard disk Rather long Not required. (However power is slightly consumed to

keep the hibernation.)

Precautions

 Connect the AC adaptor if the computer will be in sleep for a long period of time. If you cannot use the AC adaptor, use

hibernation instead.

 Using sleep or hibernation repeatedly may cause malfunction of the computer. To stabilize computer operation, restart

Windows regularly (about once a week) without using sleep or hibernation.

 Save the necessary data.  Close files you have opened from removable disks and network drives. 

The password you set in the Setup Utility is not requested at resuming. You can use the Windows password for security in sleep or hibernation. In the default setting, you are requested to enter the Windows password when the computer resumes.

 Do not enter sleep or hibernation in the conditions below, otherwise the data or file may be corrupted, sleep or hibernation

may not work, or malfunction may occur in the computer or the peripheral devices.

• When any of the multimedia pocket device indicator , the hard disk drive indicator or the SD Memory Card indicator is on.

• When playing/recording audio files or displaying motion video such as MPEG files.

• When playing a DVD-Video.

• When writing to a disc.

• When using communication software or network functions.

• When using peripheral devices. (If peripheral devices fail to work normally, restart the computer.)

 If a disc formatted with B’s CLiP is inserted into the CD/DVD drive (while is displayed on the notification area), the com-

puter cannot enter sleep or hibernation. Eject the disc beforehand.

Page 10

Sleep or Hibernation Functions

Entering/Resuming from Sleep or Hibernation

 To enter sleep or hibernation

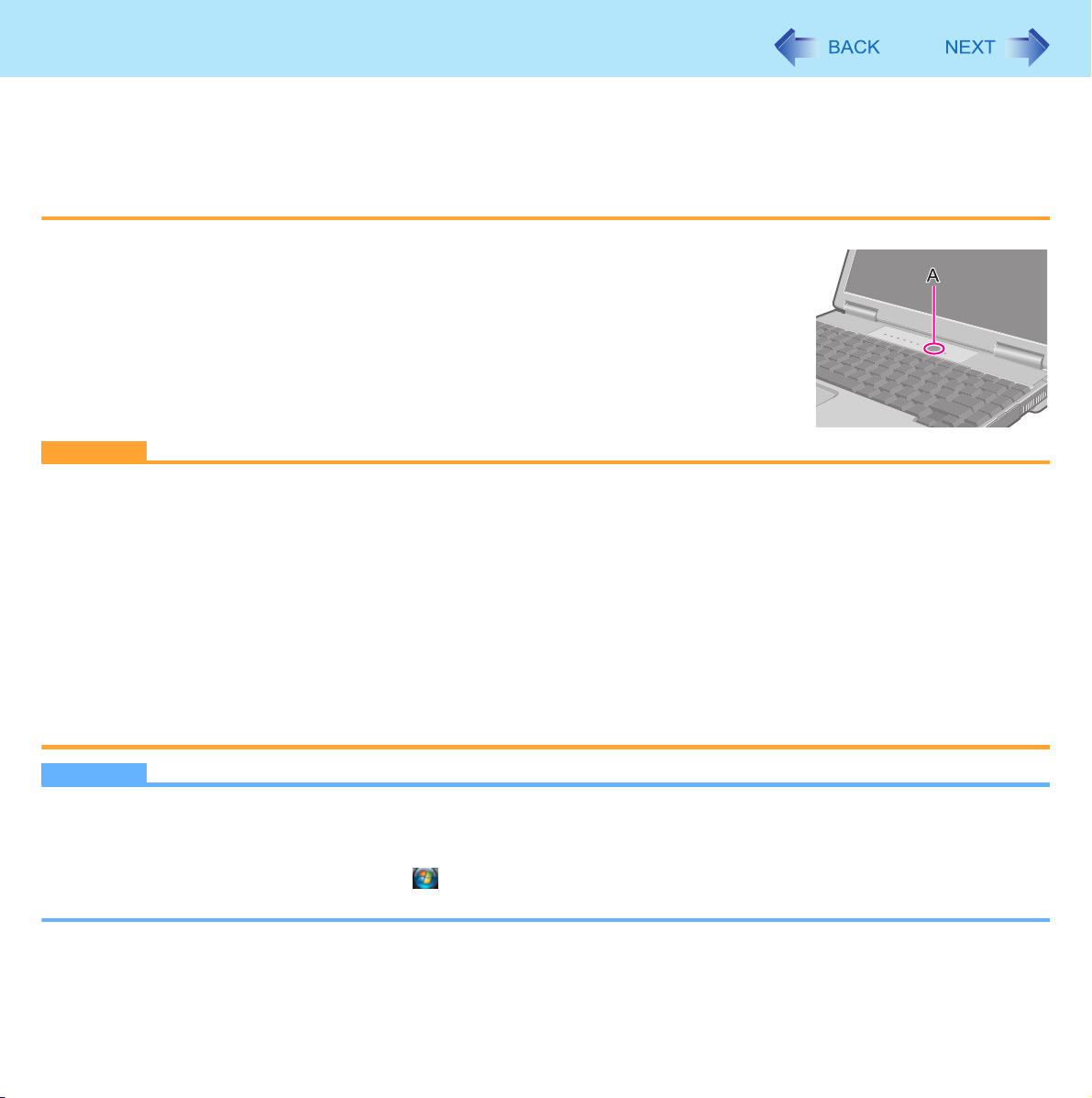

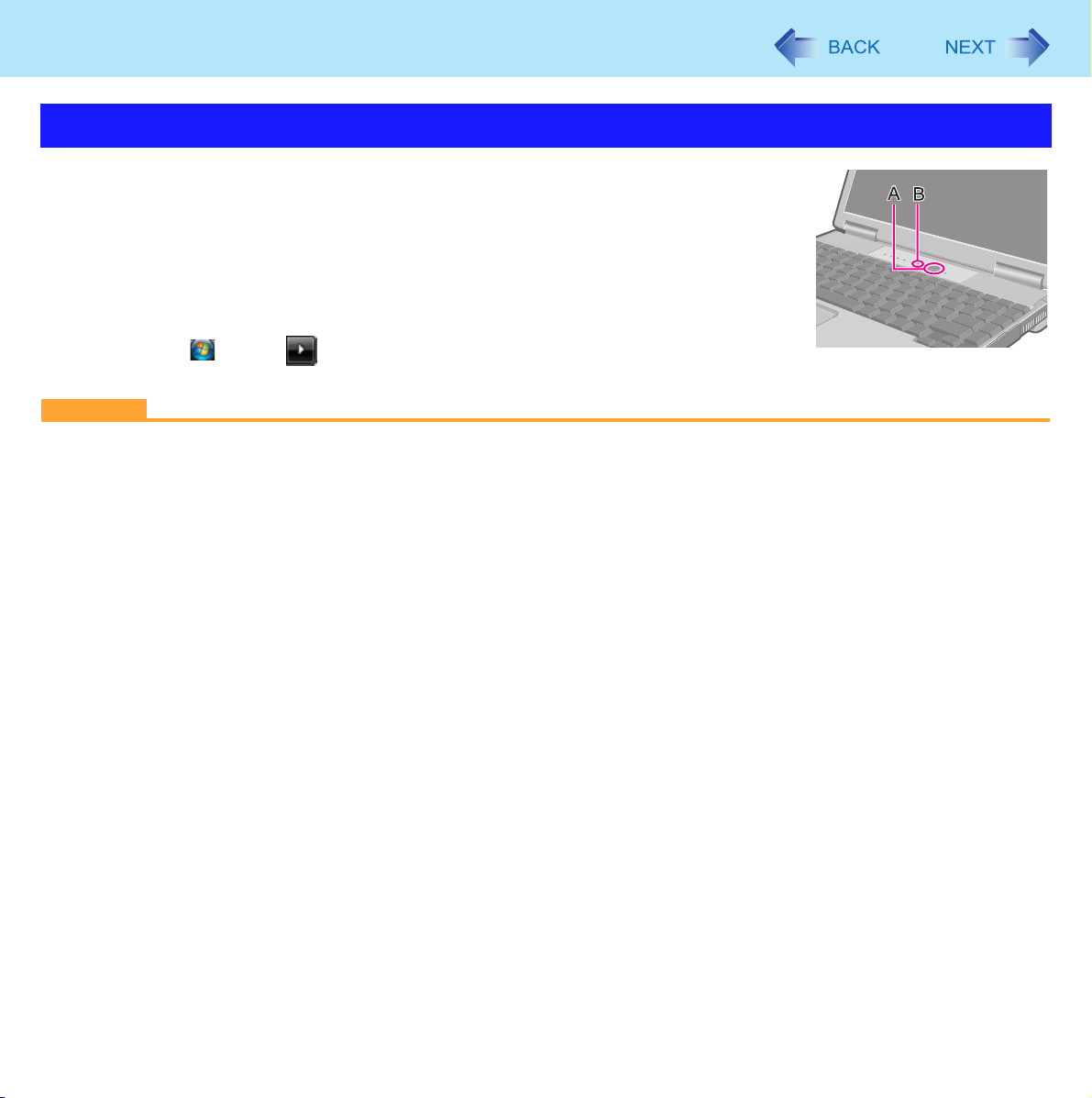

1 Close the display, or press the power switch (A) until a beep

sounds.

Sleep: The power indicator (B) blinks green. Hibernation: The power indicator (B) goes off.  You can alternatively use the Windows menu to enter sleep or hibernation.

Click (Start) - - [Sleep] / [Hibernate].

CAUTION

While the computer is entering sleep or hibernation

 Do not:

• Touch the keyboard, touch pad, touchscreen (only for model with touchscreen), or power switch.

• Use an external mouse or other peripheral devices.

• Connect or disconnect the AC adaptor.

• Operate the wireless switch.

• Close or open the display. Wait until the power indicator blinks green (sleep) or goes off (hibernation).

 It may take 1 or 2 minutes to enter sleep or hibernation. Do not touch any key though the screen becomes dark.  At the beep

cator blinks or goes off. If you press and hold the power switch for longer than 4 seconds, the computer will forcibly shut down and unsaved data will be lost even if you have set [When I press the power button] to any item in [Choose what the power button does].

If the speakers are muted, beeps do not sound.

, immediately release the power switch. After releasing the switch, do not operate it until the power indi-

Page 11

Sleep or Hibernation Functions

In sleep or hibernation

 Do not attach or remove a multimedia pocket device and peripheral devices. Doing so may cause malfunction.  Power is consumed in sleep. Power consumption may increase when a PC Card is inserted. When power is

exhausted, the data retained in memory will be lost. Connect the AC adaptor when using the sleep function.

 Do not turn on/off the wireless switch.

 To resume from sleep or hibernation

1 Open the display, or press the power switch (A).

 In the default setting, the Windows password will be requested to resume.

CAUTION

 Do not perform the following operations until resuming is complete. After the display is resumed, wait approximately

30 seconds (normally) or 60 seconds (when the computer is on a network).

• Touch the keyboard (except for password input), touch pad, touchscreen (only for model with touchscreen), or power

switch.

• Use an external mouse or other peripheral devices.

• Connect or disconnect the AC adaptor.

• Close or open the display.

• Shut down or restart Windows.

• Enter sleep or hibernation (Wait approximately 1 minute).

• Operate the wireless switch.

 If the computer enters sleep while a USB keyboard or mouse is connected, touching the USB keyboard keys or mouse

will resume the computer.

NOTE

 <Only for model with Bluetooth>

After resuming from sleep or hibernation, the message “TosBtMng has stopped working” may appear. Click [Close program].

If Bluetooth connections are cut off, click (Start) - [All Programs] - [Bluetooth] - [Bluetooth Settings], and connect to the Bluetooth devices again.

Page 12

Sleep or Hibernation Functions

Changing When the Computer Sleeps or Hibernates

 Sleep

1 Click or on the notification area, and click [More power options].

2 Click [Change plan settings] of the power plan you want to change. 3 Select the setting for [Put the computer to sleep], and then click [Save changes].

 The setting for hibernation may change unexpectedly when you change the setting for sleep. Confirm that the

time to enter hibernation is 1,080 minutes (default setting) or longer (below).

 Hibernation

1 After the step 2 of “Sleep” setting (above), click [Change advanced power settings].

2 Double-click [Sleep], and double-click [Hibernate after].

3 Click the item and select the setting. 4 Click [OK].

Page 13

Security Measures

Use these features to protect your data.  Other security measure

• Embedded Security (TPM) ( Module (TPM)”.

Setting the Supervisor Password/User Password

Set the Supervisor Password before setting the User Password.

1 Start up the Setup Utility ( page 76).

2 Select [Security].

 page 81): For further information, refer to the Installation Manual of “Trusted Platform

3 Select [Set Supervisor Password] or [Set User Password], and press

4 Enter your password in [Create New Password] and press

 When the password has been set, you need to enter your password in [Enter Current Password] and press

Enter

 To disable the password, leave the input field empty and press

Enter

5 Enter your password again in [Confirm New Password] and press 6 Press

CAUTION

 Do not forget your password. If you forget your Supervisor Password, you will not be able to use your computer. Con-

tact Panasonic Technical Support.

 When running the Setup Utility, do not leave and go away from your computer even for a short time, since other people

may set or change the password.

NOTE

 The password will not be displayed on the screen.  You can use up to 32 alphanumeric characters (including spaces).

• The case (upper/lower) is ignored.

• Use only the upper horizontal row of numeric keys to input your password.

• You cannot use

 Disabling the Supervisor Password also disables the User Password.

F10

, and then select [Yes] and press

Shift

and

Ctrl

to input a password.

Enter

Page 14

Security Measures

Preventing Your Computer from Unauthorized Use

You can set a start-up password to protect your computer from unauthorized use.

1 Set the password ( page 13), and select [Enabled] in [Password on boot] in the [Secu-

rity] menu of the Setup Utility ( page 81).

NOTE

 If the Supervisor Password or User Password has been set, the password input screen will be displayed on starting-up

of the Setup Utility even though [Password on boot] is set to [Disabled].

Preventing Your Hard Disk Data from Being Read or Written

The hard disk lock function protects the hard disk data from being read or written when the hard disk is attached to another computer. The data can be read/written when the hard disk is returned to the original computer. (Note that the hard disk lock does not guarantee complete protection of the data.)

1 Select [Enabled] in [Hard Disk Lock] in the [Security] menu of the Setup Utility ( page

81).

CAUTION

 For the data being read/written on the original computer, the Setup Utility settings must be the same as when the hard

disk was removed.

 You cannot use the hard disk lock function without setting the Supervisor Password. Set the Supervisor Password

beforehand ( page 13).

 When you have your hard disk drive repaired

• Contact Panasonic Technical Support.

• Before sending back the hard disk drive, be sure to set the [Hard Disk Lock] to [Disabled].

NOTE

 The hard disk lock function works with the built-in hard disk. It does not work with the external hard disk.  We recommend you to set [Password on boot] to [Enabled] to ensure security though it is not required to enable the

hard disk lock.

Page 15

Security Measures

Disabling CD/DVD Drive

Disable CD/DVD drive operation to prevent the drive from being read/written and from being used to start the computer. You can protect your data from unauthorized access or accidental overwriting.

1 Select [Disabled] in [Optical Drive] in the [Advanced] menu of the Setup Utility ( page

79).

NOTE

 This does not work for USB CD/DVD drive.

Page 16

Battery Power

Battery Indicator

Battery indicator Battery status

Not lit The battery pack is not inserted or not being charged.

Orange Charging is in progress.

Green The battery is fully-charged.

Blinking green

Red The remaining battery is approximately 9% or less.

Blinking red The battery pack or the charging circuit is not operating properly.

Blinking orange The battery cannot be charged temporarily due to the following reasons:

In high temperature mode, the 100% battery level is equivalent to 80% level of the normal temperature mode.

NOTE

 Once the battery is fully charged, the computer performs recharging only when the battery level becomes less than

approximately 95%, so overcharging is avoided.

In high temperature mode, the battery pack is discharging the power to 80% temperature mode ( page 18). Do not remove the battery pack in this status.

• Its internal temperature is out of the acceptable range.

• The power supply is not enough because software applications or peripheral devices are consuming a large amount of power.

of normal

Page 17

Battery Power

Checking the Remaining Battery Charge

You can check the remaining battery charge on the screen.

(After logging on to Windows)

1 Press

 When the battery pack is inserted (example)

 When the battery pack is not inserted

NOTE

 The battery display may not correspond to the actual remaining battery charge in the cases as below. To correct the

display, perform the Battery Recalibration ( page 20).

• The battery indicator remains red.

• The indicator lights orange and the display shows 99% for a long time.

• Low battery warning appears soon after a short time of use. This can occur when the computer is in sleep for a long time without power supply from the AC adaptor.

 The battery display may not be the same as that of notification area. This is not a malfunction.

Fn+F9

: Normal temperature mode ( page 18)

: High temperature mode ( page 18)

Page 18

Battery Power

High temperature mode

The high temperature mode can prevent the battery from deteriorating when the computer is used in high-temperature environment or used for a long time with its battery fully charged. Select [Auto] (default) or [High Temperature] in [Environment] of the [Main] menu of the Setup Utility ( page 78).

NOTE

 Note that a level corresponding to a 100% charge for high temperature mode is approximately equivalent to an 80%

charge level for normal temperature mode.

 After switching from [Normal Temperature] to [High Temperature] or vice versa, the remaining battery capacity will not

be displayed correctly until the battery pack is completely discharged or fully charged.

 In the [Auto] mode:

Once the computer has automatically switched from the normal temperature mode to the high temperature mode, the computer will not switch back to the normal temperature mode until the battery has been used and recharged to a total charge level of about 5 times as much as that of the fully-charged state. This is to avoid battery deterioration.

Page 19

Battery Power

Computer behavior with low battery

The default settings are as follows.

When the battery level becomes 10% [Low battery alarm]

 Displays a message that the battery level is low.  The computer enters hibernation.

↓↓

Charge the battery. Connect the AC adaptor or replace the battery to start up

 Connect the AC adaptor immediately. If you do not

have the AC adaptor, exit the running programs and Windows, then confirm that the power indicator is off.

 If you have a fully charged spare battery, turn off the

computer, replace the battery and turn the computer on again.

When the battery level becomes 5% [Critical battery alarm]

the computer.

 Connect the AC adaptor and charge the battery.  If you have a fully charged spare battery, turn off the

computer, replace the battery and turn the computer on again. When the computer enters hibernation with the battery down and you resume the operation without charging the battery, the Windows Resume Loader starts up. Follow the on-screen instructions. After that, however, Windows may not start up normally, or the [Low battery level]/[Critical battery level] function may not work normally.

Page 20

Battery Power

Correcting the Battery Display (Battery Recalibration)

The “Battery Recalibration” function measures and memorizes the battery capacity. To correct the battery display, use this function to fill the battery and then discharge it completely. Perform the procedure at least once immediately after purchasing the computer. Normally the interval of battery recalibration is 3 months. The battery display may not be correct when the battery pack deteriorates after a long time use. In this case, perform the procedure again.

1 Connect the AC adaptor.

2 Close all the applications.

3 Perform “Battery Recalibration”.

A Click (Start) - [All Programs] - [Panasonic] - [Battery] - [Battery Recalibration]. B When the confirmation message appears, click [Start].

 Frequent recalibration of the battery can degrade the battery. A caution message appears when the battery

recalibration is performed at the shorter interval than approximately a month. In this case, cancel the battery recalibration.

C When the message requests shut down of Windows, click [Yes].

The battery recalibration starts. After the battery pack is fully charged, discharging starts. When the discharging is completed, the power goes off automatically.

After the battery recalibration is finished, normal charging starts.

NOTE

 The temperature range should be 10  The battery recalibration may take a long time due to the large battery capacity. This is not a malfunction.

• Full charge: Approximately 4.5 hours

• Complete discharge: Approximately 5 hours

 If the computer is turned off during the battery recalibration (e.g., due to power failure, or accidental removal of the AC

adaptor and battery pack), the battery recalibration will not be completed.

 You can also perform the battery recalibration with the following procedure.

A Restart the computer. B Press and hold

dure.

C When the remaining battery capacity is displayed, press D Follow the on-screen instructions.

while the [Panasonic] boot screen is displayed just after the computer starts the startup proce-

°C to 30°C {50°F to 86°F}.

Enter

Page 21

Battery Power

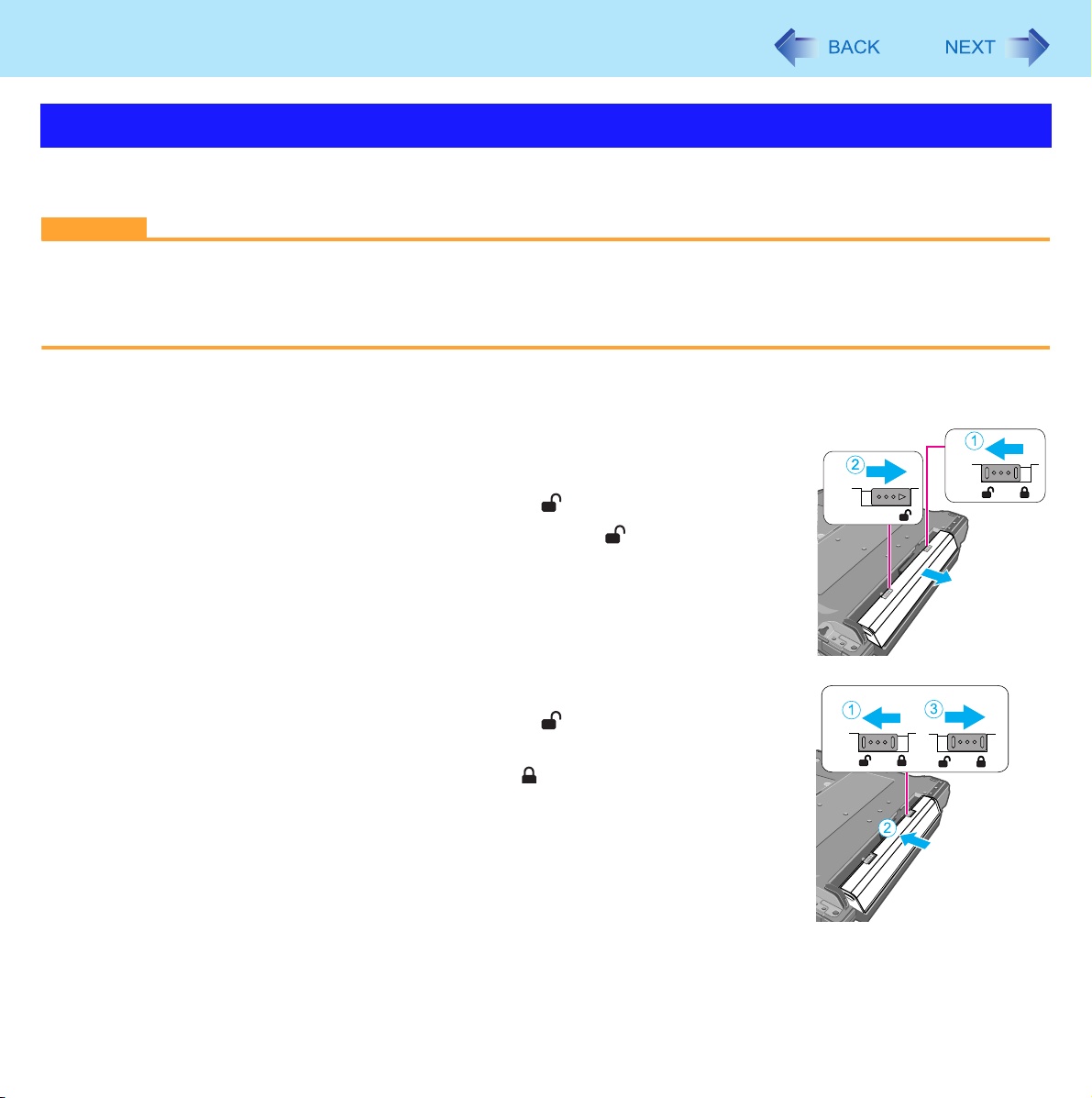

Replacing the Battery Pack

The battery pack (CF-VZSU43AU) is a consumable item so the replacement will be necessary. If the battery operation time becomes noticeably short and not recovered even after recalibrating the battery, replace with a new battery.

CAUTION

 The battery pack is not charged when you first purchase it. Be sure to charge it before using for the first time. Charging

starts automatically when the AC adaptor is connected to the computer.

 Use only the specified battery pack with your computer.  In sleep, do not remove/replace the battery pack. Otherwise your data will be lost and the computer may be damaged.

1 Turn off and reverse the computer.

 Do not use the sleep function.

2 Remove/Insert the battery pack.

 To r em ov e

A Slide the right latch (A) to the unlocked position ( ).

B Slide and hold the left latch (B) to the unlocked position ( ), and hold the cen-

ter of the battery pack and push out in parallel with the bottom surface of the computer.

 To i ns e r t

A Slide the right latch (A) to the unlocked position ( ). B Insert the battery pack in the correct direction until it securely fits the connector.

C Slide the right latch (A) to the locked position ( ).

Page 22

Battery Power

CAUTION

 Make sure the latch is securely locked, otherwise the battery pack may fall when you carry the computer.  Do not remove the battery pack forcibly when the latch is locked. Doing so may damage the battery pack.

Page 23

Customizing the Power Setting

You can choose the optimum power setting for your operating condition by selecting a power plan. You can also create your own power plan.

Changing the Power Plan Setting

1 Click or on the notification area and click [More power options].

2 Click [Change plan settings] of the power plan you want to change. 3 Change the settings.

 [Change advanced power settings]: You can make more detailed settings.

4 Click [Save changes].

Creating Your Own Power Setting

1 Click or on the notification area and click [More power options]. 2 Click [Create a power plan], click the basic plan and input the name of power plan.

3 Click [Next].

4 Change the settings and click [Create].

 To change the settings or to make more detailed settings. (above “Changing the Power Plan Setting”)

Deleting the Power Plan

1 Click or on the notification area and click [More power options].

2 Click the power plan other than the power plan to be deleted.

3 Click [Change plan settings] displayed under the power plan that you want to delete.

4 Click [Delete this plan], and then click [OK] on the confirmation screen.

Page 24

Multimedia Pocket

You can attach the following device. (refer to recent catalogs and other sources for information about the products available)  DVD MULTI drive

CAUTION

 Do not insert/remove the multimedia pocket device in sleep or hibernation, or when the multimedia pocket device indi-

cator or the hard disk drive indicator is on.

 Do not leave a disc formatted with B’s CLiP in the multimedia pocket device because the computer cannot enter sleep/

hibernation even if you selected [Sleep] or [Hibernate] in [When I close the lid].

NOTE

 Read the instruction manuals of the devices carefully.

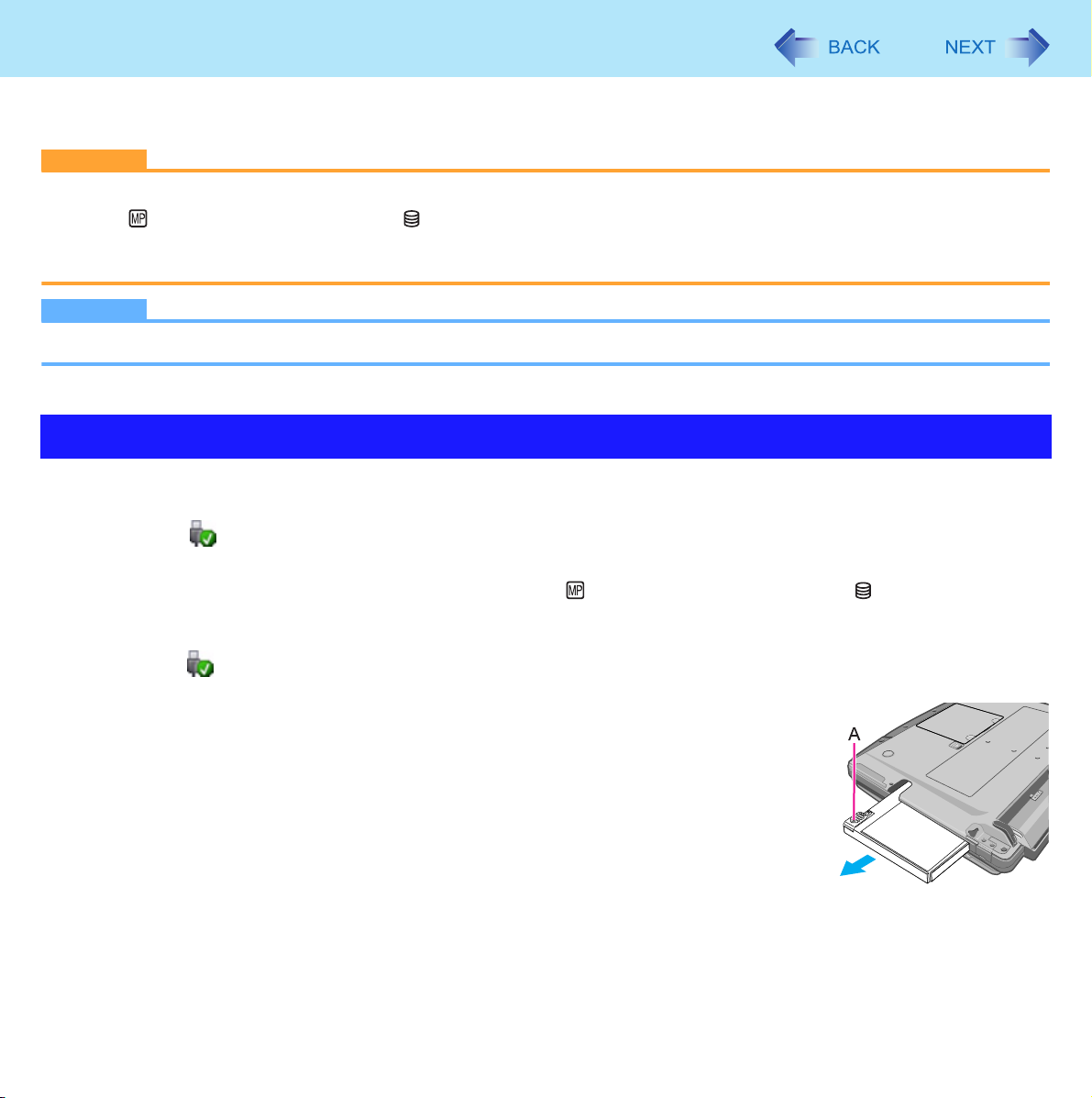

Replacing the Multimedia Pocket Device

1 Disable the multimedia pocket device function.

A Click on the notification area. B Select the multimedia pocket device and then click [OK].

C Confirm that the multimedia pocket device indicator and the hard disk drive indicator indicators are not lit.

 This step is not necessary when:

• Removing the device after turning off the computer.

• is not displayed.

• The device does not appear in the list in step B.

2 Press and hold the release button (A), and slide the device out

of the multimedia pocket.

Page 25

Multimedia Pocket

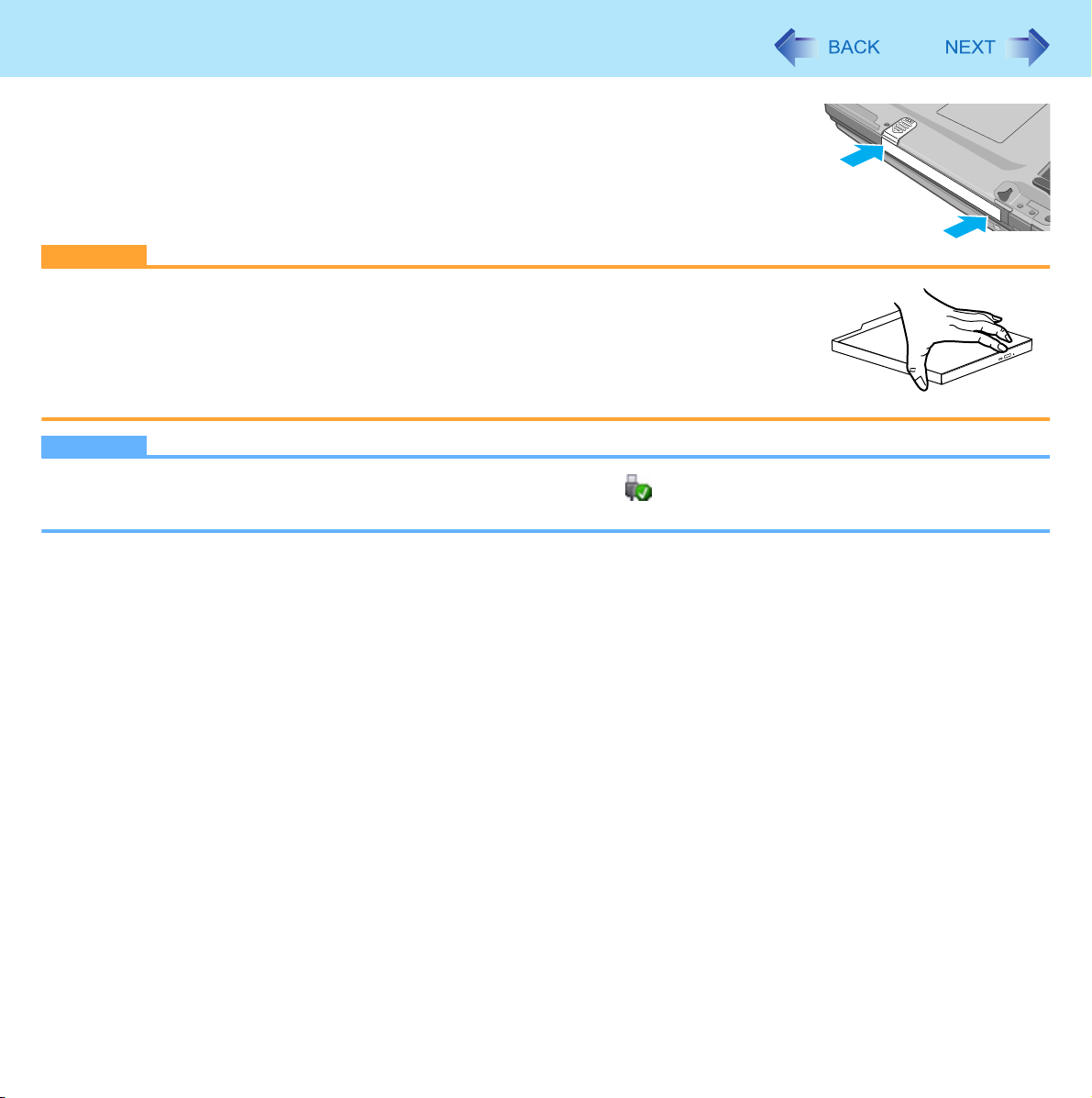

3 Carefully insert the device into the multimedia pocket by push-

ing both corners until it surely fits in the slot.

 The computer must be on when inserting the device.  Insert the device with the label side up.

CAUTION

 Hold the device by its both sides. Otherwise the device may be damaged.  When raising the slot side upward and inserting the device, be careful not to apply any

impact to the device.

 When you carry the computer, confirm that the release button is surely locked so that

the device does not fall.

 Be sure to insert the device into the multimedia pocket for use.

NOTE

 You can see that the device is recognized or not by double-clicking

ognized (or if the media cannot be accessed), turn off the computer and reinsert the device.

on the notification area. If the device is not rec-

Page 26

CD/DVD Drive

NOTE

 Connect the AC adaptor if writing operation takes a long time. If the remaining battery power becomes low and the power

is not supplied, writing operation may not be completed.

 Use Windows features or writing software to write to discs (e.g. B’s Recorder  page 34).

Ensure the disc is compatible with the selected writing speed.

 The quality of written data depends on the disc.

Handling Precautions

CD/DVD drive handling care

 Do not expose the CD/DVD drive to excessive smoke that may leave a residue, e.g., oil smoke, or tobacco smoke. Doing

so can shorten the life of the drive lens.

 We recommend cleaning the drive lens with an air puffer used for camera lenses.

(Do not use any spray-type of lens cleaning products.)

When opening/closing the tray

 When the computer is on, use the eject button ( page 31) or eject through Windows.  When is displayed on the notification area, right-click and click [Eject] to eject a disc.

Eject discs only as described above.

 When inserting or removing a disc, be careful not to touch the lens of the drive.  Do not leave the tray open and do not touch the lens.

The lens and disc can become dusty in some conditions. It may cause malfunction in reading or writing.

 Do not apply excessive force to the tray in the open position.  Never insert a foreign object such as a paper clip into the CD/DVD drive.

Doing so may cause malfunction.

 Do not place items other than discs on the tray.  Do not access the drive until after the tray is closed and the multimedia pocket device indicator is off.

While the CD/DVD drive is being accessed

 Do not open the CD/DVD drive or move the computer while the CD/DVD drive is being accessed.

Doing so could cause the disc to shift position and this may damage the disc, or cause the CD/DVD drive to malfunction. In addition, after running an application involving access to a disc, close the application before opening the CD/DVD drive.

Page 27

CD/DVD Drive

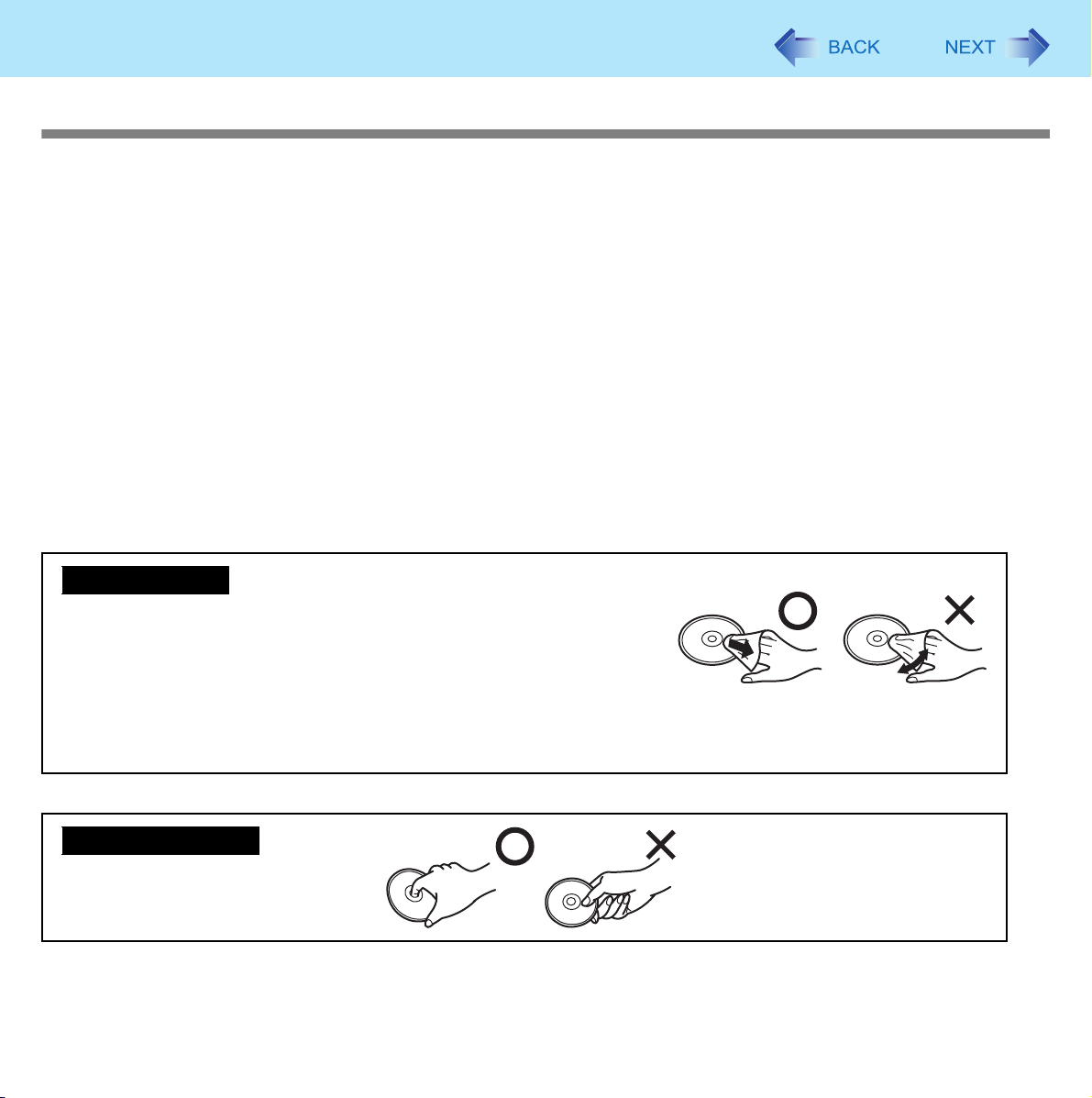

Disc handling care

 Do not use deformed, warped, or irregularly shaped discs.

Reading of disc may not be possible depending on the disc conditions (cracks, dirt, modification, data recording quality, copy protection, recording equipment/software that was used to create the disc, etc.)

 Before using a disc, carefully read the operating/handling instructions and package of the disc.  If the discs are not handled appropriately, they may become dirty or scratched. Furthermore the writing speed may get

slower and the data may not be correctly written on or read from the disc. Other damage may cause a drive failure.

 Note the following precautions.

• Do not touch the disc surface (the side with no printing).

• Keep the disc surface clean and free from dirt, dust, fingerprints and scratches.

• Do not write on the surface of the disc with a ballpoint pen or other writing instrument.

• Do not attach stickers to discs.

• Do not drop, bend, or place heavy objects on top of discs.

• Do not place or store discs in locations exposed to heat, direct sunlight, humidity or dust.

• If a disc is brought from a cold to a warm location, condensation may form on the disc. For read-only discs, wipe off the condensation using a soft, dry, lint-free cloth before using the disc. For recordable/rewritable discs, wait until the condensation dries.

• When not using discs, keep them in their protective cases or cartridges.

To clean discs

<For read-only discs> Wipe discs with a dry, soft cloth from the center toward the edge. If discs get very dirty, wipe with a moist, soft cloth from the center toward the edge, then wipe again with a dry cloth to take up remaining moisture. <For recordable/rewritable discs> Use the Panasonic disc cleaner to clean these discs. Do not use a cloth, CD cleaners or any other such cleaners under any circumstances.

How to hold a disc

Page 28

CD/DVD Drive

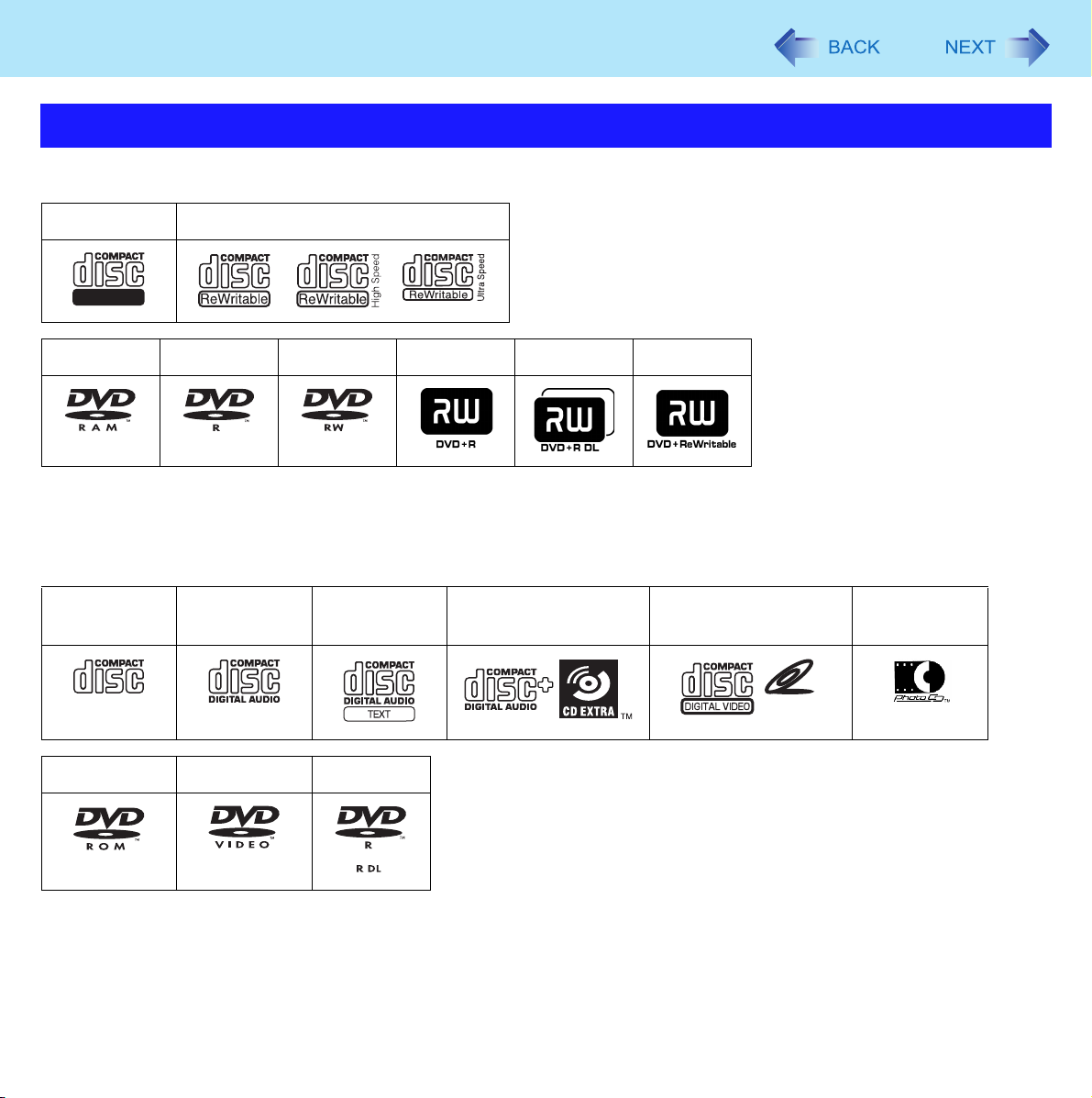

Disc Information

 You can read from/write to the following discs.

CD-R CD-RW

Recordable

DVD-RAM

DVD-RAM: Only non-cartridge type or removable cartridge type can be used.

Does not support DVD-RW Ver.1.0.

 You can read from the following discs.

CD-ROM CD DIGITAL

DVD-ROM DVD-Video DVD-R DL

DVD-R DVD-RW

AUDIO

CD TEXT CD-EXTRA Video CD Photo CD

+R +R DL +RW

VIDEO CD

Page 29

CD/DVD Drive

 Recommended discs for writing

• CD-R

HITACHI MAXELL, Ltd. MITSUBISHI KAGAKU MEDIA CO., Ltd. TAIYO YUDEN Co., Ltd.

• CD-RW/High-Speed CD-RW

MITSUBISHI KAGAKU MEDIA CO., Ltd. RICOH Co., Ltd.

• Ultra-Speed CD-RW

MITSUBISHI KAGAKU MEDIA CO., Ltd.

 DVD discs you can use for writing

• DVD-R for General

1X-SPEED (4.7 GB) 1–2X-SPEED (4.7 GB) 1–4X-SPEED (4.7 GB) 1–8X-SPEED (4.7 GB) 1–16X-SPEED (4.7 GB)

•DVD-RW

1X-SPEED (4.7 GB/9.4 GB) 1–2X-SPEED (4.7 GB/9.4 GB) 2–4X-SPEED (4.7 GB/9.4 GB) 2–6X-SPEED (4.7 GB/9.4 GB)

•DVD-R Panasonic Corporation MITSUBISHI KAGAKU MEDIA CO., Ltd. TAIYO YUDEN Co., Ltd.

•DVD-RW MITSUBISHI KAGAKU MEDIA CO., Ltd. Victor Company of Japan, Limited

•DVD-RAM Panasonic Corporation HITACHI MAXELL, Ltd.

•+R / +RW MITSUBISHI KAGAKU MEDIA CO., Ltd. RICOH Co., Ltd.

•+R DL MITSUBISHI KAGAKU MEDIA CO., Ltd.

•DVD-RAM 2X-SPEED (4.7 GB/9.4 GB) 2–3X-SPEED (4.7 GB/9.4 GB) 2–5X-SPEED (4.7 GB/9.4 GB)

•+R 1–2.4X-SPEED (4.7 GB) 1–4X-SPEED (4.7 GB) 1–8X-SPEED (4.7 GB) 1–16X-SPEED (4.7 GB)

•+R DL

2.4X-SPEED (8.5 GB)

•+RW 1–2.4X-SPEED (4.7 GB) 1–4X-SPEED (4.7 GB)

Use the 2.4X-SPEED discs for writing. The drive is not compatible with writing to the 8X-SPEED discs (including the 2.4-8X-SPEED discs).

Page 30

CD/DVD Drive

Using DVD Media

To play DVD-Video or MPEG files, you need to use DVD playback software such as WinDVD ( page 32).

 Region code setting

DVD-Video is allocated to region codes according to where they are sold. To play the DVD-Video, the player’s software and the drive must have the corresponding region code.

e.g., For U.S.A. and Canada: “1” For Europe: “2”

 The region code of the drive is not set at purchase. The operation depends on the DVD-Video that is first played.

• DVD-Video with a specific region code:

The drive will automatically be set at the same region code as the DVD-Video.

• DVD-Video with multiple region codes:

[Confirm Region] appears. Select the region code and click [OK]. Play now begins.

CAUTION

 You can change the region code setting up to 5 times including the initial setting. Be extremely careful because you

cannot change the region code anymore after the fifth change, even if you reinstalled the operating system.

 Any problem resulting from illegal changing or altering of the region code is the user’s responsibility.

NOTE

 [Confirm Region] appears when the DVD-Video has only 1 region code and the drive is set for another region code.

([Confirm Region] may not appear with some DVD-Video discs. To check the current region code and the number of remaining times of changing the code, right-click on the WinDVD screen and click [Setup] - [Region].)

Page 31

CD/DVD Drive

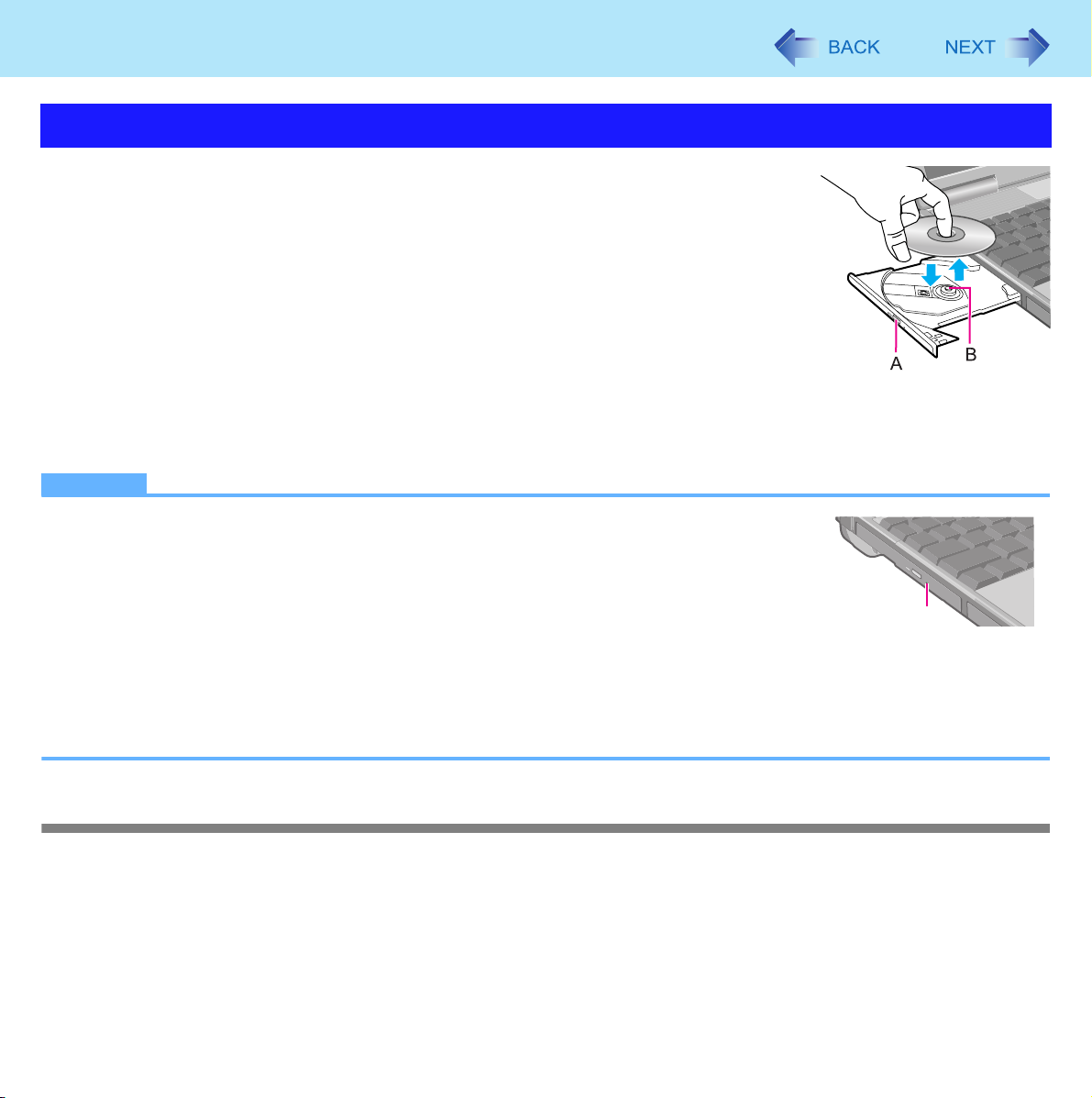

Inserting/Removing a Disc

1 Turn on the computer.

2 Press the eject button (A) and slowly pull out the tray. 3 Insert/Remove a disc.

 To i ns e r t

Set the disc with the label side up and press the center of the disc until it clicks in place.

 To r em ov e

Press on the center spindle (B) and carefully lift up the edge of the disc.

4 Close the tray.

Do not press the eject button.

NOTE

 To remove a disc when the computer is powered off, insert a pin of 1.3 mm {0.05″} in

diameter into the emergency hole (C). (When the diameter of the pin is smaller than this, insert the pin slightly downward.) Pushing it to the end allows the tray to come out. (The position of the emergency hole depends on the drive.)

 When the vibration of the CD/DVD drive is excessive in using B’s Recorder, select

writing speed [8x] or less to minimize vibration.

 For AutoPlay CD/DVD:

• If an AutoPlay CD/DVD does not start after the computer resumes from sleep or hibernation, remove the disc from the drive and then reinsert it after waiting 15 seconds.

• An AutoPlay CD/DVD may start during file access depending on the status of the disc.

 When playing back motion video from a disc, playback may not be smooth in some conditions.

Power-saving mode

If the CD/DVD drive is not accessed for 30 seconds, the drive motor will automatically be shut down to reduce the power consumption. When the CD/DVD drive is accessed again, the drive motor is turned on. In this case, reading of the disc data will take approximately 30 seconds.

Page 32

WinDVD

WinDVD is a software application for DVD playback. For further information, refer to the software’s online manual.  DVD-Audio cannot be played back using WinDVD.

Running WinDVD

1 Double-click on the desktop.

 Alternatively click (Start) - [All Programs] - [InterVideo WinDVD] - [InterVideo WinDVD for Panasonic].

NOTE

 When does not appear on the desktop, or [InterVideo WinDVD] does not appear on the menu:

When WinDVD is reinstalled, or [InterVideo WinDVD] may not appear on the screen of users other than the user who

has reinstalled WinDVD. In this case, click (Start), input “c:\program files\intervideo\dvd8\windvd.exe” in [Start Search], press

WinDVD. If this file does not exist, reinstall WinDVD.

 To access the online manual

Enter

, and start

After starting WinDVD, perform either of the following procedures.

 Click “?” on the WinDVD control panel.  Right-click on the WinDVD screen and click [Help].

SUPPORT INFORMATION If WinDVD does not operate properly, we recommend carefully reading the online help file first for problems with the operating environment or operations. If you still cannot troubleshoot the problem, enter the required information in the inquiry form on the homepage (http://apps.corel.com/lp/ivi/), and submit the form.

CAUTION

 Do not start WinDVD while the hard disk drive indicator is blinking immediately after the computer is turned on.  While WinDVD is running, do not:

• Enter sleep or hibernation.

• Switch the display by pressing

+ F3.

Page 33

WinDVD

 During motion video playback, do not:

• Eject the disc.

• Use other applications or the Command Prompt.

• Change the settings of the screen properties.

 Do not install another player software together with WinDVD.

Doing so may interfere with smooth playback. Some DVD-Video discs contain the player software and start installing. In this case, cancel the installation as soon as possible. If you accidentally installed another player software and find a problem in playback, try either of the following procedures.

• Uninstall the player software by clicking (Start) - [Control Panel] - [Uninstall a program]. (Refer to the instruction manual for the name of player software.)

• Set WinDVD as the playback software if you can select the option in the player software settings.

DVD Discs Created Using a DVD Recorder

 Playback may not be possible depending on the DVD recorder or the discs.

 You must finalize

the instruction manual of the DVD recorder.

A process that enables the playback of the discs on other DVD players, etc.

DVD-R, DVD-R DL, DVD-RW, +R, +R DL, and +RW before playback. For further information, refer to

Page 34

Writing to CD/DVD

Using Windows Feature

1 Insert a disc.

2 In the [AutoPlay] screen, click [Burn files to disc using Windows].

 Alternatively you can click (Start) - [Computer], and double-click [DVD RW Drive].  Follow the on-screen instructions.

B’s Recorder Information

“B’s Recorder” is CD/DVD recording software application developed by B.H.A Corporation. For further information, refer to the software’s online manual ( page 35).

 Applicable Media

 CD-R  CD-RW

 DVD-RAM  DVD-R  DVD-RW  +R  +R DL  +RW

If you write to DVD-RAM using B’s Recorder, the DVD-RAM will become “read only” disc. To write to such a DVD-RAM disc using an application other than B’s Recorder, physical formatting is required.

You cannot read from or write to DVD-RW created using DVD recorders.

About Copies

When you write to discs or back up software, ensure that you do not infringe upon any copyrights. It is illegal to copy audio CDs for non-personal use.

Page 35

Writing to CD/DVD

Running B’s Recorder

1 Double-click (B’s Recorder main window) on the desktop.

 Alternatively you can click (Start) - [All Programs] - [B.H.A] - [B’s Recorder GOLD9] - [B’s Recorder GOLD9]

(B’s Recorder main window) / [TaskGate] (launcher window).

CAUTION

 Be sure to shut down B’s Recorder before you log off Windows.

Otherwise B’s Recorder may not start normally when you log on to Windows next time. In this case, restart the computer.

 To access the online manual

A Click (Start) - [All Programs] - [B.H.A] - [B’s Recorder GOLD9] - [

/ [TaskGate] (TaskGate manual).

Manuals

] - [User Manual] (user’s manual)

Using B’s Recorder to Create a CD/DVD for Booting the System

You can use B’s Recorder to create a CD/DVD that will allow you to boot the system from the CD/DVD drive.  Create the CD/DVD using the following procedure.

For further information, refer to the online manual for B’s Recorder.

1 Run B’s Recorder (above).

2 Set a new disc in the CD/DVD drive.

3 Register the data to be used for booting in the Data well. 4 Double-click [01 Data (Mode1)] in [Track Type].

5 Click [Track Information] at the [Track Properties] screen, and click [Create from standard

bootable disk image] under [Bootable CD/DVD].

6 Click [OK], and click [Record].

7 Click [Start].

Page 36

Writing to CD/DVD

 How to change the bootable disc image using B’s Recorder

1 Run B’s Recorder, and click [View] - [Disc Capacity Display Settings] - [Bootable Disk].

2 Select the required bootable disc image from [Floppy Disk Image Management], and click

[OK].

NOTE

 The bootable disc image is saved in the folder “c:\Program Files\B’s Recorder GOLD9”.

 About the bootable disc image

The following six types of bootable disc images can be used with the B’s Recorder preinstalled in this computer.

Disc Image Contents

BSDOS1.BIN Image that can be booted from this computer Not Performable

BSDOS2.BIN Performable

BSDOS3.BIN Image that can be booted from this computer or a drive connected with

BSDOS4.BIN Performable

BSDOS5.BIN Image that can be booted from a drive connected with Parallel ATA inter-

BSDOS6.BIN Performable

The program to restore the backup data by using the B’s Recorder “HDD Backup” function.

NOTE

 Bootable disc images BSDOS1.BIN and BSDOS2.BIN are specially designed for this computer.

In the default setting, images BSDOS1.BIN and BSDOS2.BIN are selected.

 If you boot the system using a disc created using bootable disc image BSDOS3.BIN or BSDOS4.BIN, one of the fol-

lowing error messages may be displayed, but this is not a malfunction.

• CD-ROM Drive is not ready, aborting installation.

• Not found CDROM !!

• Check CD-ROM power and IDE cable.

• CD-ROM drive is not available.

 If you want to share a bootable disc with CF-52A/B/C/D series and CF-74C/D/E/F/G/H series, select bootable disc

image BSDOS3.BIN or BSDOS4.BIN.

Parallel ATA interface

face (Not available on this computer)

B’s restore program

Not Performable

Page 37

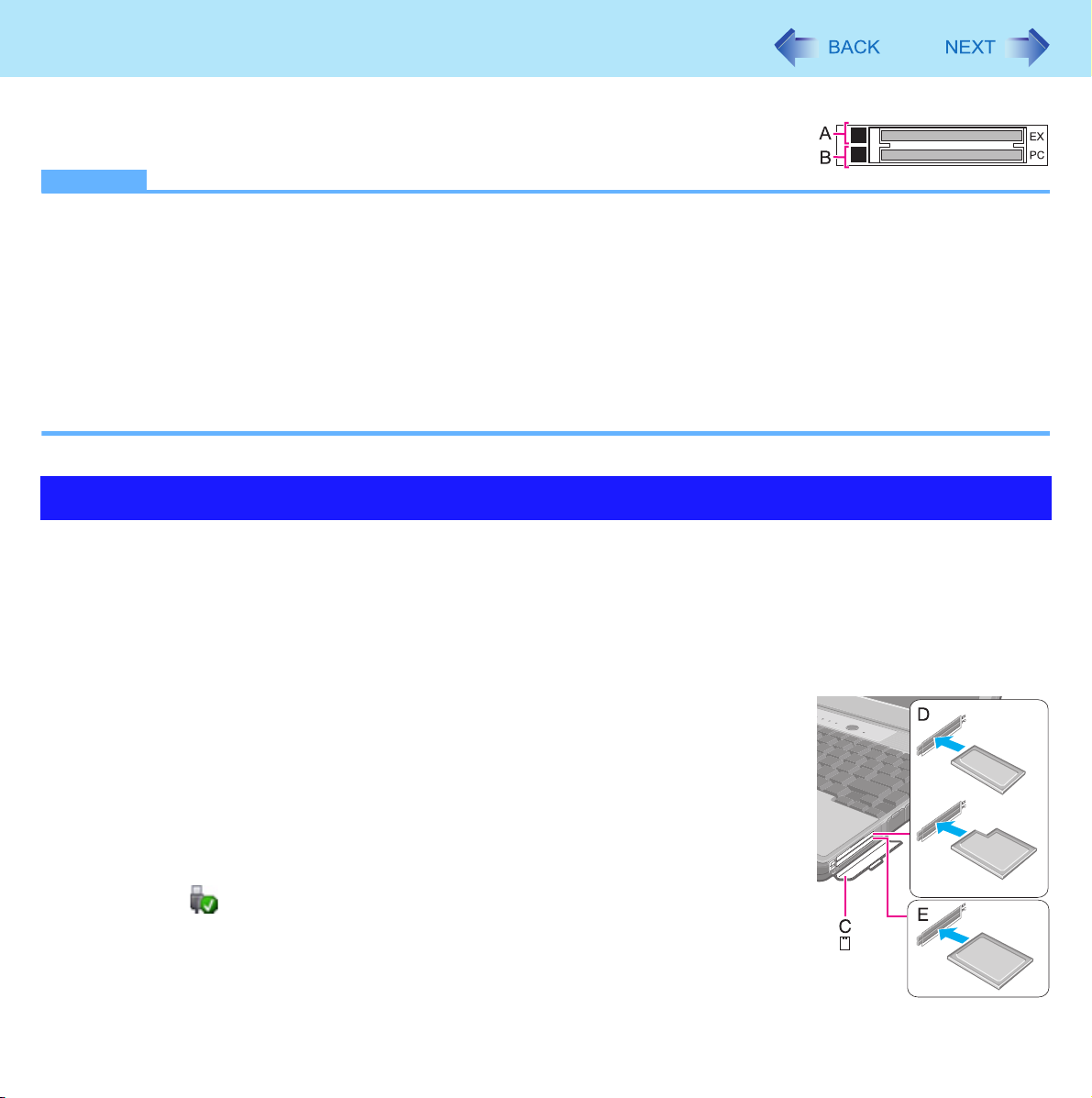

PC Card / ExpressCard

You can insert the following cards.

 ExpressCard/34 or ExpressCard/54 to the ExpressCard slot (A)  PC Card Type I (3.3 mm) or II (5.0 mm) to the PC Card slot (B)

NOTE

 The following types of card are not supported:

PC Card Type III (10.5 mm), ZV card, SRAM card, FLASH ROM card (excluding ATA interface type), and other cards that require 12 V of operating voltage.

 Do not start up Windows with a storage type of CardBus PC card attached. An error may occur.  Dummy cards are inserted into both of the slots at the factory.

First remove the dummy cards (below).

 Be sure to insert each dummy card when the slots are not in use.  Insert the appropriate dummy card in the correct card slot. Insert the dummy PC Card in the PC Card slot, and the

dummy ExpressCard in the ExpressCard slot. Inserting a dummy card in the wrong slot may cause malfunction of the computer.

Inserting/Removing the Card

Preparation

 Attach the device for the media containing the card driver (e.g., CD-ROM). Equipment connected to the multimedia

pocket cannot be recognized if connected after the card driver installation screen appears.

 If the dummy card is inserted, remove it.

 To insert the card

1 Open the cover (C), and insert the ExpressCard (D) or the PC

Card (E) with the label side up until it securely fits in to the slot.

 For further information, refer to the instruction manual of the card.

 To remove the card

1 Disable the card function.

A Click on the notification area and select the card, then click [OK].

 This step is not necessary when removing the card after turning off the com-

puter.

Page 38

PC Card / ExpressCard

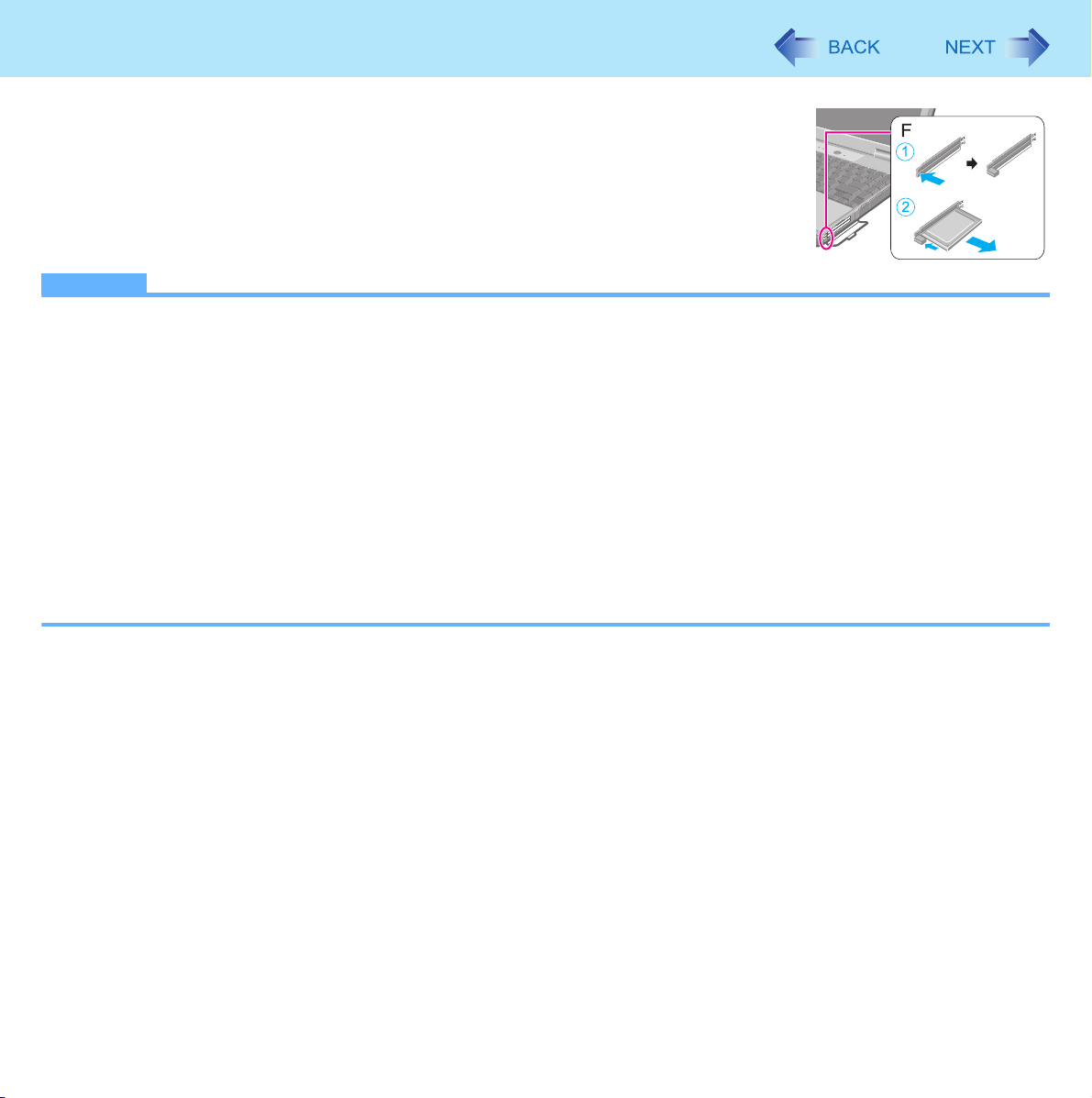

2 Open the cover and remove the card.

A Press the eject button (F). The eject button pops out. B Press the eject button (F) again so the card comes out of the slot. C Draw the card straight out.

NOTE

 Check the card’s specification to prevent the total operating current from exceeding the allowable limit. Otherwise mal-

function may occur. Allowable Current: 3.3 V: 400 mA, 5 V: 400 mA

 Some types of cards cannot be used simultaneously.  After repeating insertion and removal, some types of card will not be recognized. In this case, restart the computer.  If the computer freezes after resuming from sleep or hibernation, remove and reinsert the card. If the problem persists,

restart the computer.

 When a card is inserted, power consumption increases. Remove the card when it is not in use, especially when oper-

ating by battery power.

 To connect peripheral devices (SCSI, IEEE1394, etc.) using a PC Card or an ExpressCard, follow the steps below

(one example).

A Connect the peripheral device to the card. B Turn on the power of device. C Insert the card until it surely fits in the slot.

Page 39

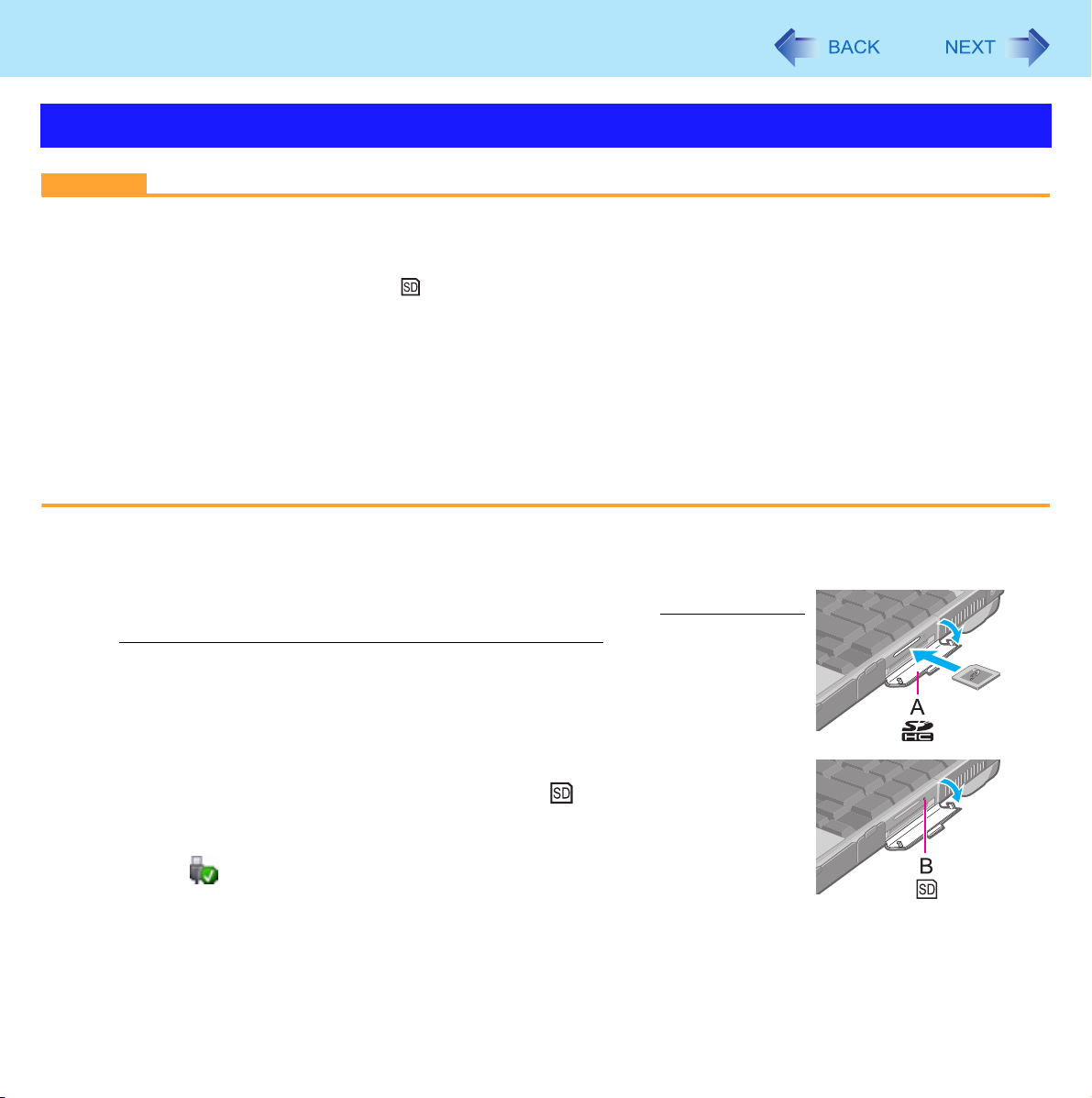

SD Memory Card

SD Memory Card Information

 This computer supports SDHC Memory Cards (SD Memory Cards with a capacity more than 2 GB).  When you use a miniSD Card or a microSD Card, set the card to a miniSD Card adaptor or a microSD Card adaptor, and

insert/remove the card with the adaptor. Be sure not to leave the adaptor in the card slot.

 The SD Memory Card has a copyright protection function which is compatible with content on-demand services on the

Internet, etc.

 To format the SD Memory Card on this computer, do not use [Format] of Windows, but use the SD Memory Card format

software. You can download the software from the web site below. http://panasonic.jp/support/global/cs/sd/download/sd_formatter.html

 To use the SD Memory Card on other devices, format the card on the devices. For further information, refer to the instruc-

tion manual of the devices.

Handling and storage cautions

 Store the SD Memory Card in the case after removing it from the computer.  Do not:

• Disassemble or modify the card.

• Hit, bend, or drop the card.

• Touch the terminals with fingers or metal object.

• Remove the labels of the card / Attach other labels or stickers to the card.

 Do not place the card in the following locations.

• In direct sunlight or in very hot location such as inside of a car.

• In very dusty or humid location.

• In location subject to corrosive gas, etc.

Data handling cautions

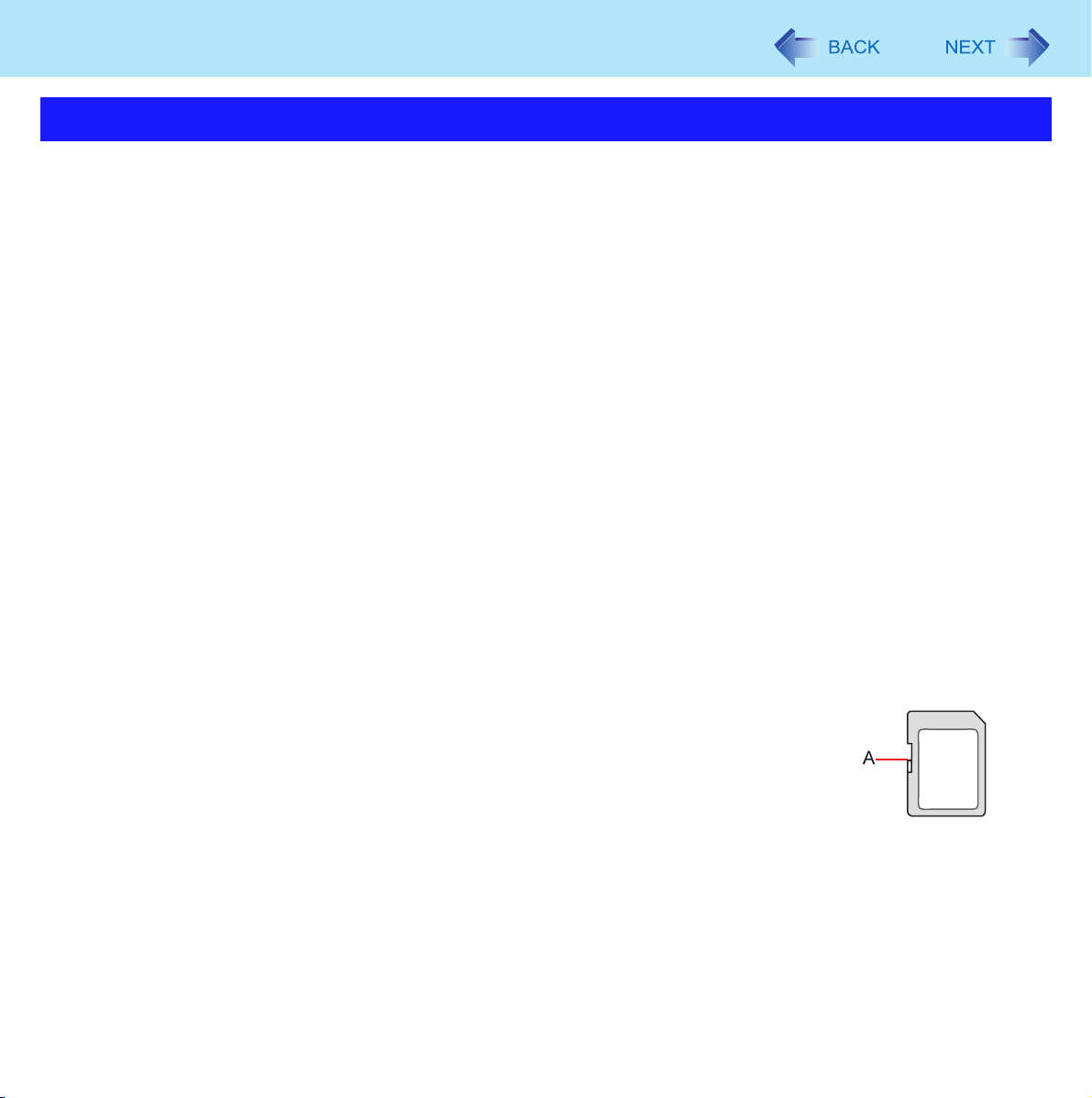

 Set the write-protect switch (A) to the LOCK position. Unlock the switch when recording

(checkout), saving, or editing data.

 We recommend you to back up the important data to another storage medium.  When disposing the card, we recommend you to physically destroy the card (using a ham-

mer, etc.) to prevent personal or confidential data leakage.

Page 40

SD Memory Card

Inserting/Removing the SD Memory Card

CAUTION

 Do not remove or insert the SD Memory Card until Windows has completed loading.  Do not remove the card or turn off the computer in the following cases, otherwise the data may be corrupted.

• While the computer is in sleep or hibernation.

• While the SD Memory Card indicator is on.

• While data is being read from or written to the card.

• Immediately after the writing operation. The computer may still continue the access to the card just after writing

operation. If you remove the card before the operation is completed, the data may be damaged or the card access may no longer be performed normally.

 Note that Panasonic assumes absolutely no liability for any loss of data recorded by the user, or any other damages,

direct or indirect.

 Do not forcibly draw out the card, otherwise the slot may be damaged.  Insert the card in the correct direction, otherwise the card and the slot may be damaged.  After resuming from sleep or hibernation, do not access the SD Memory Card for approximately 30 seconds.

 To insert the card

1 Open the cover (A), and insert the SD Memory Card with the label

side facing up and with the cut corner in front.

 To remove the card

Preparation

 Save the data and close all applications.  Open the cover and confirm the SD Memory Card indicator (B) is off.

1 Disable the card function.

A Click on the notification area and select the card, then click [OK].

 This step is not necessary when removing the card after turning off the computer.

Page 41

SD Memory Card

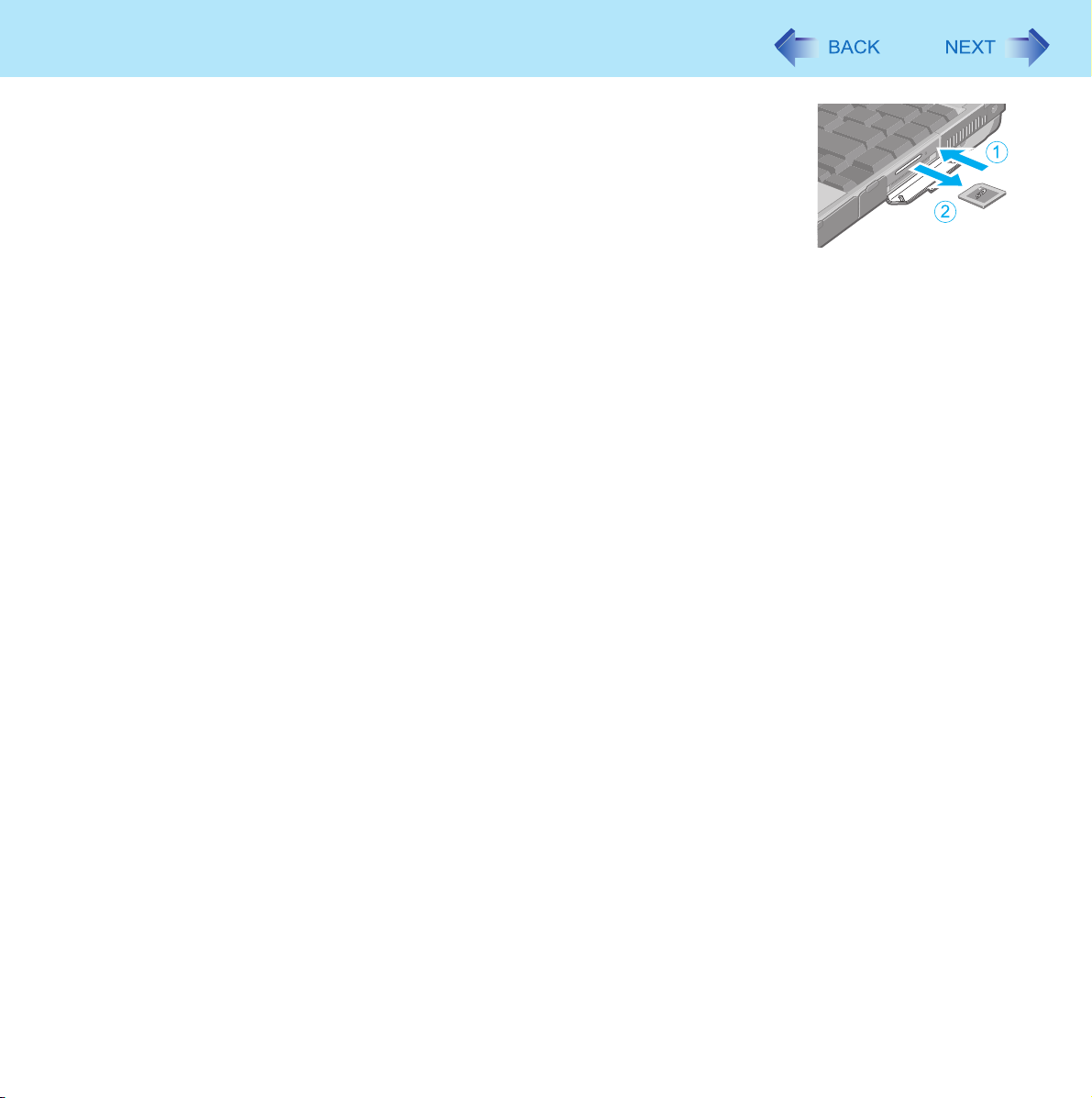

2 Remove the card.

A Press the card so it comes out of the slot. B Draw it straight out.

Page 42

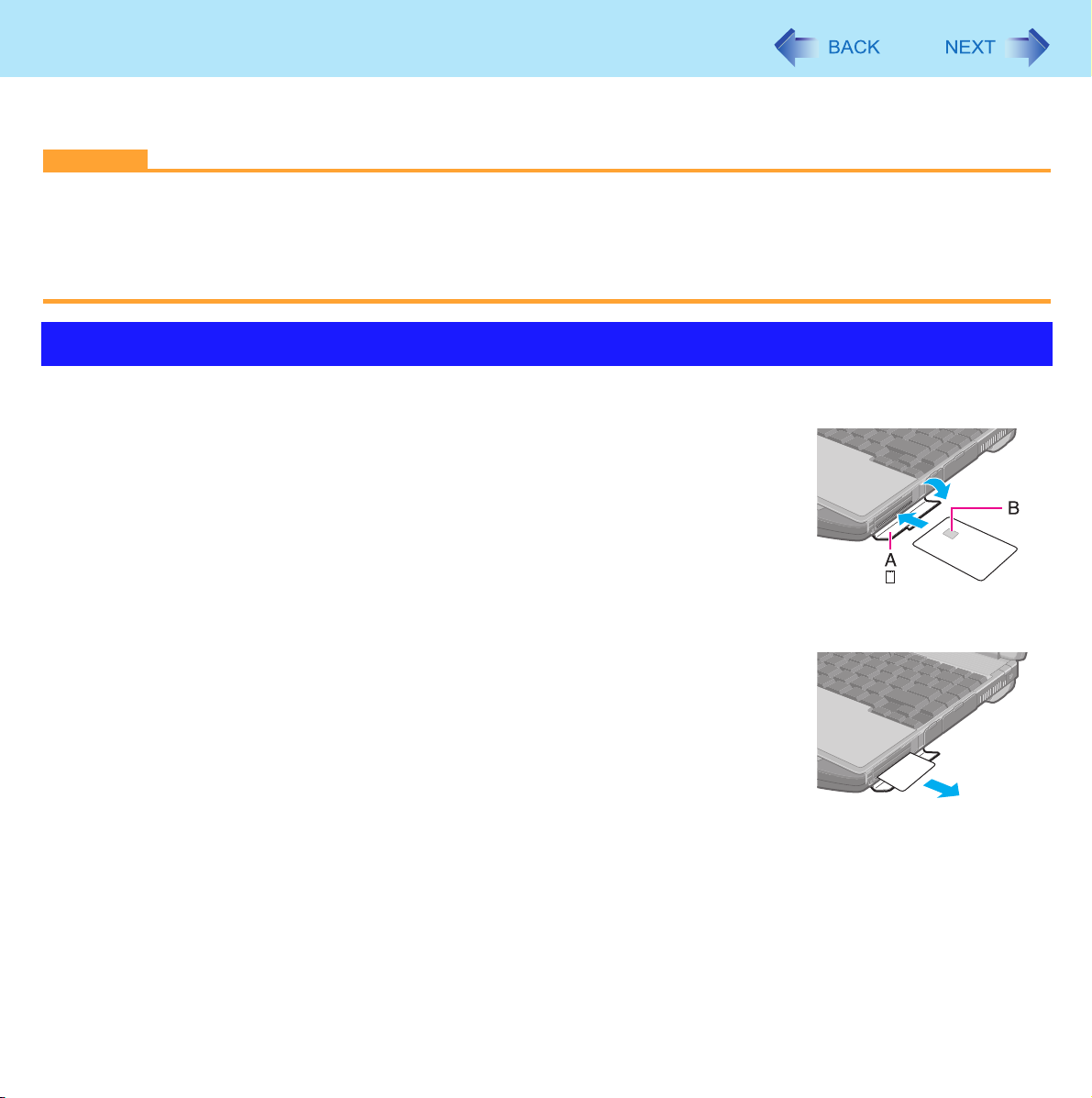

Smart Card

You need software to use a Smart Card.

CAUTION

 Do not:

• Hit, bend, or drop the card.

• Touch the contact part with fingers or metal object.

• Place the card in very hot location for a long time.

• Remove the card immediately after inserting it.

Inserting/Removing the Smart Card

 To insert the card

1 Open the cover (A), and insert the Smart Card with the contact

part (B) in front.

 Insert the card until it surely fits in the slot.

 To remove the card

1 Open the cover and draw the card straight out.

Page 43

RAM Module

Use RAM modules that comply with the specifications below. Using any other module may cause malfunction or result in computer failure.

RAM module specifications: 200 pins, SO-DIMM, 1.8 V, DDR2 SDRAM, PC2-6400 (For information of RAM module compatibility, contact Panasonic Technical Support.)

CAUTION

 RAM modules are extremely sensitive to static electricity and can be affected even by static electricity from the human

body. When inserting and removing RAM modules, do not touch the terminals or internal components, and do not allow foreign particles to enter the slots. Doing so may cause damage, fire, or electric shock.

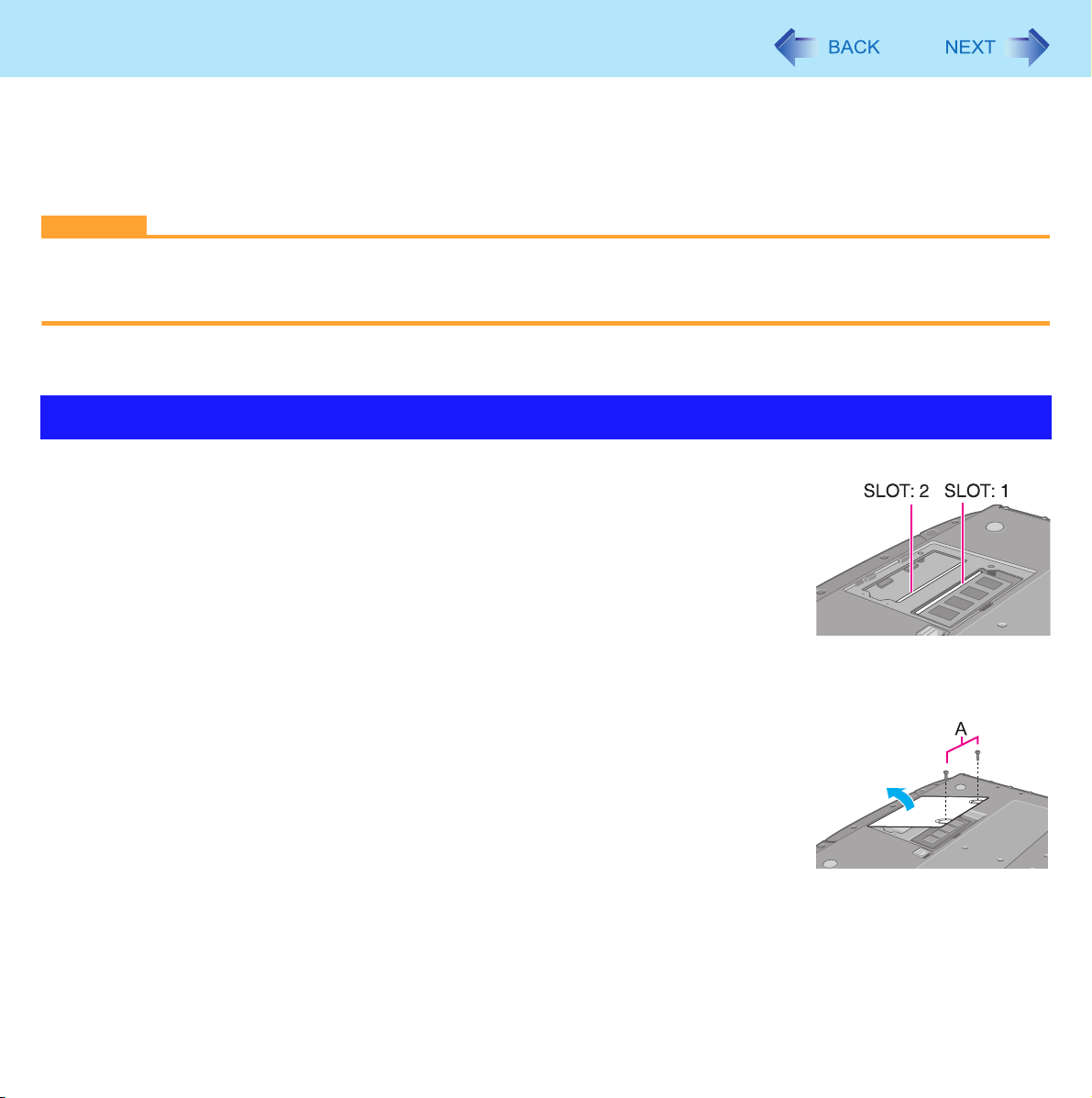

Inserting/Removing the RAM Module

This computer has 2 RAM module slots.

 At purchase, the RAM module is in SLOT: 1.  When using an extra RAM module, insert it in SLOT: 2.

1 Turn off the computer.

 Do not use sleep or hibernation.

2 Disconnect the AC adaptor and remove the battery pack ( page 21).

3 Remove the screws (A) and the cover on the bottom of the com-

puter.

Page 44

RAM Module

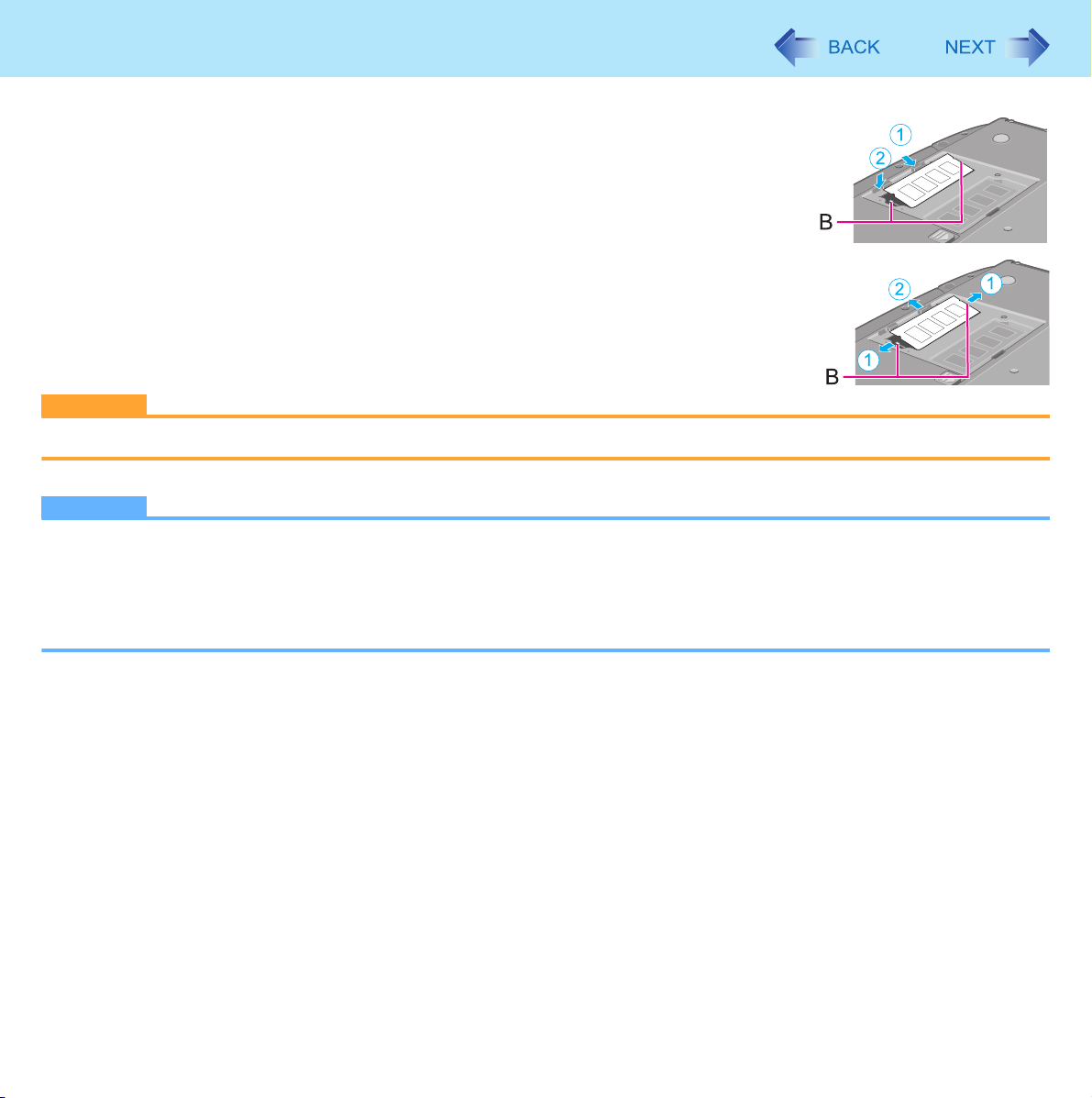

4 Insert/Remove the RAM module.

 To i ns e r t

A Tilt the module slightly and insert it in the slot. B Press down the module so that the right and left hooks (B) are locked.

 To r em ov e

A Carefully open the right and left hooks (B).

The module will rise.

B Carefully remove the module from the slot.

5 Set the cover and battery pack.

CAUTION

 Set the cover correctly and tighten screws firmly.

NOTE

 If it is hard to insert or to press down the RAM module, do not try forcibly but check the module’s direction.  Use the appropriate screw driver so as not to strip the thread of screw.  If the RAM module is recognized correctly, the total size of the main unit memory and RAM module memory is dis-

played on the [Information] menu of the Setup Utility ( page 77). If the RAM module is not recognized, power off the computer and insert it again.

Page 45

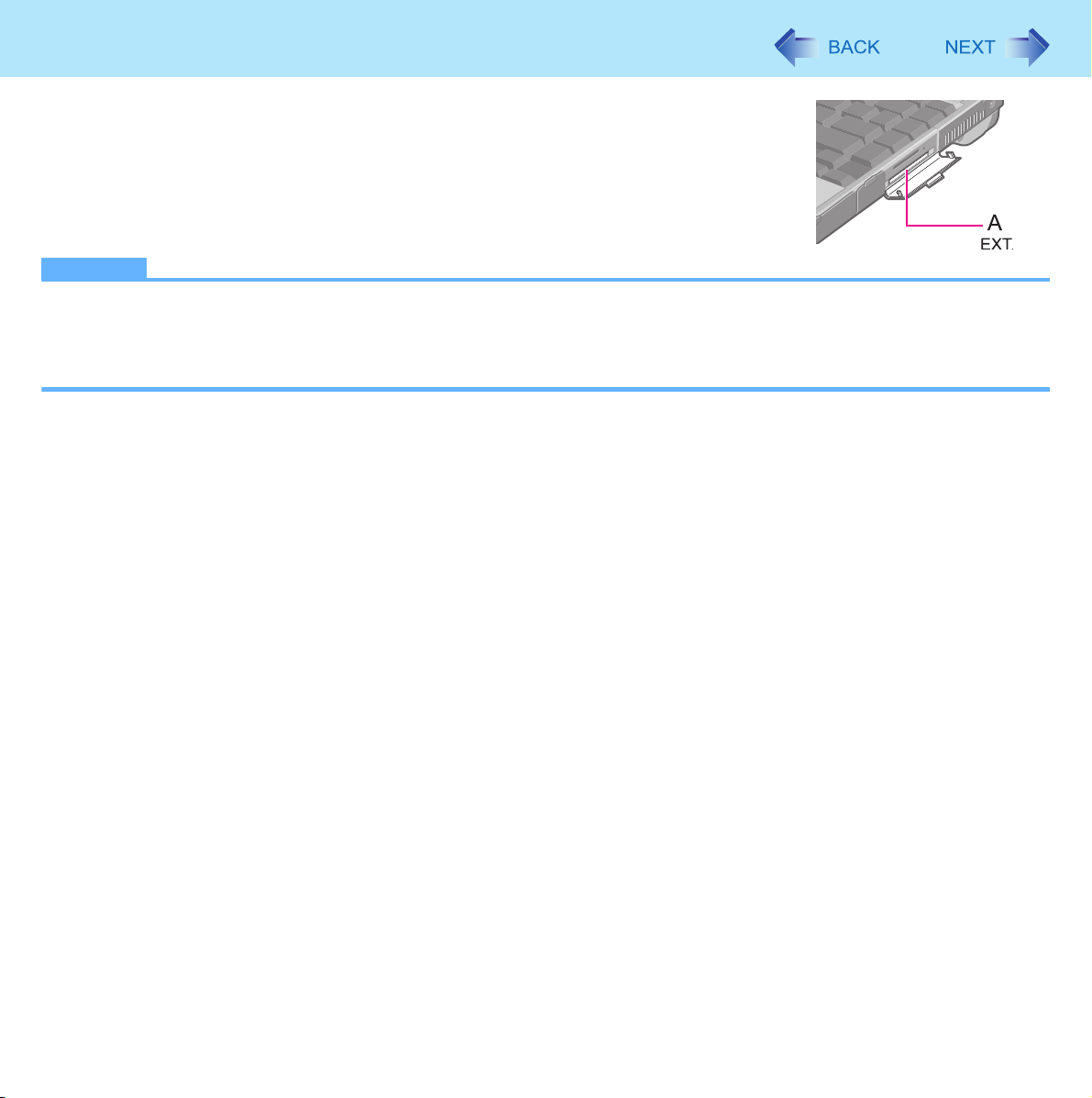

Mini Port Replicator

You can use an optional mini port replicator (CF-VEBU06W). This device frees you from being bothered by a lot of cable connections when you carry the computer. It also allows you to connect various peripherals. Connect the mini port replicator to the expansion bus connector (A). For further information, refer to the instruction manual of the mini port replicator.

NOTE

 When an external display is connected to the mini port replicator and the 1280 x 1024 or higher resolution is selected,

the characters may be blurred on the external display. In this case, select the lower resolution.

 To boot the computer from a USB floppy disk drive or a USB CD/DVD drive, be sure to connect the USB drive to the

USB port on the computer, not to the USB port on the mini port replicator.

Page 46

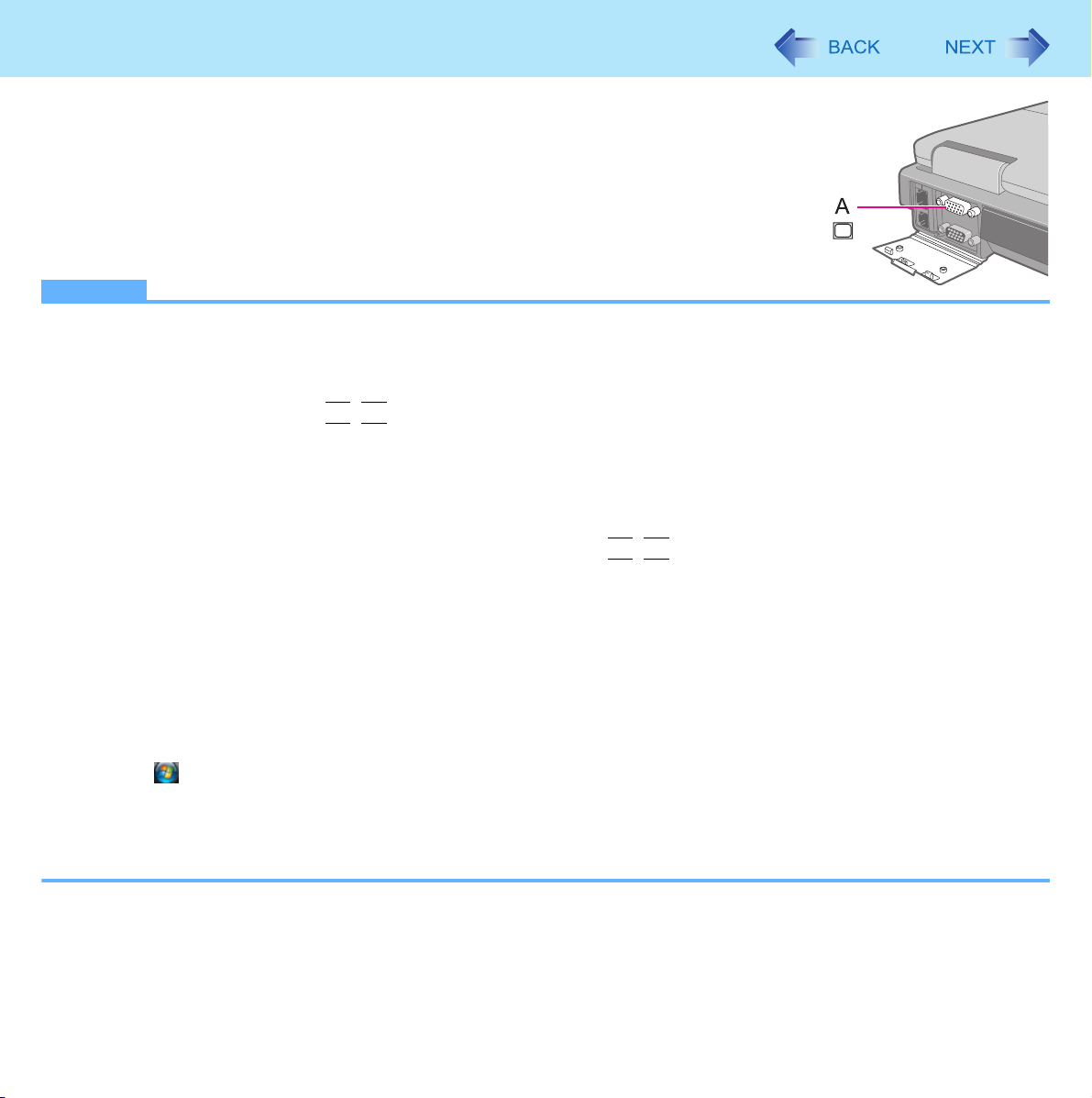

External Display

You can switch the output destination to an external display. Connect the external display to the external display port (A).

NOTE

 After resuming from sleep or hibernation, or restarting the computer, the output destination may not be the same as

selected in the previous status.

 When you change the display after Windows starts up, do not press any key until switching is complete.  You cannot use the simultaneous display until Windows starts up.  Display switching by pressing

In this case, log off all users and restart the computer.

 Do not connect or remove the external display during sleep or hibernation.  It may take some time to switch between displays depending on the displays used.  When you use high resolution displays, the display color, resolution or refresh rate may be changed, switching to

[Notebook] in [Intel We recommend you to switch the output destination by pressing

 When you use the external display only, set the suitable number of colors, resolution, or refresh rate separately from

when you use the internal LCD only or when you use the simultaneous display. Depending on the settings, some external displays may be distorted or may not display the mouse cursor correctly. In this case, set the settings to lower value.

 When you use the simultaneous display, DVD-Video, MPEG files and other motion image files may not be played back

smoothly.

 Carefully read the instruction manual of the external display.  When connecting an external display that does not conform to the Plug & Play standards, select the display driver

accordingly in the following menu, or use the driver disc supplied with the monitor.

A Click (Start) - [Control Panel] - [Adjust screen resolution] - [Advanced Settings] - [Monitor] - [Properties].

• A standard user needs to enter an administrator password.

B Click [Driver] - [Update Driver].

 If you connect an external display via the mini port replicator (CF-VEBU06W), the output switches to the mini port rep-

licator from the external display port.

Graphics Media Accelerator Driver for Mobile].

Fn+F3

may not work when you use the Fast User Switching function to switch the user.

Fn+F3

Page 47

External Display

CAUTION

 Before disconnecting the external display, switch to the internal LCD by pressing

image quality may become different after disconnection (e.g., wrong resolution). In this case, press the image quality.

 The screen may become distorted due to the following operations. In this case, restart the computer.

• Disconnecting an external display for which you have set high resolution or high refresh rate.

• Connecting/disconnecting an external display during computer operations.

Fn+F3

. Otherwise the displayed

Fn+F3

to reset

Switching the Display

1 Press

Each time you press the key combination: Internal LCD Simultaneous display External display

Fn+F3

Extended Desktop

The extended desktop function allows you to use the working area across both the internal LCD and the external display. You can drag an object from the internal LCD to the external display and vice versa.

1 Display [Intel

Click (Start) - [Control Panel] - [Additional Options] - [Intel(R) GMA Driver for Mobile] - [Display Devices].

Graphics Media Accelerator Driver for Mobile] screen.

2 Click [Extended Desktop], and make the settings for [Primary Device] and [Secondary

Device].

3 Click [OK].

At the confirmation message, click [OK].

Page 48

External Display

NOTE

 It may not be possible to use the extended desktop with some software applications.  When you click the maximize button, the window is displayed on one of the displays. You cannot move the maximized

window to the other display.

 You cannot switch the display by pressing  To switch left (primary device) and right (secondary device), once return the display to “notebook only”. Follow the

steps below.

A Right-click the desktop and click [Graphics Options]. B Click [Output To] - [Notebook]. C Right-click the desktop and click [Graphics Options]. D Click [Output To] - [Extended Desktop], and click [Monitor + Notebook] (the external display will be set to primary

device) or [Notebook + Monitor] (the internal LCD will be set to primary device).

 To switch to the Extended Desktop, be sure to use the [Intel

the [New Display Detected] screen. If you use other methods (e.g. display setting, etc.), the screen may not be displayed correctly.

 The pop-up icon displayed by  <Only for model with touchscreen>

Set the internal LCD to the primary device when using the touchscreen. The cursor will move on the primary device when you touch the internal LCD.

key combination appears only on the primary device.

Fn+F3

Graphics Media Accelerator Driver for Mobile] screen or

Page 49

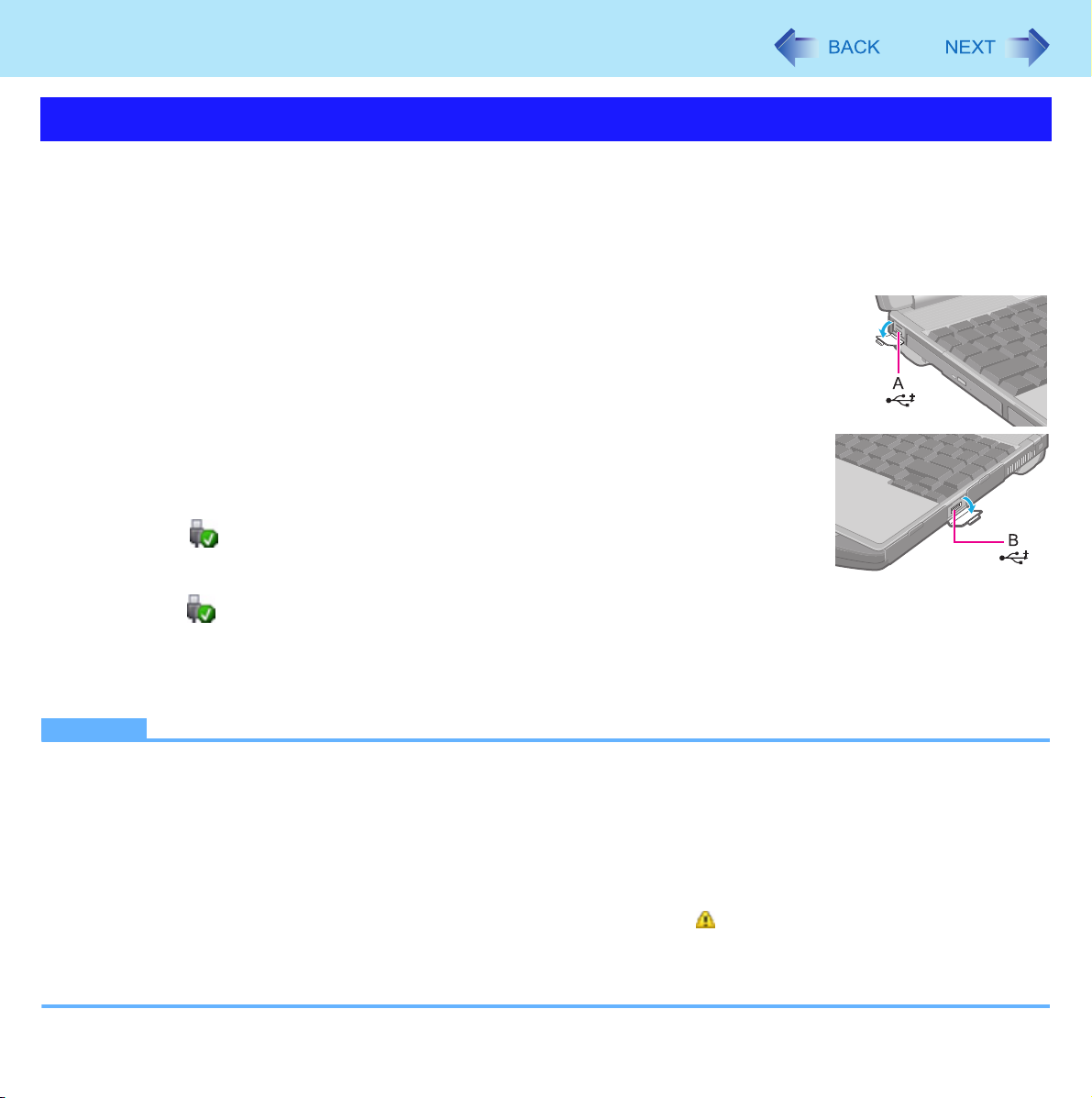

USB Devices

Connecting/Removing USB Devices

Preparation

Attach the device for the media containing the card driver (e.g., CD-ROM). Equipment connected to the multimedia pocket cannot be recognized if connected after the USB device driver installation screen appears.

 To connect the USB device

1 Open the cover and connect the USB device to one of the USB

ports (A or B) on the computer.

For further information, refer to the instruction manual of the USB device.

 To remove the USB device

1 Disable the USB device.

A Click on the notification area and select the USB device, then click [OK].

 This step is not necessary when;

• Removing the device after turning off the computer.

• is not displayed.

• The device does not appear in the list in step A.

2 Remove the USB device.

NOTE

 You may need to install the driver for the USB device. Follow the on-screen instructions or refer to the instruction man-

ual of the USB device.

 You may need to install the driver again when connecting the device to another port.  When a USB device is connected, sleep and hibernation may not function normally. If the computer does not start up

normally, remove the USB device and restart the computer.

 If the computer enters sleep while a USB keyboard or mouse is connected, touching the USB keyboard keys or mouse

will resume the computer.



When the USB device is removed and then inserted while the computer is on, may appear in the Device Manager and the device may not be correctly recognized. In this case, remove and connect the device again, or restart the computer.

 When a USB device is connected, power consumption increases. Remove the USB device when it is not in use, espe-

cially when operating by battery power.

Page 50

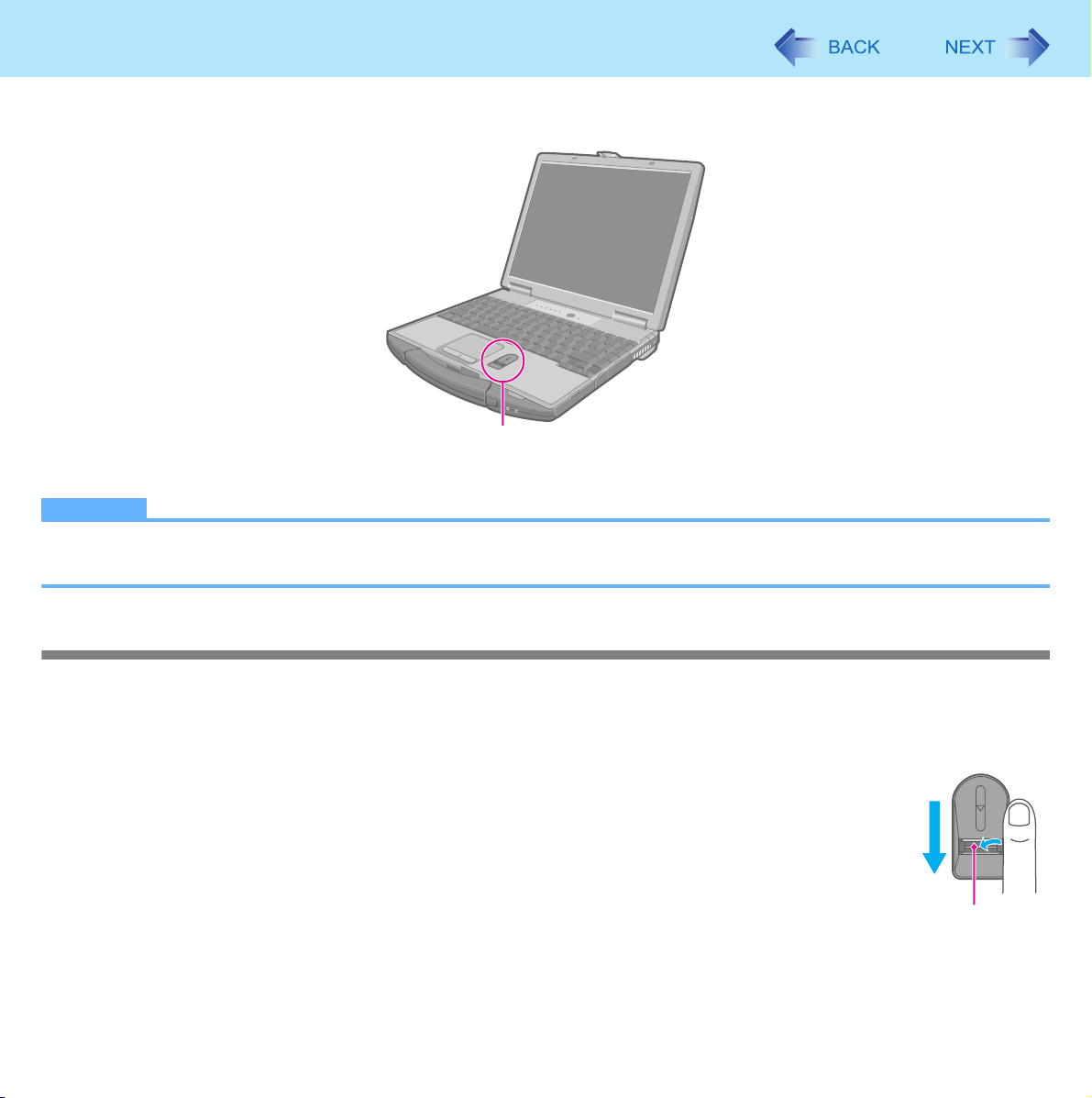

Fingerprint Reader

Fingerprint Reader

NOTE

 Enrollment and authentication is unavailable to an extremely minority of people including those whose fingerprints give

little data for personal identification.

How to Use the Fingerprint Reader

This section explains how your fingerprints are enrolled and authenticated.

1 Slide your finger toward yourself.

 To prevent a reading error.

A Set the first joint of your index finger on the sensor as illustrated to the right. B Slide your finger toward yourself while keeping it in contact with the fingerprint sensor. C Slide your finger down until the sensor is visible.

 When the fingerprint sensor does not enroll or authenticate your fingerprint properly:

• You slid your finger too fast or too slow.

• Your finger was soiled or it has a scar on the surface.

• Your finger was wet or extremely dry.

• Your fingerprint does not have sufficient data for personal identification. For further information, refer to “Fingerprint Reader ” ( page 103).

Fingerprint sensor

Page 51

Fingerprint Reader

CAUTION



We shall not be liable for any loss or damage whatsoever resulting from your Fingerprint device or neglect of Fingerprint device use, or any data loss resulting from such developments as Fingerprint authentication device malfunctioning.

Overview

Fingerprint’s Outline

The conventional security systems use ID/passwords and token devices such as IC cards to authenticate users. Therefore the passwords and token devices are exposed to the risk of being lost, stolen and hacking. The Fingerprint authentication method uses user’s fingerprints instead of passwords for security authentication. You can use your fingerprints to start up your computer and log on Windows. We recommend you use the Fingerprint Reader in combination with the TPM (Trusted Platform Module) to increase the security level of your computer.

Recommended Installation Procedure

Performed by the Computer Administrator Performed by each user

Step 1

TPM Installation ( Installation Manual of TPM)

(If the TPM is not being used, skip this step.)

Step 2

Fingerprint Utility Installation

User Fingerprint Enrollment

User’s Data

• Windows Logon Password

• Fingerprint

• Fingerprint Backup Password

• Power-on Password

Step 4

Step 3

TPM Fingerprint Utility Initialization

(If the TPM is not being used, skip this step.)

 To access the online manual

This manual describes Step 2, 3 and the initial part of Step 4. For further steps, refer to the UPEK Protector Suite QL Help menu.

 Click (Start) - [All Programs] - [Protector Suite QL] - [Help].

Page 52

Fingerprint Reader

Precautions

 Security Functions

 Fingerprint Authentication Technology does not guarantee complete authentication and individual identification. Please

acknowledge we shall not be liable for any loss or damage whatsoever resulting from the use of, or inability to use your Fingerprint device.

 The Fingerprint authentication method uses multiple fingerprints, encryption keys, credentials data and passwords. You

might not be able to use your data if you lose fingerprints, keys, credentials and passwords. Back up the Fingerprint authentication data in a safe place. For further information, refer to “Backup” ( page 56).

 General interaction with third-party applications: There is no guarantee that there will not be any negative interaction with

any third-party software, and will not accept any responsibility for such an interaction.

Installation

1 TPM Installation

Refer to the Installation Manual of “Trusted Platform Module (TPM)”.  Click (Start), input “c:\util\drivers\tpm\readme.pdf” in [Start Search], and press

2 Fingerprint Utility Installation

Performed by the Computer Administrator.

A Log on to Windows as an Administrator. B Close all other programs.

C Click (Start), input “c:\util\drivers\fngprint\application\x86\install\setup.exe” in [Start Search], and press

Enter

D Click [Next].

Installation starts. Follow the on-screen instructions.

E When the “Protector Suite *.* has been successfully installed.” message appears, click [Finish].

At the confirmation message, click [Yes]. The computer restarts.

F Log on to Windows as an Administrator.

The “Protector Suite QL Icon” appears in the notification area.

Enter

Page 53

Fingerprint Reader

3 TPM Fingerprint Utility Initialization

Performed by the Computer Administrator. The “Invalid TPM status” message is displayed by the “Protector Suite QL Icon” in the notification area.  If the TPM is not being used, skip this step.

A Click on the “Invalid TPM status” message to start [Advanced Security Initialization Wizard].

Follow the on-screen instructions.

NOTE

 If the “Invalid TPM status” message is not displayed

Click (Start) - [All Programs] - [Protector Suite QL] - [Control Center] - [Settings] - [System Settings] - [TPM] - [Initialize TPM].

4 User Fingerprint Enrollment

Performed by each user.

A Click (Start) - [All Programs] - [Protector Suite QL] - [User Enrollment].

Carefully read the License Agreement, select [I Accept the terms of the License Agreement] and click [OK].

B Click [Next]. C Select an enrollment mode, and click [Finish].

 Enrollment mode

You can make the configuration for the enrollment only once during this initialization phase.

• Enrollment to the biometric device All enrolled fingerprints are stored directly in the fingerprint sensor. The user data will be secured by the hardware protection keys obtained by the fingerprint sensor. This mode allows up to 21 fingerprints to be enrolled.

• Enrollment to the hard disk All enrolled fingerprints are stored on the hard disk. Hardware protection of the user data is not possible, but multiple users can enroll their fingerprints.

 When the [Finish] screen appears, read the description carefully.  [User Enrollment] wizard starts. Follow the on-screen instructions.

NOTE

 Enroll at least two fingers. Even if one of them is injured, you can use another one to access your account and secret

data. For further information about the enrollment, refer to “How to Use the Fingerprint Reader” ( page 50) and [Fingerprint Tutorial].

• Click (Start) - [All Programs] - [Protector Suite QL] - [Fingerprint Tutorial].

Page 54

Fingerprint Reader

 We recommend you use the Power-on Security feature. This feature prevents unauthorized access to the

user’s computer at the BIOS level. After first finger enrollment, [Power-on Security] message appears. Select [Yes].

A When the [Power-on Security] screen appears, click [Manage Passwords]. B Select [Power-On] in [Password Types], and click [Set password]. C Enter the password for [Power-on Security], and click [OK]. D Click [Close]. E Add a check mark for [Power-On] in [Password Types]. F Enter the password (step C), and click [OK]. G Click [Next].

• Follow the on-screen instructions.

NOTE

 The number of fingerprints for [Power-on Security] is maximum of 21, because they are stored in the fingerprint sensor

regardless of the selected enrollment mode.

Page 55

Fingerprint Reader

More Advanced Security

You can increase your computer’s security level by setting the BIOS level described in this section. Performed by the Computer Administrator.

1 Register the Supervisor Password.

You have to register the Supervisor Password to proceed to the next step. If you have already registered the Supervisor Password, you can skip this step, and move on to step If you have not done this, have enrolled your fingerprint using Protector Suite QL, and have already made Power-on

Security effective, after step B, your fingerprint authentication will be necessary.

A Turn on or restart the computer.

Del

B Press

procedure.

C Select the [Security] menu. D Select [Set Supervisor Password], and press E Enter your password in the [Create New Password], and press

• The password will not be displayed on the screen.

• You can use up to 32 alphanumeric characters (including spaces).

• The case (upper/lower) is ignored.

• Use only the upper horizontal row of numeric keys to input your password.

• You cannot use

F Enter your password again in [Confirm New Password], and press

while [Panasonic] boot screen is displayed soon after the computer starts the startup

Shift

and

Ctrl

to input a password.

Enter

2 Set the High Security Level.

A Select [Fingerprint Security], and press B Select [Security mode], and select [High].

• Default setting: Simple

C Press D Press

NOTE

 In the [High] security mode, you have to enter the Supervisor or User Password even after fingerprint authentication.

In the [Simple] security mode, you do not have to enter the Supervisor or User password after fingerprint authentication.

Esc

to close the sub-menu.

F10

, select [Yes], and press

Enter

to exit the Setup Utility.

Page 56

Fingerprint Reader

Useful Information

Backup

The file described below is necessary for recovering the Fingerprint authentication data. Back up this file periodically in a safe location such as removable disk to avoid data loss resulting from some accidents. We recommend you to store the file in a removable disk or network drive because the benefit of Fingerprint authentication security can be reduced if you keep the file in the internal hard disk drive. The backup password described below is necessary for bypassing the Fingerprint authentication. We recommend you set the backup password using the [User Enrollment] wizard. If you do not define the backup password, you may lose your data in case of authentication hardware failure.

 File used by each user

• Backup user passport data (Default name: <UserAccount>.vtp) You need this file when you replace the embedded fingerprint chip, or the hard disk drive, or when reinstalling Windows. This file contains the fingerprints, encryption keys, and logon authentication data.

NOTE

 How to Backup:

Select [Export] in [Import or Export User Data] to save the user data.

• Click (Start) - [All Programs] - [Protector Suite QL] - [Control Center] - [Fingerprints]. For further information, refer to the software’s online manual ( page 51).

 Password used by each user

• Backup Password for Enrollment This backup password can be used in case of hardware failure to bypass the fingerprint authentication.

CAUTION

 The passwords other than those explained above are also used for security, so do not lose them. For further informa-

tion, refer to the software’s online manual ( page 51).

Page 57

Fingerprint Reader

Limitations in Use

 Password Bank*1 limitations: The following web pages cannot be supported.

Web pages which are created by the following technologies:

• Web forms created on the fly using javascript.

• Web forms which looks as one form (e.g. login field, password field), but internally created with two independent forms.

• There can be auto submit problems with web forms which do not have Submit button. All forms that you cannot submit

with

Enter

 Password Bank

• Applications which do not use standard Windows controls and draw controls by their own.

• This includes any Java based application.

For information of these functions, refer to the software’s online manual ( page 51).

will be entered by Password Bank, but not submitted.

limitations: The following Windows applications cannot be supported.

Handling & Maintenance

 The enrolling and authentication sensitivity may decline under the conditions below. Wipe off stains or moisture on the

sensor surface with a soft cloth.

• The surface of the fingerprint sensor is soiled with dust, skin oil, or sweat.

• The surface of the fingerprint sensor is wet as a result of moisture or condensation.

 Static electricity may also cause the sensor to malfunction. To make your finger static-free, touch a metal surface before

placing it on the fingerprint sensor. Exercise caution against static electricity in winter and other dry conditions.

 Malfunction or damage may occur when:

• The fingerprint sensor surface was damaged by the strong rubbing of a solid material, scratches, or being pecked with a pointed item.

• The sensor was touched with a finger soiled with mud, damaging the sensor surface with a tiny substance, and staining the surface.

• The sensor surface was covered with a seal, or soiled with ink.

Page 58

Fingerprint Reader

Deleting (Initializing) Owner’s Data

When you dispose of the computer or transfer the ownership, delete (initialize) the owner’s data to avoid unauthorized access.

NOTE

 The data enrolled in the fingerprint sensor is not image data. You cannot restore fingerprint image data from the data

enrolled in the fingerprint sensor.

1 Disable Power-on Security

Performed by the Computer Administrator.

A Click (Start) - [All Programs] - [Protector Suite QL] - [Control Center].

• The [Fingerprint Control Center] screen appears.

B Click [Settings], and click [Power-on Security]. C Remove the check mark from [Enable power-on security using fingerprints], and click [OK]. D Click [Fingerprints], and click [Enroll or Edit Fingerprints].

• [User Enrollment] wizard starts. Follow the on-screen instructions.

E When the [User’s Fingers] screen appears, click [Next] without deleting fingerprint samples. F Click [Manage Passwords]. G Select [Power-On] in [Password Types], and click [Unset password]. H Enter the password for Power-on Security, and click [OK]. I Click [Close].

• Confirm that there is no item in [Password Types].

J Click [Next] - [Next]. K Click [Finish].

• Follow the on-screen instructions.

Page 59

Fingerprint Reader

2 Delete Fingerprint Data.

Performed by each user.

A Click [Fingerprints], and click [Delete].

The [Swipe finger] screen will appear.

B Swipe user’s finger.

• If the authentication is successfully completed, the confirmation message appears.

C Click [Yes].

• Confirm that all users’ data was deleted.

NOTE

 If the enrollment mode is set to “Enrollment to the hard disk” ( page 53), you need to remove the fingerprints data

after step

A Click (Start) - [All Programs] - [Protector Suite QL] - [Control Center]. B Click [Settings], and click [Power-on Security]. C Select the fingerprint, and click [Remove].

• Surely remove all of the fingerprints.

2. Performed by the Computer Administrator.

3 Uninstall Protector Suite

Performed by the Computer Administrator.

A Log on to Windows as an Administrator. B Close all programs.

C Click (Start) - [Control Panel] - [Uninstall a program]. D Double-click [Protector Suite *.*], and select [Remove]. E Select [Remove all Protector Suite *.* data], and click [Next].

• Uninstallation starts. Follow the on-screen instructions.

F When the “Protector Suite *.* has been successfully uninstalled.” Message appears, click [Finish].

• If the confirmation message appears, click [Yes].

• The computer restarts.

Page 60

Fingerprint Reader

Starting Over

If the specific solutions for your problem in Fingerprint Reader ( page 103) do not work, you can use these instructions as the last measure and start over. However, please note that you can lose your data - passwords, secret keys and fingerprints.

A Log on to Windows as an Administrator.

• You can always access the computer by using your Windows log on password. In convenient mode, any user can access the computer by using the Windows log on password.

B Try to export your passport to a file if you are planning to use your passwords, secret keys or enrolled fingers in the

future.

• If you exported your passport recently, this step is not required.

• If biometrics authorization works and your finger is recognized, use [Import or Export User Data] wizard, swipe your finger and continue according to wizard’s instructions.

• If biometrics authorization works, but your finger is not recognized, you can start the [Import or Export User Data] wizard and export the passport even without using your fingerprint. You need to cancel fingerprint dialog, and you will be prompted for a password. If you do not use [Advanced Security], enter your Windows log on password. Otherwise, enter your [Advanced Security] backup password.

CAUTION

 If you used [Advanced Security] without a backup password. There is no way to backup your data.

• If biometrics authorization does not work, there is no way to backup your data.

C Deleting the passport.

• Use the [Delete] wizard. Please note that all your stored secret data (passwords, [File Safe] encryption keys) will be lost. If you backed up the data, you can restore it in the next step; otherwise it will be lost permanently. To perform the delete operation it is necessary to cancel the fingerprint verification operation to get to the password dialog, then enter your Windows log on password or backup password.

D Make sure your fingerprint sensor is working.

• Use the Tutorial wizard to verify that the fingerprint sensor works. If not, reboot and try again. If it still does not work, please contact Panasonic Technical Support.

E Restore or create passport.

• If you have a backup of your data, you can now use [Import or Export User Data] wizard to restore your data. Otherwise you can create a new passport by using the [Enroll or Edit Fingerprints] wizard.

Page 61

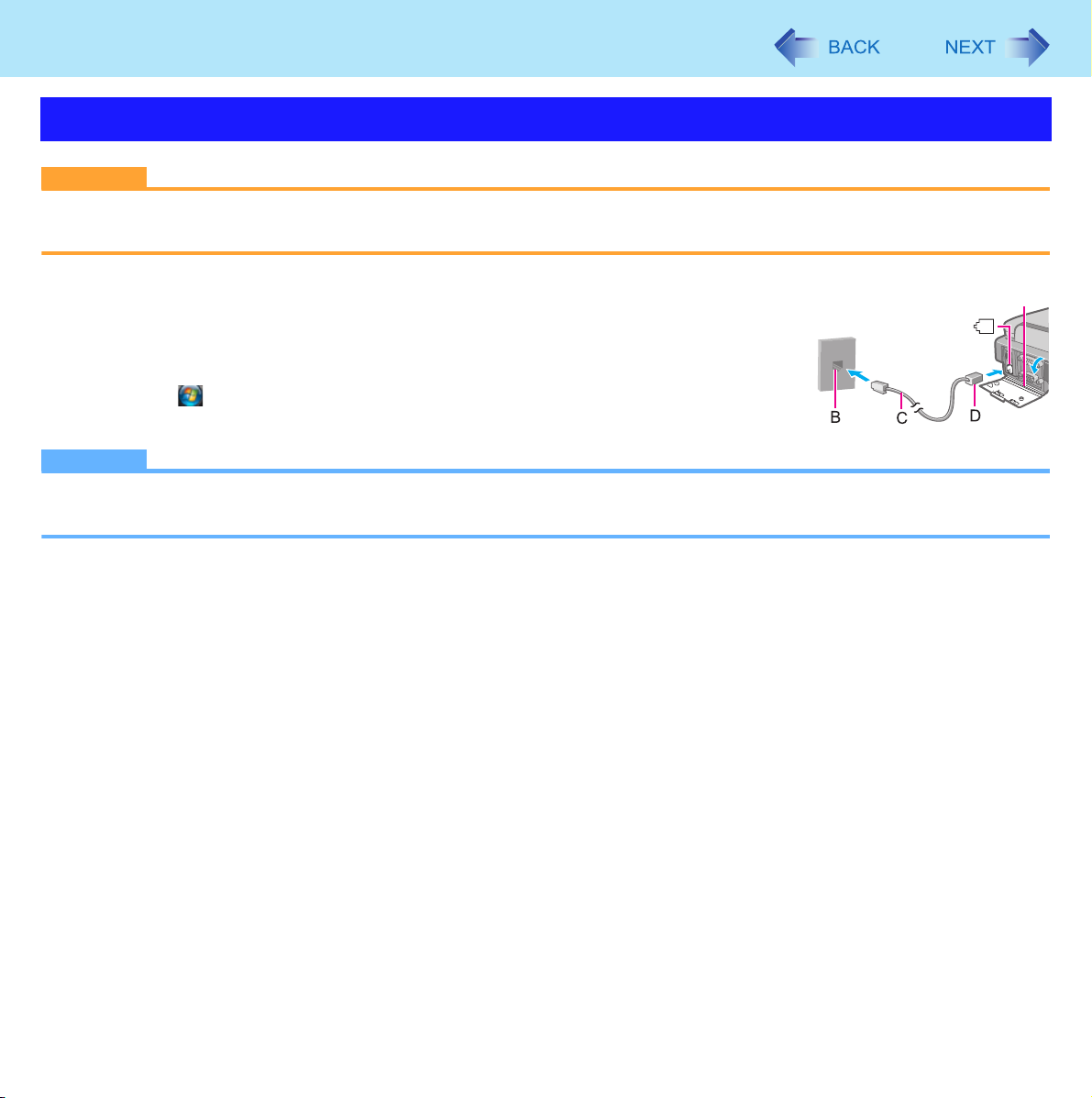

Modem

Connecting the Internal Modem with a Telephone Jack

CAUTION

 Use a surge protector since the modem may be damaged by a sudden high voltage surge that may occur in the event

of a lightning strike.

1 Open the cover (A), and connect the computer and the tele-

phone jack (B) using the telephone cable (included) (C).

 Hold the cable so that the shape of the connector (D) matches the port, and

insert fully until it clicks.

2 Click (Start) - [Control Panel] - [Connect to the Internet] -

[Dial-up] and change the settings as necessary.

NOTE

 Do not enter sleep or hibernation during communications.  To remove the cable, press and hold the lever and pull out.

Page 62

Modem

Ring Resume Function

The computer automatically resumes from sleep when the telephone connected to the modem rings. You will need software to keep the computer in idle state waiting for a phone call, and if you prefer, to turn the computer to sleep again afterward. For further information, refer to the instruction manual of the software application.

1 Click (Start) - [All Programs] - [Windows Fax and Scan].

2 Click [Tools] - [Fax Settings].

 A standard user needs to enter an administrator password.  Check whether the modem you are using is displayed in Device name. If not, click [Select fax device] and select

the correct modem.

3 Add a check mark for [Allow the device to receive fax calls] and click [OK]. 4 Click (Start) - [Computer] - [System properties] - [Device Manager].

 A standard user needs to enter an administrator password.

5 Double-click [Modems], and then double-click the internal modem.

6 Click [Power Management] and add a check mark for [Allow this device to wake the com-

puter], and then click [OK].

 To set the time to return the computer to sleep

The computer will enter sleep after the set time even when the communication is not completed. You can avoid such uncompleted communication if you select [Never], but the computer does not return to sleep after resuming by a phone call.

A Click or on the notification area and click [More power options] - [Change when the computer sleeps]. B Set the expected communication time for the sleep setting.

NOTE

 This function does not work when the computer is off or is in hibernation.  Connect the AC adaptor.  The screen remains dark after the computer resumes from sleep. The previous screen display will be restored when

you touch the keyboard, touch pad or touchscreen (only for model with touchscreen).

 The computer cannot resume if the telephone is not connected to the internal modem. (e.g., you cannot use a PC

Card modem.)

 The computer needs some time to respond, so set the calling time longer than normal. If this is not possible on the

transmission side, reduce the number of rings before answering on the software that you are using to keep the computer in idle waiting for the call.

Page 63

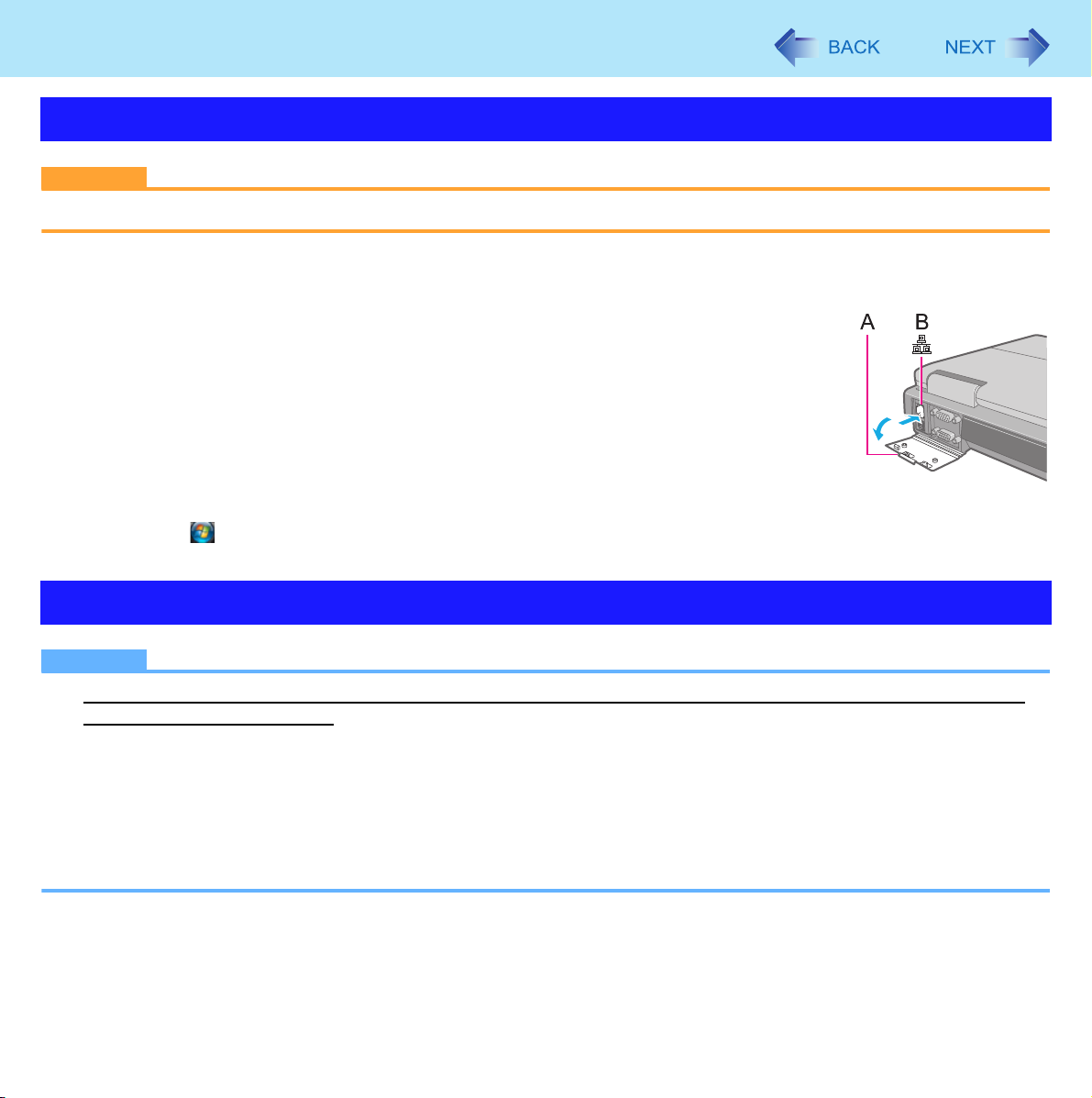

LAN

Connecting LAN

CAUTION

 Do not connect the telephone cable to the LAN port.

1 Turn off the computer.

 Do not use sleep or hibernation.

2 Open the cover (A) and connect the cable.

Connect the LAN port (B) and the network system (server, HUB, etc.) using a LAN cable.

3 Turn on the computer.

 To check the Local Area Connection status

A Click (Start) - [Connect To] and select [All].

Power On by LAN/Wake Up from wired LAN

NOTE

 When these functions are enabled, power is consumed even if the computer is in sleep, hibernation, or powered off.

Be sure to use the AC adaptor.

 Even when a password is set in the Setup Utility and [Password on boot] is set to [Enabled], entering the password is

unnecessary for turning on or resuming the computer.

 The Power On by LAN function is off under the following conditions:

• When you turn the computer off by pressing the power switch for 4 seconds or longer (e.g., after a hung-up).

• When you reattach the AC adaptor and battery pack to the computer after removing them.

 The screen remains dark when the computer resumes from sleep. The previous screen display will be restored when

you touch the keyboard, touch pad or touchscreen (only for model with touchscreen).

Page 64

LAN

Enabling the Power On by LAN function

The computer automatically turns from off to on when the computer is accessed from the network server via the internal LAN port.

1 Select [Allow] in [Power On by LAN] in the [Advanced] menu of the Setup Utility ( page

79).

2 In [Caution], press

3 Press

F10

, and then select [Yes] and press

Enter

4 Log on to Windows as an administrator. 5 Click (Start) - [Computer] - [System properties] - [Device Manager], and double-click

[Network adapters] - [Intel(R) 82567LM Gigabit Network Connection], and then click [Advanced].

6 Click [Enable PME] in [Property] and select [Enabled] in [Value], and then click [OK].

NOTE

 The computer may accidentally turn on if the linkage status is changed. To prevent the accidental startup, make the

setting by the following steps.

A Click (Start) - [Computer] - [System properties] - [Device Manager].

 A standard user needs to enter an administrator password.

B Double-click [Network adapters] - [Intel(R) 82567LM Gigabit Network Connection], and click [Advanced]. C Click [Wake on Settings] in [Property] and select [Wake on Magic Packet] in [Value], and click [OK].

 If you forcibly shut down Windows, the Power On by LAN function will not work.

Page 65

LAN

Enabling/Disabling the Wake Up from wired LAN function

When the Wake Up from wired LAN function is enabled, the computer automatically resumes from sleep or hibernation when the computer is accessed from the network server via the internal LAN port. (Default setting) The Wake Up from wired LAN function can be switched to enable/disable by performing the following procedure.

1 Click (Start) - [Computer] - [System properties] - [Device Manager].

 A standard user needs to enter an administrator password.

2 Double-click [Network adapters] - [Intel(R) 82567LM Gigabit Network Connection], and

click [Power Management].

3 Select the setting for [Allow the computer to turn off this device to save power] and

[Allow this device to wake the computer], and click [OK].

 We recommend you to make the above 2 settings ON/OFF simultaneously.

NOTE

 The computer may start up if accessed by another computer on the network.

The following procedure can be used to prevent startup due to unintentional access by a computer.

A Click (Start) - [Computer] - [System properties] - [Device Manager].

 A standard user needs to enter an administrator password.

B Double-click [Network adapters], and double-click the internal network adaptor. C Click [Power Management], add a check mark for [Allow this device to wake the computer] - [Only allow

management stations to wake the computer], and then click [OK].

Page 66

Disabling/Enabling Wireless Communication

There are 5 ways of disabling and enabling wireless communication.

 The wireless switch on the front of the computer (below)  Wireless switch utility ( page 67)  Settings in the Network and Sharing Center ( page 70)  Settings in the [Advanced] menu of the Setup Utility ( page 79)  Setting in the Wireless Connection Disable Utility ( page 68)

NOTE

 For further information about Wireless LAN:  page 70  For further information about Bluetooth:  page 74  For further information about Wireless WAN: Refer to the instruction manual of the wireless device.  The wireless communication can be enabled or disabled by connecting or disconnecting the LAN cable.  page 68

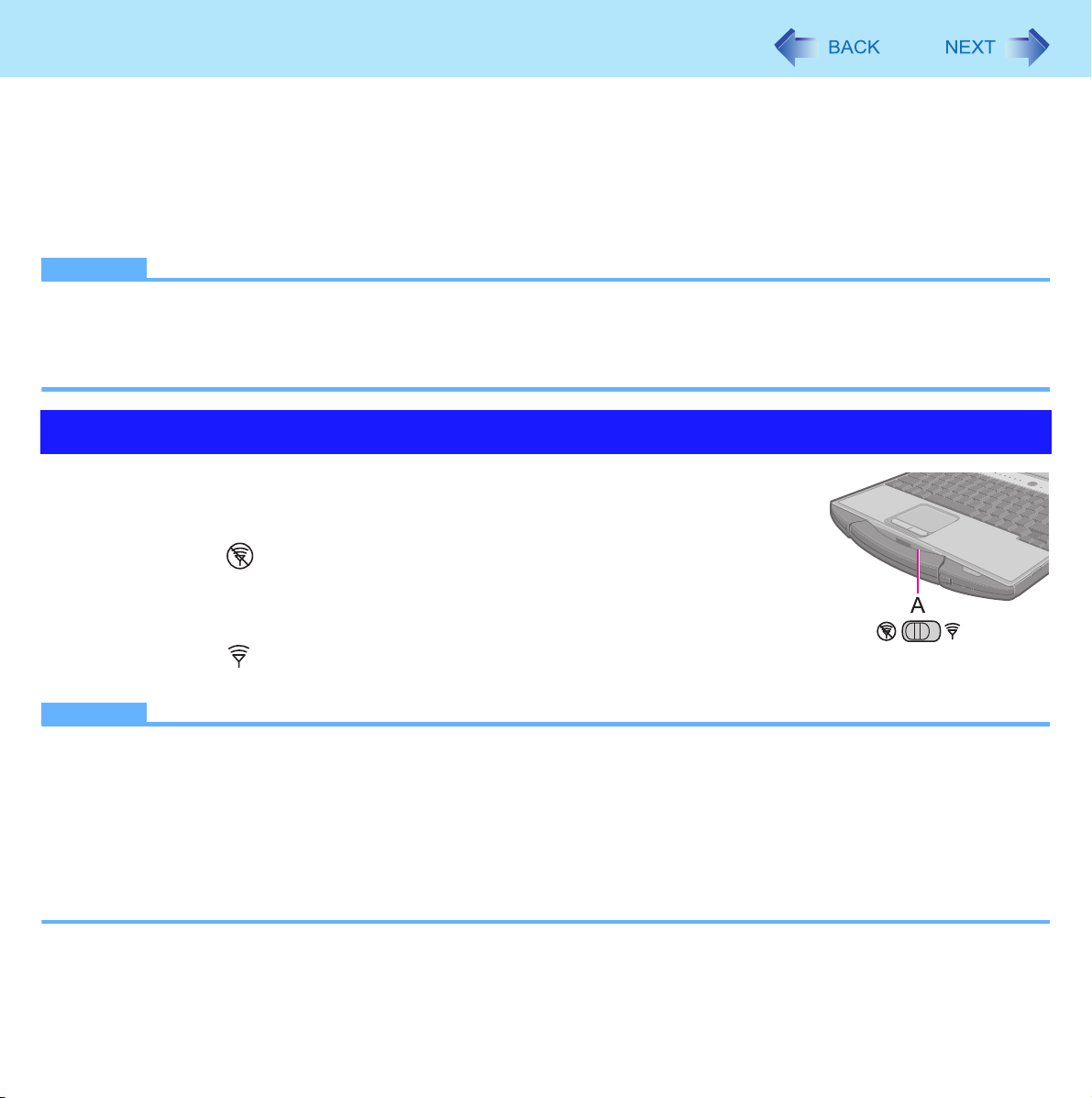

The Wireless Switch

 To disable all wireless communication

1 Switch to (OFF).

 To enable wireless communication

1 Switch to (ON).

 In the default setting, the wireless switch enables all wireless devices when it is set to ON.

NOTE

 If you uninstall the Wireless Switch Utility, set the wireless switch to ON beforehand.  Do not turn on/off the switch repeatedly at too short intervals.  Do not restart, log off, or enter sleep or hibernation immediately after turning on/off the switch.  Do not turn on/off the switch while Windows is starting up.  To use wireless communication, set the wireless devices ([Wireless LAN] / [Bluetooth] / [Wireless WAN]) to [Enabled]

(default) in the [Advanced] menu of the Setup Utility ( page 79).

 It may take some time to turn off wireless communication after switching the wireless switch off.  If the IEEE802.11a setting is changed in [Device Manager] ( page 72), the display will be changed accordingly.

Page 67

Disabling/Enabling Wireless Communication

Wireless Switch Utility

This utility allows you to control the function of the wireless switch. This utility also allows you to enable or disable wireless devices from a pop-up menu in the notification area. In the default setting, all wireless devices are enabled.

 The Wireless Switch Utility icon

The icon appears in the notification area when the computer is turned ON. It shows the status of wireless devices.

• : Indicates that the wireless devices are enabled.

• : Indicates that the wireless devices are off.

• : Indicates that the wireless devices have been disabled in the Setup Utility.

 To enable or disable particular wireless devices

1 Click the Wireless Switch Utility icon to show the pop-up menu.

2 Select ON or OFF for the device you want to enable or disable.

 To change the function of the wireless switch

In the default setting, the wireless switch enables devices that you select turning the wireless switch off last time. You can change this function.

[Selects the device for which to turn the device status on each time with the dialog box]

Display a dialog each time you set the wireless switch to ON so you can choose which wireless device to enable.

[Turns on the following device]

Only selected devices are enabled when you set the wireless switch to ON.

[Turns on the device that was on immediately before the wireless switch was turned off the last time] (default)

When you turn on the wireless switch, the on/off settings that were selected when you last turned off the wireless switch will be restored.

Page 68

Disabling/Enabling Wireless Communication

1 Click the Wireless Switch Utility icon ( or ) on the notification area and click [Set-

tings].

2 Select the setting you want to assign to the wireless switch.

3 Click [OK].

Wireless Connection Disable Utility

You can automatically disable the wireless LAN/wireless WAN connection when a LAN cable is connected to your computer. You need to install the Wireless Connection Disable Utility to use this function.

Installing the utility

1 Log on to Windows as an administrator.

2 Click (Start), input “c:\util\wdisable\setup.exe” in [Start Search], and press

Enter

3 Follow the on-screen instructions to install the Wireless Connection Disable Utility.

Checking the status of the wireless connection

NOTE

 The Wireless Switch Utility should also be installed so that the Wireless Connection Disable Utility works. The Wire-

less Switch Utility has already been installed at the factory.

 The utility does not automatically disable the Bluetooth connection.

Page 69

Disabling/Enabling Wireless Communication

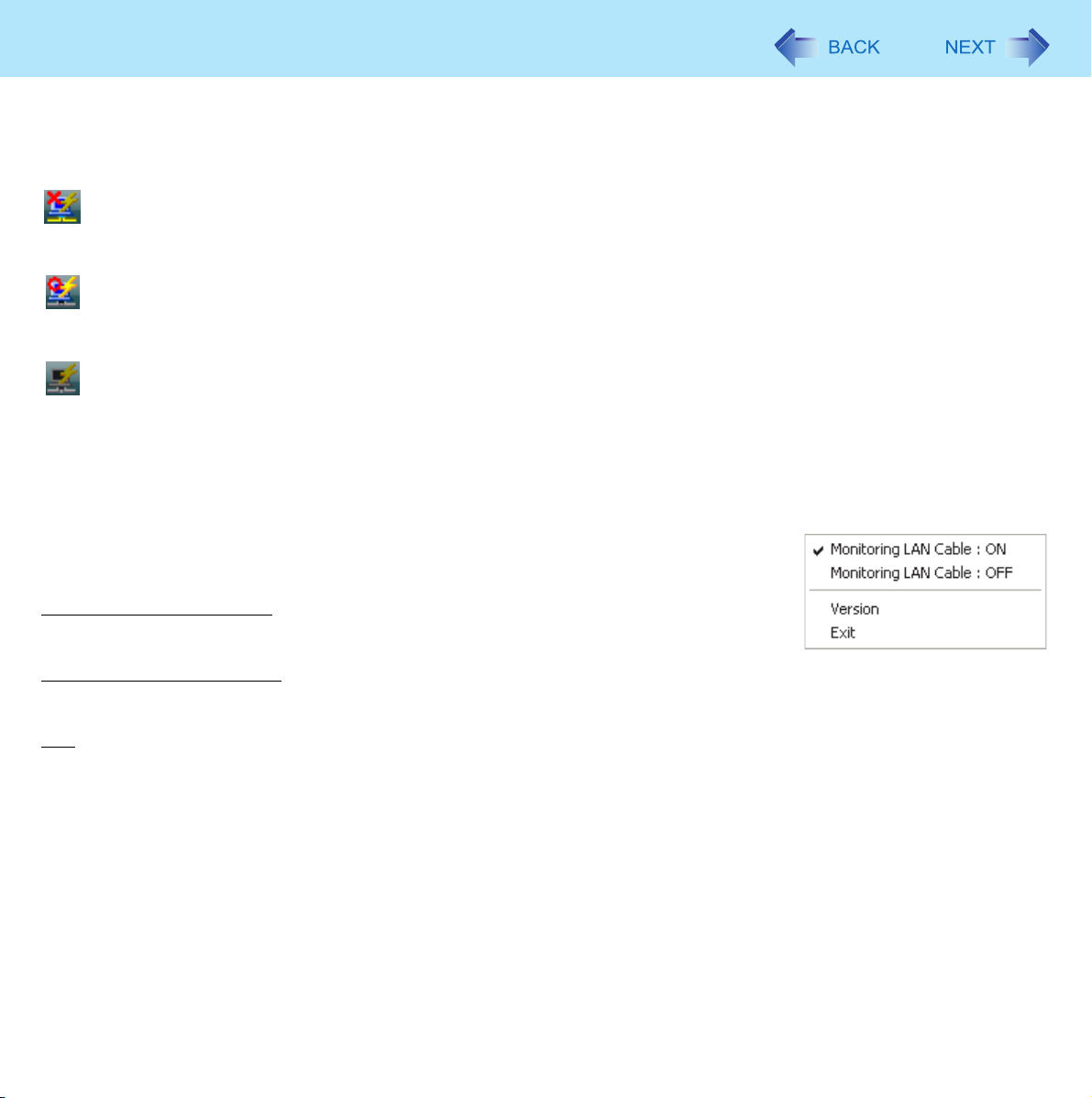

 Status indication

After installation, the Wireless Connection Disable Utility is automatically started after a user is logged in. An icon appears on the notification area.

: Indicates that

• the utility is enabled, and

• the wireless connection is disabled since a LAN cable is connected.

: Indicates that

• the utility is enabled, and

• the wireless connection is enabled since no LAN cable is connected.

: Indicates one of the following statuses;

• the utility does not monitor the LAN port status,

• the Wireless Switch Utility has not been started, or

• LAN is disabled in the [Advanced] menu of the Setup Utility or in the device manager.

 Menu

Right-clicking the utility icon in the notification area opens a menu as follows.

Clicking the menu item causes the following utility action.

Monitoring LAN Cable: ON

Enables the Wireless Connection Disable Utility to monitor the LAN port and disable wireless connection when a LAN cable is connected.

Monitoring LAN Cable: OFF

Disables the Wireless Connection Disable Utility, and enables wireless connection regardless of whether a LAN cable is connected or not.

Exit

Exits the Wireless Connection Disable Utility and enables wireless connection.

Page 70

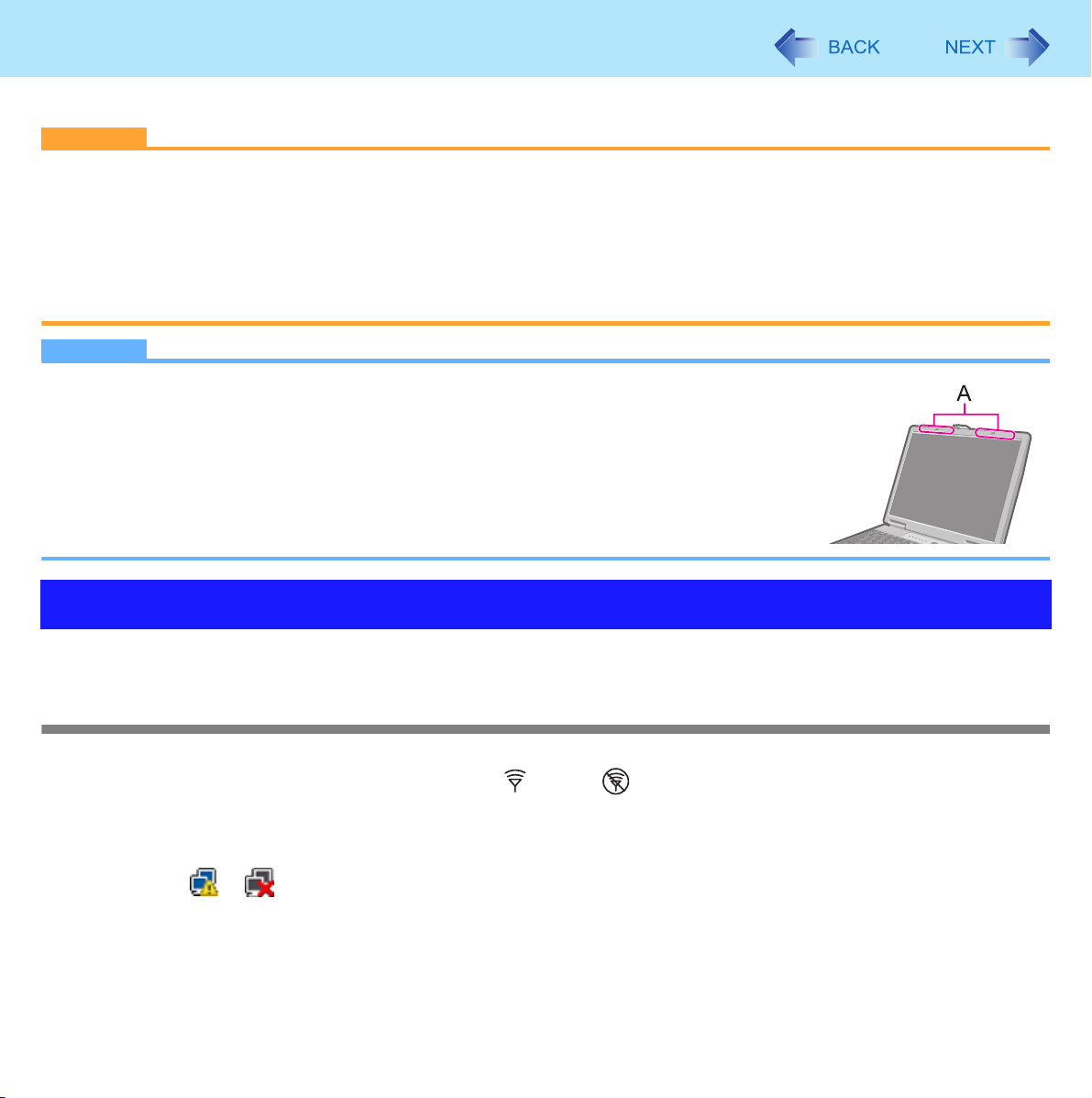

Wireless LAN

CAUTION

 Do not use wireless LAN on airplanes, in hospitals, or in other locations where wireless LAN signals may

affect devices.

Follow the instructions of airline companies and hospitals. If you use the computer in these locations, turn off the wireless LAN.

 To avoid unauthorized access to the computer through wireless LAN

We recommend you to make security settings such as encryption before using wireless LAN. Otherwise the hard disk data such as the shared files can be exposed to the risk of unauthorized access.

NOTE

 Communication is established through the wireless LAN antenna (A). Do not block the

antenna area with your hand or body.

 You cannot use the wireless LAN function together with the Fast User Switching function.  The transmission rate will be lower when a microwave oven is used near by.  To use wireless LAN, set [Wireless LAN] to [Enabled] (default) in the [Advanced] menu of

the Setup Utility ( page 79).

 It may take some time to turn off wireless LAN after switching the wireless switch to off.

Using the Wireless LAN Function

Before using a wireless LAN, turn the wireless LAN communication on.

Turning on/off the wireless LAN communication

1 Slide the wireless switch to turn ON / OFF wireless LAN ( page 66).

 When turning on wireless LAN

If you cannot turn on wireless LAN using the wireless switch, confirm the Wireless Switch Utility setting ( page

67). If you cannot turn on wireless LAN in the Wireless Switch Utility, try the following procedure.

A Click or on the notification area and click [Network and Sharing Center]. B Click [Manage network connections]. C Right-click [Wireless Network Connection] and click [Enable].

• A standard user needs to enter an administrator password.

• When [Disable] is displayed, [Wireless Network Connection] is already enabled.

D Turn on wireless LAN in the Wireless Switch Utility ( page 67).

Page 71

Wireless LAN

NOTE

 You can use the following procedure instead of turning on wireless LAN in the Wireless Switch Utility.

A Click (Start) - [Control Panel] - [Adjust commonly used mobility settings]. B Click [Turn wireless on] in [Wireless Network].

• When [Turn wireless off] is displayed, the wireless network is already on.

• If you cannot select [Turn wireless on], the wireless switch is turned off.

Setting the wireless LAN access point

Preparation

Follow the instruction manual of the wireless LAN access point to make settings for the access point to recognize the computer.

1 Turn the wireless LAN on.

2 Click or on the notification area and click [Connect to a network].

If your computer is already connected to another network, click [Connect or disconnect]. The [Connect to a network] screen appears.

3 Click and select an access point, and click [Connect]. 4 Input the key you set for the access point to recognize the computer, and click [Connect].

Wait for the computer to connect to the wireless LAN access point. When [Successfully connected to XXXX] is displayed, the wireless LAN setting is complete.

 [Save this network] : Add a check mark to save the password, settings, etc.  [Start this connection automatically] : Add a check mark so the computer automatically detects the access point

and connects to the Internet.

5 Click [Close].

NOTE

 The settings depend on the network environment. For further information, ask the system administrator or the person

in charge of the network.

 If you use the stealth type wireless LAN access point which restricts automatic detection of the wireless LAN access

point, take the following procedure. If you do not perform the procedure below, you may not be able to access the wireless LAN access point automatically

or the wireless LAN access point may not be displayed on the [Connect to a network] screen.

Page 72

Wireless LAN

A Click , or on the notification area, click [Network and Sharing Center] - [Set up a connection or network] -

[Manually connect to a wireless network] and click [Next].

B Input necessary information and add check marks for [Start this connection automatically] and [Connect even if the

network is not broadcasting] and click [Next].

Enabling/Disabling the Wireless LAN Standard IEEE802.11a (802.11a)

1 Click or on the notification area.

2 Click [802.11a Enabled] or [802.11a Disabled].

NOTE

 In some countries, communication using IEEE802.11a (5 GHz wireless LAN) standard is restricted by law.

 The Wireless Switch Utility icon ( or ) indicates the on/off status of wireless LAN and/or Bluetooth and/or wire-

less WAN, not the setting of IEEE802.11a.

 If IEEE802.11a is enabled or disabled while the computer is connected to an IEEE802.11b/g access point, the connec-

tion will be temporarily interrupted.

 You can also change the IEEE802.11a setting in [Device Manager].

A Click (Start) - [Computer] - [System properties] - [Device Manager].

 A standard user needs to enter an administrator password.

B Double-click [Network adapters] and double-click [Intel(R) Wireless WiFi Link 5100]. C Click [Advanced], and then select [Wireless Mode] in [Property]. D Select the settings in [Value] (e.g., [5. 802.11a/g]). E Click [OK].

If you enable or disable 802.11a using the pop-up menu of Wireless Switch Utility, the setting in [Device Manager] will be accordingly changed as below.

Settings in Device Manager Settings in Wireless Switch Utility

When 802.11a is enabled When 802.11a is disabled

[6. 802.11a/b/g] [4. 802.11b/g]

[3. 802.11g] [5. 802.11a/g]

[1. 802.11a] [2. 802.11b]

a+b+g is enabled b+g is enabled

a+g is enabled g is enabled

a is enabled b is enabled

Page 73

Wireless LAN

To check the Wireless LAN network status

1 Place the cursor over the Wireless Switch Utility icon ( or ) on the notification area.

A tooltip appears.

NOTE

 The Wireless Switch Utility icons ( and ) indicate the on/off status of wireless communication, not the

IEEE802.11a setting.

 If the setting is changed in [Device Manager], the display will be changed accordingly.  You can check the wireless LAN communication status in Intel

procedure.

• Click (Start) - [All Programs] - [Intel PROSet Wireless] - [WiFi Advanced Statistics].

PROSet/Wireless Software. Perform the following

Page 74

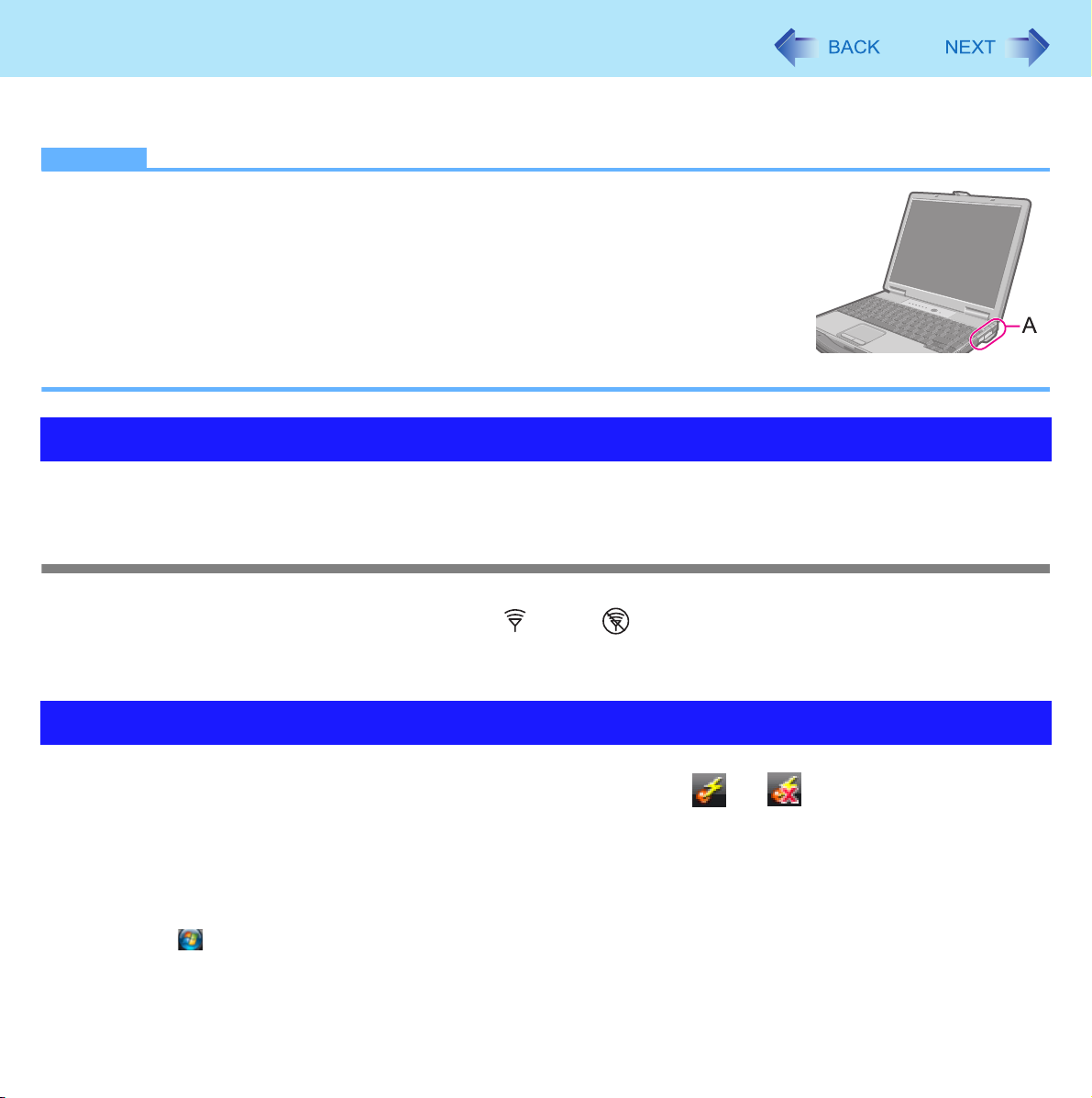

Bluetooth

You can access internet and other Bluetooth devices without connecting cables.

NOTE

 Communication is established through the Bluetooth antenna (A). Do not block the antenna

area with your hand or body.

 To use Bluetooth, set [Bluetooth] to [Enabled] (default) in the [Advanced] menu of the

Setup Utility ( page 79).

 The transmission rate will be lower when a microwave oven is used near by.  It may take some time to turn off Bluetooth after switching the wireless switch to off.  When you uninstall the Bluetooth Driver, turn Bluetooth off.

Using the Bluetooth Function

Before using a Bluetooth, turn the Bluetooth communication on.

Turning on/off the Bluetooth communication

1 Slide the wireless switch to turn ON / OFF Bluetooth ( page 66).

To check the Bluetooth communication status

1 Place the cursor over the Wireless Switch Utility icon ( or ) on the notification

area.

A tooltip appears.

 To access the online manual

1 Click (Start) - [All Programs] - [Bluetooth] - [User’s Guide].

Page 75

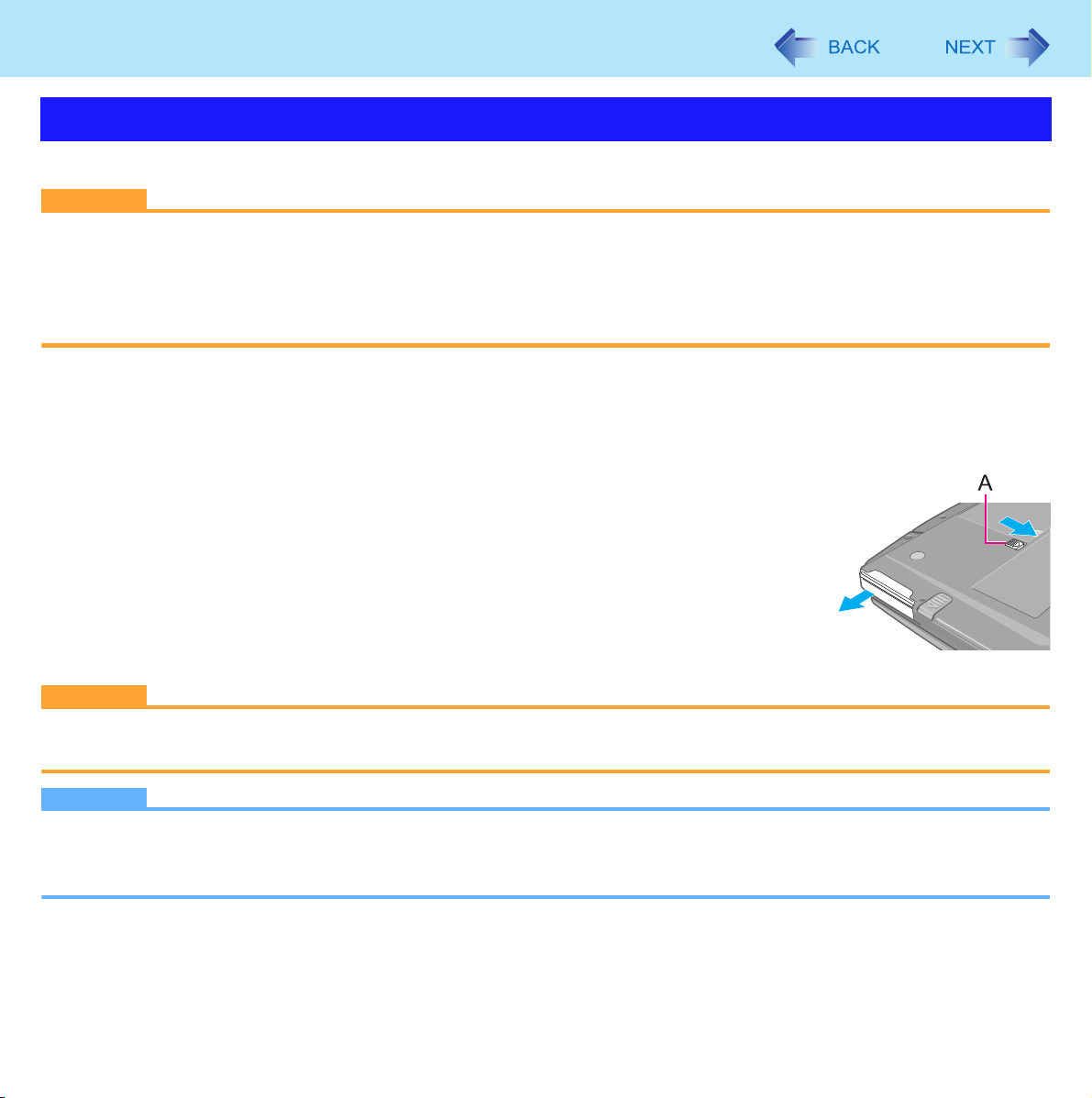

Hard Disk Drive

Inserting/Removing the Hard Disk Drive

To change your hard disk drive, contact Panasonic Technical Support.

CAUTION

 Back up all the important data before removing the hard disk drive.  If you need to read the hard disk data on another computer for repair or any other purpose, set [Hard Disk Lock] to

[Disabled] in the [Security] menu of the Setup Utility

 Carefully remove/insert the hard disk drive since the hard disk drive is extremely sensitive to shock. Note that static

electricity may affect some internal components.

1 Turn off the computer and disconnect the AC adaptor.

 Do not use sleep or hibernation.

2 Remove the battery pack ( page 21).

3 Insert/Remove the hard disk drive.

 To r em ov e

Slide and hold the latch (A), and carefully slide the hard disk drive out of the slot.

 To i ns e r t

Insert the hard disk drive until it clicks.

( page 81) before removing the hard disk drive.

4 Insert the battery pack ( page 21).

CAUTION

 Confirm that the latch is surely locked so that the hard disk drive does not fall when you carry the computer.  Be sure to attach the hard disk drive for use.

NOTE

 You can erase the data before changing the hard disk drive ( page 91).  You can check that the hard disk is recognized or not in the [Information] menu of the Setup Utility ( page 77). If the

hard disk is not recognized, turn off the computer and insert it again.

Page 76

Setup Utility

You can make the settings of the computer’s operating environment (password settings, startup drive selection, etc.)

Starting the Setup Utility

1 Turn on or restart the computer. 2 Press

Del

while [Panasonic] boot screen is displayed soon after the computer starts

the startup procedure.

When [Enter Password] is displayed, enter your password.

When you start the Setup Utility with Supervisor Password

 You can make the settings of all items of the Setup Utility.

When you start the Setup Utility with User Password

 Note the following:

• In the [Advanced] and [Boot] menus, you cannot make the settings of all items.

• In the [Security] menu, you can change only the User Password when [User Password Protection] is set to [No Protection]. You cannot delete the User Password.

• In the [Exit] menu, you cannot make the setting of [Load Default Values] and [Boot Override].

•

(Setup Defaults) does not function.

Page 77

Setup Utility

Information Menu

Underlined items are the factory presets.

Language English

Japanese

Product Information

Model No. Computer information

Serial No.

System Information

Processor Type Computer information

Processor Speed

Memory Size

Available Memory

Hard Disk

BIOS Information

BIOS Computer information

Embedded Controller

Accumulative Operating Time

Access Level

(cannot be changed.)

Page 78

Setup Utility

Main Menu

Underlined items are the factory presets.

System Date

• Day of the Week/Month/Day/Year.

• You can use

System Time

• 24-hr. style.

• You can use

Main Configuration

Touch Pad Disabled

Touchscreen Mode

• Only for model with touchscreen

Current Status

• Only when [Touchscreen Mode] is set to [Auto].

Display

• The display during the Windows start-up process. When an external display is not connected, the information appears on the internal LCD even though the [External Monitor] is selected.

Environment Normal Temperature

Current Status

• Only when [Environment] is set to [Auto].

Tab

to move the cursor.

Tab

to move the cursor.

[xxx xx/xx/xxxx]

[xx:xx:xx]

Enabled

Touchscreen Mode Tablet Mode Auto

Depending on the touchscreen mode setting, either “Touchscreen Mode” or “Tablet Mode” is displayed.

External Monitor Internal LCD

High Temperature Auto

Depending on the battery status, either “Normal Temperature” or “High Temperature” is displayed.

Page 79

Setup Utility

Advanced Menu

CPU Configuration Underlined items are the factory presets.

Execute-Disable Bit Capability

• [Enabled] indicates that this computer supports hardware-based Data Execution Prevention (DEP).

Core Multi-Processing Disabled

Intel(R) Virtualization Technology Disabled

Intel(R) Trusted Execution Technology

• Only for model that supports Intel(R) AMT

Peripheral Configuration

Optical Drive Disabled

Serial Port Disabled

LAN Disabled

Power On by LAN

• Can be changed only when [LAN] is set to [Enabled].

• To use [Power On by LAN], make additional settings in [Device Manager] ( page 64)

Wireless LAN

• Only for model with wireless LAN

Wireless WAN

• Only for model with wireless WAN

Bluetooth

• Only for model with Bluetooth

Modem

• Only for model with Modem

ExpressCard Slot

• Only for model with ExpressCard Slot

PC Card Slot Disabled

SD Slot Disabled

Disabled Enabled

Enabled

Disabled Enabled

Enabled

Deny Allow

Disabled Enabled

Enabled

Page 80

Setup Utility

Smart Card

• Only for model with Smart Card

USB Port Disabled

Legacy USB Support Disabled

Disabled Enabled

Enabled

Boot Menu

Boot Option Priorities

Boot Option #1

Boot Option #2 Hard Disk

Boot Option #3 CD/DVD Drive

Boot Option #4 LAN

Boot Option #5 USB Hard Disk

Boot Option #6 USB CD/DVD Drive

USB Floppy Disk

 To change the boot order

The default order is [USB Floppy Disk*1] -> [Hard Disk] -> [CD/DVD Drive] -> [LAN] -> [USB Hard Disk] -> [USB CD/DVD Drive].  Press

Enter

• When a selected boot device in the following menu already exists in either of the [Boot Option (#1 to #6)], the boot device appears at the newly selected position by switching the positions with the original boot device that existed before at the position.

• When you select [Disabled] in the following menu, the disabled [Boot Option] is ignored and the boot device in the next [Boot Option] operates.

on the boot device you want to change and select the boot device from the following menu.

Hard Disk CD/DVD Drive LAN USB Floppy Disk USB Hard Disk USB CD/DVD Drive Disabled

Use the Panasonic USB floppy disk drive (optional: CF-VFDU03U)

Page 81

Setup Utility

Security Menu

Boot Prompt Configuration Underlined items are the factory presets.

Setup Utility Prompt

• When [Setup Utility Prompt] is set to [Disabled], the message “Press F2 for Setup / F12 for LAN” is not displayed on [Panasonic] boot screen. However, F2 and F12 will work even if the message is not displayed.

Password on boot Disabled

Set Supervisor Password Enter the sub-menu.

Hard Disk Lock

• Can be changed only when [Set Supervisor Password] is set.

User Password Protection Protected

Set User Password Enter the sub-menu.

XEmbedded Security(TPM)

• Only for model that supports TPM

• For information on TPM, refer to the Installation Manual of “Trusted Platform Module (TPM)”. Click (Start), input “c:\util\drivers\tpm\readme.pdf” in [Start Search], and press

XFingerprint Security

• Only for model with Fingerprint Reader

XAMT Configuration

• Only for model that supports Intel(R) AMT

Enter

Disabled Enabled

Enabled

Disabled Enabled

No Protection

Enter the sub-menu.

Page 82

Setup Utility

Exit Menu

Save Values and Reboot

Reboot Without Saving Changes

Save Options

Save Current Values To save the changes for all Setup options.

Load Previous Values To load previous values for all Setup options.

Load Default Values To return the settings to the default values.

Boot Override

(Device Information)

XRepair Your Computer

To reboot the system after saving the changes.

To reboot the system without saving the changes.

To select a boot device which operates only in the next booting.

To perform system recovery tools.

Page 83

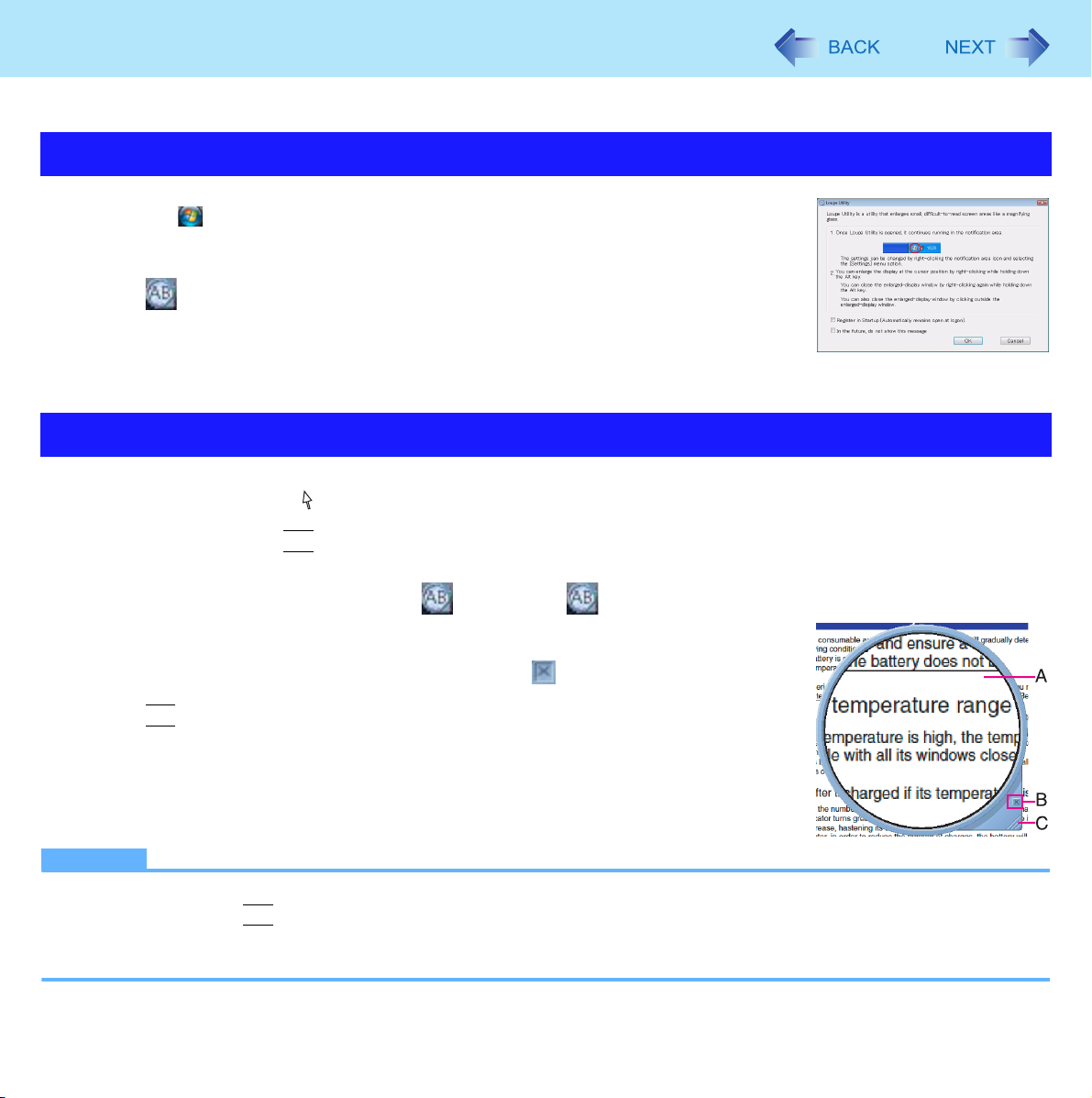

Loupe Utility

You can magnify the specific part of the screen.

Activating the Loupe Utility

1 Click (Start) - [All Programs] - [Panasonic] - [Loupe Utility].

2 Click [OK].

 appears on the notification area.

Using the Loupe Utility

1 Point the cursor at the part of the screen you want to magnify.

2 Press and hold

 The part pointed by the cursor is magnified.

 Alternatively you can double-click , or right-click and click [Show Loupe].

Alt

, and right-click.

3 Drag the loupe window (A) to move the magnified part.

 To hide the loupe window, click the Hide button (B).

Alternatively you can click any part out of the loupe window, or press and hold

Alt

and right-click.

 To change the loupe window size, drag the bottom-right corner (C).

The size range you can enlarge/shrink depends on the screen’s resolution.

NOTE

 The magnified text or image in the loupe window is fixed at the moment that the part is magnified (e.g., at the moment

you press and hold click the loupe window.

 The Loupe Utility does not work with some applications.

Alt

and right-click). To reflect the change you made on the original screen to the loupe window,

Page 84

Loupe Utility

Setting the Loupe Utility

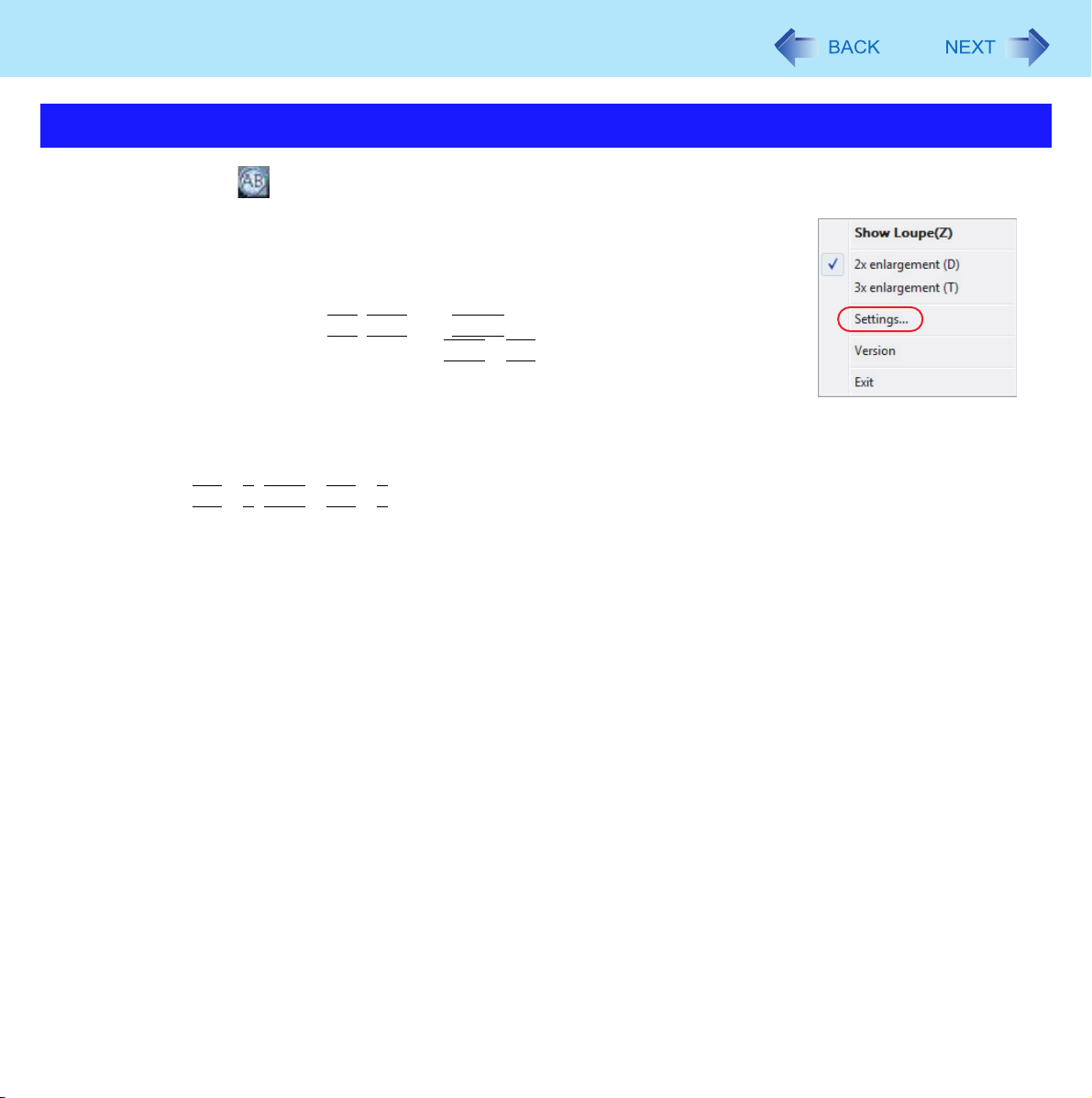

1 Right-click on the notification area.

2 Click [Settings].

[Show/hide shortcuts assignment]

 When using the external mouse/touch pad

A Click [Mouse / Touch pad] B Click a combination of

keys can be combined; for example,

C Click either [Right click] or [Left click] to use in combination with the key(s)

selected in step B above.

 When using the keyboard

A Click [Keyboard]. B Click the text box and then press the key used for the shortcut.

(e.g.,

Alt

+ Z,

Ctrl

[Window shape]

Select the shape of the loupe window.

Alt, Ctrl

Alt

, and

+ Z, etc.)

Shift

Ctrl

, and add the check mark. (Multiple

Alt

)

[Autorun]

You can turn on/off autorun of the Loupe Utility and the explanation window.

3 Click [OK].

Page 85

Hardware Diagnostics

If it appears that the hardware installed in this computer is not operating properly, you can use the PC-Diagnostic Utility to determine whether or not there is a problem. If the utility discovers a problem in the hardware, contact Panasonic Technical Support. Software cannot be checked using this utility.

Hardware that can be checked using the PC-Diagnostic Utility

 CPU/Systems (check CPU)  RAM XXX MB (check Memory)  HDD XXX GB (check Hard Disk)  DVD-ROM (check CD/DVD Drive)  Video (check Video Controller)  Sound  Modem  LAN  Wireless LAN  Bluetooth  USB  PC Card (check PC Card Controller)  SD (check SD Card Controller)  Express Card  Smart Card  Serial Port  Keyboard  Touch Pad

 When the video diagnostic check is running, the display may be distorted. This is not malfunction.

When the PC-Diagnostics Utility is running a loud beep will sound, so do not use headphones as this time. (The beep will not sound if mute is using Windows.)

Only for model with wireless LAN

Only for model with Bluetooth. When the wireless switch is not set to ON, it does not work.

Only for model with Smart Card slot

Page 86

Hardware Diagnostics

Regarding the PC-Diagnostic Utility

NOTE

 For the hard disk and memory only, you can select standard diagnostic check or extended diagnostic check. When the

PC-Diagnostic Utility starts up, it will run the standard diagnostic check.

 We recommend that you use the touch pad for operations. When not using the touch pad, you can operate using the inter-

nal keyboard instead. Do not use the touchscreen.

Operations Touch pad operations Internal keyboard operations

Select icon Place the cursor above the icon Press

Click the icon Tap or click (right click cannot be used) Press

Complete the PC-Diagnostics Utility and then restart the computer

Click (close)

Space

( (close) cannot be selected)



Space

Press

Ctrl

, and then press   

above the icon

Alt

Del

 If the touch pad does not operate properly, press

turn the power off, and then restart the PC-Diagnostic Utility.

Ctrl

Alt

Del

to restart the computer, or press the power switch to

Running the Diagnostic Check

Run this utility using the default settings in the Setup Utility. If the Setup Utility or other settings will not allow hardware to be executed, the hardware icon will be displayed in gray.

1 Connect the AC adaptor, and turn on the wireless switch ( page 66).

During the diagnostic check, do not remove the AC adaptor, or attach any peripheral devices.

2 Turn on or restart the computer, and press

played.

The Setup Utility starts up.

 If the password is requested, enter the Supervisor Password.  If you are using the computer after changing the settings from the status at the time of purchase, we recommend

that you make a note of the settings that are changed.

3 Press

At the confirmation message, select [Yes] and press

4 Press

At the confirmation message, select [Yes] and press The computer will restart.

F10

Enter

Del

while [Panasonic] boot screen is dis-

Page 87

Hardware Diagnostics

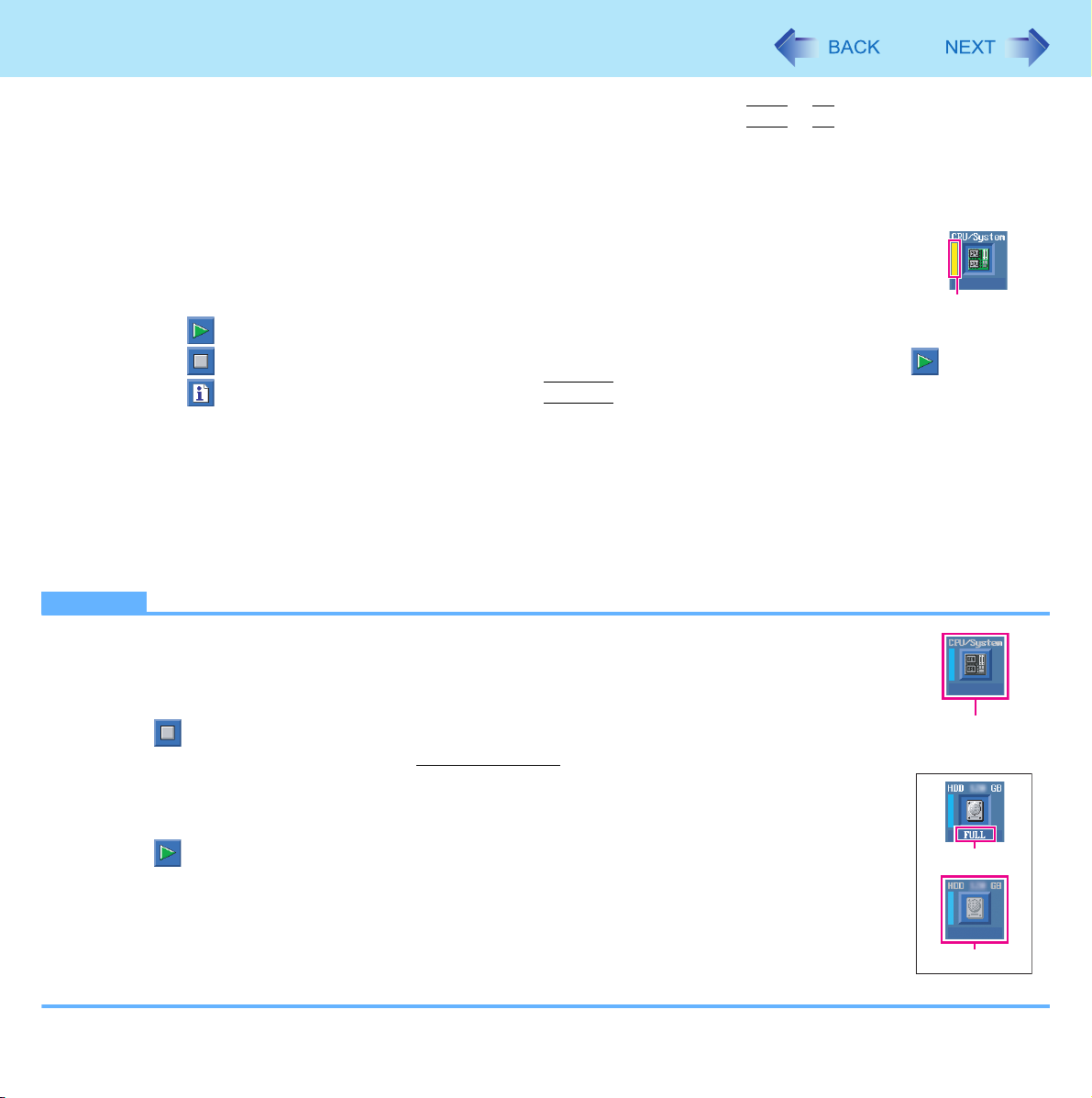

5 While [Panasonic] boot screen is displayed, press and hold

Ctrl

+ F7 until “Please Wait”

appears at the bottom of the display.

When the PC-Diagnostic Utility starts up, it will automatically begin the diagnostic check for all hardware components.

 If the password is requested, enter the password.  The touch pad and the internal keyboard may not be used when each hardware checking is

running. While checking, blue and yellow colors are displayed on the left side of the hardware icon (A).

 By clicking the icon, you can execute the following operations:

• : Start the diagnostic check from the beginning

• : Stop the diagnostic check (You cannot restart the check partway through by clicking )

• : Display help (click the screen or press

 You can check the status of the diagnostic check by the display color on the left side of the hardware icon (A).

• Aqua: Not running diagnostic check

• Alternating blue and yellow: Currently running diagnostic check. The interval of the alternating colors differs depending on the type of diagnostic check currently running. During memory diagnostic check, the display may freeze for a long period of time. Wait until the process is complete.

• Green: No problems discovered

• Red: Problems discovered

NOTE

 Using the following procedure, you can run a diagnostic check on a specified hardware component, or

run an extended diagnostic check on the memory or the hard disk (The extended diagnostic check is only for the memory and the hard disk). The extended diagnostic check is more detailed, and so requires a longer period of time to run.

A Click to stop the diagnostic check. B Click the icon for the hardware that is not to be checked

When running a check on the memory or the hard disk, clicking the icon once will turn on the extended diagnostic check (“FULL” (C) will be displayed below the icon); click again, and the icon will be displayed in gray (D).

C Click to start the diagnostic check.

Space

to return to the original diagnostic check screen)

, so that the icon is displayed in gray (B).

e.g. hard disk

Page 88

Hardware Diagnostics

6 When all the hardware has been checked, confirm the diagnostic check results.

If the display is red and the message “Check Result TEST FAILED” is displayed, you can assume that there is a problem with the computer’s hardware. Confirm which hardware component is displayed as red, and contact Panasonic Technical Support. If the display is green and the message “Check Result TEST PASSED” is displayed, the computer’s hardware is operating normally. Continue using the computer as it is. If the computer still does not operate properly, reinstall the

software (

NOTE

 If you run a memory diagnostic check after installing a new RAM module (sold separately) and the message “Check

Result TEST FAILED” is displayed: Remove the additional RAM module and run the diagnostic check again. If the message “Check Result TEST FAILED” is still displayed, you can assume that there is a problem with the internal RAM module.

⇒ OPERATING INSTRUCTIONS “Reinstalling Software”).

7 After the diagnostic check is complete, click (close), or press

the computer.

Ctrl

Alt

Del

to restart

Page 89

Hard Disk Backup/Restore Function

[Backup and Restore Center] and [System Recovery Options] allow you create a backup of the entire hard disk data, which can be used to recover from hardware failure.

Panasonic Corporation will bear no responsibility for any damage suffered (including loss of data) as a result of the use of this function.

Creating a Backup of the Hard Disk Data

To create a backup of the entire hard disk to another storage media (e.g., external hard disk): Use [Back up computer]. To create a backup of a file or a folder: Use [Back up files].

For further information, click (Start) - [Control Panel] - [Back up your computer].

NOTE

 Connect the AC adaptor and do not remove it until backup is complete.

Restoring the Hard Disk Data

NOTE

 This function does not work when you turn on the computer for the first time or just after you reinstall Windows.

Start and shut down Windows Vista, and then you can use the function.

 Connect the AC adaptor and do not remove it until restoration is complete.

1 Turn on the computer, and when [Panasonic] boot screen disappears, press and hold

 If [Enter Password] is displayed during the following procedure, input the Supervisor Password or the User

Password.

2 Release your finger when [Advanced Boot Options] is displayed.

3 Press   to select [Repair Your Computer] and press

[System Recovery Options] appears.

Enter

4 Select the keyboard layout and click [Next]. 5 Select [User name] and input [Password], then click [OK].

6 Click [Windows Complete PC Restore] and follow the on-screen instructions.

Page 90

Hard Disk Backup/Restore Function

NOTE

 If pressing

A Turn off the computer and insert the CD/DVD drive into the multimedia pocket ( page 24). B Turn on the computer, and press

• The Setup Utility starts up.

• If the password is requested, enter the Supervisor Password.

C Write down all of the contents of the Setup Utility and press

• At the confirmation message, select [Yes] and press

D Press

• At the confirmation message, select [Yes] and press

• The computer will restart.

E Press

• The Setup Utility starts up.

• If the password is requested, enter the Supervisor Password.

F Set the Product Recovery DVD-ROM for Windows Vista into the CD/DVD drive. G Select the [Exit] menu, then select [MATSHITADVD-RAM UJ-841S] in [Boot Override]. H Press

• The computer will restart.

I Click [Run “System Recovery Options”] and click [Next]. J Follow the on-screen instructions.

does not display [System Recovery Options], use the Product Recovery DVD-ROM for Windows Vista.

Del

while [Panasonic] boot screen is displayed.

F10

Enter

Del

while [Panasonic] boot screen is displayed.

Enter

Page 91

Hard Disk Data Erase Utility

When disposing the computer or transferring the ownership, erase all hard disk data in order to avoid data leakage. Even if you erase the data or initialize the hard disk using normal Windows commands, the data can be read with some special software. Use the hard disk data erase utility to erase the data completely. Note that transferring of the ownership without uninstalling the commercial software will be a violation of the software’s

license agreement.

The hard disk data erase utility erases data using an overwriting method, but there is a possibility that due to malfunctions or other operational errors, data may not be completely erased. There are also specialized devices that may be able to read data that has been erased using this method. If you need to erase highly confidential data, we recommend that you contact a company that specializes in this process. Panasonic Corporation will bear no responsibility for losses or damages suffered as a result of the use of this utility.

NOTE

 Even if hard disk data erase is performed, the number of times of DVD’s region code setting will not be reset.  This utility cannot erase data for specific partitions. However, the entire hard disk data including the data of the parti-

tion with recovery tools will be erased.

Preparation

 Prepare the following items:

• The Product Recovery DVD-ROM for Windows Vista (included)

• Panasonic CD/DVD drive (included)

 Remove all peripherals (except for the CD/DVD drive).  Connect the AC adaptor and do not remove it until hard disk data erase is complete.

Turn off the computer and insert the CD/DVD drive into the multimedia pocket

2 Turn on the computer, and press

The Setup Utility starts up.  If the password is requested, enter the Supervisor Password.

3 Press

At the confirmation message, select [Yes] and press

4 Press

At the confirmation message, select [Yes] and press The computer will restart.

5 Press

The Setup Utility starts up.  If the password is requested, enter the Supervisor Password.

F10

Del

while [Panasonic] boot screen is displayed.

Del

while [Panasonic] boot screen is displayed.

Enter

( page 24).

6 Set the Product Recovery DVD-ROM for Windows Vista into the CD/DVD drive.

Page 92

Hard Disk Data Erase Utility

7 Select the [Exit] menu, then select [MATSHITADVD-RAM UJ-841S] in [Boot Override].

8 Press

The computer restarts.  If [Enter Password] is displayed during the following procedures, input the Supervisor Password or the User

Enter

Password.

9 Click [Erase the whole data on the Hard Disk for security] and click [Next].

10 At the confirmation message, click [YES].

11 Click [Continue].

12 Click [Continue] again. 13 Click [YES].

Erasing the hard disk data starts.

14 After erasing is completed, remove the Product Recovery DVD-ROM and click [OK].

Page 93

Technical Information

Network Connections and Communications Software

Close the communications software before using the power saving function.  If the power saving function (sleep or hibernation) is activated while communications software is used, the network con-

nection may be interrupted, or the performance may be adversely affected. In this case, restart the computer.

 In a network environment, set [Never] for [Put the computer to sleep] and [Hibernate after] ( page 12).

Computrace® software

Computrace

 Computrace  Refer to the following URL for Computrace

only available in certain regions. http://www.absolute.com

NOTE

 Consult Absolute Software Corp. before disposal.

software tracks your stolen computer.

software is not included in this computer.

software for installation and available service regions. Note that this service is

Page 94

Technical Information

About Windows-related files

The Windows files included in the Windows Vista DVD-ROM are contained in the following folders:

c:\windows\support\migwiz, c:\windows\support\tools

English c:\windows\support\en\migwiz, c:\windows\support\en\tools Arabic c:\windows\support\AR\migwiz, c:\windows\support\AR\tools Bulgarian c:\windows\support\BG\migwiz, c:\windows\support\BG\tools Chinese -Hong Kong c:\windows\support\B3\migwiz, c:\windows\support\B3\tools Chinese -Simplified c:\windows\support\XT\migwiz, c:\windows\support\XT\tools Chinese -Traditional c:\windows\support\ZH\migwiz, c:\windows\support\ZH\tools Croatian c:\windows\support\YX\migwiz, c:\windows\support\YX\tools Czech c:\windows\support\CS\migwiz, c:\windows\support\CS\tools Danish c:\windows\support\DA\migwiz, c:\windows\support\DA\tools Dutch c:\windows\support\NL\migwiz, c:\windows\support\NL\tools Estonian c:\windows\support\ET\migwiz, c:\windows\support\ET\tools Finnish c:\windows\support\FI\migwiz, c:\windows\support\FI\tools French c:\windows\support\FR\migwiz, c:\windows\support\FR\tools German c:\windows\support\DE\migwiz, c:\windows\support\DE\tools Greek c:\windows\support\EL\migwiz, c:\windows\support\EL\tools Hebrew c:\windows\support\IW\migwiz, c:\windows\support\IW\tools Hungarian c:\windows\support\HU\migwiz, c:\windows\support\HU\tools Italian c:\windows\support\IT\migwiz, c:\windows\support\IT\tools Japanese c:\windows\support\JA\migwiz, c:\windows\support\JA\tools Korean c:\windows\support\KO\migwiz, c:\windows\support\KO\tools Latvian c:\windows\support\LV\migwiz, c:\windows\support\LV\tools Lithuanian c:\windows\support\LT\migwiz, c:\windows\support\LT\tools Norwegian c:\windows\support\NO\migwiz, c:\windows\support\NO\tools Polish c:\windows\support\PL\migwiz, c:\windows\support\PL\tools Portuguese c:\windows\support\PT\migwiz, c:\windows\support\PT\tools Portuguese (Brazilian) c:\windows\support\XC\migwiz, c:\windows\support\XC\tools Romanian c:\windows\support\RO\migwiz, c:\windows\support\RO\tools Russian c:\windows\support\RU\migwiz, c:\windows\support\RU\tools Serbian c:\windows\support\ST\migwiz, c:\windows\support\ST\tools Slovak c:\windows\support\SK\migwiz, c:\windows\support\SK\tools Slovenian c:\windows\support\SL\migwiz, c:\windows\support\SL\tools Spanish c:\windows\support\ES\migwiz, c:\windows\support\ES\tools Swedish c:\windows\support\SV\migwiz, c:\windows\support\SV\tools Thai c:\windows\support\TH\migwiz, c:\windows\support\TH\tools Turkish c:\windows\support\TR\migwiz, c:\windows\support\TR\tools Ukrainian c:\windows\support\UK\migwiz, c:\windows\support\UK\tools

Page 95

Error Message

Follow the instructions below when an error message appears. If the problem persists or if the error message is not shown here, contact Panasonic Technical Support.

Error Message Solution

Bad System CMOS An error has occurred in the memory of system settings. This occurs when the

System CMOS Checksum Error

Invalid Year. System date restored to 01/01/2008

Press <F2> to enter setup  Write down the error details and press

RAM Module Failed When the RAM module is not inserted correctly or the RAM module is not conforming

memory content is changed by an unexpected program operation, etc.  Start the Setup Utility and return the settings to the default values, and then

change the settings as necessary.

 If the problem persists, the internal clock battery may need to be replaced. Con-

tact Panasonic Technical Support.

The date and time settings are not correct.

 Start the Setup Utility and set the correct date and time.  If the problem persists, the internal clock battery may need to be replaced. Con-

tact Panasonic Technical Support.

Del

to start the Setup Utility.

Change the settings if necessary.

to the computer’s specifications, a beep will sound and the “RAM Module Failed” message will be displayed when you turn the power on.  Press the power switch for 4 seconds or longer to turn off the computer, confirm

that the RAM module conforms to the specifications, and reinsert it.

Page 96

Troubleshooting (Advanced)

Refer to the following instructions when a problem occurs. If the remedies indicated in the chart do not solve the problem, contact Panasonic Technical Support. For a software problem, refer to the instruction manual of the software.

• To check the computer’s usage status ( page 107).

 Shut Down

Cannot shut down or restart Windows.  Remove USB devices.

 It may take 1 or 2 minutes to shut down.

 Display

The screen does not become bright even if pressing

Fn+F2

 The brightness is set low to avoid malfunction where surrounding temperature

is high. Use it in an environment of between 5°C and 35°C.

 Sleep or Hibernation

Cannot enter sleep or hibernation.  Remove USB devices temporarily. If the problem persists, restart the computer.

 It may take 1 or 2 minutes to enter sleep or hibernation.  The computer may not enter sleep when the computer is communicating via

modem.

 The computer does not enter sleep or hibernation immediately after resuming.

Wait approximately 1 minute.

 When a disc formatted using B’s CLiP is in the CD/DVD drive, the computer will

not enter sleep or hibernation. Remove the disc.

Cannot enter sleep or hibernation automatically.

The computer does not resume.  If you press and hold the power switch for 4 seconds or longer, the power will

 Disconnect peripheral devices.  When a disc formatted using B’s CLiP is in the CD/DVD drive, the computer will

not enter sleep or hibernation. Remove the disc.

 If you connect to a network using wireless LAN function, select the profile and

connect to the access point ( page 71).

 If you do not use wireless LAN function, turn off wireless LAN function

( page 70).

 Make sure that you are not using any software that regularly accesses the hard

disk.

be turned off forcibly and the computer will not resume. In this case, all unsaved data will be lost.

 You disconnected the AC adaptor and the battery pack while the computer was

in sleep. If the computer’s power supply is disconnected in sleep, unsaved data will be lost and the computer will not resume.

 The battery is exhausted. Sleep and hibernation consume some power.

Page 97

Troubleshooting (Advanced)

 Sound

No sound.  Press Fn+F4 or Fn+F6 to cancel mute.

 Restart the computer.

Distorted sound.  Performing Fn key combinations sometimes causes sound distortion. Stop and

restart playback.

Cannot change the volume by pressing

Fn+F5

or Fn+F6.

 Activate the Windows sound function. When it is not active, the volume does

not change even if is displayed.

When logging on (e.g., resuming the computer), audio is distorted.

 Keyboard

Only numbers can be input.

Only capital letters can be input.

Cannot enter special characters (ß, à, ç, etc.) and symbols.

 Disc Operation

The CD/DVD drive does not work normally.

Cannot play back TV programs recorded on a commercial DVD recorder.

A blue background appears on the screen when playing an MPEG image.

The CD/DVD drive vibrates excessively or makes noise.

 Perform

 When the indicator is on, the keyboard is in ten-key mode. Press

cancel.

 When the indicator is on, the keyboard is in Caps Lock mode.

Press

 Use the character map. Click (Start) - [All Programs] - [Accessories] - [Sys-

tem Tools] - [Character Map].

 Set [Optical Drive] to [Enabled] in the [Advanced] menu of the Setup Utility

( page 79).

 Clean the lens ( page 26).  Check the disc condition ( page 27).

 Finalize the disc on the DVD recorder when the program was recorded in video

mode on DVD-R/RW or in VR mode on DVD-RW.

 You opened the CD/DVD drive or removed the MPEG disc while it was operat-

ing. Re-insert the MPEG disc and close the CD/DVD drive.

 Insert the disc correctly.  Check the disc condition ( page 27).  When writing to a CD using B’s Recorder, set the writing speed at [8x] or less.

the following steps to change the audio settings to prevent audio output.

A Right-click the desktop and click [Personalize] - [Sounds]. B Remove the check mark from [Play Windows Startup sound].

NumLk

Caps Lock

to cancel.

Page 98

Troubleshooting (Advanced)

 Disc Operation

Cannot eject a disc.  Turn on the computer.

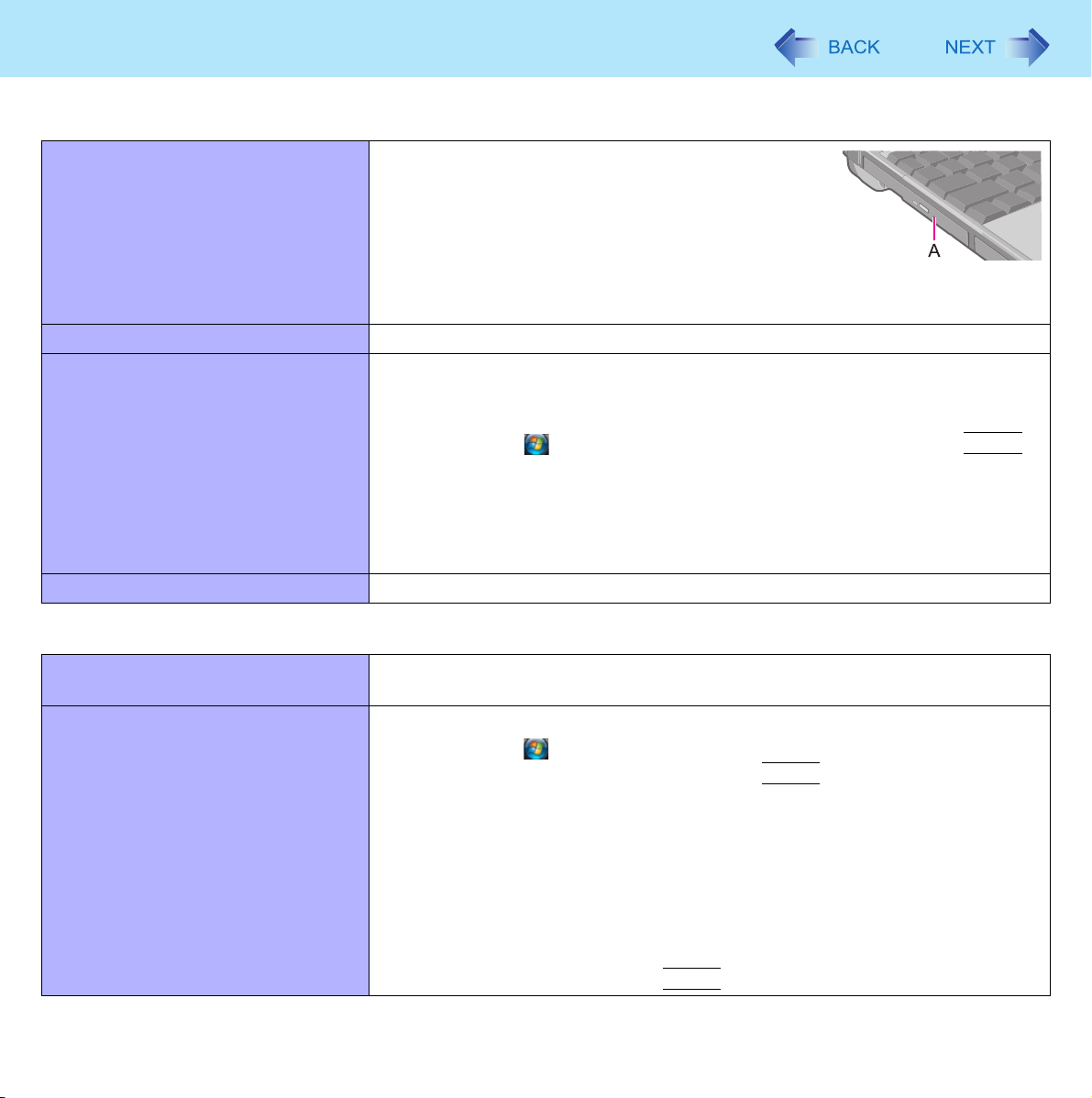

To remove a disc when the computer is powered off, insert a pin of 1.3 mm {0.05″} in diameter into the emergency hole (A). (When the diameter of the pin is smaller than this, insert the pin slightly downward.) Pushing it completely to the end will free the tray so that it can be pulled out. (The position of the emergency hole differs depending on the drive.)

The disc tray does not close.  Do not touch the eject button when closing the tray.

To use B’s CLiP

Other disc operation problems.  Use another drive or media.

 Install B’s CLiP. You will need the serial number to install (

(Basic)” “Reinstalling B’s Recorder/B’s CLiP” in the OPERATING INSTRUC- TIONS).

Click (Start) and input “c:\util\bha\clip\english”, and press

 As for english folder, change to the language you install. Right-click [setup] in [english] folder and click [Run as administrator].

If there are two or more “setup” files, right-click the file whose [Type] is [Application].  Follow the on-screen instructions.

⇒ “Troubleshooting

Enter

 Network

Cannot connect to a network.  Set [LAN] / [Modem] to [Enabled] in the [Advanced] menu of the Setup Utility

( page 79).

Cannot check the computer’s MAC address.

 Follow the steps below.

Click

(Start) - [All Programs] - [Accessories] - [Command Prompt].

B Input “getmac/fo list /v”, and press

 Insert a space between “fo” and “list”, and between “list” and “/v”.

C Wireless LAN’s MAC address:

Make a note of the 12-digit string of alphanumeric displayed on “Physical Address” line of “Intel(R) Wireless WiFi Link 5100”. Wired LAN’s MAC address: Make a note of the 12-digit string of alphanumeric displayed on “Physical Address” line of “Intel(R) 82567LM Gigabit Network Connection”.

D Input “exit”, and press

Enter

Page 99

Troubleshooting (Advanced)

 Wireless Communication (only for model with wireless LAN/Bluetooth/wireless

WAN)

Cannot connect to a network.  Slide the wireless switch to turn on the wireless devices.

 Set the device ([Wireless LAN] / [Bluetooth] / [Wireless WAN]) to [Enabled] in

the [Advanced] menu of the Setup Utility ( page 79).

 Disable the Wireless Connection Disable Utility ( page 68).  Restart the computer.

Access point is not detected.  Shorten the distance between the computer and the access point, and try the

detection again.

 Confirm the following settings:

• [Wireless LAN] in the [Advanced] menu of the Setup Utility

Confirm that [Wireless LAN] is set to [Enabled] ( page 79).

• Wireless Switch Slide the wireless switch to ON.

• Wireless Switch Utility Confirm that Wireless LAN is ON ( page 67).

 This computer uses channels 1 through 11

Check the channel being used by the access point.

In the case of wireless communications, the frequency band being used can be divided into segments, so that different communications can be conducted on each band segment. A “Channel” refers to the individual frequency bandwidth divisions.

when using IEEE802.11b/g.

 Connecting Peripherals

An error occurs while installing the driver.

 When you install a driver of card or peripheral device, make sure that the driver

is compatible with the operating system. If it is not compatible, malfunction may occur. For information about the driver, contact the manufacturer of the peripheral device.

 Attach the device for the media containing the driver (e.g., CD-ROM). Equip-

ment connected to the multimedia pocket cannot be recognized if connected after the device driver installation screen appears.

Page 100

Troubleshooting (Advanced)

 Connecting Peripherals

A peripheral device does not work.  Install the driver.

 Contact the manufacturer of the device.  When operation resumes from sleep or hibernation, devices such as a mouse,

modem and cards may not function properly. In this case, restart the computer or reinitialize the device.

 When is displayed in the Device Manager, remove and insert the device. If

the problem persists, restart the computer.

 When you set [USB Port] to [Disabled] in the [Advanced] menu of the Setup

Utility ( page 80), USB ports of mini port replicator are also disabled.

 The computer may not recognize the connection/removal of some devices, or

may not operate normally with some devices.

A Click (Start) - [Computer] - [System properties] - [Device

Manager].  A standard user needs to enter an administrator password.

B Select the device, and remove the check mark for [Allow the

computer to turn off this device to save power] in [Power Management]. (This item may be unavailable for some types of devices.)

 In the case that a USB device does not work, remove the USB device and con-

nect it again or connect the USB device to another port.

The connected mouse does not work.  Check the mouse connection.

 Install the driver compatible with the connected mouse.

If the mouse does not work even after installing the driver, set [Touch Pad] to [Disabled] in the [Main] menu of the Setup Utility ( page 78).

USB floppy disk drive does not work as a boot drive.

 You can use only the Panasonic CF-VFDU03U USB floppy disk drive (optional).  Connect the floppy disk drive directly to a USB port of the computer. Do not

connect it via a USB hub or USB connector of the mini port replicator. If you have connected to a USB port on the computer, try connecting it to one of the other USB ports.

 Set [USB Port] and [Legacy USB Support] to [Enabled] in the [Advanced] menu

of the Setup Utility ( page 80).

 Set [Boot Option #1] to [USB Floppy Disk] in the [Boot] menu of the Setup Utility

( page 80).

 Turn off the computer and connect the USB floppy disk drive, and then restart

the computer.

100
