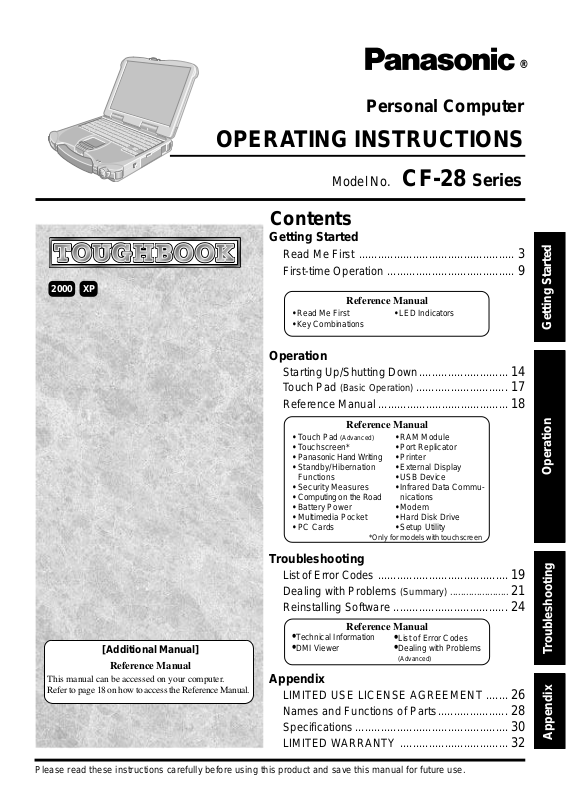

Panasonic CF-28STJGZKM Operating Instruction
®
Personal Computer
OPERATING INSTRUCTIONS
Model No. CF-28 Series
Contents
Getting Started
Read Me First ................................................. 3
First-time Operation ........................................ 9
XP2000
Reference Manual
• Read Me First
• Key Combinations
• LED Indicators
Getting Started
[Additional Manual]
Reference Manual
This manual can be accessed on your computer.
Refer to page 18 on how to access the Reference Manual.
Operation
Starting Up/Shutting Down............................ 14
Touch Pad (Basic Operation) ............................. 17
Reference Manual.........................................18
Reference Manual
• Touch Pad (Advanced)
• Touchscreen*
• Panasonic Hand Writing
• Standby/Hibernation
Functions
• Security Measures
• Computing on the Road
• Battery Power
• Multimedia Pocket
• PC Cards
• RAM Module
• Port Replicator
• Printer
• External Display
• USB Device
• Infrared Data Commu-
nications
• Modem
• Hard Disk Drive
• Setup Utility
*Only for models with touchscreen
Troubleshooting
List of Error Codes .........................................19
Dealing with Problems (Summary) ...................... 21
Reinstalling Software .................................... 24
Reference Manual
•Technical Information
•DMI Viewer
•List of Error Codes
•Dealing with Problems
(Advanced)
Appendix
LIMITED USE LICENSE AGREEMENT .......26
Names and Functions of Parts...................... 28
Specifications................................................30
LIMITED WARRANTY .................................. 32
Operation
T roubleshooting
Appendix
Please read these instructions carefully before using this product and save this manual for future use.
Customer's Record
Model No.*
Serial No.
or
Code No.
Date of Purchase
* For the Model No., insert the 12 digit number (for example, CF-28PTJAZQM) located on
the bottom of the computer.
Introduction
Thank you for purchasing the Panasonic computer. Read the operating instructions thoroughly for proper operation of your new
computer.
Illustrations and Terminology in this Manual
NOTE: NOTE provides a useful fact or helpful information.
Getting Started
CAUTION: CAUTION indicates a condition that may result in minor or moderate injury.
WARNING: WARNING indicates a hazard that may result in moderate or serious injury.
[Start] - [Run]: This illustration means to click [Start], then to click [Run].
(For some applications, you may need to double-click.)
Enter : This illustration means to press the [Enter] key.
Fn + F5 : This illustration means to press and hold the [Fn] key, then press the [F5] key.
Windows 2000 : Information for Microsoft® Windows® 2000 Professional users.
Windows XP : Information for Microsoft® Windows® XP Professional users.
: Where to go for referred information.
: This illustration means to refer to the Reference Manual, which is available on your computer.
Refer to page 18 on how to access this manual.
Some of the illustrations in this manual may differ slightly in shape from the actual items in order to make the explanation
easier to understand.
Circular media such as CD-ROM and DVD-ROM are described as “discs”.
The “CD Drive” is a description about drives, such as DVD-ROM, CD-ROM, CD-R/RW, and DVD-ROM & CD-R/RW
drives.
This manual covers two types of models, as distinguished by the type of LCD screen (models with touchscreen and models
without touchscreen).
If the user has logged on without “Administrator authority,” some functions may not be executable, and some screens may
be not displayed as shown in this manual. If this happens, log on with Administrator authority to enable these functions.
Dealer's Name
Dealer's Address
Copyright
This manual is copyrighted by Matsushita Electric Industrial Co., Ltd. with all rights reserved. No part of this manual may be reproduced in any
form without the prior written permission of Matsushita Electric Industrial Co., Ltd.
No patent liability is assumed with respect to the use of the information contained herein.
©2002 Matsushita Electric Industrial Co., Ltd. All Rights Reserved.
Disclaimer
Computer specifications and manuals are subject to change without notice. Matsushita Electric Industrial Co., Ltd. assumes no liability for damage
incurred directly or indirectly from errors, omissions or discrepancies between the computer and the manuals.
Trademarks
PS/2™ is a trademark of International Business Machines Corporation.
Microsoft® and Windows® are registered trademarks of Microsoft Corporation of the United States and/or other countries.
Intel, Pentium and SpeedStep™ are registered trademarks of Intel Corporation.
Adobe® and Acrobat® are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.
Panasonic® is a registered trademark of Matsushita Electric Industrial Co., Ltd.
2
