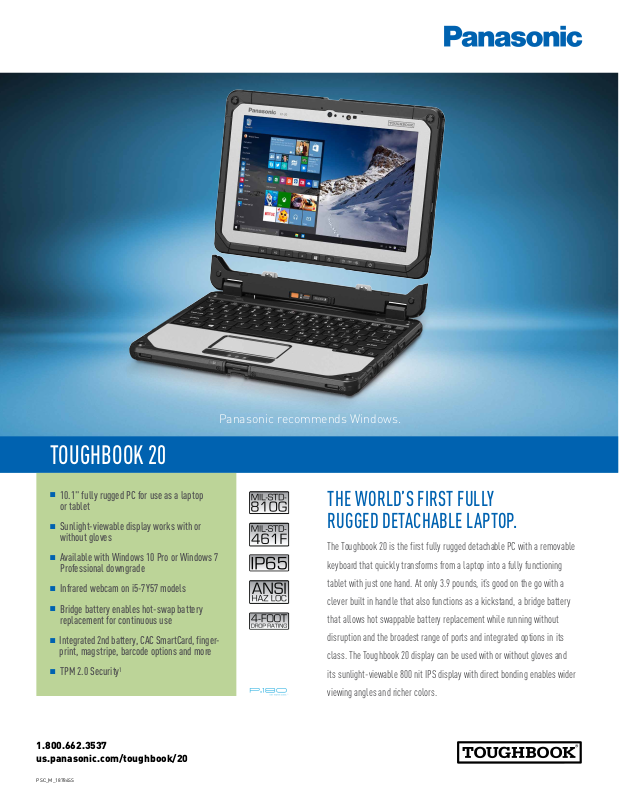

Panasonic CF-20C0772KM Specsheet

TOUGHBOOK 20

n

10.1" fully rugged PC for use as a laptop

or tablet

Panasonic recommends Windows.

THE WORLD’S FIRST FULLY

n

Sunlight-viewable display works with or

without gloves

n

Available with Windows 10 Pro or Windows 7

Professional downgrade

n

Infrared webcam on i5-7Y57 models

n

Bridge battery enables hot-swap battery

replacement for continuous use

n

Integrated 2nd battery, CAC SmartCard, finger-

print, magstripe, barcode options and more

n

TPM 2.0 Security

1.800.662.3537
us.panasonic.com/toughbook/20

PSC_M_18786SS

1

RUGGED DETACHABLE LAPTOP.

The Toughbook 20 is the first fully rugged detachable PC with a removable

keyboard that quickly transforms from a laptop into a fully functioning

tablet with just one hand. At only 3.9 pounds, it’s good on the go with a

clever built in handle that also functions as a kickstand, a bridge battery

that allows hot swappable battery replacement while running without

disruption and the broadest range of ports and integrated options in its

class. The Toughbook 20 display can be used with or without gloves and

its sunlight-viewable 800 nit IPS display with direct bonding enables wider

viewing angles and richer colors.

TOUGHBOOK 20

Panasonic recommends Windows.

SOFTWARE

DURABILITY

 n

 n
 n

OPERATING SYSTEM

DISPLAY

AUDIO

CAMERAS

KEYBOARD & INPUT

INTERFACE & EXPANSION

WIRELESS

POWER

n

Panasonic Utilities (including Dashboard), Recovery Partition

n

Enterprise ready driver packages including CAB files and one-click driver bundles

n

MIL-STD-810G certified (4' drop - 5' tablet only, shock, vibration, rain, dust, sand, altitude, freeze/thaw,

high/low temperature, temperature shock, solar radiation, salt fog, humidity, explosive atmosphere)

n

MIL-STD-461F certified

n

IP65 certified sealed all-weather fanless design

n

Optional hazardous location class I division 2, groups ABCD certified model

n

Magnesium alloy chassis encased with ABS and elastomer edges

n

Built-in dual purpose handle & kickstand
Solid state drive heater

n

Removable battery

n

Optional rotating hand strap
Reinforced locking port covers
Raised bezel for LCD impact protection

n

Preinstalled replaceable screen film for LCD protection

n

Windows® 10 Pro 64-bit

CPU

®

– Intel

Core™ i5-7Y57 vPro™ processor (7th Gen CPU)

1.2GHz with Turbo Boost up to 3.3GHz, 4MB cache
Graphics

®

– Intel

HD Graphics 615
Memory (RAM) - factory installed
– 8GB or 16GB (DDR3L-1866MT/s)
Storage Drive Shock-mounted with Heater (quick-release)
– 256GB SSD
– Optional 512GB SSD
– Optional OPAL encrypted SSD

n

Windows 7 Professional 64-bit downgrade (from Windows 10)

CPU

®

– Intel

Core™ m5-6Y57 vPro™ processor (6th Gen CPU)

1.1GHz with Turbo Boost up to 2.8GHz, 3MB cache
Graphics

®

– Intel

HD Graphics 515
Memory (RAM) - factory installed
– 8GB or 16GB (DDR3L-1866MT/s)
Storage Drive Shock-mounted with Heater (quick-release)
– 128GB SSD other models
– Optional 256/512GB SSD
– Optional OPAL encrypted SSD

n

10.1" WUXGA 1920 x 1200
– 10-point capacitive gloved multi touch (available only on m5-6Y57 models)
– 10-point capacitive gloved multi touch + digitizer

n

2-800 nit

n

IPS display with direct bonding

n

Anti-reflective (AR) and anti-glare (AG) screen treatments

n

4 monitor support

n

Concealed mode (configurable)

n

Integrated dual array microphone

n

Intel® High Definition Audio compliant

n

Integrated speaker

n

On-screen and button volume and mute controls

n

1080p webcam with dual array mic and camera on/off indicator

– Infrared with Windows Hello support (i5-7Y57 models)

n

8MP rear camera with autofocus and triple LED flash (optional on m5-6Y57 models)

n

Waterproof IP55 stylus pen with integrated stylus holder, tether and cleaning cloth

n

Supports glove mode and rain mode

n

7 tablet buttons (5 user-definable A1/A2 buttons)

n

On-screen QWERTY keyboard

n

82-key with dedicated Windows® key

n

Emissive white backlit keyboard with 4 adjustable levels

n

Pressure-sensitive touchpad with multi touch

n

On the tablet:

– USB 3.0 x1 (optional 2nd USB 2.0
– MicroSDXC UHS-I
– HDMI Type A
– 10/100/1000 Ethernet RJ-45
– Optional Serial (True)
– Audio In/Out 3.5mm Mini-jack stereo
– SIM 4FF (i5-7Y57 models), 3FF (m5-6Y57 models)

n

On the keyboard:

– Docking Connector 24-pin
– USB 3.0 x2, USB 2.0 x1 Type A
– SDXC UHS-I
– HDMI Type A
– VGA D-sub 15-pin
– 10/100/1000 Ethernet RJ-45
– Serial (USB) D-sub 9-pin

n

Optional 4G LTE-A multi carrier mobile broadband w/satellite GPS (LTE on m5-6Y57 models)6

– Certified with Verizon, AT&T, Sprint and P.180

n

Optional dedicated GPS (u-blox NEO M8N)

n

Dual high-gain antenna pass-through

n

Intel® Dual Band Wireless-AC 8265 Wi-Fi 802.11a/b/g/n/ac (8260 on m5-6Y57 models)

n

Bluetooth® v4.1 (Class 1) + EDR (v4.0 on m5-6Y57 Win7 Professional models)

n

Li-Ion battery pack:

– Standard in tablet; optional 2nd battery in keyboard
– 11.4V, 2600mAh (each battery)

n

Battery operation:

– i5-7Y57 models: 8.5 hours (17 hours with opt. 2nd battery)
– m5-6Y57 models: 8 hours (16 hours with opt. 2nd battery)

n

Battery charging time: 3 hours (3.5 hours with opt. 2nd battery)

n

Bridge battery: 1 minute hot swap time (optional on m5-6Y57 models)

n

AC Adapter: AC 100V-240V 50/60Hz, auto sensing/switching worldwide power supply

2

3

3

3

3

4,5

4,5

2

3

3

) Type A (USB 3.0 is 1.5A)

D-sub 9-pin

13

6

7

7

7

SECURITY FEATURES

1

n

TPM v2.0

n

NIST BIOS compliant

n

Persistence® technology by Absolute embedded in BIOS

2

n

Kensington cable lock slots x2 (on tablet and keyboard)

n

Optional fingerprint reader

n

Optional insertable SmartCard CAC reader

n

Optional contactless SmartCard CAC reader9

– 13.56MHz (ISO 15693 & 14443 A/B compliant)

WARRANTY

n

3-year limited warranty, parts and labor

DIMENSIONS & WEIGHT

n

10.7" (L) x 9.2" (W) x 1.3" (H)

11

n

3.9 lbs.

HAZARDOUS LOCATION CERTIFICATIONS

n

ANSI/ISA 2.12.01-2013

– Optional class I division 2, groups ABCD certified model

INTEGRATED OPTIONS

n

Choice of dedicated GPS (u-blox NEO-M8N) or 4G LTE multi carrier mobile

broadband with satellite GPS

n

Choice on tablet of 1D/2D capable barcode reader (N6603), serial (true),

or second USB 2.0 port

n

Choice on tablet of magstripe, insertable SmartCard CAC, contactless

SmartCard CAC or fingerprint reader

SELECT ACCESSORIES

n

AC Adapter Standard 65W (3-prong) CF-AA6413CM

n

AC Adapter MIL-STD-461F (3-prong) CF-AA5713AM

n

Battery Pack CF-VZSU0QW

n

4-Bay Battery Charger CF-VCB201M

n

LIND Car Charger 120W CF-LNDDC120

n

LIND Solar Charge System PASC1580-4464

n

ToughMate ComUniversal Jr. Carrying Case TBCCOMUJR-P

n

ToughMate Mobility Bundle (Carry Strap) TBC20MBBDL-P

n

ToughMate Always-on Case TBC20AOCS-P

n

ToughMate Rotating Hand & Shoulder Strap TBC20HDSTP-P

n

Rotating Hand Strap CF-VST2011U

n

Rotating Hand Strap (for units w/Magstripe only) CF-VST2031U

n

Desktop Dock CF-VEB201U

n

Laptop 2-in-1 Vehicle Docks (requires keyboard)

– Gamber-Johnson (dual RF) GJ-20-LVD2
– Havis (dual RF) H-20-LVD2

n

Tablet Extended Vehicle Docks

– Gamber-Johnson (dual RF) GJ-A2-TVD2-X

n

AntennaPlus Dual LTE & GPS Antenna Kit

– Threaded Black Mount AP-PAN-CCGPD-Q-BL
– Threaded White Mount AP-PAN-CCGPD-Q-WH

n

Cradlepoint Router

– Multi Carrier LTE-Advanced CP-IBR1100LP6-NA
– Multi Carrier LTE-Advanced (compact size) CP-IBR900LP6-NA

n

Multi Touch IP55 Stylus CF-VNP022U

n

Multi Touch + Digitizer IP55 Stylus CF-VNP023U

n

Tether CF-VNT002U

n

Spare Keyboard CF-VEK201LMP

n

10.1" LCD Protector Film CF-VPF31U

Please consult your reseller or Panasonic representative before purchasing.

1

TPM 1.2 ships by default on m5-6Y57 models running Windows 7, but can run TPM2.0 – see below Microsoft link

for details: support.microsoft.com/en-us/help/2920188/update-to-add-support-for-tpm-2.0-in-windows-7-and­windows-server-2008-r2.

2

Tested by national independent third party lab following MIL-STD-810G Method 516.6 Procedure IV for transit drop

test and IEC 60529 Sections 13.4, 13.6.2, 14.2.5 and 14.3 for IP65. 461F requires CF-AA5713AM.

3

1GB = 1,000,000,000 bytes. Total usable memory will be less depending upon actual system configuration.

4

Barcode, Serial (true) and 2nd USB 2.0 Port are mutually exclusive.

5

Magstripe, Serial, 2nd USB or Barcode+Insertable SmartCard integrated options increase overall height and prohibit

use in convertible mode.

6

Dedicated GPS and 4G LTE are mutually exclusive.

7

Battery performance features such as charge time and life span can vary according to the conditions under which

the computer and battery are used. Battery operation and recharge times will vary based on many factors, including
screen brightness, applications, features, power management, battery conditioning and other customer preferences.
Battery testing results from MobileMark 2014 at 150 nit.

8

Requires software and activation to enable theft protection.

9

Magstripe, Insertable SmartCard, Contactless SmartCard and Fingerprint Readers are mutually exclusive.

10

Includes tablet and keyboard with handle. Tablet when detached is 10.7" (L) x 7.7" (W) x 0.6" (H).

11

Includes tablet and keyboard with handle. Tablet when detached is 2.1 lbs. Optional 2nd battery weighs 0.4 lbs.

12

Accessories and Integrated Options may vary depending on your configuration. Visit the Panasonic website

for more accessories and details.

13

P.180 is available only for i5-7Y57 models. For more information about P.180, please visit, PanasonicP180.com.

9

5,10

12

12

9

8

1.800.662.3537
us.panasonic.com/toughbook/20

Panasonic is constantly enhancing product specifications and accessories. Specifications subject to change without notice. Trademarks are property of their respective owners.
©2018 Panasonic Corporation of North America. All rights reserved. Toughbook 20 Spec Sheet_01/18
