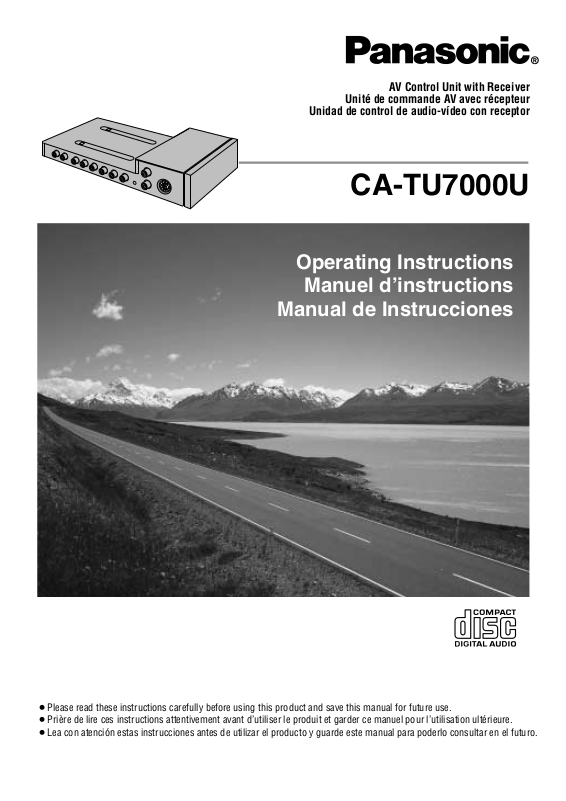

Panasonic CA-TU7000U User Manual

®

AV Control Unit with Receiver

Unité de commande AV avec récepteur

Unidad de control de audio-vídeo con receptor

CA-TU7000U

¡Please read these instructions carefully before using this product and save this manual for future use.
¡Prière de lire ces instructions attentivement avant d’utiliser le produit et garder ce manuel pour l’utilisation ultérieure.
¡Lea con atención estas instrucciones antes de utilizar el producto y guarde este manual para poderlo consultar en el futuro.

Operating Instructions

Manuel d’instructions

Manual de Instrucciones

2

CA-TU7000U

Radio Frequency Interference Statement (Part 15 of the FCC Rules):

Applies only in U.S.A.

This equipment has been tested and found to comply with the limits for a Class B digital, pursuant to
Part 15 of the FCC Rules.
¡These limits are designed to provide reasonable protection against harmful interference in an auto-

mobile installation. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to consult
the dealer or an experience radio technician for help.

FCC Warning

Any unauthorized changes or modifications to this equipment would void the user’s authority to oper­ate this device.

This device complies with Part 15 of the FCC Rules:
Operation is subject to the following two conditions:

(1) This device may not cause harmful inrerference, and
(2) This device must accept any interference received, including interference that may cause unde-

sired operation.

For Canada:

This Class B digital apparatus complies with Canadian ICES-003.

Safety Information

Label Indication and Location

Find the model number and serial number on either
the back or bottom of the unit. Please record them in
the space below and retain this booklet as a perma­nent record of your purchase to help with identifica­tion in case of theft.

MODEL NUMBER CA-TU7000U

SERIAL NUMBER

DATE PURCHASED

FROM

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.

TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, AND ANNOYING INTERFERENCE,
USE ONLY THE INCLUDED COMPONENTS.

Model No.
N° De Modèle

Manufactured by Matsushita Communication
Industrial Co., Ltd.
Yokohama Japan Made in Japan

1 2 V 15 A

CA-TU7000U

FM75Ω

4Ω

Serial No.
N° De Série

This device complies with Part 15 of the
FCC Rules. Operation is subject to the
condition that this device does not cause
harmful interference.

Identification label

E
N
G
L

I
S
H

10

CA-TU7000U

1

E
N
G
L

I
S
H

When Driving

Keep the volume level low enough to be aware of road and traffic conditions.

When Car Washing

Do not expose the product, including the speakers and CDs, to water or excessive moisture. This could cause electrical
shorts, fire, or other damage.

When Parked

Parking in direct sunlight can produce very high temperatures inside your vehicle. Give the interior a chance to cool down
before switching the unit on.

Use the Proper Power Supply

This product is designed to operate with a 12 volt, negative ground battery system (the normal system in a North American
car.)

Disc Mechanism

Do not insert coins or any small objects. Keep screwdrivers and other metallic objects away from the disc mechanism and
disc.

Use Authorized Servicenters

Do not attempt to disassemble or adjust this precision product. Please refer to the Servicenter list included with this prod­uct for service assistance.

For Installation

The product should be installed in a horizontal position with the front end up at a convenient angle, but not more than 30˚.

WARNING:
TO AVOID THE RISK OF SERIOUS INJURY OR POSSIBLE VIOLATION OF

LAWS, NOT FOR USE WHERE VISIBLE TO DRIVER FOR ANY PURPOSE
OTHER THAN NAVIGATION OR USE WITH REAR VIEW CAMERA.

When Driving

¡The driver must not operate the color LCD monitor. Operating the color LCD monitor may lead to distraction and

cause an accident. Stop your vehicle in a safe location when operating the unit.

¡The driver must not watch videos while driving. It may lead to distraction and cause an accident.
¡Keep the unit at an appropriate sound level. Driving with the sound at a level that prevents you from hearing sounds

outside and around the vehicle may cause an accident.

Use This Product Safely

1. AV Control Unit

Components

1

2. Installation
Hardware

1 set (a page 42)

3. Power Connector

1

4. Operating
Instructions

1

5. Warranty Card,etc.

XXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXX

XXXXXXXXXXXXXX

XXXXXXXXXXXXXXXX

OO-OOOOO

2

E
N
G
L

I
S
H

CA-TU7000U

ID Code

Prior to operating this unit, it is a advisable to assign your 4-digit ID code for security. (Make sure to use four digits for ID
code. ID code can not be set with two or three digits.)
Once the ID code has been set, the unit cannot be operated if the main power supply is disconnected then re-connected. It
is electronically locked so that a thief could not use the stolen unit unless that person knows the code you have set.
The ID code operation must be performed only by the person whom the unit belongs to.

Generally, it is not necessary to enter the ID code each time when using the unit if it has never been disconnected from the
main power supply (car battery). For the ID code setting procedures, see pages 34 to 35.

Caution: Record your registered ID code and keep it in a secure location. If you forget it, you will be unable
to use the unit. In case that you can not operate the unit because of forgetting the ID code, please consult your nearest
Panasonic Servicenter.

¡Picture might not be displayed, or it might take more time than usual to display picture in low temperature.

Also, movement of picture might become labored, or picture quality might become deteriorate as well in low
temperature. (practicable temperature: 0 °C - 40 °C)

¡Do not touch the LCD (liquid crystal display).

If you touch the LCD, your fingerprints will be conspicuous because the surface of the LCD was specially
processed.

¡In some cases, noise is generated. It depends on the position or direction of a cellular phone.

Change the position or direction of the cellular phone, or keep it away from the unit.

Cautions

This system is designed so that you can not see pic­ture from VCR, DVD player, and other devices while
you are driving.

¡

Park your car in a safe place and engage the parking brake before
watching the monitor.

¡

Picture can be seen on the second monitor.

11

Note:

Be sure to connect the parking brake connection lead. (

a

Operating Instructions for CY-VMC7000U page

46)

ID Code Input

Enter the ID code after turning on the power and activating the display.

Note: When failing in entering ID code, a screen on the right is displayed, and the
unit beeps three times. Enter a correct ID code.
In case of failing in entering ID code three times consecutively, the power is turned
off. Turn on the power again and enter a correct ID code in this case.

Success

VOLUME

MENUMUTE MODE NAVI

NAVIGATION ASPECT

P·MODEPOWER

ASP

ENTER

CY-VMC7000U

IN-DASH 7 WIDE COLOR LCD MONITOR / CD PLAYER

DISC/BAND

TRACK/
YUNE

12

CA-TU7000U

3

E
N
G
L

I
S
H

Name of Controls and Functions

Display Unit (CY-VMC7000U)

Dimmer sensor (a page 38)

Remote control sensor

[MENU]

¡Shows the menu screen. (a page 30)
¡Shows the rear monitor setting menu.

(a page 24)

[}] [{] (VOLUME)

¡Adjusts the sound volume. (a page 14)

[MUTE]

¡Mutes the sound temporarily. (a page 14)
¡Compensates bass and treble in the low and

middle volume level. (a page 28)

[TILT]

¡Shows the monitor position setting

menu. (a page 15)

¡Tilts the monitor forward temporarily.

(a page 15)

[ASP] (ASPECT) (P • MODE)

¡Selects the aspect ratio. (a page 26)
¡Activates/inactivates the private mode.

(a page 28)

[]

(OPEN/CLOSE)

¡Opens/closes the monitor.

(a page 14)

[NAVI] (NAVIGATION)

¡Activates/inactivates the navigation. (a page 22)

[MODE] (POWER)

¡Switches on/off the power. (a page 14)
¡Changes the modes such as sound and picture.

(a page 14)

[u]

¡Ejects a CD. (a page 16)

CD slot

[}] [{] (DISC/BAND)

¡Select a disc or a band.

(a page 18 and 20)

¡Selects (vertically) or

adjusts an operation
or item.

[]] [[] (TRACK/TUNE)

¡Selects or searches a

track or a frequency.
(a page 18 and 20)

¡Selects (horizontally) or

adjusts an operation or
item.

[ENTER]

¡Searches for broadcast

stations and memorizes
them automatically.
(a page 19)

¡Determines an operation

or item.

ENTER

ENTER

ENTER

1

2

3

4

5

6

7

8

9

A

0

13

CA-TU7000U

4

E
N
G
L

I
S
H

Aim the remote control at the remote control sen­sor of the display unit and operate it.

Remote Control (supplied with CY-VMC7000U)

[PWR]

¡Switches on/off the power. (a page 14)

[}] [{] (DISC/BAND)

¡Select a disc or a band. (a page 18 and 20)
¡Selects (vertically) or adjusts an operation or item.

[]] [[] (TRACK)

¡Selects or searches a track or a frequency.

(a page 18 and 20)

¡Selects (horizontally) or adjusts an operation or item.

[ENTER]

¡Searches for broadcast stations and memorizes them

automatically. (a page 19)

¡Determines an operation or item.

[MODE]

¡Switches on/off the power. (a page 14)
¡Changes the modes such as sound and pic-

ture. (a page 14)

[0] to [9]

¡Selects listening pattern. (a page 17 and 21)
¡Sets the ID code. (a page 34)
¡Memorize broadcast stations. (a page 19)

[MENU]

¡Shows the menu screen.

(a page 30)

¡Shows the rear monitor setting

menu. (a page 24)

[]

(OPEN/CLOSE)

¡Opens/closes the monitor.

(a page 14)

[}] [{] (VOLUME)

¡Adjusts the sound volume.

(a page 14)

[MUTE]

¡Mutes the sound temporarily.

(a page 14)

[NAVI] (NAVIGATION)

¡Activates/inactivates the navigation.

(a page 22)

[A] (ASPECT) (P • MODE)

¡Selects the aspect ratio.

(a page 26)

¡Activates/inactivates the private

mode. (a page 28)

1

2

3

4

5

6

7

8

9

A

0

If the unit stops halfway,
press

[]

(OPEN/CLOSE)

again and draw it all the
way in.

Display Open / Close

OPEN

: Press

[]

(OPEN/CLOSE).

POW

ER

P·MODE

TRACK/

TUNE

VOLUME

MENU

MUTE

MODE

NAVI

NAVIGATION

ASPECT

OPEN/CLOSE

ASP

ENTER

TILT

INDASH 7 WIDE COLOR LCD MONITOR / CD PLAYER

CY-TU7000U

DISC/BAND

MODE

MUTE

14

CA-TU7000U

5

E
N
G
L

I
S
H

General

[]

(OPEN/CLOSE)

[MUTE]

[{][}] (VOLUME)

[MODE] (POWER)

Power

ON : Press [MODE] (POWER). (On the display unit)

Press [PWR] or [MODE]. (On the remote control)

Mode

Press [MODE] to change the mode.

Volume

[}] (VOLUME) : Up
[{] (VOLUME) : Down

MUTE

MUTE ON : Press [MUTE].
MUTE OFF : Press [MUTE] again.

Note: The sound level for each source is stored in

memory.

OFF : Press [MODE] (POWER) again for more than 2

seconds. (On the display unit)

Press [PWR] again or [MODE] again for more
than 2 seconds. (On the remote control)

Default : Volume 20 Setting Range : 0 to 40

VTR1

VTR2

CD Player

Radio

CD changer

Turn the key in the ignition until the accessory indicator
lights.

CLOSE

: Press

[]

(OPEN/CLOSE) again.

(After return the lateral angle to the neutral position.)

Note: When the display unit is opened or closed, a loud beep
sounds three times.

Warning: Do not insert hands, fingers or foreign
objects into the unit while the display is moving.
Inserting your hands, fingers or foreign objects into
the unit can cause injuries and damage to the unit.

(a page 22)

(a page 22)

(a page 16)

(a page 18)

(a page 20)

[]

(OPEN/CLOSE)

[MODE]

[MUTE]

[PWR] (Power)

[}][{] (VOLUME)

(When a CD changer is connected.)

15

CA-TU7000U

6

E
N
G
L

I
S
H

Caution: Do not place any object on the display unit, or subject it to undue force.

Cautions:

¡For smooth adjustment, make sure to first return the lateral angle to the neutral position and then adjust the tilt angle.
¡Do not manually change the position of the unit by using force.

Monitor Position Adjustment

Tilt Angle / Front-Rear Position

POWER

VOLUME

MENU

MUTE

MODE

NAVI

N

A

V

IG

A

T

IO

N

ASP

E

N

T

E

R

T

IL

T

ASPECT

C

Y

-V

M

C

7

0

0

0

U

IN-DASH 7 WIDE COLOR LCD MONITOR / PLAYER

DISC/BAND

1

2

3

4

5

6

Position "REAR" and tilt angle "5"
cannot be selected at the same time.

Press and hold [TILT] on the display unit for more than 1 second.

Monitor Position Setting Menu

Press [}] or [{] to adjust the tilt angle. Press []] or [[] to
move the display to the front or rear position.

Notes:

¡Press [MODE] to return to the regular mode.
¡The monitor position setting menu is automatically closed if no operation is performed for about 60 seconds.
¡Vertical angle (TILT) and front-rear position data are saved in the memory, so when the display unit is drawn out

next, it is automatically set at the angle and in the position adjusted before.

¡After adjusting its angle, also adjust the brightness to make it easy for you to watch. (a page 38)
¡The display position can also be set on the main menu screen. (a page 30)

Display Unit Lateral Angle Adjustment

Folding Down the Display Temporarily

Hold the display unit by the non-slip part in the
upper half of it, and adjust its lateral angle.

Caution: There is the danger of your fingers being
pinched if you hold the unit by lower part. Hold the unit
by the upper half of it, and move it carefully without
applying undue force.

Fold Down : Press [TILT] on the display unit.
Raise : Press [TILT] again on the display unit.

Note: Even when the unit is power off, you can fold down the display temporarily.

2

1

TILT

Tilt Angle

1 to 5

[{][}]

Front-Rear Position

Front Rear

[]][[]

[TILT]

[}][{]
[]][[] (Adjust)

[}][{]
[]][[] (Adjust)

1

2

3

4

5

6

7

8

9

A

0

VOLUME

MENUMUTE MODE NAVI

NAVIGATION ASPECT

P·MODEPOWER

ASP

ENTER

CY-VMC7000U

IN-DASH 7 WIDE COLOR LCD MONITOR / CD PLAYER

DISC/BAND

TRACK/
YUNE

MODE

ENTER

P

O

W

E

R

P

·M

O

D

E

TRACK/
YUNE

V

O

LU

M

E

M

EN

U

M

U

TE

M

O

D

E

N

A

V

I

N

A

V

I

G

A

T

I

O

N

A

S

P

E

C

T

A

S

P

E

NTE

R

C

Y

-VM

C

7000U

IN-DASH 7 WIDE COLOR LCD MONITOR / PLAYER

DISC

/BA

ND

16

CA-TU7000U

7

E
N
G
L

I
S
H

Disc Insert

Playback starts automatically.

Notes:

¡Load a CD after making sure that there is no CD

in the disc compartment. (If "NO DISC" is dis­played while the CD mode is activated, you will
find there is not CD in the compartment.)

¡Loading a CD when the power is off will turn

the power on.

Track Selection

[[] (TRACK) : Next track
[]] (TRACK) : Beginning of the current track

Previous track (Press twice.)

Track Search

Press and hold.

[[] (TRACK) : Fast forward
[]] (TRACK) : Fast backward

CD Player

Label Side

Disc Eject

Press [u] to stop playback and eject the CD.

Cautions:

¡Do not use irregularly shaped CDs.
¡Do not insert foreign matter into the disc slots.

[MODE]

[]][[] (TRACK)

[]][[] (TRACK)

[MODE]

Notes :

¡You can play a CD even if the monitor is closed.
¡If you leave a CD at the CD slot for approximately 30 seconds, the CD is loaded into the compartment automatically

after loud beep is energized three times.

Track Number

Play Time

Mode Display

Number of Track

The monitor shows
“Over B” when the
number of tracks is
21 or more.

[u] (Eject)

When CD is in the player

Press [MODE] to change to CD player mode and
playback starts.

17

CA-TU7000U

8

E
N
G
L

I
S
H

Various Way of Listening

(Only on the remote control)

Repeat Play

Repeat the current selection.

Press [6] (REPEAT) again to cancel.

Random Play

All the available tracks are
played in a random sequence.

Press [4] (RANDOM) again to cancel.

Scan Play

The first 10 seconds of each
track plays in sequence.

Press [5] (SCAN) again to cancel.

Press [4] (RANDOM)

Press [5] (SCAN)

Press [6] (REPEAT)

With the scanning of all tracks
over, the original program starts
playing from the beginning.

1

2

3

4

5

6

7

8

9

0

4

1

2

3

4

5

6

7

8

9

0

5

1

2

3

4

5

6

7

8

9

0

6

1

2

3

4

5

6

7

8

9

A

0

1

2

3

4

5

6

VOLUME

MENUMUTE MODE NAVI

NAVIGATION ASPECT

P·MODEPOWER

ASP

ENTER

CY-VMC7000U

IN-DASH 7 WIDE COLOR LCD MONITOR / CD PLAYER

DISC/BAND

TRACK/
YUNE

MODE

ENTER

18

CA-TU7000U

9

E
N
G
L

I
S
H

Tuning

[[] (TUNE) : Up
[]] (TUNE) : Down

Press and hold [[] (TUNE) or []] (TUNE) for
more than 0.5 seconds, then release. Seeking will
start.

Radio

[MODE]

[]][[] (TUNE)

[]][[] (TUNE)

[MODE]

Stereo Indicator

Mode Display

Preset Memory

Radio Mode

Press [MODE] to change to radio mode.

Band

[}] (BAND) : FM band
[{] (BAND) : AM band

Band

[}][{] (BAND)

[}][{] (BAND)

Note: The stereo indicator lights during reception of an FM stereo broadcast.

1

2

3

[ENTER]

[ENTER]

Frequency

[1] to [6]
(Preset memory)

19

CA-TU7000U

10

E
N
G
L

I
S
H

One-touch selection of a station

Up to 6 stations each can be saved in the FM1, FM2, AM1 and AM2 preset station memories.

Manual Preset
Memory

Manually save a station in
the preset memory

Select a band and frequency (step q, w and e on the previous page)

Press and hold [1] to [6] on the remote control for more than 2 seconds.

The frequency blinks once, and
a receiving station is saved in
the memory.

Auto Preset
Memory

Automatically save strong
stations in the preset
memory

Select a band (step q, w on the previous page)

Press and hold [ENTER] for more than 2 seconds.

Preset Station
Calling

Select a band (step q, w on the previous page)

Press [1] to [6] on the remote control.

Note: New stations are overwritten on existing saved stations after following this procedure.

¡The 6 strongest available stations will be automatically saved in the memory

under preset numbers 1

to 6.

¡Once set, the preset stations are sequentially scanned for 5 seconds each.
¡To stop the scanning, press [1] to [6] on the remote control.

1

2

3

4

5

6

7

8

9

A

0

VOLUME

MENUMUTE MODE NAVI

NAVIGATION ASPECT

P·MODEPOWER

ASP

ENTER

CY-VMC7000U

IN-DASH 7 WIDE COLOR LCD MONITOR / CD PLAYER

DISC/BAND

TRACK/
YUNE

MODE

ENTER

20

CA-TU7000U

11

E
N
G
L

I
S
H

Track Selection

[[] (TRACK) : Next track
[]] (TRACK) : Beginning of the current track

Previous track (Press twice.)

Track Search

Press and hold.

[[] (TRACK) : Fast forward
[]] (TRACK) : Fast backward

CD Changer

Caution: Do not use irregularly shaped CDs.

[MODE]

[]][[] (TRACK)

[]][[] (TRACK)

[MODE]

Track Number

Play Time

Mode Display

Number of Track
The monitor shows
“OVER B” when the
number of tracks is
21 or more.

CD Changer Mode

Press [MODE] to change to CD changer mode
and playback starts.

Disc Selection

[}] (DISC) : Next disc
[{] (DISC) : Previous disc

Note: Load a magazine with CDs when "NO MAG-

AZINE" is displayed.

CD changer functions are designed for optional
Panasonic CD changer unit.
Connect the CD changer, and load a magazine.

Disc Number

[}][{] (DISC)

[}][{] (DISC)

Number of Disc

21

CA-TU7000U

12

E
N
G
L

I
S
H

Various Way of Listening

(Only on the remote control)

Track Random

All the available tracks on all
discs in the magazine are
played in a random sequence.

Press [4] (RANDOM) again to cancel.

Press [4] (RANDOM).

Press [5] (SCAN)

With the scanning of all tracks over,
the original program starts playing
from the beginning.

1

2

3

4

5

6

7

8

9

0

4

Disc Random

All the available tracks on cur­rent disc are played in a ran­dom sequence.

Press and hold [4] (RANDOM) for
more than 2 seconds.

Press and hold [4] (RANDOM) again
to cancel.

Track Scan

The first 10 seconds of each
track on the discs plays in
sequence.

Press [5] (SCAN) again to cancel.

Disc Scan

The first track of all the discs
in the magazine is played for
10 seconds each.

Press and hold [5] (SCAN)
for more than 2 seconds.

Press and hold [5] (SCAN) again to
cancel.

Track Repeat

Repeat the current selection.

Press [6] (REPEAT) again to cancel.

Press [6] (REPEAT)

Disc Repeat

Repeat the current disc
selection.

Press and hold [6] (REPEAT)
for more than 2 seconds.

Press and hold [6] (REPEAT) again to
cancel.

With the scanning of all tracks over,
the original disc starts playing from
the beginning.

1

2

3

4

5

6

7

8

9

0

5

1

2

3

4

5

6

7

8

9

0

6

1

2

3

4

5

6

7

8

9

A

0

VOLUME

MENUMUTE MODE NAVI

NAVIGATION ASPECT

P·MODEPOWER

ASP

ENTER

CY-VMC7000U

IN-DASH 7 WIDE COLOR LCD MONITOR / CD PLAYER

DISC/BAND

TRACK/
YUNE

MODE NAVI

22

CA-TU7000U

13

E
N
G
L

I
S
H

Picture/Sound from Auxiliary Devices

Car Navigation

Preparation:

¡Connect a car navigation system.
¡Select a terminal in the "NAVIGATION SET

UP" screen according to the terminal actu­ally connected to the car navigation sys­tem.(a page 30)

DVD Player

Preparation: Connect a DVD player. (a
page 50)

[MODE]

[NAVI] (NAVIGATION)

[MODE]

[NAVI] (NAVIGATION)

23

CA-TU7000U

14

E
N
G
L

I
S
H

When you connect a car navigation system through
RGB cord [Panasonic Car Navigation (not available
yet) ] :

Car Navigation ON : Press [NAVI] (NAVIGATION).
Car Navigation OFF : Press [NAVI] (NAVIGATION) again.

When you connect a car navigation system to VTR1­IN or VTR2-IN terminal (other brand’s car navigation
system):

Car Navigation ON : Press [NAVI] (NAVIGATION).
Car Navigation OFF : Press [NAVI] (NAVIGATION) again.

Or press [MODE] to change to the VTR1 or VTR2 mode.

Select the same mode (VTR1 or VTR2) as the terminal that con­nected to a car navigation system (VTR1-IN or VTR2-IN).

DVD video/audio
output

RGB: car navigation

RGB input cord

VTR1-IN

VTR2-IN

Panasonic Car
Navigation System

(Example)

This Unit with
CY-VMC7000U
Control Unit

CY-VMC7000U
Display Unit

Press [MODE] to change to the VTR1 or VTR2 mode.

Select the same mode (VTR1 or VTR2) as the terminal that is
connected to a DVD video player (VTR1-IN or VTR2-IN).

Note: When you connect a Panasonic mobile DVD player (CX­DV700U or CX-DV1500EUC), you can operate it by aiming a
remote control, that is supplied with the DVD player, at the
remote control sensor of the display unit.
Be sure to connect a remote control signal receiver cord.
(a page 51)

This Unit with
CY-VMC7000U
Control Unit

VTR1-IN

VTR2-IN

Panasonic DVD
Player (CX-DV700U)

(Example)

Notes:

¡When you connect a Panasonic car navigation system with a

built-in DVD player, use an RCA cord as well.

¡The sound that a Panasonic car navigation system generates

comes from the speakers supplied with CY-VMC7000U.

Other brand’s car
navigation system

This Unit with
CY-VMC7000U
Control Unit

VTR1-IN

VTR2-IN

(Example)

1

2

3

4

5

6

7

8

9

A

0

VOLUME

MENUMUTE MODE NAVI

NAVIGATION ASPECT

P·MODEPOWER

ASP

ENTER

CY-VMC7000U

IN-DASH 7 WIDE COLOR LCD MONITOR / CD PLAYER

DISC/BAND

TRACK/
YUNE

MENU MODE

ENTER

15

E
N
G
L

I
S
H

CA-TU7000U

Picture/Sound from Auxiliary Devices

(continued)

Rear Seat Monitor

You can have different picture and sound at
the front monitor and rear monitor at the
same time.

Default : AUTO

Preparation: Connect another monitor. (a
Operating Instructions for CY-VMC7000U
page 44)

24

VCR / Camcorder

Preparation: Connect a VCR or Camcorder.

(a Operating Instructions for CY-VMC7000U
page 46)

Rear View Camera

Preparation:

¡Connect a rear view camera and a reverse

lead. (a Operating Instructions for CY­VMC7000U page 47)

¡Select a terminal in the "CAMERA IN" screen

according to the terminal actually connected
to the rear view camera.(a page 32)

[MODE]

[]][[] (Select)

[MODE]

[ENTER]

[MENU]

[MENU]

[]] [[] (Select)
[ENTER]

25

CA-TU7000U

16

E
N
G
L

I
S
H

Notes:

¡Press [MENU] or [MODE] to return to the regular mode.
¡The display returns to the previous one if there is no operation for 60 seconds, after changing to the rear monitor

setting menu.

¡Picture and sound from the car navigation system connected to an RGB are not available at the rear monitor.
¡The sound in the CD, radio and CD changer modes is not available at the rear seat monitor.
¡You can mute the sound from the rear speakers connected to the front seat monitor, so that you can have differ-

ent modes at the front seat monitor and the rear seat monitor. (a page 28)

2

1

Press and hold [MENU] for more than 2 seconds.

Press [[] or []] to select an item.

Press [ENTER] to set.

3

: Picture and sound come out. These are in the

same mode as the front seat monitor.

: Picture and sound in the VTR1 mode always

come out.

: Picture and sound in the VTR2 mode always

come out.

VTR2

VTR1

AUTO

Rear Monitor Setting Menu

Shift the transmission gear into the reverse position.

The display shows a picture from the rear view camera.

Notes:

¡You can see a picture from the rear view camera even if the

power of the display unit is inactivated.

¡You can see a picture from the rear view camera if you change

the mode to the same one (VTR1 or VTR2) as the terminal to
which the rear view camera was connected (VTR1-IN or VTR2­IN).

Press [MODE] to change to the VTR1 or VTR2 mode.

Select the same mode (VTR1 or VTR2) as the terminal that is
connected to a VCR or Camcorder (VTR1-IN or VTR2-IN).

Rear View Camera

This Unit with
CY-VMC7000U
Control Unit

VTR1-IN

VTR2-IN

(Example)

This Unit with
CY-VMC7000U
Control Unit

VTR1-IN VTR2-IN

Camcorder

VCR

INTELLIGENT SYSTEM

BS G-CODE

POWER

(Example)

Rear Seat
Monitor

This Unit with
CY-VMC7000U
Control Unit

VIDEO-OUT

(Example)

1

2

3

4

5

6

7

8

9

A

0

A

VOLUME

MENUMUTE MODE NAVI

NAVIGATION ASPECT

P·MODEPOWER

ASP

ENTER

CY-VMC7000U

IN-DASH 7 WIDE COLOR LCD MONITOR / CD PLAYER

DISC/BAND

TRACK/
YUNE

ASP

26

CA-TU7000U

17

E
N
G
L

I
S
H

Useful Functions

Aspect Ratio
(for VTR Mode)

Default : Normal
Mode: 4 types

[ASP] (ASPECT)

[A] (ASPECT)

27

CA-TU7000U

18

E
N
G
L

I
S
H

Notes:

¡This adjustment is common to VTR1 and VTR2.
¡You can not change the aspect in the menu screen and a screen in the CD mode. These are fixed to “Full”.
¡The “Zoom” and “Just” screens do not apply to car navigation images.
¡When the rear view camera is in operation with the transmission gear shift in the reverse position, the image is

shown on the “Full” screen only.

¡In some cases, the picture looks different from the original one due to your selection of aspect.

Press [ASP] (ASPECT) on the display unit or press [A] (ASPECT) on the remote control to change the aspect
ratio as follows.

Normal

¡The conventional display image has a 4 to 3 ratio of horizontal to

vertical.

¡In this case, a blank area remains on the right and left sides of the

display.

Full

¡The screen is extended horizontally as a whole to the aspect ratio

of 16 to 9.

¡The extension ratio is the same at any point of the screen.

Zoom

¡The screen is fully extended at the normal aspect ratio of 4 to 3.
¡The top and bottom of the screen are slightly cut.

Just

¡The screen is extended horizontally to the aspect ratio of 16 to 9.
¡The extension ratio increases toward the right and left ends of the

screen.

Cautions:

¡This is to remind you that compression or extension of the screen using the aspect ratio (screen mode) chang-

ing function of this product for commercial purpose of profit making or viewing / listening by the public could
infringe on the rights of the author protected by the copyright law.

¡If you expand normal picture (4 to 3) by using “Just”, “Zoom” or “Full” aspect to the full of the screen, you

might not see the periphery of the picture, or you might see deformed picture. Therefore, use the “Normal”
mode when you see original picture in deference to picture-making purpose.

1

2

3

4

5

6

7

8

9

A

0

A

VOLUME

MENUMUTE MODE NAVI

NAVIGATION ASPECT

P·MODEPOWER

ASP

ENTER

CY-VMC7000U

IN-DASH 7 WIDE COLOR LCD MONITOR / CD PLAYER

DISC/BAND

TRACK/
YUNE

MUTE ASP

28

CA-TU7000U

19

E
N
G
L

I
S
H

Useful Functions (continued)

[ASP] (P • MODE)

[A] (P • MODE)

Tone Enhancement
(LOUD)

Default : ON

[MUTE]

[MUTE]

Private Mode

Default : OFF

29

CA-TU7000U

20

E
N
G
L

I
S
H

Private Mode ON : Press and hold [ASP] (P • MODE) for more than 2 seconds. (On the display unit)

Press and hold [A] (P • MODE) for more than 2 seconds. (On the remote control)

Private Mode OFF : Press and hold [ASP] (P • MODE) again for more than 2 seconds. (On the display unit)

Press and hold [A] (P • MODE) again for more than 2 seconds. (On the remote control)

LOUD ON : Press and hold [MUTE] for more than 2 seconds.
LOUD OFF : Press and hold [MUTE] again for more than 2 seconds.

When listening at low or medium volume, enhance bass and trebles tones.

You can mute the sound from the rear speakers con­nected to the front seat monitor, when you have differ­ent modes at the front seat monitor and the rear seat
monitor, after connecting the rear seat monitor.

You can enjoy the sound from the rear seat monitor by
using headphones.

“P • MODE” indicator
lights when the Private
Mode is activated.

Notes:

¡It is not possible to choose and set the BAL/FAD from the SOUND menu while Private Mode is activated.
¡When MAIN-IN is set to ON, Private Mode will be inactivated.

VOLUME

MENUMUTE MODE NAVI

NAVIGATION ASPECT

P·MODEPOWER

ASP

ENTER

CY-VMC7000U

IN-DASH 7 WIDE COLOR LCD MONITOR / CD PLAYER

DISC/BAND

TRACK/
YUNE

ENTER

VOLUME

MENUMUTE MODE NAVI

NAVIGATION ASPECT

P·MODEPOWER

ASP

ENTER

CY-VMC7000U

IN-DASH 7 WIDE COLOR LCD MONITOR / CD PLAYER

DISC/BAND

TRACK/
YUNE

MENU MODE

30

CA-TU7000U

21

E
N
G
L

I
S
H

User Setting

Monitor Position

Default : TILT...3

SLIDE...Front

Setting range : TILT...1 to 5

SLIDE...Front, Rear

Navigation Set Up

Default : Navigation input ... RGB

Navigation volume ... 4
Navigation mute level ... –10 dB

Note: You can set the Navigation volume and
Navigation mute level when "RGB" is selected
on Navigation input.

USER

TILT / SLIDE

NAVI SETUP

1 2

Press [MENU] to display the main menu.

q

Press [[] or []] to select "USER".
Press

[}] or [{] to select an item.

w Press [ENTER] to set.

Select

Select

Select

[}] [{]
[]] [[]

(Select)

[ENTER]

[MODE] [MENU]

31

CA-TU7000U

22

E
N
G
L

I
S
H

Notes:

¡Press [MODE] to return to the regular mode.
¡The display returns to the previous one if there is no

operation for more than 60 seconds after changing
to the setting / adjusting menu.

3

q Press [[], []], [}] or [{] to select and

adjust.

w Press [ENTER] to set. (for NAVI SET UP)

The monitor position setting menu can also be displayed by pressing the [TILT] button on the display unit
for more than 1 second. (For details, refer to page 15.)

Notes:

¡For smooth adjustment, make sure to first return the lateral

angle to the neutral position and then adjust the tilt angle.

¡Front-rear position "REAR" and tilt angle "5" cannot be selected at the same time.

Tilting angle adjustment :

Front-rear position :

REARFRONT

54321

Navigation Input

: Connected to the RGB input cord, or a car navigation system not connected

: Connected to the VTR1-IN

: Connected to the VTR2-IN

VTR2

VTR1

RGB

NAVI IN

Navigation Volume

: The sound that a Panasonic car navigation system (not available yet) generates does not come out.

: Volume level

54321

0

NAVI VOLUME

Navigation Mute Level

Select the mute level of this unit during the voice
guidance from the Panasonic car navigation system
(not available yet).

Preparation : Connect the navi mute cord.

NAVI MUTE(dB)

: Unchanged

: Decrease to 1/3

: Decrease to 1/10

: No sound

–

∞

–20

–10

0

[}] [{]
[]] [[]

(Select and Adjust)

[ENTER]

[}] [{]
[]] [[]

(Select and Adjust)

[ENTER]

[MODE]

[MENU]

low high

Tilt Angle

1 to 5

[{][}]

Front-Rear Position

Front Rear

[]][[]

VOLUME

IN-DASH 7 WIDE COLOR LCD MONITOR / CD PLAYER

MENUMUTE MODE NAVI

CY-VMC7000U

NAVIGATION ASPECT

DISC/BAND

TRACK/

ENTER

ENTER

ASP

P·MODEPOWER

YUNE

3

2

1

6

5

4

8

7

0

A

9

VOLUME

MENUMUTE MODE NAVI

NAVIGATION ASPECT

P·MODEPOWER

ASP

ENTER

CY-VMC7000U

IN-DASH 7 WIDE COLOR LCD MONITOR / CD PLAYER

DISC/BAND

TRACK/
YUNE

ENTER

VOLUME

MENUMUTE MODE NAVI

NAVIGATION ASPECT

P·MODEPOWER

ASP

ENTER

CY-VMC7000U

IN-DASH 7 WIDE COLOR LCD MONITOR / CD PLAYER

DISC/BAND

TRACK/
YUNE

MENU MODE

32

CA-TU7000U

23

E
N
G
L

I
S
H

User Settings (continued)

Clock Setting

Default : Clock display...OFF

USER

CLOCK

Rear View Camera
Set Up

Default : OFF

CAMERA IN

Select

Select

Select

1 2

Press [MENU] to display the main menu.

q

Press [[] or []] to select "USER".
Press

[}] or [{] to select an item.

w Press [ENTER] to set.

[}] [{]
[]] [[]

(Select)

[ENTER]

[MODE] [MENU]

VOLUME

MENUMUTE MODE NAVI

NAVIGATION ASPECT

P·MODEPOWER

ASP

ENTER

CY-VMC7000U

IN-DASH 7 WIDE COLOR LCD MONITOR / CD PLAYER

DISC/BAND

TRACK/
YUNE

ENTER

33

CA-TU7000U

24

E
N
G
L

I
S
H

Clock Display

: Clock display OFF

: Clock display ON ([12:00] is displayed before adjusting

the clock.)

ON

OFF

DISPLAY

Clock Adjustment

Adjust the time (12-hour system).

Press []] to adjust the hour.
Press [[] to adjust the minute.
Hold []] or [[] to change numbers rapidly.

ADJUST

Clock Re-adjustment

Reset the clock to zero seconds.

The clock display blinks once and clock starts.

SEC RESET

: Unconnected

: Connected to the VTR1-IN

: Connected to the VTR2-IN

VTR2

VTR1

OFF

Notes:

¡Press [MODE] to return to the regular mode.
¡The display returns to the previous one if there is no

operation for more than 60 seconds after changing
to the setting / adjusting menu.

3

q Press [[], []], [}] or [{] to select

and adjust.

w Press [ENTER] to set.

[}] [{]
[]] [[]

(Select and Adjust)

[ENTER]

1

2

3

4

5

6

7

8

9

A

0

[}] [{]
[]] [[]

(Select and Adjust)

[ENTER]

[MODE]

[MENU]

Notes:

¡Make sure to select “OFF” when no rear view cam-

era is connected.

¡In case using an optional rear view camera, the

reverse lead must be connected.

Clock Display

blinks once

[[] minute
advance

[]] hour

advance

VOLUME

MENUMUTE MODE NAVI

NAVIGATION ASPECT

P·MODEPOWER

ASP

ENTER

CY-VMC7000U

IN-DASH 7 WIDE COLOR LCD MONITOR / CD PLAYER

DISC/BAND

TRACK/
YUNE

ENTER

VOLUME

MENUMUTE MODE NAVI

NAVIGATION ASPECT

P·MODEPOWER

ASP

ENTER

CY-VMC7000U

IN-DASH 7 WIDE COLOR LCD MONITOR / CD PLAYER

DISC/BAND

TRACK/
YUNE

MENU MODE

34

CA-TU7000U

25

E
N
G
L

I
S
H

User Settings (continued)

ID Code setting

Prior to operating this unit, it is advisable to
assign your 4-digit ID code for security.
(Make sure to use four digits for ID code. ID
code can not be set with two or three digits.)
Once the ID code has been set, the unit can­not be operated if the main power supply is
disconnected then re-connected. It is elec­tronically locked so that a thief could not use
the stolen unit unless that person knows the
code you have set.
The ID code operation must be performed
only by the person whom the unit belongs to.

Generally, it is not necessary to enter the ID
code each time when using the unit if it has
never been disconnected from the main
power supply (car battery).

USER

ID-CODE

Caution: Record your registered ID code
and keep it in a secure location. If you forget
it, you will be unable to use the unit. In case
that you can not operate the unit because of
forgetting the ID code, please consult your
nearest Panasonic Servicenter.

Select

Select

1 2

Press [MENU] to display the main menu.

q

Press [[] or []] to select "USER".
Press

[}] or [{] to select an item.

w Press [ENTER] to set.

[}] [{]
[]] [[]

(Select)

[ENTER]

[MODE] [MENU]

Note: Refer to ID Code Input regarding how to

enter the ID code (a page 11).

1

2

3

4

5

6

7

8

9

A

0

1

2

3

4

5

6

7

8

9

0

[}] [{]
[]] [[]

(Select)

[ENTER]

[MODE]

[MENU]

VOLUME

MENUMUTE MODE NAVI

NAVIGATION ASPECT

P·MODEPOWER

ASP

ENTER

CY-VMC7000U

IN-DASH 7 WIDE COLOR LCD MONITOR / CD PLAYER

DISC/BAND

TRACK/
YUNE

ENTER

35

CA-TU7000U

26

E
N
G
L

I
S
H

How to Set Your ID Code (For the First Time)

q

Enter an ID code of 4 digits using the buttons [0] to

[9] on the remote control.

Note: When you are setting your ID code for the

first time, it is not necessary to enter the old ID code.

w

Enter the ID code of 4 digits again using the buttons

[0] to [9] on the remote control.

How to Change Your ID Code

q

Enter the preset (old) ID code of 4 digits using the
buttons

[0] to [9] on the remote control. If the

wrong ID code is entered, a new ID code cannot be
registered.

w Enter a new ID code of 4 digits using the buttons [0]

to [9] on the remote control.

e Enter the new ID code of 4 digits again using the

buttons

[0] to [9] on the remote control.

How to Cancel the Known ID Code

Note: Should your unit ever require service, cancel your
ID code before sending for repair.

How to Cancel the Known ID Code

q

Enter the preset (old) ID code of 4 digits using the
buttons

[0] to [9] on the remote control. If the

wrong ID code is entered, it is not possible to cancel
the ID code function.

w Press and hold [ENTER] until display the

"Complete!".

The ID code cancelling procedure is completed. The unit now works without an ID code.

Note: Press [MODE] to return to the regular mode.

3

Enter an ID code by using the remote control.

[ENTER]

[0]

to [9]

(ID code input)

36

CA-TU7000U

27

E
N
G
L

I
S
H

User Settings (continued)

Button Operation Sound

Default : ON

Main Input

This setting is required when you connect a
Panasonic digital surround processor (CY­AC300).

Default : OFF

etc

Video Control Setting

This “Video Control Setting” is required when
you connect a Panasonic car navigation sys­tem with a built-in DVD player. (not available
yet)

Default : VTR1

USER

Select

Select

MAIN – IN

Select

1 2

Press [MENU] to display the main menu.

q

Press [[] or []] to select "USER".
Press

[}] or [{] to select an item.

w Press [ENTER] to set.

[}] [{]
[]] [[]

(Select)

[ENTER]

[MODE] [MENU]

MENUMUTE MODE NAVI

MENU MODE

CY-VMC7000U

NAVIGATION ASPECT

ASP

P·MODEPOWER

ENTER

IN-DASH 7 WIDE COLOR LCD MONITOR / CD PLAYER

VOLUME

DISC/BAND

ENTER

ENTER

TRACK/
YUNE

DISC/BAND

TRACK/
YUNE

VOLUME

IN-DASH 7 WIDE COLOR LCD MONITOR / CD PLAYER

MENUMUTE MODE NAVI

CY-VMC7000U

NAVIGATION ASPECT

ASP

P·MODEPOWER

37

CA-TU7000U

28

E
N
G
L

I
S
H

Beep Setting

: Operation sound (Beep) OFF

: Operation sound (Beep) ON

ON

OFF

BEEP

: No use of MAIN-IN (front/rear) terminal

: Use of MAIN-IN (front/rear) terminal

Note : Be sure to select “OFF” when you do not connect a digital surround processor (CY-AC300). If you select “ON”,
sound does not come from the speakers.

ON

OFF

Video Control Setting

: Connected to the VTR1-IN

: Connected to the VTR2-IN

VTR2

VTR1

VIDEO-CONT

Note: Select a terminal connected to the DVD output terminal of a Panasonic car navigation system with a
built-in DVD player (not available yet) through an RCA cord.

Notes:

¡Press [MODE] to return to the regular mode.
¡The display returns to the previous one if there is no

operation for more than 60 seconds after changing
to the setting / adjusting menu.

3

q Press [[], []], [}] or [{] to select.
w Press [ENTER] to set.

[}] [{]
[]] [[]

(Select)

[ENTER]

1

2

3

4

5

6

7

8

9

A

0

[}] [{]
[]] [[]

(Select)

[ENTER]

[MODE]

[MENU]

Note: The loud beep is energized when

opening or closing the display unit even
if you select OFF for the beep setting.

MENUMUTE MODE NAVI

CY-VMC7000U

NAVIGATION ASPECT

DISC/BAND

TRACK/

ENTER

ENTER

ASP

P·MODEPOWER

YUNE

IN-DASH 7 WIDE COLOR LCD MONITOR / CD PLAYER

VOLUME

VOLUME

MENUMUTE MODE NAVI

NAVIGATION ASPECT

P·MODEPOWER

ASP

ENTER

CY-VMC7000U

IN-DASH 7 WIDE COLOR LCD MONITOR / CD PLAYER

DISC/BAND

TRACK/
YUNE

ENTER

VOLUME

MENUMUTE MODE NAVI

NAVIGATION ASPECT

P·MODEPOWER

ASP

ENTER

CY-VMC7000U

IN-DASH 7 WIDE COLOR LCD MONITOR / CD PLAYER

DISC/BAND

TRACK/
YUNE

MENU MODE

38

CA-TU7000U

29

E
N
G
L

I
S
H

Display Settings

SCREEN

DIMMER

Dimmer

Default : AUTO

CONTRAST

Contrast

Default : ± 0
Setting range : - 15 to + 15

BRIGHT

Brightness

Default : ± 0
Setting range : - 15 to + 15

COLOR

Color

Default : ± 0
Setting range : - 15 to + 15

TINT

Tint

Default : ± 0
Setting range : - 15 to + 15

Select

Select

Select

Select

Select

Select

1 2

Press [MENU] to display the main menu.

q

Press [[] or []] to select "SCREEN".
Press

[}] or [{] to select an item.

w Press [ENTER] to set.

[}] [{]
[]] [[]

(Select)

[ENTER]

[MODE] [MENU]

VOLUME

MENUMUTE MODE NAVI

NAVIGATION ASPECT

P·MODEPOWER

ASP

ENTER

CY-VMC7000U

IN-DASH 7 WIDE COLOR LCD MONITOR / CD PLAYER

DISC/BAND

TRACK/
YUNE

ENTER

39

CA-TU7000U

30

E
N
G
L

I
S
H

: Automatically adjusted according to ambient light intensity.

: Darker (1) to Brighter (4)

Press [ENTER] to set.

4321

AUTO

Increase the contrast
between black and white.

Decrease the contrast
between black and white.

Darken

Lighten

Deepen the depth of
color on the display

Lighten the depth of
color on the display

Emphasize green in
the color image

Emphasize red in
the color image

Notes:

¡Press [MODE] to return to the regular mode.
¡The display returns to the previous one if there is no

operation for more than 60 seconds after changing
to the setting / adjusting menu.

3

Press [[] or []] to select and adjust.

[]] [[]

(Select and Adjust)

[ENTER]

1

2

3

4

5

6

7

8

9

A

0

[}] [{]
[]] [[]

(Select and Adjust)

[ENTER]

[MODE]

[MENU]

VOLUME

MENUMUTE MODE NAVI

NAVIGATION ASPECT

P·MODEPOWER

ASP

ENTER

CY-VMC7000U

IN-DASH 7 WIDE COLOR LCD MONITOR / CD PLAYER

DISC/BAND

TRACK/
YUNE

ENTER

VOLUME

MENUMUTE MODE NAVI

NAVIGATION ASPECT

P·MODEPOWER

ASP

ENTER

CY-VMC7000U

IN-DASH 7 WIDE COLOR LCD MONITOR / CD PLAYER

DISC/BAND

TRACK/
YUNE

MENU MODE

40

CA-TU7000U

31

E
N
G
L

I
S
H

Sound Settings

SOUND

TONE

Bass / Treble

Default : ± 0 dB
Setting range : - 12 dB to + 12 dB by 2 dB step

BAL/FAD

Balance / Fader

Default : Center
Setting range :15 levels for each

Select

Select

Select

1 2

Press [MENU] to display the main menu.

q

Press [[] or []] to select "SOUND".
Press

[}] or [{] to select an item.

w Press [ENTER] to set.

[}] [{]
[]] [[]

(Select)

[ENTER]

[MODE] [MENU]

VOLUME

MENUMUTE MODE NAVI

NAVIGATION ASPECT

P·MODEPOWER

ASP

ENTER

CY-VMC7000U

IN-DASH 7 WIDE COLOR LCD MONITOR / CD PLAYER

DISC/BAND

TRACK/
YUNE

ENTER

41

CA-TU7000U

32

E
N
G
L

I
S
H

Increase the bass level

Decrease the bass level.

Notes:

¡Press [MODE] to return to the regular mode.
¡The display returns to the previous one if there is no

operation for more than 60 seconds after changing
to the setting / adjusting menu.

3

Press [[], []], [}] or [{] to select and
adjust.

Bass Adjustment

BASS

Bass Adjustment

TREBLE

Increase the treble level

Decrease the treble level

[}] [{]
[]] [[]

(Select and Adjust)

Front enhanced

Rear enhanced

Fader

FADER

Balance

BALANCE

Right enhanced

Left enhanced

1

2

3

4

5

6

7

8

9

A

0

[}] [{]
[]] [[]

(Select and Adjust)

[ENTER]

[MODE]

[MENU]

QtyDiagramItemNo.

42

CA-TU7000U

33

E
N
G
L

I
S
H

Installation Guide

WARNING

This installation information is designed for experienced installers
and is not intended for non-technical individuals. It does not contain
warnings or cautions of potential dangers involved in attempting to
install this product.

Any attempt to install this product in a motor car by anyone other
than qualified installer could cause damage to the electrical system
and could result in serious personal injury or death.

❏ Overview

This product should be installed by a professional.
However, if you plan to install this product yourself,
your first step is to decide where to install it. The
instructions in these pages will guide you through
the remaining steps: (Please refer to the “WARN-
ING” statement above).

¡Identify and label the car wires.
¡Connect the car wires to the wires of the power

connector.

¡Install the unit.
¡Check the operation of the unit.

If you encounter problems, please consult your
nearest professional installer.

Caution: This unit operates with a 12 volt DC nega­tive ground auto battery system only. Do not attempt
to use it in any other system. Doing so could cause
serious damage.

Before you begin installation, look for the items on
the right which are packed with your unit.

¡Warranty Card …… Fill this out promptly.
¡Panasonic Servicenter for Service Directory

…… Keep for future reference in case the product
needs servicing.

¡Installation Hardware …… Needed for installa-

tion

❏ Installation Hardware

Mounting Bracket

Velcro Tape

Tapping Screw
(M6 x 20 mm)

Binding-Head Screw
(M3 x 6 mm)

i

q

2

w

Binding-Head Screw
(M5 x 8 mm)

4

e

4

r

Hex. Nut (M5) 4

t

2

y

Base Bracket 2

2

o

Power Connector 1

!0

Ground Lead 1

!1

Radio Antenna Extension
Cord

1

u

Double-Faced Adhesive
Tape

2

43

CA-TU7000U

34

E
N
G
L

I
S
H

❏ Before Installation

Warning

¡Do not install the monitor in a location which

obstructs driving, visibility or which is prohibited
by applicable laws and regulations. If the monitor
is installed in a location which obstructs forward
visibility or operation of the air bag or other safety
equipment or which interferes with operation of
the vehicle, it may cause an accident.

¡Never use bolts or nuts from the vehicle's safety

devices for installation. If bolts or nuts from the
wheel, brakes or other safety devices are used for
installation of the monitor, it may cause an acci­dent.

¡Attach the wires correctly. If the wiring is not cor-

rectly performed, it may cause a fire or an acci­dent. In particular, be sure to run and secure the
lead wire so that it does not get tangled with a
screw or the moving portion of a seat rail.

¡Use with 12 volt DC negative ground vehicle. This

unit is only for use with a 12 volt DC negative
ground vehicle. It cannot be used in large trucks
or diesel vehicles which are 24 volt DC vehicle. If
it is used in the wrong type of vehicles, it may
cause a fire or an accident.

Caution

¡Use the specified fuse. Be sure to always use the

specified fuse. If a fuse other than the specified
fuse is used, it may cause a fire or an accident.

¡Do not damage the cord by pinching or pulling it.

Do not pull or damage the cord. If the cord is not
treated properly, it will short out or be severed and
may cause a fire or an accident.

❏ Required Tools

You’ll need a screwdriver, a 1.5 volt AA battery, and
the following:

12 V DC

Test Bulb

Electrical

Tape

Side-Cut

Pliers

❏ Identify All Leads

The first step in installation is to identify all the car
wires you’ll use when hooking up your sound sys­tem.
As you identify each wire, we suggest that you label
it using masking tape and a permanent marker. This
will help avoid confusion when making connections
later.

Note: Do not connect the power connector to the
stereo unit until you have made all connections. If
there are no plastic caps on the stereo hooking
wires, insulate all exposed leads with electrical tape
until you are ready to use them. Identify the leads in
the following order.

Power Lead

If your car has a radio or is pre-wired for one :
Cut the connector wires one at a time from the plug
(leaving the leads as long as possible) so that you
can work with individual leads.Turn the ignition on to
the accessory position, and ground one lead of the
test bulb to the chassis.

Touch the other lead of the test bulb to each of the
exposed wires from the cut radio connector plug.
Touch one wire at a time until you find the outlet that
causes the test bulb to light.

Now turn the ignition off and then on. If the bulb also
turns off and on, that outlet is the car power lead.

If your car is not wired for an audio unit :
Go to the fuse block and find the fuse port for radio
(RADIO), accessory (ACC), or ignition (IGN).

Battery Lead

If your stereo unit has a yellow lead, you will need to

44

CA-TU7000U

35

E
N
G
L

I
S
H

Installation Guide (continued)

locate the car's battery lead. Otherwise you may
ignore this procedure. (The yellow battery lead pro­vides continuous power to maintain a clock, memory
storage, or other functions.)

If your car has a radio or is pre-wired for one:
With the ignition and headlights off, identify the car
battery lead by grounding one lead of the test bulb
to the chassis and checking the remaining exposed
wires from the cut radio connector plug.

If your car is not wired for an audio unit :
Go to the fuse block and find the fuse port for the
battery, usually marked BAT.

Speakers

Identify the car speaker leads. There will be two
leads for each speaker, usually color coded.
A handy way to identify the speaker leads and the
speaker they connect with is to test the leads using
a 1.5 V AA battery as follows.
Hold one lead against one pole of the battery and
stroke the other lead across the other pole. You will
hear a scraping sound in a speaker if you are hold­ing a speaker lead.
If not, keep testing different lead combinations until
you have located all the speaker leads. When you
label them, include the speaker location for each.

❏ Connect All Leads

Now that you have identified all the wires in the
car, you're ready to begin connecting them to the
stereo unit wires. The connection diagram (B
Page 48) shows the proper connections and color
coding of the leads.
We strongly recommend that you test the unit
before making a final installation.
You can set the unit on the floor and make tempo­rary connections to test the unit. Use electrical
tape to cover all exposed wires.

Important: Connect the red power lead last, after
you have made and insulated all other connec­tions.

Ground

Connect the black ground lead of the power con­nector to the metal car chassis.

Speakers

Connect the speaker wires. See the wiring dia­gram for the proper hookups. Follow the diagram

carefully to avoid damaging the speakers and the
stereo unit.

The speakers used must be able to handle more
than 45 W of audio power. If using an optional
audio power, the speakers should be able to han­dle the maximum amplifier output power. Speakers
with low input ratings can be damaged.

Speaker impedance should measure 4 - 8 Ω,
which is typically marked on most speakers. Lower
or higher impedance speakers will affect output
and can cause both speaker and stereo unit dam­age.

Caution: Never ground the speaker cords. For
example, do not use a chassis ground system or a
three-wire speaker common system. Each speak­er must be connected separately using parallel
insulated wires. If in doubt about how your car's
speakers are wired, please consult with your near­est professional installer.

Motor Antenna

Connect the vehicle motor antenna lead to the
blue motor antenna relay control lead.

Battery

Connect the yellow battery lead to the correct
radio wire or to the battery fuse port on the fuse
block.

Antenna

Connect the antenna by plugging the antenna lead
into the antenna receptacle.

Equipment

Connect any optional equipment such as an DVD
video player according to the instructions fur­nished with the equipment. Read the operating
and installation instructions of any equipment you
will connect to this unit.

Power

Connect the red power lead to the correct car
radio wire or to the appropriate fuse port on the
fuse block.
If the stereo unit functions properly with all these
connections made, disconnect the wires and pro­ceed to the final installation.

45

CA-TU7000U

36

E
N
G
L

I
S
H

❏ Final Installation

Lead Connections

Connect all wires, making sure that each connection
is insulated and secure. Bundle all loose wires and
fasten them with tape so they won't fall down later.

Congratulations! After making a few final checks,
you’re ready to enjoy your new auto stereo system.

❏ Final Checks

1. Make sure that all wires are properly connect­ed and insulated.

2. Turn on the ignition to check the unit for prop­er operation.

If you have difficulties, consult your nearest autho­rized professional installer for assistance.

We strongly recommend that you wear gloves for installation work to protect yourself from injuries.

Caution : Do not disconnect the battery terminals of a car with trip or navigational computer since all user
settings stored in memory will be lost. Instead take extra care with installing the unit to prevent shorts.

¡Disconnect the cable from the negative (–) battery

terminal (see caution below).

¡Unit should be installed in a horizontal position

with the front end up at a convenient angle, but
not more than 30°.

less than 30°

❏ Precautions

Caution : Please follow the laws and regulations of your state, province or country for installation of the

unit.

This unit should be professionally installed. In case of difficulty, please consult with your nearest professional installer.

1. This unit only operates in a 12-volt DC negative ground system.

2. Follow the electrical connections carefully (a Page 48 to 52). Failure to do so may result in damage to the unit.

3. Connect the power lead after all other connections are made.

4. Be sure to connect the battery lead (yellow) to the positive terminal (+) of the battery or fuse block (BAT) terminal.

5. Insulate all exposed wires to prevent short circuiting.

6. Secure all loose wires after installing the unit.

7. Please carefully read the operating and installation instructions of the respective equipment before connecting it to this
unit.

46

CA-TU7000U

37

E
N
G
L

I
S
H

Installation Guide (continued)

Connect the control unit of the head unit (CY-VMC7000U) to this unit (CA-TU7000U).

q Slide the unit along the guides, and

insert the connector in this unit
securely.

w Make sure that the pawls on the

bottom of the control unit of the
head unit are in position.
Try to move the control unit by
pressing the topside of it as shown
with the arrow in the figure.

e Drive two Binding-Head Screws q

from the bottom of the AV control
unit to fix it.
Make sure to fix it firmly.

CA-TU7000U

Guide

Pawl

CY-VMC7000U
Control Unit

Make sure that the unit is
mounted tightly.

q Binding-Head screw

(M3 x 6 mm)

Use a magnet-type screw driver to
drive screws uprightly.

Use a screw
driver that is
suitable for the
screws.

❏ Remove the cover.

¡Remove the cover from the control unit of the head unit (CY-VMC7000U).
¡Remove Velcro tape from the bottom of the control unit of the head unit (CY-VMC7000U) if any.

Mounting the AV Control Unit

CY-VMC7000U
Control Unit

CY-VMC7000U
Control Unit

q Hook the cover with your nail.
w Slide the cover and remove it.

Put the cover back. Be sure to
engage the edge of the tuner unit
with the cover.

Cover

When you put the cover back

Top side

Top side

Bottom side

1

Connectors

47

CA-TU7000U

38

E
N
G
L

I
S
H

Cautions:

¡Never mount the unit in any of the following locations to avoid damage due to overheating;

1. Near the heater port.

2. Places like the dashboard or rear deck, where it may be exposed to direct sunlight.

¡Do not mount the unit near the door, where it could be exposed to rain.

Attach the seal side of the Velcro Tape i
to the AV control unit, then mount the unit
on the carpet.

Note : Some carpet materials may not be
suitable for this mounting method. In this
case, please contact your nearest
Panasonic Servicenter for installation.

❑ Unit installation by using the Mounting Brackets t and the Base Brackets y.

i Velcro Tape

r Hex. Nut (M5)

Carpet

t Mounting Bracket

w Binding-Head Screw

(M5 x 8 mm)

e Tapping Screw (M6 x 20 mm)

u Double-Faced Adhesive Tape

Drill for 4.8 mm diameter holes to the chassis.
* Put the tape and the base bracket together with each hole of the tape and

bracket connected so that the screw goes in at two positions.

y Base Bracket

Let the bolts of
the base bracket
pass the carpet.

Make cuts by
using cutter.

Note : Apply an anticorrosive to the holes and tapping screws.

Caution: You run the risk of interfering with the mounting or causing damage by drilling into the gas tank, a wiring

harness, or other component.

Installation

2

❑ Mount the unit on the car carpet by using Velcro Tape i.

BATTERY 15A

ACC

TWIN CD·C-CONT

AMP-CONT MAX 0.1A

NAVI MUTE

ANT-CONT MAX 0.1A

CA-TU7000U
AV Control Unit with
Receiver (Rear)

o Power Connector

!0 Ground Lead

To a clean, bare metallic
part of the car chassis

(Black)

(Orange)

(Blue)

Navi Mute Lead

Connect to the Navi Mute Lead of
the Panasonic car navigation
system. (not available yet)

Note: Insulate the Navi Mute Lead
with vinyl tape when you do not
connect it.

Antenna Control Lead

To the auto antenna control power
cord of the car.
Note: Do not connect to the power
supply that controls the auto
antenna directly.

Dual CD Changer Control Lead

(not used)
Note: Insulate the Dual CD

changer Control Lead with vinyl
tape.

(Brown / white stripe)

External Amplifier Control
Power Lead

To an external amplifier

(Blue / white stripe)

Battery Lead

To the car battery,
continuous +12V DC

(Fuse 15A)

(Yellow)

(Resistor 220Ω)

Power Lead

To ACC power, +12V DC

(Red)

Ground Lead

To a clean, bare metallic part
of the car chassis

(Black)

Front Speaker Cord (Left)

Front Speaker Cord (Right)

Rear Speaker Cord (Left)

Rear Speaker Cord (Right)

48

CA-TU7000U

39

E
N
G
L

I
S
H

Electrical Connections

Cautions:

¡This product is designed to operate off a 12 volt, negative ground battery system.
¡To prevent damage to the unit, be sure to follow the connection diagram below.
¡Remove approx. 1/4" (5mm) of protective covering from the ends of the leads before connecting.
¡Do not insert the power connector into the unit until the wiring is completed.
¡Be sure to insulate any exposed wires from a possible short-circuit from the car chassis. Bundle all cables and keep

cable terminals free from touching any metal parts.

¡Remember, if your car has a drive computer or a navigation computer, the data of its memory may be erased when

the battery terminals are disconnected.

Wiring Diagram

No. Item Q'ty

Power Connector

1

Supplied Hardware

o

Ground Lead

1

!0

Radio Antenna
Extension Cord

1

!1

!

@

!

@

!

@

!

@

(White)

(White / black stripe)

(Gray)

(Gray / black stripe)

(Green / black stripe)

(Violet / black stripe)

(Green)

(Violet)

(Left)

(Left)

(Right)

(Right)

To Front Speaker

To Rear Speaker

Rear

Front

Power Connector

Ground Terminal

CD Changer Control
Connector

Pre-Out (Front / Rear)

MAIN-IN (Front / Rear)

Connect the Digital Surround Processor (CY-AC300) (a Page 50)

Rear

Front

(Rear)

(Front)

Radio Antenna
Connector
Note: Use the Radio Antenna

Extension Cord !1 if necessary.

REAR R

FRONT L

FRONT R

REAR L

Cautions:

¡Ask a qualified service person for installation and wiring.

The installation and wiring of this unit requires special skills and experience. For safety, ask the store where you pur­chased it to perform its installation and wiring.

¡Do Not Disassemble or Modify.

Do not disassemble or modify the unit. Do not remove the coverings from the ends of cables and wires to provide
power for other devices. Because it may generate smoke or fire, and cause electric shock or trouble.

49

CA-TU7000U

40

E
N
G
L

I
S
H

50

CA-TU7000U

41

E
N
G
L

I
S
H

REAR
FRONT

ANALOG-IN

SUB·W

S

O

U

R

C

E

S

E

L

VOL

SOURCE

1

2

3

4

D

R

C

O

M

P

P

O

S

I

S

P

C

D

I

M

MUTE

A

C

3

0

0

s

u

p

e

r

b

r

i

g

h

t

m

u

l

t

i

-

c

o

l

o

r

d

i

s

p

l

a

y

&

3

0

w

P

o

w

e

r

A

m

p

l

i

f

i

e

r

f

o

r

C

e

n

t

e

r

S

p

e

a

k

e

r

D

I

G

I

T

A

L

PRO LOGIC

D

I

G

A

T

A

L

S

U

R

R

O

U

N

D

P

R

O

C

E

S

S

O

R

POSITION

DIMME

R

SPA

CE

P

W

R

!

@

!

@

!

@

!

@

!

@

REAR L

REAR R

FRONT L

FRONT R

CENTER

Digital Surround Processor
CY-AC300
Operating Unit

Digital Surround Processor
CY-AC300
Main Unit (Rear)

(Front)

Operating Unit / Main Unit
Connecting DIN Cord

(Supplied to CY-AC300)

To Center Speaker

Center Speaker Cord

(Black)

(Black / green stripe)

Power Connector

(supplied to CY-AC300)

(R) (Red)

To Sub-Woofer

(White)

(White / black stripe)

(Gray)

(Gray / black stripe)

(Green / black stripe)

(Violet / black stripe)

(Green)

(Violet)

(Left)

iR j iL j iR jiL jiR j iR jiL j

(Left)

(Right)

(Right)

To Front Speaker

To Rear Speaker

Front Speaker Cord (Left)

Front Speaker Cord (Right)

Rear Speaker Cord (Left)

Rear Speaker Cord (Right)

Power

Amplifier

RCA Cord (option)

RCA Cord (option)

Electrical Connections (continued)

Example: Connection with DVD Player (CX-DV700U) and
Digital Surround Processor (CY-AC300)

¡Set the MAIN-IN to ON when the digital surround processor is connected. (a Page 36)

51

CA-TU7000U

42

E
N
G
L

I
S
H

Notes on handling optical fiber cable

•Do not bend the cable sharply.

•Do not allow the cable to be damaged

by getting it caught in the door, placing
a heavy object on it, etc.

iR j

iL j

iR j

iL j

iR j

iL j

Optical Fiber Cable

(CA-LRD60 : option)

CY-VMC7000U
Display Unit (Rear)

CY-VMC7000U Control Unit

CA-TU7000U AV Control Unit

(Rear)

(Front)

RCA Cord (option)

Pre-Out Cord

Power Connector

(supplied to
CX-DV700U)

(Video)
(Yellow)

(Video)(Yellow)

(L)(White)

(Black)

Remote Control
Signal Receiver Cord

(R)(Red)

(L)(White)

(R)(Red)

Power Connector

(supplied to
CY-VMC7000U)

o Power
Connector

Display Unit / Control Unit
Connecting Cord (supplied to CY-VMC7000U)

DVD Video Player
CX-DV700U

REMOTE-OUT

The pre-out cord of CY-VMC7000U
does not have output when this unit
(CA-TU7000U) is connected.

RCA Cord

(option)

Note: Refer to the operating instructions for the
connected devices, in addition.

52

CA-TU7000U

43

E
N

G

L

I
S
H

Electrical Connections (continued)

Example: Connection with CD Changer (CX-DP88U)

CY-VMC7000U Control Unit

CA-TU7000U AV Control Unit

(Rear)

(Front)

o Power
Connector

CD Changer
CX-DP88U

BATTERY

Power Connector

(supplied to
CX-DP88U)

Ground Lead

(Black)

CD changer
Control Connector

(R) (Red)

(L)(White)

DIN Cord

RCA Cord

Battery Lead (Yellow)

(Fuse 3A)

Note: Refer to the operating instructions for the connected devices, in addition.

53

CA-TU7000U

44

E
N
G
L

I
S
H

Troubleshooting

Preliminary Steps

Check and take steps as described in the tables below.

If You Suspect Something Wrong

Immediately switch power off.
Disconnect the power cable and check that there is neither smoke
nor heat from the unit before asking for repairs. Never try to repair
the unit yourself because it is dangerous to do so.

Cautions:

¡Do not use the unit if it malfunctions or is

something wrong.

¡Do not use the unit in an irregular condi-

tion, for example, without sound, or with
smoke or foul smell, can cause ignition or
electric shock. Immediately stop using it
and call the store where you purchased it.

■ Common

Symptom Check / Remedy

No power

No sound

Condensation (dew)

aWait for a while before use.

The MAIN-IN is set to ON (when the digital surround processor is not connected).

aSet the MAIN-IN to OFF when you do not use the MAIN-IN (when the digital

surround processor is not connected).

Cables are not correctly connected.

aConnect cables correctly.

Mute is set to ON.

aSet it to OFF.

The volume is adjusted to zero.

aRaise the volume.

Fuse is burnt.

aCall the store where you purchased the unit, or your nearest Panasonic

Servicenter (see the attached sheet) and ask for fuse replacement.

Grounding wire is not correctly connected.

aConnect the grounding wire to a metal part of your car.

Accessory cable is not correctly connected.

aConnect the accessory cable to your car's ACC source.

Battery cable is not correctly connected.

aConnect the battery cable to the terminal that is always live.

Cables are not correctly connected.

aConnect cables correctly.

Car’s engine switch is not on.

aTurn your car’s ignition switch to ACC or ON.

Note : Refer to the operating instructions of the head unit (CY-VMC7000U) with regard to Remedy.

54

CA-TU7000U

45

E
N

G

L

I
S
H

Symptom Check / Remedy

You are using a cellular phone near the unit.

aKeep some space between the unit and your cellular phone.

You did not pull the parking brake lever.

aPull the parking brake lever.

Side brake cord is not correctly connected.

aConnect the side brake cord correctly.

Only sound,
no picture.

Noise
Picture is not clear.

Symptom Check / Remedy

¡CD is defective.
¡Mechanical trouble.

aPress [u]. If failure persists, press the reset switch. If normal operation

is not restored, call the store where you purchased the unit or the nearest
Panasonic Servicenter to ask for repairs.

Unstable mounting.

aMount the unit securely with the mounting parts, referring to the section on

Installation.

Mounting angle is over 30 degrees.

aAdjust mounting angle to less than 30 degrees.

CD is dirty.

aClean CD, referring to the section on Notes on CD.

CD is dirty.

aClean CD, referring to the section on Notes on CD.

CD is upside down.

aPlace CD in the correction direction, the label side up.

CD is inside but no
sound.

CD sound skips, tone
quality is low.

Sound skip due to
vibration.

■ CD

Symptom Check / Remedy

■ Monitor

CD is not ejected.

Troubleshooting (continued)

There is an obstacle.

aInstall the unit where the unit moves freely.

The monitor stops on the way to the home position for some reason.

aRaise the monitor a little and press [ ] (OPEN/CLOSE).

The monitor direction is not proper.

aChange the monitor direction to the center.

The tilt angle or the
front-rear position of
the display is not
adjustable.

The monitor does not
go back into the unit.

55

CA-TU7000U

46

E
N
G
L

I
S
H

Symptom Check / Remedy

Battery cable is not correctly connected.

a

Connect the battery cable to the terminal that is always live.

The radio antenna is not extended enough.

a

Fully extend the radio antenna.

Station is too far, or signals are too weak.

a

Select other stations of higher signal level.

Much noise in FM
stereo and monaural
broadcasts.

Preset station is reset.

■ Radio

■ Display Settings

Symptom Check / Remedy

The brightness of the
screen is not stable.

This is a characteristic of liquid crystal panels and is not a problem.

The screen is not adjusted properly.

aMake every adjustment of the screen.

“AUTO” dimmer is selected.

aSelect one of the dimmer levels from among 1 to 4 to make the dimmer

adjustment become free from light intensity.

The picture is dark. The
picture is whitish.
Something is wrong with
the picture. The picture is
light in color.

Red, blue, or green
spots appears.

■ Car Navigation, DVD Player, VCR, Camcorder, Rear View Camera

Symptom Check / Remedy

The picture from a car
navigation system is
not displayed.

The picture from a VCR or a
camcorder is not displayed.

The picture from a
DVD player is not dis-

The picture from a rear
view camera is not dis­played.

The picture or the sound
of the second monitor is
not switchable.

“AUTO” is not selected for the setting of a rear monitor.

aSelect “AUTO” for the setting.

Input setting of a camera is not correct.

aMake the input setting correct.

Rear view camera is not connected correctly.

aConnect a rear view camera correctly.

A VCR or Camcorder is not connected correctly.

aConnect a VCR or Camcorder correctly.

The connection of a DVD player is not correct.

aConnect it correctly.

Input setting of a car navigation system is not correct.

aMake the input setting correct.

The connection of a car navigation system is not correct.

aConnect it correctly.

56

CA-TU7000U

47

E
N

G

L

I
S
H

Troubleshooting (continued)

|E 3 |

NO DISC

NO MAGAZINE

Error Display Messages

■ CD / CD Changer

Display Check / Remedy

|E 1 |

|E 2 |

There is no CD-loaded magazine in the changer.

aLoad the changer with CD-loaded magazine.

No disc is in the player.

aInsert disc into the CD slot.

No operation by some cause.

aPress [u]. If failure persists, press the reset switch. If normal operation

is not restored, call the store where you purchased the unit or the nearest
Panasonic Servicenter to ask for repairs.

Disc has scratches.

aCheck disc.

Disc is dirty, or is upside down.

aCheck disc.

Symptom Check / Remedy

Buttons are invalid for
operation.

Remote control is in the wrong direction.

aDirect the remote control at remote control sensor on the display unit.

Batteries have run down.

aReplace the batteries.

Wrong batteries.

aCheck the batteries.

Battery polarities (+) (–) are reversed.

aInsert the batteries correctly.

■ Remote Control

Notes:

¡There may be cases where the disc numbers affected by an error are displayed before E1 and E2.
¡Displays and the steps to be taken for errors vary in part from changer to changer. For details, refer to the Operating

Instructions for the changer used.

Symptom Check / Remedy

No sound from left,
right, front, or rear
speaker.

Left and right sounds
are reversed in stereo
listening.

The right speaker wire is connected to the left speaker and the left speaker wire
to the right speaker.

a

Connect the speaker wires to the correct one.

Cables are not correctly connected.

a

Connect the cables correctly.

Left and right balance, or front and rear balance is off on one side.

a

Adjust BAL/FAD as appropriate.

■ Sound Settings

RESET

57

CA-TU7000U

48

E
N
G
L

I
S
H

Maintenance

Your product is designed and manufactured to ensure a minimum of maintenance. Use a dry soft cloth for routine exterior
cleaning. Never use benzine, thinner or other solvents.

Product Servicing

If the suggestions in the charts do not solve the problem, we recommend that you take it to your nearest authorized
Panasonic Servicenter. The product should be serviced only by a qualified technician.

Replacing the Fuse

Use fuses of the same specified rating (15 amps). Using different substitutes or fuses with a higher rating, or connecting
the product directly without a fuse, could cause fire or damage to the stereo unit.

If the replacement fuse fails, contact your nearest Panasonic Servicenter for service.

Reset Switch

Reset switch

Insert a hard, slender stick into the hole and push the switch.
Press the reset switch on the front side of the display unit con­nected to the head unit (CY-VMC 7000U), too.

The unit returns to the default state when the trouble is reset.
Remember, the data and settings stored in the memory are
deleted.

Important

Push the switch only when the unit fails to operate with any but­tons.
If the unit fails to return to normal condition, call the nearest
Panasonic Servicenter and ask for repairs.

58

CA-TU7000U

49

E
N

G

L

I
S
H

Maintenance

Notes on CD

ONLY USE DISCS CARRYING THE LABEL

How to hold the CD

¡Do not touch the underside of the disc.
¡Do not make scratches on the disc.
¡Do not bend disc.
¡When not in use, keep CD in the case.

Do not use irregularly shaped CDs

Do not leave discs in the following places:

¡Direct sunlight
¡Near car heaters
¡Dirty, dusty and damp areas
¡Seats and dashboards

Disc Cleaning

Use a dry, soft cloth to wipe from the center outward.

Caution on New Discs

A new disc may have rough edges on its inner and outer
perimeter. These may cause malfunction.

Remove the rough edges using a pencil, etc.

Music

agsjbc ujniu imnmk

bhxujk kkmj ibi

abcde

Music

agsjbc ujniu imnmk

bhxujk kkmj ibi

abcde

Label side

Do not use irregularly shaped CDs

<Right> <Wrong>

Rough edge

A playable CD-R disc is only a CD-R disc on which sound was recorded.

¡Some recorded CD-R discs by using CD recorder are not playable because of their characteristic, or scratches or dirt on

the discs.

¡You can not play a CD-R disc that has not been finalized.
¡A CD-RW disc is not playable.
¡MP3 file, video CD, CD-ROM and CD-EX disc are not playable.
¡Be sure to observe the handling instructions of CD-R disc.
¡Do not apply a disc that has a label printed by a commercially available label printer.

Notes on CD-R Disc

59

CA-TU7000U

50

E
N
G
L

I
S
H

Specifications

General

Power Supply : DC 12 V (11 V - 16 V), test voltage 14.4 V, negative ground
Current Consumption : Less than 10 A
Rated Output : 18 W x 4 ch (1 kHz, 1%, 4 Ω)
Maximum Power Output : 45 W x 4 ch (at 16 V)
Compatible Speaker Impedance : 4 Ω
Pre-Amp Output Voltage : 4.0 Vrms
Pre-Amp Output Impedance : Less than 60 Ω
Dimensions (W x H x D) : 9-5/8” x 1-5/8” x 5-7/8” (245 x 42 x 150 mm)
Weight : 2 lbs. 14 oz. (1.3 kg)

FM Stereo Radio

Frequency Range : 87.9 - 107.9 MHz
Usable Sensitivity : 12 dBf
Stereo Separation : 35 dB (1 kHz)
Signal / Noise Ratio : 60 dBf

AM Radio

Frequency Range : 530 - 1,710 kHz
Usable Sensitivity : 28 dB / µV
Image Rejection Ratio : 50 dB

Above specifications comply with EIA standards.

Note: Specifications and the design are subject to modification without notice due to improvements in technology.

The specification for CY-VMC7000U are excluded from the following.

YEFM283698 B1200-0 Printed in Japan

Imprimé au Japon
Impreso en Japón

Panasonic Consumer Electronics
Company, Division of Matsushita
Electric Corporation of America

One Panasonic Way, Secaucus,
New Jersey 07094
http://www.panasonic.com

Panasonic Sales Company.
Division of Matsushita Electric of
Puerto Rico, Inc. (“PSC”)

Ave. 65 de Infanteria, Km. 9.5
San Gabriel Industrial Park, Carolina,
Puerto Rico 00985
http://www.panasonic.com

Panasonic Canada Inc.

5770 Ambler Drive,
Mississauga, Ontario
L4W 2T3
www.panasonic.ca
