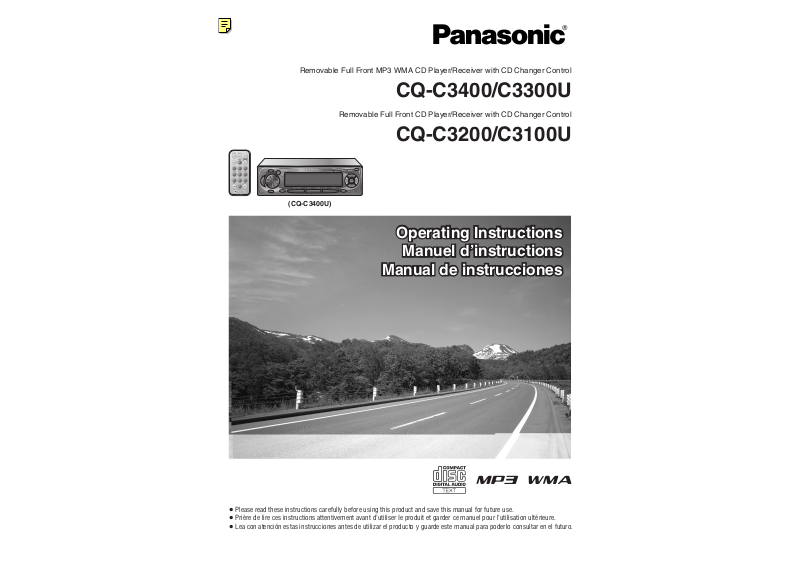

Panasonic C3100U, C3300U User Manual

Removable Full Front MP3 WMA CD Player/Receiver with CD Changer Control

CQ-C3400/C3300U

Removable Full Front CD Player/Receiver with CD Changer Control

CQ-C3200/C3100U

(CQ-C3400U)

Operating InstructionsOperating Instructions

Manuel d’instructionsManuel d’instructions

Manual de instruccionesManual de instrucciones

≥ Please read these instructions carefully before using this product and save this manual for future use. ≥ Prière de lire ces instructions attentivement avant d’utiliser Ie produit et garder ce manuel pour l’utilisation ultérieure. ≥ Lea con atención estas instrucciones antes de utilizar el producto y guarde este manual para poderlo consultar en el futuro.

CQ-C3400/3300/3200/3100U

E N G L

I S H

CQ-C3400/3300/3200/3100U

E N G L

I S H

Item Diagram Q’ty

Remote Control Unit

(YEFX9992663)

Lithium Battery <CR2025>

Instruction kit ≥ Operating Instructions

(YEFM284143)

≥ Warranty Card, etc.

1 set

Mounting Collar

(YEFX0216165)

Trim Plate

(YEFC05615)

Safety Information

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND ANNOYING INTERFERENCE, USE ONLY THE INCLUDED COMPONENTS.

CAUTION:

THIS PRODUCT IS A CLASS I LASER PRODUCT. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

The following applies only in the U.S.A.

Part 15 of the FCC Rules

FCC Warning:

Any unauthorized changes or modiﬁ cations to this equipment would void the user’s authority to operate this device.

NOTICE:

This product has a ﬂ uorescent lamp that contains a small amount of mercury. It also contains lead in some components. Disposal of these materials may be regulated in your community due to environmental considerations. For disposal or recycling information please contact your local authorities, or the Electronics Industries Alliance: <http://www.eiae.org.>

Precautions

When Driving

Keep the volume level low enough to be aware of road and trafﬁ c conditions.

When Washing Your Car

Do not expose the product, including the speakers and CDs, to water or excessive moisture. This could cause electrical shorts, ﬁ re, or other damage.

When Parked

Parking in direct sunlight can produce very high temperatures inside your car. Give the interior a chance to cool down before switching the unit on.

Use the Proper Power Supply

This product is designed to operate with a 12 V DC, negative ground battery system (the normal system in a North American car).

Disc Mechanism

Do not insert coins or any small objects. Keep screwdrivers and other metallic objects away from the disc mechanism and disc.

Use Authorized Servicenters

This product is made of precision parts. Do not attempt to disassemble or adjust any parts. Please refer to the Servicenter list including with this product for service assistance.

For Installation

This product should be installed in a horizontal position with the front end up at a convenient angle, but not more than 30°.

Note:

≥ The preset memory is cleared to return to the

original factory setting when the power connector or battery is disconnected.

Find the model number and serial number on either the back or bottom of the unit. Please record them in the space below and retain this booklet as a permanent record of your purchase to help with identiﬁ cation in case of theft.

MODEL NUMBER CQ-C3400U / CQ-C3300U / CQ-C3200U / CQ-C3100U SERIAL NUMBER DATE PURCHASED FROM

Accessories

Panasonic welcomes you to our ever growing family of electronic product owners. We know that

this product will bring you many hours of enjoyment. Our reputation is built on precise electronic and mechanical engineering, manufactured with carefully selected components and assembled by people who take pride in their work. Once you discover the quality, reliability, and value we have built into this product, you too will be proud to be a member of our family.

CQ-C3400/C3300U

Removable Full Front MP3 WMA CD Player/Receiver with CD Changer Control

CQ-C3200/C3100U

Removable Full Front CD Player/Receiver with CD Changer Control

Item Diagram Q’ty Screw kit (YEP0FZ3315) ≥ Hex. Nut (5 mm‡)

≥ Tapping Screw

(5 mm‡t16 mm)

≥ Mounting Bolt

(5 mm‡)

≥ Lock Cancel Plate

Rear Support Strap

(YEFG04024)

Removable Face Plate Case

(YEFA131839)

Power Connector

(YEAJ02871)

64975

Car Audio

SOURCE

MUTE

POWER

RAND

VOL

312

DISPBAND

REP

SET

SEL

SCAN

NUMBER

Note:

≥ The number in parenthesis underneath each accessory part name is the part number for maintenance and

service.

≥ Accessories and their parts numbers are subject to modiﬁ cation without prior notice due to improvements. ≥ Mounting collar 1 and trim plate 7 are mounted on the main unit at shipment (page 46).

Note:

≥ Please refer to page 9 for information on differences in each model.

CQ-C3400/3300/3200/3100U

E N

I S H

CQ-C3400/3300/3200/3100U

E N G L

I S H

≥ This operating instruction manual applies to the following models. The differences among these models are

mentioned below.

≥ All illustrations represent model CQ-C3400U unless otherwise speciﬁ ed.

Models

Features

MP3/WMA playback Yes Yes None None

CD text display Yes Yes None None

Subwoofer output Yes None Yes None

Subwoofer low pass ﬁ lter setting 80 Hz/120 Hz None None None

This can only be controlled through the

main unit.

This can only be controlled through the remote control unit.

Operations with neither mark can be performed either by the main unit or the remote control unit.

CQ-C3400U only.

CQ-C3400U

CQ-C3300U only.

CQ-C3300U

CQ-C3200U only.CQ-C3200U

CQ-C3100U

CQ-C3100U only.

Indicates features applicable to

MP3/WMA Playback from CD-R/RW

You can play your MP3/WMA (Windows Media Audio) ﬁ les as well as regular CDs. With up to 10 to 12 times* the capacity of a conventional CD, a single MP3/WMA-encoded disc can keep you entertained throughout your entire journey. *Depending on bit rate.

CD Changer Control

You can connect the optional CD changer unit. For details, refer to the operating instructions on the CD changer unit. ≥ 2 CD changers (option) can be controlled with

this unit. To connect 2 CD changers to it, the dual CD changer selector CA-CD55U (option) is necessary.

Large-sized Volume Control

An large-sized rotary volume control that looks like one belonging to a Hi-Fi audio system is featured.

CQ-C3300U

CQ-C3400U

Before Reading these Instructions

CQ-C3400U CQ-C3300U

CQ-C3200U

CQ-C3100U

CQ-C3400U CQ-C3300U CQ-C3200U CQ-C3100U

Dual CD changer selector (CA-CD55U, option)

Subwoofer (option)

(Only for CQ-C3400U/CQ-C3200U)

Stereo power ampliﬁ er (option)

Features

System Upgrade

CD changer (CX-DP880U, option)

Note:

≥ This unit does not support Sirius satellite radio. ≥ You cannot connect CD changer and Sirius

receiver using the dual CD changer selector (CA-CD55U, option).

CQ-C3400/3300/3200/3100U

E N

I S H

CQ-C3400/3300/3200/3100U

E N G L

I S H

Preparation

Battery Installation

1 Remove the battery holder.

Pull the holder out at position B while pushing

position A as indicated.

2 Install the battery on the battery holder.

3 Insert the battery holder back into its original

position.

Battery Notes

≥ Battery type: Panasonic lithium battery (CR2025)

(included)

≥ Battery life: Approximately 6 months under

normal use (at room temperature)

≥ Remove and dispose of an old battery

immediately.

≥ Do not disassemble or short the battery. Do not

throw a battery into a ﬁ re.

≥ Keep the battery away from children to avoid the

risk of accidents.

≥ Follow local regulations when disposing of the

battery.

Back side

Lithium battery (included)

Battery holder

Position A

Position B

Remote Control Unit

Caution:

≥ Improper use of the battery may cause

overheating, an explosion or ignition, resulting in injury or a ﬁ re.

Subwoofer

Preparation:

≥ Connect the subwoofer (option). (page 56)

Subwoofer level setting:

≥ You can change the subwoofer level. (page 34)

Subwoofer low pass ﬁ lter setting:

≥ You can select the upper limit frequency of the

sound from subwoofer. (page 34)

CQ-C3400U

CQ-C3200U

CQ-C3400U

The 12-hour system is used for the clock.

≥ Turn your car’s ignition key to the ACC or ON

position.

≥ Press [SOURCE] (PWR). ≥ When the power is switched on for the ﬁ rst time,

a demonstration appears on the display.

Press [DISP] (display) to change to regular

mode.

1 Press [DISP] (display).

2 Press and hold [DISP] (display) again for more

than 2 seconds.

Hours:

3 Press [%] or [$].

4 Press [DISP] (display).

Minutes:

5 Press [%] or [$].

6 Press [DISP] (display).

Note:

≥ “ADJUST” is displayed before adjusting the clock. ≥ Press and hold [%] or [$] to change numbers

rapidly.

Display Change

Press [DISP] (display).

When the power is off:

Hours blink

Hours set

Minutes blink

Minutes set

Complete

Clock display

Display off

Clock display

Clock Setting

CQ-C3400/3300/3200/3100U

E N

I S H

E N G L

I S H

Audio Settings....................................................... 34

Volume, bass/treble, balance/fader, subwoofer level, subwoofer low pass ﬁ lter (LPF), mute/attenuation

Security Setting ..................................................... 36

Security function

Troubleshooting..................................................... 38

Preliminary steps, if you suspect something wrong, troubleshooting tips, error display messages, maintenance, product servicing, fuse

Notes on Discs ...................................................... 44

Notes on CD/CD media (CD-R, CD-RW, CD-ROM), notes on CD-Rs/RWs

Anti-Theft System................................................... 45

Remove the removable face plate, install removable face plate, security indicator, panel removal alarm

Installation Guide................................................... 46

Electrical Connections ............................................. 52

Wiring diagram, upgrading the system 1, upgrading the system 2, speaker system connection

Speciﬁ cations ....................................................... 57

Safety Information .................................................................................Page 2

Precautions.....................................................................................................2

Accessories..................................................................................................... 3

Features................................................................8

Before Reading these Instructions .................................9

Preparation .......................................................... 10

Remote control unit, subwoofer

Clock Setting ........................................................ 11

General............................................................... 22

Power, source, volume, mute/attenuation, S·HDB (Super High Deﬁ nition Bass), level meter display pattern

Radio ................................................................. 24

Radio mode, band, tuning, display change, Direct Memory (D·M), station preset, preset station calling

Before Disc Playback............................................... 26

Available discs, disc insert, when CD is in the player, disc eject

CD Player ............................................................ 27

Display change, track selection, fast forward/fast reverse, pause, random play, scan play, repeat play, direct track selection

MP3/WMA Player ................................................... 28

Display change, folder selection, ﬁ le selection, fast forward/fast reverse, pause, ID3/WMA tag setting, random play, folder random play, scan play, folder scan play, repeat play, folder repeat play, direct ﬁ le selection, direct folder selection, notes on MP3/WMA

CD Changer Control ................................................ 32

CD changer mode, display change, disc selection, track selection, fast forward/fast reverse, random play, disc random play, scan play, disc scan play, repeat play, disc repeat play, CD changer selection, direct disc selection

WELCOME

MP3/WMA

CQ-C3400/3300/3200/3100U

Volume

Note:

≥ The volume level can be set independently for

each source. (For radio, one volume setting for AM, one volume setting for all FMs)

Setting range: 0 to 40 (default: 18)

[VOL "]: Up [VOL #]: Down

Down

Point the remote control unit at the remote control signal sensor.

General

Source

E N G L

I S H

E N

I S H

Mute/Attenuation

ON: Press [MUTE]. ( lights.) OFF: Press [MUTE] again.

You can select mute or attenuation. (page 34)

S·HDB (Super High Deﬁ nition Bass)

With music genres like rock music, the bass-sound will be more powerful. Press [S·HDB].

Level Meter Display Pattern

Press [LEVEL].

Power

Turn your car’s ignition key to the ACC or ON position.

ON: Press [SOURCE] (PWR).

OFF: Press [SOURCE] (PWR) again and hold

for more than 1 second.

Note:

≥ After turning off the ignition key, a security

message is displayed, and the panel removable alarm that reminds you to take the panel is activated. (When security function is set to on, page 36)

ACC

Demonstration:

When the power is switched on for the ﬁ rst time, a demonstration appears on the display. Press [DISP] (display) to change to regular mode.

Note:

≥ To display the demonstration again, press and

hold [SOURCE] for more than 4 seconds when turning power on.

64975

Car Audio

SOURCE

MUTE

POWER

RAND

VOL

312

DISPBAND

REP

SET

SEL

SCAN

NUMBER

[DISP]

(Display)

[SOURCE]

(Power/source)

[MUTE]

[VOL "]

[VOL #]

(Volume)

[SOURCE] (PWR: Power)

indicator

Press [SOURCE] to change the source.

[MUTE]

(Mute/attenuation)

[VOLUME]

[S·HDB]

[LEVEL]

CQ-C3400U CQ-C3300U

When a CD is in the player.

Radio (page 24)

CD player (page 27)

When a MP3/WMA data disc is in the player.

MP3/WMA player (page 28)

When an optional CD changer is connected.

CD changer control (page 32)

CQ-C3200U

CQ-C3100U

When a CD is in the player.

Radio (page 24)

CD player (page 27)

When an optional CD changer is connected.

CD changer control (page 32)

No sounds. (default)

Decrease the volume by 10 steps.

S·HDB off (default)

Moderately emphasized. ( lights.)

Strongly emphasized. (

lights.)

(default)

[DISP] (Display)

Scrolling

Level meter display pattern

Note:

≥ The level meter makes the same move in the right

and left sides in accordance with music.

CQ-C3400/3300/3200/3100U

Radio

Direct Memory (D·M)

This is a useful function that can call broadcast stations directly during playback in other modes (CD, CD Changer, etc.), even when the power is off. Your favorite radio station can be memorized in [D·M] (direct memory). Default: FM 87.9 MHz

∫ Memorize

1 Select a band and frequency.

2 Press and hold [D·M] for more than 2 seconds.

≥ Frequency is saved in the memory.

Note:

≥ New stations overwrite existing saved stations

after following this procedure.

∫ Recalling the Direct Memory

Press [D·M].

Press [D·M] again to cancel.

[%] [$] (TUNE)

Caution:

≥ To ensure safety, never attempt to preset

stations while you are driving.

Auto Preset Memory (APM)

Automatically save stations with good reception in the preset memory.

1 Select a band. (previous page)

2 Press and hold [BAND] (APM: Auto Preset

Memory) for more than 2 seconds.

≥ The 6 stations with good reception will be

automatically saved in the memory under preset number 1 to 6.

≥ Once set, the preset stations are sequentially

scanned for 5 seconds each. (scanning)

Manual Preset Memory

Manually save a station in the preset memory.

1 Select a band and frequency. (previous page)

2 Press and hold one of the buttons from [1] to [6]

until the display blinks once.

Note:

≥ To stop scanning, press one of the buttons from

[1] to [6].

≥ New stations overwrite existing saved stations

after this procedure.

Preset Station Calling

1 Select a band. (previous page)

2 Press one of the preset buttons from [1] to [6].

[D·M] (Direct Memory)

E N

I S H

E N G L

I S H

Preset buttons [1] to [6] (Preset station)

[BAND] (APM: Auto Preset Memory)

Display Change

Press [DISP] (display).

[SOURCE]

64975

Car Audio

SOURCE

MUTE

POWER

RAND

VOL

312

DISPBAND

REP

SET

SEL

SCAN

NUMBER

[DISP]

(Display)

[SOURCE]

[%] [$]

(Tuning)

[BAND]

(Auto preset memory)

[1] to [6] (Preset station)

(Stereo) indicator

Radio Mode

Press [SOURCE] to select the radio mode.

Radio mode display

Band

Press [BAND].

Tuning

[$]: Higher frequency [%]: Lower frequency

Press and hold [%] or [$] for more than

0.5 seconds, then release. Seeking will start.

Radio mode display (default)

Clock display

Preset number

[DISP]

(Display)

FrequencyBand

Station Preset

Up to 6 stations can be stored in each of the FM1, FM2, FM3 and AM band selections.

CQ-C3400/3300/3200/3100U

Disc Insert

1 Press [OPEN].

2 Insert a disc.

Note:

≥ Do not insert a disc when indicator lights

because a disc is already loaded.

≥ It may take some time to start playing.

3 Close the front panel manually. 4 Playback will start automatically after recognizing

the data of the loading disc.

Before Disc Playback

Display Change

Press [DISP] (display).

Note:

≥ “NO TITLE” is displayed when there is no

information on the disc.

≥ Press [3] (SCROLL) to have an another circle

scroll while a title is displayed.

Track Selection

[9]: Next track [:]: Beginning of the current track

For the previous track, press twice.

Fast Forward/Fast Reverse

Press and hold

[9] (5): Fast forward [:] (6): Fast reverse

Release to resume the playback.

Pause

Press [;/1]. Press [;/1] again to cancel.

CQ-C3200U/CQ-C3100U cannot play MP3/WMA ﬁ les.

Random Play

All available tracks are played in a random sequence. Press [4] (RANDOM). ( lights.)

Press [4] (RANDOM) again to cancel.

Scan Play

The ﬁ rst 10 seconds of each tracks is played in sequence.

Press [5] (SCAN). Press [5] (SCAN) again to cancel.

Repeat Play

The current track is repeated. Press [6] (REPEAT). ( lights.)

Press [6] (REPEAT) again to cancel.

Direct Track Selection

Example: track number 10

1 Press [ﬂ]. 2 Press [1] [0]. 3 Press [BAND] (SET).

Note:

≥ To suspend direct selection, press [DISP]

(display) or [ﬂ].

≥ Random, scan and repeat play are canceled once

[ﬂ] is pressed.

Note:

≥ The power will be turned on automatically when

a disc is loaded.

≥ A disc which has both CD-DA data and

MP3/WMA data on it may not be reproduced normally. (For example, it may be reproduced without sound.)

≥ Refer to the section on “Notes on MP3/WMA”

(page 30) and “Notes on Discs” (page 44).

E N

I S H

E N G L

I S H

CD Player

Do not watch the scroll display while driving.

[OPEN]

+ 16 hidden pages

Panasonic C3100U, C3300U User Manual

Safety Information

Precautions

Accessories

Features

Preparation

Clock Setting

Contents

General

Radio

Before Disc Playback

CD Player
