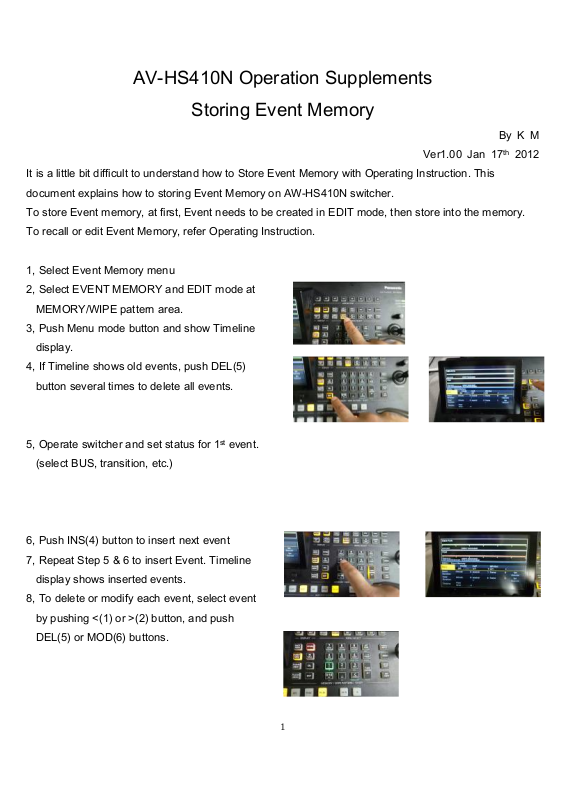

AV-HS410N Operation Supplements

Storing Event Memory

By K M

Ver1.00 Jan 17

It is a little bit difficult to understand how to Store Event Memory with Operating Instruction. This

document explains how to storing Event Memory on AW-HS410N switcher.

To store Event memory, at first, Event needs to be created in EDIT mode, then store into the memory.

To recall or edit Event Memory, refer Operating Instruction.

1, Select Event Memory menu

2, Select EVENT MEMORY and EDIT mode at

MEMORY/WIPE pattern area.

3, Push Menu mode button and show Timeline

display.

4, If Timeline shows old events, push DEL(5)

button several times to delete all events.

2012

5, Operate switcher and set status for 1

(select BUS, transition, etc.)

6, Push INS(4) button to insert next event

7, Repeat Step 5 & 6 to insert Event. Timeline

display shows inserted events.

8, To delete or modify each event, select event

by pushing <(1) or >(2) button, and push

DEL(5) or MOD(6) buttons.

event.

9, After finishing to create event, select STORE

mode, select Page and push and hold number

button to store event.

Then stored event is displayed in the list.

10, If you want to confirm stored EVENT

MEMORY, recall it and check.

If you have a question, let me know

Kazu Masamura
