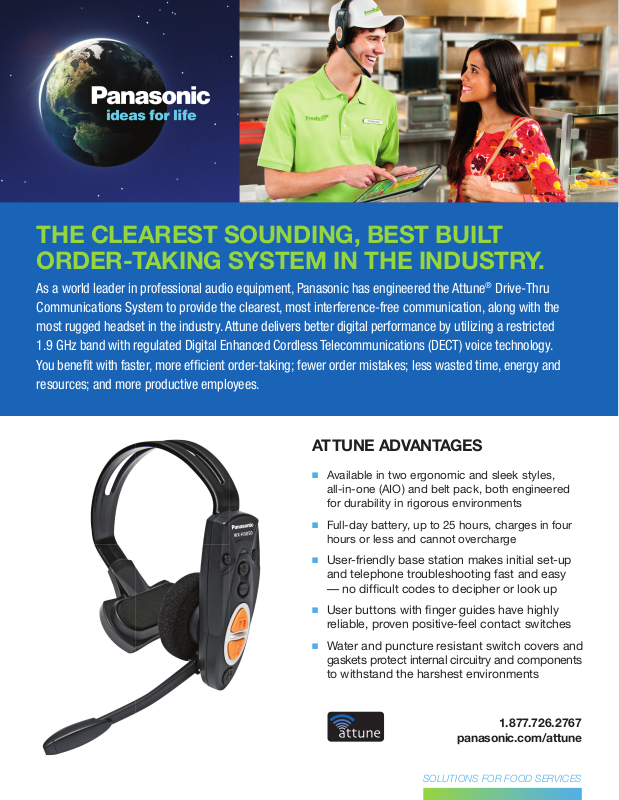

Panasonic Attune Specification
THE CLEAREST SOUNDING, BEST BUILT
ORDER-TAKING SYSTEM IN THE INDUSTRY.
As a world leader in professional audio equipment, Panasonic has engineered the Attune® Drive-Thru
Communications System to provide the clearest, most interference-free communication, along with the
most rugged headset in the industry. Attune delivers better digital performance by utilizing a restricted
1.9 GHz band with regulated Digital Enhanced Cordless Telecommunications (DECT) voice technology.
You benefi t with faster, more effi cient order-taking; fewer order mistakes; less wasted time, energy and
resources; and more productive employees.
ATTUNE ADVANTAGES
■
Available in two ergonomic and sleek styles,
all-in-one (AIO) and belt pack, both engineered
for durability in rigorous environments
■
Full-day battery, up to 25 hours, charges in four
hours or less and cannot overcharge
■
User-friendly base station makes initial set-up
and telephone troubleshooting fast and easy
— no diffi cult codes to decipher or look up
■
User buttons with fi nger guides have highly
reliable, proven positive-feel contact switches
■
Water and puncture resistant switch covers and
gaskets protect internal circuitry and components
to withstand the harshest environments
1.877.726.2767
panasonic.com/attune
SOLUTIONS FOR FOOD SERVICES
ATTUNE CENTER MODULE
WX-C3010
4-SLOT BATTERY CHARGER
WX-Z3040
SPEAKER / MICROPHONE
WX-C550
ATTUNE ALL-IN-ONE
HEADSET (AIO)
WX-H3050
WIRED HEADSET FOR
BELT PACK
WX-H3027
BELT PACK ORDER TAKER
WX-T3020
n
Operating Frequency
n
Power Supply
n
Power Consumption
n
Outside Speaker
n
AUX Speaker
n
Dimensions
n
Weight
n
Ambient Operating Temperature
n
AC Adaptor Rated Input
n
AC Adaptor Rated Output
n
Fast Charge Current
n
Ambient Operating Temperature
n
Dimensions
n
Weight (Excluding AC
adaptor and mount bracket)
n
Additional
n
Input and Output Impedance
n
Maximum Input Power
n
Cord Length
n
Dimensions without
Mounting Angle
n
Weight
n
Operating Frequency
n
Required Power Supply
n
Dimensions
n
Ambient Operating Temperature
n
Additional
n
Speaker Type
n
Speaker Impedance
n
Standard Input
n
Maximum input
n
Output Sound Pressure Level
n
Frequency Response
n
Microphone Type
n
Mic Output Impedance
n
Mic Sensitivity
n
Cord Length
n
Weight
n
Input / Output Plugs
n
Additional
n
Operating Frequency
n
Required Power Supply
n
Control Function
n
Dimensions
n
Weight (excluding battery)
n
Ambient Operation Temperature
n
Additional
1 920 MHz-1 930 MHz
120 V AC, 60 Hz
11 W
1.25 W 8 Ohms
1.25 W 8 Ohms
404 mm ( W) x 265 mm (H) x 69 mm (D)
15-15/16" (W) x 10-7/16" (H) x 2-3/4" (D)
2.3kg (5.07 lbs)
(-10 C to +50 C / 14 F to 122 F)
100 V to 240 V AC, 50 Hz/60 Hz
8 V DC, 3.5 A
400 mA +- 10% 4 circuits
(5 C to 35 C / 41 F to 95 F )
204 (W) x 100 (H) x 46.5 (D) mm
8-1/32" (W ) x 4-5/16" (H) x 1-13/16" (D)
435 g / 0.9 6 lbs.
For use with WX-B3030 Batteries
8 Ohms
10 W
Approx. 2.5 m (8.2 ft.)
140 (W ) x 140 (H) x 140 (D) mm
5-1/2" (W ) x 5-1/2" (H) x 5-1/2" (D)
1.6 kg (3.5 lbs.)
1 920 - 1 930 MHz / 1.9 Ghz DECT
Rechargeable Li-ion Battery, 3.7 V DC (WX-B3030)
Power (On/Off)
Volume (Up/Down)
Talk (T 1/T2)
Lane Selection (A/B)
Page
External Device Control [C]
Dip Switch Setup (8 Bit)
157 mm(W) x 289 mm(H) x 82 mm (D)
6-3/16" ( W) x 11-3/8" (H) x 3-1/4" (D)
(-10 C to 50 C / 14 F to 122 F)
For use with Attune Center Module WX-C3010
Dynamic
35 Ohms at 1 kHz
10 mW
40 mW
120 dB SPL at 1 kHz, 10 mW Input
150 Hz - 6000 Hz
Omnidirectional electret condenser microphone
2.2 kOhms at 1 kHz
(-44 dB at 1 kHz (0 dB = 1 V/Pa at 1 kHz)
1.1m (3.6 ft)
95g (0.21 lbs.
o2.5 plug: Microphone
o3.5 plug: Speaker
For use with Order Taker WX-C1020, WX-C920,
WX-CT2020 and WX-T3020
1 920 - 930 MHz / 1.9 Ghz DECT
Rechargeable Li-ion Battery, 3.7 V DC (WX-B3030)
Power (On/Off)
Volume (Up/Down)
Talk (T 1/T2)
Page
Lane Selection (A/B)
External Device Control [C]
Dip Switch Setup (8 Bit)
121 mm (W) X 61 mm (H) x 24 mm (D)
4-3/4" (W) x 2-13/32" (H) x 15/16" (D)
115g (0.25 lbs.)
(-10 C to +50 C / 14 F to 122 F)
For use with Attune Center Module WX-C3010
and optional WX-H3027 Headset
1.877.726.2767
panasonic.com/attune
Panasonic is constantly enhancing product specifications and accessories. Specifications subject to change without notice.
Trademarks are property of their respective owners. © 2013 Panasonic Corporation of North America. All rights reserved.
