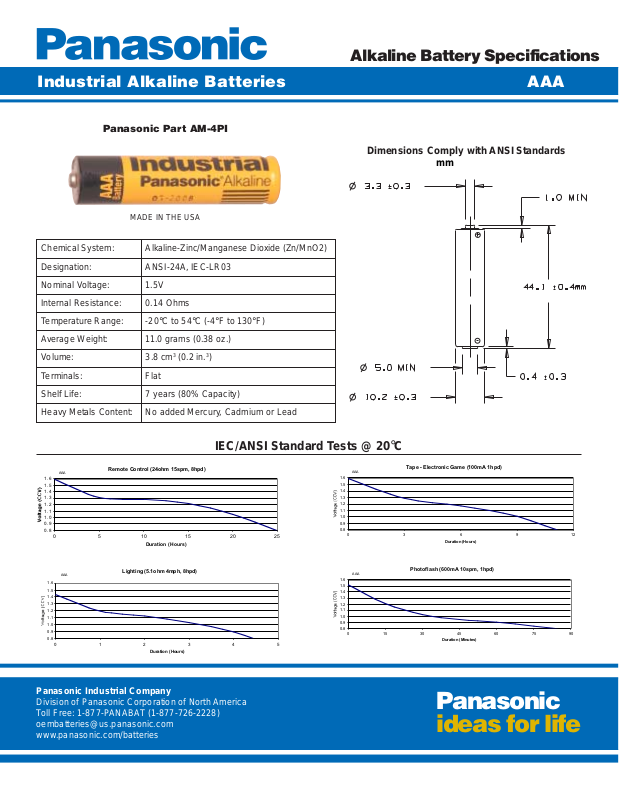

Panasonic AM-4PI User Manual
Alkaline Battery Specifications
A
A
A
A
Industrial Alkaline BatteriesAAA
Panasonic Part AM-4PI
Dimensions Comply with ANSI Standards
mm (inches)
MADE IN THE USA
Chemical System:Alkaline-Zinc/Manganese Dioxide (Zn/MnO2)
Designation:ANSI-24A, IEC-LR03
Nominal Voltage:1.5V
Internal Resistance:0.14 Ohms
Temperature Range:-20 °C to 54 °C (-4°F to 130°F)
Average Weight:11.0 grams (0.38 oz.)
Volume:3.8 cm
3
(0.2 in.3)
Terminals:Flat
Shelf Life:7 years (80% Capacity)
Heavy Metals Content:No added Mercury, Cadmium or Lead
IEC/ANSI Standard Tests @ 20°C
AA
1.6
1.5
1.4
1.3
1.2
1.1
1.0
0.9
0.8
051015 20 25
AA
1.6
1.5
1.4
1.3
1.2
1.1
1.0
0.9
0.8
012345
Remote Control (24ohm 15spm, 8hpd)
Duration (Hours)
Lighting (5.1ohm 4mph, 8hpd)
Duration (Hours)
AA
1.6
1.5
1.4
1.3
1.2
1.1
1.0
0.9
0.8
036912
AA
1.6
1.5
1.4
1.3
1.2
1.1
1.0
0.9
0.8
015304560 7590
Tape - Electronic Game (100mA 1hpd)
Duration (Hours)
Photoflash (600mA 10spm, 1hpd)
Duration (Minutes)
Panasonic Industrial Company
Division of Panasonic Corporation of North America
Toll Free: 1-877-PANABAT (1-877-726-2228)
oembatteries@us.panasonic.com
www.panasonic.com/batteries
Panasonic
ideas for life
AAA
Alkaline Battery Specifications
AAA
AAA
AAA
This information is generally typical and is not intended to make or imply any representation, guarantee or warranty with respect to any cells and batteries. Cell and
battery designs/specifications are subject to modification without notice. Cell/battery performance and service life depends on the operating temperature, cut-off voltage
and load applied to cell/battery in a specific application. It is the responsibility of each user to ensure that each cell/battery application is adequately designed safe and
compatible with all conditions encountered during use and in conformance with existing standards and requirements. Contact Panasonic for the latest information.
Panasonic
ideas for life
© Panasonic Industrial Company, 2005
Form: PIC-AAA
Print Date: 9/2005
