Panasonic ABJ User Manual

ABJ1,2,3,4,5

12.8

6.5

6

Dust protected type (Mounting hole

Immersion protected type

(wire leads bottom type)

2.3mm type)

(Mounting hole

2.3mm type)

HIGH ENVIRONMENTAL

TURQUOISE SWITCHES

RESISTANCE

ABJ TYPE

FEATURES

• Ultra-miniature size (12.8×6.5×6 mm)

• Sealed construction for use in adverse environment-Sealed
construction by epoxy resin and rubber cap greatly reduces possible
miscontact due to contaminants such as dust. Conforming to IP67* of
IEC protective construction classification

• Elastomer double molding technology, an industry first and ultrasonic
swaging technology contribute to uniform sealing in high production
quantities

• UL/CSA approved (Except the long stroke type of ABJ2 and the side
wire leads type.)

• Long stroke type is available

Since the repeatability is excellent and the play distance (overtravel) from
the operating position is ample, the task of performing adjustments during
installation is easy.
Operating position accuracy ±0.4 mm
Overtravel= Min. 2.0 mm
As wide range of high pressure is achieved, a stable reliability is ensured

• Leaf lever side wire leads type added. We now offer two types.

M3 type installation hole
Fixed pin type

TYPICAL APPLICATIONS

Immersion protected

(wire leads side type)

Compliance with RoHS Directive

Long stroke type

• Industrial use video jack

•Automotive (ex. Device for opening and shutting of automobile doors)

* Based on the protective construction classification of IEC, items which

satisfy the test requirements are denoted with an IP designation.

ORDERING INFORMATION

(If Agency standard required, please refer to the “with Agency standard type”. See next page.)

Ex. ABJ 1 4 1 0 4 0

Type of

switch

ABJ:
Turquoise
switch
J type

Remarks: 1. Standard packing: Dust protected type 100 pcs./carton, 2,000 pcs./case; Immersion protected type 50 pcs./case.

2. Not every combination is available. Please refer to the following table, “PRODUCT TYPES”.

Size of

mounting hole

1:

1.2 mm

2:

2.3 mm

3:

3 mm

4:

Fixed pin
(right side pin) type

5:

Fixed pin
(left side pin) type

Te r minal

4:

Solder terminal

5:

PC board terminal

6:

Wire leads (bottom type)

7:

Wire leads (right side type)

8:

Wire leads (left side type)

Contact

arrangement

1:

SPDT

2:

SPST-NC
(Wire leads
type only)

3:

SPST-NO
(Wire leads
type only)

Actuator

0:

Pin plunger

2:

Hinge lever

4:

Simulated roller lever

6:

Roller lever

8:

Leaf lever
(Mounting hole 3 mm
lead wire type only)

L:

Long stroke type

Operating force

by pin plunger

(max.)

4:

1.23 N

6:

1.96 N

7:

2.45 N
(Long stroke
type only)

Contact

0:1:AgNi alloy

AgNi alloy
+ Au clad

All Rights Reserved © C

OPYRIGHT Panasonic Electric Works Co., Ltd.

ABJ1,2,3,4,5

With Agency standard type

Ex. ABJ 1 4 1 0 4 0 9

Type of

switch

ABJ:
Turquoise
switch
J type

Remarks: 1. Standard packing: Dust protected type 100 pcs./carton, 2,000 pcs./case; Immersion protected type 50 pcs./case.

Size of

mounting hole
1:

1.2 mm

2:

2.3 mm

3:

3 mm

Te r minal

4:

Solder terminal

5:

PC board terminal

6:

Wire leads
(bottom type)

2. Not every combination is available. Please refer to the following table, “PRODUCT TYPES”.

Contact

arrangement

1:

SPDT

2:

SPST-NC
(Wire leads
type only)

3:

SPST-NO
(Wire leads
type only)

Actuator

0:

Pin plunger

2:

Hinge lever

4:

Simulated roller lever

6:

Roller lever

8:

Leaf lever
(Mounting hole 3 mm
lead wire type only)

Operating force by
pin plunger (max.)

4:6:1.23 N

1.96 N

Contact

0:1:AgNi alloy

AgNi alloy
+ Au clad

Agency

standard

9: UL/CSA

6 × 103
rated

CONTACT ARRANGEMENT

1. SPDT 2. SPST-NC (Wire leads type only) 3. SPST-NO (Wire leads type only)

COM NO NC COM NC COM NO

APPLICABLE CURRENT RANGE (reference)

2A

AgNi alloy

1A

OF1.23N OF1.96N

100mA

Au clad

1mA

0

5V

DC

5V

AC

Note) OF: Value of pin plunger

15V
15V

30V
125V

All Rights Reserved © C

OPYRIGHT Panasonic Electric Works Co., Ltd.

PRODUCT TYPES

1. Dust protected type (Terminal type)

Mounting hole 1.2mm type / Mounting hole 2.3mm type
AgNi alloy

Actuator

Pin plunger

Hinge lever

Simulated roller lever

Roller lever

AgNi alloy + Au clad

Actuator

Pin plunger

Hinge lever

Simulated roller lever

Roller lever

2-(1). Immersion protected type (Bottom wire leads type)

Mounting hole 1.2mm type
AgNi alloy

Actuator

Pin plunger

Hinge lever

Simulated roller lever

Roller lever

Mounting hole 2.3mm type
AgNi alloy + Au clad

Actuator

Pin plunger

Hinge lever

Simulated roller lever

Roller lever

Operating force

Max.

1.23 N ABJ1410409 ABJ1510409 ABJ2410409

1.96 N ABJ1410609 ABJ1510609 ABJ2410609

0.39 N ABJ1412409 ABJ1512409 ABJ2412409

0.64 N ABJ1412609 ABJ1512609 ABJ2412609

0.39 N ABJ1414409 ABJ1514409 ABJ2414409

0.64 N ABJ1414609 ABJ1514609 ABJ2414609

0.39 N ABJ1416409 ABJ1516409 ABJ2416409

0.64 N ABJ1416609 ABJ1516609 ABJ2416609

Operating force

Max.

1.23 N ABJ1410419 ABJ1510419 ABJ2410419

1.96 N ABJ1410619 ABJ1510619 ABJ2410619

0.39 N ABJ1412419 ABJ1512419 ABJ2412419

0.64 N ABJ1412619 ABJ1512619 ABJ2412619

0.39 N ABJ1414419 ABJ1514419 ABJ2414419

0.64 N ABJ1414619 ABJ1514619 ABJ2414619

0.39 N ABJ1416419 ABJ1516419 ABJ2416419

0.64 N ABJ1416619 ABJ1516619 ABJ2416619

Operating force

Max.

1.23 N ABJ1610409 ABJ1620409 ABJ1630409

1.96 N ABJ1610609 ABJ1620609 ABJ1630609

0.39 N ABJ1612409 ABJ1622409 ABJ1632409

0.64 N ABJ1612609 ABJ1622609 ABJ1632609

0.39 N ABJ1614409 ABJ1624409 ABJ1634409

0.64 N ABJ1614609 ABJ1624609 ABJ1634609

0.39 N ABJ1616409 ABJ1626409 ABJ1636409

0.64 N ABJ1616609 ABJ1626609 ABJ1636609

Operating force

Max.

1.23 N ABJ1610419 ABJ1620419 ABJ1630419

1.96 N ABJ1610619 ABJ1620619 ABJ1630619

0.39 N ABJ1612419 ABJ1622419 ABJ1632419

0.64 N ABJ1612619 ABJ1622619 ABJ1632619

0.39 N ABJ1614419 ABJ1624419 ABJ1634419

0.64 N ABJ1614619 ABJ1624619 ABJ1634619

0.39 N ABJ1616419 ABJ1626419 ABJ1636419

0.64 N ABJ1616619 ABJ1626619 ABJ1636619

ABJ1,2,3,4,5

Mounting hole 1.2 mm type Mounting hole 2.3 mm type

Solder terminal PC board terminal Solder terminal

Mounting hole 1.2 mm type Mounting hole 2.3 mm type

Solder terminal PC board terminal Solder terminal

Mounting hole 1.2 mm type

SPDT SPST-NC SPST-NO

Mounting hole 1.2 mm type

SPDT SPST-NC SPST-NO

All Rights Reserved © C

OPYRIGHT Panasonic Electric Works Co., Ltd.

ABJ1,2,3,4,5

Mounting hole 2.3mm type
AgNi alloy

Actuator

Pin plunger

Hinge lever

Simulated roller lever

Roller lever

AgNi alloy + Au clad

Actuator

Pin plunger

Hinge lever

Simulated roller lever

Roller lever

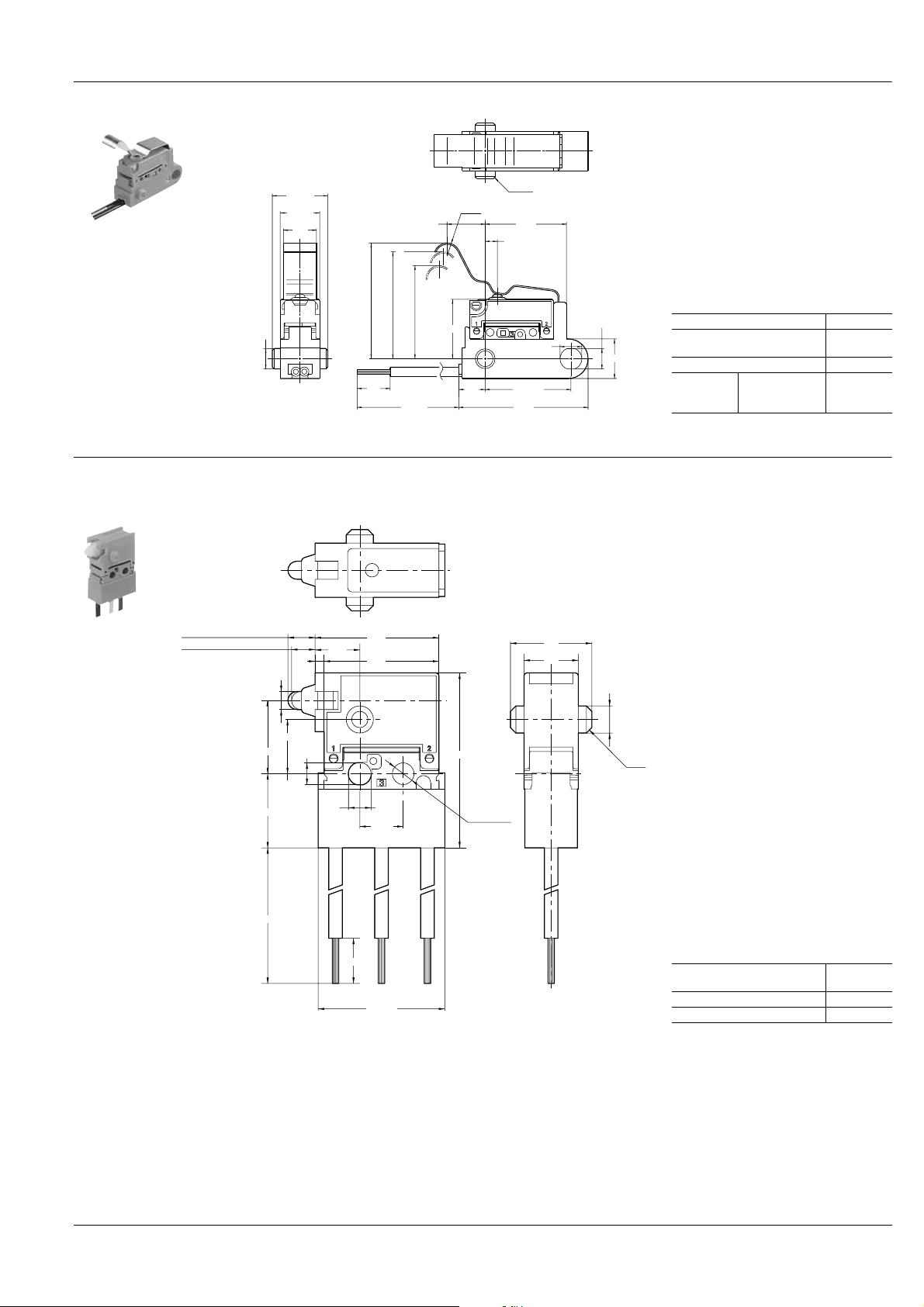

Mounting hole 3mm type (Leaf lever type)
AgNi alloy

Actuator

Leaf lever

AgNi alloy + Au clad

Actuator

Leaf lever

2-(2). Immersion protected type (Side wire leads type)

Fixed pin (right side pin) type
AgNi alloy

Actuator

Leaf lever

AgNi alloy + Au clad

Actuator

Leaf lever

Operating force

Max.

1.23 N ABJ2610409 ABJ2620409 ABJ2630409

1.96 N ABJ2610609 ABJ2620609 ABJ2630609

0.39 N ABJ2612409 ABJ2622409 ABJ2632409

0.64 N ABJ2612609 ABJ2622609 ABJ2632609

0.39 N ABJ2614409 ABJ2624409 ABJ2634409

0.64 N ABJ2614609 ABJ2624609 ABJ2634609

0.39 N ABJ2616409 ABJ2626409 ABJ2636409

0.64 N ABJ2616609 ABJ2626609 ABJ2636609

Operating force

Max.

1.23 N ABJ2610419 ABJ2620419 ABJ2630419

1.96 N ABJ2610619 ABJ2620619 ABJ2630619

0.39 N ABJ2612419 ABJ2622419 ABJ2632419

0.64 N ABJ2612619 ABJ2622619 ABJ2632619

0.39 N ABJ2614419 ABJ2622419 ABJ2634419

0.64 N ABJ2614619 ABJ2624619 ABJ2634619

0.39 N ABJ2616419 ABJ2626419 ABJ2636419

0.64 N ABJ2616619 ABJ2626619 ABJ2636619

Operating force

Max.

0.98 N ABJ3618409 ABJ3628409 ABJ3638409

1.27 N ABJ3618609 ABJ3628609 ABJ3638609

Operating force

Max.

0.98 N ABJ3618419 ABJ3628419 ABJ3638419

1.27 N ABJ3618619 ABJ3628619 ABJ3638619

Operating force

Max.

1.27 N Right ABJ472840 ABJ473840

1.27 N Left ABJ482840 —

1.76 N Right ABJ472860 ABJ473860

1.76 N Left ABJ482860 —

Operating force

Max.

1.27 N Right ABJ472841 ABJ473841

1.27 N Left ABJ482841 —

1.76 N Right ABJ472861 ABJ473861

1.76 N Left ABJ482861 —

Mounting hole 2.3 mm type

SPDT SPST-NC SPST-NO

Mounting hole 2.3 mm type

SPDT SPST-NC SPST-NO

Mounting hole 3 mm type

SPDT SPST-NC SPST-NO

Mounting hole 3 mm type

SPDT SPST-NC SPST-NO

Wire leads direction

Wire leads direction

SPST-NC SPST-NO

SPST-NC SPST-NO

Wire leads type

Wire leads type
