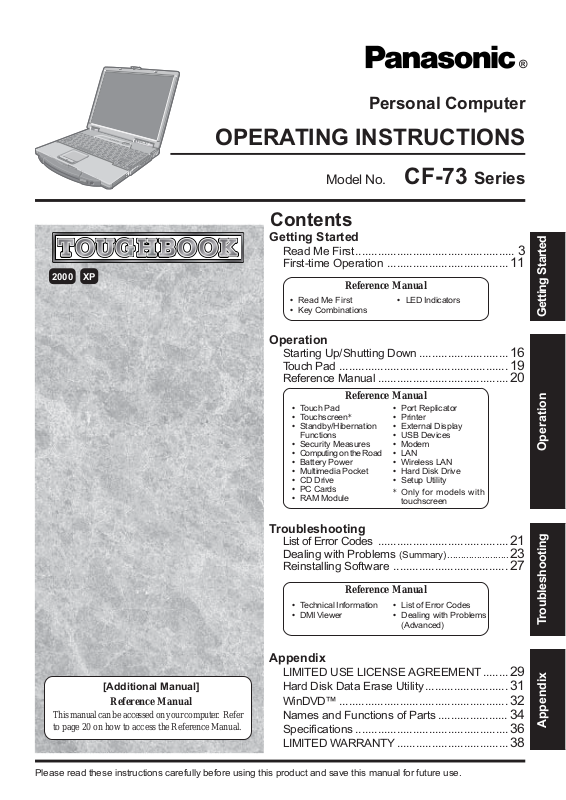

Panasonic 9TGCF-734, 9TGCF-735, 9TGCF-733 User Manual

2000

XP

Personal Computer

OPERATING INSTRUCTIONS

Model No. CF-73 Series

Contents

Getting Started

Read Me First.................................................. 3

First-time Operation ...................................... 11

Reference Manual

• Read Me First • LED Indicators

• Key Combinations

Operation

Starting Up/Shutting Down ............................ 16

Touch Pad ..................................................... 19

Reference Manual ......................................... 20

®

Getting Started

[Additional Manual]

Reference Manual

This manual can be accessed on your computer . Refer
to page 20 on how to access the Reference Manual.

Reference Manual

• Touch Pad

• Touchscreen*

• Standby/Hibernation

Functions

• Security Measures

• Computing on the Road

• Battery Power

• Multimedia Pocket

• CD Drive

• PC Cards

• RAM Module

• Port Replicator

• Printer

• External Display

• USB Devices

• Modem

• LAN

• Wireless LAN

• Hard Disk Drive

• Setup Utility

* Only for models with

touchscreen

Troubleshooting

List of Error Codes ......................................... 21

Dealing with Problems (Summary) ....................... 23

Reinstalling Software .................................... 27

Reference Manual

• Technical Information

• DMI Viewer

• List of Error Codes

• Dealing with Problems

(Advanced)

Appendix

LIMITED USE LICENSE AGREEMENT ........ 29

Hard Disk Data Erase Utility .......................... 31

WinDVD™ ..................................................... 32

Names and Functions of Parts ...................... 34

Specifications ................................................36

LIMITED WARRANTY ...................................38

Appendix OperationTroubleshooting

Please read these instructions carefully before using this product and save this manual for future use.

Customer’s Record

Model No. *

Serial No.

or

Code No.

Date of Purchase

* For the Model No., insert the 12 digit number (for example, CF-73E3KVXDM) located on

the bottom of the computer.

Dealer’s Name

Dealer’s Address

Introduction

Thank you for purchasing the Panasonic computer. Read the operating instructions thoroughly for proper operation of your new
computer.

Illustrations and Terminology in this Manual

NOTE: NOTE provides a useful fact or helpful information.
CAUTION: CAUTION indicates a condition that may result in minor or moderate injury.
WARNING: WARNING indicates a hazard that may result in moderate or serious injury.

Getting Started

Windows 2000 : Information for Microsoft® Windows® 2000 Professional users.
Windows XP : Information for Microsoft® Windows® XP Professional users.

Enter : This illustration means to press the [Enter] key.
Fn + F5 : This illustration means to press and hold the [Fn] key, then press the [F5] key.

[Start] - [Run]: This illustration means to click [Start], then to click [Run].

(For some applications, you may need to double-click.)

: Where to go for referred information.

: This illustration means to refer to the Reference Manual, which is available on your computer.

Refer to page 20 on how to access this manual.

Windows 2000 screens are used in this manual when no specific OS notes are required.
Some of the illustrations in this manual may differ slightly in shape from the actual items in order to make the explanation
easier to understand.
Circular media such as DVD-ROM and CD-ROM are described as “discs”.
The following drives are described as “CD drive”.
DVD-ROM drive, DVD-ROM & CD-R/RW drive
This manual covers two types of models, as distinguished by the type of display (models with touchscreen and models
without touchscreen).
If the user has logged on without the administrator authority, some functions may not be executable, and some screens
may not be displayed as shown in this manual. If this happens, log on with the administrator authority to enable these
functions.
Confirm the latest information on optional products in catalogs, etc.

Copyright

This manual is copyrighted by Matsushita Electric Industrial Co., Ltd. with all rights reserved. No part of this manual may be
reproduced in any form without the prior written permission of Matsushita Electric Industrial Co., Ltd.
No patent liability is assumed with respect to the use of the information contained herein.

©2003 Matsushita Electric Industrial Co., Ltd. All Rights Reserved.

Disclaimer

Computer specifications and manuals are subject to change without notice. Matsushita Electric Industrial Co., Ltd. assumes no
liability for damage incurred directly or indirectly from errors, omissions or discrepancies between the computer and the manuals.

Trademarks

Microsoft, Windows, Windows NT and the Windows logo are registered trademarks of Microsoft Corporation of the United States
and/or other countries.
Intel, Pentium and SpeedStep are either registered trademarks or trademarks of Intel Corporation.
Adobe® and Acrobat® are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or
other countries.
WinDVD™ is a trademark of InterVideo, Inc.
Panasonic is a registered trademark of Matsushita Electric Industrial Co., Ltd.

2

Read Me First

For U.S.A.

Federal Communications Commission Radio
Frequency Interference Statement

Note: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
Consult the Panasonic Service Center or an experienced ra­dio/TV technician for help.

Warning

To assure continued compliance, use only shielded interface
cables when connecting to a computer or peripheral. Also, any
changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate this equipment.

FCC RF Exposure Warning: This computer is provided with
PC Card slots that could be used with wireless transmitter(s),
which will be specifically recommended, when they become
available. Other third-party wireless transmitter(s) have not been
RF exposure evaluated for use with this computer and may not
comply with FCC RF exposure requirements.

This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including

interference that may cause undesired operation.

Responsible Party: Matsushita Electric Corporation of America

One Panasonic Way
Secaucus, NJ 07094
T el No:1-800-LAPTOP-5 (1-800-527-8675)

IMPORTANT NOTE: To comply with FCC RF exposure
compliance requirements, the antenna used for this transmitter
must be installed to provide a separation distance of at least 20
cm from all persons and must not be co-located or operating in
conjunction with any other antenna or transmitter.

FCC Regulation Notice for modem
This equipment contains a FCC approved modem.

Manufacturer of modem: PC TEL Inc.
Model No. PCT2304WT

Tested To Comply
With FCC Standards

FOR HOME OR OFFICE USE

1. This equipment complies with CFR47 Part 68 rules. On the
computer is a label that contains, among other information,
the FCC registration number and ringer equivalence number
(REN) for this equipment. If required, this information must
be provided to the telephone company.

2. An FCC compliant telephone cord and modular plug is pro­vided with this equipment. This equipment is designed to be
connected to the telephone network or premises wiring us­ing a compatible modular jack which is Part 68 compliant.
See Installation Instructions for details.

3. The REN is used to determine the quantity of devices which
may be connected to the telephone line. Excessive RENs on the
telephone line may result in the devices not ringing in response
to an incoming call. In most, but not all area, the sum of RENs
should not exceed five (5.0). To be certain of the number of
devices that may be connected to a line, as determined by the
total RENs, contact the local telephone company.

4. If your telephone equipment cause harm to the telephone
network, the telephone company will notify you in advice
that temporary discontinuance of service may be required.
But if advice notice isn’t practical, the telephone company
will notify the customer as soon as possible. Also, you will
be advised of your right to file a complaint with the FCC if
you believe it is necessary.

5. The telephone company may take changes in it’s facilities,
equipment, operations or procedures that could affect the op­eration of the equipment. If this happens the telephone com­pany will provide advance notice in order for you to make
necessary modifications to maintain uninterrupted service.

6. If trouble is experienced with this equipment, for repair or
warranty information, please contact Matsushita Electric
Corporation of America at DIAL TOLL FREE 1-800-LAP­TOP5 (1-800-527-8675). If the equipment is causing harm to
the telephone network, the telephone company may request
that you disconnect the equipment until the problem is resolved.

7. There are no user serviceable parts contained in this equip­ment.

8. This equipment may not be used on coin service provided
by the telephone company. Connection to party lines is sub­ject to state tariffs.

9. The Telephone Consumer Protection Act of 1991 makes it
unlawful for any person to use a computer or other electronic
device to send any message via a telephone fax machine un­less such message clearly contains in a margin at the top or
bottom of each transmitted page or on the first page of the
transmission, the date and time it is sent and an identification
of the business or other entry, or other individual sending the
message and the telephone number of the sending machine or
such business, other entity, or individual. In order to program
this information into your fax software, you should refer to
the manual of the Fax software being used.

Getting Started

3

Read Me First

10.According to the FCC’s electrical safety advisory, we recom­mend that you may install an AC surge arrestor in the AC
outlet to which this equipment is connected. Telephone com­panies report that electrical surges, typically lightning tran­sients, are very destructive to customer terminal equipment
connected to AC power sources and that this is a major na­tionwide problem.

“Caution: To reduce the risk of fire, use only No.26 AWG or larger telecom­munication line cord.”
“ATTENTION: Pour réduire le risque d’incendie, utiliser uniquement des
conducteurs de télécommunications 26 AWG ou de section supérieure.”

For Canada

Industry Canada (IC) Notice for modem

This equipment contains an Industry Canada approved modem unit.
The Industry Canada label is affixed on the modem unit.

EQUIPMENT ATTACHMENT LIMITATIONS

“NOTICE: The Industry Canada label identifies certified

Getting Started

equipment. This certification means that the equipment meets
telecommunications network protective, operational and
safety requirements as prescribed in the appropriate T erminal
Equipment Technical Requirements document(s). The
Department does not guarantee the equipment will operate
to the user’s satisfaction.
Before installing this equipment, users should ensure that it is
permissible to be connected to the facilities of the local
telecommunications company. The equipment must also be
installed using an acceptable method of connection. The customer
should be aware that compliance with the above conditions may
not prevent degradation of service in some situations.
Repairs to certified equipment should be coordinated by a
representative designated by the supplier. Any repairs or
alterations made by the user to this equipment, or equipment
malfunctions, may give the telecommunications company
cause to request the user to disconnect the equipment.
Users should ensure for their own protection that the electrical
ground connections of the power utility, telephone lines and
internal metallic water pipe system, if present, are connected
together . This precaution may be particularly important in rural
areas. Caution: Users should not attempt to make such
connections themselves, but should contact the appropriate
electric inspection authority, or electrician, as appropriate.”
“NOTICE: The Ringer Equivalence Number (REN) assigned
to each terminal device provides an indication of the
maximum number of terminals allowed to be connected to a
telephone interface. The termination on an interface may
consist of any combination of devices subject only to the
requirement that the sum of the Ringer Equivalence Numbers
of all the devices does not exceed 5.”

REN: See bottom of the computer

Notice for the products using LCD

This product uses one or more fluorescent lamps containing a
small amount of mercury. It also contains lead in some compo­nents. Disposal of these materials may be regulated in your com­munity due to environmental considerations. For disposal or
recycling information please contact your local authorities, or
the Electronics Industries Alliance: <http://www.eiae.org/>

RESTRICTIONS CONCERNANT LE RACCORDEMENT
DE MATÉRIEL

“AVIS: L’étiquette d’Industrie Canada identifie le matériel
homologué. Cette étiquette certifie que le matériel est
conforme aux normes de protection, d’exploitation et de
sécurité des réseaux de télécommunications, comme le
prescrivent les documents concernant les exigences
techniques relatives au matériel terminal. Le Ministère
n’assure toutefois pas que le matériel fonctionnera à la
satisfaction de l’utilisateur.
Avant d’installer ce matériel, l’utilisateur doit s’assurer qu’il
est permis de le raccorder aux installations de l’entreprise
locale de télécommunication. Le matériel doit également être
installé en suivant une méthode acceptée de raccordement.
L’abonné ne doit pas oublier qu’il est possible que la
conformité aux conditions énoncées ci-dessus n’empêche
pas la dégradation du service dans certaines situations.
Les réparations de matériel homologué doivent être
coordonnées par un représentant désigné par le fournisseur.
L’entreprise de télécommunications peut demander à
l’utilisateur de débrancher un appareil à la suite de
réparations ou de modifications effectuées par l’utilisateur
ou à cause de mauvais fonctionnement.
Pour sa propre protection, l’utilisateur doit s’assurer que tous
les fils de mise à la terre de la source d’énergie électrique,
des lignes téléphoniques et des canalisations d’eau
métalliques, s’il y en a, sont raccordés ensemble. Cette
précaution est particulièrement importante dans les régions
rurales. A vertissement: L ’utilisateur ne doit pas tenter de faire
ces raccordements lui-même; il doit avoir recours à un service
d’inspection des installations électriques, ou à un électricien,
selon le cas.”
“AVIS: L’indice d’équivalence de la sonnerie (IES) assigné
à chaque dispositif terminal indique le nombre maximal de
terminaux qui peuvent être raccordés à une interface. La
terminaison d’une interface téléphonique peut consister en
une combinaison de quelques dispositifs, à la seule condition
que la somme d’indices d’équivalence de la sonnerie de touts
les dispositifs n’excède pas 5.”

IES: Voir sous le fond de l’ordinateur

Industry Canada

This product complies with RSS210 Industry Canada.
Operation is subject to the following two conditions;
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.

4

Important Safety Instructions / Importantes Mesures De Sécurité

When using your telephone equipment, basic safety precau­tions should always be followed to reduce the risk of fire,
electric shock and injury to persons, including the following:

1. Do not use this product near water, for example, near a
bath tub, wash bowl, kitchen sink or laundry tub, in a wet
basement or near a swimming pool.

2.Avoid using a telephone (other than a cordless type) dur­ing an electrical storm. There may be a remote risk of
electric shock from lightning.

3.Do not use the telephone to report a gas leak in the vicin­ity of the leak.

4. Use only the power cord and batteries indicated in this
manual. Do not dispose of batteries in a fire. They may
explode. Check with local codes for possible special dis­posal instructions.

SAVE THESE INSTRUCTIONS

Certaines mesures de sécurité doivent être prises pendant
l’utilisation de matérial téléphonique afin de réduire les
risques d’incendie, de choc électrique et de blessures. En
voici quelquesunes:

1.Ne pas utiliser l’appareil près de l’eau, p.ex., près d’une
baignoire, d’un lavabo, d’un évier de cuisine, d’un bac à
laver, dans un sous-sol humide ou près d’une piscine.

2.Éviter d’utiliser le téléphone (sauf s’il s’agit d’un appareil
sans fil) pendant un orage électrique. Ceci peut présenter
un risque de choc électrique causé par la foudre.

3.Ne pas utiliser l’appareil téléphonique pour signaler une
fuite de gaz s’il est situé près de la fuite.

4.Utiliser seulement le cordon d’alimentation et le type de
piles indiqués dans ce manual. Ne pas jeter les piles dans
le feu: elles peuvent exploser . Se conformer aux règlements
pertinents quant à l’élimination des piles.

CONSERVER CES INSTRUCTIONS

Information to the User

This product and your Health

This product, like other radio devices, emits radio frequency electromagnetic energy. The level of energy emitted by this product
however is far much less than the electromagnetic energy emitted by wireless devices like for example mobile phones.
Because this product operates within the guidelines found in radio frequency safety standards and recommendations, we believe this
product is safe for use by consumers. These standards and recommendations reflect the consensus of the scientific community and result
from deliberations of panels and committees of scientists who continually review and interpret the extensive research literature.
In some situations or environments, the use of this product may be restricted by the proprietor of the building or responsible
representatives of the organization. These situations may for example include:

Using this product on board of airplanes, or

In any other environment where the risk of interference to other devices or services is perceived or identified as harmful.
If you are uncertain of the policy that applies on the use of wireless devices in a specific organization or environment (e.g. airports),
you are encouraged to ask for authorization to use this product prior to turning on the product.

Getting Started

Regulatory Information

We are not responsible for any radio or television interference caused by unauthorized modification of this product. The correction
of interference caused by such unauthorized modification will be the responsibility of the user. We and its authorized resellers or
distributors are not liable for damage or violation of government regulations that may arise from failing to comply with these
guidelines.

5

Read Me First

Informations destinées à l’utilisateur

Cet appareil et votre santé

Cet appareil, comme les autres dispositifs radio, émet une énergie électromagnétique de fréquence radio. Le niveau d’énergie
émis par cet appareil est cependant bien inférieur à l’énergie électromagnétique émise par certains dispositifs sans fil comme,
par exemple, les téléphones portables.
Cet appareil fonctionnant dans les limites des directives concernant les normes et recommandations de sécurité des fréquences
radio, nous pensons que l’utilisation de cet appareil ne pose aucun risque pour les consommateurs. Ces normes et recommandations
reflètent le consensus de la communauté scientifique et découlent des délibérations de commissions et comités de scientifiques
qui examinent continuellement et interprètent les documents de travaux approfondis. Dans certaines situations ou certains
lieux, l’utilisation de cet appareil peut être restreinte par le propriétaire du bâtiment ou les responsables de l’organisation. Par
exemple, ces situations peuvent inclure :

L’utilisation de cet appareil à bord d’un avion, ou

Dans un autre milieu où le risque d’interférence avec d’autres dispositifs ou services est perçu ou identifié comme nuisible.
Si vous n’êtes pas sûr de la politique qui s’applique à l’utilisation de dispositifs sans fil dans une organisation ou lieu spécifique
(un aéroport, par exemple), il est conseillé de demander l’autorisation d’utiliser cet appareil avant de le mettre sous tension.

Informations sur la réglementation

Nous ne serons pas tenus responsables de parasites radioélectriques ou de télévision provoqués par une modification non

Getting Started

autorisée de cet appareil. La rectification des parasites provoqués par une telle modification non autorisée sera la responsabilité
de l’utilisateur. Nous, et les revendeurs ou distributeurs mandatés de l’appareil ne seront pas tenus responsables de dommages
ou violations de règlements gouvernementaux qui peuvent se produire du fait du non respect de ces directives.

6

Lithium Battery

Precautions

Lithium Battery!

This computer contains a lithium battery to enable the date, time,
and other data to be stored. The battery should only be exchanged
by authorized service personnel.
W arning! A risk of explosion from incorrect installation or mis­application may possibly occur.

Pile au lithium!

Le micro-ordinateur renferme une pile au lithium qui permet de
sauvegarder certaines données comme la date et l’heure
notamment. Elle ne devra être remplacée que par un technicien
qualifié.
Avertissement! Risque d’explosion en cas de non respect de
cette mise en garde!

CD Drive Caution

CAUTION!

THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS, ADJUSTMENTS OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MA Y
RESULT IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF.
REFER SERVICING TO QUALIFIED PERSONNEL

AVERTISSEMENT!

CET APPAREIL UTILISE UN LASER.

’UTILISATION DE COMMANDES OU DE RÉGLAGES OU

L
L

’EXÉCUTION DE PROCÉDURES AUTRES QUE CELLES

SPÉCIFIÉES ICI PEUVENT PROVOQUER UNE EXPOSITION À
DES RADIATIONS DANGEREUSES.
NE PAS OUVRIR LES COUVERCLES NI ESSAYER DE RÉPARER
SOI-MÊME.
CONFIER TOUT TRAVAIL D'ENTRETIEN À UN PERSONNEL
QUALIFIÉ.

Bottom

CLASS 1 LASER PRODUCT

LASER KLASSE1

This computer has been designed so as to minimize shock to
the LCD and hard disk drive, the leakage of liquid (e.g., water)
on to the keyboard, etc., but no warranty is provided against
such trouble. Therefore, as a precision instrument, be extremely
careful in the handling.

Before putting the computer away, be sure to wipe off any
moisture.

Usage

Avoid Extreme Heat and Cold

Do not store or use the computer in locations
exposed to heat, direct sunlight, or extreme cold.
A void moving the computer between locations with
large temperature difference.
Operation: 5 oC to 35 oC {41 oF to 95 oF}
Storage: -20 oC to 60 oC {-4 oF to 140 oF}

Avoid Direct Sunlight on the LCD Panel

The LCD panel should not be exposed to direct
sunlight or ultraviolet light.

Avoid Humidity, Liquids and Dust

Do not store or use the computer in locations exposed
to high humidity , liquids (including rain) or dust.

Prevent Shock

Avoid subjecting the computer to severe vibrations or
impact. Do not place the computer inside a car trunk.

Avoid Radio Frequency Interference

Do not place the computer near a television or ra­dio receiver.

Avoiding low-temperature burns

A void more than casual contact with any heat pro­ducing area of the notebook computer, AC adap­tor, and any option or accessory you use with it.
Even low heat, if warmer than body temperature,
can cause a burn, if the skin is exposed to the heat
source for a long enough period of time.

Handling

Avoid Magnetic Fields

Keep the computer away from magnets.
Data stored on the hard disk may be lost.

Getting Started

Laser safety information is appropriate only when drive with laser is
installed.
Les mesures de sécurité relatives au laser ne s’appliquent que lors de
l’installation d’une unité avec laser.

Avoid Stacking

Do not place heavy objects on top of the computer.

Keep Small Objects Away

Do not insert paper clips or other small objects into
the computer.

Do Not Disassemble the Computer

Do not attempt to disassemble your computer.

Avoid Excessive Force on the Display

Do not apply excessive downward force on the
display when it is completely opened, especially
when plugs and/or cables are connected to the rear
of the computer.

7

Read Me First

Peripherals

Incorrectly using peripheral devices may lead to a decrease in
performance, an increase in temperature and/or damage your
computer . For more information on peripheral devices, refer to
the Reference Manual.

Precautions (Battery Pack)

Care should be exercised with regard to the following in
order to avoid the possibility of overheating, fire or damage.

Avoid Heat

Do not throw the battery pack into a fire or ex­pose it to excessive heat.

Keep Articles Away

Do not place the battery pack together with articles
such as necklaces or hairpins when carrying or stor-

Getting Started

Do not touch the terminals on the battery pack. The battery
pack may no longer function properly if the contacts are dirty
or damaged.
Do not expose the battery pack to water, or allow it to be­come wet.

ing.

Do Not Disassemble

Do not insert sharp objects into the battery pack,
expose it to bumps or shocks, deform, disassemble,
or modify it.

Do Not Short

Do not short the positive (+) and negative (-) con­tacts.

Avoid Extreme Heat, Cold and Direct Sunlight

Do not charge, use or leave the battery pack for
extended periods where it will be exposed to di­rect sunlight, in a hot place (in a car on a sunny
day, for example), or in a cold place.

Do Not Use With Any Other Computer

The battery pack is rechargeable and was intended
for the specified computer. Do not use it with a
computer other than the one for which it was de­signed.

Do Not Put into a Microwave

Do not put the battery pack into a microwave oven
or a pressurized chamber.

Stop Using

Should the battery emit an abnormal odor, become
hot to the touch, become discolored, change shape,
or become in any way different from normal, re­move it from the computer and stop using it.

Cables

Use of an interface cable longer than 3 m (9.84 feet) is not
recommended.

If the battery pack will not be used for a long period of time
(a month or more), charge or discharge (use) the battery pack
until the remaining battery level becomes 30% to 40% and
store it in a cool, dry place.
This computer prevents overcharging of the battery by re­charging only when the remaining power is less than approx.
95% of capacity.
The battery pack is not charged when the computer is first
purchased. Be sure to charge it before using it for the first

time. When the AC adaptor is connected to the computer,
charging begins automatically.
Should the battery leak and the fluid get into your eyes, do not
rub your eyes. Immediately flush your eyes with clear water
and see a doctor for medical treatment as soon as possible.

NOTE

The battery pack may become warm during recharging
or normal use. This is completely normal.
Recharging will not commence outside of the allowable
temperature range (0 °C to 50 °C {32 °F to 131 °F}).
( “Battery Power”) Once the allowable range
requirement is satisfied, charging begins automatically.
Note that the recharging time varies based on the usage
conditions. (Recharging takes longer than usual when
the temperature is 10 °C {50 °F} or less.)
If the temperature is low, the operating time is short­ened. Only use the computer within the allowable tem­perature range.
This computer has a high temperature mode function
that prevents the degradation of the main battery in high
temperature environments. If the high temperature mode

is enabled in the Setup Utility ( “Setup Util­ity”), a level of 100% in the [High Temperature] mode

is about a level of 80% in the [Normal Temperature]
mode.
The battery pack is a consumable item. If the amount of
time the computer can be run off a particular battery pack
becomes dramatically shorter and repeated recharging
does not restore its performance, the battery pack should
be replaced with a new one.
When transporting a spare battery inside a package, brief­case, etc., it is recommended that it be placed in a plastic
bag so that its contacts are protected.
Always power off the computer when it is not in use.
Leaving the computer on when the AC adaptor is not
connected will exhaust the remaining battery capacity.

8

Saving Data on the Hard Disk

Do not expose your computer to shock.

Use care when handling your computer, shock may damage your hard disk or make your software applica­tions and data unusable.

Do not power off your computer while software applications ar e running or hard disk drive indicator ( ) is on.

Properly shut Windows* down to avoid problems.

Save all valuable data to disks.

Backing up data to disks will limit damage should trouble occur to your computer or should you inadvert­ently change or erase data.
Use the security function for all important data. ( “Security Measures”)

* Windows 2000 : This computer uses Microsoft® Windows® 2000 Professional.

Windows XP : This computer uses Microsoft® Windows® XP Professional.

Hard Disk Lock

When the Hard Disk Lock is set to [Enable], it is impossible to read/write data from/to the hard disk when the hard
disk is installed in a different computer, since a password is also set for the hard disk. When the hard disk is
returned to the original computer , you can read/write data as before. In this case, however , make the settings in the
Setup Utility exactly the same as they were before the hard disk was removed. (Note that this Hard Disk Lock

does not guarantee the complete protection of data. “Security Measures”)

When Using Peripheral Devices

Pay strict attention to the following points to avoid damage to the computer, peripheral devices, cables, etc.
Also, in addition to following this manual and the Reference Manual, carefully read the instruction manuals for
the peripheral devices being used.

Use only peripheral devices that conform to the computer’s specifications.
Connect the devices properly, paying close attention to the condition and position of the connectors.
If a connection cannot be made easily, do not apply undue force; check once more to confirm the condition
and position of the connector (alignment of pins, etc.) .
If the connector has holding screws, fasten the screws firmly.
Do not carry the computer with cables attached, and do not pull on the cables forcefully.

Getting Started

When Disposing of or Transferring Ownership of This Device

When disposing of or transferring ownership of this device, erase all data on the hard disk in order to prevent the
theft of hard disk data. Even if you delete data or initialize the hard disk through normal Windows commands, data
can still be read using special software. In order to erase all data, either have the data erased by a specialist (at a
charge) or use the hard disk data eras e utility (included) ( page 31). (Note that this hard disk data erase utility
does not guarantee that data will be completely erased.)
Also, note that if you transfer ownership of this device without deleting commercial software that you have
installed to the hard disk, you may be in violation of the licensing agreement for that software.

Computer Viruses

Users are advised to purchase the latest versions of virus protection software and use them regularly.

We recommend you run the software:

• After booting your computer.

• After receiving data.
We recommend that you check data received on disks or from external sources, such as data downloaded from
the Internet, e-mail, etc. (For compressed files, uncompress them before running a check).

Wireless LAN

To prevent theft of data or unauthorized access to the hard disk via a wireless LAN

If you plan to use wireless LAN functions, we recommend that you do so only after making the appropriate
security settings, such as for data encryption.

9

Read Me First

Usage Environment

Environment

Place the computer on a flat stable surface. Do not place the computer upright or allow it to tip over.
When the computer receives extremely strong shock after falling, the hard disk may become inoperable.
In use: Temperature: 5 °C to 35 °C {41 °F to 95 °F}

Not in use: Temperature: -20 °C to 60 °C {-4 °F to 140 °F}

Places not to use your computer

Such areas may result in damage to the computer.

Areas with electronic equipment

These areas may interfere with your display or cause your computer to produce strange sounds.

Areas with extremely high/low temperatures

Do not leave things near the computer that are sensitive to heat. During operation, the computer may
become warm.

Handling

Getting Started

Humidity : 30% to 80% RH (No condensation)

Humidity : 30% to 90% RH (No condensation)

Do not drop or hit your computer against solid objects.
Do not carry your computer when it is on.
Remove all external devices, cables, and PC Cards sticking out of the computer (see the
figure on the left) before transporting the computer.
We recommend preparing a fully charged battery.
When transporting a spare battery inside a package, briefcase, etc., it is recommended that it
be placed in a plastic bag so that its contacts are protected.
Do not carry the computer while the display is open, or carry it by gripping the display.
Do not put anything (e.g., a piece of paper) between the display and keyboard.
Always carry your computer with you. Never check it in with luggage. For use of the com­puter inside an aircraft, we recommend asking the airlines regarding their policy on this issue.
It is a good idea to make backup copies on disks and carry them with you.
Do not leave a disk in the drive while transporting your computer.

Maintenance

Display

Touch Pad

page 19

CAUTION

Do not use benzene, thinner, or rubbing alcohol. Doing so may adversely affect the surface, e.g., discoloration. In addition, do
not use commercially-available household cleaners and cosmetics, as they may contain components harmful to the surface.
Do not directly add or spray water or detergent. If liquid enters the inside of the computer, it may cause it to work improp­erly or be damaged.

<Models with touchscreen>

Use the soft cloth included with the computer. (For more information, refer to “Suggestions
About Cleaning the LCD Surface” that comes with the soft cloth.)

<Models without touchscreen>

A void using water when cleaning the panel. Ingredients included in water may leave scratches
and reduce readability of the screen.
<When cleaning dust/dirt>

Avoid rubbing off dust/dirt with cloth since it may leave scratch on the screen.
Sweep dust/dirt with fine brush, then wipe it with a dry soft cloth used for cleaning glasses.

<When cleaning oily surface>

Apply camera lens cleaner on a soft gauze and clean it with gentle force. Then, wipe with a
dry soft cloth used for cleaning glasses.

Areas excluding the display

Wipe these areas with a soft cloth, after applying water or detergent diluted with water to the
soft cloth and firmly wringing out excess water.

10

First-time Operation

Read the steps below to help you learn what parts are included, and to gain an understanding of
some basic computer-related operations.

1 Confirm the inclusion of all parts

Make sure the parts shown in the figure have been supplied. If any of these items are
missing or is not working properly, contact Panasonic Technical Support.

AC Adaptor ........... 1

AC Adaptor ........... 1

AC Cord ................1

AC Cord ................1

Battery Pack ........1

Battery Pack ........1

Model No: CF-AA1653A

Modem Telephone

Cable ..................... 1

Operating Instructions (This book)

<Model with a DVD-ROM Drive>

WinDVD™ CD-ROM ( page 32) .....................................................1

<Model with a DVD-ROM & CD-R/RW Drive>

WinDVD™ CD-ROM ( page 32) .....................................................1

B’s Recorder/B’s CLiP CD-ROM .........................................................1

B’s Recorder/B’s CLiP Booklet...........................................................1

<Only for models with touchscreen>

Soft Cloth ................................... 1

Product Recovery CD-ROM

Windows 2000

...

1 Windows Book ........................ 1

Stylus .........................................1

Model No: CF-VZSU26

Windows XP

( “Touchscreen”)

Getting Started

Latch

2

Battery Pack

2 Read the LIMITED USE LICENSE AGREEMENT ( page 29)

Before removing the seal covering the power switch, read the LIMITED USE LI­CENSE AGREEMENT.

1

3

3 Turn the computer over and insert the battery pack

1 Slide the right latch to the unlock position ( ).
2 Make sure the battery pack is facing the correct direction, slide it in the direction

of the arrow.

3 Slide the right latch to the lock position ( ), and then check to ensure that the

battery pack is held firmly.
(Left latch is locked automatically.)

CAUTION

Be sure the battery pack is properly connected to the connector.
Do not touch the terminals on the battery pack and the computer. The battery
pack may no longer function properly if the contacts are dirty or damaged. Also,
the computer may not operate properly.
Before using the battery pack, carefully read “Precautions (Battery Pack)”
( page 8).

11

First-time Operation

Connect your computer to a power outlet

4

The battery pack will be charged automatically.
Charging Time: Approx. 3 hours
(Varies depending on the usage conditions.)

CAUTION

DC-IN Jack

DC IN 15.1-16.0 V

Getting Started

Latch

Be sure the AC adaptor is connected until completing Step 7.
When using the computer for the first time, do not connect any peripheral de­vice except the battery pack and AC adaptor to the computer.

Handling the AC adaptor

Do not twist or pull the AC power cord forcefully. Doing so may damage the
connections.
Use only the specified AC adaptor with your computer. Using an AC adaptor
other than the one supplied might damage the battery and/or the computer.
When the DC plug is not connected to the computer, disconnect the AC cord
from your AC wall outlet.
Problems such as sudden voltage drops may arise during periods of thunder and
lightning. Since this could adversely affect your computer, an uninterruptible
power source (UPS) is highly recommended unless running from the battery
pack alone.

Power
Switch

Open the display

3

2

5

1 Pull the carrying handle forward.
2 Lift up the latch.
3 Lift open the display.

1

6 Turn your computer on

Power
Indicator

Press the power switch and hold it for approximately one second until the power indi­cator turns on before releasing it.

CAUTION

Do not press the power switch and hold it for more than four seconds; this will
cause the power to be turned off forcibly.
Do not press the power switch repeatedly.
Once the computer is powered off, you must wait at least ten seconds before
powering it on again.

7 Setup Windows

Moving the cursor ( ) or clicking buttons can be performed with the touch pad
( page 19).

Windows 2000

CAUTION

Do not press any key or move the touch pad until [Windows 2000 Professional
Setup] is displayed.

12

1 At the [Welcome to the Windows 2000 Setup Wizard], select [Next].
2 After reading the agreement, select [I accept this agreement] or [I don’t accept this

agreement], then select [Next].

NOTE

If [I don’t accept this agreement] is selected, the W indows setup will be aborted.
