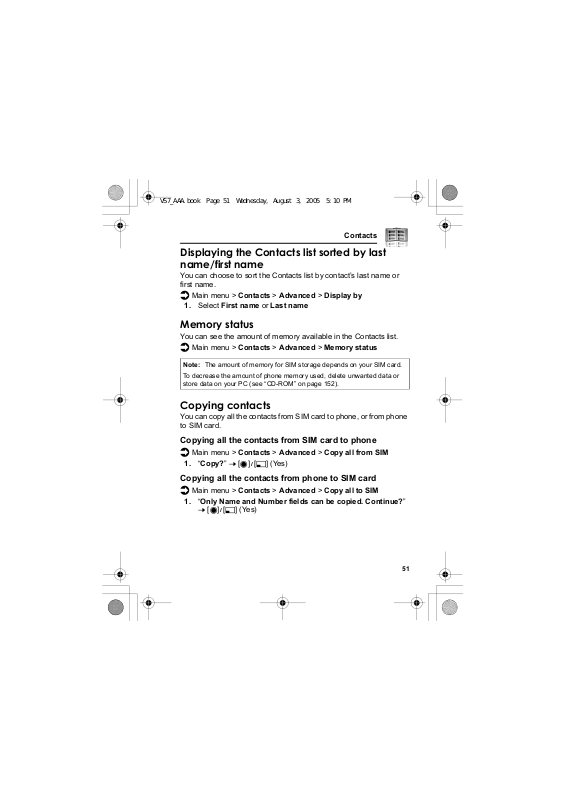

VS7_AAA.book Page 51 Wednesday, August 3, 2005 5:10 PM

Contacts

Displaying the Contacts list sorted by last name/first name

You can choose to sort the Contacts list by contact’s last name or first name.

d Main menu > Contacts > Advanced > Display by 1. Select First name or Last name

Memory status

You can see the amount of memory available in the Contacts list. d Main menu > Contacts > Advanced > Memory status

Note: The amount of memory for SIM storage depends on your SIM card.

To decrease the amount of phone memory used, delete unwanted data or store data on your PC (see “CD-ROM” on page 152).

Copying contacts

You can copy all the contacts from SIM card to phone, or from phone to SIM card.

Copying all the contacts from SIM card to phone

d Main menu > Contacts > Advanced > Copy all from SIM 1. “Copy?” 7 [0]9[5] (Yes)

Copying all the contacts from phone to SIM card d Main menu > Contacts > Advanced > Copy all to SIM

1.“Only Name and Number fields can be copied. Continue?”

7 [0]9[5] (Yes)

51

VS7_AAA.book Page 52 Wednesday, August 3, 2005 5:10 PM

Contacts

Deleting Phone Contacts

You can delete all the contacts stored in your phone. d Main menu > Contacts > Advanced > Delete all

1.“Delete all contacts in phone?” 7 [5] (Yes)

2.“Are you Sure?” 7 [5] (Yes)

Service numbers

If your SIM card includes SDN (Service Dialling Number), you can call a service number by selecting from the list.

SDN enables you to access special services provided by your network operator, such as customer support, emergency services, etc.

d Main menu > Contacts > Service numbers

1. [192] to scroll to the required item 7 [0]9[5] (Call)

52

VS7_AAA.book Page 53 Wednesday, August 3, 2005 5:10 PM

Messages

Messages menu structure

Create new........................	54	Voicemail...........................	66
SMS message........................	55	Call Voicemail .........................	66
MMS message .......................	58	Set mailbox number................	66
Inbox .................................	60	Messages settings ...........	67
SMS .......................................	61	SMS........................................	67
MMS.......................................	62	MMS .......................................	68
Archive..............................	64	Memory status ..................	69
SMS .......................................	64	SMS........................................	69
MMS.......................................	64	MMS .......................................	69
Web mail*1 ........................	65
Chat*1	66	*1

Note: There are several ways to select items from menu lists. See “Menu selection method” on page 26.

53

VS7_AAA.book Page 54 Wednesday, August 3, 2005 5:10 PM

Messages

Creating a new message

Messaging types

Short Message Service allows you to send and receive short text messages on any network that has roaming

SMS agreement. (Dependent on the recipient’s phone parameters.) With the Illumination feature, you can express special feelings in a message.

Multimedia Messaging Service allows you to send messages containing text, pictures, sound and video

MMS clips from your phone to other MMS-enabled phones or e-mail addresses. The recipient can play it as a slide show.

Note: The message centre number for SMS should be preprogrammed on the SIM card. Changing this number (see Message centre setting on page 67) may cause failure of a text message.

Your phone may have already been set with an MMS profile when purchased. To change the settings of the profile, see Advanced setting on page 68.

Sending or editing of a forward locked picture/sound clip/video clip indicated by the icon () is restricted.

54

VS7_AAA.book Page 55 Wednesday, August 3, 2005 5:10 PM

Messages

Creating an SMS message

d Main menu > Messages > Create new > SMS message

1.Create text message 7 [0]

See “Text entry” on page 36 for entering text.

2.To enter recipient’s phone number directly: Enter number

To select recipient’s phone number from Contacts: [0] 7 Highlight the required contact 7 [5] (Select) 7 If the card has several phone numbers stored, [192] to scroll to the required number 7 [0]9[5] (Select)

3.[0] to send the message

Creating an Illumination message with emoticons

With the Illumination feature, you can express special feelings in a message. The Indicator/Illumination Light responds to the pictographs in an Illumination message and light in combinations of colours and light patterns when you receive and view an Illumination message.

d Main menu > Messages > Create new > SMS message

1.Create text message

2.[5] (Options) 7 Select Templates

3.Select Illumination templates

4.Select the required emoticon

See “Emoticon list” on page 56.

To preview the Illumination of the messages you create: [5] (Options) 7 Select Preview illumination

Note: Only recipients who have an Illumination message capable phone can view messages with Illumination.

55

VS7_AAA.book Page 56 Wednesday, August 3, 2005 5:10 PM

Messages

Emoticon list

	Emoticon	Indicator	Light
		Colour	Pattern
	:-)		A
	:-D	Colour 3
	>:-<
	:-||		B
	:e
	0:-)	Colour 6	A
	:-P		C
	:'(	Colour 1	B
	:-(		A
	:-/
	:-S	Colour 5	B
	:-[		C
	:->	Colour 2	A
	8-)
	=:-)		B
	:-0	Colour 4
	:()		C
	:-I	Colour 7
	I-(		A
	;-)	Colour 8

	Emoticon	Indicator	Light
		Colour	Pattern
	\^o^/		A
	(^_^)	Colour 3
	\(>o<)/
	(>-<#)		B
	^3^
	(o^-^o)	Colour 6	A
	(e~o~e)
	(;_;)	Colour 1	B
	(T_T)		A
	(?_?)
	(>_<)	Colour 5	B
	(-_-;		C
	(^w^)	Colour 2	A
	^&^
	(@_@)		B
	(eoe)	Colour 4
	p(^-^)p		A
	(-_-)	Colour 7	C
	(_ _)Zzz		A
	(^_~)"	Colour 8

•Pattern A: [Firefly] flickers slowly for about 4 seconds.

•Pattern B: [Flash] flickers fast for about 3 seconds.

•Pattern C: [Beam] lights for about 3 seconds.

56

VS7_AAA.book Page 57 Wednesday, August 3, 2005 5:10 PM

Messages

Options

When creating a text message, the following options are available by pressing [5] (Options).

	Send	Send the text as an SMS message.
	Send to many	Send the text to more than one recipients.
	Preview illumination	Preview illumination message.
		Select Illumination templates to create an
	Templates	illumination message or User templates to use
		the stored text templates.
		The long message may be divided into several
	Count message	messages. You can check the concatenated
		message number.
	Save	Save the message in Unsent folder.
	Use contacts	Access Contacts menu to use Contacts data.
	Copy/Cut/Paste	Copy, cut or paste the text.
	Add symbol	Show the Symbol list from which you can select
		any symbol available on your phone.
	Input method	Select the input method.
	T9 on/off	Turn On or Off the predictive dictionary.
	Input language	Select a language you wish to write in.
	My dictionary	Add words to the internal dictionary.
	Exit	Exit the text edit mode.

57

VS7_AAA.book Page 58 Wednesday, August 3, 2005 5:10 PM

Messages

Creating an MMS message

d Main menu > Messages > Create new > MMS message

1.Select Add picture, Add text, Add sound or Add video

2.If Add text is selected: Create text message 7 [0]

See “Text entry” on page 36 for entering text.

If Add picture/Add sound/Add video is selected: Select the required item stored to My Media 7 [5] (Select)

You can also download new files, take new pictures, record new sound or video clips for the MMS message.

3.To add more than one picture, text, sound or video clip, [192] to scroll to Slides 7 [0] 7 [0]9[5] (Yes)

4.Repeat steps 1-3 if required

To send the message:

5.[5] (Options) 7 Select Send

6.[192] to scroll to Add subject 7 [0]

7.Enter subject 7 [0]

8.[192] to scroll to Add recipient 7 [0]

9.Select From contacts, Enter number or Enter email address

10.If From contacts is selected: Highlight the required contact 7 [5] (Select) 7 If the card has several numbers stored, [192] to scroll to the required number 7 [0]9[5] (Select)

If Enter number/Enter email address is selected: Enter number/email address 7 [0]

11.[192] to scroll to Send 7 [0]

Note: When you select Add video and record a new video clip in step 2, the recording time is fixed to For MMS sending.

You cannot attach a video clip together with a picture file or sound clip to one slide.

For downloading contents, visit http://box.panasonic.com/

58

VS7_AAA.book Page 59 Wednesday, August 3, 2005 5:10 PM

Messages

Slide options

When Slides is highlighted, the following options are available by pressing [5] (Options).

	Add new	Add a new slide.
	Send	Send the MMS message after entering subject
		and recipient number or address.
	Slide duration	Specify duration of the slide.
	Remove slide	Remove the slide from the MMS message.
	Preview slide	Preview the MMS message as a slide.

Receiving messages

Receiving SMS messages

When you receive a new SMS message, the message icon ( ) is displayed along with a tone, illumination, and/or vibration. The SMS notification also appears on the standby screen. When One push SMS setting is set to On (see page 67), new SMS messages can be displayed by opening the flip. You can also check received SMS messages on the Front display.

Reading SMS messages

When an SMS notification is displayed on the standby screen:

1.[0]9[5] (View)

If there is more than one notification, [192] to scroll to New SMS before step 1.

If there is one SMS message, the message is automatically displayed.

2.If there is more than one SMS message, [192] to scroll to the required message header in SMS Inbox 7 [0]

3.When the message is displayed, [0] to show the message details (sender’s number, date, message centre’s number) if required

59

VS7_AAA.book Page 60 Wednesday, August 3, 2005 5:10 PM

Messages

Receiving MMS messages

When you receive a new MMS message, the message icon () is displayed along with a tone, illumination, and/or vibration. The received MMS messages are stored in Inbox.

Reading MMS messages

To read the received MMS messages, see “MMS Inbox” on page 62.

Note: If you do not want to receive MMS messages automatically, select Never in Auto download setting (see page 68). In this case, you will receive a message notification first, and then you will need to receive messages manually.

Inbox

Inbox stores received SMS and MMS messages. d Main menu > Messages > Inbox

Numbers in brackets show the number of unread messages and the total number of messages in each inbox.

60

VS7_AAA.book Page 61 Wednesday, August 3, 2005 5:10 PM

Messages

SMS Inbox

SMS message icons

Unread message	Read message

Reading SMS messages

d Main menu > Messages > Inbox > SMS

1.[192] to scroll to the required message header 7 [0]

2.[0] to show the message details (sender’s number, date, message centre’s number) if required

Options

When viewing the list of messages or the selected message, the following options are available by pressing [5] (Options).

Reply	Create reply message in SMS or MMS.
Forward	Forward the selected message.
Call	Call the sender’s number.
Add to contacts	Store the sender’s number to Contacts.
Use detail*1	Use phone number, e-mail or web address in the
	selected message to call, create message, add to
	Contacts, etc.
Delete	Delete the selected message.
Delete all*2	Delete all the SMS messages.
View illumination*1	Check the illumination of the message.

*1 Available only when viewing the selected message. *2 Available only when viewing the list of messages.

61

VS7_AAA.book Page 62 Wednesday, August 3, 2005 5:10 PM

Messages

MMS Inbox

MMS message icons

Unread message	MMS notification

Read message

Reading MMS messages

d Main menu > Messages > Inbox > MMS

1. [192] to scroll to the required message header 7 [0]

Options in the message list

When viewing the list of messages, the following options are available by pressing [5] (Options).

	Reply	Create reply message by SMS or MMS.
	Reply to all	Create reply message to all recipients.
	Forward	Forward the selected message.
	Call	Call the sender’s number.
	Add to contacts	Store the sender’s number or e-mail address to
		Contacts.
	Delete	Delete the selected message.
	Delete all	Delete all the MMS messages and notifications.
	Protect/Unprotect	Protect or unprotect the selected message.
	Details	Show details for the selected message.

		Note: Sending or editing of a forward locked file indicated by the icon (					)
		is restricted.
		62

VS7_AAA.book Page 63 Wednesday, August 3, 2005 5:10 PM

Messages

Options while viewing messages

When viewing the message, the following options are available by pressing [5] (Options).

Reply	Create a reply message by SMS or MMS.
Reply to all	Create a reply message to all the recipients.
Play again	Play the selected message.
Message font size*1	Select the required font size.
Save picture	Save the attached picture to My Media.
Save sound	Save the attached sound clip to My Media.
Save video	Save the attached video clip to My Media.
	Use the phone number, e-mail or web address in
Use detail	the selected message to call, create message,
	add to Contacts, etc.
Attached files	Show the attached files.

*1

Options for notification

When the notification is highlighted, the following options are available by pressing [5] (Options).

Receive		Receive new messages.
Forward		Forward the message.
Reject		Delete the notification from the message list and
		the message from the server.
Call		Call the sender’s number.
Delete all		Delete all the MMS messages and notifications.
Protect/Unprotect		Protect or unprotect the message.
Details		Show details for the selected message.
	63

VS7_AAA.book Page 64 Wednesday, August 3, 2005 5:10 PM

Messages

Archive

Archive stores SMS and MMS messages that are sent or waiting to be sent.

	Sent	Store sent SMS messages.
SMS	Unsent	Store undelivered and unfinished SMS
		messages.
	Sent	Store sent MMS messages.
MMS	Outbox	Store undelivered MMS messages.
	Drafts	Store unfinished MMS messages.

Viewing messages

d Main menu > Messages > Archive > SMS or MMS

1.Select the required folder

2.[192] to scroll to the required message 7 [0]

Options for SMS

In Sent and Unsent folders, the following options are available by pressing [5] (Options).

Send	Send the selected message.
Call	Call the sender’s number.
Use detail*1	Use phone number, e-mail or web address in the
	selected message to call, create message, add to
	Contacts, etc.
Delete	Delete the selected message.
Delete all*2	Delete all the SMS messages in the folder.
View illumination*1	Check the illumination of the message.

*1 Available only when viewing the selected message. *2 Available only when viewing the list of messages.

64

VS7_AAA.book Page 65 Wednesday, August 3, 2005 5:10 PM

Messages

Options for MMS

In Sent, Outbox and Drafts folders, the following options are available by pressing [5] (Options).

Edit		Edit the selected message.
Forward*1		Forward the selected message.
Send*2		Send the selected message.
Delete		Delete the selected message.
Delete all		Delete all the messages in the folder.
Protect/Unprotect		Protect or unprotect the selected message.
Details		Show details for the selected message.
*1	Available only in Sent folder.
*2	Available only in Outbox and Drafts folder.

Web mail

Web mail is an innovative service that lets you stay up-to-date with all of your messages. You need to subscribe to this service. For further information, contact your service provider.

Connecting to internet mail

d Main menu > Messages > Web mail

Your phone is connected to the Internet via a WAP connection to retrieve e-mail messages.

1. Follow the screen contents

65

VS7_AAA.book Page 66 Wednesday, August 3, 2005 5:10 PM

Messages

Chat

Chat lets you enjoy the fun of instant messaging wherever you are. It’s the fun way to chat on-line. For further information, contact your service provider.

d Main menu > Messages > Chat 1. Follow the screen contents

Voicemail

Voicemail is a network service which allows callers, who could not reach you, to leave voice messages. You may need to subscribe to this service. For further information, contact your service provider.

Retrieving stored voice messages

When a new voice message is stored, an alert sounds and ( ) appears on the display, and you receive an SMS notification.

When an SMS notification is displayed on standby screen:

1.[0]9[5] (Call)

2.Follow the recorded instructions

OR

d Main menu > Messages > Voicemail > Call Voicemail 1. Follow the recorded instructions

Shortcut: You can also press and hold [A] in standby mode to call your voice mailbox.

Changing the voice mailbox number

d Main menu > Messages > Voicemail > Set mailbox number 1. Enter new voice mailbox number 7 [0]9[5] (Ok)

66

VS7_AAA.book Page 67 Wednesday, August 3, 2005 5:10 PM

Messages

Messages settings

SMS settings

d Main menu > Messages > Messages settings > SMS 1. Select the required setting

		Decide whether or not you want the Indicator/
	Message lights	Illumination Light to illuminate when receiving an
		illumination message.
		Decide whether or not you want the Indicator/
	Message lights view	Illumination Light to illuminate when viewing an
		illumination message.
	Message centre	Edit the message centre number.
	Message type	Select the required message type.
		Set a time period for the message centre to
	Validity period	attempt message delivery. Select 1 hour, 12
		hours, 1 day, 1 week, 1 month, 3 months or
		Maximum.
	Delivery report	Select On to receive delivery reports.
	Store sent SMS	Select On to store sent messages to the Sent
		folder.
	Message font size*1	Select the required font size.
	Bearer type	Select the data bearer type.
	One push SMS	Select On to display new SMS messages by
		opening the flip.
	*1

67

VS7_AAA.book Page 68 Wednesday, August 3, 2005 5:10 PM

Messages

MMS settings

d Main menu > Messages > Messages settings > MMS 1. Select the required setting

				Select Request read (check if the other party has
				read the message), Send read (inform the other
		Reports		party that you have read the message when
				asked), Request delivery (check if the other party
				has received the message) or Send delivery
				(inform the other party that you have received the
				message when asked).
		Priority		Select Low, Normal or High for the message
				priority level.
				Set a time period for the message centre to
		Validity period		attempt message delivery. Select 1 day, 7 days or
				Maximum.
				Select Always on (messages are retrieved
		Auto download		automatically after receiving message
				notifications), On when home (messages are
				retrieved automatically in your service area) or
				Never (messages are retrieved manually).
				Select Auto (display MMS slides, or playback
		Player mode		video/sound clips automatically) or Manual
				(display MMS slides, or playback video/sound
				clips manually).
		Message font size*1		Select the required font size.
				If required, edit the information on Message
		Advanced		server, WAP profiles, Fetch on server*1 and
				Anonymous reject*1. Select Information to view
				MMS software information.
		*1
		68
