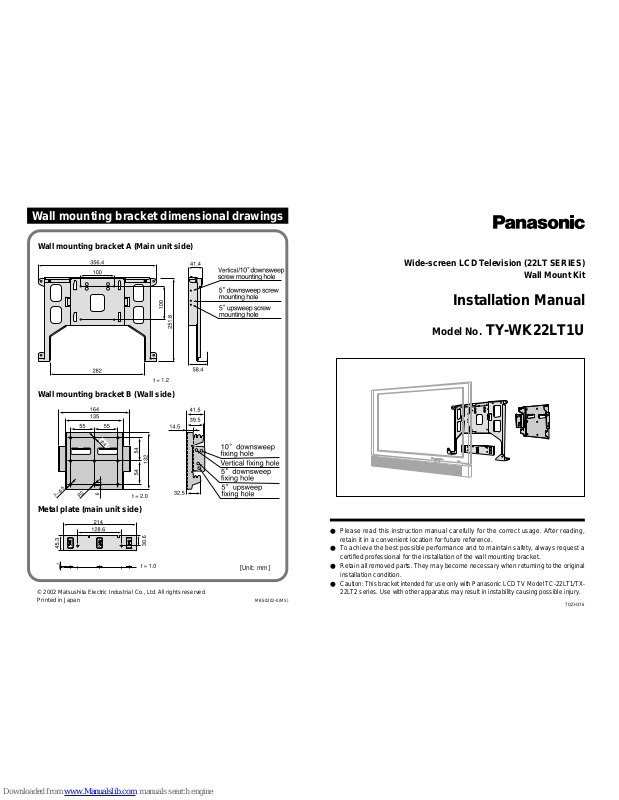

Panasonic 22LT Installation Manual

Wide-screen LCD Television (22LT SERIES)

Wall Mount Kit

Installation Manual

Model No. TY-WK22LT1U

● Please read this instruction manual carefully for the correct usage. After reading,
retain it in a convenient location for future reference.

● To achieve the best possible performance and to maintain safety, always request a
certified professional for the installation of the wall mounting bracket.

● Retain all removed parts. They may become necessary when returning to the original
installation condition.

●

Caution: This bracket intended for use only with Panasonic LCD TV Model TC-22L T1/TX­22LT2 series. Use with other apparatus may result in instability causing possible injury.

TQZH376

Wall mounting bracket A (Main unit side)

Wall mounting bracket dimensional drawings

Wall mounting bracket B (Wall side)

Metal plate (main unit side)

[Unit: mm]

© 2002 Matsushita Electric Industrial Co., Ltd. All rights reserved
Printed in Japan

MBS0202-0(MS)

■ Be aware of safety factors

concerning the mounting
strength

Insufficient strength may
cause the wide-screen
LCD television to fall, re­sulting in bodily injury.

■ Do not hang anything from the

wide-screen LCD television,
place a stepladder against it,
etc.

The wide-screen LCD tele­vision may become dam­aged or it may fall, causing
bodily injury.

Installation

Prohibited

WARNING

■ Do not install in humid or

dusty areas, or where the
wide-screen LCD television
may be exposed to lampblack,
steam or heat.

Fire or electrical shock may
occur as a result.

■ Make sure there is sufficient

air circulation so that the am­bient temperature does not
exceed 35°C.

Heat may build up within the
wide-screen LCD televi­sion, causing fire as a result.

Installation

Prohibited

CAUTION

This symbol indicates that the item must be followed with caution.

Safety precautions

Be sure to follow

T o prevent injury to the user and others and to prevent damage to property, items that must
be followed are explained as shown below.

■ The following displays categorize the degree of danger when mishandled.

WARNING

■ Items that must be followed are explained using the following symbols.

This symbol indicates that the item must always be followed.

This symbol indicates that the item is prohibited.

Possibility of serious injury and even death when
mishandled.

CAUTION

Possibility of injury or damage to surrounding
property.

■ Installation to be performed by

certified personnel only.

Inadequate installation
may cause the wide-screen
LCD television to fall, re­sulting in bodily injury.

■ Do not install where tolerance

is weak.

If the tolerance of the
mounting location is weak,
the wide-screen LCD tele­vision may fall resulting in
bodily injury.

Installation

Prohibited Prohibited

WARNING

3

2

Cautions concerning installation work

To achieve the best possible performance and to maintain safety, always
request a certified professional for the installation of the wall mounting
bracket.

1

The stand of the wide-screen LCD television must be removed.
Before performing work, always turn off the power and disconnect the power
plug of the AC adapter from the wall outlet.

2

Allow sufficient strength for safety.
The weight of the wide-screen LCD television is approximately 9.5 kg.
When mounting on a wall, perform work so that it can withstand the weight of
the television and so that the bracket will not come loose from vibration, etc.
Reinforce the bracket if the mounting section strength is insufficient.
The television may fall if the installation is insufficient or if the screws are loose.

● Wall surface strength
Wall surface material

Plywood................... Thickness of at least 20 mm is required.

Concrete.................. Thickness of at least 55 mm is required.

* Use reinforcing plate or bar if the wall surface material is < board, plaster-

board, particle board, > concrete, etc., or if there is not enough mounting
strength due to aging, etc.

3

Use the supplied cable clampers to fix cables. Never fix cables using staples.

■ Do not install with the wide-

screen LCD television facing
downward, on its side, or up­side down.

Heat may build up within the
wide-screen LCD televi­sion, causing fire as a result.

■ Maintain space of at least 5 cm

on top and to the sides of the
wide-screen LCD television
and at least 4 cm in the rear.

Vent holes are located on
the rear of the wide-screen
LCD television. Blocking
these holes may result in
fire.

■ Always remove the wall

mounting bracket when re­moving the wide-screen LCD
television.

Injury may result when ac­cidentally hitting the pro­jected parts.

Take caution when removing for re­pairs, etc.

■ The wide-screen LCD televi-

sion is heavy. Always work in
pairs.

The television may fall,
causing bodily injury.

Installation

Prohibited

CAUTION

5

4
