CHAPTER 1
Using Phone Link
Phone Link helps you configure a connection between your handheld and
a compatible mobile phone. You can connect to a compatible mobile phone
using any of the following methods:
■
Infrared communication: A wireless link that enables you to connect to an
infrared-enabled mobile phone within 1 meter (approximately 39 inches) of
your handheld. The infrared ports on the two devices must be aligned, and the
path between the two devices must be clear of obstacles. See the electronic
handbook that came with your handheld for more information about your
handheld’s infrared capabilities.
■
A serial cable connection: A wire-based link that connects your handheld to a
mobile phone with a physical cable.
■
Bluetooth™ technology: This connection option may not be available for all
handhelds. Bluetooth connections require a Bluetooth card which is sold
separately. This card may not be available for all handhelds. For more
information on connecting your handheld and your phone using this
technology, consult your Bluetooth accessory documentation.
Serial cables and mobile phones that are enabled with infrared or Bluetooth
technology are sold separately.
What can you do with a phone connection?
When your handheld is linked to a mobile phone and your mobile phone carrier
supports the required services, you can do the following:
■
Access the Internet: Use a high-speed wireless data service (such as GPRS), or
data services and an Internet service provider (ISP) dial-up account, to access
the Internet. To browse the web, you must install a web browser application on
your handheld. This browser may not be included on your handheld. If your
handheld came with a web browser, see that documentation for more
information.
■
Check and send e-mail: Use a high-speed wireless data service, or data services
and a dial-up connection, to access your POP3 or IMAP e-mail account. To use
the e-mail features, you must install an e-mail application such as the Palm™
VersaMail™ application on your handheld. See the Palm™ VersaMail™ Personal
E-mail Software Handbook or other e-mail application handbook that came with
your handheld for information.
1
Page 6
Chapter 1 Using Phone Link
■
Exchange SMS messages:
receive short text messages. Both the SMS application and Phone Link will
automatically be installed on your handheld when you install Telephony/SMS.
For more information about SMS, see the SMS Handbook located on the Software
Essentials CD-ROM.
■
Dial telephone numbers from your Address Book: Use the Quick Connect and
Tap-to-Connect features with a GSM mobile phone to dial directly from your
Address Book. See the electronic handbook that came with your handheld for
information on Address Book direct dial.
■
Use a dial pad on your handheld to dial numbers on your phone: Send telephone
numbers from your handheld to your GSM mobile phone. To use this feature,
you must install the Dialer application on your handheld from the Software
Essentials CD-ROM. This feature may not be available for all handhelds.
■
Perform wireless HotSync® operations: Use your mobile phone as a modem, and
synchronize data with your computer from anywhere within your mobile
phone service area. To use this feature, your mobile phone service must include
data services. See the electronic handbook that came with your handheld for
information on wireless HotSync operations.
Use a GSM mobile phone carrier service to send and
A GSM mobile phone, GSM network service, data service, high-speed wireless
data service, and an ISP account with a dial-up connection are not included with
your handheld.
Handheld system requirements
To use the Phone Link application, you must meet the following requirements:
■
Your handheld must use Palm OS® 4.1 or higher
■
Your handheld must have at least 68 kilobytes (KB) of available RAM.
■
Your handheld must be connected to a compatible mobile phone using the serial
port, the IR (infrared) port, or Bluetooth technology (where available).
Installing Phone Link
To use Phone Link, you must install the software files located on the Software
Essentials CD-ROM.
To install Phone Link (Windows computer):
1.
Insert the Software Essentials CD-ROM into your computer’s CD-ROM drive.
2.
From the categories listed on the left side of the Install screen, click the
Communications tab, and then click Telephony/SMS.
NOTE
application, as well as the Phone Link application.
2
This step will automatically include the SMS (Short Message Service)
Page 7
3.
Click Install Now to send the files to Palm™ Quick Install.
Installing Phone Link
NOTE
If Palm Quick Install is not already open, a confirmation dialog box will
appear. In the User drop-down list, select the name that corresponds to your
handheld. Click OK to send the files to Palm Quick Install.
4.
Connect your handheld to the cradle/cable and press the HotSync®
button ™.
To install Phone Link (Mac computer):
1.
Insert the Software Essentials CD-ROM into your computer’s CD-ROM drive.
2.
Double-click the Software Essentials CD, open the Communications folder and
then open the Telephony folder.
3.
Select all files except the handbooks, and then double-click.
NOTE
application.
4.
In the User drop-down list, verify that the username corresponds to your
handheld.
NOTE
and then click Remove from List. Select the correct name and then begin again
from step 3.
This step includes the SMS application, as well as the Phone Link
If the username is not correct, reselect the files you selected in step 3
5.
Connect your handheld to the cradle/cable and press the HotSync button .
3
Page 8
Chapter 1 Using Phone Link
4
Page 9
CHAPTER 2
Setting Up a Phone Connection
To set up a phone connection, you must configure connection information on your
handheld. If you want to connect to the Internet or send and receive e-mail, you
must also configure the network service settings. If both Phone Link and Phone
Link Updater are included on your Software Essentials CD-ROM, these
applications guide you through this process. Alternately, see the electronic
handbook that came with your handheld for information on how to enter or
modify these settings manually.
The instructions in this section assume that you already installed the Palm™
Desktop software that came with your handheld and performed at least one
®
HotSync
operation.
NOTE
you must first turn on Bluetooth communication, and then turn on the Discoverable
setting on your handheld. See the Bluetooth accessory documentation for more
information. This connection option may not be available for all handhelds.
For Bluetooth™ technology option only: To configure a phone connection,
To configure a phone connection on your handheld:
1.
Tap the Home icon .
2.
Tap the Phone Link icon .
3.
Tap the Phone Connection box.

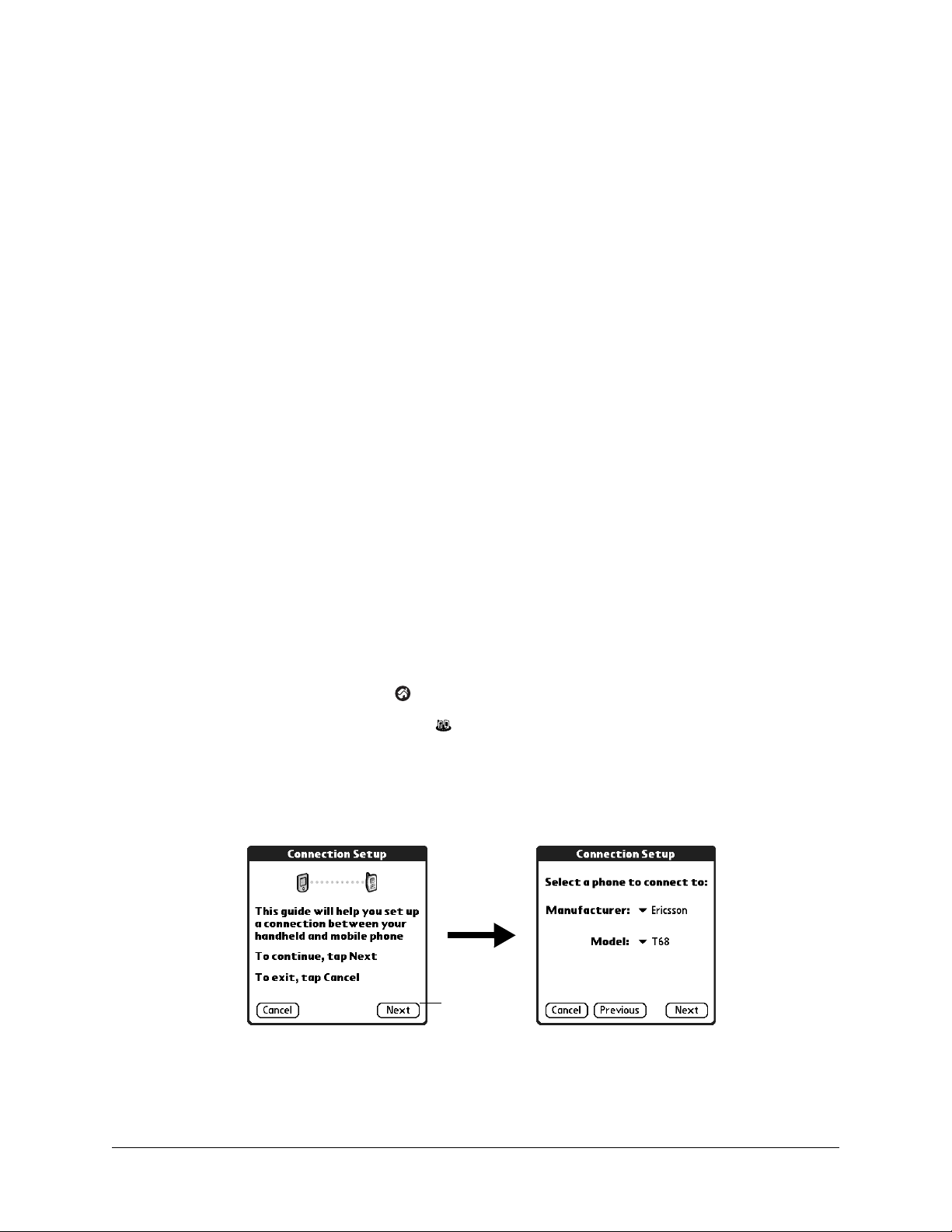

The Connection Setup screen appears.
4.
Tap Ne xt .
Ta p N e x t
5.
Tap the Manufacturer pick list and select your phone’s manufacturer.
5
Page 10
Chapter 2 Setting Up a Phone Connection
6.
Tap the Model pick list and select your phone model.
If your phone model does not appear on the list, either you need to download
and install a driver for your phone (see “Updating phone drivers on your
handheld” later in this chapter), or your phone is not supported at this time.
7.
Tap Ne xt .
8.
Tap the Via pick list and select the method you want to use to connect: Infrared,
Cable, or Bluetooth.
The Via pick list options will vary based on the phone model.
Tap Next
9.
Tap Ne xt .
10.
When the Confirmation dialog box appears, tap Yes.
IMPORTANT
phone and handheld will not work.
Ta p Ye s
11.
Tap Do ne .
If you tap No in the Confirmation dialog box, the link between your
The Network Service dialog box appears.
6
Page 11
12.
Tap Yes, and then follow the instructions in the next section to set up network
services for your phone.
13.
If you selected Infrared or Cable in step 8, skip to “Configuring network service
settings for your phone” later in this chapter. If you selected Bluetooth in step 8,
complete the steps in the procedure that follows.
To configure Bluetooth settings for your phone connection (if Bluetooth technology is available for your
handheld):
1.
Place your phone into the mode where it can accept Bluetooth pairing from
another device. See the documentation that came with your phone for details.
2.
Wait for your handheld to discover your phone.
When your handheld discovers a Bluetooth phone, it displays a screen similar
to the screen that follows.
3.
Select your phone from the list.
If your phone doesn’t appear on the list, tap Find More, and select your phone’s
name when it appears on the list.
4.
Tap Ne xt .
Your handheld connects to your phone.
5.
When prompted to create a trusted connection, tap Next.
7
Page 12
Chapter 2 Setting Up a Phone Connection
6.
Enter a passkey for this connection on your phone, and then tap OK.
A passkey is a unique identifier that enables secure data exchange between two
devices enabled with Bluetooth technology that have formed a connection with
one another. The passkey is stored on both devices. If Phone Link is unable to
validate the same passkey on both your handheld and your phone, an error
message appears and you are given the option to try connecting again. If you
need additional information about connecting your phone, consult your phone
documentation or your Bluetooth accessory documentation.
7.
When prompted to create a trusted connection, tap Next.
8.
Enter a passkey for this connection on your handheld, and then tap OK.
Tap Next
9.
When the Confirmation dialog box appears, tap Yes.
IMPORTANT
phone and handheld will not work.
Ta p Ye s
10.
Tap Do ne .
If you tap No in the Confirmation dialog box, the link between your
The Network Service dialog box appears.
11.
Tap Yes, and then follow the instructions in the next section to set up network
services for your phone.
8
Page 13
Configuring network service settings for your phone
Configuring network service settings for your phone
If you want to use your handheld to connect to the Internet, and to send and
receive e-mail, you must configure network service settings for your phone.
To connect to the Internet, your mobile phone carrier must support data services,
and you must also have one of the following:
■
Access to a general packet radio service (GPRS) high-speed wireless data
service network
■
A dial-up account with an ISP
■
Dial-up or Bluetooth access to a corporate network with Internet access
To configure a dial-up connection:
1.
After completing the last step in configuring your phone connection earlier
in this chapter, tap Next on the Network Service Setup screen.
If you do not see the Network Service Setup screen, tap the Home icon ,
tap the Phone Link icon , and then tap the Network Service box.
2.
Tap No when asked if you subscribe to a high-speed data service.
3.
Tap Ne xt .
A screen appears to inform you that you are about to set up a dial-up connection
for your ISP.
Tap N e x t
4.
Tap Ne xt .
9
Page 14
Chapter 2 Setting Up a Phone Connection
5.
Tap the Phone # field and enter the phone number you use to connect to
your ISP.
6.
Tap the Username field and enter the name you use when you log in to your
ISP account.
7.
Tap the Password box and enter the password for your ISP account.
8.
Tap Ne xt .
9.
Tap Do ne .
To configure a GPRS high-speed wireless data service connection for your phone:
1.
After completing the last step in configuring your phone connection earlier in
this chapter, tap Next on the Network Service Setup screen.
If you do not see the Network Service Setup screen, tap the Home icon ,
tap the Phone Link icon , and then tap the Network Service box.
10
Page 15
Configuring network service settings for your phone
2.
Tap Yes when asked if you subscribe to a high-speed data service.
3.
Tap Ne xt .
4.
Tap the pick list for your phone service area and select your mobile phone
carrier’s location.
5.
Tap the Select your carrier pick list and select your mobile phone carrier.
If your mobile phone carrier does not appear on the list, either you need to
download and install the settings for your mobile phone carrier (see “Updating
phone drivers on your handheld” later in this chapter), or your carrier is not
supported at this time.
6.
Tap Ne xt .
7.
Tap Do ne .
11
Page 16
Chapter 2 Setting Up a Phone Connection
Updating phone drivers on your handheld
If your Software Essentials CD-ROM includes Phone Link Updater, you can
use this application to update phone drivers and settings. Updated phone drivers
and settings are also available from the Palm website.
The instructions in this section assume that you have already installed the
Palm Desktop software that came with your handheld and have performed
at least one HotSync operation. You will need Internet access to download the
phone driver files.
To update phone drivers and settings from the Phone Link Updater application (Windows computer only):
1.
Establish an Internet connection with your computer.
2.
Insert the Software Essentials CD-ROM into your computer’s CD-ROM drive.
3.
From the categories listed on the left side of the Install screen, click the
Communications tab, and then click Phone Link Updater.
4.
Click Install Now and follow the onscreen instructions to download the latest
phone driver files.
NOTE
When prompted, perform this operation to transfer the phone driver files to
your handheld.
The onscreen instructions include performing a HotSync operation.
To update phone drivers and settings from the Palm website (Mac computer):
1.
Download the correct files for your phone. In the United States, go to
www.palm.com/support/downloads/phonelink.html
www.palm.com/xx/mobile/drivers
2.
Follow the onscreen instructions to install the phone driver files.
3.
Connect your handheld to the cradle/cable and press the HotSync button ™.
4.
If prompted, reset your handheld.
and replace xx with your country code.
. In other countries, go to
12
Page 17
CHAPTER 3
Using Phone Connections
After you install the phone files and configure a link between your handheld and
your phone, you are ready to make connections. Depending on the type of link you
configured (infrared, cable, or Bluetooth™), refer to the appropriate set of
instructions below.
By default, your handheld disconnects automatically when the connection is
inactive for one minute.
If you used the Network Preferences screen to set up multiple network service
profiles, you can choose a different service when you establish a connection. See
the electronic handbook that came with your handheld for information on setting
up multiple network service profiles.
To make an infrared connection:
1.
Turn on your handheld and your mobile phone.
2.
Activate the infrared port on your phone.
3.
Align the infrared port on your handheld with the infrared port on your phone.
4.
Launch the application that requires the phone connection.
For example, to access e-mail, launch the Palm™ VersaMail™ application.
To make a cable connection:
1.
Connect the cable to your handheld and mobile phone.
2.
Turn on your handheld and your mobile phone.
3.
Launch the application that requires the phone connection.
For example, to access e-mail, launch the Palm VersaMail application.
To make a Bluetooth connection:
1.
Turn on your handheld and your mobile phone.
2.
Activate Bluetooth on your handheld and phone.
3.
Make sure your phone is within 10 meters (approximately 30 feet) of your
handheld.
4.
Launch the application that requires the phone connection.
For example, to access e-mail, launch the Palm VersaMail application.
13
Page 18
Chapter 3 Using Phone Connections
14
Page 19
APPENDIX A
Frequently Asked Questions
If you encounter a problem with your handheld, do not call Technical Support
until you have reviewed the frequently asked questions in this appendix and you
have also reviewed the following:
■
The readme file located in the folder where you installed the Palm™ Desktop
software on your Windows computer or on your installation CD for Mac users
■
The Palm Desktop online Help
■
The Palm Desktop Software for the Macintosh User’s Guide, located in the
Documentation folder on your installation CD
■
The Palm Knowledge Library, accessible at
■
The most recent HelpNotes on your regional web site
www.palm.com/intl in the Support section
If you are still having problems, contact Technical Support or go to
www.palm.com/support/globalsupport
NOTE
compatibility of these applications with your new Palm™ handheld. Some third-party
applications, however, may not have been upgraded to be compatible with your new
Palm handheld. If you suspect that a third-party application is adversely affecting the
operation of your handheld, contact the developer of the application.
Palm works with developers of third-party add-on applications to ensure the
.
15
Page 20
Appendix A Frequently Asked Questions
Phone connection problems
Problem Solution
My handheld cannot connect to
my mobile phone.
My phone connection drops
before I finish using it.
I get an error message when I
try to dial a phone number
using my handheld.
Use the following steps to test the connection:
1.
Tap th e H om e i co n .
2.
Tap the Prefs icon .
3.
Tap Communication.
4.
Tap Ph on e.
5.
Tap the Service pick list and select the appropriate profile.
6.
Tap Connect.
7.
If the connection is successful, open the application that
requires the connection and complete the desired task.
If the connection is not successful, make sure the
Connection for your mobile phone is selected in the
Connection Preferences screen and the Phone Preferences
screen.
■
You need to increase the Idle timeout setting on the
Network Preferences Details screen. See the handbook that
came with your handheld for instructions.
■
Check the Phone Preferences screen and make sure the
correct phone connection is selected.
Technical support
If, after reviewing the sources listed at the beginning of this appendix, you cannot
solve your problem, go to
regional Technical Support office.
Before requesting support, please experiment a bit to reproduce and isolate the
problem. When you do contact support, please provide the following information:
■
The name and version of the operating system you are using
■
The actual error message or state you are experiencing
■
The steps you take to reproduce the problem
■
The version of handheld software you are using and available memory
16
www.palm.com/support/globalsupport
or send an e-mail to your
Page 21
Technical support
To find version and memory information:
1.
Tap the Home icon .
2.
Tap the Menu icon .
3.
Select Info from the App menu.
4.
Tap Version to see version numbers, and tap Size to see the amount of free
memory in kilobytes.
17
Page 22
Appendix A Frequently Asked Questions
18
Loading...
