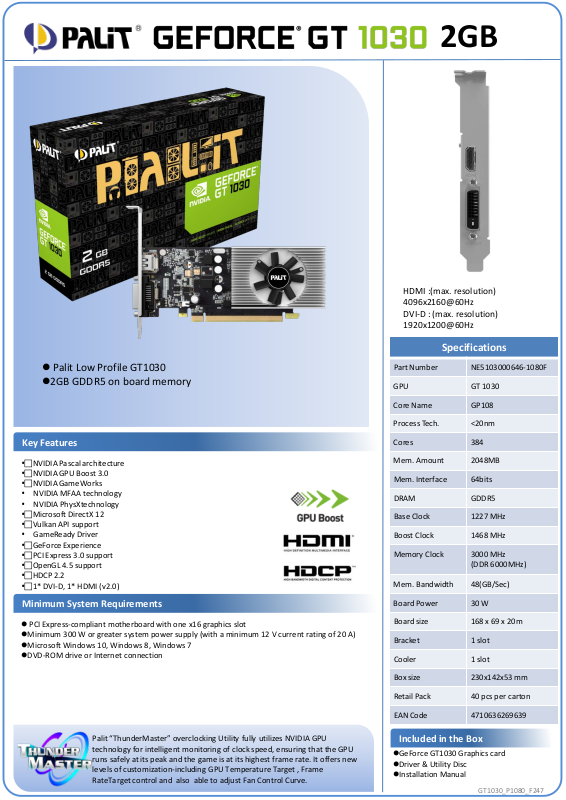

2GB
Palit Low Profile GT1030 2GB GDDR5 on board memory
Key Features
• NVIDIA Pascal architecture
• NVIDIA GPU Boost 3.0
• NVIDIA GameWorks
•NVIDIA MFAA technology
•NVIDIA PhysXtechnology
• Microsoft DirectX 12
• Vulkan API support
•GameReady Driver
• GeForce Experience
• PCI Express 3.0 support
• OpenGL 4.5 support
• HDCP 2.2
• 1* DVI-D, 1* HDMI (v2.0)
Minimum System Requirements
PCI Express-compliant motherboard with one x16 graphics slot
Minimum 300 W or greater system power supply (with a minimum 12 V current rating of 20 A) Microsoft Windows 10, Windows 8, Windows 7
DVD-ROM drive or Internet connection
Palit “ThunderMaster” overclocking Utility fully utilizes NVIDIA GPU technology for intelligent monitoring of clock speed, ensuring that the GPU runs safely at its peak and the game is at its highest frame rate. It offers new levels of customization-including GPU Temperature Target , Frame RateTarget control and also able to adjust Fan Control Curve.
HDMI :(max. resolution) 4096x2160@60Hz DVI-D : (max. resolution) 1920x1200@60Hz
Specifications |
|
|
|
Part Number |
NE5103000646-1080F |
|
|
GPU |
GT 1030 |
|
|
Core Name |
GP108 |
|
|
Process Tech. |
<20nm |
|
|
Cores |
384 |
|
|
Mem. Amount |
2048MB |
|
|
Mem. Interface |
64bits |
|
|
DRAM |
GDDR5 |
|
|
Base Clock |
1227 MHz |
|
|
Boost Clock |
1468 MHz |
|
|
Memory Clock |
3000 MHz |
|
(DDR 6000MHz) |
|
|
Mem. Bandwidth |
48(GB/Sec) |
|
|
Board Power |
30 W |
|
|
Board size |
168 x 69 x 20m |
|
|
Bracket |
1 slot |
|
|
Cooler |
1 slot |
|
|
Box size |
230x142x53 mm |
|
|
Retail Pack |
40 pcs per carton |
|
|
EAN Code |
4710636269639 |
|
|
Included in the Box
GeForce GT1030 Graphics card Driver & Utility Disc Installation Manual
GT1030_P1080_F247
