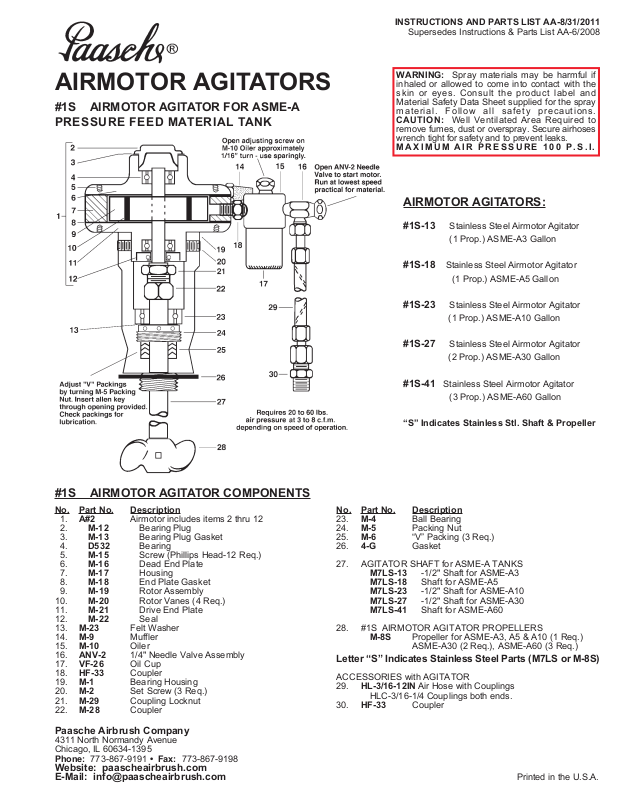

Paasche AA-PL User Manual

AIRMOTOR AGITATORS

#1S AIRMOTOR AGITATOR FOR ASME-A
PRESSURE FEED MATERIAL TANK

INSTRUCTIONS AND PARTS LIST AA-8/31/2011

Supersedes Instructions & Parts List AA-6/2008

WARNING: Spray materials may be harmful if
inhaled or allowed to come into contact with the
sk in or eyes. Consult th e pr od uc t la be l and
Material Safety Data Sheet supplied for the spray
mat eri al. Fol low al l sa fet y preca uti ons .
CAUTION: Well Ventilated Area Required to
remove fumes, dust or overspray. Secure airhoses
wrench tight for safety and to prevent leaks.

M A X IMU M AIR P RES S U RE 1 0 0 P .S . I .

AIRMOTOR AGITATORS:

#1S-13 Stainless Steel Airmotor Agitator

(1 Prop.) ASME-A3 Gallon

#1S-18 Stainless Steel Airmotor Agitator

(1 Prop.) ASME-A5 Gallon

#1S-23 Stainless Steel Airmotor Agitator

(1 Prop.) ASME-A10 Gallon

#1S AIRMOTOR AGITATOR COMPONENTS

No. Part No. Description

1. A#2 Airmotor includes items 2 thru 12

2. M-12 Bearing Plug

3. M-13 Bearing Plug Gasket

4. D532 Bearing

5. M-15 Screw (Phillips Head-12 Req.)

6. M-16 Dead End Plate

7. M-17 Housing

8. M-18 End Plate Gasket

9. M-19 Rotor Assembly

10. M-20 Rotor Vanes (4 Req.)

11. M-21 Drive End Plate

12. M-22 Seal

13. M-23 Felt Washer

14. M-9 Muffler

15. M-10 Oiler

16. ANV-2 1/4" Needle Valve Assembly

17. VF-26 Oil Cup

18. HF-33 Coupler

19. M-1 Bearing Housing

20. M-2 Set Screw (3 Req.)

21. M-29 Coupling Locknut

22. M-28 Coupler

#1S-27 Stainless Steel Airmotor Agitator

(2 Prop.) ASME-A30 Gallon

#1S-41 Stainless Steel Airmotor Agitator

(3 Prop.) ASME-A60 Gallon

“S” Indicates Stainless Stl. Shaft & Propeller

No. Part No. Description

23. M-4 Ball Bearing

24. M-5 Packing Nut

25. M-6 “V” Packing (3 Req.)

26. 4-G Gasket

27. AGITATOR SHAFT for ASME-A TANKS

M7LS-13 -1/2" Shaft for ASME-A3
M7LS-18 Shaft for ASME-A5
M7LS-23 -1/2" Shaft for ASME-A10
M7LS-27 -1/2" Shaft for ASME-A30
M7LS-41 Shaft for ASME-A60

28. #1S AIRMOTOR AGITATOR PROPELLERS
M-8S Propeller for ASME-A3, A5 & A10 (1 Req.)

ASME-A30 (2 Req.), ASME-A60 (3 Req.)

Letter “S” Indicates Stainless Steel Parts (M7LS or M-8S)

ACCESSORIES with AGITATOR

29. HL-3/16-12IN Air Hose with Couplings
HLC-3/16-1/4 Couplings both ends.

30. HF-33 Coupler

Paasche Airbrush Company

4311 North Normandy Avenue
Chicago, IL 60634-1395

Phone: [phone] • Fax: [phone]

Website: paascheairbrush.com
E-Mail: [e-mail]

Printed in the U.S.A.

Page 2 Paasche Airmotor Agitators

F900
Airmotor Agitators

F90 0 Air motor Agi tators for

Gravity Feed Cups are used to

agitate quick-settling materials

requiring 100 to 200 R.P.M. to

prevent clogging and settling

and to feed materials uniformly.

F900 Airmotor Agitators can be

used with 3 Oz., 1/2 Pint, Pint &

Qua r t A lumi n um Cups or

Polyet hyl ene Quart Bot tle s.

Never use glass containers with

the F900 Airmotor Agitator.

C

A

B

FLUID PRESSURE: Do not

exceed 25 lbs. maximum of
material pressure.

CU-Gun with F900 Airmotor Agitator

Assembly for Gravity Feed Cups. Item

A - F900 Airmotor Agitator. Item B -

A-1/8 x 18IN Air Hose with P2-6-1/8

Coupling and AC-1/8-1/4 Coupling.

Item C - ANV-2 Valve Assembly &

HF-342 1/4" 3 Way Tee

F900 AIRMOTOR AGITATOR PARTS LIST

No.Part No. Description

1. F900-2 Airmotor Cover

2. F900-10 Socket Head Cap Screw

3. F900-6 Coupling (Air Inlet)

4. F900-8 Bearing (2 Required)

5. F900-1 Airmotor Housing

6. F900-7 Muffler

7. F900-3 Turbine Wheel

8. F900-3.25 Shaft Stainless Stl. (3 oz. Grav. Cup)

F900-4.5 Shaft Stainless StI. (1/2 Pt., Pt., & Qt.)

F900-8.5 Shaft Stainless Stl. (Qt. Poly Bottle)

9. F900-5S Propeller Stainless Steel

10. U-3074SA Qt. Poly. Bottle Cover (3 Holes)

11. U-3559 1/2pt,pt & qt Gravity Cover (5 Holes)

12. U-3564 1/2pt,pt & qt Syphon Cover (4 Holes)

13. U-3615 27SCAA-3OZ Gravity Cover (4 Holes)

14. 00-4070 Rubber “O” Ring needed for both

Syphon & Gravity Covers.(Not Shown)

]

Covers Not Shown
