Owon Owon XDS3204E Quickstart

Download

Page 1

Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176

TestEquipmentDepot.com

Page 2

Table of Contents

1. General Safety Requirements .......................................................................................... 1

2. Safety Terms and Symbols ............................................................................................... 2

3. Quick Start ....................................................................................................................... 4

Introduction to the Structure of the Oscilloscope ..................................................................... 4

Front Panel ............................................................................................................................................. 4

Rear Panel ............................................................................................................................................... 5

Control Area ........................................................................................................................................... 6

User Interface Introduction ........................................................................................................ 7

How to Implement the General Inspection ............................................................................... 9

How to Implement the Function Inspection .............................................................................. 9

How to Implement the Probe Compensation .......................................................................... 10

How to Set the Probe Attenuation Coefficient ........................................................................ 11

How to Use the Probe Safely..................................................................................................... 12

How to Implement Self-calibration .......................................................................................... 12

Introduction to the Vertical System ......................................................................................... 13

Introduction to the Horizontal System .................................................................................... 14

Introduction to the Trigger System ......................................................................................... 15

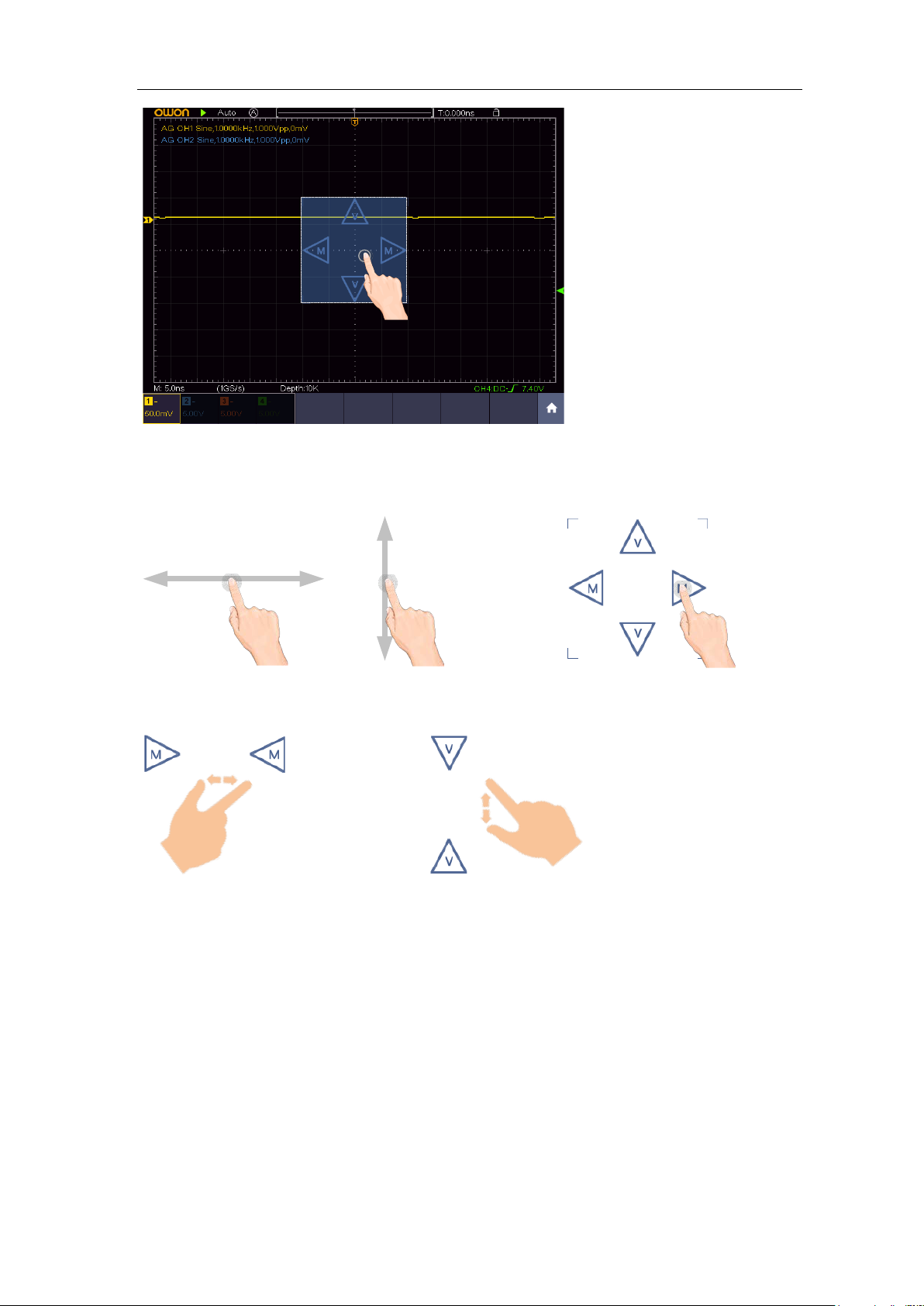

Introduction to the Touchscreen Controls (Optional) ........................................................... 15

How to Measure Automatically ................................................................................................ 20

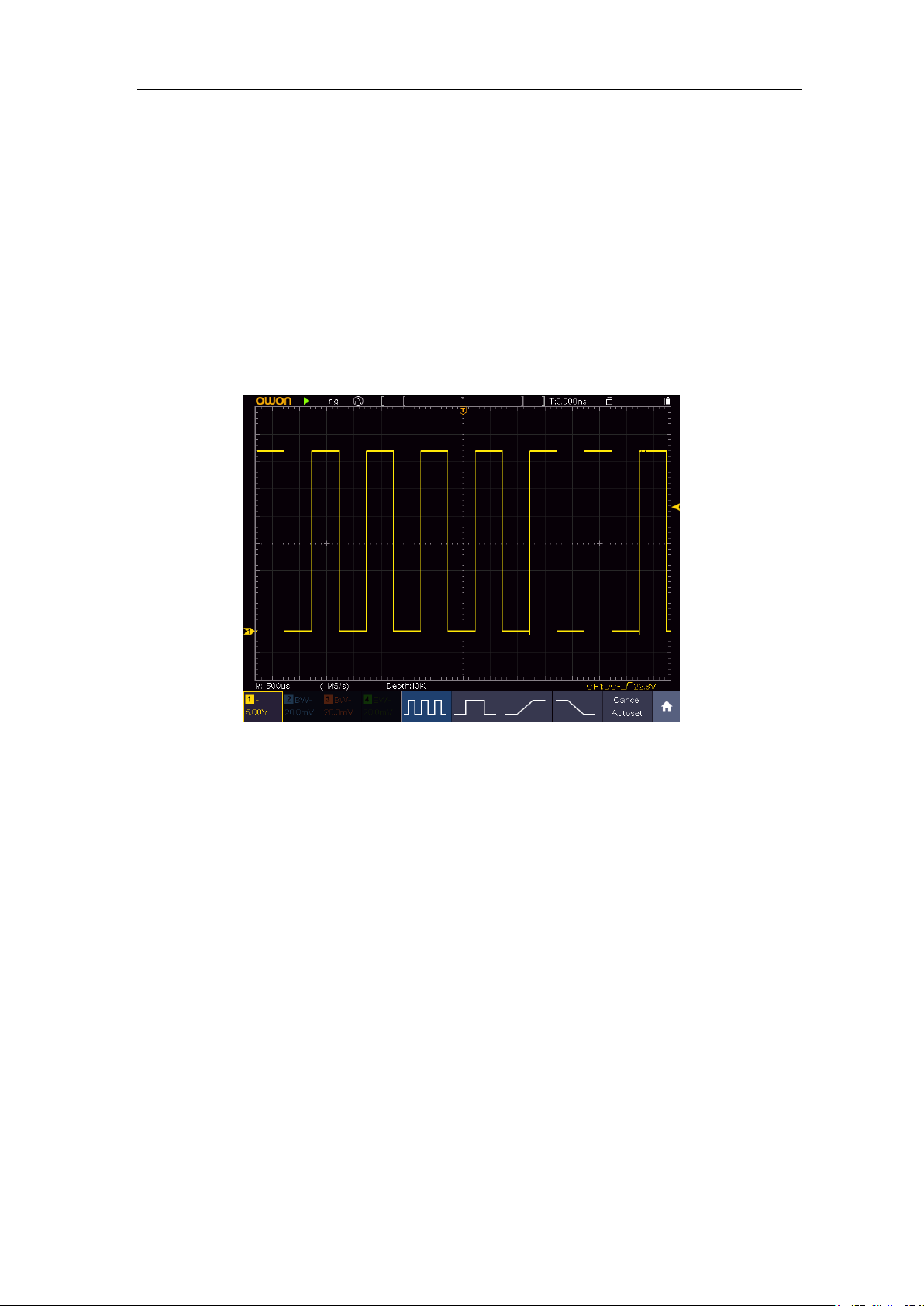

How to Use Autoscale ................................................................................................................ 21

4. Use the Arbitrary Function Generator (Optional) .............................................................. 21

Output Connection .................................................................................................................... 21

To Set Channels ......................................................................................................................... 22

To Set Signals ............................................................................................................................. 22

Create a New Waveform ........................................................................................................... 23

File Browse ................................................................................................................................. 24

Built-in Waveform ..................................................................................................................... 24

5. Use the Multimeter (Optional) ...................................................................................... 24

Input Terminals ......................................................................................................................... 24

DMM Menu ................................................................................................................................ 25

DMM Information Window ..................................................................................................... 25

Page 3

6. Communication with PC ............................................................................................... 26

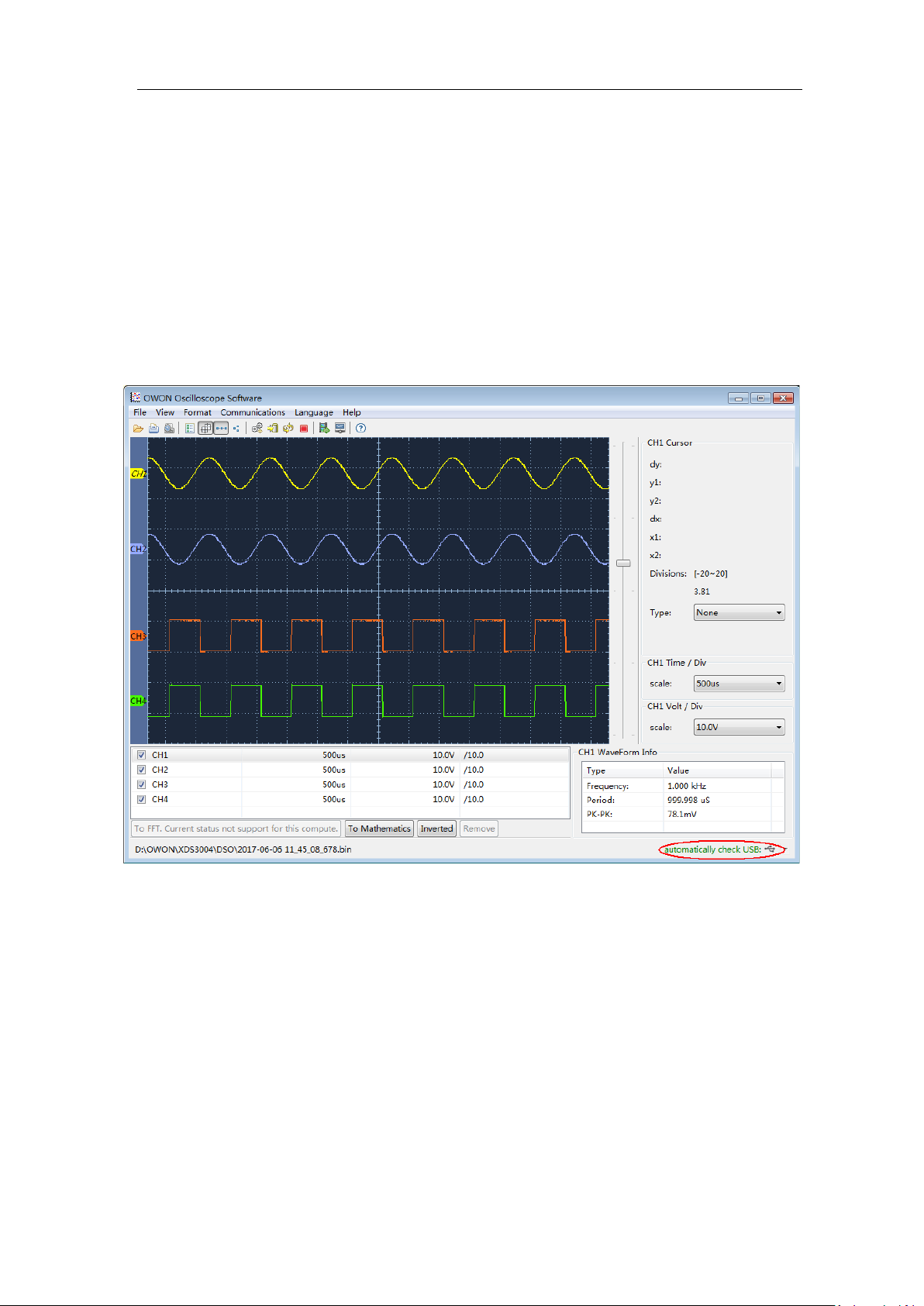

Using USB Port .......................................................................................................................... 27

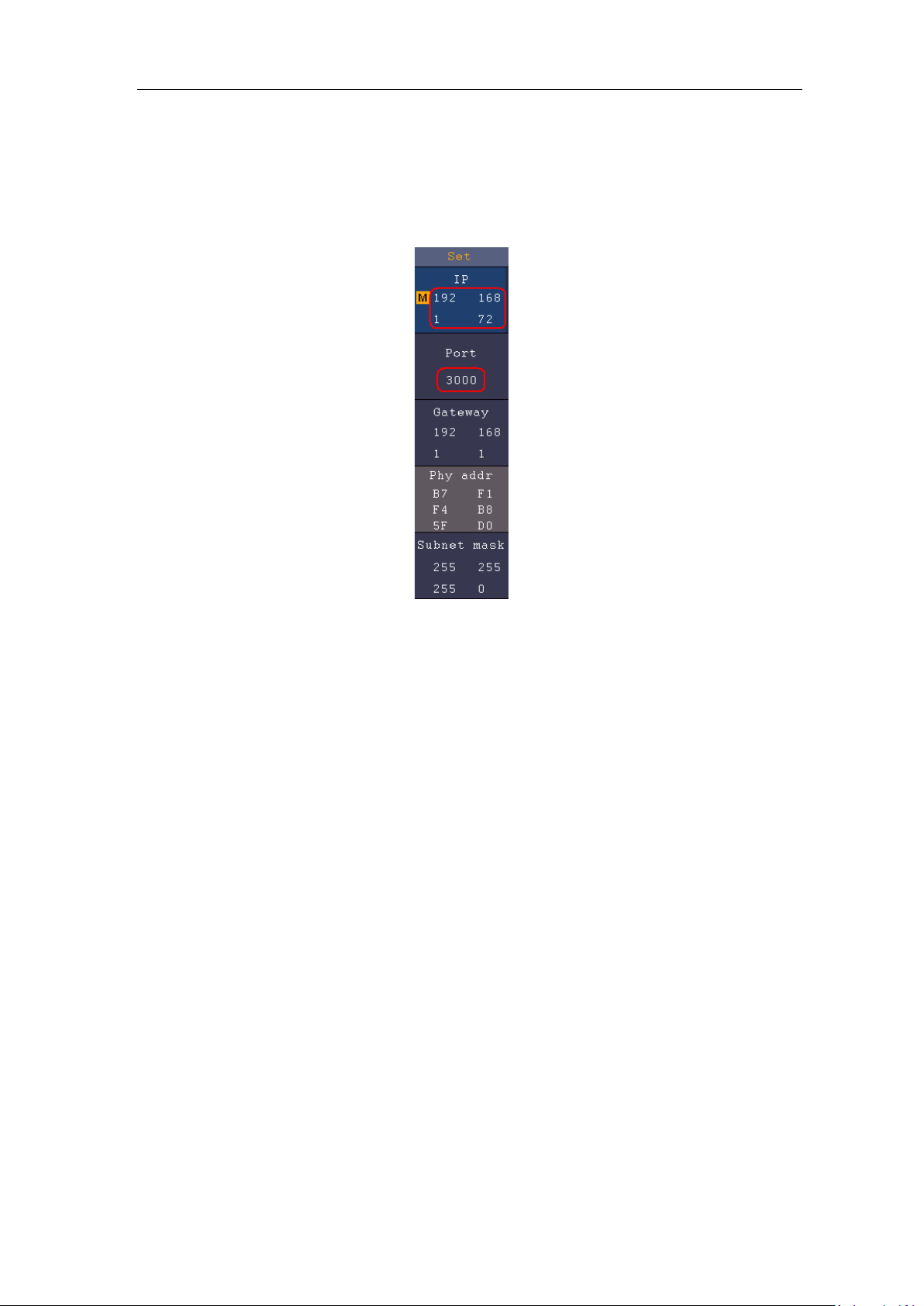

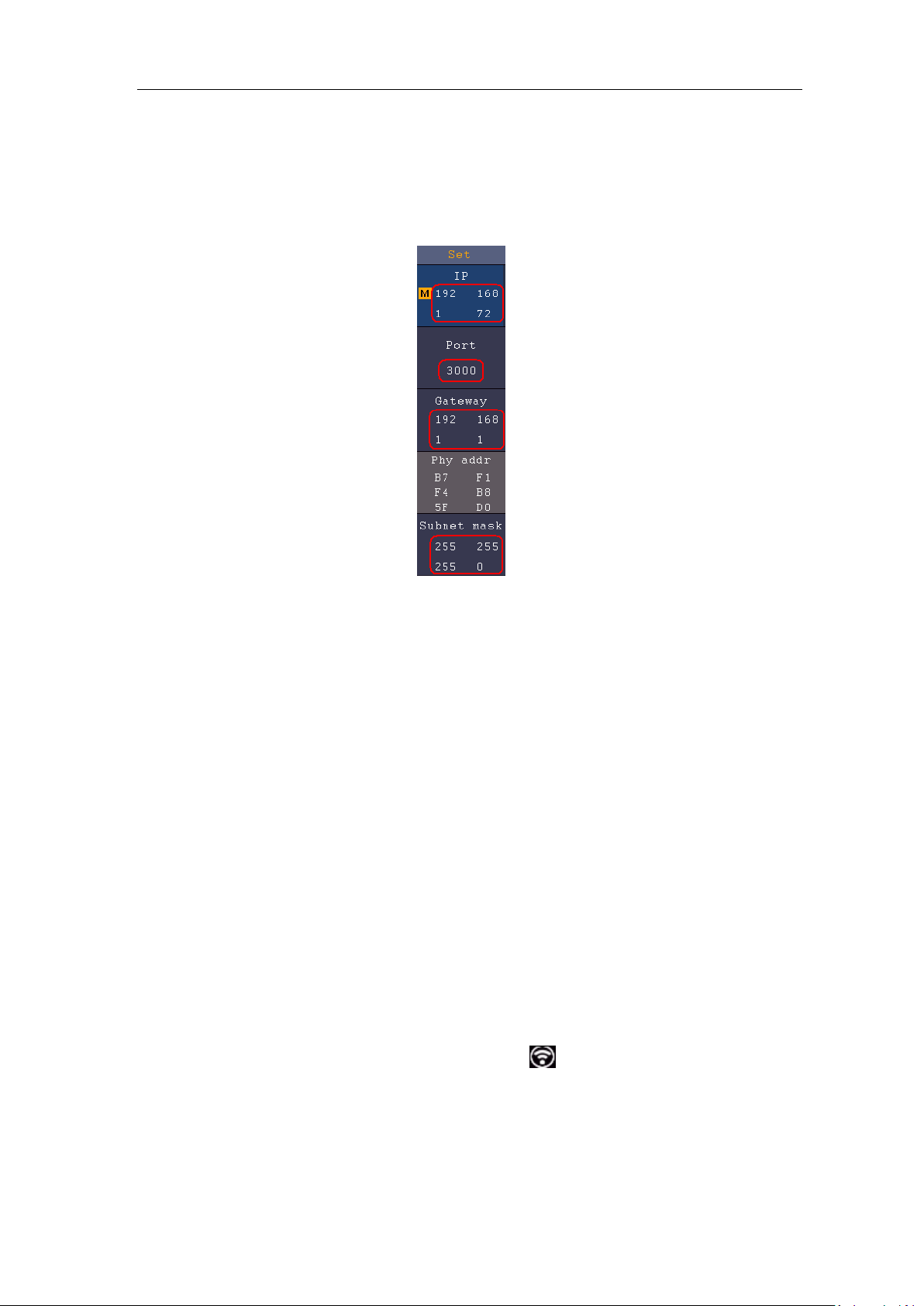

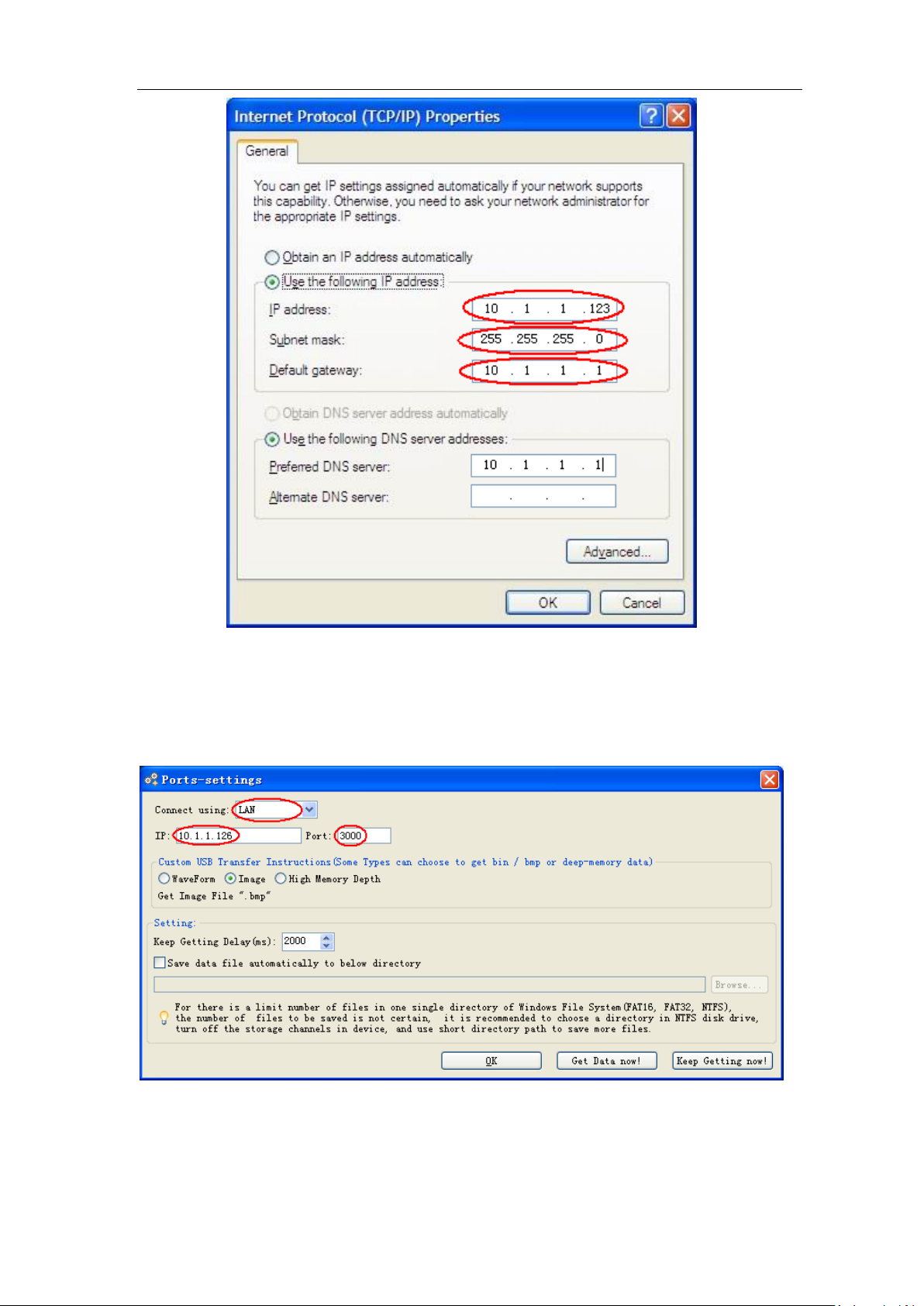

Using LAN Port ......................................................................................................................... 27

Connect directly .................................................................................................................................... 27

Connect through a router .................................................................................................................... 29

Using Wi-Fi to Connect with PC (Optional) ........................................................................... 31

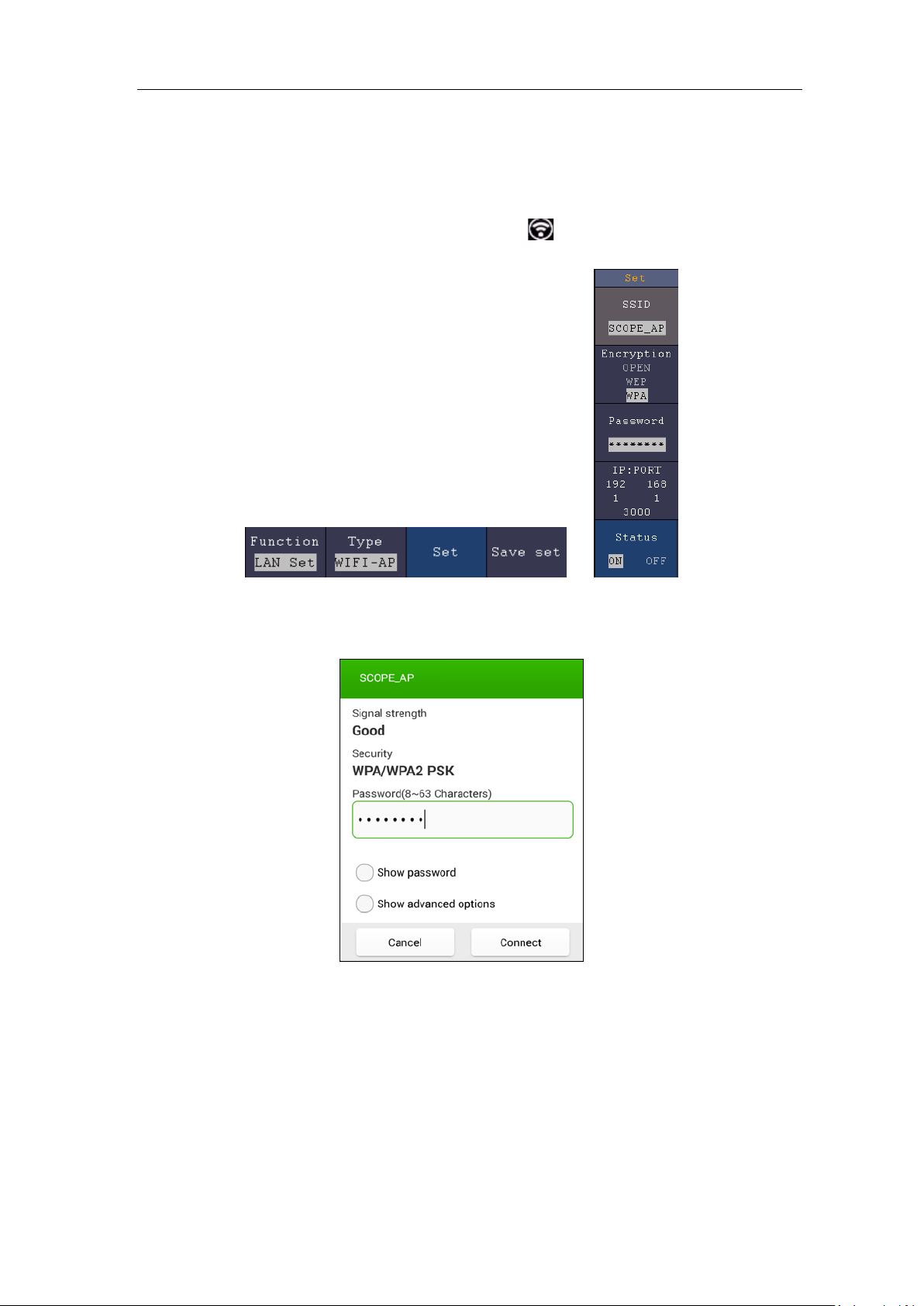

Connect with PC as Wi-Fi Access Point ............................................................................................. 31

Connect with PC as Wi-Fi Station ...................................................................................................... 32

7. Communication with Android Device via Wi-Fi (Optional) ....................................................... 35

How to Connect ......................................................................................................................... 35

Connect with APP as Wi-Fi Access Point ........................................................................................... 35

Connect with APP as Wi-Fi Station .................................................................................................... 37

8. Appendix ........................................................................................................................ 39

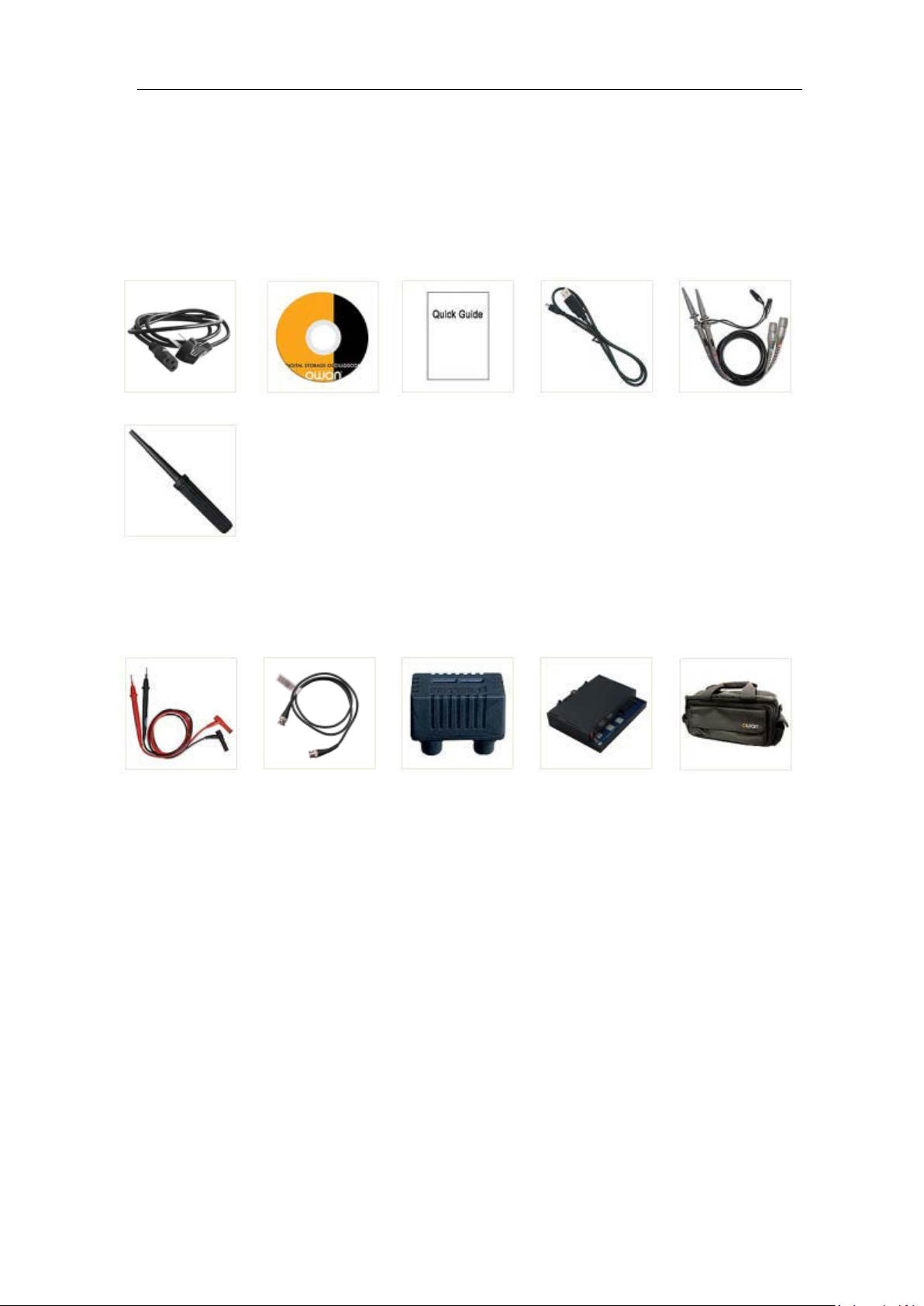

Appendix A: Enclosure ............................................................................................................. 39

Appendix B: General Care and Cleaning ............................................................................... 39

Appendix C: USB Disk Requirements ..................................................................................... 40

Page 4

1.General Safety Requirements

1. General Safety Requirements

Before use, please read the following safety precautions to avoid any possible bodily injury and to prevent this product or any other connected products from damage. In order to avoid any contingent danger, ensure this product is only used within the range specified.

EC Declaration of Conformity:

Meets intent of Directive 2004/108/EC for Electromagnetic Compatibility.

Only the qualified technicians can implement the maintenance.

To avoid Fire or Personal Injury:

 Connect the probe correctly. The grounding end of the probe corresponds to the

grounding phase. Please don't connect the grounding end to the positive phase.

 Use Proper Power Cord. Use only the power cord supplied with the product and

certified to use in your country.

 Connect or Disconnect Correctly. When the probe or test lead is connected to a

voltage source, please do not connect and disconnect the probe or test lead at random.

 Product Grounded. This instrument is grounded through the power cord grounding

conductor. To avoid electric shock, the grounding conductor must be grounded. The product must be grounded properly before any connection with its input or output terminal.

When powered by AC power, it is not allowed to measure AC power source directly, because the testing ground and power cord ground conductor are connected together, otherwise, it will cause short circuit.

When powered by battery, the product must ground connection. To avoid electric shock, there must be a ground wire connect between ground and the ground port (on the back of product panel).

 Check all Terminal Ratings. To avoid fire or shock hazard, check all ratings and

markers of this product. Refer to the user's manual for more information about ratings before connecting to the instrument.

 Do not operate without covers. Do not operate the instrument with covers or panels

removed.

 Use Proper Fuse. Use only the specified type and rating fuse for this instrument.

 Avoid exposed circuit. Do not touch exposed junctions and components when the

instrument is powered.

 Do not operate if in any doubt. If you suspect damage occurs to the instrument, have

it inspected by qualified service personnel before further operations.

 Use your Oscilloscope in a well-ventilated area. Make sure the instrument installed

with proper ventilation, refer to the user manual for more details.

 Do not operate in wet conditions.

 Do not operate in an explosive atmosphere.

 Keep product surfaces clean and dry.

Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com

Page 5

2.Safety Terms and Symbols

2. Safety Terms and Symbols

Safety Terms

Terms in this manual. The following terms may appear in this manual:

Warning: Warning indicates the conditions or practices that could result in

injury or loss of life.

Caution: Caution indicates the conditions or practices that could result in

damage to this product or other property.

Terms on the product. The following terms may appear on this product:

Danger: It indicates an injury or hazard may immediately happen.

Warning: It indicates an injury or hazard may be accessible potentially.

Caution: It indicates a potential damage to the instrument or other property might occur.

Safety Symbols

Symbols on the product. The following symbol may appear on the product:

Hazardous Voltage Refer to Manual

Protective Earth Terminal Chassis Ground

Test Ground

To avoid body damage and prevent product and connected equipment damage, carefully read the following safety information before using the test tool. This product can only be used in the specified applications.

Warning:

The four channels of the oscilloscope are not electrically isolated. The channels should adopt a common ground during measuring. To prevent short circuits, the 2 probe grounds must not be connected to 2 different non-isolated DC levels.

Page 6

2.Safety Terms and Symbols

Ground Clip

Signal Input

Oscilloscope

Electrical Outlet

Probe

Power Cord

Ground Clip

Signal Input

Oscilloscope

(Battery-power)

PC Electrical OutletProbe

USB/VGA/COM/

LAN Cable

Warning:

To avoid fire or electrical shock connected

ak (30Vrms) or on circuits of more than

4800VA

not apply input voltages above the rating of the instrument

because the probe tip voltage will directly transmit to the

The diagram of the oscilloscope ground wire connection:

The diagram of the ground wire connection when the battery-powered oscilloscope is connected to the AC-powered PC through the ports:

It is not allowed to measure AC power when the oscilloscope is AC powered, or when the battery-powered oscilloscope is connected to the AC-powered PC through the ports.

is more than 42V pe

, please take note of below items:

 Only use accessory insulated voltage probes and test lead.

 Check the accessories such as probe before use and replace it if

there are any damages.

 Remove probes, test leads and other accessories immediately after

use.

 Remove USB cable which connects oscilloscope and computer.

 Do

oscilloscope. Use with caution when the probe is set as 1:1.

 Do not use exposed metal BNC or banana plug connectors.

 Do not insert metal objects into connectors.

, when the oscilloscope input signal

Page 7

3.Quick Start

5 4

3. Quick Start

Introduction to the Structure of the Oscilloscope

This chapter makes a simple description of the operation and function of the front panel of the oscilloscope, enabling you to be familiar with the use of the oscilloscope in the shortest time.

Front Panel

The front panel has knobs and function buttons. The 5 buttons in the column on the right side of the display screen or in the row under the display screen are menu selection buttons, through which, you can set the different options for the current menu. The other buttons are function buttons, through which, you can enter different function menus or obtain a specific function application directly.

1. Display area

2. Select the right menu item

3. Control (button and knob) area

4. Probe Compensation: Measurement signal (3.3V/1kHz) output.

5. Input connectors of four channels

6. Remove the left and right menu

7. Select the bottom menu item

Figure 3-1 Front panel

Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com

Page 8

3.Quick Start

1 2

4 5

8. Copy button: You can save the waveform by just pressing this button in any user interface.

9. USB Host port: It is used to transfer data when external USB equipment connects to the oscilloscope regarded as "host device". For example: Saving the waveform to USB flash disk needs to use this port.

10. Power on/off

Rear Panel

Figure 3-2 Rear Panel

1. Handle

2. Air vents

3. Input terminals of multimeter (optional)

4. AC power input jack

5. Fuse

6. Foot stool: Adjust the tilt angle of the oscilloscope.

7. VGA port: To connect the oscilloscope with a monitor or a projector as VGA output

(optional).

8. LAN port: the network port which can be used to connect with PC.

9. USB Device port: It is used to transfer data when external USB equipment connects to

the oscilloscope regarded as "slave device". For example: to use this port when connect PC to the oscilloscope by USB.

10. Lock Hole: You can lock the oscilloscope to a fixed location using the security lock

(please buy it yourself) to secure the oscilloscope.

11. Trig Out(P/F) port: Trigger signal output & Pass/Fail output, also can be used as the

port of CH2 Output of waveform generator (optional). The output type can be set on the menu (Utility menu→Output→Output).

12. Out 1 port: CH1 Output of waveform generator (optional).

Page 9

Control Area

3.Quick Start

Figure 3-3 Control Area Overview

1. Function button area: Total 11 buttons

2. Waveform generator controls (optional)

DAQ: Multimeter Recorder P/F: Pass/Fail W.R EC: Waveform Record

3. Trigger control area with 2 buttons and 1 knob.

The Trigger Level knob is to adjust trigger voltage. Other 2 buttons refer to trigger system setting.

4. Horizontal control area with 1 button and 2 knobs.

"HOR" button refer to horizontal system setting menu, "Horizontal Position" knob control trigger position, "Horizontal Scale" control time base.

5. Vertical control area with 5 buttons and 2 knobs.

CH1 - CH4 buttons correspond to setting menu in CH1 - CH4. "Math" button provides access to math waveform functions (+, -, ×, /, FFT). The "Vertical Position" knob control the vertical position of current channel, and the "Scale" knob control voltage scale of current channel.

6. Default: Call out the factory settings.

Print: Print an image of what appears on the oscilloscope screen.

Decode(optional): Turn on/off Decode function.

DMM (Multimeter, optional) or Snap (Shortcut button for measurement snapshot)

7. Direction key: Move the cursor of the focused parameter.

8. M knob (Multipurpose knob): when a symbol appears on the menu, it indicates

you can turn the M knob to select the menu or set the value. You can push it to close

Page 10

3.Quick Start

the menu on the left and right.

User Interface Introduction

Figure 3-4 Illustrative Drawing of Display Interfaces

1. Waveform Display Area.

2. Run/Stop (touchable on touchscreen)

3. The state of trigger, including:

4. Click to auto set (only for touchscreen).

5. Turn on/off the magnifier function (Only for some models with touchscreen).

6. The two blue dotted lines indicates the vertical position of cursor measurement.

7. The pointer indicates the trigger position in the record length.

8. The T pointer indicates the horizontal position for the trigger.

9. It shows present triggering value and displays the site of present window in

10. Touchable icon is to enable ( ) or disable ( ) the touchscreen controls

Auto: Automatic mode and acquire waveform without triggering.

Trig: Trigger detected and acquire waveform.

Ready: Pre-triggered data captured and ready for a trigger.

Scan: Capture and display the waveform continuously.

Stop: Data acquisition stopped.

internal memory.

Page 11

3.Quick Start

(only for touchscreen).

11. It shows setting time.

12. WI-FI is activated.

13. It indicates that there is a USB disk connecting with the oscilloscope.

14. Indicating battery power status.

15. Multimeter window.

16. The waveform of CH1.

17. The pointer shows the trigger level position of the source in trigger menu.

18. The two blue dotted lines indicate the horizontal position of cursor measurement.

19. The waveform of CH2.

20. The waveform of CH3.

21. The waveform of CH4.

22. The frequency of the trigger signal.

23. The icon shows the selected trigger type, e.g. represents triggering on the

rising edge for an Edge trigger. The reading shows the trigger level value of the corresponding channel.

24. Click to show/hide the touchable shortcut menu (only for touchscreen).

25. It indicates the measured type and value of the corresponding channel. "T" means

period, "F" means frequency, "V" means the average value, "Vp" the peak-peak value, "Vr" the root-mean-square value, "Ma" the maximum amplitude value, "Mi" the minimum amplitude value, "Vt" the Voltage value of the waveform's flat top value, "Vb" the Voltage value of the waveform's flat base, "Va " the amplitude value, "Os" the overshoot value, "Ps" the Preshoot value, "RT" the rise time value, "FT" the fall time value, "PW" the +width value, "NW" the -Width value, "+D" the +Duty value, "-D" the -Duty value, "PD" the Delay A->B value, "ND" the Delay A->B value, "TR" the Cycle RMS, "CR" the Cursor RMS, "WP" the Screen Duty, "RP" the Phase A->B , "FP" the Phase A->B , "+PC" the +Pulse count, "-PC" the - Pulse count, "+E" the Rise edge count, "-E" the Fall edge count, "AR" the Area, "CA" the Cycle area.

26. The readings show the record length.

27. The readings show current sample rate.

28. The readings indicate the corresponding Voltage Division of the channels.

"BW" indicates bandwidth limit.

The icon shows the coupling mode of the channel.

"—" indicates direct current coupling

"～" indicates AC coupling

" " indicates GND coupling

29. The reading shows the setting of main time base.

30. The green pointer indicates the grounding datum point (zero point position) of the

waveform of the CH1 channel.

31. The orange pointer indicates the grounding datum point (zero point position) of

the waveform of the CH1 channel.

Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com

Page 12

3.Quick Start

32. It is cursor measure window, showing the absolute values and the readings of the

cursors.

33. The blue pointer indicates the grounding datum point (zero point position) of the

waveform of the CH1 channel.

34. The yellow pointer indicates the grounding datum point (zero point position) of

the waveform of the CH1 channel.

How to Implement the General Inspection

After you get a new oscilloscope, it is recommended that you should make a check on the instrument according to the following steps:

1. Check whether there is any damage caused by transportation.

If it is found that the packaging carton or the foamed plastic protection cushion has suffered serious damage, do not throw it away first till the complete device and its accessories succeed in the electrical and mechanical property tests.

2. Check the Accessories

The supplied accessories have been already described in the "Appendix A: Enclosure" of this Manual. You can check whether there is any loss of accessories with reference to this description. If it is found that there is any accessory lost or damaged, please get in touch with the distributor of OWON responsible for this service or the OWON's local offices.

3. Check the Complete Instrument

If it is found that there is damage to the appearance of the instrument, or the instrument can not work normally, or fails in the performance test, please get in touch with the OWON's distributor responsible for this business or the OWON's local offices. If there is damage to the instrument caused by the transportation, please keep the package. With the transportation department or the OWON's distributor responsible for this business informed about it, a repairing or replacement of the instrument will be arranged by the OWON.

How to Implement the Function Inspection

Make a fast function check to verify the normal operation of the instrument, according to the following steps:

1. Connect the power cord to a power source. Long press the

bottom left of the instrument.

The instrument carries out all self-check items and shows the Boot Logo. Push the Utility button, select Function in the bottom menu. Select Adjust in the left menu, select Default in the bottom menu. The default attenuation coefficient set value of the

button on the

Page 13

3.Quick Start

probe on the menu is 10X.

2. Set the Switch in the Oscilloscope Probe as 10X and Connect the Oscilloscope

with CH1 Channel.

Align the slot in the probe with the plug in the CH1 connector BNC, and then tighten the probe with rotating it to the right side.

Connect the probe tip and the ground clamp to the connector of the probe compensator.

3. Push the Autoset Button on the front panel.

The square wave of 1 KHz frequency and 3.3V peak-peak value will be displayed in several seconds (see Figure 3-5).

Figure 3-5 Auto set

Check CH2, CH3 and CH4 by repeating Step 2 and Step 3.

How to Implement the Probe Compensation

When connect the probe with any input channel for the first time, make this adjustment to match the probe with the input channel. The probe which is not compensated or presents a compensation deviation will result in the measuring error or mistake. For adjusting the probe compensation, please carry out the following steps:

1. Set the attenuation coefficient of the probe on the menu as 10X and that of the

switch in the probe as 10X (see "How to Set the Probe Attenuation Coefficient" on P11), and connect the probe with the CH1 channel. If a probe hook tip is used, ensure that it keeps in close touch with the probe. Connect the probe tip with the signal connector of the probe compensator and connect the reference wire clamp with the ground wire connector of the probe connector, and then push the Autoset button on the front panel.

Page 14

3.Quick Start

Caution:

same as the menu selection of the probe attenuation coefficient in the

2. Check the displayed waveforms and regulate the probe till a correct

compensation is achieved (see Figure 3-6 and Figure 3-7).

Overcompensated Compensated correctly Under compensated

Figure 3-6 Displayed Waveforms of the Probe Compensation

3. Repeat the steps mentioned if needed.

Figure 3-7 Adjust Probe

How to Set the Probe Attenuation Coefficient

The probe has several attenuation coefficients, which will influence the vertical scale factor of the oscilloscope.

To change or check the probe attenuation coefficient on the menu of oscilloscope:

(1) Push the function menu button of the used channels (CH1 - CH4 button).

(2) Select Probe in the bottom menu; select Attenu in the right menu, turn the M

knob to select the proper value corresponding to the probe.

This setting will be valid all the time before it is changed again.

The default attenuation coefficient of the probe on the instrument is preset to 10X. Make sure that the set value of the attenuation switch in the probe is the

oscilloscope.

The set values of the probe switch are 1X and 10X (see Figure 3-8).

Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com

Page 15

3.Quick Start

Caution:

the attenuation switch is set to 1X, the probe will limit the bandwidth

connect the probe to the

Figure 3-8 Attenuation Switch

When of the oscilloscope in 5MHz. To use the full bandwidth of the oscilloscope, the switch must be set to 10X.

How to Use the Probe Safely

The safety guard ring around the probe body protects your finger against any electric shock, shown as Figure 3-9.

Figure 3-9 Finger Guard

Warning:

To avoid electric shock, always keep your finger behind the safety guard ring of the probe during the operation.

To protect you from suffering from the electric shock, do not touch any metal part of the probe tip when it is connected to the power supply.

Before making any measurements, always instrument and connect the ground terminal to the earth.

How to Implement Self-calibration

The self-calibration application can make the oscilloscope reach the optimum condition rapidly to obtain the most accurate measurement value. You can carry out this application program at any time. This program must be executed whenever the change of ambient temperature is 5℃ or over.

Before performing a self-calibration, disconnect all probes or wires from the input connector. Push the Utility button, select Function in the bottom menu, select Adjust.

Page 16

3.Quick Start

in the left menu, select Self Cal in the bottom menu; run the program after everything is ready.

Introduction to the Vertical System

As shown in Figure 3-10, there are a few of buttons and knobs in Vertical Controls. The 4 channels are marked by different colors which are also used to mark both the corresponding waveforms on the screen and the channel input connectors. Press one of the channel buttons to open the corresponding channel menu, and press again to turn off the channel. Press the Math button to display the math menu in the bottom. The pink M waveform appears on the screen. Press again to turn off the math waveform.

The 4 channels use the same Vertical Position and Vertical Scale knobs. If you want to set the vertical scale and vertical position of a channel, please press CH1, CH2, CH3 or CH4 at first to select the desired channel. Then turn the Vertical Position and Vertical Scale knobs to set the values.

Figure 3-10 Vertical Control Zone

The following practices will gradually direct you to be familiar with the using of the vertical setting.

1. Press CH1, CH2, CH3 or CH4 to select the desired channel.

2. Use the Vertical Position knob to show the selected channel waveform in the center of the waveform window. The Vertical Position knob functions the regulating of the vertical display position of the selected channel waveform. Thus, when the Vertical Position knob is rotated, the pointer of the earth datum point of the selected channel is directed to move up and down following the waveform, and the position message at the center of the screen would change accordingly.

Measuring Skill

If the channel is under the DC coupling mode, you can rapidly measure the DC component of the signal through the observation of the difference between the wave form and the signal ground.

Page 17

3.Quick Start

If the channel is under the AC mode, the DC component would be filtered out. This mode helps you display the AC component of the signal with a higher sensitivity.

Vertical offset back to 0 shortcut key

Turn the Vertical Position knob to change the vertical display position of the selected channel, and push the position knob to set the vertical display position back to 0 as a shortcut key, this is especially helpful when the trace position is far out of the screen and want it to get back to the screen center immediately.

3. Change the Vertical Setting and Observe the Consequent State Information Change.

With the information displayed in the status bar at the bottom of the waveform window, you can determine any changes in the channel vertical scale factor.

Turn the Vertical Scale knob and change the "Vertical Scale Factor (Voltage Division)" of the selected channel, it can be found that the scale factor of the selected channel in the status bar has been changed accordingly.

Introduction to the Horizontal System

Shown as Figure 3-11, there are a button and two knobs in the Horizontal Controls. The following practices will gradually direct you to be familiar with the setting of horizontal time base.

Figure 3-11 Horizontal Control Zone

1. Turn the Horizontal Scale knob to change the horizontal time base setting and

observe the consequent status information change. Turn the Horizontal Scale knob to change the horizontal time base, and it can be found that the Horizontal Time Base displayed in the status bar changes accordingly.

2. Use the Horizontal Position knob to adjust the horizontal position of the signal

in the waveform window. The Horizontal Position knob is used to control the triggering displacement of the signal or for other special applications. If it is applied to triggering the displacement, it can be observed that the waveform moves horizontally with the knob when you rotate the Horizontal Position knob.

Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com

Page 18

3.Quick Start

Triggering displacement back to 0 shortcut key

Turn the Horizontal Position knob to change the horizontal position of channel and push the Horizontal Position knob to set the triggering displacement back to 0 as a shortcut key.

3. Push the Horizontal HOR button to switch between the normal mode and the

wave zoom mode.

Introduction to the Trigger System

As shown in Figure 3-12, there are one knob and three buttons make up Trigger Controls. The following practices will direct you to be familiar with the setting of the

trigger system gradually.

Figure 3-12 Trigger Control Zone

1. Push the Trigger Menu button and call out the trigger menu. With the operations

of the menu selection buttons, the trigger setting can be changed.

2. Use the Trigger Level knob to change the trigger level setting.

By turning the Trigger Level knob, the trigger indicator in the screen will move up and down. With the movement of the trigger indicator, it can be observed that the trigger level value displayed in the screen changes accordingly.

Note: Turning the Trigger Level knob can change trigger level value and it is also the hotkey to set trigger level as the vertical mid point values of the amplitude of the trigger signal.

3. Push the Force button to force a trigger signal, which is mainly applied to the

"Normal" and "Single" trigger modes.

Introduction to the Touchscreen Controls (Optional)

If the LCD is touchscreen, you can control the oscilloscope by different gestures. The touchable icon at the top right of the screen is used to enable ( touchscreen controls. The instruction of touchscreen controls is as below.

) or disable (

) the

 Run/Stop: Click the or on the left top of the display area to run or stop the

Page 19

3.Quick Start

Press repeatedly to

switch the options

Click to increase the

value of cursor position

Move the cursor

Click to decrease the

value of cursor position

Click to show the

soft keyboard

Turn off the function

Enter the function

waveform sampling.

 Autoset: Click the on the left top of the display area to auto set.  Select a menu item: Touch the menu items in the bottom menu, or in the right menu,

or in the left menu.

 Switch menu items: If there are options that can be switched on the menu, you can

repeatedly touch the area of the menu item to switch, or push the corresponding button to switch. See figure below:

 Adjust value on the menu item:

 Scroll the list: If there is a scroll bar in the left menu or in the file system window,

you can swipe up and down to scroll the list.

 Touchable menu pane: Click the icon on the right bottom of the display area, a

shortcut menu will be shown. Click to enter the corresponding function menu.

 Set the channel status: Click the channel on the left bottom of the display area, you

can turn on, select or turn off the channel. You can also touch the channel pointer on the left side of the display area to make it in selected state.

Page 20

3.Quick Start

Channel is off

Channel is on and selected

Channel is on

Selected

Unselected

Channel pointer

Control the

horizontal position

Control the vertical position

of the selected channel

 Set the horizontal and vertical position

Click in the area as shown in the figure below, the P icon will appear. Click anywhere outside the icon to hide it. Note: Swipe up/down or left/right in this area, you can make the icon appear and control it.

When the P icon appears, in the full screen, swipe left/right to control the horizontal position, swipe up/down to control the vertical position of the selected channel.

Click the P icon to fine-turn, long-press to adjust continuously.

Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com

Page 21

3.Quick Start

Control the trigger level of the source in the trigger menu

 Set the trigger level

Click in the area as shown in the figure below, the L icon will appear. Click anywhere outside the icon to hide it. Note: Swipe up/down in this area, you can make the icon appear and control it.

When the L icon appears, in the full screen, swipe up/down to control the trigger level of the source in the trigger menu. Click the L icon to fine-turn, long-press to adjust continuously.

 Set the time base and the voltage division

Click in the area as shown in the figure below, the M and V icons will appear. Click anywhere outside the icon to hide it. Note: Swipe up/down or left/right in this area, you can make the icon appear and control it.

Page 22

3.Quick Start

Control the

time base

Control the

voltage division

When the M and V icons appear, in the full screen, swipe left/right to change the time base, swipe up/down to change the voltage division of the selected channel. Click the icons to fine-turn, long-press to adjust continuously.

In the full screen, pinch and spread horizontally to change the time base; pinch and spread vertically to change the voltage division of the selected channel.

 Measure with Cursors

Click nearby a cursor line as shown in the figure below, the line will be selected, and the C icon will appear. Click anywhere outside the icon to hide it. Note: Swipe in this area, you can make the icon appear and control it.

Page 23

3.Quick Start

Cursor line

Switch horizontal or vertical lines

If vertical lines are selected, drag up and down.

Selected

Unselected

Control the vertical

cursor line

Switch to select the lines

When the C icon appears, in the full screen, swipe left/right to move the selected line. Click the direction buttons of the C icon to fine-turn, long-press to move continuously. Click the center "ab" button to select a, b, or a&b.

How to Measure Automatically

Push the Measure button to display the menu for the settings of the Automatic Measurements. At most 8 types of measurements could be displayed on the bottom left of the screen.

The oscilloscopes provide 31 parameters for auto measurement, including Period, Frequency, Mean, PK-PK, RMS, Max, Min, Top, Base, Amplitude, Overshoot, Preshoot, Rise Time, Fall Time, +PulseWidth, -PulseWidth, +Duty Cycle, -Duty Cycle, Delay A→B , Delay A→B , Cycle RMS, Cursor RMS, Screen Duty, Phase A→B , Phase A→B , +PulseCount, -PulseCount, RiseEdgeCnt, FallEdgeCnt, Area, and Cycle Area.

E.g. Measure the period, the frequency of the CH1, following the steps below:

1. Push the Measure button to show the automatic measurement function menu.

2. Select Add in the bottom menu.

3. In the left Type menu, turn the M knob to select Period.

4. In the right menu, select Source as CH1.

Page 24

4.Use the Arbitrary Function Generator (Optional)

5. In the right menu, select Add. The period type is added.

6. In the left Type menu, turn the M knob to select Frequency.

7. In the right menu, select Source as CH1.

8. In the right menu, select Add. The frequency type is added.

The measured value will be displayed at the bottom left of the screen automatically.

How to Use Autoscale

This is a very useful function for first time users to carry out a simple and quick test on the input signal. The function is applied to follow-up signals automatically even if the signals change at any time. Autoscale enables the instrument to set up trigger mode, voltage division and time scale automatically according to the type, amplitude and frequency of the signals.

E.g. If you want to measure the signal, you can do as the follows:

1. Push the Autoscale button, the function menu will appear.

2. In the bottom menu, select ON in the Autoscale menu item.

3. In the bottom menu, Select Mode. In the right menu, select

4. In the bottom menu, Select Wave. In the right menu, select

4. Use the Arbitrary Function Generator (Optional)

The function generator provides 4 basic waveforms (sine, square, ramp, and pulse) and 46 built-in arbitrary waveforms (Noise, Exponential rise, Exponential fall, Sin(x)/x, Staircase, etc.). You can create a user-definable waveform and save it to internal storage or USB device.

Output Connection

Push the Utility button, select Function in the bottom menu, select Output in the left menu. In the bottom menu, select Output, in the right menu, select AG Output. Connect the BNC cable to the port marked Out 1or Out 2 in the back of the oscilloscope.

Out 1 is the output of CH1, Out 2 is the output of CH2, also can be used as the port of trigger signal output & Pass/Fail output.

Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com

Page 25

4.Use the Arbitrary Function Generator (Optional)

Figure 4-1 Generator Output Ports

To see the output of the generator, connect the other end of the BNC cable to one of the input channels on the front of the oscilloscope.

To Set Channels

To Switch Channels in Menu Settings

Push button to switch between CH1 menu, CH2 menu, and Channel Copy menu.

To Turn On/Off Output of Channels

Push or to turn on/off output of the corresponding channel. The indicator

will be lighted when the corresponding channel is tuned on.

To Set Signals

You can set and output sine, square, ramp, pulse, and arbitrary signals.

(1) Push button to show the bottom menu of generator.

(2) Select the desired waveform in the bottom menu, the corresponding menu is displayed

on the right.

(3) The parameters can be set in the right menu.

E.g. Select Frequency in the right menu (if Frequency is not displayed, select Period

and push it again to switch to Frequency). Set the parameter in the right menu, see below.

Three methods to change the chosen parameter:

 Turn the M knob to change the value of cursor position. Press / direction

key to move the cursor.

 Use the soft keyboard: Push the M knob, a soft keyboard will pop up. Turn the M

knob to move between the keys. Push the M knob to input the chosen key.

Page 26

4.Use the Arbitrary Function Generator (Optional)

Units

Clear

Click to increase the

value of cursor position

Move the cursor

Click to decrease the

value of cursor position

Click to show the

soft keyboard

Waveforms

Menu Items

Sine

Frequency/Period, Start Phase, Amplitude/High Level, Offset/Low Level

Square

Frequency/Period, Start Phase, Amplitude/High Level, Offset/Low Level

Frequency/Period, Start Phase, Amplitude/High Level, Offset/Low Level, Symmetry

Width/Duty Cycle

Frequency/Period, Start Phase, Amplitude/High Level, Offset/Low Level, New, File Browse, Built-in



Use the touchscreen (Touchscreen is optional):

Parameters of waveforms

Ramp

Pulse

Arbitrary

Frequency/Period, Start Phase, Amplitude/High Level, Offset/Low Level,

Create a New Waveform

(1) Push button. Select Arb in the bottom menu, select Others in the right menu,

and select New.

Page 27

5.Use the Multimeter (Optional)

(2) In the right menu, set the number of waveform points, the interpolation, and edit the

waveform points. Save the waveform to internal storage or USB device.

File Browse

To read a waveform stored in internal storage or USB device:

(1) Push button. Select Arb in the bottom menu, select Others in the right menu,

and select File Browse.

(2) Select the desired waveform file in internal storage (FLASH) or USB device

(USBDEVICE).

(3) Select Read in the right menu.

Built-in Waveform

There are 46 built-in Arbitrary waveforms. Steps for selecting the built-in waveform:

(1) Push button to show the bottom menu of generator.

(2) Select Arb in the bottom menu, select Others in the right menu, and select Built-in. (3) Select Common, Math, Window or Others in the right menu. E.g. select Others.

(4) Turn the M knob to select the desired waveform (or touch if the LCD is touchscreen).

E.g. select Noise. Select Select to output the noise waveform.

5. Use the Multimeter (Optional)

Input Terminals

The input terminals are on the back of the oscilloscope, which marked as 10A, mA, COM, V/Ω/C.

Figure 5-1 Multimeter Input Terminals

Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com

Page 28

5.Use the Multimeter (Optional)

Setting

Description

ACA DCA

Measuring AC current Measuring DC current

ACV DCV

Measuring AC voltage Measuring DC voltage

Measuring resistance

Measuring capacitance

Hold

ON OFF

Freeze the display during measurement.

When making relative measurements, reading is the

input signal.

Show Info

ON OFF

Auto Range

Select auto range mode

Switch Range

Select manual range mode, press to switch range

Current

measurement)

DMM Menu

Push the DMM button on the front panel to enter/exit the multimeter function. The button backlight will be lighted when the multimeter function is enabled.

Figure 5-2 Multimeter Button

The bottom menu of multimeter is as below:

Current

Voltage

Configure

Relative

mA 10A

(Only for current

Testing diode Testing for continuity

difference between a stored reference value and the

Show/Hide the information window

Select the current range.

DMM Information Window

The Multimeter Information Window is displayed on the top right of the screen.

Page 29

6.Communication with PC

1 2

Figure 5-3 Multimeter Information Window

Description

1. Manual/Auto range indicators, MANUAL refers to the measuring range in manual

operation mode and AUTO refers to the measuring range in automatic operation mode.

2. Measurement mode indicators:

A ------ Current measurement

V ------ Voltage measurement

R ------

------

C ------

3. Range.

4. Measurement display ("OL" is short for overload, indicates the reading exceeds the

display range)

5. Data hold mode is enabled.

6. Multimeter recorder.

7. The reference value of the relative measurement.

8. Range of measuring current: mA or 10A.

9. AC or DC when measuring current or voltage.

Resistance measurement

Diode measurement

Continuity test

Capacitance measurement

6. Communication with PC

The oscilloscope supports communications with a PC through USB, LAN port or Wi-Fi. You can use the Oscilloscope communication software to store, analyze, display the data and remote control. To learn about how to operate the software, you can push F1 in the software to open the help document. Here is how to connect with PC. First, install the Oscilloscope communication software on the supplied CD. Then there are several ways of connection to choose from.

Page 30

6.Communication with PC

Using USB Port

(1) Connection: Use a USB data cable to connect the USB Device port in the right panel

of the Oscilloscope to the USB port of a PC.

(2) Install the driver: Run the Oscilloscope communication software on PC, push F1 to

open the help document. Follow the steps of title "I. Device connection" in the document to install the driver.

(3) Port setting of the software: Run the Oscilloscope software; click

"Communications" on the menu bar, choose "Ports-Settings", in the setting dialog, choose "Connect using" as "USB". After connect successfully, the connection information in the bottom right corner of the software will turn green.

Figure 6-1 Connect with PC through USB port

Using LAN Port

Connect directly

(1) Connection. Plug in the LAN cable to the LAN port in the back of the oscilloscope;

plug the other end into the LAN interface of the computer.

(2) Set the network parameters of the computer. Since the oscilloscope can not

support obtaining an IP address automatically, you should assign a static IP address. Here we set the IP address to 192.168.1.71.

Page 31

6.Communication with PC

Figure 6-2 Set the network parameters of the computer

(3) Set the network parameters of the OWON Oscilloscope Software. Run the

software on the computer; choose the "Ports-settings" of the "Communications" menu item. Set "Connect using" to LAN. About the IP, the first three bytes is same as the IP in the step (2), the last byte should be different. Here, we set it to 192.168.1.72. The range of the port value is 0 - 4000, but the port which under 2000 is always used, so it is suggested to set it to the value above 2000. Here, we set it to 3000.

Figure 6-3 Set the network parameters of the OWON Oscilloscope Software

(4) Set the network parameters of the oscilloscope. In the oscilloscope, push the Utility

Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com

Page 32

6.Communication with PC

button. Select Function in the bottom menu. Select LAN Set in the left menu. In the bottom menu, set the Type item as LAN, and select Set. In the right menu, set IP and

Port to the same value as the "Ports-settings" in the software in step (3). Select Save set in the bottom menu, it prompts "Reset to update the config". After resetting the

oscilloscope, if you can get data normally in the oscilloscope software, the connection is successful.

Figure 6-4 Set the network parameters of the oscilloscope

Connect through a router

(1) Connection. Use a LAN cable to connect the oscilloscope with a router, the LAN port

of the oscilloscope is in the right side panel; the computer should be connected to the router too.

(2) Set the network parameters of the computer. Since the oscilloscope can not

support obtaining an IP address automatically, you should assign a static IP address. The Default gateway and Subnet mask should be set according to the router. Here we set the IP address to 192.168.1.71, Subnet mask is 255.255.255.0, Default gateway is

192.168.1.1.

Page 33

6.Communication with PC

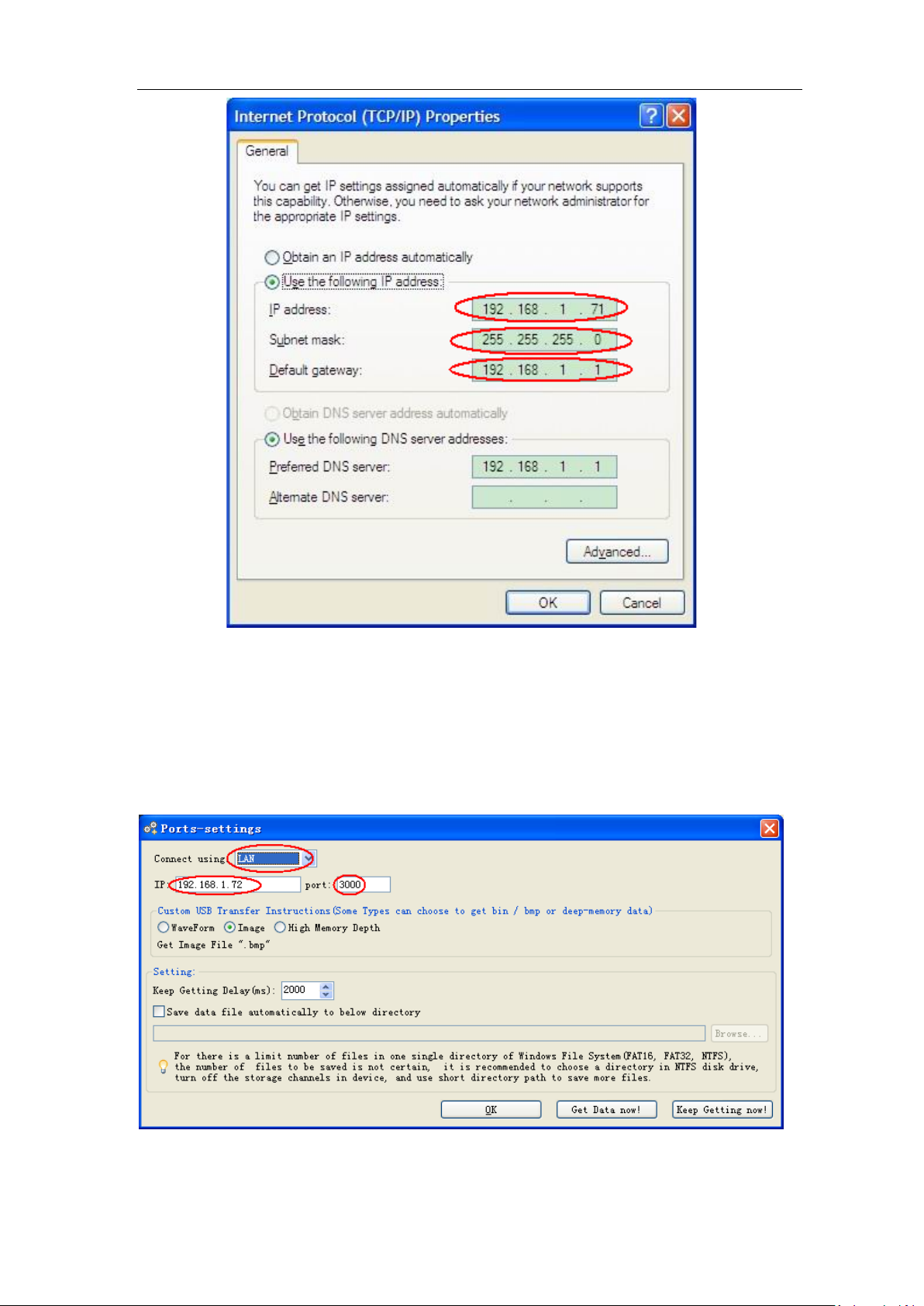

Figure 6-5 Set the network parameters of the computer

(3) Set the network parameters of the OWON Oscilloscope Software. Run the

Figure 6-6 Set the network parameters of the OWON Oscilloscope Software

(4) Set the network parameters of the oscilloscope. In the oscilloscope, push the Utility

Page 34

6.Communication with PC

button. Select Function in the bottom menu. Select LAN Set in the left menu. In the bottom menu, set the Type item as LAN, and select Set. In the right menu, set IP and Port to the same value as the "Ports-settings" in the software in step (3). The Gateway and Subnet mask should be set according to the router. Select Save set in the bottom menu, it prompts "Reset to update the config". After resetting the oscilloscope, if you can get data normally in the oscilloscope software, the connection is successful.

Figure 6-7 Set the network parameters of the oscilloscope

Using Wi-Fi to Connect with PC (Optional)

Connect with PC as Wi-Fi Access Point

PC should support Wi-Fi. (1) Set the oscilloscope. In the oscilloscope, push the Utility button. Select Function in

the bottom menu. Select LAN Set in the left menu. In the bottom menu, set the Type item as WIFI-AP, and select Set in the bottom menu.

(2) In the right menu, select SSID, a keyboard will pop up. You can turn and push the M

knob, or touch the keyboard (if the LCD is touchscreen) to set the access point name.

(3) In the right menu, select Encryption, push again to set the type. Open type needs no

password. WEP or WPA type need to set the password. You can select W PA. In the right menu, select Password, use the keyboard to set the WI-FI password (8 to 32 characters).

(4) In the right menu, select IP:PORT, IP is fixed by the oscilloscope, and can not be

edited. Here IP is 192.168.1.1. Turn the M knob to set the PORT. Here, we set it to

3000.

(5) After setting, select ON in the Status menu. The icon appears on the top right of

the screen.

Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com

Page 35

6.Communication with PC

(6) Select Save set in the bottom menu to save current settings. (7) Set Wi-Fi connection on PC. Enter the WI-FI settings on PC, select the oscilloscope

access point to connect, enter the set password.

(8) Set the network parameters of the OWON Oscilloscope Software. Run the

software on the computer; choose the "Ports-settings" of the "Communications" menu item. Set "Connect using" to LAN. Set IP and Port to the same value in the oscilloscope in the step (4). If you can get data normally, the connection is successful.

Figure 6-8 Set the network parameters of the OWON Oscilloscope Software

Connect with PC as Wi-Fi Station

The oscilloscope and PC should be on the same network (LAN). (1) In the oscilloscope, push the Utility button. Select Function in the bottom menu.

Page 36

6.Communication with PC

Select LAN Set in the left menu. In the bottom menu, set the Type item as WIFI-STA, and select Set in the bottom menu.

(2) In the right menu, select SSID, a keyboard will pop up. Input the name of the Wi-Fi

hotspot. You can turn and push the M knob, or touch the keyboard (if the LCD is touchscreen).

(3) In the right menu, select Encryption, push to set the Encryption type of the Wi-Fi

hotspot. Open type needs no password. WEP or WPA type need to input the password. In the right menu, select Password, use the keyboard to input the Wi-Fi hotspot password.

(4) In the right menu, select IP:PORT, Turn the M knob to set the PORT. Here, we set it

to 3000.

(5) After setting, select ON in the Status menu. The value of IP is displayed in IP:PORT

menu. Here IP is 10.1.1.126. A changing icon screen.

appears on the top right of the

(6) Select Save set in the bottom menu to save current settings. (7) Set the network parameters of the computer. Set IP in the computer, the first three

bytes is same as the IP in the oscilloscope, the last byte should be different. Here, we set it to 10.1.1.123. The Default gateway and Subnet mask should be set according to the router.

Page 37

6.Communication with PC

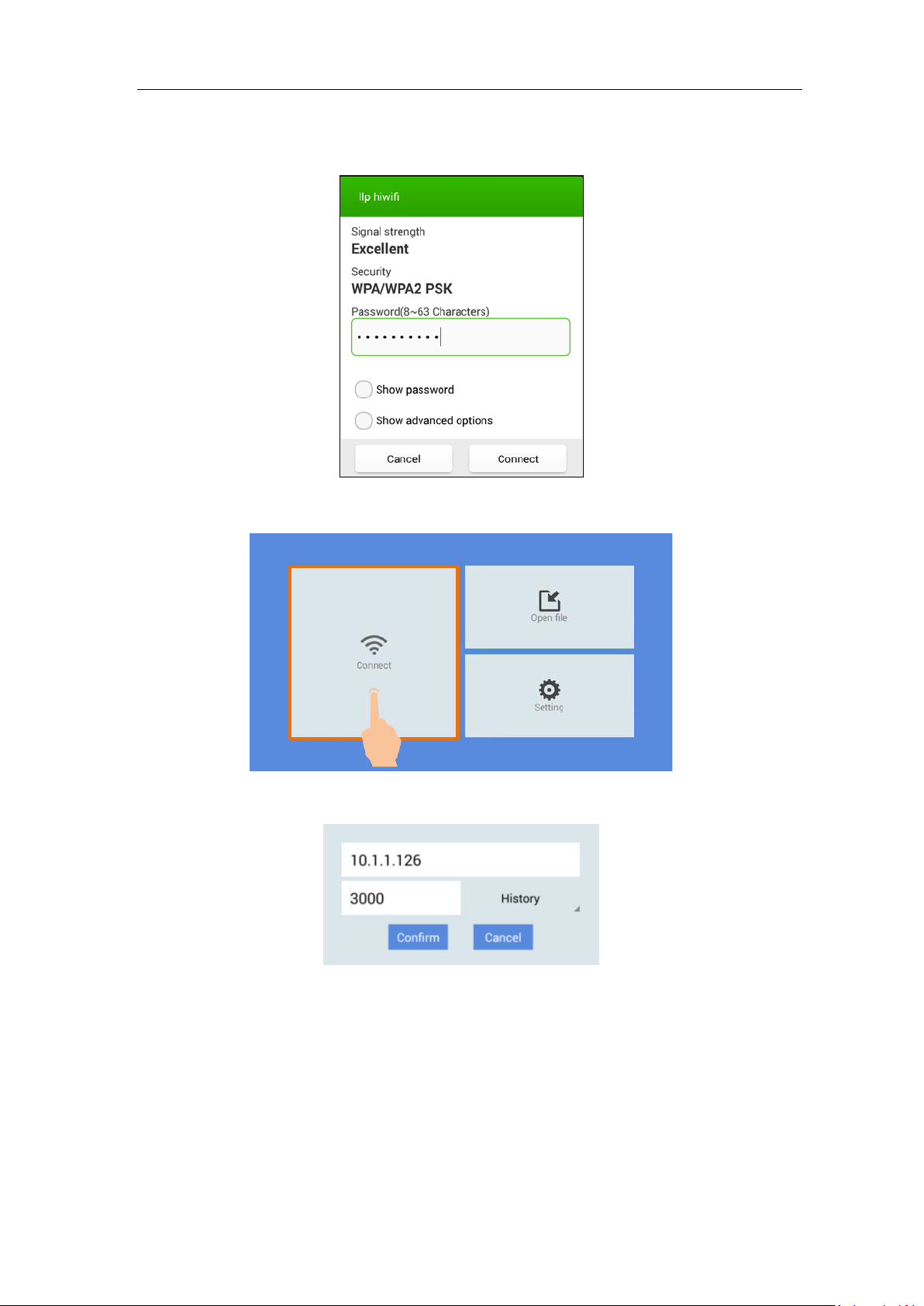

Figure 6-9 Set the network parameters of the computer

(8) Set the network parameters of the OWON Oscilloscope Software. Run the

software on the computer; choose the "Ports-settings" of the "Communications" menu item. Set "Connect using" to LAN. Set IP and Port to the same value in the oscilloscope. If you can get data normally, the connection is successful.

Figure 6-10 Set the network parameters of the OWON Oscilloscope Software

Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com

Page 38

6.Communication with PC

7. Communication with Android Device via Wi-Fi

(Optional)

The oscilloscope supports communications with Android based smart device via Wi-Fi. You can use the free application software on the Android based smart devices to view the waveform synchronously, perform remote control, The waveform can be saved as image (BMP, PNG) or file (CSV, BIN), or shared via installed sharing apps.

System Requirements of Mobile Devices

 Android Versions: 4.0 and above

Install the application software

Install the free OWON application software, it can be downloaded from here:

Scan the QR Code below with your Android based smart device. Follow the prompts on the download page to download and install the AP P.

Visit www.owon.com.cn to download APK file and install into the device.

Note: The help content below may be not completely consistent with the application software, only for reference. Visit www.owon.com.cn to get the latest version of this user manual.

How to Connect

In Wi-Fi settings of the oscilloscope, there are two connection types. One is WIFI-AP (Access Point), the oscilloscope is set as Wi-Fi access point, the Android device can be connected to it directly. The other type is WIFI-STA (Station), the oscilloscope is set as Wi-Fi station. The Android device can be connected to it through a Wi-Fi hotspot.

Connect with APP as Wi-Fi Access Point

(1) In the oscilloscope, push the Utility button. Select Function in the bottom menu.

Select LAN Set in the left menu. In the bottom menu, set the Typ e item as WIFI-AP, and select Set in the bottom menu.

(2) In the right menu, select SSID, a keyboard will pop up. You can turn and push the M

knob, or touch the keyboard (if the LCD is touchscreen) to set the access point name.

(3) In the right menu, select Encryption, push again to set the type. Open type needs no

Page 39

6.Communication with PC

password. WEP or WPA type need to set the password. You can select WPA . In the right menu, select Password, use the keyboard to set the Wi-Fi password (8 to 32 characters).

(4) In the right menu, select IP:PORT, IP is fixed by the oscilloscope, and can not be

edited. Turn the M knob to set the PORT.

(5) After setting, select ON in the Status menu. The icon appears on the top right of

the screen.

(6) Select Save set in the bottom menu to save current settings. (7) In Android device, enter the Wi-Fi settings, select the oscilloscope access point to

connect, enter the set password.

(8) In Android device, launch the application. (9) Click connect on the left.

Page 40

6.Communication with PC

(10) Set IP and Port to the same value as the setting in the oscilloscope. Click Confirm

to connect. Click History to recall the history settings.

Connect with APP as Wi-Fi Station

(1) In the oscilloscope, push the Utility button. Select Function in the bottom menu.

Select LAN Set in the left menu. In the bottom menu, set the Type item as WIFI-STA, and select Set in the bottom menu.

(2) In the right menu, select SSID, a keyboard will pop up. Input the name of the Wi-Fi

hotspot. You can turn and push the M knob, or touch the keyboard (if the LCD is touchscreen).

(3) In the right menu, select Encryption, push to set the Encryption type of the Wi-Fi

hotspot. Open type needs no password. WEP or WPA type need to input the password. In the right menu, select Password, use the keyboard to input the Wi-Fi hotspot password.

(4) In the right menu, select IP:PORT, Turn the M knob to set the PORT. (5) After setting, select ON in the Status menu. The value of IP is displayed in IP:PORT

menu. A changing icon

appears on the top right of the screen.

Page 41

6.Communication with PC

(6) Select Save set in the bottom menu to save current settings. (7) In Android device, enter the Wi-Fi settings, select the oscilloscope access point to

connect, enter the set password.

(8) In Android device, launch the application. (9) Click connect on the left.

(10) Set IP and Port to the same value as the setting in the oscilloscope. Click Confirm

to connect. Click History to recall the history settings.

Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com

Page 42

8. Appendix

Power Cord

CD Rom

Quick Guide

USB Cable

Probe

Probe Adjust

Ext Module

Appendix A: Enclosure

(The accessories subject to final delivery.)

Standard Accessories:

8.Appendix

Options:

Multimeter Lead

Q9 Capacitance

Battery

Soft

Appendix B: General Care and Cleaning

General Care

Do not store or leave the instrument where the liquid crystal display will be exposed to direct sunlight for long periods of time.

Caution: To avoid any damage to the instrument or probe, do not exposed it to any

sprays, liquids, or solvents.

Cleaning

Inspect the instrument and probes as often as operating conditions require. To clean the instrument exterior, perform the following steps:

Bag

1. Wipe the dust from the instrument and probe surface with a soft cloth. Do not

make any scuffing on the transparent LCD protection screen when clean the LCD screen.

2. Disconnect power before cleaning your Oscilloscope. Clean the instrument with a

Page 43

8.Appendix

Warning: Before power on again for operation, it is required to confirm that

he instrument has already been dried completely, avoiding any

wet soft cloth not dripping water. It is recommended to scrub with soft detergent or fresh water. To avoid damage to the instrument or probe, do not use any corrosive chemical cleaning agent.

t electrical short circuit or bodily injury resulting form the moisture.

Appendix C: USB Disk Requirements

The supported format of the USB disk: FAT32 file system, allocation unit size cannot exceed 4K, mass storage USB disk is also supported. If the USB disk doesn't work properly, format it into the supported format and try again. To learn how to format the USB disk, please refer to the User Manual. You can get this manual from the supplied CD or visit www.owon.com.cn.

2017.07 V1.0.0

Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com
