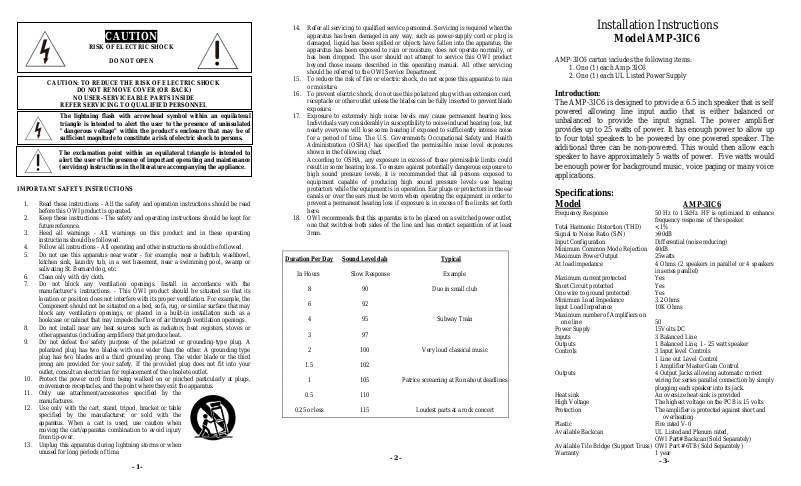

Page 1
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED PERSONNEL
The lightning flash with arrowhead symbol within an equilateral
triangle is intended to alert the user to the presence of uninsulated
"dangerous voltage" within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to
alert the user of the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions - All the safety and operation instructions should be read
before this OWI product is operated.
2. Keep these instructions - The safety and operating instructions should be kept for
future reference.
3. Heed all warnings - All warnings on this product and in these operating
instructions should be followed.
4. Follow all instructions - All operating and other instructions should be followed.
5. Do not use this apparatus near water - for example, near a bathtub, washbowl,
kitchen sink, laundry tub, in a wet basement, near a swimming pool, swamp or
salivating St. Bernard dog, etc.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions. - This OWI product should be situated so that its
location or position does not interfere with its proper ventilation. For example, the
Component should not be situated on a bed, sofa, rug, or similar surface that may
block any ventilation openings, or placed in a built-in installation such as a
bookcase or cabinet that may impede the flow of air through ventilation openings.
8. Do not install near any heat sources such as radiators, heat registers, stoves or
other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wider blade or the third
prong are provided for your safety. If the provided plug does not fit into your
outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit the apparatus.
11. Only use attachment/accessories specified by the
manufactures.
12. Use only with the cart, stand, tripod, bracket or table
specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid injury
from tip-over.
13. Unplug this apparatus during lightning storms or when
unused for long periods of time.
- 1 -
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped. The user should not attempt to service this OWI product
beyond those means described in this operating manual. All other servicing
should be referred to the OWI Service Department.
15. To reduce the risk of fire or electric shock, do not expose this apparatus to rain
or moisture.
16. To prevent electric shock, do not use this polarized plug with an extension cord,
receptacle or other outlet unless the blades can be fully inserted to prevent blade
exposure.
17. Exposure to extremely high noise levels may cause permanent hearing loss.
Individuals vary considerably in susceptibility to noise-induced hearing loss, but
nearly everyone will lose some hearing if exposed to sufficiently intense noise
for a period of time. The U.S. Government's Occupational Safety and Health
Administration (OSHA) has specified the permissible noise level exposures
shown in the following chart.
According to OSHA, any exposure in excess of these permissible limits could
result in some hearing loss. To ensure against potentially dangerous exposure to
high sound pressure levels, it is recommended that all persons exposed to
equipment capable of producing high sound pressure levels use hearing
protectors while the equipment is in operation. Ear plugs or protectors in the ear
canals or over the ears must be worn when operating the equipment in order to
prevent a permanent hearing loss if exposure is in excess of the limits set forth
here.
18. OWI recommends that this apparatus is to be placed on a switched power outlet,
one that switches both sides of the line and has contact separation of at least
3mm.
Duration Per Day Sound Level dab Typical
In Hours Slow Response Example
8 90 Duo in small club
6 92
4 95 Subway Train
3 97
2 100 Very loud classical music
1.5 102
1 105 Patrice screaming at Ron about deadlines
0.5 110
0.25 or less 115 Loudest parts at a rock concert
- 2 -
Installation Instructions
Model AMP-3IC6
AMP-3IC6 carton includes the following items:
1. One (1) each Amp-3IC6
2. One (1) each UL Listed Power Supply
Introduction:
The AMP-3IC6 is designed to provide a 6.5 inch speaker that is self
powered allowing line input audio that is either balanced or
unbalanced to provide the input signal. The power amplifier
provides up to 25 watts of power. It has enough power to allow up
to four total speakers to be powered by one powered speaker. The
additional three can be non-powered. This would then allow each
speaker to have approximately 5 watts of power. Five watts would
be enough power for background music, voice paging or many voice
applications.
Specifications:
Model AMP-3IC6
Frequency Response 50 Hz to 15kHz. HF is optimized to enhance
Total Harmonic Distortion (THD) <.1%
Signal to Noise Ratio (S/N) >90dB
Input Configuration Differential (noise reducing)
Minimum Common Mode Rejection 40dB
Maximum Power Output 25watts
At load impedance 4 Ohms (2 speakers in parallel or 4 speakers
Maximum current protected Yes
Short Circuit protected Yes
One wire to ground protected Yes
Minimum Load Impedance 3.2 Ohms
Input Load Impedance 10K Ohms
Maximum number of Amplifiers on
one line 50
Power Supply 15Volts DC
Inputs 3 Balanced Line
Outputs 1 Balanced Line, 1 - 25 watt speaker
Controls 3 Input level Controls
1 Line out Level Control
1 Amplifier Master Gain Control
Outputs 4 Output Jacks allowing automatic correct
Heat sink An oversize heat-sink is provided
High Voltage The highest voltage on the PCB is 15 volts
Protection The amplifier is protected against short and
overheating
Plastic Fire rated V-0
Available Backcan UL Listed and Plenum rated,
OWI Part# Backcan (Sold Separately)
Available Tile Bridge (Support Truss) OWI Part # 6TB (Sold Separately)
Warranty 1 year
frequency response of the speaker.
in series parallel)
wiring for series parallel connection by simply
plugging each speaker into its jack.
- 3 -
Page 2
WIRING DIAGRAM
OWI Model AMP-3IC6
3 Inputs/Sources Self-amplified Speaker
Enclosure (Backcan) required as per UL Standard.
-4 -
Trouble Shooting Guide
1. No output: Disconnect any secondary speakers and check for operation of the
primary speaker only. If still there is no output, check for loose screws on the
green input connector. It is easy to think the wires are secure in the connector and
one wire is not. Tug on each wire to make sure each is tight.
2. Intermittent output: Check for shorted output causing the amplifier to into and
output protection. Check each input wire for loose screws.
3. Distortion: Do not power more than one AMP-3IC6 on one power supply. While it
will work, it will cause distortion.
4. No output, check to see that the power on light is on. It is located on the main
PCB. If it is off, the power supply is either bad or has come loose in the power
socket.
5. Hum, for single ended inputs, there is a need for a jumper between – and the
ground screw. Most of the time, the jumper is needed.
LIMITED WARRANTY
1. This product has been thoroughly tested and inspected at the factory. It is
warranted for one (1) year from date of purchase.
IT IS THE OWNERS’ RESPONSIBILITY TO ESTABLISH THE DATE OF
PURCHASE BY ACCEPTABLE EVIDENCE AT TIME SERVICE IS SOUGHT.
2. Any unit which in the judgement of OWI Inc. is defective or develops defects
under normal use will be replaced or repaired without cost within the warranty
period.
3. This warranty will be considered void if unit has been dropped, misused, abused,
altered in any manner, overdriven with excessive amplification exceeding
manufacturer’s specification, improperly serviced or accidental damage.
4. OWI Inc. shall have no liability whatsoever for consequential damage. The sole
responsibility and discretion of OWI Inc. under this warranty shall be limited to
the repair of the product or replacement thereof.
5. IMPORTANT: This warranty is void unless the attached card is completed and
mailed to OWI Inc. within 10 days following the date of purchase. Units must be
sent to OWI Inc. or to the dealer where purchased.
OWI INCORPORATED Date Purchased: _________________________
17141 Kingsview Ave Model Number: _________________________
Carson, CA 90746 Serial Number: _________________________
(Keep this part for your record)
-------CUT AND MAIL--------------------------------------------
OWI INCORPORATED
17141 Kingsview Ave
Carson, CA 90746
LIMITED WARRANTY
Model Number:_________________________________
Model Name: __________________________________
Serial No. _____________________________________
Date of Purchase: Month: __________ Day ____ Year ______
Owner’s Name: ______________________________________
Address: ________________________________________
City: _______________________ State __________ Zip_______
Dealer’s Name: ______________________ City______________ State ________
Purchased from (please check one):
Video ___, Electronic ___, Mail Order ___, Mass Merchandiser ___, Installer ___
Others (please specify) _______________________________________________
Remarks:
________________________________________________________________
-5 -
Installation Instructions
Model AMP-3IC6
SELF-AMPLIFIED IN-CEILING SPEAKERS
(3 INPUTS/SOURCES)
Established 1978
OWI Incorporated
17141 Kingsview Ave. Carson CA 90746
Tel. 310-515-1900
www.owi-inc.com
Technical Support: 310-515-1900
