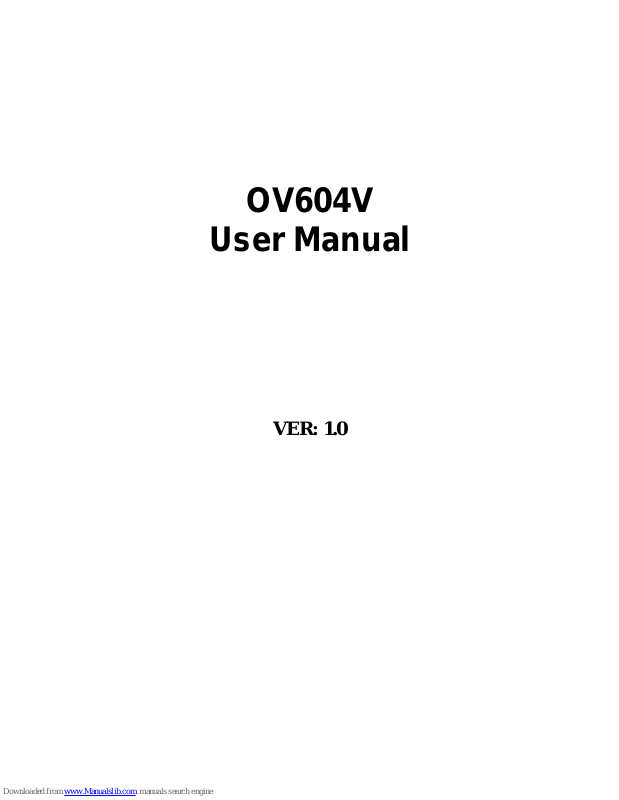

Ovislink OV604V User Manual

OV604V

User Manual

VER: 1.0

i

Contents

1 Introduction ............................................................................................ 1

1.1 Application .......................................................................................... 1

1.2 Features .............................................................................................. 1

1.3 Standards Compatibility and Compliance ............................................ 2

1.4 Safety Cautions ................................................................................... 2

1.5 LED Status Description........................................................................ 3

1.5.1 LED Status................................................................................ 3

1.5.2 Rear Panel ............................................................................... 4

2 Hardware Installation ............................................................................. 4

2.1 Connecting the DSL Router ................................................................. 5

2.2 Factory Reset Button ........................................................................... 5

3 PC Network Configuration ...................................................................... 6

4 Web-Based Management ...................................................................... 8

4.1 Logging In to the Modem ..................................................................... 8

4.1.1 First-Time Login ........................................................................ 8

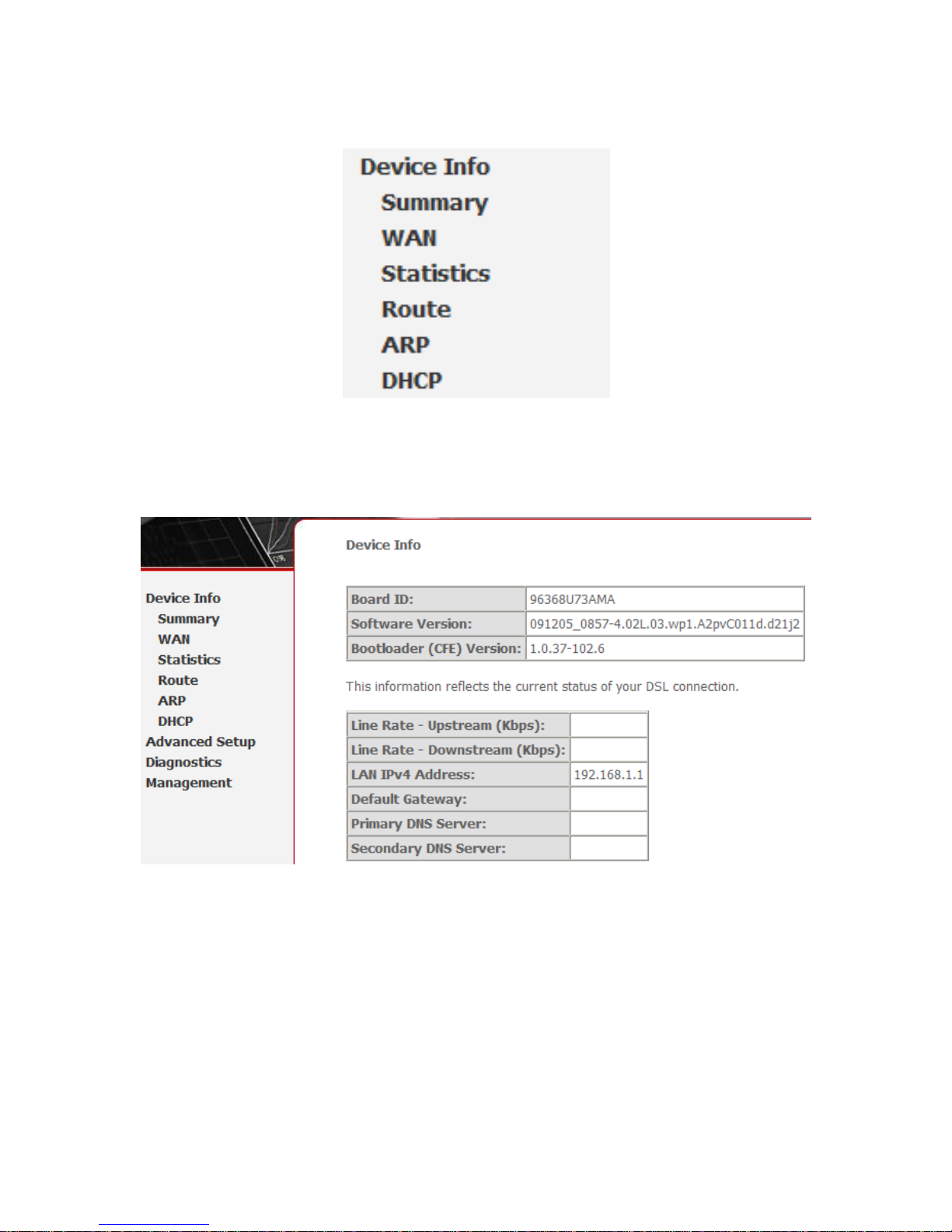

4.2 DSL Router Device Information ........................................................... 9

4.2.1 Summary of Device Information .............................................. 10

4.2.2 WAN Interface Information ...................................................... 10

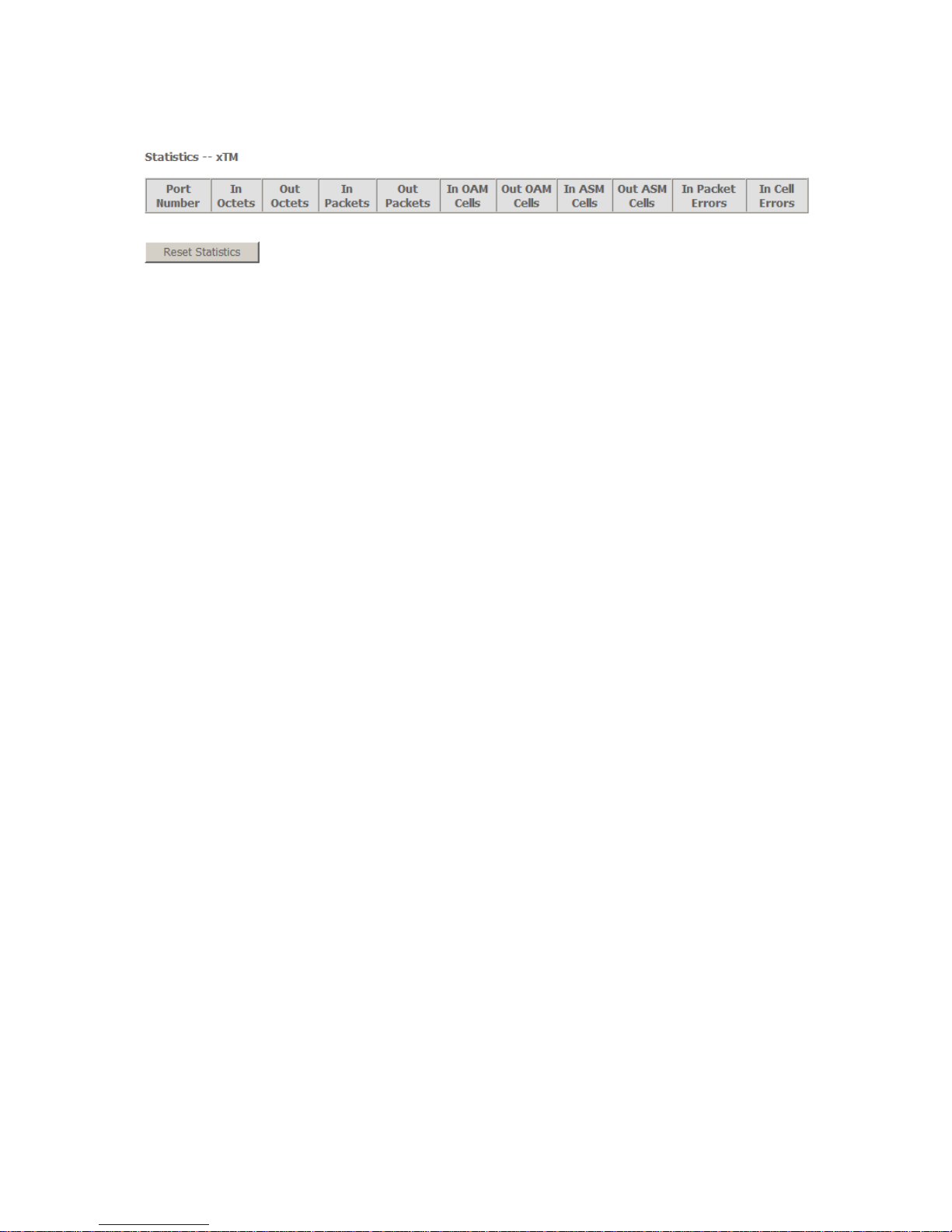

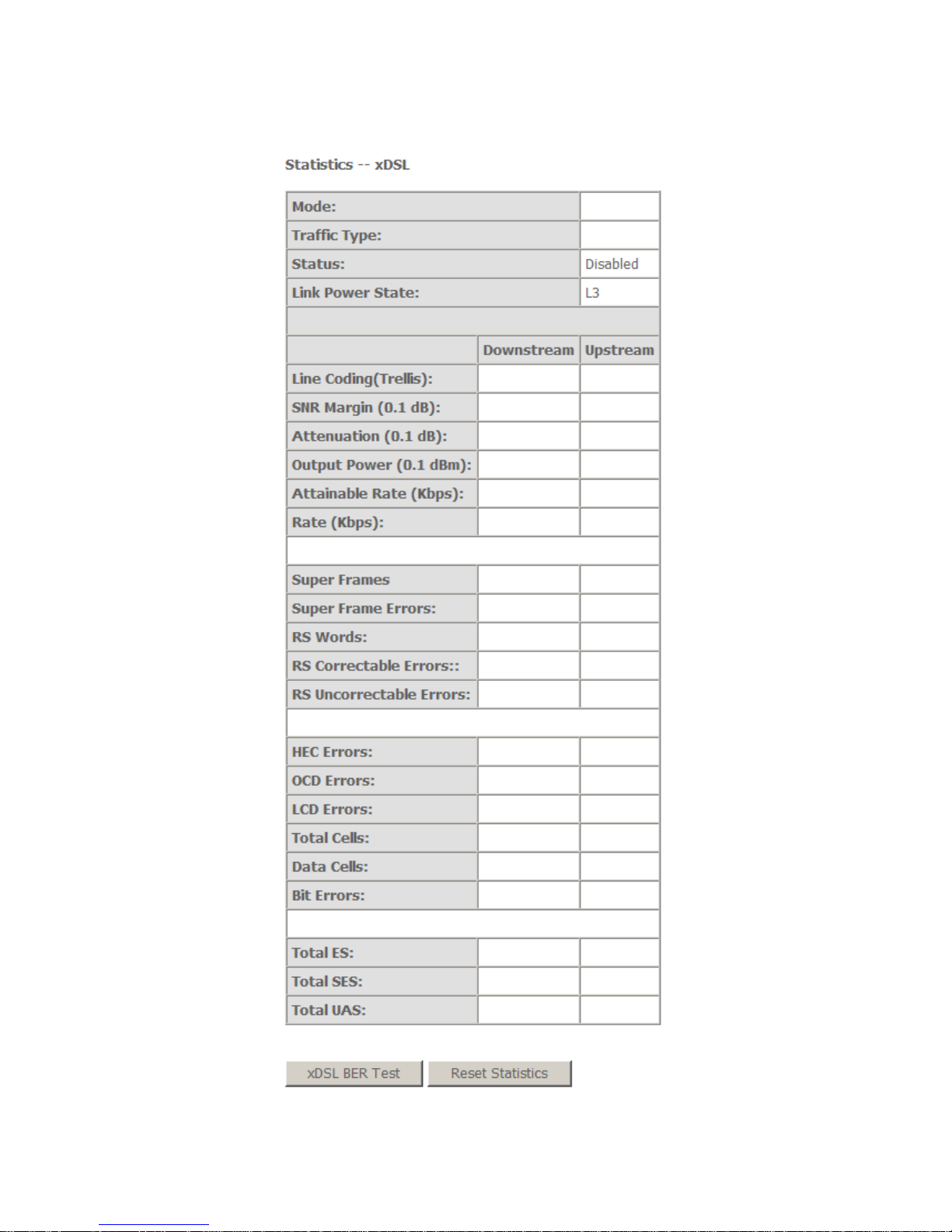

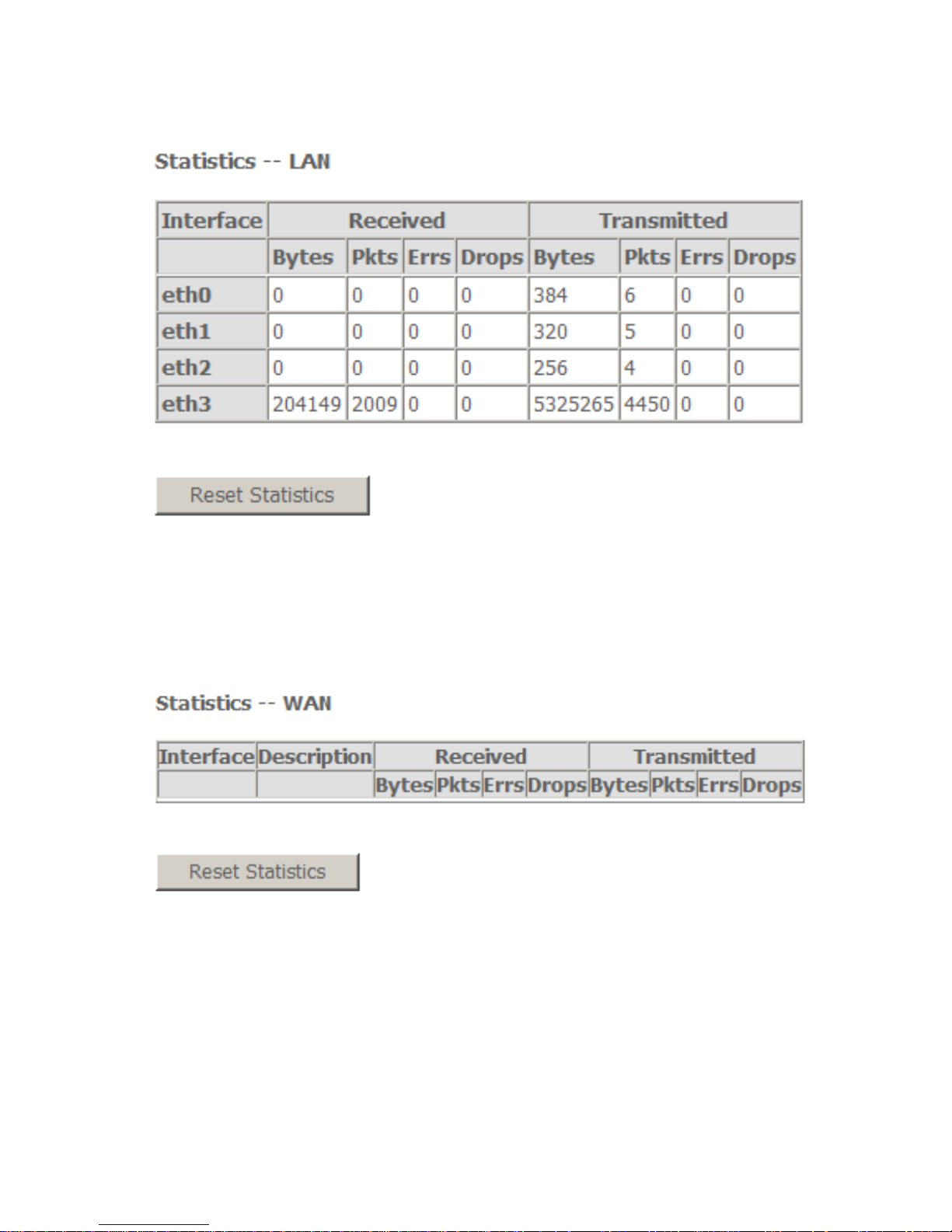

4.2.3 Statistics ................................................................................. 11

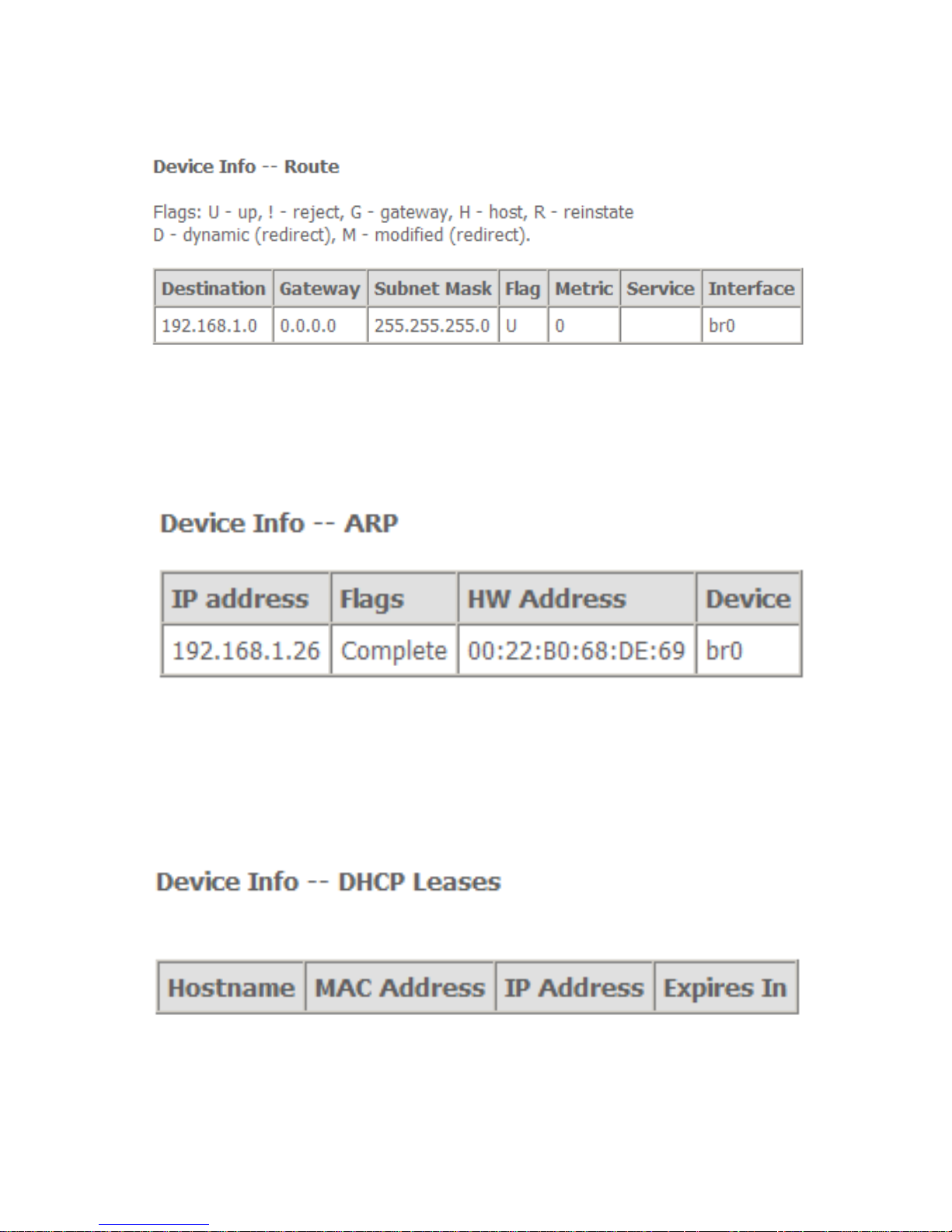

4.2.4 Route Table Information .......................................................... 15

4.2.5 ARP Table Information ............................................................ 16

4.2.6 DHCP IP Lease Information .................................................... 16

4.3 Advanced Setup ................................................................................ 17

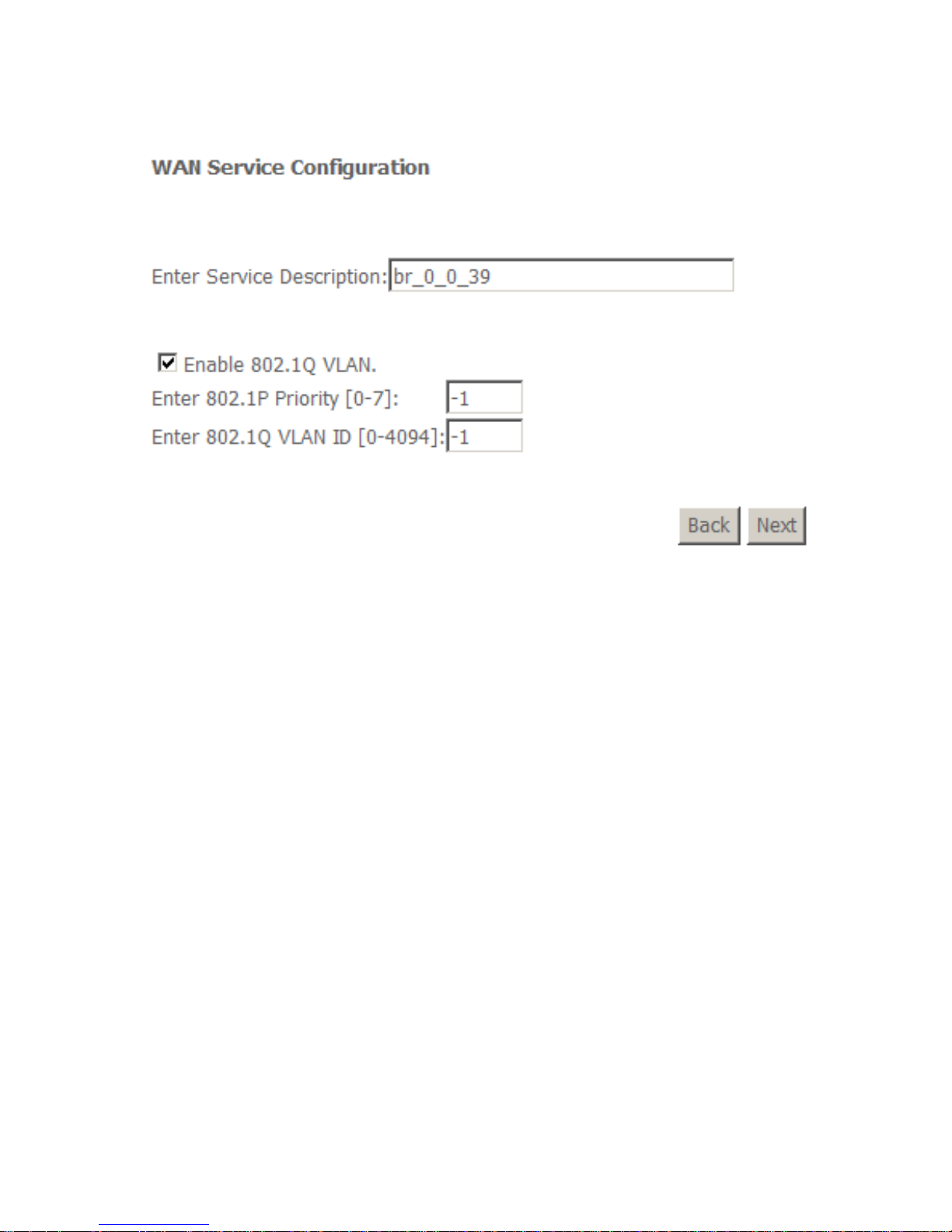

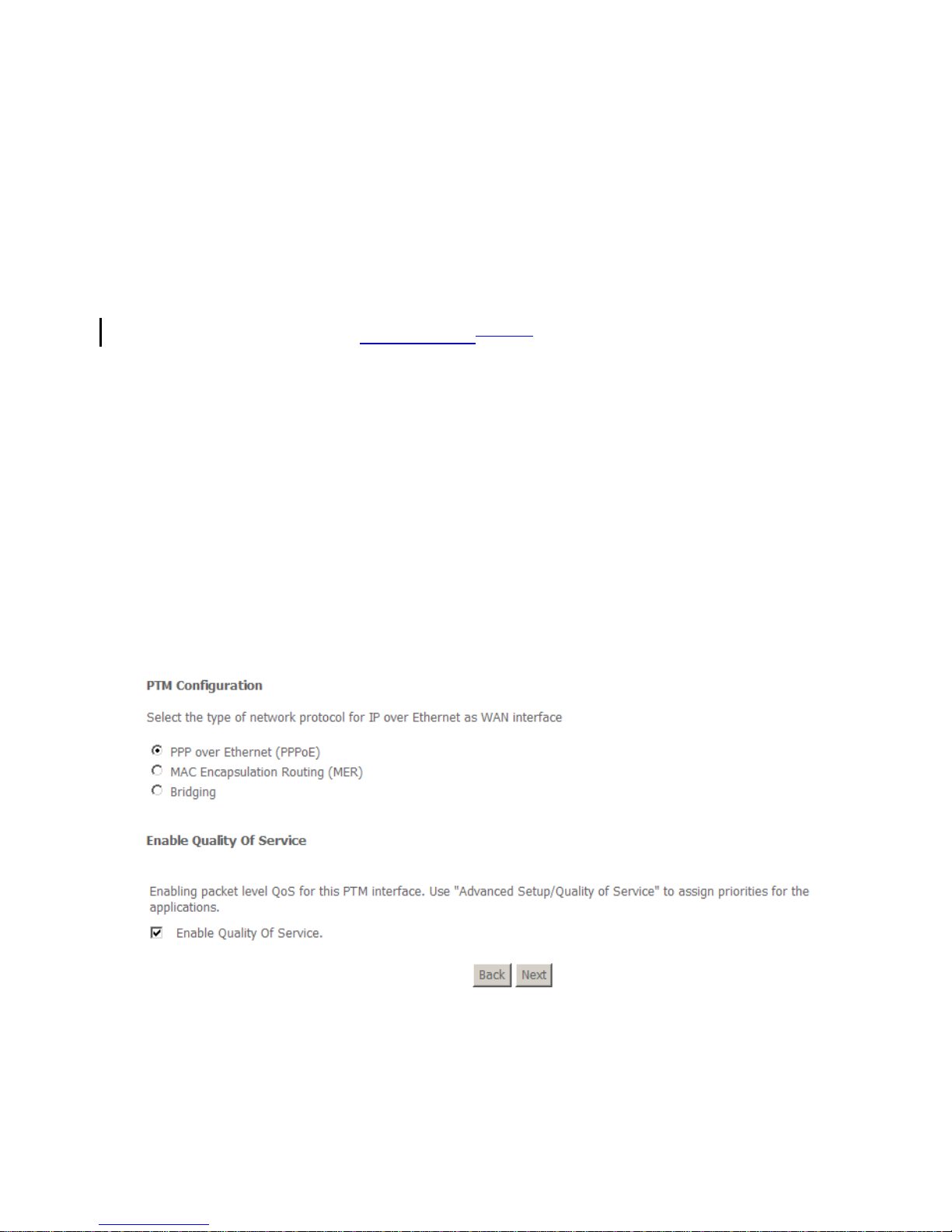

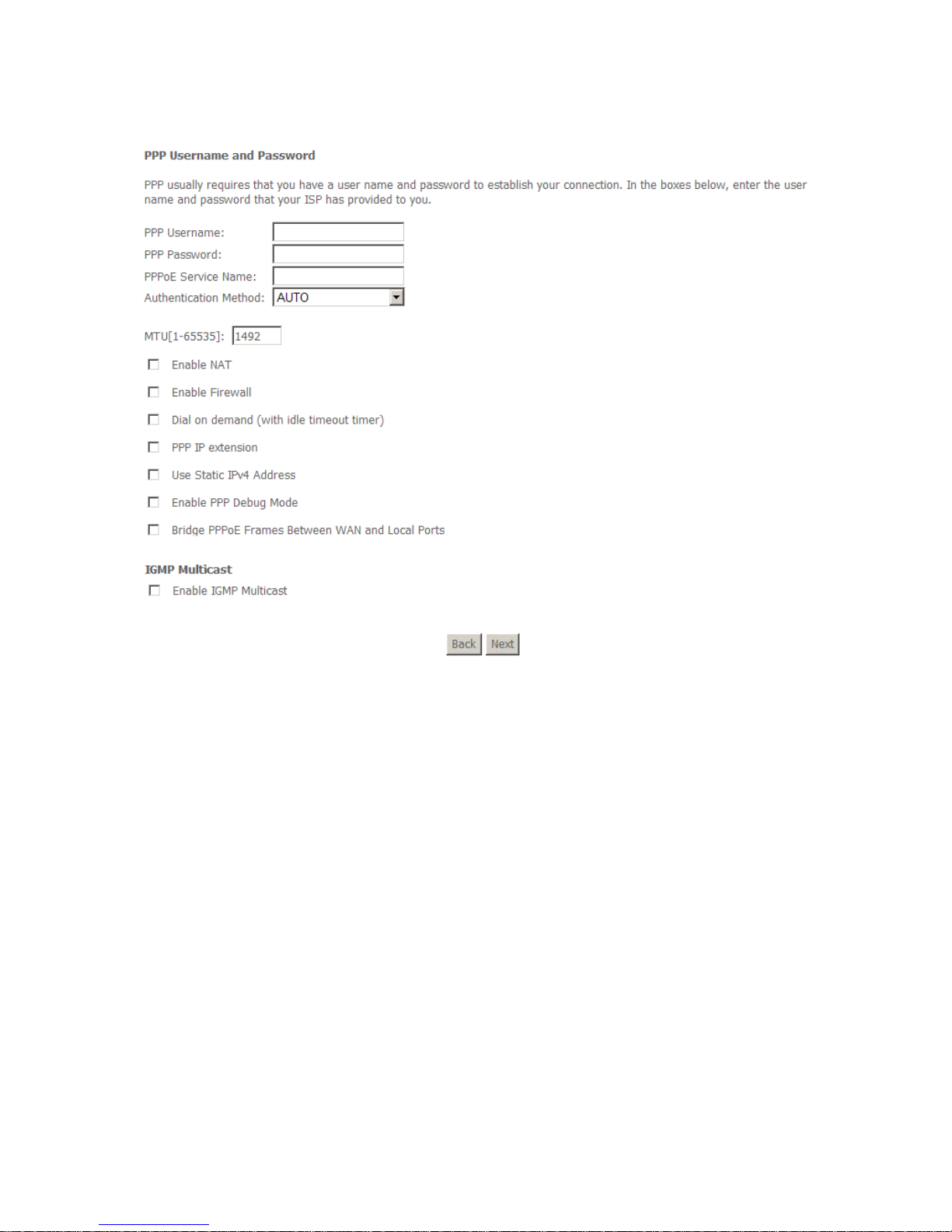

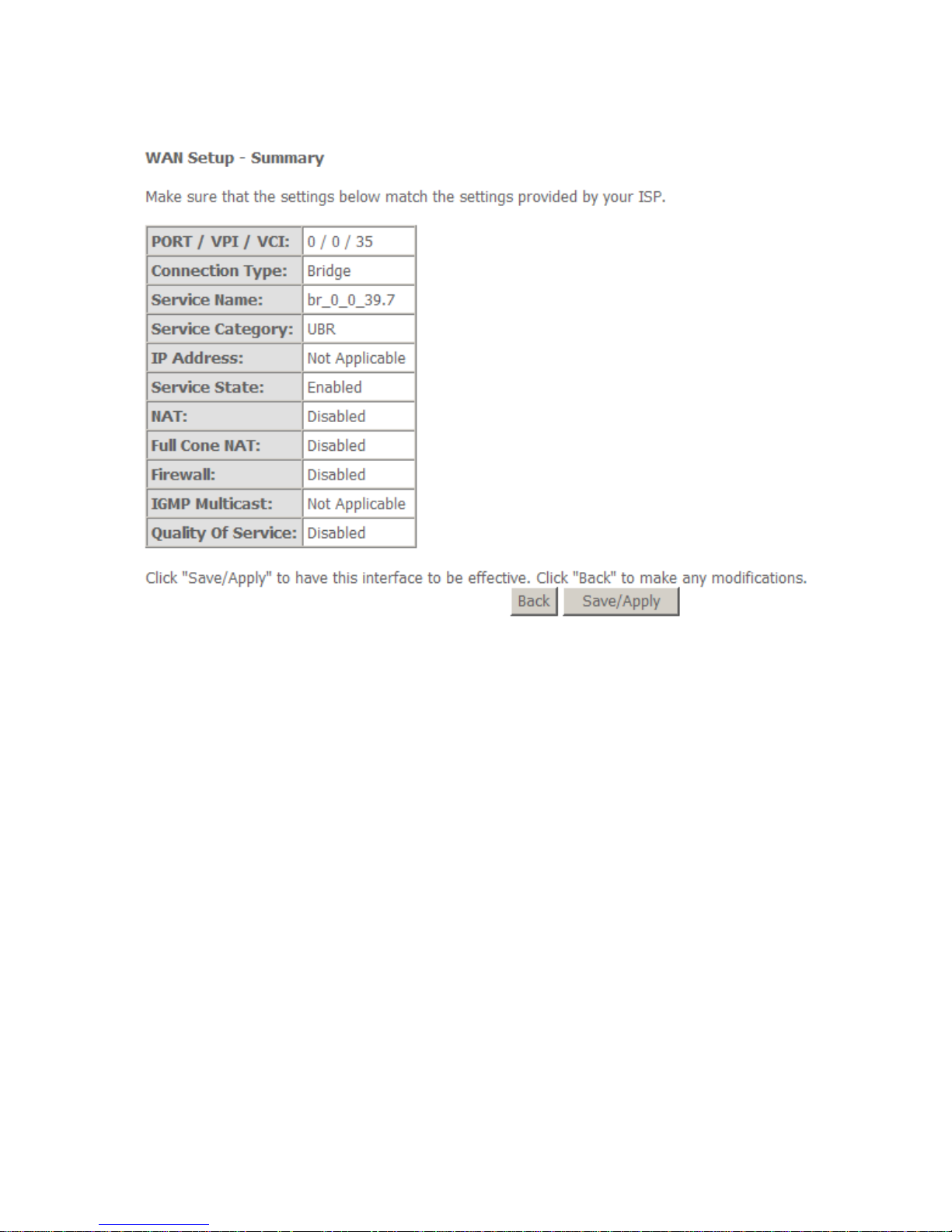

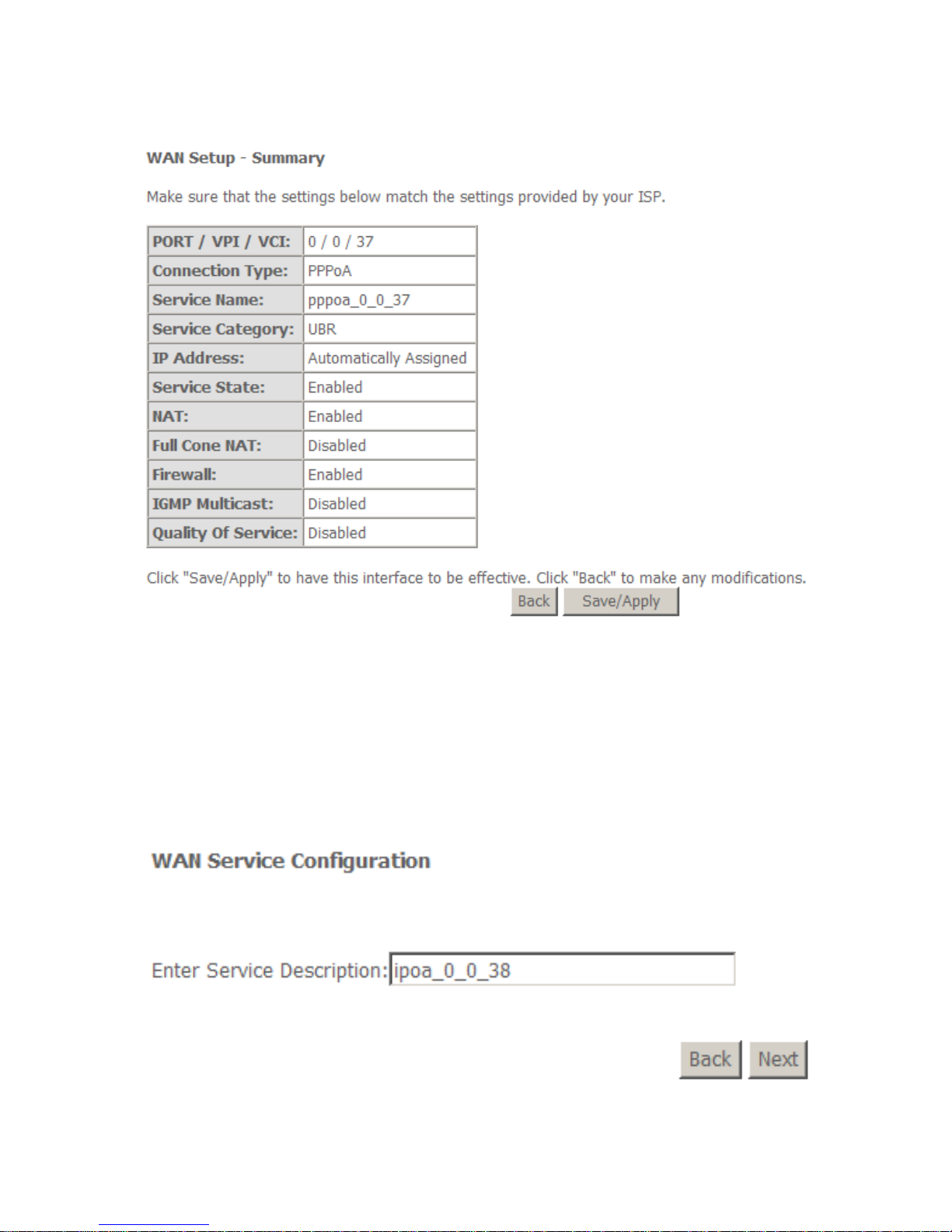

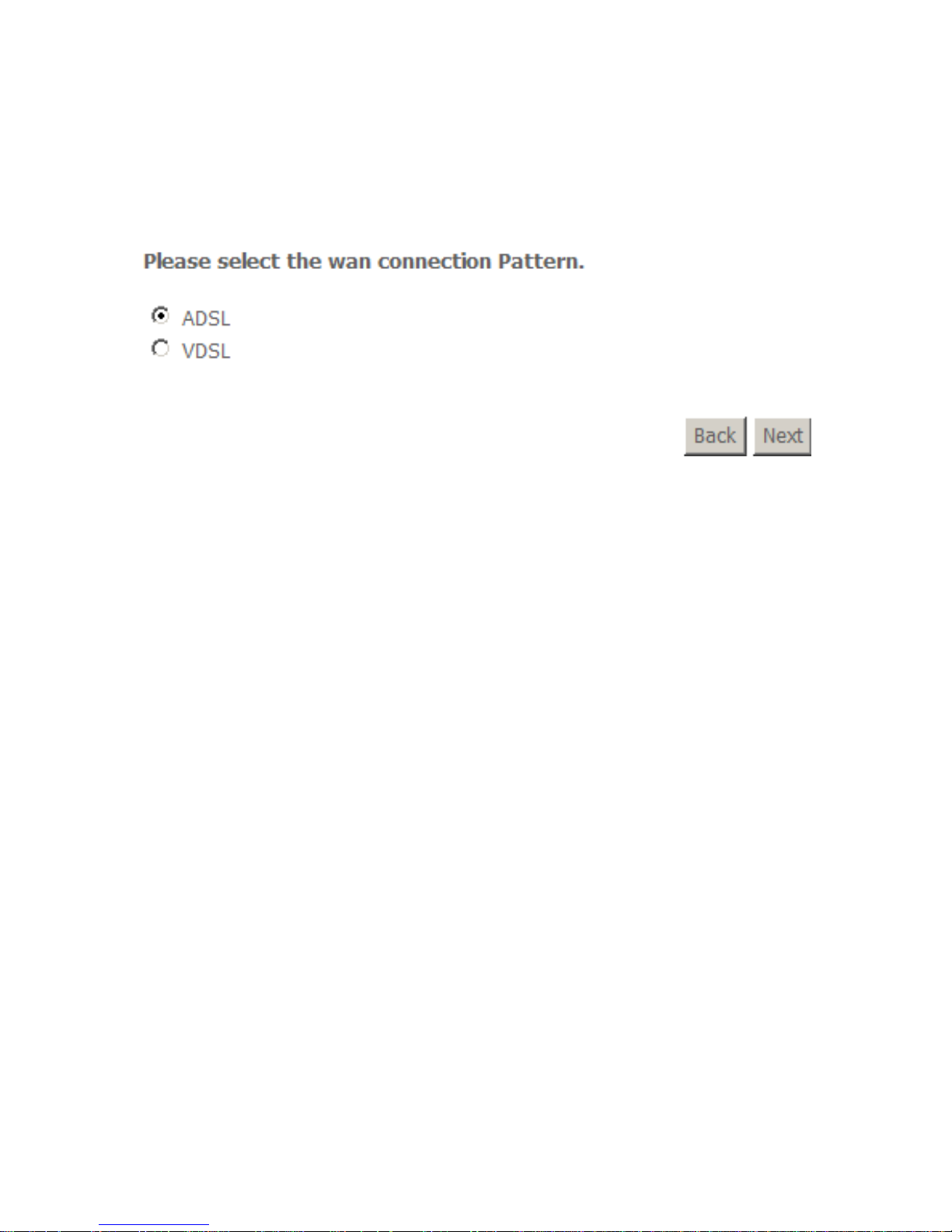

4.3.2 Connection Type of WAN Service ................................ ........... 20

4.3.3 LAN Configuration ................................................................ .. 38

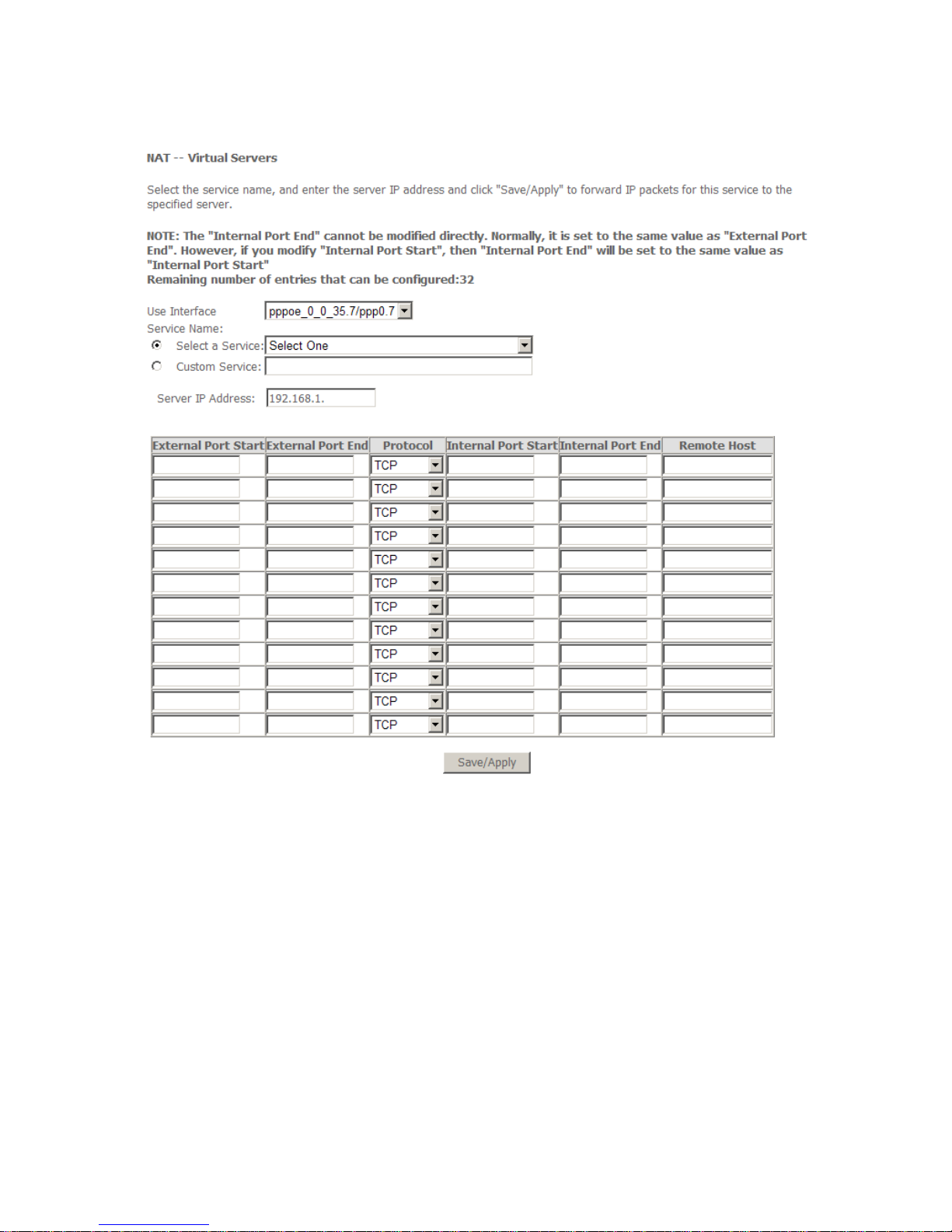

4.3.4 NAT ........................................................................................ 41

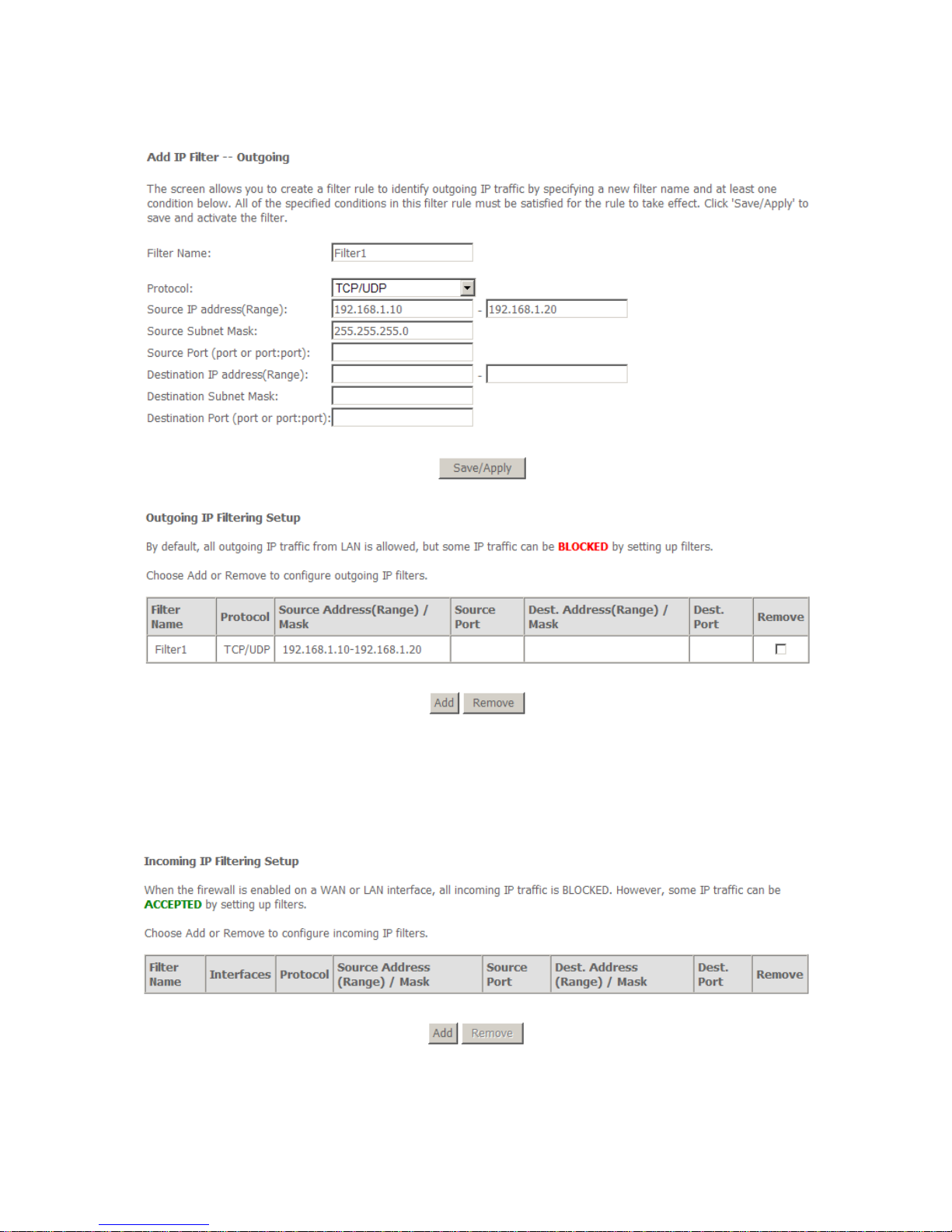

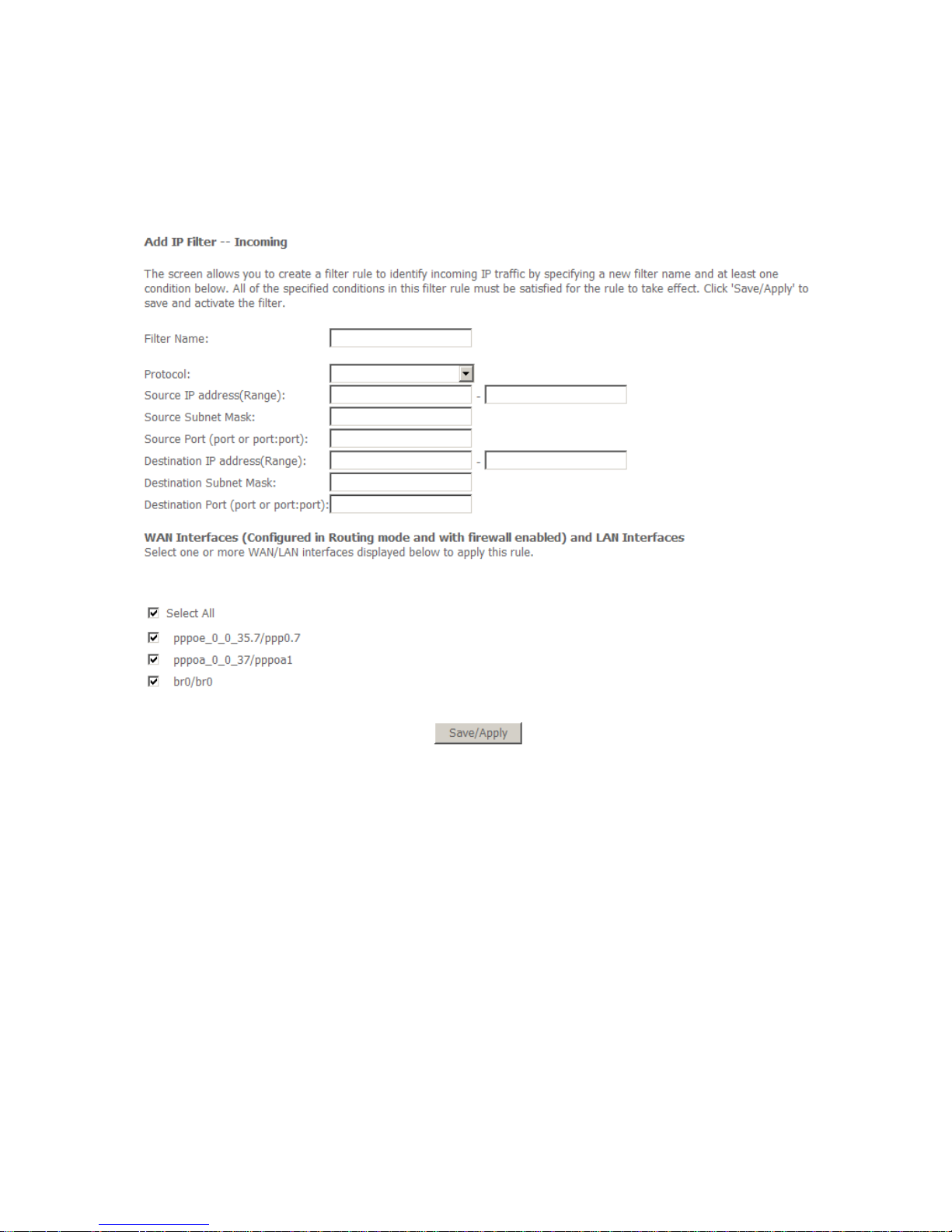

4.3.5 Security .................................................................................. 47

4.3.6 Parental Control ...................................................................... 51

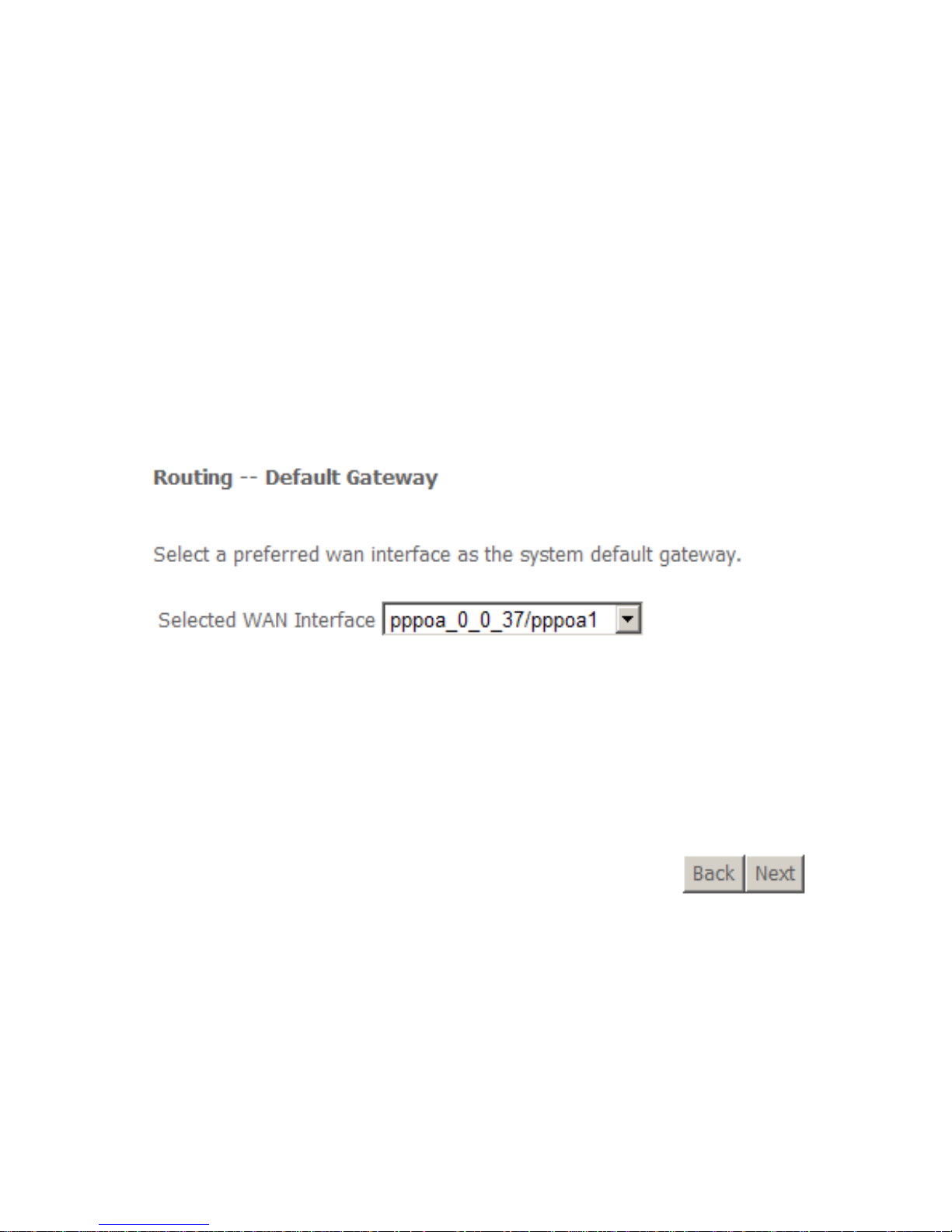

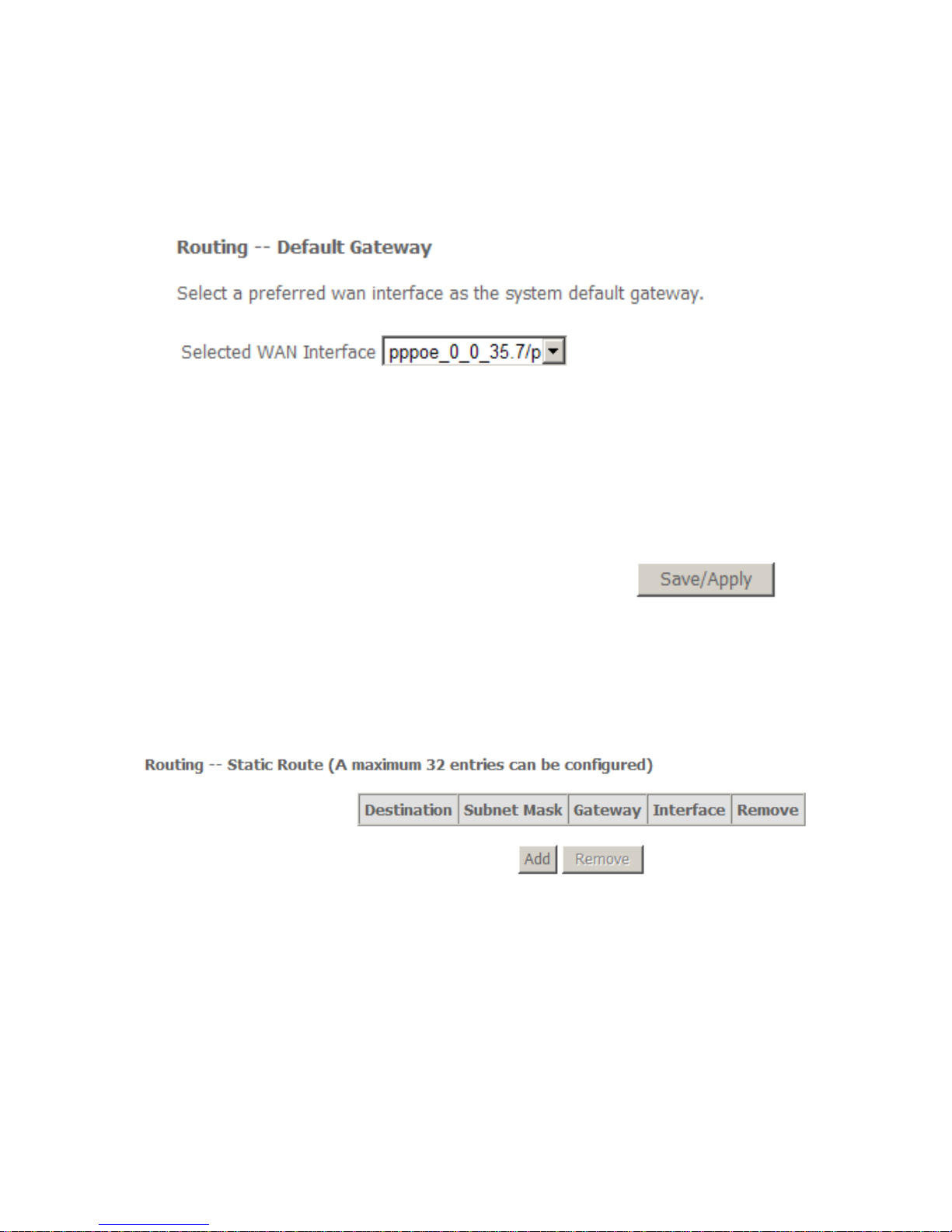

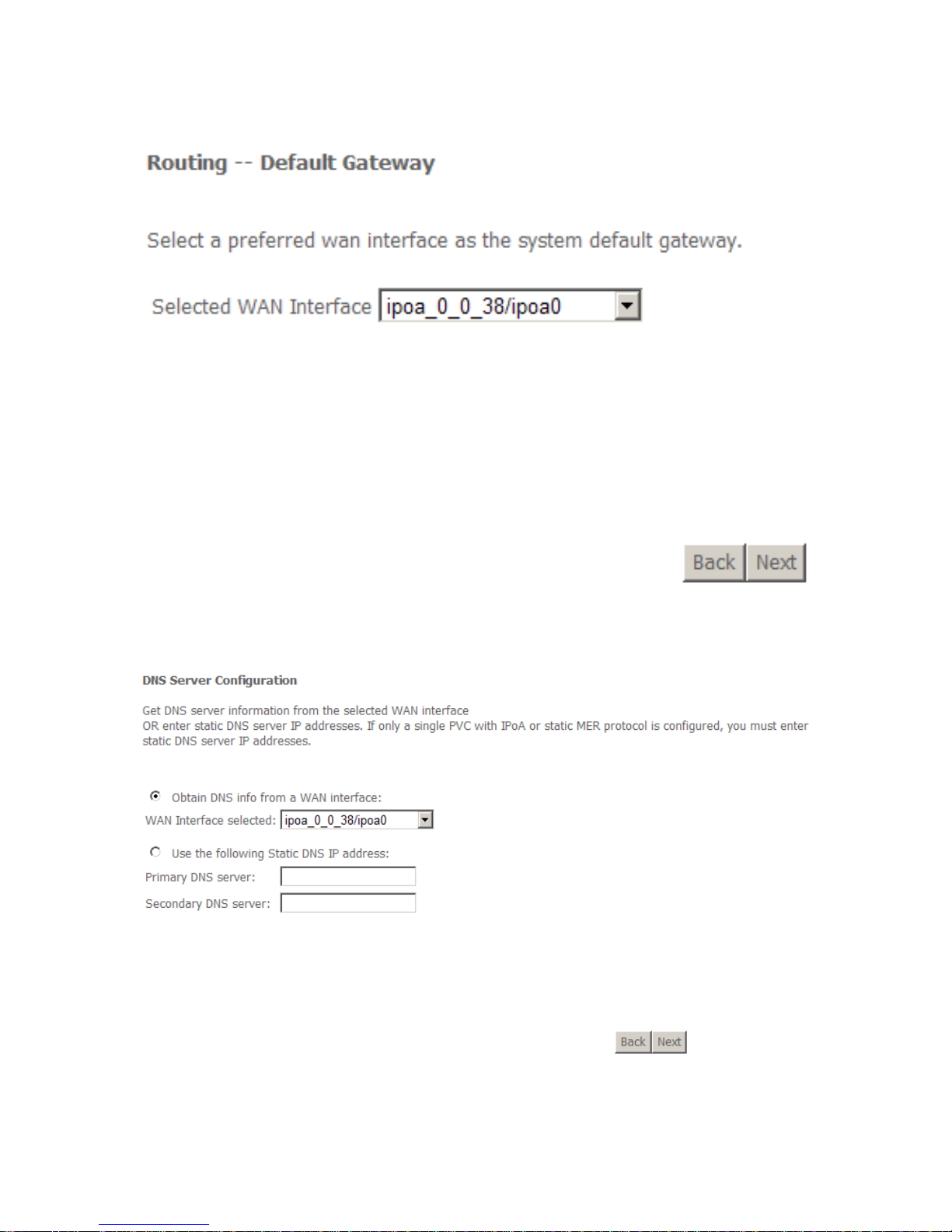

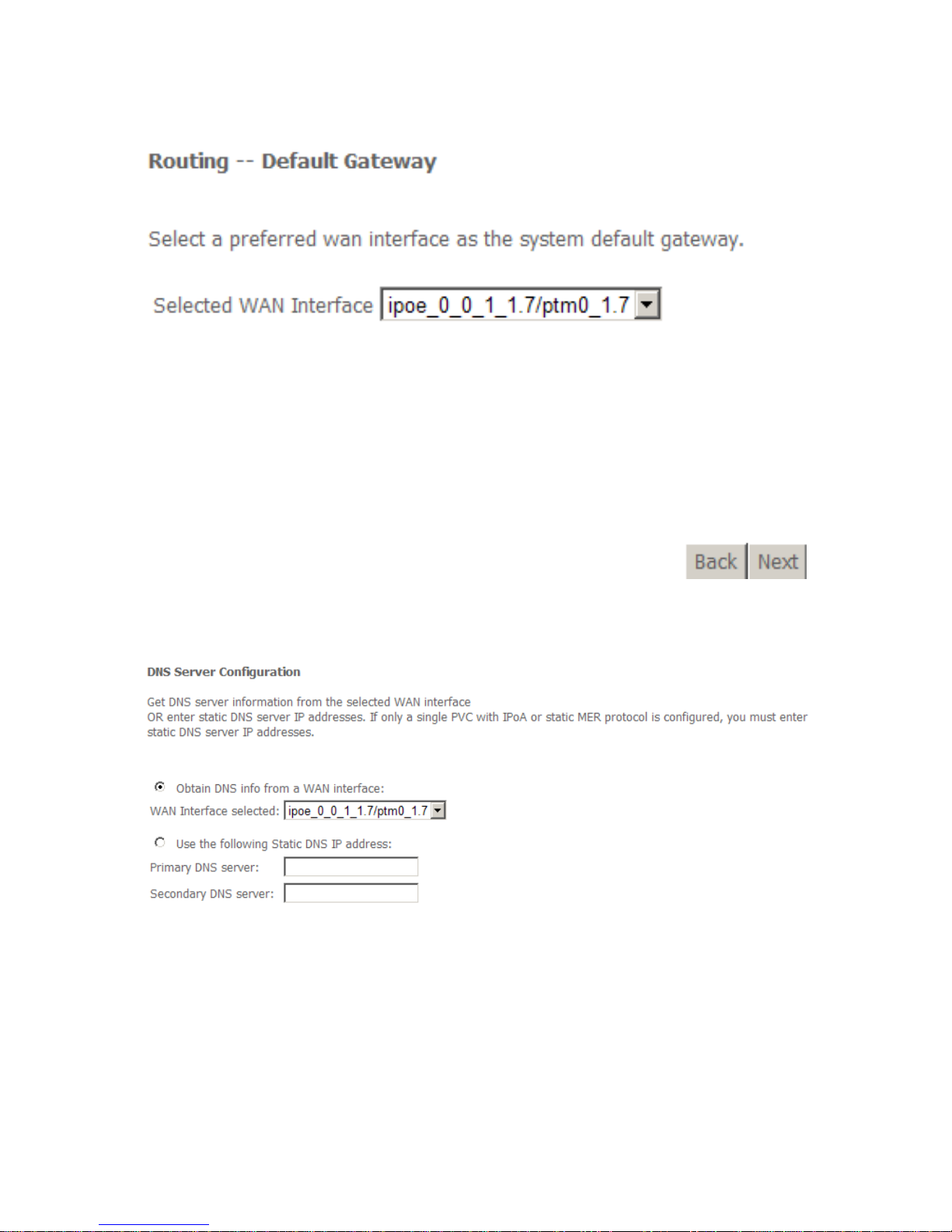

4.3.7 Routing ................................................................................... 52

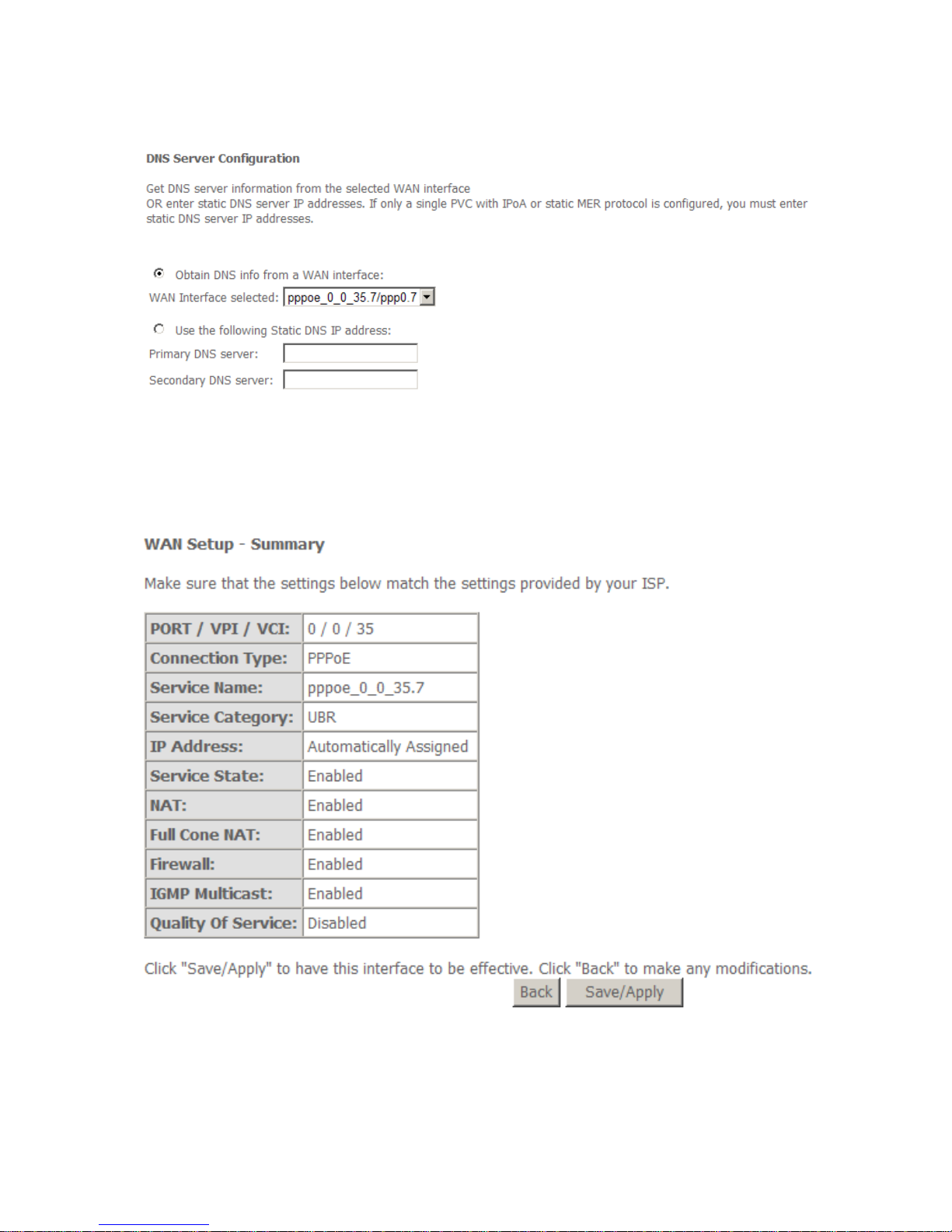

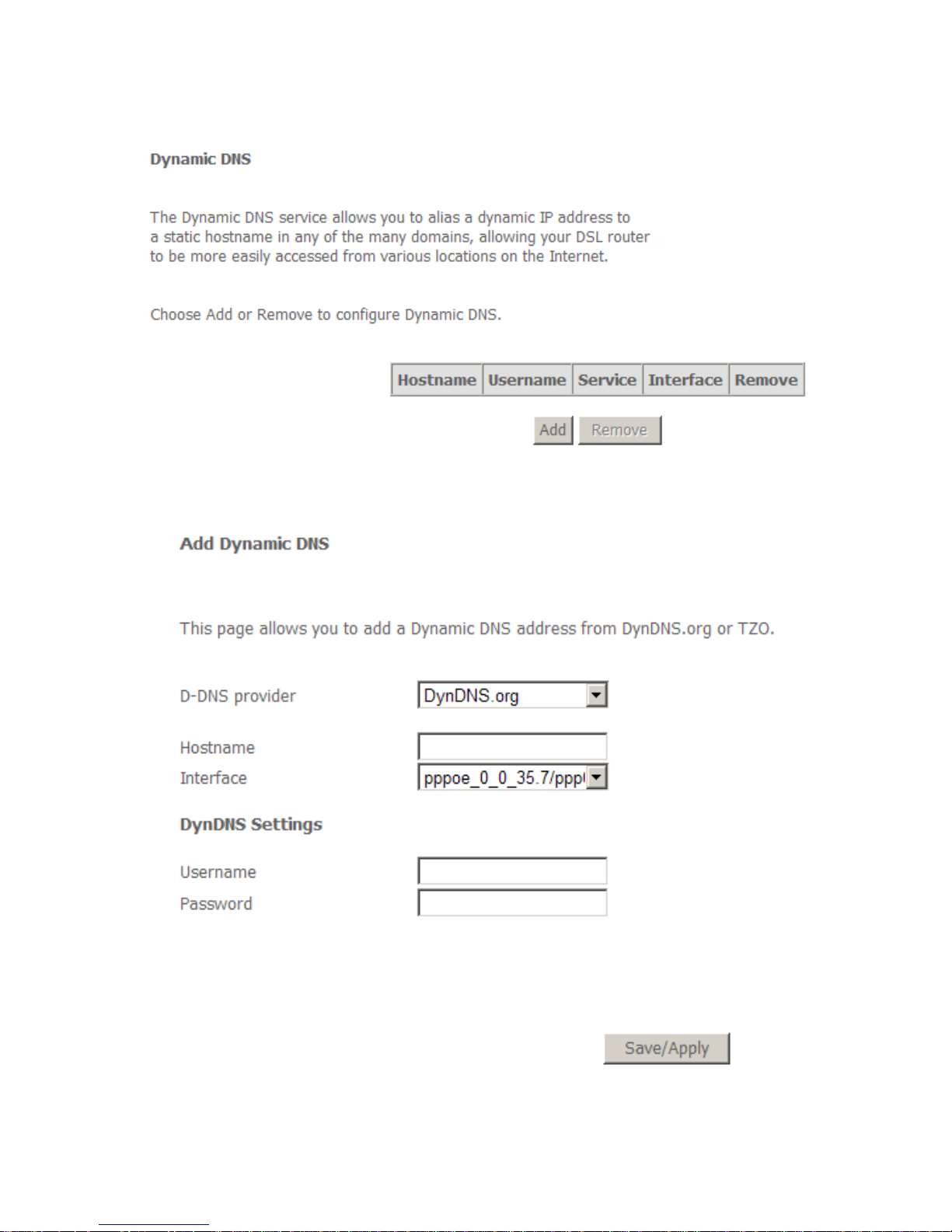

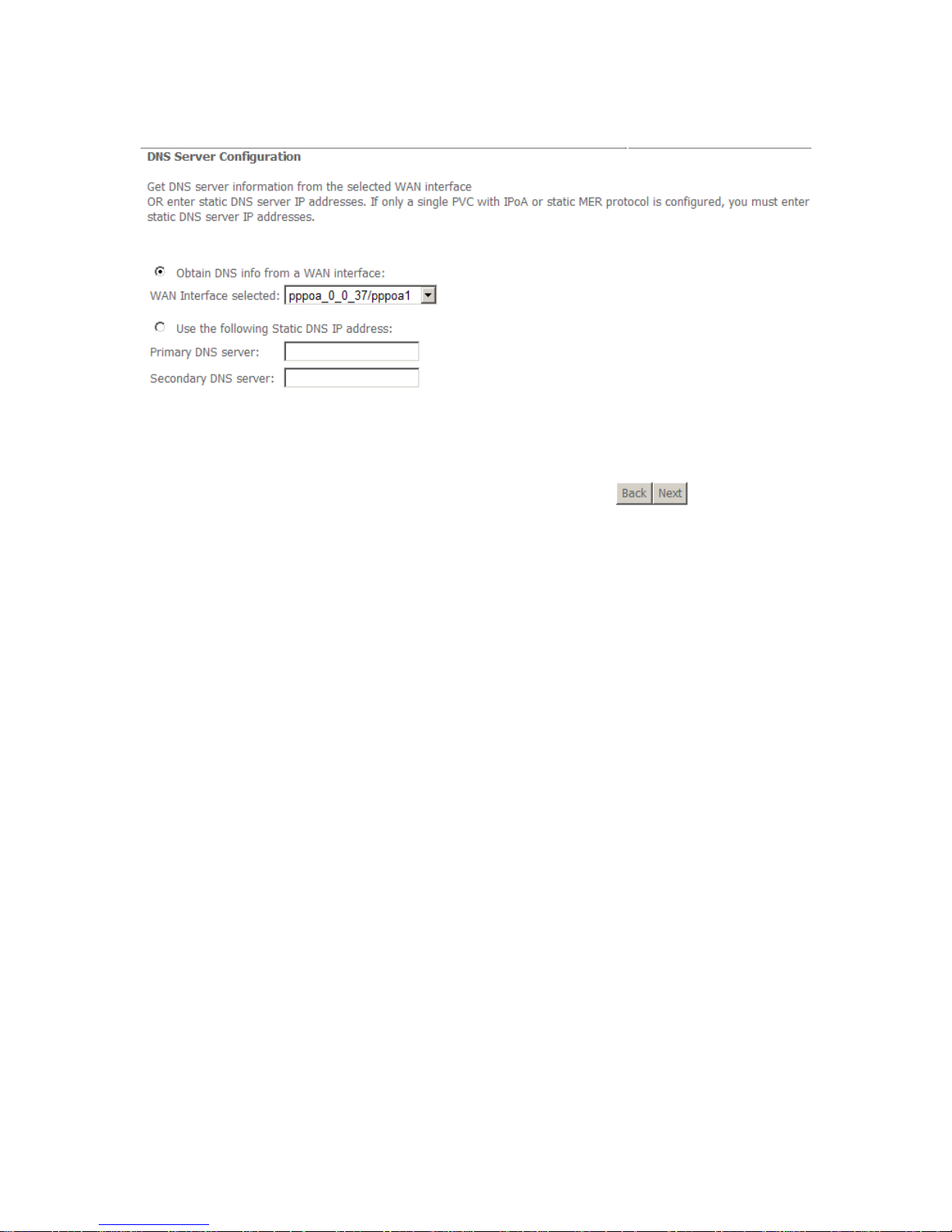

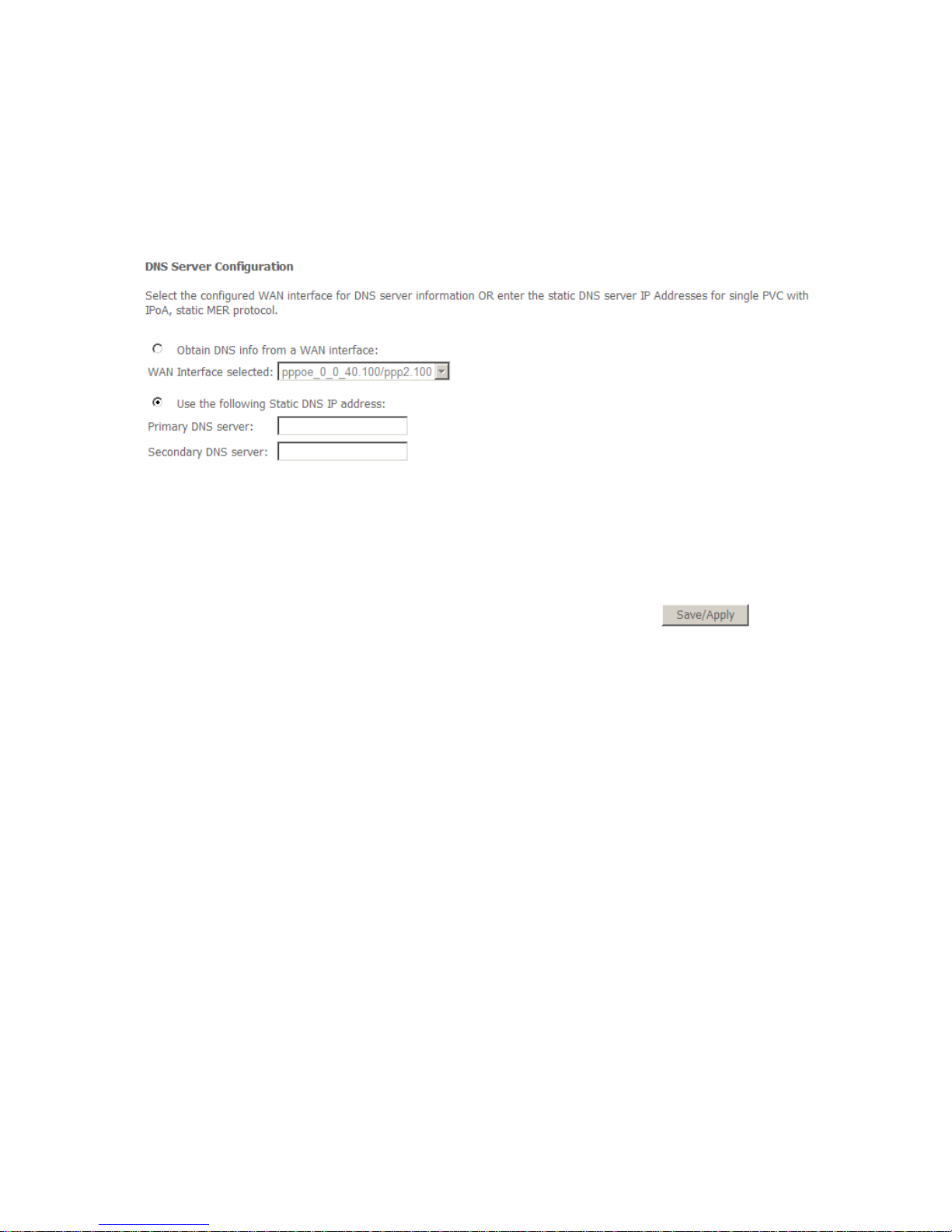

4.3.8 DNS ........................................................................................ 55

ii

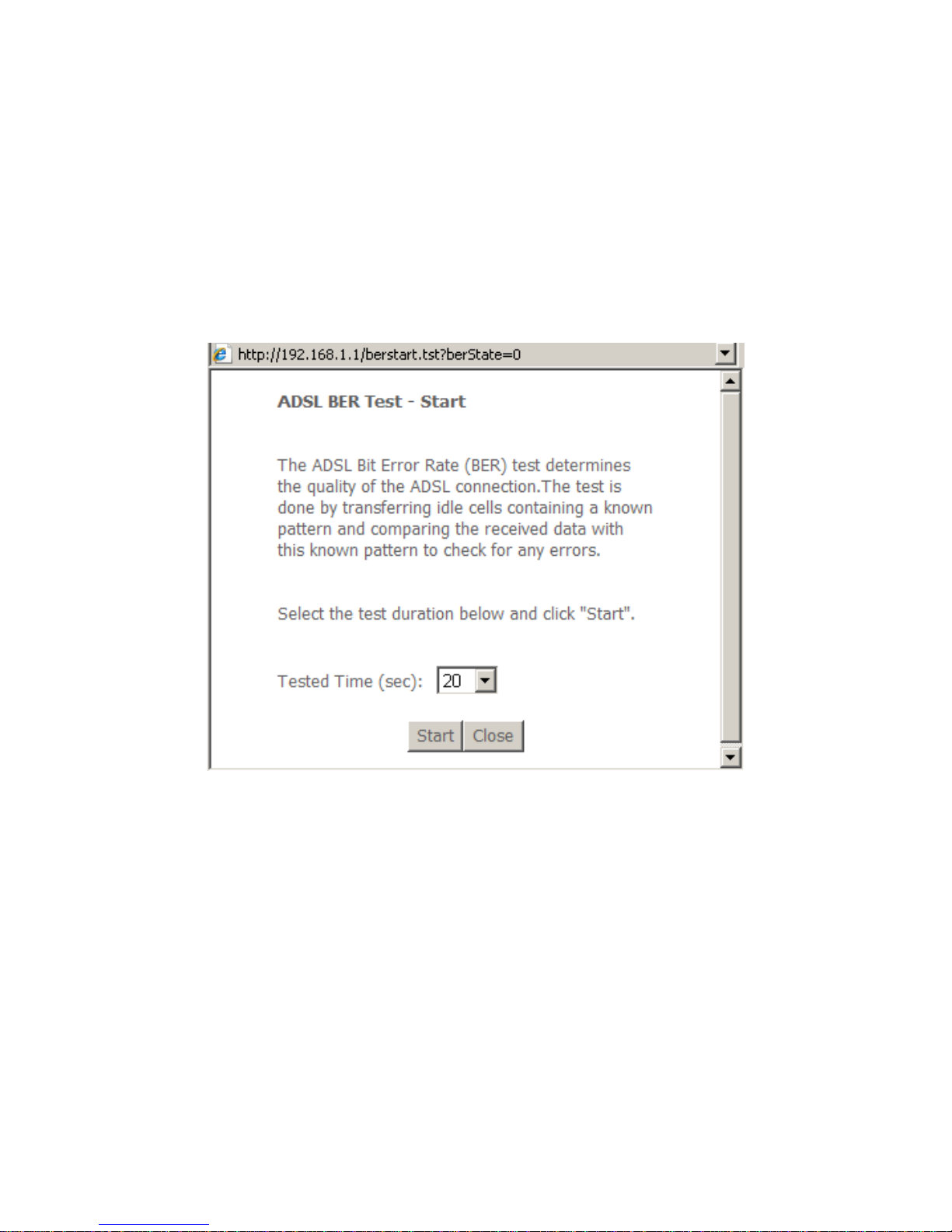

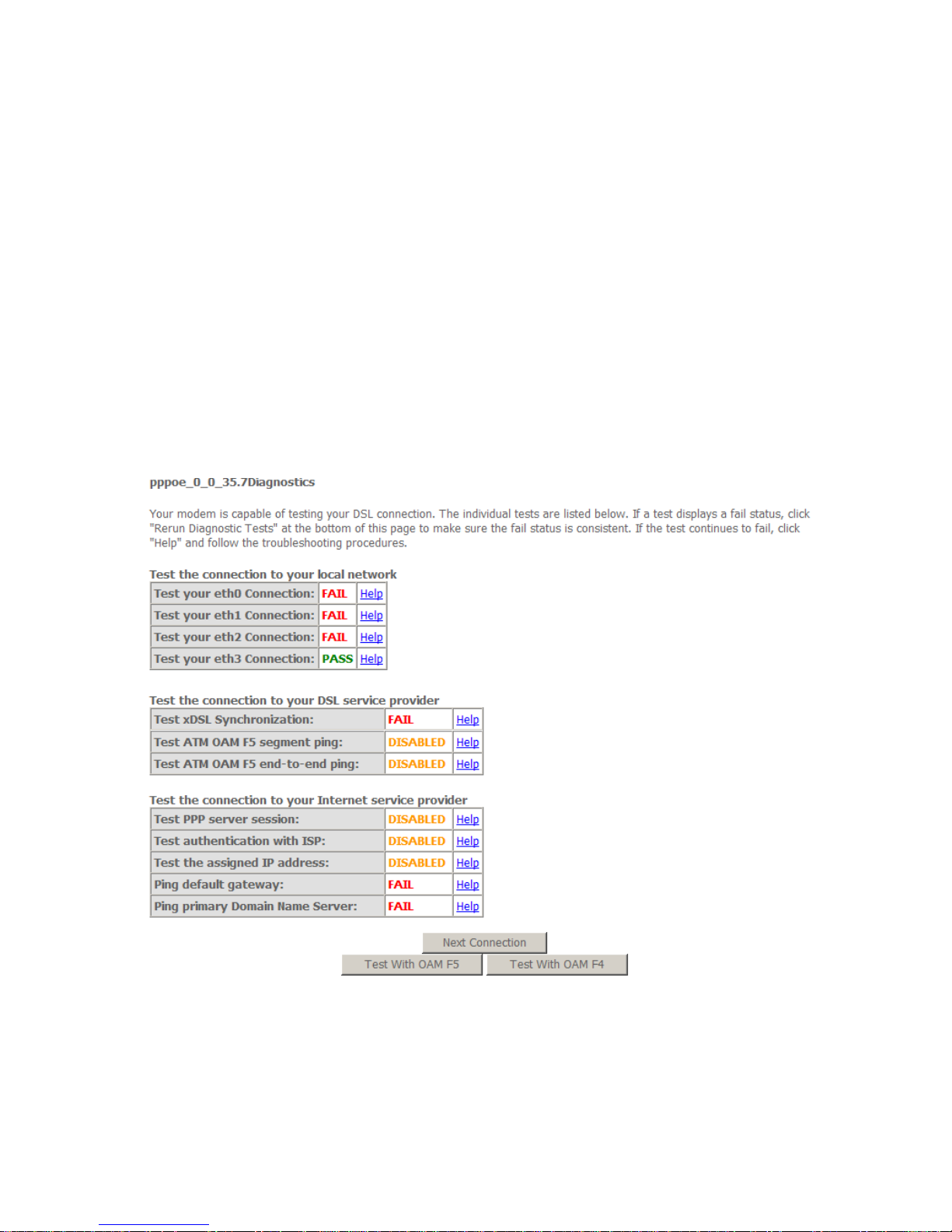

4.4 Diagnostics ....................................................................................... 57

4.5 Management ..................................................................................... 57

4.5.1 Settings .................................................................................. 58

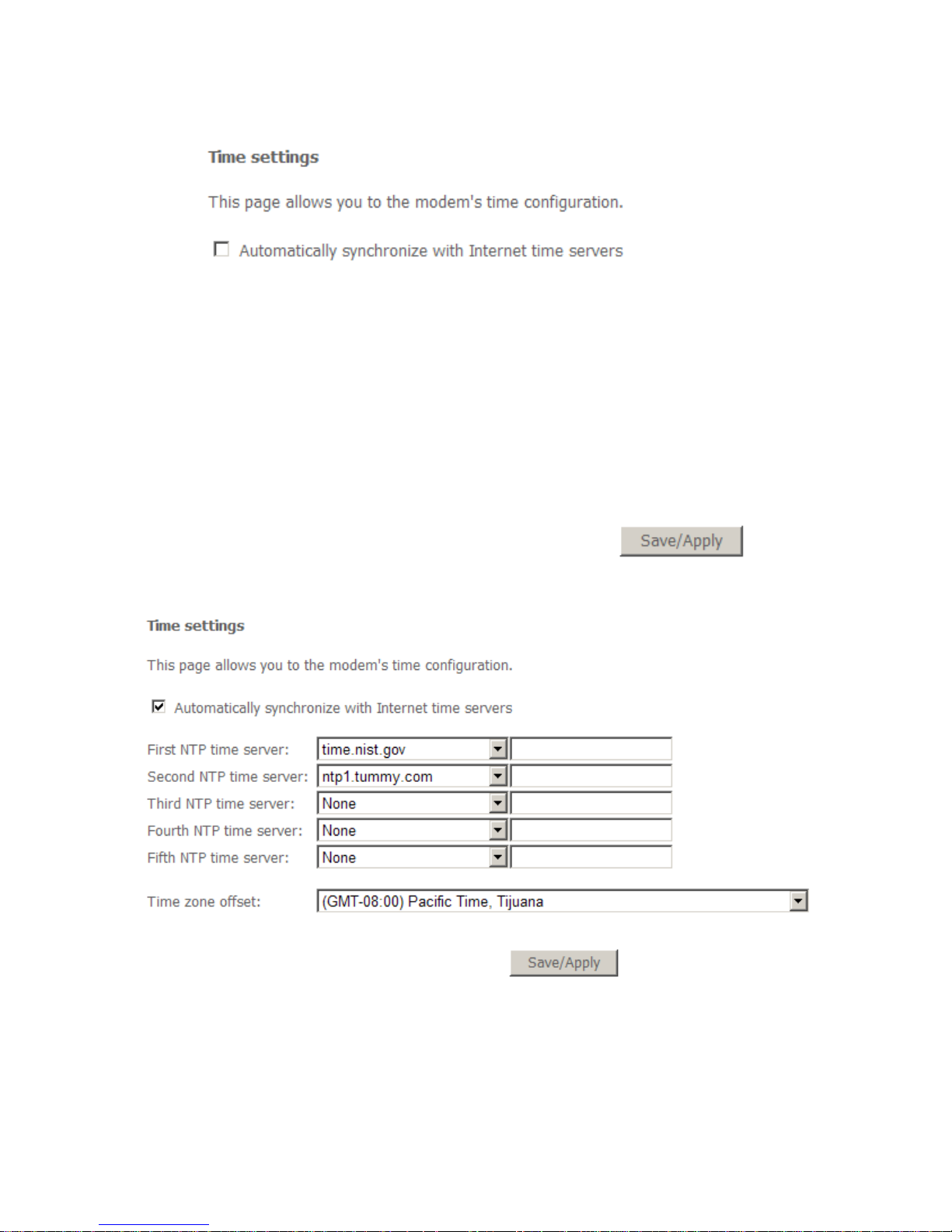

4.5.2 Internet Time ........................................................................... 58

4.5.3 Access Control ....................................................................... 60

4.5.4 Update Software ..................................................................... 60

4.5.5 Reboot .................................................................................... 61

1

1 Introduction

The XDSL OV604V is a high-speed VDSL2 router, uplink rate up to 40 Mbps and
downlink rate up to 80 Mbps. It provides sufficient bandwidth for high performance
connection to the Internet, online gaming, video on demand (VOD), video
conferencing, and high definition television (HDTV). It has Web-based graphic user
interface (GUI), in which you can easily modify the settings and connect to your ISP.
It also provides flow statistics, connection status, and other detailed information.
The XDSL OV604V is easily upgraded and provides terminal users and ISP with
the guarantee of future.
The XDSL OV604V provides one RJ11 telephone interface, ,four RJ45 Ethernet
LAN interfaces. The telephone interface is used for connecting to the Internet
provided by the telecom carrier. The Ethernet is used for connecting to computers,
through which you can access the Internet. Computers that are connected with the
router through the Ethernet can establish a small local network area (LAN). Those
computers can communicate with each other, sharing resources and files. The
XDSL OV604V is an ideal broadband CPE solution for both home users who wish
to share high-speed Internet access and small offices that wish to do business on
the Internet.

1.1 Application

 VOD and video-conferencing
 Network online gaming
 IP over television (IPTV )and HDTV
 High Internet access sharing
 High rate broadband sharing
 Small enterprises application
 Home networking application

1.2 Features

2

 User-friendly GUI for web configuration
 Several pre-configured popular games. Just enable the game and the port

settings are automatically configured.

 Configurable as a DHCP server on your network
 Compatible with all standard Internet applications
 Industry standard and interoperable DSL interface
 Support virtual server, IP filter, DMZ host, and much more
 Simple web-based status page displays a snapshot of system configuration,

and links to the configuration pages

 Downloadable flash software updates
 Support for up to 16 permanent virtual circuits (PVC)
 Support for up to 8 PPPoE sessions

1.3 Standards Compatibility and Compliance

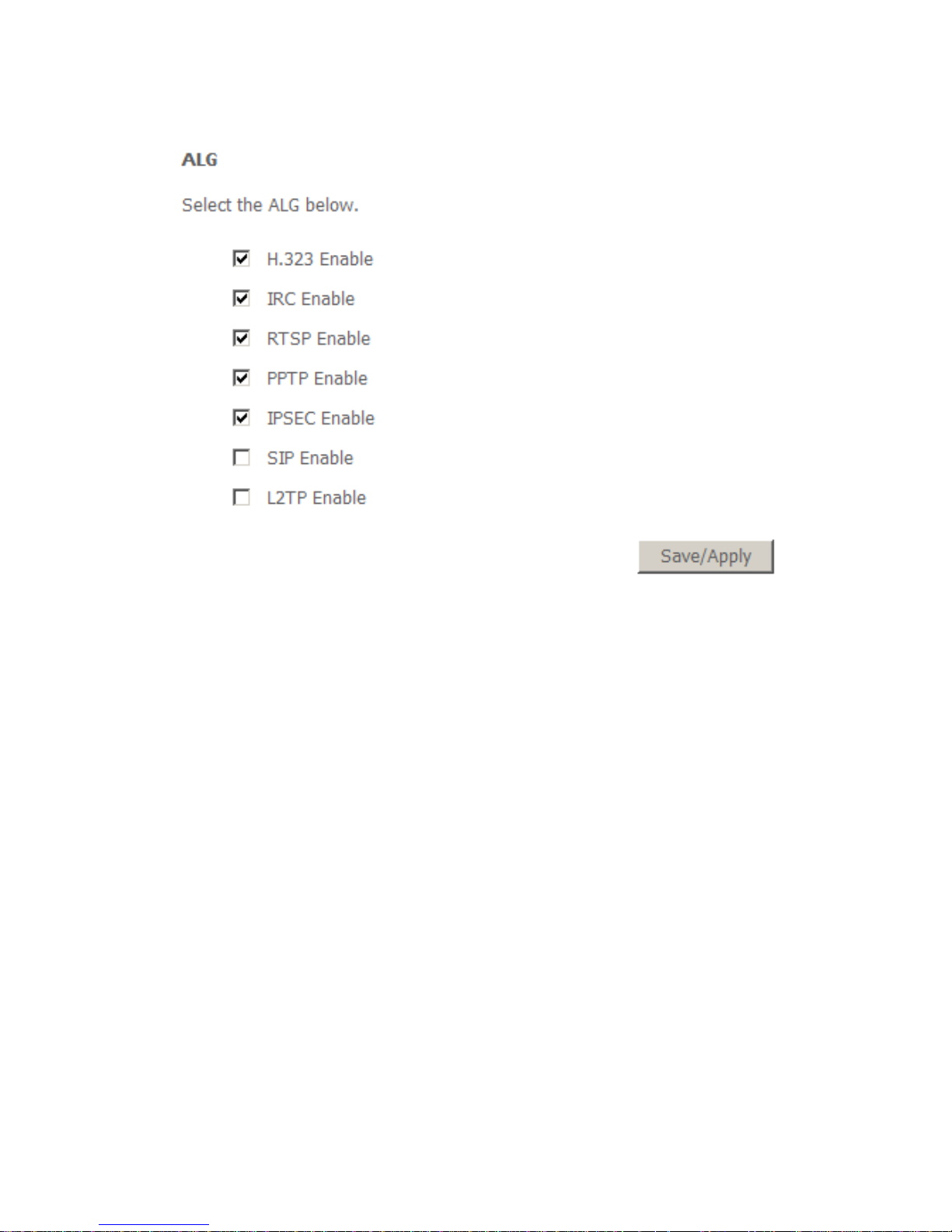

 Support application level gateway (ALG)
 ITU G.992.1 (G.dmt)
 ITU G.992.2 (G.lite)
 ITU G.994.1 (G.hs)
 ITU G.992.3 (ADSL2)
 ITU G.992.5 (ADSL2+)
 ITU G.993.1 (VDSL)
 ITU G993.2 (VDSL2)
 ANSI T1.413 Issue 2
 IEEE 802.3
 IEEE 802.3u

1.4 Safety Cautions

Follow the following announcements to protect the device from risks and damage
caused by fire and electric power:

 Use volume labels to mark the type of power.
 Use the power adapter that is packed within the device package.
 Pay attention to the power load of the outlet or prolonged lines. An

overburden power outlet or damaged lines and plugs may cause electric

3

shock or fire accident. Check the power cords regularly. If you find any
damage, replace it at once.

 Proper space left for heat dissipation is necessary to avoid any damage

caused by overheating to the device. The holes on the device are designed
for heat dissipation to ensure that the device works normally. Do not cover
these heat dissipation holes.

 Do not put this device close to a place where a heat source exits or high

temperature occurs. Avoid the device from direct sunshine.

 Do not put this device close to a place where is over damp or watery. Do not

spill any fluid on this device.

 Do not connect this device to any PC or electronic product, unless our

customer engineer or your broadband provider instructs you to do this,
because any wrong connection may cause any power or fire risk.

 Do not place this device on an unstable surface or support.

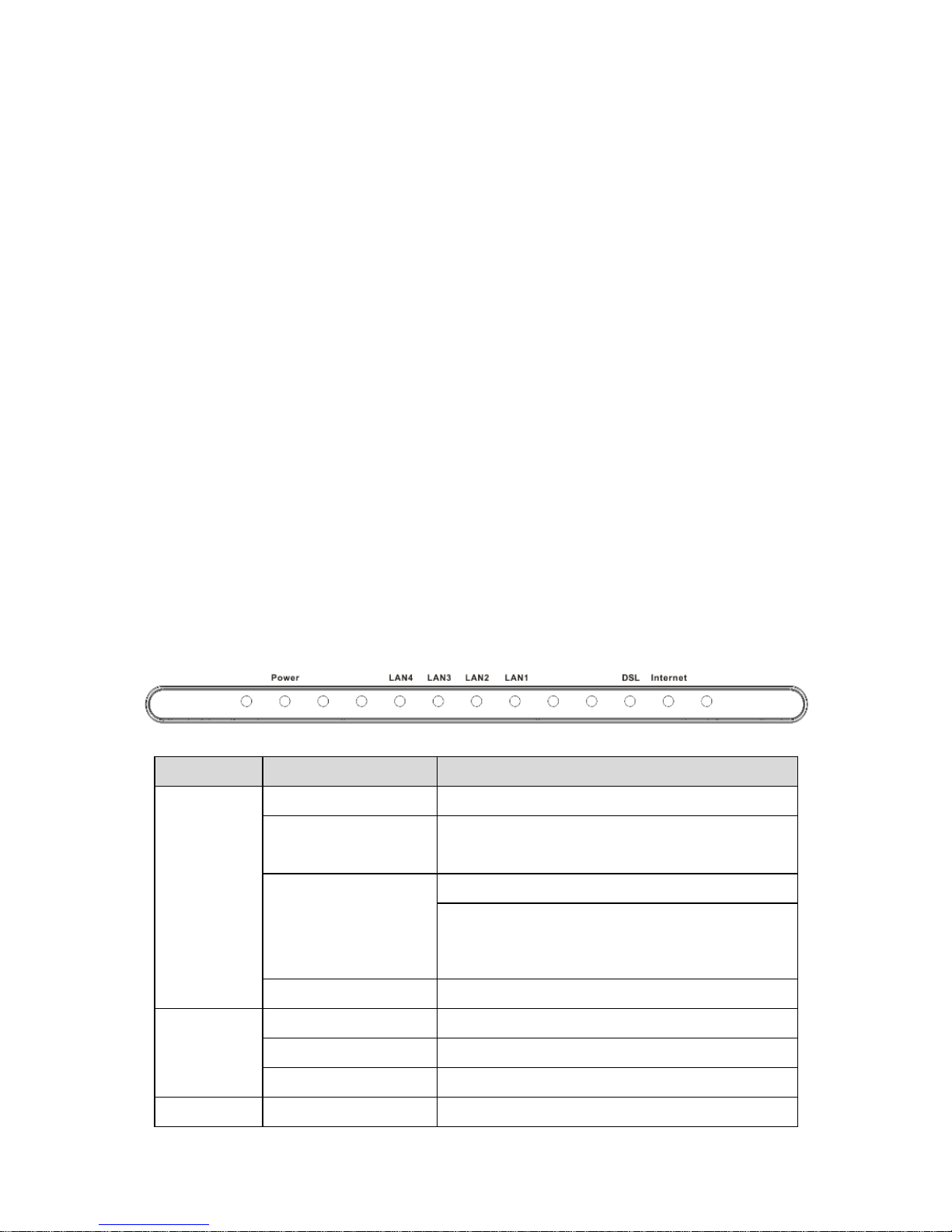

1.5 LED Status Description

1.5.1 LED Status

Indicator

Status

Description

Power

Off

The power is off.

Green

The power is on and the device operates
normally.

Red
The power is self-testing.

The self-testing of the power fails if the
LED is always red.

Blink Red

Upgrading software.

DSL
Off

No signal is detected.

Blink Green

The DSL line is transferring.

Green

The DSL line connection is established.

Internet

Off

No internet connection.

4

Indicator

Status

Description

Blink Red

The DSL line tries to activate or fails to
activate.

Blink Green

Data is being transmitted through the
WAN interface.

Green

The connection is established. The users
can access the Internet.

LAN1/2/3/4
Off

No Ethernet signal is detected.

Blink Green

The user data is passing through
Ethernet port.

Green

Ethernet interface is ready to work

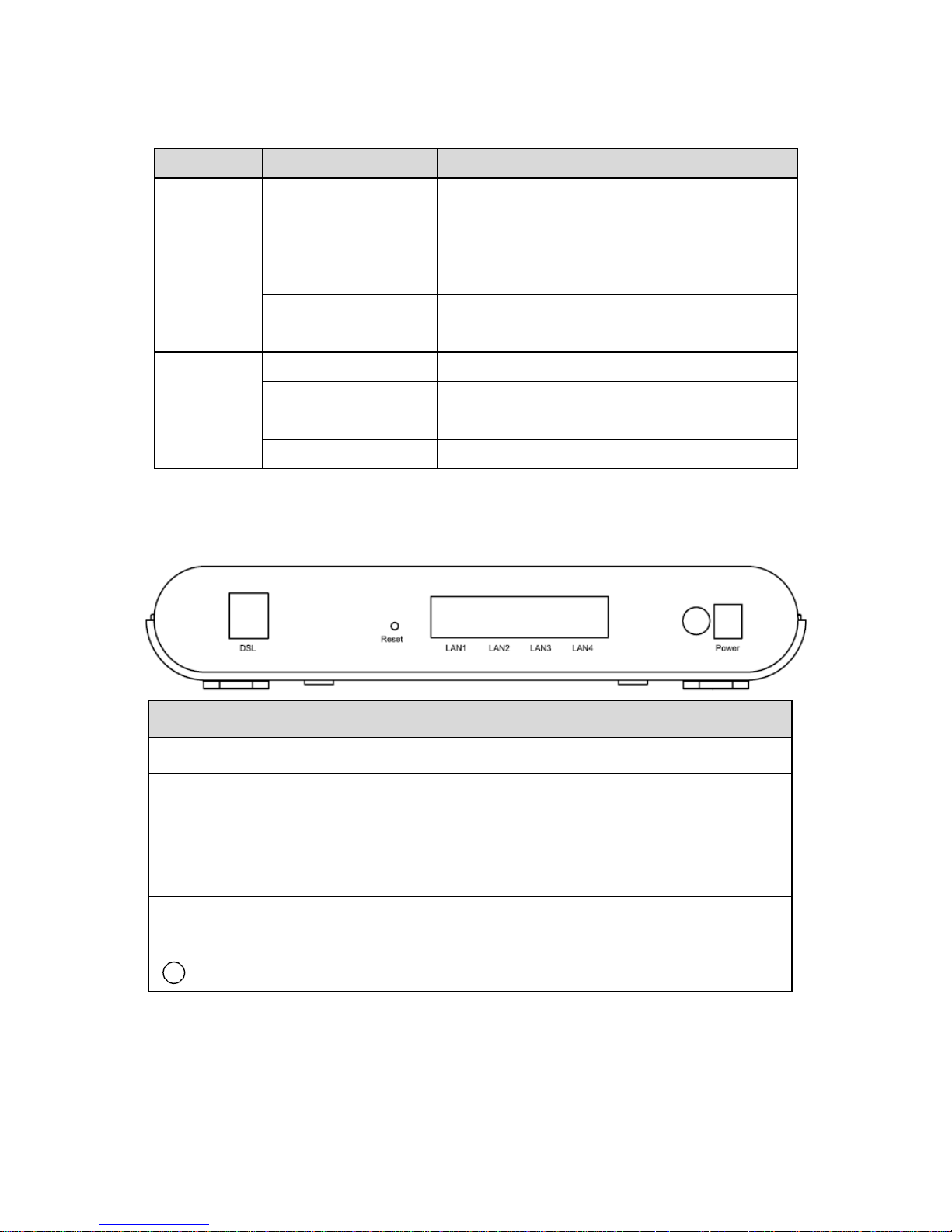

1.5.2 Rear Panel

Interface

Description

DSL

VDSL connector, for connecting to VDSL telephone line.

Reset

Keep power on, put a thin needle in-to the hole to press
the button for about 1 second, then the device restores to
the factory default configuration.

LAN1/2/3/4

LAN interface, for connecting to a computer or switch.

Power

Power supplied port, for connecting the power adapter.
The power adapter output is: 12 V DC, 2A.

Power switch.

2 Hardware Installation

5

The Router can be placed on a shelf or desktop, ideally you should be able to see
the LED indicators in the front, as you may need to view them for troubleshooting.
Place the DSL Router in a location where it can be connected to the various
devices as well as to a power source. The DSL Router should not be placed where
it is exposed to moisture or excessive heat. Ensure the cables and power cord are
placed safely to avoid tripping hazard. As with any electrical appliance, observe
common sense safety procedures.

2.1 Connecting the DSL Router

Step 1 See the following figure. Connect the DSL port of the Router with a telephone

cable.

Step 2 Connect the LAN port of the DSL Router to the network card of the PC via an

Ethernet cable.

Step 3 Plug one end of the power adapter to the wall outlet and connect the other

end to the Power port of the DSL Router.

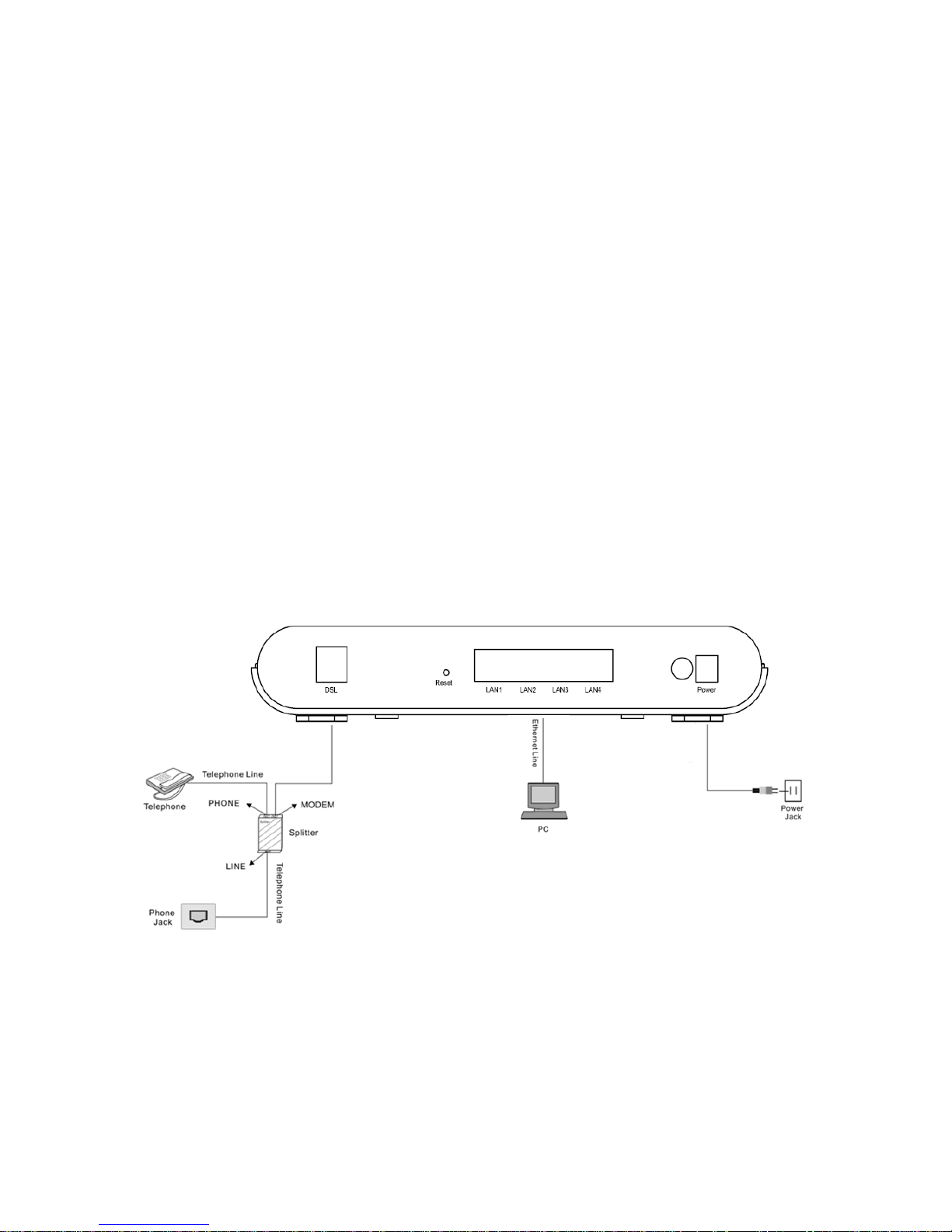

The followig figure displays the connection of the DSL Router, PC, and telephones.

2.2 Factory Reset Button

The Router may be reset to the original factory default settings by depressing the
reset button for a few seconds while the device is powered on. Use a ballpoint or
paperclip to gently push down the reset button. Remember that this wipes out any
settings stored in the flash memory, including user account information and LAN IP

6

settings. The device settings are restored to the following factory defaults: the IP
address is 192.168.1.1, subnet mask is 255.255.255.0, user name for
management is admin, and password is admin.

3 PC Network Configuration

Each network interface on the PC should either be configured with a statically
defined IP address and DNS address, or be instructed to automatically obtain an IP
address using the network DHCP server. DSL router provides a DHCP server on
its LAN and it is recommended to configure your LAN to automatically obtain its IP
address and DNS server IP address.
The configuration principle is identical but should be carried out differently on each
operating system.

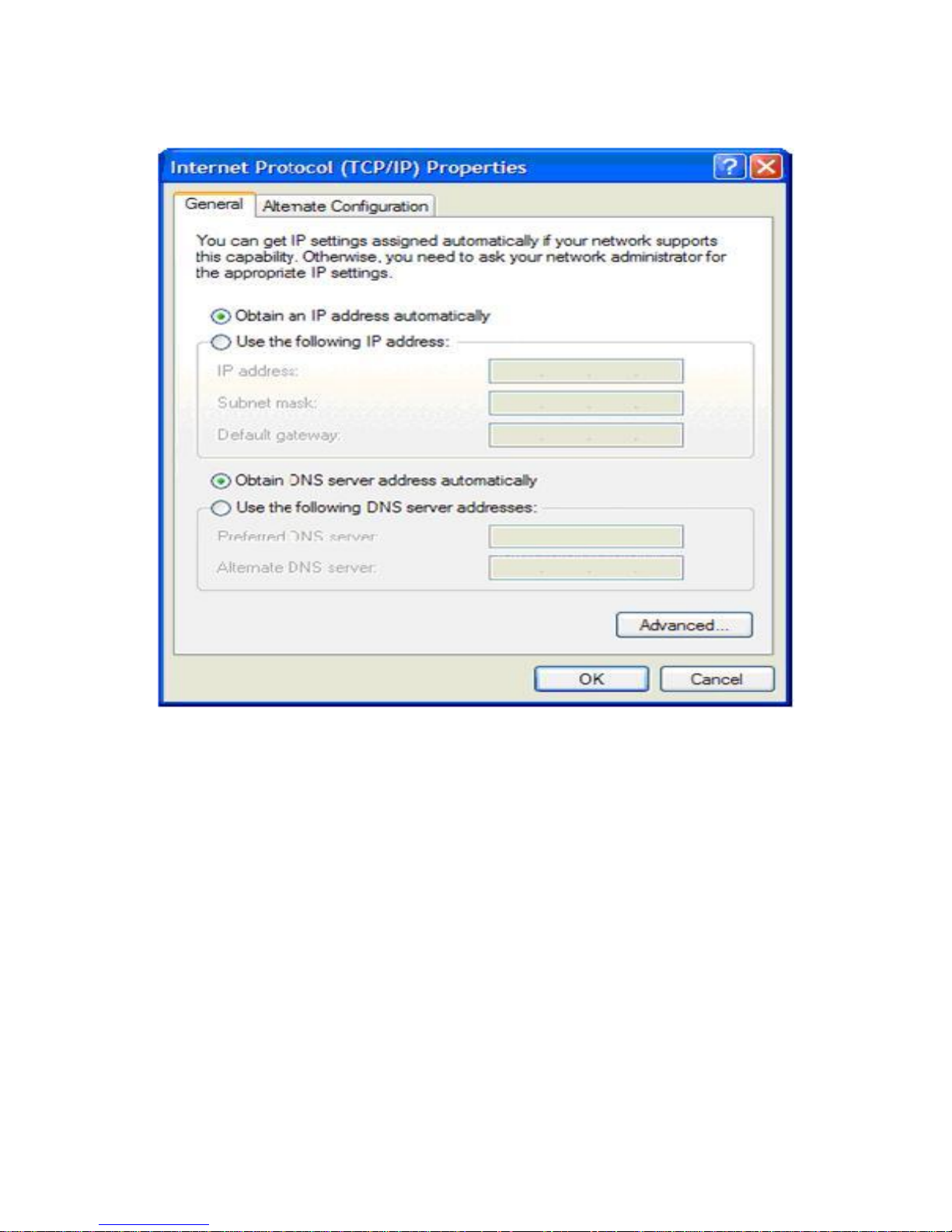

The following displays the TCP/IP Properties dialog box as it appears on Windows
XP.

7

Figure 1 IP and DNS configuration

TCP/IP configuration instructions for Windows XP are as follows.
Step 1 Choose Start > Control Panel > Access Network Connections from the

desktop.

Step 2 Right-click the Ethernet connection icon and choose Properties.
Step 3 On the General tab, select the Internet Protocol (TCP/IP) component

and click Properties.
Step 4 The Internet Protocol (TCP/IP) Properties window appears.
Step 5 Select the Obtain an IP address automatically radio button.
Step 6 Select the Obtain DNS server address automatically radio button.
Step 7 Click OK to save the settings.

8

4 Web-Based Management

 Note:

This project is hardware project, the Web interface of software is for reference
only.

This chapter describes how to use Web-based management of the DSL router,
which allows you to configure and control all of DSL router features and system
parameters in a user-friendly GUI.

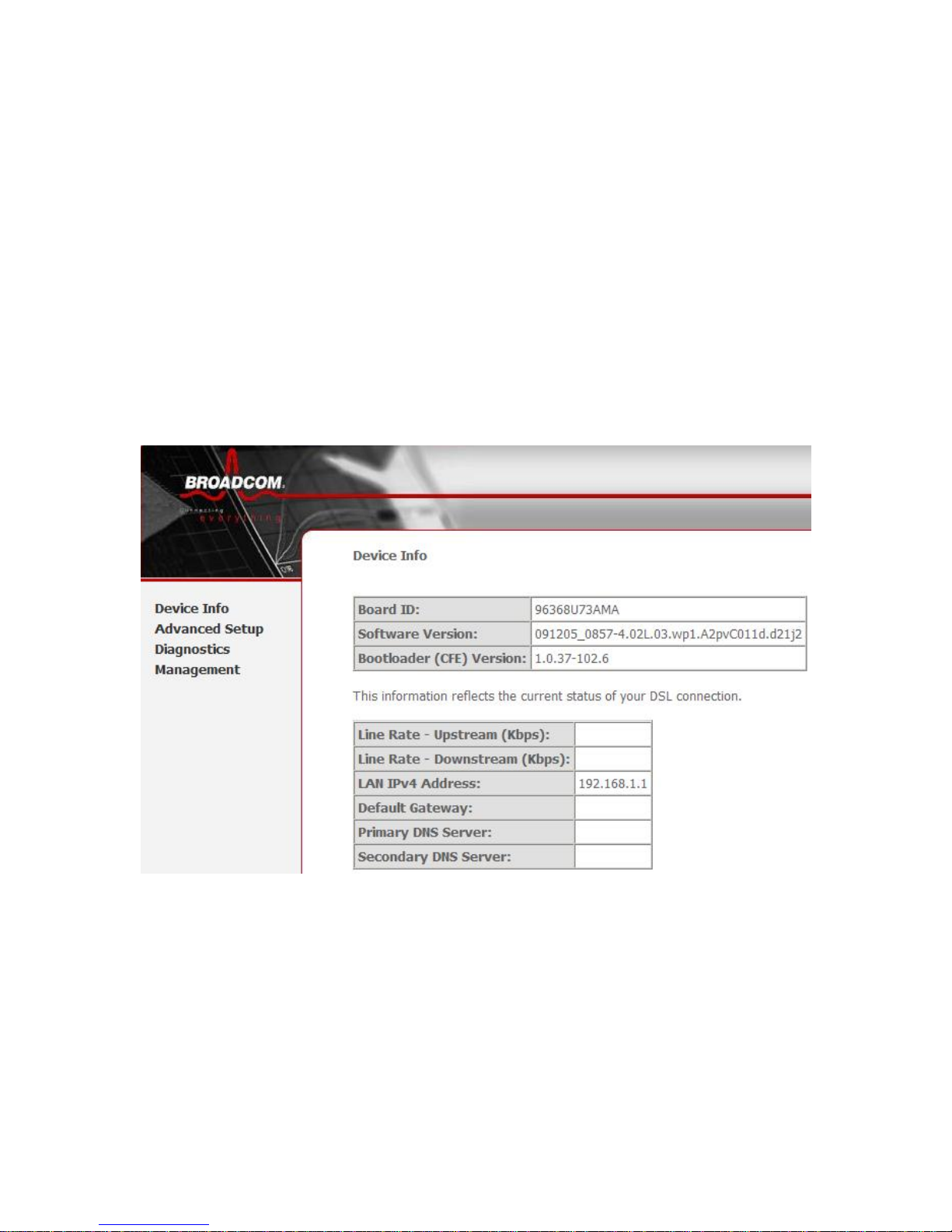

Figure 2 Web-based management - home page

4.1 Logging In to the Modem

The following description is a detail “How-To” user guide and is prepared for first
time users.

4.1.1 First-Time Login

When you log in to the DSL Router for the first time, the login wizard appears.

9

Step 1 Open a Web browser on your computer.
Step 2 Enter http://192.168.1.1 (default IP address of the DSL router) in the

address bar. The login page appears.
Step 3 Enter a user name and the password. The default username and

password of the super user are admin and admin. The username and

password of the common user are user and user. You need not enter the

username and password again if you select the option Remember my

password. It is recommended to change these default values after logging in

to the DSL router for the first time.
Step 4 Click OK to log in or click Cancel to exit the login page.

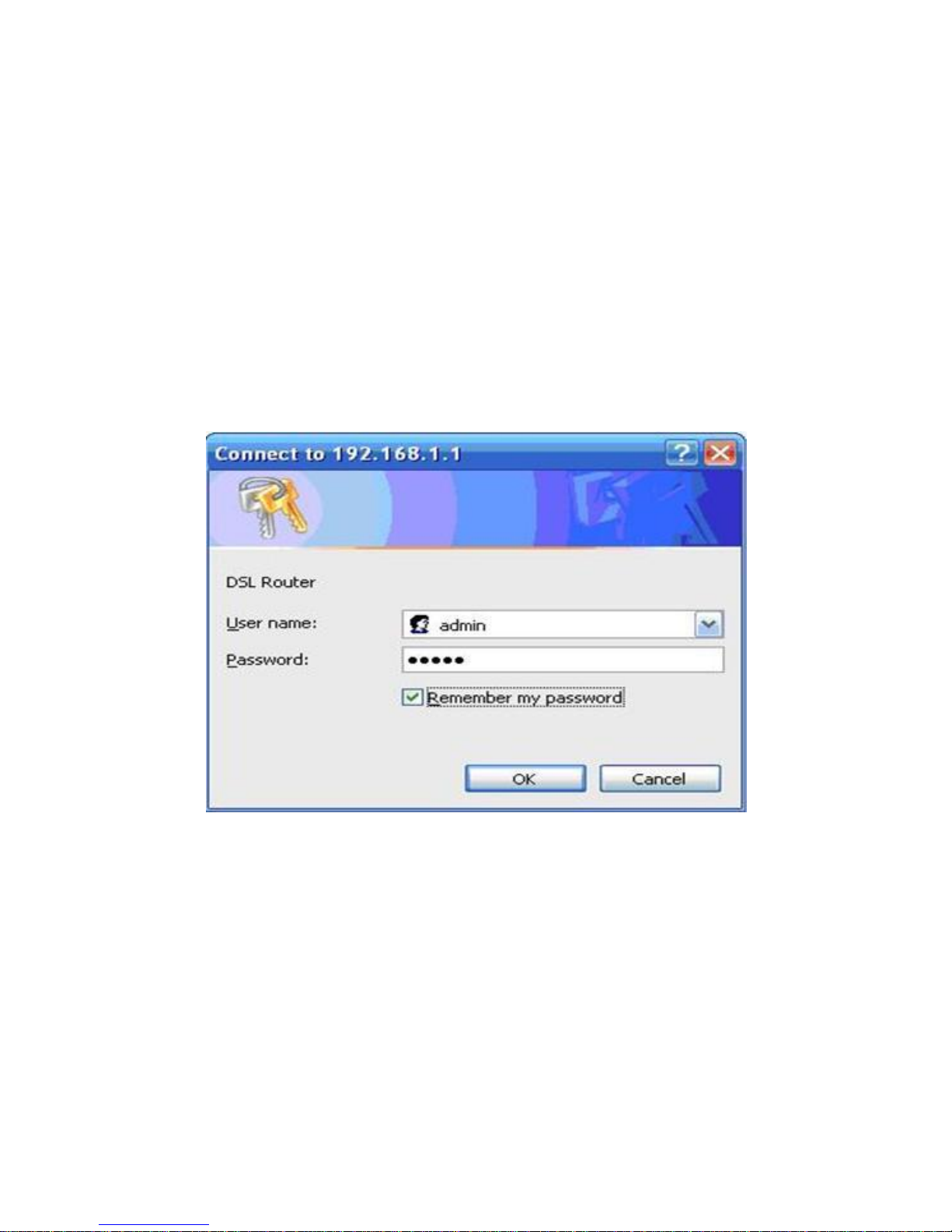

Figure 3 WBM login authentication

After logging in to the DSL router as a super user, you can query, configure, and
modify all configurations, and diagnose the system.

4.2 DSL Router Device Information

Choose Device Info, the following page appears.

10

Figure 4 Device Info menu

4.2.1 Summary of Device Information

Choose Device Info > Summary, the following page appears.

 LAN IPv4 Address: the management IPv4 address.
 Default Gateway: In the bridging mode there is no gateway. In other modes,

it is the address of the uplink equipment, for example, PPPoE/PPPoA.

 DNS Server address: In the PPPoE/PPPoA mode, it is obtained from the

uplink equipment. In the bridging mode, there is no DNS Server address and
you can manually enter the information.

4.2.2 WAN Interface Information

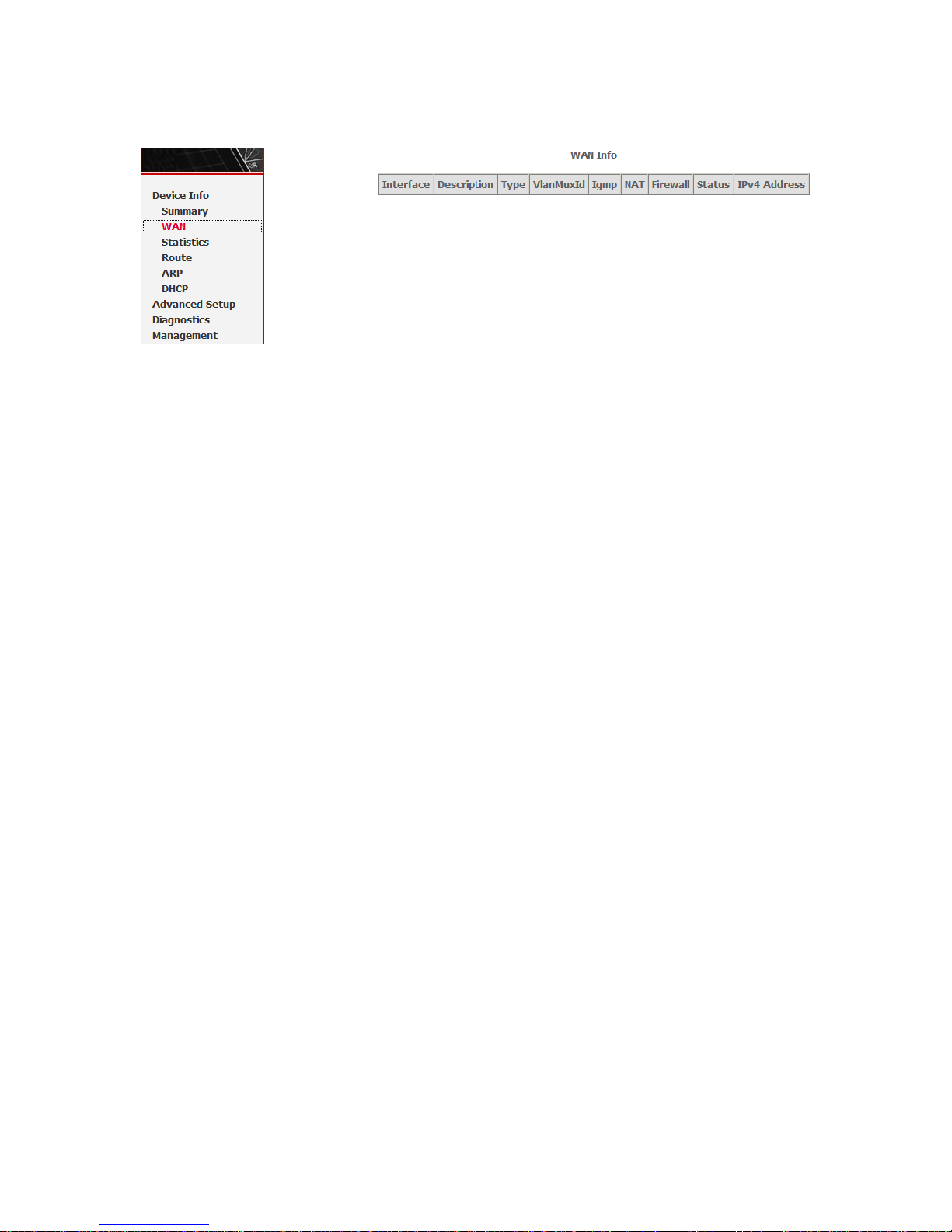

Choose Device Info > WAN and the following page appears.

11

 Description: Descripte this interface with protocol and PVC.
 Type: The connection type of WAN, such as PPPoE, PPPoA.

4.2.3 Statistics

This page contains the following four parts:

 Statistics of LAN
 Statistics of WAN Service
 Statistics of xTM
 Statistics of xDSL

4.2.3.1 Statistics of LAN

Choose Device Info > Statistics > LAN and the following page appears. You can
query information of packets recevied at the Ethernet and USB interfaces. Click
Reset Statistics to restore the values to zero and recount them.
The LAN side interface includes Ethernet USB device.

12

Figure 5 Statistics of LAN

4.2.3.2 Statistics of WAN

Choose Device Info > Statistics > WAN Service and the following page appears.
You can query information of packets recevied by the WAN interfaces. Click Reset
Statistics to restore the values to zero and recount them.

Figure 6 Statistics of WAN

4.2.3.3 Statistics of XTM

Choose Device Info > Statistics > XTM and the following page appears. You can
query information of packets recevied by the XTM interfaces. Click Reset
Statistics to restore the values to zero and recount them.

13

Figure 7 Statistics of XTM

4.2.3.4 Statistics of xDSL

Choose Device Info > Statistics > xDSL and the following page appears.
If the DSL line is activated, the following window appears.

14

 Traffic Type: ATM, or PTM.

15

Click Reset Statistics at the bottom to restore the values to zero and recount
them.
Click xDSL BER Test to test xDSL Bit Error Rate.

4.2.3.5 xDSL BER Test

Click xDSL BER Test to perform a bit error rate (BER) test on the DSL line. The
test page is as follows:

Figure 8 ADSL BER test

The Tested Time (sec) can be 1, 5, 10, 20, 60, 120, 180, 240, 300, or 360.

Note: If the BER reaches e-5, you cannot access the

Internet.

4.2.4 Route Table Information

Choose Device Info > Route and the following page appears.

16

Figure 9 Route table

4.2.5 ARP Table Information

Choose Device Info > ARP and the following page appears. You can query the
MAC and IP address information of the equipment attached to the modem.

Figure 10 ARP table

4.2.6 DHCP IP Lease Information

Choose Device Info > DHCP and the following page appears. You can query the
IP address assignment for MAC address at the LAN side of the DSL router and
obtain the IP Address from the DHCP server through Ethernet in the DSL router.

Figure 11 DHCP leases list

 Expires In: Time that the device leases the IP Address for the MAC Address.

17

4.3 Advanced Setup

Choose Advanced Setup > WAN Service and the submenus of WAN Service are
shown as below:

You can select one connection mode of the interface according to your ISP
instruction.

4.3.1.1 ADSL

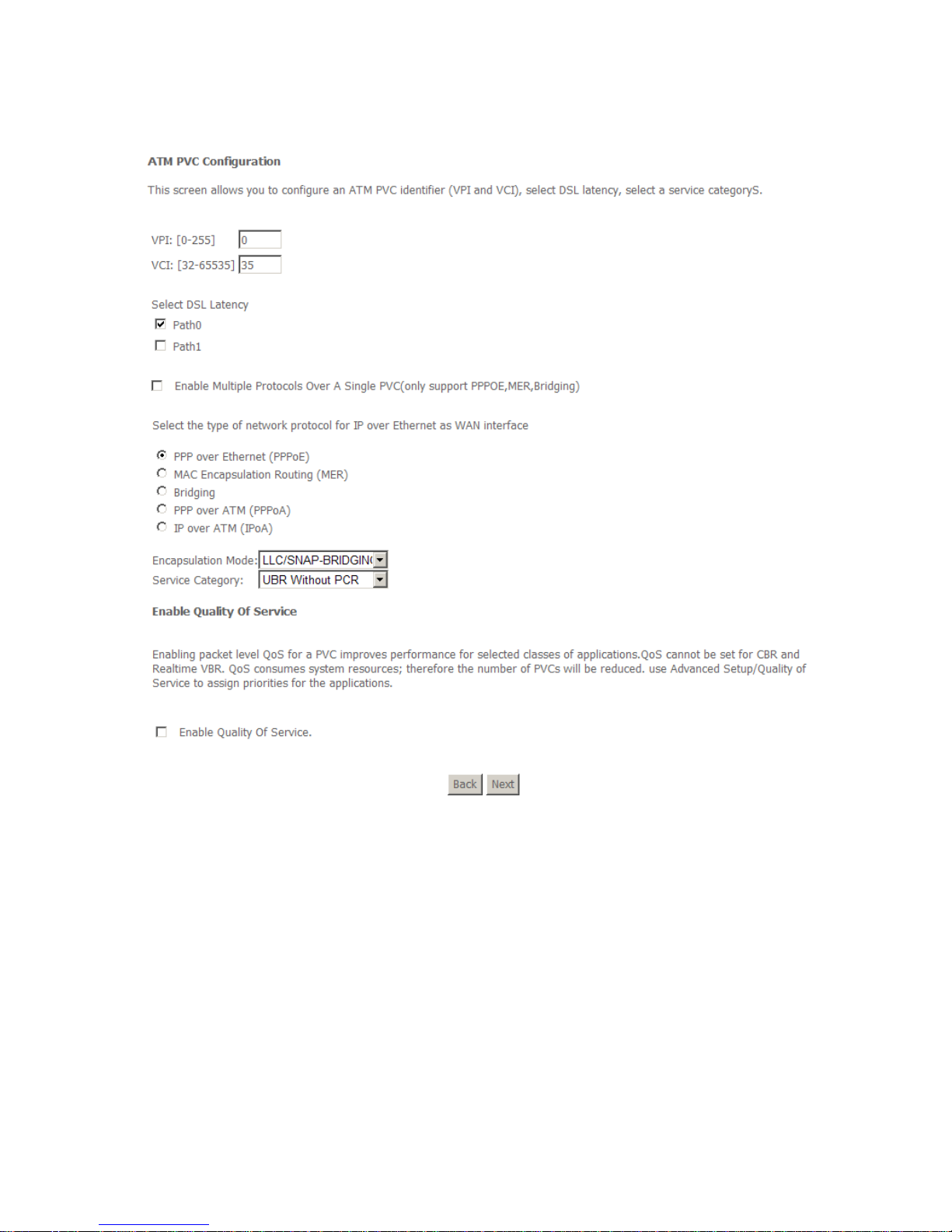

After selecting the ADSL as the connection mode, click Next and the following
page appears.

18

In this page, you can enter this PVC (VPI and VCI) value, and select DSL link type
PPPoE, IPoE, Bridge, PPPoA, or IPoA., encapsulation mode, service category,
connection Mode.
 VPI (Virtual Path Identifier): The virtual path between two points in an ATM

network, and its valid value is from 0 to 255.

 VCI (Virtual Channel Identifier): The virtual channel between two points in

an ATM network, ranging from 32 to 65535 (1 to 31 are reserved for known
protocols).

 Select DSL Latency: You may select Path0 and Path1.

19

 Select DSL Link Type: You may select EoA (it is for PPPoE, IPoE, and

Bridge), PPPoA, or IPoA.

– PPPoE: Refer to 4.3.2.1 Adding a PPPoE WAN Service.
– IPoE: Refer to 4.3.2.2 Adding a MER (IPoE) WAN service.
– Bridge: Refer to 4.3.2.5 Adding a Bridge WAN service.
– PPPoA: Refer to 4.3.2.3 Adding a PPPoA WAN service.
– IPoA: Refer to 4.3.2.44.3.2.44.3.2.4Adding an IPoA WAN service.

 Encapsulation Mode: You may select LLC/SNAP-BRIDGING or VC/MUX in

the drop-down list.

 Service Category: You may select UBR Without PCR, UBR With PCR,

CBR, Non Realtime VBR or Realtime VBR in the drop-down lsit.

Note:

QoS cannot be set for CBR and Realtime VBR.

4.3.1.2 VDSL

After selecting the VDSL as the connection mode, click Next and the following
page appears.

 Network protocol

– PPP over Ethernet (PPPoE): Refer to 4.3.2.1 Adding a PPPoE WAN

Service.

– MAC Encapsulation Routing (MER): Refer to 4.3.2.2 Adding a MER

(IPoE) WAN service.

20

– Bridging: Refer to 4.3.2.5 Adding a Bridge WAN service.

4.3.2 Connection Type of WAN Service

After setting ADSL or VDSL. You can do the following steps according the
connection type that you select.

4.3.2.1 Adding a PPPoE WAN Service

This section describes the steps for adding the PPPoE WAN service.

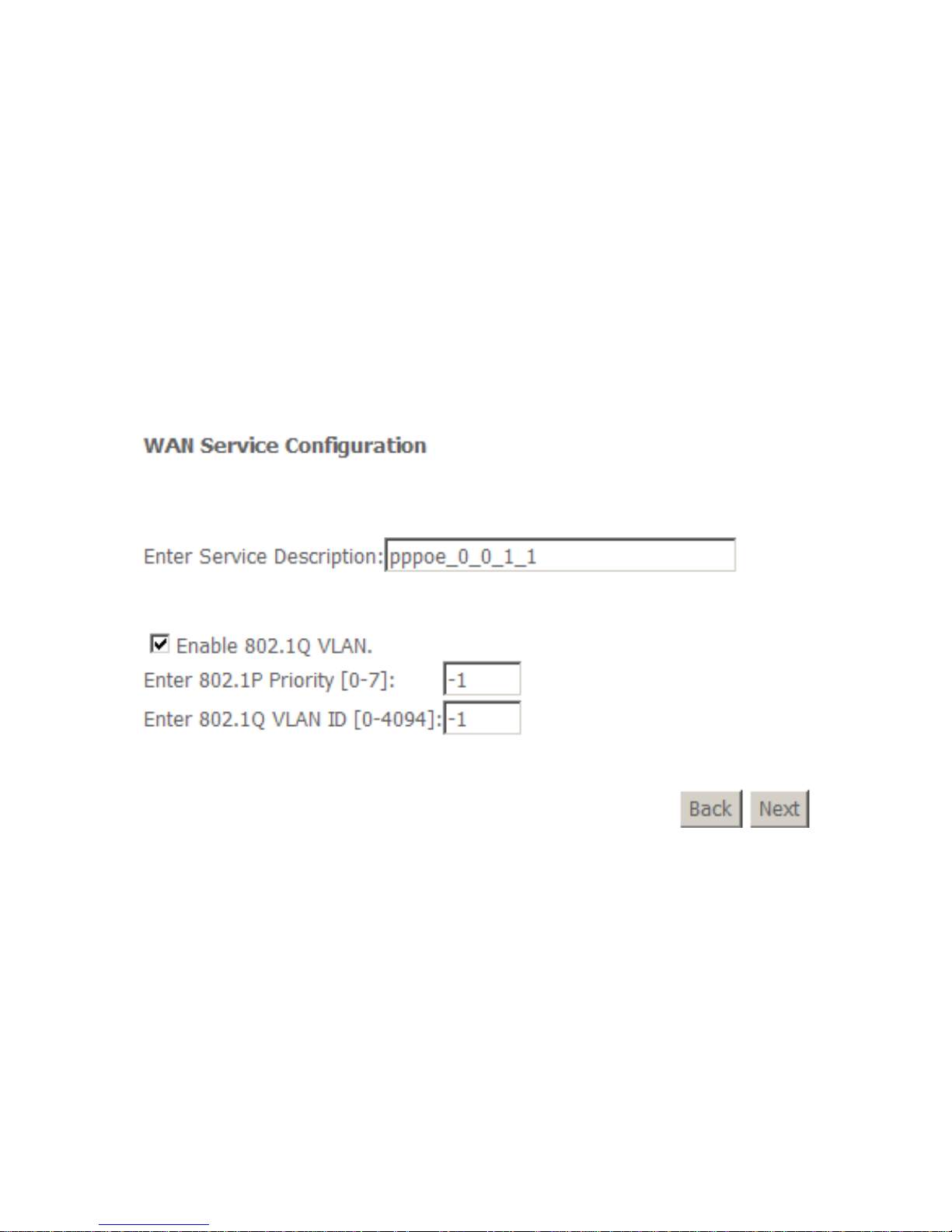

Step1 When you select PPPoE, the following page appears.

Figure 12 WAN Service Configuration of PPPoE

 Enter Service Description: You can configure the description for the WAN

connection.

 Enable 802.1Q VLAN: You can enable or disable VLAN feature for the WAN

connection. (This feature is variable for VDSL WAN connection)

Step2 In this page, Click Next to display the following page.

21

In this page, you can modify the PPP username, PPP password, PPPoE service
name and authentication method.

 PPP Username: The correct user name provided by your ISP.
 PPP Password: The correct password provided by your ISP.
 PPPoE Service Name: If your ISP provides it to you, please enter it. If not,

do not enter any information.

 Authentication Method: The value can be AUTO, PAP, CHAP, or MSCHAP.

Usually, you can select AUTO.

 Dial on demand (with idle timeout timer): If this function is enabled, you

need to enter the idle timeout time. Within the preset minutes, if the modem
does not detect the flow of the user continuously, the modem automatically
stops the PPPoE connection. Once it detects the flow (like access to a
webpage), the modem restarts the PPPoE dialup. If this function is disabled,
the modem performs PPPoE dial-up all the time. The PPPoE connnection

22

does not stop, unless the modem is powered off and DSLAM or uplink
equipment is abnormal.

 PPP IP extension: If you want to configure DMZ Host, you should enable it

first.

 Use Static IPv4 Address: If this function is disabled, the modem obtains an

IP address assigned by an uplink equipment such as BAS, through PPPoE
dial-up. If this function is enabled, the modem uses this IP address as the
WAN IP address.

 Enable PPP Debug Mode: Enable or disable this function.
 Bridge PPPoE Frames Between WAN and Local Ports: Enable or disable

this function.

Step3 After setting the parameters, click Next to display the following page.

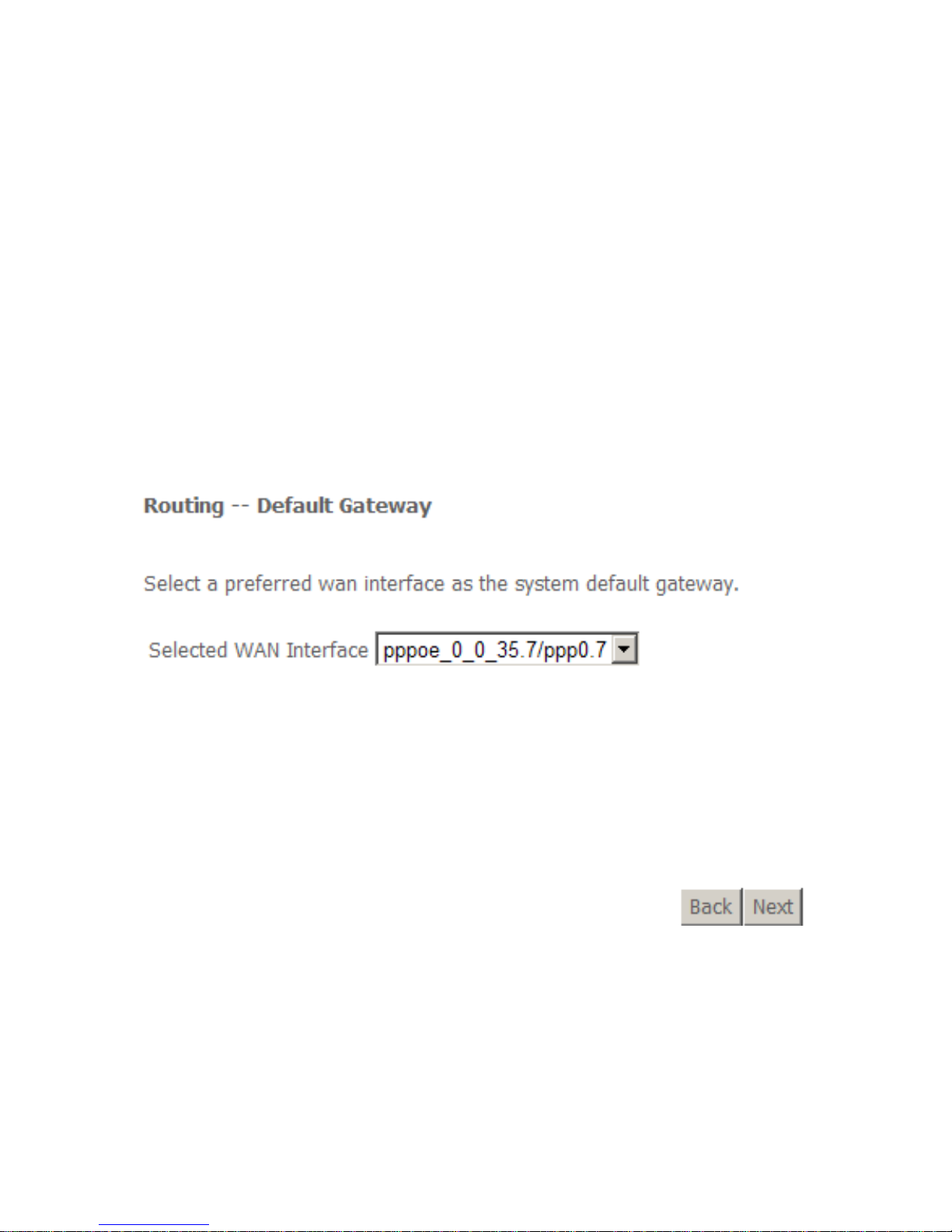

Step4 In this page, select a preferred WAN interface as the system default

gateway and then click Next to display the following page.

23

Step5 In this page, you may obtain the DNS server addresses from the selected

WAN interface or manually enter the static DNS server addresses. If only
a PVC with IPoA or static MER protocol is configured, you must manually
enter the static DNS server addresses. Click Next, and the following
page appears.

Step6 In this page, it displays the information about the PPPoE settngs. Click

Save/Apply to save and apply the settings.

24

4.3.2.2 Adding a MER (IPoE) WAN service

This section describes the steps for adding the MER WAN service.

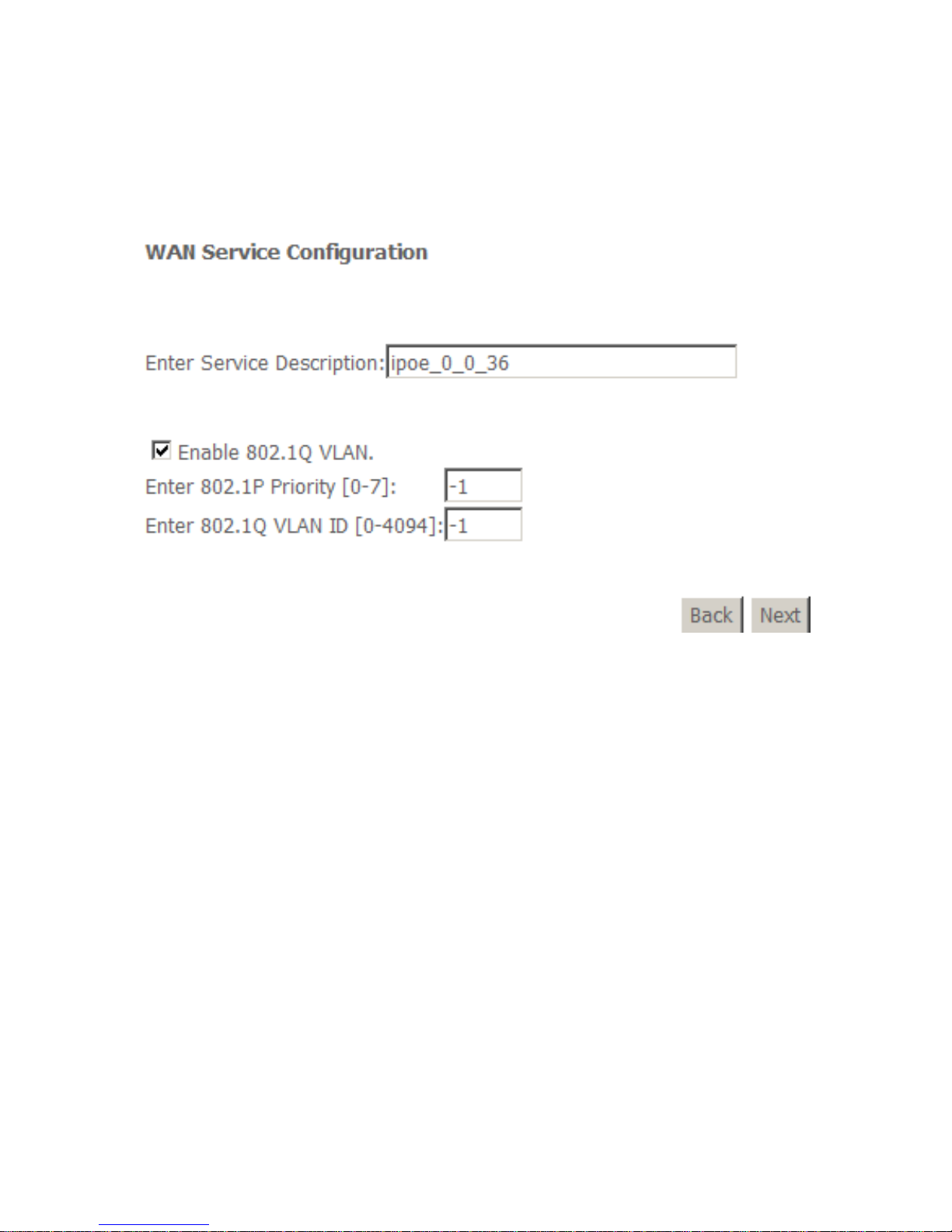

Step1 When you select IPoE, the following page appears.

Figure 13 WAN Service Configuration of IPoE

 Enter Service Description: You can configure the description for the WAN

connection.

 Enable 802.1Q VLAN: You can enable or disable VLAN feature for the WAN

connection. (This feature is variable for VDSL WAN connection)

Step2 In this page, click Next to display the following page.

25

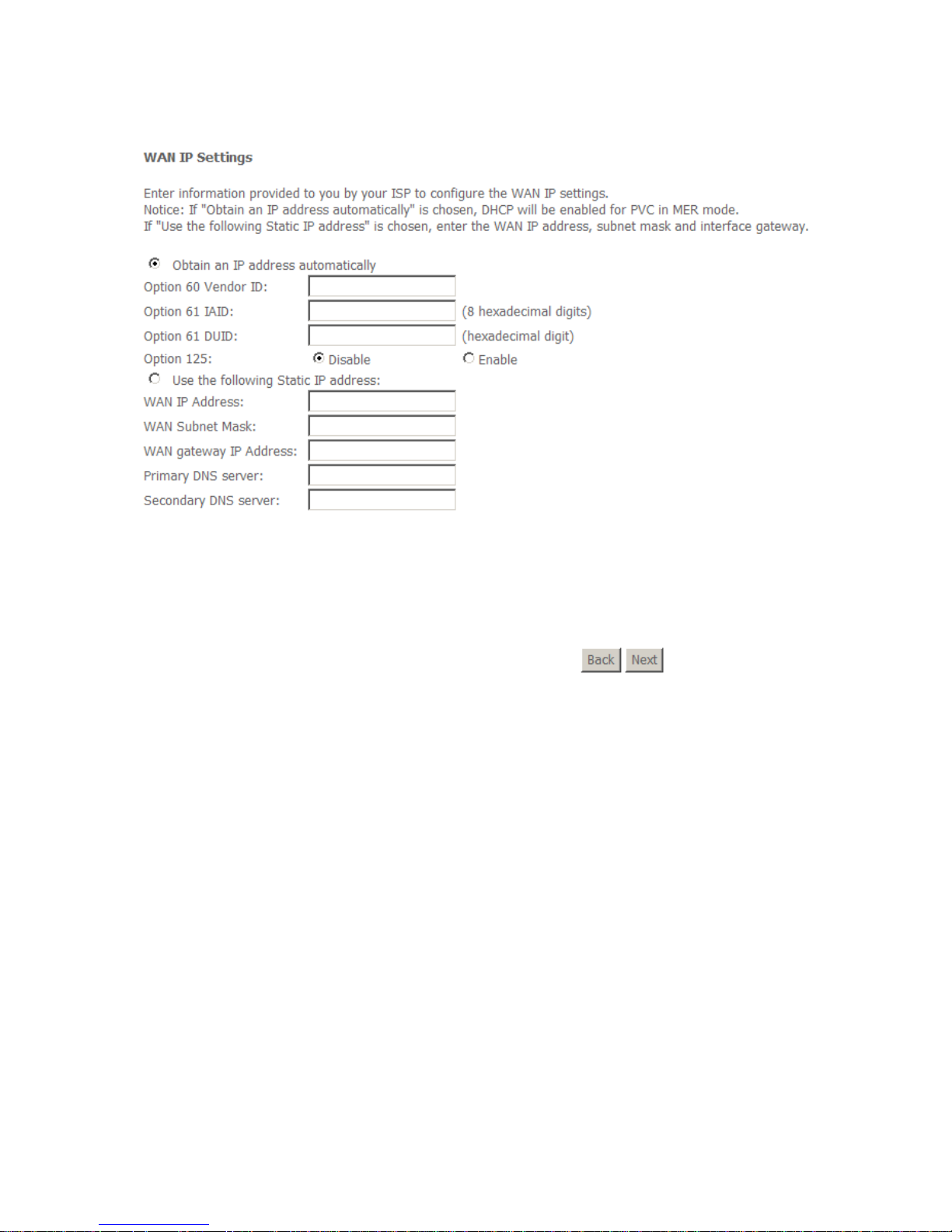

Step3 In this page, you may themodify the WAN IP settings. You may select

obtain an IP address automatically or manually enter the IP address
provided by your ISP. Click Next and the following page appears.

Note:

If selecting Obtain an IP address automatically, DHCP will be enabled for PVC in
MER mode.
If selecting Use the following Static IP address, please enter the WAN IP address,
subnet mask and gateway IP address.

26

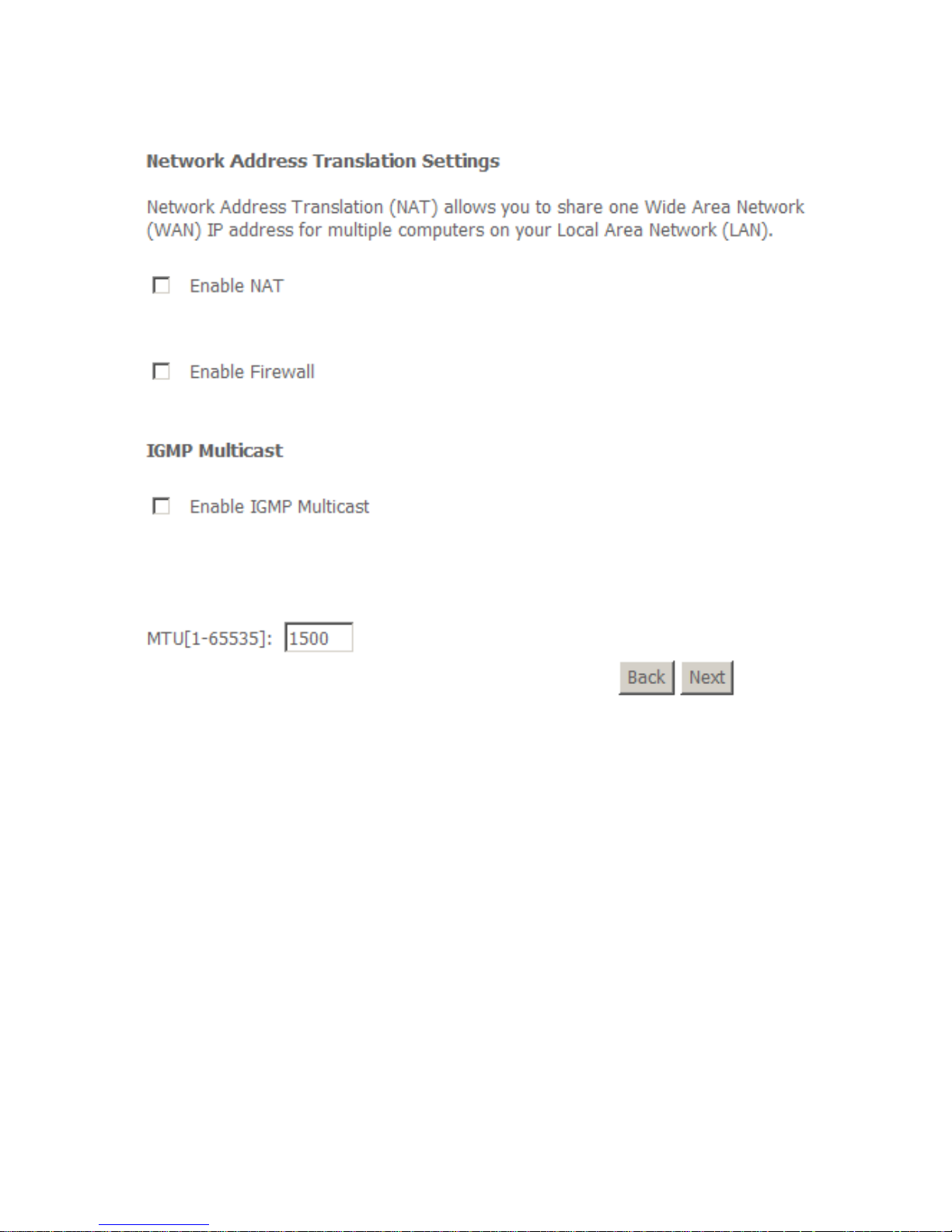

Step4 In this page, you can set the network address translation settings,for

example, enabling NAT, enabling firewall, and enabling IGMP multicast.
After finishing setting, click Next and the following page appears.

27

Step5 In this page, select a preferred WAN interface as the system default

gateway and then click Next to display the following page.

Step6 In this page, you may obtain the DNS server addresses from the selected

WAN interface or manually enter static DNS server addresses. If only a
PVC with IPoA or static MER protocol is configured, you must enter the
static DNS server addresses. After finishing setting, click Next to display
the following page.

28

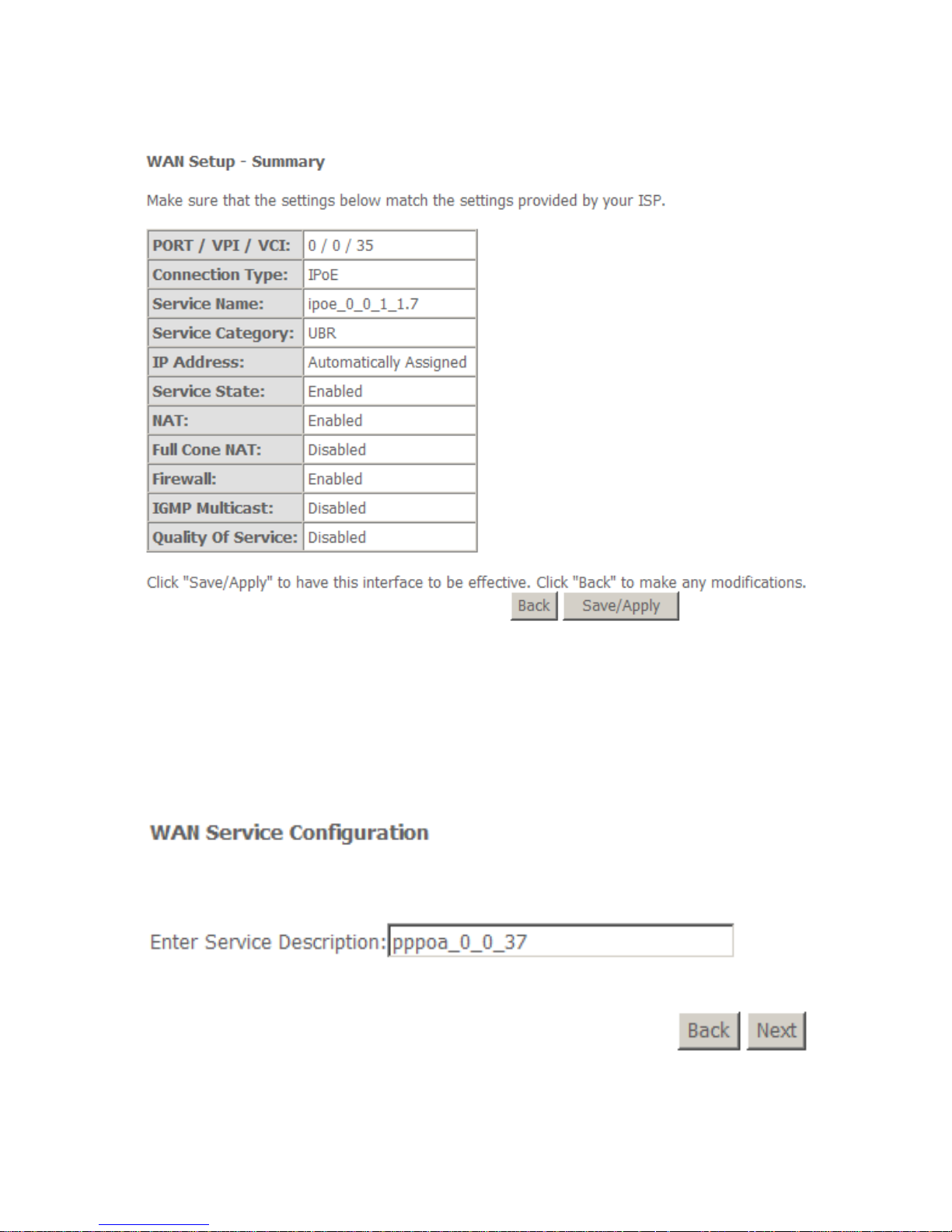

Step7 In this page, it displays the information about the IPoE settngs.Click

Save/Apply to save and apply the settings.

4.3.2.3 Adding a PPPoA WAN service

This section describes the steps for adding the PPPoA WAN service.

Step1 When you select PPPoA, the following page appears.

29

 Enter Service Description: You can configure the description for the WAN

connection.

Step2 In this page, you may modify the service description. Click Next to

display the following page.

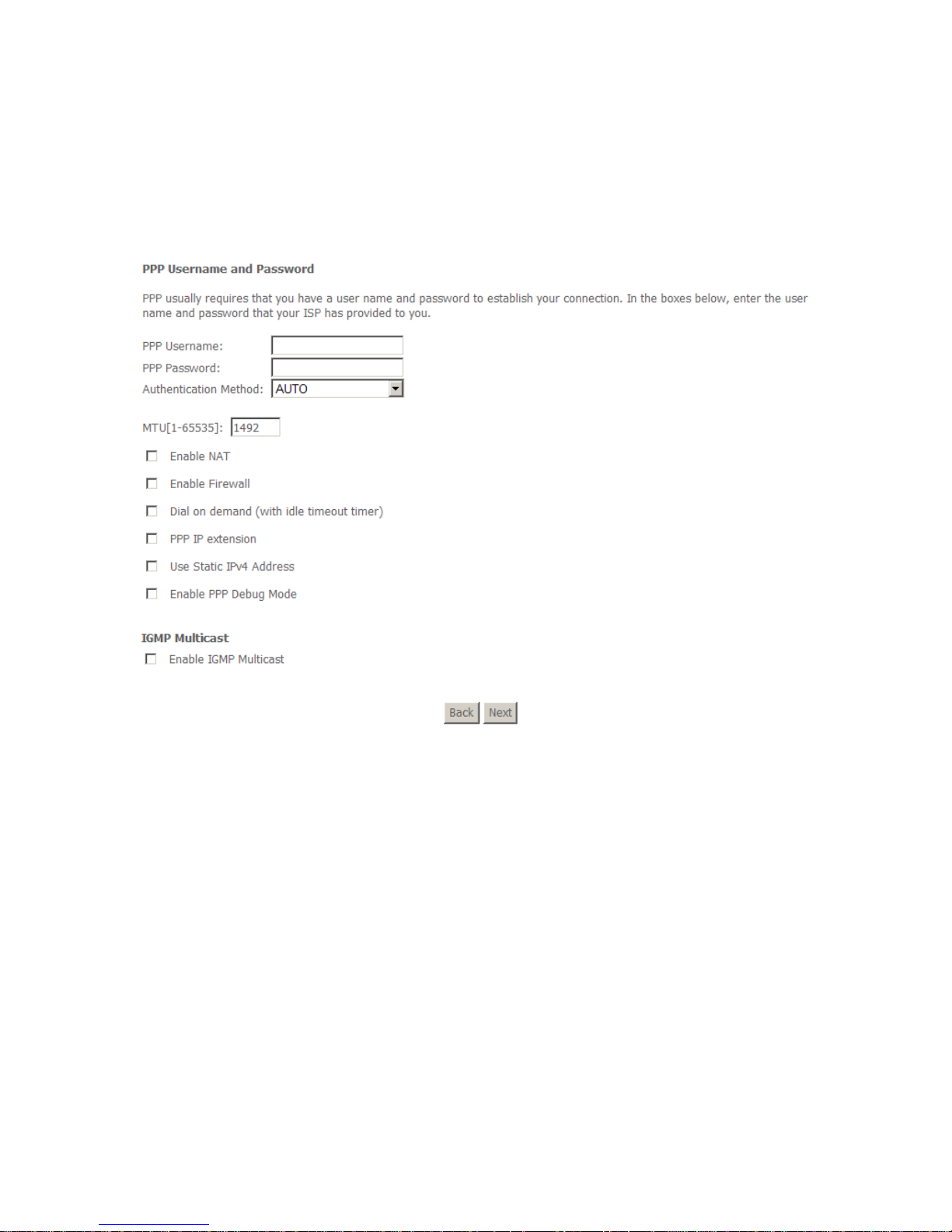

 PPP Username: The correct user name provided by your ISP.
 PPP Password: The correct password provided by your ISP.
 Authentication Method: The value can be AUTO, PAP, CHAP, or MSCHAP.

Usually, you can select AUTO.

 Dial on demand (with idle timeout timer): If this function is enabled, you

need to enter the idle timeout time. Within the preset minutes, if the modem
does not detect the flow of the user continuously, the modem automatically
stops the PPPoA connection. Once it detects the flow (like access to a
webpage), the modem restarts the PPPoA dialup. If this function is disabled,
the modem performs PPPoA dial-up all the time. The PPPoA connnection
does not stop, unless the modem is powered off and DSLAM or uplink
equipment is abnormal.

30

 PPP IP extension: If you want to configure DMZ Host, you should enable it

first.

 Use Static IPv4 Address: If this function is disabled, the modem obtains an

IP address assigned by an uplink equipment such as BAS, through PPPoA
dial-up. If this function is enabled, the modem uses this IP address as the
WAN IP address.

 Enable PPP Debug Mode:Enable or disable this function.
Step3 In this page, you can enter the PPP username and PPP password

provided by your ISP. Select the authentication method according to your
requirement. After finishing setting, click Next to display the following
page.

Step4 In this page, select a preferred WAN interface as the system default

gateway and then click Next to display the following page.

31

Step5 In this page, you can obtain the DNS server addresses from the selected

WAN interface or manually enter the static DNS server addresses. If only
a PVC with IPoA or static MER protocol is configured, you must enter the
static DNS server addresses. After finishing setting, click Next to display
the following page.

32

Step6 In this page, it displays the information about the PPPoA settngs.Click

Save/ Apply to apply the settings. You can modify the settings by clicking
the Back button if necessary.

4.3.2.4 Adding an IPoA WAN service

This section describes the steps for adding the IPoA WAN service.

Step 1 When you select IPoA, the following page appears.

 Enter Service Description: You can configure the description for the WAN

connection.

33

Step 2 In this page, you may modify the service description. Click Next to

display the following page.

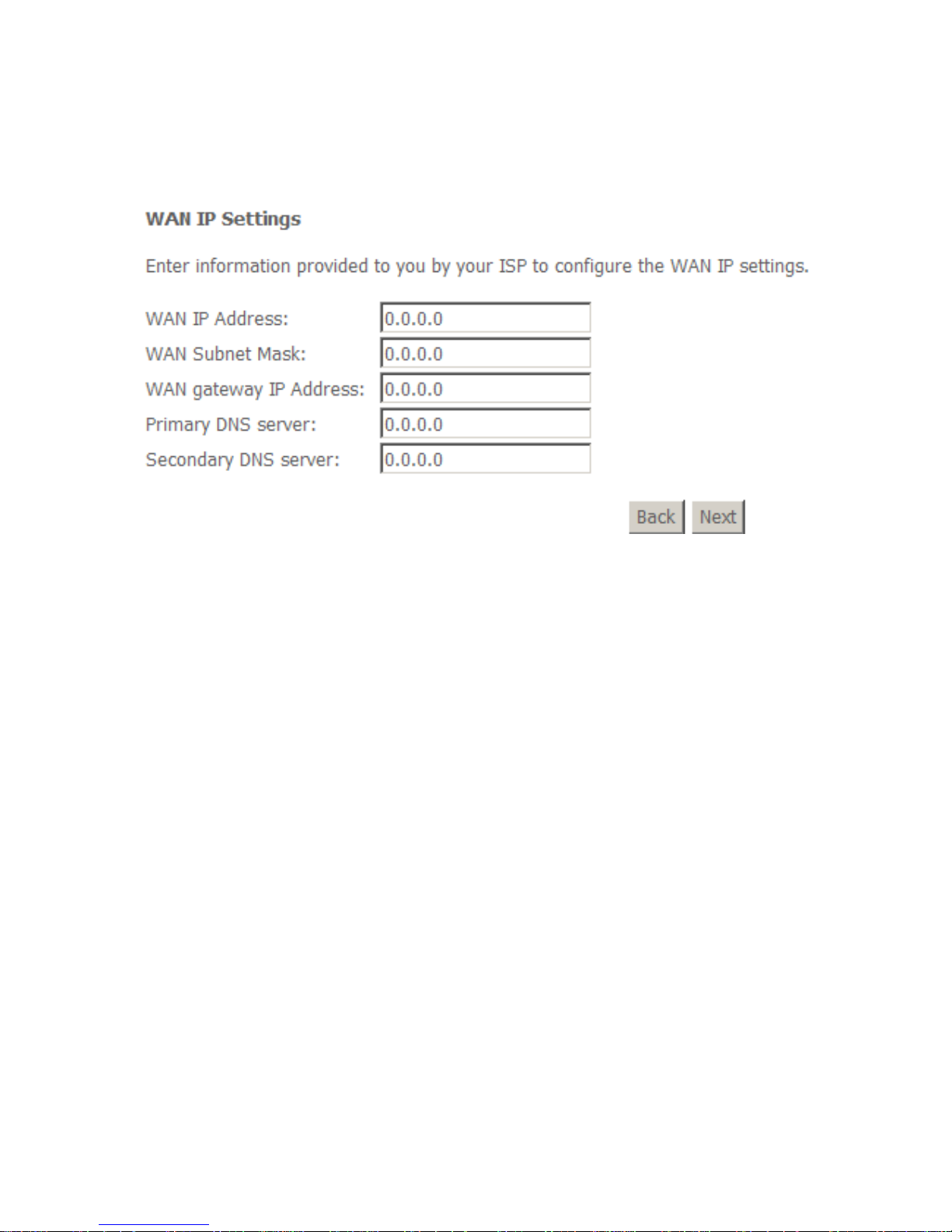

Step 3 In this page, enter the WAN IP address and the WAN subnet mask

provided by your ISP and then click Next to display the following page.

34

In this page, Network Address Translation (NAT) allows you to share one Wide
Area Network (WAN) IP address for multiple computers on your Local Area
Network (LAN).
If you do not want to enable NAT, and wish the user of modem to access the
Internet normally, you need to add a route on the uplink equipment. Otherwise, the
access to the Internet fails. Normally, please enable the NAT function.
Step 4 After finishing setting, click Next to display the following page.

35

Step 5 In this page, select a preferred WAN interface as the system default

gateway and then click Next to display the following page.

36

Step 6 In this page, you should use a static DNS IP address for IPoA mode.

Select the proper DNS server interface and enter the primary DNS
server and the secondary DNS server. Click Next to display the following
page.

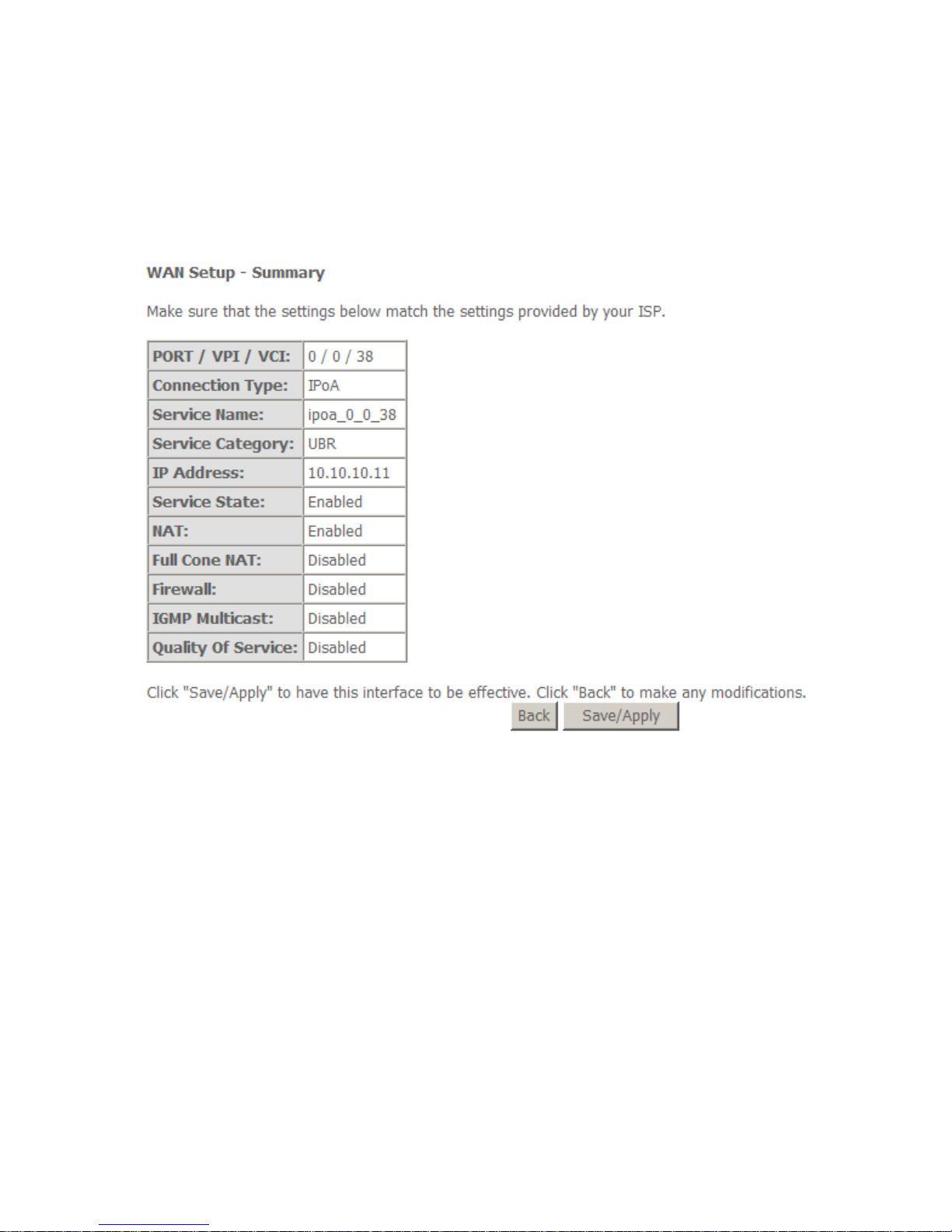

In this page, it displays the information about the IPoA settngs. Click Save/ Apply
to save and apply the settings. You can modify the settings by clicking the Back
button if necessary.

4.3.2.5 Adding a Bridge WAN service

This section describes the steps for adding the Bridge WAN service.

Step 1 When you select Bridge, the following page appears.

37

Figure 14 WAN Service Configuration of Bridge

 Enter Service Description: You can configure the description for the WAN

connection.

 Enable 802.1Q VLAN: You can enable or disable VLAN feature for the WAN

connection. (This feature is variable for VDSL and ETH WAN connection)

Step 2 In this page, click Next to display the following page.

38

In this page, it displays the information about the bridge settngs. Click Save/ Apply
to save and apply the settings. You can modify the settings by clicking Back if
necessary.

4.3.3 LAN Configuration

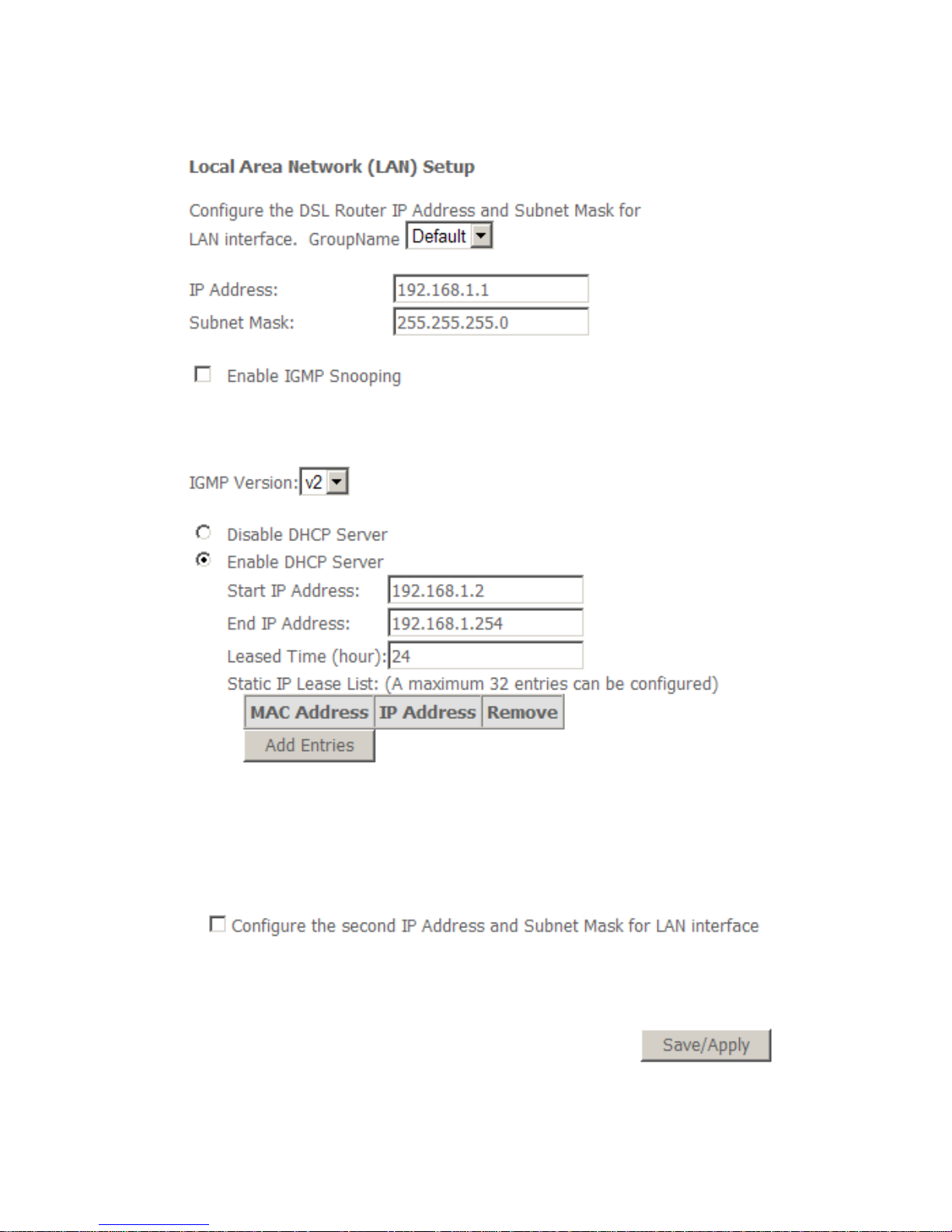

Choose Advanced Setup > LAN, and the following page appears. In this page,
you can configure an IP address for the DSL Router and enable DHCP server.

39

40

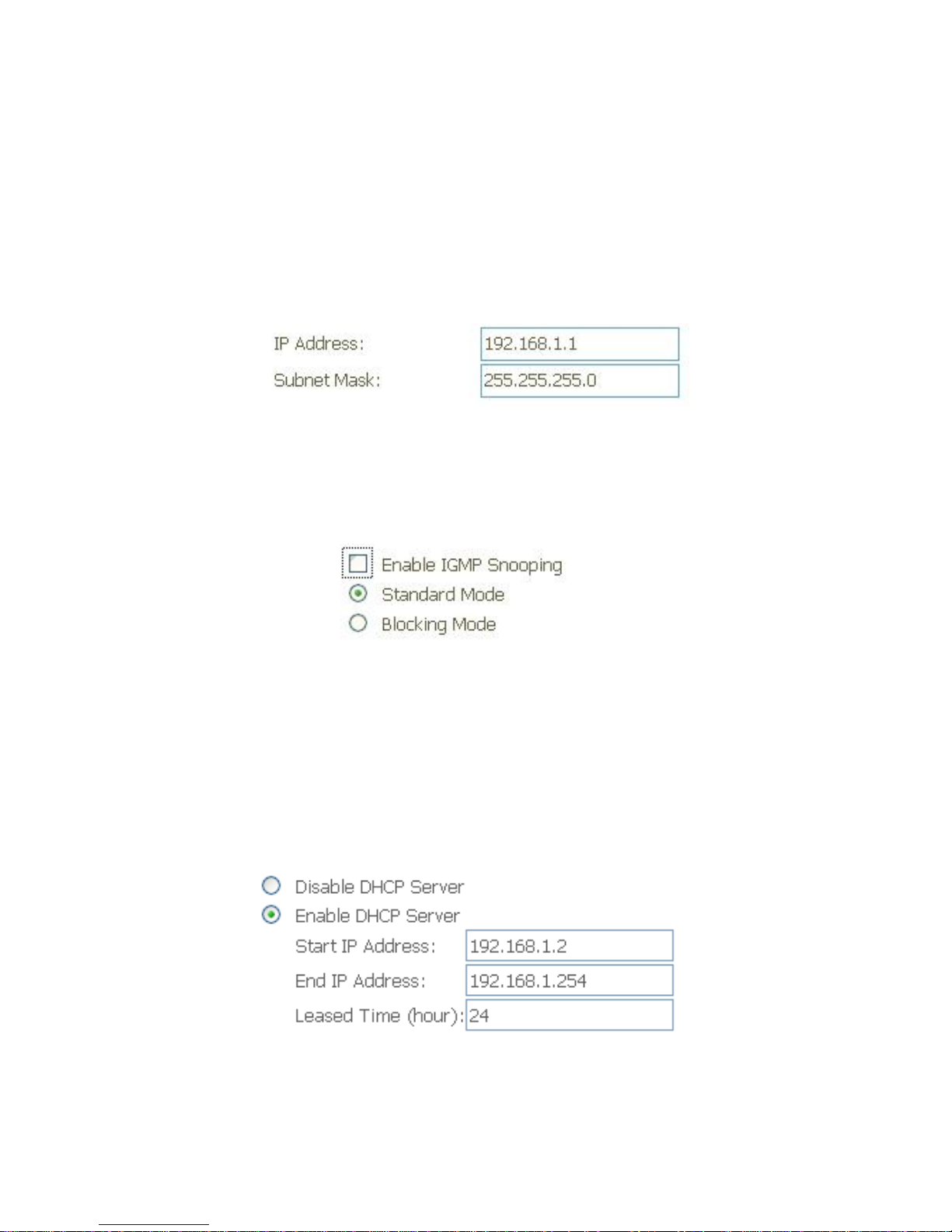

4.3.3.1 Configuring the Private IP Address for the DSL Router

In this page, you can modify the IP address of the device. The preset IP address is

192.168.1.1. This is the private IP address of the DSL Router, under which the
device can be reached in the local network. It can be freely assigned from the block
of available addresses. The IP address under which the Router can be reached
from outside is assigned by the ISP.

4.3.3.2 Enabling IGMP Snooping

Internet Group Management Protocol (IGMP) is an Internet protocol that enables an
Internet computer to inform neighboring routers that it is a member of a multicast
group.

Note: If IGMP snooping function is enabled, the DSL Router

capability improves.

4.3.3.3 Configuring the DHCP Server

The DSL Router has a DHCP server for which the factory setting is active.
Consequently, the IP addresses of the PCs are automatically assigned by the DSL
Router.

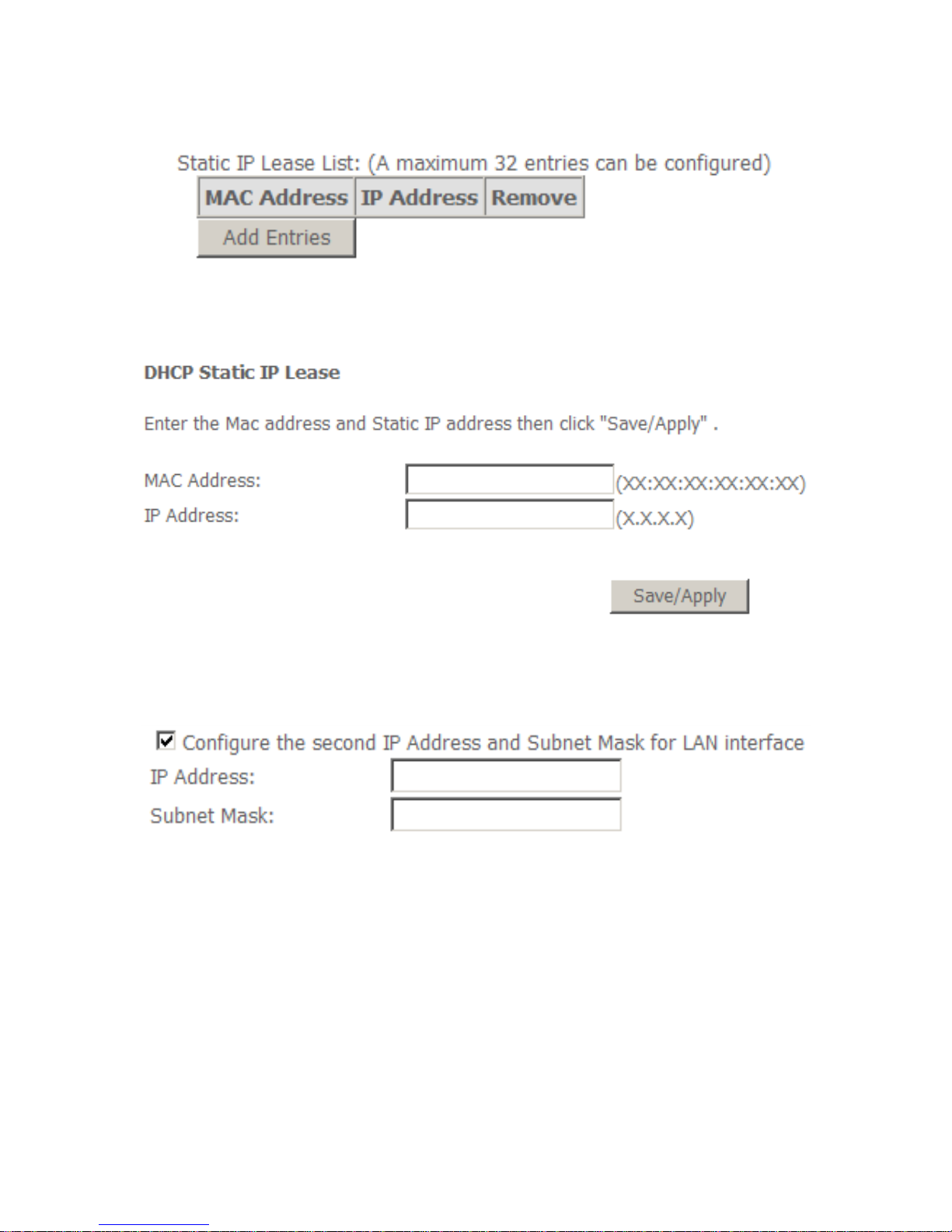

4.3.3.4 Configuring DHCP Static IP Lease

View the following part for static IP Lease List.

41

Note: A maximum 32 entries can be configured.

Click Add Entries, and the following page appears.

4.3.3.5 Configuring the Second IP Address and Subnet Mask
for LAN Interface

View the following part for second IP address and subnet mask for LAN interface.

4.3.4 NAT

Note: Only the mode of configuration PVC is PPPoE or
PPPoA, NAT service appears.

4.3.4.1 ALG

Click Advanced Setup > NAT > ALG, and the following page appears. This part
contains NAT Application-Layer Gateway (ALG).

42

 H.323 Enable: The H.323 ALG is a flexible application layer gateway that

allows H.323 devices such as H.323 phones and applications to make and
receive calls between each other, when connected to private networks
secured by clavister security gateways.

 IRC Enable: The IRC ALG is a flexible application layer gateway that allows

Internet Relay Chat (IRC).

 RTSP Enable: Allows applications that use Real Time Streaming Protocol

(RTSP) to receive streaming media from the internet.

 PPTP Enable: Allows multiple machines on the LAN to connect to their

corporate networks using PPTP protocol. When the PPTP ALG is enabled,
LAN computers can establish PPTP VPN connections either with the same
or with different VPN servers. When the PPTP ALG is disabled, the router
allows VPN operation in a restricted way -- LAN computers are typically able
to establish VPN tunnels to different VPN Internet servers but not to the
same server.

 IPSEC Enable: Allows multiple VPN clients to connect to their corporate

networks using IPSec.

 SIP Enable: Allows devices and applications to use VoIP (Voice over IP) to

communicate through NAT.

43

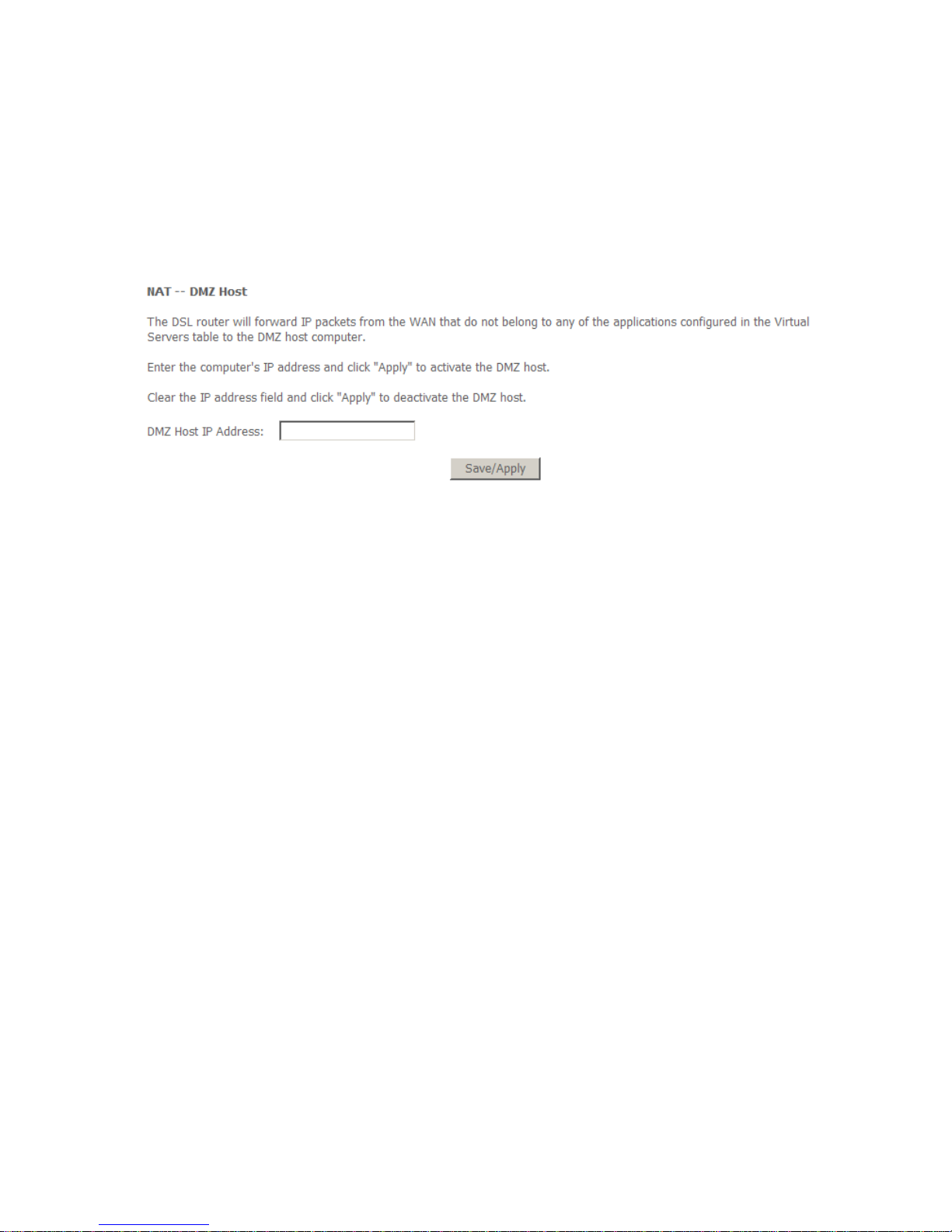

4.3.4.2 DMZ Host

Adding a DMZ Host

Step 1 To set up a PC as a DMZ host, choose Advanced Setup > NAT > DMZ

host.

Step 2 Enter the local IP address of the PC that is to be enabled as an exposed

host.

Step 3 Click Save/Apply to apply the configurations.

Remove DMZ host

Step 1 Clear the DMZ Host Address.
Step 2 Click Save/Apply to apply the settings.

4.3.4.3 Port Triggering

If you configure port triggering for a certain application, you need to determine a
so-called trigger port and the protocol (TCP or UDP) that this port uses. You then
assign the public ports that are to be opened for the application to this trigger port.
You can select known Internet services or manually assign ports or port blocks.

Adding Port Triggering

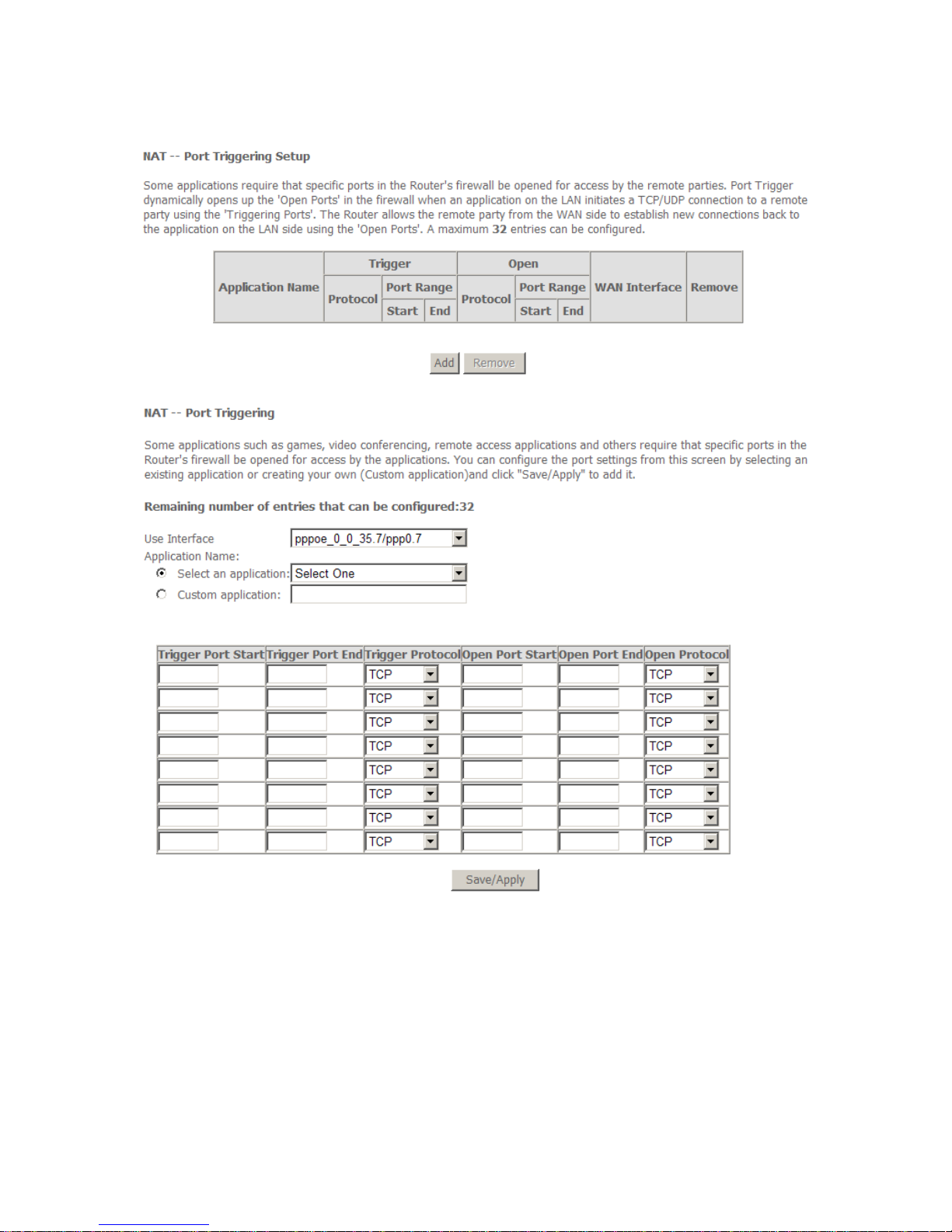

Choose Advanced Settings > NAT > Port Triggering, and the following page
appears.

44

Step 1 To set up port triggering for a service, click Add.

Step 2 Select the use Interface like that ipoa_0_0_35/ipoa0 and select the

required application from the Select an application drop-down list, or
manually enter the information in the Custom application field.

 Trigger Port Start and Trigger Port End: Enter the port that is to be

monitored for outgoing data traffic.

 Trigger Protocol: Select the protocol that is to be monitored for outgoing

data traffic.

 Open Protocol: Select the protocol that is to be allowed for incoming data

45

traffic

 Open Port Start and Open Port End: Enter the port that is to be opened for

incoming traffic.

Note: You can use a single port number, several port
numbers separated by commas, port blocks consisting of
two port numbers separated by a dash, or any combination
of these, for example 80, 90-140, 180.

Step 3 Click Save/Apply to apply the settings.

Removing Port Triggering

Select the Remove check box. Click Save/Apply to apply the settings.

4.3.4.4 NAT - Virtual Server Setup

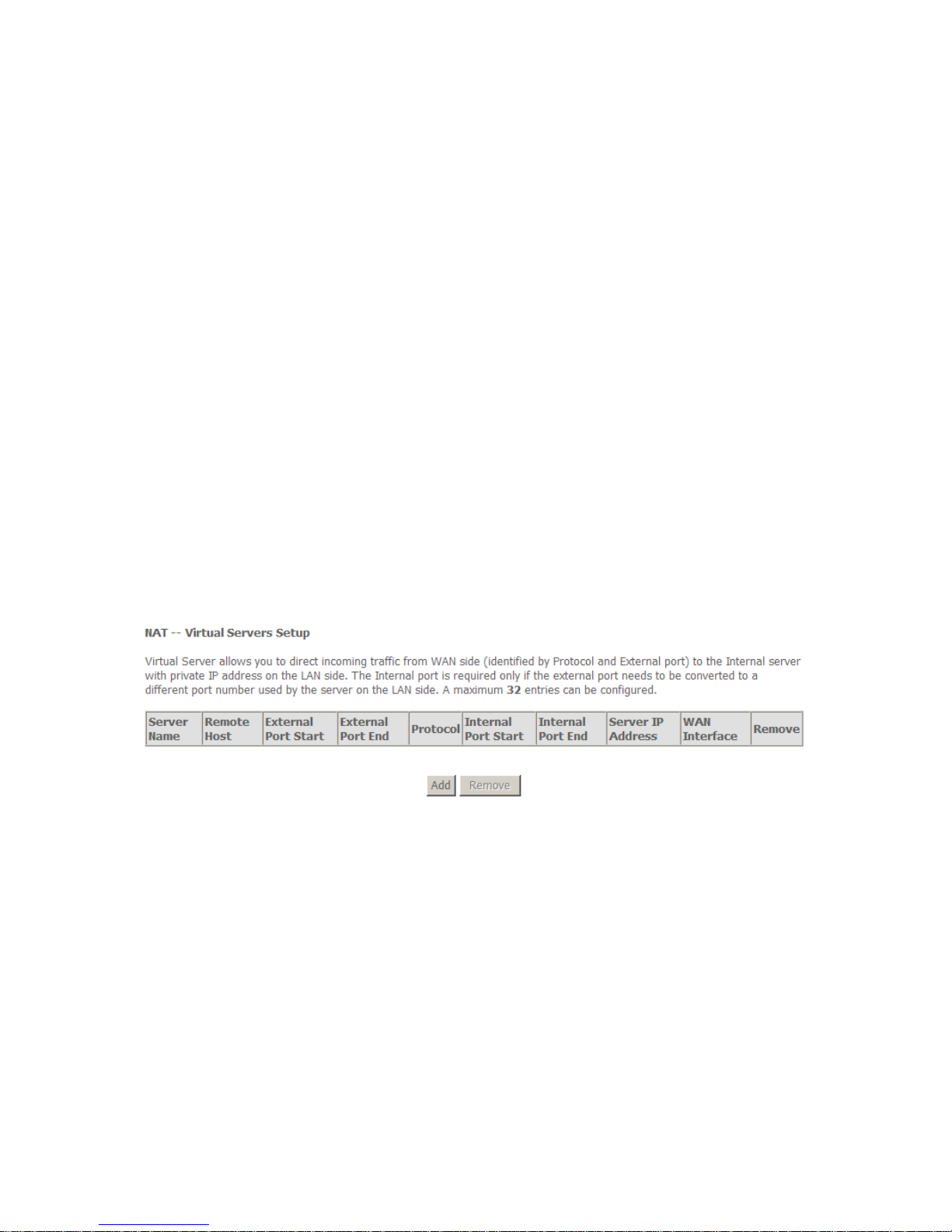

Click Advanced Setup > NAT > Virtual Servers, and the following page appears.
The port forwarding (virtual server) page is used to define applications that require
special handling by DSL router.

Adding Virtual Servers

Step 1 To set up virtual servers for a service, click Add.

46

Step 2 Select the use Interface like that pppoe_0_0_35.7/ppp0.7 and select a

service or enter a custom server.

Step 3 Set Server IP Address.
Step 4 Enter the Server IP address of the computer that provides the service

(the server in the Local Host field). Note that unless an additional
external IP address is added, only one LAN computer can be assigned
to provide a specific service or application.

Step 5 Set External Port Start and External Port End.
Step 6 Select Protocol.
Step 7 Set Internal Port Start and Internal Port End.
Step 8 Enter Remote IP.
Step 9 Click Save/Apply to apply the settings.

47

If the application you require is not in the list, manually enter the information.
Select the protocol for the service you are providing from the Protocol drop-down
list. Under Public Port, enter the port number of the service you are providing. In
the Local Port field, enter the internal port number to which service requests are to
be forwarded. In the Local IP Address field, enter the IP address of the PC that
provides the service.

Deleting Virtual Servers

Step 1 Select the Remove check box.
Step 2 Click Apply/Save to apply the settings.

4.3.5 Security

Choose Security > IP Filtering and the following interface appears. By default, the
firewall is enabled. The firewall is used to block document transmissions between
the Internet and your PC. It serves as a safety guard and permits only authorized
documents to be sent to the LAN.

Note: If the modem is configured to bridge mode only, IP

filtering is disabled and the IP filtering interface does not
appear.

4.3.5.1 Outgoing IP Filtering Setup

When setup of outgoing IP filtering rules is enabled on the modem, various security
functions for the local network are enabled at the same time.

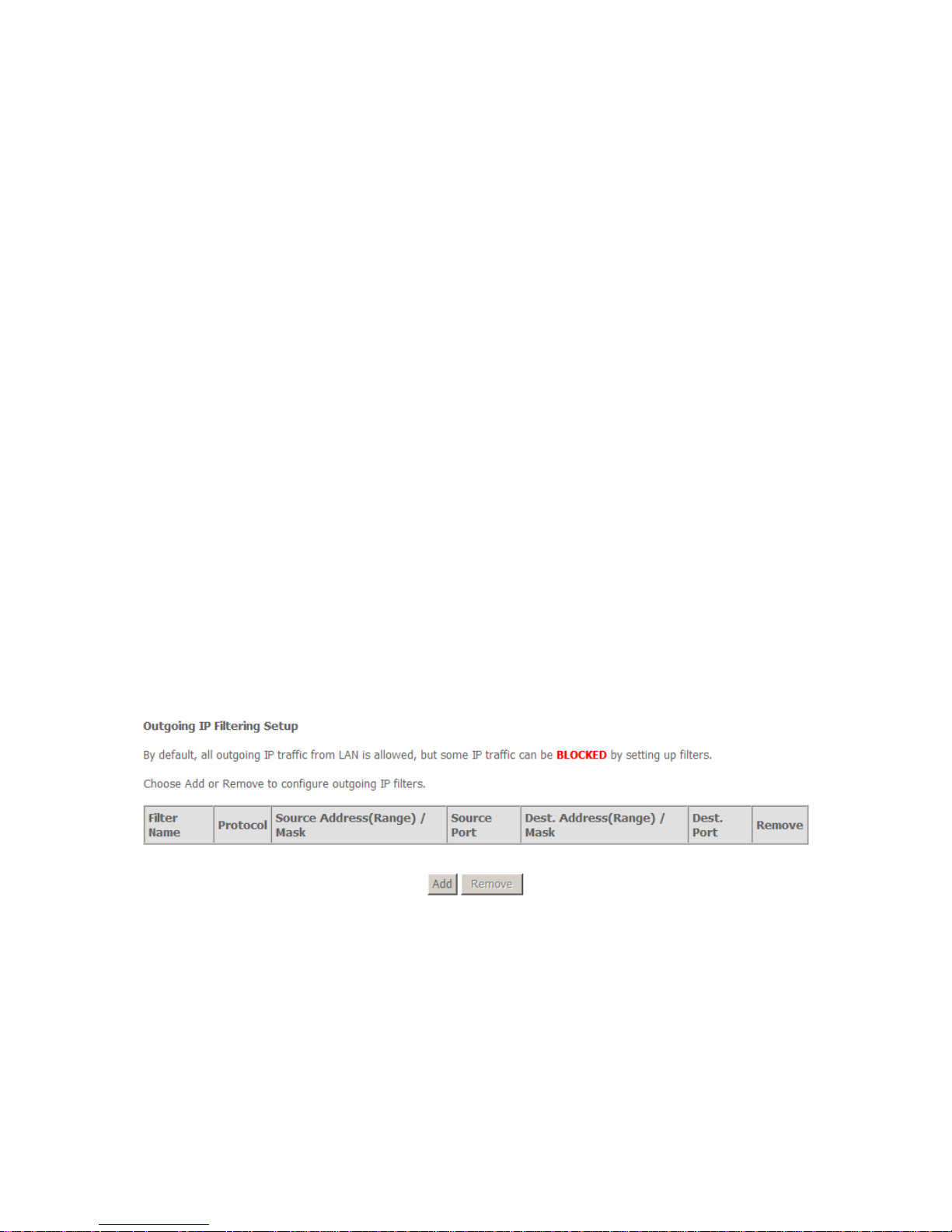

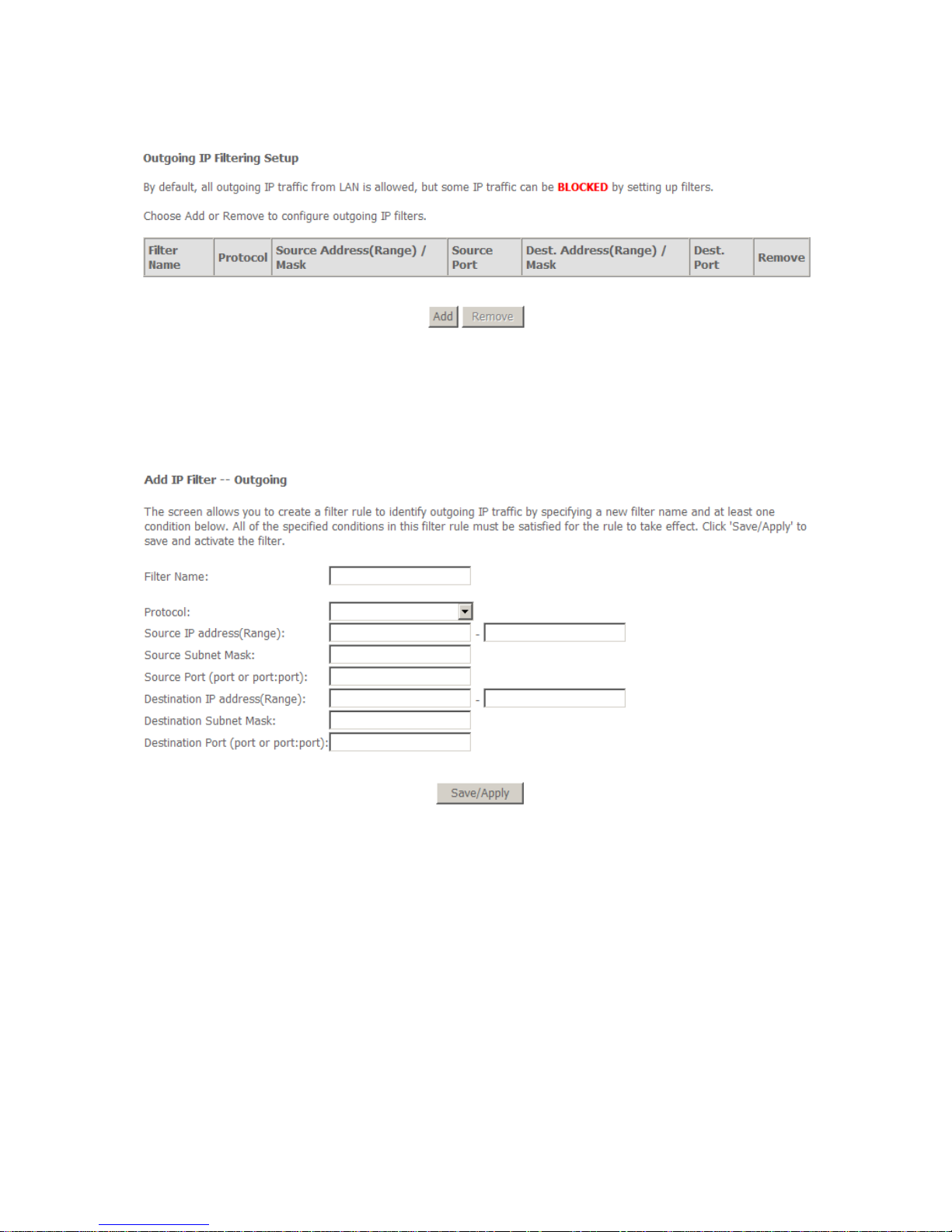

Choose Security > IP Filtering > Outgoing and the following page appears.
By default, all outgoing IP traffic from LAN is allowed, but some IP traffic can be
blocked by setting up filters.

48

Click Add and the page for defining the IP filtering rule appears.
In this page, you can create a filter rule to identify outgoing IP traffic by specifying a
new filter name and at least one condition. All specified conditions in the filtering
rule must be complied with the rule to take effect.
Click Save/Apply to save and activate the filter.

 Source IP address: Enter an IP address. After you set the IP address,

outgoing packets (protocol selected packets) are blocked.

 Source port: UPD/TCP source port or a range of ports.
 Destination port: UPD/TCP destination port or a range of ports.

Configuration

Step 1 By default, all outgoing IP traffic from LAN is allowed.
Step 2 The following page shows the detailed configuration.

49

Step 3 Click Save/Apply and the following page appears.

4.3.5.2 Incoming IP Filtering Setup

The incoming IP filter is used to block and permit IP packet transmisstion from
internet.

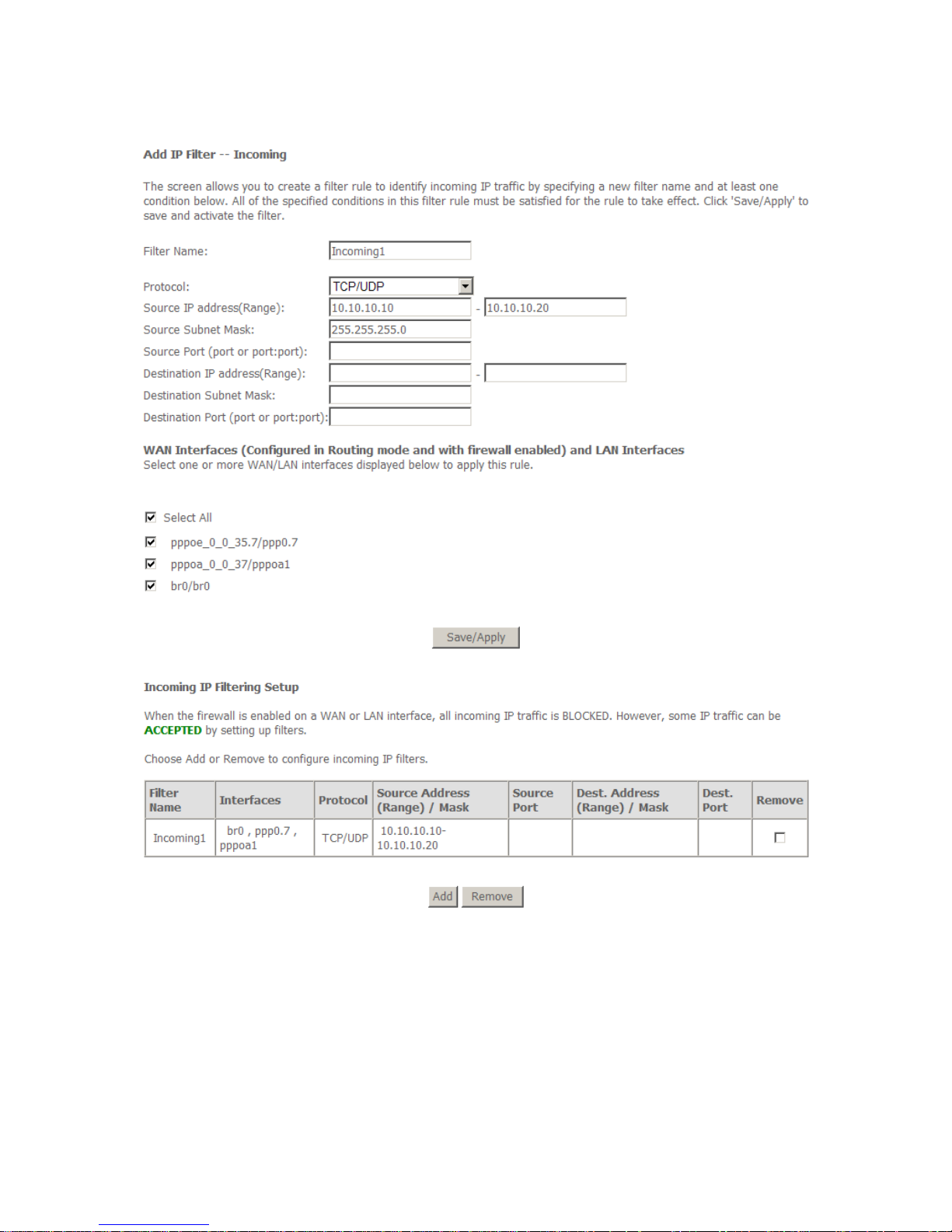

Choose Security > IP Filtering > Incoming and the following page appears.

Click Add and the page for defining the IP filtering rule appears.
In this page, you can create a filter rule to identify incoming IP traffic by specifying a
new filter name and at least one condition. All specified conditions in the filter rule

50

must be complied with the rule to take effect. Click Save/Apply to save and
activate the filter.
You must select at least one WAN interface to apply this rule.

 Source IP address: Enter an IP address. After you set the IP address, the

incoming packets (protocol selected packets) are allowed.

 Source port: UPD/TCP source port or a range of ports.
 Destination IP address: destination IP (default: null).
 Destination port: UPD/TCP destination port or a range of ports.
 WAN interfaces: You can select WAN interfaces and PVC.

Configuration

Step 1 By default, all incoming IP traffic from Internet is blocked.
Step 2 The detailed configuration steps are as follows:

51

Step 3 Click Save/Apply and the following page appears.

4.3.6 Parental Control

Parental Control restricts a speciel LAN device with its MAC address by setting
Access Time Restriction, or add URL List to accept or restrict LAN devices
accessing URL address by setting Url Filtering.

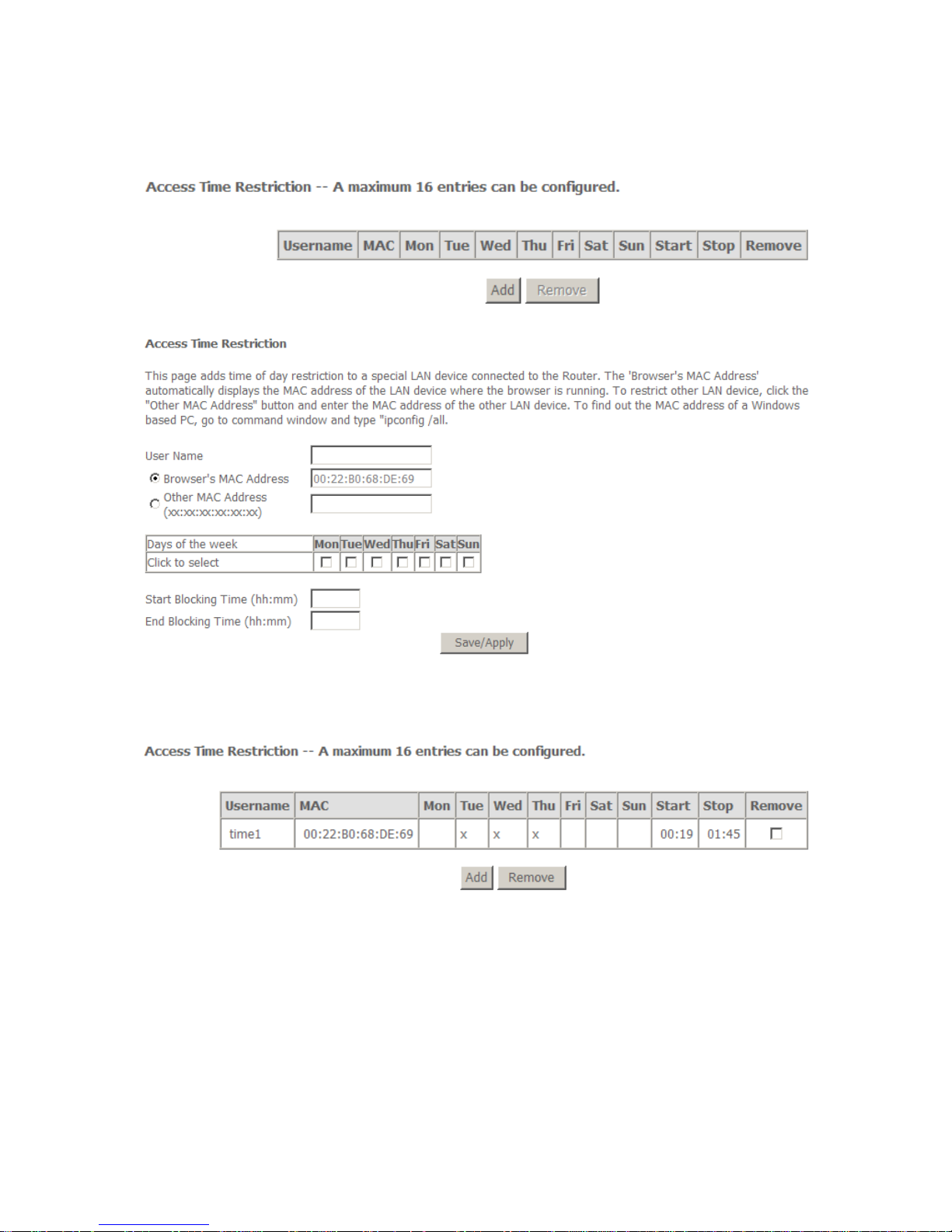

4.3.6.1 Access Time Restriction

Step 1 Click Advanced > Parental Control > Time Restriction, and the

52

following page appears.

Step 2 Click Add, and the following page appears.

Step 3 In this page, you can add time of day restriction to a special LAN device

connected to the Router. After enter user name, select days of week and
blocking time, click Save/Apply, and the following page appears.

4.3.7 Routing

4.3.7.1 Routing – Default Gateway

Choose Advanced Setup > Routing > Default Gateway, and the following page
appears. In this page, you can modify the default gateway settings.

53

If selected an interface by the Selected WAN Interface box, this router accepts the
received default gateway assignment from this WAN interface. Click Save/Apply to
save the configuration.

4.3.7.2 Static Route

Adding Static Route

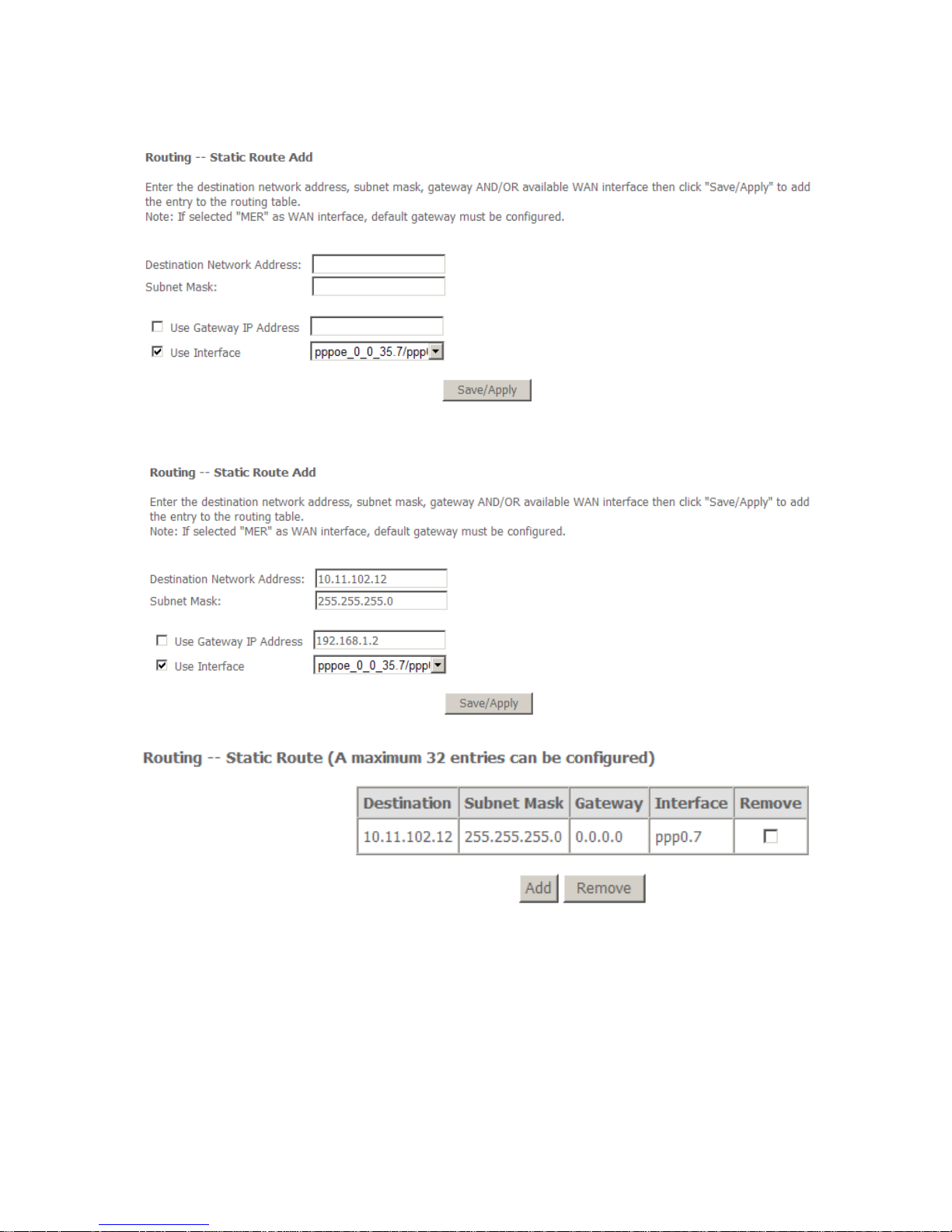

Step 1 Choose Advanced Setup > Routing > Static Route and the following

page appears.

Step 2 Click Add and the following page appears.

54

Enter destination network address and subnet mask. Enable Use Gateway IP
Address and enter IP address. Select use interface. See the following figure.

Step 3 Click Save/Apply to apply the settings and the following page appears.

Note: A maximum 32 entries can be configured.

Remove Static Route

Select Remove checkbox, and click Remove to apply the settings.

55

4.3.8 DNS

4.3.8.1 DNS Server

Choose Advanced Setup > DNS > DNS Server and the following page appears.

In this page, you can select a DNS server interface from the available interfaces,
manually enter the DNS server addresses, or obtain the DNS address from a WAN
interface.
After finishing setting, click Save/Applyto save and apply the settings.

4.3.8.2 Dynamic DNS

Choose Advanced Setup > DNS > Dynamic DNS and the following page
appears.

56

In this page, you are allowed to modify the DDNS settings.
Click the Add button to display the following page.

 D-DNS provider: Select a proper DDNS server in the drop-down list.
 Hostname: It is the domain name and it can be modified.

57

 Interface: The interface that the packets pass through on the DSL router.
 Username: Enter the username for accessing the DDNS management

interface.

 Password: Enter the password for accessing the DDNS management

interface.

After finishing setting, click Apply/Save to save and apply the settings.

4.4 Diagnostics

Click Diagnostics, and the following page appears.
The Diagnostics window enables you to test your local connection and the
connection to the DSL service provider...

4.5 Management

58

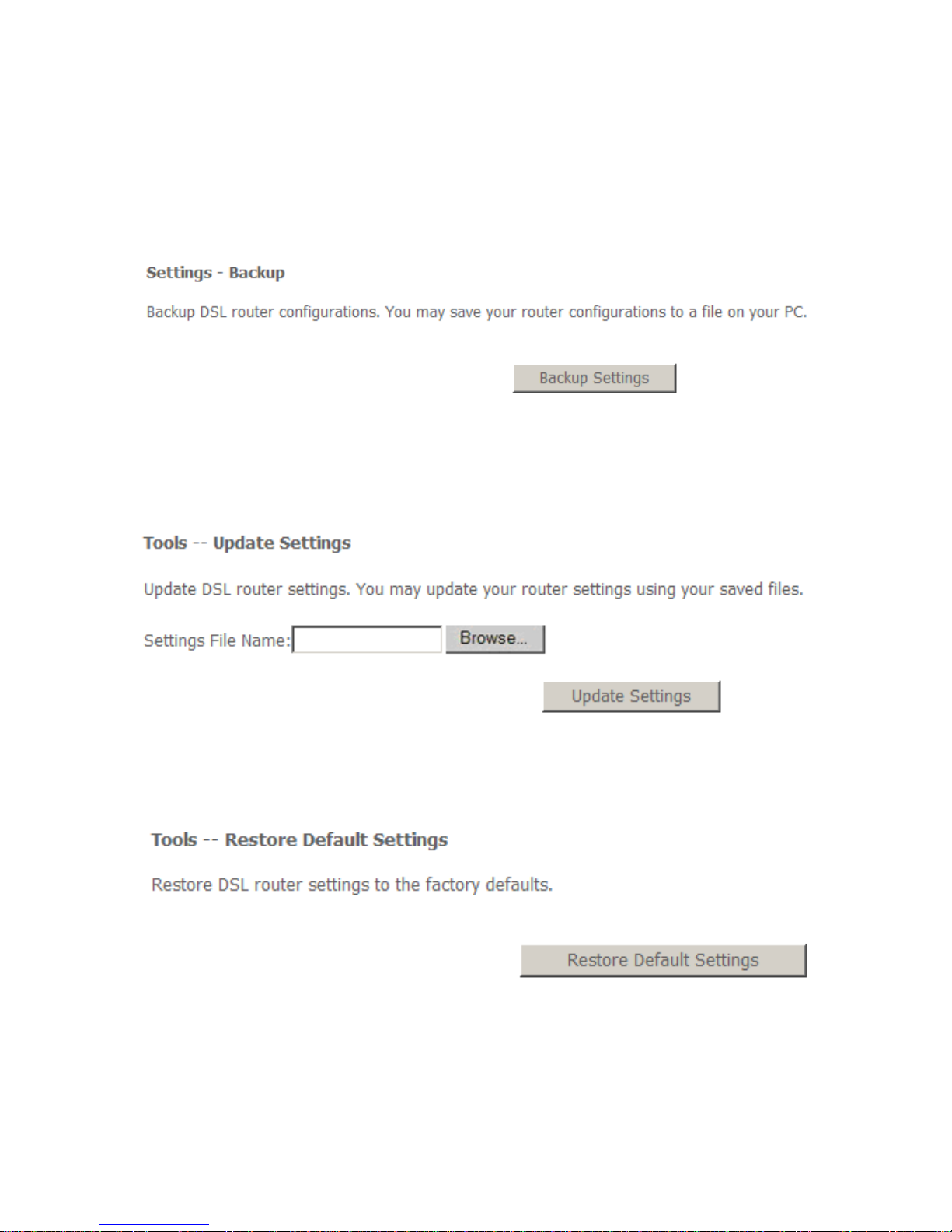

4.5.1 Settings

4.5.1.1 Settings Backup

Click Management > Settings > Backup to back up the DSL router configuration.

4.5.1.2 Settings Update

Click Management > Settings > Update, and the following page appears. Click
Browse and select the correct update configure settings file. Then, click Update
Settings to update the modem settings.

4.5.1.3 Settings Restore Default

Click Management > Settings > Restore Default to restore DSL router to the
factory default configuration.

4.5.2 Internet Time

Click Management > Internet Time, and the following page appears. In this page,
the modem can synchronize with Internet time servers.

59

After enable Automatically synchronize with Internet time servers, the
interface show below. Enter proper configurations and click Save/Apply.

60

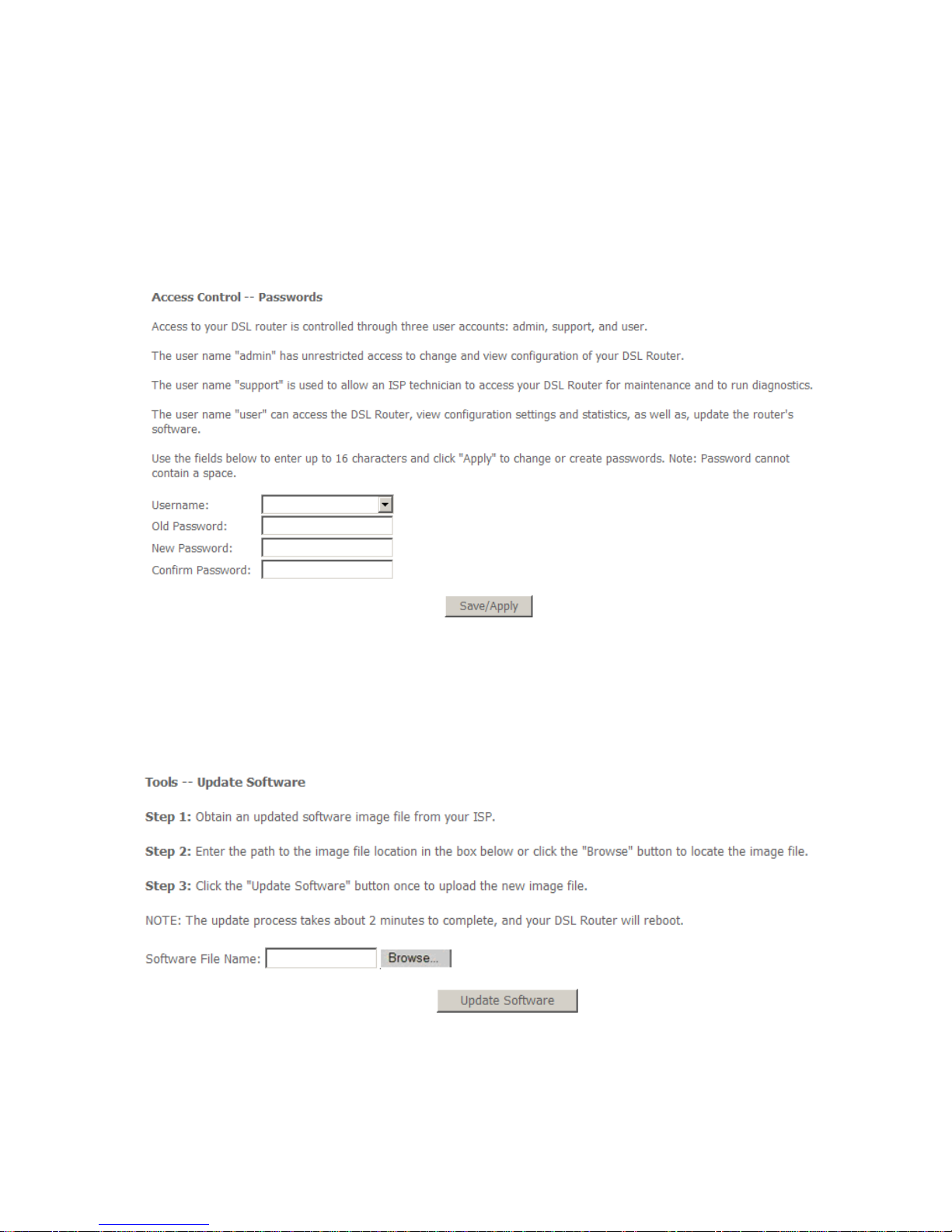

4.5.3 Access Control

4.5.3.1 Access Control – Passwords

Choose Management > Access Control > Passwords, and the following page
appears. In the interface, you can modify the accounts passwords.

4.5.4 Update Software

Click Management > Update Software, and the following page appears. In this
interface, you can update the modem firmware. Click Browse to find the right
version file and click Update Software to update.

Note: Do not turn off your modem during firmware updates.
When the update is finished, the modem reboots
automatically. Do not turn off your modem either before the

61

reboot is over. You must guarantee the update software is
right and accurate. It is strictly forbidden to use other
software for updates.

After update software, it is suggested to restore the modem to the factory defaults
and configure it again.

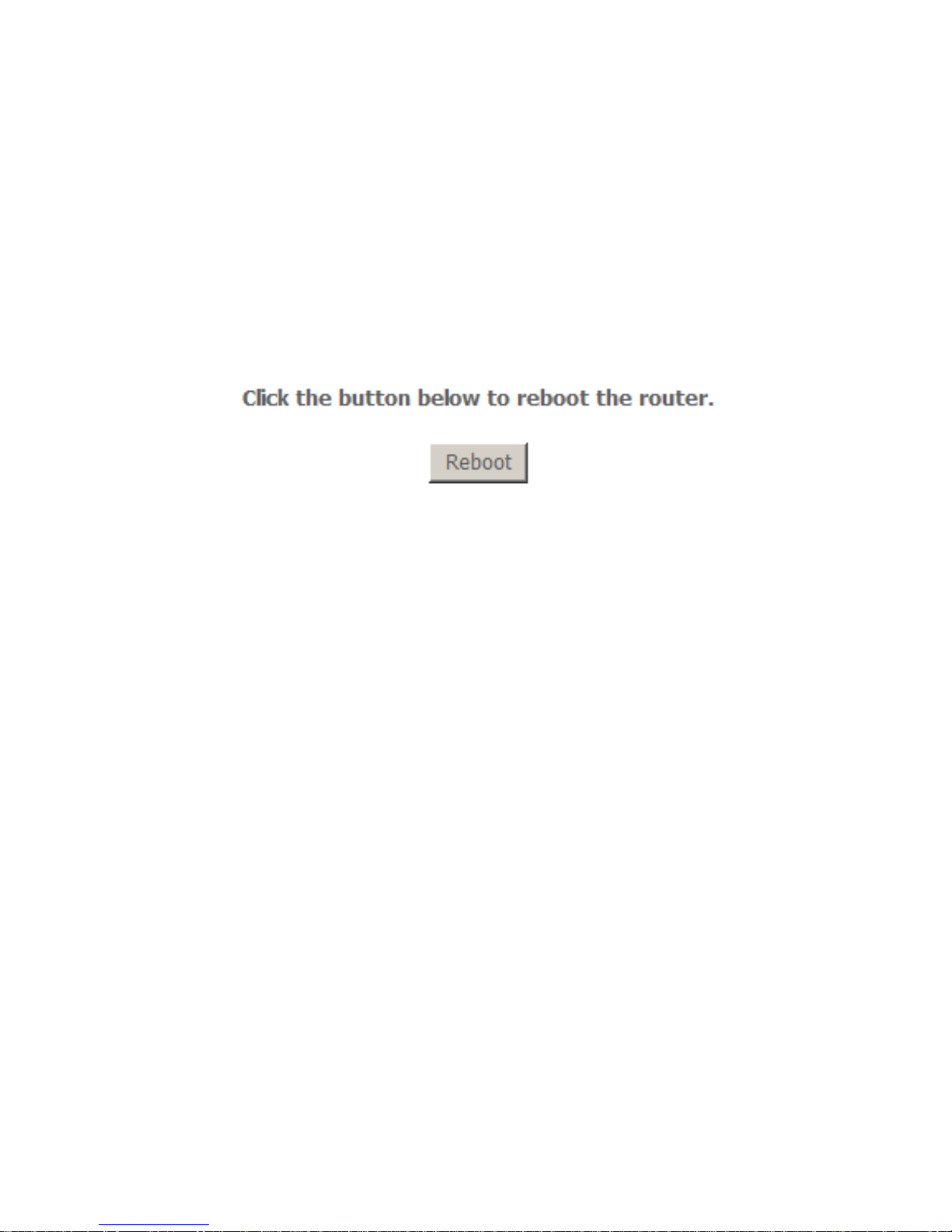

4.5.5 Reboot

Choose Reboot and the following page appears. Click Reboot to reboot the router.
