No part of this publication may be reproduced in any form or by any means, whether
electronic, mechanical, photocopying, or recording without the written consent of OvisLink
Corp.
OvisLink Corp. has made the best effort to ensure the accuracy of the information in this
user’s guide. However, we are not liable for the inaccuracies or errors in this guide.
Please use with caution. All information is subject to change without notice
All Trademarks are properties of their respective holders.
AirLive N.Power User’s Manual
Copyright and Disclaimer
FCC Statement
Federal Communication Commission Interference Statement This equipment has been
tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
z Reorient or relocate the receiving antenna.
z Increase the separation between the equipment and receiver.
z Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
zConsult the dealer or an experienced radio/TV technician for help.
FCC Caution
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation. For product available in the USA/Canada market, only channel 1~11 can be
operated. Selection of other channels is not possible.
This device and its antenna(s) must not be co-located or operation in conjunction with any
other antenna or transmitter.
IMPORTANT NOTE
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20cm between the radiator & your body.
The N.Power is a wireless multi-function router based on 150Mbps wireless-b/g/n 2.4GHz
radio technologies. Users can share a wireless 3G/3.5G USB modem or xDSL cable
modem internet connection at high speed. It also provides to 4 operation modes to satisfy
different application environments. In addition, it features passive PoE port for installations
in places that have no nearby access to electricity. Please take notice of the following
features:
The N.Power can support 12V on its passive PoE port. You will need to purchase a
passive PoE Injector (PoE-1P) separately. For more information, please read section
2.4.1.
This product does not come with 3G modem. It works with your 3G USB dongle. For latest
3G USB dongle support list, please visit our website at www.airlive.com
If you encounter any technical issues, we strongly recommend you read through Chapter
10: Frequent Asked Questions. The answers you need are very likely to be there.
.
1.2 Firmware Upgrade and Tech Support
If you encounter a technical issue that can not be resolved by information on this guide, we
recommend that you visit our comprehensive website support at www.airlive.com. The
tech support FAQ are frequently updated with latest information.
In addition, you might find new firmwares that either increase software functions or provide
bug fixes for N.Power. You can reach our on-line support center at the following link:
http://www.airlive.com/support/support_2.jsp
Since 2009, AirLive has added the “Newsletter Instant Support System” on our website.
AirLive Newsletter subscribers receives instant email notifications when there are new
download or tech support FAQ updates for their subscribed airlive models. To become an
AirLive newsletter member, please visit: http://www.airlive.com/member/member_3.jsp
1 AirLive N.Power User’s Manual
1. Introduction
N.Power
1.3 Features
Wireless-N AP Router
1 x USB 2.0 Port
Work with 3G/3.5G/UMTS/EVDO/HSDPA USB Dongle
7 LED indicators
Hotspot authentication function
150Mbps 1T1R Wireless-b/g/n standard
12V Passive POE Port
WAN port for ADSL/Cable Modem support
3G Router, AP, Client, Bridge, Repeater modes
Router, AP, Client, Bridge, Repeater modes
Bandwidth Control
8MB Flash, 32MB SDRAM
Green AP energy saving function
Wall Mount Screw Holes
Emergency firmware recovery mode
AirLive N.Power User’s Manual
2
1. Introduction
1.4 Operation Modes
The N.Power can perform as a multi-function wireless device. Through the AirLogic web
interface, users can easily select which wireless mode they wish the N.Power to perform.
The N.Power can be configured to operate in the following wireless operation modes:
N.Power Wireless Operation Mode
Wireless Mode Radio WAN Application
Router AP Yes
AP AP none
Client Client none Connect to AP Router
WDS Bridge WDS none Create a backbone connection
WDS Repeater AP + WDS N/A
Sharing Internet Broadband
Wirelessly
Hotspot only or extend distance
of another WDS AP/Router
Extend the wireless signal. WDS
Repeater setting is inside the
“Wireless Settings” of Router
mode and AP Mode.
1.4.1 Router Mode
In this mode, you can share your Internet connection both wired and wirelessly. The NAT
is applied for IP Sharing function from your WAN port to the LAN ports and wireless
interface.

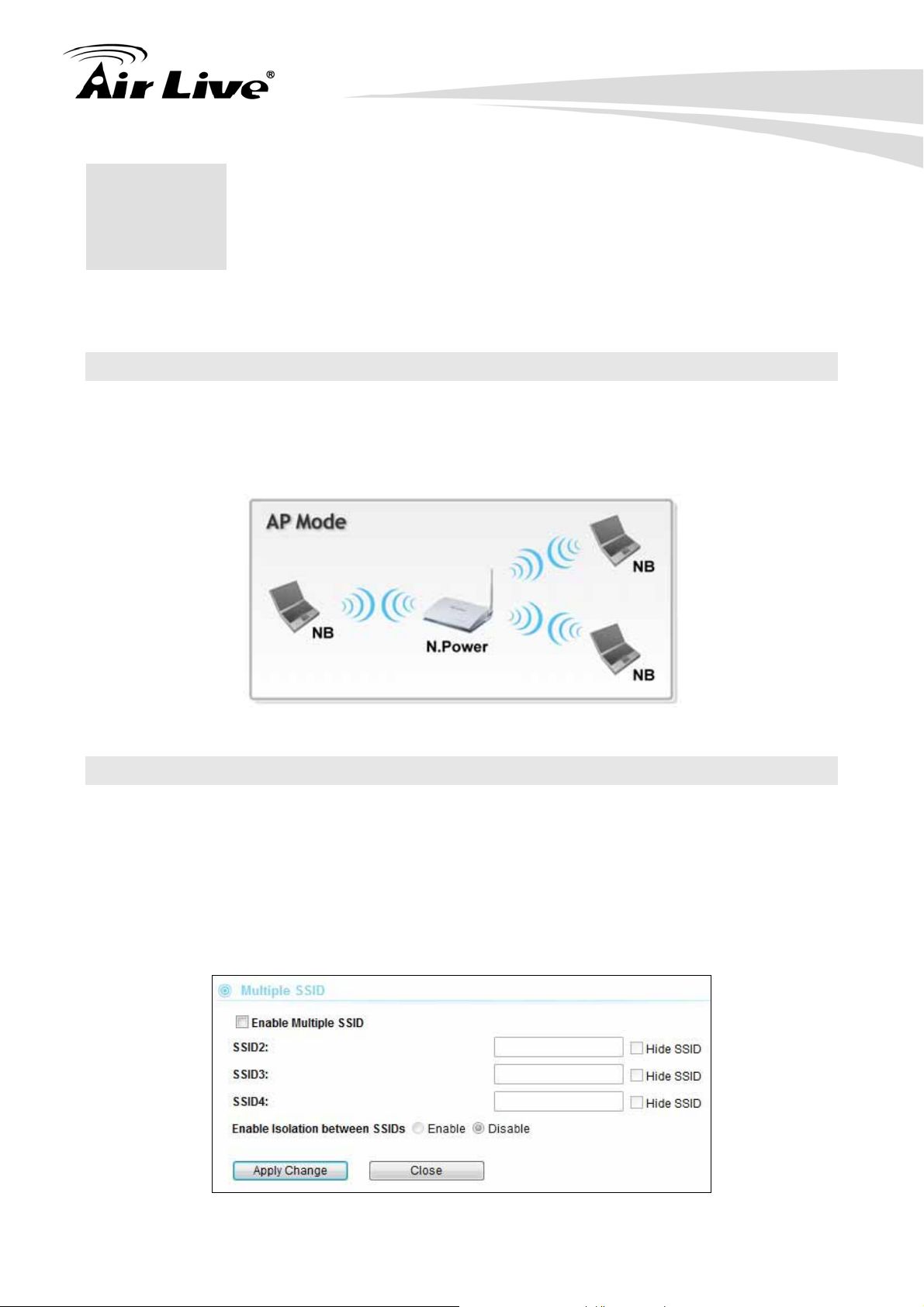

1.4.2 AP mode
When operating in the Access Point mode, the N.Power becomes the center hub of the
wireless network. All wireless cards and clients connect and communicate through
3 AirLive N.Power User’s Manual
1. Introduction
N.Power. This type of network is known as “Infrastructure network”. Other N.Power or
802.11 b/g/n devices can connect to AP mode through Client Mode.

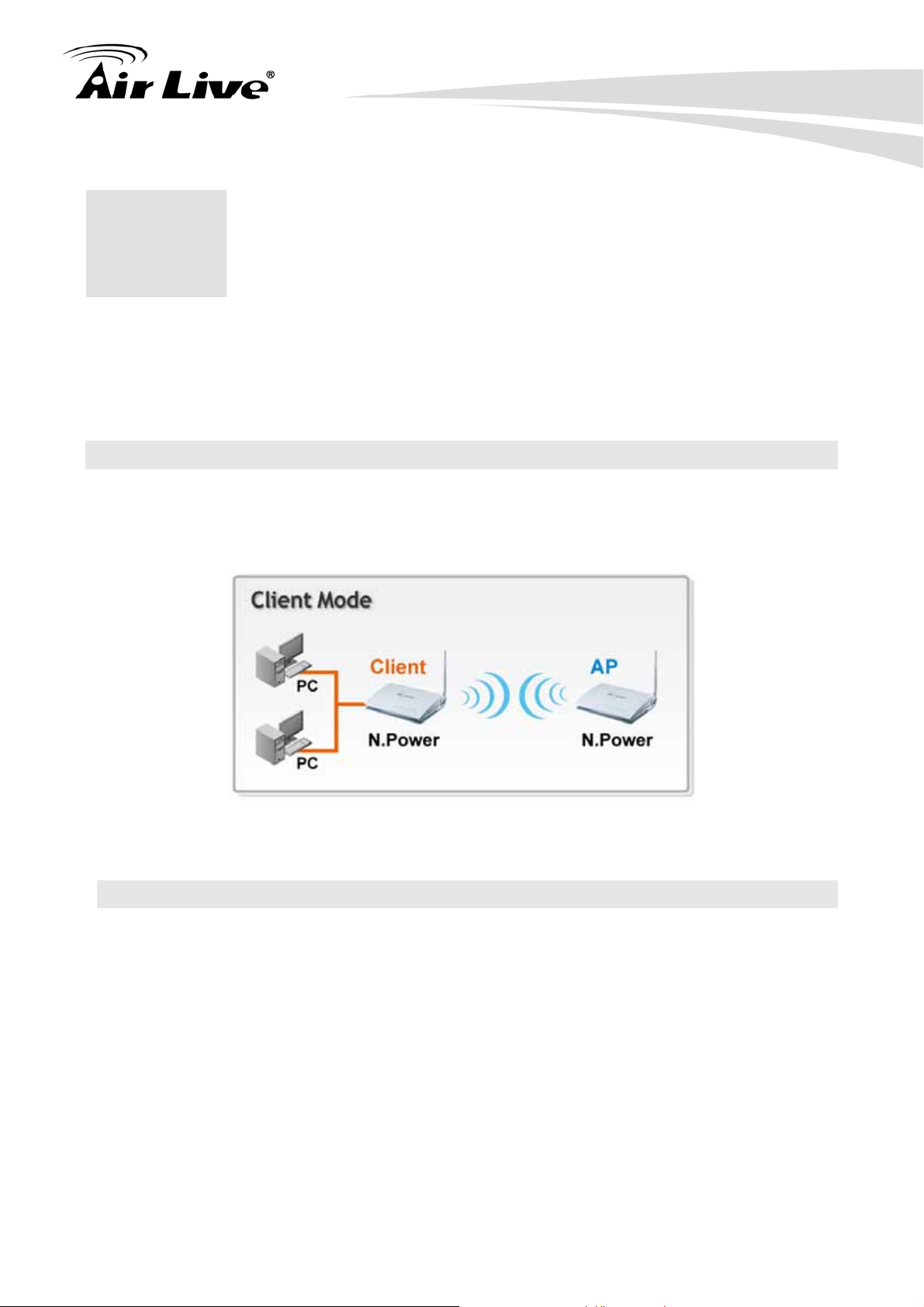

1.4.3 Client Mode
The N.Power acts as if it is a wireless adapter to connect with a remote Access Point.
Users can attach a computer or a router to the LAN port of N.Power to get network access.

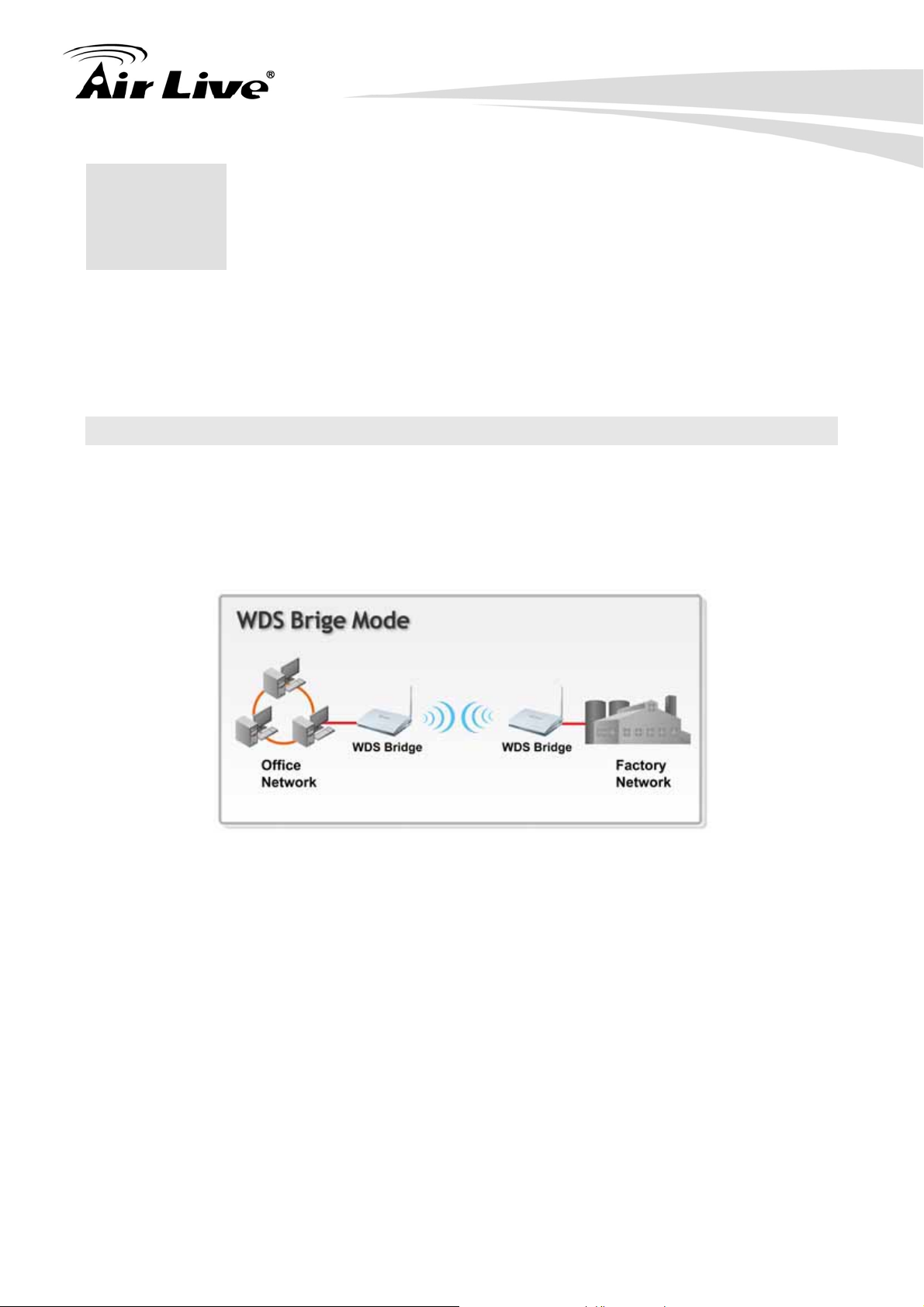

1.4.4 WDS Bridge Mode
This mode is best used when you want to connect LAN networks together wirelessly (for
example, between office and warehouse). WDS Bridge using WPA-PSK or WPA2-PSK
encryptions might be limited to devices using the same wireless chipset.
WDS Bridge works by entering remote Bridge’s wireless MAC address on the WDS table.
You can find the MAC address on the bottom label of the N.Power.
AirLive N.Power User’s Manual
4
1. Introduction
1.4.5 WDS Repeater Mode
The purpose of repeater is to extend the wireless signal of the remote AP/Router. In
N.Power, the AP mode and the Router mode also turn it to “WDS Repeater mode.” You can

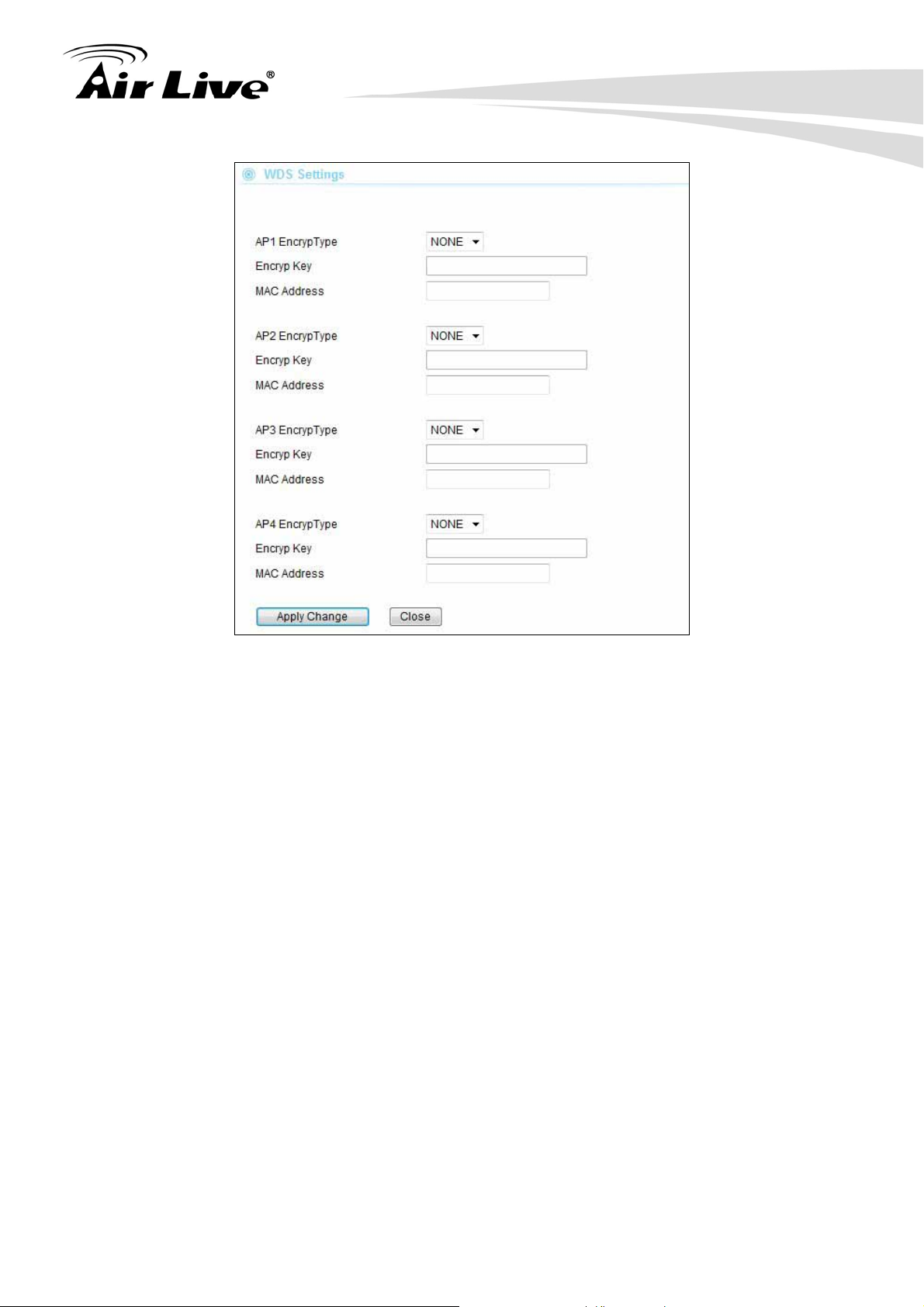

find the WDS settings in the “Wireless Settings” page.
connection to work.

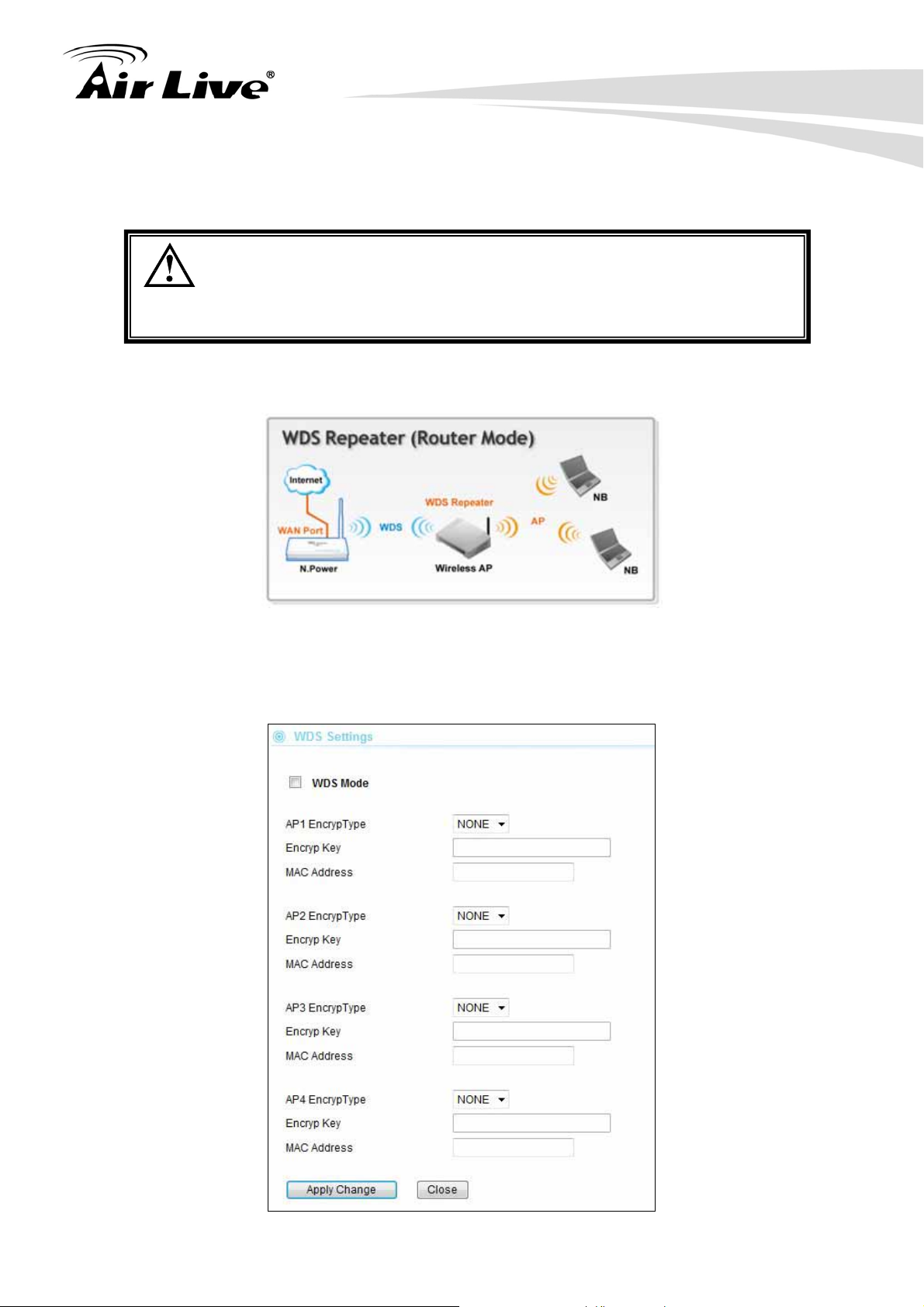

WDS Repeater in Router Mode
The WDS Repeater function in Router mode is to allow the remote AP to extend the
wireless signal of N.Power. Please see the diagram below:
Both sides must support WDS

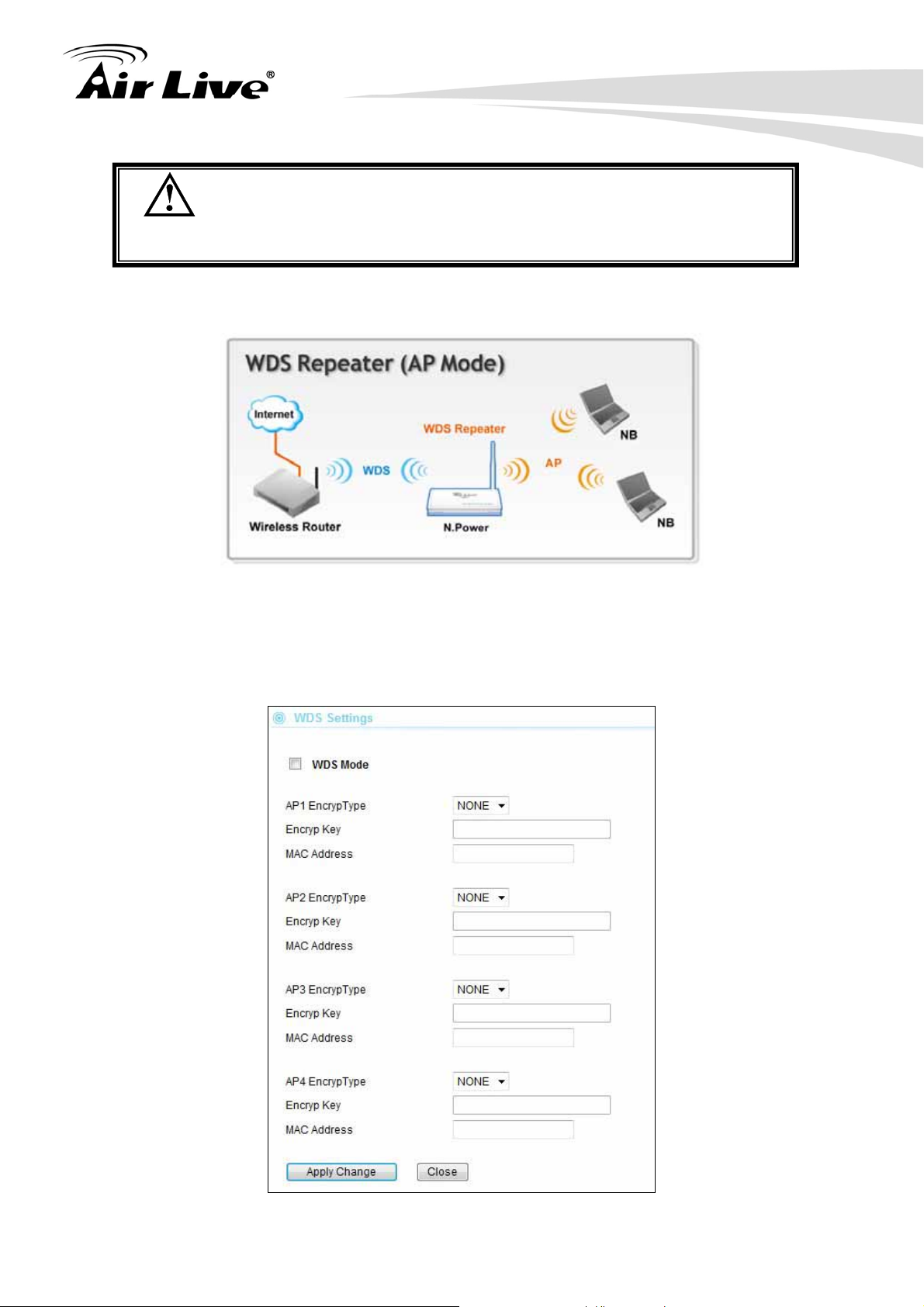

WDS Repeater in AP Mode
The WDS Repeater function in AP mode is to extend the wireless signal of remote AP.
Please see the diagram below for details:
5 AirLive N.Power User’s Manual
1. Introduction
For information on how to configuration WDS Repeater, please go to section 4.4.10 or
section 6.2.8.
AirLive N.Power User’s Manual
6
2. Installing the N.Power
2. Installing the N.Power
2
This section describes the hardware features and the hardware installation procedure for
the N.Power. For software configuration, please go to chapter 3 for more details.
2.1 Before You Start
It is important to read through this section before you install the N.Power
The LAN1 port also work as the passive POE port
You must install the antenna first before plugging in the power. Otherwise,
the wireless radio might be damaged. Damage caused by not following
the installation procedure might void your warranty.
The passive PoE DC Injector is optional; it is not included with the package.
Please use a 12V passive POE system with N.Power’s passive POE port. Do
not use 802.3af 48V system or PoE switch with this device.
To protect the N.Power USB port from damage, please turn off the power when
plugging in or pulling out USB dongle from the USB port.
Work with 3G/3.5G/UMTS/EVDO/HSDPA USB Dongle
2.2 Package Content
The N.Power package contains the following items:
One N.Power main unit
One 12V 1A DC power adapter
1 x Antenna
User’s Guide CD
Quick Start Guide
2.3 Knowing your N.Power
Below are descriptions and diagrams of the product:
7 AirLive N.Power User’s Manual
2. Installing the N.Power
1
6
5
7
3
2
4
1
Antenna Connector
Power Adapter Connector
2
3
WAN Port
LAN Ports (LAN1 for Passive PoE Port)
4
5
Reset Button
6
WPS Button
7
USB Port (For 3G Dongle Use)
8
LED Indicators
2.4 Hardware Installation
.1. Please install the antennas by turning clock wise into the RF antenna connectors
AirLive N.Power User’s Manual
8
2. Now connect the power adapter to the N.Power
2. Installing the N.Power
3. Connect the Ethernet cable to one of the LAN port and the other end to your PC.
4. If you have broadband connection, please connect the Internet cable to “WAN port”.
9 AirLive N.Power User’s Manual
2. Installing the N.Power
5. Open your browser and type “192.168.1.254” to access the web management
interface.
2.4.1 Passive PoE Installation
If you want to supply the power by using Passive PoE, please follow the installation
diagram below. Please note that the passive DC Injector is not included with N.Power, it
needs to be purchased separately (AirLive Model: PoE-1P). N.Power uses 12V passive
PoE system, it doesn’t work with 802.3af PoE switch or 48V PoE Kit. It is recommended
to use a power adapter of 12Vdc at 1.25A or greater if you have the USB dongle installed.
AirLive N.Power User’s Manual
10
2. Installing the N.Power
2.4.2 Wall Mount Installation
1. The holes for the wall mount screw are on the underside of the case. Please measure the
distance between the holes. Then install 2 screws in the desire location with the measured
distance apart from each other. Please do not screw all the way in, leave some space for
mounting with the N.Power
2. Now please hang the N.Power on those 2 screws.
11 AirLive N.Power User’s Manual
2. Installing the N.Power
2.5 LED Table
This section describes the LED behavior of N.Power. You can find the LED on the top
side of the N.Power.
WPS (Power)
Steady Blue – Normal Operation
Slow Flashing: WPS Surveying
OFF – No Power
WLAN
Slow Flashing : Radio is active
Fast Flashing: Transmitting Data
OFF: Radio Disabled
LAN1 ~4, WAN
Steady Blue : Link established
Fast Flashing: Transmitting Data
OFF: No Link

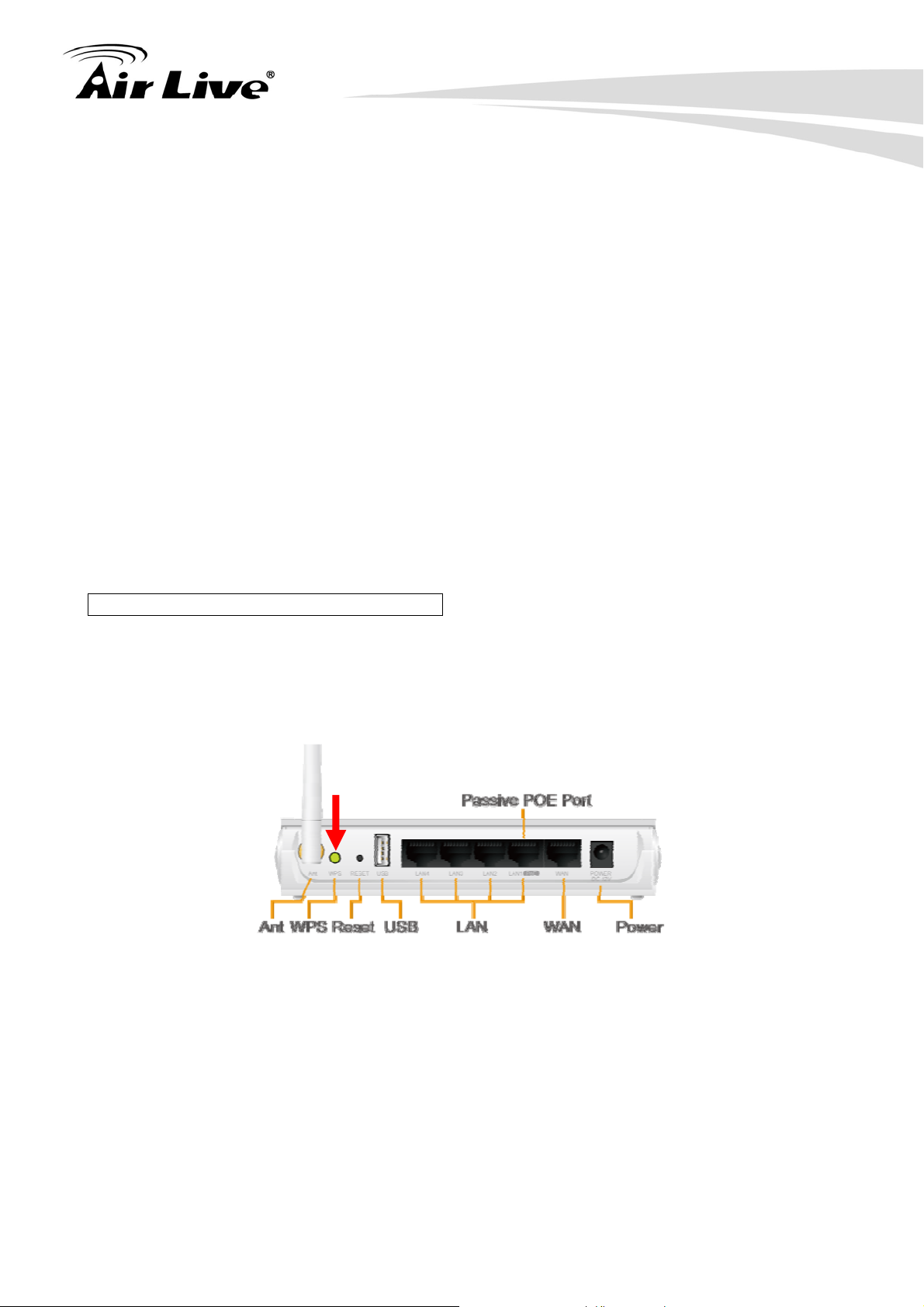

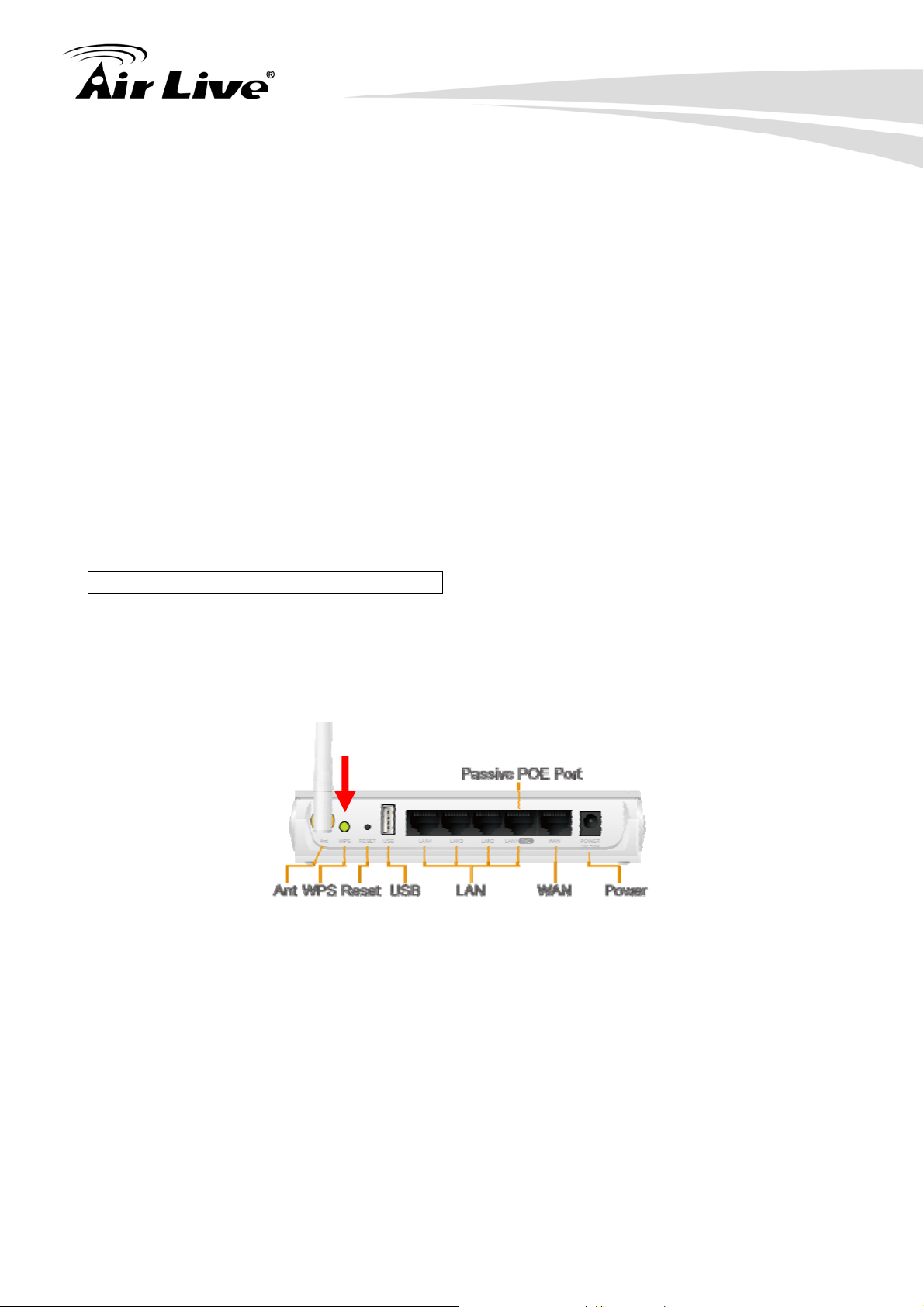

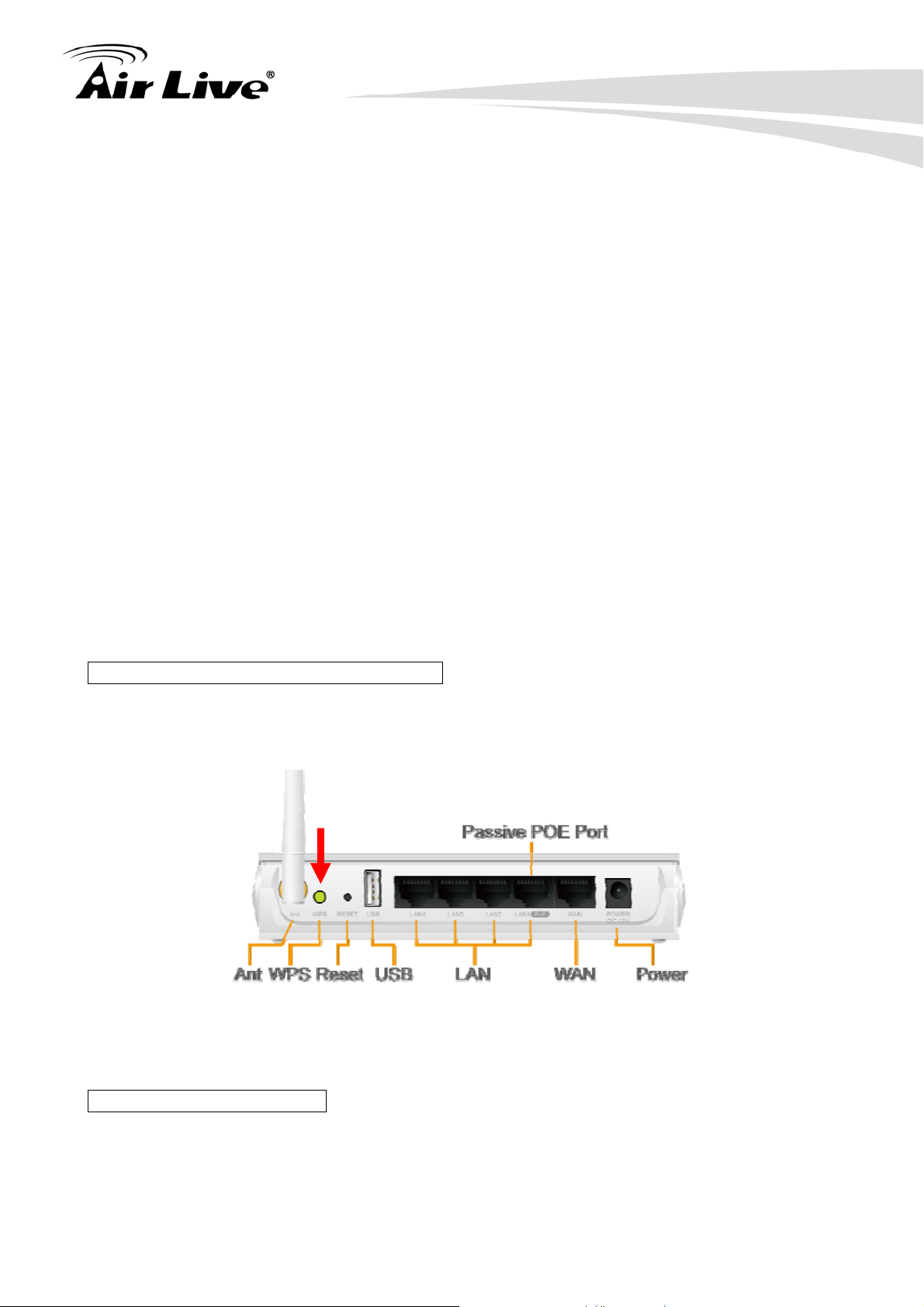

2.6 Restore Settings to Default
If you have forgotten your N.Power’s IP address or password, you can restore your
N.Power to the default settings by pressing on the “reset button” for more than 10 seconds.
You might need a pen or pencil for this operation. The reset button is inside the bottom
case. Please see diagram below for details.
AirLive N.Power User’s Manual
12
3. Configuring the N.Power
3. Configuring the
3
The N.Power offers web browser (http) as management interface. In this chapter, we will
explain N.Power’s management interface and how to get into them.
N.Power
3.1 Important Information
The following information will help you to get start quickly. However, we recommend you
to read through the entire manual before you start. Please note the password and SSID
are case sensitive.
The default IP address is: 192.168.1.254 Subnet Mask: 255.255.255.0
The default Account is “admin”
The default Password is “airlive”
The default SSID is “airlive”
The default wireless mode is : Router mode
Please remember to “Apply Change” for settings to be saved and take effect.
Please remember to “Reboot” the device after all settings are changed.

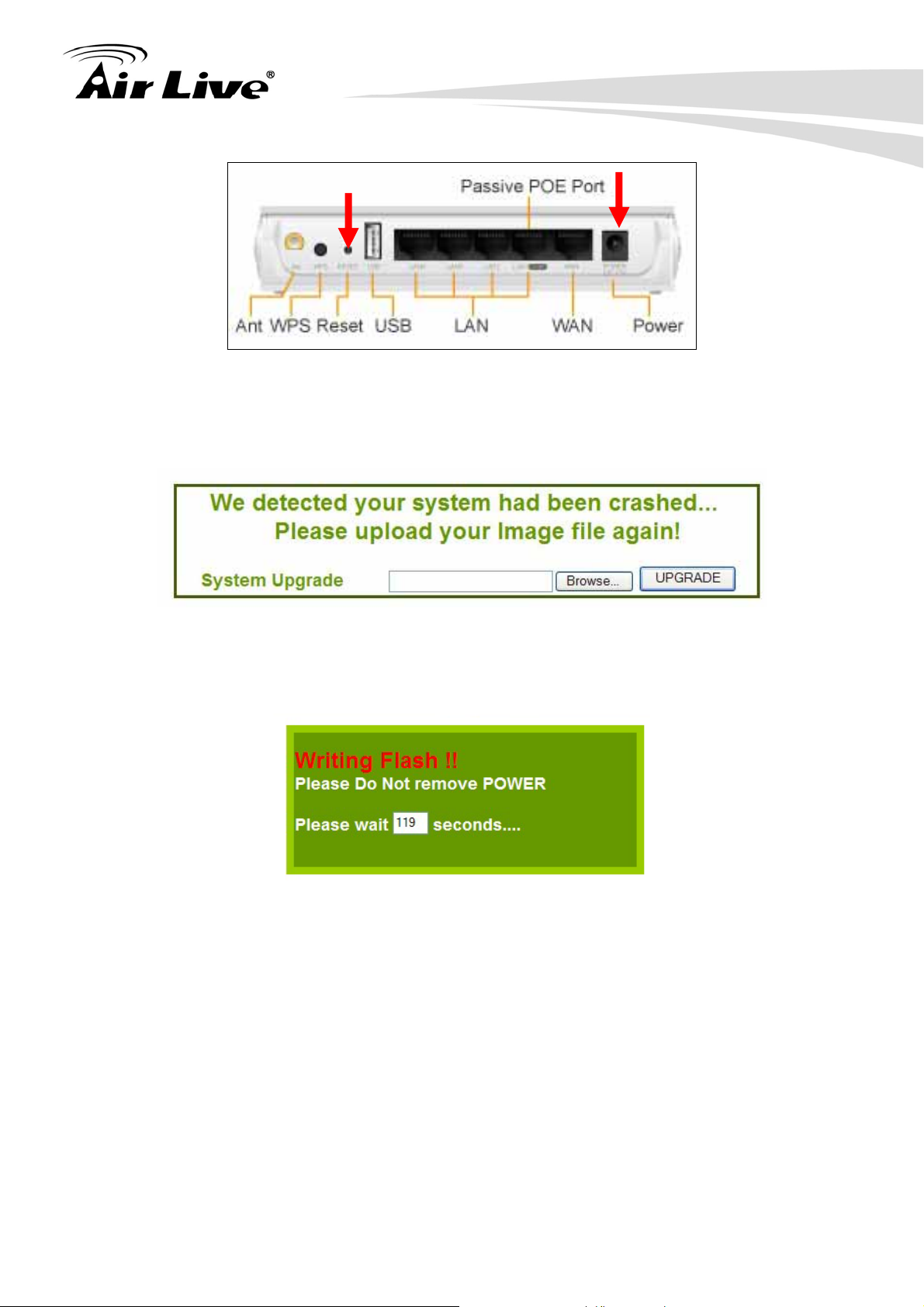

The Emergency Firmware Recovery only works when you connect to LAN1~4
By Default, the DHCP server is turned on in Router mode. The other modes’
DHCP servers are turned off. Therefore, if you switch from Router mode to other
modes, please remember to configure your PC’s IP address manually.
For instruction on how to configure the FTP function, please go to Chapter 4.3
3.2 Prepare your PC
.
The N.Power can be managed remotely by a PC through either the wired or wireless
network. The default IP address of the N.Power is 192.168.1.254 with a subnet mask of
255.255.255.0. This means the IP address of the PC should be in the range of
192.168.1.1` to 192.168.1.253.
To prepare your PC for management with the N.Power, please do the following:
1. Connect your PC directly to the LAN port on the DC Injector of N.Power
13 AirLive N.Power User’s Manual
3. Configuring the N.Power
2. Set your PC’s IP address to “Obtain an IP address automatically”. The N.Power
should provide your PC a valid IP address.
3. If you want to set your PC’s IP address manually, please set to 192.168.1.50 (or other
address in the same subnet)
50
You are ready now to configure the N.Power using your PC.
3.3 Introduction to Web Management
The N.Power can be configured using the Web management interfaces by simply typing its
IP address in the web browser. Most functions of N.Power can be accessed by it.
If you are placing the N.Power behind router or firewall, you might need to open the port 80
at virtual server on your firewall/router. This procedure is not necessary in most cases
unless there is a router/firewall between your PC and N.Power.
3.3.1 Getting into Web Management
To get into the Normal Web Management, simply type in the N.Power’s IP address (default
IP is 192.168.1.254) into the web browser’s address field.
AirLive N.Power User’s Manual
14
3. Configuring the N.Power
3.3.2 Web Menu Structure
We recommend users to browse through N.Power’s web management interface to get an
overall picture of the functions and interface.
After you enter the Web configuration, the following screen will appear:
Internet Settings
Language Selection
Internet Settings: When you choose Router mode, the “Internet Settings” bottom
will be shown and you will be able to configure internet related functions here.
This menu will disappear when you switch to other wireless mode.
Wireless Settings: The N.Power’s wireless settings are different between wireless
modes. Only functions that are applicable to the wireless mode will show to
simplify configuration. You can also change the operation mode from this menu.
For explanation of different wireless modes, please refer to Chapter 1.
System Configuration: All non-wireless and router mode settings are in this
category. The system configurations including changing password, upload
firmware, backup configuration..
Status: This section for monitoring the status of N.Power. It provides information
on Device Information, Statistic, Client table, and Log.
Reboot: Most of settings will require to click the “Reboot” bottom to take effect the
settings you applied.
Language Selection: You can change the language for the Web interface from
here.
15 AirLive N.Power User’s Manual
3. Configuring the N.Power
3.4 Configuration Wizard
The configuration Wizard is the first screen you will see after you login. It will ask you a
few questions to setup your wireless and broadband connection quickly.
Step 1: Please enter your own SSID and Encryption Key. The default encryption type is
WPA2-PSK (AES). The encryption key should be at least 8 alphanumeric
characters.
Step 2: Choose your Broadband Connection type. If you are not sure about setup
information, please ask your ISP for parameters.
AirLive N.Power User’s Manual
16
3. Configuring the N.Power
Step 3: Please click “Finish” to reboot the system if you are sure about all settings.
3.5 Change Operation Mode
The wireless settings of N.Power are dependant on the wireless operation mode you
choose. For explanation on when to use what operation mode, please refer to Chapter 1
Changing Mode Procedure:
1. Select “Wireless Setting”
2. Choose your required wireless mode.
3. The AP might ask you to confirm the mode change. Once confirm, the AP will reboot to
its new mode.
Note: When you change from Router mode to other modes, the DHCP server will be turned off. In
this case, you must manually configure your PC’s IP address to the same subnet as the
N.Power. Likewise, when you change from other modes to Router mode, the DHCP server will be
turned on.
3.6 WPS (WiFi Protected Setup)
WPS is a system that simplifies the process to established wireless security. There are two
ways to configure WPS connection:
1. PBC (Push Button Communication) using hardware or software:
Push WPS buttons on both AP and Client site, the WPS connection will connect
automatically. You can find N.Power’s WPS Push button on the back of the router.
17 AirLive N.Power User’s Manual
3. Configuring the N.Power
2. PIN (Personal Information Number) Enrollee and Registrar:
WPS Registrar site should be entered the PIN Code from Enrollee site, the WPS
connection will connect automatically.
It is recommended to use the first option as it is much simpler to configure.
3.6.1 AP and Router Modes
Example1: Using Hardware Push button
Please push WPS button directly on the back of the N.Power. The “WPS” LED flash will
light and the N.Power will start to survey the client’s WPS signal in the current environment.
Please be noticed that, within two minutes, you have to turn on the utility of your wireless
network card and click PBC to connect automatically.
If you also have a hardware WPS button on your wireless card, you can push the button
immediately now. If not, you can usually find the WPS PBC function in the wireless utility.
Below is an example using AirLive WN-360USB wireless network card to connect with
N.Power.
6
7
AirLive N.Power User’s Manual
18
3. Configuring the N.Power

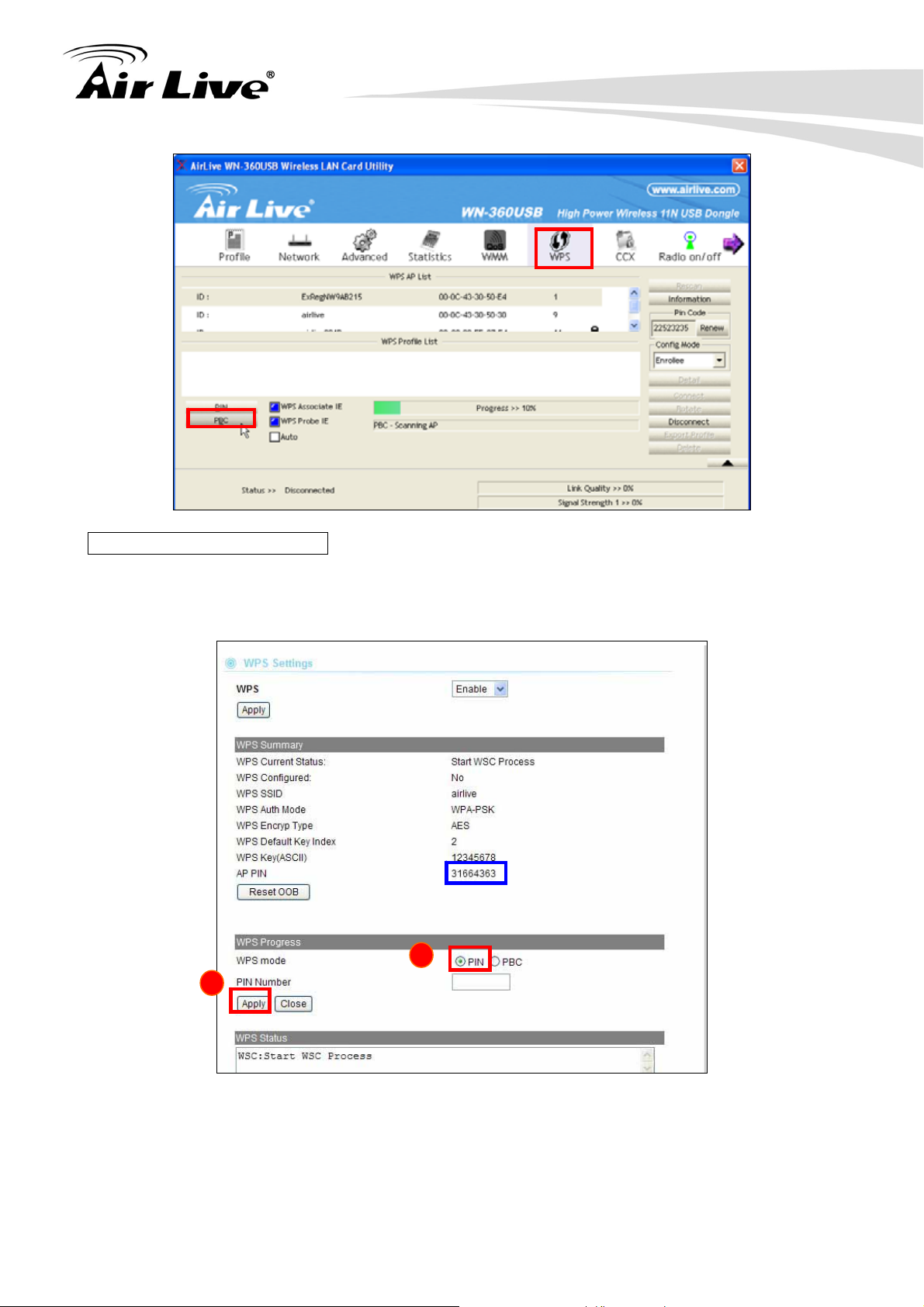

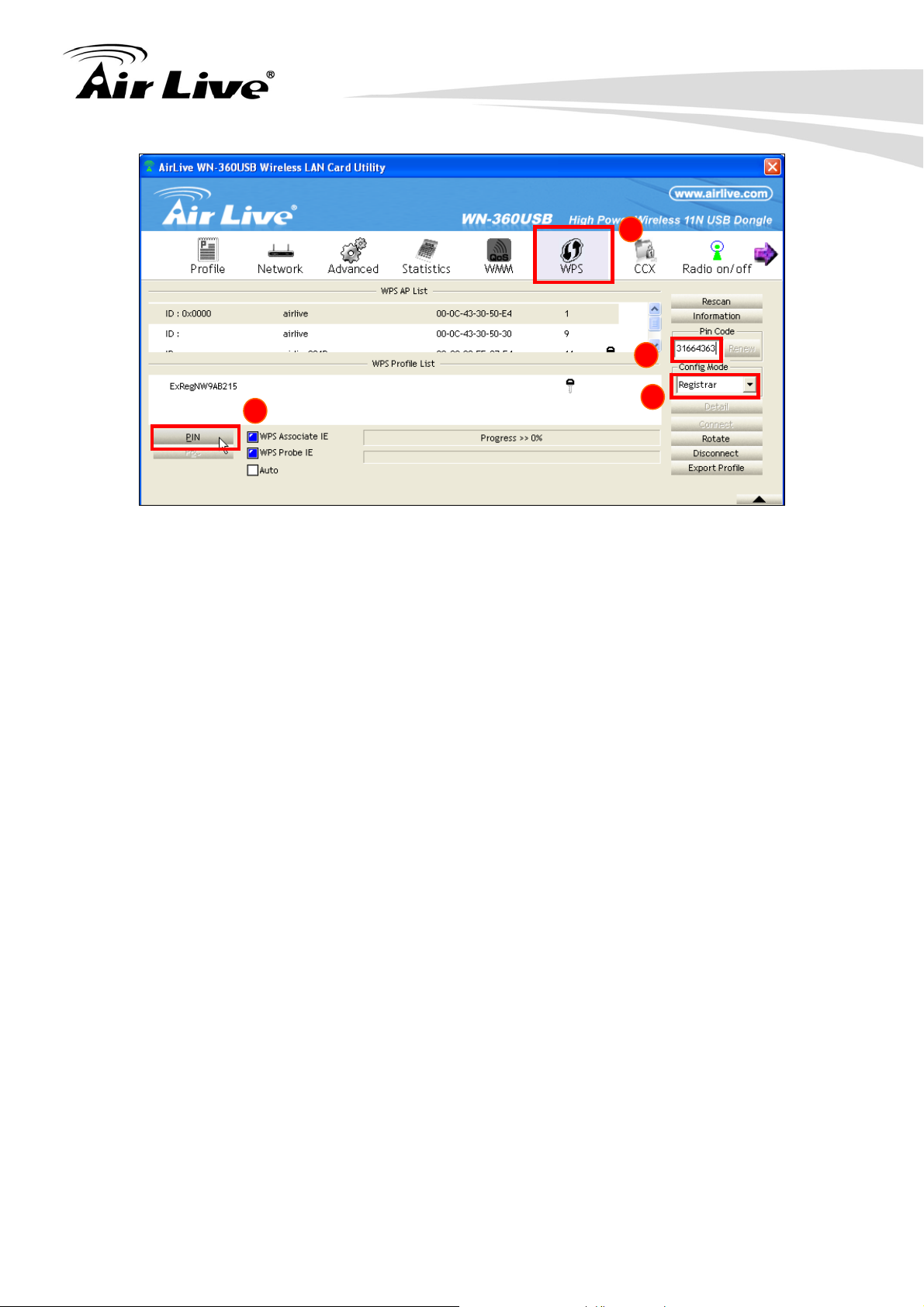

Example 2: WPS Using PIN
Please login N.Power’s Web UI. Select Wireless Setting Æ WPS Setting. In the WPS
Progress, select “PIN” then “Apply.” You will get a PIN Code.
PIN Code
1
2

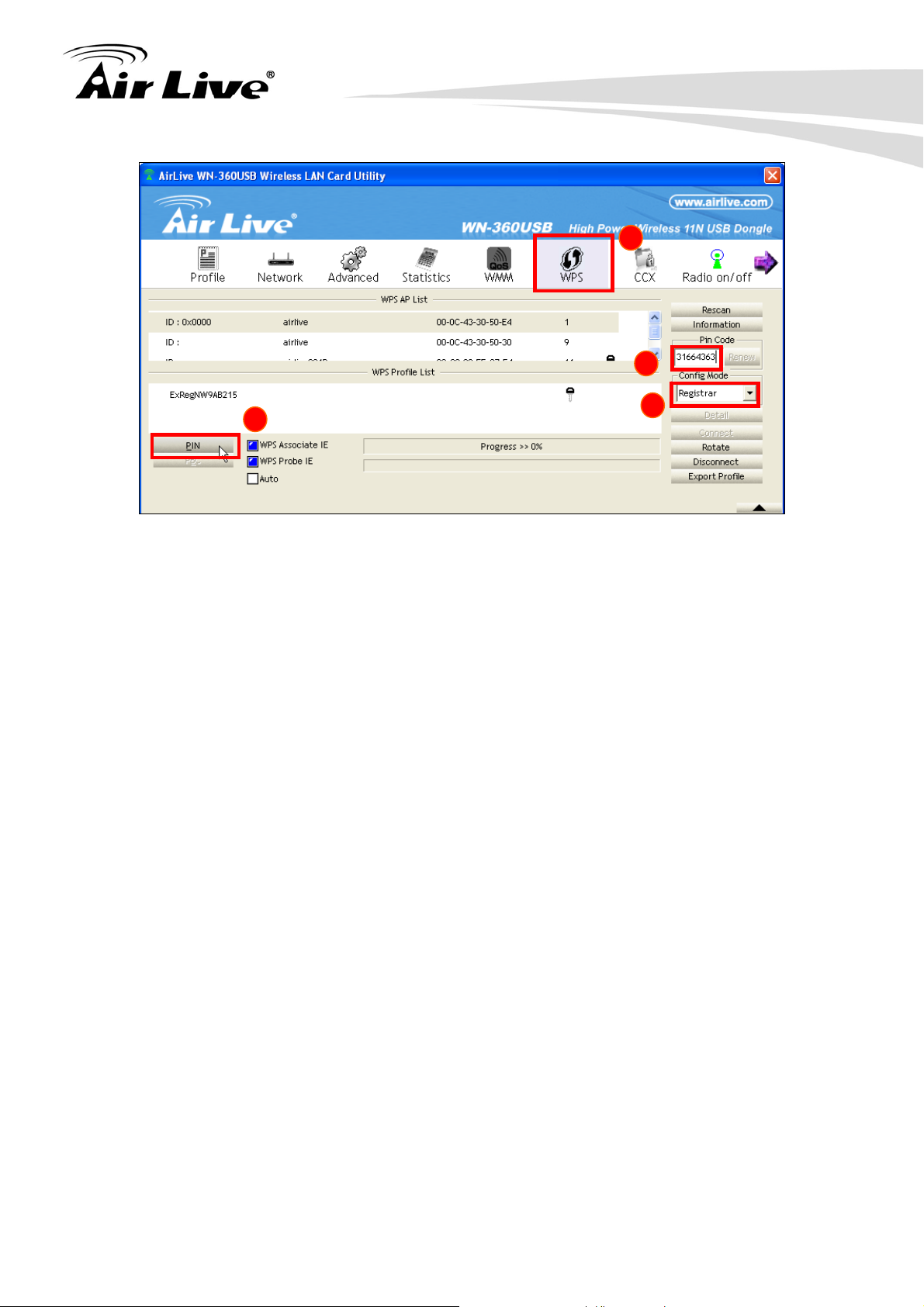

Then, please turn on the utility of your wireless network card. Choose WPS mode to
“Registrar” and enter the PIN Code. Press “PIN” and the connection will automatically
configure.
3
5
6
4
19 AirLive N.Power User’s Manual
3. Configuring the N.Power
3.6.2 Client Mode
Example 1: Using WPS hardware button
Please push WPS button directly on the back of the device. The “WPS” LED flash will light
and the N.Power will start to survey the AP’s WPS signal in the current environment.
Within two minutes, please push WPS button on your AP device, the connection will
automatic successfully.
Example 2: WPS using PIN

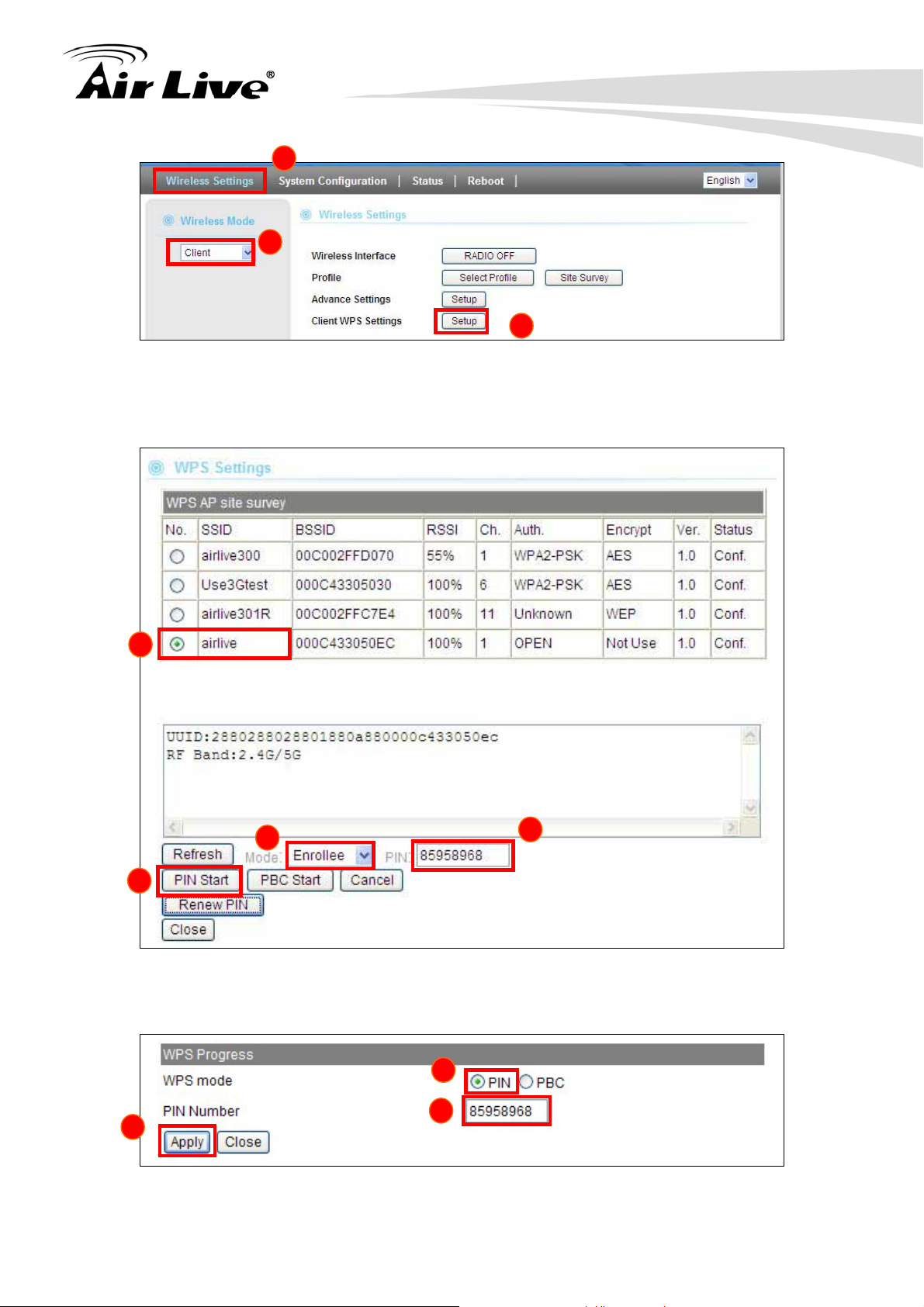

Please login N.Power’s Web UI. Select Wireless Setting Æ change to Client mode Æ
Client WPS Setting.
1
2
3

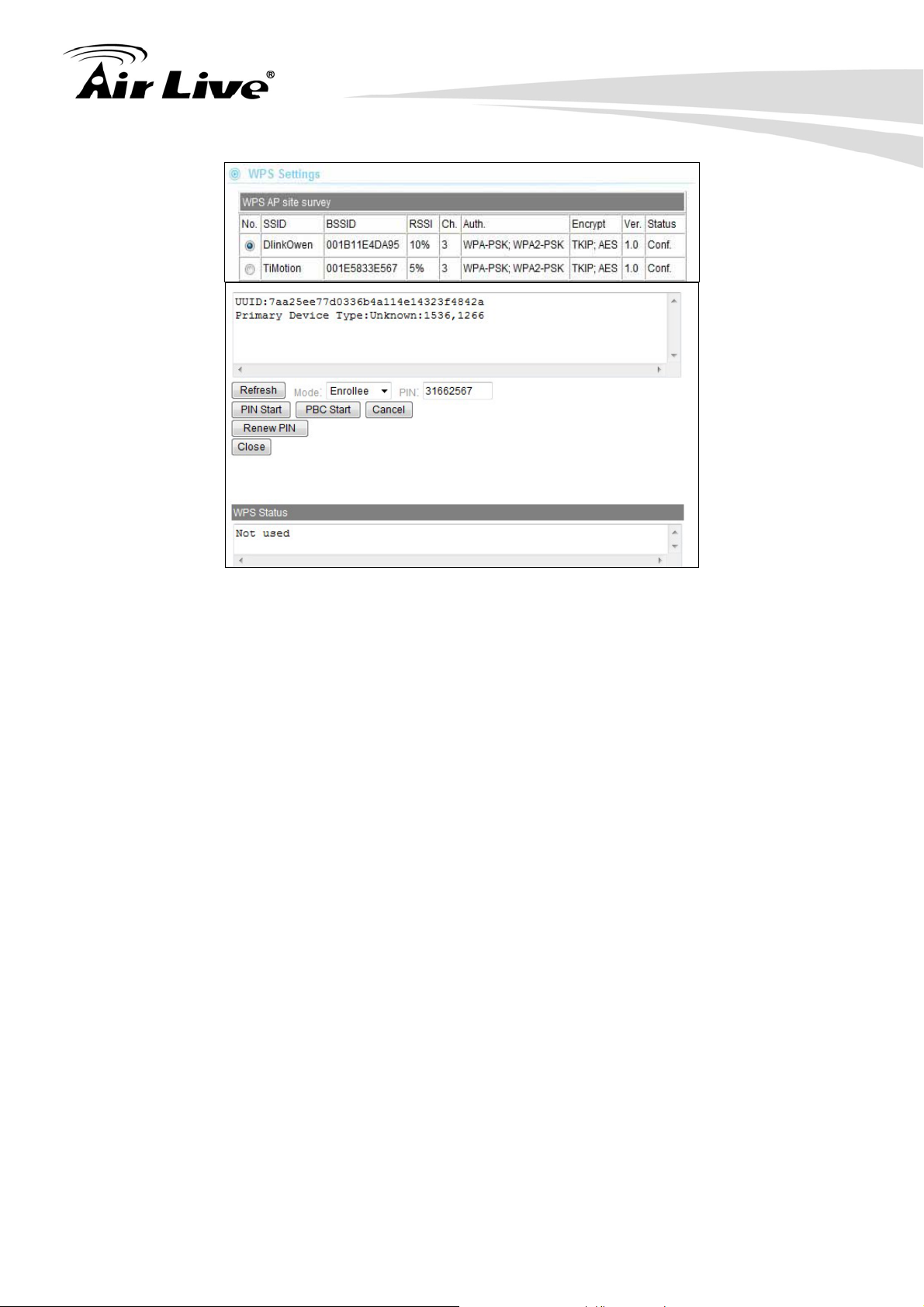

Select the SSID that you want to connect. Choose WPS mode to “Enrollee” and get a PIN
Code in the field. Then press “PIN Start” and the “WPS” LED flash will light two minutes
on the device’s housing.
AirLive N.Power User’s Manual
20
3. Configuring the N.Power
4
5
6
Copy PIN Code
7
Under AP site, Select Wireless Setting Æ WPS Setting. Choose WPS mode to “PIN” then
enter the PIN Code Æ click “Apply” and the connection will automatically configure.
8
Enter PIN Code
10
10
9
21 AirLive N.Power User’s Manual
4. Configuration: Router Mode
4. Configuration: Router
4
In this chapter, we will explain about the wireless settings for Router Mode. Please be
sure to read through Chapter 1.5 and Chapter 3’s “Introduction to Web Management”.
Mode
4.1 Application for Router Mode
The router mode is the main operation mode of the N.Power. In this mode, you can share
your Internet connection both wired and wirelessly. The NAT is applied for IP Sharing
function from your WAN port to the LAN ports and wireless interface.
4.2 Internet Setting Menu
The Internet Setting Menu is the first menu you will see after login to N.Power. All WAN
related configurations can be found here. This menu will not appear in any other modes.
AirLive N.Power User’s Manual
22
4. Configuration: Router Mode
4.2.1 Setup Wizard
The configuration Wizard is the first screen you will see after you login. It will ask you a
few questions to setup your wireless and broadband connection quickly.
Step 1: Please enter your own SSID and Encryption Key. The default encryption type is
WPA2-PSK (AES). The encryption key should be at least 8 alphanumeric
characters.
Step 2: Now, please choose the WAN type and enter your account information. If you
are not sure about setup information, please ask your ISP for parameters.
23 AirLive N.Power User’s Manual
4. Configuration: Router Mode
Step 3: Please click “Finish” to reboot the system if you are sure about all settings.
4.2.2 WAN Setting
Internet Settings -> WAN Settings
WAN Connection Type: Choose your ISP connection Type. If you are using ADSL
connection, the most likely connection type is PPPoE. If you are using Cable Modem,
the most likely connection type is DHCP. However, please consult with your ISP
about the correct setting first.
TTL: Time to Live is a 8-bit value in the IP header. Your ISP might require to set this
value to work. Please consult with your ISP settings to check if setting the TTL is
required. In most cases, it is not. If it is required, please enable TTL then enter the
value in the below field.
AirLive N.Power User’s Manual
24
Loading...
+ 72 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
