Ovislink EVO-W300AR User Manual

EVO-W300AR

Copyright Statement

OvisLink is the registered trademark of Shenzhen OvisLink Technology Co., Ltd. All the products and
product names mentioned herein are the trademarks or registered trademarks of their respective
holders. Copyright of the whole product as integration, including its accessories and software, belongs
to Shenzhen OvisLink Technology Co., Ltd. Without the permission of Shenzhen OvisLink Technology
Co., Ltd, any individual or party is not allowed to copy, plagiarize, imitate or translate it into other
languages.

All the photos and product specifications mentioned in this manual are for references only. As the
upgrade of software and hardware, there will be changes. And if there are changes, OvisLink is not
responsible for informing in advance. If you want to know more about our product information, please
visit our website at www.ovislink.fr

Contents

Chapter 1: Introduction ...................................................................................................................... 1

Package Contents ..................................................................................................................................................................... 1

Chapter 2: Getting to Know the Wireless-N Broadband Router ...................................................... 2

The Back Panel .......................................................................................................................................................................... 2

The Front Panel ......................................................................................................................................................................... 3

The Top Panel ............................................................................................................................................................................. 4

Hardware Installation ............................................................................................................................. 5

Chapter 3: Getting to Connect the Wireless-N Broadband Router ................................................. 6

How to Set the Network Configurations for My Computer ...................................................................... 6

How to Check the Network Connection ............................................................................................................................ 9

Chapter 4: Basic Configurations ...................................................................................................... 11

How to Access the Web-based Configuration Utility ................................................................................................. 11

Setup Wizard ............................................................................................................................................................................. 12

Chapter 5: Advanced Settings ......................................................................................................... 15

LAN Settings ............................................................................................................................................................................. 14

WAN Settings—PPPoE......................................................................................................................................................... 16

WAN Settings—Static IP ....................................................................................................................................................... 17

MAC Address Clone ............................................................................................................................................................... 18

DNS Settings ........................................................................................................................................................................... 19

Chapter 6: Wireless Settings ............................................................................................................ 20

Basic Settings ......................................................................................................................................................................... 20

Wireless Security Settings ................................................................................................................................................... 21

WEP ............................................................................................................................................................................................. 21

WPA-Personal .......................................................................................................................................................................... 22

WPA2-Personal ........................................................................................................................................................................ 23

WPA-Enterprise ........................................................................................................................................................................ 23

WPA2-Enterprise ..................................................................................................................................................................... 23

802.1x .......................................................................................................................................................................................... 24

WPS ............................................................................................................................................................................................. 26

WDS ............................................................................................................................................................................................. 26

Advanced Wireless Settings ............................................................................................................................................... 27

Wireless Access Control ....................................................................................................................................................... 32

Wireless Connection Status ................................................................................................................................................ 33

Chapter 7: DHCP Server ................................................................................................................... 34

DHCP Server List .................................................................................................................................................................... 35

Chapter 8: Virtual Server .................................................................................................................. 36

Single Port Forwarding .......................................................................................................................................................... 36

Port Range Forwarding ......................................................................................................................................................... 38

DMZ Settings ............................................................................................................................................................................ 39

UPnP Settings .......................................................................................................................................................................... 39

Client Filter Settings ............................................................................................................................................................... 40

DNS Filter Settings ................................................................................................................................................................. 41

MAC Address Settings .......................................................................................................................................................... 42

Prevent Network Attack ......................................................................................................................................................... 43

Remote Web Management .................................................................................................................................................. 43

Local Web Management ....................................................................................................................................................... 44

Ping Settings ............................................................................................................................................................................. 44

Static Routing ........................................................................................................................................................................... 45

Chapter 9: System Tools .................................................................................................................. 46

Time .............................................................................................................................................................................................. 46

DDNS ........................................................................................................................................................................................... 46

Backup/Restore........................................................................................................................................................................ 47

Firmware Upgrade .................................................................................................................................................................. 48

Restore to Factory Default Settings ................................................................................................................................. 49

Reboot ......................................................................................................................................................................................... 50

Change Password ................................................................................................................................................................... 50

System Log ................................................................................................................................................................................ 51

Appendix A: Product Features ......................................................................................................... 52

OvisLink Evo-w300ar

Chapter 1: Introduction

Thank you for choosing the EVO-W300AR Wireless-N Broadband Router. It employs the advanced
MIMO (Multi Input, Multi Output) technology and integrates router, wireless access point, four-port
switch and firewall in one, which will allow you to share Internet access over the four switched ports or
via the wireless broadcast. Compatible with IEEE 802.11n (Draft 2.0) standard, it can connect with

existing 802.11b/g PCI, USB and Notebook adapters. Up to 300Mbps transmission rate allows you to
enjoy real-time activities such as video streaming, online gaming and so on.

Besides, the Wireless-N Broadband Router supports all of the latest wireless security features, such as
64/128-bit WEP encryption, WPS (PBC and PIN) encryption method, packet filtering and port

forwarding, to prevent unauthorized access and protect your network against malicious attack.

Moreover, the user-friendly Setup Wizard on the CD-ROM can assist you to set up the Wireless-N
Broadband Router easily. It also can be managed or configured through Local/Remote easy-to-use
Web-based utility. So it is the best choice for SOHOs and small-sized enterprises.

Package Contents

 One EVO-W300AR Wireless-N Broadband Router
 One Ethernet Network Cable
 One Quick Installation Guide
 One Power Adapter
 One CD-ROM

If any of listed items are missing or damaged, please contact the OvisLink reseller from whom you
purchased for replacement immediately.

1

OvisLink Evo-w300ar

Chapter 2: Getting to Know the Wireless-N Broadband Router

The Back Panel

Here is the description of the back panel. The RJ-45 ports for cable connection and Reset button are
located on the back panel as shown below.

2

OvisLink Evo-w300ar

The Front Panel

There are the Router’s LED indicators on the front panel as shown below.

LED Indicator Status Description

POWER

Always ON

The POWER indicator is Always ON when it is powered on
and works properly.

SYS

Blinking

The SYS is blinking regularly when the system works
normally.

WAN Always ON Indicates the correct connection of the WAN ports.

Blinking Indicates the Router is transmitting/receiving data packets.
WLAN Blinking Indicates the wireless signal is OK.
LAN(1/2/3/4) Always ON Indicates the correct connection of the LAN ports.

Blinking

Indicates the Router is transmitting/receiving data packets.

WPS

Blinking

Indicates the Router is negotiating with WPS clients in
WPS Mode(PBC).

3

OvisLink Evo-w300ar

The Top Panel

On the top panel, three exposed reverse SMA antennas are located to broadcast the signals for
wireless network.

4

OvisLink Evo-w300ar

Hardware Installation

Before you connect the Wireless-N Broadband Router, please refer to the following steps for correct
and easy hardware installation. In order to get better wireless performance, please locate the Router at
the centre of the wireless network.

 Power off all devices connected, including the Modem and your PC(s)

 Connect one end of the included Ethernet network cable to one of the ports on the back panel of

the Router. Connect the other end to an Ethernet/WAN port of certain network device as a PC or
switch. Please repeat this step to add more PCs or other devices.

 Connect the Modem’s Internet cable to the WAN port of the Router

 Power on the Modem

 Power on the Router with the included power adapter. The Power LED indicator on the front panel

will light green if it’s connected correctly.

 Now, you can launch your PC(s) to configure the Router. More details please refer to the next

chapter.

IMPORTANT: Please use the included power supply. Use of a different power adapter could

cause damage and void the warranty for this product.

5

OvisLink Evo-w300ar

Chapter 3: Getting to Connect the Wireless-N Broadband Router

For easy and fast configuration, the following steps for network configuration are required.

How to Set the Network Configurations for My Computer

Right click
“My Network
Places” and
select
“Properties”.

6

OvisLink Evo-w300ar

Right click
“Local

Area
Network
Connectio
n” and

select
“Propertie
s”.

Select
“Internet

Protocol
(TCP/IP)” and

click
“Properties”.

.

7

OvisLink Evo-w300ar

Select
“Obtain an IP

address
automaticall
y” and
“Obtain DNS
server
address
automaticall
y”. Click “OK”

to save the
configurations
.

8

OvisLink Evo-w300ar

Or select “Use the following IP address” and
enter the IP address, Subnet mask, Default
gateway as shown right. Of course, you need to
input the DNS server address provided by your
ISP. Otherwise, you can use the Router’s default
gateway as the DNS proxy server. Click “OK” to
save the configurations.

How to Check the Network Connection

Select “Start”—All Programs”—“Accessories”

—“Command Prompt”.

9

OvisLink Evo-w300ar

Input the “ping 192.168.0.1” and press “Enter”. If
the screen displays as the right figure, it means
your PC is connected to your router successfully.

If not, please make sure the hardware installation
and network adapter are OK. After all
preparations are made, please proceed to
Chapter 4 for more and advanced configuration.

10

OvisLink Evo-w300ar

Chapter 4 Basic Configurations

This section is to show you how to configure your new Wireless-N Broadband Router through the
Web-based Configuration Utility.

How to Access the Web-based Configuration Utility

To access the Router’s Web-based Utility, launch
a web browser such as Internet Explorer or
Firefox and enter the Router’s default IP
address, http://192.168.0.1. Press “Enter”.

Please input the “admin” in both User Name and
Password. Click “OK”.

11

OvisLink Evo-w300ar

Setup Wizard

12

Here is the “Welcome to Setup Wizard” for
configuring your Router quickly. Click “Next”.

In this screen, select one mode of your Internet
connection you use. If you are not clear, press
the “Detect” button or contact your Internet
Service Provider, and click “Next”.

ÎConnection Mode 1: ADSL Virtual Dial-up
(Via PPPoE)

Enter the Account and Password provided by
your ISP, and click “Next”.

OvisLink Evo-w300ar

ÎConnection Mode 2: Dynamic IP (Via DHCP)

If your connection mode is Dynamic IP, it
means your IP address keeps changing every
time you connect. You do not need to enter the
information like Mode 2 or Mode 3.

ÎConnection Mode 3: Static IP

In this screen, fill the network address
information from your ISP in the IP Address,
Subnet Mask, Gateway and Primary DNS
server fields and click “Next”.

Click “Apply” , and then press “Reboot the
router” button in System Tools of the left menu.

13

OvisLink Evo-w300ar

It is rebooting now, please wait for a few
minutes and DO NOT power off it.

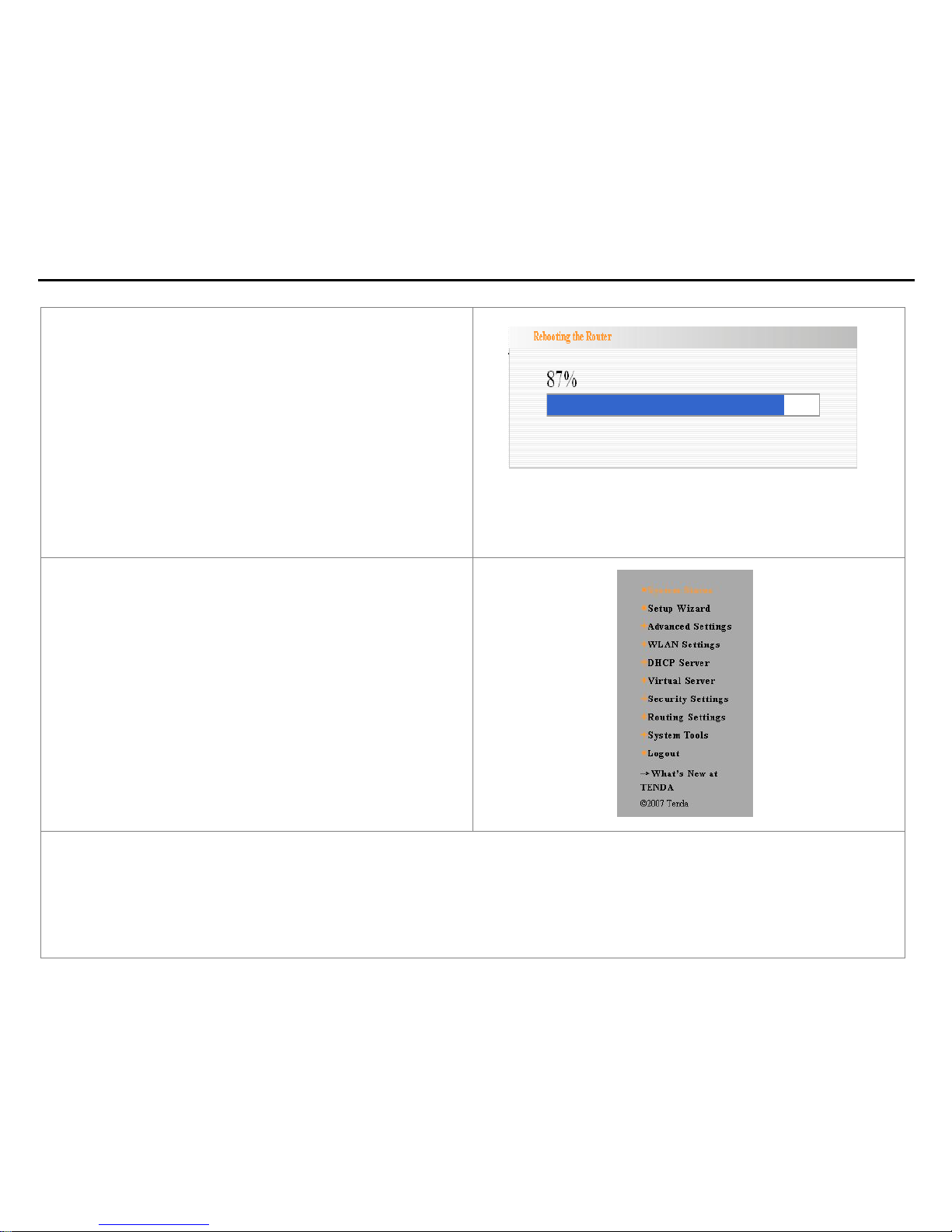

Click the “System Status” in the left menu of the

Web-based Utility to find out the current network
and system information.

Congratulations you on completing the Router’s basic settings. You are on the Internet now. If you
want to configure more, please proceed to the following explanations for Advanced Settings.

14

OvisLink Evo-w300ar

Chapter 5: Advanced Settings

This section is to conduct the advanced configurations for the Router, including LAN Settings, WAN
settings, MAC Address Clone and DNS Settings.

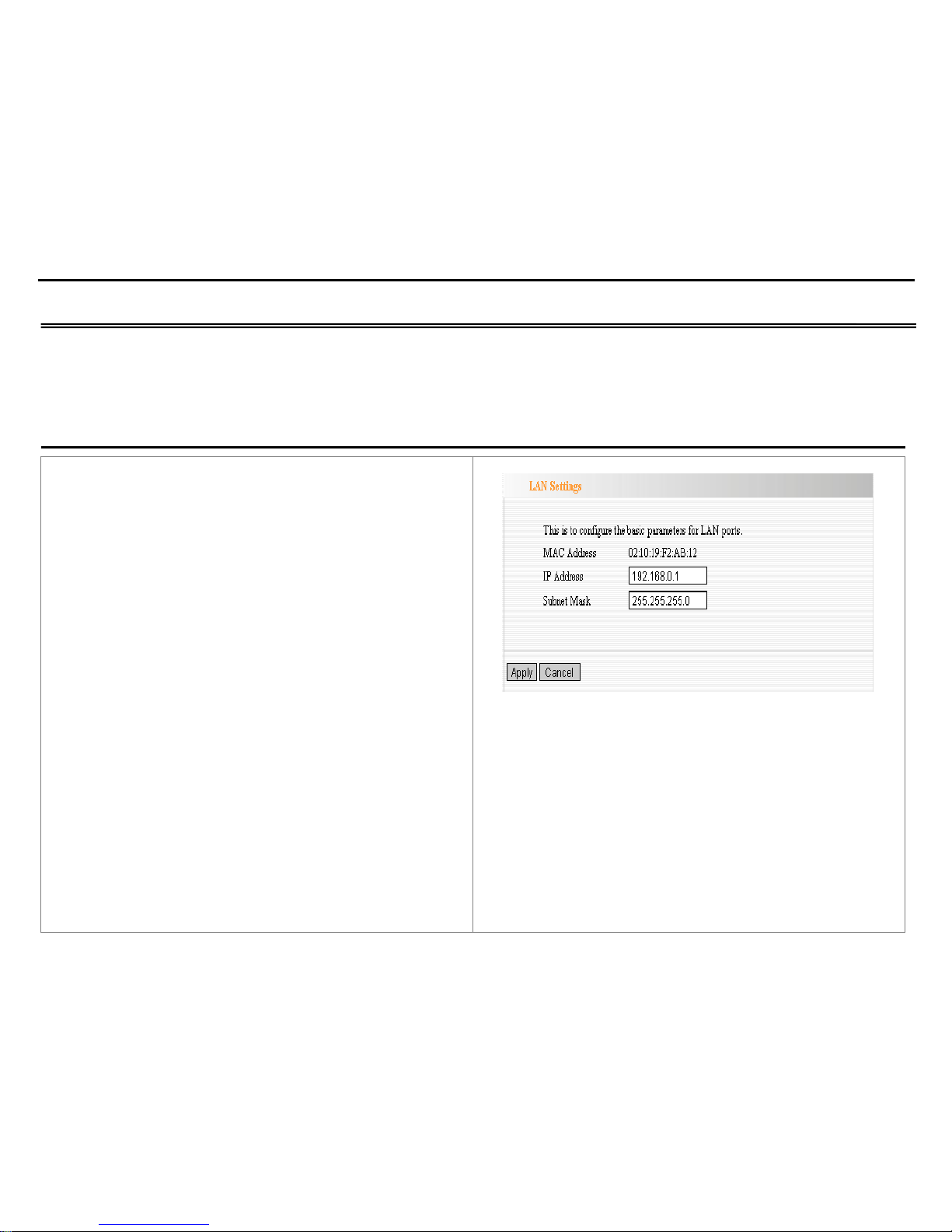

LAN Settings

MAC Address: The Router’s physical MAC

address as seen on your local network,
which is unchangeable.

IP Address: The Router’s LAN IP address (not

your PC’s IP address). Once you modify the IP
address, you need to remember it for the
Web-based Utility login next time. 192.168.0.1
is the default value.

Subnet Mask: It’s shown the Router’s subnet

mask for measurement of the network size.

255.255.255.0 is the default value.

15

OvisLink Evo-w300ar

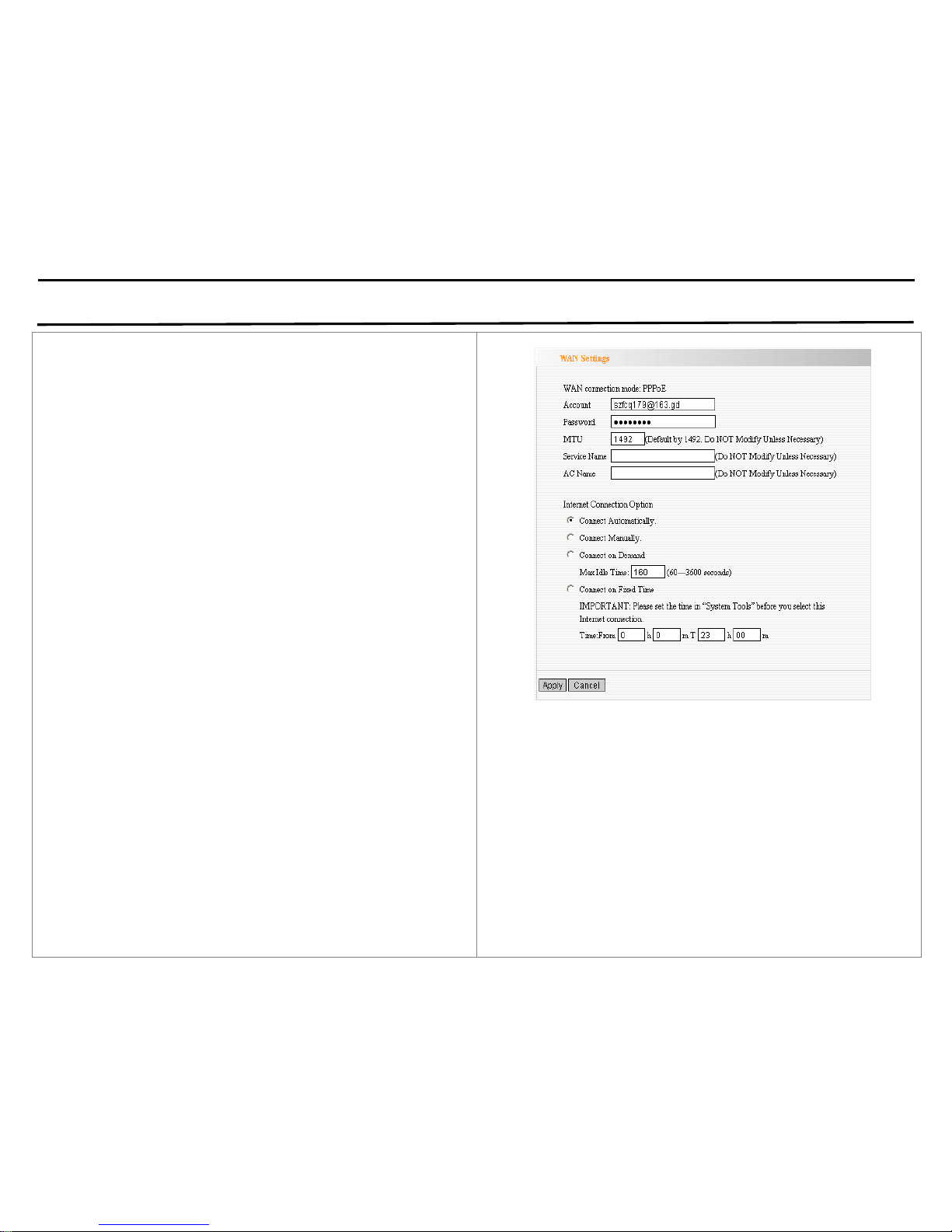

WAN Settings—PPPoE

Connection Mode: Show your current connection

mode.

Account:Enter them provided by your ISP.
Password:Enter them provided by your ISP.
MTU:Maximum Transmission Unit. It is the size of

largest datagram that can be sent over a network.
The default value is 1492. Do NOT modify it
unless necessary.

Service Name:It is defined as a set of

characteristics that are applied to a PPPoE
connection. Enter it if provided. Do NOT modify it
unless necessary.

AC Name:Enter it if provided. Do NOT modify it

unless necessary.
Connect automatically to the Internet after
rebooting the system or connection failure.

Connect Manually:Connect to the Internet by the

user manually.

Connect on Demand:Re-establish your

connection to the Internet after the specific time
(Max IdleTime). Zero means your Internet
connection at all time. Otherwise, enter the
minutes to be elapsed before you want to
disconnect the Internet access.

Connect on Fixed Time: Connect to the Internet

16

OvisLink Evo-w300ar

during the time you fix.

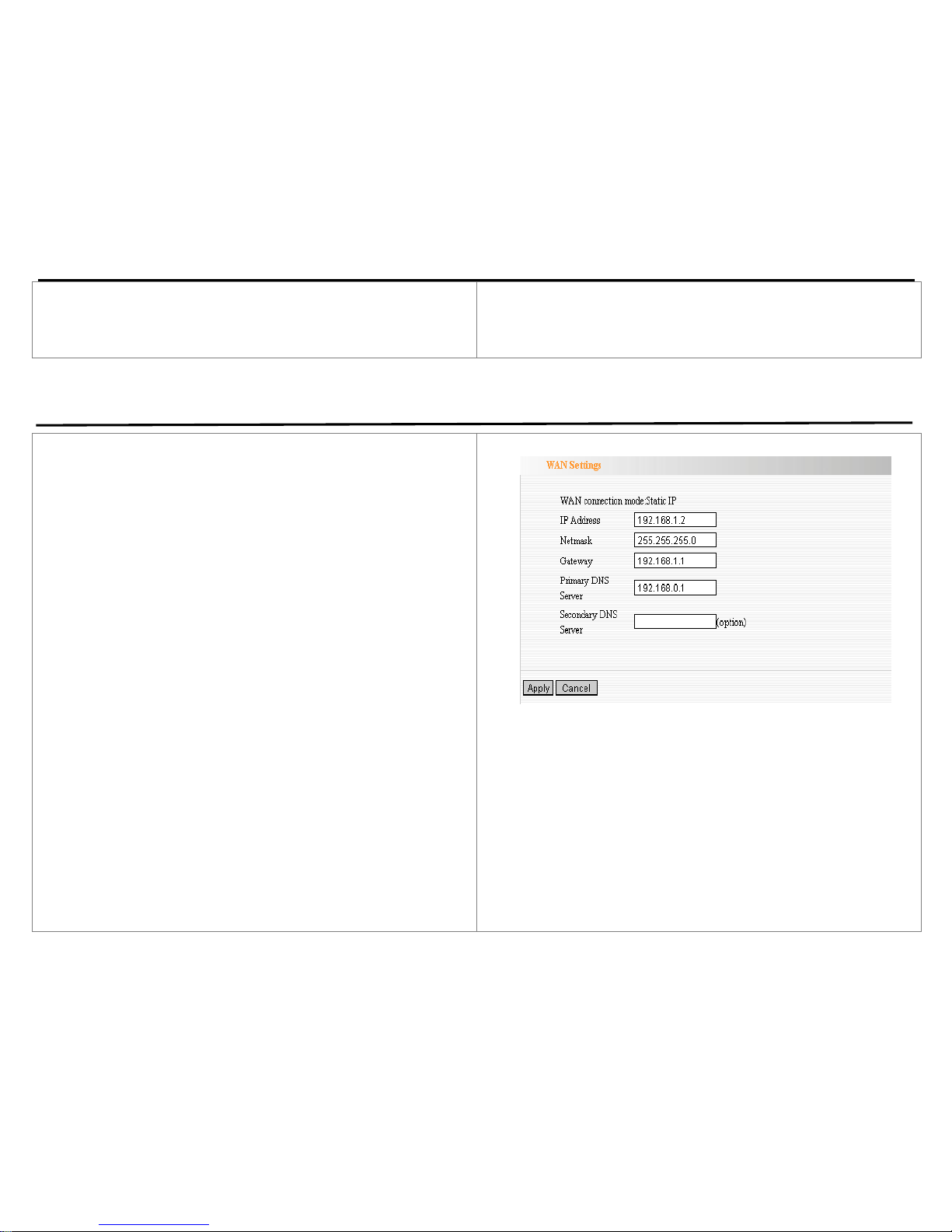

WAN Settings—Static IP

If your connection mode, static IP is chosen,
please enter the following addressing information.

IP Address:Here enter the WAN IP address

provided by your ISP.

Subnet Mask:Enter the WAN Subnet Mask here.

Gateway:Enter the WAN Gateway here.

Primary DNS Server:Enter the Primary DNS

server provided by your ISP.

Secondary DNS Server: Enter the secondary DNS

17

OvisLink Evo-w300ar

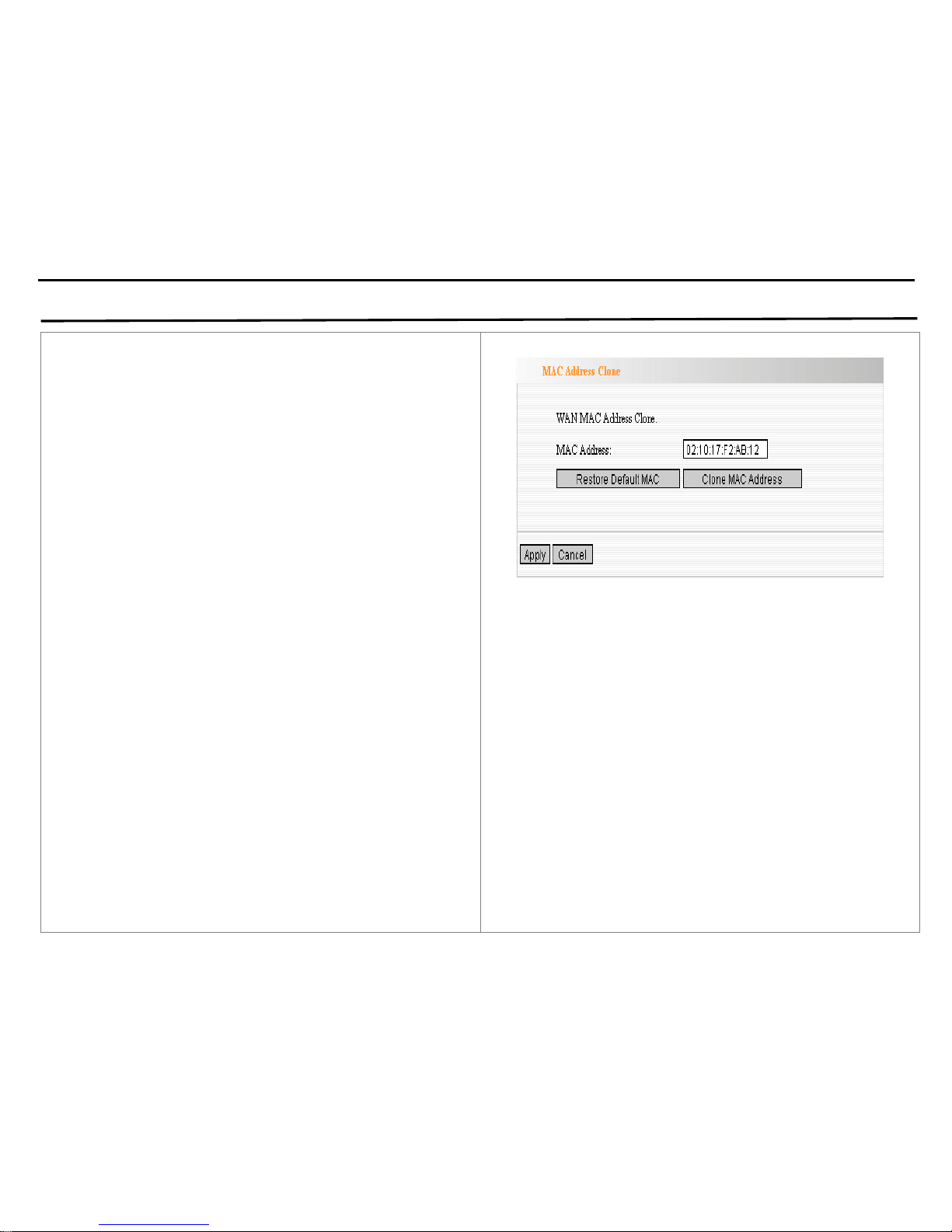

MAC Address Clone

Some ISPs require end-user's MAC address to
access their network. This feature copies the
MAC address of your network device to the
Router.

MAC Address: The MAC address to be registered

with your Internet service provider.

Clone MAC address: Register your PC's MAC

address.

Restore default MAC address: Restore the default

hardware MAC address.

18

OvisLink Evo-w300ar

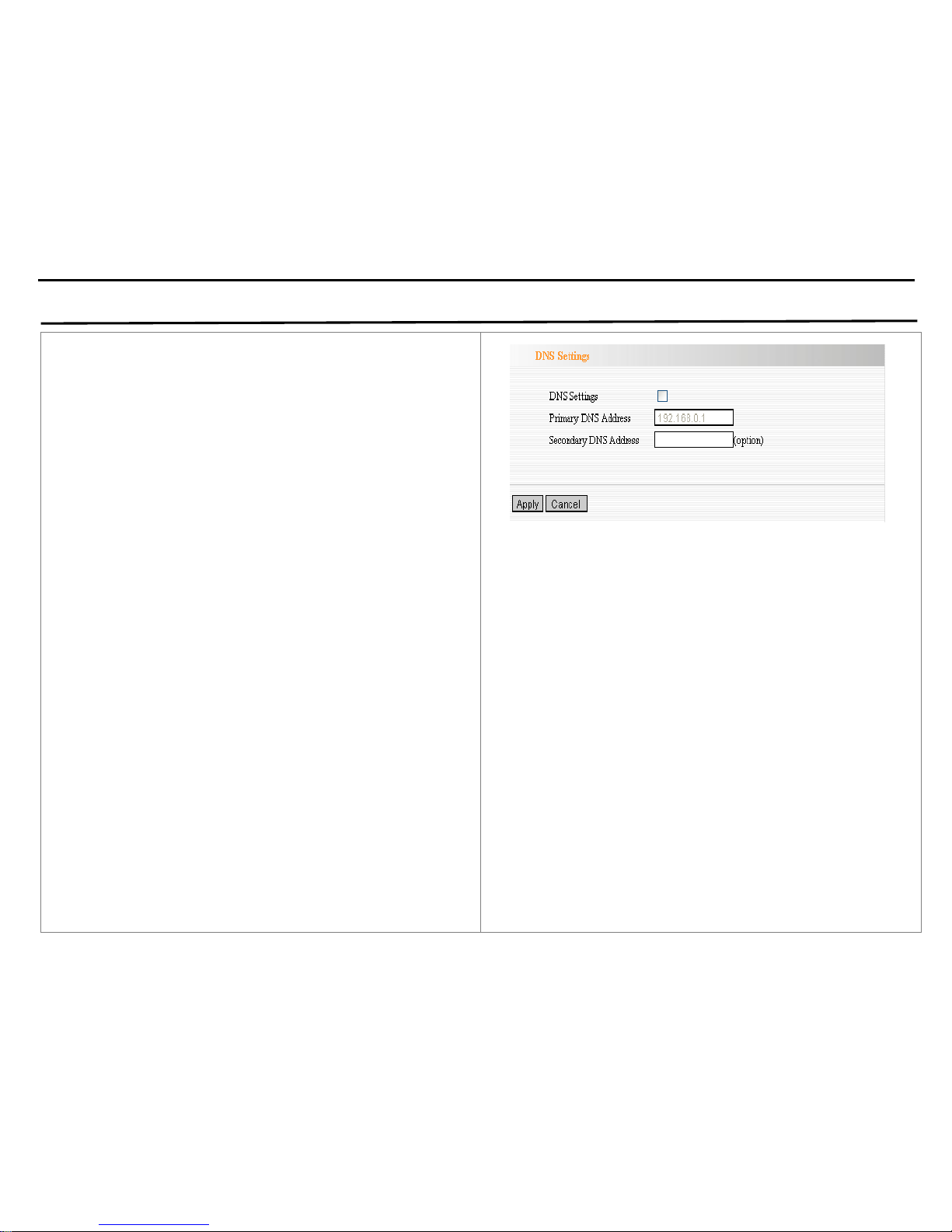

DNS Settings

DNS is short for Domain Name System(or
Service), an Internet service that translate domain
names into IP addresses which are provided by
your Internet Service Provider. Please consult
your Internet Service Provider for details if you do
not have them.

DNS:

Click the checkbox to enable
the DNS server.

Primary DNS Address:

Enter the necessary address provided by your
ISP.

Secondary DNS Address:

Enter the second address if your ISP provides,
which is optional.

19

OvisLink Evo-w300ar

Chapter 6: Wireless Settings

This section mainly deals with the wireless settings, including Basic Settings, Security Setting, Access
Control and Advanced Settings.

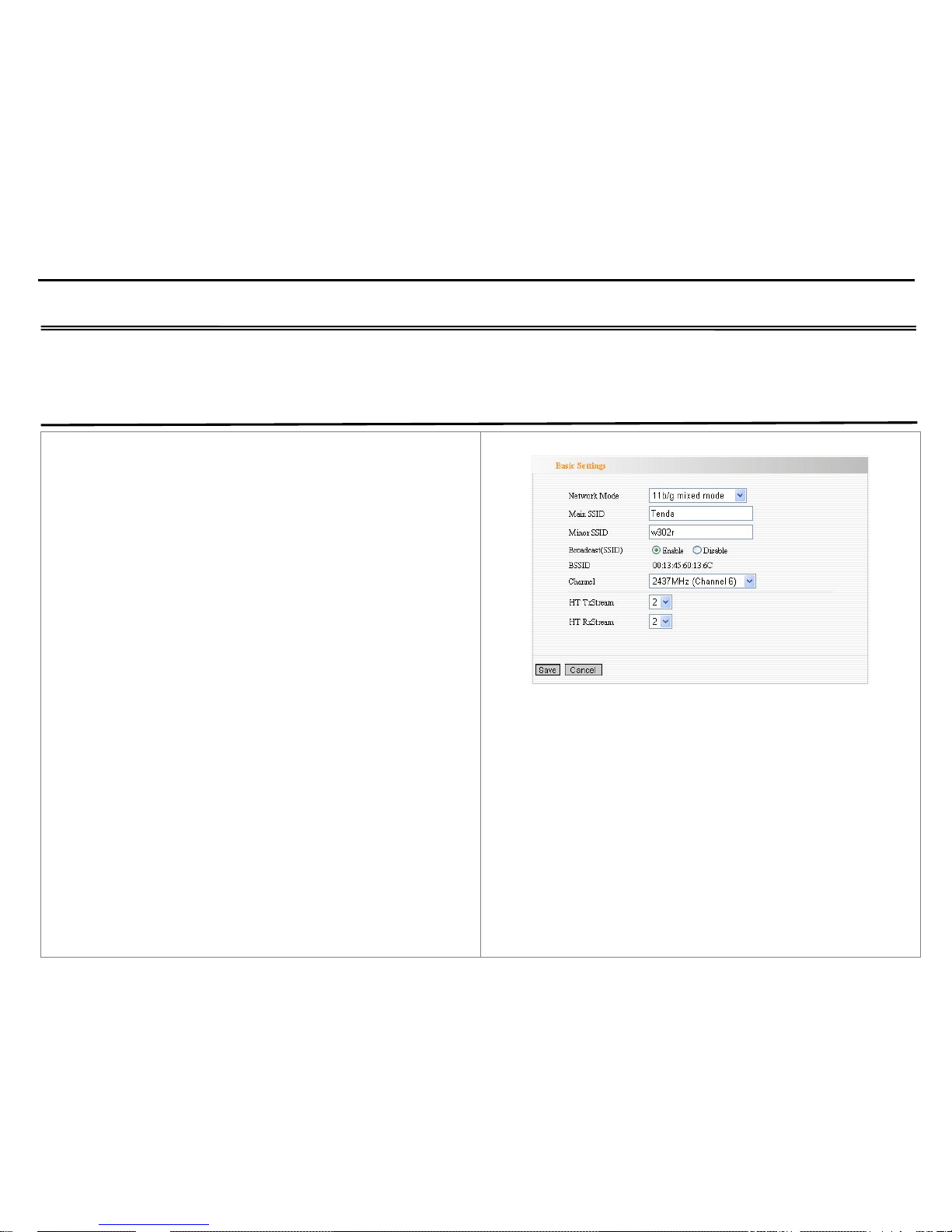

Basic Settings

Network Mode: Supports 802.11b/g mixed,

802.11b, 802.11g and 802.11b/g/n mixed modes.

Main SSID: Main Service Set Identifier. It’s the

"name" of your wireless network.

Minor SSID: Minor Service Set Identifier. It is

optional.

Broadcast (SSID):Select “enable” to enable the

device's SSID to be visible by wireless clients.

BSSID: It is a 48bit identity used to identify a

particular BSS (Basic Service Set) within an area.
In Infrastructure BSS networks, the BSSID is the
MAC (Medium Access Control) address of the AP

Channel: From the drop-menu, it is for selecting

the working channels of the wireless network.
Please select from 1 to 13,or select AutoSelect to
select different channels.

Channel Bandwidth：Select wireless work

frequency 20M or 20/40M.

HT TxStream: RF Transmit Stream.
HT RxStream: RF Receive Stream.

20

OvisLink Evo-w300ar

Wireless Security Settings

This page is to configure the wireless security of your Router. Six wireless security modes, WEP,
WPA-Personal, WPA2-Personal, WPA-Enterprise, WPA2-Enterprise and RADIUS, are supported. If
you do not want to use wireless security, select Disable from the drop-down menu.

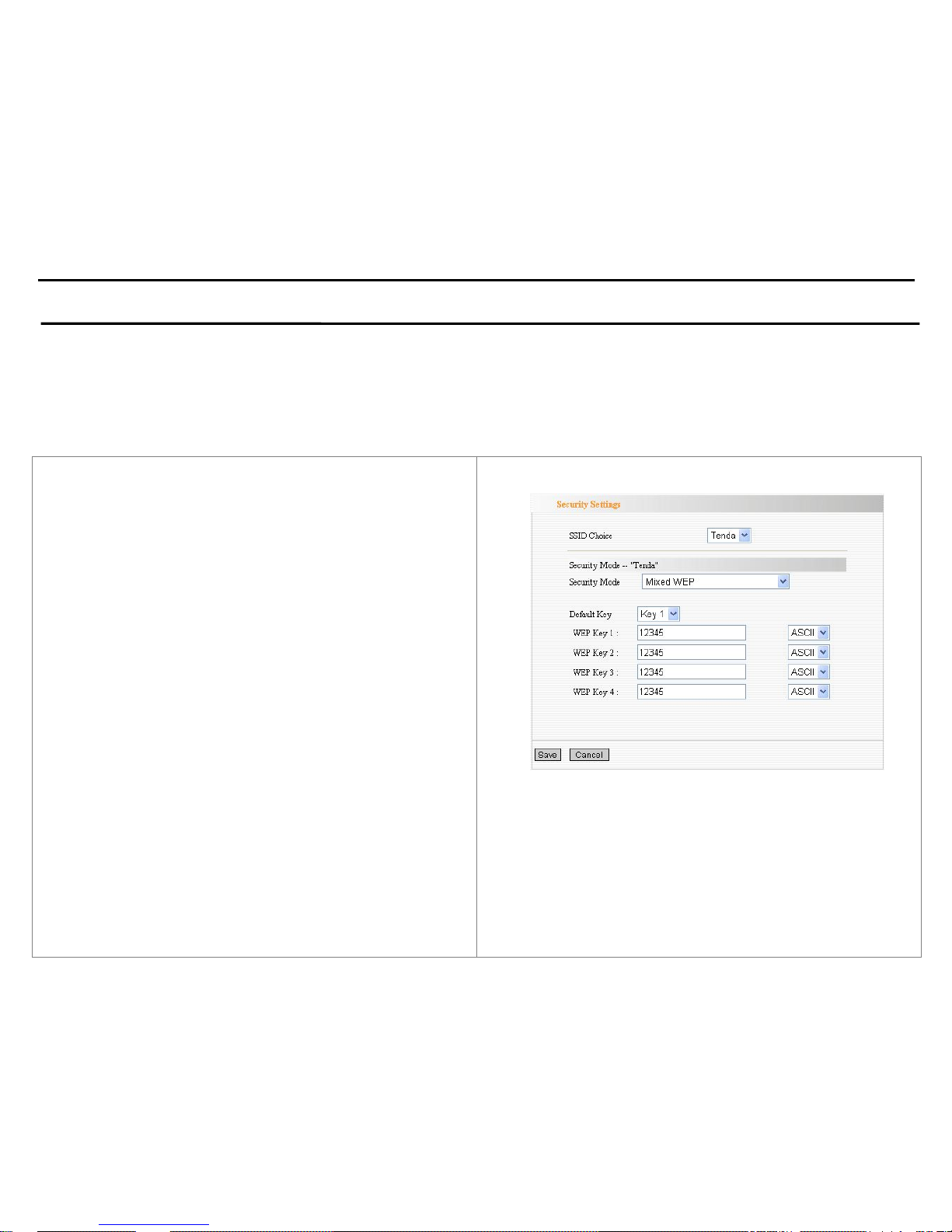

1. WEP

WEP(Wired Equivalent Privacy), a basic
encryption method, usually encrypts wireless data
using a series of digital keys (64 bits or 128 bits in
length). By using the same keys on each of your
wireless network devices, you can prevent
unauthorized wireless devices from monitoring
your transmissions or using your wireless
resources.

SSID Choice:Select SSID to be configured

security.The device supports to configure different
security classes between the main SSID and the
subordinate SSID.

Security Mode: There are several different

security modes; you can choose one from mixed
WEP, WPA-Personal, WPA-Enterprise, etc.

Default Key: Select a valid encryption key.
WEP Key:Choose ASCII Characters or

Hexadecimal Digits from the drop-down menu.

Key 1-4:Enter the WEP key here. Please note that

the key should be in accordance with the key

21

OvisLink Evo-w300ar

format and be valid.

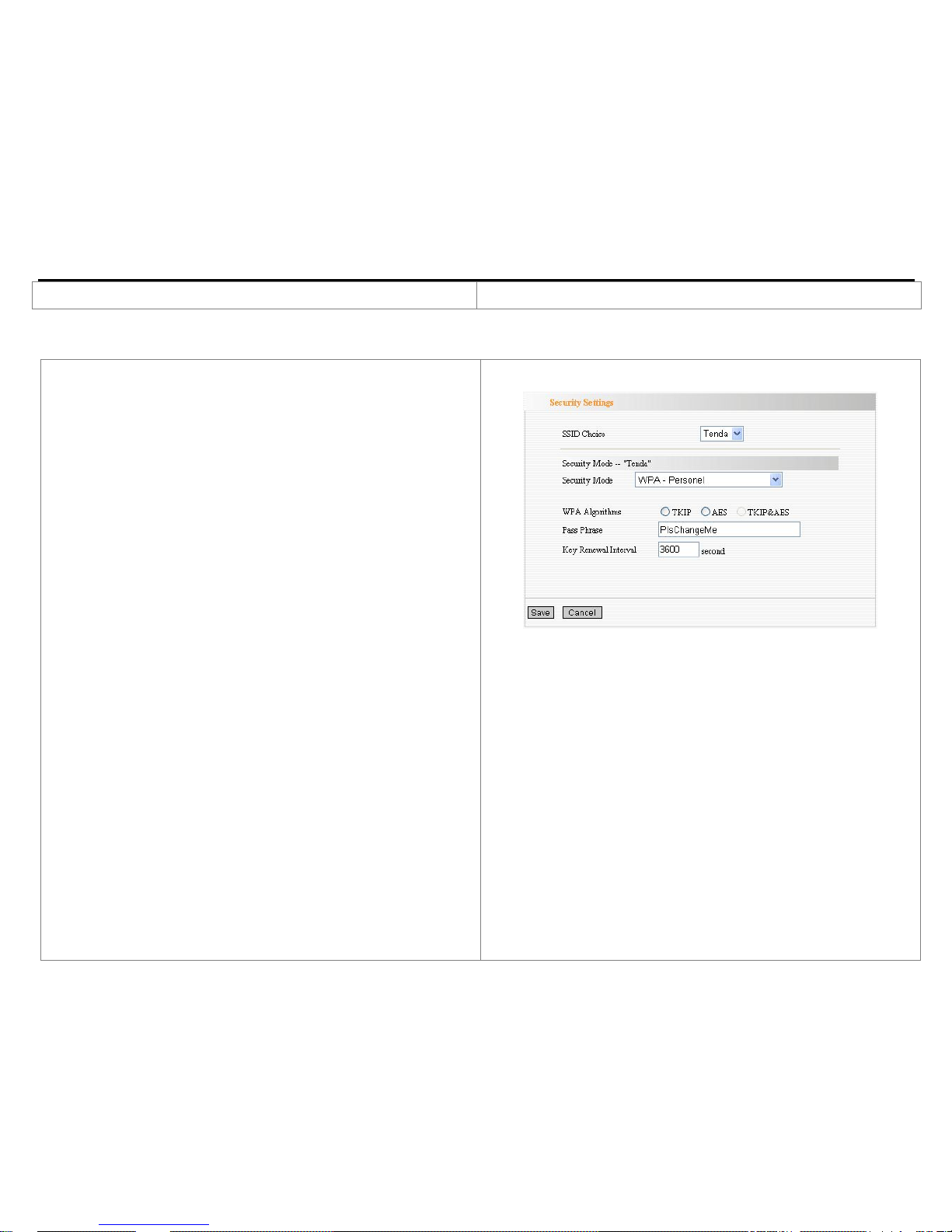

2. WPA-Personal

WPA (Wi-Fi Protected Access), a Wi-Fi standard,
is a more recent wireless encryption scheme,
designed to improve the security features of
WEP. It applies more powerful encryption types
(such as TKIP [Temporal Key Integrity Protocol]
or AES [Advanced Encryption Standard]) and can
change the keys dynamically on every authorized
wireless device.

WPA Algorithms: Select one encryption type,

AES or TKIP. (AES is stronger than TKIP.)

Pass Phrase: Enter the key which must have

8-63 ASCII characters.

Key Renewal Interval: Enter the key renewal

period. It is to tell the Router how often to change
the keys.

22

OvisLink Evo-w300ar

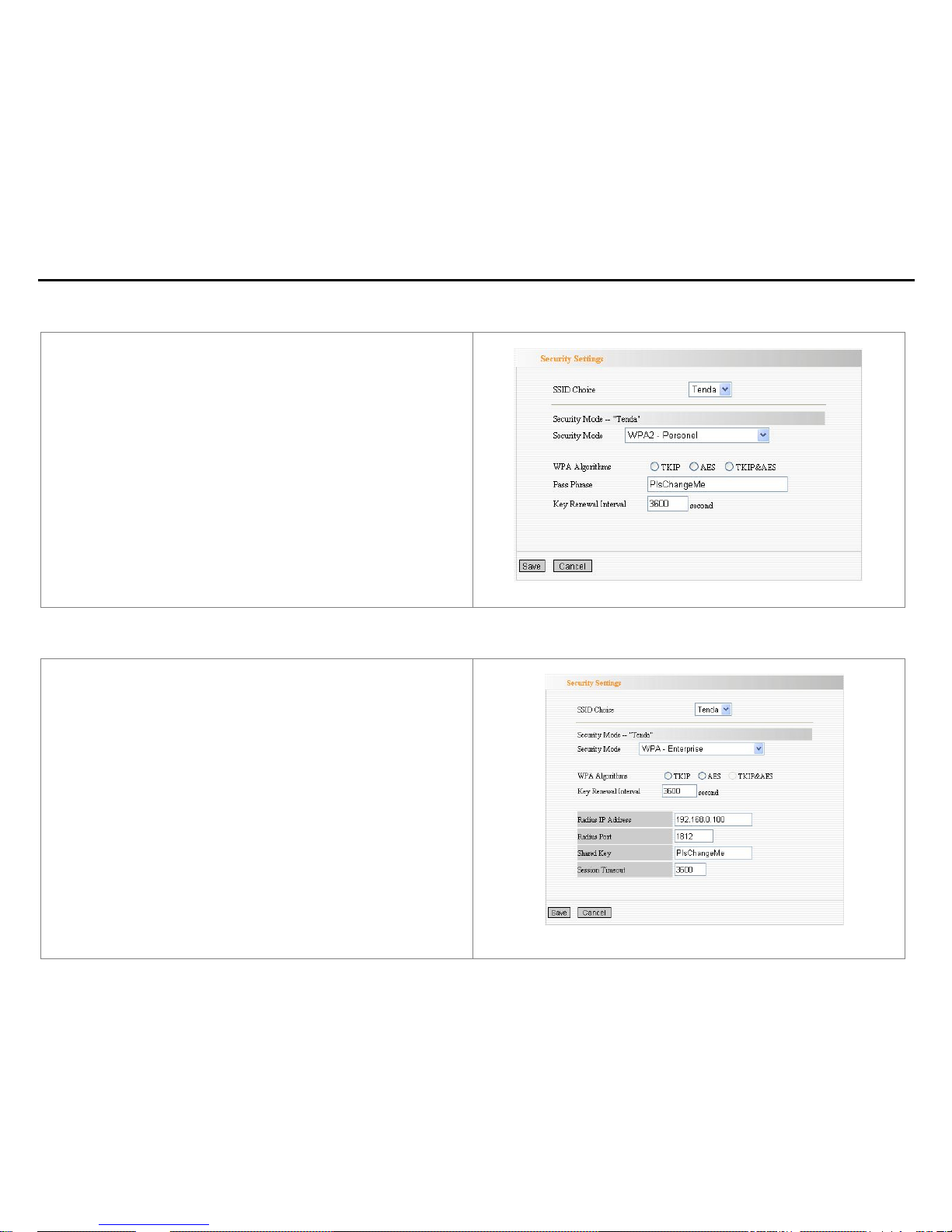

3. WPA2-Personal

WPA2 (Wi-Fi Protected Access version 2), It's
more secure than Wired Equivalent Privacy
(WEP) and easy to set up.

WPA Algorithms: Select key Algorithms such as

TKIP, AES and TKIP&AES.

Pass Phrase: Enter the key which must have

8-63 ASCII characters.

Key Renewal Interval: Enter the key renewal

period. It is to tell the Router how often to change
the keys.

4. WPA-Enterprise

This Authentication protocol based on RADIUS
server. This security mode is used when a
RADIUS server is connected to the Router.

Radius IP Address: Please input IP address of

the radius server here.

Radius Port: Please input the port number of the

radius server here.

Shared key:The encryption key that the router is

authenticated through RADIUS server

Session Timeout: The recertification time interval

between the router and the server. The default
value is 3600s.

23

OvisLink Evo-w300ar

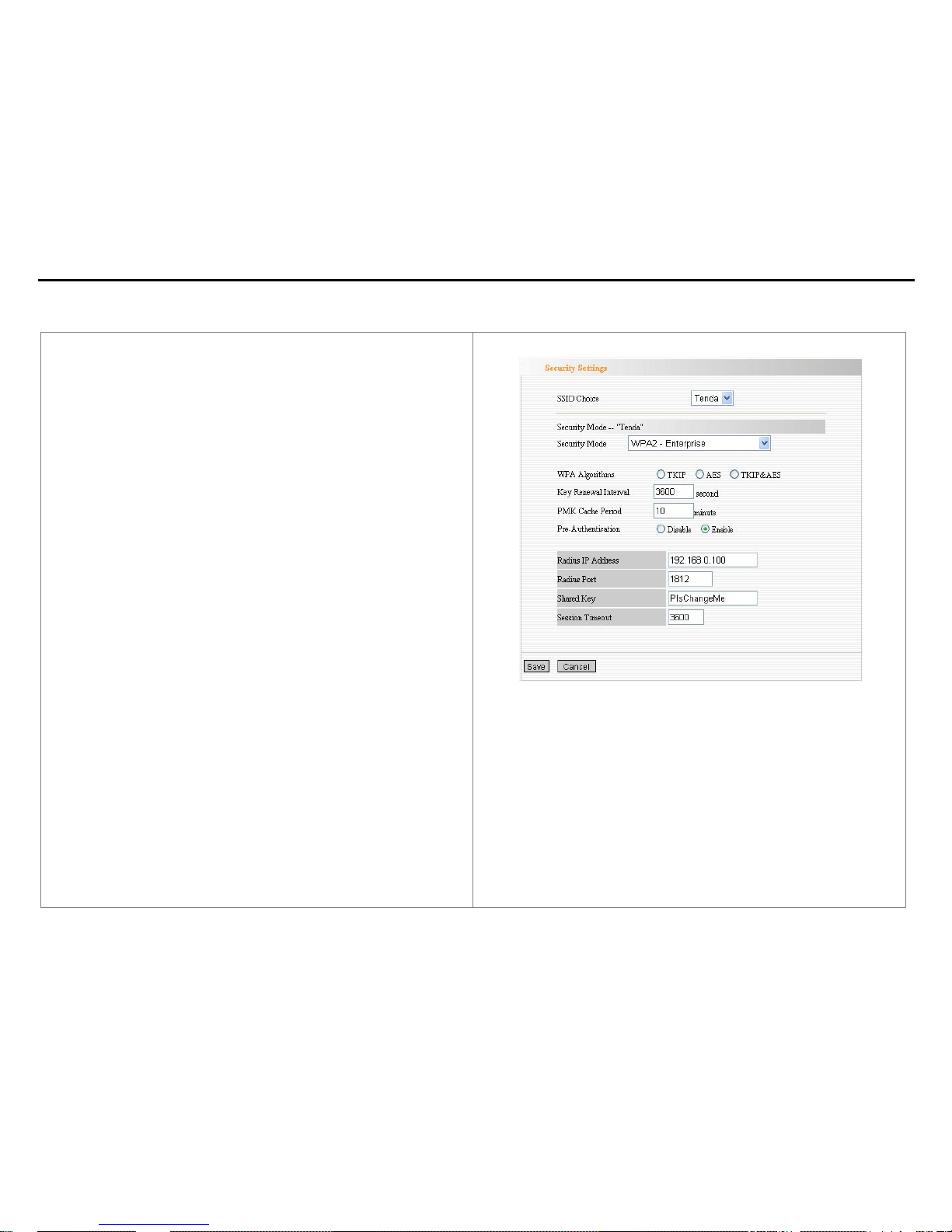

5. WPA2-Enterprise

This security mode is also used when a RADIUS
server is connected to the Router.

WPA Algorithms: Select key Algorithms such as

TKIP and AES.

Radius IP Address: Please input IP address of

the radius server here.

Radius Port: Please input the port number of the

radius server here.

Shared key:The encryption key that the router is

authenticated through RADIUS server

Session Timeout: The recertification time interval

between the router and the server. The default
value is 3600s.

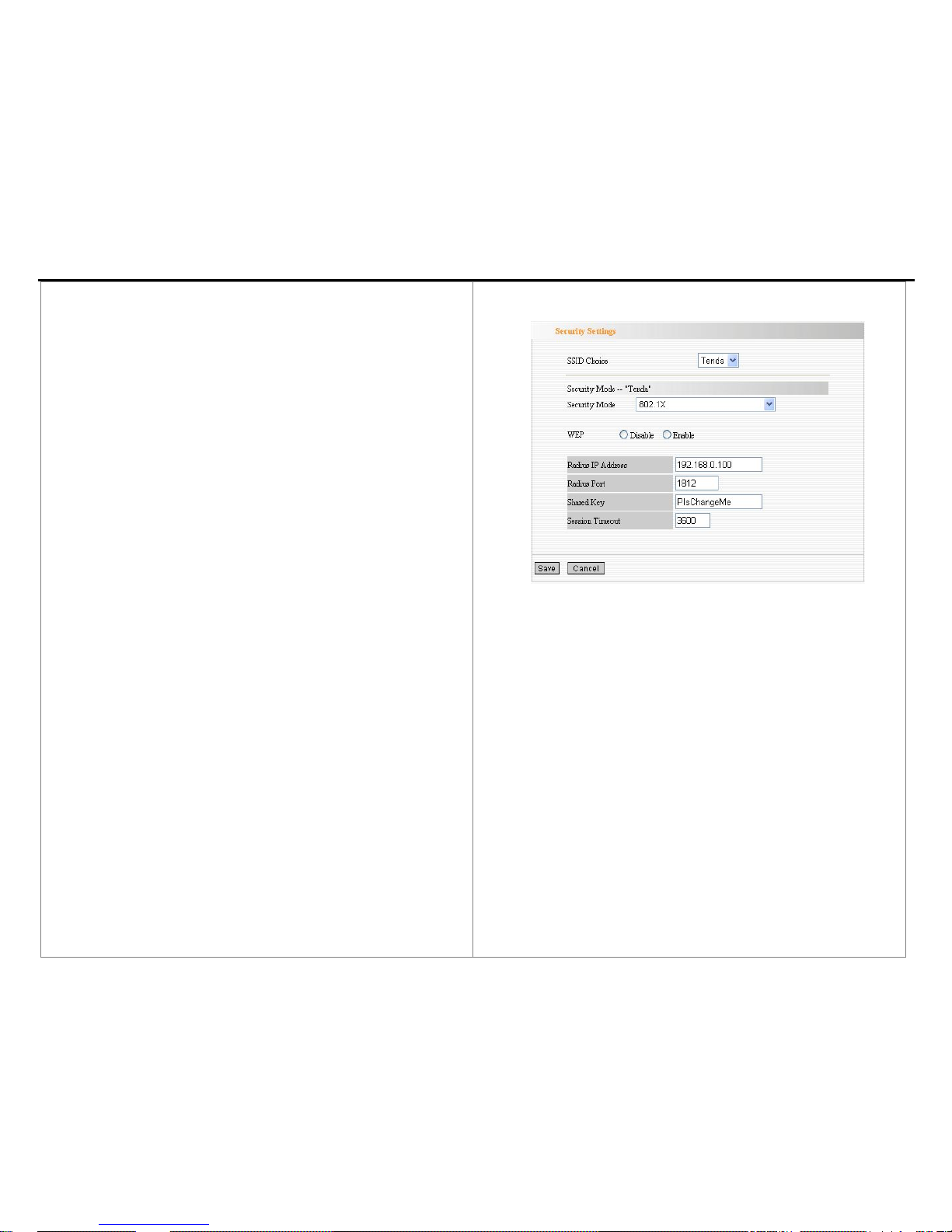

6. 802.1X

24

OvisLink Evo-w300ar

This security mode is used when a RADIUS
server is connected to the Router. 802.1x, a kind
of Port-based authentication protocol, is an
authentication type and strategy for users. The
port can be either a physic port or logic port
(such as VLAN). For wireless LAN users, a port
is just a channel. The final purpose of 802.11x
authentication is to check if the port can be used.
If the port is authenticated successfully, you can
open this port which allows all the messages to
pass. If the port isn’t authenticated successfully,
you can keep this port “disable” which just allows

802.1x authentication protocol message to pass.

WEP: Select “enable/disable” WEP encryption

which indicates the authentication process
between wireless adapter and wireless router.

Radius IP Address: Please input IP address of

the radius server here.

Radius Port: Please input the port number of the

radius server here.

Shared key:The encryption key that the router is

authenticated through RADIUS server

25

OvisLink Evo-w300ar

Session Timeout: The recertification time interval

between the router and the server. The default
value is 3600s.

NOTE: To improve security level, do not

use those words which can be
found in a dictionary or too easy to
remember! Wireless clients will
remember the WEP key, so you only
have to input the WEP key on
wireless client once, and it’s worth
to use complicated WEP key to
improve security level.

26

OvisLink Evo-w300ar

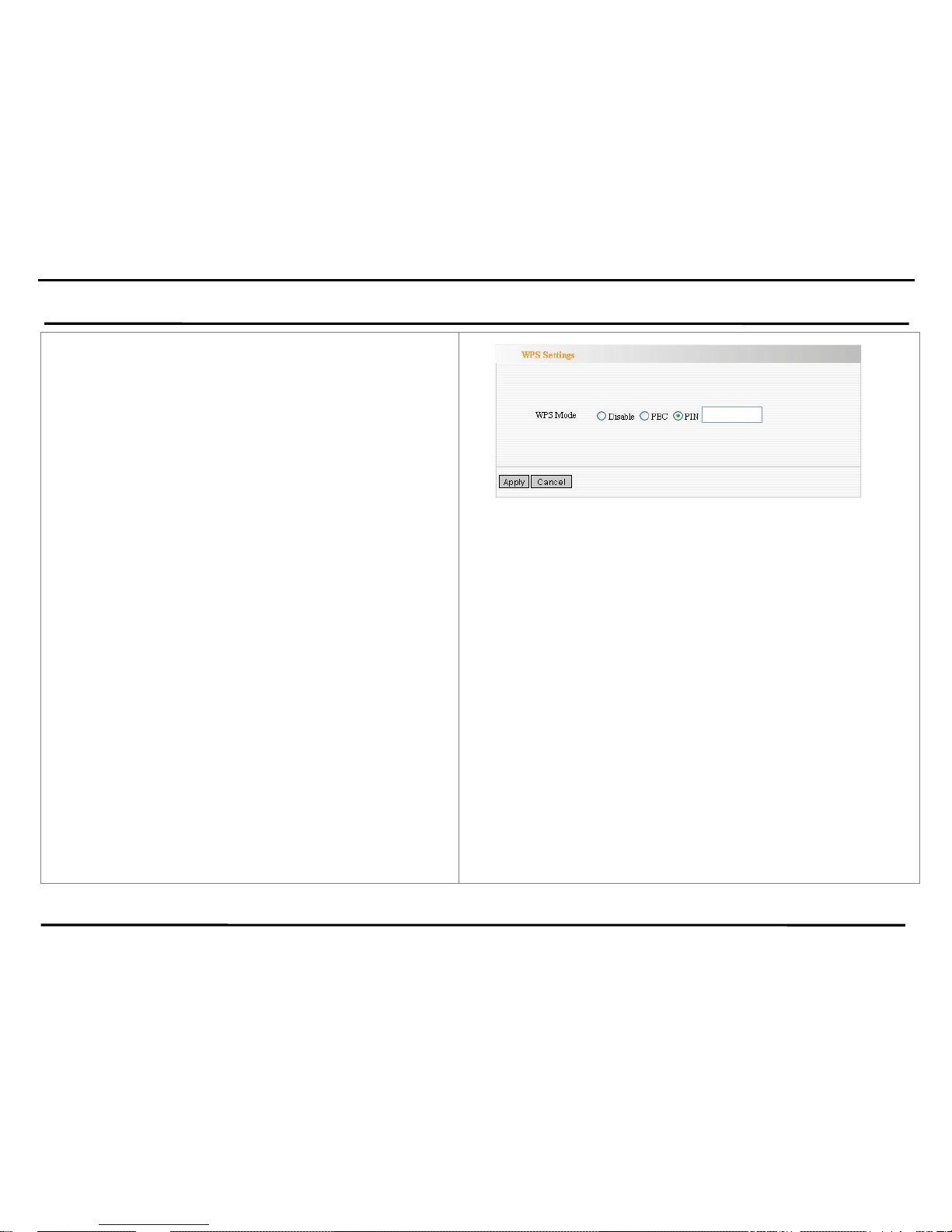

WPS Settings

Wi-Fi Protected Setup (WPS) is the simplest
way to build connection between wireless
network clients and this wireless router. You
don’t have to select encryption mode and input
a long encryption pass phrase every time when
you need to setup a wireless client, you only
have to press a button on wireless client and
this wireless router, and the WPS will do the
rest for you.

This wireless router supports two types of

WPS: Push-Button Configuration (PBC), and

PIN code.

PBC: Push-Button Configuration, You can push

WPS button of this wireless router, or select
‘PBC’ here to start WPS mode.

PIN: This is the WPS PIN code of this wireless

router. This code is useful when you need to
build wireless connection by WPS with other
WPS-enabled wireless devices.

27

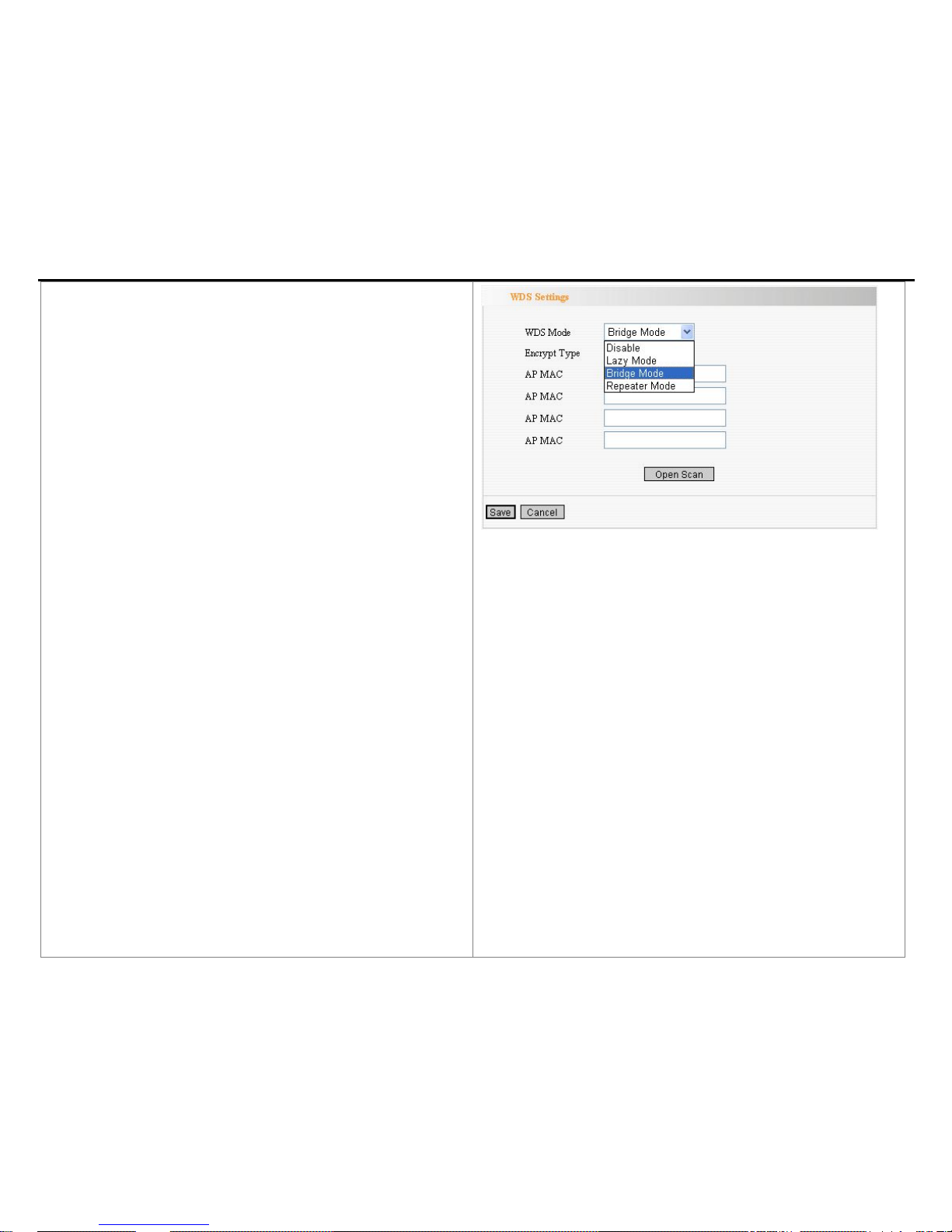

WDS Settings

OvisLink Evo-w300ar

In this mode, you can expand the scope of
network by combining up to four other access
points together, and every access point can still
accept wireless clients.

Lazy Mode: You need configure the router’s

BSSID into another device, not need input
another router’s BSSID in it, and then connect
together automatically.

Bridge Mode: You can wirelessly connect two or

more wired networks via this mode. In this mode,
you need to add the Wireless MAC address of
the connecting device into the Router's AP MAC
address table or select one from the scanning
table. At the same time, the connecting device
should be in Lazy, Repeater or Bridge mode.

Repeater Mode: You can select the mode to

extend the distance between the two WLAN
devices. Functioning as a WDS repeater, the
EVO-W300AR connects to both a client card as
an AP and to another AP. In typical repeater
applications, APs connecting to other APs
equipped with WDS functionality must also
support WDS. In this mode, you need to add the
MAC address of the connecting device into the

28

OvisLink Evo-w300ar

Router's AP MAC address table and the
connecting client should be in Lazy, Repeater or
client mode.

Encrypt Type: You can select WEP mode, TKIP

mode, AES mode for security here.

Pass phrase: Enter the key, the key format

according to encryption you selected.

AP MAC: Input the MAC address of another

wireless router.

NOTE: Two wireless routers must use the

same mode, band, channel number,
and security setting!

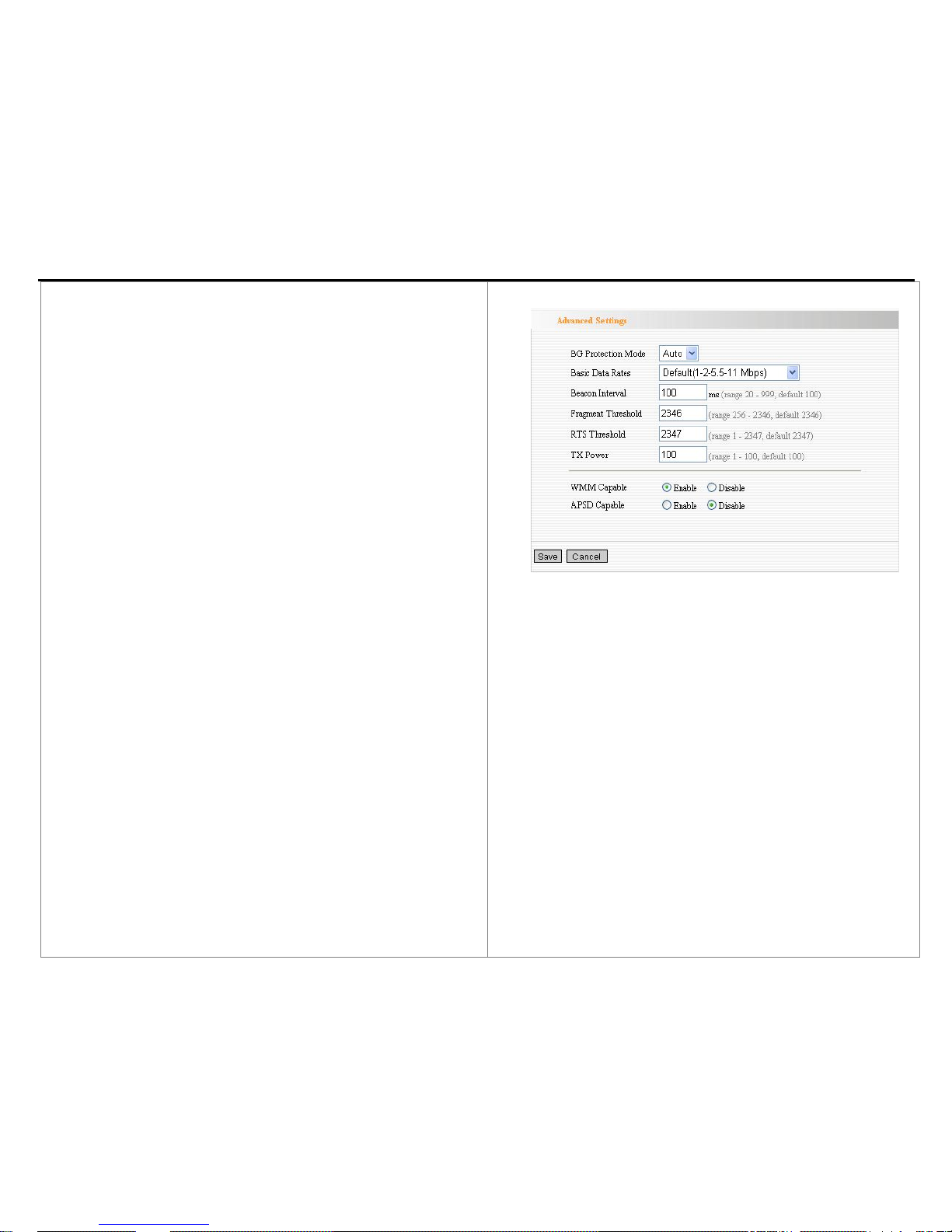

Advanced Wireless Settings

29

OvisLink Evo-w300ar

This section is to configure the advanced wireless
setting of the Router, including the Radio
Preamble, 802.11g/n Rate, Fragmentation
Threshold, RTS Threshold, Beacon Period and
DTIM Interval.

BG protection Mode: Auto by default. You can

select On or Off.

Basic Data Rates: For different requirement, you

can select one of the suitable Basic Data Rates.
Here, default value is (1-2-5.5.-11Mbps…).

Beacon Interval: Set the beacon interval of

wireless radio. Do not modify default value if you
don’t know what it is, default value is 100.

Fragment Threshold: Do not modify default value if

you don’t know what it is, default value is 2346.

RTS Threshold:Set the RTS threshold of wireless

radio. Do not modify default value if you don’t
know what it is, default value is 2347.

TX Power: You can set the output power of

wireless radio. Unless you’re using this wireless
router in a really big space, you may not have to

30

OvisLink Evo-w300ar

31

set output power to 100%. This will enhance
security (malicious / unknown users in distance will
not be able to reach your wireless router).

WMM Capable: It will enhance the data transfer

performance of multimedia contents when they’re
being transferred over wireless network. If you
don’t know what it is / not sure if you need it, it’s
safe to set this option to ‘Enable’, however, default
value is enabling.

APSD Capable: It is used for auto power-saved

service. The default is disabled.

OvisLink Evo-w300ar

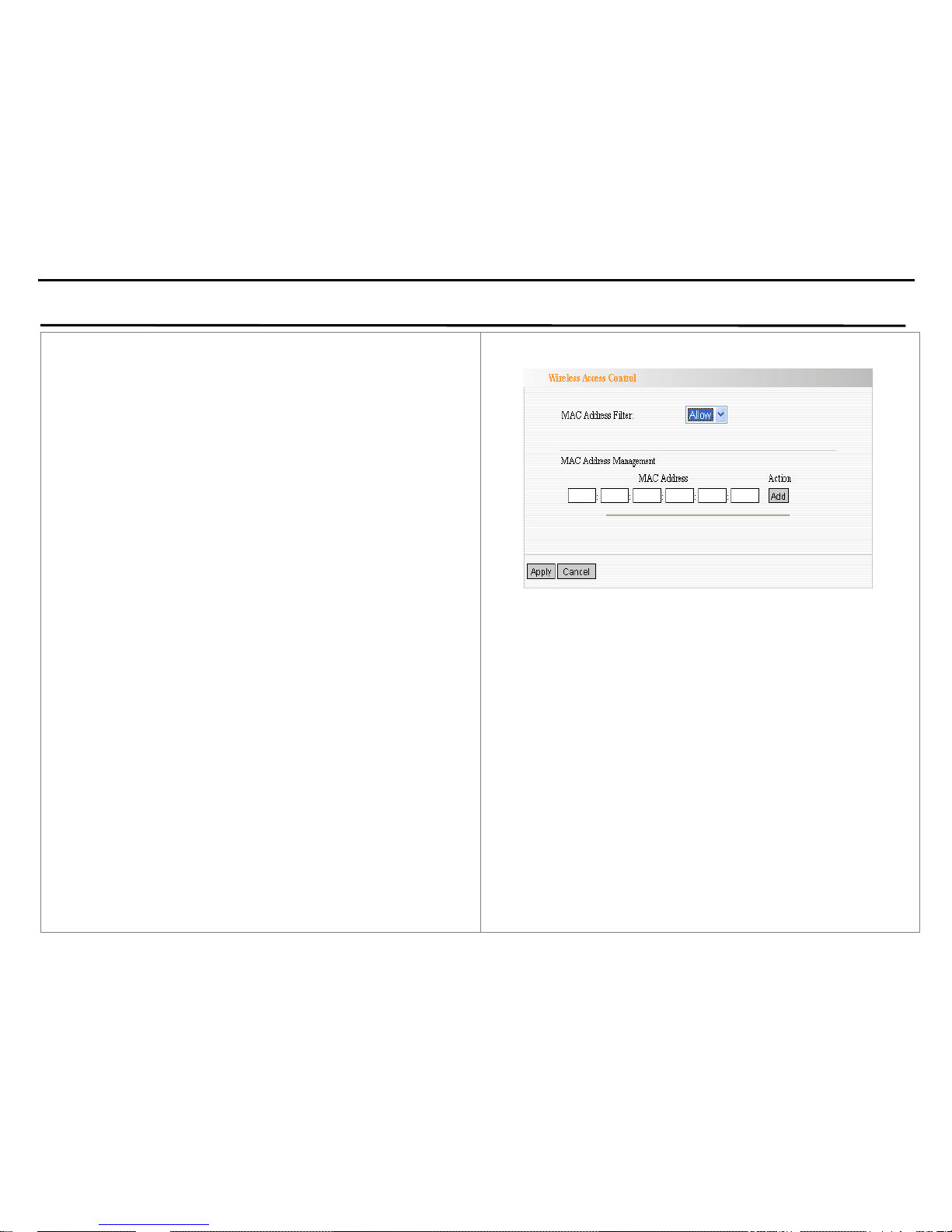

Wireless Access Control

32

To secure your wireless LAN, the wireless access
control is actually based on the MAC address
management.

MAC Address Filter:If you want to access the

router from any external IP Address, please select
the “Disable”.

MAC Address:To specify an external IP address,

please add the MAC address manually and click
“Add”.

MAC Address List:The added MAC addresses

are listed here. Click “Delete” to delete the filter
management for this MAC address.

OvisLink Evo-w300ar

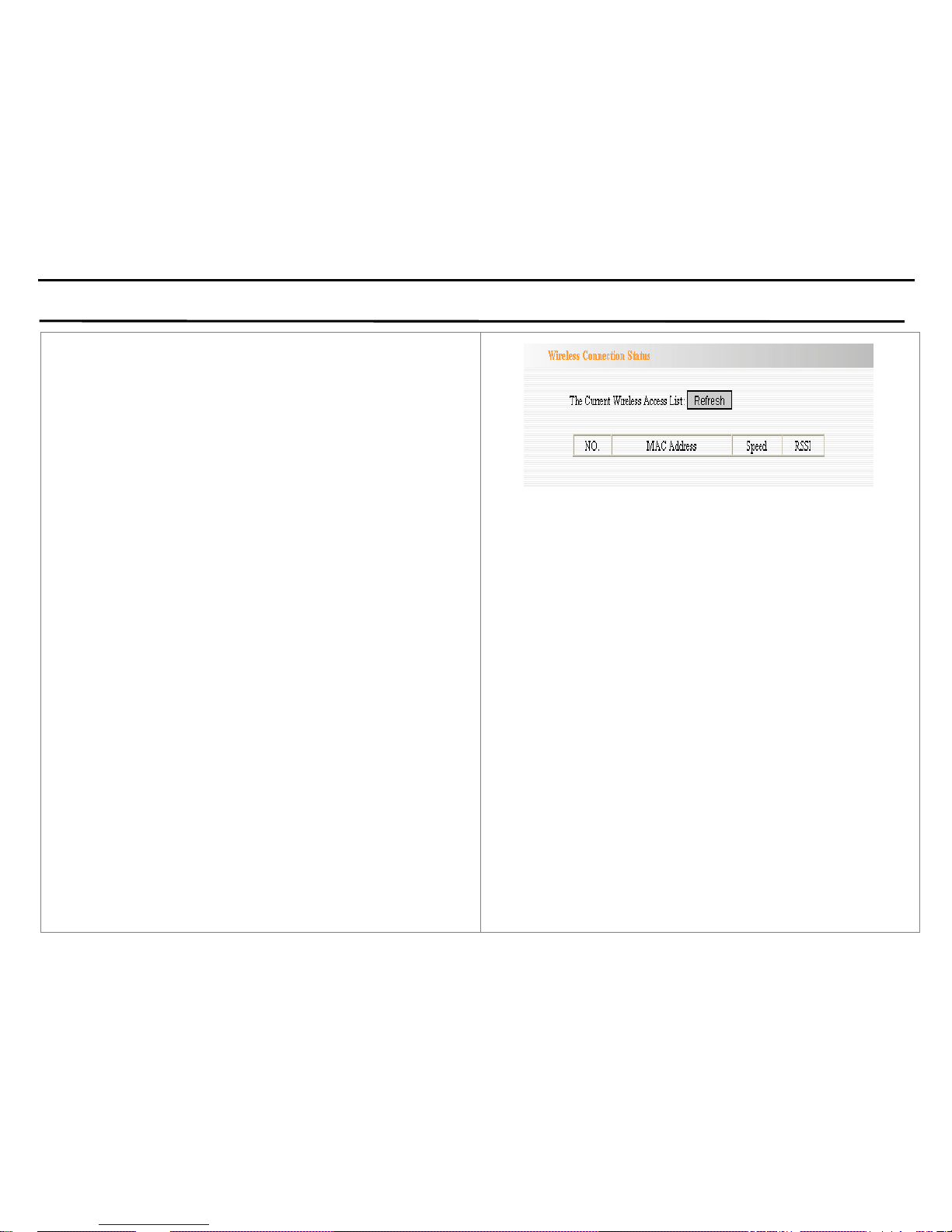

Wireless Connection Status

This page is to show the current wireless access
status. Click “Refresh” to update the wireless
connection information.

MAC Address

Shows the connecting PC’s MAC address.

Speed

The wireless transmission rate for the
corresponding PC.

RSSI

Stands for the Received Signal Strength
Indication, which is a measurement of the
received radio signal strength.

33

OvisLink Evo-w300ar

Chapter 7: DHCP Server

34

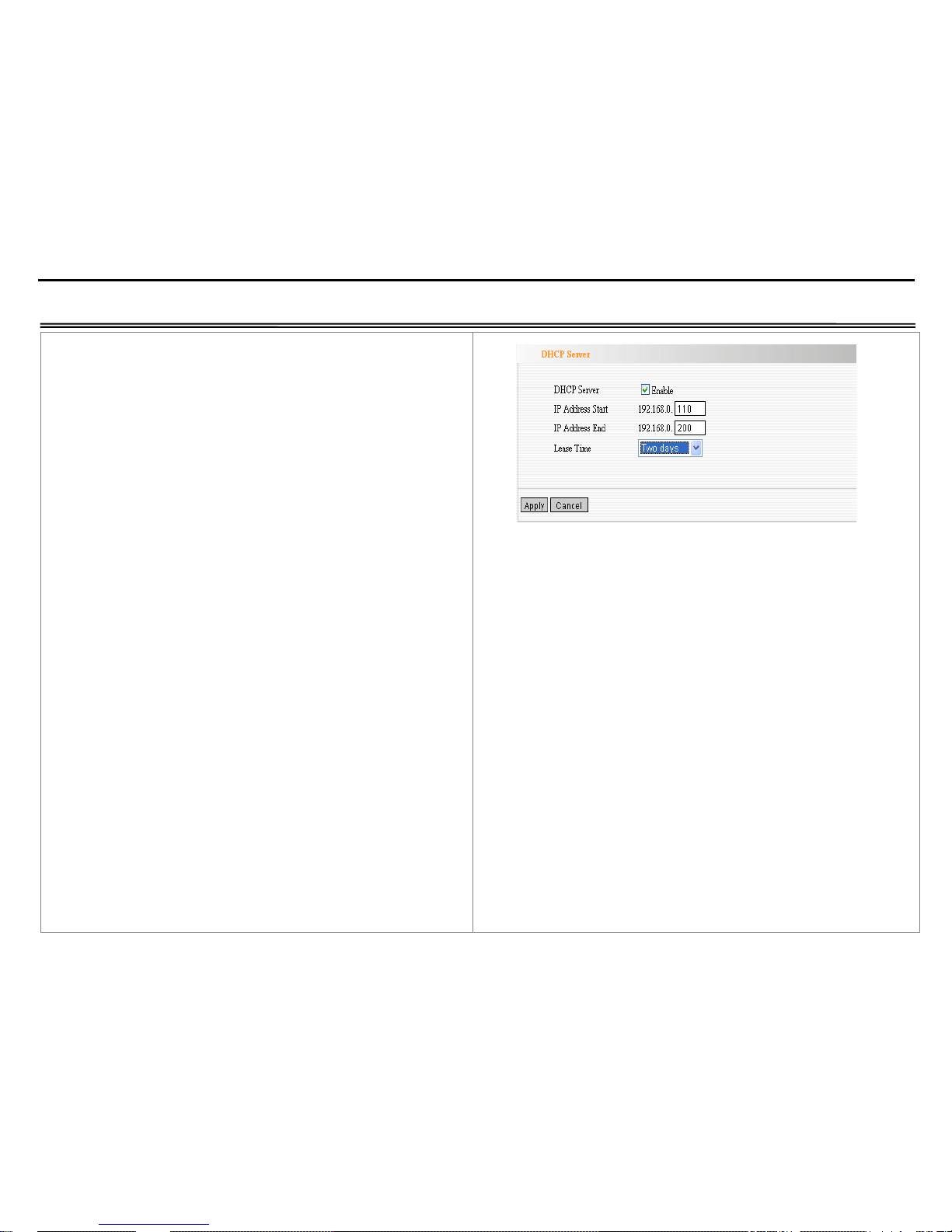

DHCP (Dynamic Host Control Protocol) is to
assign an IP address to the computers on the
LAN/private network. When you enable the
DHCP Server, the DHCP Server will allocate
automatically an unused IP address from the IP
address pool to the requesting computer in
premise of activating “Obtain an IP Address
Automatically”. So specifying the starting and
ending address of the IP Address pool is needed.

DHCP Server:Activate the checkbox to enable

DHCP server.

IP Address Start/End: Enter the range of IP

address for DHCP server distribution.

Lease Time:The length of the IP address lease.

OvisLink Evo-w300ar

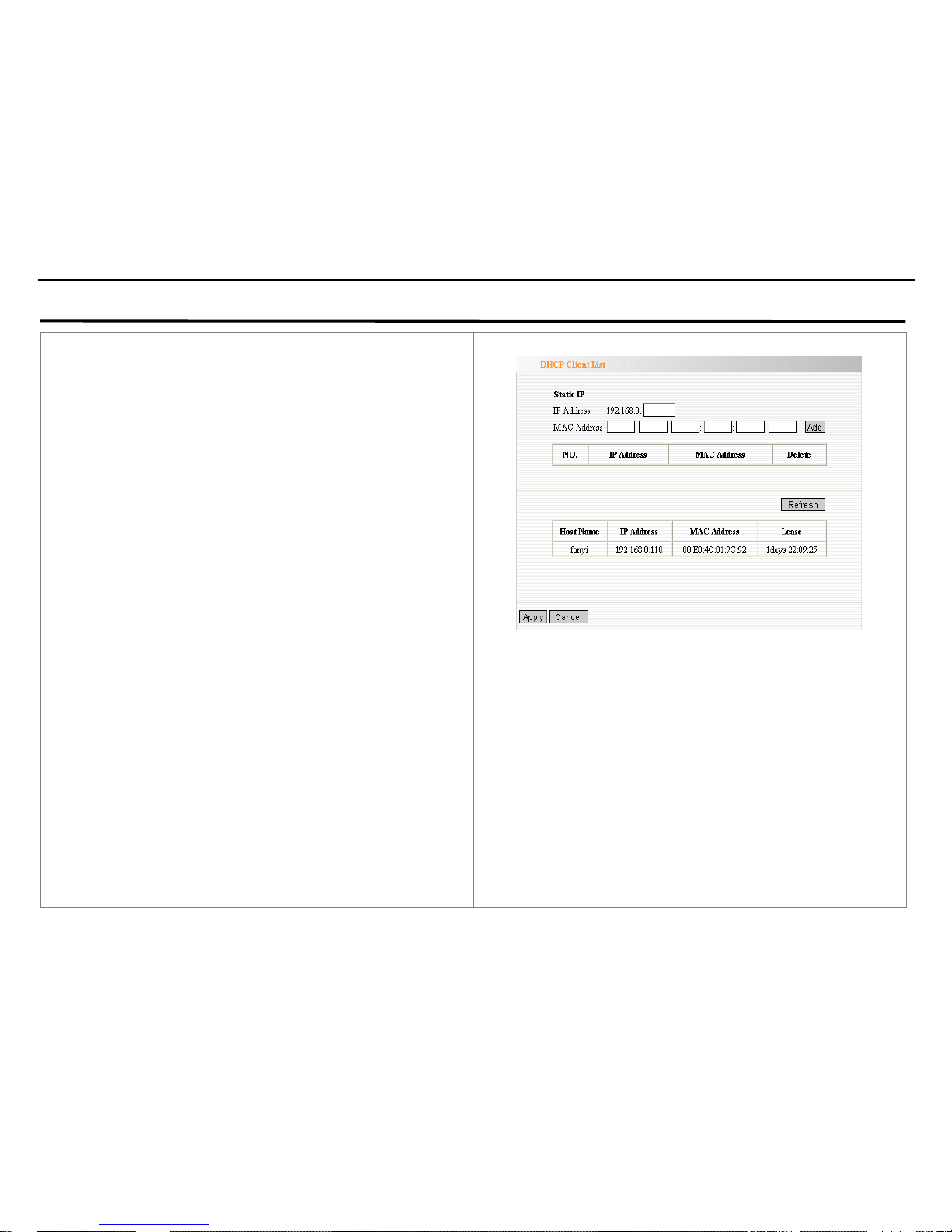

DHCP Server List

The Static IP assignment is to add a specifically
static IP address to the assigned MAC address.
You can view the related information in the
DHCP server list.

IP Address: Enter one IP address for the

computer on the LAN network.

MAC Address:Enter the MAC address of the

computer you want to assign the above IP
address . Click “Add” to add the entry in the list.

Hostname:The name of the computer which

is added a new IP address.

Lease Time:The time length of the corresponding

IP address lease.

35

OvisLink Evo-w300ar

Chapter 8: V irtual Server

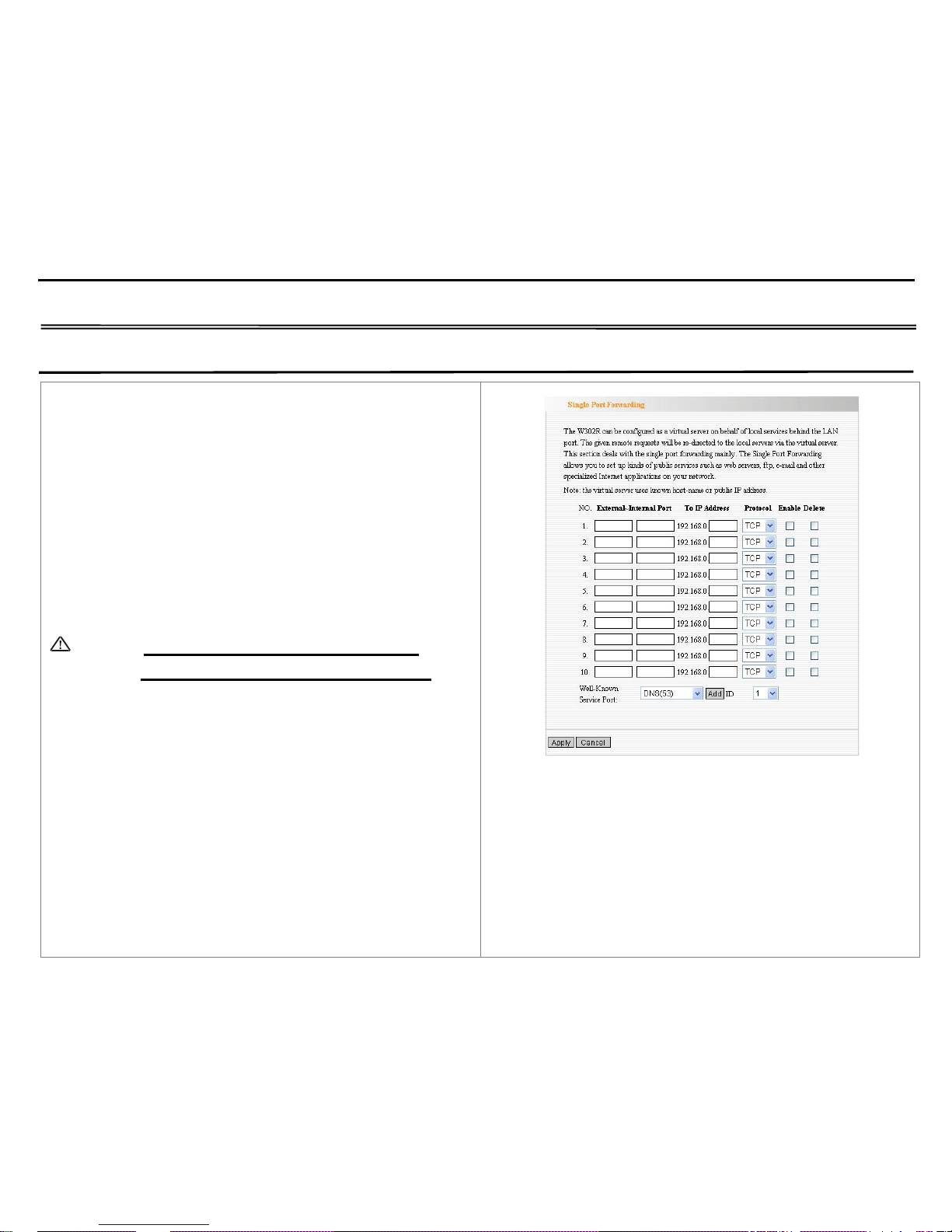

Single Port Forwarding

The EVO-W300AR can be configured as a virtual
server on behalf of local services behind the LAN
port. The given remote requests will be
re-directed to the local servers via the virtual
server. This section deals with the single port
forwarding mainly. The Single Port Forwarding
allows you to set up kinds of public services such
as web servers, ftp, e-mail and other specialized
Internet applications on your network.

NOTE: the virtual server uses known

host-name or public IP address.

External Port:This is the external port number

for server or Internet application, for example,
port 21 for ftp service.

Internal Port:This is the port number of LAN

computer set by the Router. The Internet traffic
from the external port will forward to the internal
port. For example, you can set the internal port
NO.66 to act as the external port NO.21 for ftp
service.

IP Address:Enter the IP address of the PC

36

OvisLink Evo-w300ar

where you want to set the applications.

Protocol:Select the protocol (TCP/UDP/Both) for

the application.

Well-Known Service Port: Select the well-known

services as DNS, FTP from the drop-down menu
to add to the configured one above.

Delete/Enable:Click to check it for corresponding

operation.

NOTE: If you set the virtual server of the

service port as 80, you must set the

Web management port on
Remote Web Management page to
be any value except 80 such as

8080. Otherwise, there will be a
conflict to disable the virtual server.

37

OvisLink Evo-w300ar

Port Range Forwarding

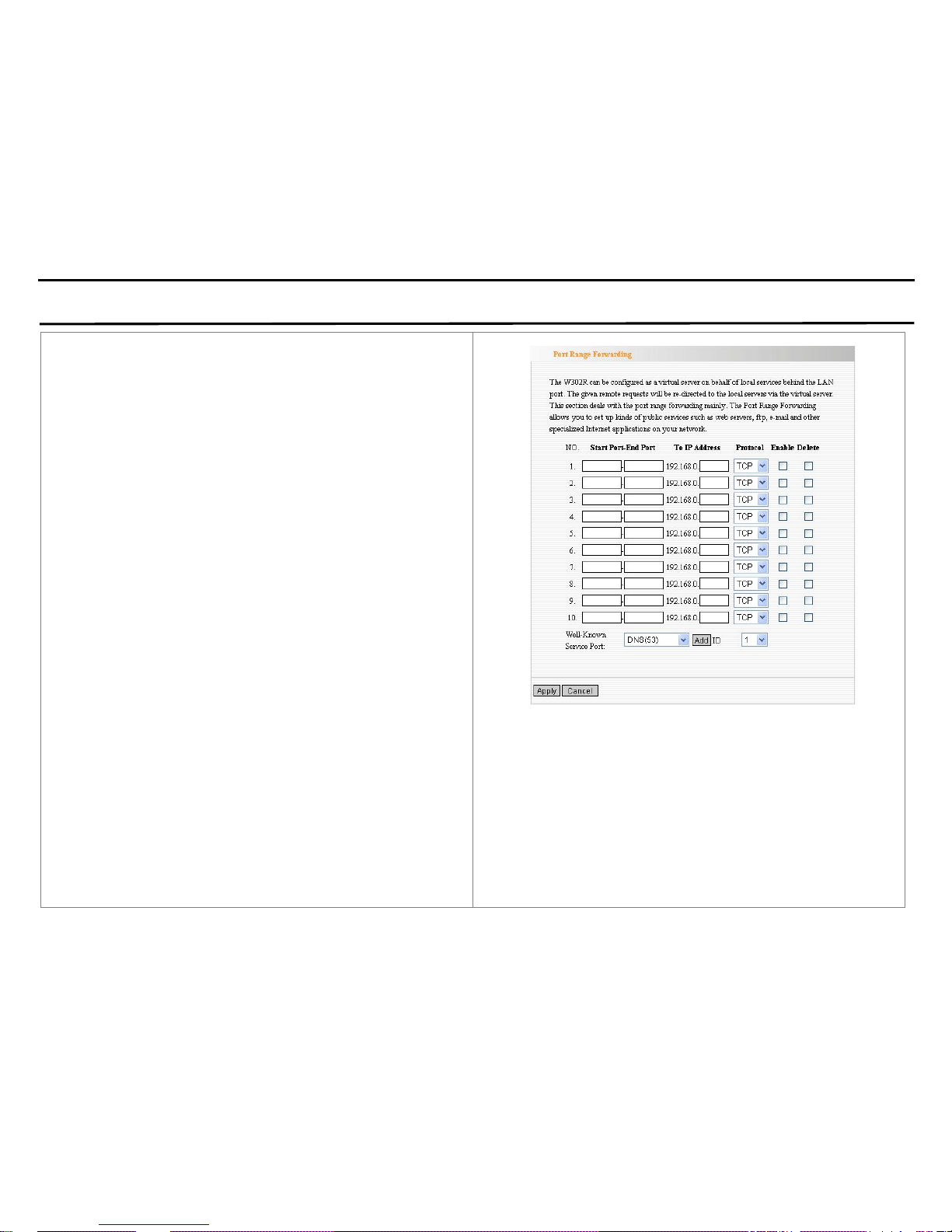

This section deals with the port range forwarding
mainly. The Port Range Forwarding allows you to
set up a range of public services such as web
servers, ftp, e-mail and other specialized Internet
applications to an assigned IP address on your
LAN.

Start/End Port:Enter the start/end port number

which ranges the External ports used to set the
server or Internet applications.

IP Address:Enter the IP address of the PC where

you want to set the applications.

Protocol:Select the protocol (TCP/UDP /Both) for

the application.

Well-Known Service Port: Select the well-known

services as DNS, FTP from the drop-down
menu to add to the configured one above.

Delete/Enable:Click to check it for corresponding

operation.

38

OvisLink Evo-w300ar

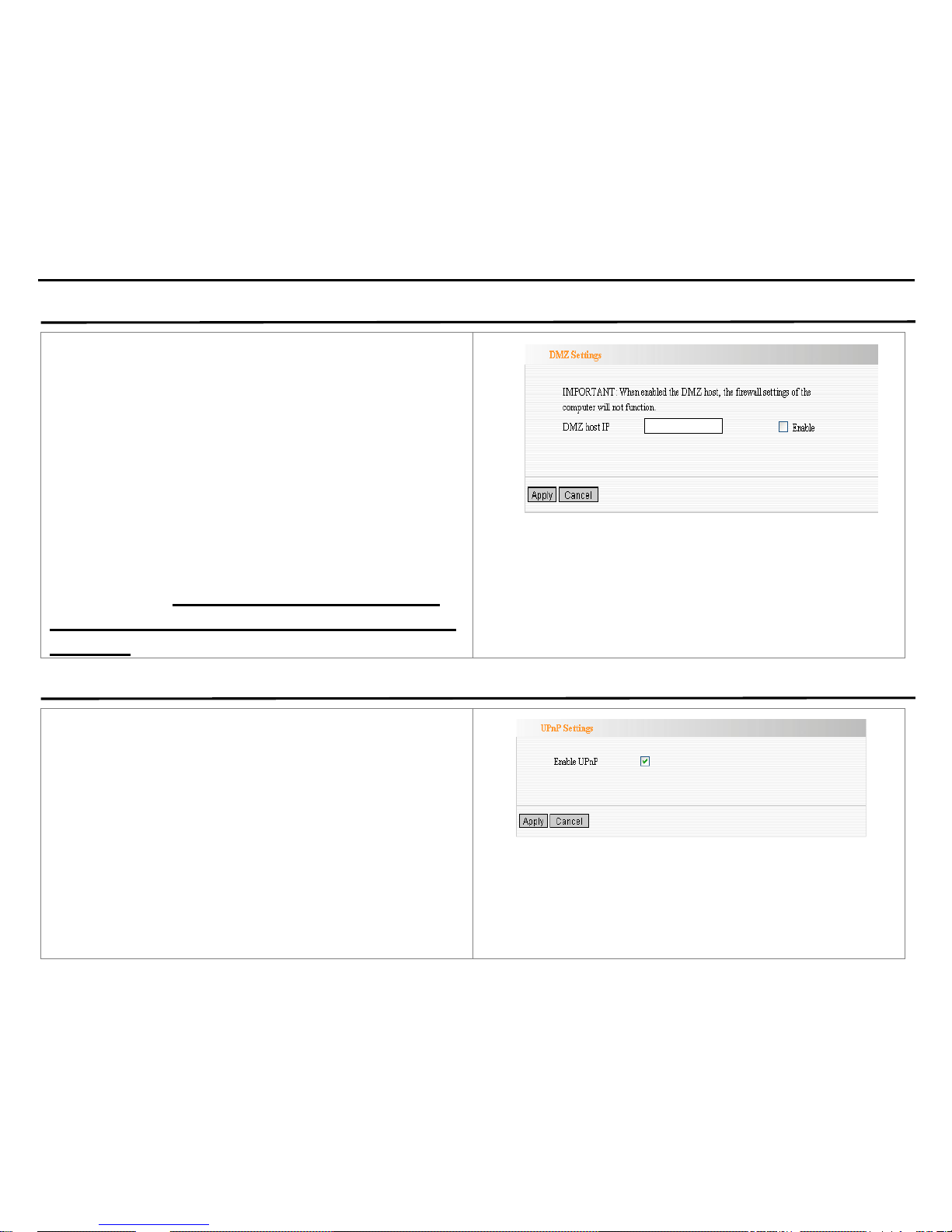

DMZ Settings

The DMZ function is to allow one computer in
LAN to be exposed to the Internet for a
special-purpose service as Internet gaming or
videoconferencing.

DMZ Host IP Address: The IP address of the

computer you want to expose.

Enable: Click the checkbox to enable the DMZ

host.

IMPORTANT: When enabled the DMZ host,
the firewall settings of the DMZ host will not
function.

UPnP Settings

UPnP (Universal Plug and Play) allows the
system (only Windows Me and Windows XP) to
configure the device for various Internet
applications automatically.

Enable UPnP: Click the checkbox to enable the

UPnP.

39

OvisLink Evo-w300ar

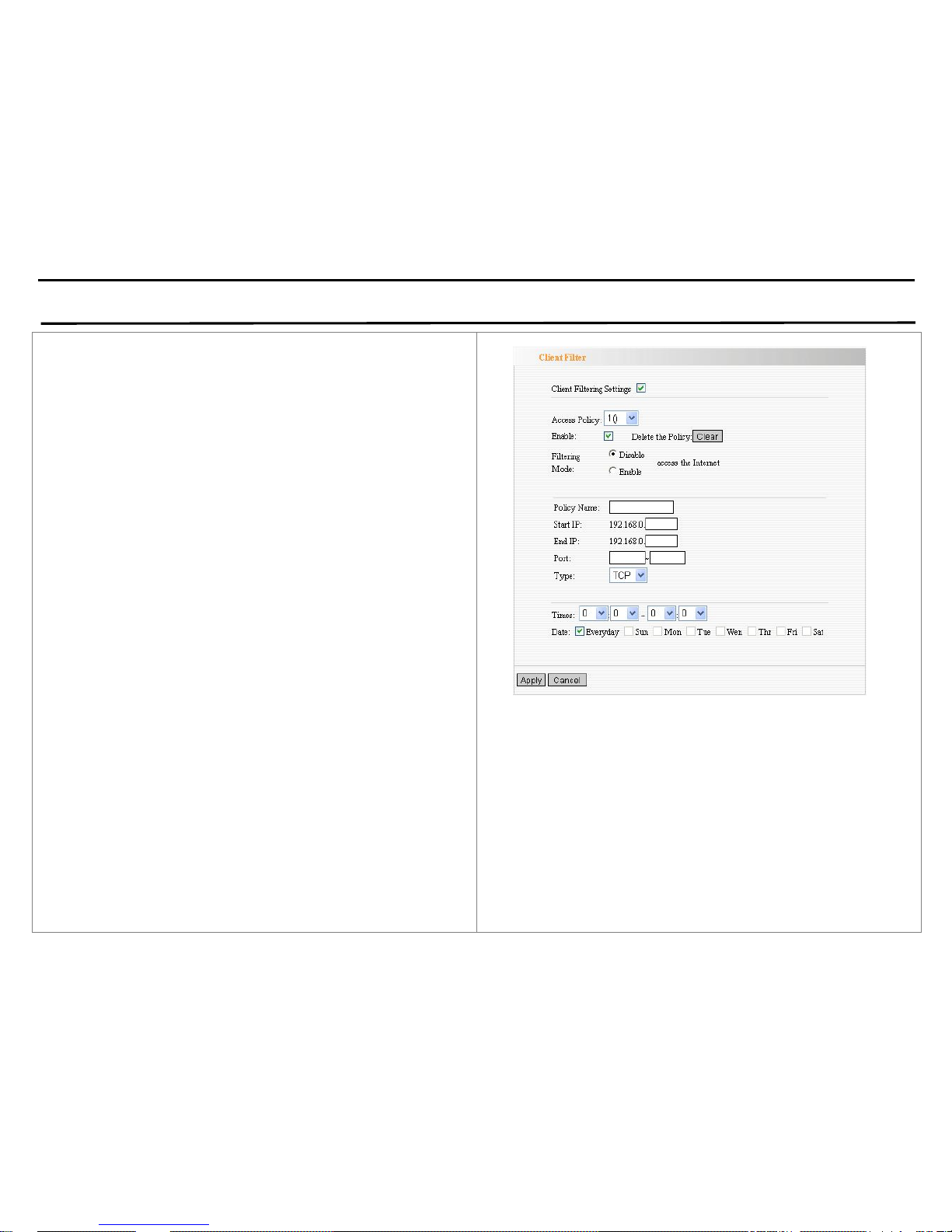

Client Filter Settings

Client Filter:Check to enable client filter.
Access Policy:Select one number from the

drop-down menu.

Enable:Check to enable the access policy.
Clear the Policy:Click “Clear” button to clear all

settings for the policy.

Filter Mode:Click one radio button to enable or

disable to access the Internet.

Policy Name:Enter a name for the access policy

selected.

IP Start/End:Enter the starting/ending IP address.

Port No.:Enter the port range based over

the protocol for access policy.

Protocol:Select one protocol (TCP/UDP/Both)

from the drop-down menu.

Times:Select the time range of client filter.

Days:Select the day(s) to run the access policy.

40

OvisLink Evo-w300ar

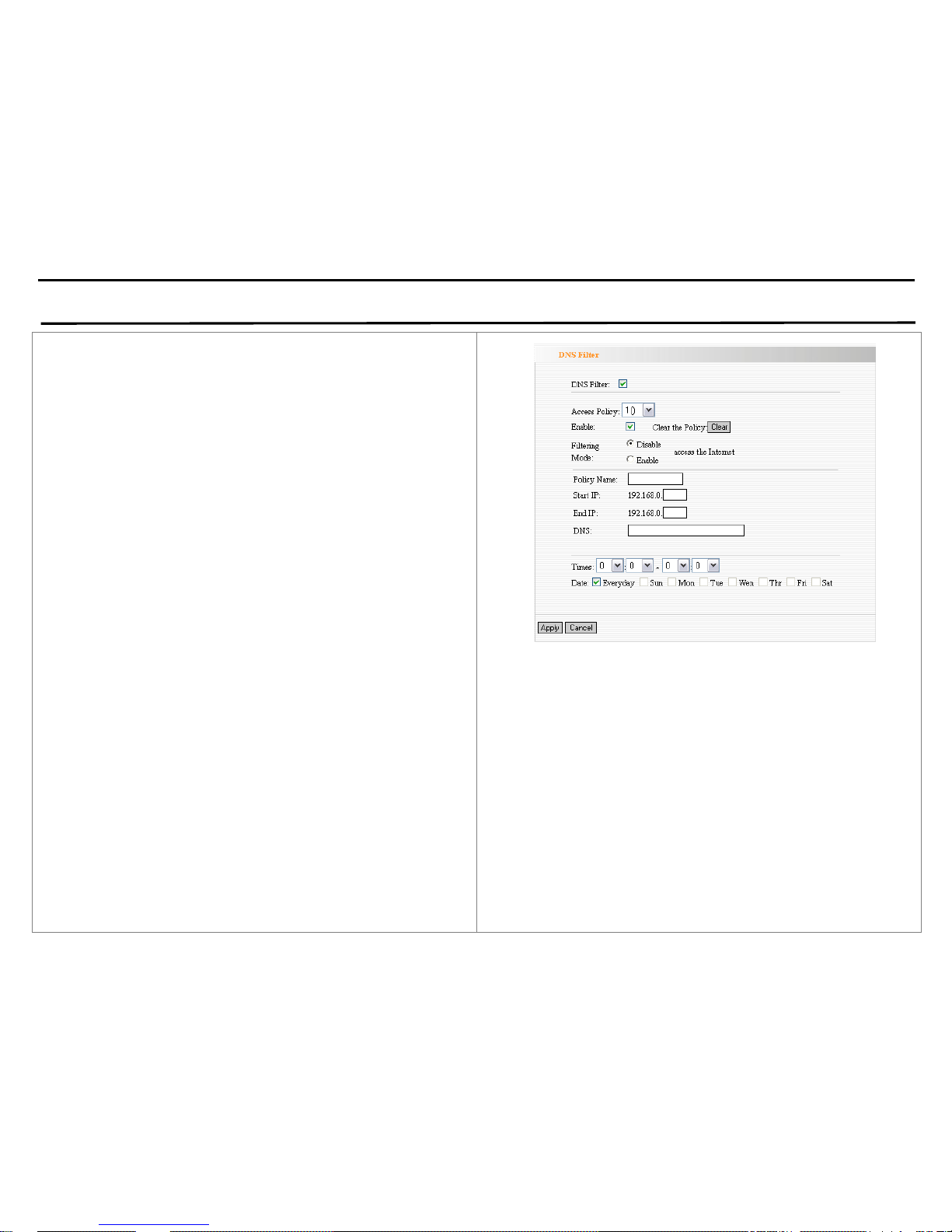

DNS Filter Settings

DNS Filter:Check to enable DNS filter.

Access Policy:Select one number from the

drop-down menu.

Enable:Check to enable the access policy.

Clear the Policy:Click “Clear” button to clear all

settings for the policy.

Filter Mode:Click one radio button to enable

or disable to access the Internet.

Policy Name: Enter a name for the access policy

selected.

IP Start/End: Enter the starting/ending IP address.

DNS:Specify the text strings or keywords in the

DNS. If any part of the DNS contains these
strings or words, the web page will not be
accessible and display.

Times:Select the time range of client filter.
Days:Select the day(s) to run the access policy.

41

OvisLink Evo-w300ar

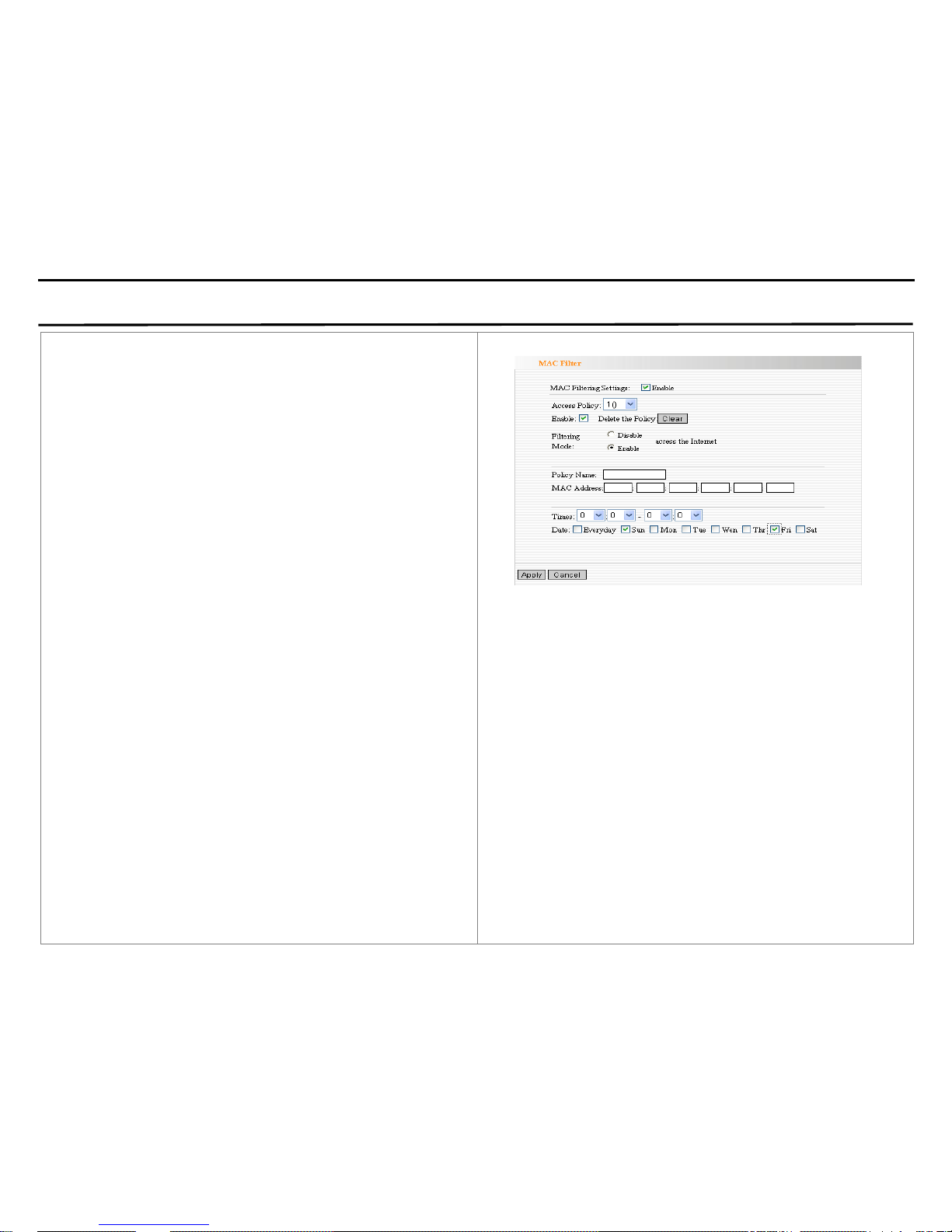

MAC Address Settings

MAC Address Filter:Check to enable MAC

address filter.

Access Policy:Select one number from the

drop-down menu.

Enable:Check to enable the access policy.

Clear the Policy:Click “Clear” button to clear all

settings for the policy.

Filter Mode:Click one radio button to enable or

disable to access the Internet.

Policy Name:Enter a name for the access policy

selected.

MAC Address:Enter the MAC address you want

to run the access policy.

Times:Select the time range of client filter.
Days: Select the day(s) to run the access policy.

42

OvisLink Evo-w300ar

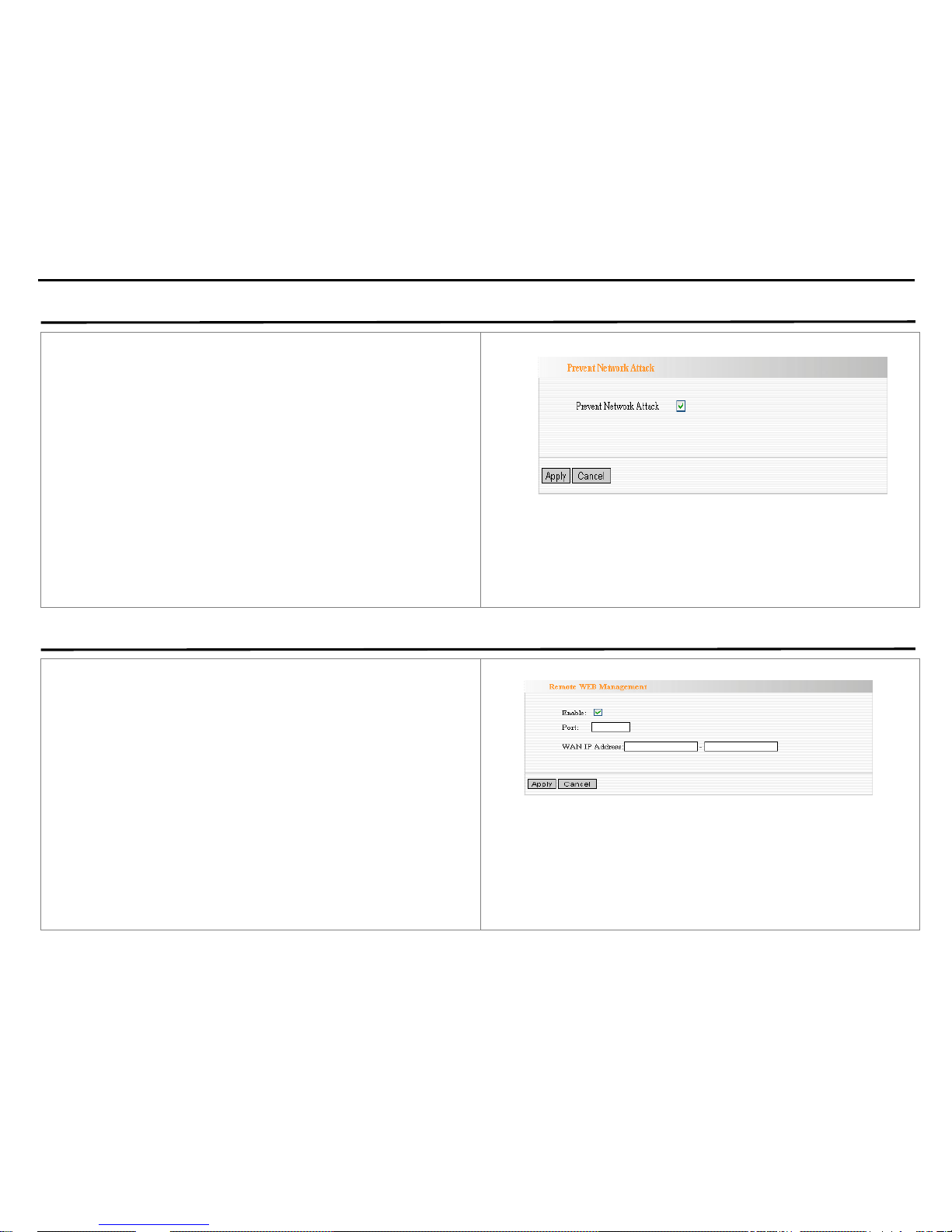

Prevent Network Attack

This section is to protect the internal network from
exotic attack such as SYN Flooding attack, Smurf
attack, LAND attack, etc. Once detecting the
unknown attack, the Router will restrict its
bandwidth automatically.
The attacker’s IP address can be found from the
“System Log”.

Prevent Network Attack: Check to enable it for

attack prevention.

43

Remote Web Management

This section is to allow the network administrator
to manage the Router remotely. If you want to
access the Router from outside the local network,
please select the “Enable”.

Enable: Check to enable remote web

management.

Port: The management port open to outside

access The default value is 80.

WAN IP Address: Specify the range of the WAN

IP address for remote management.

OvisLink Evo-w300ar

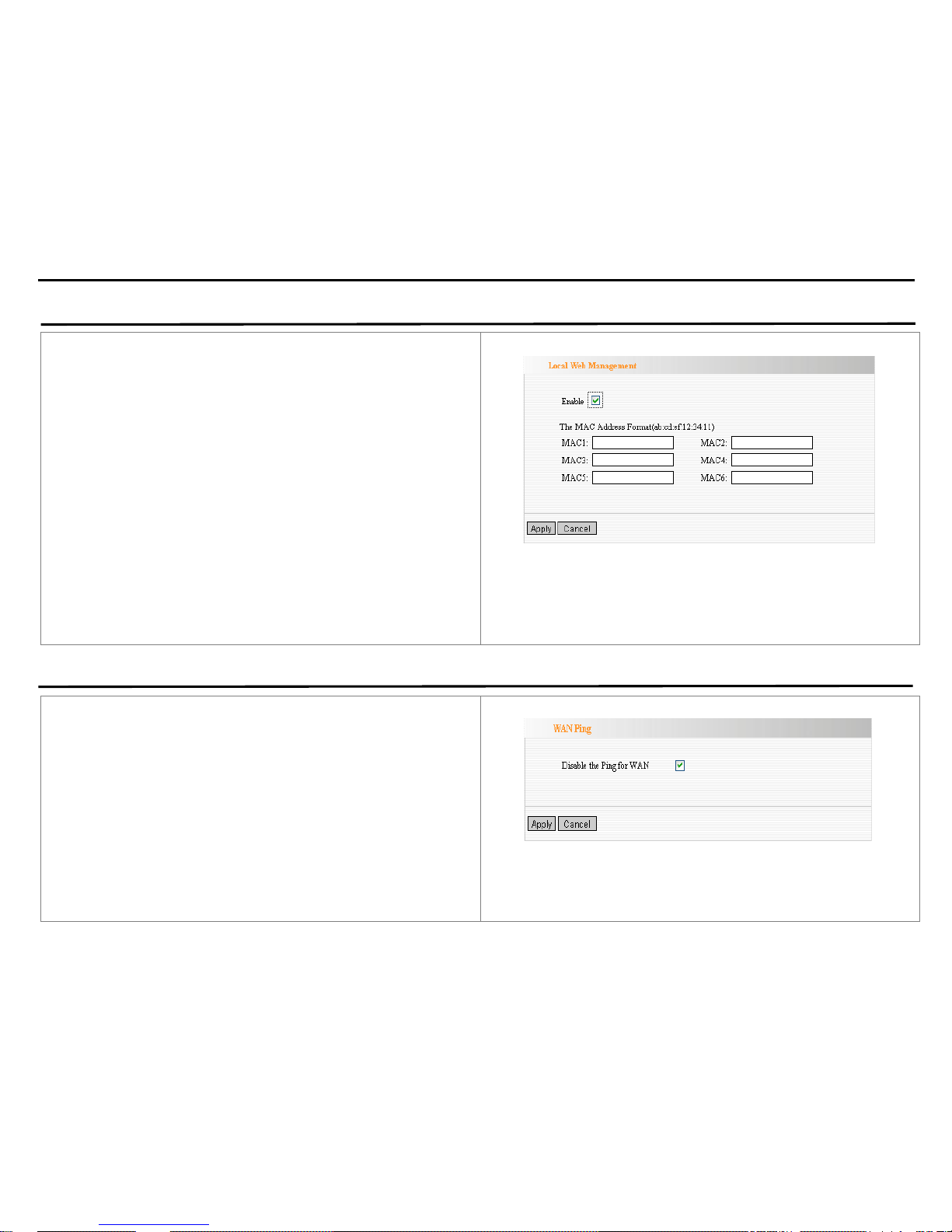

Local Web Management

Local web management, the alternative to remote
web management, is to allow the network
administrator to manage the Router in LAN. Any
PC in the LAN can access the Web management
utility by default. So you can enter the specific
MAC address of the LAN computer to function.

Enable:

Check to enable the local web management

MAC1/2/3…:

Enter the MAC addresses of LAN computers.

44

Ping Settings

The ping test is to check the status of your
internet connection. When disabling the test, the
system will ignore the ping test from WAN.

Disable the Ping for WAN: Check to enable it.

OvisLink Evo-w300ar

Static Routing

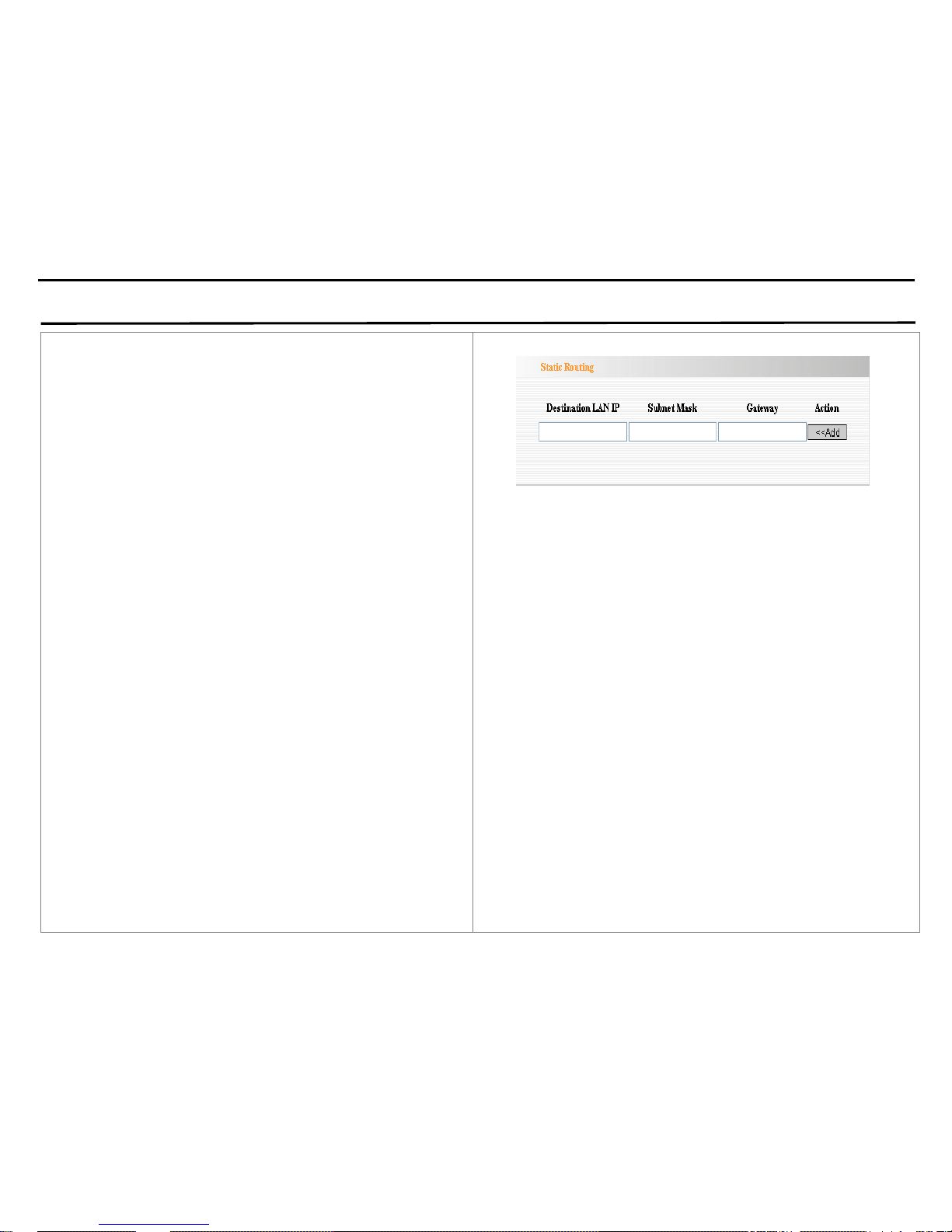

Static routing is the term used to refer to the
manual method to set up routing for successful
packet forwarding. The administrator puts in the
entries for every network that could be a
destination. Usually the static routes to network
destinations are unchangeable.

Destination LAN IP:

The address of the remote host with which you
want to construct a static route.

Subnet Mask:

The network portion of the Destination LAN IP.

Gateway:

The gateway of the next hop.

45

OvisLink Evo-w300ar

Chapter 9: System Tools

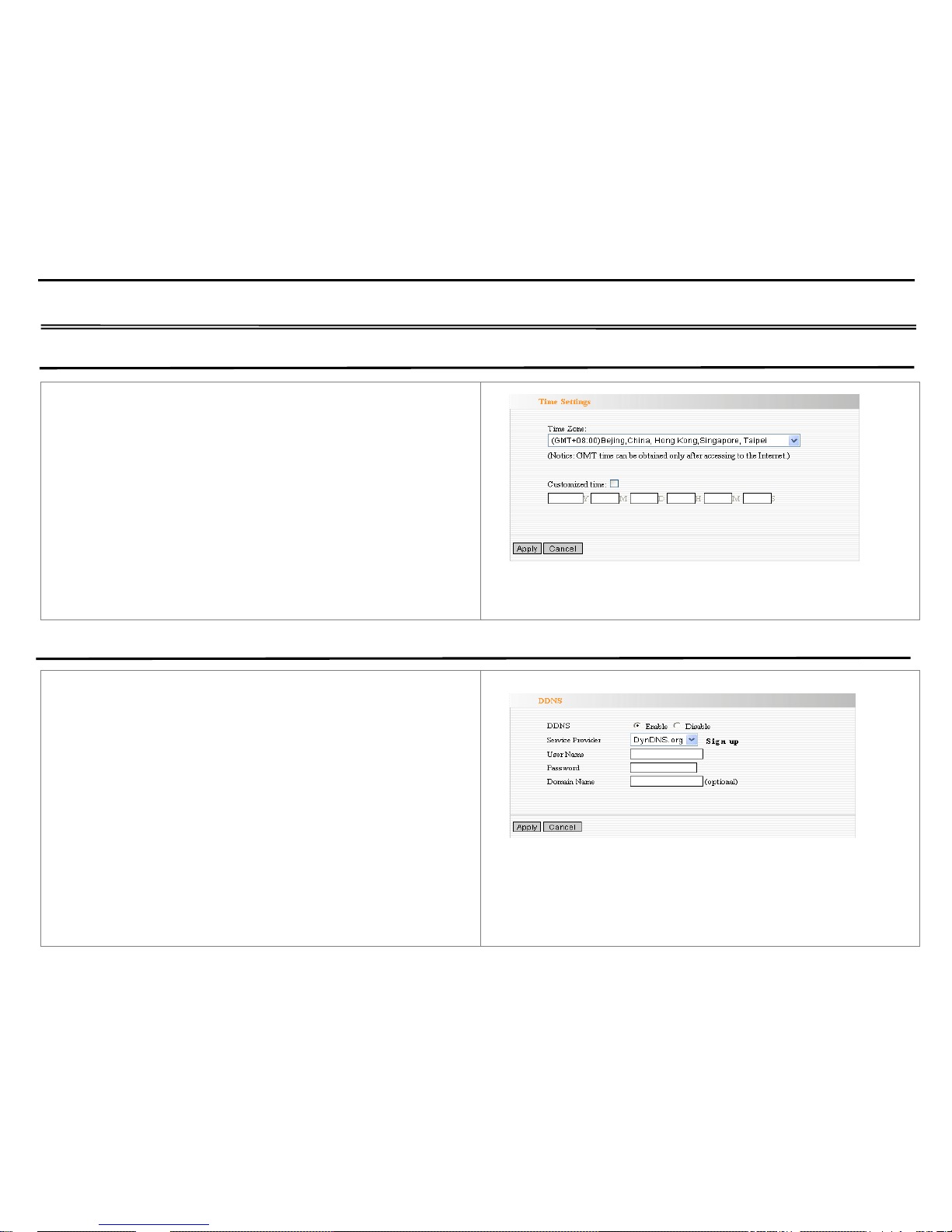

Time

This section is to select the time zone for your
location. If you turn off the Router, the settings for
time disappear. However, the Router will
automatically obtain the GMT time again once it
has access to the Internet.

Time Zone: Select your time zone from the

drop-down menu.

Customized time: Enter the time you customize.

DDNS

The DDNS (Dynamic Domain Name System) is
supported in this router. It is to assign a fixed host
and domain name to a dynamic Internet IP
address, which is used to monitor hosting
website, FTP server and so on behind the Router.
If you want to activate this function, please select
“Enable” and a DDNS service provider to sign up.

DDNS:Click the radio button to enable or disable

the DDNS service.

Service Provider:Select one from the drop-down

46

OvisLink Evo-w300ar

menu and press “Sign up” for registration.

User Name:Enter the user name the same as the

registration name.

Password:Enter the password you set.

Domain Name: Enter the domain name which is

optional.

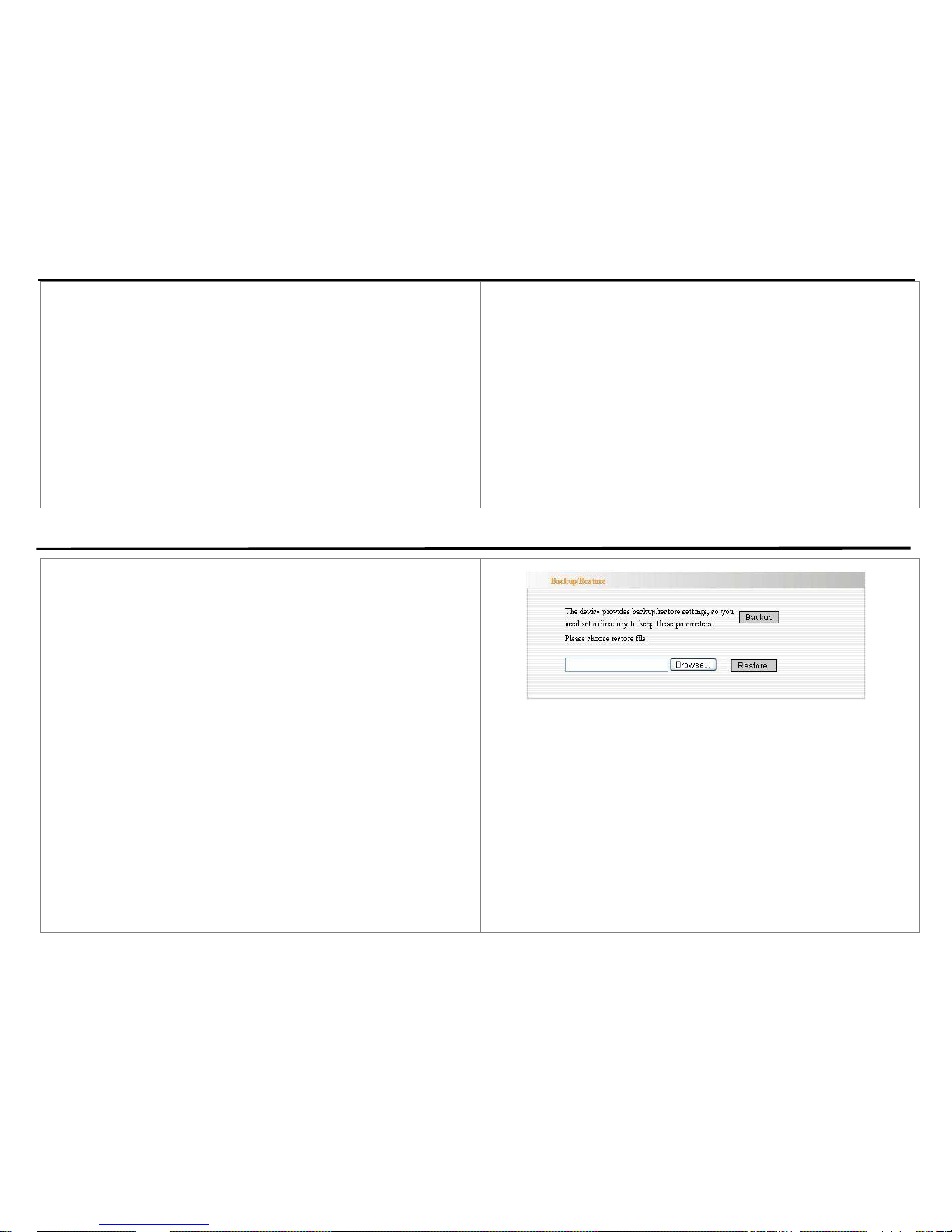

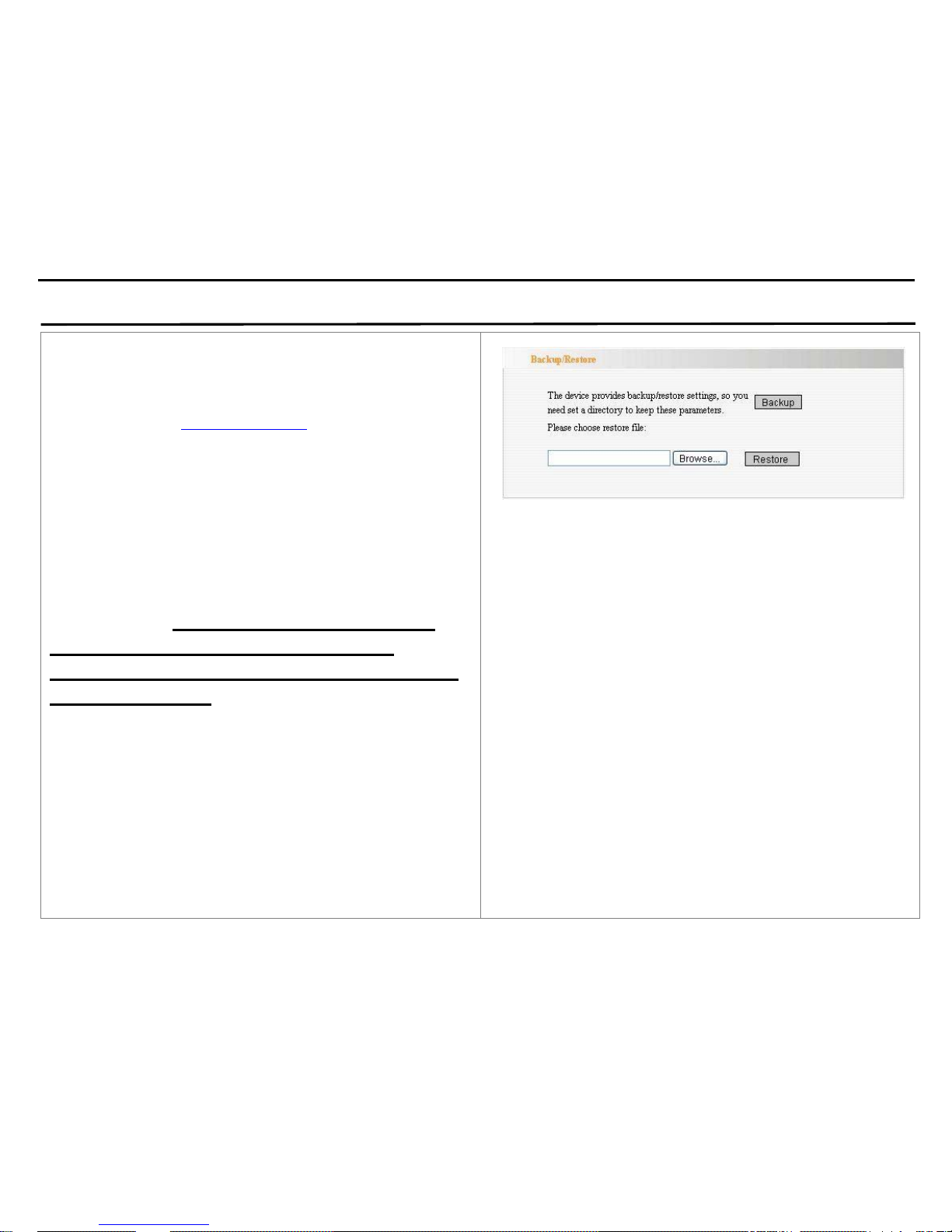

Backup/Restore

The device provides backup/restore settings, so
you need set a directory to keep these
parameters.

Backup: Click this button to back up the Router’s

configurations.

Browse: Click this button to browse the directory

where you Back up or save files.

Restore: Click this button to restore the Router’s

configurations.

47

OvisLink Evo-w300ar

Firmware Upgrade

48

The Router provides the firmware upgrade by
clicking the “Upgrade” after browsing for the
firmware upgrade packet which you can
download from www.ovislink.fr. After the upgrade
is completed, the Router will reboot automatically.

Browse: Click this button to browse the directory

where you download the firmware upgrade files.

Upgrade: Click this button to start upgrade.

IMPORTANT: Do not power off the system
during the firmware upgrade to avoid
damaging the device. The Router will reboot
after the upgrade.

OvisLink Evo-w300ar

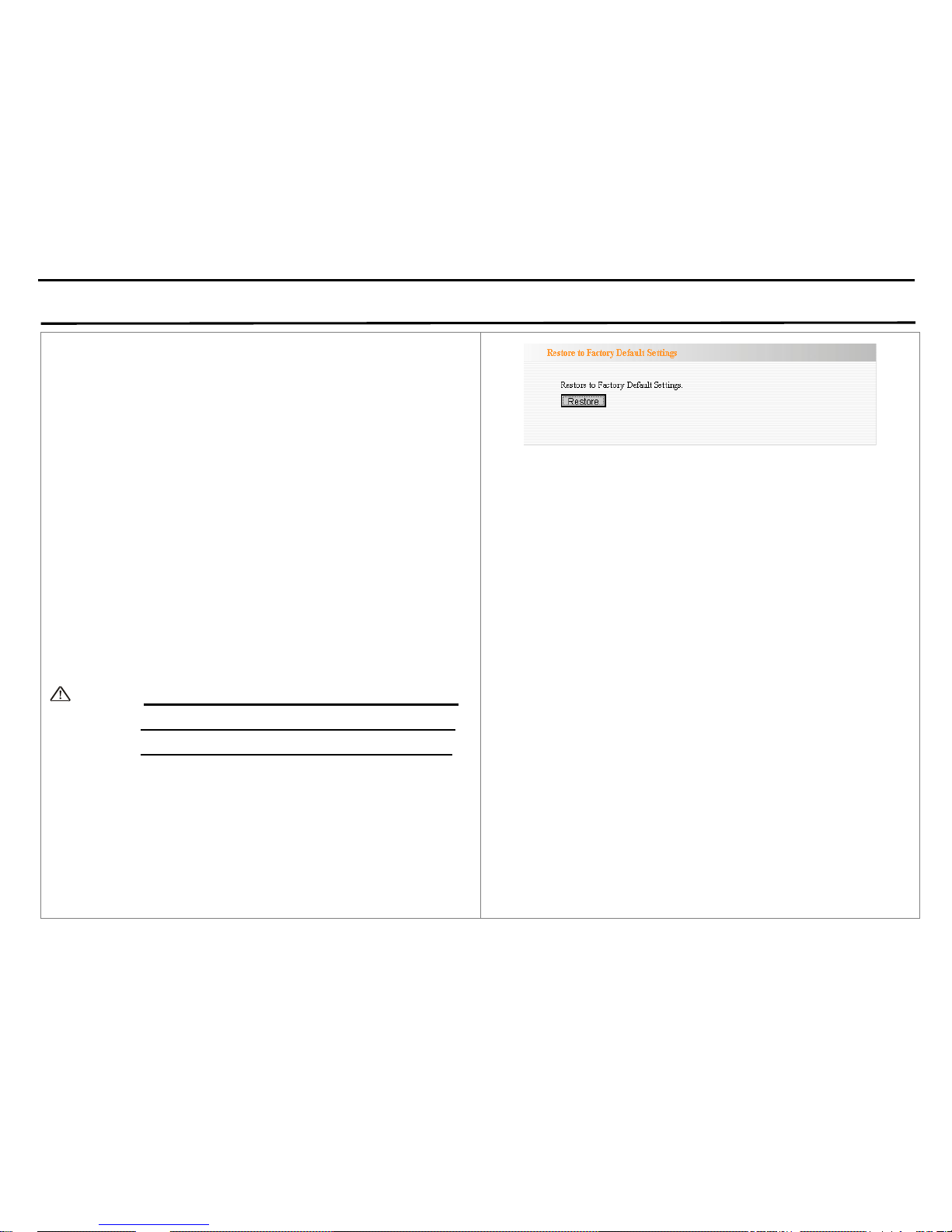

Restore to Factory Default Settings

49

This button is to reset all configurations to the
default values. It means the Router will lose all
the settings you have set. So please Note down
the related settings if necessary.

Restore to Factory Default Settings: Click this

button to restore to default settings.

Factory Default Settings:
User Name: admin
Password: admin
IP Address: 192.168.0.1
Subnet Mask: 255.255.255.0

NOTE: After restoring to default settings,

please restart the device, then the

default settings can go into effect.

OvisLink Evo-w300ar

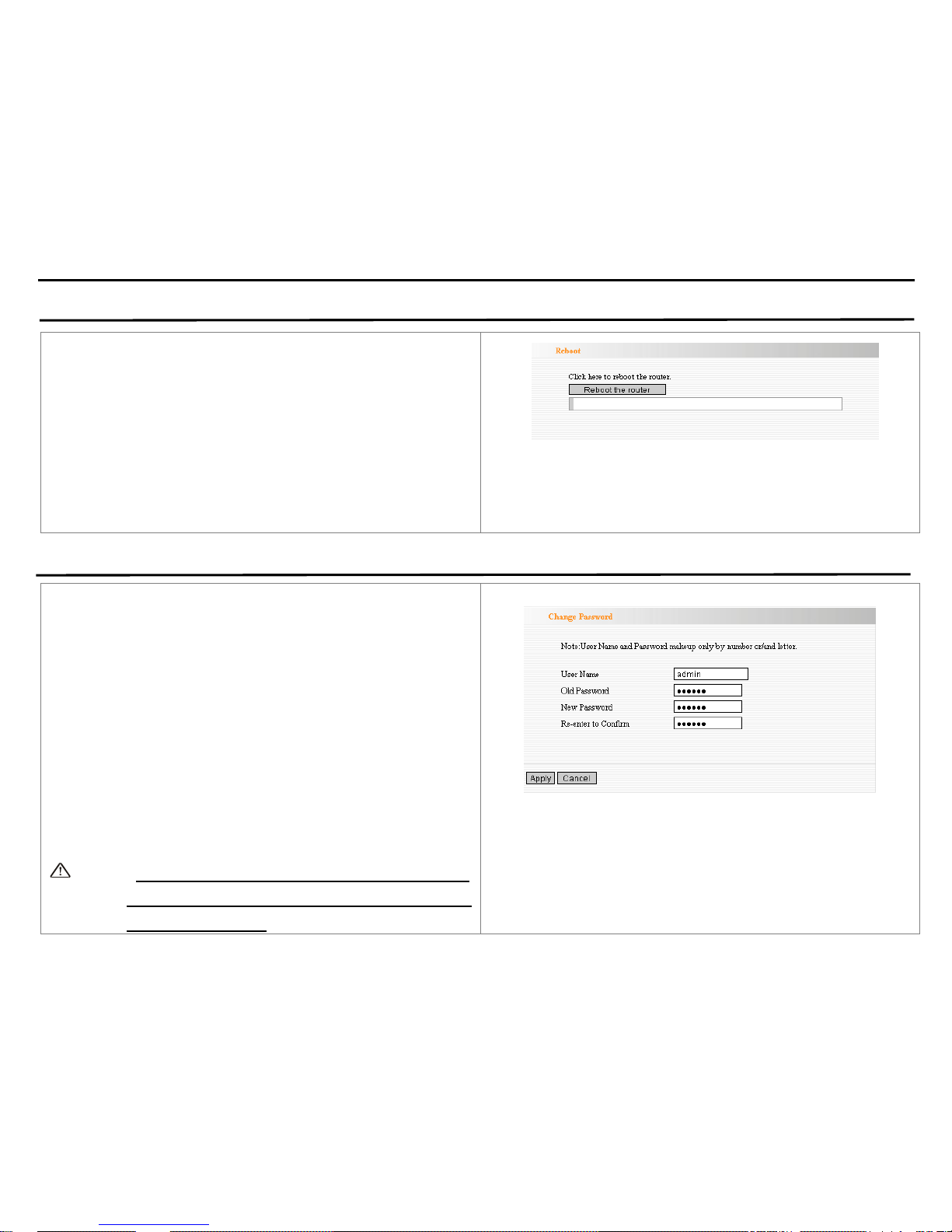

Reboot

Rebooting the Router makes the settings
configured go into effect or to set the Router again
if setting failure happens.

Reboot: Click this button to reboot the device.

50

Change Password

This section is to set a new user name and
password to better secure your router and
network. Please Note that the new password
should be less than 14 characters.

User Name:Enter a new user name for the

device.

Old Password:Enter the old password.
New Password:Enter a new password.
Re-enter to Confirm: Re-enter to confirm the new

password.

NOTE: It is highly recommended to change

the password to secure your network
and the Router.

OvisLink Evo-w300ar

System Log

The section is to view the system log. Click the
“Refresh” to update the log. Click “Clear” to
clear all shown information. If the log is over
150 records, it will clear them automatically.

Refresh: Click this button to update the log.

Clear: Click this button to clear the current

shown log.

51

Integrates router, wireless access point, four-port switch and firewall in one
Complies with IEEE802.11n, IEEE802.11b and IEEE802.11g standards
MIMO technology utilizes reflection signal to increase three times transmission distance of original

802.11g standard and reduces the "dead spots" in the wireless coverage area
Provides 300Mbps receiving rate and 300Mbps sending rate
Supports WMM to make your voice and video more smooth
Supports 64/128-bit WEP, WPA, WPA2 encryption methods and 802.1x security authentication
standards
WPS (PBC and PIN) encryption method to free you from remembering long passwords
Supports remote/local Web management
Supports wireless Roaming technology and ensures high-efficient wireless connections
Supports wireless SSID stealth mode and MAC address access control
Supports Auto MDI/MDIX
Provides system log to record the status of the router
Supports MAC address filtering, NAT, NAPT
Supports UPnP and DDNS

OvisLink Evo-w300ar

52

Appendix A: Product Features

Supports the access control over 30 MAC addresses
Supports DHCP server/client
Supports SNTP
Supports virtual server and DMZ host
Supports auto wireless channel selection
Supports WDS function (wireless distribution system)
