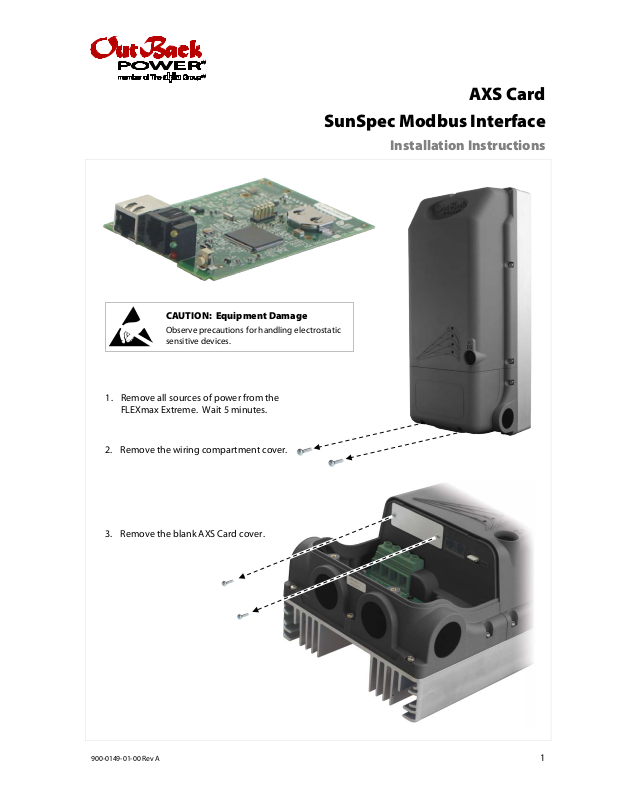

Outback Power Systems AXS Card SunSpec Modbus Interface Installation Instructions

2. Remove the wiring compartment cover.

3. Remove the blank AXS Card cover.

1. Remove all sources of power from the

AXS Card

CAUTION: Equipment Damage

Observe precautions for handling electrostatic sensitive devices.

FLEXmax Extreme. Wait 5 minutes.

900-0149-01-00 Rev A 1

AXS Card Installation Instructions

Address:

Corporate Headquarters

Arlington, WA 98223 USA

European Office

Schwabach, Germany

Telephone:

+1.360.435.6030

+1.360.435.6019 (Fax)

+49.9122.79889.0

Email:

Support@outbackpower.com

Website:

http://www.outbackpower.com

5. Install the alternate AXS cover (included).

NOTE

Ethernet cable Installation is complete. See the AXS Port SunSpec Modbus Interface Owner’s Manual for use.

4. Insert the card into the compartment.

Seat it firmly.

Depress these tabs while inserting.

: Attach a ferrite clamp (included) to both the

and the RTS cable after installation.

Contact Information

17825 – 59th Avenue N.E. Suite B

+1.360.618.4363 (Technical Support)

Hansastrasse 8 D-91126

+49.9122.79889.21 (Fax)

Part Number, Date and Revision

900-0149-01-00, August 2013, Revision A
