PORTABLE EVAPORATIVE AIR COOLER
NewTech Coolers by Fanmaster
INSTRUCTION MANUAL
MODEL NO: PACIMD
We reserve all rights of this manual.
We reserve the right to change or modify this manual without prior notice.
PORTABLE EVAPORATIVE AIR COOLER
CONTENTS
1. |
Safety notice ........................................................ |
1 |
|
2. |

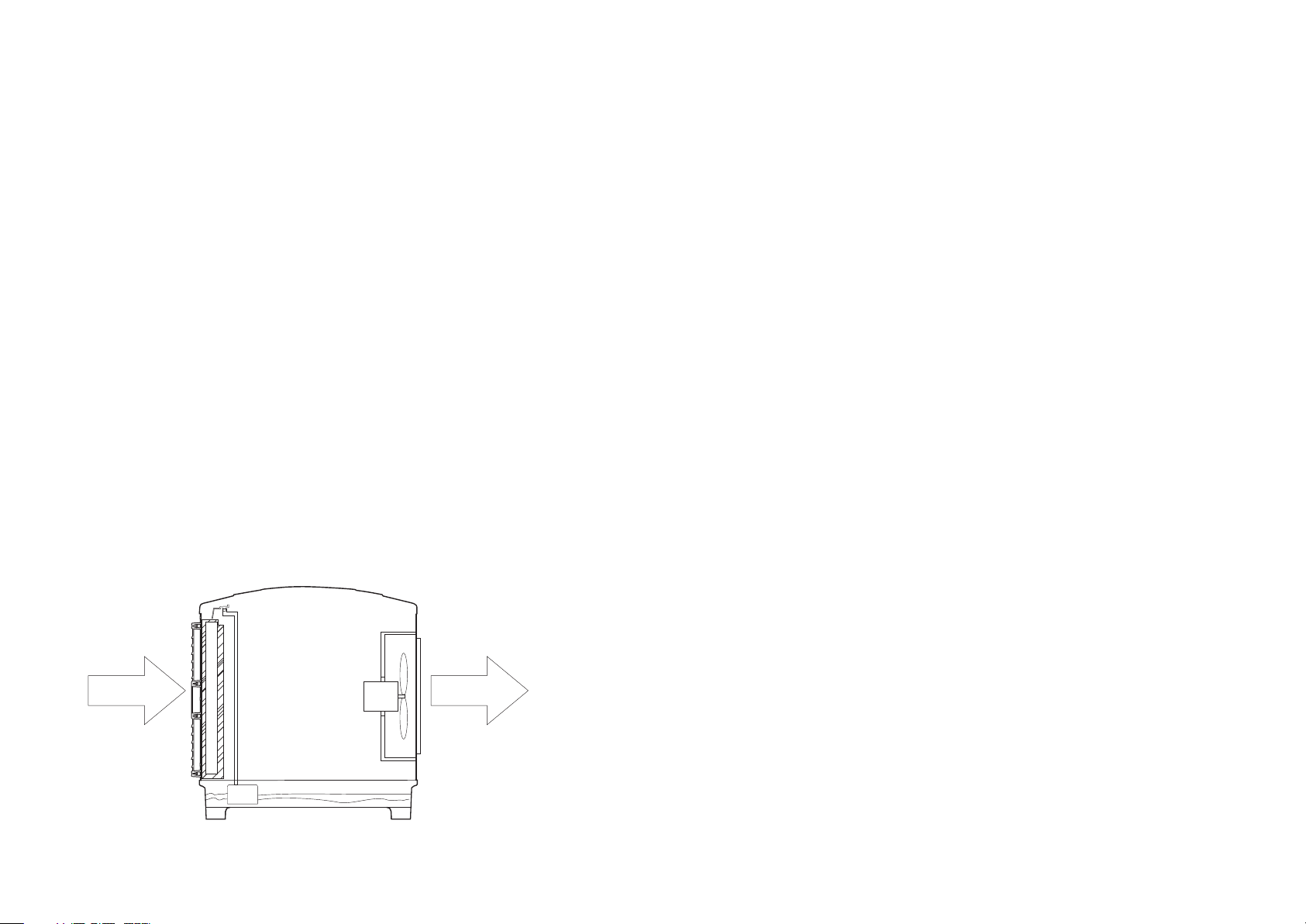

Product introduction ............................................ |
2 |
|
3. |
Note in use ........................................................... |
3-4 |
|
4. |
Scope of application ............................................. |
5 |
|
5. |
Environment of use .............................................. |
5 |
|
6. |
Packing list ........................................................... |
5 |
|
7. |
Specifcation ......................................................... |
6 |
|

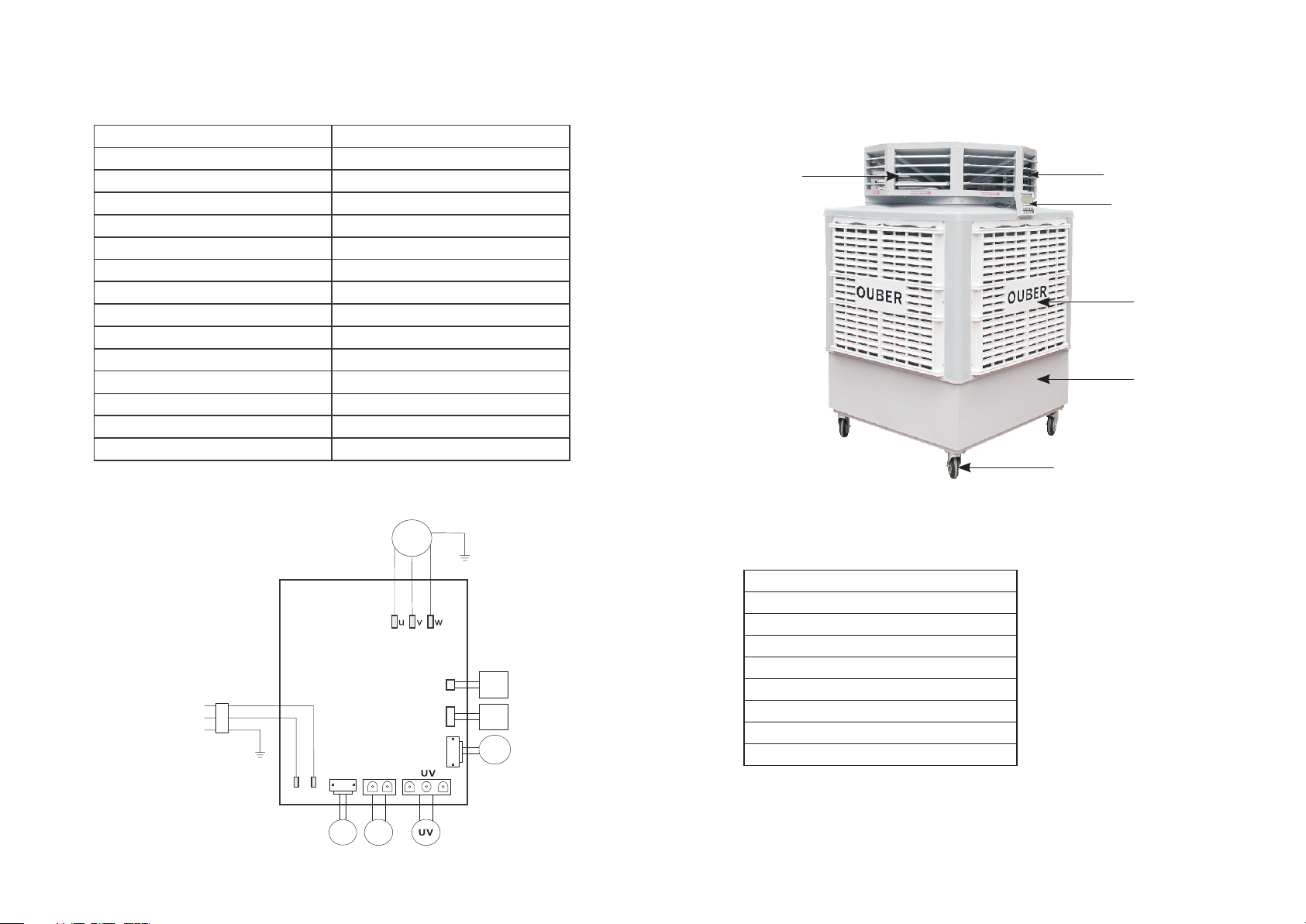

8. Wiring diagram ..................................................... |
6 |
||
9. |
Diagram structure .................................................. |
7 |
|
10. |
Parts list ................................................................ |
7 |
|

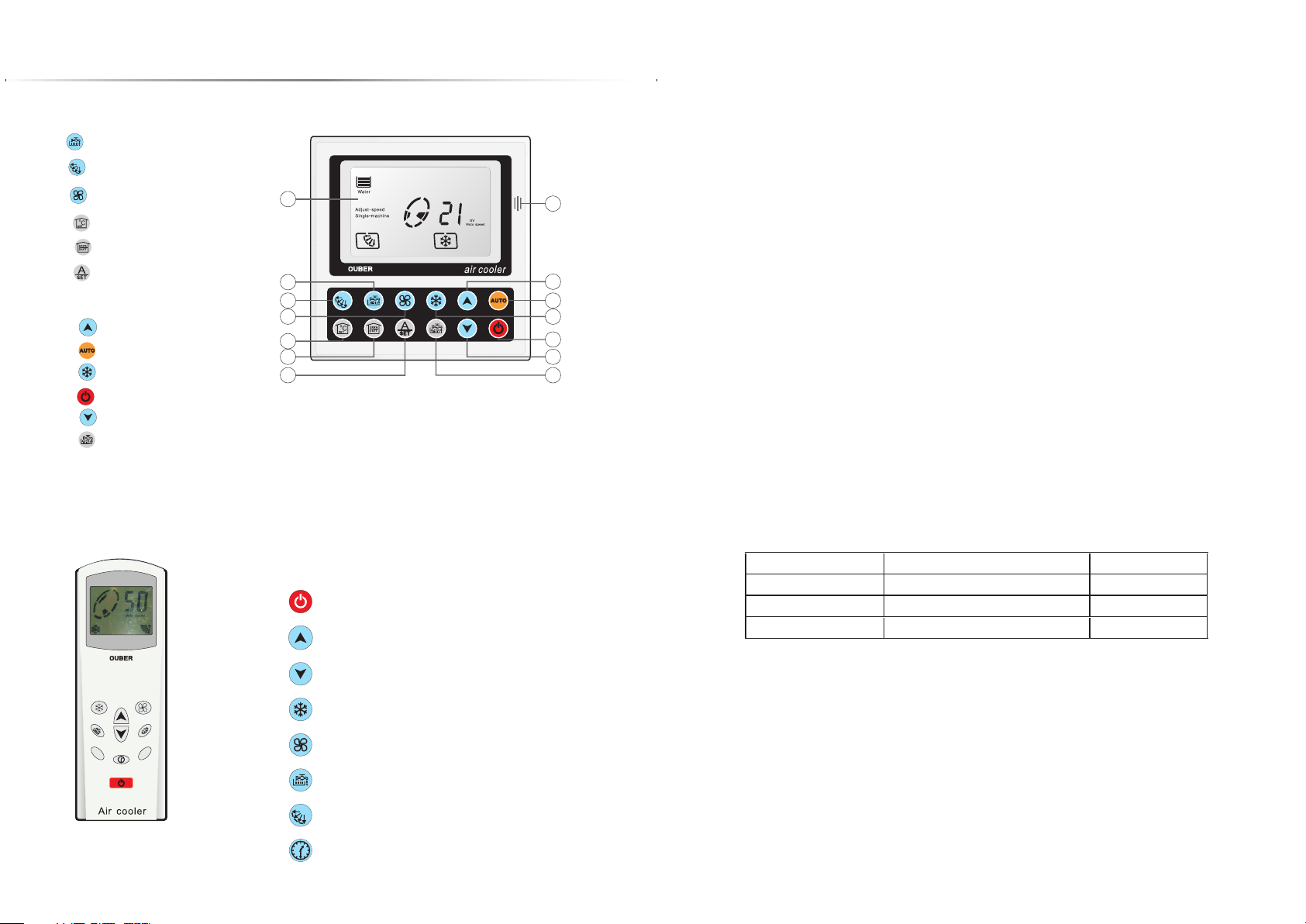

11. Control panel & remote intro ............................... |
8 |
||
12. |
Operating instructions .......................................... |
9 |
|
13. |

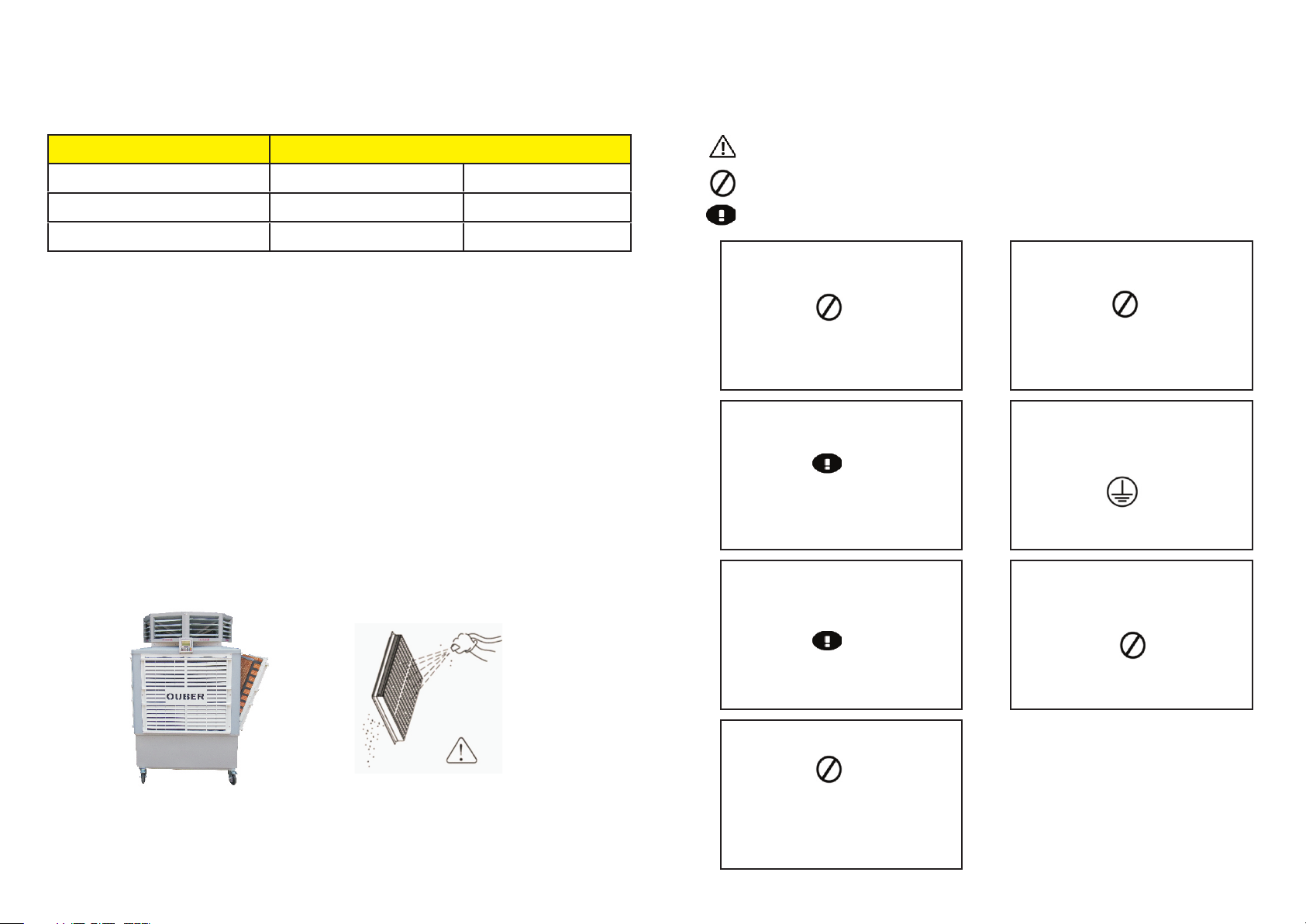

Cleaning & maintenance ................................... |
10-11 |
|
14. |
Storage ................................................................. |
11 |
|
15. Troubleshoot ........................................................ |
12 |
||
16. Warranty ............................................................... |
13 |
PORTABLE EVAPORATIVE AIR COOLER
16. Warranty
Any claim under this warranty must be made within 12 months of the date
of purchase of the product. This warranty is limited to repair or replacement if found defective. Please note that our 12 month warranty does not extend to products which have been altered, abused, not used in an environment that the product was not designed to operate in or not used according to instructions. This includes unauthorised service or repair.
To make a claim under the warranty, take the product (with proof of purchase) to the store where you purchased the product or contact Fanmaster Pty Ltd. Fanmaster Pty Ltd will pay your reasonable, direct expenses of claiming under this warranty. You may submit details and proof of your expense claim to Fanmaster Pty Ltd for consideration.
This warranty is given by Fanmaster Pty Ltd
ABN: 45 353 934 457
Unit 1/6-8 Yalgar Rd, KIRRAWEE NSW 2232
P: 02 9524 9999
E: info@fanmaster.com.au
This warranty is provided in addition to other rights and remedies you have under law: Our goods come with guarantees which cannot be excluded under the Australian Consumer Law. You are entitled to replacement or refund for a major failure and to compensation for other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
13.
PORTABLE EVAPORATIVE AIR COOLER
15. Troubleshoot
Failure |
|
Possible causes |
|
Solution |
phenomenon |
|
|
||
|
|
|
|
|
Unable to turn on |
1. No Power connection |
1. |
Check power supply |
|
|
2. |
Switch failure |
2. |
Replace switch |
|
3. |
Phase failure |
3. |
Check phase |
|
4. |
Low voltage |
4. |
Check voltage |
Excessive noise |
1. |
Fan blade dirty, deformed or |
1. |
Change fan blade or adjust |
|
damaged |
bracket |
||
|
2. |
Motor wear |
2. |
Replace motor |
|
3. |
There are sundries blocking the |
3. |
Clear the sundries |
|
outlet |
|
|
|
Fuse burnt out |
1. Water pump damage |
1. |
Replace water pump |
|
|
2. |
Synchronous motor damage |
2. |
Replace synchronous motor |
Water leakage |
1. Machine on an unbalanced |
1. |
Move the machine to an even |
|
|
surface |
surface |
||
|
2. |
Leaking from the tank |
2. |
Repair or replace tank |
|
3. |
Drainage valve damage |
3. |
Replace drainage valve |
|
4. |
Water inlet damage |
4. |
Replace the water inlet |
|
5. |
Water level is too high |
5. Adjust the foat valve |
|
|
6. |
Water distribution system is |
6. |
Check or replace the warter |
|
damaged |
distribution system |
||
|
7. |
Cooling pads are dirty |
7. |
Clean the cooling pads |
No air supply |
1. Cooling pad or flter is blocked |
1. |
Clean or replace the cooling pad |
|
|
2. |
Control panel is damaged |
and flter |
|
|
3. |
Mainboard is damaged |
2. |
Replace the control panel |
|
4. |
Fan button doesnt work |
3. |
Replace the circuit board |
|
5. |
Motor phase |
4. |
Check the motor |
|
|
|
5. |
Check the phase |
No cooling |
1. Shortage of water |
1. |
Check water levels, add water |
|
|
|
|
to tank |
|
|
2. |
Water level system failure |
2. |
Replace water level sensor |
|
3. |
Water pump damaged |
3. |
Replace water pump |
|
4. |
Cool button doesnt work |
4. |
Replace control panel |
|
5. |
Mainboard is damaged |
5. |
Replace circuit board |
Water tank and |
1. High control mineral in water |
1. |
Increase draingage frequecny |
|
flter screen with |
supply |
|
|
|
preceipitation |
|
|
|
|
Malfunction code: |
|
|
1. |
Check the voltage & motor, check if |
01 |
1. |
Over current protection |
cooling pad or flter blocked. |
|
02 |
2. |
Communication failure |
2. |
Check if signal line is connected |
03 |
3. |
Input over voltage |
3. |
Check voltage |
04 |
4. |
Input under voltage |
4. |
Check voltage |
05 |
5. |
UV overlead |
5. |
Check if UV lamp is damaged |
06 |
6. |
Swing overload |
6. |
Check synchronous motor |
07 |
7. |
Water pump overload |
7. |
Check if water pump damaged |
08 |
8. |
Drainging overload |
8. |
Check if the draining pump is damage |
12.
PORTABLE EVAPORATIVE AIR COOLER
1.Safety Notice
1.Do not put unnecessary things/objects into the air outlet as this will cause damage to the fan and could lead to injury.
2.Do not climb up or stack things on the unit. Do not let children or infrm persons near or operate the fan.
3.Do not place burning apparatus near the fan as it may cause carbon monoxide poisoning. Precautions must be taken to avoid the back-fow of gases into the open fue of gas or other fuel-burning appliances.
4.Do no attempt to make any modifcations to or repair the product yourself. Have it installed or repaired by a qualifed person only.
5.Do not place the unit where there is fammable and explosive gas.
6.If this machine will be not used for a long period of time, turn off the water supply and drain all the water out of the water tank and then run the fan function only to completely dry the cooling pads.
6. This unit must have a reliable earth wire connection. If the earth wire is incorrectly connected it could cause an electric shock or fre.
1.
