O-Synce Usee User Manual

RIDE TIME
1820 kCal81.2 km
1:25:12
POWER [W]
213
320185
AVG
78
186
AVG
146
33.5
SPEED [km/h]
56.7
AVG
32,2
MAX
69
Cadence [RPM]
9681
AVG
MAX
MAX
MAX

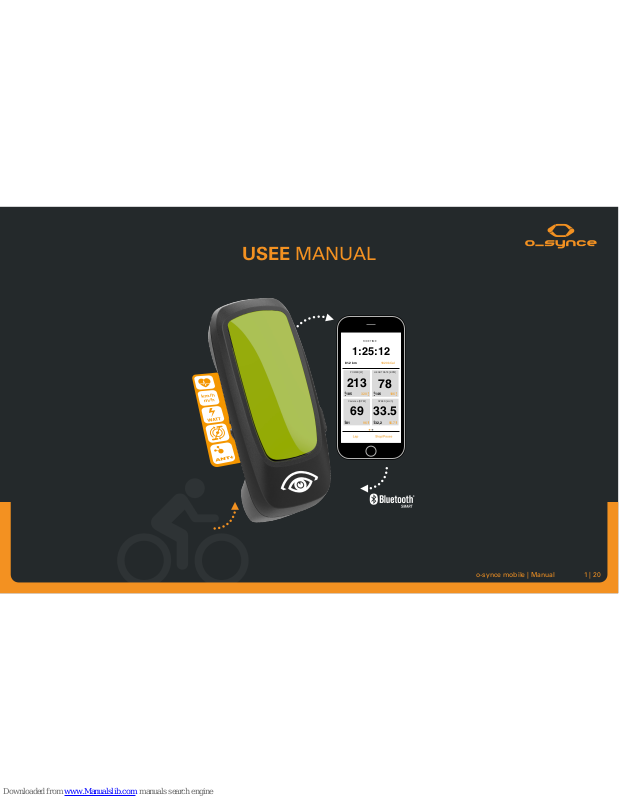

USEE MANUAL
1 | 20
o-synce mobile | Manual
CONTENT
Introduction
First Steps and Settings
Display
Pairing with ANT+ Sensors
Helmet Adapter
Smartphone Mirror Mode
Navigation with USEE
Tur n o ff
USEE1
FURTHER APPLICATION EXAMPLES
2
Use with other devices
Use with E-Bikes
Use with the Multiremote
SMARTPHONE SETTINGS
3
Bluetooth
AN T+
3.1
3.2
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
2.1
2.2
2.3
2 | 20
o-synce mobile | Manual
USEE
o-synce mobile | Manual
3 | 20
1.1 INTRODUCTION
You can use the USEE in many ways:
MIRROR MODE
Heart Rate Sensor
Cadence Sensor
GPS
Power Sensor
Speed Sensor
Multiremote
STAND-ALONE MODE
BRIDGE MODE send ANT+ data to other Bluetooth Smart Devices
Syncs an mirrors all data
Use as a cyclometer with ANT+ Sensors
Heart Rate Sensor
Cadence Sensor
Power Sensor
Speed Sensor
Multiremote
LEV
Shift
Heart Rate Sensor
Cadence Sensor
Power Sensor
Speed Sensor
Multiremote
LEV
Shift
Heart Rate Sensor
Cadence Sensor
Power Sensor
Speed Sensor
Multiremote
What is Bluetooth Smart?
What is ANT+?
4 | 20
o-synce mobile | Manual
1.2 FIRST STEPS AND SETTINGS
ON
Switch to next data field
(Back) Reset Button
(Back) Battery Case
INSERTING THE BATTERY BUTTONS AND FUNCTIONS
Please pay attention to the position of the rubber ring
5 | 20
o-synce mobile | Manual
Riding Time
Reset time Display brightness Display brightness
adjustment (0-3) Speed Heart Rate Cadence Distance
Reset distance
Circumference
Toggle metric/imperial units Power
Battery level of
power meter
Power meter
calibration Gear Shift Battery level of electronical shifting systems Battery level of eBikes with ANT+LEV profile Time Lap Navigation
1.3 USEE DISPLAY OVERVIEW
Sensors and data fields
Speed (km/h or mi/h)
Simultaneous display of heart rate
and power measurement
only in Smartphone Mirror Mode
long press
long press
Four LEDs provide the illumination of the display in darkness
6 | 20
o-synce mobile | Manual
1.4 PAIRING USEE WITH ANT+ SENORS
The USEE can be connected to ANT + sensors without the use of a smartphone.
1. Activate your ANT+ sensors. Please check your sensor manual on how to activate it (pairing mode).
Please make sure that all other ANT+
sensors are not active or out of reach!
2. Insert the battery or press the reset button to re­activate pairing mode.
3. The USEE will search and pair all available (activated) ANT+ sensors located close to the USEE .
Paired sensors will be automatically connected at any new start within a few seconds after turning on the USEE.
The USEE is preset for the wheel size of 2100 mm and metric units. The setting can be changed any time with the o-synce mobile App.
CR 2032
Battery
30 sec.
7 | 20
o-synce mobile | Manual
1.5 USEE HELMET ADAPTER
The installation of the helmet adapter should be performed at room temperature.
1. Position the adapter on the very edge of the front side of the helmet. Make sure the slot of the adpater stays parallel to the helmet‘s edge.
Ahe adpaters are marked with the
following designations:
- A1R for ABUS helmet Game Changer
- A2R for ABUS helmets Aventor & Viantor
2. Marke the position of the adapter with a removable pen or strip of tape.
3. Remove the foil of the sticker and affix the adapter to the marked spot.
Now press the adapter tightly to the
helmet.
Please make sure of the correct
orientation, the positioning can not be adapted afterwards.
Full strength of the sticker will be rea-
ched after 30 minutes.
4. Slide USEE onto the helmet adapter.
8 | 20
o-synce mobile | Manual
1.5 USEE HELMET ADAPTER
5. Put on the helmet. Please regard the according manufacturer information.
6. Adapt the angle of the USEE to your eye. The closer the USEE is positi­oned to the helmet, the further the display moves to the upper edge of your field of view.
7. You‘re ready to go!
Safety Information
The USEE should never cover the driver‘s
field of view! After a successful mounting, the USEE should be positioned above the rider‘s eye and not directly in front of it.
9 | 20
o-synce mobile | Manual
RIDE TIME
1820 kCal81.2 km
1:25:12
POWER [W]
213
320185
AVG
HEART RATE [BPM]
78
186
AVG
146
33.5
SPEED [km/h]
56.7
AVG
32,2
MAX
69
Cadence [RPM]
9681
AVG
MAX
MAX
MAX
1.6 USING USEE IN MIRROR MODE WITH SMARTPHONE
Download the o-synce mobile app in the Apple App Store:
https://itunes.apple.com/de/app/o-synce-mobile/id878973037?mt=8
or in the Google Play Store: https://play.google.com/store/apps/details?id=eu.virtualtraining.
outdoor.osynce&hl=de
iOS Android
After starting a tour, the screen of the phone can be switched off for
energy saving and stored safely in a pocket or back pack.
Depending on various circumstances the connection remains stable
up to 20 meters.
10 | 20
o-synce mobile | Manual
1.7 NAVIGATION WITH USEE
You can use worldwide turn-by-turn navigati­on with the Naviki App.
The app is available for Android and iOS.
www.naviki .org
Grafik von USEE mit
Navigationsansicht
auf Display
11 | 20
o-synce mobile | Manual
1.8 TURN OFF USEE
The USEE automatically deactivates after a few minutes of inactivity, briefly displaying „SLEEP“ on the screen.
In smartphone mode:
If the App is inactive or loses connection to the smartphone and the paired ANT+ sensors remain disconnected for an extended period of time, the USEE turns off.
In stand-alone mode:
The USEE turns off when the coupled ANT+ sensors remain unconnected for a long time.
12 | 20
o-synce mobile | Manual
OTHER USE CASES
13 | 20
o-synce mobile | Manual
2.1 USING USEE WITH OTHER DEVICES
Example: Sports Watch The USEE will be seen as a Multi Service Bluetooth Smart Sensor and the data of the ANT + sensors such as heart rate,speed, cadence or speed / cadence and power can be used.
For further set up please check the user gui­de of the chosen device.
The USEE can brifge the data of the paired ANT + sensors to any external device (e.g. sports watch). The selected device must be able to connect to Bluetooth Smart Sport sensors.
14 | 20
o-synce mobile | Manual
2.2 USING USEE WITH E-BIKES AND WITH ELECTRONICAL SHIFTING SYSTEMS
USEE can be used as an additional display for e-bikes with the ANT+ LEV profile, such as the Turbo LEVO Series by Specialized. Here, USEE can display the current assist level and the battery level of the e-bike.
USEE is also compatible with electronical shifting systems like Shimano Di2, SRAM eTAP, Campagnolo Super Record EPS, FSA K-Force WE. It can display the current gear as well as the battery status of the shifting systems.
LEV
15 | 20
o-synce mobile | Manual
2.3 USING USEE WITH THE MULTIREMOTE
The Multiremote is able to control the USEE. In addition, the display fields can be switched with the electronic shifting systems Shimano Di2 and Ultegra.
You can use the multiremote directly with the USEE via ANT +.
Then you can operate the USEE remotely and change the display without having to take your hands off the handlebars.
The multiremote is available in our online shop.
www.o-synce-shop.de
16 | 20
o-synce mobile | Manual
SMARTPHONE SETTINGS AND
TECHNICAL INFORMATION
17 | 20
o-synce mobile | Manual
3.1 BLUETOOTH
Bluetooth Smart (4.0) is a wireless personal area technology that is mainly being used in healthcare, fitness and home entertainment industries. It consumes fewer energy than classic bluetooth while ensuring a similar communication range. With Bluetooth Smart you can easily connect your Smartphone to other devices and monitor/control these live.
The o-synce mobile app currently supports models from the iPhones 4S and Andriod from version 4.4.4
18 | 20
o-synce mobile | Manual
3.2 ANT+
ANT+ is the wireless technology that allows your monitoring devices to talk to each other. Leading brands design ANT+ into top products to ensure that you get the data you want - when and where you want it. Fundamentally, ANT+ gives you the simplest, most expandable and most reliable user experience possible. ANT+ stands for interoperability which means that ANT+ products from multiple brands work together. Plus, because devices are compatible, you can always add to or update your monitoring system.
ANT+ allows you to mix and match products and brands with the assurance that they will ‚just work‘ together.
ANT+ activity icons represent the information that the product is capable of transferring. Sensors and displays with matching activity icons will work together. For example, an ANT+ heart rate strap will send heart rate data to a watch, phone, bike computer, tablet, and/or any other device that reads ANT+ heart rate.
Mix multiple displays with multiple sensors all at the same time! For example, an enabled bike computer can read data from a power meter, speed/cadence sensor and heart rate sensor at the same time. Or have mul­tiple displays read the same sensors at once. For example, both your watch and mobile App can read data from your sensors at the same time, allowing you to conveniently view live feedback on your watch while you work out, and track and analyse your workout with your App later.
19 | 20
o-synce mobile | Manual
IMPRESSUM
Contact:
o-synce International Ltd
Unit 2018, Shalin Galleria 18-24 Shan Mei Street, Fotan New Territories Hong Kong E-Mail: info@o-synce.com www.o-synce.com
We are not able to guarantee the completion, correctness and accuracy of this document.
Design: www.neomind.eu
