O-Synce Screen Eye X User Manual
1 GENERAL
1.1 General Information
1 / 18 screeneye x
1 GENERAL

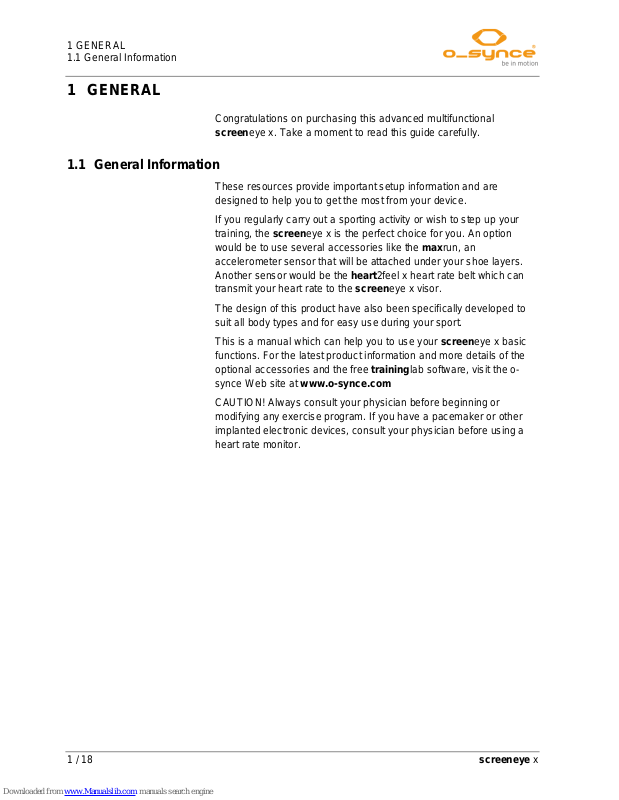

Congratulations on purchasing this advanced multifunctional
screeneye x. Take a moment to read this guide carefully.
1.1 General Information
These resources provide important setup information and are
designed to help you to get the most from your device.
If you regularly carry out a sporting activity or wish to step up your
training, the screeneye x is the perfect choice for you. An option
would be to use several accessories like the maxrun, an
accelerometer sensor that will be attached under your shoe layers.
Another sensor would be the heart2feel x heart rate belt which can
transmit your heart rate to the screeneye x visor.
The design of this product have also been specifically developed to
suit all body types and for easy use during your sport.
This is a manual which can help you to use your screeneye x basic
functions. For the latest product information and more details of the
optional accessories and the free traininglab software, visit the osynce Web site at www.o-synce.com
CAUTION! Always consult your physician before beginning or
modifying any exercise program. If you have a pacemaker or other
implanted electronic devices, consult your physician before using a
heart rate monitor.
2 Scope of delivery
2.1 In the Box
screeneye x 2 / 18
2 Scope of delivery
Strong electromagnetic fields and some 2.4 GHz wireless sensors
can interfere with your heart rate monitor and other accessories.
Sources of interference may include very high voltage power lines,
electric motors, microwave ovens, 2.4 GHz cordless phones, and
wireless LAN (Wi-Fi) access points. After you move away from the
source of interference, the displayed rate data should return to
normal.
2.1 In the Box
Fig. 1 casing screeneye x
Fig. 2 screeneye x
Fig. 3 USB cable
1x casing screeneye x
1x screeneye x
1x USB cable
2 Scope of delivery
2.2 Optional Compatible Accessories
3 / 18 screeneye x
2.2 Optional Compatible Accessories
For more information about optional compatible accessories go
to www.o-synce.com
Some functions which are described in this manual are only
accessible with the optional accessories. Such functions are marked
as “optional”.
Fig. 4 heart2feel x heart rate belt
The screeneye x visor is ready to use with the heart2feel x heart rate
belt. For more information about optional accessories, go to
www.o-synce.com. You can also contact your o-synce dealer to
purchase accessories.
Fig. 5 maxrun foot pod sensor for running
The screeneye x visor is ready to use with the maxrun foot pod
sensor for running. For more information about optional accessories,
go to www.o-synce.com. You can also contact your o-synce dealer to
purchase accessories.
heart2feel x
maxrun
3 GETTING STARTED
3.1 Icons in the display
screeneye x 4 / 18
3 GETTING STARTED
Before starting your very first exercise, you will need to pair the
accessories with the screeneye x. Pairing is the connecting of
sensors, between the screeneye x and the heart rate belt. Keep
enough distance to other sensors while pairing. To pair optional
sensors, select “SETTING” and press the middle button, then go to
“PAIR” with front or rear button and select with middle button. When
“YES” is blinking, be sure, that your sensors are activated, then
confirm by pressing the middle button again. When pairing is done,
“PAIRED” appears in the display.
3.1 Icons in the display
Above high zone setting
Below low zone setting
Timer mode
Heart rate sensor active
(optional)
Cadence (optional)
Temperature
Current time
Lap time
Heart rate in % of
maximum heart rate
(optional)
Minutes per km
Minutes per mile
(optional)
Distance in km
Distance in miles
(optional)
3 GETTING STARTED
3.2 Function keys at the main menu
5 / 18 screeneye x
3.2 Function keys at the main menu
The navigation is working with the front and rear button. Enter a menu
by pressing the middle button.
Fig. 6 Functions keys
Switch between the menues.
Scroll through the menues.
Return to the main menu by pressing the front button for 3 seconds.
Select a menu.
Start/Stop the stopwatch by pressing the middle button for 3 seconds.
Reset the recorded values.
Start a new lap.
Switch between the menues.
Scroll through the menues.
Start the coach mode by pressing the rear button for 2 seconds.
Press middle button for 5 seconds, to activate the display.
The display goes into sleep mode if there is no interaction within 5
minutes.
The lightning is supplied by the green field on the visor and needs
brightness.
3.3 Charging battery
The screeneye x visor has a built in battery. It is to be charged by
connecting the visor via USB to a computer or the optional charger.
The battery charging time takes approximately 45 minutes.
Menu navigation
Front button
Middle button
Rear button
Turn on the display
Display illumination
4 Mode
4.1 Mode - SETTING
screeneye x 6 / 18
4 Mode
TIME SPORT DATA Setting
Front/
Rear
Front/
Rear
Front/
Rear
Front/Rear
Fig. 7 Main menu
4.1 Mode - SETTING
In the setting mode you can adjust most settings of the screeneye x.
If the screeneye x is active and the time is displayed, select “Setting”
by pressing the front button 3 times. Press the middle button to open
the “SETTING”.
SETTING
TIME UNIT PAIR
Front/
Rear
Front/
Rear
Front/Rear
VIEW
Front/
Rear
Middle
Fig. 8 Menu SETTING
4.1.1 Setting - TIME
You can set the clock and date of the screeneye x here. Press the
front button or the rear button and choose “TIME”. Open the menu
“TIME” by pressing the middle button.
The current value is blinking. Adjust the value by pressing the front or
rear button. Confirm with the middle button.
The values appear in the following order:
Hour / Minutes / Year / Month / Day
4.1.2 Setting - UNIT
You can set the units of speed, distance and temperature here. Press
the front button and choose “UNIT”. Open the menu “UNIT” by
pressing the middle button.
The current setting is blinking. Switch between “km” or “mi” with the
front or the rear button and confirm with the middle button. (optional)
The current setting is blinking. Switch between “min/km – min/mi”
(PACE) or “km/h – mi/h” (SPEED) by pressing the front or rear button,
confirm with the middle button. (optional)
Press the front button to set a calibration factor between 0.5 and 1.5.
The first digit is blinking, adjust the value by pressing the front or rear
DISTANCE km / mi
PACE/SPEED
CALIBRATE
