Oster TSSTTVXXLL-049 Instruction Manual

Download

Page 1

MODEL

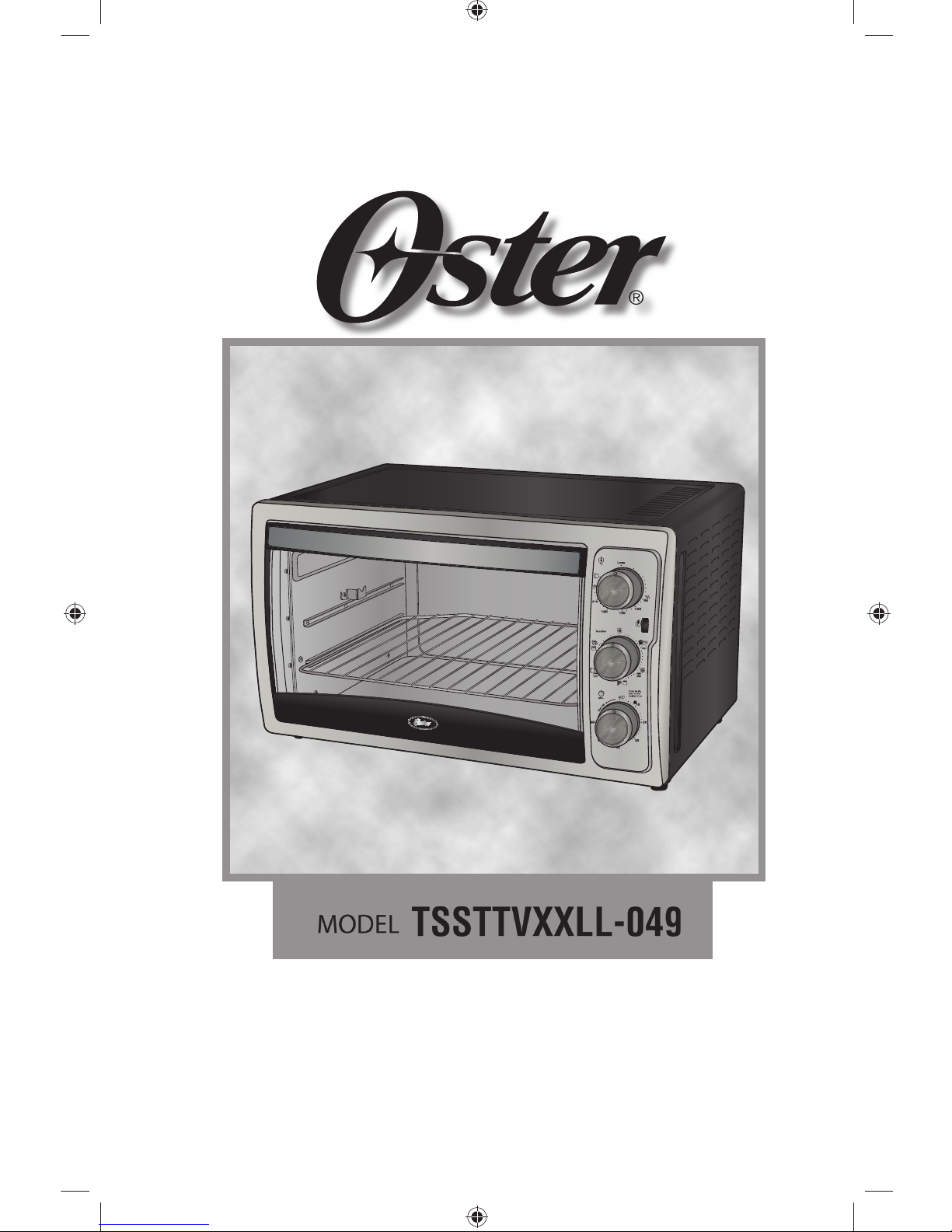

Instruction Manual

EXTRA LARGE CAPACITY TOASTER OVEN

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE

TSSTTVXXLL-049

TSSTTVXXLL-049_13EHM1_outline.indd 1TSSTTVXXLL-049_13EHM1_outline.indd 1 2/27/13 9:08 AM2/27/13 9:08 AM

Page 2

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed including the following:

READ ALL INSTRUCTIONS, PRODUCT LABELS AND WARNINGS BEFORE USING THE TOASTER OVEN.

1. DO NOT touch hot surfaces

. Always use oven mitts when handling hot materials and allow metal parts to cool before cleaning. Allow the unit to cool thoroughly before putting in or taking off parts. Always use the oven handles when moving the unit.

2. When the unit is not in use and before cleaning, unplug the oven from the wall outlet. Note: Make sure the oven is turned off before unplugging.

3. To protect against risk of electrical shock, do not immerse the appliance in water or any other liquids.

4. DO NOT operate this or any appliance with a frayed or damaged cord or plug or after the appliance malfunctions or is dropped or has been damaged in any manner. Take this appliance only to the nearest Authorized Service Center for examination, repair or adjustment.

5. DO NOT use attachments not recommended by the manufacturer; they may cause ﬁ re, electric shock or personal injury.

6. DO NOT use outdoors or for commercial purposes.

7. DO NOT use this appliance for other than its intended use.

8. DO NOT let the cord dangle over the edge of a tabletop or countertop or touch hot surfaces.

9. DO NOT place the appliance near a hot gas or electric burner or in a heated oven.

10. Extreme caution should be used when using containers constructed of material other than metal or glass.

11. DO NOT store any items on top of the appliance when in operation. A ﬁ re may occur if the toaster oven is covered or touching ﬂ ammable materials, including curtains, draperies, walls, etc., when in operation.

12. When using the oven, pull the unit out a minimum of 15 cm (6 inches) away from walls on all sides. Remove cords from other products from behind the oven.

13. DO NOT store any materials, other than manufacturer’s recommended accessories, in this unit when not in use.

14. DO NOT place any ﬂ ammable materials in oven, such as paper, cardboard, plastic or any materials that may catch ﬁ re or melt.

15. DO NOT cover the oven with metal foil. This will cause overheating of the appliance.

TSSTTVXXLL-049_13EHM1_outline.indd English1TSSTTVXXLL-049_13EHM1_outline.indd English1 2/27/13 9:08 AM2/27/13 9:08 AM

Page 3

16. The door or the outer surface may get hot when the appliance is operating.

17. Oversized foods or metal utensils must not be inserted in the appliance as they may create a ﬁ re or risk of electrical shock.

18. DO NOT clean with metal scouring pads. Pieces can break off the pad and touch electrical parts involving a risk of electrical shock.

19. When broiling, use extreme caution when removing tray or disposing of hot grease.

20. The door and the outer surface may get hot when appliance is used.

21. To turn this appliance off, return all controls to the off “O” position.

22. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

23. Close supervision is necessary when any appliance is used by or near children, or incapacitated individuals.

24. The instructions shall state that appliances are not intended to be operated by means of an external timer or separate remote-control system.

25. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, ofﬁ ces and other working environments, farm houses, motels and other residential type environments.

THIS UNIT IS FOR HOUSEHOLD USE ONLY.

SAVE THESE INSTRUCTIONS

SHORT POWER SUPPLY CORD INSTRUCTIONS

A short power-supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord. An extension cord may be used if care is exercised in its use. If an extension cord is used, the electrical rating of the cord must be at least as great as the electrical rating of the appliance. The extension cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.

TSSTTVXXLL-049_13EHM1_outline.indd English2TSSTTVXXLL-049_13EHM1_outline.indd English2 2/27/13 9:08 AM2/27/13 9:08 AM

Page 4

DESCRIPTION OF THE APPLIANCE

1. Temperature Selector Knob

2. Function Selector Knob

3. Timer Selector Knob

4. Power Light

5. Two Rack Positions

6. Two Removable Wire Racks

7. Baking Pan

8. Broil Rack

9. Rotisserie-Spit

10. Spit Forks

11. Thumb Screws

12. Spit Mounting Brackets

13. Interior Light

14. Crumb Tray

15. Easy Clean Interior Walls

16. Glass Door

TSSTTVXXLL-049_13EHM1_outline.indd English3TSSTTVXXLL-049_13EHM1_outline.indd English3 2/27/13 9:08 AM2/27/13 9:08 AM

Page 5

LEARNING ABOUT YOUR TOASTER OVEN

1. Temperature Selector Knob – Adjust the thermostat dial to the desired temperature

(See Figure 1).

2. Function Selector Knob – Adjust the dial to select cooking function (See Figure 2).

3. Timer Selector Knob – Adjust the dial to the desired cooking time (See Figure 3).

4. Power Light – Indicates that oven is plugged in and that the timer is set to begin

warming.

5. Crumb Tray – Collects crumbs or fallen food particles. Pulls out for easy cleaning.

6. Glass Door – Lets you to see food while cooking.

7. Easy Clean Interior Walls – Allows for easy cleaning.

8. Baking Pan – Use for all your baking needs.

9. Two Wire Racks and Dual Rack Positions – For added cooking versatility.

10. Rotisserie Spit – Enables rotisserie style cooking.

11. Interior Light – Helps with monitoring food while cooking.

PREPARING TO USE YOUR TOASTER OVEN

FOR THE FIRST TIME

If you are using your toaster oven for the ﬁ rst time, please be sure to:

• Remove any stickers from the surface of the oven.

• Open oven door and remove all printed documents and paper from inside the toaster oven.

• Clean the rack, tray, and pan with hot water, a small amount of dishwashing liquid and a

nonabrasive sponge or cleaning pad.

• DO NOT IMMERSE THE BODY OF THE UNIT IN WATER.

• Dry the unit thoroughly before using.

• Select a location for the toaster oven. The location should be in an open area on a ﬂ at counter

where the plug will reach an outlet.

• Plug the toaster oven into the appropriate electrical outlet.

The heating elements are designed to work efﬁ ciently and maintain a precise temperature.

You may not see the elements glowing, however they are working properly.

PLEASE NOTE – It is recommended that the toaster oven heat at 230°C for approximately 15 minutes to eliminate any manufacturing residue that may remain after shipping.

Figure 1 Figure 2 Figure 3

TSSTTVXXLL-049_13EHM1_outline.indd English4TSSTTVXXLL-049_13EHM1_outline.indd English4 2/27/13 9:08 AM2/27/13 9:08 AM

Page 6

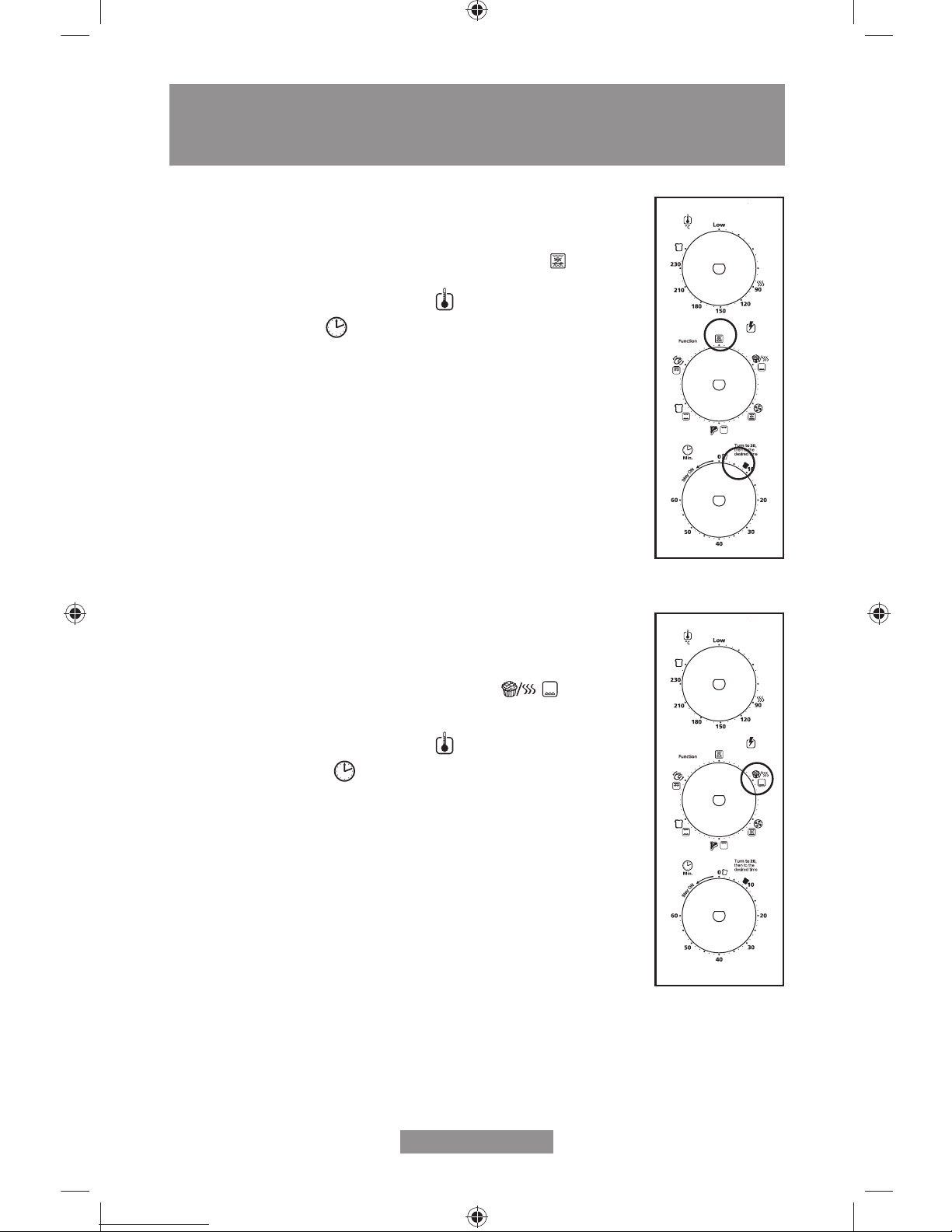

USING YOUR TOASTER OVEN

TO USE THE PRE-HEAT FUNCTION (SEE FIG. 4)

1. Select desired oven rack position. (See “Positioning Rack” Section)

2. Close the oven door.

3. Turn the Function selector knob to the PRE-HEAT

“ ” position.

Both the top and bottom heating elements will operate.

4. Turn the temperature control knob “ ” to the desired temperature.

5. Set the timer knob “ ” to desired time. It is recommended to set

the timer for 5-8 minutes for the oven to pre-heat.

6. When pre-heating is completed, select the desired function and

follow the instructions below.

TO USE THE BAKE/WARM FUNCTION (SEE FIG. 5)

1. Select desired oven rack position. (See “Positioning Rack” Section)

2. Arrange food on one of the wire racks or in the baking pan.

3. Close the oven door.

4. Turn the Function knob to the BAKE/WARM “ ” position.

Only the bottom heating elements will operate. (The heating elements will cycle ON and OFF to maintain temperature.)

5. Turn the temperature control knob “ ” to the desired temperature.

6. Turn the timer knob “ ” to the desired time. The timer can be set

for up to 60 minutes and further to “Stay ON” mode for additional 60 minute increments as desired. The interior light turns on when timer is on. At the end of the cooking time, a bell signal sounds, and the oven turns off automatically.

7. When warming is completed, open door fully and remove food

carefully with oven mitt.

WARNING: Cooked food can be very hot, especially pastry ﬁ llings. Handle with care.

Figure 5

Figure 4

TSSTTVXXLL-049_13EHM1_outline.indd English5TSSTTVXXLL-049_13EHM1_outline.indd English5 2/27/13 9:08 AM2/27/13 9:08 AM

Page 7

TO USE THE TURBO CONVECTION BAKE FUNCTION (SEE FIG. 6)

1. Select desired oven rack position. (See “Positioning Rack”

Section)

2. Arrange food on one of the wire racks or in the baking pan.

3. Close the oven door.

4. Turn the Function knob to the TURBO CONVECTION BAKE “

” position. The top and bottom heating elements will operate and the turbo convection fans will be activated. (The heating elements will cycle ON and OFF to maintain temperature.)

5. Turn the temperature control knob “ ” to the desired temperature.

6. Turn the timer knob “ ” to the desired time. The timer can be set for up to 60 minutes and further to “Stay ON” mode for additional 60 minute increments as desired. The interior light turns on when timer is on. At the end of the cooking time, a bell signal sounds and the oven turns off automatically.

7. When baking is completed, open door fully and remove food carefully with oven mitt.

WARNING: Cooked food can be very hot. Handle with care. Do not leave toaster oven unattended.

FAQS ABOUT CONVECTION BAKING

What is Convection?

Answer: In your Toaster Oven there is a built in fan that circulates the hot air in the oven chamber to cook the food better and give a browning effect to it.

How do I adjust the time for Convection?

Answer: On average, convection will shorten the cooking time by 30% but it varies by food. It is suggested to go with a shorter cooking time to start with and then add time if it is needed.

What are the best foods to use with Convection?

Answer: While a shorter cook time is often desirable, baked foods in particular beneﬁ t from convection cooking as the circulating air keeps oven temperature consistent throughout.

Figure 6

TSSTTVXXLL-049_13EHM1_outline.indd English6TSSTTVXXLL-049_13EHM1_outline.indd English6 2/27/13 9:08 AM2/27/13 9:08 AM

Page 8

TO USE THE BROIL FUNCTION (SEE FIG. 7)

1. Select desired oven rack position. (See “Positioning Rack” Section)

2. Place broil rack in baking pan.

3. Arrange food on broiler rack.

4. Close the door to the ﬁ rst notch, leaving approximately an 8 cm (3-inch) gap at the top. This will ensure adequate airﬂ ow during broiling.

5. Turn the Function knob to the BROIL “

” position. Only the top-heating element will operate. (The heating element will cycle ON and OFF to maintain temperature.)

6. Turn the temperature control knob “ ” to the desired temperature.

7. Turn the timer knob “ ” to the desired time. The timer can be set to for up to 60 minutes and further to “Stay ON” mode for additional 60 minute increments as desired. The interior light turns on when timer is on. At the end of the cooking time, a bell signal sounds, and the oven turns off automatically.

8. Turn food over about halfway through the broiling time.

9. When broiling is completed, open door fully and remove food carefully with oven mitt.

WARNING: Do not leave toaster oven unattended.

TO USE THE TOAST FUNCTION (SEE FIG. 8)

1. Select desired oven rack position. (See “Positioning Rack” Section) NOTE: Different types of bread require different settings. Lighter breads and wafﬂ es require a lighter setting. Darker breads, mufﬁ ns, and English mufﬁ ns require a darker setting.

2. Arrange food on the wire rack.

3. Turn the Function knob to the TOAST “ ” position. Both the top and bottom heating elements will operate. (The heating elements will cycle ON and OFF to maintain temperature.)

4. Turn the temperature control knob to the TOAST “ ” setting.

5. Turn the timer knob “ ” to select the desired toast setting.

6. When toasting is completed, open door fully and remove food carefully with oven grove.

WARNING: Cooked food can be very hot. Handle with care. Do not leave toaster oven unattended.

Figure 7

Figure 8

TSSTTVXXLL-049_13EHM1_outline.indd English7TSSTTVXXLL-049_13EHM1_outline.indd English7 2/27/13 9:08 AM2/27/13 9:08 AM

Page 9

TO USE THE ROTISSERIE FUNCTION (SEE FIG. 9)

1. Place the chicken, turkey or other food you want to cook on the rotisserie spit. Use the two spit forks to hold the food in place in the center of the spit. Use the two spit screws to tighten the spit forks (see ﬁ gure 1).

2. Use the spit holder tool to place the rotisserie spit on the spit mounting brackets inside the oven.

3. After securely placing the rotisserie spit in place, remove spit holder tool and close the oven door.

4. Turn the Function knob to the ROTISSERIE “

” position. Only the top-heating element will operate and the Rotisserie motor will be activated. (The heating element will cycle ON and OFF to maintain temperature.)

5. Turn the temperature control knob “ ” to the desired temperature.

7. When cooking is completed, open door fully and use the spit holder tool to remove food carefully.

8. Place pan on lowest rack when the rotisserie function is in use to prevent dripping of hot ﬂ uids and food into the oven for easier clean up.

WARNING: The rotisserie-spit, spit forks, screws and cooked food can be very hot.

Handle with care. Do not leave toaster oven unattended.

POSITIONING RACK

To accommodate a wide variety of foods, the oven has two rack positions. (See Figure 10)

Figure 10

Rack in the up position

Rack in the down position

Positioning of the rack will depend on the size of the food and desired browning. Before removing the rack allow the unit to cool.

PLEASE NOTE – For best toast and pizza results, position the rack in the upper rack position.

Figure 9

TSSTTVXXLL-049_13EHM1_outline.indd English8TSSTTVXXLL-049_13EHM1_outline.indd English8 2/27/13 9:08 AM2/27/13 9:08 AM

Page 10

CLEANING YOUR TOASTER OVEN

Before cleaning your toaster oven, unplug it and allow it to cool. To clean, wipe with damp cloth. DO NOT IMMERSE IN WATER! Make sure to use only mild, soapy water. Abrasive cleaners, scrubbing brushes and chemical cleaners will damage the coating on this unit. Empty crumb tray frequently to avoid accumulation of crumbs. Toaster oven racks are dishwasher safe (top of dishwasher only).

STORING YOUR TOASTER OVEN

Allow the appliance to cool completely before storing. If storing the toaster oven for long periods of time, make certain that the toaster oven is clean and free of food particles. Store the toaster oven in a dry location such as on a table or countertop or cupboard shelf. Other than the recommended cleaning, no further user maintenance should be necessary.

PROBLEM

• Overcooked / undercooked foods.

• Burnt smell.

• Oven does not turn ON.

• Only one heating element is heating up.

• Heating elements do not stay ON.

HELPFUL TIPS/ TROUBLESHOOTING

POTENTIAL CAUSE

• Incorrect temperature or time setting.

• Rack placement.

• Food build-up inside oven, on heating elements or in crumb tray.

• Unit is unplugged.

• Timer was not turned past 20 minute mark.

• Function setting selection determines which heating element will operate.

• Heating elements will cycle ON and OFF to maintain proper heat.

SOLUTION

• You may have to adjust the time and temperature to the desired taste.

• Because your oven is smaller than your regular oven, it will heat up faster and generally cook in shorter periods of time.

• Refer to “Positioning Rack” Section. Rack may need to be adjusted to accommodate food type.

• Refer to “Cleaning Your Toaster Oven” Section.

• Plug the toaster oven into appropriate electrical outlet.

• Set timer knob and temperature knob to the desired setting. Both must be turned on to operate the toaster oven.

• When toasting, make sure the oven is not set to broil setting.

• Be certain that function is as desired.

TSSTTVXXLL-049_13EHM1_outline.indd English9TSSTTVXXLL-049_13EHM1_outline.indd English9 2/27/13 9:08 AM2/27/13 9:08 AM

Page 11

WARRANTY

Sunbeam Products, Inc doing business as Jarden Consumer Solutions, its afﬁ liates and subsidiaries, Jarden Consumer Solutions of India Private Limited (hereinafter collectively

referred to as “SPI”) warrant that, for a period of two (2) years from the date of purchase, this product will be free from defects in material and workmanship (the “Warranty”). Please preserve the Warranty Card and Cash Memo duly stamped and signed by the dealer, as this will be required for any claims under this Warranty.

• The rights and beneﬁ ts under this Warranty are additional to your statutory rights,

which are not affected by this Warranty.

• During the period Warranty, SPI at its choice will repair or replace this product or any

component of the product found to be defective free of cost through (the Dealer from whom the product was purchased or through the service center listed in card-business people to conﬁ rm), provided that:

- SPI is promptly informed of the defect.

- The product has not been altered in any way or subjected to misuse or repair by

the person other than a person authorized by SPI.

• No rights are given under the Warranty to a person acquiring the product second

hand.

• Any repaired or replaced product will be warranted on these terms for the remaining

portion of the Warranty in the country where the product was purchased.

• Liability for consequential loss or damage is neither accepted nor is it implied.

• The following are not covered under SPI’s Warranty:

a. If product was used in any manner other than the intended use. b. If product has not been used according to the instruction manual/User’s Manual,

included with the product. c. If defects are caused by improper or reckless use. d. If product was altered or repaired by anyone other than those authorized by the

national manufacturer, importer or respective merchant. e. Use of incorrect current or voltage or faulty electric power supply. f. Normal wearing and tearing of parts and accessories resulting from regular use. g. Damages resulting from transportation, accidents, mishandling or negligence on

the part of the customer. h. The following part/components:

• Glass container

• Light bulb

• Accessories i. Industrial or commercial use of product.

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.

TSSTTVXXLL-049_13EHM1_outline.indd English10TSSTTVXXLL-049_13EHM1_outline.indd English10 2/27/13 9:08 AM2/27/13 9:08 AM

Page 12

AUTHORIZED SERVICE CENTERS

Region State City Name Address Contact

Person

Contact No.

East

West Bengal Kolkata Jeeves

Consumer Services Pvt Ltd

356, Jodhpur Park, Kolkata

- 700068

Someswar Basu

(033) 40012100

West Bengal Kolkata Southern Service 6/19A, Prince Anwarshah Road,

Poddar Nagar, Kolkata - 700068

Subrata Manna (033) 24729651

/ 65488822

West Bengal Kolkata Baishanu Service

Care

55D, Adaya Nath Saha Road, Lake Town, Near Jaya Cinema, Kolkata - 700048

Piyush Nandan (033) 40664210

West Bengal Howrah Time n Service 37 & 38, Mohenath Lane,

Salkia, Howrah - 711106

Tapas Hazra (033) 65639720

West Bengal Hooghly DNP Enterprises 52, Sahaganj Main Road, PO.

Sahaganj, Near Bandel Station, Hooghly - 712104

Indrajit Bag (0) 9163668360

West Bengal Barrackpore Balaji Enterprise 4/E/A Barasat Road,

Barrackpore, Dist. North 24 Parganas, Near 15 No. Rail Gate, Barrackpore - 700122

Pradip Kr Ghosh

(033) 25451224

West Bengal Siliguri S D Electronics Deys Lodge,138/69/57, Nazrul

Sarani, Ashrampara, Siliguri

- 734001

Arup Dey (0353) 2526028

West Bengal Asanol Yes Service Hutton Road, Near Mahal

Banquet Marriage Hall, Asansol

- 713301

Sarfaraz Ahmed

(03228) 2280029

Assam Guwahati Multi Track

Services

G S Road, Ground Floor, Bora Service Station, Ulubari, Guwahati - 781007

Kallol Dutta (0361) 2457296

TSSTTVXXLL-049_13EHM1_outline.indd English11TSSTTVXXLL-049_13EHM1_outline.indd English11 2/27/13 9:08 AM2/27/13 9:08 AM

Page 13

AUTHORIZED SERVICE CENTERS

North

Delhi Delhi Jeeves Consumer

Services Pvt Ltd.

# E-10, Arya Samaj Road, School Road, Uttam Nagar, Delhi - 1100059

Md Khalid Pervez (011) 45785915

Delhi Delhi Jeeves Consumer

Services Pvt Ltd.

R-32, 2nd Floor, Vikas Marg, Shakarpur, Opp. Heera Sweets, Metro Pillar # 46 , Delhi 1100092

Manjeet Singh (011) 47754764

Delhi Delhi S T Services M-131, 1st Floor, Guru

Harkrishan Nagar, Paschim Vihar, New Delhi - 110041

Vipin Yadav (011) 32958438

/ 45586987

Haryana Gurgaon Jeeves Consumer

Services Pvt Ltd.

4/18 A, 1st Floor, Laxmi Garden, Behind Police Chowki, Khandsa Road, Gurgaon-122001

Karamvir Fogaat (0124) 4073434

Haryana Faridabad Jeeves Consumer

Services Pvt Ltd.

5H-49,1st Floor, NIT Faridabad

-121001

Manoj Kumar Panwar

(0129) 4163003

Uttar Pradesh Noida Jeeves Consumer

Services Pvt Ltd.

1st Floor, Above Punjab ATM, Sector-22, Chaura More Main Road, Near Oriental Bank of Commerce, Opp.Rajkiya Inter College, Noida, U.P - 201301

Devender Singh (0120) 4162644

Uttar Pradesh Lucknow Swastik Customer

Care

A-1/3, SEC-H Aliganj, Near Kendriya Bhawan, Lucknow

- 226020

Uma Shankar Mishra

(0522) 3298003 / 4102581 / 4102582

Uttar Pradesh Kanpur Shubham

Electronics

192,Manohar Nagar Barra -3 , Opp Deepshika Guest House, Kanpur - 208027

Suman Gupta (0512) 2283394

/ 2602029

Uttar Pradesh Agra Sai Electronics 25/113, Gandhi Nagar, Agra

- 282 003

Ajay Singhal / Sunil

(0562) 3297005

Haryana Ambala Telecare Old Hospital Road, Bara Thakur

Dwara, Opp. Polytechnic, Ambala City - 134003

Devinder Sharma (0171)

25567369

Haryana Sonipat Saibaba Enterprises House No. 1510, Sector - 15,

Sonipat - 131001

Pramod Sharma (0130) 6411206

Haryana Karnal Jeeves Consumer

Services Pvt Ltd.

Shop # 50, Ground Floor, Mayapuri, Rajiv Gandhi Marg/ Near Raj Palace, Meeraghati Chowk, Karnal - 132001

Neeraj Sharma (0184) 4022201

Punjab Mohali Jeeves Consumer

Services Pvt Ltd.

# SCF-4, Basement, The High Land Society, NAV, Baltana, Zirakhpur, Mohali-140603

Shiv Dhanda (0176) 2652574

Punjab Ludhiana Jeeves Consumer

Services Pvt Ltd.

Shop # 18B, Dhyan Singh Commercial Complex, Opp. Bus Stand, Ludhiana - 141001

Gurbeer Singh (0161) 2444002

Punjab Jallandhar Jeeves Consumer

Services Pvt Ltd.

EH-31, Laddowali Road, Opposite Gurudwara, Jalandhar

- 144001

Ashok Kumar (0181) 2221707

Punjab Amritsar Keerat Electronics Naraingarh Bazar, Shaheed Bhagat

Singh Road, Chheharta, Amritsar

- 143 001

Sukhdeep / Mantreet Singh

(0183) 2450095

Himachal Shimla Suvidha Electronics Mehta Niwas, Ground Floor,

Near Himfead Building, B C S, New Shimla - 171009

Rajesh Kumar (0) 9816457886

Himachal Mandi Kuldeep Electro

Care

Neear FCI Godown, Kehanwal Road, Ram Nagar, Mandi 175001

Kuldeep Singh (01905) 222140

/ 329574

Rajasthan Jaipur Jeeves Consumer

Services Pvt Ltd.

A-79,Subash Nagar Shopping Centre, Jaipur - 302016

Vipendra Singh (0141) 4035102

TSSTTVXXLL-049_13EHM1_outline.indd English12TSSTTVXXLL-049_13EHM1_outline.indd English12 2/27/13 9:08 AM2/27/13 9:08 AM

Page 14

AUTHORIZED SERVICE CENTERS

West

Maharashtra Mumbai S P Services Shop No. 10, Abdul Sattar

Compound, Fitwala Road, Opp. Satguru Darshan Bldg., Near Railway Station, Elphinston Road (West), Mumbai - 400013

Palsingh Panyari (022) 24326726

/ 24312623

Maharashtra Mumbai Jeeves Consumer

Services Pvt Ltd.

Plot No 27/5, Pawani Chowk, Opp Mulund Darshan Building, Mulund Colony, Mulund (W), Mumbai - 400082

Ramesh Yadav (022) 65288597

Maharashtra Mumbai Jeeves Consumer

Services Pvt Ltd.

Shop No.1-1A, Ground ﬂ oor, Kirti Co-Op Housing Society, Ramachandra Extn Lane, Near Movie Time, Evershine Nagar, Malad(W), Mumbai-400064

Murali Joshi (022) 65278590

Maharashtra Pune Jeeves Consumer

Services Pvt Ltd.

No. 337, Sai Leela, 1st Floor, Datt Wadi, Mhasoba Chowk, Pune - 411030

Saket Dubey (020) 24321679

Maharashtra Nagpur Technic Services Khare Building, Hanuman Lane,

Sitabuildi, Nagpur - 440 012

Dilip Panda (0712) 2550076

Maharashtra Chandrapur Suvidha Electronics No. 1, Devt Appartment, Church

Road, Hanuman Nagartukum, Chandrapur - 442401

Subash Deashkar (07172) 258966

/ 256453

Maharashtra Kolhapur Sikir Mobiles 1492 C Ward, Laxmipuri, Opp.

TATA Brand Stores, Kolhapur

- 416001

Sukir Bakare (0) 9372555011

Maharashtra Aurangabad Emperor Services S-5,Manik Arcade Kalda Corner,

Opp Chowbey Hospital, Chetna Nagar, Aurangabad -31005

Mr. Willy Bento Colaco

(0240) 2350606

Maharashtra Nashik Harsha Electronics 3, Talak Complex, Rachna

Vidyalaya Road, Sharanpur Roda, Nashik - 422002

Pravin Patil (0) 9422254240

Goa Salcete Jolly Enterprises Shop # G-2, 78/A Nuvem

Enclave, Along NH-17 Highway, Belloy Nuvem, Salcete - 403604

John Gonzanalves

(0832)2791800

Gujarat Ahmedabad Jeeves Consumer

Services Pvt Ltd.

No. 37, Om Tower, Near Star Bazar, Jodhpur Cross Road, Satellite, Ahmedabad - 380015

Girish Parmar (079) 40080485

Gujarat Baroda Uday Refrigeration G/3 Nandanvan Comples, Atma

Jyoti Ashram Road, Behind Citizen Society, Ellora Park, Baroda

Shailesh (0265) 6590948

Gujarat Surat Sadgurudev Shop No. L/6, Shankutal

Complex, Beside Sangvi Tower, Near Gujarat Gas Circle, Adajan Patia, Surat - 395009

Manoj Rana (0261) 6540417

Gujarat Rajkot PC Systems 4-Sardar Nagar (West),Tagore

Road, Near Astron Circle, Rajkot-360001

Manoj Gohil (0281) 2480479

Madhya Pradesh

Indore Cool Home

Refrigeration

LG-70, Trade Centre, 18, South Tukogunj, Indore- 452 001

Husain Anjum (0731) 4076404

Madhya Pradesh

Bhopal Jeeves Consumer

Services Pvt Ltd.

Ward no 47, Goyal Vihar, Ground ﬂ oor, Flat no-G-1, 31-C, Zone-2, MP Nagar, Bhopal

Ram Ashish Prasad

(0755) 4059310

TSSTTVXXLL-049_13EHM1_outline.indd English13TSSTTVXXLL-049_13EHM1_outline.indd English13 2/27/13 9:08 AM2/27/13 9:08 AM

Page 15

AUTHORIZED SERVICE CENTERS

South

Tamil Nadu Chennai Jeeves Consumer

Services Pvt Ltd.

New No.3,Old No.1-A, Sripuram,2nd Lane,Royapetah, Chennai-600014

Dinesh Kumar 044-

42632371

Tamil Nadu Chennai G C Services Old No. 12, New No. 37, 1st

Floor, Sattanna Naichen Street, Nehru Timber Market, Choolai, Chennai - 600112

Naval R (044)

26690084 / 42822868

Tamil Nadu Coimbatore V K Engineering 108-A/92, West Ponnurangam

Road, Ground Floor (Near Telephone Exchange), R.S.Puram, Coimbatore - 641002

Selvadurai (0422)

2541172

Pondicherry Pondicherry Bestronics 49, Saint Theresa Street,

Pondicherry - 605001

B Jayashankar (0)

9443728020

Andhra Pradesh

Hyderabad Jeeves Consumer

Services Pvt Ltd.

Flat No. 205, Karan Centre, Opp. IBP Petrol Pump and Karan Hotel, Park Lane, S.D.Road, Near Paradise Circle, Secunderabad - 500003

Kumararajan (040)

64591168

Andhra Pradesh

Vijaywada Jeeves Consumer

Services Pvt Ltd.

Door No.25-10-10A,G.S.Raju Road,Gandhi Nagar, Near Gymkhana Road, Vijayawada

- 520003

Rahamatullah Gouse Khan

(0866) 6591168

Karnataka Bangalore Jeeves Consumer

Services Pvt Ltd.

No. 126, 1st Floor, 8th Main J.P.Nagar, 3rd Phase, Bangalore

- 560078

Ramesh Kumar (080)

41209331

Karnataka Bangalore Jeeves Consumer

Services Pvt Ltd.

First Floor, Khan Bldg, 7 & 8th Cross, Jakkasandra Extension, Bangalore - 560032

Surulivel (080)

25520424

Karnataka Mangalore Jeeves Consumer

Services Pvt Ltd.

1st Floor, Quadra compound, Bejai,kapikad, Kavoor Road, Mangalore -575004

Divakar Shetty (0824)

2213699

Karnataka Mysore Jeeves Consumer

Services Pvt Ltd.

No.1095, 1st Floor, C&D Block, Lalithadri Road, Kuvempunagar, Mysore - 570023

Venkatesh.S.Kulkarni (0821)

4191094

TSSTTVXXLL-049_13EHM1_outline.indd English14TSSTTVXXLL-049_13EHM1_outline.indd English14 2/27/13 9:08 AM2/27/13 9:08 AM

Page 16

TSSTTVXXLL-049_13EHM1_outline.indd English15TSSTTVXXLL-049_13EHM1_outline.indd English15 2/27/13 9:08 AM2/27/13 9:08 AM

Page 17

TSSTTVXXLL-049_13EHM1_outline.indd English16TSSTTVXXLL-049_13EHM1_outline.indd English16 2/27/13 9:08 AM2/27/13 9:08 AM

Page 18

TSSTTVXXLL-049_13EHM1_outline.indd English17TSSTTVXXLL-049_13EHM1_outline.indd English17 2/27/13 9:08 AM2/27/13 9:08 AM

Page 19

TSSTTVXXLL-049_13EHM1_outline.indd English18TSSTTVXXLL-049_13EHM1_outline.indd English18 2/27/13 9:08 AM2/27/13 9:08 AM

Page 20

TSSTTVXXLL-049_13EHM1_outline.indd English19TSSTTVXXLL-049_13EHM1_outline.indd English19 2/27/13 9:08 AM2/27/13 9:08 AM

Page 21

TSSTTVXXLL-049_13EHM1_outline.indd English20TSSTTVXXLL-049_13EHM1_outline.indd English20 2/27/13 9:08 AM2/27/13 9:08 AM

Page 22

TSSTTVXXLL-049_13EHM1_outline.indd English21TSSTTVXXLL-049_13EHM1_outline.indd English21 2/27/13 9:08 AM2/27/13 9:08 AM

Page 23

TSSTTVXXLL-049_13EHM1_outline.indd English22TSSTTVXXLL-049_13EHM1_outline.indd English22 2/27/13 9:08 AM2/27/13 9:08 AM

Page 24

TSSTTVXXLL-049_13EHM1_outline.indd English23TSSTTVXXLL-049_13EHM1_outline.indd English23 2/27/13 9:08 AM2/27/13 9:08 AM

Page 25

TSSTTVXXLL-049_13EHM1_outline.indd English24TSSTTVXXLL-049_13EHM1_outline.indd English24 2/27/13 9:08 AM2/27/13 9:08 AM

Page 26

TSSTTVXXLL-049_13EHM1_outline.indd English25TSSTTVXXLL-049_13EHM1_outline.indd English25 2/27/13 9:08 AM2/27/13 9:08 AM

Page 27

TSSTTVXXLL-049_13EHM1_outline.indd English26TSSTTVXXLL-049_13EHM1_outline.indd English26 2/27/13 9:08 AM2/27/13 9:08 AM

Page 28

TSSTTVXXLL-049_13EHM1_outline.indd English27TSSTTVXXLL-049_13EHM1_outline.indd English27 2/27/13 9:08 AM2/27/13 9:08 AM

Page 29

TSSTTVXXLL-049_13EHM1_outline.indd English28TSSTTVXXLL-049_13EHM1_outline.indd English28 2/27/13 9:08 AM2/27/13 9:08 AM

Page 30

TSSTTVXXLL-049_13EHM1

P.N. 9100210000279 GCDS-HOL28543-ZZ

Printed in PRC

 󰰗 󰲑󰭅

Model No. :

Date of Purchase :

Dealer’s Stamp :

Universal Business Park, Off Saki Vihar Road, Chandivali Farm Road, Andheri (E)

Mumbai 400 072, India. 2 Year Limited Warranty – see inside for details. Sunbeam Products, Inc. and Jarden

Consumer Solutions of India Private Limited are subsidiaries of Jarden Corporation (NYSE: JAH).

1-800-102-6300

WARRANTY CARD

TSSTTVXXLL-049_13EHM1_outline.indd English29TSSTTVXXLL-049_13EHM1_outline.indd English29 2/27/13 9:08 AM2/27/13 9:08 AM
