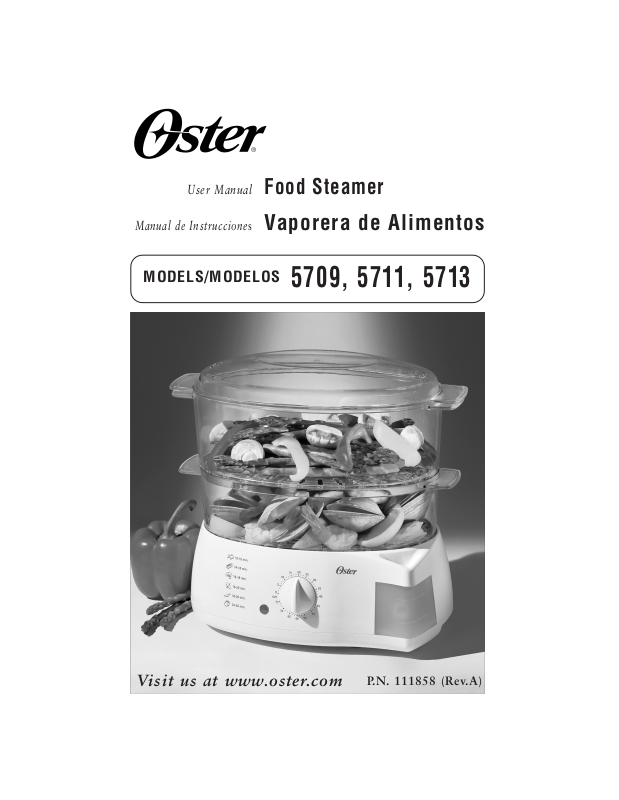

Oster 5713 Installation Manual

User Manual

Food Steamer

Manual de Instrucciones

Vaporera de Alimentos

MODELS/MODELOS

5709, 5711, 5713

P.N. 111858 (Rev.A)

Visit us at www.oster.com

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

•

READ ALL INSTRUCTIONS.

• Do not touch hot surfaces. Use potholders when removing cover or handling hot containers to avoid steam burns.

•To protect against electrical shock, do not immerse cord, plug or base unit in water or other liquids.

• Close supervision is necessary when any appliance is used by or near children.

• Unplug from outlet when not in use. Unplug before putting on or taking off parts, and allow to cool before cleaning.

• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Return appliance to an authorized Oster®Service Center for examination, repair or adjustment.

• Do not use outdoors.

• Do not let cord hang over edge of table or counter, or touch hot surfaces.

• Do not operate appliance while empty or without water in the reservoir.

• Do not place on or near a hot gas or electric burner, or in a heated oven.

• Extreme caution must be used when moving an appliance containing hot food or water or other hot liquids.

• Do not use appliance for other than intended use.

•

Lift and open cover carefully to avoid scalding and allow water to drip into steamer.

• The use of accessory attachments not recommended by this appliance manufacturer may cause hazards.

SPECIAL INSTRUCTIONS

• This appliance is intended for household use only.

• Make sure the voltage in your outlet is the same as the voltage indicated on the appliance’s rating label.

• The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in, or tripping over a long cord.

• For safety it is not recommended to use an electrical extension cord with this appliance.

• Do not immerse base unit in water or other liquids.

•Use with wall receptacle only.

FOR 120-V AND 127-V MARKETS ONLY

To reduce the risk of electrical shock, this appliance has a polarized plug (one blade is wider than the other). This plug fits a polarized outlet only one way.

This is a safety feature intended to help reduce the risk of electrical shock. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.

HIS UNIT IS FOR HOUSEHOLD USE ONLY

SAVE THESE INSTRUCTIONS

1. Lid

2. Rice Bowl

3. Upper Steaming Bowl

4. Lower Steaming Bowl Can Be Used As Egg Tray

(Not available on Model 5709)

5. Drip Tray

6. Removable Heating Element Sleeve

7. Heating Element

8. Base Unit

9. Water Inlet

10. Timer

11. Light

WELCOME

Congratulations on your purchase of an OSTER

Food Steamer!

To learn more about OSTER®products, please visit us at www.oster.com.

FOOD STEAMER FEATURES

EFORE THEFIRSTUSE

• Remove any labels or stickers from appliance.

• Thoroughly wash lid, rice bowl, upper steaming bowl, lower steaming bowl, drip tray and heating element sleeve in warm, soapy water before first use, then rinse and dry carefully. The heating element sleeve must be installed around the heating element for proper operation.

•Wipe the inside of the water reservoir with a damp cloth.

NSTANTSTEAMFUNCTION

Included is a removable heating element sleeve. Before cooking, when this sleeve is placed around the heating element, the steam function will automatically produce steam in 35 seconds. Do not operate the steamer without the heating element sleeve.

PLEASE NOTE:

The heating element sleeve may be removed to allow cleaning of the heating element. On the heating element sleeve, there is a small indentation (cut) which should face downward when replaced on the heating element.

SINGYOURSTEAMER

Place unit on a flat, sturdy surface with adequate clearance (i.e., do not place under wall cabinets). The steamer unit and components are not for use in ovens

(microwave, convection or conventional)

or on stovetop.

(

Step 1A)

Fill water reservoir with clean water

only.

Do not put any other liquids or add any salt, pepper, etc., in the water reservoir. Make sure the water does not exceed the HI fill level or go lower than the LO fill level as indicated inside the water reservoir. Then place the drip tray on the base.

(Step 1B)

EMOVABLEHEATING

LEMENTSLEEVE

FILLING WATER RESERVOIR

DRIP TRAY

TEP

Or you can fill the water reservoir from the water inlet. There are MAX and MIN lines

on the water box to indicate the water level. Even while food is still cooking, if the water

box shows that the water level is low, you can add water accordingly to the water inlet without moving any of the steaming bowls.

(Step 2)

NOTE: WATER SHOULD NEVER GO LOWER THAN LO (MIN) LINE.

TOUSEU

PPER ORLOWERSTEAMINGBOWL

(Step 3)

Place vegetable, seafood or other foods without sauce or liquid into the steaming bowl. Arrange food in center of bowl. Try not to block steam vents. You can use lower steaming bowl as an egg tray by directly placing a total of 8 eggs on it.

(Egg holding steaming tray not available on Model 5709).

FORD

OUBLETIER OR

HREETIERSTEAMER

Place the largest piece of food with longest cooking time in the lower steaming bowl.

Place

lower bowl on top of drip tray and base.

Place the upper steaming bowl on top of the base unit, or you can place upper steaming bowl directly on top of the lower steaming bowl.

(Upper steaming tray not available on Model 5709).

Cooking times are estimates and depend on the quantity, size, required degree of cooking and temperature of food. Consider all the cooking time given in the following guide as suggested times for double tier steamer.

When handling and removing hot components, use POTHOLDERS to avoid burns from hot steam.

ATER INLET

PPER ORLOWERSTEAMINGBOWLS

TEP

MULTI-TIERED STEAMING

SING THERICEBOWL

Place rice or other foods with sauce or liquid in rice bowl. Place rice bowl in the lower steaming bowl and cover with the lid. Plug into wall

outlet

and set timer. When food is well cooked,

unplug

unit.

IMERSETTING

(Maximum 75 Minutes)

Set the timer to the recommended cooking time

(steaming times can be adjusted as per your experiment). The light turns on and steam

comes in 35 seconds. The light will turn off when cooking is completed and the timer will give a signal bell.

CARE AND CLEANING

• Unplug cord from outlet. Before cleaning, allow Steamer to cool.

• Never immerse the Base, Cord or Plug in water.

• Empty the drip tray and the water reservoir. If there is a small amount of water remaining inside the water box, you can just turn the unit upside down and water will come out from the water inlet.

•Wash lid, steaming bowl, rice bowl and drip tray in hot, soapy water. Rinse and dry all parts, or wash on top rack of dishwasher.

• Clean reservoir with soapy water then wipe with damp cloth.

• Do not use abrasive cleaners

• The lower steaming bowl and the rice bowl can be stored inside the upper steaming bowl with the lid on top.

• In hard water areas, the scale may build up on the heating element. If scale is allowed to accumulate, the steam could turn off before the food is cooked. So, after 7-10 uses, pour 3 cups clear vinegar into the water reservoir then fill with water up to the HI level. Do not place lid, steaming bowl, rice bowl and drip tray in this procedure.

• Plug in and set timer to 20 minutes. When the timer rings, unplug cord from outlet. Allow the unit to cool completely before emptying the water reservoir. Use cold water to rinse the water reservoir several times.

EHEATING

: B

READS ANDLEFTOVERS

1. Do not wrap or cover when reheating breads.

2. For leftovers, reheating times are based on foods at refrigerator temperatures.

3. When reheating leftovers in the rice bowl, always spread leftovers evenly in RICE BOWL and use aluminum foil to cover.

4. Experiment with your own leftovers.

RICE BOWL

Grains

unt of water on the chart. For firmer rice decrease water mixed

OMBINEDIN

ICEBOWL

PPROX

. T

IME

ICE

ICEAMOUNT

ATER

(Minutes)

1/2 cup 1 cup 42 – 45

1 cup 1-1/2 cups 45 – 50

Wild Rice Mix

pkg.) Mix 1-1/2 cups 50 – 55

g (6-1/2 oz. pkg.) Mix 1-3/4 cups 18 – 20

1 cup 1-1/2 cups 15 – 18

1 cup 1-1/2 cups 45 – 50 1 cup 1-2/3 cups 50 – 55
