OS 322
Specifications of OS-322 MCU Board (Preliminary)
1
HARDWARE
Specifications
Frequency Band: Support for 802.11 co-existence
2.4GHz ~ 2.48GHz unlicensed band
Bluetooth System: v2.1 (Class 2)
Antenna: Class 2 power output with printed PCB antenna
Power: 3.3V from uSqueez App Power PCBA (2.7V to 3.6V)
RF: 1Mbps GFSK.
Interfaces : 7 connectors – CN1 – 5 pins (1 x 5 connector 2.0mm pitch)
CN7 – 3 pins (1 x 3 connector 2.50mm pitch)
CN9 – 2 pins (1 x 2 connector 2.50mm pitch)
CN12 – 9 pins (1 x 9 connector 2.0mm pitch)
ISO3 – 7 pins, 2.54mm (1 x 7 connector 2.50mm pitch)
J1 – 6pins (1 x 6 connector 2.54mm pitch)
J4 – 7 pins, 2.0mm (1 x 7 connector 2.0mm pitch)
Limit Safety Switch: A safety limit switch will be connecting to CN9. The safety limit switch is normally close
(GND) and makes the uSqueez App working normally. If the safety limit switch is opened
(Pull-high), the motors in uSqueez App will stop immediately and output beep sound twice.
Optical Sensor: The optical sensor is used to detect the wide and narrow position. It will be connected to
CN7.
Operating: 0 - 70°C
Temperature Range

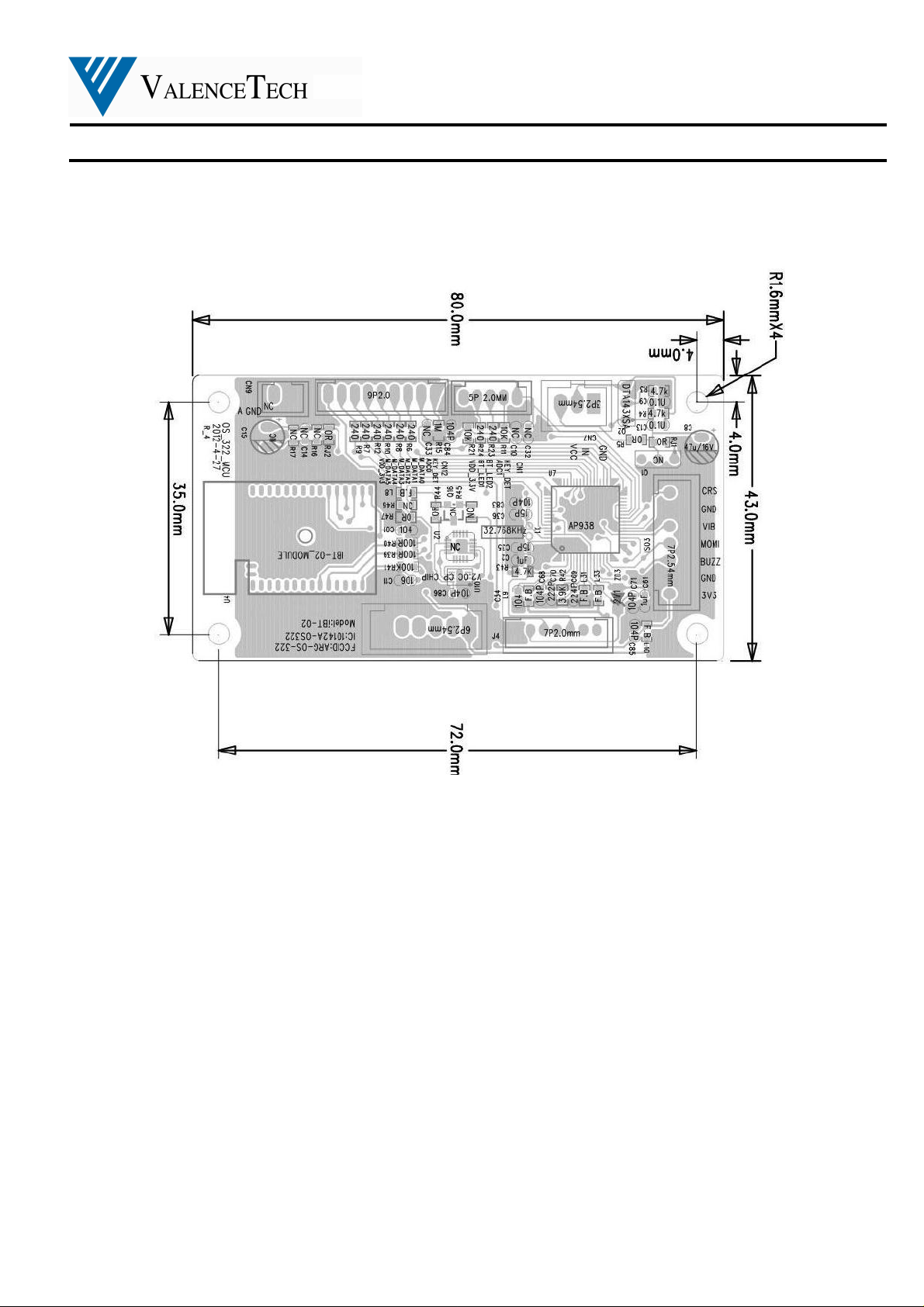

Dimensions: 80mm x 43mm x 8.6mm
Indicators: 8 LEDs (on Button PCBs) – Power On/OFF (Color Red)
Vibration Hi (Color Red)
Vibration Lo (Color Red)
Soothe of Auto Mode (Color Red)
Pulse of Auto Mode (Color Red)
Energize of Auto Mode (Color Red)
Specifications of OS-322 MCU Board (Preliminary)
2
Bluetooth power indictor (Color Red)
BT connection status (Color Blue)
Buttons: 4 buttons (on Button PCBs) – Power On/OFF
Vibration Hi/Lo
Auto Mode
Bluetooth button
Current consumption: 50mA (approx.)
Under Industry Canada regulations, this radio transmitter may only operate using an
antenna of a type and maximum (or lesser) gain approved for the transmitter by
Industry Canada. To reduce potential radio interference to other users, the antenna
type and its gain should be so chosen that the equivalent isotropically radiated power
(e.i.r.p.) is not more than that necessary for successful communication.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut
fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé
pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de
brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type
d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente
(p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication
satisfaisante.
Information for the OEMS Integrators
This device is intended for OEM integrators only. Please see the full grant of equipment document for
restrictions.
Label Information to the End User by the OEM or Integrators
If the FCC ID of this module is not visible when it is installed inside another device, then the outside of
the device into which the module is installed must be labelled with “Contains FCC ID: ARG-OS-322 and IC:
10142A-OS322”.
