O.S. Engines 21VZ-M User Manual

It is of vital importance, before attempting to operate your engine, to read the general
'SAFETY INSTRUCTIONS AND WARNINGS'
section on pages 2-5 of this booklet and to strictly adhere to the advice contained therein.
●
Also, please study the entire contents of this instruction manual, so as to familiarize yourself with the controls and other features of the engine.
●
Keep these instructions in a safe place so that you may readily refer to them whenever necessary.
●
It is suggested that any instructions supplied with the vehicle, radio control equipment, etc., are accessible for checking at the same time.
SAFETY INSTRUCTIONS AND WARNINGS ABOUT YOUR O.S. ENGINE
ENGINE CONSTRUCTION, NOTES ON INSTALLING FLYWHEEL, NOTES WHEN APPLYING AN ELECTRIC STARTER
INSTRUCTIONS, TOOLS, ACCESSORIES, etc.
BASIC ENGINE PARTS, INSTALLATION OF THE ACCESSORIES SUPPLIED, INSTALLATION OF REPLACEMENT PARTS
INSTALLATION
GLOWPLUG, CARBURETOR CONTROLS STARTING THE ENGINE &
RUNNING-IN ('Breaking-in)
CONTENTS
2-5
6-8
9-11
12-14
15
16-18
19-22
FINAL ADJUSTMENT CARBURETOR CLEANLINESS,
CARE AND MAINTENANCE
CHECKING THE ENGINE, GUARANTEE
TROUBLE SHOOTING
ENGINE EXPLODED VIEWS & PARTS LIST
CARBURETOR EXPLODED VIEW & PARTS LIST
O.S. GENUINE PARTS & ACCESSORIES
THREE VIEW DRAWING
1
23-24
25-26
27
28-31
32-33
34-35
36-37
38
SAFETY INSTRUCTIONS AND WARNINGS ABOUT YOUR O.S. ENGINE
Remember that your engine is not a "toy", but a highly efficient internal­combustion machine whose power is capable of harming you, or others, if it is misused. As owner, you, alone, are responsible for the safe operation of your engine, so act with discretion and care at all times. If at some future date, your O.S. engine is acquired by another person, we would respectfully request that these instructions are also passed on to its new owner.
The advice which follows applies basically to ALL MODEL ENGINES and is grouped under two headings according to the degree of damage or danger which might arise through misuse or neglect.
WARNINGS
! 
These cover events which might involve serious (in extreme circumstances, even fatal) injury.
WARNINGS
!
Never touch, or allow any object to come into contact with, the rotating propeller and do not crouch over the engine when it is running.
Model engine fuel is poison­ous. Do not allow it to come into contact with the eyes or mouth. Always store it in a clearly marked container and out of the reach of children.
Model engine fuel is also highly flammable. Keep it away from open flame, excessive heat, sources of sparks, or anything else which might ignite it. Do not smoke or allow anyone else to smoke, near to it.
NOTES
!
These cover the many other possibilities, generally less obvious sources of danger, but which, under certain circumstances, may also cause damage or injury.
2
Never operate your engine in an enclosed space. Model engines, like automobile engines, exhaust deadly carbon-monox­ide. Run your engine only in an open area.
Model engines generate considerable heat. Do not touch any part of your engine until it has cooled. Contact with the muffler (silencer), cylinder head or exhaust header pipe, in particular, may result in a serious burn.
3
NOTES
!
This engine was designed for model boats. Do not attempt to use it for any other purpose.
Mount the engine in your model securely, following the manufacturers' recommenda­tions, using appropriate screws and lock­nuts.
Install an effective silencer (muffler). Frequent close exposure to a noisy exhaust (especially in the case of the most powerful high-speed engines) may eventually impair your hearing and such noise is also likely to cause annoyance to others ov er a wide area.
For their safety, keep all onlookers (especially small children) well back (at least 20 feet or 6 meters) when preparing your model for running.
Take care that the glowplug clip or battery leads do not come into contact with the pro­peller or any other rotating parts. Also check that the linkage to the throttle arm is secure.
If your engine does not have a built-in recoil starter, use an electric starter. The wearing of safety glasses is also strongly recommended.
When handling the boat immediately prior to launching, be especially cautious. Keep the propeller and other rotating parts away from you.
Before starting the engine, always check the tightness of all the screws and nuts especial­ly those of joint and movable parts such as throttle arm. Missing retightening the loose screws and nuts often causes the parts breakage that is capable of harming you.
4
NOTES
!
Adjust the throttle linkage so that the engine stops when the throttle stick and trim lever on the transmitter are fully retarded. Alternatively, the engine may be stopped by cutting off the fuel supply. Never try to stop the engine physically.
Warning! Immediately after a glowplug­ignition engine has been run and is still warm, conditions sometimes exist whereby it is just possible for the engine to abruptly restart if it is rotated over compression WITHOUT the glowplug battery being reconnected.
5
ENGINE CONSTRUCTION
With this engine, the piston will feel tight at the top of its stroke (TDC) when the engine is cold. This is normal. The cylinder bore has a slight taper. The piston and cylinder are designed to achieve a perfect running clearance when they reach operating temperature.
Near TDC
Piston
Cylinder Liner
Crankshaft Slight taper
Notes on installing flywheel
Do not use a tool which locks piston when installing a flywheel, or top of the piston may be damaged. Also, do not insert a screw driver or the similar into the exhaust port.
It is recommended to use Crankshaft Clamp 1521 (Code No.71530200) available as an optional tool. It is made of durable engineering plastic and locks the crankshaft without risk of damage to any part of the engine.
When the engine is cold.
6
Application is as follows:
Remove the crankcase rear cover plate from the engine and rotate the crankshaft to the bottom dead center (BDC) position.
Insert the crankshaft clamp so that its grooved portion surrounds the crankpin and lower end of the connecting rod and securely tighten the fan or clutch onto the crankshaft.
When the engine is hot.
BDC position
Rotate the crankshaft so that the connecting rod comes to this position.
Insert this groove onto the connecting rod.
7
NOTES WHEN APPL YING AN ELECTRIC STARTER
Do not over-prime. This could cause a hydraulic lock and damage the engine on application of the electric starter.
If over-primed, remove glowplug, close needle-valve and apply starter to pump out surplus fuel. Cover the head with a rag to prevent pumped out fuel getting into your eyes.
We do not recommend running your boat
NOTE
on the sea, or in any other saltwater environment. Under such conditions, it is difficult to prevent the engine from becoming corroded and, eventually, inoperative.
8
INSTRUCTIONS
The
MAX-
21VZ-M is designed expressly for 21 class boat racing. P7 Turbo plug is supplied with the engine and also water cooled plug cap is installed, which improves power output, fuel consumption and durability. Big bore of 10mm 21D carburetor copes with high nitro fuel. This engine offers high racing potential maintaining O.S. tradi­tional easy-to-handle characteristics.
Standard accessories
Glow Plug P7 For T-type head (Turbo head) 1piece
Cylinder-head gasket (0.1mm) 1 sheet
Dust Cap 3, 16, 18 1piece each
(Medium Type)
Water Cooled Plug Cap
Flywheel No.2K Assembly
(Taper Collet,)
(Installed)
Exhaust Seal Ring 1piece
Head Gaskets
The engine is installed a 0.2mm thick head gasket. If you find the following symptoms after running the engine, add a 0.1mm thick gasket supplied.
With the appropriate needle setting, engine r.p.m. drop and power loses during running.
Glow plug burns out frequently.
Composition and proportion of lubricant in the fuel may affect the symptoms.
9
TOOLS, ACCESSORIES, etc.
The following items are necessary for operating the engine.
Items necessary for starting
FUEL
Generally, it is suggested that the user selects a fuel that is commercially available for model two-stroke engines and contains 10-30% nitromethane. As a starting point, we recommend a fuel containing 20% nitromethane, changing to a fuel containing more nitro if necessary. When the brand of fuel is changed, or the nitro content increased, it is advisable to repeat the running-in procedure referred to in the RUNNING-IN paragraphs. Please note that with high-nitro fuels, although power may be increased for competition purposes, glowplug elements do not last as long and engine life will be shortened.
REMINDER!
Model engine fuel is poisonous. Do not allow it to come into contact with the eyes or mouth. Always store it in a
! 
clearly marked container and out of the reach of children.
10
Model engine fuel is also highly flammable. Keep it away from open flame, excessive heat, sources of sparks,
! 
or anything else which might ignite it. Do not smoke or allow anyone else to smoke, near to it.
GLOWPLUG IGNITER
Commercialy available handy glowplug heater in which the glowplug battery and battery leads are integrated.
PROPELLER
Use well balanced propellers only. As the ideal diameter, pitch and shape vary according to the size, weight and type of model, final selection can be made after practical experiment. As a starting point, suggested propeller diameter is 41-43mm with a pitch/dia ratio of 1.0-1.1 for in­drive Vee type hulls, 40-45mm with a pitch/dia. ratio of 1.2-1.6 for out-drive Vee type hulls and 44-46mm with a pitch/dia. ratio of 1.4-1.6 for hydroplanes.
NOTE
Never use a propeller that has even a slight damage.
REMINDER!
Never touch, or allow any object to come into contact with, the rotating propeller and
!
do not crouch over the engine when it is
running.
STARTER BELT
Necessary for starting the engine. It is suggested to keep a starter rope as a reserve.
ELECTRIC STARTER AND STARTER BATTERY
Use a 12-volt electric starter with suitable battery for start­ing the engine.
SILICONE TUBING
This is required for the connection between the fuel tank and engine, also for the water cooling system. Inner dia. of 2.3-2.5mm and outer dia. of 5-5.5mm would be suitable.
SUPER FILTER (L)
Fit a filter to the outlet tube of your refuelling container to prevent entry of foreign matter into the fuel tank.
TOOLS
HEX SCREWDRIVER
Necessary for engine installation.
1.5mm, 2mm, 2.5mm, 3mm
SCREWDRIVER
Necessary for carburetor adjustments. No.1, No.2, etc
LONG SOCKET WRENCH WITH PLUG GRIP
Recommended for easy removal and replacement of the angled and recessed glowplug, the O.S.Long Socket Wrench incorporates a special grip.
11
(Option)

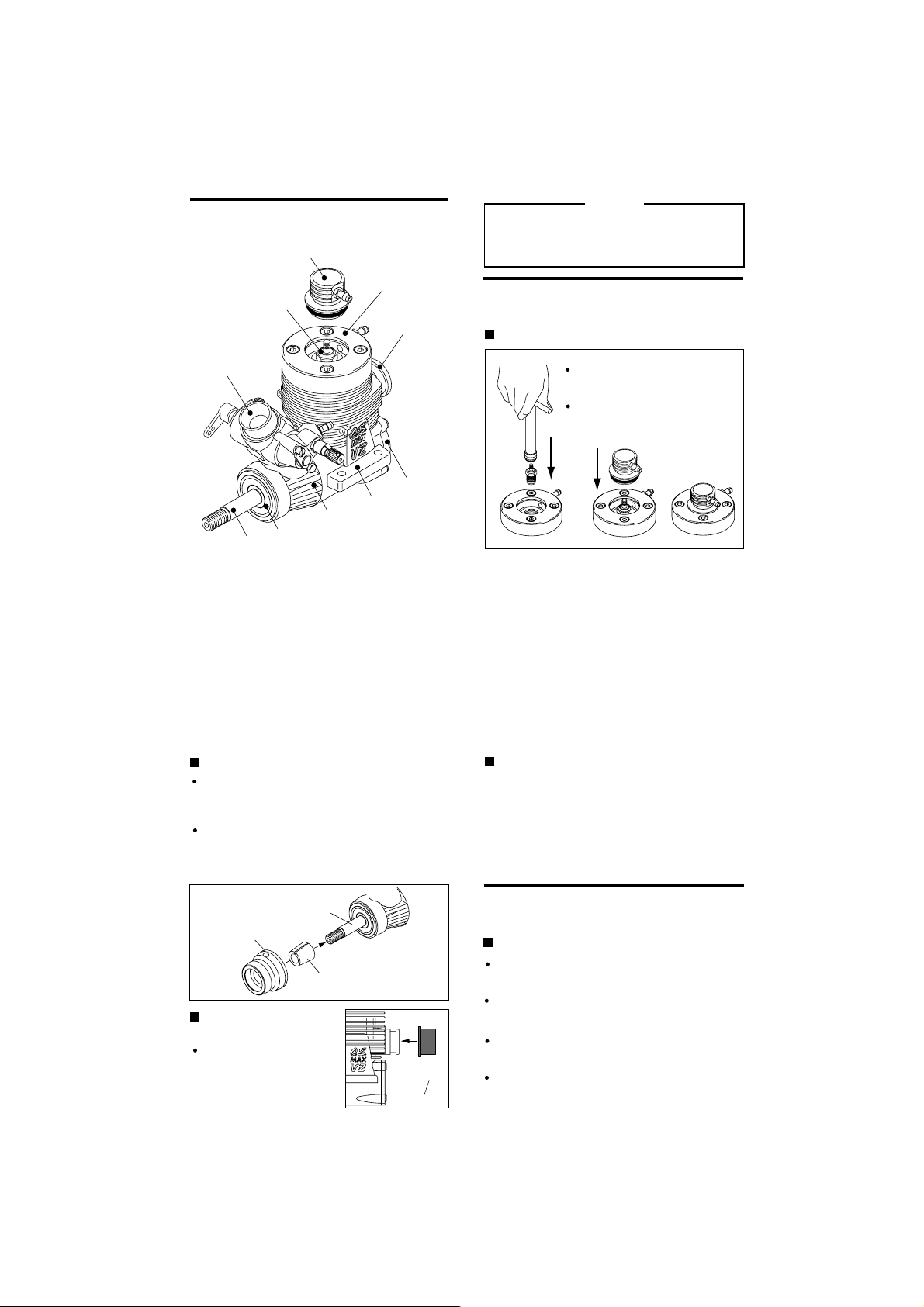

BASIC ENGINE PARTS
Water cooled plug cap
NOTE
Install the carburetor, marine head and water cooled plug cap with suitable direction according to the model.
Glow Plug P7
Carburetor Type 21D
Crankshaft
Crankcase
Front Bearing
Water Cooled Head
Exhaust
Cover Plate
Mounting Lugs
INSTALLATION OF THE ACCESSORIES SUPPLIED
Glow plug and water cooled plug cap
Install the glow plug on the marine head.
Press the water cooled plug cap on the head securely.
12
INSTALLATION OF THE FLYWEEL
Insert the taper collet on the crankshaft, taking care not to push the crankshaft to the cover plate end.
Then, tighten flywheel on the crankshaft using the tightening stick supplied or clamping the crankshaft with Crankshaft Clamp 1521 available as an optional extra.
Crankshaft
Flywheel
Taper Collet
INSTALLATION OF THE EXHAUST SEAL RING
Install the exhaust seal ring supplied.
Exhaust Seal Ring
INSTALLATION OF THE DUST CAP SET
If the engine is to be stored or out of use for a while, install the included exhaust and carburetor dust caps to prevent foreign matter from entering the engine.
INSTALLATION OF REPLACEMENT PARTS
CARBURETOR SPACER
Apply epoxy glue or LOCTITE inside the carburetor spacer.
Install the spacer onto the carburetor body while rotating it.
Wipe off excess glue coming out of the spacer with thinner.
Install the carburetor gasket onto the spacer.
13
Epoxy glue or LOCTITE
INSTALLATION OF CARBURETOR
Carburetor Retainer
Insert the carburetor seal washer onto the bottom of the carburetor installing hole on the crankcase.
Insert the carburetor retainer into the position shown in the sketch and install the carburetor into the installing hole.
Make sure that the carburetor is inserted securely to the bottom of the installing hole.
Then, screw in the fixing screw gently until it stops. Screw in 120-180 degrees further. Do not fasten further, or the carburetor spacer will be damaged. 120-180 degrees further tightening is just enough because the retainer pinches from the both sides.
Screw in the screw gently until it stops.
Carburetor Sealing Washer
INSTALLATION
Before installing the engine in the model, clean out the engine room. Especially if the sand paper and glass wool residues are not removed completely, they may be sucked into the engine and damage the engine.
1.
Make sure that the engine mounting beams in the hull are parallel, with their top surfaces in the same plane. If they are not, the engine will not rest firmly as the engine mounting faces (undersides of the mounting lugs) are precision machined to be flat and in the same plane. Poor installation may not only cause vibration, erratic running and loss of performance, but may also damage the engine itself by deforming the crankcase, cylinder, etc.
The mounting beams and adjacent hull
2. structure should be as rigid as possible so that the engine may develop its full performance. Use 3mm steel screws, such as Allen socket­head type, with locknuts, for bolting the engine to the mounting beams.
Tighten a further 120-180˚
14
Touches here
Chamfer edges
If the holes in the mounting beams do not align
3.
Touches here
File off Cut out
exactly with the engine's mounting lugs, enlarge them slightly with a needle file so that the mounting screws pass through the holes smoothly without being forced.
4.
Screws are prone to loosen during flights. Be sure to use the Lock Washers available as optional extra or locking glue for slack prevention.
15
GLOWPLUG
Since the glowplug and fuel combination used may have a marked effect on performance and reliability, it would be worthwhile to experiment with different plug types. An O.S. P7 glowplug is supplied with the engine. Carefully install plug finger-tight, before final tightening with the correct size plug wrench.
The role of the glowplug
With a glowplug engine, ignition is initiated by the application of a 1.5-volt power source. When the battery is disconnected, the heat retained within the combustion chamber remains sufficient to keep the plug filament glowing, thereby continuing to keep the engine running. Ignition timing is 'automatic' : under reduced load, allowing higher rpm, the plug becomes hotter and, appropriately, fires the fuel/air charge earlier; conversely, at reduced rpm, the plug become cooler and ignition is retarded.
Glowplug life
Particularly in the case of very high performance engines,
glowplugs must be regarded as expendable items. However, plug life can be extended and engine performance maintained by careful use, i.e.:
Install a plug suitable for the engine. Use fuel containing a moderate percentage of
nitromethane unless more is essential for racing events.
Do not run the engine too lean and do not leave the battery connected while adjusting the needle.
When to replace the glowplug
Apart from when actually burned out, a plug may need to be replaced because it no longer delivers its best performance, such as when:
Filament surface has roughened and turned white. Filament coil has become distorted. Foreign matter has adhered to filament or plug body has corroded. Engine tends to cut out when idling. Starting qualities deteriorate.
16
CARBURETOR CONTROLS
Two adjustable controls are provided on this carburetor.
The Needle-Valve:
For adjusting the mixture strength when the throttle is fully open.
The Mixture Control Screw:
For adjusting the mixture strength at part­throttle and idle speed, to obtain steady idling and smooth acceleration to mid speeds.
Mixture Control Screw
(21D)
shown in the sketch. (In case of 30% nitro fuel) In case of 65% nitro fuel, basic position should be approximately 45 degrees turned left from the center. Mixture gets lean when the Mixture Control Screw is turned right, while mixture gets rich when the Mixture Control Screw is turned left. With a model boat, adjustments vary with combined various factors such as climatic conditions, fuel, muffler, etc. Therefore, Mixture Control Screw position varies with each model and set-up, and it is normal if the Mixture Control Screw position if off the center.
Needle Valve
Mixture Control Valve
45
BASIC POSITION OF MIXTURE CONTROL SCREW (Mixture Control Valve)
As delivered, the Mixture Control screw is positioned at approximately the center as
Mixture Control Valve
17
Mixture Control Screw
Lean
Thick
NOTE As the idle mixture control screw is installed with LOCTITE, it may ini­tially feel stiff, and it is suggested to use a littli larger screwdriver. The screw can be turned only 90 degrees either way. Do not force to turn further, or it may break or cause trouble.
90 degrees
90 degrees
Type 20G Remote-mounting Needle Valve Assembly
(Optional parts)
It enables the Needle Valve to be installed separately from the engine in a position where (especially with a cowled or enclosed engine) it may be more accessible for adjustment. (See sketch.) Install as follows:
Fixing nut
Model or fitting plate
Ratchet spring
Needle
Remote needle holder
Remove the needle-valve holder from the carburetor and fit the plug screw in its place.
18
Drill a 6mm dia. hole in the required position on the model and insert the Remote Needle Valve Assembly. If necessary, install a suitable mounting plate in the model to which the Remote Needle Valve Assembly may be fitted.
Tube length should be kept as short as possible.
Silicone tubing
Remote needle nut
Plug screw
Remote needle holder
You may also use the Needle Control Lever in conjunction with the Re­mote-mounting Needle Valve Assembly.
Needle valve control lever
STARTING THE ENGINE & RUNNING-IN ('Breaking-in)
PRESSURIZED FUEL SYSTEM
The somewhat violent changes of hull attitude that occur in running, combined with the fact that, in boats the fuel tank is often located some distance from the carburetor, means that fuel 'head' at the carburettor can vary and upset running. Therefore,it is recommended that a muffler pressurized fuel feed system be used.
Before starting the engine, always check the tightness of all the screws and nuts especially those of joint and movable
!
parts such as throttle arm. Missing
retightening the loose screws and nuts often causes the parts breakage that is capable of harming you.
The following procedure is suitable for these engines when the fuel containing up to 30% nitromethane are used.
Fill the tank completely with fuel.
Temporarily remove the glowplug to check that it glows bright red when energized.
Element glows when energized.
Replace the plug when the element does not glow or is burnt out.
Glow Plug Igniter
Turn the needle-valve clockwise slowly until it stops. This is the fully closed position. Do not force to turn further.
19
Pliers
Open the Needle-Valve 1.5 turns from the fully closed position.
Needle Valve
Turn the engine with an electric starter or recoil starter to draw fuel into the engine.
Deliver fuel into the carburetor.
Fuel tank side
Close
Open
Swith on the transmitter and make sure that each linkage moves correctly.
Raise the throttle trim 2 or 3 clicks on the transmitter for easier starting.
Throttle Trim
Fuel
Now connect glowplug battery lead to heat the plug filament and start the engine.
Start the engine using an electric starter making sure the engine rotation direction is correct (counter-clockwise seen from the crankshaft end).
When the engine starts, first repeat low speed running and medium speed running by raising and lowering throttle stick on the transmitter to warm up the engine. Aviod high speed running.
20
PRECAUTIONS When starting the engine, with the hull out off the water and no load on the engine, even below half throttle, the engine can over-rev. Prolonged running at higher throttle settings can result in seizure of the connecting rod and crankpin. Never run the engine with the throttle above the starting setting with the hull out of the water and no load on the engine.
Next, disconnect the glowplug battery and try running the hull on the water. If the engine stalls, open the throttle fractionally, but try to keep the engine running as rich as possible: if it stops because of being excessively over-rich, close the Needle­Valve 30˚ and try again.
Run the hull on the water until one tank of fuel has been consumed, then close the Needle­Valv e 30˚ and run the hull for another full tank of fuel. Repeat this procedure until 5 more tanks of fuel have been consumed, during which time the throttle may be opened for brief bursts of increased power. If the engine stops at medium speeds, close the Mixture Screw 10˚.
21
The position of the needle-valve when starting the engine.
Needle
TO STOP THE ENGINE
Lower the throttle trim and/or throttle stick on the transmitter.
Close the needle-valve approx. 30˚ after running the hull for one full tank of fuel. Repeat this procedure several times.
Remember!
If the engine should need to be disassembled (e.g. for cleaning or minor parts replacement) it is advisable to return the Needle-Valve to the original rich, starting setting and check whether further running-in time is required before the car is raced again. In the event of any major working parts(e,g, piston/cylinder liner assembly) being replaced, the complete running-in should be repeated.
Throttle T rim
Throttle Stick
Warning! Do not touch rotating parts, engine and si­lencer when stopping the engine as they become very hot, and contact with them may result in a serious burn.
22
FINAL ADJUSTMENT
Run the hull (with throttle fully open) over the longest available straight, in order to observe the model's speed. Next return the hull to the starting point, close the Needle-Valve 30˚ and repeat the run, taking note of the improvement in performance. Continue with further runs, gradually reducing the Needle­Valve setting and aiming to achieve the highest straight-line speed. Remember, however, that, if the Needle-Valve is shut down too far, the engine will overheat and, accompanied by visibly diminished exhaust smoke, the model will lose speed. At this point, throttle down immediately, stop the hull and reopen the Needle-Valve 30˚.
Having established the optimum Needle­Valve setting, check the Mixture Control Valve setting as follows.
With the engine running, close the throttle and allow it to idle for about five seconds, then reopen the throttle fully. If, at this point, the engine puffs out an excessive amount of smoke and the hull does not accelerate smoothly and rapidly, it is probable that the idle mixture is too rich.
In this case, turn the Mixture Control Valve clockwise 10˚. If, on the other hand, the engine tends to speed up momentarily and then cut out abruptly when the throttle is opened,the idle mixture is too lean. Correct this by turning the Mixture Control Valve counter-clockwise 10˚.
NOTE: Mixture Control Valve adjustment should be made in steps of not more than 45-90˚, carefully checking the effect,on throttle response, of each small adjustment.
23
Carry out adjustments patiently, under actual running conditions, until the engine responds quickly and positively to the throttle control.
Warning! Mixture adjustments (whether via the Mixture Control Valve, or the Needle-Valve) cannot be made accurately under 'no-load' conditions, which, in any case, are not advised, since such operation carries the risk of seriously damaging the engine through over-revving and overheating.
With the optimum mixture control position, light smoke is visible during high speed running,and the engine rpm increases smoothly during acceleration. Remember that, if the engine is operated with the fuel/air mixture slightly too lean, it will overheat and run unevenly. As with all engines, it is advisable to set both needle-valve and mixture control screw very slightly on the rich side of the best rpm setting, as a safety measure.
If the engine runs too fast with the throttle closed, the throttle stop screw should be turned counter-clockwise to allow the throttle opening to be reduced.
Finally, beyond the nominal break-in period, a slight readjustment toward a leaner needle setting may be required to maintain performance.
24
CARBURETOR CLEANLINESS
The correct functioning of the carburetor depends on its small fuel orifices remaining clear. The minute particles of foreign matter that are present in any fuel can easily partially obstruct these orifices and upset mixture strength so that engine performance becomes erratic and unreliable. It is recommended that fuel is passed through a filter when the tank is filled and that a good in-line filter is installed between the fuel tank and carburetor and, furthermore, that this filter is frequently cleaned to remove dirt and lint that accumulates on the filter screen. Finally, occasionally remove the needle-valve holder from the carburetor as shown in Photo and extract any remaining foreign matter that may have lodged in the location shown in the sketch.
25
Remove this with an 8mm wrench
Dirt and fbrous matter mostly accumulate here
CARE AND MAINTENANCE
Engine maintenance is very important for good running next time. Carry out the followings.
Do not forget to clean the filters regularly to remove dirt and lint that accumulate on the filter screens. Also, clean the carburetor itself occasionally.
At the end of each operating session, drain out any fuel that may remain in the fuel tank. Afterwards, energize the glowplug and try to restart the engine, to burn off any fuel that may remain inside the engine. Repeat this procedure until the engine fails to fire. Leav­ing fuel residues within the engine can result in difficult starting after a period of storage. It may also cause corrosion. To reduce such risks, it is helpful to inject some corrosion in­hibiting oil into the engine's air intake. Rotate the engine many times to distribute the oil to all the working parts.
Drain the water remaining in the water cool­ing head, and wash out with methanol, then inject corrosion-inhibiting or moisture-dis­placing oil.
When cleaning the exterior of the engine, use methanol or kerosene. Do not use gaso­line or any solvent that might damage the sil­icone fuel tubing or any plastic parts of the boat hull.
When the engine is not in use remove the glowplug and rinse out the interior with kero­sene (not gasoline), by rotating the crank­shaft. Shake out residue, then inject light ma­chine-oil through the plug hole again rotating the shaft to distribute the protective oil to all working parts.
In the event of water having entered the cy­linder, crankcase, etc., refer to the proce­dures recommended in the footnote to "running-in" section.
Avoid unnecessary disassembly of your engine.
26
CHECKING OF THE ENGINE
After long use, the engine will not develop the standard performance due to wear of parts. It is suggested to replace the parts, such as ball bearings, connecting rod, cylinder & piston assembly and crankcase, as necessary after checking when the following symptoms are found.
Idling gets unstable and/or the engine stops at idling.
Engine sound changes and the engine tends to overheat.
Power drops extremely.
GUARANTEE
This engine is constructed from the very best materials available and to the very highest engineering standards, using the most advanced precision machinery. However, the extremely high stresses imposed by car racing operation under very severe conditions, as well as stresses which are exacerbated by the use of powerful fuels containing very high concentrations of nitromethane, constitute hazards which are beyond a manufacturer's control. Accordingly, we regret that it is not possible to extend our usual warranty terms to this particular engine -i.e. no guarantee is offered against material wear, or damage resulting therefrom, in actual use.
27
TROUBLE SHOOTING
Symptom
Engine fails to fire.
Cause
Fuel tank is empty. Fuel not reaching the engine.
Glowplug element is burnt out. Glowplug battery discharged
Clogged fuel filter
Silencer inside is dirty. Over priming Remove glowplug and pump excess fuel.
Fill the tank with fuel and repeat Priming procedure.
Replace glowplug. Recharge or replace the battery.
Clean or replace fuel filter.
Clean inside the silencer.
Corrective action
Fuel tubing is disconnected. Fuel tubing is kinked, split or has a hole.
Incorrect servo linkage
Reverse rotating direction of electric starter.
Symptom
Engine fires intermittently but does not run.
Cause
Insufficient fuel in the tank. Fill the tank with fuel.
Connect fuel tubing securely. Check the tubing carefully and replace if necessary.
Connect correctly after setting servo at neutral.
Mare sure it rotates counter clockwise seen from crankshaft side.
28
Corrective action
Deteriorated glowplug
Clogged fuel filter
Silencer inside is dirty. Engine overheated
Glowplug battery disconnected too soon.
Air bubbles in fuel
Replace glowplug. Clean or replace fuel filter.
Clean inside the silencer. Wait until engine cools.
Do not disconnect plug battery and wait until r.p.m. become stable.
Install O rings to the tank screws to prevent bubbles.
29
Symptom
Unstable idle
Cause
Corrective action
Unsuitable glowplug
Unsuitable fuel Extremely light flywheel Add suitable load.
Silencer is disconnected or has play
Symptom
Not reaching expected peak r.p.m.
Cause
Insufficient warming up or running-in. Silencer or manifold is not securely connected
or disconnected. Fuel tubing from tank is split or broken.
Use suggested glowplug in the instructions. Do not use extremely high nitro or
low oil content fuel.
Install silencer securely.
Set the needle only after warming up. Complete running-in.
Replace seal ring. Check the connections and secure them.
Replace the tubing.
30
Corrective action
Symptom
Poor response
Cause
Deteriorated glowplug Incorrect carburetor settings
Incorrect setting of transmitter Exponential function.
Symptom
Poor r.p.m. drop
Cause
Throttle position open too far.
Too much closing of the needle-valve and/or mixture control screw.
Incorrect carburetor installation
Corrective action
Replace glowplug. Readjust low r.p.m. range with metering
needle and mixture control valve.
Check the transmitter setting.
Corrective action
Lower the throttle trim on the transmitter.
Open the needle-valve an/or mixture control screw a little.
Install carburetor properly.
31
ENGINE EXPLODED VIEW
ENGINE PARTS LIST
32
10
C.M2.6x18
11
C.M3x18
12
No.
Code No.
1
23754740
1-1
23754720
1-2
1
1-1
1-2
2-1
2
18
3
4
33
5
7
9
6
8
7
15
14
13
C.M2.6x7
17
16
45515010
2
23754710
2-1
23754720
3
23754730
4
23764010
5
23753020
6
23906000
7
23817000
8
23755000
9
23882000
10
23715000
11
23981700
12
23731000
13
23751010
14
23730010
15
23752020
16
23764020
17
23757000
18
23763010 71641700 71802200 22826140 22884250
The specifications are subject to alteration for improvement without notice.
Water cooled plug cap Nipple No.18 Sealing Gasket Water Cooled Head Assembly Nipple No.18 Inner Head Head Gasket (2pcs.) Cylinder & Piston Assembly Piston Pin Piston Pin Retainer (2pcs.) Connecting Rod Carburetor Complete (Type 21D) Carburetor Sealing Gasket Carburetor Retainer Assembly Crankshaft Ball Bearing (Front) Crankcase Crankshaft Ball Bearing (Rear) Crankshaft Cover Gasket Cover Plate Screw Set Glow Plug T-P7 Flywheel No.2K Exhaust Seal Ring Dust Cap Set (3mm,16mm,18mm)
Description
Type of screw C...Cap Screw M...Oval Fillister-Head Screw
F...Flat Head Screw N...Round Head Screw S...Set Screw
21D CARBURETOR EXPLODED VIEW
C.M3X8
1-1
4
1
2
5
3-2
10
11
6
7
8
9-4
9
9-1
9-5
9-2 9-3
S.M3X3
3-1
12
3
Type of screw C...Cap Screw M...Oval Fillister-Head Screw
F...Flat Head Screw N...Round Head Screw S...Set Screw
34
CARBURETOR PARTS LIST
No.
Code No.
1
1-1
2
3 3-1 3-2
4
5
6
7
8
9 9-1 9-2 9-3 9-4 9-5
10 11 12
27381400 22826131 23882200 23882600 27981850 23882630 45581820 23882100 22681953 27881330 27681340 23881900 22681980 24981837 26381501 27381940 26711305 23882210 29015019 23818190
Throttle Lever Assembly Throttle Lever Retaining Screw (2pcs.) Carburetor Rotor Mixture Control Valve Assembly "O" Ring Set (2pcs.) "O" Ring (S) (2pcs.) Rotor Guide Screw Carburetor Body Fuel Inlet (No.1) Mixture Control Screw Mixture Control Valve Stopper Needle Valve Assembly Needle Assembly "O" Ring (2pcs.) Set Screw Needle Valve Holder Assembly Ratchet Spring Carburetor Spacer Carburetor Rubber Gasket Carburetor Sealing Washer
The specifications are subject to alteration for improvement without notice.
Description
35
O.S. GENUINE PARTS & ACCESSORIES
GLOWPLUG
Hot
P6
(71641600)
Cold
P8
(71641600)
LOCK WASHER
(10set)
(55500002)
M3
SUPER JOINT TUBE 21
(72106300)
DUST CAP SET
3mm
(73300305)
16mm
(73301612)
18mm
(73301812)
(5pcs.)
(3pcs.)
(3pcs.)
CRANKSHAFT CLAMP
(71530200)
1521
CAP SCREW SET
M2.6x7
M2.6x18
36
SUPER FILTER
(L)
(72403050)
(10pcs.)
(79871020)
(79871055)
NON-BUBBLE WEIGHT
(71531000)
LONG SOCKET WRENCH WITH PLUG GRIP
(71521000)
O.S. GENUINE PARTS & ACCESSORIES
REMOTE NEEDLE
(23882900)
1-6
1-5
1-4
1-1
1-3
1
1-7
1-8
1-2
2
2-1 2-2
No.
Code No.
1
23882900
1-1
23882940
1-2
26711305
1-3
23818176
1-4
23882950
1-5
23882960
1-6
22881300
1-7
28282300
1-8
26381501
2
22681980
2-1
24981837
2-2
26381501
The specifications are subject to alteration for improvement without notice.
37
Description
Remote Needle Assembly Remote Needle Holder Assembly Ratchet Spring Universal Nipple No.9 Remote Needle Nut Remote Needle Plate Plug Screw Needle Control Lever Retaining Screw Needle "O" Ring Set Screw
JAPAN JAPAN
THREE VIEW DRAWING
Dimensions (mm)
SPECIFICATIONS
Displacement
■
Bore
■
Stroke
■
■
Practical R.P.M.
■
Power output
■
Weight
3.46 cc (0.211 cu.in.
16.6mm (0.654 in.
16.0mm (0.630 in. 3,000-40,000 r.p.m.
2.5 ps / 33,000 r.p.m. 340g (12oz.)
24
31
30.8 45
44.3
33.5
21
37
45
30.8
44
69.8
55
) ) )
1
UNF / -28
4
34.3
22 44
38.3
28.9
73.8
89.1
27.5 34
21
22 42.2
38
E
R
C
P
I
S
I
Y
O
T
I
L
A
U
Q
D
E
L
L
A
U
Q
E
N
U
E
S
T
A
B
L
I
S
H
I
N
G
T
H
E
C
Copyright 2005 by O.S.Engines Mfg. Co., Ltd. All rights reserved. Printed in Japan.
N
O
S
S
T
D
A
R
N
A
D
&
P
E
R
F
O
R
M
A
N
C
E
E
C
N
E
L
L
E
C
X
E
F
6-15 3-Chome Imagawa Higashisumiyoshi-ku Osaka 546-0003, Japan
TEL. (06) 6702-0225
FAX. (06) 6704-2722
URL : http://www.os-engines.co.jp
020500
Loading...
