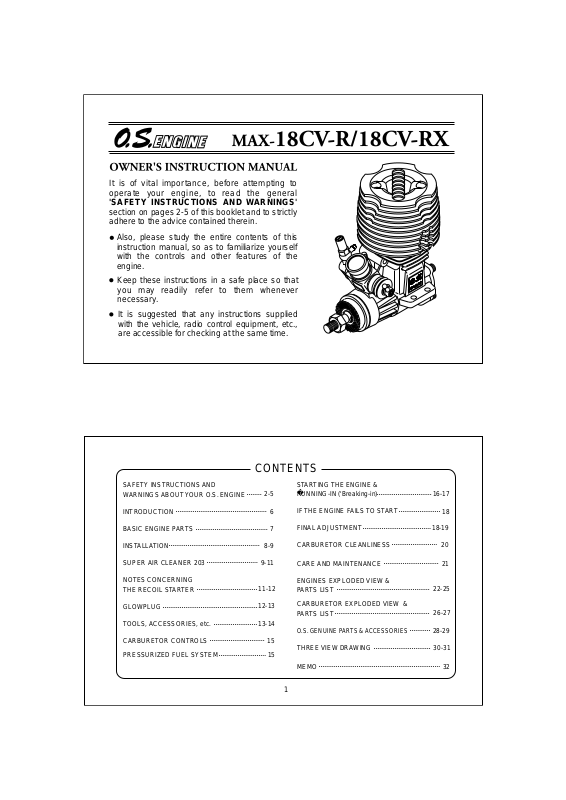

O.S. Engines 18CV-RX User Manual

It is of vital importance, before attempting to operate your engine, to read the general
'SAFETY INSTRUCTIONS AND WARNINGS'
section on pages 2-5 of this booklet and to strictly adhere to the advice contained therein.
Also, please study the entire contents of this instruction manual, so as to familiarize yourself with the controls and other features of the engine.
Keep these instructions in a safe place so that you may readily refer to them whenever necessary.
It is suggested that any instructions supplied with the vehicle, radio control equipment, etc., are accessible for checking at the same time.
SAFETY INSTRUCTIONS AND WARNINGS ABOUT YOUR O.S. ENGINE
INTRODUCTION
BASIC ENGINE PARTS
INSTALLATION
SUPER AIR CLEANER 203
NOTES CONCERNING THE RECOIL STARTER
GLOWPLUG
TOOLS, ACCESSORIES, etc.
CARBURETOR CONTROLS PRESSURIZED FUEL SYSTEM
CONTENTS
STARTING THE ENGINE &
2-5
8-9
9-11
11-12
12-13
13-14
15 15
RUNNING-IN ('Breaking-in)
IF THE ENGINE FAILS TO START
6
FINAL ADJUSTMENT
7
CARBURETOR CLEANLINESS
CARE AND MAINTENANCE

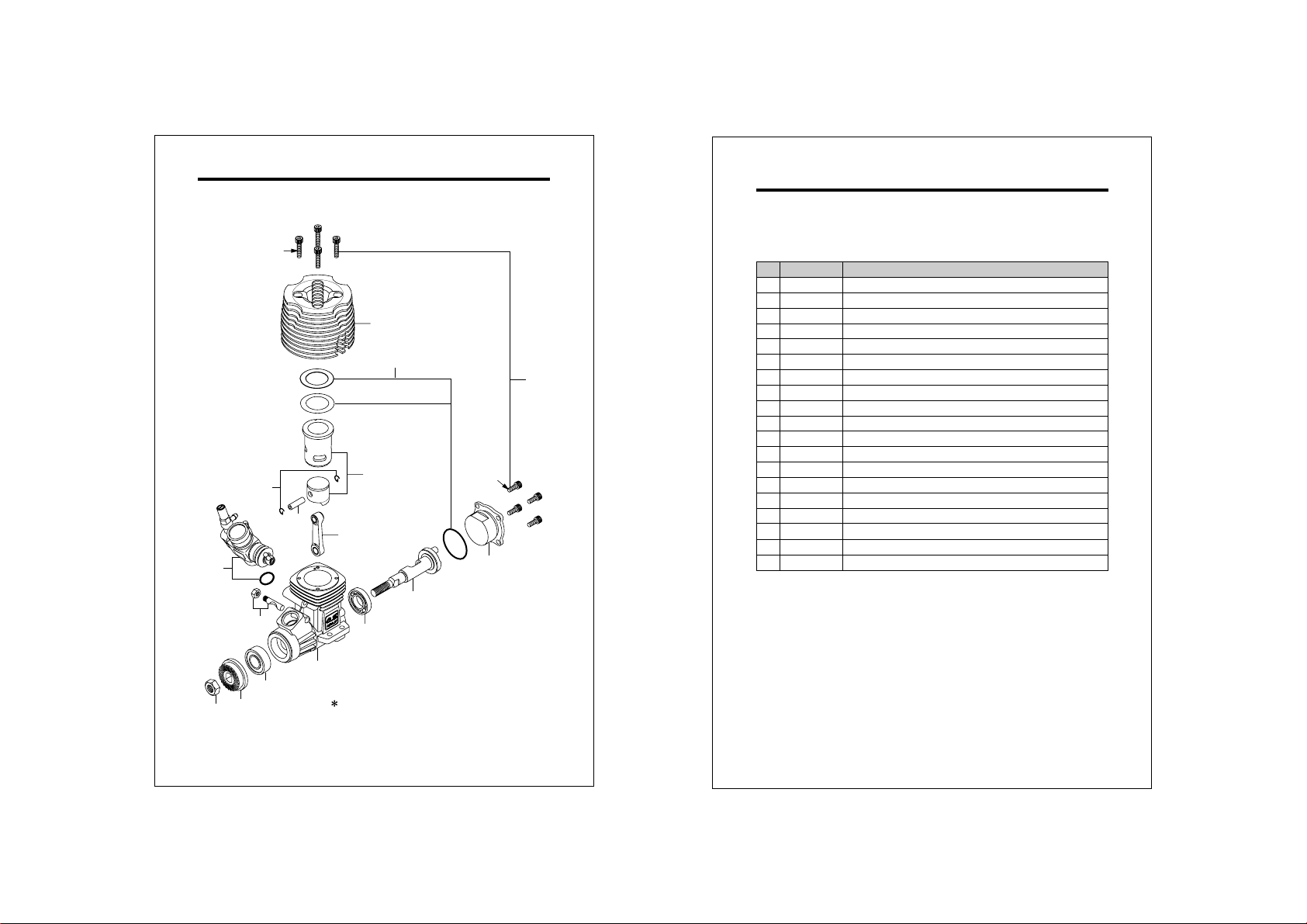

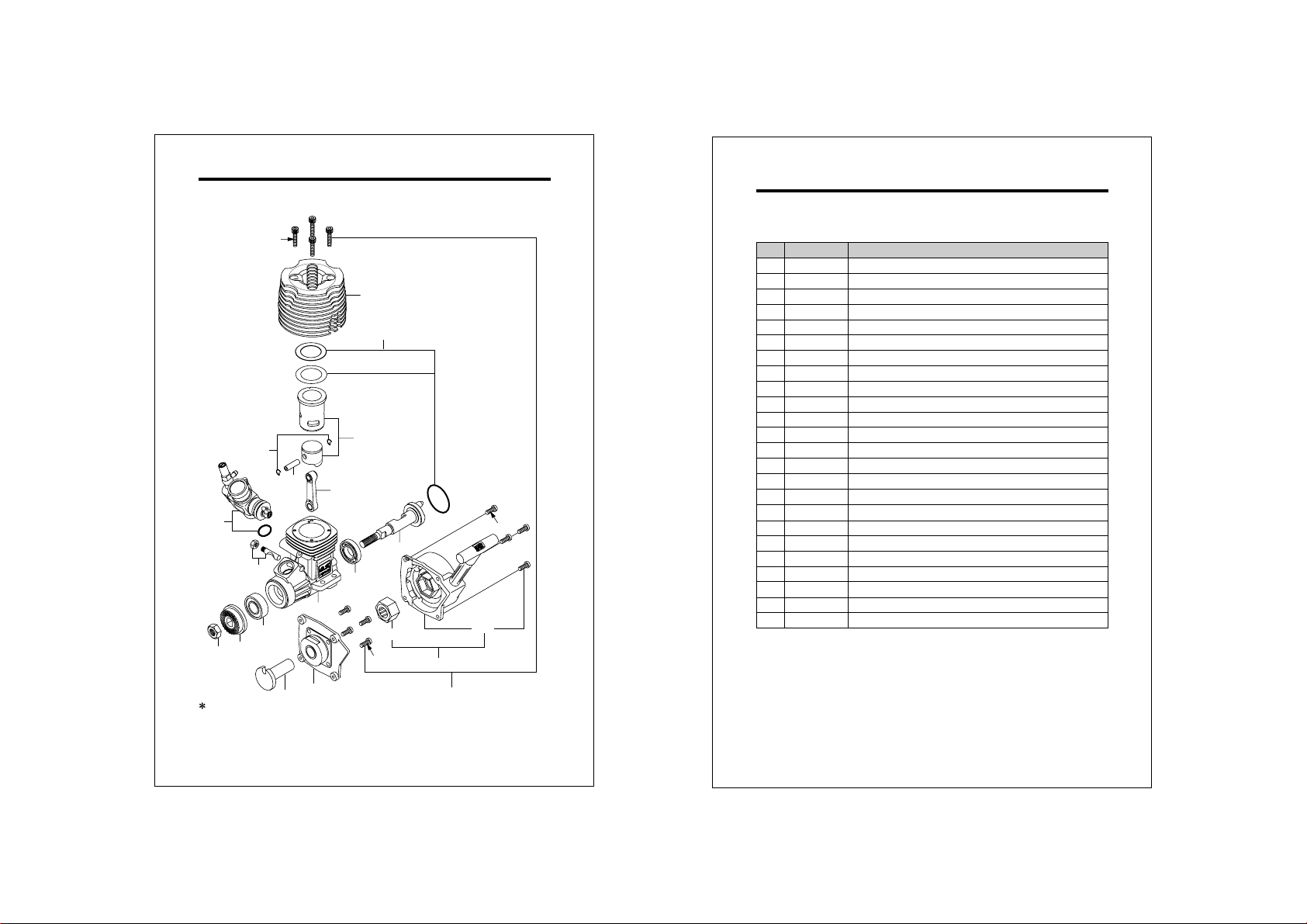

ENGINES EXPLODED VIEW & PARTS LIST

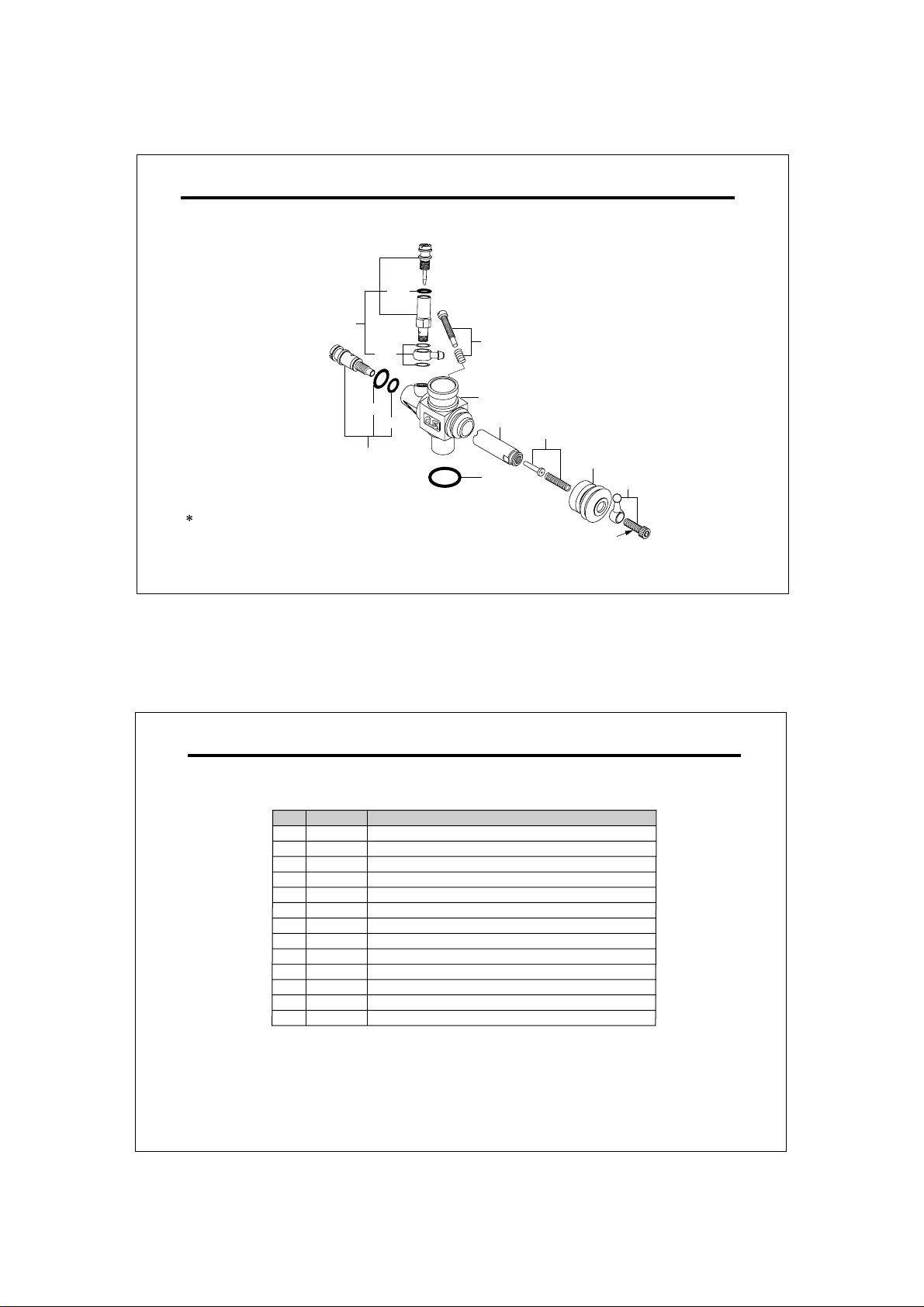

CARBURETOR EXPLODED VIEW & PARTS LIST

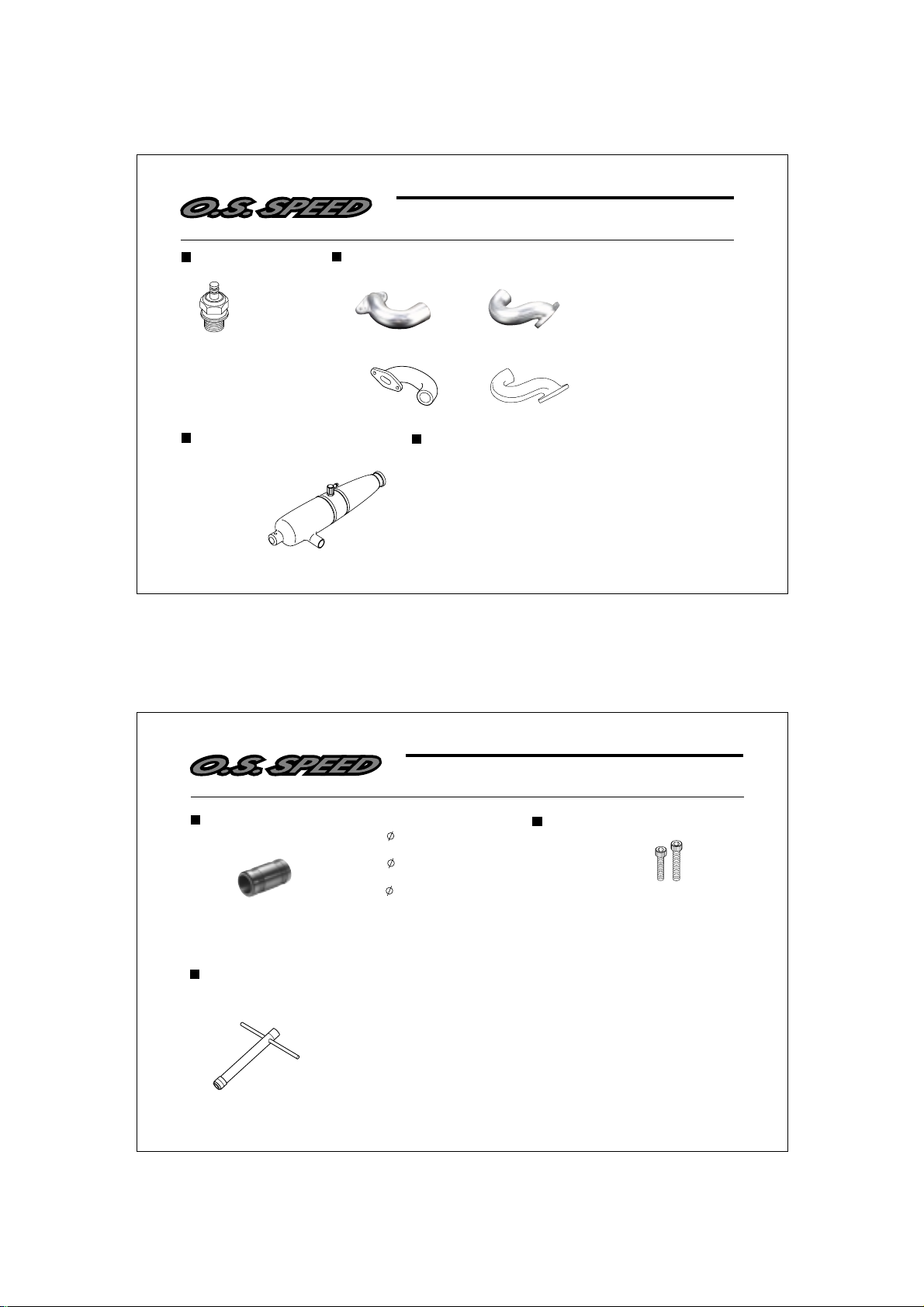

O.S. GENUINE PARTS & ACCESSORIES

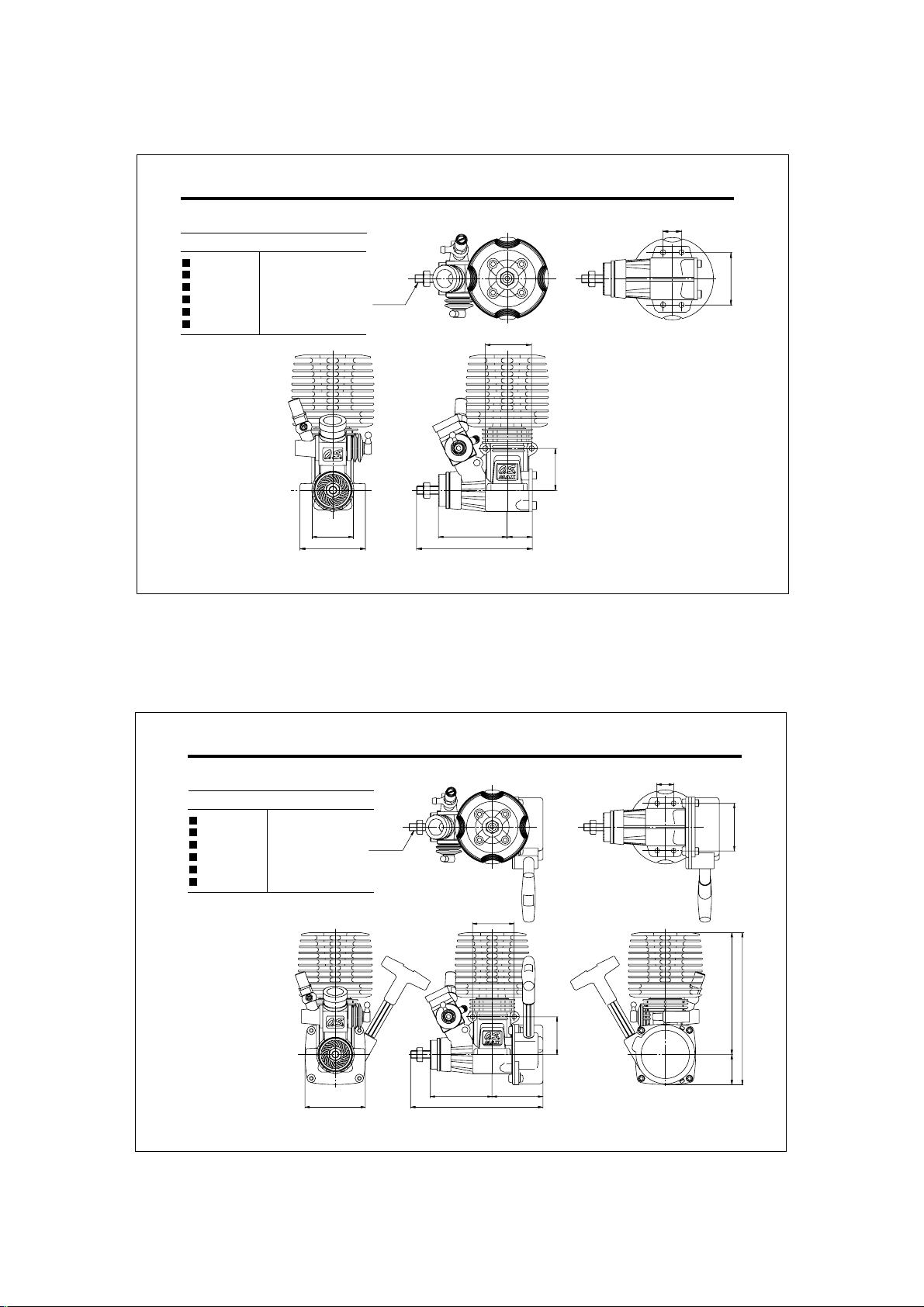

THREE VIEW DRAWING
MEMO
1
16-17
18
18-19
20
21
22-25
26-27
28-29
30-31
32
SAFETY INSTRUCTIONS AND WARNINGS ABOUT YOUR O.S. ENGINE
Remember that your engine is not a "toy", but a highly efficient internal­combustion machine whose power is capable of harming you, or others, if it is misused. As owner, you, alone, are responsible for the safe operation of your engine, so act with discretion and care at all times. If at some future date, your O.S. engine is acquired by another person, we would respectfully request that these instructions are also passed on to its new owner.
The advice which follows applies basically to ALL MODEL ENGINES and is grouped under two headings according to the degree of damage or danger which might arise through misuse or neglect.
WARNINGS
These cover events which might involve serious (in extreme circumstances, even fatal) injury.
WARNINGS
Model engine fuel is poi­sonous. Do not allow it to come into contact with the eyes or mouth. Always store it in a clearly marked con­tainer and out of the reach of children.
Model engine fuel is also highly flammable. Keep it away from open flame, excessive heat, sources of sparks, or anything else which might ignite it. Do not smoke or allow anyone else to smoke, near to it.
NOTES
These cover the many other possibilities, generally less obvious sources of danger, but which, under certain circumstances, may also cause damage or injury.
2
Never operate your engine in an en­closed space. Model engines, like automobile engines, exhaust deadly carbon-monoxide. Run your engine only in an open area.
Model engines generate considerable heat. Do not touch any part of your engine until it has cooled. Contact with the muffler (silencer), cylinder head or exhaust header pipe, in particular, may result in a serious burn.
3
NOTES
This engine is intended for model cars. Do not attempt to use it for any other purpose.
Mount the engine in your model securely, following the manufacturers' recommendations, using appropriate screws and locknuts.
Fit an effective silencer (muffler). Frequent close exposure to a noisy exhaust (especially in the case of the more powerful highspeed engines) may eventually impair your hearing and such noise is also likely to cause annoyance to others over a wide area.
The wearing of safety glasses is also strongly recommended.
Take care that the glowplug clip or battery leads do not come into contact with rotating parts. Also check that the linkage to the throttle arm is secure.
For their safety, keep all onlookers (especially small children) well back (at least 20 feet or 6 meters) when preparing your model for running.
4
NOTES
To stop the engine, fully retard the throttle stick and trim lever on the trans-mitter, or, in an emergency, cut off the fuel supply by pinching the fuel delivery line from the tank.
Do not attempt to disassemble the recoil starter of the 18CV-RX. If you do so, the very strong spring inside will be suddenly ejected. This can be very dangerous.
Do not extend the starter cord more than 45cm (18"). Do not abruptly release the operating handle. Allow the cord to rewind smoothly while still holding the handle.
Pull the operating handle straight out when starting the engine, so that the cord does not rub against the vehicle body or engine. This will help prevent the cord from being damaged by abrasion or engine heat.
Warning! Immediately after a glowplug­ignition engine has been run and is still warm, conditions sometimes exist whereby it is just possible for the engine to abruptly restart if it is rotated over compression WITHOUT the glowplug battery being reconnected.
5
INTRODUCTION
The MAX-18CV -R and MAX-18CV-RX are high-perfomance engines for 1/10 class R/C cars. The 18CV -RX is a recoil starter version. Newly developed 11G slide valve carburetor is equipped.
Standard accessories
Glow Plug No.8 Super Air Cleaner 203 Assembly
Engine Mount Spacer (for 18CV-RX)
Instruction manual
NOTE:
As delivered, the engine has its carburetor lightly fit into its intake. Secure it changing its angle according to the car chassis.
NOTE: With this engine, the piston will feel tight at the top of its stroke when the engine is cold. This is normal. The piston and cylinder are designed to achieve a perfect running clearance when they reach their normal running temperatures.
About Head Gasket
These engines are fitted with two head gaskets of 0.1mm thick and 0.2mm thick. It is suggested to adjust the total thickness according to atmospheric temperature, humidity and glowplug used.
At early stage of running-in, when a glowplug tends to burn out early or when high nitromethane content fuel is used, try to run the engine as it is.
When low nitromethane content fuel is used, try to run the engine removing a 0.1mm gasket.
6
BASIC ENGINE PARTS
Carburetor
Beam Mount
Crankshaft
Drive Hub
Crankcase
Heatsink Heat
Starter Handle
Recoil Starter Assembly No.5
MAX-18CV-RX
INSTALLING THE GLOWPLUG
Install washer on glowplug and insert carefully into cylinder-head, making sure that it is not cross­threaded before tightening firmly.
Glow plug
Washer
7
INSTALLATION OF THE CARBURETOR
As delivered, the engine has its carburetor lightly fit into the intake boss. Secure it as follows.
Loosen the retainer screw, rotate the
1. carburetor to its correct position and make sure that it is pressed well down into the intake boss, compressing the rubber gasket, before retightening screw.
Rotate the retainer screw gently until it
2. stops, then tighten a further 60-90˚. Do not overtighten the screw as this will damage the carburetor body.
Rotate the retainer nut gently until it stops.
Tighten a further 60-90˚
8
ENGINE INSTALLATION
Make sure that the vehicle's engine mounting surfaces are level and in the same plane. Poor installation may cause distortion of the crankcase, bearings, etc., resulting in erratic running and loss of performance. The recommended screws for securing the engine are 3mm or 4-40 steel Allen hexagon socket type. If existing holes in the engine mount do not align perfectly with engine mounting lugs, enlarge them slightly with a needle-file so that screws enter vertically.
Chassis
Chamfer inside edges of bearers.
Avoid forcing the screws. Secure with locknuts. If the bottom of the recoil starter housing would otherwise touch the car chassis, fit the engine mount spacers (supplied) between the engine's mounting lugs and the engine mount. Use the M3x15 screws provided. With some vehicles, it may be necessary to make minor trimming modifications to chassis or body when fitting the engine.
NOTE: Where spacers are supplied joined in pairs (see sketch) separate them as shown. Either face may be placed downwards.
Mount Spacer
Separate
Engine Mount
Engine Mount Spacer
AIR CLEANER TYPE 203
This is a heavy-duty wet type air cleaner that has been developed specifically for 3.5cc 'off-road' model car engines. It is more compact than the former O.S. SUPER AIR CLEANER 202 and this makes it easier to install within a car body.
203 Intake Elbow
Element Base
Filter Element
End Plate
Retaining Screw
NOTE: The element is already impregnated with a special filter oil. As this oil is very sticky, take care, when handling it, to prevent dust or dirt from adhering to the element. If your fingers become contaminated, wash them with soap and water.
9
"O" Ring
ASSEMBLY
Insert the filter element on the element base.
Fit the end plate with retaining screw, making sure that the element fits correctly between the end plate and base.
Insert the joint pipe on the element base and secure it with "O" ring.
Fit the end plate, retaining screw, making sure that the element fits correctly between the end plate and base.
Element misaligned
REPLACMENT OF ELEMENT
NOTE: During storage, the oil may have become unevenl y dispersed through the element. This will be indicated if the blue colour of the element material appears patchy. In this case, place the element in a small plastic bag and gently rub the element between finger and thumb to redistribute oil.
It is advisable to replace the filter element after each hour of running time. Be careful not to enter the dirt and dust into the carburetor.
INSTALLATION
Carefully clean the carburettor, removing any old adhesive or sealant that may have been previously used on the outside of the air intake.
"O" Ring
10
FURTHER PRECAUTIONS
When removing the air cleaner, check the inside of the element base and carburetor venturi. If any dirt is detected, this indicates that the filter element was incorrectly fitted or should have been replaced earlier. In this event, it is vitally important to wash out the inside of the engine thoroughly, with alcohol or fuel, before it is used again, otherwise rapid wear of the piston/cylinder assenbly, bearings, connecting-rod, etc., will occur. Obviously, it will be necessary to carry out the same procedure with the air cleaner and to replace the filter element.
NOTE: Be careful not to splash alcohol or fuel over the
filter element, or the filter oil will be washed away, and the filter capacity will be lowered.
NOTES CONCERNING THE RECOIL STARTER
REMINDER!
Do not attempt to disassemble the recoil starter.
◆
If you do so, the very strong spring inside will be suddenly ejected. This can be very dangerous.
◆
Do not extend the starter cord more than 45cm(18"). Do not abruptly release the operating handle. Allow the cord to rewind smoothly while still holding the handle.
◆
Pull the operating handle straight out when starting the engine, so that the cord does not rub against the vehicle body or engine.
This will help prevent the cord from being
◆
damaged by abrasion or engine heat. Try to avoid spilling fuel over the starter unit and
◆
its cord. Some fuels have a detrimental effect on these parts.
The starter prevents the engine from being ro­tated in the wrong direction.The unit will be damaged if you attempt to force the flywheel in the opposite direction (i.e. clockwise when viewed from the crankshaft end).
11
( 18CV-RX ONLY)
NOTE: Because, in the interests of personal safety, dismantling of the starter mechanism is strongly discouraged, the Recoil Starter is available for replacement only as a pre­assembled unit. However, some related parts, such as Starting Shaft and Rear Adaptor, are obtainable separately. (See Parts List.)
GLOWPLUG
Since the glowplug and fuel combination used may have a marked effect on performance and reliability, it would be worthwhile to experiment with different plug types. An O .S. N o.8 gl owplug is supplied with the engine. Other Recommended O.S. plugs are A5 and R5. Carefully install plug finger-tight, before final tight­ening with the correct size plug wrench.
The role of the glowplug
With a glowplug engine, ignition is initiated by the application of a 1.5-volt power source. When the battery is disconnected, the heat retained within the combustion chamber remains sufficient to keep the plug filament glowing, thereby continuing to keep the engine running. Ignition timing is 'automatic' : under reduced load, allowing higher rpm, the plug becomes hotter and, appropriately, fires the fuel/air charge earlier; conversely, at reduced rpm, the plug become cooler and ignition is retarded.
Glowplug life
Particularly in the case of very high performance engines,
glowplugs must be regarded as expendable items. However, plug life can be extended and engine performance maintained by careful use, i.e.:
Install a plug suitable for the engine. Use fuel containing a moderate percentage of
nitromethane unless more is essential for racing events.
Do not run the engine too lean and do not leave the battery connected while adjusting the needle.
12
When to replace the glowplug
Apart from when actually burned out, a plug may need to be replaced because it no longer delivers its best performance, such as when:
Filament surface has roughened and turned white. Filament coil has become distorted. Foreign matter has adhered to filament or plug body has corroded. Engine tends to cut out when idling. Starting qualities deteriorate.

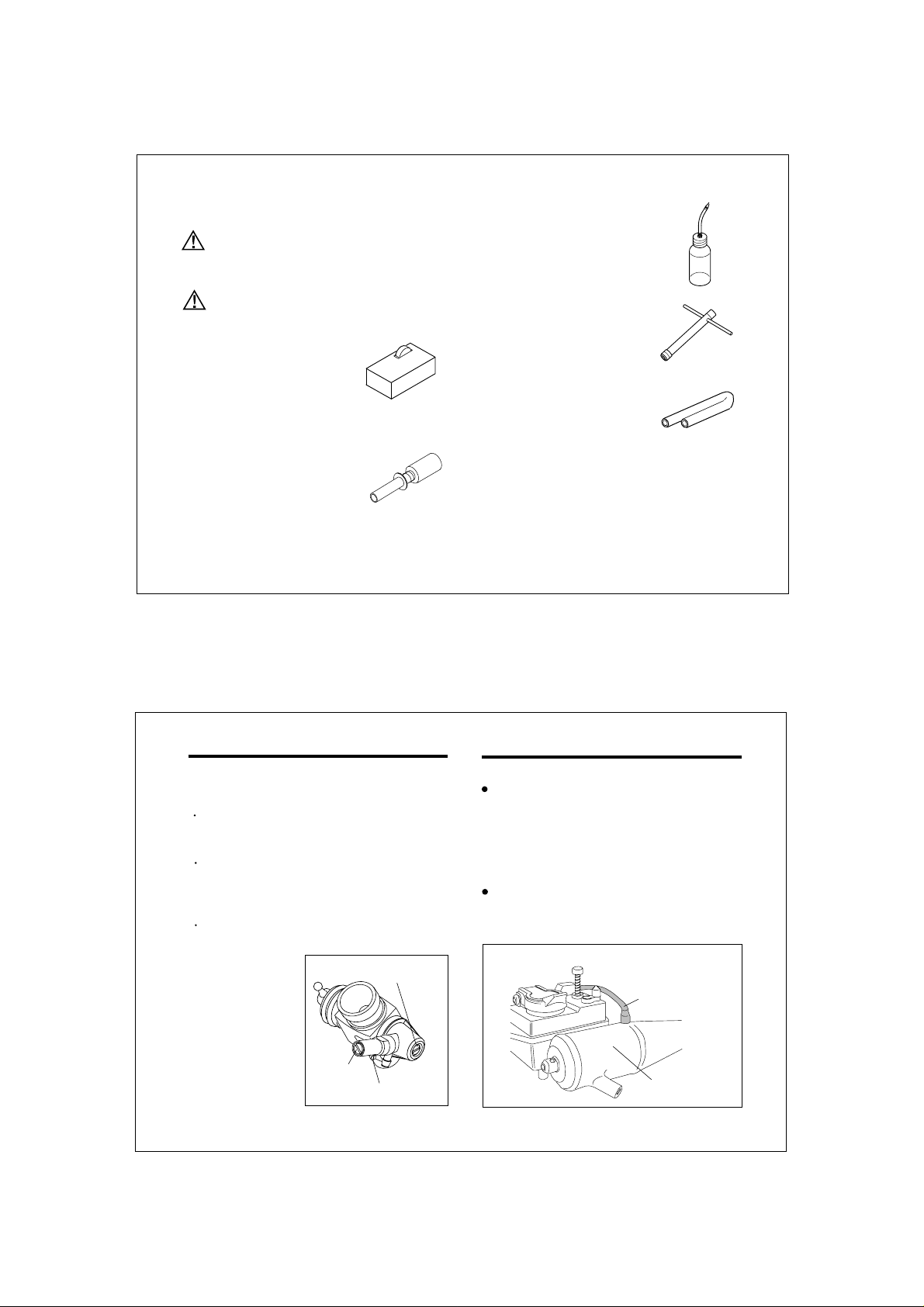

TOOLS, ACCESSORIES, etc.
The following items are necessary for operating the engine.
FUEL
Use only top quality methanol-based model engine fuel.For consistent performance and long engine life, it is advisable to use fuel containing AT LEAST 18% lubricant. This engine is designed to run on both lo w and high nitromethane content fuels,i.e. from mild mixtures containing a few percent of nitromethane, up to high­speed racing fuels containing 40%,nitromethane. Generally, power output is increased up to a certain point as the nitromethane content of the fuel is increased.
As a starting point, we recommend a fuel containing 10-20% nitromethane, changing to a fuel containing more nitro only if necessary. When the nitro content of the fuel is increased or the brand of fuel is changed, it is advisable to initially run the engine with a richer needle-valve setting, so that the optimum setting for the new fuel may be rechecked as described in the RUNNING-IN paragraphs. When engines are run at very high speeds and on high-nitro fuels, glowplug elements do not last so long.
13
Reminder!
Model engine fuel is poisonous. Do not allow it to come into contact with the eyes or mouth. Always store it in a clearly marked container and out of the reach of children.
Model engine fuel is also highly flammable. Keep it away from open flame, excessive heat, sources of sparks, or anything else which might ignite it.
ELECTRIC STARTER BOX
For starting the engine. It is not necessary for a recoil starter version-i.e. 18CV-RX.
BATTERY INTEGRATED GLOWPLUG HEATER
Commercialy available handy glowplug heater in which the glowplug battery and battery leads are integrated.
FUEL PUMP
For filling the fuel tank, a simple, polyethylene "squeeze" bottle, with a suitable spout, is required.
LONG SOCKET WRENCH
Recommended for easy removal and replacement of the angled and recessed glowplug, the O.S.Long Socket Wrench incorporates a special grip.
SILICONE FUEL LINE
Heatproof silicone tubing of approx. 5mm o.d. and 2mm i.d. is required for the connection between the fuel tank and engine.
14
CARBURETOR CONTROLS (11G
Three adjustable controls are provided on this carburetor.
)
The Needle-Valve:
For adjusting the mixture strength when the throttle is fully open.
The Mixture Control Screw:
For adjusting the mixture strength at part­throttle and idling speeds, to obtain steady idling and smooth acceleration to mid speeds.
The Throttle Stop Screw:
For setting the minimum idling speed.
Needle Valve
Mixture Control Valve Assembly Screw
Throttle Stop Screw
NOTE: Readjustment may be necessary, occa­sionally to allow for changes in fuel for­mula, gear ratio or clutch engagement point.
PRESSURIZED FUEL SYSTEM
The somewhat violent changes of vehicle attitude that occur in off-road running, combined with the fact that, in buggy type cars, the fuel tank is often located some distance from the carburettor, means that fuel 'head' at the carburettor can vary and upset running.Therefore,it is recommended that a muffler pressurized fuel feed system be used.
Never run your vehicle without installing the air cleaner. Dust and dirt that may otherwise be drawn into the engine will rapidly shorten its life.
Fuel Tank
15
Connect suitable length of Silicone tubing between fuel tank and silencer.
Silicone tubing
Silencer

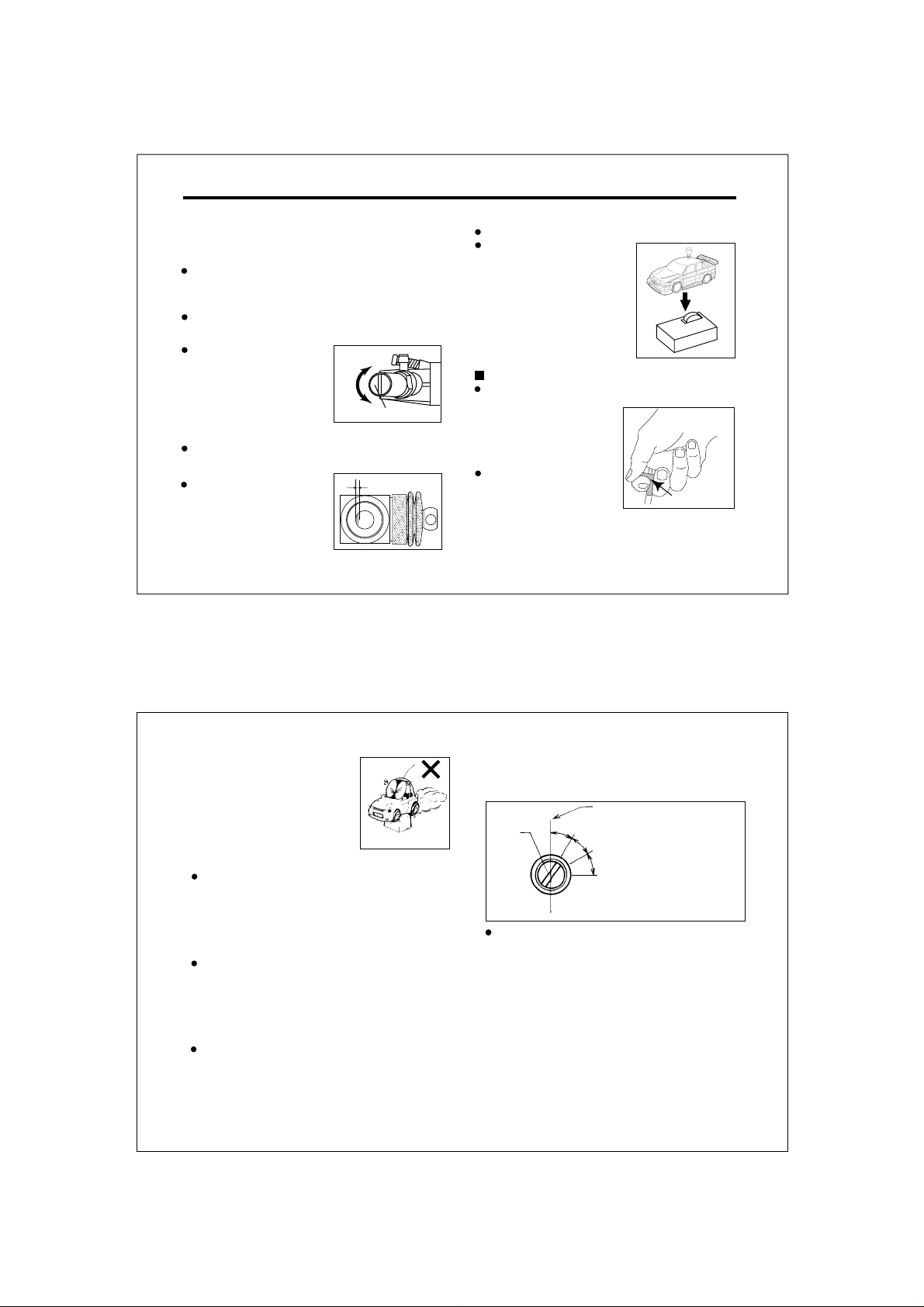

STARTING THE ENGINE & RUNNING-IN ('Breaking-in')
The following procedure is suitable for these engines when the O.S. T-1030 tuned silencer and a fuel containing up to 30% nitromethane are used.
Use the same fuel as is to be employed for all initial running and containing NOT LESS THAN 18% lubricant.
Temporarily remove the glowplug to check that it glows bright red when energized.
Re-check the needle-valve and throttle settings. Turn
Close
the needle-valve clockwise slowly and gently until it stops. This is the fully closed position.Do not use
Open
Needle Valve
force to turn the needle-valve beyond this point. Open the Needle-Valve 2 turns from the fully closed position.
Set the throttle-stop screw
approx 0.3-0.5mm
so that the minimum throttle opening (idle setting) is approximately
0.3-0.5mm.
energize glowplug. Start the engine using a starter box, making sure the engine rotation direction is correct (counter-clockwise seen from the crankshaft end). Be sure to fit an air cleaner when starting.
In case of the 18CV-RX
Push the choke button on the fuel tank several times to deliver the fuel to the carburetor. (Do not over­prime or the recoil starter cannot be pulled.)
Pull the starter handle briskly straight out several times to start the engine.
16
Starter Handle
Remember! It is vitally important to set the throttle at the correct position before attempting to start the engine. If the engine is allowed to run with the throttle too far open under "no load" conditions, it will rapidly overheat and may be seriously damaged.
When the engine starts, first allow it to operate in short runs on its very rich starting settings, with the glowplug battery still connected and with its driving wheels clear of the ground. The rich mixture will, under these conditions, provide adequate lubrication and cooling, indicated by profuse smoke from the exhaust.
Next, disconnect the glowplug battery and try running the car on the track. If the engine stalls, open the throttle fractionally, but try to keep the engine running as rich as possible: if it stops because of being excessively over-rich, close the Needle-Valve 30˚ and try again.
Run the car on the track until one tank of fuel has been consumed, then close the Needle-Valve 30˚ and run the car for another full tank of fuel. Repeat this procedure until 5 more tanks of fuel have been consumed, during which time the throttle may
be opened for brief bursts of increased power. If the engine stops at medium speeds, close the Mixture Screw 45-90˚.
The position of the needle-valve when starting the engine.
Needle
30˚
30˚
30
Close the needle-valve approx.
˚
30˚ after running the vehicle for one full tank of fuel. Repeat this procedure several times.
To stop the engine, close the throttle to idling speed, then shut it off completely with the trim lever on the transmitter. To cut off the fuel supply, pinch the fuel delivery tube to the carburetor.
Remember!

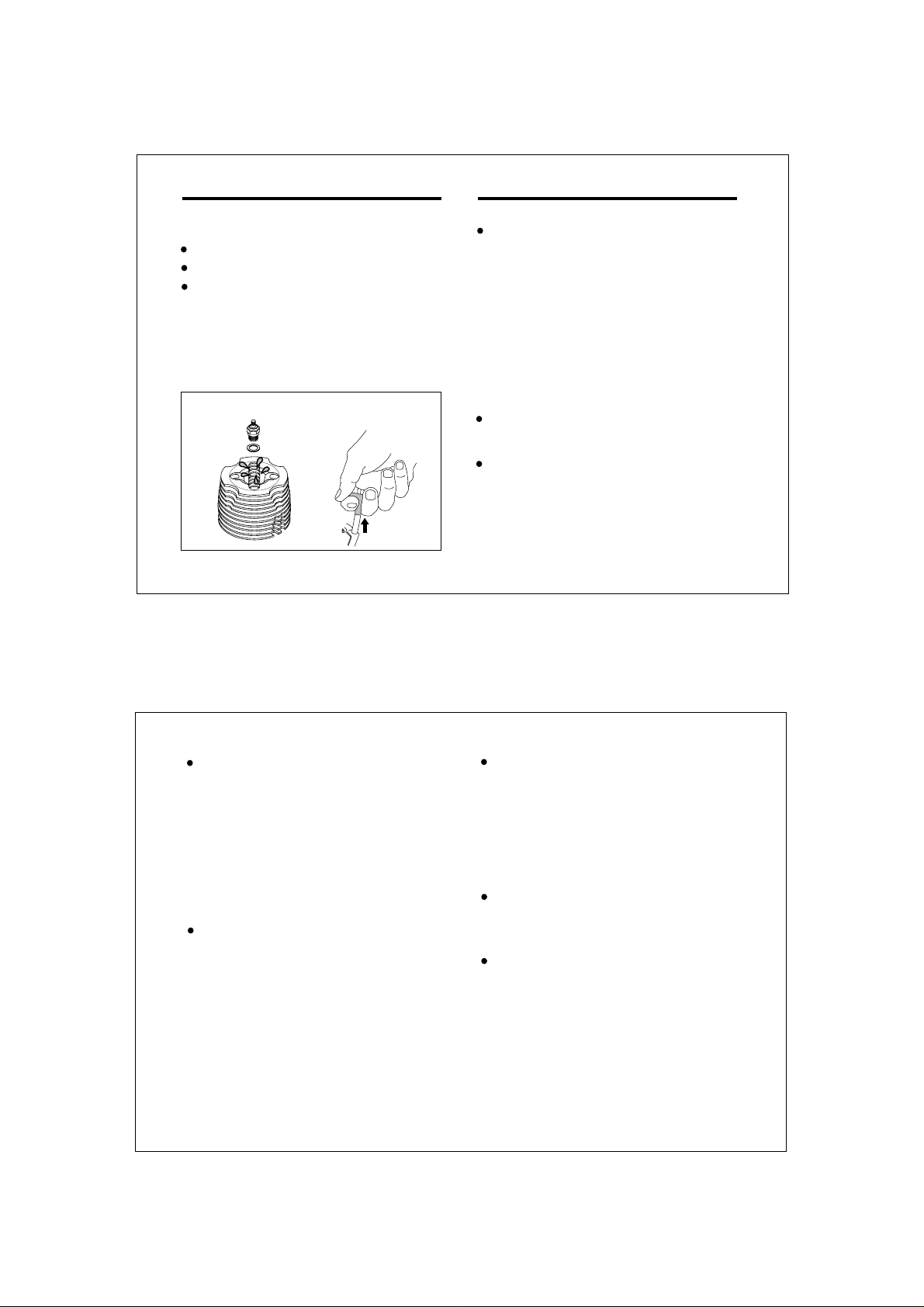

If the engine should need to be disassembled (e.g. for cleaning or minor parts replacement) it is advisable to return the Needle-Valve to the original rich, starting setting and check whether further running-in time is required before the car is raced again. In the event of any major working parts(e,g, piston/cylinder liner assembly) being replaced, the complete running-in should be repeated.
17
IF THE ENGINE FAILS TO START
Check the following:
Glowplug battery discharged or glowplug defunct. Fuel not reaching carburetor. Engine flooded. Do not over-prime. (This could also
cause hydraulic lock and damage the engine on application of the electric starter.) Remove glowplug, close needle-valve and apply starter to pump out surplus fuel. At this time cover the plug hole with waste so that splashing fuel will not get into your eyes or mouth.
Remove glowplug
In case of 18CV-RX
Pull the starter knob to pump out surplus oil.
FINAL ADJUSTMENT
Run the vehicle (with throttle fully open) over the longest available straight course, in order to observe the model's speed. Next return the car to the starting point, close the Needle-Valve 30˚ and repeat the run, taking note of the improvement in performance. Continue with further runs, gradually reducing the Needle-Valve setting and aiming to achieve the highest straight-line speed. Remember, however, that, if the Needle-Valve is shut down too far, the engine will overheat and, accompanied by visibly diminished exhaust smoke, the model will lose speed. At this point, throttle down immediately, stop the vehicle and reopen the Needle-Valve 30˚.
Having established the optimum Needle-Valve
setting, check the Mixture Control Valve setting as
follows. With the engine running, close the throttle and allow
it to idle for about five seconds, then reopen the throttle fully. If, at this point, the engine puffs out an excessive amount of smoke and the vehicle does not accelerate smoothly and rapidly, it is probable that the idling mixture is too rich.
18
In this case, turn the Mixture Control Valve clockwise 45~90˚. If, on the other hand, the engine tends to speed up momentarily and then cut out abruptly when the throttle is opened,the idling mixture is too lean. Correct this by turning the Mixture Control Valve counter-clockwise 45~90˚.
NOTE:
Mixture Control Valve adjustment should be made in steps of not more than 45~90˚, carefully checking the effect,on throttle response, of each small adjustment.
Carry out adjustments patiently, under actual running conditions, until the engine responds quickly and positively to the throttle control.
Warning! Mixture adjustments (whether via the Mixture
Control Valve, or the Needle-Valve) cannot be made accurately under 'no-load' conditions, which, in any case, are not advised, since such operation carries the risk of seriously damaging the engine through over-revving and overheating.
With the optimum mixture control position, light smoke is visible during high speed running,and the engine revolutions increase smoothly during acceleration. Remember that, if the engine is operated with the fuel/air mixture slightly too lean, it will overheat and run unevenly. As with all engines, it is advisable to set both needle-valve and mixture control screw very slightly on the rich side of the best rpm setting, as a safety measure.
If the engine runs too fast with the throttle closed, the throttle stop screw should be turned counter­clockwise to allow the throttle opening to be reduced.
Finally, beyond the nominal break-in period, a slight readjustment toward a leaner needle setting may be required to maintain performance.
19
CARBURETTOR CLEANLINESS
The correct functioning of the carburetor depends on its small fuel orifices remaining clear.
BALL LINK AND SLIDE VALVE EXTENSION
It is seldom necessary to separate the slide-valve extension from the slide-valve itself. For cleaning, withdraw this complete sub-assembly from the carburetor body after removing the slide-valve guide screw. Then wash with methanol or glow-fuel. (Note: take care not to lose the guide screw;it is a special one.) When it is necessary to adjust the ball­link position, loosen the ball-link retaining screw with a 3mm hexagon key, re-align the ball-link and re­tughten the screw firmly.
REALIGNMENT OF MIXTURE CONTROL VALVE
In the course of making carburetor adjustments, it is just possible that the Mixture Control Valve may be inadvertently screwed in or out too far and thereby moved beyond its effective adjustment range. Its basic position can be found by first rotating the Mixture Control Valve until its slotted head is flush with the carburetor body. The valve is then screwed in exactly 1.5 turns to re-establish its neutral position.
First rotate the Mixture Control Valve until its slotted head is flush with the carburetor body. Then screw the valve in exactly
1.5 turns (0.8mm). This is the standard position.
Mixture Control Valve
Carburetor Body
20
CARE AND MAINTENANCE
1.
The minute particles of foreign matter, that are present in any fuel may, by accumulating and partially obstructing fuel flow, cause engine performance to become erratic and unreliable. O.S. 'Super-Filters' (large and small) are available, as optional extras, to deal with this problem. One of these filters, fitted to the outlet tube inside your refueling container, will prevent the entry of foreign material into the fuel tank. It is also recommended that a good in-line filter be installed between the tank and carburetor.
Do not forget to clean the filters regularly to remove
2. dirt and lint that accumulate on the filter screens. Also, clean the carburetor itself occasionally.
At the end of each operating session, drain out any
3.
fuel that may remain in the fuel tank. Afterwards,energize the glow-plug and try to restart the engine, to burn off any fuel that may remain inside the engine. Repeat this procedure until the engine fails to fire. Do this while the engine is still warm.
Then, inject some after-run oil into the engine, and
4. rotate the engine with an electric starter for 4 to 5 seconds to distribute the oil to all the working parts.
Note:
Do not inject after-run oil into the carburetor as this may cause the O-rings inside the carburetor to deteriorate. These procedures will reduce the risks of starting difficulties or corrosion after a period of storage.
Finally, when cleaning the exterior of the engine,
5. use methanol or kerosene. Do not use gasoline or any solvent that might damage the silicone fuel tubing.
Caution: The rear crankshaft bearing of this engine uses a special plastic retainer. If the front housing needs to be heated to remove or replace the bearing, do not allow the bearing to exceed 120˚C (248˚F), otherwise it may be damaged and rendered unserviceable.
21
18CV-R EXPLODED VIEW
C.M2.6x12
22
5
4
7
8
18CV-R ENGINE PARTS LIST
No.
Code No.
1
21804000
2
21824000
3
1
2
16
23
3
C.M2.6x7
6
4 5 6 7 8
9 10 11 12 13 14 15 16
21823000 21816000 21817000 21815000 21883000 21818000 20810007 21408000 21833000 21811000 21832000 21812000 21807100 21213000 71608001 72413000
15
14
72413200
The specifications are subject to alteration for improvement without notice.
Heatsink Head Gasket Set Cylinder & Piston Assembly Piston Pin Piston Pin Retainer (2pcs.) Connecting Rod Carburetor Complete (Type 11G) Carburetor Retainer Assembly Propeller Nut Drive Hub Crankshaft Ball Bearing (Front) Crankcase Crankshaft Ball Bearing (Rear) Crankshaft Cover Plate Screw Set Glow Plug No.8 Super Air Cleaner 203 Assembly 203 Filter Elements (4pcs.)
13
Description
12
11
10
9
Type of screw C...Cap Screw M...Oval Fillister-Head Screw
F...Flat Head Screw N...Round Head Screw S...Set Screw
18CV-RX EXPLODED VIEW
18CV-RX ENGINE PARTS LIST
24
7
9
C.M2.6x12
5
8
11
10
No.
Code No.
21804000
1
21824000
1
2
3
4
6
M.+M2.6x7
14
13
12
18-2
M.+M2.6x7
18-1
18
2
21823000
3
21816000
4
21817000
5
21815000
6
21883000
7
21818000
8
20810007
9
21408000
10
21833000
11
21811000
12
21832000
13
25
14
15
16
17
18
18-1 18-2
21812100 21812200 21801800 21313030 73003000 73003100 73003200 71608001 72413000 72413200 72404000
The specifications are subject to alteration for improvement without notice.
Heatsink Head Gasket Set Cylinder & Piston Assembly Piston Pin Piston Pin Retainer (2pcs.) Connecting Rod Carburetor Complete (Type 11G) Carburetor Retainer Assembly Propeller Nut Drive Hub Crankshaft Ball Bearing (Front) Crankcase Crankshaft Ball Bearing (Rear) Crankshaft Starting Shaft Rear Adaptor Screw Set No.5 Recoil Starter Assembly No.5 Recoil Starter Body No.5 One-way Clutch Glow Plug No.8 Super Air Cleaner 203 Assembly (W/2 filter elements) 203 Filter Elements (4pcs.) Engine Mount Spacer
Description
16
Type of screw C...Cap Screw M...Oval Fillister-Head Screw
F...Flat Head Screw N...Round Head Screw S...Set Screw
15
17
11G CARBURETOR EXPLODED VIEW
2-1
2
2-2
3
1-1
1-2
1
Type of screw C...Cap Screw M...Oval Fillister-Head Screw
F...Flat Head Screw N...Round Head Screw S...Set Screw
11G CARBURETOR PARTS LIST
No.
Code No.
21285600
1
46066319
1-1
22781800
1-2
21285901
2
27881820
2-1
21881950
2-2
23818500
3
21883100
4
21483200
5
21483600
6
21881320
7
23818420
8
22615000
9
The specifications are subject to alteration for improvement without notice.
Mixture Control Valve Assembly "O" Ring(L) (2pcs.) "O" Ring(S) (2pcs.) Needle Valve Assembly "O" Ring (2pcs.) No.14 Universal Nipple Assembly Throttle Stop Screw Carburetor Body Slide Valve Metering Needle Assembly Dust Cover Ball Link No.4 Carburetor Rubber Gasket
26
4
5
9
Description
6
7
8
C.M3.5x8
27
RACING ENGINE PARTS
O.S. GENUINE PARTS & ACCESSORIES
O.S. Glow Plug
A3
(71605300)
A5
(71605100)
Tuned Silencer
(72103030)
T-1030
(72103031)
T-1031
(72103032)
T-1032
Exhaust Header Pipes
For Kyosho Super10
(72103110)
For Kyosho Spider & HPI Nitro For Tamiya TG10
(72103140)
For Tamiya TGX
(72103120)
(72103130)
SUPER AIR CLEANER 202
(For ON-ROAD CAR)
・
202 Cleaner Body
202 Filter Elements
・
(72412000)
(72412100)
(72412200)
28
For MUGEN MTX
(72103150)
For Kyosho V-ONE R,S
(72103160)
RACING ENGINE PARTS
Super Joint Tube 15
(72103310)
Long Socket Wrench With Plug Grip
(71521000)
O.S. GENUINE PARTS & ACCESSORIES
■
Dust Cap Set
(5 pcs. set)
3 For Carburetor Nipple
(3 pcs. set)
7 For Tuned Silencer
16
For Carburetor
(3 pcs. set)
(73300305)
(73300712)
(73301612)
29
Cap Screw Set
(10pcs. set)
(79871020)
M2.6x7
(79871040)
M2.6x12
(79871060)
M3.5x8
18CV-R THREE VIEW DRAWING
SPECIFICATIONS
Displacement Bore Stroke Practical R.P.M. Power output Weight
3.0 cc (0.183 cu.in.
16.0mm (0.629 in.
15.0mm (0.590 in. 3,000-32,000 r.p.m.
1.35 ps / 28,000 r.p.m.
237.5g (8.38oz.)
) ) )
M5x0.8
27.5
25
11
31.4
Dimensions(mm)
25 39
18CV-RX THREE VIEW DRAWING
SPECIFICATIONS
Displacement Bore Stroke Practical R.P.M. Power output Weight
3.0 cc (0.183 cu.in.
16.0mm (0.629 in.
15.0mm (0.590 in. 3,000-32,000 r.p.m.
1.35 ps / 28,000 r.p.m.
295.5g (10.43oz.)
) )
)
M5x0.8
15
41 69
30
27.5
11
31.4
Dimensions(mm)
80.9
100.9
25
20
87.8
33.8
40
41
31
MEMO
32
E
R
C
P
I
S
I
Y
O
T
I
L
A
U
Q
D
E
L
L
A
U
Q
E
N
U
E
S
T
A
B
L
I
S
H
I
N
G
T
H
E
C
Copyright 2003 by O.S.Engines Mfg. Co., Ltd. All rights reserved. Printed in Japan.
N
&
F
O
S
S
T
D
A
R
N
A
D
P
E
R
F
O
R
M
A
N
C
E
E
C
N
E
L
L
E
C
X
E
6-15 3-Chome Imagawa Higashisumiyoshi-ku Osaka 546-0003, Japan
TEL.(06) 6702-0225
FAX. (06) 6704-2722
URL : http://www.os-engines.co.jp
110300
Loading...
