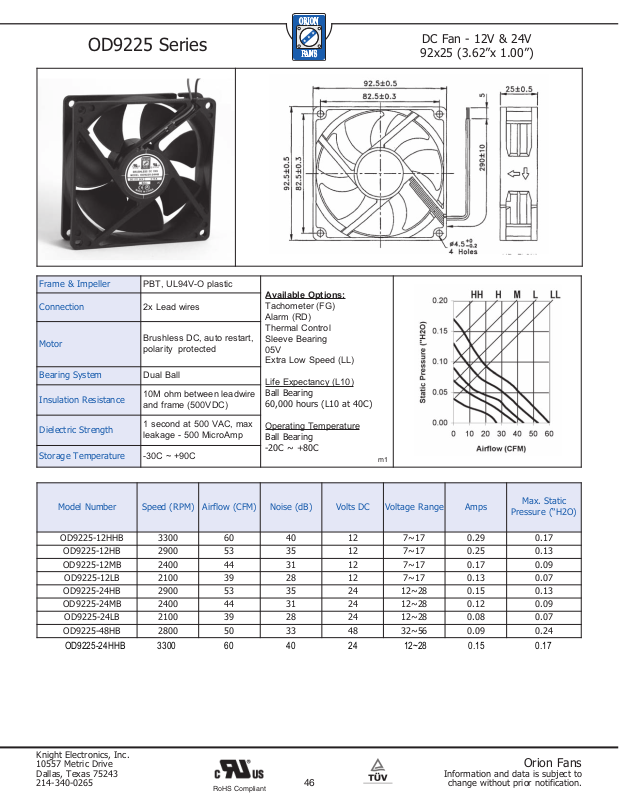

Orion OD9225 Series Data Sheet

OD9225 Series

OD9225-24HHB 3300 60 40 24 12~28 0.15 0.17

DC Fan - 12V & 24V

92x25 (3.62”x 1.00”)

Frame & Impeller

Connection

Motor

Bearing System

Insulation Resistance

Dielectric Strength

Storage Temperature

Model Number Speed (RPM) Airflow (CFM) Noise (dB) Volts DC Voltage Range Amps

OD9225-12HHB 3300 60 40 12 7~17 0.29 0.17

OD9225-12HB 2900 53 35 12 7~17 0.25 0.13
OD9225-12MB 2400 44 31 12 7~17 0.17 0.09

OD9225-12LB 2100 39 28 12 7~17 0.13 0.07
OD9225-24HB 2900 53 35 24 12~28 0.15 0.13
OD9225-24MB 2400 44 31 24 12~28 0.12 0.09

OD9225-24LB 2100 39 28 24 12~28 0.08 0.07
OD9225-48HB 2800 50 33 48 32~56 0.09 0.24

PBT, UL94V-O plastic

2x Lead wires

Brushless DC, auto restart,
polarity protected

Dual Ball

10M ohm between leadwire
and frame (500VDC)

1 second at 500 VAC, max
leakage - 500 MicroAmp

-30C ~ +90C

Available Options:

Tachometer (FG)
Alarm (RD)
Thermal Control
Sleeve Bearing
05V
Extra Low Speed (LL)

Life Expectancy (L10)

Ball Bearing
60,000 hours (L10 at 40C)

Operating Temperature

Ball Bearing

-20C ~ +80C

m1

Max. Static

Pressure (“H2O)

Knight Electronics, Inc.
10557 Metric Drive
Dallas, Texas 75243
214-340-0265

RoHS Compliant

46

Information and data is subject to

change without prior notification.

Orion Fans
